ALPS ALPINE UGPZ6 Bluetooth Module User Manual

Alps Electric Co., Ltd. Bluetooth Module

Contents

Manual

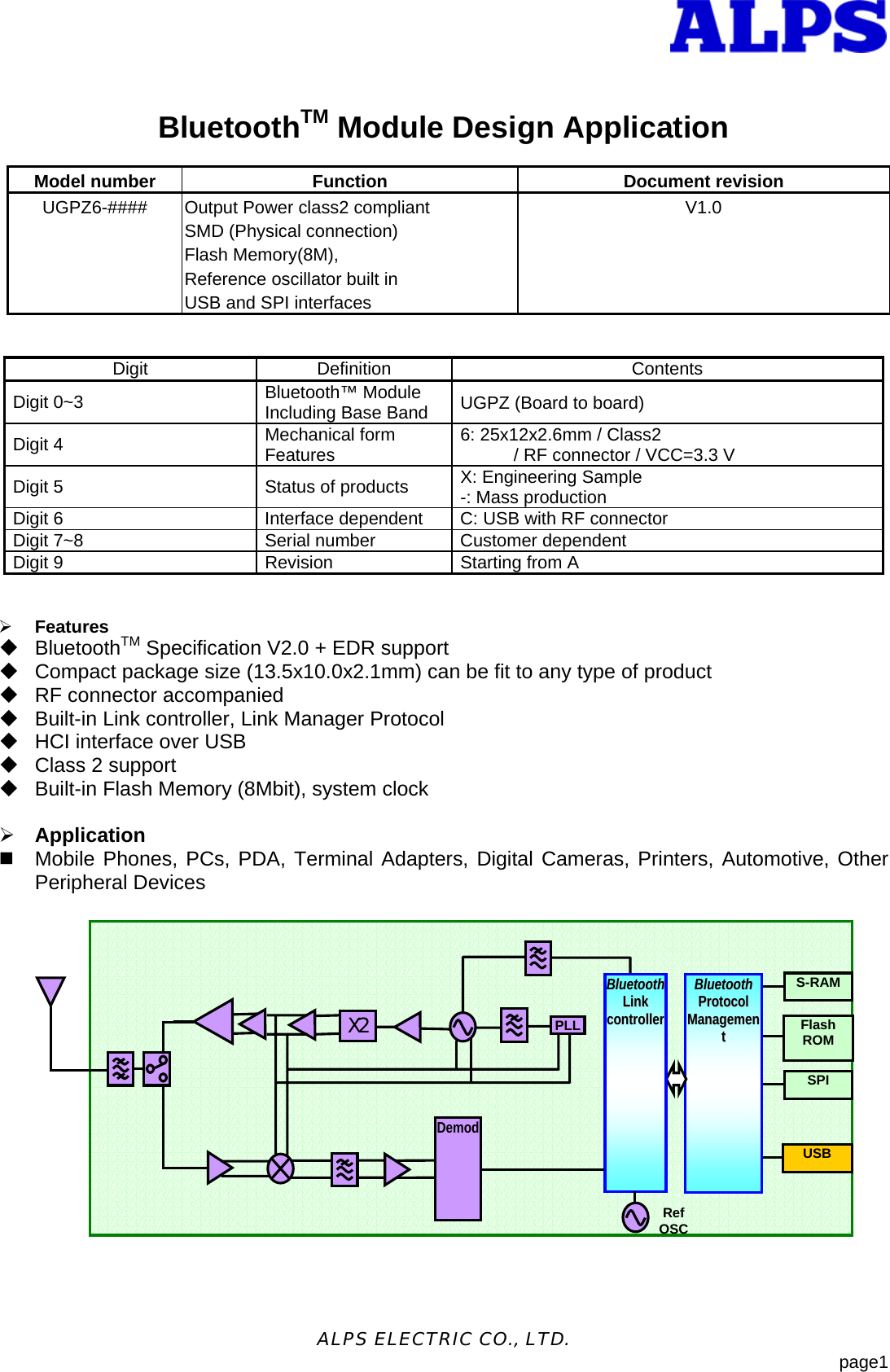

- 1 -ALPS ELECTRIC CO., LTD. page1 BluetoothTM Module Design Application Model number Function Document revision UGPZ6-#### Output Power class2 compliant SMD (Physical connection) Flash Memory(8M), Reference oscillator built in USB and SPI interfaces V1.0 Digit Definition Contents Digit 0~3 Bluetooth™ Module Including Base Band UGPZ (Board to board) Digit 4 Mechanical form Features 6: 25x12x2.6mm / Class2 / RF connector / VCC=3.3 V Digit 5 Status of products X: Engineering Sample -: Mass production Digit 6 Interface dependent C: USB with RF connector Digit 7~8 Serial number Customer dependent Digit 9 Revision Starting from A ¾ Features  BluetoothTM Specification V2.0 + EDR support  Compact package size (13.5x10.0x2.1mm) can be fit to any type of product  RF connector accompanied  Built-in Link controller, Link Manager Protocol  HCI interface over USB  Class 2 support  Built-in Flash Memory (8Mbit), system clock ¾ Application  Mobile Phones, PCs, PDA, Terminal Adapters, Digital Cameras, Printers, Automotive, Other Peripheral Devices Flash ROM BBlluueettooootthh PPrroottooccooll MMaannaaggeemmeenntt Ref OSCBBlluueettooootthh LLiinnkk ccoonnttrroolllleerr PLLX2Demod S-RAMUSBSPI

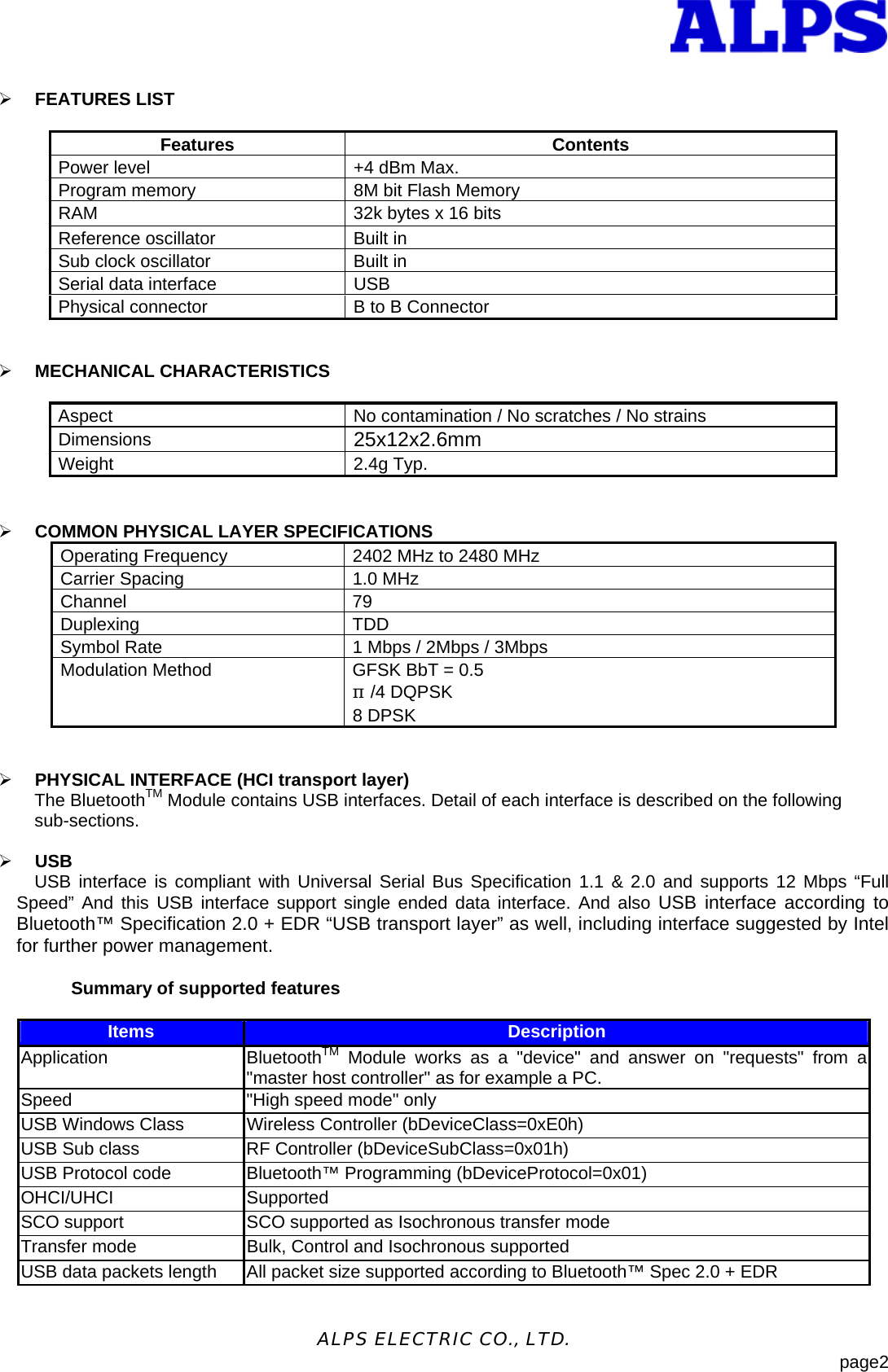

- 2 -ALPS ELECTRIC CO., LTD. page2 ¾ FEATURES LIST Features Contents Power level +4 dBm Max. Program memory 8M bit Flash Memory RAM 32k bytes x 16 bits Reference oscillator Built in Sub clock oscillator Built in Serial data interface USB Physical connector B to B Connector ¾ MECHANICAL CHARACTERISTICS Aspect No contamination / No scratches / No strains Dimensions 25x12x2.6mm Weight 2.4g Typ. ¾ COMMON PHYSICAL LAYER SPECIFICATIONS Operating Frequency 2402 MHz to 2480 MHz Carrier Spacing 1.0 MHz Channel 79 Duplexing TDD Symbol Rate 1 Mbps / 2Mbps / 3Mbps Modulation Method GFSK BbT = 0.5 π/4 DQPSK 8 DPSK ¾ PHYSICAL INTERFACE (HCI transport layer) The BluetoothTM Module contains USB interfaces. Detail of each interface is described on the following sub-sections. ¾ USB USB interface is compliant with Universal Serial Bus Specification 1.1 & 2.0 and supports 12 Mbps “Full Speed” And this USB interface support single ended data interface. And also USB interface according to Bluetooth™ Specification 2.0 + EDR “USB transport layer” as well, including interface suggested by Intel for further power management. Summary of supported features Items Description Application BluetoothTM Module works as a "device" and answer on "requests" from a "master host controller" as for example a PC. Speed "High speed mode" only USB Windows Class Wireless Controller (bDeviceClass=0xE0h) USB Sub class RF Controller (bDeviceSubClass=0x01h) USB Protocol code Bluetooth™ Programming (bDeviceProtocol=0x01) OHCI/UHCI Supported SCO support SCO supported as Isochronous transfer mode Transfer mode Bulk, Control and Isochronous supported USB data packets length All packet size supported according to Bluetooth™ Spec 2.0 + EDR

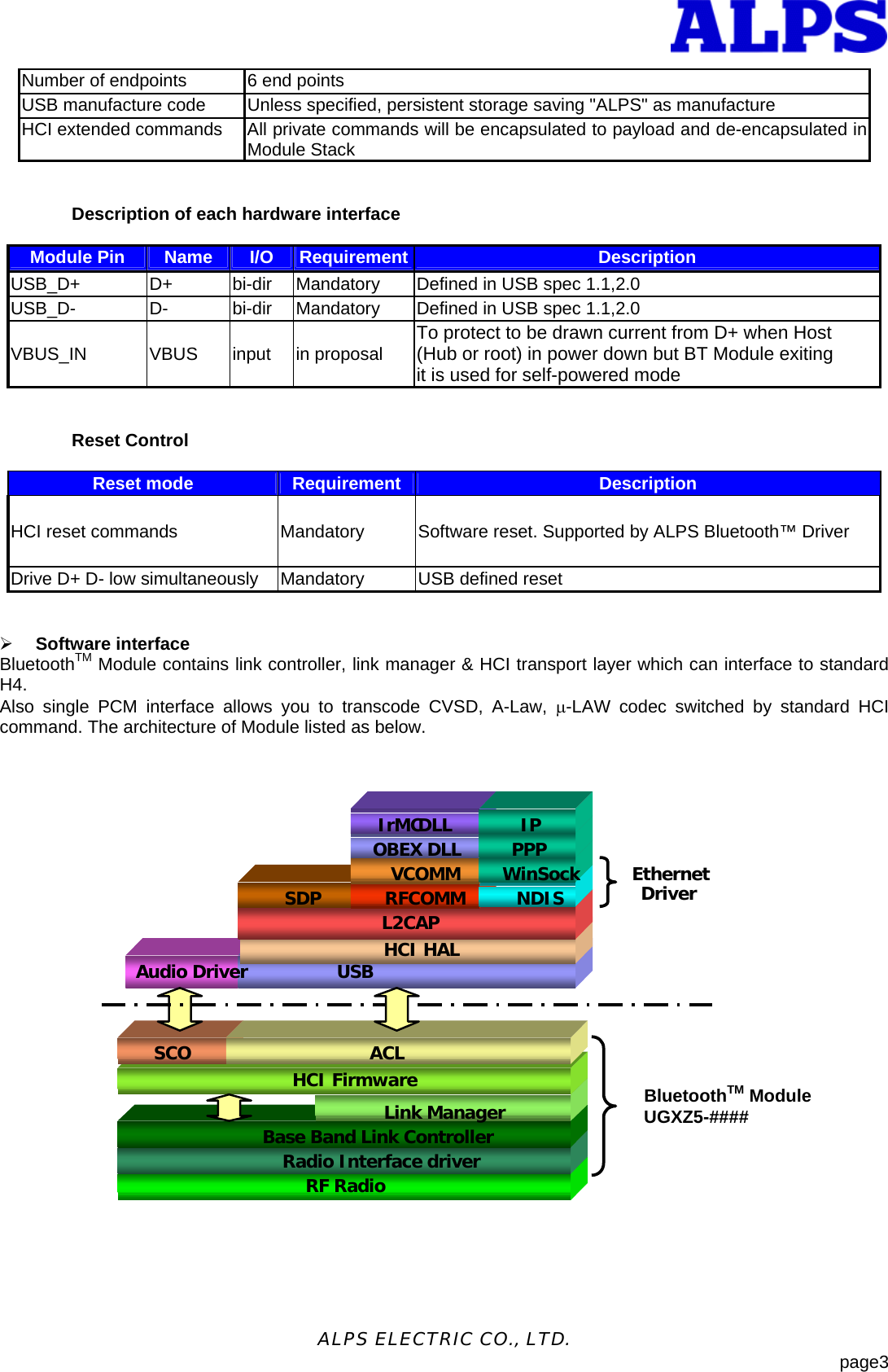

- 3 -ALPS ELECTRIC CO., LTD. page3 Number of endpoints 6 end points USB manufacture code Unless specified, persistent storage saving "ALPS" as manufacture HCI extended commands All private commands will be encapsulated to payload and de-encapsulated in Module Stack Description of each hardware interface Module Pin Name I/O Requirement Description USB_D+ D+ bi-dir Mandatory Defined in USB spec 1.1,2.0 USB_D- D- bi-dir Mandatory Defined in USB spec 1.1,2.0 VBUS_IN VBUS input in proposal To protect to be drawn current from D+ when Host (Hub or root) in power down but BT Module exiting it is used for self-powered mode Reset Control Reset mode Requirement Description HCI reset commands Mandatory Software reset. Supported by ALPS Bluetooth™ Driver Drive D+ D- low simultaneously Mandatory USB defined reset ¾ Software interface BluetoothTM Module contains link controller, link manager & HCI transport layer which can interface to standard H4. Also single PCM interface allows you to transcode CVSD, A-Law, µ-LAW codec switched by standard HCI command. The architecture of Module listed as below. RF RadioRadio Interface driverBase Band Link ControllerLink ManagerHCI FirmwareHCI HALL2CAPRFCOMMSDP SCO ACLUSBAudio Driver NDISVCOMM WinSockOBEX DLLIrMC DLL PPPIPEthernet Driver BluetoothTM Module UGXZ5-####
