ALPS ALPINE UGPZ6 Bluetooth Module User Manual

Alps Electric Co., Ltd. Bluetooth Module

Contents

Manual

- 1 -

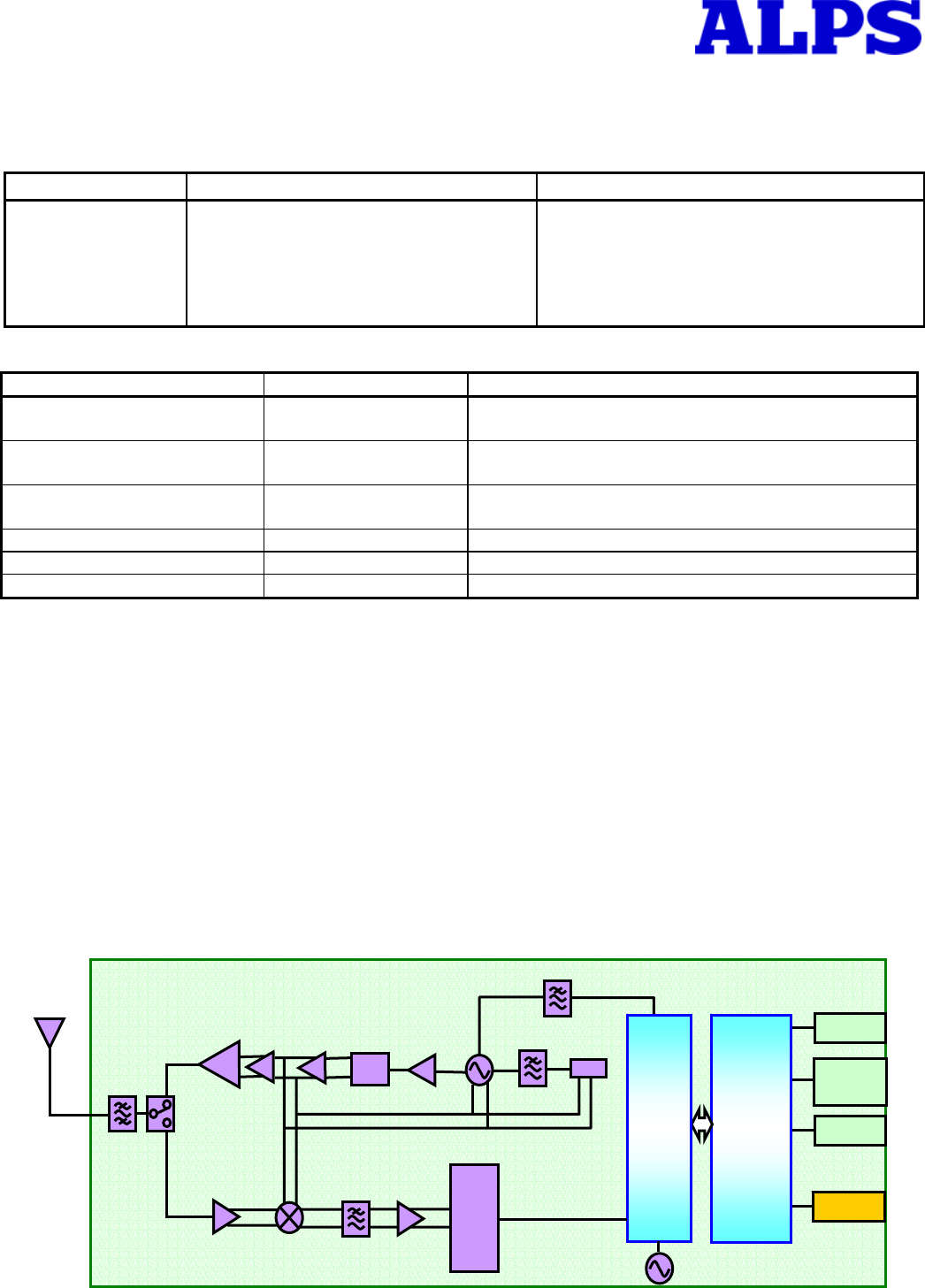

ALPS ELECTRIC CO., LTD. page1
BluetoothTM Module Design Application
Model number Function Document revision
UGPZ6-####
Output Power class2 compliant
SMD (Physical connection)
Flash Memory(8M),
Reference oscillator built in
USB and SPI interfaces
V1.0
Digit Definition Contents
Digit 0~3 Bluetooth™ Module
Including Base Band UGPZ (Board to board)
Digit 4 Mechanical form
Features 6: 25x12x2.6mm / Class2
/ RF connector / VCC=3.3 V
Digit 5 Status of products X: Engineering Sample
-: Mass production
Digit 6 Interface dependent C: USB with RF connector
Digit 7~8 Serial number Customer dependent
Digit 9 Revision Starting from A
¾ Features
BluetoothTM Specification V2.0 + EDR support
Compact package size (13.5x10.0x2.1mm) can be fit to any type of product
RF connector accompanied
Built-in Link controller, Link Manager Protocol
HCI interface over USB
Class 2 support
Built-in Flash Memory (8Mbit), system clock
¾ Application
Mobile Phones, PCs, PDA, Terminal Adapters, Digital Cameras, Printers, Automotive, Other
Peripheral Devices
Flash
ROM
B
Bl
l
u
u
e
et
t
o
oo
ot
t
h
h
P
Pr
ro
ot
to
oc
co
ol
l
M
Ma
an
na
ag
ge
em
me
en
n
t
t
Ref
OSC
B
Bl
l
u
u
e
et
t
o
oo
ot
t
h
h
L
Li
in
nk
k
c
co
on
nt
tr
ro
ol
ll
le
er
r
PLL
X2
Demod
S-RAM
USB
SPI
- 2 -
ALPS ELECTRIC CO., LTD. page2
¾ FEATURES LIST
Features Contents
Power level +4 dBm Max.
Program memory 8M bit Flash Memory
RAM 32k bytes x 16 bits
Reference oscillator Built in
Sub clock oscillator Built in
Serial data interface USB
Physical connector B to B Connector
¾ MECHANICAL CHARACTERISTICS
Aspect No contamination / No scratches / No strains
Dimensions 25x12x2.6mm
Weight 2.4g Typ.
¾ COMMON PHYSICAL LAYER SPECIFICATIONS
Operating Frequency 2402 MHz to 2480 MHz
Carrier Spacing 1.0 MHz
Channel 79
Duplexing TDD
Symbol Rate 1 Mbps / 2Mbps / 3Mbps
Modulation Method GFSK BbT = 0.5
π/4 DQPSK
8 DPSK
¾ PHYSICAL INTERFACE (HCI transport layer)
The BluetoothTM Module contains USB interfaces. Detail of each interface is described on the following
sub-sections.
¾ USB
USB interface is compliant with Universal Serial Bus Specification 1.1 & 2.0 and supports 12 Mbps “Full
Speed” And this USB interface support single ended data interface. And also USB interface according to
Bluetooth™ Specification 2.0 + EDR “USB transport layer” as well, including interface suggested by Intel
for further power management.
Summary of supported features
Items Description
Application BluetoothTM Module works as a "device" and answer on "requests" from a
"master host controller" as for example a PC.
Speed "High speed mode" only
USB Windows Class Wireless Controller (bDeviceClass=0xE0h)
USB Sub class RF Controller (bDeviceSubClass=0x01h)
USB Protocol code Bluetooth™ Programming (bDeviceProtocol=0x01)
OHCI/UHCI Supported
SCO support SCO supported as Isochronous transfer mode
Transfer mode Bulk, Control and Isochronous supported
USB data packets length All packet size supported according to Bluetooth™ Spec 2.0 + EDR
- 3 -

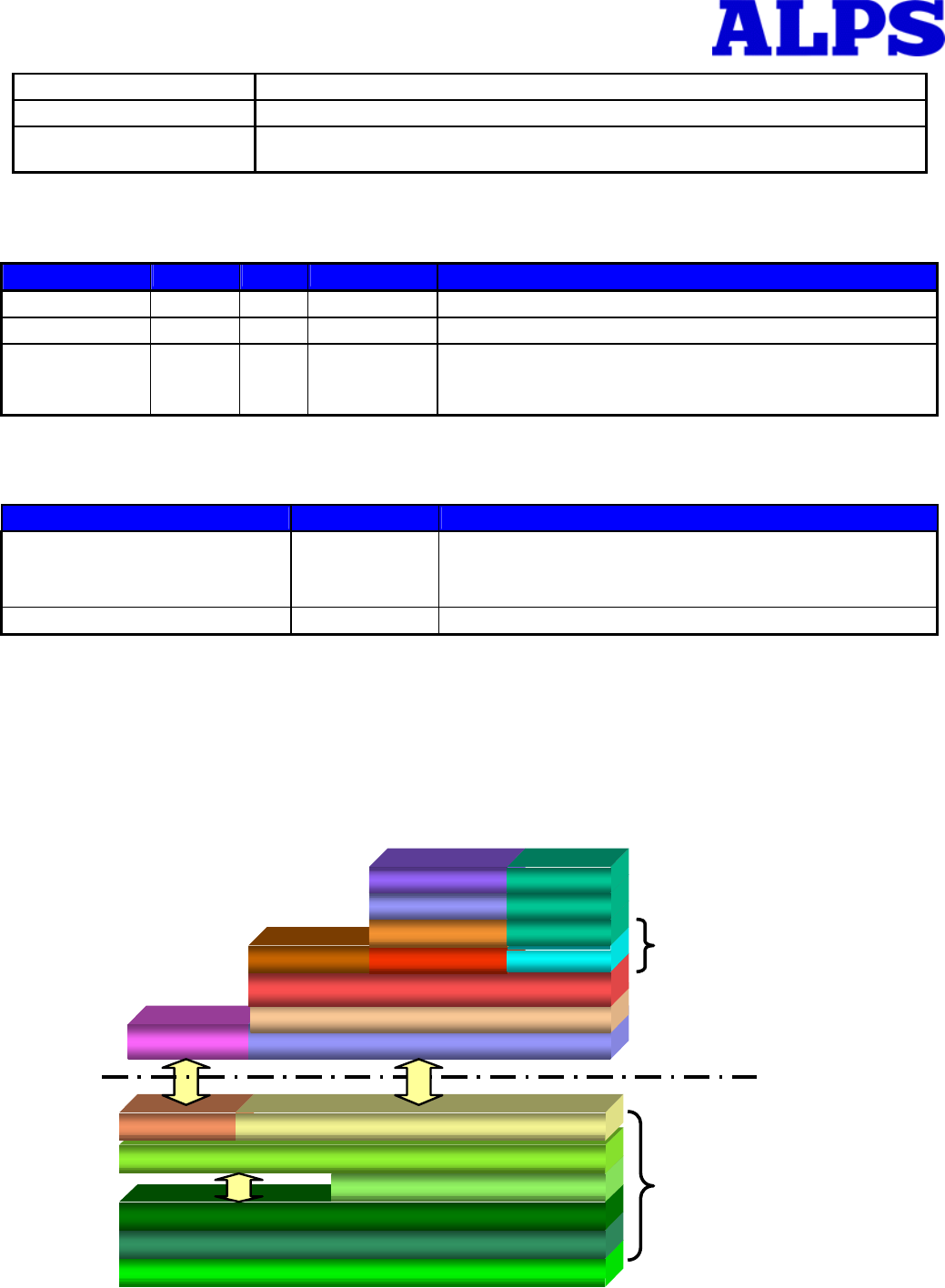

ALPS ELECTRIC CO., LTD. page3
Number of endpoints 6 end points
USB manufacture code Unless specified, persistent storage saving "ALPS" as manufacture
HCI extended commands All private commands will be encapsulated to payload and de-encapsulated in
Module Stack
Description of each hardware interface
Module Pin Name I/O Requirement Description
USB_D+ D+ bi-dir Mandatory Defined in USB spec 1.1,2.0
USB_D- D- bi-dir Mandatory Defined in USB spec 1.1,2.0
VBUS_IN VBUS input in proposal
To protect to be drawn current from D+ when Host
(Hub or root) in power down but BT Module exiting
it is used for self-powered mode
Reset Control
Reset mode Requirement Description
HCI reset commands Mandatory Software reset. Supported by ALPS Bluetooth™ Driver
Drive D+ D- low simultaneously Mandatory USB defined reset
¾ Software interface
BluetoothTM Module contains link controller, link manager & HCI transport layer which can interface to standard
H4.
Also single PCM interface allows you to transcode CVSD, A-Law, µ-LAW codec switched by standard HCI
command. The architecture of Module listed as below.
RF Radio
Radio Interface driver
Base Band Link Controller
Link Mana
er
HCI Firmware
HCI HAL
L2CAP
RFCOMMSDP
SCO ACL
USBAudio Driver
NDIS
V
COMM WinSoc
k
OBEX DLL
IrMC DLL PPP
IP
Ethernet
Driver
Bluetooth
TM
Module
UGXZ5-####
