1.Preface
This document describes the requirements and operation of the Passive Entry System. However, this
document is especially for the Entry system ECU (acronym for Electric Control Unit) and the FOB.
The FOB consists the following functionality for passive access and active access:
• Door unlocking / locking (however, only for request by means of switch operation)
• LF decoding
• RF encoding
• Communication data encryption (cryptograph, anti-collision, rolling code and stuff)
And the entry system ECU consists of the following functionality:
• Door unlocking / locking
• Engine start (/ stop)
• LF encoding
• RF encoding
• Communication data encryption (cryptograph, anti-collision, rolling code and stuff)
• LF antenna unit control
• Communication with the node ECUs connected to the body bus (e.g. CAN, J1850, customer
dependent bus)
As a further function, both the FOB and the entry system ECU provides the following function:
• Learning mode for programming the manufacturing data and stuff
• Data locking and password protection
• Diagnostic (based upon ISO9141 if required)
2.Passsive Accsess Entry Functionality

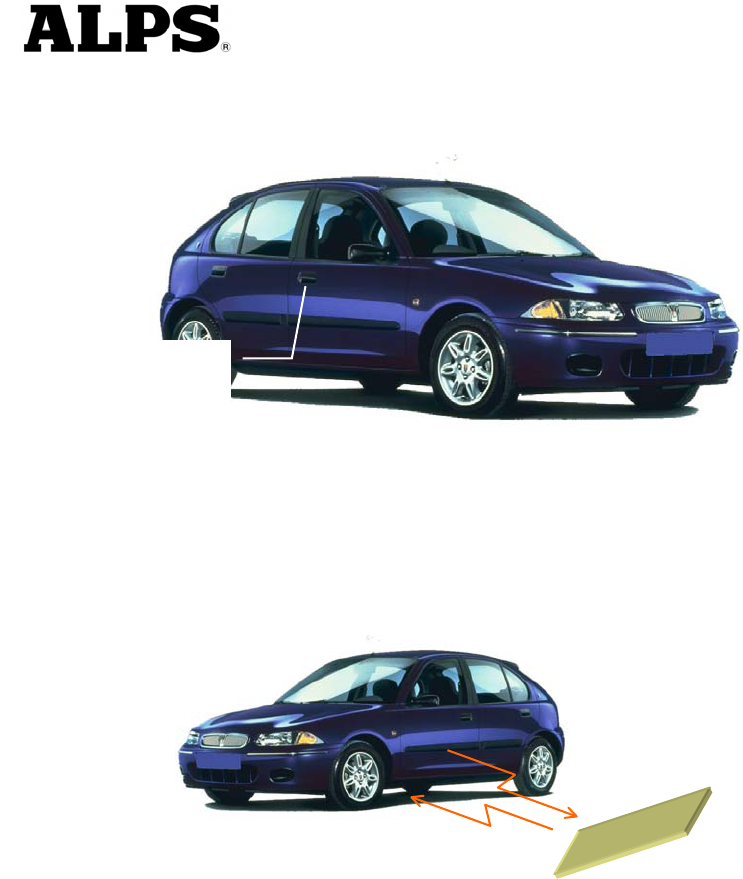

A handle sw located on, for example the door handles and mirrors will be used for proximity check if user
is in neighborhood of the vehicle. The switch input will trigger for unlocking and open the doors
Figure 1
2.1.Door Unlocking
• User pushes door handle sw.
• ECU sends LF-challenge via exterior antenna.
• FOB sends RF-response to the ECU.
• Door unlocking status is engaged.
• Doors are opened.
Figure 2
Door Handle SW
LF
RF FOB

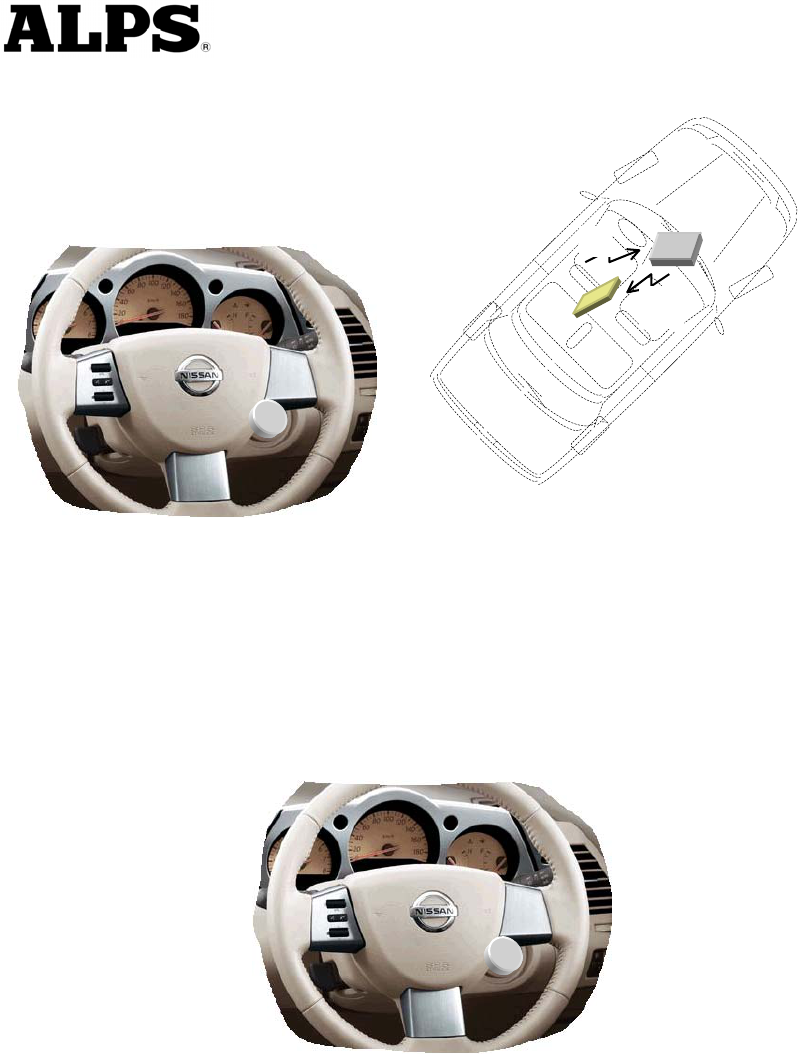

2.2.Engine Start
• User operates the engine start knob.
• ECU sends LF-challenge via interior antenna.
• FOB sends RF-response to the ECU.
• Immobilizer ECU receives and authorize the response.
• Engine controller ECU receives the authorization for engine strat.
• Start the engine.
Figure 3
2.3.Engine Stop
• User operates the engine stop knob.
• ECU communicates with the other ECU for engine start request.
• Engine controller ECU receives the request.
• Stop the engine
Figure 4
LF
RF
FOB
2.4.Door Locking (Push switch)
• User closes the door and pushes the switch (sensing of door locking switch).
• ECU sends LF-challenge via exterior antenna.
• FOB sends RF-response to the ECU.
• Door locking status is engaged.
• Doors are locked.
• (Indicates the door locking status by means of Flasher / Buzzer or stuff)
Figure 5
3.Active Access Entry Functionality
3.1.Door Unlocking
Same functionality as the current one.
3.2.Engine Start
This function does not effect on the active entry system.
3.3.Engine Stop
This function does not have influence on the active entry system.
3.4.Door Locking
Same functionality as the current one.
4.Entry System Options

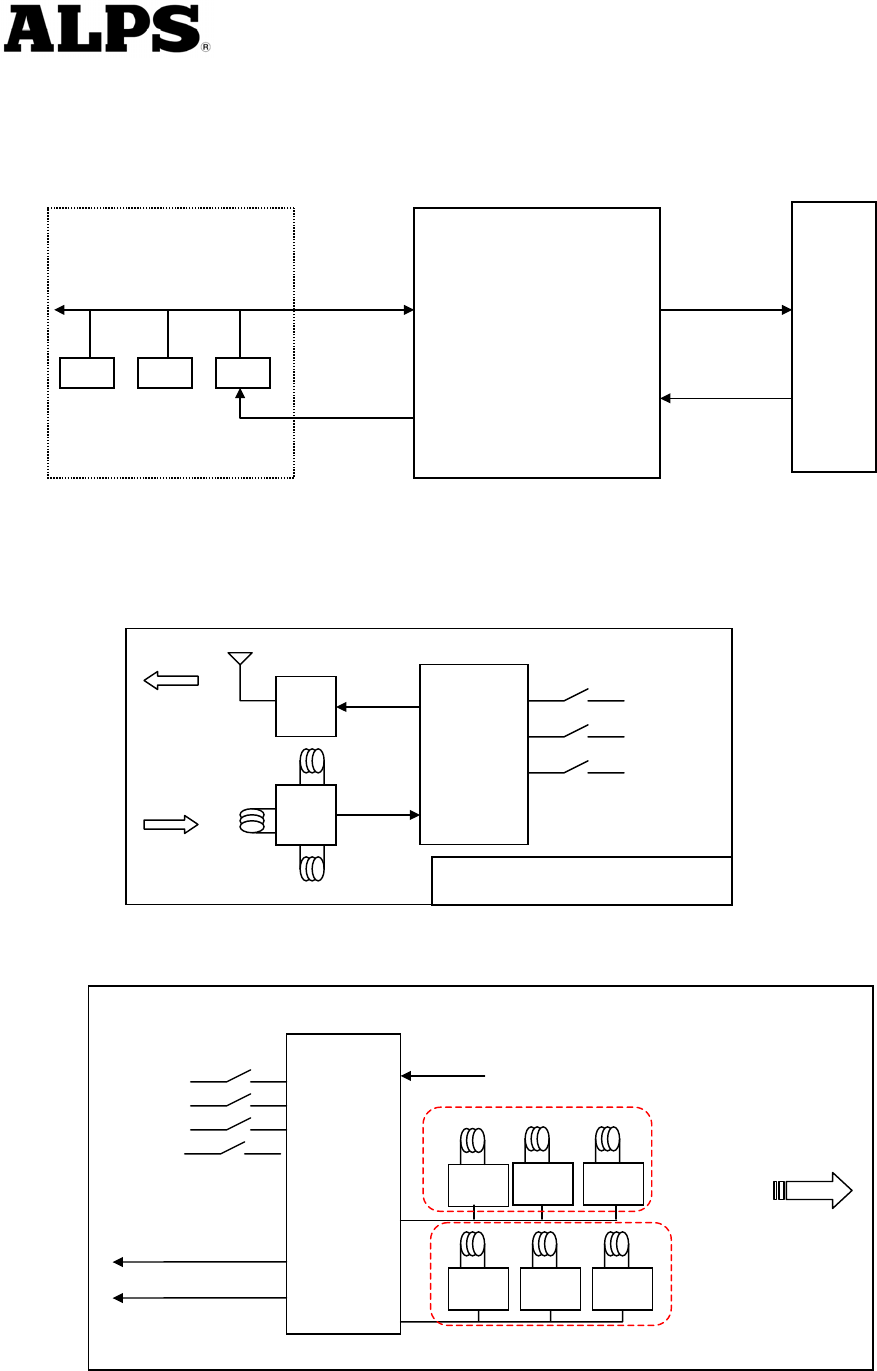

4.1.System Schematic
4.2.Modules
4.2.1.FOB ECU
4.2.2.Entry System ECU
OTHER ECUS
LF (>2Kbps)
Local Bus
ECUECUECU
Body Bus
ENTRY SYSTEM ECU FOB
125kHz
RF (>4Kbps)
315MHz
FOB
RF
Amp
LF
Amp
ASIC
Z
X
Y
Lock
Unlock
Panic
Emergency key (Transponder)
125kHz
315MHz
ENTRY SYSTEM ECU
MCU
Dr Door handle
A
s Door handle
Back Door handle
Push knob
(Engine start knob)
Body Bus
Local Bus
LF
Excite
r
LF
Excite
r
LF
Excite
r
LF
Excite
r
Room1
Dr
A
s Back
125kHz
Dr : Driver Door Antenna
A
s : Assist Door Antenna
Back : Back Door Antenna
Exterior Antenna
Room1: Console Antenna
Room2: Luggage Antenna
Room3: Inst. Antenna
Interior Antenna
LF
Excite
r
LF
Excite
r
Room2 Room3
Tuner signal
5.System Characteristics

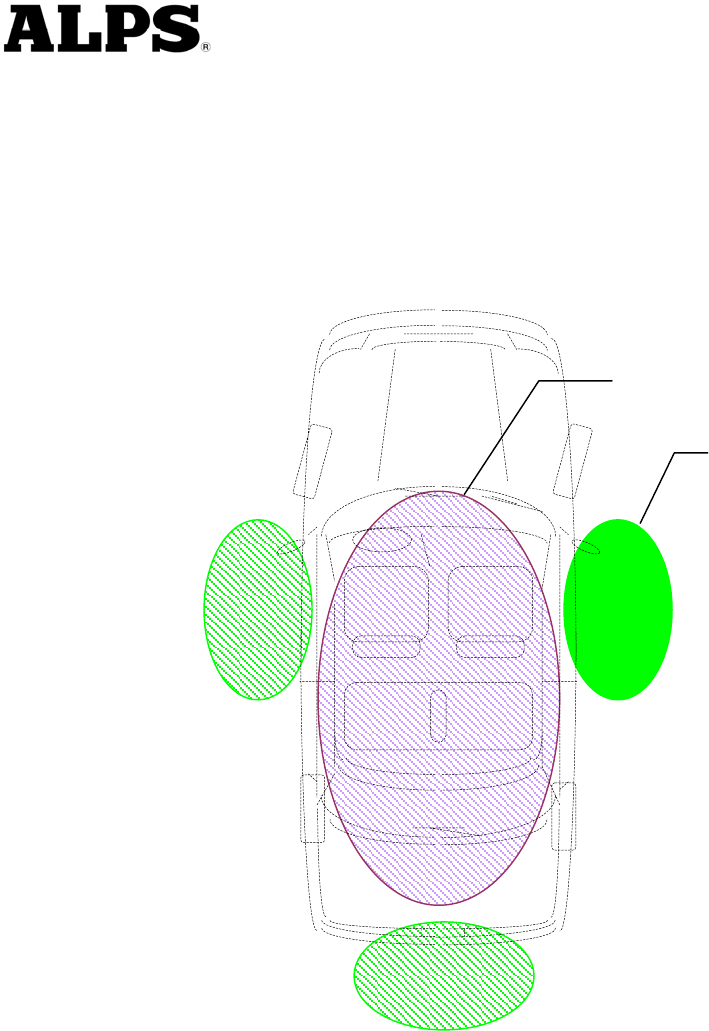

5.1.Antenna Areas
Exterior operating range: 0.8m to 1.5m
Interior operating range: Only inside the car
Number of the exterior exciters : typ.3, however, it is depending on the type of the vehicle.
Number of the interior exciters: max.4 (min.2)
Figure 6
Exterior antenna functionality:
• Unlock / lock doors.
• Activate / deactivate alarm system.
• Activate immobilizer
Interior antenna functionality:
• Deactivate immobilizer
• Engine start
Exterior
Interior
Dr As
Back
5.2.Exciter Locations
Exterior exciters: 3 doors
Interior exciters: 1 Center Console
2 Luggage
3 Inst panel
Figure 7
Antenna location can be different among of type of the vehicle (e.g. coupe, sedan, mini and stuff).
Exterior
Interior
Dr As
Back

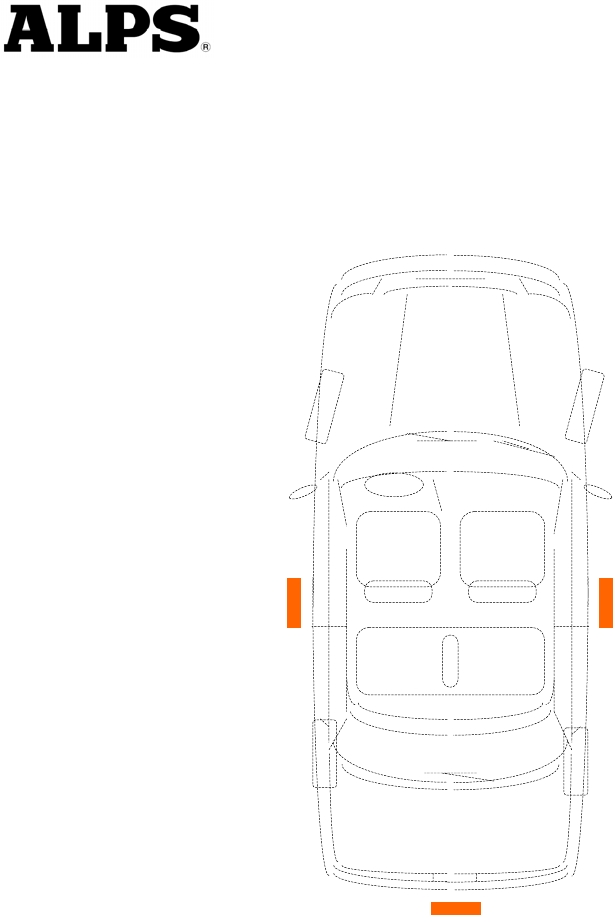

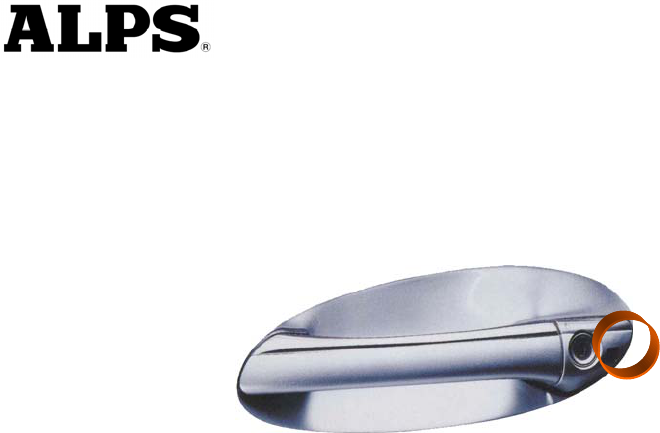

5.3.Switch Input Locations (Door handle)
There are some switches, for instance the door handle contact switch will be used as a triggering for
unlocking and open the door.
Switch inputs: 3 doors
Figure 8
Switch inputs can be different among of type of the vehicle (e.g. coupe, sedan, mini and stuff).
Dr As
Back
6.Electrical Characteristics
6.1.FOB
• ASK / FSK modulation
• Operating supply voltage 2.5V ~ 3.3V (3.0V Battery)
• Operating supply current < 35mA
• Stand-by current < 10.0uA
• Operating ambient temperature -10oC to +60oC
• Antenna direction 3-Dimension (X, Y, Z), to be considered
• Battery life 1.5 Years (Low battery indication is considered)
6.2.Entry System ECU
• Operating supply voltage 9.0V ~ 16.0V
• Operating supply current < 55mA
• Stand-by current < 4.0mA
• Operating ambient temperature -30oC to +80oC
•
