AMERICAN MEGATRENDS INDIA PRIVATE AMI-BU-01 Wireless Vitals Monitor User Manual AMI BOLT

ONE-TOUCH WIRELESS HEALTH TRACKER

BODY LIFE TRACKER

User Manual

Model: VA06

Document No : AMI-PRD-UM-B-VA06

Version : 1.0

Date : 26.08.2015

B.O.L.T User Manual Model No: VA06

2

Legal

Disclaimer

This publication/content contains proprietary information which is protected by copyright. No

part of this publication may be reproduced, transcribed, stored in a retrieval system, translated

into any language or computer language, or transmitted in any form whatsoever without the prior

written consent of the publisher. American Megatrends India Private Ltd. retains the right to

update, change or modify this publication at any time, without notice.

For Additional Information

Call American Megatrends India Private Ltd at 1800-419-9868.

Limitations of Liability

In no event shall American Megatrends India Private Ltd be held liable for any loss, expenses, or

damage of any kind whatsoever, whether direct, indirect, incidental, or consequential, arising

from the design or use of this product or the support materials provided with the product.

Limited Warranty

No warranties are made, either expressed or implied, with regard to the contents of this work, its

merchantability, or fitness for a particular use. American Megatrends India Private Ltd assumes

no responsibility for errors and omissions or for the uses made of the material contained herein

or reader decisions based on such use.

Trademark and Copyright Acknowledgments

AMERICAN MEGATRENDS INDIA PRIVATE LTD.,

KUMARAN NAGAR,

SEMMANCHERY VILLAGE,

CHENNAI (TN) 600119.

All product names used in this publication are for identification purposes only and are

trademarks of their respective companies.

B.O.L.T User Manual Model No: VA06

3

B.O.L.T VA06 User Manual

Model VA06 – NIBP Monitor (Systole Diastole Pulse Rate), Infrared Ear

Thermometer (Temperature), Pulse Oximeter (SpO2 & Pulse Rate),

Gluchobin (Blood Glucose, Blood Cholesterol & Blood Hemoglobin

Levels)

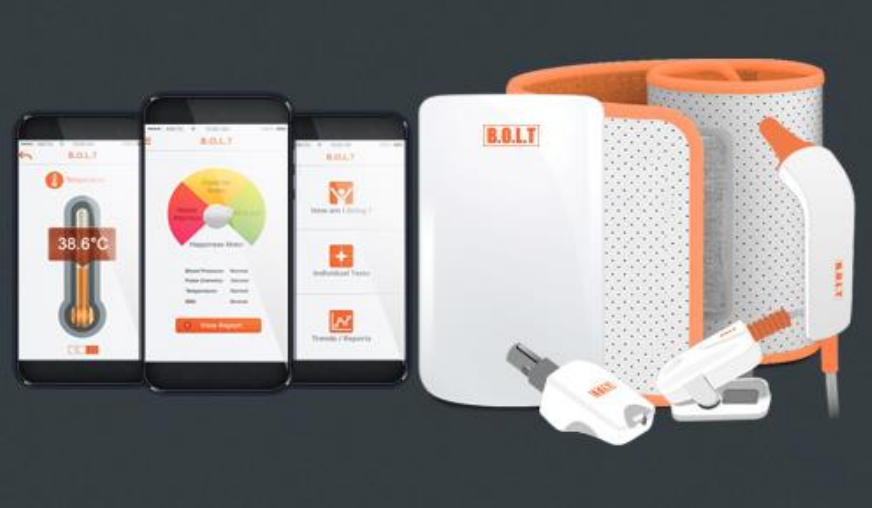

Thank you very much for purchasing B.O.L.T the One -Touch Wireless Health Tracker. Please read

this User Manual thoroughly to ensure safe and correct use of the product. Please keep this User

Manual for future reference.

B.O.L.T is a Non Invasive medical gadget with NiBP (Non-invasive Blood Pressure), SpO2 (Pulse

Oximeter) Infrared Thermometer (IRT) and Gluchobin combined into a small form factor device which

gets controlled from a mobile device. B.O.L.T is a cloud enabled solution. With B.O.L.T your health

vitals can be stored in your personal health cloud. For B.O.L.T to be in your hands, all you need is any

leading mobile device that operates with the compatible Operating System.

B.O.L.T User Manual Model No: VA06

4

Table of Contents

Safety Measures ....................................................................................... 5

Warning .............................................................................................. 5

Caution ............................................................................................... 5

Care and Maintenance ............................................................................. 5

Know Your Unit ........................................................................................ 6

Intended use ........................................................................................... 6

Prerequisites ........................................................................................... 6

Using B.O.L.T Application ........................................................................... 7

Blood Pressure Measurement Procedures ...................................................... 7

Blood Pressure measurement with B.O.L.T................................................... 8

Blood Pressure Classification for Adults ..................................................... 9

Blood Oxygen Level Measurement Procedures ................................................ 9

Blood Oxygen Level measurement with B.O.L.T............................................. 9

Temperature Measurement Procedures ......................................................... 10

Temperature Classification ...................................................................... 11

Blood Glucose Level Measurement Procedures............................................... 11

Blood Glucose Level Classification ........................................................... 14

Blood Hemoglobin Level Measurement Procedures .......................................... 14

Blood Hemoglobin Level Classification ...................................................... 17

Blood Cholesterol Level Measurement Procedures .......................................... 17

Blood Cholesterol Level Classification ....................................................... 20

Body Mass Index (BMI) ............................................................................. 20

Replacement of Battery Pack ...................................................................... 21

Explanation of Indicators/Symbols ............................................................... 22

Technical Specifications ........................................................................... 24

FCC compliance statements ....................................................................... 25

Warranty Information ................................................................................ 25

Customer Care Support ............................................................................ 26

B.O.L.T User Manual Model No: VA06

5

Safety Measures

Warning

 If you encounter any problem while taking blood pressure measurement, such as inflation

does not stop or air leakage in the cuff, remove the cuff or pull out the air tube from the base

unit.

 Do not wrap BP cuff over the arm where an intravenous injection or transfusion is being given

to the patient.

 Do not operate the gadget in places where inflammable gas, such as highly inflammable

anesthetic, may be generated or in a high-pressure oxygen room or in an oxygen tent.

 Keep the gadget away from infants, small children or anyone who are incapable of using the

gadget in the correct manner.

 Please do not use the same cuff for patients who are highly infectious as this practice may

cause cross-infection.

 Make sure the ear canal is clean for before performing temperature measurement.

 Use dust cover for Ear Thermometer during the temperature measurement.

 Place the finger inside the SpO2 probe properly during the Blood oxygen level measurement.

Caution

 Do not use the gadget while moving in a vehicle as this may result in erroneous readings.

 Do not use any other branded cuffs as this may result in reading errors.

 Do not use unauthorized parts and accessories.

 Do not store or use this gadget in locations which are maintained above the specified

temperature and humidity ranges.

 Finger nail polish or false fingernails may cause inaccurate SpO2 readings.

 SpO2 measurements may be adversely affected in the presence of high ambient light.

 Dispose the used lancet and cotton in an appropriate container.

Care and Maintenance

 Store the gadget and the components in a clean and safe location.

 Changes or modifications not approved by the manufacturer will void the user warranty.

 Keep the accessories and gadget away from rain, sweat and water.

 Do not disassemble, repair or modify the gadget and the components by yourself, hence this

could void the user's authority to operate the device.

B.O.L.T User Manual Model No: VA06

6

 Clean the rubber touching the finger inside the SpO2 probe gently by a soft cloth dampened

with 70% isopropyl alcohol before measurement.

Know Your Unit

The base unit has an elegant look and feel with two LED indicators, an accessory connector and a

power ON/OFF sliding switch as shown below. Accessories like cuff, IR Ear Thermometer with cover,

SpO2 probe, Gluchobin and USB cable with power adapter are provided along with the base unit.

Features of the Product

 Elegant design enables simple and easy use of the product.

 Multiple Platform Support and same application for multiple users.

 Secured Cloud application to share and manage trends with health data.

 Monitor and share your health trends with doctor and loved ones.

 Safe and convenient to use.

Intended use

B.O.L.T (VA06)

It is used to measure the vital signs like Blood Pressure, Body temperature, Blood oxygen

saturation level & Blood glucose, hemoglobin, cholesterol levels. The B.O.L.T device is controlled

from a mobile device.

Prerequisites

Some basic requirements must be adopted as mentioned below to ensure better operation of the

product.

 B.O.L.T is designed to be operated with applications like Android, iOS or Windows.

 The Android OS version of the using computer/mobile device should be 4.0 or higher.

 The iOS version of the using computer/mobile device should be 7 or higher.

B.O.L.T User Manual Model No: VA06

7

 The Windows OS version of the using computer/mobile device should be 8 or higher.

Using B.O.L.T Application

Downloading and Installing B.O.L.T application in your computer/mobile device

1. Download and Install B.O.L.T application from the Play store/Application store/Windows

application market.

2. On successful installation, launch the B.O.L.T application in the mobile device.

3. Create a User Name with your Email ID or use Facebook/Google+ Credentials for login.

4. On successful Login, provide permission for cloud service by enabling the Save in cloud

option and enter near and dear details under settings panel at left top corner of the home

view.

Note: You can also login as a guest user while internet unavailability

which might not store the measured vital parameters in the cloud storage

space on the measured parameters.

Blood Pressure Measurement Procedures

Mandatory instructions to be followed during blood pressure measurement

 Relax yourself in a comfortable position.

 Avoid eating, exercising and smoking for 30 minutes before taking a measurement.

 Avoid taking measurements during stressful times.

 Remove tight-fitting clothing from the right upper arm.

 Sit in a chair with your feet flat on the floor and place the right arm on a table as shown below.

 Apply the cuff to the right upper arm so that the cuff is wrapped at the same level of your

heart.

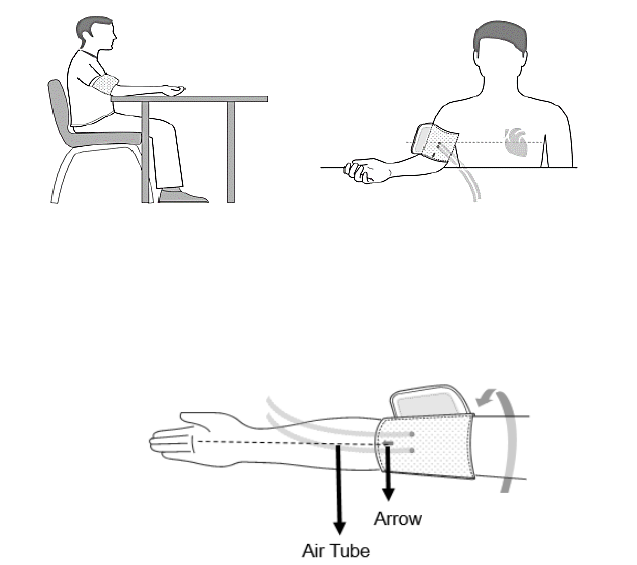

 Ensure that the arrow present in the BP cuff points towards the artery along the middle finger

of the right hand as shown below.

B.O.L.T User Manual Model No: VA06

8

 Stay calm without shaking the hand during the measurement.

Blood Pressure measurement with B.O.L.T

B.O.L.T enables connecting an air hose through which the blood pressure is monitored.

Connecting air hose with the gadget and launching B.O.L.T application

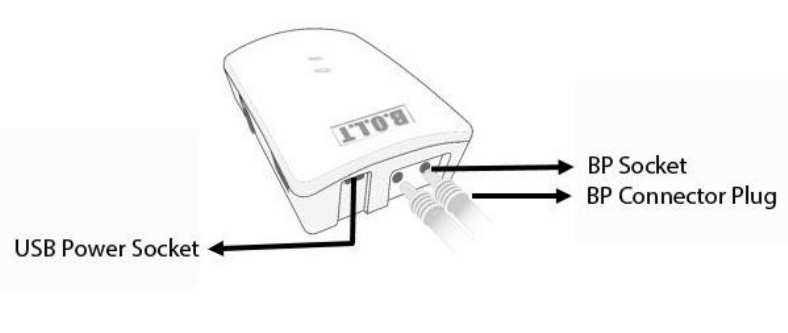

1. Insert the BP connector plug into the BP socket firmly as shown above.

2. Switch ON the gadget using the ON/OFF sliding switch.

3. Enable Bluetooth and Internet Connectivity in the computer/mobile device.

4. Launch the B.O.L.T application in the computer/mobile device.

5. Login with the User Name and Password which is used for the registration.

Measuring BP with B.O.L.T

1. On successful login of the B.O.L.T application, Select “How is my health” option to perform

Master Health checkup or select “Check Vitals” option to perform individual test.

2. Confirm the Bluetooth device to turn-on.

3. Select the B.O.L.T device from the list of available Bluetooth devices and confirm.

4. Provide default password (1234/0000) for pairing your B.O.L.T device with mobile device on

your first time usage (only for android).

5. Wrap the cuff around the upper arm of the right hand above the elbow.

6. Ensure that the arrow in the BP cuff points the artery along the middle finger of the right hand

as discussed earlier in the Blood Pressure measurement procedure section.

7. Start the Blood Pressure measurement using the application screen.

8. Ensure that the person remains stable until the application displays the results.

9. On successful measurement, the Blood Pressure and Pulse rate are displayed and a copy of

reading will be mailed to your Near & Dear mail IDs on saving the data.

10. Multiple readings can be taken with atleast 1 minute interval by selecting the auto-reading

option.

B.O.L.T User Manual Model No: VA06

9

Note: On Successful pairing of the mobile device, Bluetooth light stops

blinking in the gadget. Ensure that the save option is enabled for storing

the data in cloud.

Blood Pressure Classification for Adults

The World Health Organization (WHO) has created the following classification for assessing high

blood pressure (Hypertension). Please note that this table can give only a generic view as other

factors such as diabetes, obesity and smoking, also need to be considered for understanding the

different ranges. Consult with your physician for accurate assessment.

Blood Pressure Classification

Systole

Diastole

Low

<110

<75

Normal

110-120

75-80

Pre-Hypertension (mild)

120-139

80-89

Stage 1 Hypertension (high)

140-159

90-99

Stage 2 Hypertension (severe)

>159

>99

Blood Oxygen Level Measurement Procedures

Mandatory instructions to be followed during blood oxygen level measurement

 Relax yourself in a comfortable position.

 Remain stable during the measurement.

 Place the finger properly inside the SpO2 probe.

 Clean the surface of the fingertip before the measurement.

Blood Oxygen Level measurement with B.O.L.T

B.O.L.T enables connecting a SpO2 probe through which the blood oxygen level is measured.

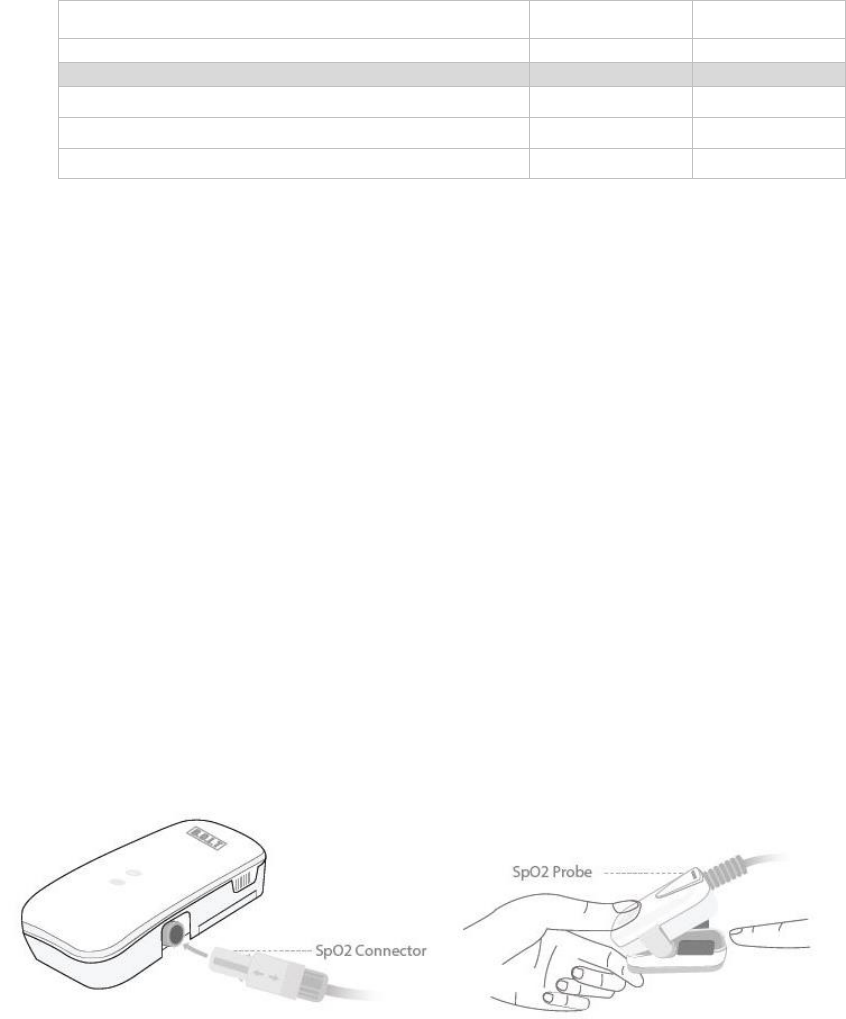

Connecting SpO2 probe with the gadget

Insert the SpO2 connector into the socket firmly as shown below.

B.O.L.T User Manual Model No: VA06

10

Measuring Blood Oxygen Level with B.O.L.T

1. Select “Check Vitals” option to perform individual test.

2. Clip the SpO2 probe in the index finger of the person to be measured in right/left hand.

3. Select the Blood Oxygen option from the application screen.

4. On successful measurement, the SpO2 value and Pulse rate are displayed and a copy of

reading will be mailed to your Near & Dear mail IDs on saving the data.

Blood Oxygen Level Classification

Please note that this table can give only a generic view. Consult with your physician for accurate

assessment.

SpO2 Classification

Range

Hypoxemia (low)

< 95 %

Normal

95-100 %

Temperature Measurement Procedures

Mandatory instructions to be followed during temperature measurement

 Relax yourself in a comfortable position.

 Use new dust cover for each measurement.

 Place the Ear Thermometer firmly into the ear canal for accurate measurement.

 Remain stable during the measurement.

 Wait until the application displays the measured temperature.

Body Temperature measurement with B.O.L.T

B.O.L.T enables connecting an IR Ear Thermometer through which the temperature is measured.

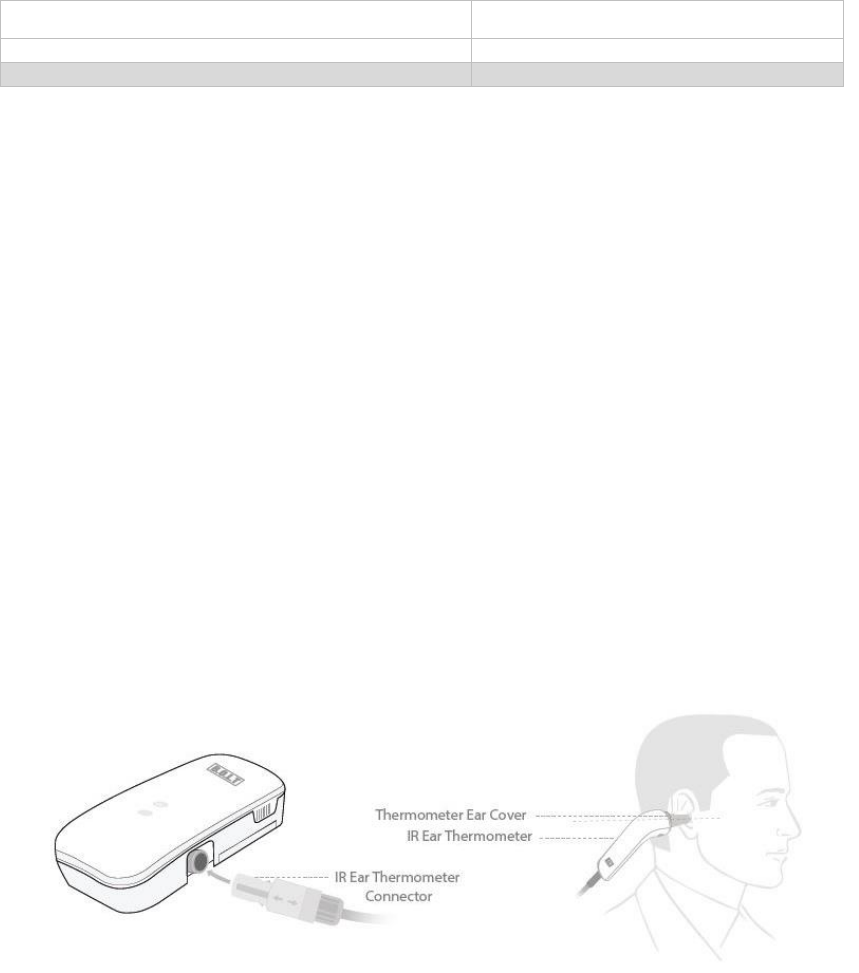

Connecting IR Ear Thermometer with the gadget

Insert the IR Ear Thermometer connecter into the socket firmly as shown below.

B.O.L.T User Manual Model No: VA06

11

Measuring Body Temperature with B.O.L.T

1. Select “Check Vitals” option to perform individual test.

2. Use dust cover over the tip of the Ear Thermometer.

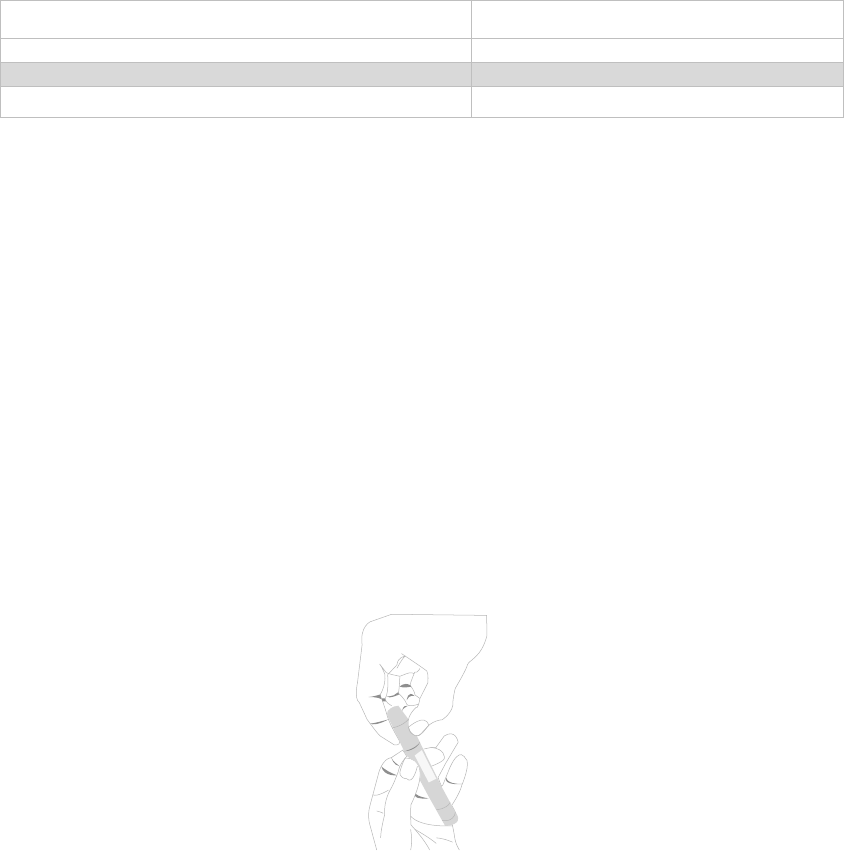

3. Place the Ear Thermometer inside the ear horizontally as such the pointer maintains

horizontal position as displayed above.

4. Select the Body temperature option from the application screen.

5. On successful measurement, the temperature value is displayed and a copy of the

reading will be mailed to your Near & Dear mail IDs on saving the data.

Temperature Classification

Please note that this table can give only a generic view. Consult with your physician for

accurate assessment.

Temperature Classification

Range

Hypothermia

<36.3 °C (< 97.5 °F)

Normal

36.4 – 37.5 °C (97.6- 99.5 °F)

Hyperthermia

>37.5.°C (>99.5 °F)

Blood Glucose Level Measurement Procedures

Mandatory instructions to be followed during temperature measurement

 Relax yourself in a comfortable position.

Blood Glucose level measurement with B.O.L.T

B.O.L.T enables connecting a Gluchobin through which the glucose test strip are inserted for

measurement.

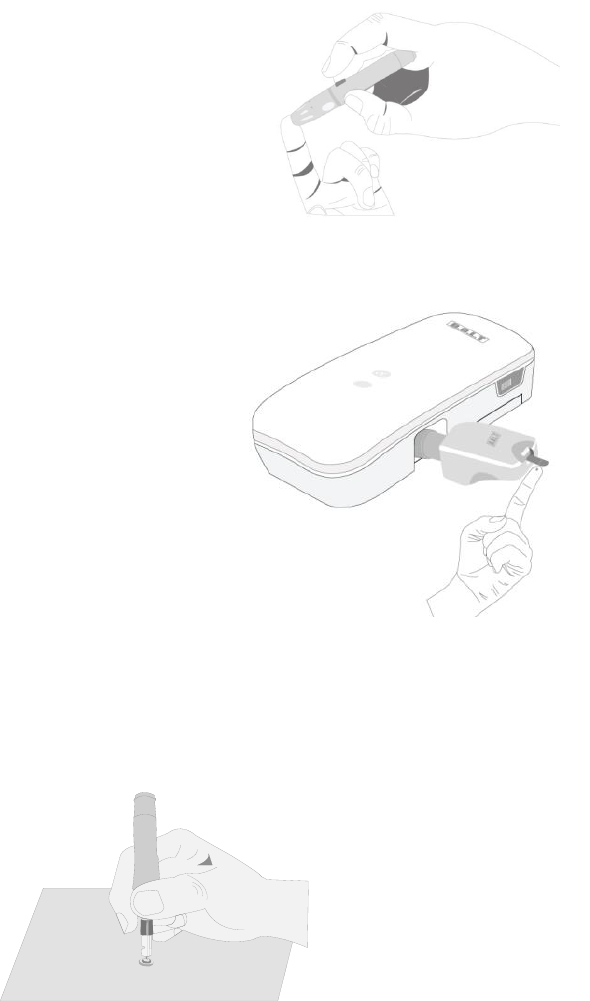

Using Lancet pen and Lancet

1. Unscrew and remove the lancet pen `s adjustable tip as shown below.

B.O.L.T User Manual Model No: VA06

12

2. Insert a lancet into the carrier as shown below.

3. Twist off the protective cover.

4. Replace the adjustable tip tightly. Choose a desired skin penetration depth by rotating the top

portion of the adjustable tip until the setting number lines up to the arrow.

5. Settings are based on skin type:

Depth 1-2 for soft or thin skin

Depth 3 for average skin

Depth 4-5 for thick or calloused skin

6. Hold the tip of the lancet pen with one hand and pull the sliding barrel with the other hand.

When a click is felt, the trigger rises up. Release the sliding barrel, it will move back to its

original position.

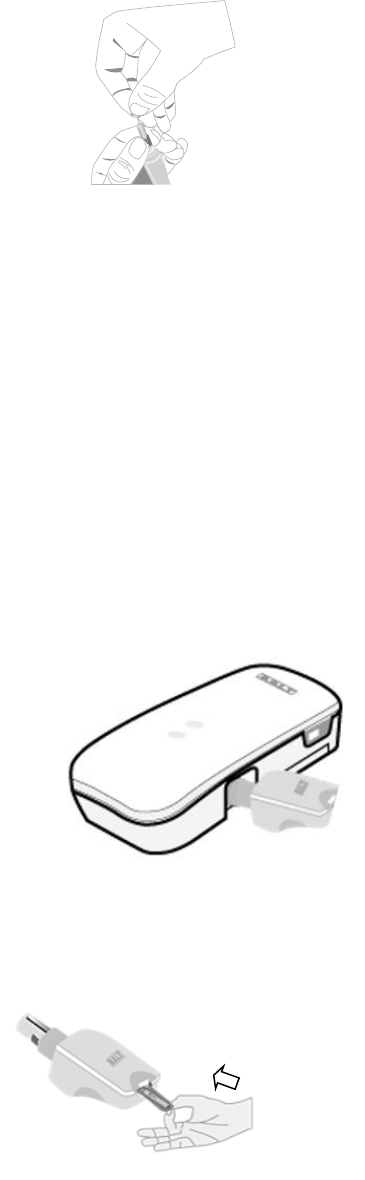

Connecting Gluchobin with the gadget

7. Insert the Gluchobin connecter into the socket firmly as shown below.

Gluchobin connected to B.O.L.T Device

8. Select the “Blood Glucose” option from the application screen of the mobile device.

9. Insert the blood glucose test strip into the test strip slot of the Gluchobin as shown below.

B.O.L.T User Manual Model No: VA06

13

10. Click “Start” in the application screen of the mobile device.

11. Clean your finger with alcohol swap and let it dry completely.

12. Place the lancet pen on side of your fingertip.

13. Press the trigger on the lancet pen as shown above.

14. Get a drop of blood and place the blood drop on the test strip target area.

15. On successful test completion, the test result will be displayed in 6 or 7 second on the

application screen.

16. Wipe any excess blood on the finger with the cotton and dispose it properly.

17. Choose the options “before meal” or “just after meal” or “3 hours after meal” as per the status

of the user in the application screen.

18. Pull the test strip out of the Gluchobin.

19. Unscrew the adjustable tip of the lancet pen.

20. Place the protective cover of the lancet back on the lancet as shown below.

21. Discard the used lancet in an appropriate container.

22. Screw the adjustable tip back on the lancet pen.

Note: Ensure that the test strip gets enough blood. Else try to use a new

test strip to do the test again.

B.O.L.T User Manual Model No: VA06

14

To avoid accidental injury, always remove the used lancet immediately after

each test.

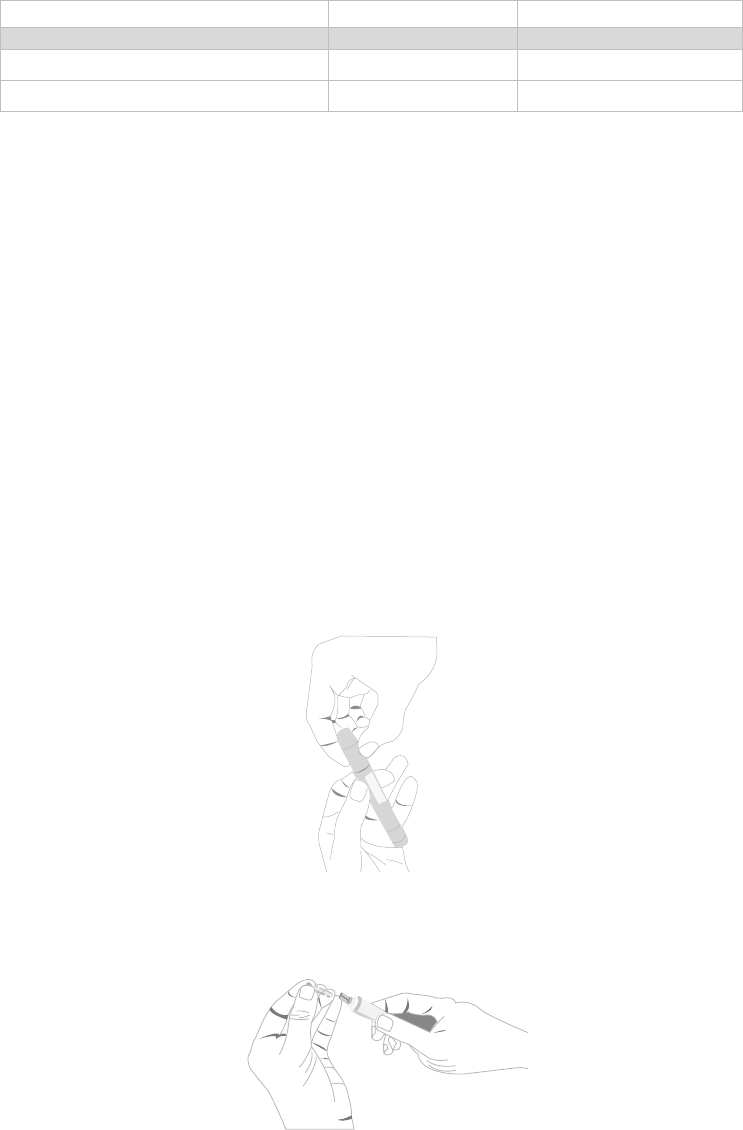

Blood Glucose Level Classification

Blood Glucose Classification

Before Meal

3 Hours after meal

Normal

70-100

70-140

Pre-Diabetic

101-125

141-200

Diabetic

126 & above

200 & above

Blood Hemoglobin Level Measurement Procedures

Mandatory instructions to be followed during temperature measurement

 Relax yourself in a comfortable position.

Blood Hemoglobin level measurement with B.O.L.T

B.O.L.T enables connecting a Gluchobin through which the hemoglobin test strip are inserted for

measurement.

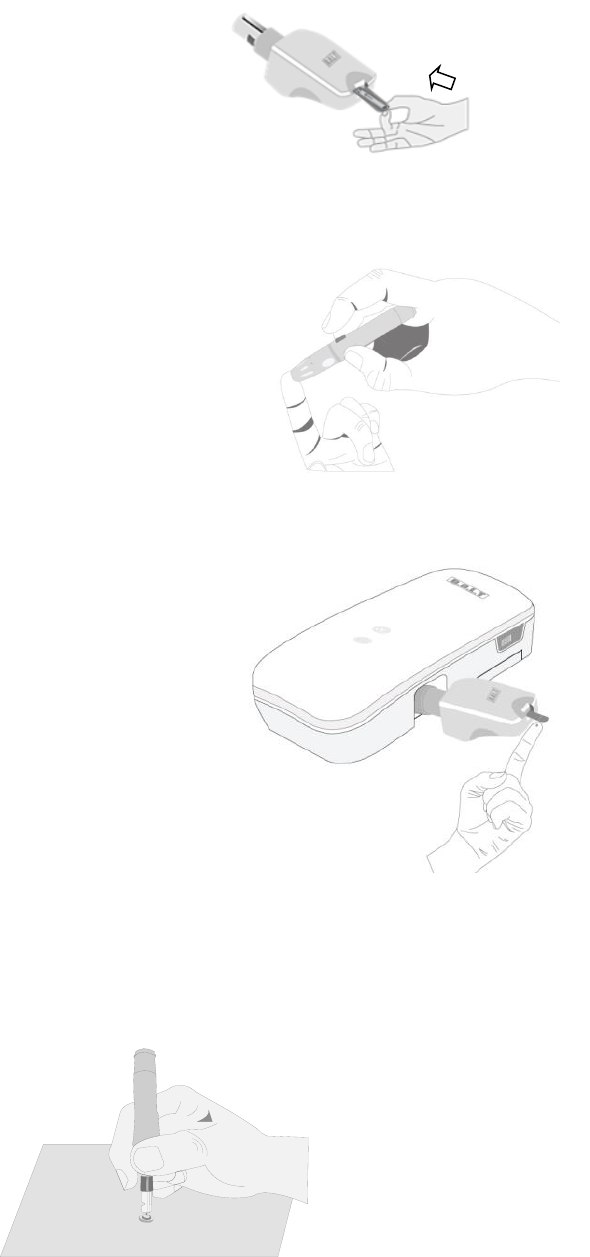

Using Lancet pen and Lancet

1. Unscrew and remove the lancet pen `s adjustable tip as shown below.

2. Insert a lancet into the carrier as shown below.

3. Twist off the protective cover.

B.O.L.T User Manual Model No: VA06

15

4. Replace the adjustable tip tightly. Choose a desired skin penetration depth by rotating the top

portion of the adjustable tip until the setting number lines up to the arrow.

5. Settings are based on skin type:

Depth 1-2 for soft or thin skin

Depth 3 for average skin

Depth 4-5 for thick or calloused skin

6. Hold the tip of the lancet pen with one hand and pull the sliding barrel with the other hand.

When a click is felt, the trigger rises up. Release the sliding barrel, it will move back to its

original position.

Connecting Gluchobin with the gadget

7. Insert the Gluchobin connecter into the socket firmly as shown below.

Gluchobin connected to B.O.L.T Device

8. Select the “Blood Hemoglobin” option from the application screen of the mobile device.

9. Insert the hemoglobin test strip into the test strip slot of the Gluchobin as shown below.

10. Click “Start” in the application screen of the mobile device.

11. Clean your finger with alcohol swap and let it dry completely.

12. Place the lancet pen on side of your fingertip.

B.O.L.T User Manual Model No: VA06

16

13. Press the trigger on the lancet pen as shown above.

14. Get a drop of blood and place the blood drop on the test strip target area.

15. On successful test completion, the test result will be displayed in few seconds on the

application screen.

16. Wipe any excess blood on the finger with the cotton and dispose it properly.

17. Pull the test strip out of the Gluchobin.

18. Unscrew the adjustable tip of the lancet pen.

19. Place the protective cover of the lancet back on the lancet as shown below.

20. Discard the used lancet in an appropriate container.

21. Screw the adjustable tip back on the lancet pen.

Note: Ensure that the test strip gets enough blood. Else try to use a new

test strip to do the test again.

To avoid accidental injury, always remove the used lancet immediately after

each test.

B.O.L.T User Manual Model No: VA06

17

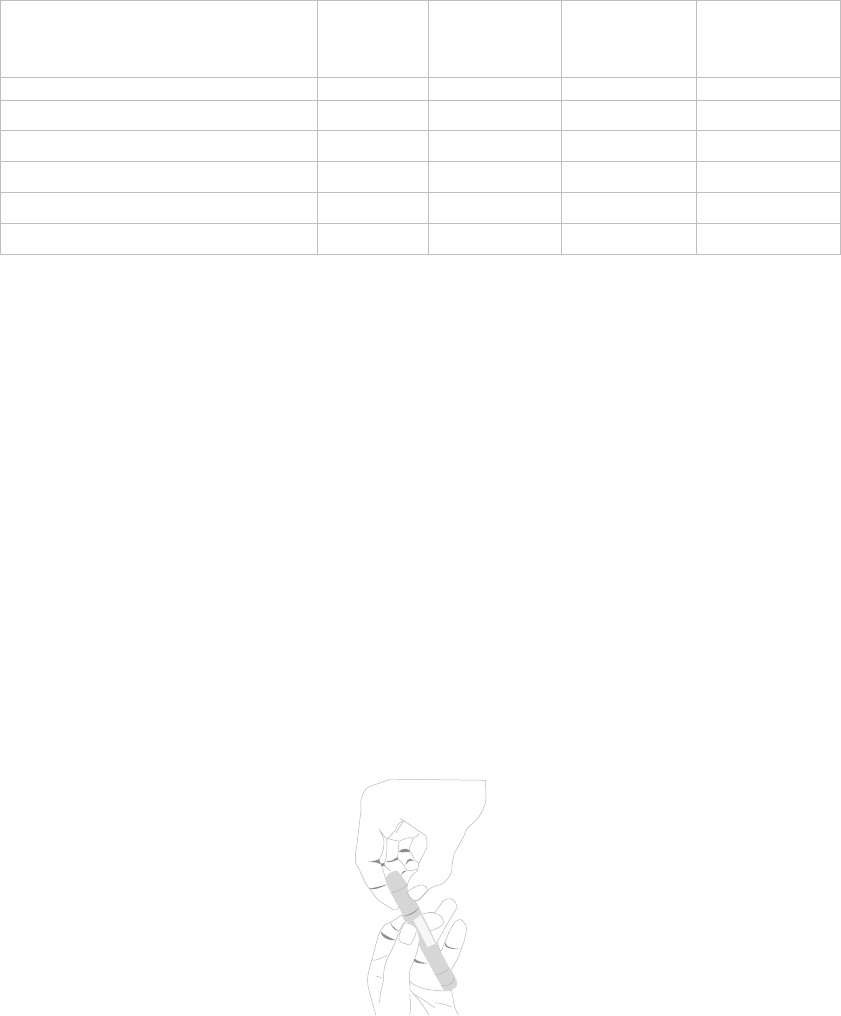

Blood Hemoglobin Level Classification

Population

Non –

Anemic

g/dl

Mild

g/dl

Moderate

g/dl

Severe

g/dl

Children 6 - 59 months of age

>11.0

10.0 – 10.9

7.0 – 9.9

< 7.0

Children 5 - 11 years of age

>11.5

11.0 – 11.4

8.0 – 10.9

< 8.0

Children 12 - 14 years of age

>12.0

11.0 – 11.9

8.0 – 10.9

< 8.0

Non-pregnant women

>12.0

11.0 – 11.9

8.0 – 10.9

< 8.0

Pregnant women

>11.0

10.0 – 10.9

7.0 – 9.9

< 7.0

Men (15 years of age and above)

>13.0

11.0 – 12.9

8.0 – 10.9

< 8.0

Blood Cholesterol Level Measurement Procedures

Mandatory instructions to be followed during temperature measurement

 Relax yourself in a comfortable position.

Blood Hemoglobin level measurement with B.O.L.T

B.O.L.T enables connecting a Gluchobin through which the cholesterol test strip are inserted for

measurement.

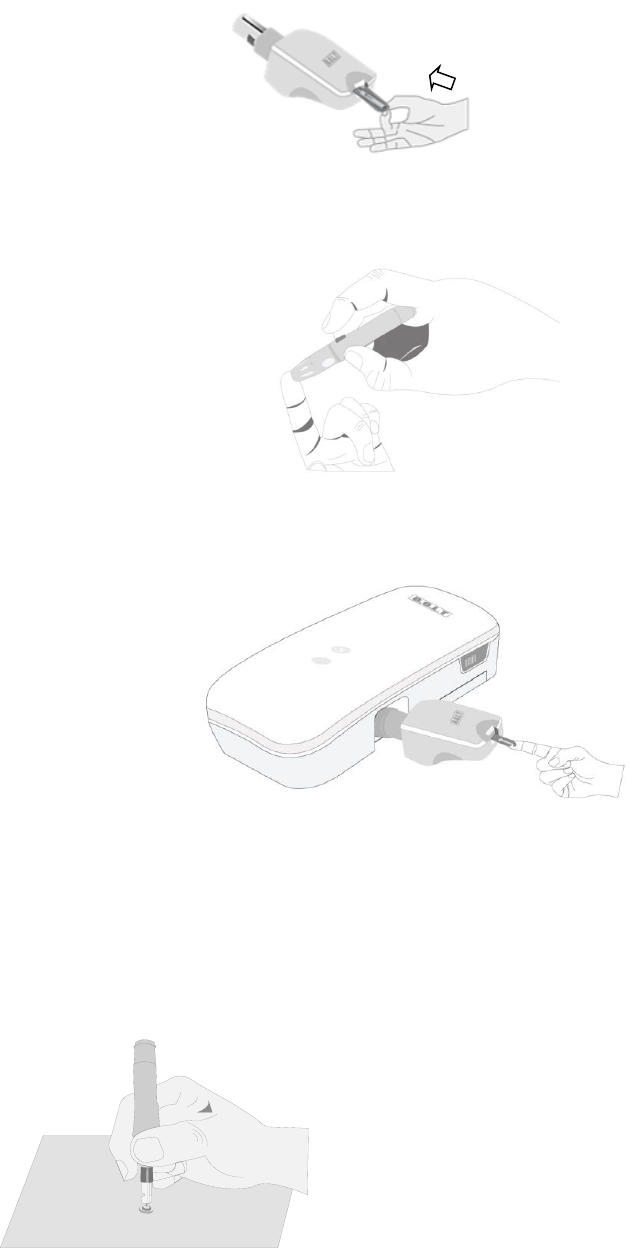

Using Lancet pen and Lancet

1. Unscrew and remove the lancet pen `s adjustable tip as shown below.

2. Insert a lancet into the carrier as shown below.

B.O.L.T User Manual Model No: VA06

18

3. Twist off the protective cover.

4. Replace the adjustable tip tightly. Choose a desired skin penetration depth by rotating the top

portion of the adjustable tip until the setting number lines up to the arrow.

5. Settings are based on skin type:

Depth 1-2 for soft or thin skin

Depth 3 for average skin

Depth 4-5 for thick or calloused skin

6. Hold the tip of the lancet pen with one hand and pull the sliding barrel with the other hand.

When a click is felt, the trigger rises up. Release the sliding barrel, it will move back to its

original position.

Connecting Gluchobin with the gadget

7. Insert the Gluchobin connecter into the socket firmly as shown below.

Gluchobin connected to B.O.L.T Device

8. Select the “Cholesterol” option from the application screen of the mobile device.

9. Insert the cholesterol test strip into the test strip slot of the Gluchobin as shown below.

B.O.L.T User Manual Model No: VA06

19

10. Click “Start” in the application screen of the mobile device.

11. Clean your finger with alcohol swap and let it dry completely.

12. Place the lancet pen on side of your fingertip.

13. Press the trigger on the lancet pen as shown above.

14. Get a drop of blood and place the blood drop on the test strip target area.

15. On successful test completion, the test result will be displayed in few second on the

application screen.

16. Wipe any excess blood on the finger with the cotton and dispose it properly.

17. Pull the test strip out of the Gluchobin.

18. Unscrew the adjustable tip of the lancet pen.

19. Place the protective cover of the lancet back on the lancet as shown below.

20. Discard the used lancet in an appropriate container.

21. Screw the adjustable tip back on the lancet pen.

B.O.L.T User Manual Model No: VA06

20

Note: Ensure that the test strip gets enough blood. Else try to use a new

test strip to do the test again.

To avoid accidental injury, always remove the used lancet immediately after

each test.

Blood Cholesterol Level Classification

Blood Cholesterol Classification

Normal

< 200 mg/dl

Boundary line high

200-239 mg/dl

High

>240 mg/dl

Body Mass Index (BMI)

The Body Mass Index (BMI) is a measure of relative weight based on an individual's mass and

height. BMI provides a simple numeric measure of a person's thickness or thinness, allowing health

professionals to discuss overweight and underweight problems more objectively with their patients.

BMI Classification

Please note that this table can give only a generic view. Consult with your physician for accurate

assessment.

BMI Range

Category

<20

Under Weight

20-25

Normal Weight

25-30

Over Weight

>30

Obesity

Measuring BMI with B.O.L.T

1. Choose Body Mass Index option from the application screen.

2. Enter your height (feet/cm) and weight (lbs/kg) of the person to be measured in the

application.

3. On successful measurement, the BMI value is displayed which can be compared with the

above BMI range classification table.

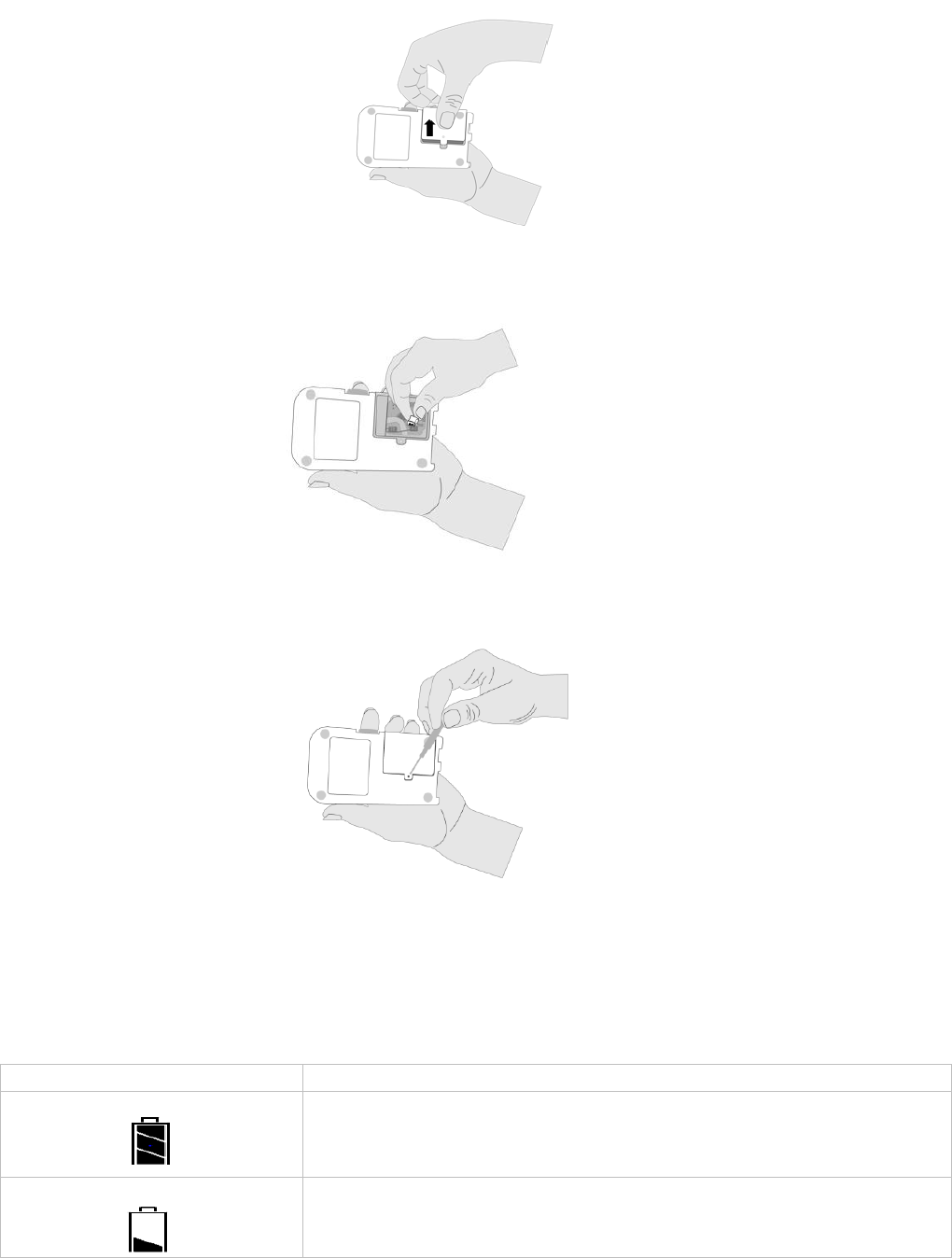

Battery Care

 Power adapter is included in the pack and the specifications are mentioned below.

AC input: 100-240V, Frequency: 50Hz to 60Hz, 0.35A Max, DC output: +5V @ 2A

B.O.L.T User Manual Model No: VA06

21

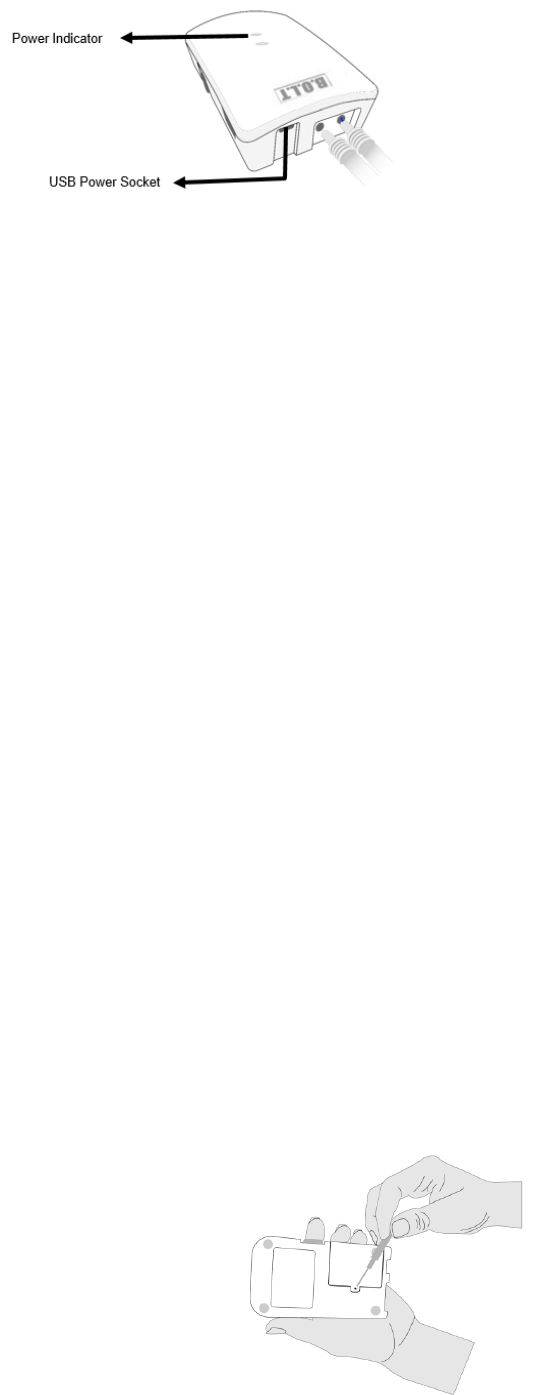

 Connect the AC power adapter to the power source and micro USB port to the base unit`s

USB Power socket.

 Charge the base unit for minimum two hours during the first time usage.

 The mobile application indicates the battery low status when the battery level goes below

25% and shows critically low status when the battery level goes below 10%.

 Charge the base unit using the power adapter and view the charge level in the mobile

application software.

 It is recommended to unplug the power adapter from power source when the charge level

reaches 100%.

 When fully charged the base unit will automatically cut off charging internally, thus the

device’s design has taken safety measures into account to face various abnormal conditions

like over-charging, over discharging etc.

 When charging is needed, please connect the base unit to the power source using the power

adapter.

 The base unit can be operated by

o Connecting to power source directly using the power adapter

or

o Using the charged inbuilt battery (adapter not required)

The device can work normally while charging.

Replacement of Battery Pack

Manufacturer highly recommended to change the battery of the base unit for every 1 year at the AMI

authorized service center. Use AMI recommended battery for replacement.

Replacement procedure

1. Switch off the base unit before removing the back cover for the battery replacement.

2. Remove the single screw on the upper portion of the battery cover as shown below.

B.O.L.T User Manual Model No: VA06

22

3. Press and remove the battery cover in the recommended direction as shown below.

4. Disconnect the battery pack from the connector and replace with new one.

5. Install the battery cover and fasten with the screw.

6. Connect the base unit with AC adapter and then charge for more than twelve hours before

use.

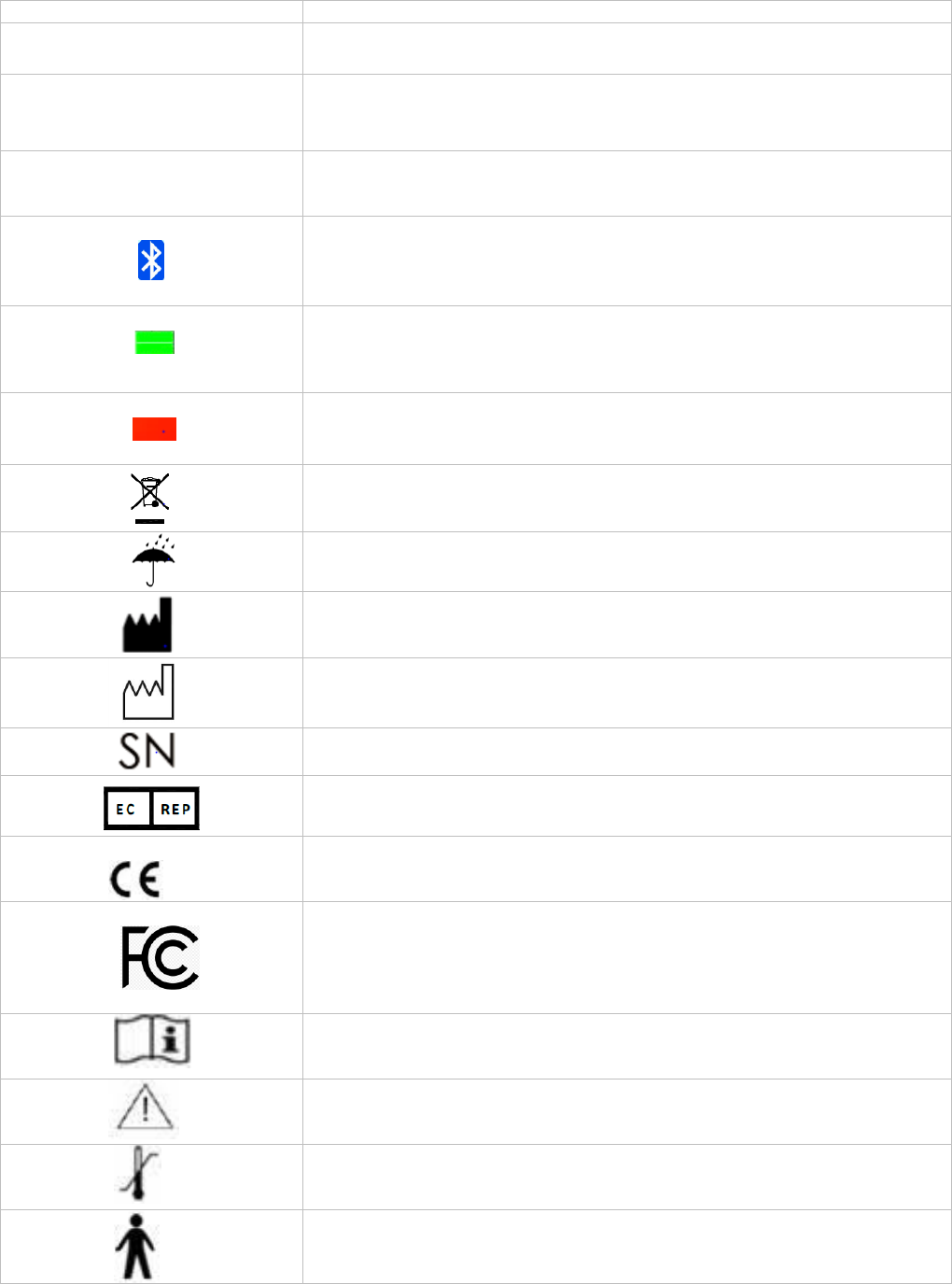

Explanation of Indicators/Symbols

Indicators/Symbols

Function/Description

The indicator displays full battery power of the gadget in the

computer/mobile device.

The indicator displays low battery power of the gadget in the

computer/mobile device.

B.O.L.T User Manual Model No: VA06

23

SYS

Systolic blood pressure in mmHg.

DIA

Diastolic blood pressure in mmHg.

PUL./min

Pulse per minute.

 Flashing of the Bluetooth light indicates that the gadget is waiting

for pairing with the mobile/tab.

 Steady Bluetooth light indicates that the gadget is paired and ready

for the measurement.

 Steady green light indicates that the gadget is operating in battery

mode.

 Blinking of green light indicates that the gadget has low battery

level.

Steady red light indicates that the gadget is in the charging mode.

Symbol for “ENVIRONMENT PROTECTION”

Symbol for “KEEP DRY”

Symbol for “MANUFACTURER”

Symbol for “MANUFACTURED DATE”

Symbol for “SERIAL NUMBER”

Symbol for “EUROPEAN REPRESENTATIVE”

Symbol for “COMPILES WITH MDD93/42/EEC REQUIREMENTS”

Symbol for “Federal Communication Commission”

Symbol for “Read the documentation”

Symbol for “Warning”

Symbol for “Temperature limitation”

Symbol for “Shock Protection”

B.O.L.T User Manual Model No: VA06

24

Technical Specifications

Product Name

B.O.L.T

Model

VA06

Base Unit

Base Unit Dimensions

130 (L) X 40.3 (H) X 75 (D) mm

Base Unit Weight

220 grams (Including Battery)

Power Source

DC 5V 2A

Bluetooth

Bluetooth 4.0 EDR or Lower, Bluetooth Low Energy (BLE)

Base Unit Operating Temperature

16°C to 35°C (60.8°F to 95.0°F)

Base Unit Storage and Transport Temperature

10°C to 55°C (14°F to 131°F)

Base Unit Storage Humidity

30%RH to 90%RH

Non-Invasive Blood Pressure

Blood pressure measurement method

Oscillometric method with automatic inflation &

measurement

Cuff Pressure range

0 to 280 mmHg

Pressure Accuracy

±4mmHg

BP Pulse range

30 to 180 BPM

Pulse Accuracy

± 5%

Cuff Limb Circumference

22 cm to 42 cm

Cuff Size

610 mm * 145 mm

Cuff Weight

205 Grams

IR Thermometer

Body Temperature measurement method

Tympanic, Infrared based

Body temperature range

34°C to 42°C (93.2°F to 107.6°F)

Body temperature Accuracy

±0.2°C (from 36°C to 39.0°C)/ ± 0.4°F(from 95.0°F to

102.6°F)

±0.3°C (from 39.1°C to 44.0°C)/ ± 0.5°F(from 102.38°F to

111.2°F)

IRT Display resolution temperature range

0.1 °F

IRT Unit Dimensions

84.8 (L) X 18 (H) X 26.6 (D) mm (Highest width along the

profile)

IRT Unit Weight

42 grams

Pulse Oximeter

SpO2 measurement method

Optical method

SPO2 range

70% to 100%, below 70%: Unspecified

SpO2 Measurement Accuracy

70% to 100% - ±2%, below 70%: Unspecified

SpO2 Pulse Rate Range

30 to 180 BPM

SpO2 Unit Dimensions

58.2 (L) X 35 (H) X 35.3 (D) mm

SpO2 Unit Weight

60 grams

Gluchobin

Gluchobin measurement method

Chronoamperometry method

Glucose range

20-600mg/dL (1.11-33.3 mmol/L)

Hemoglobin range

7 to 26 g/dL

Cholestrol range

100 - 400 mg/dL

Gluchobin Unit Dimensions

78 (L) X 27 (H) X 25(D) mm

Gluchobin Unit Weight

18 grams

NOTE: These specifications are subject to change without notice.

B.O.L.T User Manual Model No: VA06

25

FCC compliance statements

This device complies with Part 15 of the FCC Rules. Its operation is subject to the following two

conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including Interference that may cause

undesired operation

FCC Caution

 Any changes or modifications not expressly approved by the party responsible for compliance

could void the user's authority to operate this equipment.

Part 15B compliance statements for digital devices:

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy And, if not installed and used

in accordance with the instructions, may Cause harmful interference to radio communications.

However, there is no Guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television Reception, which can be

determined by turning the equipment off and on,

The user is encouraged to try or to correct the interference by one or more of

The following measures:

— Reorient or relocate the receiving antenna.

— Increase the separation between the equipment and receiver.

— Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

— Consult the dealer or an experienced radio/TV technician for help.

For more information kindly visit our website: www.amibolt.com

Warranty Information

The B.O.L.T is warranted to be free from defects in materials and workmanship within one year from

the date of purchase when used in accordance with the provided instructions. The warranty is

extended only to the end user. The company will repair free of charge any part or parts of the product,

if the defect is due to the faulty material or workmanship.

To obtain warranty service contact customer care support by calling 1800-419-9868.

B.O.L.T User Manual Model No: VA06

26

Enclose the warranty card, Proof of Purchase. Include a letter, with your name, address, phone

number, and description of the specific problem. Pack the product carefully to prevent damage in

transit.

Customer Care Support

AMI’s flexible approach allows the customers to get Technical Support and Warranty services for

B.O.L.T through our customer care support.

 Toll free number (India): 1800–419–9868

 Customer Care Support timings : 10am - 6pm Monday – Friday (Except National Holidays)

Contact us

AMERICAN MEGATRENDS INDIA PRIVATE LTD.,

KUMARAN NAGAR,

SEMMANCHERY VILLAGE,

CHENNAI (TN) 600119

Tel – (91) 44 66540922, Fax – (91) 44 66540901

Email: support@amibolt.com

Website: www.amibolt.com; www.amiindia.co.in

American Megatrends International GmbH

Truderingerstraße (Truderinger Strasse) 283

81825 München (Munich), Deutschland (Germany)

Tel: [49] 89 969995-10

Support: [49] 89 969995-11

Fax: [49] 89 969995-19

Email: europesales@ami.com

AMERICAN MEGATRENDS INDIA PRIVATE AMI-BU-01 Wireless Vitals Monitor User Manual AMI BOLT

AMERICAN MEGATRENDS INDIA PRIVATE LIMITED Wireless Vitals Monitor AMI BOLT

Users Manual

Navigation menu

Namespaces

Views

Navigation
