AMERICAN MEGATRENDS INDIA PRIVATE AMI-ECG-01 Chest ECG User Manual AMI BOLT

ONE-TOUCH WIRELESS HEALTH TRACKER

BODY LIFE TRACKER

AMI Chest ECG

User Manual

Model: VA07

Document No : AMI-PRD-UM-B-VA07

Version : 1.0

Date : 24.08.2015

B.O.L.T User Manual Model No: VA07

Legal

Disclaimer

This publication/content contains proprietary information which is protected by copyright. No

part of this publication may be reproduced, transcribed, stored in a retrieval system, translated

into any language or computer language, or transmitted in any form whatsoever without the prior

written consent of the publisher. American Megatrends India Private Ltd. retains the right to

update, change or modify this publication at any time, without notice.

For Additional Information

Call American Megatrends India Private Ltd at 1800-419-9868.

Limitations of Liability

In no event shall American Megatrends India Private Ltd be held liable for any loss, expenses, or

damage of any kind whatsoever, whether direct, indirect, incidental, or consequential, arising

from the design or use of this product or the support materials provided with the product.

Limited Warranty

No warranties are made, either expressed or implied, with regard to the contents of this work, its

merchantability, or fitness for a particular use. American Megatrends India Private Ltd assumes

no responsibility for errors and omissions or for the uses made of the material contained herein

or reader decisions based on such use.

Trademark and Copyright Acknowledgments

AMERICAN MEGATRENDS INDIA PRIVATE LTD.,

KUMARAN NAGAR,

SEMMANCHERY VILLAGE,

CHENNAI (TN) 600119.

All product names used in this publication are for identification purposes only and are

trademarks of their respective companies.

B.O.L.T User Manual Model No: VA07

Table of Contents

1.0 Overview......................................................................................... 4

2.0 Introduction ..................................................................................... 4

3.0 Package Contents .............................................................................. 4

4.0 Instructions for safe use ....................................................................... 5

5.0 Intended use .................................................................................... 6

6.0 Prerequisites .................................................................................... 6

7.0 Using Mobile Application ...................................................................... 6

8.0 AMI Chest ECG Measurement procedure .................................................... 6

9.0 Charging the AMI Chest ECG Devices ........................................................ 8

10.0 Explanation of Indicators/Symbols........................................................... 9

11.0 Technical Specifications ...................................................................... 10

12.0 FCC compliance statements ................................................................. 10

Contact us .............................................................................................. 11

B.O.L.T User Manual Model No: VA07

1.0 Overview

Model VA07 – AMI Chest ECG

Thank you very much for purchasing B.O.L.T the One -Touch Wireless Health Tracker. Please

read this User Manual thoroughly to ensure safe and correct use of the product. Please keep

this User Manual for future reference.

2.0 Introduction

AMI Chest ECG device is a portable diagnostic system which can measure/monitor the

electrical activity of the heart over a period of time using the ECG electrodes placed on the

user`s body. The device monitors the ECG waveform from the chest Left, Right alone with a

reference Electrode. The acquired and processed ECG data obtained from the device is

transmitted to a mobile device wirelessly for further processing and analysis. The ECG data

acquired by the device can be used to obtain clinical consultation from cardiologists or

healthcare practitioners.

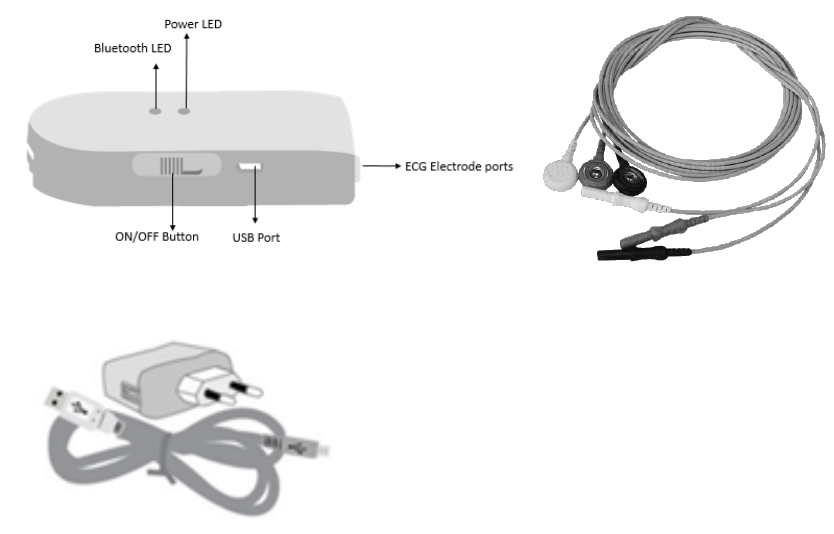

AMI Chest ECG Device ECG Electrode Cables

Charging Adaptor & USB Cable

3.0 Package Contents

 AMI Chest ECG Device

 ECG Electrode cables

 Disposable ECG Electrodes

 Charging Adaptor & USB cable for charging AMI Chest ECG device

B.O.L.T User Manual Model No: VA07

4.0 Instructions for safe use

Warning

 Read the user manual thoroughly before using the device.

 Exposure of the device to water is prohibited.

 Do not expose the device to strong shocks or vibrations.

 Do not disassemble, repair, or modify the device by yourself, hence this could void

the user's authority to operate the device.

 Remove the accessories in contact with body and switch off the units immediately.

 If any pain / irritation / discomfort is encountered while using the devices &

consumables.

 Adhesives present in consumables like disposable ECG electrodes are free from any

harmful substances. However if any allergic reaction / irritation is observed, remove

the part immediately from human contact. Clean the area with a mild soap and water

to remove any residual particles of adhesive.

 Keep the device away from infants, small children or anyone who are incapable of

using the device in appropriate manner.

 Make sure that the ECG electrodes positioning place are clean for accurate ECG

measurement as mentioned in the user manual.

 Do not attempt self-diagnosis or self-treatment based on the measurements provided

by the device.

Caution

 Do not use unauthorized parts and accessories.

 Do not store or use this device in locations which are maintained above the specified

temperature and humidity ranges.

 Wrong positioning of the ECG electrodes may lead to inaccurate readings.

Care and Maintenance

 Store the device and the components in a clean and safe location.

 Charge the device for minimum two hours in case of first time usage.

 Do not disassemble, repair or modify the device and the components by yourself.

 Wipe the device using 70% Isopropyl alcohol and let air dry.

 Do not clean with ketones or other flammable agents.

B.O.L.T User Manual Model No: VA07

5.0 Intended use

AMI Chest ECG (VA07)

It is used to acquire the ECG parameters of an adult users. The acquired ECG parameters

can be used to obtain clinical consultation from cardiologists or healthcare practitioners.

6.0 Prerequisites

Some basic requirements must be adopted as mentioned below to ensure better operation

of the product.

 AMI Chest ECG device is designed to be operated with applications like Android, iOS

or Windows.

 The Android OS version of the using computer/mobile device should be 4.0 or higher.

 The iOS version of the using computer/mobile device should be 7 or higher.

 The Windows OS version of the using computer/mobile device should be 8 or higher.

7.0 Using Mobile Application

Downloading and Installing Mobile application in your computer/mobile device

1. Download and Install the application from Play store/Application store/Windows

application market.

2. On successful installation, launch the application in the mobile device.

8.0 AMI Chest ECG Measurement procedure

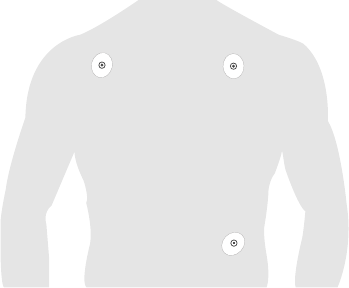

1. Position the disposable ECG electrodes on the user`s body as shown below.

Note: Kindly replace all the 3 ECG electrodes after 24 hours of

usage. While replacing, do not place the electrodes on the same

position. Instead, place it slightly away / adjacent to the previous

location.

2. Ensure that the positioning spots of the human body are clean shaved.

B.O.L.T User Manual Model No: VA07

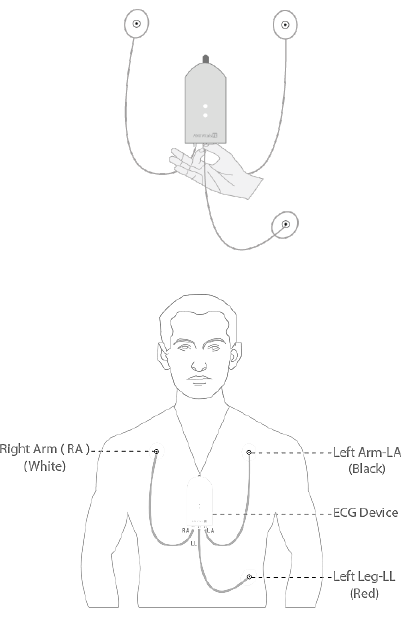

3. Connect the ECG electrode cables to the ECG device with appropriate matching color

on connectors of the ECG device. RA is white color, LA is black color and LL is red

color. The ECG cables will also have RA, LA & LL tags as additional guideline along with

the colors.

RA – Right Arm, LA – Left Arm & LL – Left Leg.

4. Clip/button the ECG Electrode cable to the disposable ECG electrode as shown below.

5. Once the setup is connected ensure that the user is comfortable for the

measurement.

6. Switch ON the mobile device, and Enable Bluetooth & Wi-Fi Internet Connectivity.

7. Launch the mobile application from the mobile device.

8. Switch ON the ECG device using the slide power button.

9. Blue LED on the ECG device will start blinking, which means that the ECG device is

searching for Bluetooth device for pairing.

10. Scan and Select the corresponding ECG device (e.g. AMI Chest ECG 01) from the

displayed list (in case if it is requested).

11. Confirm the selection of the device.

12. Select “ECG” option to perform the monitoring/measurement.

13. Provide default pairing password 1234 for pairing the ECG device with the mobile

device (in case if it is requested).

14. Ensure that the Blue LED stops blinking in the ECG device and ready for the

measurement.

15. Monitoring vitals data will be displayed within a couple of minutes in the application

screen.

B.O.L.T User Manual Model No: VA07

9.0 Charging the AMI Chest ECG Devices

The AMI Chest ECG is operated with an in-built rechargeable battery, which can be charged

using the power adapter and USB cable as guided below. It is mandatory to charge the

devices for a minimum period of 2 hours before the first time usage. Kindly connect the

devices to the power source, if low battery status is indicated in the mobile application

screen.

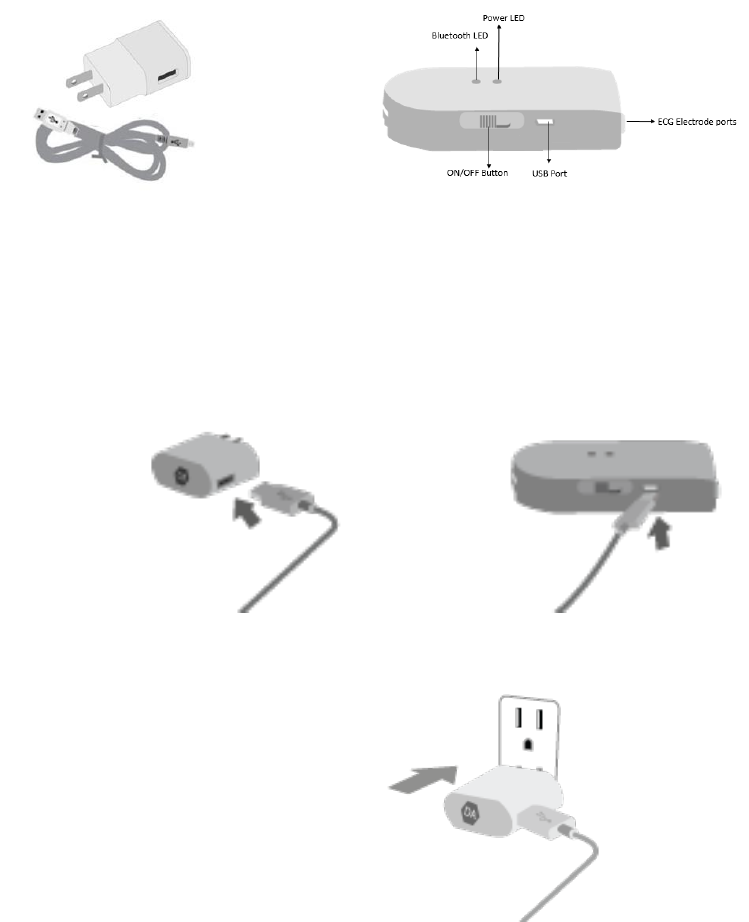

Power adapter & USB cable AMI Chest ECG device

Charging Procedure:-

1. Connect the USB cable to the power adapter.

2. Connect the micro USB port to the ECG device`s power port (USB port).

3. Plug the adapter to the AC mains (110V, 60Hz or 230V, 50Hz).

4. Switch ON the AC mains to charge the device.

5. Check whether the power indicator turns red while charging the device.

B.O.L.T User Manual Model No: VA07

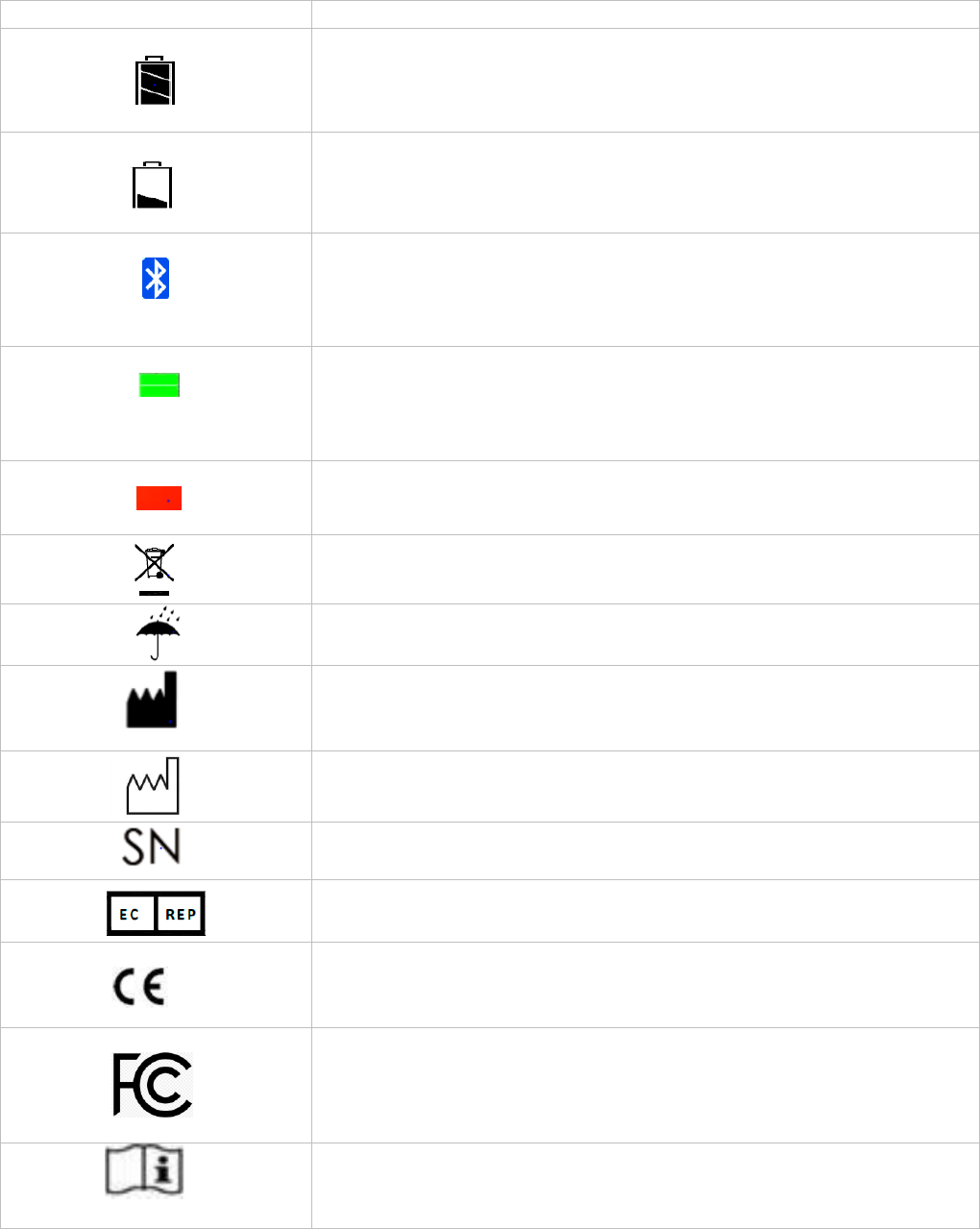

10.0 Explanation of Indicators/Symbols

Indicators/Symbols

Function/Description

The indicator displays full battery power of the gadget in the

computer/mobile device.

The indicator displays low battery power of the gadget in the

computer/mobile device.

o Flashing of the Bluetooth light indicates that the gadget is

waiting for pairing with the mobile/tab.

o Steady Bluetooth light indicates that the gadget is paired and

ready for the measurement.

o Steady green light indicates that the gadget is operating in

battery mode.

o Blinking of green light indicates that the gadget has low

battery level.

Steady red light indicates that the gadget is in the charging mode.

Symbol for “ENVIRONMENT PROTECTION”

Symbol for “KEEP DRY”

Symbol for “MANUFACTURER”

Symbol for “MANUFACTURED DATE”

Symbol for “SERIAL NUMBER”

Symbol for “EUROPEAN REPRESENTATIVE”

Symbol for “COMPILES WITH MDD93/42/EEC REQUIREMENTS”

Symbol for “Federal Communication Commission”

Symbol for “Read the documentation”

B.O.L.T User Manual Model No: VA07

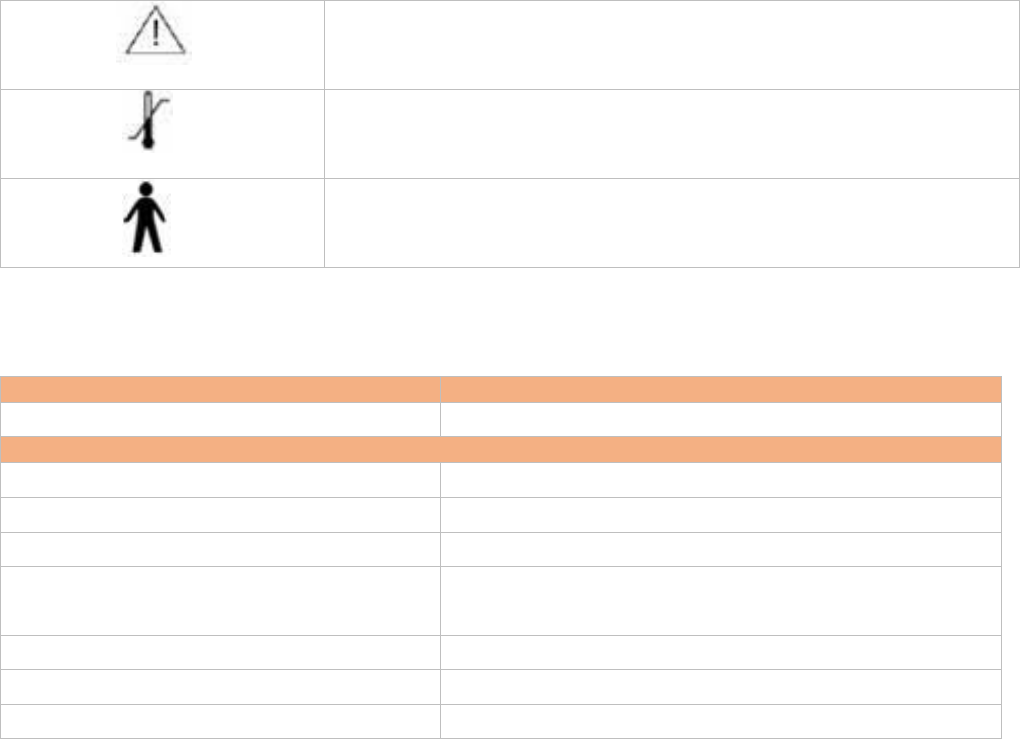

Symbol for “Warning”

Symbol for “Temperature limitation”

Symbol for “Shock Protection”

11.0 Technical Specifications

Product Name

AMI Chest ECG

Model

VA07

AMI Chest ECG Unit

Unit Dimensions

85 (L) X 40 (H) X 20 (D) mm

Unit Weight

45 grams (Including Battery)

Power Source

DC 5V 1A

Bluetooth

Bluetooth 4.0 EDR or Lower, Bluetooth Low Energy

(BLE)

Operating Temperature

16°C to 35°C (60.8°F to 95.0°F)

Storage and Transport Temperature

10°C to 55°C (14°F to 131°F)

Storage Humidity

30%RH to 90%RH

NOTE: These specifications are subject to change without notice.

12.0 FCC compliance statements

This device complies with Part 15 of the FCC Rules. Its operation is subject to the following

two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including Interference that may cause

undesired operation.

FCC Caution

 Any changes or modifications not expressly approved by the party responsible for

compliance could void the user's authority to operate this equipment.

B.O.L.T User Manual Model No: VA07

Part 15B compliance statements for digital devices:

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy And, if not installed

and used in accordance with the instructions, may Cause harmful interference to radio

communications. However, there is no Guarantee that interference will not occur in a

particular installation.

If this equipment does cause harmful interference to radio or television Reception, which can

be determined by turning the equipment off and on

The user is encouraged to try or to correct the interference by one or more of

The following measures:

— Reorient or relocate the receiving antenna.

— Increase the separation between the equipment and receiver.

— Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

— Consult the dealer or an experienced radio/TV technician for help.

For more information kindly visit our website: www.amibolt.com

Contact us

AMERICAN MEGATRENDS INDIA PRIVATE LTD.,

KUMARAN NAGAR,

SEMMANCHERY VILLAGE,

CHENNAI (TN) 600119

Tel – (91) 44 66540922, Fax – (91) 44 66540901

Email: support@amibolt.com

Website: www.amibolt.com; www.amiindia.co.in

B.O.L.T User Manual Model No: VA07

American Megatrends International GmbH

Truderingerstraße (Truderinger Strasse) 283

81825 München (Munich), Deutschland (Germany)

Tel: [49] 89 969995-10

Support: [49] 89 969995-11

Fax: [49] 89 969995-19

Email: europesales@ami.com

AMERICAN MEGATRENDS INDIA PRIVATE AMI-ECG-01 Chest ECG User Manual AMI BOLT

AMERICAN MEGATRENDS INDIA PRIVATE LIMITED Chest ECG AMI BOLT

Users Manual

Navigation menu

Namespaces

Views

Navigation
