AMOI Electronics AMOIA90 PCS GSM/GPRS Handset User Manual Manual Eng triband4
AMOI Electronics Co., Ltd. PCS GSM/GPRS Handset Manual Eng triband4
Manual revised
-1-
Thank you for choosing Amoi A90, the fashionable and elegant color
screen mobile phone, especially for men. The A90 is the perfect
integration of unparalleled contemporary design and consummate
craftsmanship, bringing you easy communication, and entertainment,
as well as highlighting your taste.
Key features:
Phonebook memory of 500 entries
Schedule and Person Information
PC Sync, Ebook, Voice memo
Games, Karaoke, Music player
40-polyphonic ringtone (26)
Internet access and surfing
Message box lock function
World time, Countdown
Intelligent speed dial
Vivid standby theme
Dancing-Phone
3 Alarm clocks
Specifications:
GSM900/1800/1900MHz
HR, FR and EFR voice codec
GPRS class 10, WAP 1.2.1
SMS
Size: 85x46x24 mm
Weight: 80 g with slim batter
The manufacturer may, at any time and without notice, make changes or
improvements to the products offered, but will provide necessary corrigendum with
this manual or release new version of this manual for the following lot. The Amoi
logo and trademark are the property of the manufacturer. December 2003
TABLE OF CONTENTS
Safety precautions………………………………………….6
Unpacking…………………………………………………….8
Your Phone…………………………………………………11
Getting Started……………………………………………13
Installing a SIM Card………………………………………13
-2-
Charging a Battery…………………………….……….…..16
Switching the Phone On/Off………………………………..19
Your Phones Modes………………………….……………...20
Keys Description....................................................................21
Display....................................................................................22
Call Functions……………………………………………..24
Making Calls…………………………………………….....24
Making a Call From PhoneBook………………….………...24
Last Number Redialing…………………………………...…25
Making International Calls…….……………….………....25
Receiving Calls……………………………….…………...26
Missed Calls………………….………………….........27
Call Menu…..………………….……………………...28
Phonebook(PB)…………………………………………....31
Storing a Phone Number in PB……………………………...32
PB Menu…………………………………………………….33
Smart-Dial
…………………………………………………33Search
All…….……………………………………….........34
Search Name…….……………………….………...34
Search Number…………………………….………...34
Add……………………………………………….………...34
PhBook Manager………………………………….….....34
Info……………………………………………….………....36
Call List……………………………………………………37
Missed.……………….……………………………….…...37
Incoming.…………………………………………….....37
Outgoing…………….……………………………………....37
Entering Text………………………………………………38
Changing Text Input Mode………………………………....38
eZi Italian Mode……………………………….………...39
eZi German Mode……………………………….………...39
-3-
eZi English Mode…………………………………….…….39
eZi French Mode…………………………………….…….41
eZi Spanish Mode…………………………………….…….41
ABC Mode……………………………….……...….…..41
Numeric/123 Mode…………………………………….…...43
Using User’s Dictionary…………………………………….44
Adding a Word to the Dictionary……………………………44
Deleting a Word from the Dictionary………….……………44
Using Menus………..……………………………..……..45
Accessing a Menu Function………………………………....45
List of Menu Functions…………………………………....47
Displaying………………………………...……………….53
Menu1-1…………………………………..…..…..53
Standby1-
2…………………………………………..…53
Power Off1-
3…….…………………………….………..54
Power On1-
4………..………………………………..…54
Internet..…………………………………...……………….55
Audio Profile….…………………………...……………….57
Settings……………………………………………………...60
Clock4-
1…………….……………………………..……60
Mobile Setting4-
2……..………………………..………60
Call Setting4-
3………………………………………..…61
Security4-
4……….……………………………………..63
Network4-
-4-
5……………………………………………..66
Divert4-6………….…………………………….……...67
WAP 4-7…………….…………………………………67
Toolbox…...………………………………………………....71
Alarm5-1…………………………………………….....71
Voice Memo5-
2………………………………………….71
PC Sync5-
3……….…………………………………….73
Calculator5-
4……………………………………….......74
Countdown5-
5…………………………………………..74
World Time5-
7………………………………………….75
Private info…….………...………………………………....76
Enable PWD6-
1………………………………………...76
Calendar6-
2……………………………………..…........76
Notes6-
3…………………………………….……..…....79
Calls6-7……..…………………………………..……..
.79
Amusement……………………………………………...….81
Games7-
1…….......……………………………………...81
Karaoke7-
2…………..…………………………………82
Music Player7-
3………………………………….…...…..83
-5-
Ebook7-4………….………………………….….……..83
SMS .…………………...…………………………….85
Read(8-
1)………………………………….………………...86Write(8
-2)………………………………………….……...87
Delete(8-3)………………………………….…………….....87
Memory(8-4)…………………………………….……...88
Setup(8-5)………………………………………………….88
Broadcast(8-6)………………………………………...89
Voice Mail(8-7)…………………………………………...89
Templates(8-8).…………………………….………….....…89
PreferenceInformation……………………………..……...90
Access Codes……………………………………..……....…90
Using the Batteries………………………………..…..….…93
Care and Maintenance……………………………..………..96
Glossary………..…………………………………..…..…..98
TroubleShooting..……………………………………...…103
SAFETY PRECAUTIONS
Read these brief guidelines. Failure to comply with them
may be dangerous or illegal.
-6-
Road safety comes first
Do not use a hand-held mobile phone while driving;
park the vehicle first. Remember that in some countries,
it is illegal to use a mobile phone while driving.
Switch off on aircraft
Mobile phones can cause interference. Using them on
aircraft is both illegal and dangerous. (Please also close
the power-off alarm clock.)
Switch off near an explosion place
Do not use the phone near an area where explosives are
detonated. May disturb the detonator remote control
operation.
Switch off when refueling
Do not use the phone at a refueling point (service
station) or near fuels or chemicals.
-7-
Switch off in hospital
Follow any regulations or rules. Switch phone off near
medical equipment.
Interference
All wireless phones may be subject to radio
interference, which may affect their performance.
Accessories and batteries
Use only approved accessories and batteries.
Use sensibly
Use only in the normal position (next to ear). Do not
touch the antenna unnecessarily when the phone is
switched on.
This device complies with the FCC OET 65 rf exposure
requirements for general public uncontrolled environment.
Caution: Body-worn operations are restricted to belt-clips,
holsters or similar accessories that have no metallic
component in the assembly and which provide at
least 1 cm separation between the device and the
users body.
UNPACKING
You package contains the following items.
-8-
Full Package:
Simple Package:
User’s Manual
Desktop Charger
Travel Charger
Phone Slim/Standard Battery
Earphone
Travel Charger
Phone Slim Battery
-9-
Note: Please check with the local distributor for the package!
In addition, you can buy the following accessories for your phone
from your local dealer:
• Car charger
• Hands-free car kit
• Hand strap
• Leather case
• Standard/Slim Li-Ion batteries
• Data kit
Earphone
-10-
YOUR PHONE
Phone Layout
The following illustrations show the main elements of your phone.
Open View
Closed View
Earpiece
Display
Special Function Key
Right Soft Key
Navigation/Hot Key
Alphanumeric
Keys
Power On/Off Key
Send Key
Record Key
OK Key
23
5
89
1
4
0
Antenna
Volume Keys
-11-
Rear view
GETTING STARTED
You must insert the SIM card and charge the battery before you can
use the phone.
Installing a SIM Card
Your network operator provides you with a plug-in SIM (Subscriber
Identity Module) card loaded with your subscription details (PIN,
Phone book information, and so on).
Earpiece
External Display
Speaker
Hand Strap Hole
Cable Connector Slot
Battery Lock
Battery Terminals
Metal Lock
-12-
Note: The SIM card can be easily damaged by scratching or bending.
You should be careful when handling, inserting or removing the card.
Follow the instructions supplied with the SIM card. Keep all SIM cards
out of the reach of small children.

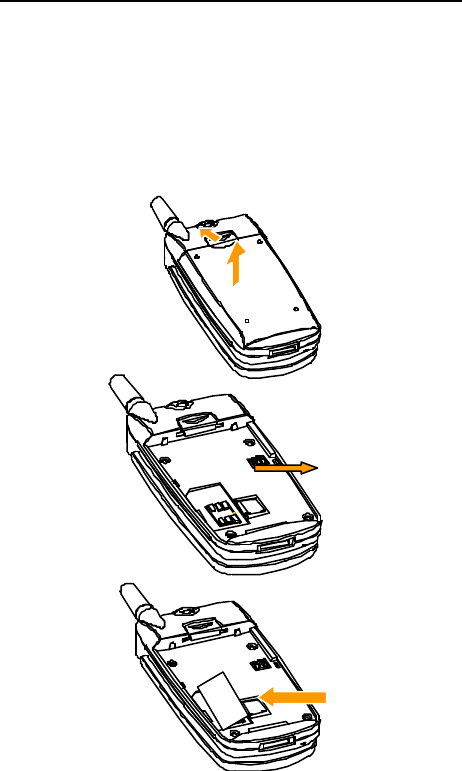

1. Switch the phone off.

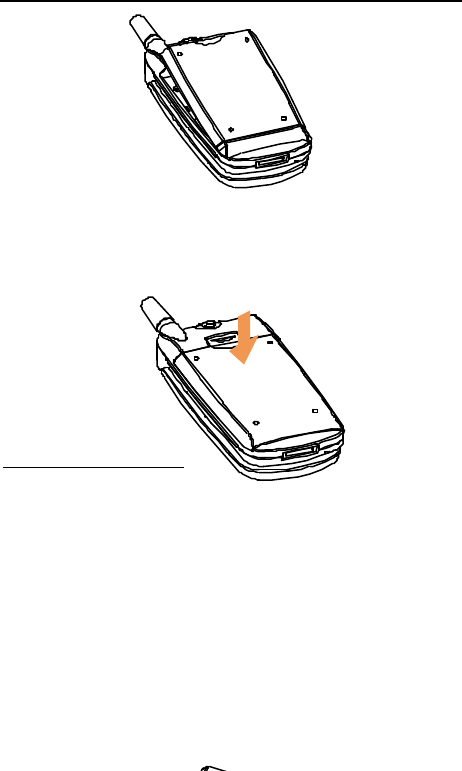

2. Remove the battery. To do so:
1 Pull the battery lock above the battery toward the top of the
phone and hold it in the position.
2 Lift the battery away, as shown.
3. Slide the metal lock as the following:
4. Insert the SIM card ensuring that the cut corner is at the top left
and the gold contacts of the card face into the phone. Slide the
metal lock.
-13-
5. Reinstall the battery. To do so:
1 Place the battery so that the tabs align with the notches at the
bottom of the phone.
-14-
2 Push the battery down until it clicks into place. Make sure
that the battery is properly installed before switching on the
phone.
Charging a Battery
Your phone is powered by a rechargeable Li-ion battery.
You are provided with a travel charger when buying the phone. Use
only approved batteries and chargers. Ask your local dealer for further
details.
Note: You must fully charge the battery before using your phone for the
first time. The phone can be used while the battery is charging.

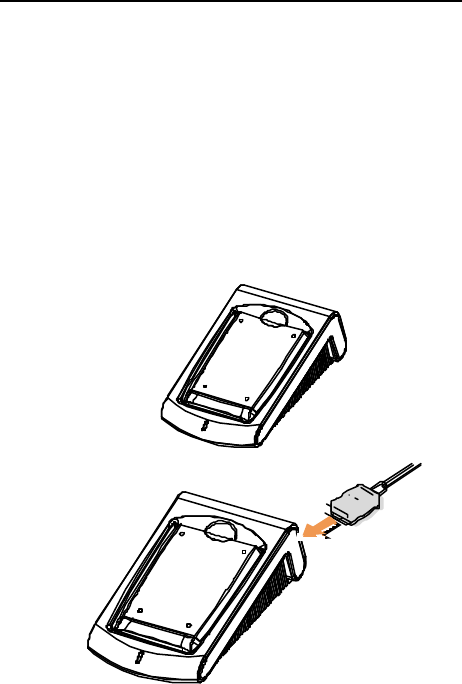

Charging a battery with the desktop charger
-15-
1. Insert the battery alone into the slot making sure that the terminals
on the battery contact to the terminals on the charger.
2. Push down the battery until you hear a click.
3. Insert the lead of the travel charger into the connector socket of the
desktop charger.
4. Connect the adapter to a standard AC wall outlet.
5. The LED indicator light on the charger is:
-16-
• Red: while charging
• Green: when fully charged
6. When charging is completed , unplug the power cord of the adapter
from the AC outlet and remove the battery from the charger.
Note: When disconnect the lead of the adapter from the phone, you
should press the buttons on both sides of it, otherwise it’s easily
damaged.
Using a travel charger
1. Place the battery on the back of the phone (see reinstall the
battery” ), connect the lead from the travel adapter to the connector
at the bottom of the phone.
2. Connect the adapter to a standard AC wall outlet.
3. When charging is finished (the full battery icon becomes solid),
disconnect the adapter from the AC wall outlet, then from the
phone.
Note: When disconnecting the adapter from the phone, press the buttons
on both sides of the lead, otherwise the lead or the socket may get easily
damaged.
-17-
Switching the Phone On/Off
1. Open the phone.
2. Press and hold the key until switch the phone on.
3. Enter your PIN , if you have one for your SIM card. (refer to
Glossary/PIN)
4. Press the OK soft key, then your phone connects to the GSM
network, and you’ll see the following idle screens on the main
and Sub LCD respectively.
Note: If the network signal is very weak, ‘No Service’ appears in the
display, and you cannot place and receive calls. Wait a little while for a
better signal or move into an open area to regain the service.
5. To switch the phone off, hold down the key for more
than two seconds.
WARNING!
Do not switch on the phone where mobile phone use is prohibited or when it may
cause interference or danger.
Note: Do not touch the antenna on the phone unnecessarily when the
phone is switched on. Contact with the antenna affects call quality and
may cause the phone to operate at a higher power level than otherwise
needed.
Your Phone’s Modes
Service Provider
07/20 FRI 08:00
Menu Phone
-18-
Standby Mode
Standby is the basic mode of your phone. The phone goes into
Standby mode soon after you turn it on, or whenever you briefly press
the key. When your phone is in Standby mode, you will typically
see the current date and time. If you enter a phone number, you can
press the key to dial it.
Press the key at any time to return to Standby mode. Be
careful; if you are on a call when you press the key, you will
return to Standby mode, and the call disconnected.
Talk Mode
You can place and answer calls only when your phone is turned on.
During a call, the phone is in Talk mode. While you are in Talk mode,
pressing the left soft key gives you a list of Options referred to as
“Call Menu.”
Phone Dancing Function
In standby mode, input *8888# to make your phone dance, and you
can press the buttons on the left side of the phone to stop this function.
Keys Description
Key Description
Two soft keys perform the functions indicated by the text above
them (in the bottom line of the display).
-19-
Navigation Keys: Scroll through the menus
In the standby modepressπ to enter Amusementpressto
enter Namespress to enter Call list, press to enter
Message.
OK keyIn the menu facility, confirms your selection or entry;
Enter eZI Sub Menu in editing mode; Hold to go to WAP in
standby mode.
Send key: Makes or answers a call.
In Standby mode, recalls the last number dialed.
Power On/Off key Hold it to switch on/off the phone End a
callIn the menu facility, returns to the Standby mode and
cancels your input.
Enter numbers, letters and some special characters.
Use these keys for various special functions.
Record keyWhen the phone is closed, press
and hold it to refuse a call; In standby mode,
press it to enter Voice Memo Menu; In
standby or call mode, press and hold it to
record a voice memo.
Volume keysDuring a call, adjusts the voice volume
When the phone is closed, press it to display the current time.
Display
Display Layout
The display comprises three areas.
Area Description
First
line
Displays various icons
-20-
Middle
lines
Displays messages,
instructions and any
information that you
enter
Last
line
Shows the functions
currently assigned to the
two soft keys.
Icons
Signal strength: Shows the received signal strength. The
greater the number of bars, the better the signal strength.
Service: Appears when a call is in progress.
Roaming: Appears when you are outside of your operator’s
service and have registered with a different network.
New Message: Appears when a new message has been
received; flashing indicates that your message box is full.
Ring Mode: Indicates that the phone will ring when a call is
received.
Mute Mode: Appears when the vibrate mode is active.
Ring + Vibrate:
Indicate that your phone will ring and
vibrate when a call coming.
Log setting: Appears when you set a log.
AlarmAppears when the alarm is active. (If both alarm
and
countdown are set, this icon will not appear until the
countdown alarm rings.)
CountdownAppears when the Countdown is set.
Battery status: Shows the level of your battery. The more
black area you see, the more power you have left.
-21-
Backlight
The display and keypad are illuminated by a backlight. When you
press any key, the backlight illuminates. It automatically turns off if
no key is pressed within a given period of time, depending on the
Backlight Option set in the Phone setting menu (refer to
Settings/Mobile/Backlight).
External Display
Your phone has an external display on the cover, it indicates that you
have an incoming call or message, and notifies you at the specified
time when you set an alarm or a log, without having to open the
phone.
CALL FUNCTIONS
Making Calls
Before you can make or receive a call, you must turn on the phone and
be within range of a network.
1. In Standby mode, enter the phone number. (If you make a
mistake while dialing, use or key to move the cursor to the
right of the digit, press the right soft key to erase it; Press and
hold to erase the entire number.)
-22-
TIP: When inputting a number, you can insert a pause by holding the #
key (for example: between the switchboard and the extension), the latter
number will be dialed several seconds after the former one.
2. P ress the key to make the call.
3. When you finish talk ing, press or close the phone to end the
call.
TIP: When using the handsfreet kit, you can press the Send key on it to
end the call.
Making a Call from the Phonebook
See “entering the phonebook” to search for a desired number, and
press the key to dial.
Last number redialing
In standby mode, press once to access the list of the 20 numbers you
last called; scroll to the number or name you want, and press to call
the number.
Note: If you have set Auto Redial menu to On, if there is no answer or
the line is busy, the phone automatically retries to make the call.
Making International Calls
1. Press and hold the “0” key until a “+” sign appears in the display.
2. Enter the country code, area code, and phone number, then press the
key to begin dialing.
-23-
-24-
Receiving Calls
When a call is received, the phone alerts you by ringing and/or
vibrating; the screen displays an incoming call message. If you have
subscribed to the Line Identification Service (contact your service
provider), the caller’s phone number is displayed; if you have saved
the number in your phone book, the name is displayed.
Three modes are provided for receiving a call. Refer to Settings/
Mobile/Answer mode for the details.
NoteIf you receive a call while using the phone functions and menus,
the current operation will be halted.
To answer a call
-Press
To reject a call
-Press
Missed Calls
-25-
When an incoming call is not answered, the Missed Call log is
displayed on your screen.
-- To view the missed call immediately, press the left soft key, the
number or the name is displayed, if available. Scroll through the
missed calls, press to call the number.
-- Press the Option soft key, you’ll enter the missed calls menu. The
following options are available:
Call To press OK soft key to call the number.
Detail To view the details (name, number, time)
Add to PB To store the number to the phonebook.(refer to Storing a
phone number in PB)
Delete To delete the number from the missed calls list.
Tip: You can press the key at any time to exit the Missed Call
menu. You can view the missed calls at any time . Refer to Call list for
details.
Call Menu
Some of the features you can use during a call depends on whether
your network provides these services.
During a call, press Option soft key to enter Call Menu. The options
change in different conversation circumstance.
-26-
The followings are the possible options.
Mute: You can switch microphone off and the caller can’t hear you.
Hold ( current call ): You can hold the current call.
Hold current call/Dial new number: You can hold the current call and
dial new number.
Hold current call/ Answer new call: You can hold the current call and
answer a new call.
Connect held call to conference call: You can connect the held call to a
conference call.
End the current call: Select to end the current call.
End held call: Select to end the held call.
End current call/ Answer new call: You can end the current call and
answer the new call.
End current call/ Answer held call: You can end the current call and
answer the held call.
End all calls: Select to end all the calls.
Main menu: Select to enter the main menu and make the general
operations.
Other Options in the Call Menu
You may also directly press the number-keys to choose the functions
and press to make it.
Hold/ Switch
The ‘Hold’ function can switch the current call to a held one and
recover the previous call.
When there is a held call and a current call:
Press 0 + to end the held call
Press 1 + to end the current call and recover the held call.
Press 2 + to switch the current call to a held one and switch the held
one to the current call.
Call Waiting
If your network supports this function and you have activated the
feature, the phone will remind you when there’s a new incoming call
during a call.
-27-
Call Hold
If your network supports this function you can dial another number
while you have a call in progress.
Method 1: (1) Dial the required number or find the required number
from telephone book and then press to make the
second call.
(2) The first call will be put on hold automatically.
Method 2: (1) Press to hold the current call.
(2) Dial the second call. When the new call is connected, the
previous one will be held automatically. These two calls
can be switched freely. Please refer to Hold/ Switch
function.
Conference Call
Conference Call is a network service. It allows up to six people to take
part simultaneously in a call.
(1) Dial the first number.
(2) Dial the second number and the first number is
held automatically after the first is connected.
(3) Press 3 + to let the first number to participate
in the conference.
(4) Repeat Step 2 and 3 to add more numbers to
participate in the conference.
(5) Press and 3 + to allow the new number to
participate in the conference, repeat the
operation to have more numbers to the
conference.
(6) Press 1 + x + to refuse one current number,
repeat the operation to refuse more numbers (x
means the number you choose to refuse ).
(7) Press to end the whole conference call.
-28-
PHONEBOOK (NAMES)
You can store your phone numbers and names in SIM card or locally
in your phone memory. Phone memory can store 500 entries at most;
each entry may consist of a name, three phone numbers, two email
addresses, one fax number and one remark. The number of the
entries, which SIM can store, depends on the type of SIM; However
SIM entries consist of a name and a number.
Phone Number: 20 digits at the most for memory storage; For SIM
storage, it depends on the type of SIM.
Name: 16 characters at the most for memory storage; For SIM
storage,it depends on the type of SIM.
Tip: If you change phones, any numbers stored in your SIM card will be
accessible with the new phone.
Storing a Phone Number in PB
1. Key in the number to be stored.
2. Press the Store soft key.
3. Select Local PB or SIM PB then press OK soft key.
Adding to Local PB:
(1) Input name, press OK soft key.
(2) Enter up to three phone numbers in sequence (after inputing the
first number, press Next soft key and then enter the second and
the third numbers).
(3) Enter email address, fax number, remark separately (the same
method as step 2).
(4) Press Ok soft key and “Create done” is displayed.
-29-
Adding to SIM:
(1) Input name, press OK soft key.
(2) Key in the numbers, press Store soft key.
(3) Press Ok soft key and “Create done” is displayed.
There are two ways to enter the phonebook in standby mode:
² Press right soft key.
² Enter the associated alphanumeric keys then press *. For
example, enter 866* to search the name of Tom.
Tip: In standby mode, press right soft key to enter PB Menu.
PB Menu
In the PB (PhoneBook) Menu, the following options are available:
Smart Dial
This Option allows you to find an entry quickly in your PB.
1. When Smart Dial is highlighted, press Ok soft key to enter.
2. Input the correspondent numerical key of the desired name (see the
second way to enter PB ).
3. Press OK soft key. Scroll to your desired entry.
4. Press to dial it or press Select soft key to enter “Select
operation” to display the following Options:
Edit: Edit the details of the selected entry.
Copy: Allows you to copy the selected entry from the phone
memory to the SIM memory and vice versa.
Delete: Press the OK key and phone will display " Delete?"
Select "Yes" to delete this entry. Select "No" to reserve this
entry.
Call: Press the OK key to dial this number.
Write SMS: Refer to Messages/Write .
Send number: Send all the numbers in this entry to the appointed
number.
-30-
-31-
Search all
This Option allows you to find a Phonebook entry by searching from
the list of all entries sorted by name.
(1)Press the or key until you find the desired entry from the list.
(2) Press the key to dial the number or press the OK soft key for
more details.
Search name
Enter the character(s) of the desired name by pressing the associated
alphanumeric key(s) and press the Search soft key to see the details in
your phonebook.
Search number
Enter the desired number then press the Search soft key to see the
details in your phonebook.
Note: While viewing details on the entry, press the OK soft key to enter
“Select operation” (refer to Smart Dial )
Add
When Add contact is highlighted, press OK soft key. Choose the
Local PB or SIM PB. (refer to Storing a phone number in PB)
Note: If the input position already exists, the phone will display
"Message Full".
PhBook manager
Copy (Take “Local to SIM” for example)
(1)Copy one: Press or to view the phone number one by one and
press left soft key to copy the desired one.
(2)Copy all: Copy all the numbers stored in phone to SIM card.
(3)Copy range: Input the start number and the end number, then press
OK soft key to copy these entries you want to SIM
card.
Local to SIM
1 Copy One
1 Copy Range
2 Copy All
Ｏｋ Ｃａｎｃｅｌ
Range: 1-500
Start: ｜｜
End：
Ｏｋ Ｃａｎｃｅｌ
-32-
Note: If the entry already exists in target PB, the entry will not be copied.
If the space of target PB does not have enough memory for copying, only
the front phone numbers will be copied until the target PB is full.
If the permitted name length of target PB is less than that of original PB,
the exceeded part will lost.
Delete
Same as Copy, you can delete one, all or a specify range.
Memory
Check the total memory capacity and the amount used entries used for
SIM card and Local PB.
Info
Country codes
Select this function, the following content is displayed:
Press and to choose one country. And press Select soft key to
search according to a country name or a code number.
Own Number
Store the SIM card number of local phone for reference.
Country Code
China +86
Italy +39
Germany +49
Ｏｋ Ｃａｎｃｅｌ
-33-
CALL LIST
In Standby mode, press the τ key to view the call list .
With this function, the phone can record automatically 20 missed, 20
received and 20 dialed phone numbers. The number and the name (if
available) are displayed with the date and the time when the call is
made.
Missed
Incoming
Outgoing
You can perform the following operations on each of the above call
lists:
1. Scroll to one of these three items and press Select soft key, the
calls list will be displayed.
2. Press πθkey to select the desired number.
3. Press to dial it; Or press Options soft key to see the following
options: Call, Detail, Save , Delete (refer to Missed calls)
-34-
ENTERING TEXT
When storing a name in the phonebook, creating your personal
greetings or scheduling events in your calendar or write any other
message, you will need to enter text.
You are provided with the following text input modes.
• Italian/ italian/ ITALIAN
• German/ german/ GERMAN
• English/english/ENGLISH
• French / french/ FRENCH
• Spanish / spanish/ SPANISH
• Abc/abc/ABC
• 123 (Numeric input mode)
• Symbol
TIP: The number on the top right is a word count of the message, it
points out how many characters you can write in the edit zone.
Changing Text Input Mode
When in a text entry screen, press to change Text Input Mode or
press the @ key to select one mode. You can see current text input
mode indicator on the top left of the display:
• Italian/ italian/ ITALIAN
• German/ german/ GERMAN
• English/english/ENGLISH
• French / french/ FRENCH
• Spanish / spanish/ SPANISH
• Abc/abc/ABC
• 123 (Numeric input mode)
Note: The current input method will be the same as the one you last used
before you quit the input mode.
-35-
eZi Italian Mode
Please refer to eZi English Mode.
eZi German Mode
Please refer to eZi English Mode.
eZi English Mode
This mode allows you to enter words with only one keystroke per
letter. Each key on the keypad has more than one letter – when you
press once, J, K or L may be displayed. The English mode
automatically compares your keystrokes with an internal linguistic
dictionary to determine the correct word, thus requiring far fewer
keystrokes than the ABC mode.For example: to enter ‘hello’, press the
following keystrokes: 4, 3, 5, 5, 6.
If the word in the display is not the word that you desire, press the
or key to display alternate word choices for the keys you have
typed. (For example, ‘of’ and ‘me’ both shares the sequence 6, 3) The
phone displays the most commonly used choice first.
To … Then…
Choose a highlighted word Press “0” key
Alternate among the following modes:
abc, Abc, ABC Press the # key
Change the modes of a highlighted word: Press or key
Insert the symbols Press 1 key, details as following
Insert the more symbols Press * key, details as following
End the edition Press left soft key
Exit Press the key
Press the 1 key to insert the symbols
Choose Spanish Mode Choose non-Spanish Mode
. , ¿ ? ¡ ! 1 : ; - (
) ‘ « » @ € £ $
-36-
SYMBOL
# % & * + / < =
> [ \ ] ^ _ { |
} ã å æ ð õ ø þ
~ Ã Å Æ Ð Õ Ø Þ
１ ２ ３ ４ ５ ６ ７ ８
Ｂａｃｋ
Press the or key to select the column which including the symbol
mark you want to use.
Press the corresponding numeric key to insert the desired symbol
mark.
eZi French Mode
Please refer to eZi English Mode.
eZi Spanish Mode
Please refer to eZi English Mode.
ABC Mode
This mode allows you to enter letters by pressing the key labeled with
the required letter once, twice, three or four times until the letter is
displayed. For example, you press the 2 key three times in succession
to display the character “C”, the 5 key two times quickly to display the
character “K”.
Press #to alternat ive between Abc, abc and ABC.
Press * to open symbol table directly
Note: When entering the same character twice (or a different character
on the same key), just wait for a few seconds for the cursor to move to the
right automatically, and then select the next character.
-37-
The definition of the keys is different according the language,
refer to the following table:
<sp> means a space.
Italian German English French Spanish
Key=0 <sp> 0
+ <sp>
0 +
<sp> 0 +
<sp> 0 + <sp> 0 +
<sp> 0 +
<sp> 0
+ <sp>
0 +
<sp> 0 +
<sp> 0 +
Key=1
. , ? ! 1
: ; - ( ) ‘
“ @ €
£ $
. , ? ! 1 : ;
- ( ) ‘ “ @
€ £ $
. , ? ! 1 :
; - ( ) ‘ “
@ € £ $
. , ? ! 1 :
; - ( ) ‘ “
@ € £ $
. , ¿ ? ¡ ! 1
: ; - ( ) ‘ « »
@ € £ $
Key=2
A B
CÀ2
(a b c
2 à)
A B C 2 Ä
(a b c 2 ä)
A B C 2
(a b c 2 )
A B C
2À Â Æ
Ç (a b
c 2à â
æ ç)
A B C 2Á
À Ç (a b
c 2á à ç )
Key=3
D E F
3È É
(d e f 3
è é)
D E F 3 É
È (d e f
3 é è)
D E F 3
(d e f 3)
D E F
3É È Ê
(d e f 3é
è ê)
D E F 3É
È (d
e f 3é è)
Key=4
G H I 4
Ì
(g h i 4
ì)
G H I 4
(g h i 4)
G H I 4
(g h i 4)
G H I 4 Î
(g h i 4
î)
G H I 4Í
(g h i 4í)
Key=5
J K L 5
(j k l 5)
J K L 5
(j k l 5)
J K L 5
(j k l 5)
J K L 5
(j k l 5)
J K L 5
(j k l 5)
Key=6
M N O
6Ò
(m n o
6 ò)
M N O 6
Ö (m
n o 6 ö)
M N O 6
(m n o 6)M N O 6
Ô Œ
(m n o 6
ô œ)
M N O 6 Ñ
Ó Ò (m n
o 6 ñ ó ò)
Key=7 P Q R
S 7
(p q r s
P Q R S 7
ß (p q r
s 7 ß)
P Q R S
7 (p
q r s 7 )
P Q R S
7
(p q r s
P Q R S 7
(p q r s 7 )
-38-
7 )7 )
Key=8
T U V
8 Ù
(t u v 8
ù)
T U V 8 Ü
(t u v 8 ü)
T U V 8
(t u v 8 )
T U V
8Ù Û
(t u v 8ù
û )
T U V 8Ú
Ü Ù (t u
v 8ú ü ù)
Key=9
T U V
8 Ù
(t u v 8
ù)
W X Y Z 9
(w x y z 9)W X Y Z
9
(w x y z
9)
W X Y Z
9
(w x y z
9)
W X Y Z 9
(w x y z 9)
123 (Numeric)Mode
It enables you to enter numbers into a text message. Press keys
corresponding to the desired digits, and manually switch back to the
text entry mode of choice.
Using User’s Dictionary
While entering a SMS message, you can use your own dictionary
which allows you to add a new word. Words you add to the dictionary
will have a high priority in eZi English mode.
Adding a Word to the Dictionary
1. In the text entry mode, press the@ key.
2. Press the or key to scroll to Dictionary and press the OK soft
key.
3. Select New and input the word you want to add, then press the
Options soft key.
4. Press the or key to scroll to Add to UPD and press the OK
soft key to add the word.
-39-
The added word becomes the first candidate for the associated
keypress. You can check the added words on the List Dictionary
menu.
Deleting the Words from the Dictionary
1. In the screen of eZi text mode, press OK soft key.
2. Use the or key to scroll to List Dictionary and press OK soft
key .You can see the list of the words you have added.
3. Use the or key to find the word you want to delete, and press
the Options soft key.
4. Press the key to scroll to Del from UPD then OK soft key to
delete the selected word.
USING MENUS
The phone offers a range of functions that allows you to tailor the
phone to your needs. These functions are arranged in menus and
submenus.
Accessing a menu function
By scrolling
1. In Standby mode, press Menu soft key.
2. Scroll with or through the menu and select, for
example, Settings by pressing Select soft key.
3. If the menu contains submenus, select the one you want,
for example Call settings.
4. If the selected submenu contains further submenus, repeat
step 3.
5. Select the setting of your choice.
6. Press Cancel key to return to the previous menu level, and
key to exit the menu without changing the menu
settings.
By shortcut
The menus, submenus and setting options are numbered and you can
access them by using their shortcut number.
-40-
1. In Standby mode, press the Menu soft key.
2. Within three seconds, key in the index number of the menu
function you want to access.
Example: Setting the Clock function On
Press the Menu soft key, and key in 4, 1.
Notes: The numbers assigned to each menu function are indicated on the
list on page xx. They may not match the menu number on the phone. It
depends on the services supported by the SIM. For example, the STK
menu will locate the first main menu and all the other menu functions
backspace.
List of Menu Functions
The list shows the menu structure available and indicates the number
assigned to each option.
1Display
1-1Menu
1-2Standby
1-2-1
Theme
1-2-2Animation
1-2-3Picture
1-2-4Clock
1-2-5Text
1-2-6Calendar
1-2-7Download
1-2-8Wallpaper
1-1-1
Menu style
1-1-2Interface
-41-
1-3:Power Off
1-4:Power On
2Internet
3Audio profile
3-1:Tones
3-2:Typical
3-3:Silent
3-4:Noise
3-5: Personal
4Settings
4-1Clock
4-2Mobile
1-3-1
Animation
1-3-2Text
3-2-1
Activate
3-2-2Adapt
3-2-2-1
Call prompt
3-2-2-2Key sound
3-2-2-3Volume
3-2-2-4Prompt sounds
1-4-1
Animation
1-4-2Text
3-1-1
Call
3-1-2Welcome
3-1-3Downloaded
4-1-1
Set time
4-1-2Set date
4-1-3Time format
4-1-4Date format
4-2-1
Language
4-2-2Contrast
4-2-3Backlight
4-2-4Auto On/Off
4-2-5Reset all
-42-
4-3Call
4-3-1
Incoming filter
4-3-2Volume
4-3-3Answer mode
4-3-4Auto redial
4-3-5Send number
4-3-6: 1’ Beep
4-3-7: Call waiting
-43-
4-5-1: Mode
4-5-2: Search
4-5-3: Sequence
4-5-4:Band selection
4-5-1-1
Auto
4-5-1-2Manual
4-5
Network
4-6-1:Not reachable
4-6-2: Not reply
4-6-3: All
4-6-4: Busy
4-6-5: Status
4-6-6: Cancel all
4-6-2-1
On
4-6-2-2Off
4-6-3-1
On
4-6-3-2Off
4-6-4-1
On
4-6-4-2Off
4-6-5-1
Not reachable
4-6-5-2Not reply
4-6-5-3All
4-6-5-4Busy
4-6Divert
4-4-7-1: All out
4-4-7-2: Out intl
4-4-7-3: Out intl roam
4-4-7-4: All in
4-4-7-5: In when roam
4-4-7-6: Status
4-4-7-7: Cancel all
4-4Security
-44-
5Toolbox
5-1Alarm
5-2Voice memo
5-3PC sync
5-4Calculator
5-5Countdown
5-6World time
6Private info
6-1Enable PWD
6-2Calendar
6-3Notes
5-1-1
Alarm 1
5-1-2Alarm 2
5-1-3Alarm 3
5-1-4Cancel all
5-1-1-1
On
5-1-1-2Time
5-1-1-3Mode
5-1-1-4Tone
4-7-1
Connection
4-7-2Color select
4-7-3Bookmarks
4-7-4Homepage
4-7-5Go to URL
4-7-6Response time
4-7-7Reset
4-7WAP
5-2-1: Record
5-2-2Playback
5-2-3Label
5-2-4Erase one
5-2-5: Erase all
-45-
6-4Calls
7Amusement
7-1Games
7-2Karaoke
7-3: Music player
7-4: Ebook
8SMS
8-2Write
8-4Memory
7-1-1
Space arena
7-1-2Tetris
7-1-3Push box
7-1-4Throw egg
7-1-5Snake
6-4-1
Incoming
6-4-2Missed
6-4-3Outgoing
6-4-4Last
6-4-5Total
6-4-6Charge info
6-4-7Blacklist
8-1Read
8-1-1
Inbox
8-1-2Outbox
8-3-1
Inbox
8-3-2Outbox 8-3-2-1One by one
8-3-2-2Delete all
8-3
Delete
8-5-1
Auto display
8-5-2SMS center
8-5-3Validity
8-5-4Status report
8-5-5SMS PWD
8-5-6SMS Tone
8-5Settings
8-3-2-1One by one
8-3-2-2Delete all
-46-
8-6-1Read
8-6-2Auto display
8-6-3Filter
8-6-4Languages
8-6Broadcast
8-7-1
Number
8-7-2Call
8-7Voice Mail
8-8Templates
-47-
1.DISPLAYING
Using this menu, you can customize various settings for the display
screen.
1-1. Menu
1-1-1.Menustyle
This option allows you to select the menu display style. You can
choose between Bitmap and Animated.
1-1-2.Interface
There are two styles: Dream and Exquisite for your selection.
1-2. Standby
The phone offers you several types of display for the standby mode.
Theme: This type of display indicates all kinds of information in the
standby mode with numbers of pictures and animations. Press the
or key to preview the pictures; press OK soft key to choose one.
(See the attachment for details)
Animation: Press the or key to preview the animation; press OK
soft key to choose one.
Picture : Press the or key to preview the pictures; press OK soft
key to choose one.
Clock: Displays the clock which indicates the current time.
Text: Displays your own greetings. Create your own message up to 19
characters.
Calendar: Displays a calendar.
Download: You can download more pictures and animations byWAP.
Wallpaper: You can display or hide the name of softkey and network.
1-3. Power Off
You can select what will be displayed when the phone is switched off.
Choose between Animation and Text.
Picture: Use the or key to preview the pictures; press OK soft
-48-
key to choose one.
Text: Displays your own greetings. Create your own message up to 19
characters.
1-4. Power On
You can select what will be displayed when the phone is switched on.
Choose between Animation and Text.(refer to Power Off on the last
page)
2. INTERNET/WAP
WAP is a platform for combining wireless communication with
internet. WAP allows you to access the internet and also provides
some e-commerce applications by phone.
Note: To connect wap net, your network must provide the service and you
should perform the dredging operation described in detail in Settings/
WAP Settings.
Select Internet from the Main Menu to connect WAP. You can also
seclet Go to URL from WAP Settings, or select Home to connect to
the homepage.
Note: Press and hold the key * to enter the browser menu.
The following options are available when using WAP.
Back: To return the previous window.
Home: Skip to the homepage.
-49-
Exit: Exit the browser window.
Marker site: Allow user to add a website to bookmark.
Bookmarks: Display the websites list you have added. Select one to
visit the corresponding site.
Inbox: You can check what’s in your inbox.
Save image: You can store your favorite pictures.
Reload: Exit browser menu, return to the page you just visited.
Settings: You can make modifications to the settings of homepage and
proxy server.
About: You can look up some information about the browser.
Shortcut
In any WAP window, press and hold 1-9 key, to connect directly the
corresponding website in your bookmark; hold 0 key to enter your
Inbox; hold to exit the browser.
3.AUDIO PROFILE
You can select from a number of pre-recorded tunes for your phones
ring tone and set the different profiles.
-50-
3-1. Tones
3-1-1. Call
There are 26 tunes for you to choose from :
Press key to scroll then Ok soft key to select.
3-1-2. Welcome
There are 26 tunes for you to choose from :
Press key to scroll then Ok soft key to select.
Note: You can choose Off to switch off the music.
3-1-3.Download
You can perform the following operations on downloaded music.
² Audition
² Add
² Delete
There are four profiles available: Typical, Silent, Noise, Personal.
3-2. Typical
In this profile, the phone rings if there is an incoming call. Key sound,
info tone, SMS tone, service tones are all activated.
3-3. Silent
The phone vibrates if there is an incoming call. Key sound, SMS tone,
service tone and info tones are deactivated.
3-4. Noise
The phone vibrates and rings if there is an incoming call. Key sound,
info tone, SMS tone, service tones are all activated.
3-5. Personal
The phone rings if there is an incoming call. Key sound and SMS
tones are activated. Info and service tones are deactivated.
-51-
The mode won’t be valid unless you select Activate to start it. For
each mode, you can select Adapt to make the following operations:
1.Call prompt
You can select Tone alert , Vibrator, Tone&vibrator,or No notify
when there is an incoming call. Scroll to the option you want, press
‘Ok’ soft key to confirm.
2.Key sound
To adjust the Key sound, you can select ‘DTMF Tone’, or ‘Silent’.
3.Volume
You can adjust the volume of ring. Press key to increase volume
and key to decrease .
4.Prompt sounds
Info tones: They are tones that provide information about the phone.
For example: tone for low battery. Select it and then press ‘on’ soft
key. To cancel this feature, press ‘off’.
SMS tone: If it is active, the phone will ring when receiving theSMS.
Service beep: The phone will send out the service tone when it
connects to the network for the first tim e.
To activate the above tones, select and then press ‘On’ soft key to
activate. To cancel this feature, press ‘Off’ soft key.
-52-
4. SETTINGS
You can customize various features of your phone.
4-1. Clock
This function allows you to change the current time and date
displayed in standby state.
The following functions are available.
4-1-1. Time: Enter the time according to the preset Format.
4-1-2. Date: Enter the day, month and year according to the preset
Format.
4-1-3.Time format: Choose between 24 hours mode and 12 hours
mode.
4-1-3. Date format: Select the day format:
dd/mm/yy
mm/dd/yy
yy/mm/dd
4-2. Mobile
4-2-1. Language:
² Italian: All the menus and information is displayed in Italian.
² German: All the menus and information is displayed in
German.
² English: All the menus and information is displayed in English.
² French: All the menus and information is displayed in French.
² Spanish: All the menus and information is displayed in Spanish.
Note: You can change the language setting by pressing *99#’.
4-2-2. Contrast
You can adjust the contrast of Main LCD (Internal) and Sub LCD
(External) by pressing or keys.
4-2-3.Backlight
You can select whether or not to use the backlight of phone. The
-53-
backlight comes on when you open your phone and switches off if no
key is pressed within the set time.
10 seconds/20 seconds/40 seconds
Always on: It is equal that the set time is 40 seconds.
Note: In stand-by mode, you can enter this menu by pressing ‘* 0 #’.
4-2-4. Auto On/Off
The phone will switch on or off at the preset time.
Enable: Enable the automatic power on/off of the phone.
Set time: Enter the time when you want your phone to switch on/off.
4-2-5. Reset all
You can reset some settings to factory setting. You need to enter
Password (PWD).
4-3. Call
4-3-1. Incoming filter: With this feature, you can put numbers into
the Reject Number list whereby calls from numbers on this list will
never get through to your phone; and put numbers into the Accept
Number list so that any calls from this list can get through and the
others can not.
4-3-1-1. Call rejectThe phone will refuse calls from the
numbers in the “Reject Number”; you can get the prompt information
in the standby mode when someone calls you with these numbers; you
can also check all the record of rejected calls in the “Reject list ”.
4-3-1-2.Call acceptYour phone can be reached only from the
numbers you put into the Accept number. When receiving a call
from a number not in the Call accept list, your phone displays “this
number is rejected”. You can also check all the Accept calls in the
“Accept list”.
Note: This function is available only when your SIM card gets the Caller
Line Identification Service. Or not, the phone will be available for all
calls from any numbers.
-54-
4-3-2.Volume: Adjust volume of talk by pressing the or key or
via side keys during a call.
4-3-3. Answer mode: There are three methods to answer a call.
Call Key Answer: Press to answer a call.
Open Answer: Open the phone to answer a call.
Auto Answer: If you insert your phone into a Car Kit, the phone will
automatically answer after 3 seconds. Before the auto answer,
you can also press to answer it.
4-3-4. Auto redial: If auto redial is activated, the phone will display
“Auto redial” after an unsuccessful call. Press to redial.
4-3-5. Send number: This function must be supported by network.
Net set: Your phone number will be hidden or displayed according to
the network when making a call
On: Your phone number will be displayed to receiver.
Off: Your phone number will not be displayed to the receiver.
4-3-6. 1’ Beep: Activate hear an elapsed time reminder in the 45th
second of every minute during your calls.
4-3-7. Call waiting: Your phone supports the function of ‘call wait’
and ‘call hold’ features of GSM network. If you select this function,
the network will tell you if there is a new call while you are on
another call. You can receive the new call by putting the current call
on hold.
Active: The Call-Wait Tone will be heard when there is a new
incoming. If the new incoming call is from a domestic fixed line
phone, its city name will be displayed, otherwise ‘Incoming’ will be
displayed.
Cancel: Call waiting is deactivated.
Status: Show the status of network call waiting function will be
displayed: ‘Active’ or ‘Off’.
4-4. Security
4-4-1. SIM lock:
If enabled, your phone will work only with the current SIM card.
When you switch to a different SIM card, the phone will ask for the
-55-
phone code.
4-4-2. Check PIN:
Press the "Select" left soft key to enter this function.
1. Press the "On" left soft key.
2. Input the PIN code and start up the function of PIN check by
press Ok left soft key.
Note: If you have started up the function of the PIN check function, you
have to input the PIN code every time when you switch on your mobile
phone. If you input the wrong number for three times in succession, the
SIM card will be locked.
3. Press Off right soft key to cancel this function.
4-4-3. PIN Change :
To select the " PIN Change" by the or keys.
1. Press the " select" soft key.
2. Input the old PIN code and press the " Ok" key.
3. Input the new PIN code (four to eight digit) and press the "Ok"
left soft key.
4. Input the new PIN code again and press the "Ok" left soft key.
5. LCD will indicate "PIN changed".
Note: Only the first start up PIN code can alter the PIN code.
4-4-4. PIN2 change:
The process is the same as "PIN changed"
PIN code is provided with SIM card, which is used for special service
such as "call charge" function etc. To find out whether your SIM card
support s these functions, please contact your network operator.
4-4-5. PWD change:
1. To press select left soft key and input the old password, then press
the "Ok".
2. Input the new password and press Ok left soft key.
3. Input the new phone password again and press the Ok left soft key.
4. The screen will indicate " phone password changed'.
4-4-6. Fixed numbers:
-56-
If the network service can support and your SIM card has this
function, you can limit the out going telephone numbers to which
calls could be made.
When this function is "On" , your mobile phone can only call
the number in the fixed telephone number list. If you dial any
other number (except the emergency number), the phone will
display "Forbidden number". You will need to input PIN2 code
to activate this function.
4-4-7. Bar calls
The call limitation function can help you to limit the incoming and
outgoing calls. However this service may not be available on all
networks.
The following operations are available:
. All out: Selecting this option, to bar dialing any calls (except the
emergency calls)
. Out intl : Selecting this option, to bar dialing the international calls.
. Out intl roam: Selecting this option, to bar dialing the international
calls except to your home country.
. ALL in: Selecting this option, to bar all incoming calls.
In when roam: Selecting this option, to bar all incoming calls when
roaming.
. Status: Allows you to query the current Bar calls setting.
. Cancel all: Select ing this option, the phone will allow dialing and
answering all calls.
Note: You need to input the PIN2 code to set above functions.
4-5. Network
When you use the phone, the phone will auto select the Internet
service. When the phone is beyond the service area when roaming,
you can select the appropriate Internet service manually.
4-5-1. Mode: Switch between these two modes.
. Auto searching
. Manual searching
4-5-2. Search: The LCD will display " searching …..". After locating a
service, the GSM will auto display the network. If there are two available
-57-
networks, you can use the or to select. Those marked with "*" are not
available to your phone.
4-5-3. Sequence:
This function allows you to list the Internet services you can use when
your roaming. If the listed networks can be used, your phone will
select the network from the prior list. Three operations are available.
. Move: To press the key orto your desired internet service.
. Add: You can add the new Internet. Input the country code and the
Internet code then press the "confirm" button.
. Delete: You can cancel the chosen network.
4-5-3. Band: The phone operates at PCS1900. To remain compliant with
FCC requirements, this is the only operating band for this
phone
4-6. Divert
This network service enables the incoming calls to be transferred to
another number that you specify. For example: You maybe want to
transfer your business calls to a colleague while on holiday.
Not reachable: Calls are transferred if you are not in an area covered
by your service provider.
Not reply: Calls are transferred if you do not answer the call.
All : All calls are transferred.
Busy: Calls are transferred if your phone is engaged.
Status: Allows you to query the network about the current status of
Call Transfer function.
Cancel all: All Call Transfer functions are cancelled.
To activate a call transfer function:
1.Scroll to the desired item then press OK soft key.
2.Select ‘Divert On’ and press OK soft key (If you want to cancel this
operation, select ‘Divert Off’)
3.Input the number you want to divert to, press OK soft key.
4.’after15 sec’ is displayed, press Ok.
5.The information is displayed to indicate if you’ve succeeded to
activate a call transfer function or not.
-58-
4-7. WAP
WAP Settings are used for access to WAP.
4-7-1. Connection
You can choose from the preset options or configure according to your
preferences.
For example: If you choose Telcom
Change : To select one site.
Name: Set your favorite names such as Tim GRPS.
Homepage: You can set homepage, such as http://wap.organge.com.
Security: You can set it as On or set it as Off.
IP Address: Set IP address linking to homepage. For example:
172.016.126.070
Bearer: Set the types of data service, choose from GPRS and Data.
AP Name: Input AP name, such as ORANGEWAP.COM.DO.
User ID: Set the user name for WAP, for example, lovely.
Passeword: Set password for WAP.
4-7-2. Color select
Red, green, blue are available, you can choose one background color.
4-7-3. Bookmarks
Name
Timj GPRS
Ｏｋ Ｃａｎｃｅｌ
Ｓｅｃｕｒｉｔｙ
ü On 1
Ｏｆｆ ２
Ｏｋ Ｃａｎｃｅｌ
Homepage
http://wap.organge.c
om
Ｏｋ Ｃａｎｃｅｌ
Bearer
1. GPRS
２．Data
Ｏｋ Ｃａｎｃｅｌ
AP Name
ORANGEWAP.CO
M.DO
Ｏｋ Ｃａｎｃｅｌ
-59-
Save bookmark: You can add a URL which you visit frequently to
your Bookmarks and name it so that you can visit it
easily.
Go to bookmark: Enter the Bookmarks, select one URL title and link
to the correspondent homepage.
4-7-4. Homepage
By selecting this item, your handset will open to the homepage of
your choice.
4-7-5. Go to URL
Enter an URL and press the ok key, to connect to the page. When your
handset can not connect to the URL, it will connect to the homepage
automatically .
-60-
4-7-6. Response time
Set linger time with the unit of second. If your handset can not link to
WAP, it will give up automatically.
4-7-7. Reset
Reset all of the settings of WAP.
5.TOOLBOX
5-1. Alarm
There are three alarm clocks to be used. For every alarm, you can
make the following settings:
On: To start up this alarm so that you can continue its settings.
Set time: Set the time when the alarm is to start.
Mode: There are three modes.
1. Daily: The alarm works at a set time every day.
2. Workday: The alarm works at the set time from Monday to Friday.
3. Profile: You can choose one or several days of the week for the
alarm to work.
Tone: Select the ringing type of the alarm.
-61-
Cancel all: Close all alarms.
Note: To stop the alarm, press any key except or ; otherwise, it
continues to ring for one minute. The alarm will still work when the
phone is turned off.
5-2.Voice memo
You can record up to 2 voice memos (including conversations) of up
to 30 seconds in length.
Notes: 1. Recording a voice conversations is illegal in some countries.
Make sure the other party has consented to being recorded.
2. Hold down @ key to record a conversation during a call.
5-2-1. Record
1. Scroll to Record, press OK soft key.
2. Record the voice memo by speaking into the microphone.
Note: When recoding, press Pause soft key to have a pause then Record
key to continue; A timer displays to show you the elapsed time. When
recording time limit is reached, the phone will automatically stop
recording and save the recorded.
3. When recording is completed, press the End soft key.
5-2-2. Playback
1. Scroll to Playback, press the OK soft key and then the Play soft
key, the latest memo displays.
2. Press the or key to scroll to the desired memo and press Ok
soft key to play it back.
Note: While in playback, press the End soft key to stop playing and exit
the playback mode.
5-2-3. Label
You can make a label for your voice memo using this function.
-62-
5-2-4. Erase one
Use the or key to select the one you want to delete, press Erase
soft key to delete it.
5-2-5. Erase all
1. Press the or key to select Delete all, and press OK soft key .
2. When ‘Delete all memos?’ appears, press the Yes soft key to
delete all memos or No soft key to cancel deleting.
5-3. PC sync
With this function, your PC can communication with your phone
through “PC Sync Program”, such as read and edit phonebook; read,
edit and send a message; download ring tones, pictures, e-book and so
on.
To use this function, you should enter the “PC Sync” window to
switch off AT and activate PC Sync.
In the course of communication, don’t exit this window and make sure
that the data line is well connected. You can press to exit.
Note: An incoming call maybe break PC Sync data transferring.
Please refer to Help Menu of “PC Sync” for more detail operations.
5-4. Calculator
Allows you to use the phone as a calculator. The calculator provides
the basic arithmetic functions: addition, subtraction, multiplication
and division.
Voice Memo
1 Record
2 Playback
2 Label
Ｏｋ Ｃａｎｃｅｌ
<1/2>
07/23 09:41
7sec Noplay
Ｌａｂｅｌ：
Ｏｋ Ｃａｎｃｅｌ
Ｏｋ Ｂａｃｋ
-63-
Performing a Calculation
1. Enter the first number using the numeric keys.
2. Press to set the operator for your calculation referring
to the screen: + (add), - (subtract), x (multiply), / (divide).
3. Enter the second number.
4. To calculate the result, press the OK soft key.
5. Repeat steps 1 to 4 as many times as required.
Each time you change the operator without pressing OK soft key, the
previous calculation is performed and the result is displayed as the top
number in the display.
Notes: 1) To erase any mistakes and clear the display, press the Clear
soft key. You can reset the calculator by pressing the Reset
soft key.
2) Use the OK or * key to enter a decimal point and the # key to
change the sign of a number to a negative (-).
-64-
5-5. Countdown
By setting the Countdown, the phone will alert when the time is
reached.
Enable: Set Time and Start the countdown.
When the countdown starts, you can enter “Enable” menu to look
over the time; press Stop soft key to cancel this countdown
5-6. World time
The display shows:
• City name
• Current date and time according to the time format setting (12/24
Hours)
To … Then…
Select the time zone Press or
Select the city in the Press or
same time zone.
Make some settings (Set Press Ok soft key,
as local, Enable DS, Scroll to desired one
Disable DS)
6.PRIVATE INFO
The Private menu allows you to maintain various private information
and activate the password to keep the phone from being used by
unauthorized persons.
6-1. Enable PWD
Using this menu, you can activate use of password for the Personal
menu.
1. Scroll to Enable PWD, press the Ok soft key. You’ll see:
-65-
2. Enter the 4-digit password (The password is factory set to 0000 and
you can not change it), press Ok. The password is enabled.
Repeat the step 1, 2 to disable password.
Note: When the password is enabled, you’ll have to input the password
every time when you enter the Private info Menu.
6-2.Calendar
When you enter this menu, a calendar is displayed with the current
date indicated by a point.
Scrolling through the Calendar
1.You can move the underscore to Year, Month and Day fields by
pressing or .
2.When the desired field is underlined, press the or to move up or
down the date.
You can also enter the desired date using the number keypad.
Enter the Calendar Menu
Highlight a desired date in calendar, press OK. The following
operations are available in this section.
1. Set
To create a new log, you should:
(1) Select one at schedule:
• Memo: Make a note of general schedule, i.e. appointments or
meetings.
• Call: Schedule a call.
• Anniversary: Select to make note of anniversaries.
(2) Enter a subject of your schedule up to 25 characters and press the
Input PWD:｜
Ｃａｎｃｅｌ
-66-
OK soft key. If you are scheduling a call, enter a phone number.
(3)Select the date and time when the scheduler alarms you the
scheduled event.
Note: At the specified time on the scheduled day, the alarm will sound
and the note will display. If you schedule a call, the phone will dial
automatically.
For example: Make the settings as the above diagrams show, and the
phone will remind you that Jan 18 is Ran’s birthday at 7:00 on Jan 17.
2. Search
(1) View the schedules you’ve set, press or to scroll through these
notes.
(2) Select desired one, press Option soft key.
Change: Make some modifications to this note.
Delete: Delete this note.
3. Tone: Select the type of alarm ringing.
4. Delete: Delete the schedules.
l One by one
l All
l Expired
6-3. Notes
Log Set
1 Log Label
2 Call
2 Anniversary
Ｏｋ Ｃａｎｃｅｌ
abc @ 50
Jan. 18-Ran’s
birthday
Ｏｋ Ｂａｃｋ
Ahead Of Time
1 On Time
2. An Hour
3 One Day
Ｏｋ Ｃａｎｃｅｌ
Input time
24 hour mode
07:00
Ｏｋ Ｂａｃｋ
-67-
You can store 10 notes in this box, up to 30 characters for each note.
6-4. Calls
This menu allows you to view the timers for calls made and received.
The following timers are available:
Incoming
Missed
Outgoing
The operations of the above three items you can refer to Call list.
Last: You can see the duration of the last call.
Total: You can see the duration of your total calls (incoming and
outgoing).
For these two items, press the Reset soft key to reset the call timer as
zero or Cancel key to exit.
Charge info
Total charge: The total calls fee will be displayed and it also
can be reset to zero with the Reset soft key. You must input
PIN2 code when select Reset.
Max charge: Input a sum as max charge that can be used for
making calls. When your call charge exceeds this limit, no
more calls could be made (except free calls) unless you
reset the sum. You must input PIN2 code when make
modification.
Unit price: You can inquire and modify the unit price through
this function. Input PIN2 code when making a modification.
Blacklist: The number in the blacklist could not be redial
automatically. While redialing automatically, the phone
judge automatically whether to continue redialing on the
basis of the number of redialings and the failure cause. If
the phone judge that the number should not be redialed, it
will be stored in Blacklist.
-68-
7.AMUSEMENT
7-1.Games
7-1-1.Space arena
Start Game: Start a new game or continue the previous memory.
Game Setting : Configure your phone for the chosen game
(backlight, sound and so on)
Instructions: Describes the rules of the game.
Scores: Enables you to view the scores recorded. You can also clear
the scores.
Tip: Use the navigation keys to control the directions, left soft key to have
a pause and right soft key to exit.
7-1-2. Tetris
Primary: With a slow descending speed.
Middle: With a medium descending speed.
Senior: With a high descending speed.
Beep: Switch on/off the sound.
Help: Describes the rules in the game.
7-1-3. Push box
Start: To start a new game.
-69-
Instructions: Describes the rules of the game.
Beep: Switch on/off the sound.
7-1-4.Throw egg
New game: To start a new game.
Continue: Enables you to continue the previous game.
Instructions: Describes the rules in the game.
Beep: Switch on/off the sound.
7-1-5.Snake
New game: To start a new game.
Game Setting : Configure your phone for the chosen game (level,
sound)
Scores: Enables you to view the scores recorded. You can also clear
the scores.
Help: Describes the rules in the game.
Tip: In the above games, You can also use the keys on the left side of the
phone to adjust the tone.
7-2.Karaoke
You can enjoy music with words and flash animation through this
music player. There’re five songs stored in this player. Press or to
scroll to your desired song.
To … Then press…
Play/pause the song Ok soft key
Repeat Left soft key
Advance or back or
Adjust the music scale or
Exit Right soft key
Download: You can download some songs then there are two
operations available: Audition and Delete.
7-3.Music player
-70-
26 pieces titles are stored in this music box. Press or to scroll to
the desired music.
To … Then…
Play Press
Stop Press
Skip to the next Press
Skip to the previous Press
Press Option soft key for settings:
Open: Select it to play the music.
Loop: To play the music continuously.
7-4. Ebook
You can download up to 10 e-books to read through this function.
Please refer to RAF about how to download e-book.
Note: The content of every book can be up to 100k.
After a download, the following operations are available.
² Read Book:
To… Then…
Browse on the same page Press or
Turn on pages Press or
Make a mark at the point Press Bookmark soft
where you stop reading key.
Exit Press Cancel soft key
Delete: To delete any book you’ve downloaded.
Set color: Choose one color as the background color of your book.
-71-
8. SMS
The SMS (Short Message Service) function is a network service and
may not be supported by your network. Message can be sent by text,
fax, E-mail and paging messaging systems, to send text messages by
phone, you must obtain the number of the SMS center from your
service provider. This number may be automatically available from
your SIM.
Two message boxes are available: Personal SM and Broadcasting SM.
Personal SM: It is the message which the mobile users uses to transmit
information.
Broadcast SM: If you select this option, you can receive public
information from Network Operators such as
Weather Broadcasting and so on.
SM Indicator: When you receive a new message, and *
will appear respectively in the internal
and external screen. If the message
memory is full, is displayed and
you cannot receive or save any new messages. Use the
‘Delete’ menu to delete obsolete messages.
Note: In standby mode ,use or after entering Main menu to select
Message, both can enter Message option. But if your SIM card has
the function of STK, you can only use the former.
8-1. Read
-72-
8-1-1. Inbox
Inbox stores the messages that you have received, the one with ‘*’ is
new message.
1. Press 56key to choose the desired message.
2. Press Ok soft key to view details of message.
3. Press ‘Option’ left soft key and you can operate as follows:
Reply: Reply to the sender. You can write a new message and then
choose ‘Send’, ‘Store & Send’ , ‘Store’ or ‘Multiple Send’ .
Forward: Send the received message to others. You can edit the
message and then choose ‘Send’, ‘Store & Send’ , ‘Store’ or
‘Mul Send’
Extract number: you can extract numbers from this message.
Delete: Delete this message.
8-1-2.Outbox
Outbox stores the messages that you have already sent or are waiting
to be sent. A message with ‘*’ is unsent message.
1. Press 56key to choose the desired message.
2. Press Ok soft key to view details of message.
3. Press ‘Option’ soft key and you can operate as follows:
Write: You can write a piece of new message or edit the message and
then choose ‘Send’, ‘Store & Send’ , ‘Store’ or ‘Mul Send’to
do with the Message.
Extract number: you can extract numbers from this message.
Delete: Delete this message.
8-2. Write
The text message can be made up of 160 characters at the most. After
inputting the text message, press Ok soft key and you have the
following options:
Send: send the message.
Send /Store: Allow you to save and send the message. The message is
stored in the outbox even if it fails to be transmitted.
Save: Allows you to save the message so that it can be send later.
-73-
Multiple send: Allow you to send the message to multi receivers. You
can send the message to less than 5 phone numbers.
Finally, press Ok soft key. The number you last send a message to is
displayed.
To … Then…
Send this message to this Press OK soft key
number
Input a new number Hold Delete soft key to erase then input
new number
Search a number from PB Hold Delete soft key to erase then
press Search soft key
8-3. Delete
You can delete the messages in Inbox or Outbox.
For example: Press ‘Select’ left soft key to select ‘Inbox’, select ‘One
By One’, press 56 keys to select the message you
want and then press ‘Delete’ left soft key to delete it.
You can also select ‘Delete All’ to delete all messages
in the inbox.
8-4. Memory
You can select the menu to check total space and space and available
space.
8-5. Settings
Auto display: Select this function and press ‘Ok’ soft key. When you
receive a new message, it can display automatically .
You can select ‘Cancel ’to cancel this function.
SMS center: Allows you to store or change the number for your SMS
center for sending messages. You can obtain this
number from your service provider.
Validity: Allow you to set the length of time for which your text
messages will be stored at the message center while
-74-
attempts are made to deliver them to you. 1 hour, 6
hours, 12 hours, 1 day, 2 days, 1 week, and Max are
available.
Status report: You can select ‘On’ to require the SMS center to notify
whether your message has been sent or not.
SMS PWD: You can select ‘On’ to require SIM Lock Code when the
user wants to read inbox and outbox.
SMS tone: You can choose the tunes for alerting an new message.
8-6. Broadcast
You can receive broadcast messages such as weather or traffic reports
via this network service.
Read: You can view the up to date broadcast message .
Auto display: If you set this function ‘on’, messages are displayed
immediately when they are received.
Filter: Help you choose the channels you like to receive broadcast
messages from.
Languages: Helps you select the language you prefer in which the
broadcast message is displayed.
Note:
Language support depends on the Network operator.
8-7. Voice Mail
This menu provides you with a quick way of accessing your voice
mail (if provided by your network):
Number: Allow you to input the mailbox number obtained from your
service provider.
Call: press the ‘Send’ soft key to listen to your messages.
8-8. Templates
Several customs short message have been stored which you can edit
and/ or send conveniently.
-75-
REFERENCE INFORMATION
Access Codes
There are several access codes that are used by your phone and its
SIM card. These codes help you protect the phone against
unauthorized use.
Phone Password
The security code can be used to avoid unauthorized use of your
phone. The security code is set at 0000 at the factory.
Change the security code before you start using your phone. Keep the
new code secret and in a safe place, which is separate from the phone.
PIN Code
The PIN (Personal Identification Number) code protects your SIM
card against unauthorized use. The PIN code is usually supplied with
the SIM card. When the PIN code request is enabled, the code is asked
for when the phone is switched on.
If you key in an incorrect PIN code three times in succession, the SIM
card will be locked. To unlock the SIM card, you’d key in the PUK
code see below and press the OK soft key, and key in a new PIN code
twice.
-76-
PIN2 code
The PIN2 code, supplied with some SIM cards, is required to access
some of the functions, such as charging unit counters. These functions
are only available if supported by your SIM card.
If you key in an incorrect PIN2 code three times in succession, the
PIN2 will be locked. To unlock the PIN2, you’d key in the PUK2
code and press the OK soft key (or OK key), and key in a new PIN2
code twice.
PUK code
The PUK (Personal Unblocking Key) code is required to change a
blocked PIN code. The PUK code may be supplied with the SIM card.
If not, contact your local service provider for the code.
If you key in an incorrect PUK code ten times in succession, the SIM
card cannot be used anymore. Contact your service provider for a new
card.
You cannot change the PUK code. If you lose the code, contact your
service provider.
PUK2 code
The PUK2 code, supplied with some SIM cards, is required to change
a blocked PIN2 code.
If you key in an incorrect PUK2 code ten times in succession, you
cannot use the functions requiring the PIN2 code. Contact your
service provider for a new card.
You cannot change the PUK2 code. If you lose the code, contact your
service provider.
-77-
Using the Batteries
A rechargeable Li-ion standard battery powers your phone. The
following batteries are also available (ask your local dealer for further
details):
Type Capacity Talk Time Standby Time
Li-ion Slim 550mAh 3~6hrs 50~100hrs
Li-ion Standard 950mAh 4~8hrs 90~150hrs
Precautions When Using Batteries
You should fully charge the battery before using it for the first time,
(over 10 hours for the first several times), then recharge it for the
following time when the phone indicates ‘Battery low’. The battery
will be activated to the optimal status if you charge it in this way for
several times; there will be not the above limitation in the following
usage, but you’d better charge the battery for 2-4 hours to fully charge
it.
Never use any charger or battery that is damaged in any way.
Use the battery only for its intended purpose.
If you use the phone near the network’s base station, it uses less
-78-
power; talk and standby times are greatly affected by the signal
strength on the cellular network and the parameters set by the network
operator.
Battery charging times depend on the remaining battery charge and
the type of battery and charger used. The battery can be charged and
discharged hundreds of times, but it will gradually wear out. When the
operation time (talk time and standby time) is noticeably shorter than
normal, it is time to buy a new battery.
If left unused, a fully charged battery will discharge itself over time.
Use only approved batteries; and recharge your battery only with
approved chargers. When a charger is not in use, disconnect it from
the power source. Do not leave the battery connected to a charger for
more than a week, since overcharging may shorten its life.
Extreme temperatures will affect the charging capacity of your
battery: it may require cooling or warming first. Do not leave the
battery in hot or cold places, such as in a car in summer or winter
conditions, as you will reduce the capacity and lifetime of the battery.
Always try to keep the battery at room temperature. A phone with a
hot or cold battery may temporarily not work, even when the battery is
fully charged. Li-ion batteries are particularly affected by
temperatures below 0 °C.
Do not short-circuit the battery. Accidental short-circuiting can occur
when a metallic object (coin, clip or pen) causes a direct connection
between the + and - terminals of the battery (metal strips on the back
of the battery), for example when you carry a spare battery in a pocket
-79-
or bag. Short-circuiting the terminals may damage the battery or the
object causing the short-circuit.
Dispose of used batteries in accordance with local regulations. Always
recycle. Do not dispose of batteries in a fire.
-80-
Care and Maintenance
Your phone is a product of superior design and craftsmanship and
should be treated with care. The suggestions below will help you to
fulfill any warranty obligations and allow you to enjoy this product for
many years. When using your phone, battery, charger, or any
accessory:
Keep it and all its parts and accessories out of small children’s reach.
Keep it dry. Precipitation, humidity and liquids contain minerals that
will corrode electronic circuits.
Do not use or store it in dusty, dirty areas as its moving parts can be
damaged.
Do not store it in hot areas. High temperatures can shorten the life of
electronic devices, damage batteries, and warp or melt certain plastics.
Do not store it in cold areas. When the phone warms up (to its normal
operating temperature), moisture can form inside the phone, which
may damage the phone’s electronic circuit boards.
Do not drop, knock or shake it. Rough handling can break internal
circuit boards.
Do not use harsh chemicals, cleaning solvents, or strong detergents to
clean it. Wipe it with a soft cloth slightly dampened in a mild soap-
and-water solution.
Do not paint it. Paint can clog the device’s moving parts and prevent
proper operation.
Use only the supplied or an approved replacement antenna.
Unauthorized antennas, modifications of attachments could damage
the phone and may violate regulations governing radio devices.
-81-
If the phone, battery, charger, or any accessory is not working
properly, take it to your nearest qualified service facility.
This phone features large inner & outer display screens, which are
damageable. Please be most careful to avoid dropping or knocking it
or scratch it with a sharp object.
-82-
GLOSSARY
Antenna
A device for transmitting or receiving signals. The size and shape of
antennas is determined, in part, by the frequency of the signal they
receive. Wireless phones and the base station must have antennas.
ALS (Alternate Line Service)
ALS provides the capability of associating two alternate lines with one
SIM card. You can make and receive calls on either line as desired
with this service.
Call Barring
Ability to restrict outgoing and incoming calls.
Call Diverting
Ability to reroute calls to another mobile or fixed line.
Call Holding
Ability to put one call on standby while answering or making another
call; you can then switch between the two calls, as required.
Call Waiting
Ability to inform users that they have an incoming call when engaged
on another call.
Conference Calling
Ability to establish a conference call involving up to five additional
parties.
DTMF (Dual-Tone Modulated Frequency)
You send DTMF signals when you enter numbers by pressing the
digit keys.
-83-
Hands-Free
A feature that permits a driver to use a wireless phone without lifting
or holding the handset - an important safety feature for automobiles,
tractors and most other motorized vehicles.
GSM (Global System for Mobile communication)
International standard for cellular communication, guaranteeing
compatibility between the various network operators. GSM covers
most European countries and many other parts of the world.
LCD (Liquid Crystal Display)
Commonly used to refer to the screen display on the wireless phone.
LED (Light Emitting Diode )
Commonly used to refer to a small light on the wireless phone or on
the Desktop Charger. The LED lights on the phone to indicate an
incoming call. The lights on the charger indicate that battery charging
is taking place.
Line Identification Services
Service allowing subscribers to view or block the telephone numbers
of callers.
PIN (Personal Identification Number)
Security code that protects the phone against unauthorised use. The
PIN is supplied by the service provider with the SIM card. It may be a
four to eight-digit number and can be changed, as required.
PUK (PIN Unlocking Key)
Security code used to unlock the phone when an incorrect PIN has
been entered three times in succession. The eight-digit number is
supplied by the service provider with the SIM card.
Roaming
Use of your phone when you are outside your home area (when
-84-
traveling for example).
SIM (Subscriber Identification Module)
Card containing a chip with all the information required to operate the
phone (network and memory information, as well as the subscriber’s
personal data). The SIM card fits into a small slot on the back of the
phone and is protected by the battery.
SMS (Short Message Service)
Network service sending and receiving messages to and from another
subscriber without having to speak to the correspondent. The message
created or received (up to 160 characters long) can be displayed,
received, edited or sent.
Soft Keys
Keys marked • and o on the phone, the purpose of which:
• Varies according to the function that you are currently using
• Is indicated on the bottom line of the display just above the
corresponding key
Voice Mail
Computerized answering service that automatically answers your calls
when you are not available, plays a greeting (Optionally in your own
voice) or records a message.
-85-
-86-
TROUBLESHOOTING
If the phone does not works properly, please check the following
troubleshooting tips and find a solution. If you can’t solve the
problems, please contact your local dealer for helps.
Problem Solution
Cannot make or receive calls.
Check whether the phone is turned on .
Check whether the battery is changed.
Check whether the field signal strength is
adequate.
Check the Call Barring, SDN or the other
options in Call Set menu.
Check the Call Divert Status.
Check whether the SIM card is placed
properly.
Conversation volume is low. Check the Voice Volume too low.
Does not ring when an incoming calls
comes in.
Check whether the Silent or Vibrator
modes have been selected.
Check whether the ring volume is set too
low.
Check whether the surrounding noise is
too loud.
Check the Call Divert is on.
LCD is not clear.
Check whether the LCD Contrast is set
too low.
The keypad does not work
Check whether the keypad is locked or
not.
The other part cannot hear you. Check whether the Mute option is on.
Speak closer to the microphone.
