AMOI Electronics DA6 PCS1900 (Mobile Phone) User Manual 442950

AMOI Electronics Co., Ltd. PCS1900 (Mobile Phone) 442950

User Manual

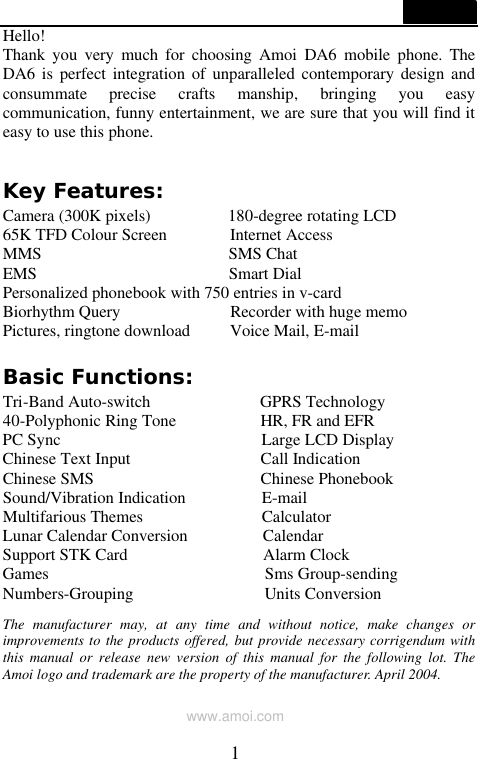

 1  Hello! Thank you very much for choosing Amoi DA6 mobile phone. The DA6 is perfect integration of unparalleled contemporary design and consummate precise crafts manship, bringing you easy communication, funny entertainment, we are sure that you will find it easy to use this phone.  Key Features: Camera (300K pixels)         180-degree rotating LCD 65K TFD Colour Screen       Internet Access              MMS                      SMS Chat EMS                       Smart Dial Personalized phonebook with 750 entries in v-card Biorhythm Query             Recorder with huge memo Pictures, ringtone download     Voice Mail, E-mail             Basic Functions: Tri-Band Auto-switch             GPRS Technology 40-Polyphonic Ring Tone          HR, FR and EFR PC Sync                        Large LCD Display Chinese Text Input                Call Indication Chinese SMS                    Chinese Phonebook Sound/Vibration Indication         E-mail Multifarious Themes              Calculator Lunar Calendar Conversion         Calendar Support STK Card                Alarm Clock Games                          Sms Group-sending Numbers-Grouping                Units Conversion                   The manufacturer may, at any time and without notice, make changes or improvements to the products offered, but provide necessary corrigendum with this manual or release new version of this manual for the following lot. The Amoi logo and trademark are the property of the manufacturer. April 2004.  www.amoi.com

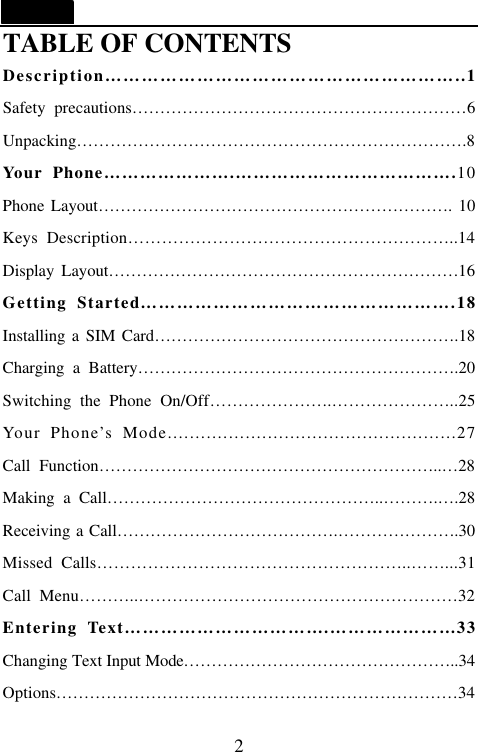

  2 TABLE OF CONTENTS Description…………………………………………………..1 Safety precautions……………………………………………………6 Unpacking…………………………………………………………….8 Your Phone………………….……………………………….10 Phone Layout………………………………………………………. 10 Keys Description…………………………………………………..14 Display Layout………………………………………………………16 Getting Started…………………………………………….18 Installing a SIM Card……………………………………………….18 Charging a Battery………………………………………………….20 Switching the Phone On/Off………………….…………………..25 Your Phone’s Mode....................................................27 Call Function……………………………………………………..…28 Making a Call…………………………………………..……….….28 Receiving a Call………………………………….………………….30 Missed  Calls………………………………………………..……...31 Call Menu………..…………………………………………………32 Entering Text…………………………….…………………33 Changing Text Input Mode…………………………………………..34 Options………………………………………………………………34

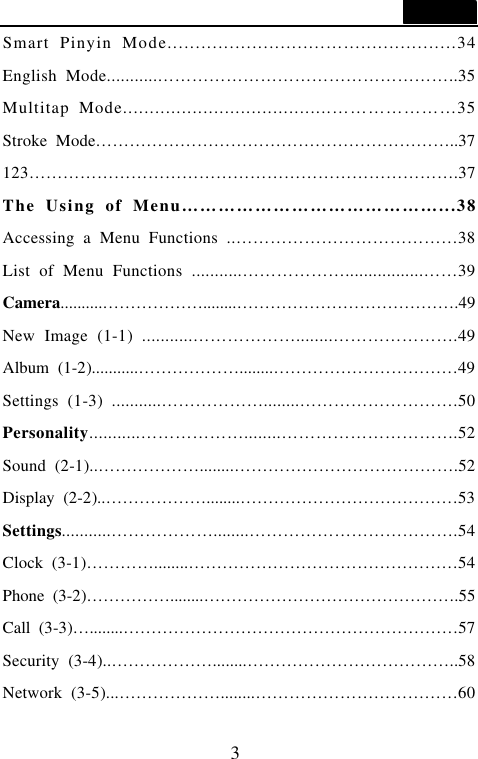

 3  Smart Pinyin Mode............................…....................34 English Mode...........……………………………………………..35 Multitap Mode.......................................…………………35 Stroke Mode………………………………………………………..37 123………………………………………………………………….37 The Using of Menu……………………………………...38 Accessing a Menu Functions ..…………………………………38 List of Menu Functions ...........……………….................……39 Camera..........………………........………………………………….49 New Image (1-1) ...........………………........………………….49 Album (1-2)...........………………........……………………………49 Settings (1-3) ...........………………........……………………….50 Personality...........………………........………………………….52 Sound (2-1)..………………........………………………………….52 Display (2-2)..………………........…………………………………53 Settings...........………………........……………………………….54 Clock (3-1)…………........…………………………………………54 Phone (3-2)……………........……………………………………….55 Call (3-3)…........……………………………………………………57 Security (3-4)..………………........………………………………..58 Network (3-5)...………………........………………………………60

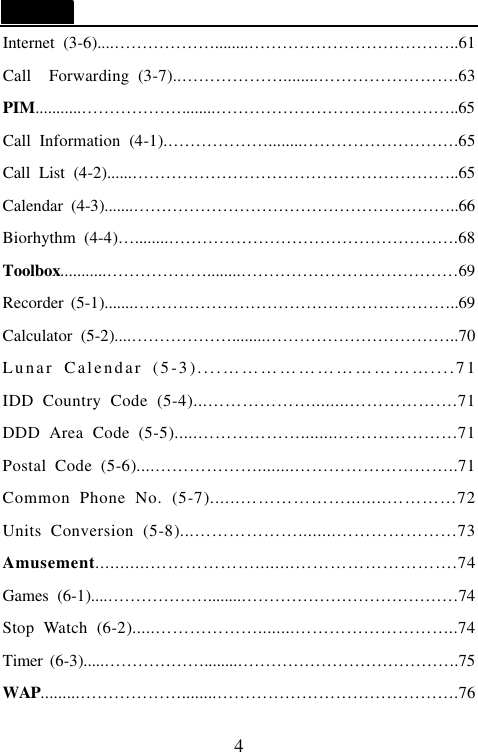

  4 Internet (3-6)....………………........………………………………..61 Call   Forwarding (3-7)..………………........…………………….63 PIM...........………………........……………………………………..65 Call Information (4-1).………………........……………………….65 Call List (4-2)......…………………………………………………..65 Calendar (4-3).......…………………………………………………..66 Biorhythm (4-4)…........…………………………………………….68 Toolbox...........………………........…………………………………69 Recorder (5-1).......…………………………………………………..69 Calculator (5-2)....………………........……………………………..70 Lunar Calendar (5-3)....……………………………....71 IDD Country Code (5-4)...………………........……………….71 DDD Area Code (5-5).....………………........…………………71 Postal Code (5-6)....………………........………………………..71 Common Phone No. (5-7)......………………........…………72 Units Conversion (5-8)...………………........…………………73 Amusement...........………………........……………………….74 Games (6-1)....………………........…………………………………74 Stop Watch (6-2).....………………........………………………..74 Timer (6-3).....………………........………………………………….75 WAP.........………………........…………………………………….76

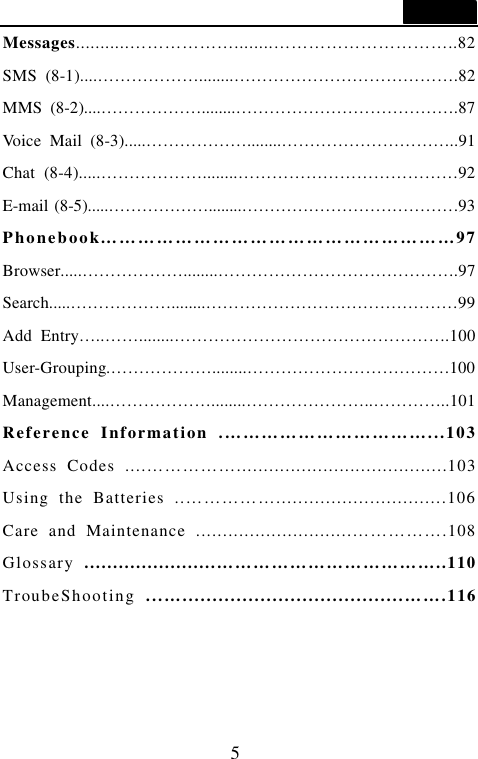

 5  Messages...........………………........…………………………..82 SMS (8-1)....………………........………………………………….82 MMS (8-2)....………………........………………………………….87 Voice Mail (8-3).....………………........…………………………..91 Chat (8-4).....………………........…………………………………92 E-mail (8-5).....………………........…………………………………93 Phonebook…………………………………………………97 Browser.....………………........…………………………………….97 Search.....………………........………………………………………99 Add Entry…..……........………………………………………….100 User-Grouping.………………........………………………………100 Management....………………........…………………..…………..101 Reference Information .……………………………...103 Access Codes ....…………….......................................103 Using the Batteries ..……………...............................106 Care and Maintenance .............................…………….108 Glossary  .......................………………………………..110 TroubeShooting  ...….....................................…….116

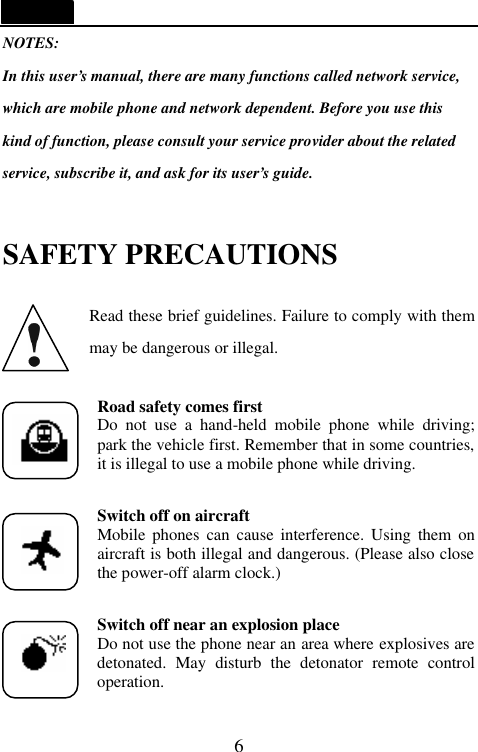

  6 NOTES: In this user’s manual, there are many functions called network service, which are mobile phone and network dependent. Before you use this kind of function, please consult your service provider about the related   service, subscribe it, and ask for its user’s guide.  SAFETY PRECAUTIONS  Read these brief guidelines. Failure to comply with them may be dangerous or illegal.  Road safety comes first Do not use a hand-held mobile phone while driving; park the vehicle first. Remember that in some countries, it is illegal to use a mobile phone while driving.  Switch off on aircraft Mobile phones can cause interference. Using them on aircraft is both illegal and dangerous. (Please also close the power-off alarm clock.)  Switch off near an explosion place Do not use the phone near an area where explosives are detonated.  May disturb the detonator remote control operation.

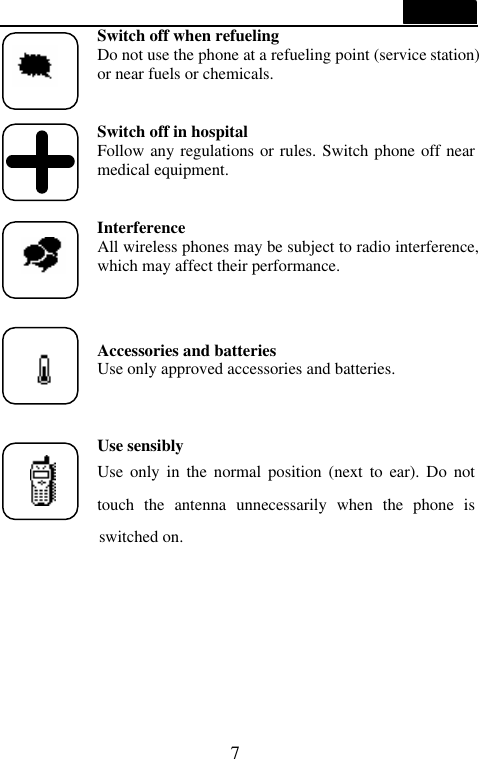

 7  Switch off when refueling Do not use the phone at a refueling point (service station) or near fuels or chemicals.   Switch off in hospital Follow any regulations or rules. Switch phone off near medical equipment.   Interference All wireless phones may be subject to radio interference, which may affect their performance.   Accessories and batteries Use only approved accessories and batteries.    Use sensibly Use only in the normal position (next  to ear). Do not touch the antenna unnecessarily when the phone is      switched on.

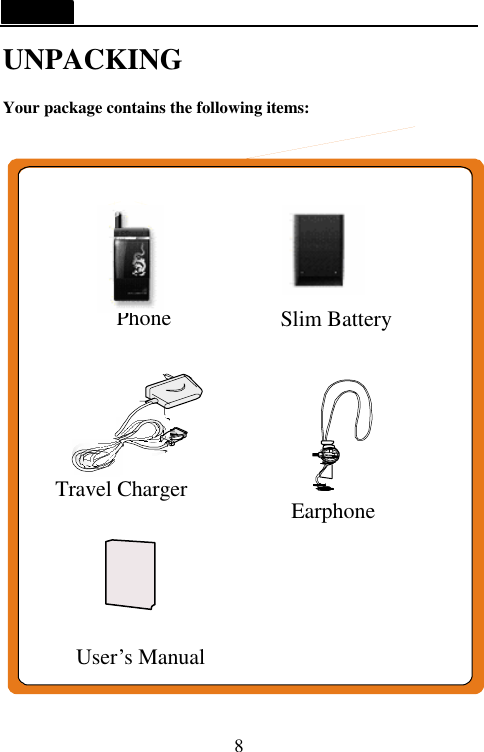

  8 UNPACKING   Your package contains the following items:                   User’s Manual Travel Charger Phone  Slim Battery Earphone
 9  In addition, you can buy the following accessories for your phone from your local dealer: l Standard/Slim Li-Ion batteries l Desktop Charger l Data Kit l Leather Case l Car Charger

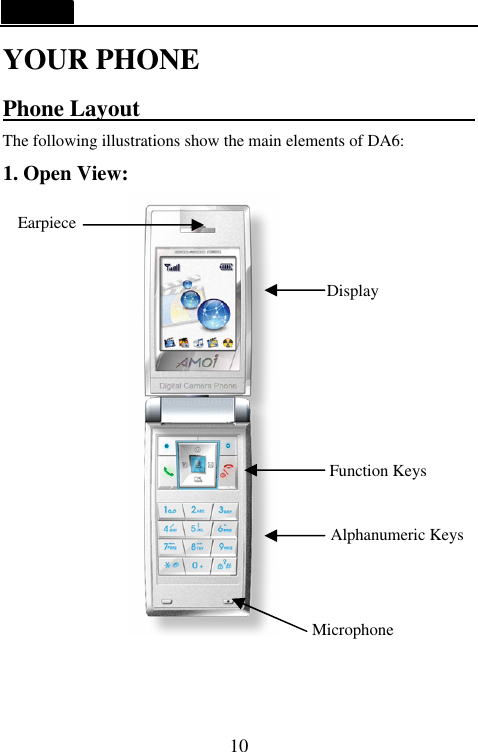

  10 YOUR PHONE Phone Layout                               The following illustrations show the main elements of DA6: 1. Open View:                     Microphone   Display Function Keys Alphanumeric Keys Earpiece

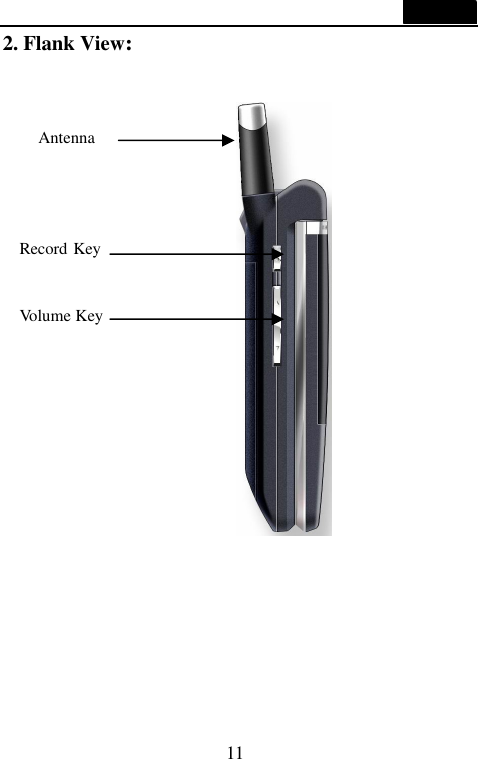

 11  2. Flank View:                                                                       Record Key Volume Key Antenna

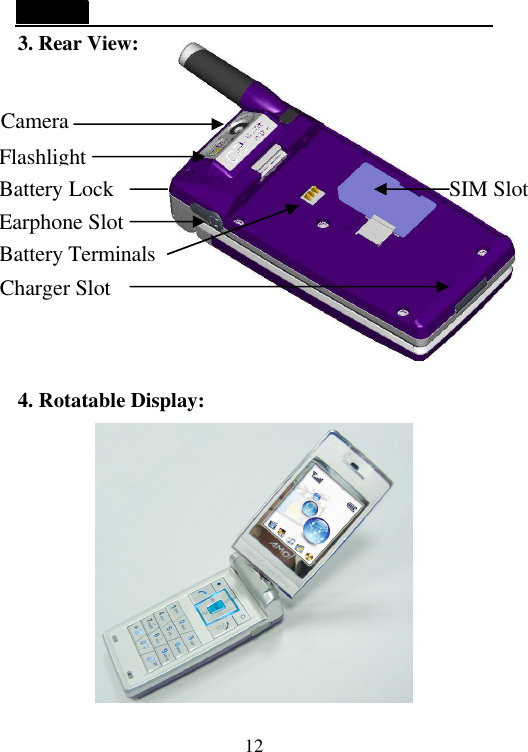

  12 3. Rear View:                                          4. Rotatable Display:  Battery Lock Battery Terminals  Charger Slot  Earphone Slot Camera Flashlight  SIM Slot

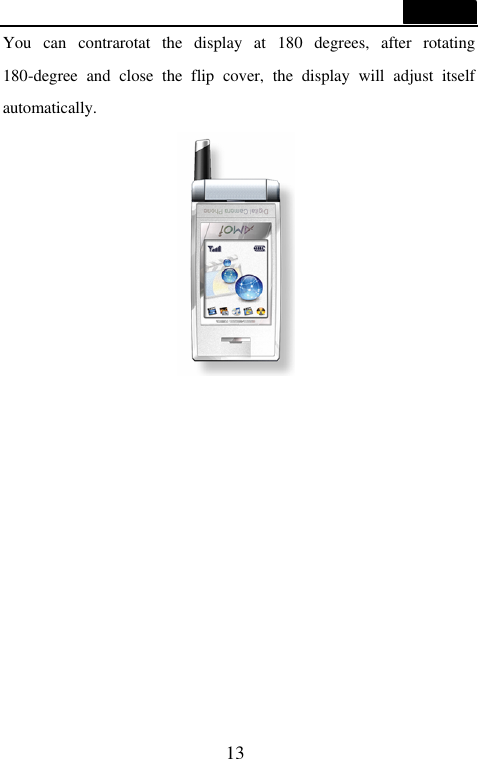

 13  You can contrarotat the display at 180 degrees, after rotating 180-degree and close the flip cover, the display will adjust itself automatically.

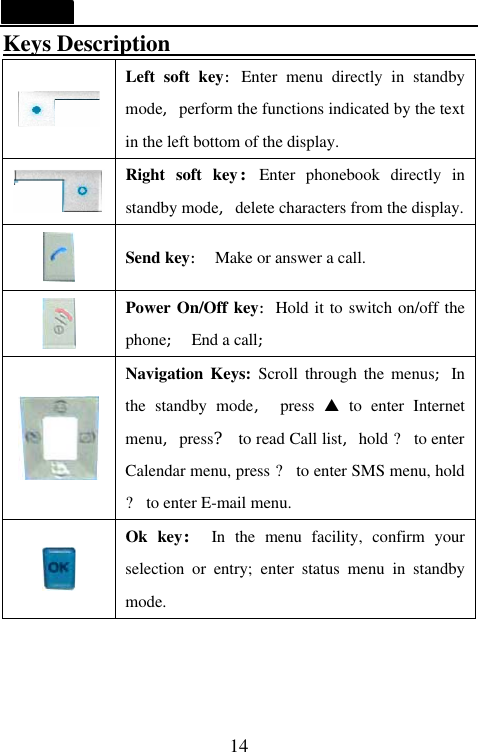

  14 Keys Description                             Left soft key:Enter menu directly in standby mode,perform the functions indicated by the text in the left bottom of the display.  Right soft key:Enter phonebook directly in standby mode,delete characters from the display.  Send key: Make or answer a call.  Power On/Off key:Hold it to switch on/off the phone; End a call;  Navigation Keys: Scroll through the menus;In the standby mode, press p to enter Internet menu,press? to read Call list,hold ? to enter Calendar menu, press ? to enter SMS menu, hold ? to enter E-mail menu.  Ok key: In the menu facility, confirm your selection or entry; enter status menu in standby mode.

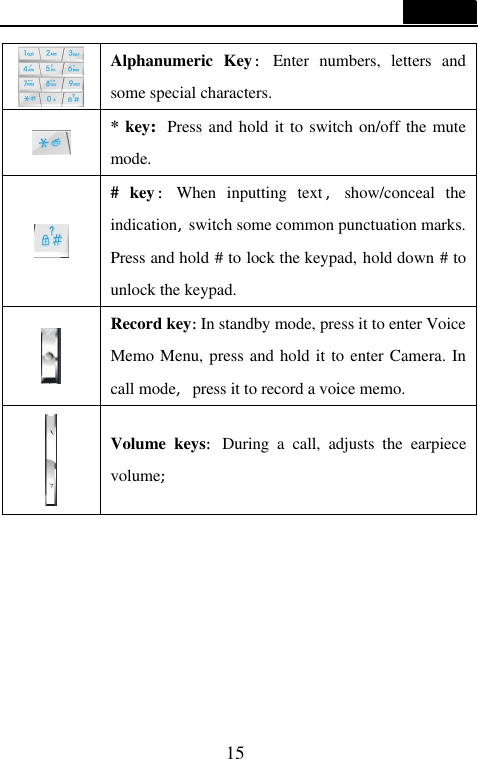

 15      Alphanumeric Key:Enter numbers, letters and some special characters.  * key:Press and hold it to switch on/off the mute mode.  # key:When inputting text ,show/conceal the indication,switch some common punctuation marks. Press and hold # to lock the keypad, hold down # to unlock the keypad.  Record key:In standby mode, press it to enter Voice Memo Menu, press and hold it to enter Camera. In call mode,press it to record a voice memo.  Volume keys:During a call, adjusts the earpiece volume;

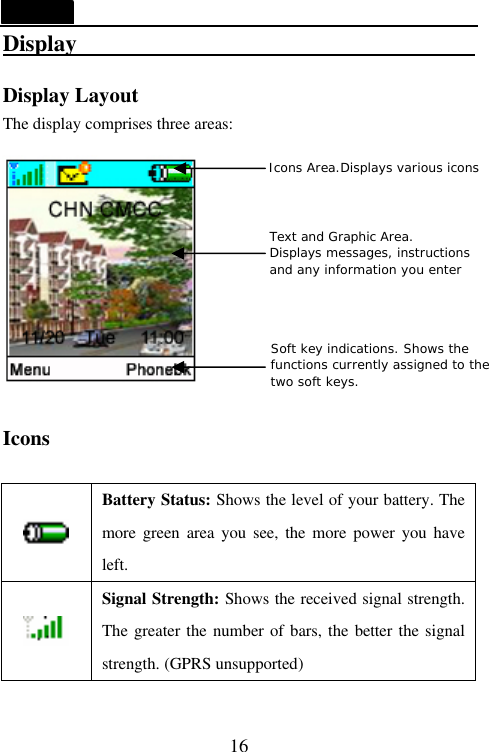

  16 Display                                     Display Layout The display comprises three areas:   Icons   Battery Status: Shows the level of your battery. The more  green area you see, the more power you have left.  Signal Strength: Shows the received signal strength. The greater the number of bars, the better the signal strength. (GPRS unsupported) Icons Area.Displays various icons Text and Graphic Area.  Displays messages, instructions  and any information you enter Soft key indications. Shows the  functions currently assigned to the  two soft keys.

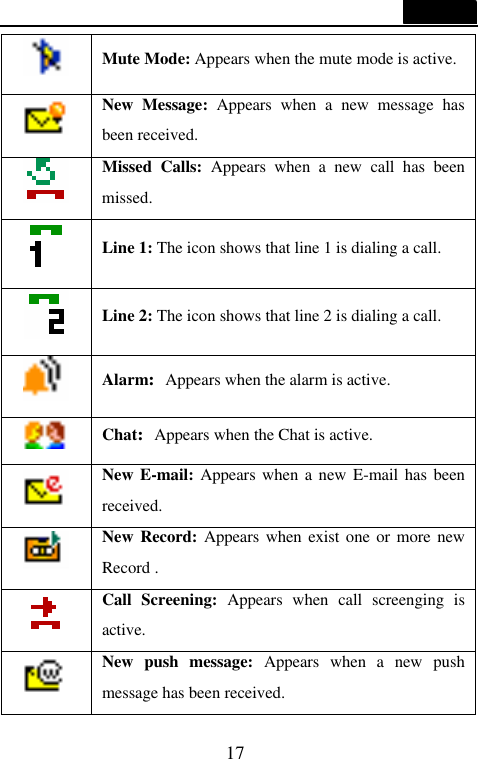

 17    Mute Mode: Appears when the mute mode is active.  New Message: Appears when a new message has been received.  Missed Calls: Appears when a new call has been missed.   Line 1: The icon shows that line 1 is dialing a call.  Line 2: The icon shows that line 2 is dialing a call.  Alarm:Appears when the alarm is active.  Chat:Appears when the Chat is active.  New E-mail: Appears when a new E-mail has been received.  New Record: Appears when exist one or more new Record .  Call Screening: Appears when call screenging is active.  New push message: Appears when a new push message has been received.

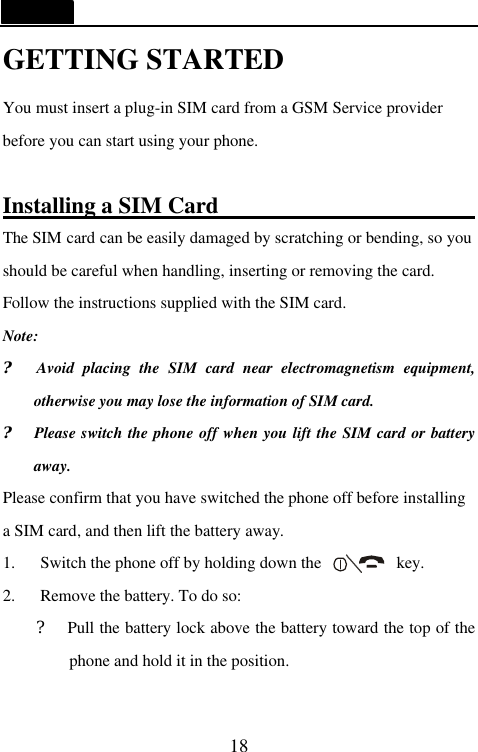

  18 GETTING STARTED You must insert a plug-in SIM card from a GSM Service provider before you can start using your phone.  Installing a SIM Card                        The SIM card can be easily damaged by scratching or bending, so you should be careful when handling, inserting or removing the card. Follow the instructions supplied with the SIM card. Note: ?  Avoid placing the SIM card near electromagnetism equipment, otherwise you may lose the information of SIM card. ?  Please switch the phone off when you lift the SIM card or battery away. Please confirm that you have switched the phone off before installing a SIM card, and then lift the battery away.   1. Switch the phone off by holding down the         key.   2. Remove the battery. To do so:   ?  Pull the battery lock above the battery toward the top of the phone and hold it in the position.

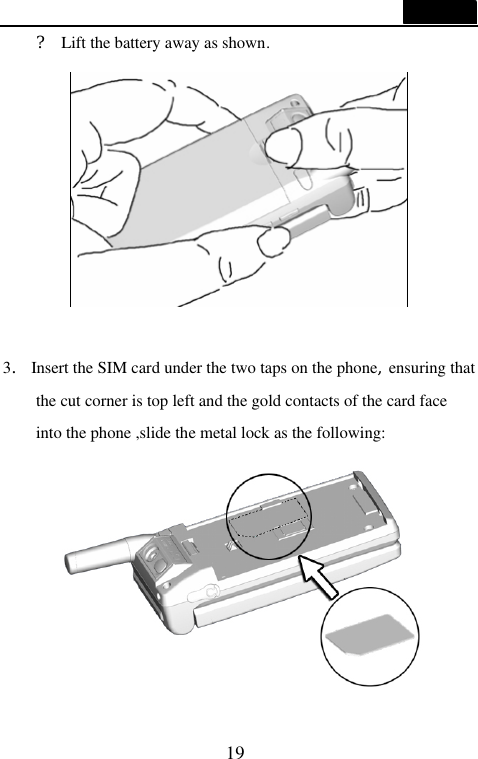

 19  ? Lift the battery away as shown.   3. Insert the SIM card under the two taps on the phone,ensuring that the cut corner is top left and the gold contacts of the card face into the phone ,slide the metal lock as the following:

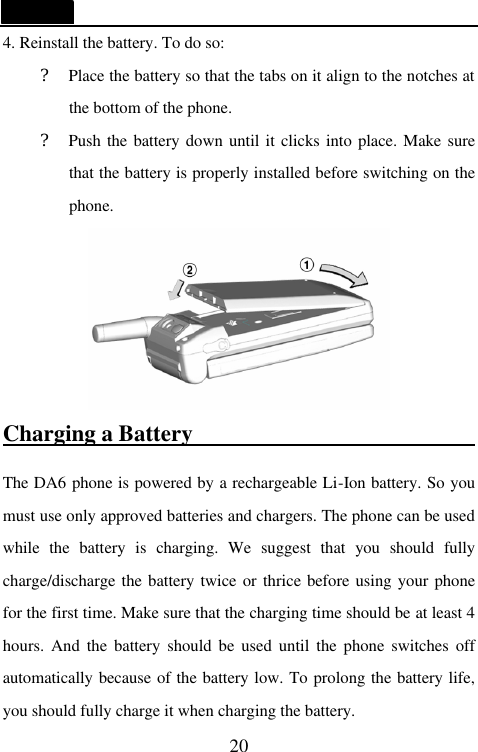

  20 4. Reinstall the battery. To do so: ? Place the battery so that the tabs on it align to the notches at the bottom of the phone. ? Push the battery down until it clicks into place. Make sure that the battery is properly installed before switching on the phone.  Charging a Battery                           The DA6 phone is powered by a rechargeable Li-Ion battery. So you must use only approved batteries and chargers. The phone can be used while the battery is charging. We suggest that you  should fully charge/discharge the battery twice or thrice before using your phone for the first time. Make sure that the charging time should be at least 4 hours. And the battery should be used until the phone switches off automatically because of the battery low. To prolong the battery life, you should fully charge it when charging the battery.

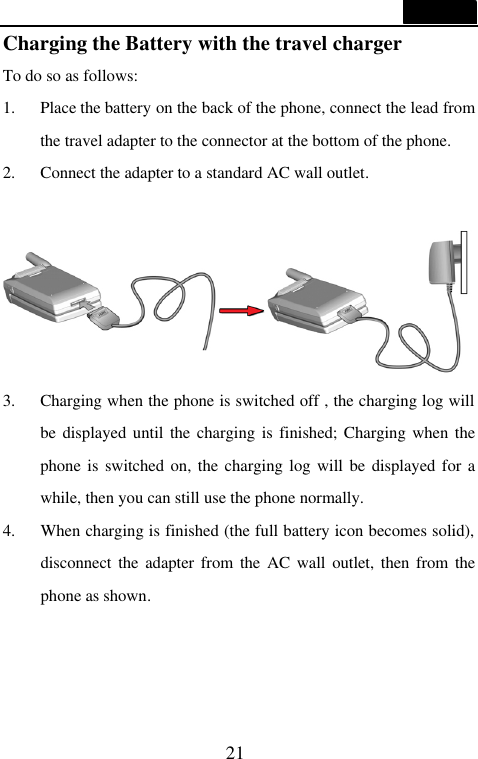

 21  Charging the Battery with the travel charger To do so as follows: 1. Place the battery on the back of the phone, connect the lead from the travel adapter to the connector at the bottom of the phone. 2. Connect the adapter to a standard AC wall outlet.      3. Charging when the phone is switched off , the charging log will be displayed until the charging is finished; Charging when the phone is switched on, the charging log will be displayed for a while, then you can still use the phone normally.   4.   When charging is finished (the full battery icon becomes solid), disconnect the adapter from the AC wall outlet, then from the phone as shown.

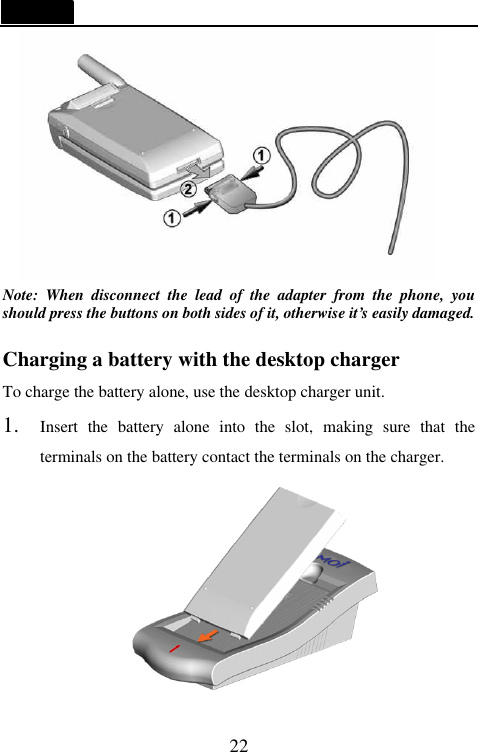

  22     Note: When disconnect the lead of the adapter from the phone, you should press the buttons on both sides of it, otherwise it’s easily damaged.  Charging a battery with the desktop charger To charge the battery alone, use the desktop charger unit. 1. Insert the battery alone into the slot, making sure that the terminals on the battery contact the terminals on the charger.

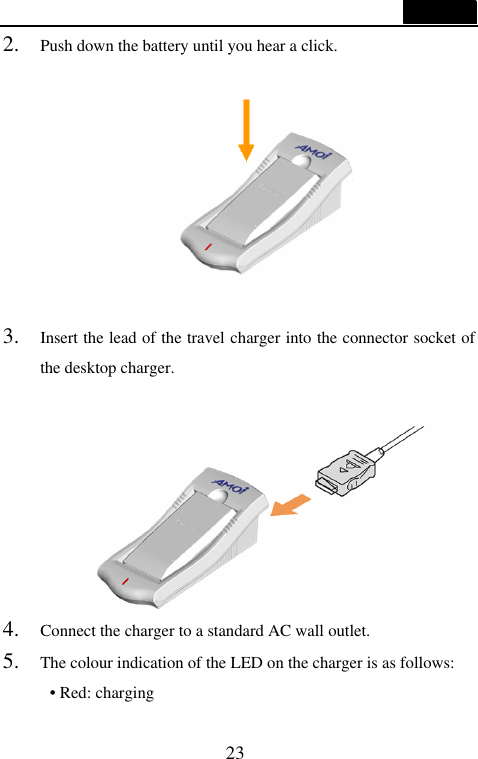

 23  2. Push down the battery until you hear a click.    3. Insert the lead of the travel charger into the connector socket of the desktop charger.   4. Connect the charger to a standard AC wall outlet. 5. The colour indication of the LED on the charger is as follows: • Red: charging

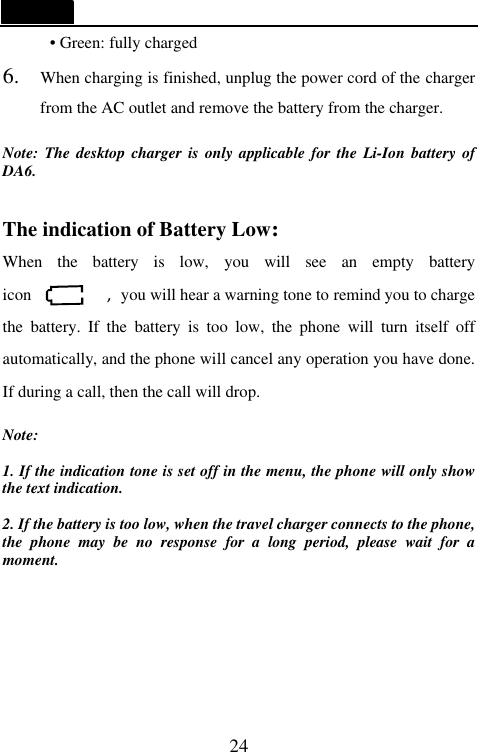

  24 • Green: fully charged 6. When charging is finished, unplug the power cord of the charger from the AC outlet and remove the battery from the charger.  Note: The desktop charger is only applicable for the Li-Ion battery of DA6.  The indication of Battery Low: When the battery is low, you will see an empty battery icon         ,you will hear a warning tone to remind you to charge the battery. If the battery is too low, the phone will turn itself off automatically, and the phone will cancel any operation you have done. If during a call, then the call will drop.  Note:  1. If the indication tone is set off in the menu, the phone will only show the text indication.  2. If the battery is too low, when the travel charger connects to the phone, the phone may be no response for a long period, please wait for a moment.

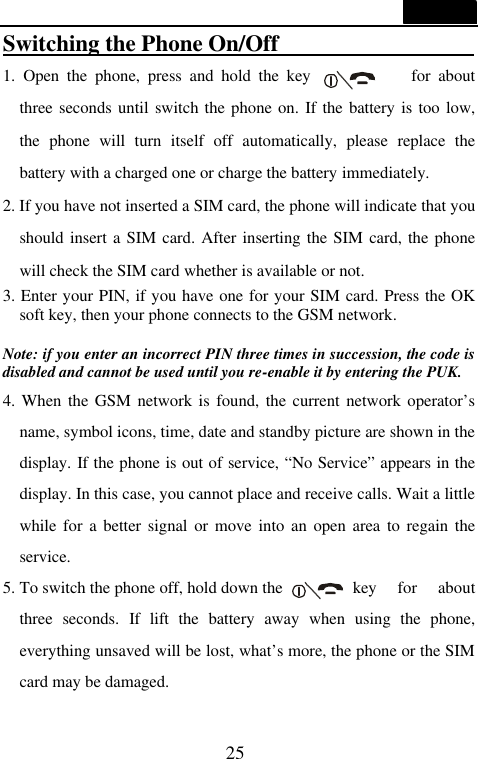

 25  Switching the Phone On/Off                  1.  Open the phone, press and hold the key            for about three seconds until switch the phone on. If the battery is too low, the phone will turn itself off automatically, please replace the battery with a charged one or charge the battery immediately. 2. If you have not inserted a SIM card, the phone will indicate that you should insert a SIM card. After inserting the SIM card, the phone will check the SIM card whether is available or not. 3. Enter your PIN, if you have one for your SIM card. Press the OK soft key, then your phone connects to the GSM network.  Note: if you enter an incorrect PIN three times in succession, the code is disabled and cannot be used until you re-enable it by entering the PUK. 4. When the GSM network is found, the current network operator’s name, symbol icons, time, date and standby picture are shown in the display. If the phone is out of service, “No Service” appears in the display. In this case, you cannot place and receive calls. Wait a little while for a better signal or move into an open area to regain the service. 5. To switch the phone off, hold down the    key for about three seconds. If lift the battery away when using the phone, everything unsaved will be lost, what’s more, the phone or the SIM card may be damaged.

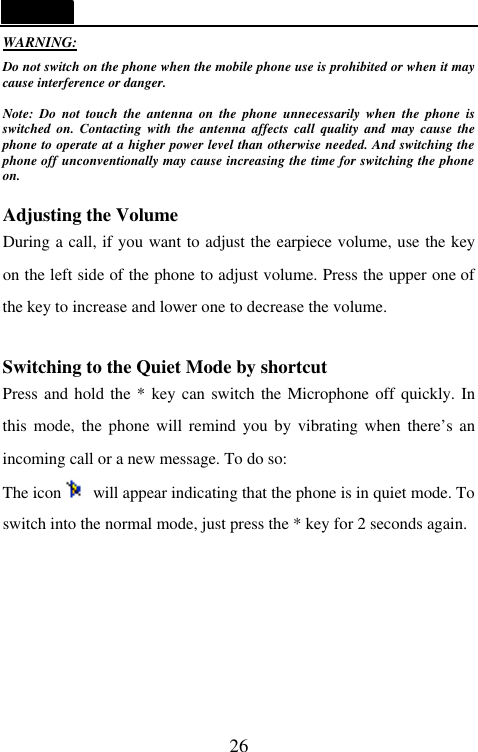

  26 WARNING: Do not switch on the phone when the mobile phone use is prohibited or when it may cause interference or danger.  Note: Do not touch the antenna on the phone unnecessarily when the phone is switched on. Contacting with the antenna affects call quality and may cause the phone to operate at a higher power level than otherwise needed. And switching the phone off unconventionally may cause increasing the time for switching the phone on.    Adjusting the Volume During a call, if you want to adjust the earpiece volume, use the key on the left side of the phone to adjust volume. Press the upper one of the key to increase and lower one to decrease the volume.    Switching to the Quiet Mode by shortcut Press and hold the * key can switch the Microphone off quickly. In this mode, the phone will remind you by vibrating when there’s an incoming call or a new message. To do so: The icon  will appear indicating that the phone is in quiet mode. To switch into the normal mode, just press the * key for 2 seconds again.

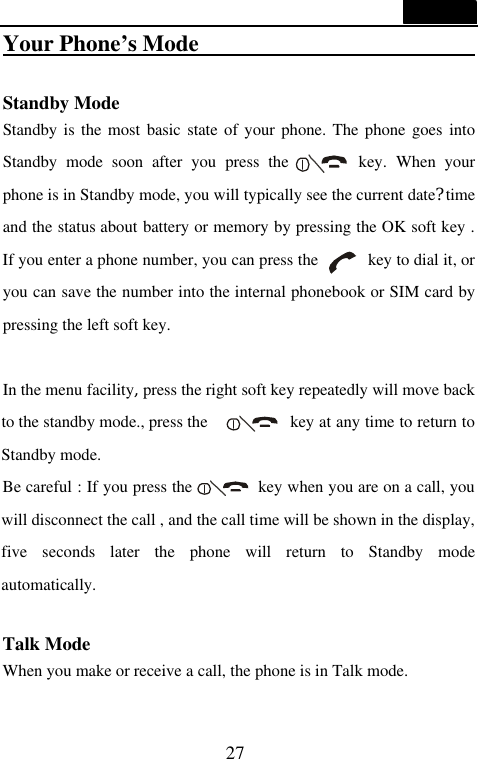

 27  Your Phone’s Mode                          Standby Mode Standby is the most basic state of your phone. The phone goes into Standby mode soon after you press the        key. When your phone is in Standby mode, you will typically see the current date?time and the status about battery or memory by pressing the OK soft key . If you enter a phone number, you can press the        key to dial it, or you can save the number into the internal phonebook or SIM card by pressing the left soft key.    In the menu facility,press the right soft key repeatedly will move back to the standby mode., press the      key at any time to return to Standby mode. Be careful : If you press the        key when you are on a call, you will disconnect the call , and the call time will be shown in the display, five  seconds later the phone will return to Standby mode automatically.    Talk Mode When you make or receive a call, the phone is in Talk mode.

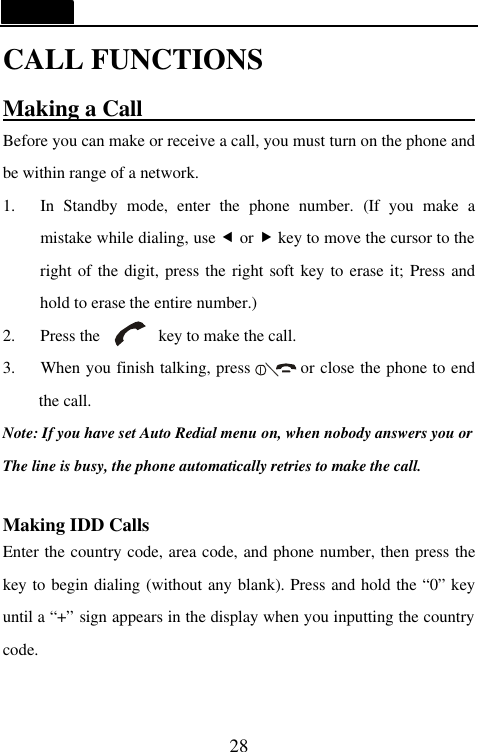

  28 CALL FUNCTIONS Making a Call                              Before you can make or receive a call, you must turn on the phone and be within range of a network. 1. In Standby mode, enter the phone number. (If you make a mistake while dialing, use ƒ or „ key to move the cursor to the right of the digit, press the right soft key to erase it; Press and hold to erase the entire number.)   2.   Press the       key to make the call. 3.   When you finish talking, press      or close the phone to end the call. Note: If you have set Auto Redial menu on, when nobody answers you or The line is busy, the phone automatically retries to make the call.  Making IDD Calls                         Enter the country code, area code, and phone number, then press the      key to begin dialing (without any blank). Press and hold the “0” key until a “+” sign appears in the display when you inputting the country code.

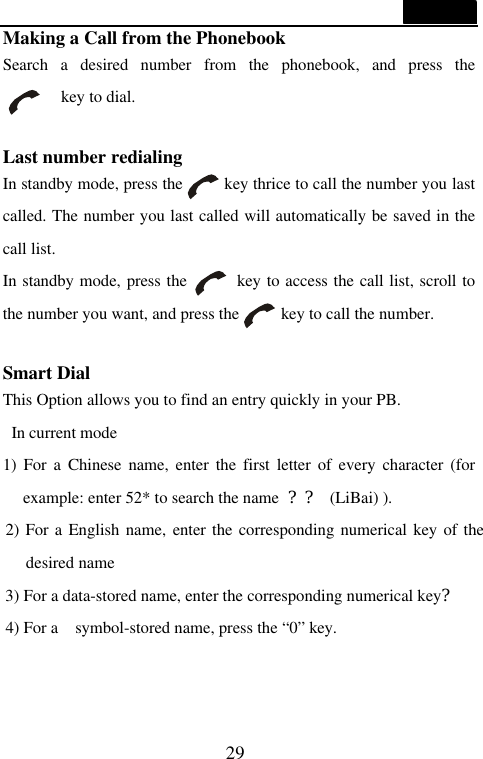

 29  Making a Call from the Phonebook Search a desired number from the phonebook, and press the      key to dial.  Last number redialing   In standby mode, press the     key thrice to call the number you last called. The number you last called will automatically be saved in the call list. In standby mode, press the      key to access the call list, scroll to the number you want, and press the     key to call the number.     Smart Dial This Option allows you to find an entry quickly in your PB.  In current mode   1) For a Chinese name, enter the first letter of every character (for example: enter 52* to search the name  ?? (LiBai) ). 2) For a English name, enter the corresponding numerical key of the desired name 3) For a data-stored name, enter the corresponding numerical key? 4) For a  symbol-stored name, press the “0” key.
  30 Receiving a Call                             When a call is received, the phone alerts you by ringing and/or vibrating; the screen displays an incoming call message. If you have subscribed  to  the Line Identification Service (contact your service provider), the caller’s phone number is displayed; if you have saved the number in your phone book, the name is displayed. Refer to Settings/Phone/Answer mode for the details of answer mode. Note:If you receive a call while using the phone functions and menus, the current operation will be halted. When the call ends, the phone will return to standby mode.  Press     to answer a call; Press          to reject a call. When the call ends,the display will show the latest call’s time. Note: When the phone is closed, you can reject a call by pressing volume key twice rapidly. If you use the earphone to receive a call, you can end the call by pressing the “ Send/End ” button on the earphone.

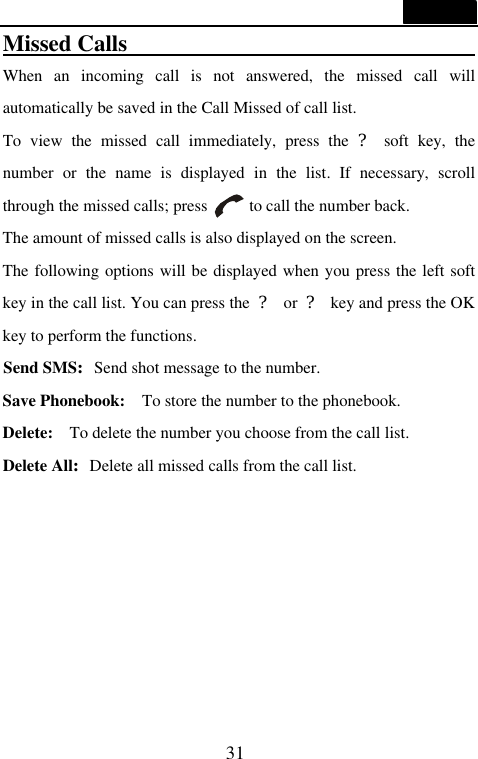

 31  Missed Calls                                When an incoming call is not answered, the missed  call  will automatically be saved in the Call Missed of call list. To view the missed call immediately, press the ? soft key,  the number or the name is displayed in the list. If necessary, scroll through the missed calls; press     to call the number back. The amount of missed calls is also displayed on the screen. The following options will be displayed when you press the left soft key in the call list. You can press the  ? or ? key and press the OK key to perform the functions. Send SMS:Send shot message to the number. Save Phonebook:   To store the number to the phonebook. Delete:  To delete the number you choose from the call list. Delete All:Delete all missed calls from the call list.

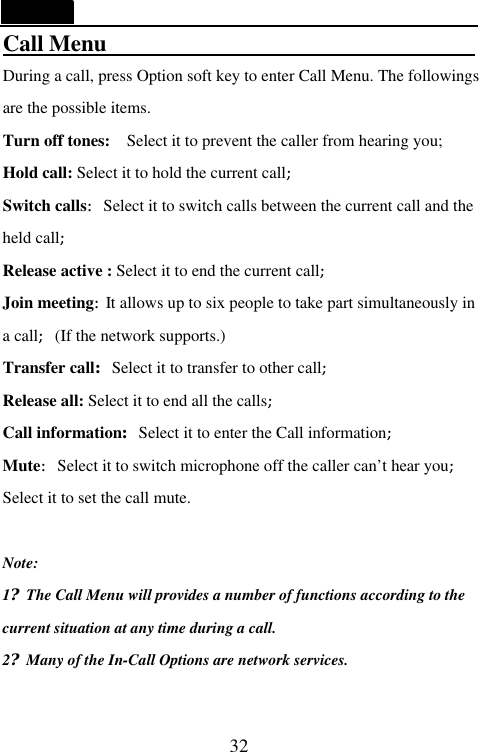

  32 Call Menu                                  During a call, press Option soft key to enter Call Menu. The followings are the possible items.   Turn off tones:  Select it to prevent the caller from hearing you; Hold call: Select it to hold the current call; Switch calls:Select it to switch calls between the current call and the held call; Release active : Select it to end the current call; Join meeting:It allows up to six people to take part simultaneously in a call;(If the network supports.)   Transfer call:Select it to transfer to other call; Release all: Select it to end all the calls; Call information:Select it to enter the Call information; Mute:Select it to switch microphone off the caller can’t hear you; Select it to set the call mute.  Note: 1?The Call Menu will provides a number of functions according to the current situation at any time during a call. 2?Many of the In-Call Options are network services.

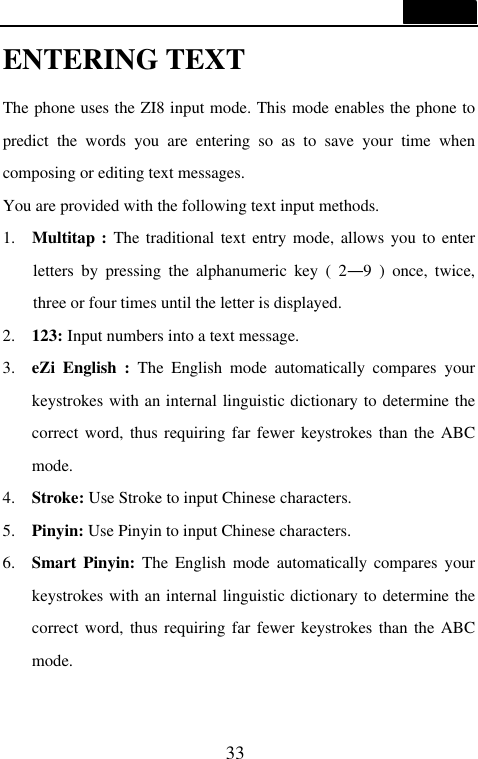

 33  ENTERING TEXT The phone uses the ZI8 input mode. This mode enables the phone to predict the words you are entering so as to save your time when composing or editing text messages. You are provided with the following text input methods. 1.  Multitap : The traditional text entry mode, allows you to enter letters by pressing the alphanumeric key ( 2—9 ) once, twice, three or four times until the letter is displayed. 2. 123: Input numbers into a text message. 3. eZi English : The English mode automatically compares your keystrokes with an internal linguistic dictionary to determine the correct word, thus requiring far fewer keystrokes than the ABC mode. 4. Stroke: Use Stroke to input Chinese characters. 5. Pinyin: Use Pinyin to input Chinese characters.   6. Smart Pinyin: The English mode automatically compares your keystrokes with an internal linguistic dictionary to determine the correct word, thus requiring far fewer keystrokes than the ABC mode.

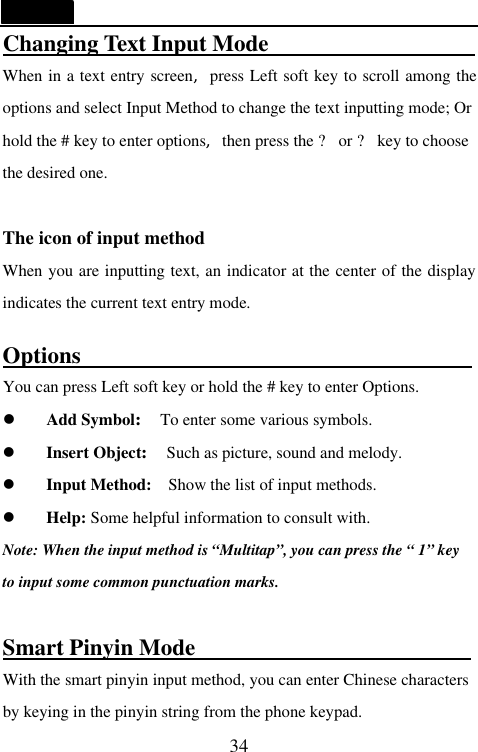

  34 Changing Text Input Mode                     When in a text entry screen,press Left soft key to scroll among the options and select Input Method to change the text inputting mode; Or hold the # key to enter options,then press the ? or ? key to choose the desired one.  The icon of input method When you are inputting text, an indicator at the center of the display indicates the current text entry mode.  Options                                   You can press Left soft key or hold the # key to enter Options. l Add Symbol: To enter some various symbols. l Insert Object: Such as picture, sound and melody. l Input Method:  Show the list of input methods. l Help: Some helpful information to consult with. Note: When the input method is “Multitap”, you can press the “ 1” key to input some common punctuation marks.  Smart Pinyin Mode                         With the smart pinyin input method, you can enter Chinese characters by keying in the pinyin string from the phone keypad.

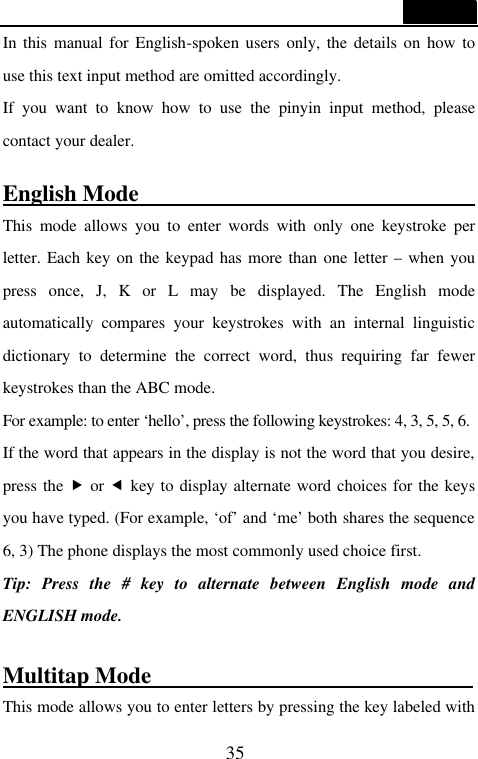

 35  In this manual for English-spoken users only, the details on how to use this text input method are omitted accordingly.   If you want to know how to use the pinyin input method, please contact your dealer.    English Mode                               This mode allows you to enter words with only one keystroke per letter. Each key on the keypad has more than one letter – when you press once, J, K or L may be displayed. The English mode automatically compares your keystrokes with an internal linguistic dictionary to determine the correct word, thus requiring far fewer keystrokes than the ABC mode. For example: to enter ‘hello’, press the following keystrokes: 4, 3, 5, 5, 6. If the word that appears in the display is not the word that you desire, press the „ or ƒ key to display alternate word choices for the keys you have typed. (For example, ‘of’ and ‘me’ both shares the sequence 6, 3) The phone displays the most commonly used choice first. Tip: Press the # key to alternate between English mode and ENGLISH mode.  Multitap Mode                             This mode allows you to enter letters by pressing the key labeled with

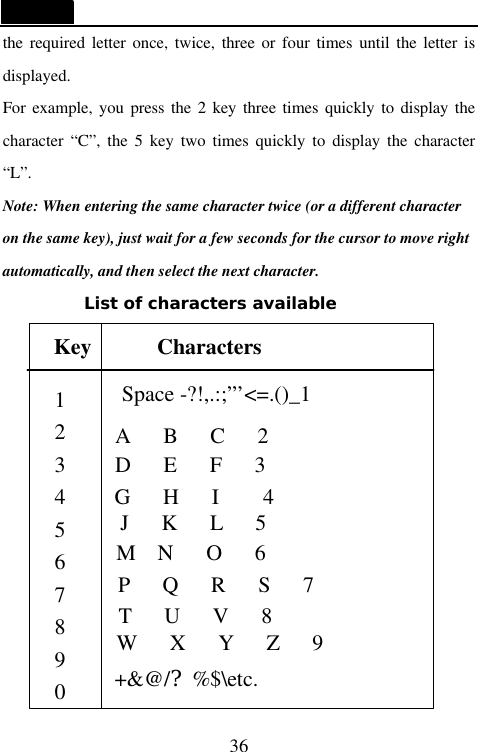

  36 the required letter once, twice, three or four times until the letter is displayed. For example, you press the 2 key three times quickly to display the character “C”, the 5 key two times quickly to display the character “L”.   Note: When entering the same character twice (or a different character on the same key), just wait for a few seconds for the cursor to move right automatically, and then select the next character. List of characters available            Key      Characters 1 2 3 4 5 6 7 8 9 0 A   B   C   2 G   H   I    4 D   E   F   3 J   K   L   5 M  N   O   6 P   Q   R   S   7 T   U   V   8 W   X   Y   Z   9 +&@/?%$\etc. Space -?!,.:;”’<=.()_1

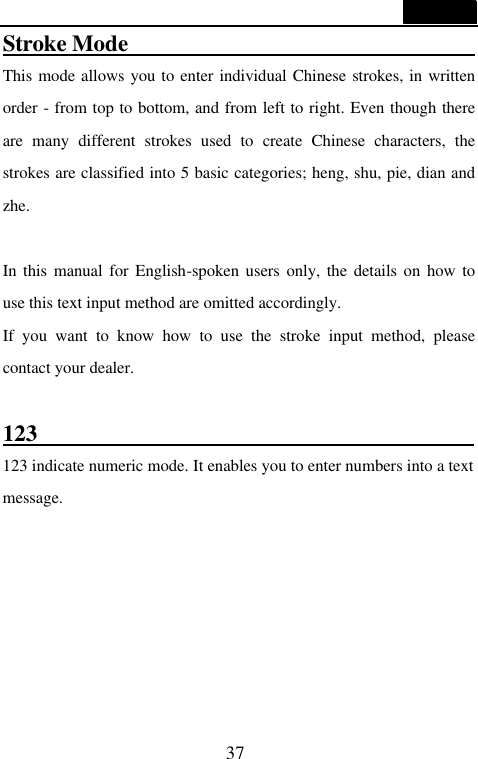

 37  Stroke Mode                                 This mode allows you to enter individual Chinese strokes, in written order - from top to bottom, and from left to right. Even though there are many different strokes used to create Chinese characters, the strokes are classified into 5 basic categories; heng, shu, pie, dian and zhe.    In this manual for English-spoken users only, the details on how to use this text input method are omitted accordingly.   If you want to know how to use the stroke input method, please contact your dealer.  123                                       123 indicate numeric mode. It enables you to enter numbers into a text message.

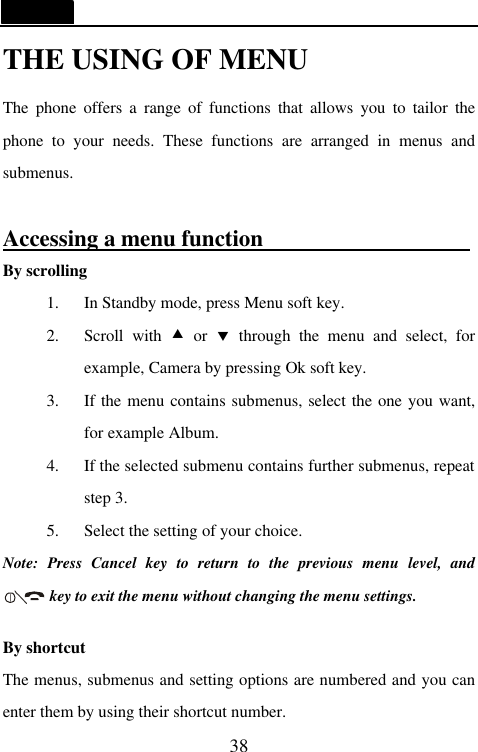

  38 THE USING OF MENU The phone offers a range of functions that allows you to tailor the phone to your needs. These functions are arranged in menus and submenus.  Accessing a menu function                                      By scrolling 1. In Standby mode, press Menu soft key. 2. Scroll with • or ‚ through the menu and select, for example, Camera by pressing Ok soft key. 3. If the menu contains submenus, select the one you want, for example Album. 4. If the selected submenu contains further submenus, repeat step 3. 5. Select the setting of your choice. Note: Press Cancel key to return to the previous menu level, and      key to exit the menu without changing the menu settings.    By shortcut The menus, submenus and setting options are numbered and you can enter them by using their shortcut number.

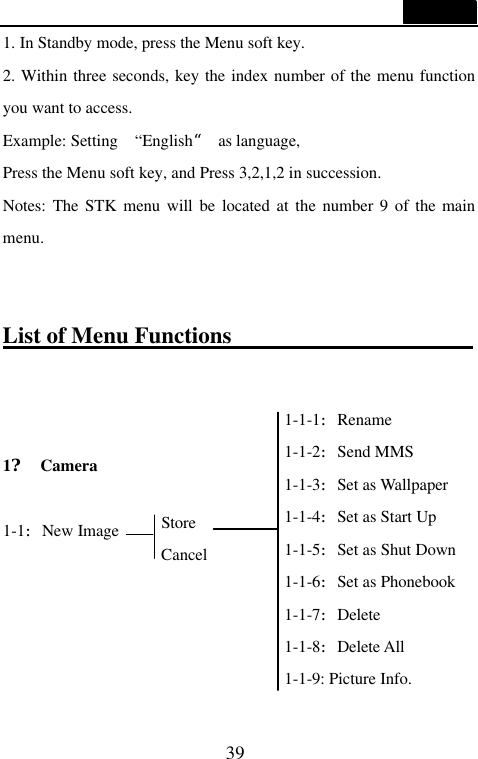

 39  1. In Standby mode, press the Menu soft key. 2. Within three seconds, key the index number of the menu function you want to access. Example: Setting  “English“ as language, Press the Menu soft key, and Press 3,2,1,2 in succession.   Notes:  The STK menu will be located at the number 9 of the main menu.   List of Menu Functions                                            1? Camera  1-1:New Image      Store Cancel 1-1-1:Rename 1-1-2:Send MMS 1-1-3:Set as Wallpaper 1-1-4:Set as Start Up 1-1-5:Set as Shut Down   1-1-6:Set as Phonebook 1-1-7:Delete 1-1-8:Delete All 1-1-9: Picture Info.

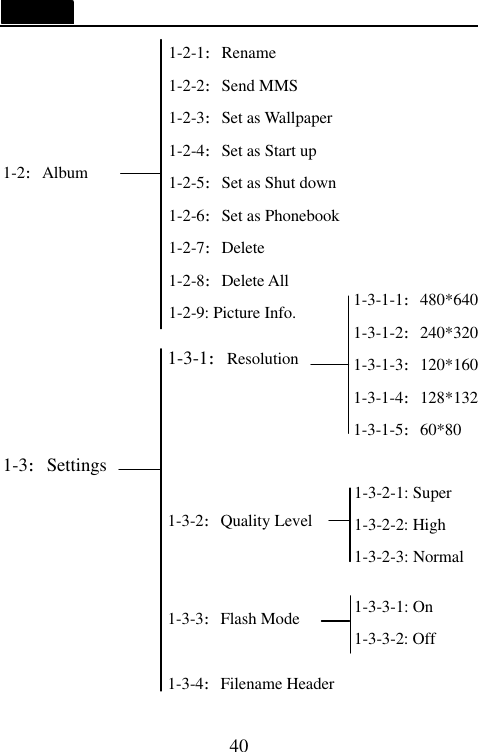

  40     1-2:Album             1-3:Settings          1-2-1:Rename 1-2-2:Send MMS 1-2-3:Set as Wallpaper 1-2-4:Set as Start up 1-2-5:Set as Shut down   1-2-6:Set as Phonebook 1-2-7:Delete 1-2-8:Delete All 1-2-9: Picture Info. 1-3-1:Resolution     1-3-2:Quality Level   1-3-3:Flash Mode  1-3-4:Filename Header  1-3-1-1:480*640 1-3-1-2:240*320 1-3-1-3:120*160 1-3-1-4:128*132 1-3-1-5:60*80  1-3-3-1: On 1-3-3-2: Off 1-3-2-1: Super 1-3-2-2: High 1-3-2-3: Normal

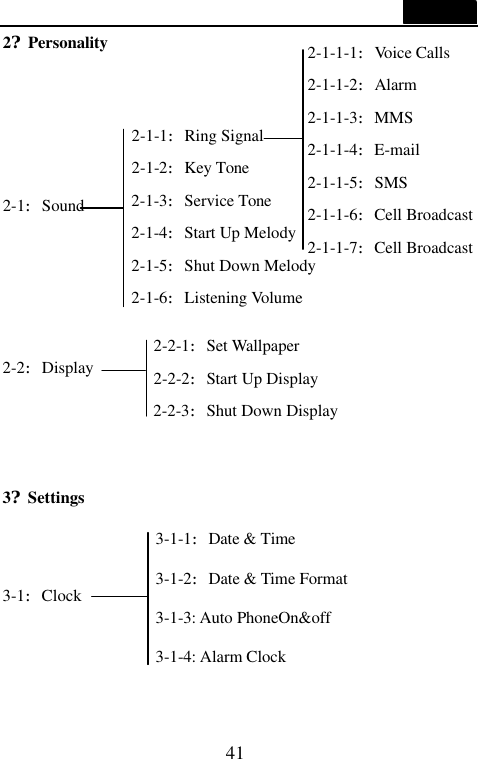

 41  2?Personality     2-1:Sound                                2-2:Display    3?Settings   3-1:Clock     2-2-1:Set Wallpaper  2-2-2:Start Up Display  2-2-3:Shut Down Display 2-1-1:Ring Signal 2-1-2:Key Tone 2-1-3:Service Tone 2-1-4:Start Up Melody 2-1-5:Shut Down Melody 2-1-6:Listening Volume  2-1-1-1:Voice Calls 2-1-1-2:Alarm 2-1-1-3:MMS 2-1-1-4:E-mail 2-1-1-5:SMS 2-1-1-6:Cell Broadcast 2-1-1-7:Cell Broadcast 3-1-1:Date & Time  3-1-2:Date & Time Format  3-1-3: Auto PhoneOn&off  3-1-4: Alarm Clock

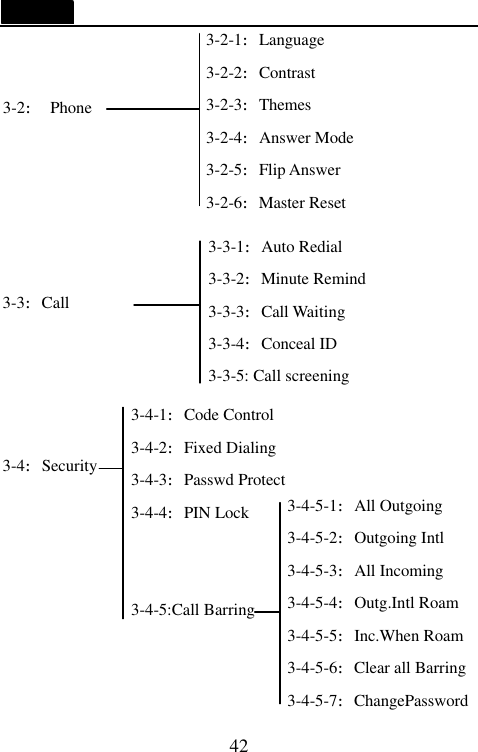

  42   3-2: Phone      3-3:Call     3-4:Security       3-2-1:Language 3-2-2:Contrast 3-2-3:Themes 3-2-4:Answer Mode 3-2-5:Flip Answer 3-2-6:Master Reset 3-3-1:Auto Redial 3-3-2:Minute Remind 3-3-3:Call Waiting 3-3-4:Conceal ID 3-3-5: Call screening 3-4-1:Code Control   3-4-2:Fixed Dialing 3-4-3:Passwd Protect 3-4-4:PIN Lock   3-4-5:Call Barring  3-4-5-1:All Outgoing 3-4-5-2:Outgoing Intl 3-4-5-3:All Incoming 3-4-5-4:Outg.Intl Roam 3-4-5-5:Inc.When Roam 3-4-5-6:Clear all Barring 3-4-5-7:ChangePassword

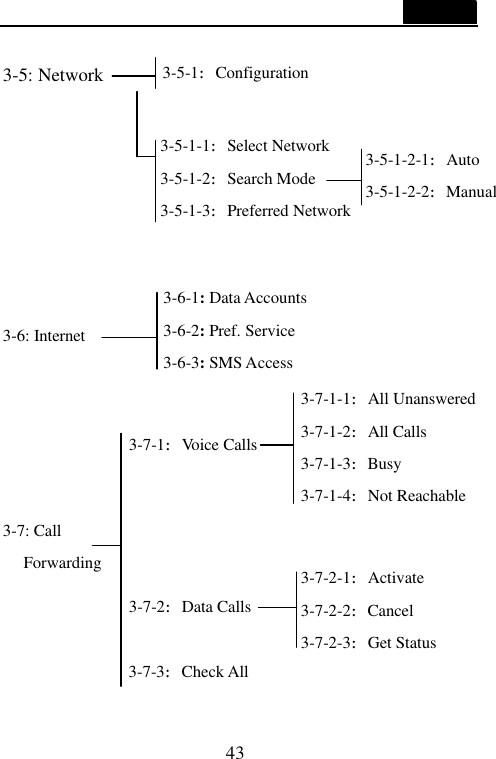

 43   3-5: Network         3-6: Internet      3-7: Call   Forwarding       3-5-1:Configuration 3-5-1-1:Select Network 3-5-1-2:Search Mode 3-5-1-3:Preferred Network  3-5-1-2-1:Auto 3-5-1-2-2:Manual  3-6-1: Data Accounts 3-6-2: Pref. Service 3-6-3: SMS Access  3-7-1:Voice Calls     3-7-2:Data Calls  3-7-3:Check All 3-7-1-1:All Unanswered 3-7-1-2:All Calls 3-7-1-3:Busy 3-7-1-4:Not Reachable 3-7-2-1:Activate 3-7-2-2:Cancel 3-7-2-3:Get Status

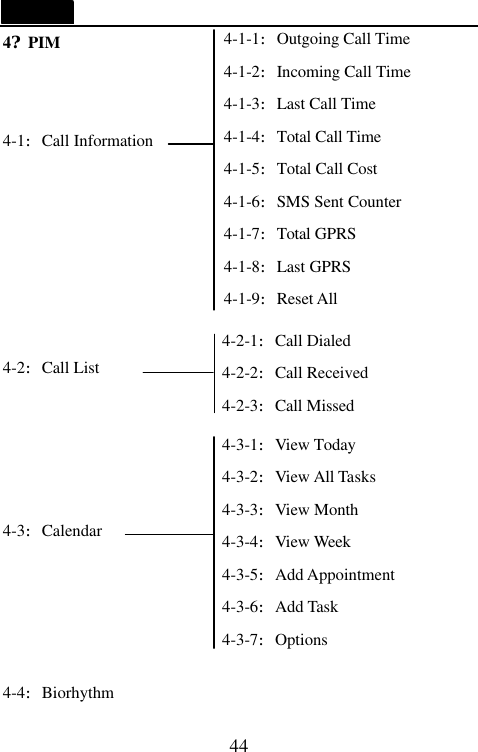

  44 4?PIM       4-1:Call Information       4-2:Call List      4-3:Calendar     4-4:Biorhythm 4-2-1:Call Dialed   4-2-2:Call Received 4-2-3:Call Missed 4-3-1:View Today 4-3-2:View All Tasks 4-3-3:View Month 4-3-4:View Week 4-3-5:Add Appointment 4-3-6:Add Task 4-3-7:Options 4-1-1:Outgoing Call Time 4-1-2:Incoming Call Time 4-1-3:Last Call Time 4-1-4:Total Call Time 4-1-5:Total Call Cost 4-1-6:SMS Sent Counter 4-1-7:Total GPRS 4-1-8:Last GPRS 4-1-9:Reset All

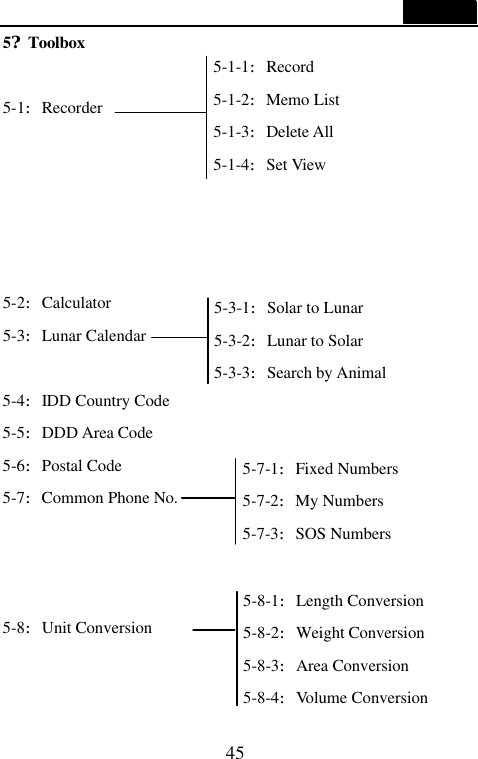

 45  5?Toolbox  5-1:Recorder      5-2:Calculator 5-3:Lunar Calendar  5-4:IDD Country Code 5-5:DDD Area Code 5-6:Postal Code 5-7:Common Phone No.    5-8:Unit Conversion   5-1-1:Record 5-1-2:Memo List 5-1-3:Delete All 5-1-4:Set View 5-8-1:Length Conversion 5-8-2:Weight Conversion 5-8-3:Area Conversion 5-8-4:Volume Conversion 5-3-1:Solar to Lunar 5-3-2:Lunar to Solar   5-3-3:Search by Animal 5-7-1:Fixed Numbers 5-7-2:My Numbers   5-7-3:SOS Numbers
  46 6?Amusement   6-1:Games    6-2: Stop Watch 6-3:Timer  7?WAP 7-1: Monternet 7-2: Bookmarks 7-3: Enter Address 7-4: Select Profile 7-5: Push Inbox 7-6: Resume 7-7: Advanced 7-8: Settings  8?Messages 6-1-1:Ballpop 6-1-2:E-Maze 6-1-3:Wuziqi

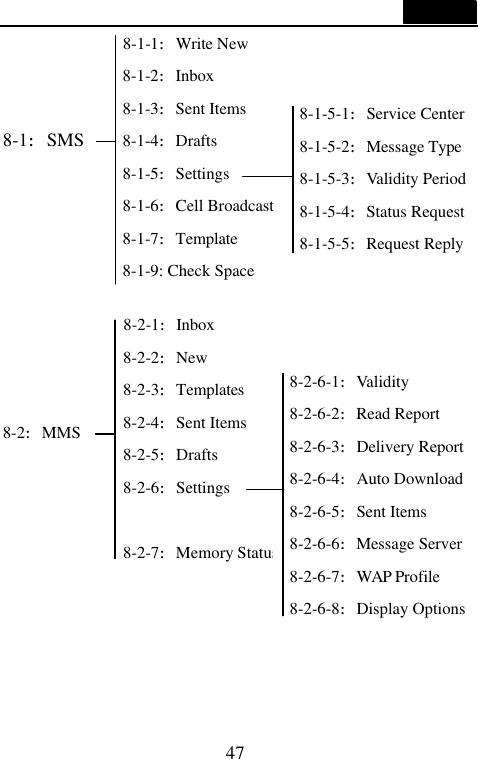

 47     8-1:SMS         8-2:MMS           8-1-1:Write New 8-1-2:Inbox 8-1-3:Sent Items 8-1-4:Drafts 8-1-5:Settings 8-1-6:Cell Broadcast 8-1-7:Template 8-1-9: Check Space  8-1-5-1:Service Center 8-1-5-2:Message Type 8-1-5-3:Validity Period 8-1-5-4:Status Request 8-1-5-5:Request Reply 8-2-1:Inbox 8-2-2:New 8-2-3:Templates 8-2-4:Sent Items 8-2-5:Drafts 8-2-6:Settings  8-2-7:Memory Status  8-2-6-1:Validity 8-2-6-2:Read Report 8-2-6-3:Delivery Report 8-2-6-4:Auto Download 8-2-6-5:Sent Items 8-2-6-6:Message Server 8-2-6-7:WAP Profile 8-2-6-8:Display Options

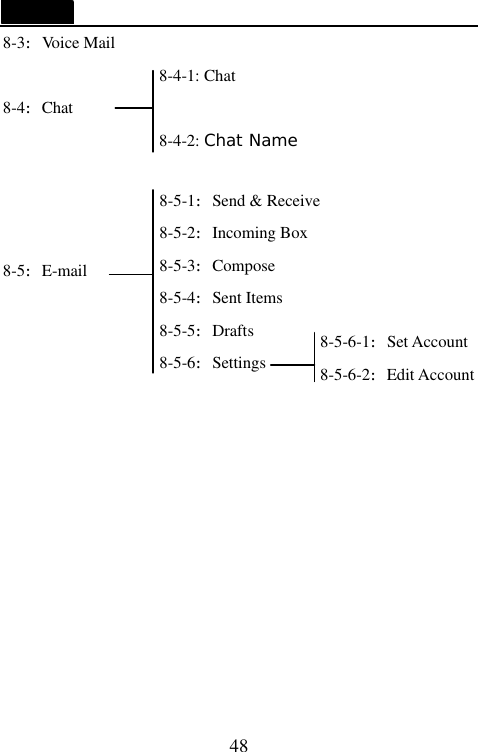

  48 8-3:Voice Mail                8-4-1: Chat 8-4:Chat               8-4-2: Chat Name    8-5:E-mail                   8-5-1:Send & Receive 8-5-2:Incoming Box 8-5-3:Compose 8-5-4:Sent Items 8-5-5:Drafts 8-5-6:Settings 8-5-6-1:Set Account 8-5-6-2:Edit Account

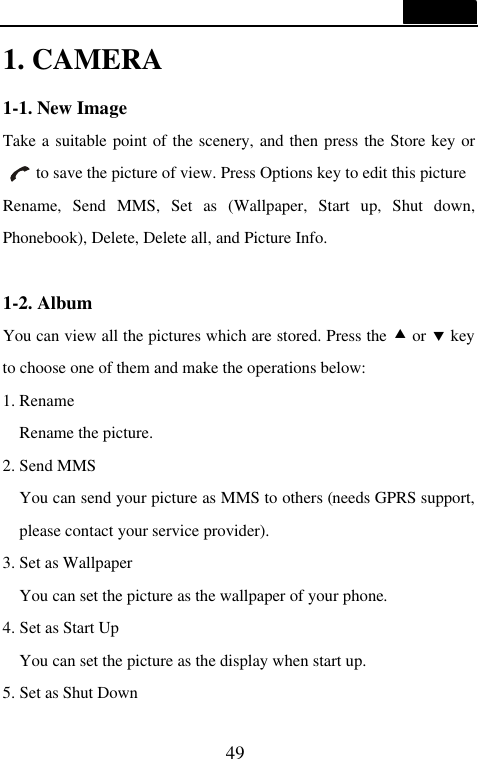

 49  1. CAMERA 1-1. New Image Take a suitable point of the scenery, and then press the Store key or   to save the picture of view. Press Options key to edit this picture Rename, Send MMS, Set as (Wallpaper, Start up, Shut down, Phonebook), Delete, Delete all, and Picture Info.    1-2. Album You can view all the pictures which are stored. Press the • or ‚ key to choose one of them and make the operations below: 1. Rename Rename the picture. 2. Send MMS You can send your picture as MMS to others (needs GPRS support, please contact your service provider). 3. Set as Wallpaper You can set the picture as the wallpaper of your phone. 4. Set as Start Up You can set the picture as the display when start up. 5. Set as Shut Down

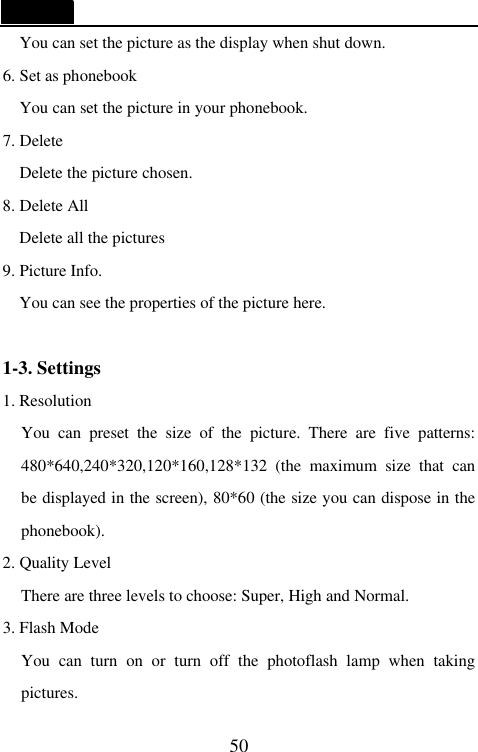

  50 You can set the picture as the display when shut down. 6. Set as phonebook You can set the picture in your phonebook. 7. Delete Delete the picture chosen. 8. Delete All Delete all the pictures 9. Picture Info. You can see the properties of the picture here.  1-3. Settings 1. Resolution You can preset the size of the picture. There are five patterns: 480*640,240*320,120*160,128*132 (the maximum size that can be displayed in the screen), 80*60 (the size you can dispose in the phonebook). 2. Quality Level There are three levels to choose: Super, High and Normal. 3. Flash Mode You can turn on or turn off the photoflash lamp when taking pictures.
 51  4. Filename Header Set the header of the name of the pictures.  Tips: The quantity of the pictures is usually limited by the memory. You may take more pictures if appropriate parameters are selected.    Notes:   1. Please turn on the flash lamp when there isn’t enough illuminance. 2. The larger size and higher quality the pictures possess, the more memory space would be occupied. 3. Flash memory:The higher the red line is, the more flash is used; the lower the green line is, the less flash is used.   4. A new picture unnamed shall be nominated with the date and serial number automatically (e.g. 0401010001). 5. The use of flash lamp will decrease the duration of the battery.
  52 2. PERSONALITY DA6 offers various kinds of music and display patterns so that you can arrange different profiles according to your own personality.  2-1. Sound 2-1-1. Ring Signal You can set different melody, mode and volume for Incoming Calls, Alarm, SMS, MMS, E-mail and Cell Broadcast. Mode: There are four kinds of prompt mode: Ringer, Vibration, Ringer + Vibration and Silent. Melody: There are kinds of rings, melody and downloaded music for you to choose. Press ? or ? key to scroll then Ok soft key to select and confirm. Volume: There are 6 levels for you to adjust volume. Use ? or ? key to increase or decrease it.  2-1-2. Key Tone You can turn on or off the tone of pressing key.  2-1-3. Service Tone Enable you to turn on or off the tone when a network is found or a call is connected.
 53  2-1-4. Start Up Melody Use ? or ? key to scroll and listen, then Ok soft key to select it.  2-1-5. Shut Down Melody Use ? or ? key to scroll and listen, then Ok soft key to select it.  2-1-6. Listening Volume Use ? or ? key to increase or decrease volume of music.  2-2. Display  2-2-1. Set Wallpaper The phone offers you several types of display for the standby mode. You can set wallpaper from the Calendar, Picture and Chinese Horoscope.  2-2-2. Start Up Display Display the Animation or Text when the phone is switched on.  2-2-3. Shut Down Display Display the Animation or Text when the phone is switched off.  2-2-4. Edit Line Tags Edit the names of lines.

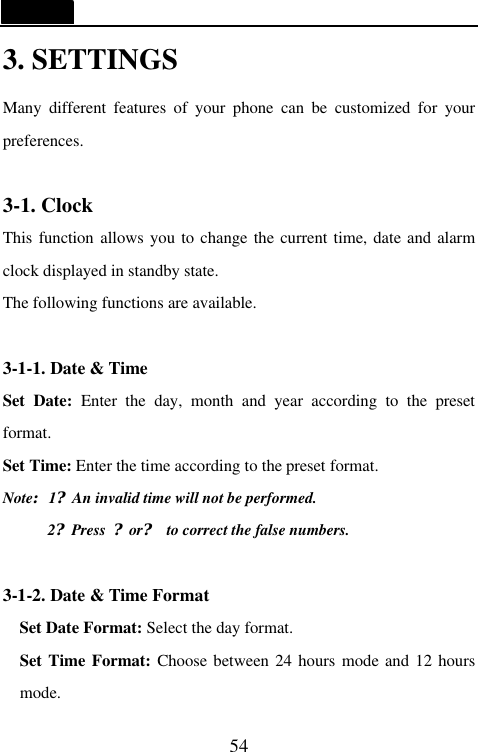

  54 3. SETTINGS Many different features of your phone can be customized for your preferences.    3-1. Clock This function allows you to change the current time, date and alarm clock displayed in standby state. The following functions are available.  3-1-1. Date & Time Set  Date:  Enter the day, month and year according to the preset format. Set Time: Enter the time according to the preset format. Note:1?An invalid time will not be performed. 2?Press  ?or? to correct the false numbers.    3-1-2. Date & Time Format Set Date Format: Select the day format. Set Time Format: Choose between 24 hours mode and 12 hours mode.

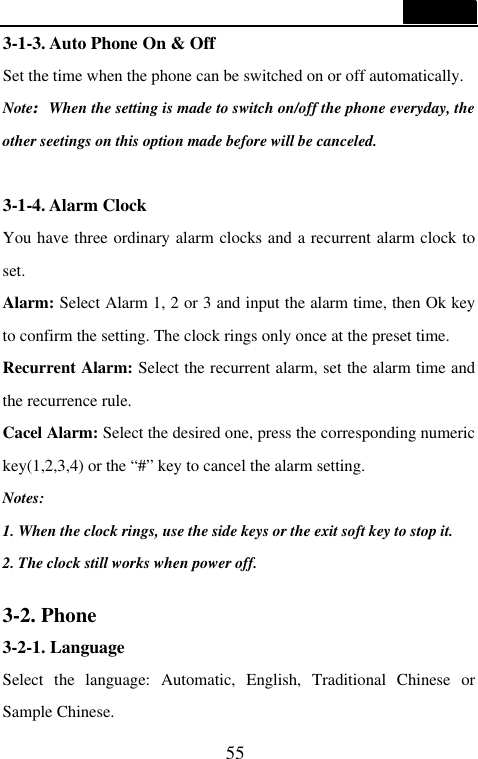

 55  3-1-3. Auto Phone On & Off Set the time when the phone can be switched on or off automatically. Note:When the setting is made to switch on/off the phone everyday, the other seetings on this option made before will be canceled.    3-1-4. Alarm Clock You have three ordinary alarm clocks and a recurrent alarm clock to set. Alarm: Select Alarm 1, 2 or 3 and input the alarm time, then Ok key to confirm the setting. The clock rings only once at the preset time. Recurrent Alarm: Select the recurrent alarm, set the alarm time and the recurrence rule. Cacel Alarm: Select the desired one, press the corresponding numeric key(1,2,3,4) or the “#” key to cancel the alarm setting.   Notes:   1. When the clock rings, use the side keys or the exit soft key to stop it. 2. The clock still works when power off.    3-2. Phone 3-2-1. Language Select  the language: Automatic, English, Traditional Chinese or Sample Chinese.

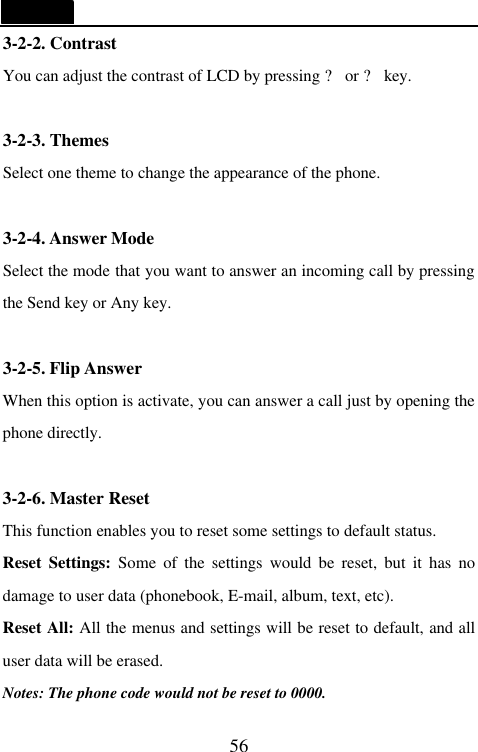

  56 3-2-2. Contrast You can adjust the contrast of LCD by pressing ? or ? key.  3-2-3. Themes Select one theme to change the appearance of the phone.    3-2-4. Answer Mode Select the mode that you want to answer an incoming call by pressing the Send key or Any key.  3-2-5. Flip Answer When this option is activate, you can answer a call just by opening the phone directly.  3-2-6. Master Reset This function enables you to reset some settings to default status. Reset Settings: Some of the settings would be reset, but it has no damage to user data (phonebook, E-mail, album, text, etc). Reset All: All the menus and settings will be reset to default, and all user data will be erased. Notes: The phone code would not be reset to 0000.
 57  3-3. Call 3-3-1. Auto Redial If this option is activate, the phone will redial at most 10 times after an unsuccessful dialing.  3-3-2. Minute Remind Set to hear an elapsed time reminder on the 45th or 50th or 55th second of every minute during your calls.  3-3-3. Call Waiting The phone supports the function of call waiting of GSM network. If you select this function, the network will tell you there is a new call coming in during another call.    3-3-4. Conceal ID Your phone number will be hidden or displayed according to the network when making a call. Notes: The functions of Call Waiting and Conceal ID need the support of network. Please contact your service provider.  3-3-5. Call Screening
  58 Using the call screening function, your phone enables you to choose to answer calls from given numbers while refuse others.  3-4. Security 3-4-1. Code Control 3-4-1-1. Phone Lock: You can choose On, Automatic or off.  3-4-1-2. Change PIN:   1. Press the Ok soft key. 2. Input the old PIN code and press the Ok soft key. 3. Input the new PIN code (four to eight digit) and press the Ok soft key. 4. Input the new PIN code again and press the Ok soft key. Note: Only firstly start up the PIN code can you alter the PIN code.  3-4-1-3. Change PIN2: The process is the same as "Change PIN". PIN2 code is provided with SIM card, which is used in some special service such as "call charge" function etc. If you want to know whether your SIM card can support these functions, please contact the network service.
 59  3-4-1-4. Change Phone Code: The process is the same as "Change PIN".  3-4-2. Fixed Dialing If the function is supported by both the network service and your SIM card, you can limit the outgoing telephone number. If the "On" mode is set, your mobile phone can only call the number in the fixed telephone number book. If you dial the other number (except the urgent number), the phone will display "Forbidden number".  You need to input PIN2 code to set this function.  3-4-3. Passwd protect If enabled, you need input password when start up PIM, Phonebook, Message and Camera functions.  3-4-4. PIN Lock If the function is set on, you can only use the right SIM card, and you should input the pin password if another SIM card is inserted.  3-4-5. Call Barring The calling limitation function can help you to limit the incoming and

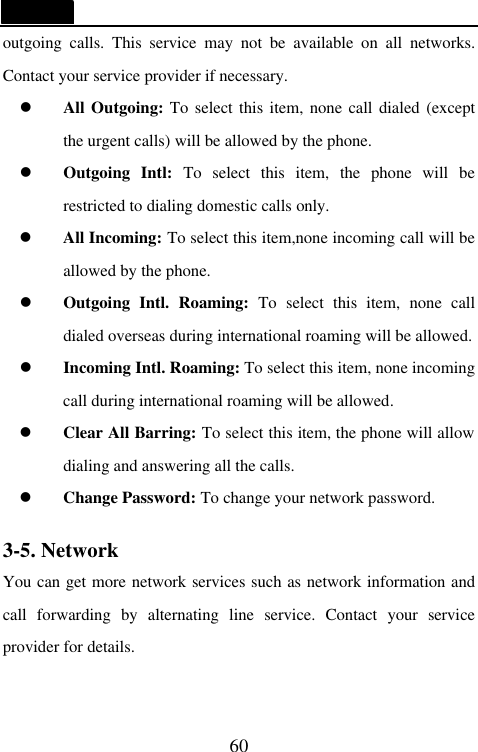

  60 outgoing calls. This service may not be available on all networks. Contact your service provider if necessary. l All Outgoing: To select this item, none call dialed (except the urgent calls) will be allowed by the phone. l Outgoing Intl: To select this item, the phone will be restricted to dialing domestic calls only. l All Incoming: To select this item,none incoming call will be allowed by the phone. l Outgoing Intl. Roaming: To select this item, none call dialed overseas during international roaming will be allowed. l Incoming Intl. Roaming: To select this item, none incoming call during international roaming will be allowed. l Clear All Barring: To select this item, the phone will allow dialing and answering all the calls. l Change Password: To change your network password.  3-5. Network You can get more network services such as network information and call forwarding by alternating line service. Contact your service provider for details.

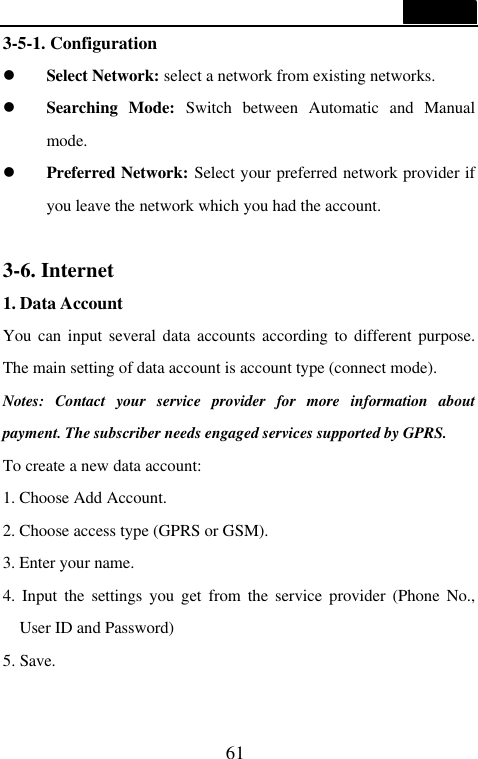

 61  3-5-1. Configuration l Select Network: select a network from existing networks. l Searching Mode: Switch between Automatic and Manual mode. l Preferred Network: Select your preferred network provider if you leave the network which you had the account.  3-6. Internet 1. Data Account You can input several data accounts according to different purpose. The main setting of data account is account type (connect mode). Notes: Contact your service provider for more information about payment. The subscriber needs engaged services supported by GPRS. To create a new data account: 1. Choose Add Account. 2. Choose access type (GPRS or GSM). 3. Enter your name. 4. Input the settings you get from the service provider (Phone No., User ID and Password)   5. Save.

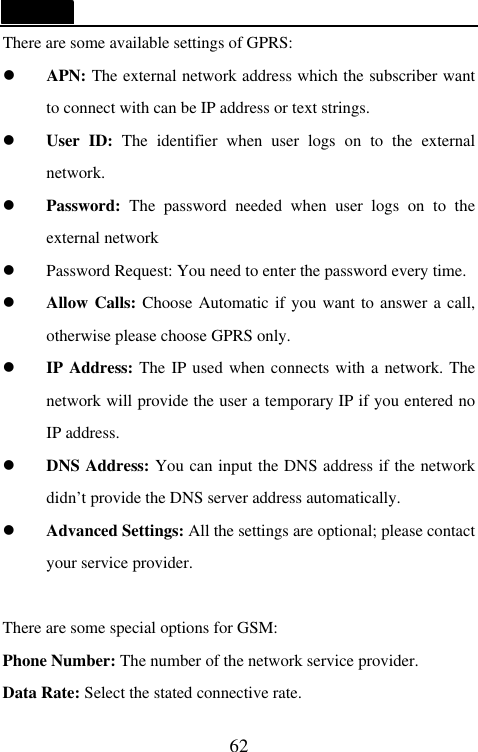

  62 There are some available settings of GPRS: l APN: The external network address which the subscriber want to connect with can be IP address or text strings. l User ID: The identifier when user logs  on to the external network.   l Password:  The password needed when user logs  on to the external network l Password Request: You need to enter the password every time. l Allow Calls: Choose Automatic if you want to answer a call, otherwise please choose GPRS only. l IP Address: The IP used when connects with a network. The network will provide the user a temporary IP if you entered no IP address. l DNS Address: You can input the DNS address if the network didn’t provide the DNS server address automatically. l Advanced Settings: All the settings are optional; please contact your service provider.  There are some special options for GSM: Phone Number: The number of the network service provider. Data Rate: Select the stated connective rate.

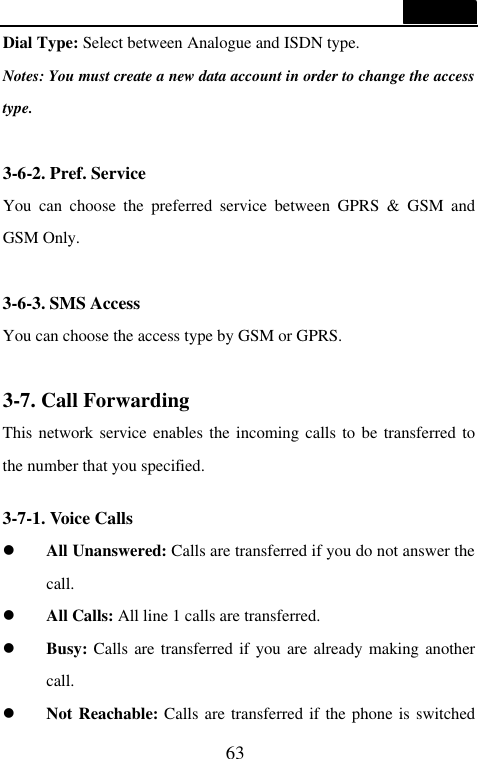

 63  Dial Type: Select between Analogue and ISDN type. Notes: You must create a new data account in order to change the access type.  3-6-2. Pref. Service You can choose the preferred service between GPRS & GSM and GSM Only.  3-6-3. SMS Access You can choose the access type by GSM or GPRS.  3-7. Call Forwarding This network service enables the incoming calls to be transferred to the number that you specified.  3-7-1. Voice Calls l All Unanswered: Calls are transferred if you do not answer the call. l All Calls: All line 1 calls are transferred. l Busy: Calls are transferred if you are already making another call. l Not Reachable: Calls are transferred if the phone is switched

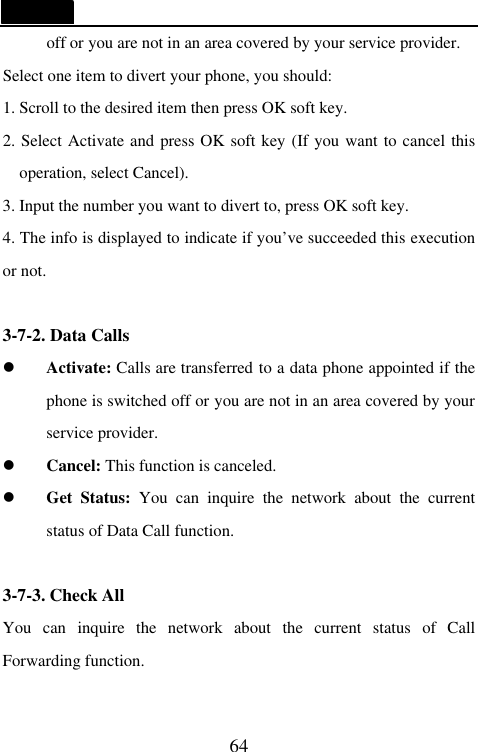

  64 off or you are not in an area covered by your service provider. Select one item to divert your phone, you should: 1. Scroll to the desired item then press OK soft key. 2. Select Activate and press OK soft key (If you want to cancel this operation, select Cancel). 3. Input the number you want to divert to, press OK soft key. 4. The info is displayed to indicate if you’ve succeeded this execution or not.  3-7-2. Data Calls l Activate: Calls are transferred to a data phone appointed if the phone is switched off or you are not in an area covered by your service provider. l Cancel: This function is canceled. l Get Status: You can inquire the network about the current status of Data Call function.  3-7-3. Check All You can inquire the network about the current status of Call Forwarding function.

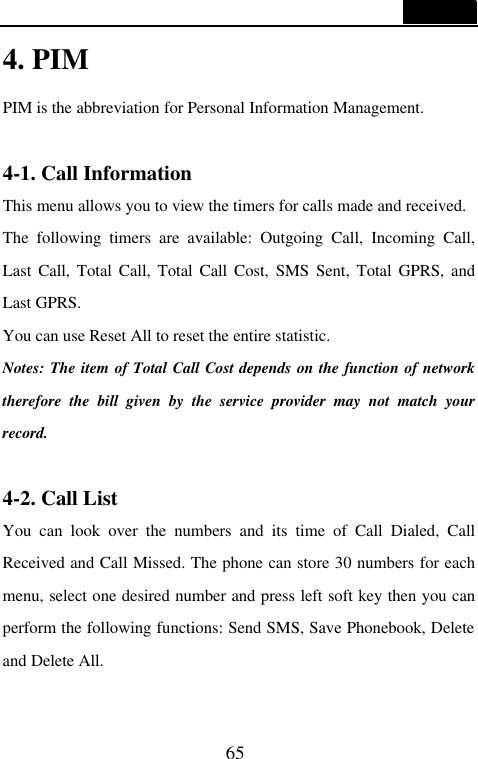

 65  4. PIM PIM is the abbreviation for Personal Information Management.  4-1. Call Information This menu allows you to view the timers for calls made and received. The following timers are available: Outgoing Call, Incoming Call, Last Call, Total Call, Total Call Cost, SMS Sent, Total GPRS, and Last GPRS. You can use Reset All to reset the entire statistic. Notes: The item of Total Call Cost depends on the function of network therefore the bill given by the service provider may not match your record.  4-2. Call List You can look over the numbers and its time of Call Dialed, Call Received and Call Missed. The phone can store 30 numbers for each menu, select one desired number and press left soft key then you can perform the following functions: Send SMS, Save Phonebook, Delete and Delete All.

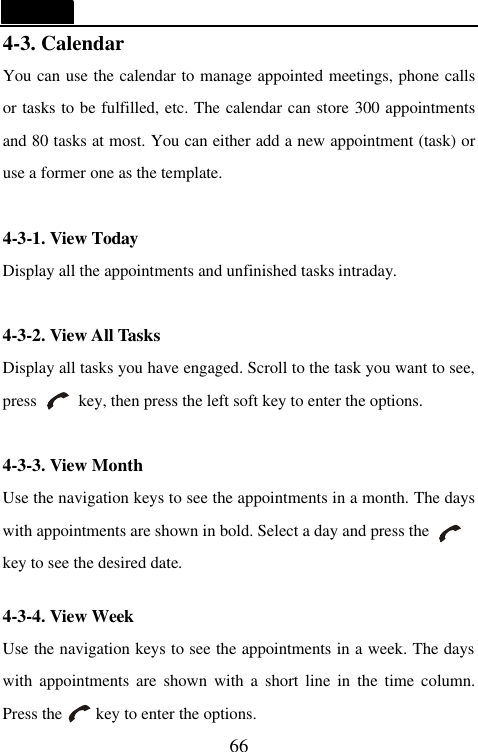

  66 4-3. Calendar You can use the calendar to manage appointed meetings, phone calls or tasks to be fulfilled, etc. The calendar can store 300 appointments and 80 tasks at most. You can either add a new appointment (task) or use a former one as the template.  4-3-1. View Today Display all the appointments and unfinished tasks intraday.  4-3-2. View All Tasks Display all tasks you have engaged. Scroll to the task you want to see, press     key, then press the left soft key to enter the options.  4-3-3. View Month Use the navigation keys to see the appointments in a month. The days with appointments are shown in bold. Select a day and press the          key to see the desired date.  4-3-4. View Week Use the navigation keys to see the appointments in a week. The days with appointments are shown with a short line in the time column. Press the     key to enter the options.

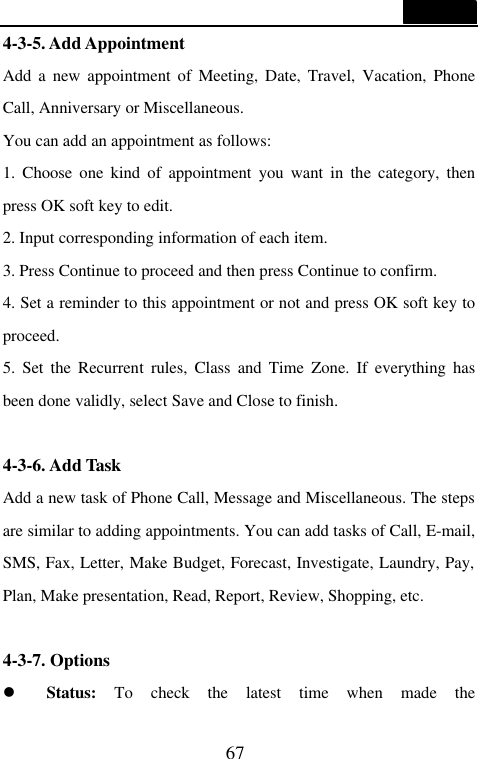

 67  4-3-5. Add Appointment Add a new appointment of Meeting, Date, Travel, Vacation, Phone Call, Anniversary or Miscellaneous. You can add an appointment as follows: 1. Choose one kind of appointment you want in the category, then press OK soft key to edit. 2. Input corresponding information of each item. 3. Press Continue to proceed and then press Continue to confirm. 4. Set a reminder to this appointment or not and press OK soft key to proceed. 5. Set the Recurrent rules, Class and Time Zone. If everything has been done validly, select Save and Close to finish.  4-3-6. Add Task Add a new task of Phone Call, Message and Miscellaneous. The steps are similar to adding appointments. You can add tasks of Call, E-mail, SMS, Fax, Letter, Make Budget, Forecast, Investigate, Laundry, Pay, Plan, Make presentation, Read, Report, Review, Shopping, etc.  4-3-7. Options l Status: To check the latest time when made the

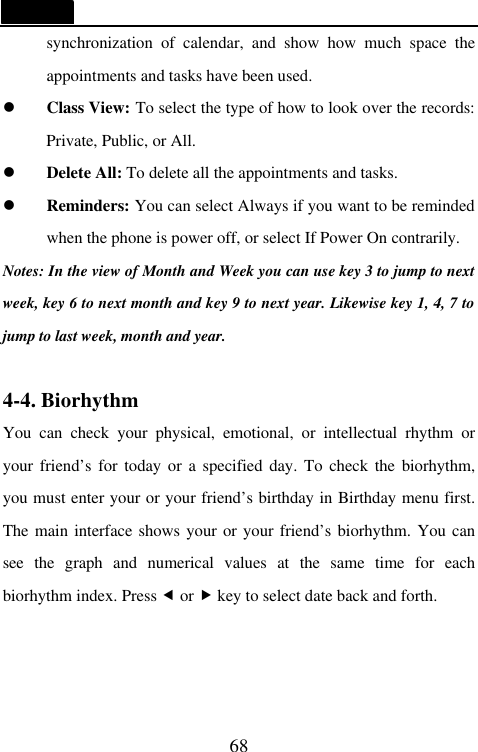

  68 synchronization of calendar, and show how much space the appointments and tasks have been used. l Class View: To select the type of how to look over the records: Private, Public, or All. l Delete All: To delete all the appointments and tasks. l Reminders: You can select Always if you want to be reminded when the phone is power off, or select If Power On contrarily. Notes: In the view of Month and Week you can use key 3 to jump to next week, key 6 to next month and key 9 to next year. Likewise key 1, 4, 7 to jump to last week, month and year.  4-4. Biorhythm You can check your physical, emotional, or intellectual rhythm or your friend’s for today or a specified day. To check the biorhythm, you must enter your or your friend’s birthday in Birthday menu first. The main interface shows your or your friend’s biorhythm. You can see  the graph and numerical values at the same time for each biorhythm index. Press ƒ or „ key to select date back and forth.

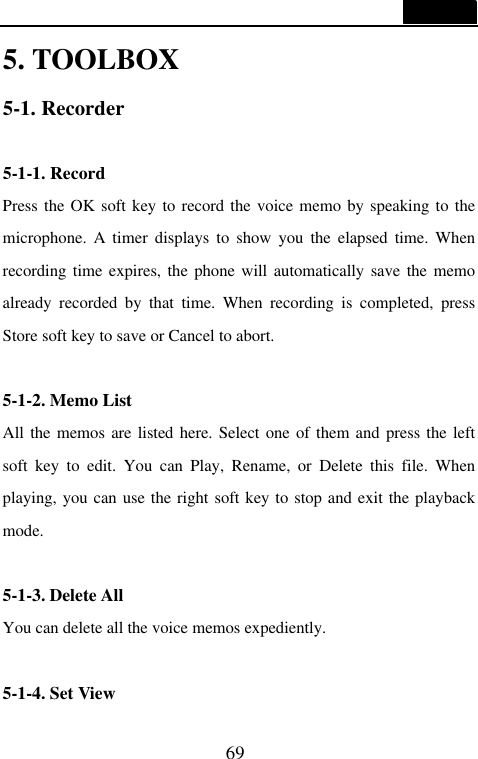

 69  5. TOOLBOX 5-1. Recorder  5-1-1. Record Press the OK soft key to record the voice memo by speaking to the microphone.  A timer displays to show you the elapsed time. When recording time expires, the phone will automatically save the memo already recorded by that time. When recording is completed, press Store soft key to save or Cancel to abort.  5-1-2. Memo List All the memos are listed here. Select one of them and press the left soft key to edit. You can Play, Rename, or Delete this file. When playing, you can use the right soft key to stop and exit the playback mode.  5-1-3. Delete All You can delete all the voice memos expediently.  5-1-4. Set View

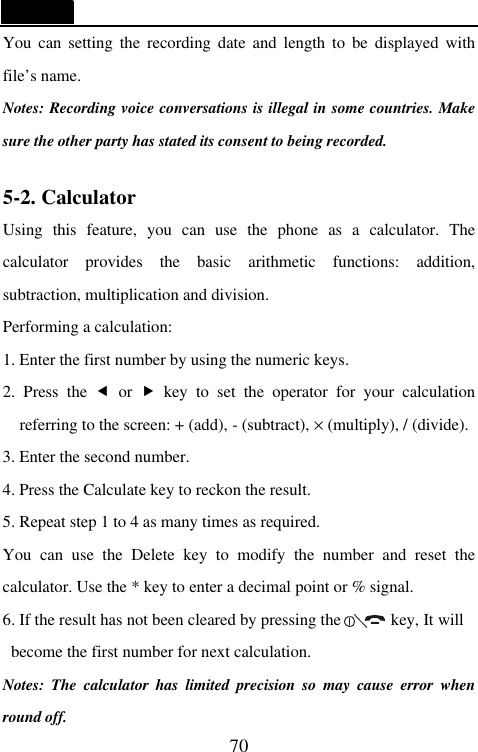

  70 You can setting the recording date and length to be displayed with file’s name.   Notes: Recording voice conversations is illegal in some countries. Make sure the other party has stated its consent to being recorded.  5-2. Calculator Using this feature, you can use the phone as a calculator. The calculator provides the basic arithmetic functions: addition, subtraction, multiplication and division. Performing a calculation: 1. Enter the first number by using the numeric keys. 2. Press the ƒ or „ key to set the operator for your calculation referring to the screen: + (add), - (subtract), × (multiply), / (divide). 3. Enter the second number. 4. Press the Calculate key to reckon the result. 5. Repeat step 1 to 4 as many times as required. You can use the Delete key to modify the number and reset the calculator. Use the * key to enter a decimal point or % signal. 6. If the result has not been cleared by pressing the      key, It will become the first number for next calculation.   Notes: The calculator has limited precision so may cause error when round off.

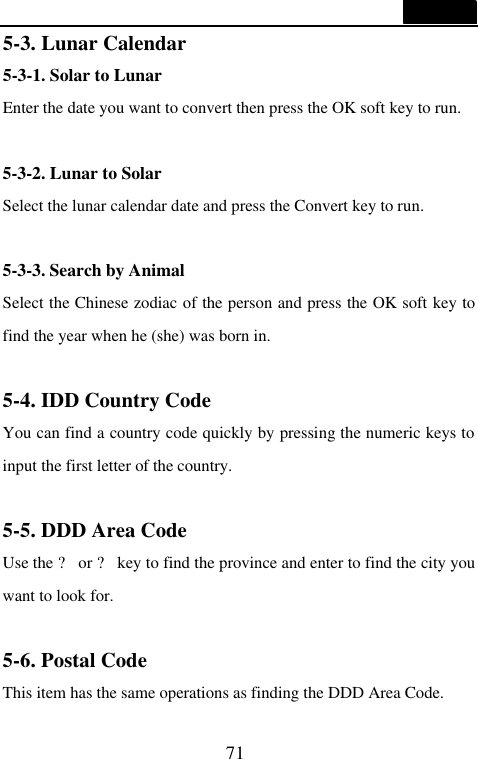

 71  5-3. Lunar Calendar 5-3-1. Solar to Lunar Enter the date you want to convert then press the OK soft key to run.  5-3-2. Lunar to Solar Select the lunar calendar date and press the Convert key to run.  5-3-3. Search by Animal Select the Chinese zodiac of the person and press the OK soft key to find the year when he (she) was born in.  5-4. IDD Country Code You can find a country code quickly by pressing the numeric keys to input the first letter of the country.  5-5. DDD Area Code Use the ? or ? key to find the province and enter to find the city you want to look for.  5-6. Postal Code This item has the same operations as finding the DDD Area Code.

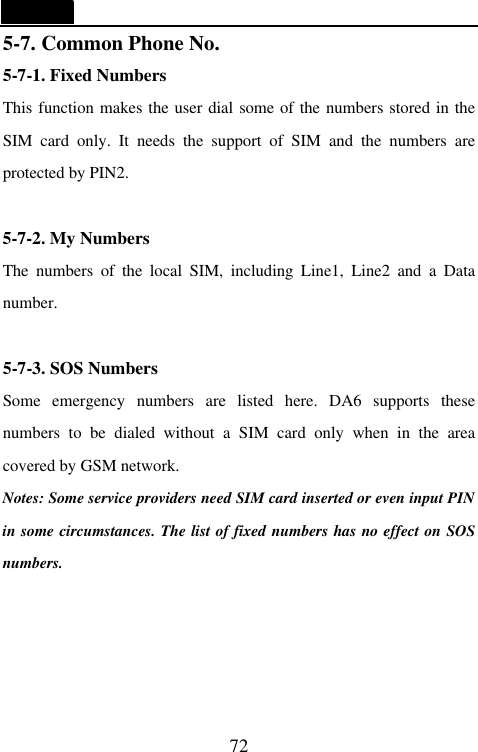

  72 5-7. Common Phone No. 5-7-1. Fixed Numbers This function makes the user dial some of the numbers stored in the SIM card only. It needs the support of SIM and the numbers are protected by PIN2.  5-7-2. My Numbers The numbers of the local SIM, including Line1, Line2 and a Data number.  5-7-3. SOS Numbers Some emergency numbers are listed here. DA6 supports these numbers to be dialed without a SIM card only when in the area covered by GSM network.   Notes: Some service providers need SIM card inserted or even input PIN in some circumstances. The list of fixed numbers has no effect on SOS numbers.

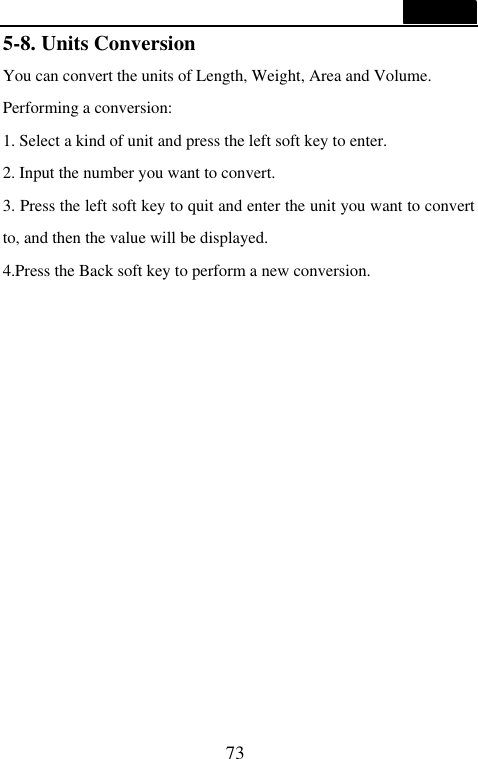

 73  5-8. Units Conversion You can convert the units of Length, Weight, Area and Volume. Performing a conversion: 1. Select a kind of unit and press the left soft key to enter. 2. Input the number you want to convert. 3. Press the left soft key to quit and enter the unit you want to convert to, and then the value will be displayed. 4.Press the Back soft key to perform a new conversion.
  74 6. AMUSEMENT 6-1. Games You can enjoy three games with your phone. Scroll to a game, using the ? or ? key and press the OK key to choose one game. The following options are available: Resume game: Allows you to continue the last game you played. New game: Start a new game, you can choose the different levels. Highscore: Shows you the High Score table. Options: Make some setting for the games. Help: Shows you the key operations for the game.  6-1-1. Ballpop Move the baffle left and right to reflect the ball to clear up the blocks above.    6-1-2. E-Maze Eat up all the green and red beans without touching the yellow sprites.    6-1-3. Wuziqi Attempt to get five stones in a row.

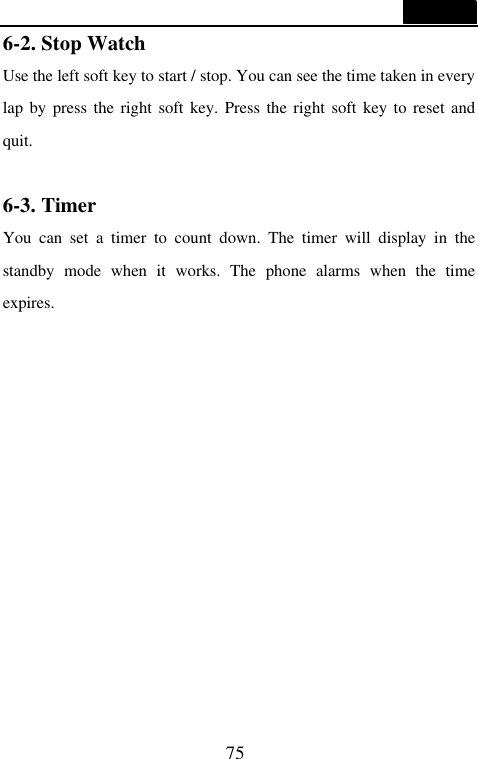

 75  6-2. Stop Watch Use the left soft key to start / stop. You can see the time taken in every lap by press the right soft key. Press the right soft key to reset and quit.  6-3. Timer You can set a timer to count down. The timer will display in the standby mode when it works. The phone alarms when the time expires.

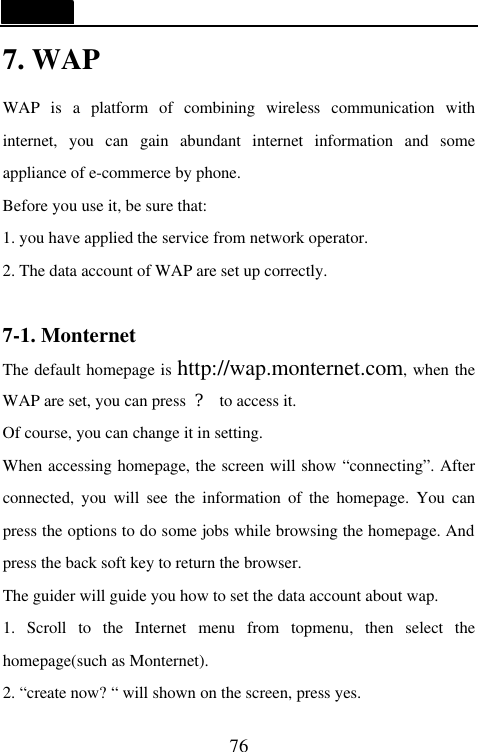

  76 7. WAP WAP is a platform of combining wireless communication with internet, you can gain abundant internet information and some appliance of e-commerce by phone. Before you use it, be sure that: 1. you have applied the service from network operator. 2. The data account of WAP are set up correctly.  7-1. Monternet   The default homepage is http://wap.monternet.com, when the WAP are set, you can press  ? to access it. Of course, you can change it in setting. When accessing homepage, the screen will show “connecting”. After connected, you will see the information of the homepage. You can press the options to do some jobs while browsing the homepage. And press the back soft key to return the browser. The guider will guide you how to set the data account about wap. 1. Scroll to the Internet menu from topmenu, then select the homepage(such as Monternet). 2. “create now? “ will shown on the screen, press yes.

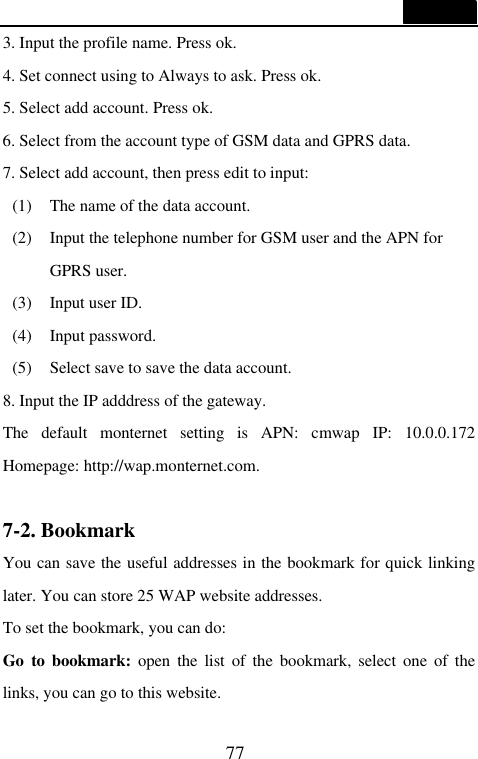

 77  3. Input the profile name. Press ok. 4. Set connect using to Always to ask. Press ok. 5. Select add account. Press ok. 6. Select from the account type of GSM data and GPRS data. 7. Select add account, then press edit to input:   (1) The name of the data account. (2) Input the telephone number for GSM user and the APN for GPRS user. (3) Input user ID. (4) Input password. (5) Select save to save the data account. 8. Input the IP adddress of the gateway. The default monternet setting is APN: cmwap IP: 10.0.0.172 Homepage: http://wap.monternet.com.  7-2. Bookmark                                    You can save the useful addresses in the bookmark for quick linking later. You can store 25 WAP website addresses. To set the bookmark, you can do: Go to bookmark: open the list of the bookmark, select one of the links, you can go to this website.

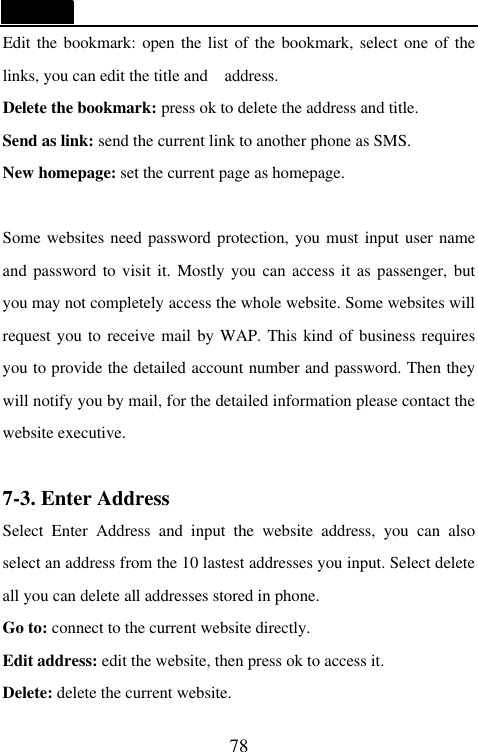

  78 Edit the bookmark: open the list of the bookmark, select one of the links, you can edit the title and  address. Delete the bookmark: press ok to delete the address and title. Send as link: send the current link to another phone as SMS. New homepage: set the current page as homepage.  Some websites need password protection, you must input user name and password to visit it. Mostly you can access it as passenger, but you may not completely access the whole website. Some websites will request you to receive mail by WAP. This kind of business requires you to provide the detailed account number and password. Then they will notify you by mail, for the detailed information please contact the website executive.    7-3. Enter Address                                  Select Enter Address and input the website address, you can also select an address from the 10 lastest addresses you input. Select delete all you can delete all addresses stored in phone. Go to: connect to the current website directly. Edit address: edit the website, then press ok to access it. Delete: delete the current website.

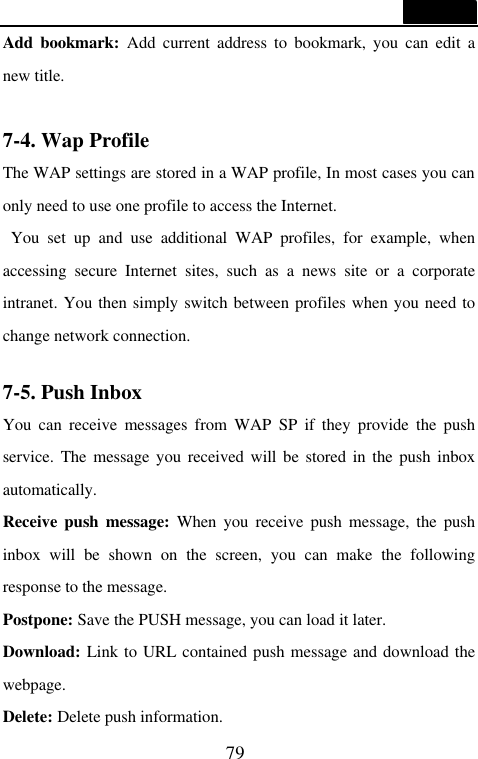

 79  Add bookmark: Add current address to bookmark, you can edit a new title.  7-4. Wap Profile                                   The WAP settings are stored in a WAP profile, In most cases you can only need to use one profile to access the Internet.  You set up and use additional WAP profiles, for example, when accessing secure Internet sites, such as a news site or a corporate intranet. You then simply switch between profiles when you need to change network connection.  7-5. Push Inbox                                    You can receive messages from WAP SP if they provide the push service. The message you received will be stored in the push inbox automatically. Receive push message: When you receive push message, the push inbox will be shown on the screen, you can make the following response to the message. Postpone: Save the PUSH message, you can load it later. Download: Link to URL contained push message and download the webpage. Delete: Delete push information.

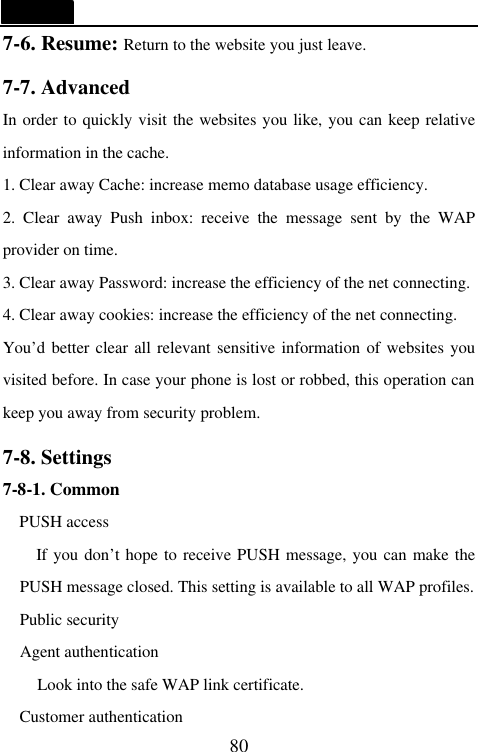

  80 7-6. Resume: Return to the website you just leave.  7-7. Advanced                                     In order to quickly visit the websites you like, you can keep relative information in the cache. 1. Clear away Cache: increase memo database usage efficiency. 2. Clear away Push inbox: receive the message sent by the WAP provider on time. 3. Clear away Password: increase the efficiency of the net connecting. 4. Clear away cookies: increase the efficiency of the net connecting. You’d better clear all relevant sensitive information of websites you visited before. In case your phone is lost or robbed, this operation can keep you away from security problem.  7-8. Settings                                    7-8-1. Common PUSH access If you don’t hope to receive PUSH message, you can make the PUSH message closed. This setting is available to all WAP profiles.   Public security   Agent authentication Look into the safe WAP link certificate. Customer authentication

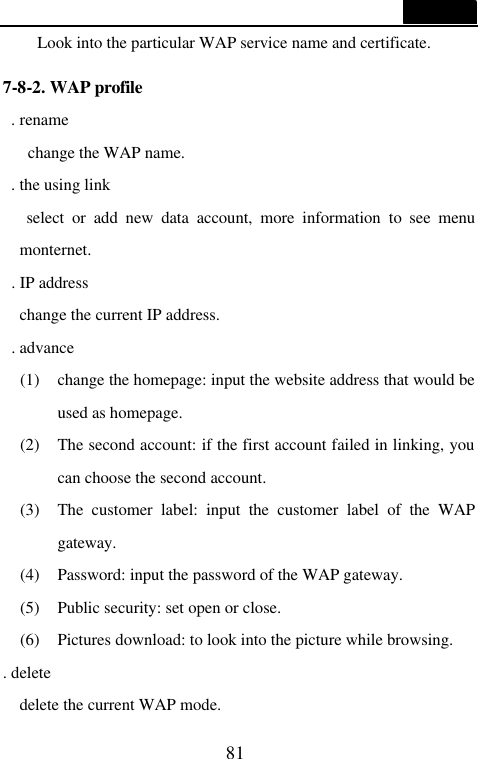

 81  Look into the particular WAP service name and certificate.  7-8-2. WAP profile  . rename    change the WAP name.  . the using link    select or add new data account, more information to see menu monternet.  . IP address   change the current IP address.  . advance (1) change the homepage: input the website address that would be used as homepage. (2) The second account: if the first account failed in linking, you can choose the second account. (3) The customer label: input the customer label of the WAP gateway. (4) Password: input the password of the WAP gateway. (5) Public security: set open or close. (6) Pictures download: to look into the picture while browsing. . delete   delete the current WAP mode.

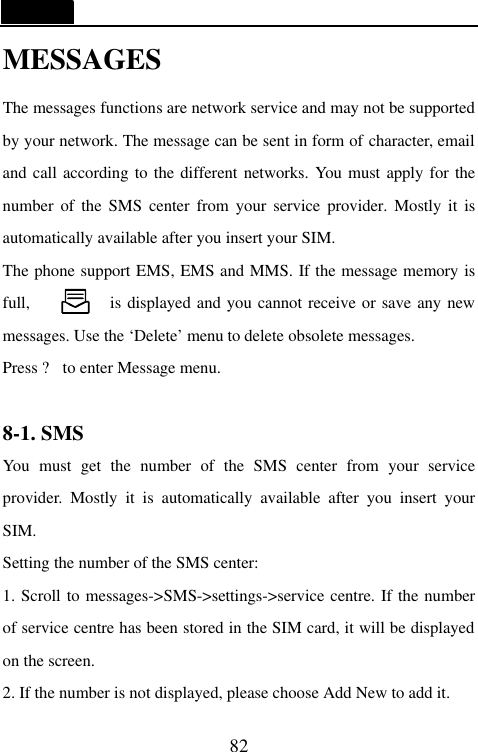

  82 MESSAGES The messages functions are network service and may not be supported by your network. The message can be sent in form of character, email and call according to the different networks. You must apply for the number of the SMS center from your service provider. Mostly it is automatically available after you insert your SIM. The phone support EMS, EMS and MMS. If the message memory is full,               is displayed and you cannot receive or save any new messages. Use the ‘Delete’ menu to delete obsolete messages. Press ? to enter Message menu.  8-1. SMS                                     You must get the number of the SMS center from your service provider. Mostly it is automatically available after you insert your SIM. Setting the number of the SMS center:   1. Scroll to messages->SMS->settings->service centre. If the number of service centre has been stored in the SIM card, it will be displayed on the screen. 2. If the number is not displayed, please choose Add New to add it.

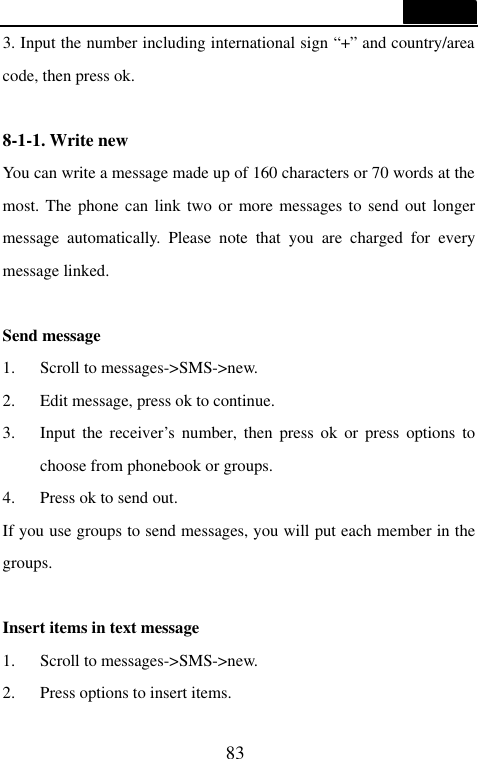

 83  3. Input the number including international sign “+” and country/area code, then press ok.  8-1-1. Write new You can write a message made up of 160 characters or 70 words at the most. The phone can link two or more messages to send out longer message automatically. Please note that you are charged for every message linked.  Send message 1. Scroll to messages->SMS->new. 2. Edit message, press ok to continue. 3. Input the receiver’s number, then press ok or press options to choose from phonebook or groups. 4. Press ok to send out. If you use groups to send messages, you will put each member in the groups.  Insert items in text message 1. Scroll to messages->SMS->new. 2. Press options to insert items.

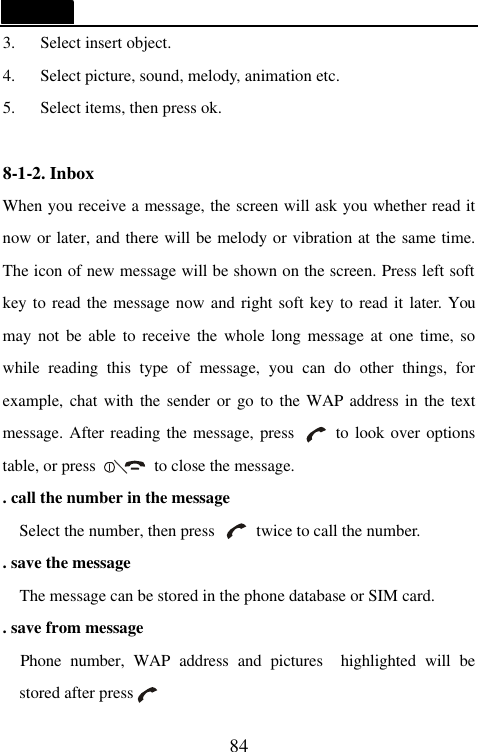

  84 3. Select insert object. 4. Select picture, sound, melody, animation etc. 5. Select items, then press ok.  8-1-2. Inbox                                     When you receive a message, the screen will ask you whether read it now or later, and there will be melody or vibration at the same time. The icon of new message will be shown on the screen. Press left soft key to read the message now and right soft key to read it later. You may not be able to receive the whole long message at one time, so while reading this type of message, you can do other things, for example, chat with the sender or go to the WAP address in the text message. After reading the message, press     to look over options table, or press       to close the message.   . call the number in the message Select the number, then press     twice to call the number.   . save the message   The message can be stored in the phone database or SIM card. . save from message   Phone number, WAP address and pictures  highlighted will be stored after press

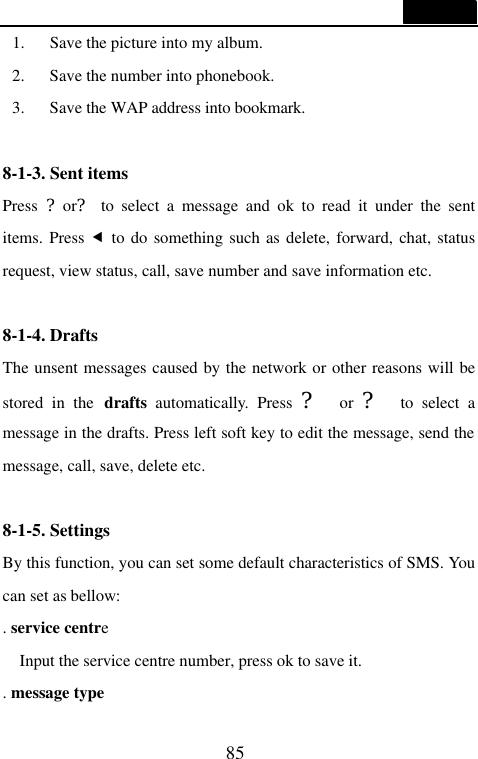

 85  1. Save the picture into my album. 2. Save the number into phonebook. 3. Save the WAP address into bookmark.  8-1-3. Sent items                                     Press  ?or? to select a message and ok to read it under the sent items. Press ƒ to do something such as delete, forward, chat, status request, view status, call, save number and save information etc.  8-1-4. Drafts                                       The unsent messages caused by the network or other reasons will be stored in the drafts  automatically. Press ?  or ?  to select a message in the drafts. Press left soft key to edit the message, send the message, call, save, delete etc.  8-1-5. Settings                                      By this function, you can set some default characteristics of SMS. You can set as bellow: . service centre   Input the service centre number, press ok to save it. . message type

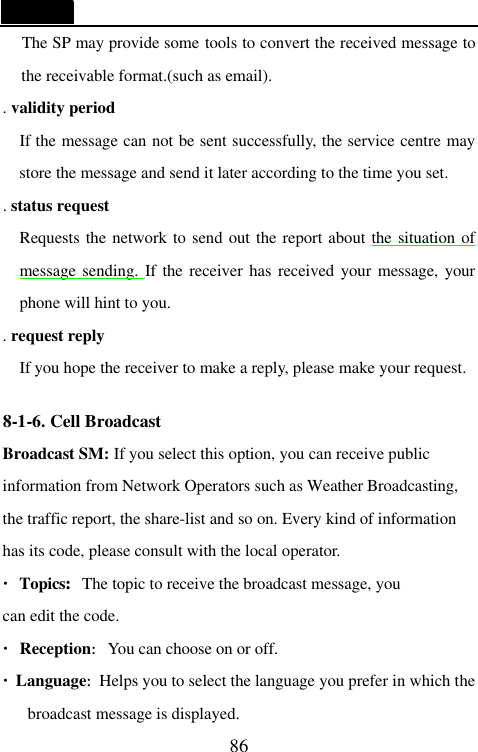

  86   The SP may provide some tools to convert the received message to the receivable format.(such as email). . validity period     If the message can not be sent successfully, the service centre may store the message and send it later according to the time you set. . status request   Requests the network to send out the report about the situation of message sending. If the receiver has received your message, your phone will hint to you. . request reply   If you hope the receiver to make a reply, please make your request.  8-1-6. Cell Broadcast   Broadcast SM: If you select this option, you can receive public information from Network Operators such as Weather Broadcasting, the traffic report, the share-list and so on. Every kind of information has its code, please consult with the local operator. ·Topics:The topic to receive the broadcast message, you can edit the code.   ·Reception:You can choose on or off. ·Language:Helps you to select the language you prefer in which the broadcast message is displayed.

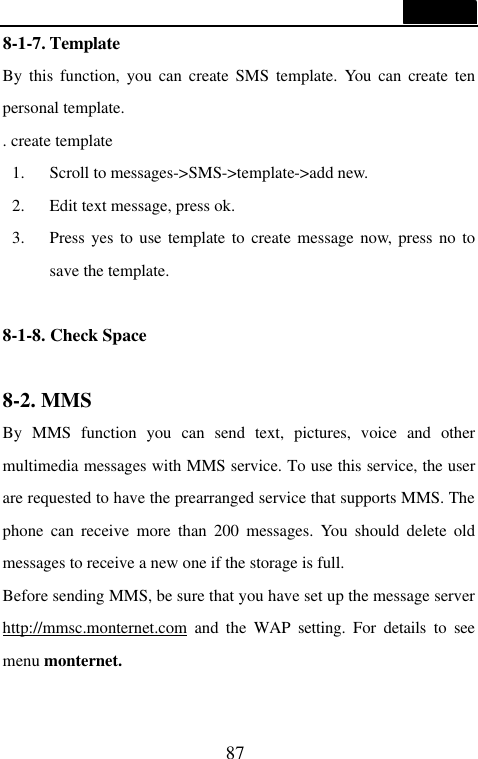

 87  8-1-7. Template                                     By this function, you can create SMS template. You can create ten personal template. . create template 1. Scroll to messages->SMS->template->add new. 2. Edit text message, press ok. 3. Press yes to use template to create message now, press no to save the template.  8-1-8. Check Space  8-2. MMS                                   By MMS function you can send text, pictures, voice and other multimedia messages with MMS service. To use this service, the user are requested to have the prearranged service that supports MMS. The phone can receive more than 200 messages. You should delete old messages to receive a new one if the storage is full. Before sending MMS, be sure that you have set up the message server http://mmsc.monternet.com and the WAP setting. For details to see menu monternet.

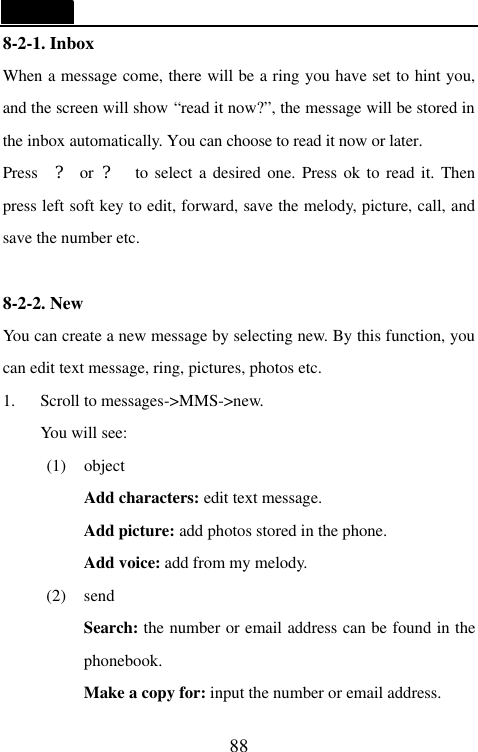

  88 8-2-1. Inbox                                     When a message come, there will be a ring you have set to hint you, and the screen will show “read it now?”, the message will be stored in the inbox automatically. You can choose to read it now or later. Press  ? or ?  to select a desired one. Press ok to read it. Then press left soft key to edit, forward, save the melody, picture, call, and save the number etc.  8-2-2. New                                    You can create a new message by selecting new. By this function, you can edit text message, ring, pictures, photos etc. 1. Scroll to messages->MMS->new. You will see: (1) object Add characters: edit text message. Add picture: add photos stored in the phone. Add voice: add from my melody. (2) send Search: the number or email address can be found in the phonebook. Make a copy for: input the number or email address.

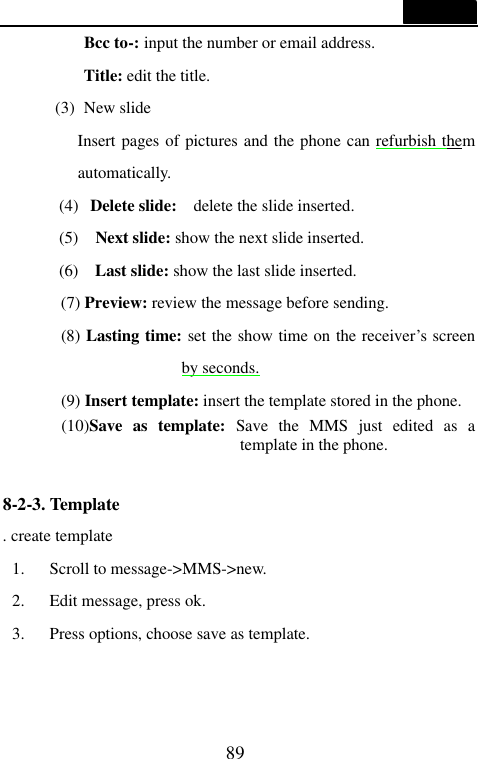

 89  Bcc to-: input the number or email address. Title: edit the title. (3) New slide   Insert pages of pictures and the phone can refurbish them automatically. (4) Delete slide:   delete the slide inserted. (5)   Next slide: show the next slide inserted. (6)   Last slide: show the last slide inserted. (7) Preview: review the message before sending.    (8) Lasting time: set the show time on the receiver’s screen by seconds. (9) Insert template: insert the template stored in the phone. (10)Save as template: Save the MMS just edited as a template in the phone.  8-2-3. Template                                     . create template 1. Scroll to message->MMS->new. 2. Edit message, press ok. 3. Press options, choose save as template.

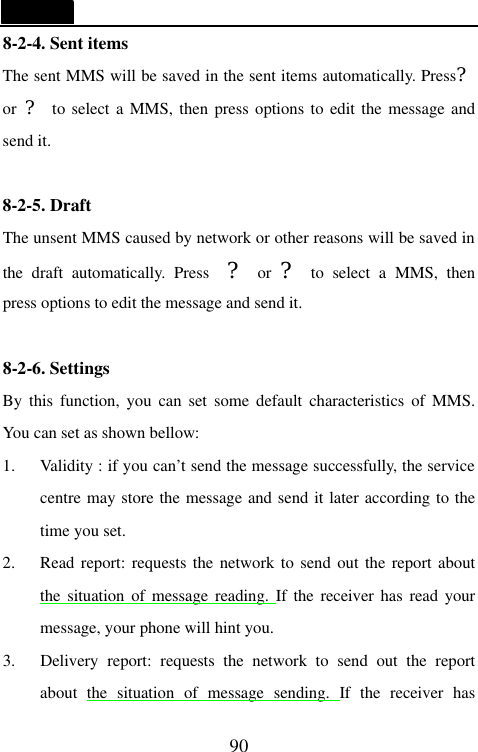

  90 8-2-4. Sent items                                    The sent MMS will be saved in the sent items automatically. Press?   or  ? to select a MMS, then press options to edit the message and send it.  8-2-5. Draft                                    The unsent MMS caused by network or other reasons will be saved in the draft automatically. Press  ? or ? to select a MMS, then press options to edit the message and send it.  8-2-6. Settings                                     By this function, you can set some default characteristics of MMS. You can set as shown bellow: 1. Validity : if you can’t send the message successfully, the service centre may store the message and send it later according to the time you set. 2. Read report: requests the network to send out the report about the situation of message reading. If the receiver has read your message, your phone will hint you. 3. Delivery report: requests the network to send out the report about  the situation of message sending. If the receiver has

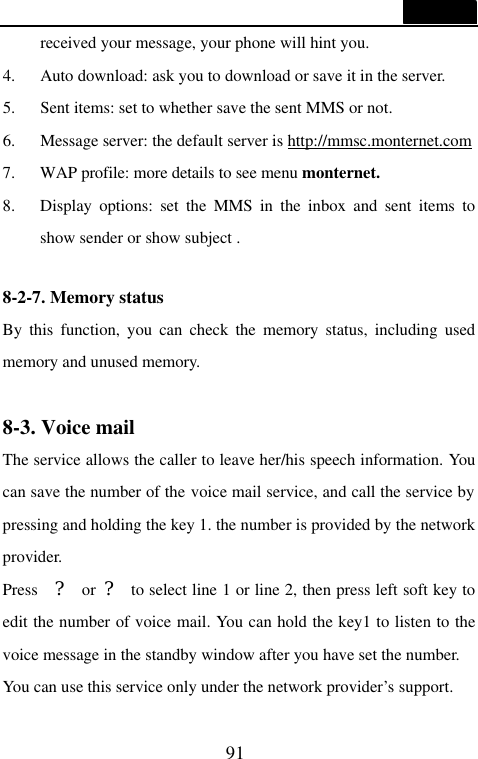

 91  received your message, your phone will hint you. 4. Auto download: ask you to download or save it in the server. 5. Sent items: set to whether save the sent MMS or not. 6. Message server: the default server is http://mmsc.monternet.com 7. WAP profile: more details to see menu monternet. 8. Display options: set the MMS in the inbox and sent items to show sender or show subject .  8-2-7. Memory status                                     By this function, you can check the memory status, including used memory and unused memory.  8-3. Voice mail                                    The service allows the caller to leave her/his speech information. You can save the number of the voice mail service, and call the service by pressing and holding the key 1. the number is provided by the network provider. Press  ? or ? to select line 1 or line 2, then press left soft key to edit the number of voice mail. You can hold the key1 to listen to the voice message in the standby window after you have set the number. You can use this service only under the network provider’s support.

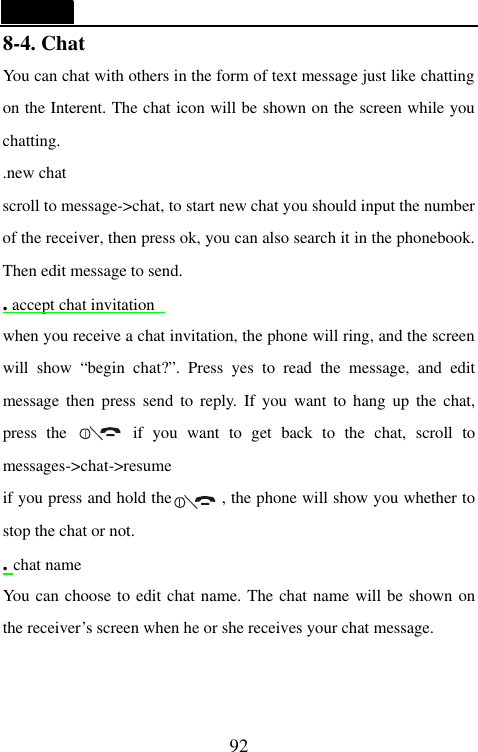

  92 8-4. Chat                                     You can chat with others in the form of text message just like chatting on the Interent. The chat icon will be shown on the screen while you chatting. .new chat scroll to message->chat, to start new chat you should input the number of the receiver, then press ok, you can also search it in the phonebook. Then edit message to send. . accept chat invitation  when you receive a chat invitation, the phone will ring, and the screen will show “begin chat?”. Press yes to read the message, and edit message then press send to reply. If you want to hang up the chat, press the       if you want to get back to the chat, scroll to messages->chat->resume if you press and hold the      , the phone will show you whether to stop the chat or not. . chat name You can choose to edit chat name. The chat name will be shown on the receiver’s screen when he or she receives your chat message.

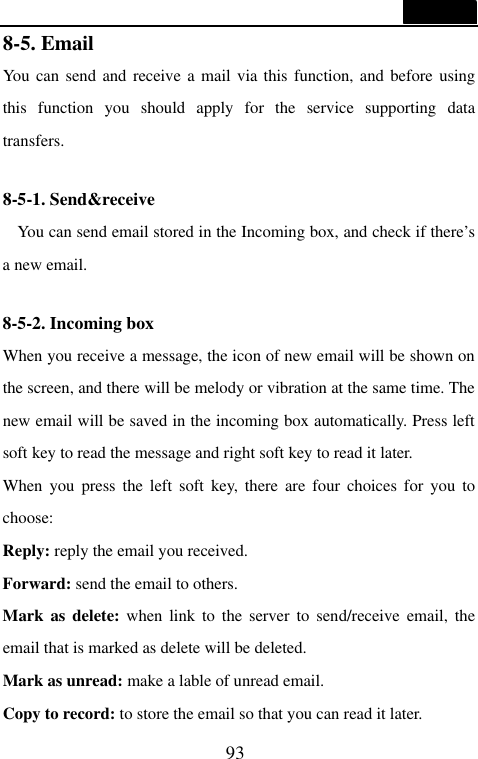

 93  8-5. Email                                    You can send and receive a mail via this function, and before using this function you should apply for the service supporting data transfers.  8-5-1. Send&receive                                    You can send email stored in the Incoming box, and check if there’s a new email.  8-5-2. Incoming box                                When you receive a message, the icon of new email will be shown on the screen, and there will be melody or vibration at the same time. The new email will be saved in the incoming box automatically. Press left soft key to read the message and right soft key to read it later. When you press the left soft key, there are four choices for you to choose: Reply: reply the email you received. Forward: send the email to others. Mark as delete: when link to the server to send/receive email, the email that is marked as delete will be deleted. Mark as unread: make a lable of unread email. Copy to record: to store the email so that you can read it later.

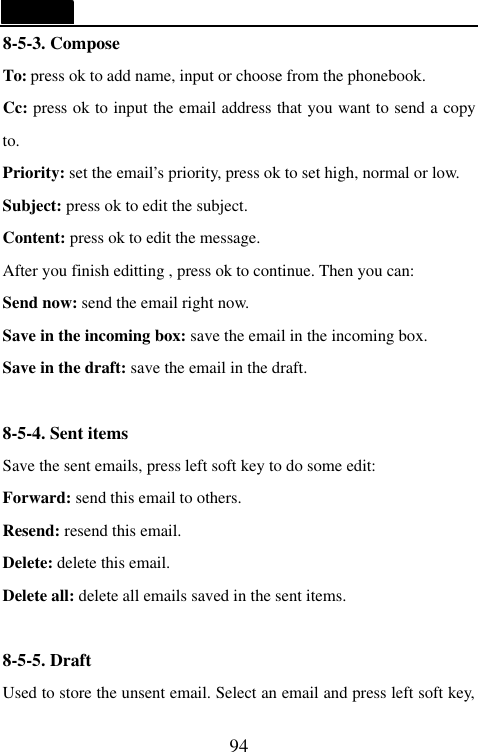

  94 8-5-3. Compose To: press ok to add name, input or choose from the phonebook. Cc: press ok to input the email address that you want to send a copy to. Priority: set the email’s priority, press ok to set high, normal or low. Subject: press ok to edit the subject. Content: press ok to edit the message. After you finish editting , press ok to continue. Then you can: Send now: send the email right now. Save in the incoming box: save the email in the incoming box. Save in the draft: save the email in the draft.  8-5-4. Sent items Save the sent emails, press left soft key to do some edit: Forward: send this email to others. Resend: resend this email. Delete: delete this email. Delete all: delete all emails saved in the sent items.  8-5-5. Draft   Used to store the unsent email. Select an email and press left soft key,

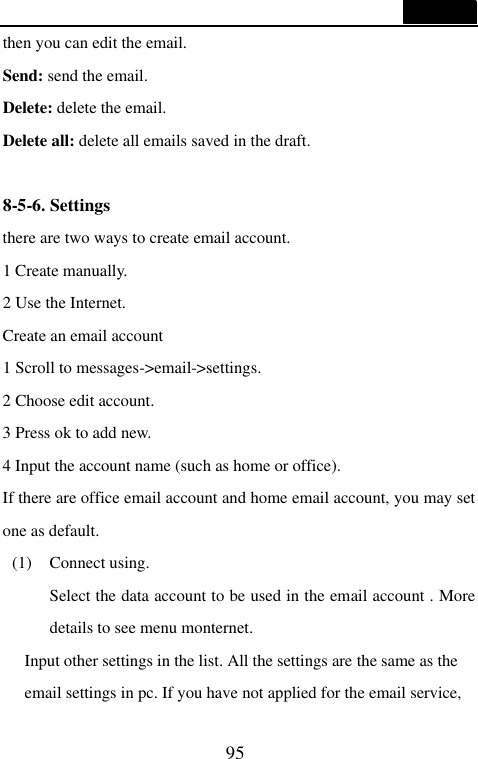

 95  then you can edit the email. Send: send the email. Delete: delete the email. Delete all: delete all emails saved in the draft.  8-5-6. Settings there are two ways to create email account. 1 Create manually. 2 Use the Internet. Create an email account 1 Scroll to messages->email->settings. 2 Choose edit account. 3 Press ok to add new. 4 Input the account name (such as home or office). If there are office email account and home email account, you may set one as default.   (1) Connect using. Select the data account to be used in the email account . More details to see menu monternet. Input other settings in the list. All the settings are the same as the email settings in pc. If you have not applied for the email service,

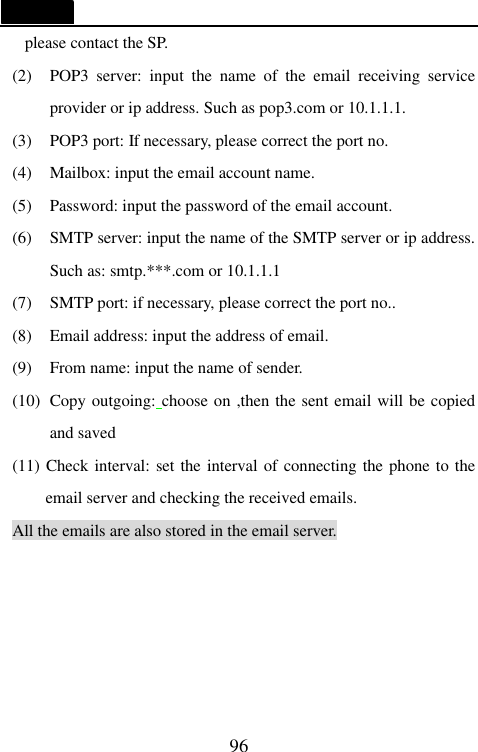

  96 please contact the SP. (2) POP3 server: input the name of the email receiving service provider or ip address. Such as pop3.com or 10.1.1.1. (3) POP3 port: If necessary, please correct the port no. (4) Mailbox: input the email account name. (5) Password: input the password of the email account. (6) SMTP server: input the name of the SMTP server or ip address. Such as: smtp.***.com or 10.1.1.1 (7) SMTP port: if necessary, please correct the port no.. (8) Email address: input the address of email. (9) From name: input the name of sender. (10) Copy outgoing: choose on ,then the sent email will be copied and saved (11) Check interval: set the interval of connecting the phone to the email server and checking the received emails. All the emails are also stored in the email server.

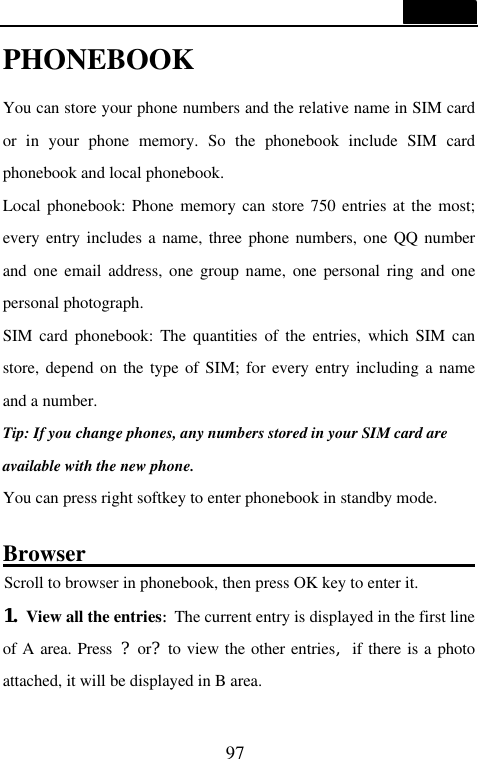

 97  PHONEBOOK  You can store your phone numbers and the relative name in SIM card or in your phone memory. So the phonebook include SIM card phonebook and local phonebook. Local phonebook: Phone memory can store 750 entries at the most;  every entry includes a name, three phone numbers, one QQ number and one email address, one group name, one personal ring and one personal photograph. SIM card phonebook: The quantities of the entries, which SIM can store, depend on the type of SIM; for every entry including a name and a number. Tip: If you change phones, any numbers stored in your SIM card are available with the new phone. You can press right softkey to enter phonebook in standby mode.  Browser                                                                  Scroll to browser in phonebook, then press OK key to enter it. 1. View all the entries:The current entry is displayed in the first line of A area. Press ?or?to view the other entries,if there is a photo attached, it will be displayed in B area.

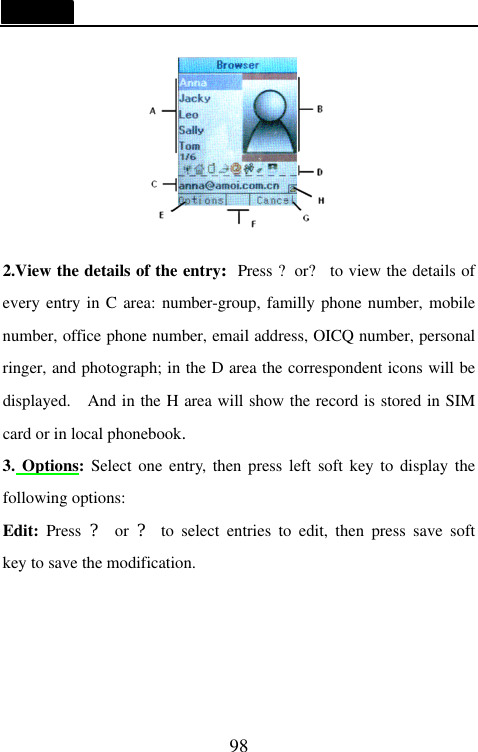

  98  2.View the details of the entry:Press ?or? to view the details of every entry in C area: number-group, familly phone number, mobile number, office phone number, email address, OICQ number, personal ringer, and photograph; in the D area the correspondent icons will be displayed.  And in the H area will show the record is stored in SIM card or in local phonebook. 3. Options: Select one entry, then press left soft key to display the following options: Edit: Press  ? or ? to select entries to edit, then press save soft key to save the modification.

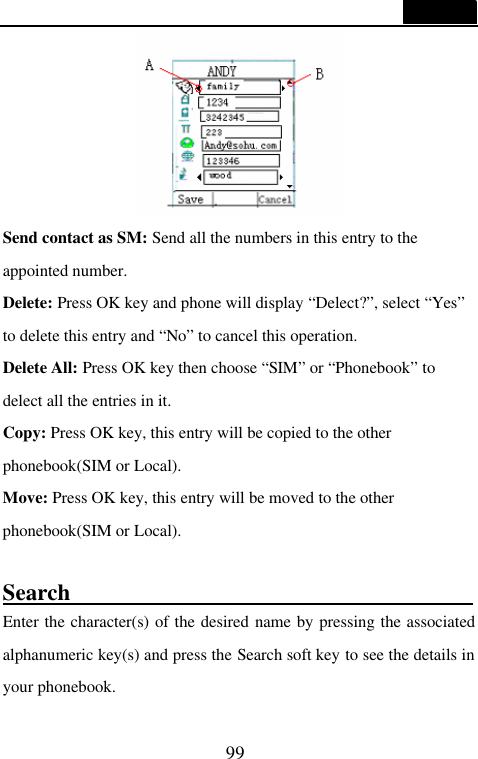

 99   Send contact as SM: Send all the numbers in this entry to the appointed number. Delete: Press OK key and phone will display “Delect?”, select “Yes” to delete this entry and “No” to cancel this operation. Delete All: Press OK key then choose “SIM” or “Phonebook” to delect all the entries in it. Copy: Press OK key, this entry will be copied to the other phonebook(SIM or Local). Move: Press OK key, this entry will be moved to the other phonebook(SIM or Local).  Search                                                                    Enter the character(s) of the desired name by pressing the associated alphanumeric key(s) and press the Search soft key to see the details in your phonebook.

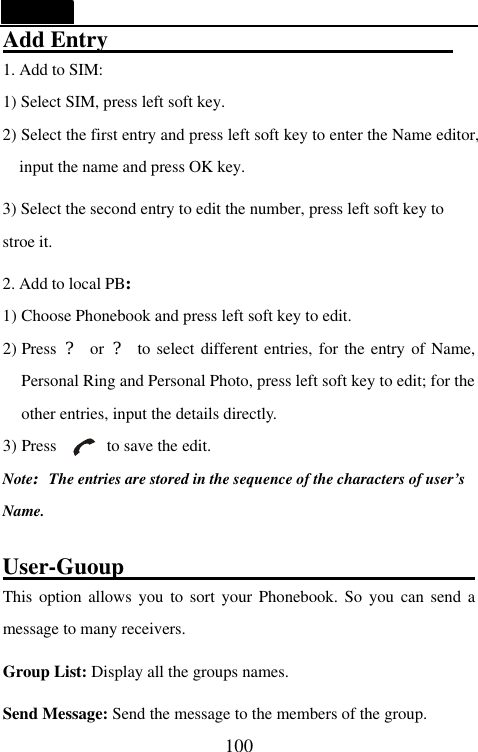

  100 Add Entry                                                                1. Add to SIM:   1) Select SIM, press left soft key. 2) Select the first entry and press left soft key to enter the Name editor, input the name and press OK key. 3) Select the second entry to edit the number, press left soft key to stroe it.   2. Add to local PB: 1) Choose Phonebook and press left soft key to edit. 2) Press  ? or ? to select different entries, for the entry of Name, Personal Ring and Personal Photo, press left soft key to edit; for the other entries, input the details directly. 3) Press      to save the edit. Note:The entries are stored in the sequence of the characters of user’s Name.  User-Guoup                                                                  This option allows you to sort your Phonebook. So you can send a message to many receivers. Group List: Display all the groups names. Send Message: Send the message to the members of the group.

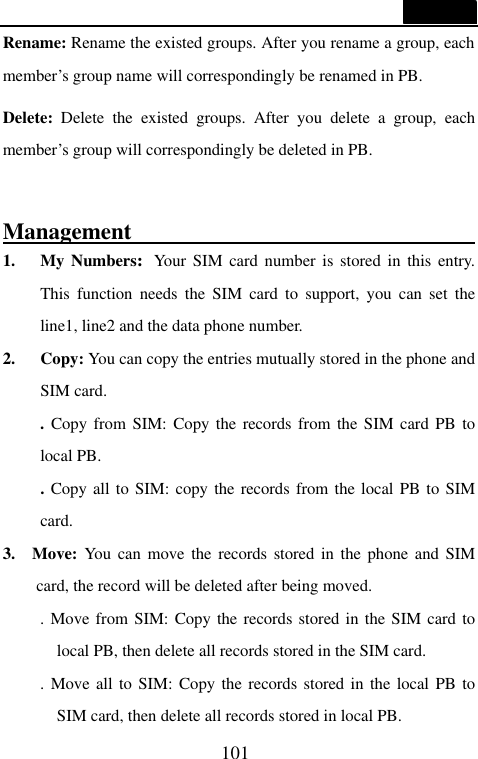

 101  Rename: Rename the existed groups. After you rename a group, each member’s group name will correspondingly be renamed in PB. Delete: Delete the existed groups. After you delete a group, each member’s group will correspondingly be deleted in PB.  Management                                                                1. My Numbers:Your SIM card number is stored in this entry. This function needs the SIM card to support, you can set the line1, line2 and the data phone number. 2. Copy: You can copy the entries mutually stored in the phone and SIM card. . Copy from SIM: Copy the records from the SIM card PB to local PB. . Copy all to SIM: copy the records from the local PB to SIM card. 3.  Move: You can move the records stored in the phone and SIM card, the record will be deleted after being moved. . Move from SIM: Copy the records stored in the SIM card to local PB, then delete all records stored in the SIM card. . Move all to SIM: Copy the records stored in the local PB to SIM card, then delete all records stored in local PB.

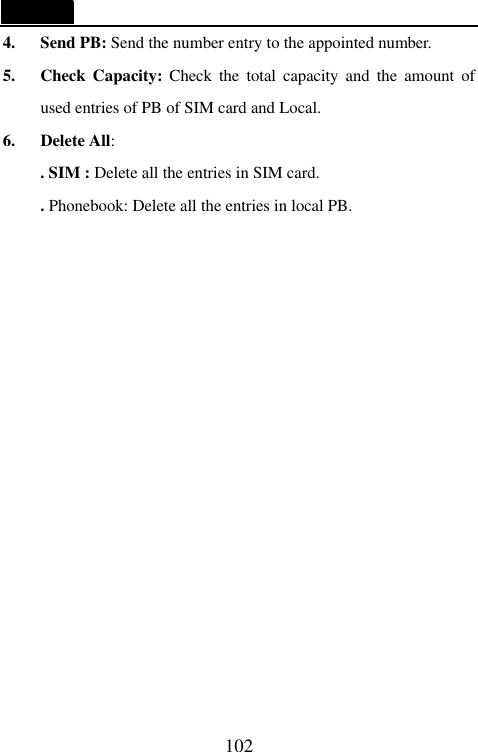

  102 4.   Send PB: Send the number entry to the appointed number. 5.   Check Capacity: Check the total capacity and the amount of used entries of PB of SIM card and Local. 6.   Delete All:     . SIM : Delete all the entries in SIM card. . Phonebook: Delete all the entries in local PB.

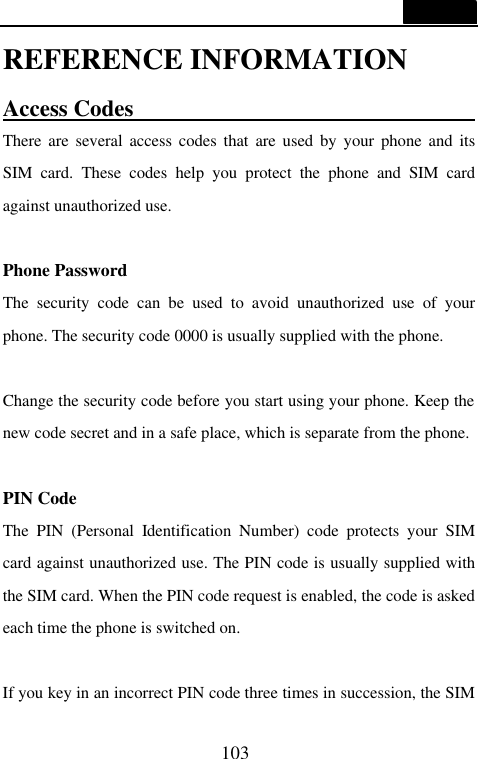

 103  REFERENCE INFORMATION Access Codes                                There are several access codes that are used by your phone and its SIM card. These codes help you protect the phone and SIM card against unauthorized use.  Phone Password The security code can be used to avoid unauthorized use of your phone. The security code 0000 is usually supplied with the phone.    Change the security code before you start using your phone. Keep the new code secret and in a safe place, which is separate from the phone.  PIN Code The PIN (Personal Identification Number) code protects your SIM card against unauthorized use. The PIN code is usually supplied with the SIM card. When the PIN code request is enabled, the code is asked each time the phone is switched on.  If you key in an incorrect PIN code three times in succession, the SIM

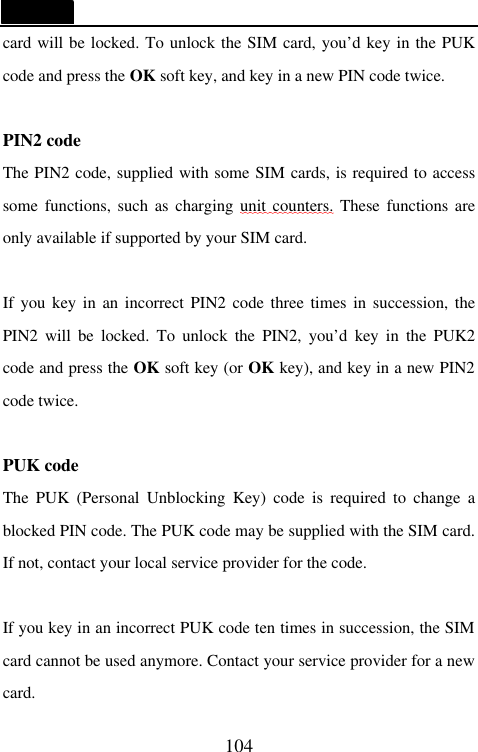

  104 card will be locked. To unlock the SIM card, you’d key in the PUK code and press the OK soft key, and key in a new PIN code twice.  PIN2 code The PIN2 code, supplied with some SIM cards, is required to access some functions, such as charging unit counters. These functions are only available if supported by your SIM card.  If you key in an incorrect PIN2 code three times in succession, the PIN2 will be locked. To unlock the PIN2, you’d key in the PUK2 code and press the OK soft key (or OK key), and key in a new PIN2 code twice.  PUK code The PUK (Personal Unblocking Key) code is required to change a blocked PIN code. The PUK code may be supplied with the SIM card. If not, contact your local service provider for the code.  If you key in an incorrect PUK code ten times in succession, the SIM card cannot be used anymore. Contact your service provider for a new card.

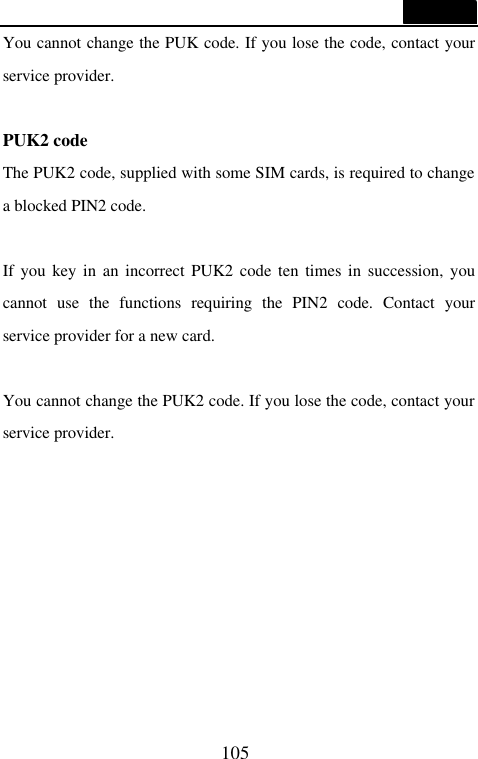

 105  You cannot change the PUK code. If you lose the code, contact your service provider.  PUK2 code The PUK2 code, supplied with some SIM cards, is required to change a blocked PIN2 code.    If you key in an incorrect PUK2 code ten times in succession, you cannot use the functions requiring the PIN2 code. Contact your service provider for a new card.  You cannot change the PUK2 code. If you lose the code, contact your service provider.

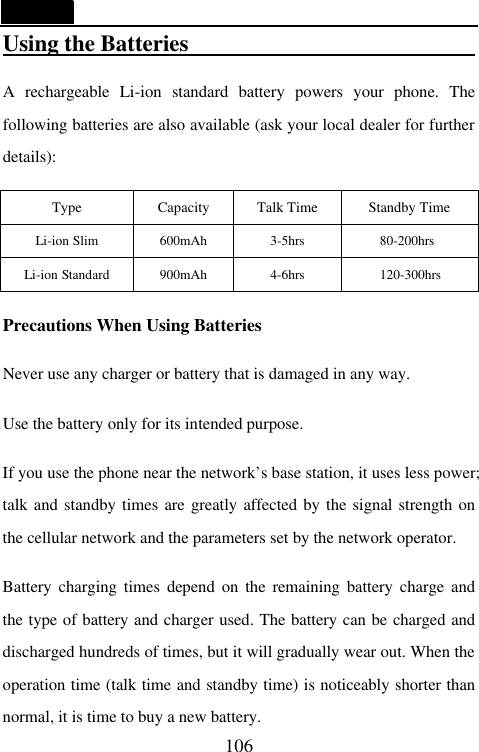

  106 Using the Batteries                           A rechargeable Li-ion standard battery powers your phone. The following batteries are also available (ask your local dealer for further details):  Type Capacity Talk Time Standby Time Li-ion Slim 600mAh 3-5hrs 80-200hrs Li-ion Standard 900mAh 4-6hrs 120-300hrs  Precautions When Using Batteries  Never use any charger or battery that is damaged in any way.  Use the battery only for its intended purpose.  If you use the phone near the network’s base station, it uses less power; talk and standby times are greatly affected by the signal strength on the cellular network and the parameters set by the network operator.  Battery charging times depend on the remaining battery charge and the type of battery and charger used. The battery can be charged and discharged hundreds of times, but it will gradually wear out. When the operation time (talk time and standby time) is noticeably shorter than normal, it is time to buy a new battery.

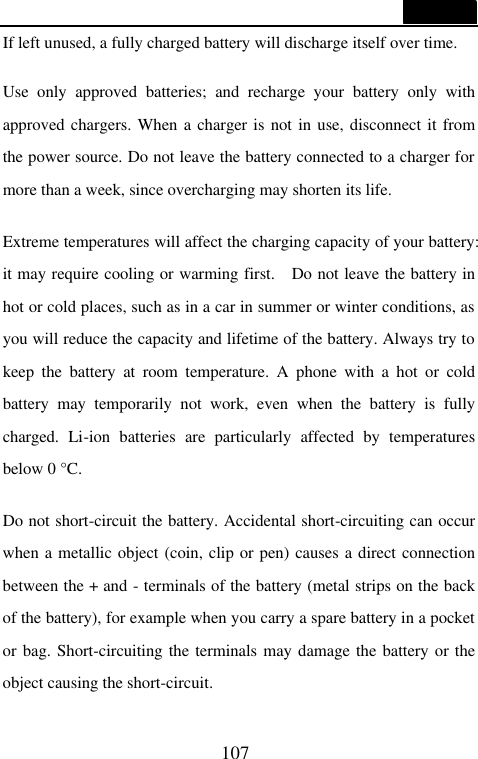

 107  If left unused, a fully charged battery will discharge itself over time.  Use only approved batteries; and recharge your battery only with approved chargers. When a charger is not in use, disconnect it from the power source. Do not leave the battery connected to a charger for more than a week, since overcharging may shorten its life.  Extreme temperatures will affect the charging capacity of your battery: it may require cooling or warming first.  Do not leave the battery in hot or cold places, such as in a car in summer or winter conditions, as you will reduce the capacity and lifetime of the battery. Always try to keep the battery at room temperature. A phone with a hot or cold battery may temporarily not work, even when the battery is fully charged. Li-ion batteries are particularly affected by temperatures below 0 °C.  Do not short-circuit the battery. Accidental short-circuiting can occur when a metallic object (coin, clip or pen) causes a direct connection between the + and - terminals of the battery (metal strips on the back of the battery), for example when you carry a spare battery in a pocket or bag. Short-circuiting the terminals may damage the battery or the object causing the short-circuit.

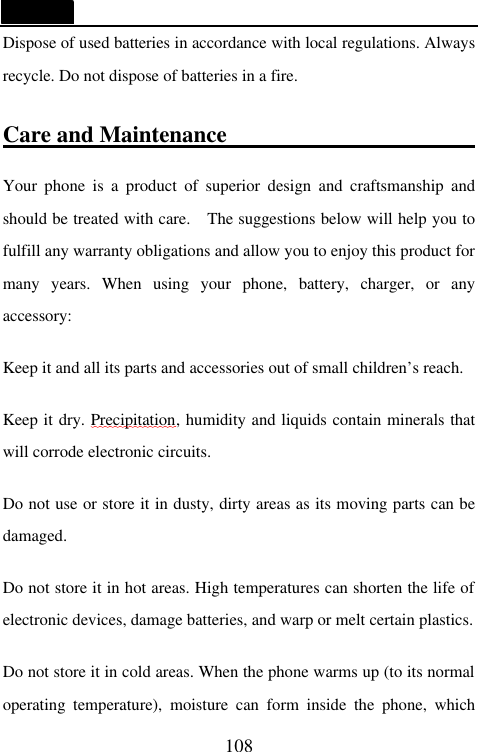

  108 Dispose of used batteries in accordance with local regulations. Always recycle. Do not dispose of batteries in a fire.  Care and Maintenance                               Your phone is a product of superior design and craftsmanship and should be treated with care.  The suggestions below will help you to fulfill any warranty obligations and allow you to enjoy this product for many years. When using your phone, battery, charger, or any accessory:  Keep it and all its parts and accessories out of small children’s reach.  Keep it dry. Precipitation, humidity and liquids contain minerals that will corrode electronic circuits.  Do not use or store it in dusty, dirty areas as its moving parts can be damaged.  Do not store it in hot areas. High temperatures can shorten the life of electronic devices, damage batteries, and warp or melt certain plastics.  Do not store it in cold areas. When the phone warms up (to its normal operating temperature), moisture can form inside the phone, which
 109  may damage the phone’s electronic circuit boards.  Do not drop, knock or shake it. Rough handling can break internal circuit boards.  Do not use harsh chemicals, cleaning solvents, or strong detergents to clean it. Wipe it with a soft cloth slightly dampened in a mild soap-and-water solution.  Do not paint it. Paint can clog the device’s moving parts and prevent proper operation.    Use only the supplied or an approved replacement antenna. Unauthorized antennas, modifications of attachments could damage the phone and may violate regulations governing radio devices.  If the phone, battery, charger, or any accessory is not working properly, take it to your nearest qualified service facility.    This phone features large display screens, which are damageable. Please be most careful to avoid dropping or knocking it or scratch it with a sharp thing.

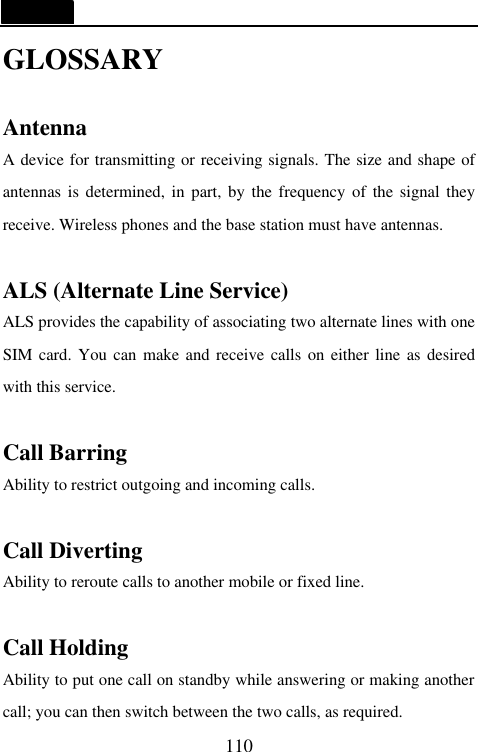

  110 GLOSSARY  Antenna A device for transmitting or receiving signals. The size and shape of antennas is determined, in part, by the frequency of the signal they receive. Wireless phones and the base station must have antennas.  ALS (Alternate Line Service) ALS provides the capability of associating two alternate lines with one SIM card. You can make and receive calls on either line as desired with this service.  Call Barring Ability to restrict outgoing and incoming calls.    Call Diverting Ability to reroute calls to another mobile or fixed line.  Call Holding Ability to put one call on standby while answering or making another call; you can then switch between the two calls, as required.

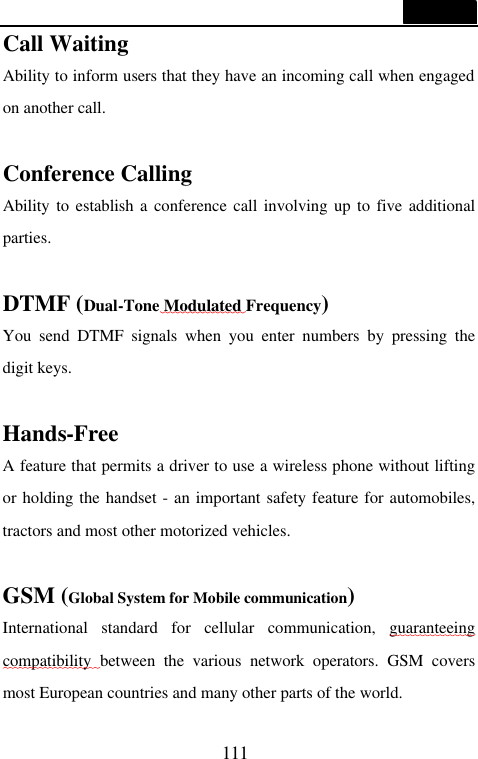

 111  Call Waiting Ability to inform users that they have an incoming call when engaged on another call.    Conference Calling Ability to establish a conference call involving up to five additional parties.  DTMF (Dual-Tone Modulated Frequency) You send DTMF signals when you enter numbers by pressing the digit keys.  Hands-Free A feature that permits a driver to use a wireless phone without lifting or holding the handset - an important safety feature for automobiles, tractors and most other motorized vehicles.  GSM (Global System for Mobile communication) International standard for cellular communication, guaranteeing compatibility  between the various network operators. GSM covers most European countries and many other parts of the world.

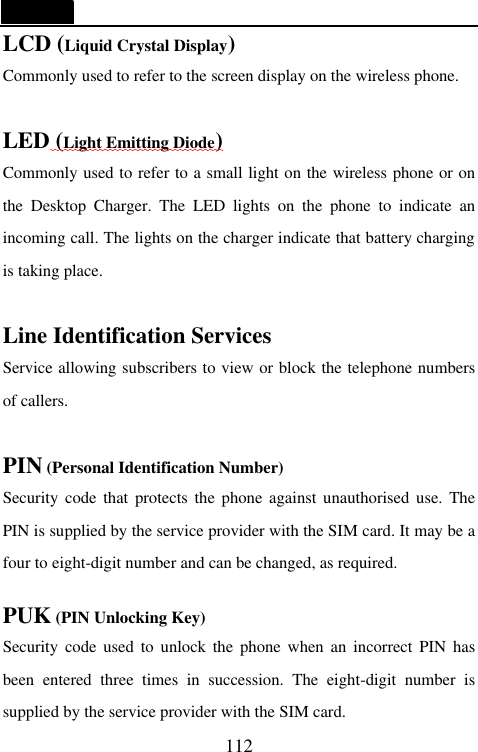

  112 LCD (Liquid Crystal Display) Commonly used to refer to the screen display on the wireless phone.  LED (Light Emitting Diode) Commonly used to refer to a small light on the wireless phone or on the Desktop Charger. The LED lights on the phone to indicate an incoming call. The lights on the charger indicate that battery charging is taking place.  Line Identification Services Service allowing subscribers to view or block the telephone numbers of callers.  PIN (Personal Identification Number) Security code that protects the phone against unauthorised use. The PIN is supplied by the service provider with the SIM card. It may be a four to eight-digit number and can be changed, as required.  PUK (PIN Unlocking Key) Security code used to unlock the phone when an incorrect PIN has been entered three times in succession. The eight-digit number is supplied by the service provider with the SIM card.

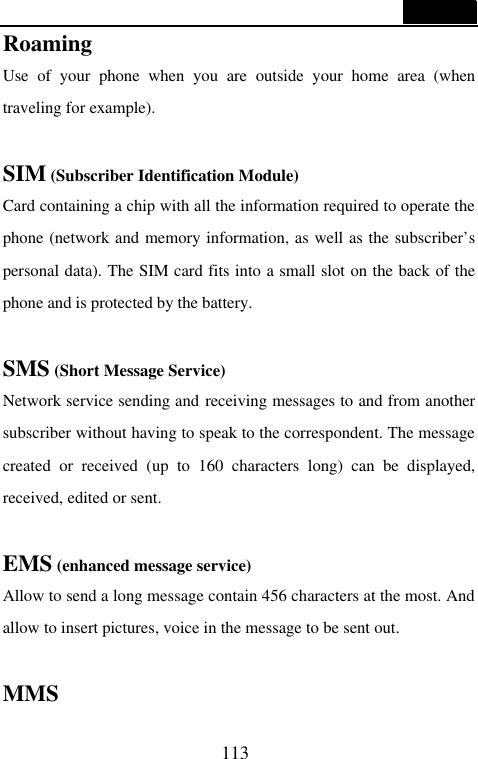

 113  Roaming Use of your phone when you are outside your home area (when traveling for example).  SIM (Subscriber Identification Module) Card containing a chip with all the information required to operate the phone (network and memory information, as well as the subscriber’s personal data). The SIM card fits into a small slot on the back of the phone and is protected by the battery.  SMS (Short Message Service) Network service sending and receiving messages to and from another subscriber without having to speak to the correspondent. The message created or received (up to 160 characters long) can be displayed, received, edited or sent.  EMS (enhanced message service) Allow to send a long message contain 456 characters at the most. And allow to insert pictures, voice in the message to be sent out.  MMS

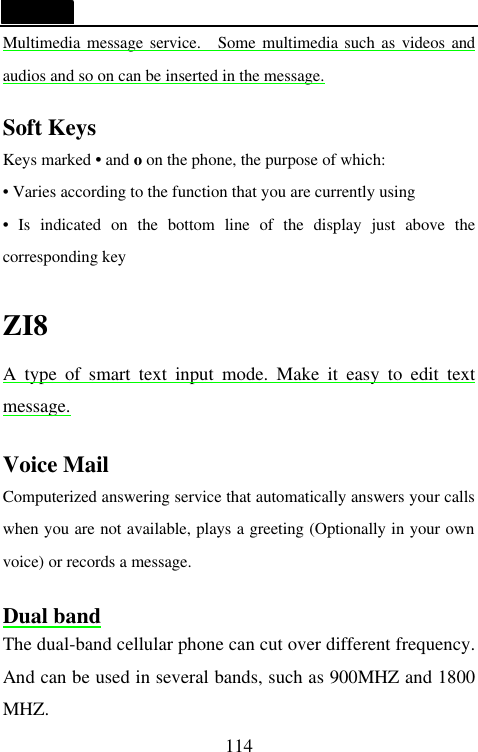

  114 Multimedia message service.  Some multimedia such as videos and audios and so on can be inserted in the message.  Soft Keys Keys marked • and o on the phone, the purpose of which: • Varies according to the function that you are currently using • Is indicated on the bottom line of the display just above the corresponding key  ZI8 A type of smart text input mode. Make it easy to edit text message.  Voice Mail Computerized answering service that automatically answers your calls when you are not available, plays a greeting (Optionally in your own voice) or records a message.  Dual band The dual-band cellular phone can cut over different frequency. And can be used in several bands, such as 900MHZ and 1800 MHZ.

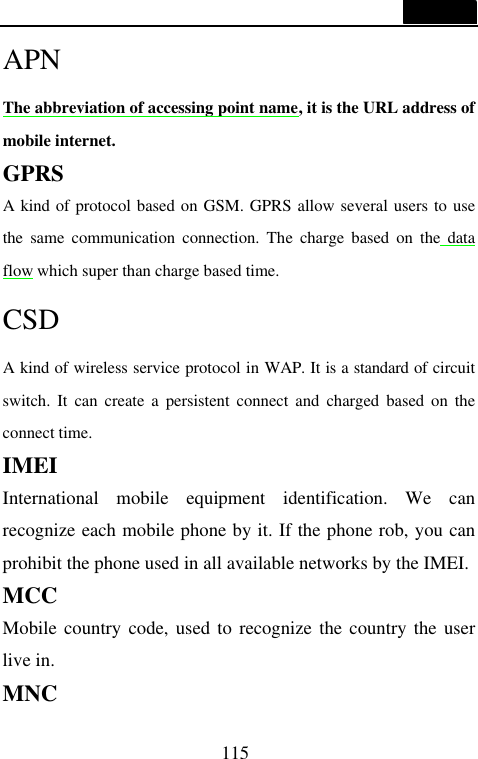

 115  APN The abbreviation of accessing point name, it is the URL address of mobile internet. GPRS A kind of protocol based on GSM. GPRS allow several users to use the same communication connection. The charge based on the data flow which super than charge based time. CSD A kind of wireless service protocol in WAP. It is a standard of circuit switch. It can create a persistent connect and charged based on the connect time. IMEI International mobile equipment identification. We can recognize each mobile phone by it. If the phone rob, you can prohibit the phone used in all available networks by the IMEI. MCC Mobile country code, used to recognize the country the user live in. MNC
  116 Mobile network code, used to recognize the network that the consumer use. WAP A kind of wireless application protocol, you can access the mobile internet use WAP. You can enjoy many services such as news, weather forecast, prearrange service or shopping, access database etc.. URL Universal resource location. It is an address system to locate address information used in the Internet. Every WAP homepage has its own address. URL is usually head of http://wap, followed by an address.   ISP Internet service provider.  TROUBLESHOOTING If the phone does not works properly, please check the following troubleshooting and find a solution. If you can’t solve the problems, please contact your local dealer for helps.

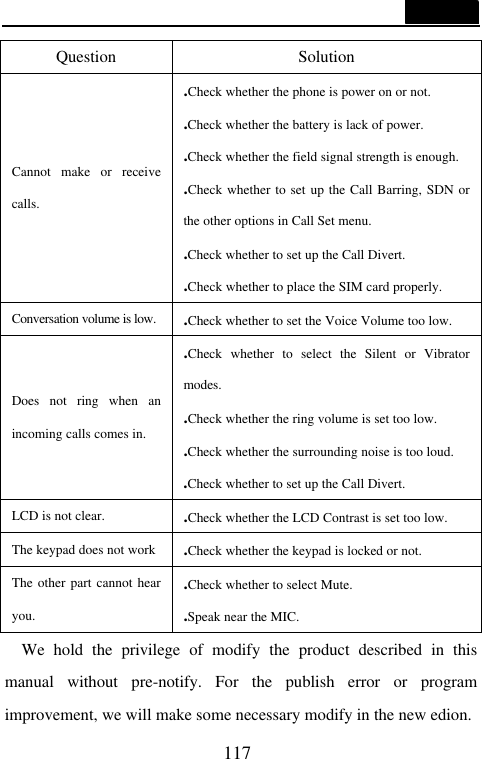

 117  We hold the privilege of modify the product described in this manual  without pre-notify. For the publish error or program improvement, we will make some necessary modify in the new edion. Question Solution Cannot make or receive calls. .Check whether the phone is power on or not. .Check whether the battery is lack of power. .Check whether the field signal strength is enough. .Check whether to set up the Call Barring, SDN or the other options in Call Set menu. .Check whether to set up the Call Divert. .Check whether to place the SIM card properly. Conversation volume is low. .Check whether to set the Voice Volume too low. Does not ring when an incoming calls comes in. .Check whether to select the Silent or Vibrator modes. .Check whether the ring volume is set too low. .Check whether the surrounding noise is too loud. .Check whether to set up the Call Divert. LCD is not clear. .Check whether the LCD Contrast is set too low. The keypad does not work .Check whether the keypad is locked or not. The other part cannot hear you. .Check whether to select Mute. .Speak near the MIC.

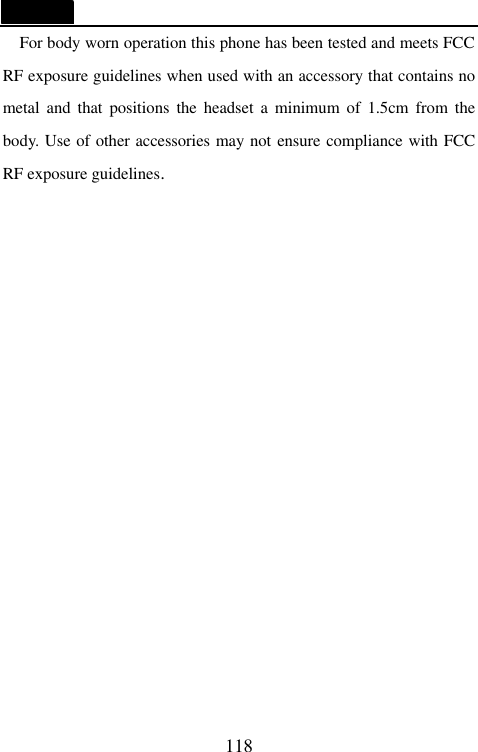

  118 For body worn operation this phone has been tested and meets FCC RF exposure guidelines when used with an accessory that contains no metal and that positions the headset a minimum of 1.5cm from the body. Use of other accessories may not ensure compliance with FCC RF exposure guidelines.
