AMPAK Technology GT966X bluetooth module User Manual GT966X EVKits V2 0 20110919
AMPAK Technology Inc. bluetooth module GT966X EVKits V2 0 20110919
User Manual
AMPAK Technology Inc. www.ampak.com.tw Proprietary & Confidential Information
i
Doc. NO:
AMPAK
GT966X
Evaluation Kits
User manual
Version 2.0
Revision History
Date Revision Content Revised By
Version
2011/09/24
Initial released Andy 2.0
AMPAK Technology Inc. www.ampak.com.tw Proprietary & Confidential Information i
Doc. NO:
Contents
1. GT966X evaluation board introduction..................................................................... 1
2. PIN Description........................................................................................................... 3
3
33
3.
Federal Communication Commission Interference Statement.............................. 4
AMPAK Technology Inc. www.ampak.com.tw Proprietary & Confidential Information
Doc. NO:
1
1. GT966X evaluation board introduction
GT966X evaluation board (EVB) likes as figure1. That is designed for Bluetooth
2.1+EDR application. The bottom views like as figure2. It is also designed for TI’s
MSP430 and TMX320C5X experimenter board. It is subject to provide a convenient
environment for customer’s verification on Bluetooth function. There are
controller pins on evaluation board which describes as below.

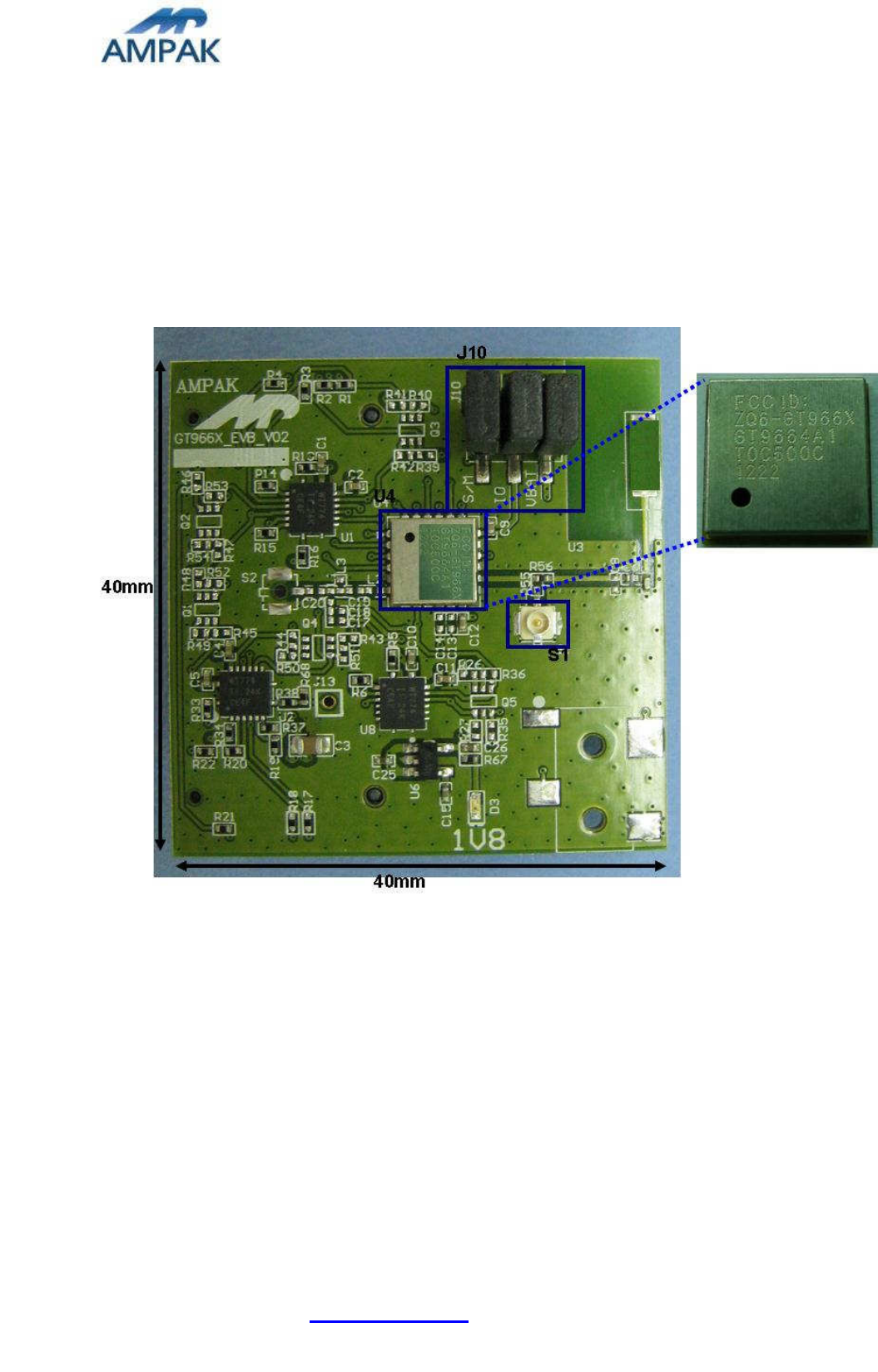

Figure1. Top view of GT966X EVB
AMPAK Technology Inc. www.ampak.com.tw Proprietary & Confidential Information
Doc. NO:
2

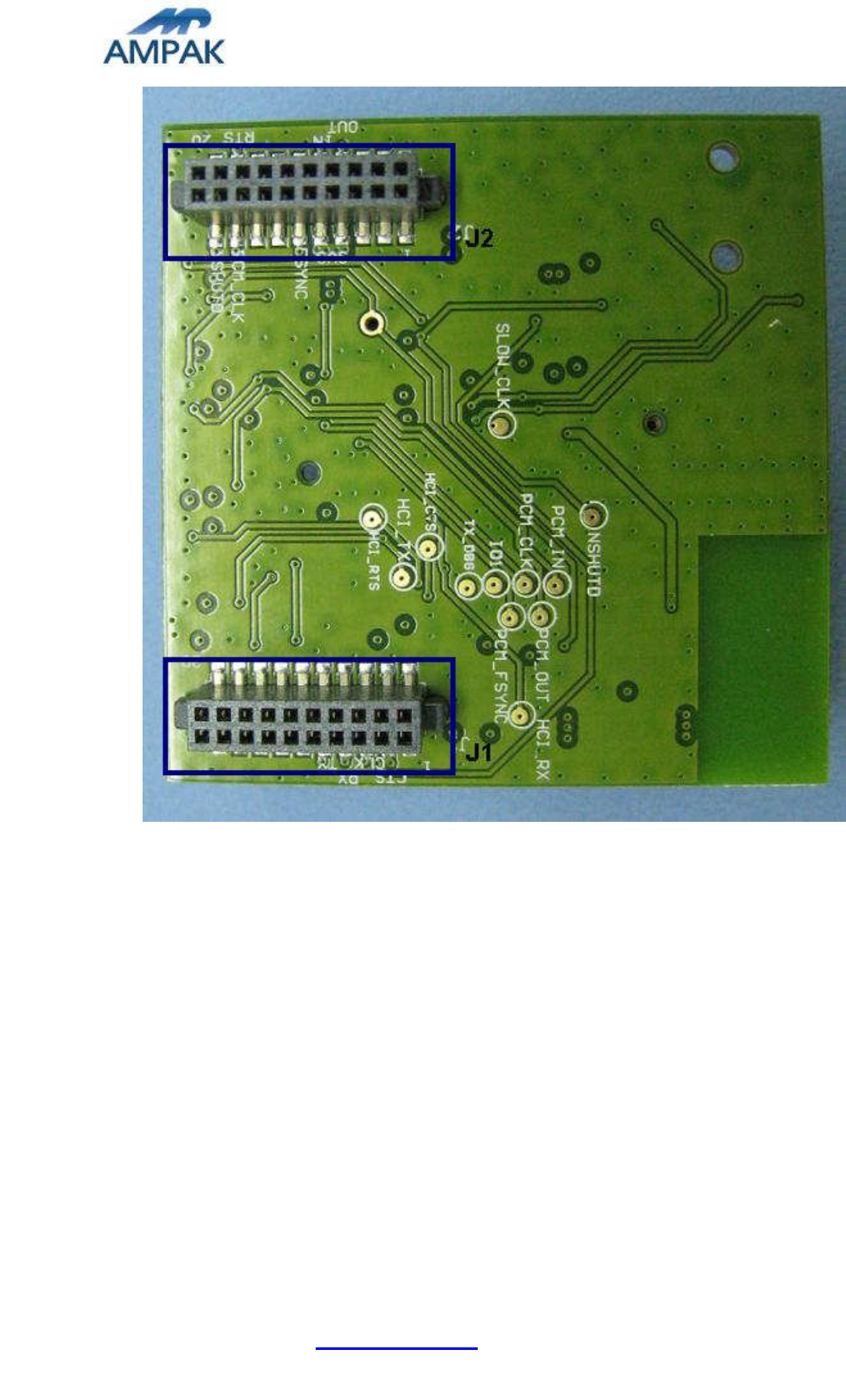

Figure2. Bottom view of GT966X EVB
Interface highlights:
1. U4: GT966X SIP module.
2. S1: U.FL connector let RF signal in/out path, which R55 need tie on 0ohm.
3. J10: VBAT：
：：
： 3V3 for main system power path.
IO ：
：：
：1V8 for system IO level path.
S/M：
：：
：PCM mode (Jump onPCM slave mode. Jump offPCM master
mode)
4. J1&J2: For TI’s experimenter board IO used.
AMPAK Technology Inc. www.ampak.com.tw Proprietary & Confidential Information
Doc. NO:
3
2. PIN Description
Connector
No. Pin Name Def.
Dir. Description of Options (Common)
J1 1,19 GND Connect to ground
3 HCI_CTS_3V3 I HCI UART clear-to-send
5 SLOW_CLK_3V3 I 32.768-KHz clock in
7 HCI_RX_3V3 I HCI UART data receive
9 HCI_TX_3V3 O HCI UART data transmit
others Not connected
J2 2 GND Connect to ground
7,9 +3V3 I Connect to +3.3V
8 PCM_OUT_3V3 O PCM data output
10 PCM_IN_3V3 I PCM data input
11 PCM_FSYNC_3V3 I/O PCM frame synch
17 PCM_CLK_3V3 I/O PCM clock
18 HCI_RTS_3V3 O HCI UART request-to-send
19 nSHUTD_3V3 I Shutdown input (active low)
others Not connected
AMPAK Technology Inc. www.ampak.com.tw Proprietary & Confidential Information
Doc. NO:
4
3
33
3.
Federal Communication Commission Interference
Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this
equipment.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
AMPAK Technology Inc. www.ampak.com.tw Proprietary & Confidential Information
Doc. NO:
5
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 20 cm is maintained between the
antenna and users, and
2) The transmitter module may not be co-located with any other transmitter or
antenna.
As long as 2 conditions above are met, further transmitter test will not be required.
However, the OEM integrator is still responsible for testing their end-product for any
additional compliance requirements required with this module installed
IMPORTANT NOTE: In the event that these conditions can not be met (for example
certain laptop configurations or co-location with another transmitter), then the FCC
authorization is no longer considered valid and the FCC ID can not be used on the
final product. In these circumstances, the OEM integrator will be responsible for
re-evaluating the end product (including the transmitter) and obtaining a separate
FCC authorization.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may
be installed such that 20 cm may be maintained between the antenna and users.
The final end product must be labeled in a visible area with the following: “Contains
FCC ID: ZQ6-GT966X”. The grantee's FCC ID can be used only when all FCC
compliance requirements are met.
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user regarding
how to install or remove this RF module in the user’s manual of the end product which
integrates this module.
The end user manual shall include all required regulatory information/warning as
show in this manual.
