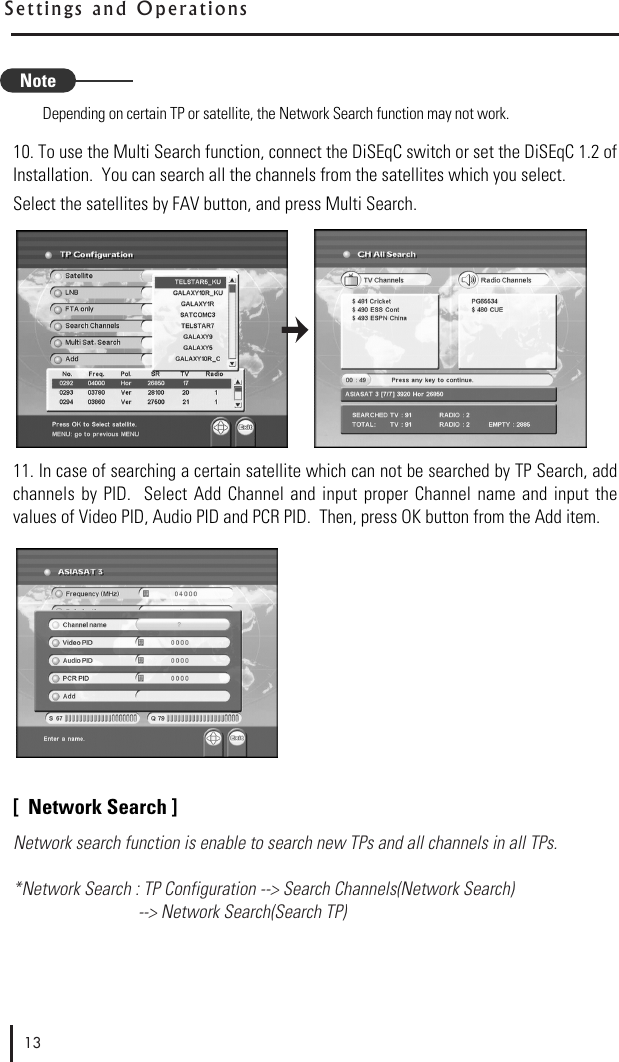

Depending on certain TP or satellite, the Network Search function may not work.10. To use the Multi Search function, connect the DiSEqC switch or set the DiSEqC 1.2 ofInstallation. You can search all the channels from the satellites which you select.Select the satellites by FAV button, and press Multi Search.11. In case of searching a certain satellite which can not be searched by TP Search, addchannels by PID. Select Add Channel and input proper Channel name and input thevalues of Video PID, Audio PID and PCR PID. Then, press OK button from the Add item.[ Network Search ]Network search function is enable to search new TPs and all channels in all TPs.*Network Search : TP Configuration --> Search Channels(Network Search) --> Network Search(Search TP)13S e ttings a n d O p e r a t i o n sNote

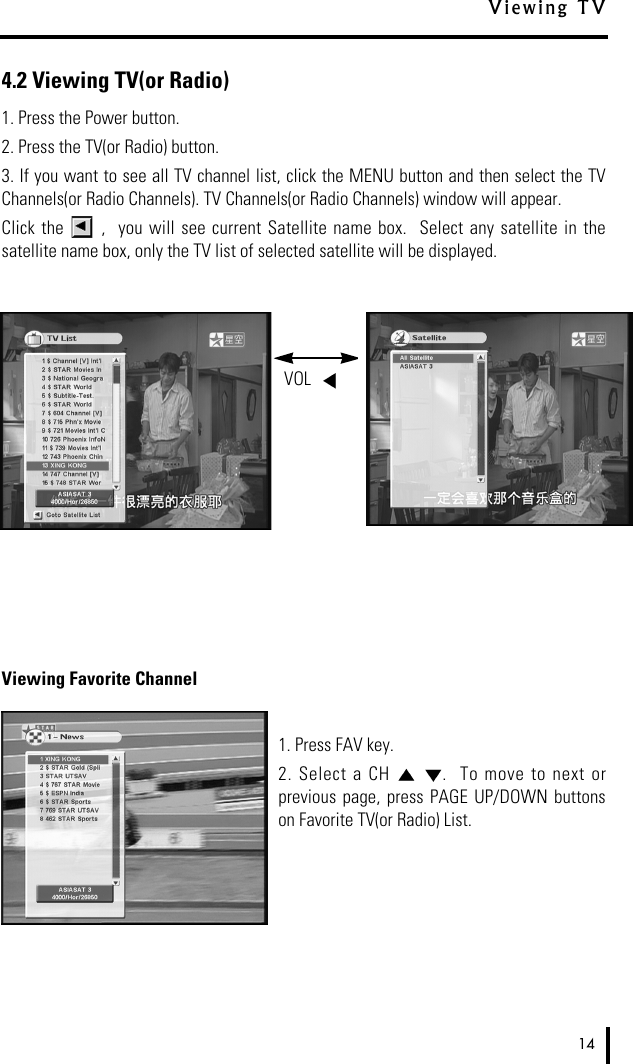

4.2 Viewing TV(or Radio)1. Press the Power button.2. Press the TV(or Radio) button. 3. If you want to see all TV channel list, click the MENU button and then select the TVChannels(or Radio Channels). TV Channels(or Radio Channels) window will appear. Click the , you will see current Satellite name box. Select any satellite in thesatellite name box, only the TV list of selected satellite will be displayed.Viewing Favorite Channel1. Press FAV key.2. Select a CH . To move to next orprevious page, press PAGE UP/DOWN buttonson Favorite TV(or Radio) List. 14V i e w i n g T VVOL

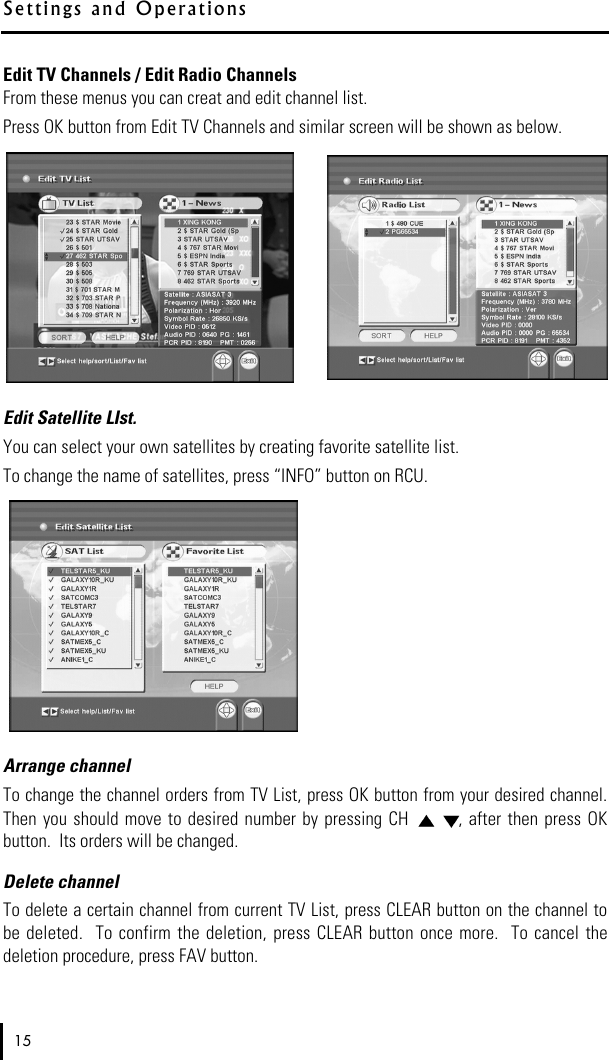

Edit TV Channels / Edit Radio ChannelsFrom these menus you can creat and edit channel list. Press OK button from Edit TV Channels and similar screen will be shown as below.Edit Satellite LIst.You can select your own satellites by creating favorite satellite list. To change the name of satellites, press “INFO” button on RCU.Arrange channelTo change the channel orders from TV List, press OK button from your desired channel.Then you should move to desired number by pressing CH , after then press OKbutton. Its orders will be changed.Delete channelTo delete a certain channel from current TV List, press CLEAR button on the channel tobe deleted. To confirm the deletion, press CLEAR button once more. To cancel thedeletion procedure, press FAV button.15S e t t i n g s a n d O p e r a t i o n s
Creat favorite channelYou can creat favorite channel list, containing the channel which you want to watchfrequently. Press FAV button channel you want, and then selected channel will be moved to FavoriteList box. To delete the disired channel from the Favorite List, press CLEAR button.Help functionYou can see the functions of each button in Edit TV List. Select the HELP button.SortIf you want to sort channels in order, select the SORT button in Edit channels. You can select the order you want.Lock ChannelsFrom here you can lock channels in any of the lists in order to prevent your children fromwatching. If you have the password already and want to lock a certain channel, press F.BK buttonat the desired channel. Everytime you watch the channel, the unit will ask you to inputpassword.16H e l p F u n c t i o n

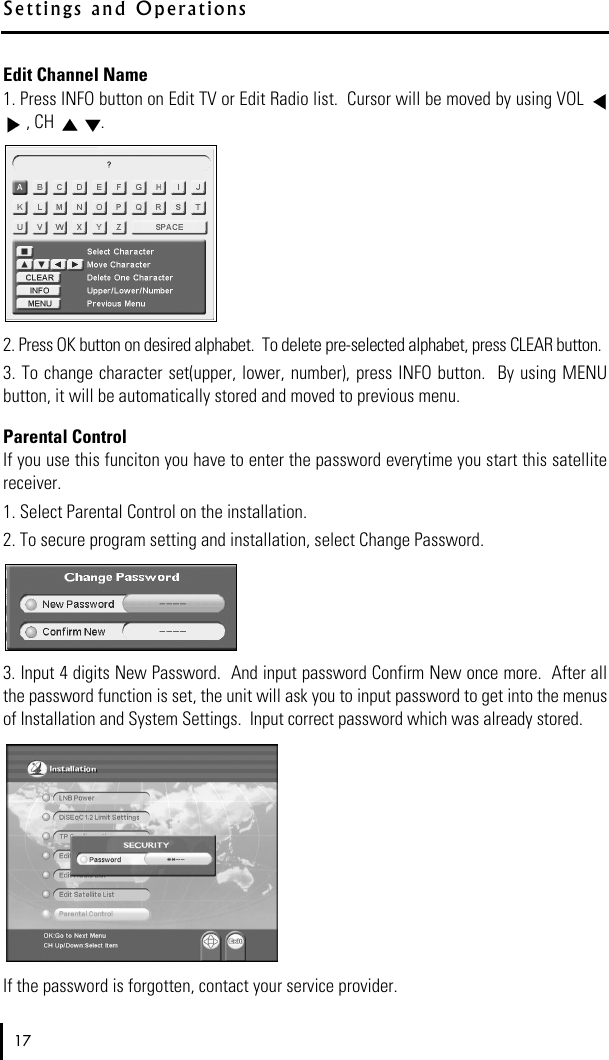

Edit Channel Name1. Press INFO button on Edit TV or Edit Radio list. Cursor will be moved by using VOL , CH .2. Press OK button on desired alphabet. To delete pre-selected alphabet, press CLEAR button.3. To change character set(upper, lower, number), press INFO button. By using MENUbutton, it will be automatically stored and moved to previous menu.Parental ControlIf you use this funciton you have to enter the password everytime you start this satellitereceiver.1. Select Parental Control on the installation. 2. To secure program setting and installation, select Change Password.3. Input 4 digits New Password. And input password Confirm New once more. After allthe password function is set, the unit will ask you to input password to get into the menusof Installation and System Settings. Input correct password which was already stored.If the password is forgotten, contact your service provider.17S e t t i n g s a n d O p e r a t i o n s
