AMX MIOR2 Remote Control Transmitter User Manual MIO R2

AMX LLC Remote Control Transmitter MIO R2

Contents

User Manual 1

Operation/Reference Guide
Control System Accessories
Mio R-2
Remote Control Device
Document ID: 041-004-2978
Initial Release: / Last Revised: 04/25/2006
AMX Limited Warranty and Disclaimer
AMX Corporation warrants its products to be free of defects in material and workmanship under normal use for three
(3) years from the date of purchase from AMX Corporation, with the following exceptions:
• Electroluminescent and LCD Control Panels are warranted for three (3) years, except for the display and touch
overlay components that are warranted for a period of one (1) year.
• Disk drive mechanisms, pan/tilt heads, power supplies, and MX Series products are warranted for a period of one
(1) year.
• AMX Lighting products are guaranteed to switch on and off any load that is properly connected to our lighting
products, as long as the AMX Lighting products are under warranty. AMX Corporation does guarantee the
control of dimmable loads that are properly connected to our lighting products. The dimming performance or
quality cannot be guaranteed due to the random combinations of dimmers, lamps and ballasts or transformers.
• Unless otherwise specified, OEM and custom products are warranted for a period of one (1) year.
• AMX Software is warranted for a period of ninety (90) days.
• Batteries and incandescent lamps are not covered under the warranty.
This warranty extends only to products purchased directly from AMX Corporation or an Authorized AMX Dealer.
All products returned to AMX require a Return Material Authorization (RMA) number. The RMA number is
obtained from the AMX RMA Department. The RMA number must be clearly marked on the outside of each box.
The RMA is valid for a 30-day period. After the 30-day period the RMA will be cancelled. Any shipments received
not consistent with the RMA, or after the RMA is cancelled, will be refused. AMX is not responsible for products
returned without a valid RMA number.
AMX Corporation is not liable for any damages caused by its products or for the failure of its products to perform.
This includes any lost profits, lost savings, incidental damages, or consequential damages. AMX Corporation is not
liable for any claim made by a third party or by an AMX Dealer for a third party.
This limitation of liability applies whether damages are sought, or a claim is made, under this warranty or as a tort
claim (including negligence and strict product liability), a contract claim, or any other claim. This limitation of
liability cannot be waived or amended by any person. This limitation of liability will be effective even if AMX
Corporation or an authorized representative of AMX Corporation has been advised of the possibility of any such
damages. This limitation of liability, however, will not apply to claims for personal injury.
Some states do not allow a limitation of how long an implied warranty last. Some states do not allow the limitation or
exclusion of incidental or consequential damages for consumer products. In such states, the limitation or exclusion of
the Limited Warranty may not apply. This Limited Warranty gives the owner specific legal rights. The owner may
also have other rights that vary from state to state. The owner is advised to consult applicable state laws for full
determination of rights.
EXCEPT AS EXPRESSLY SET FORTH IN THIS WARRANTY, AMX CORPORATION MAKES NO
OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. AMX CORPORATION
EXPRESSLY DISCLAIMS ALL WARRANTIES NOT STATED IN THIS LIMITED WARRANTY. ANY
IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW ARE LIMITED TO THE TERMS OF THIS
LIMITED WARRANTY.
Software License and Warranty Agreement
LICENSE GRANT.
AMX grants to Licensee the non-exclusive right to use the AMX Software in the manner described in this License. The AMX Software is
licensed, not sold. This license does not grant Licensee the right to create derivative works of the AMX Software. The AMX Software consists
of generally available programming and development software, product documentation, sample applications, tools and utilities, and
miscellaneous technical information. Please refer to the README.TXT file on the compact disc or download for further information regarding
the components of the AMX Software. The AMX Software is subject to restrictions on distribution described in this License Agreement.
LICENSEE MAY NOT SUBLICENSE, RENT, OR LEASE THE AMX SOFTWARE. Licensee may not reverse engineer, decompile, or
disassemble the AMX Software.
INTELLECTUAL PROPERTY.
The AMX Software is owned by AMX and is protected by United States copyright laws, patent laws, international treaty provisions, and/or state
of Texas trade secret laws. Licensee may make copies of the AMX Software solely for backup or archival purposes. Licensee may not copy the
written materials accompanying the AMX Software.
TERMINATION.
AMX RESERVES THE RIGHT, IN ITS SOLE DISCRETION, TO TERMINATE THIS LICENSE FOR ANY REASON AND UPON WRITTEN
NOTICE TO LICENSEE. In the event that AMX terminates this License, the Licensee shall return or destroy all originals and copies of the AMX
Software to AMX and certify in writing that all originals and copies have been returned or destroyed.
PRE-RELEASE CODE.
Portions of the AMX Software may, from time to time, as identified in the AMX Software, include PRE-RELEASE CODE and such
code may not be at the level of performance, compatibility and functionality of the final code. The PRE-RELEASE CODE may not
operate correctly and may be substantially modified prior to final release or certain features may not be generally released. AMX is
not obligated to make or support any PRE-RELEASE CODE. ALL PRE-RELEASE CODE IS PROVIDED "AS IS" WITH NO
WARRANTIES.
LIMITED WARRANTY.
AMX warrants that the AMX Software will perform substantially in accordance with the accompanying written materials for a period of ninety
(90) days from the date of receipt. AMX DISCLAIMS ALL OTHER WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT
LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WITH REGARD TO THE
AMX SOFTWARE. THIS LIMITED WARRANTY GIVES LICENSEE SPECIFIC LEGAL RIGHTS. Any supplements or updates to the AMX
SOFTWARE, including without limitation, any (if any) service packs or hot fixes provided to Licensee after the expiration of the ninety (90) day
Limited Warranty period are not covered by any warranty or condition, express, implied or statutory.
LICENSEE REMEDIES.
AMX's entire liability and Licensee's exclusive remedy shall be repair or replacement of the AMX Software that does not meet AMX's Limited
Warranty and which is returned to AMX. This Limited Warranty is void if failure of the AMX Software has resulted from accident, abuse, or
misapplication. Any replacement AMX Software will be warranted for the remainder of the original warranty period or thirty (30) days,
whichever is longer. Outside the United States, these remedies may not available.
NO LIABILITY FOR CONSEQUENTIAL DAMAGES. IN NO EVENT SHALL AMX BE LIABLE FOR ANY DAMAGES WHATSOEVER
(INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS
INFORMATION, OR ANY OTHER PECUNIARY LOSS) ARISING OUT OF THE USE OF OR INABILITY TO USE THIS AMX SOFTWARE,
EVEN IF AMX HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. BECAUSE SOME STATES/COUNTRIES DO NOT
ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, THE ABOVE LIMITATION
MAY NOT APPLY TO LICENSEE.
U.S. GOVERNMENT RESTRICTED RIGHTS.
The AMX Software is provided with RESTRICTED RIGHTS. Use, duplication, or disclosure by the Government is subject to
restrictions as set forth in subparagraph ©(1)(ii) of The Rights in Technical Data and Computer Software clause at DFARS 252.227-
7013 or subparagraphs ©(1) and (2) of the Commercial Computer Software Restricted Rights at 48 CFR 52.227-19, as applicable.
SOFTWARE AND OTHER MATERIALS FROM AMX.COM MAY BE SUBJECT TO EXPORT CONTROL.
The United States Export Control laws prohibit the export of certain technical data and software to certain territories. No software from this Site
may be downloaded or exported (i) into (or to a national or resident of) Cuba, Iraq, Libya, North Korea, Iran, Syria, or any other country to
which the United States has embargoed goods; or (ii) anyone on the United States Treasury Department's list of Specially Designated Nation-
als or the U.S. Commerce Department's Table of Deny Orders. AMX does not authorize the downloading or exporting of any software or tech-
nical data from this site to any jurisdiction prohibited by the United States Export Laws.
This Agreement replaces and supersedes all previous AMX Software License Agreements and is governed by the laws of the State of Texa s,
and all disputes will be resolved in the courts in Collin County, Texas, USA. For any questions concerning this Agreement, or to contact AMX
for any reason, please write: AMX Corporation, 3000 Research Drive, Richardson, TX 75082.
Table of Contents
i
Mio R-2
Table of Contents
Overview ....................................................................................................................1
The Mio R-2....................................................................................................................... 1
Touch And Tilt Sensor.............................................................................................................. 2
Specifications ........................................................................................................................... 3
FCC compliance................................................................................................................ 4
Mio R-2 Setup ............................................................................................................5
Installing Your Custom Buttons ......................................................................................... 5

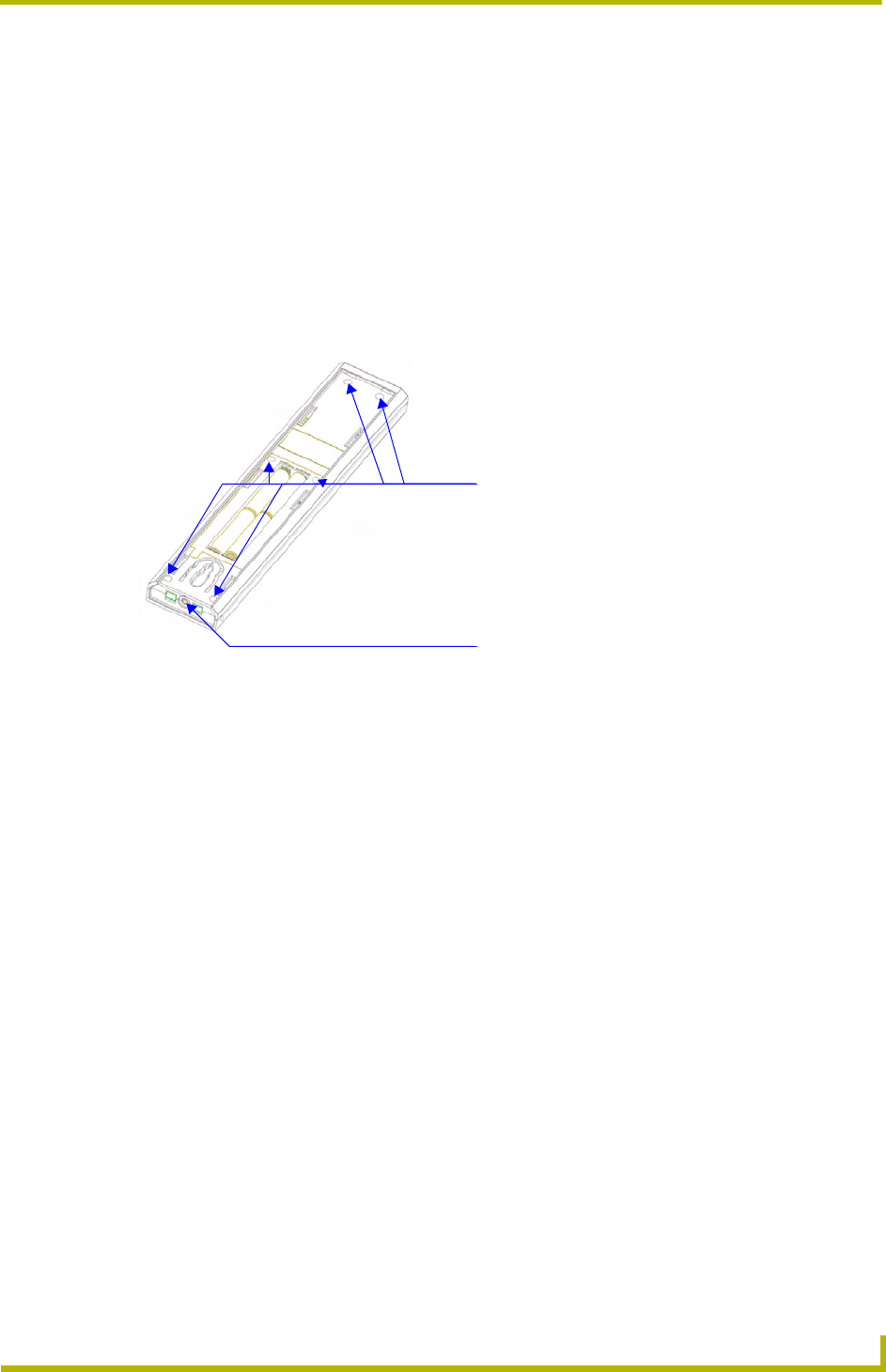

Inserting Batteries into The Mio R-2.................................................................................. 5
Battery Low Indicator......................................................................................................... 6
Programming The Mio R-2 .......................................................................................7

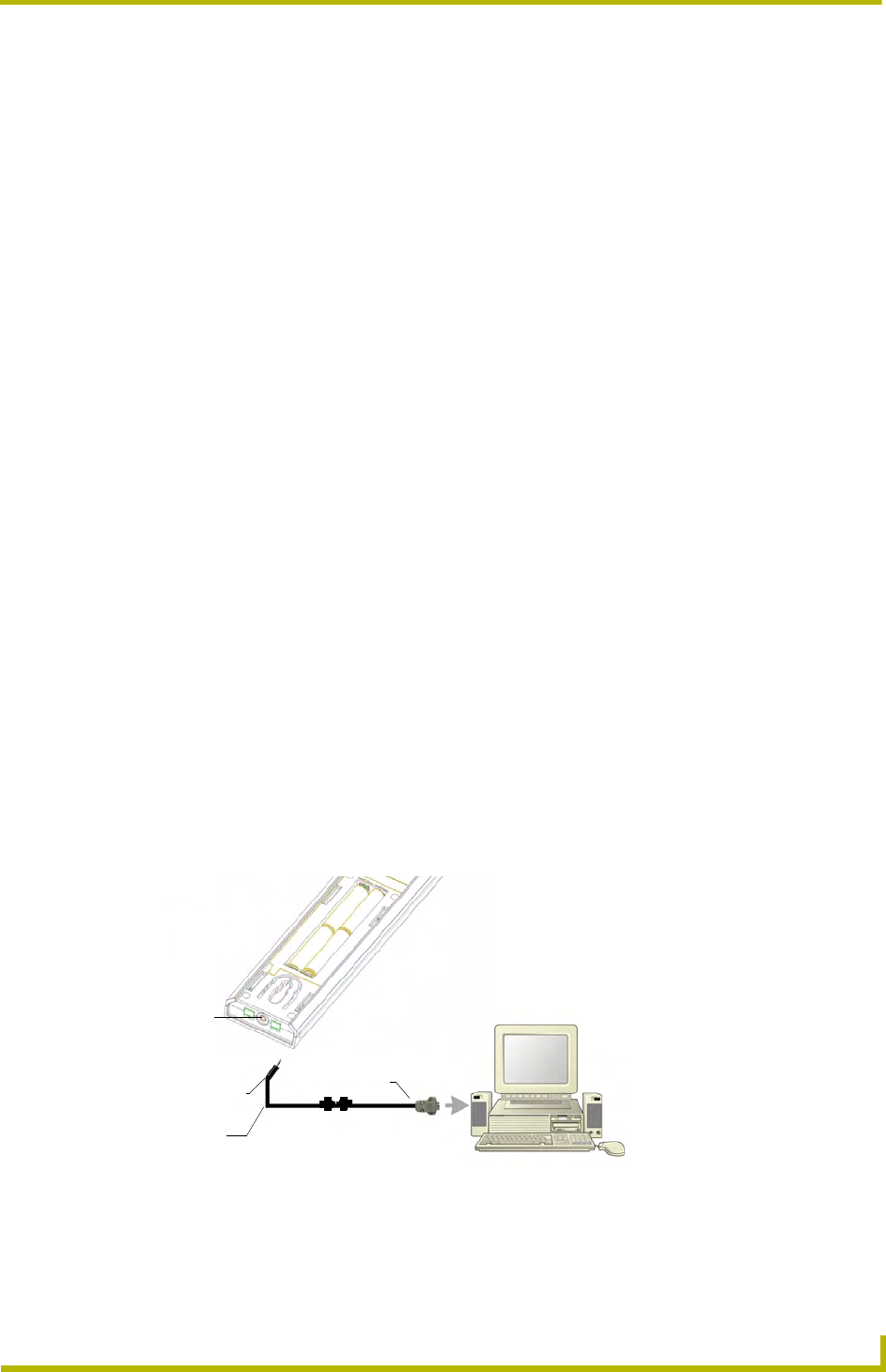

Using Connector Ports on The Mio R-2 ............................................................................ 7
IR Code Matrix .................................................................................................................. 8
Configuration Mode ........................................................................................................... 9
IR Transmit Mode.............................................................................................................. 9
Timeout Adjustment .......................................................................................................... 9
Download Mode .............................................................................................................. 10
Debug Mode.................................................................................................................... 10
Battery Type .................................................................................................................... 10
LED Awake Brightness.................................................................................................... 10
LED Sleep Mode Brightness ........................................................................................... 10
Persistent Serial Commands........................................................................................... 11
ii Mio R-2
Table of Contents
Overview
1
Mio R-2
Overview
The Mio R-2
The Mio R-2 remote provides custom control features, contained in an elegant handheld
rechargeable device. The Mio R-2 controls 6 different device modes, supports 3 macro functions
and is capable of executing 219 functions. The Mio R-2 can transmit in 38 KHz IR, 455 KHz IR,
418 RF (1-way) (FG147-418), 433 RF (1-way) (FG147-433), or 38 KHz and one of the RF
frequencies.
Selecting a source device sends a command to the master and runs predetermined events associated
with that source. Selecting a macro will run predefined events, which might not be associated with
sources listed, then return the device to its previous mode.
You need KeypadBuilder to properly program this device. The application and documentation are
available from www.amx.com.
Overview
2Mio R-2
Touch And Tilt Sensor
The Mio R-2 wakes up upon touching either the chrome side rails or pressing a button. When
holding the remote and it times out, you can reawaken the device by tilting it. Errant jostling such
as a bumped table will not wake the device unless you are holding it.

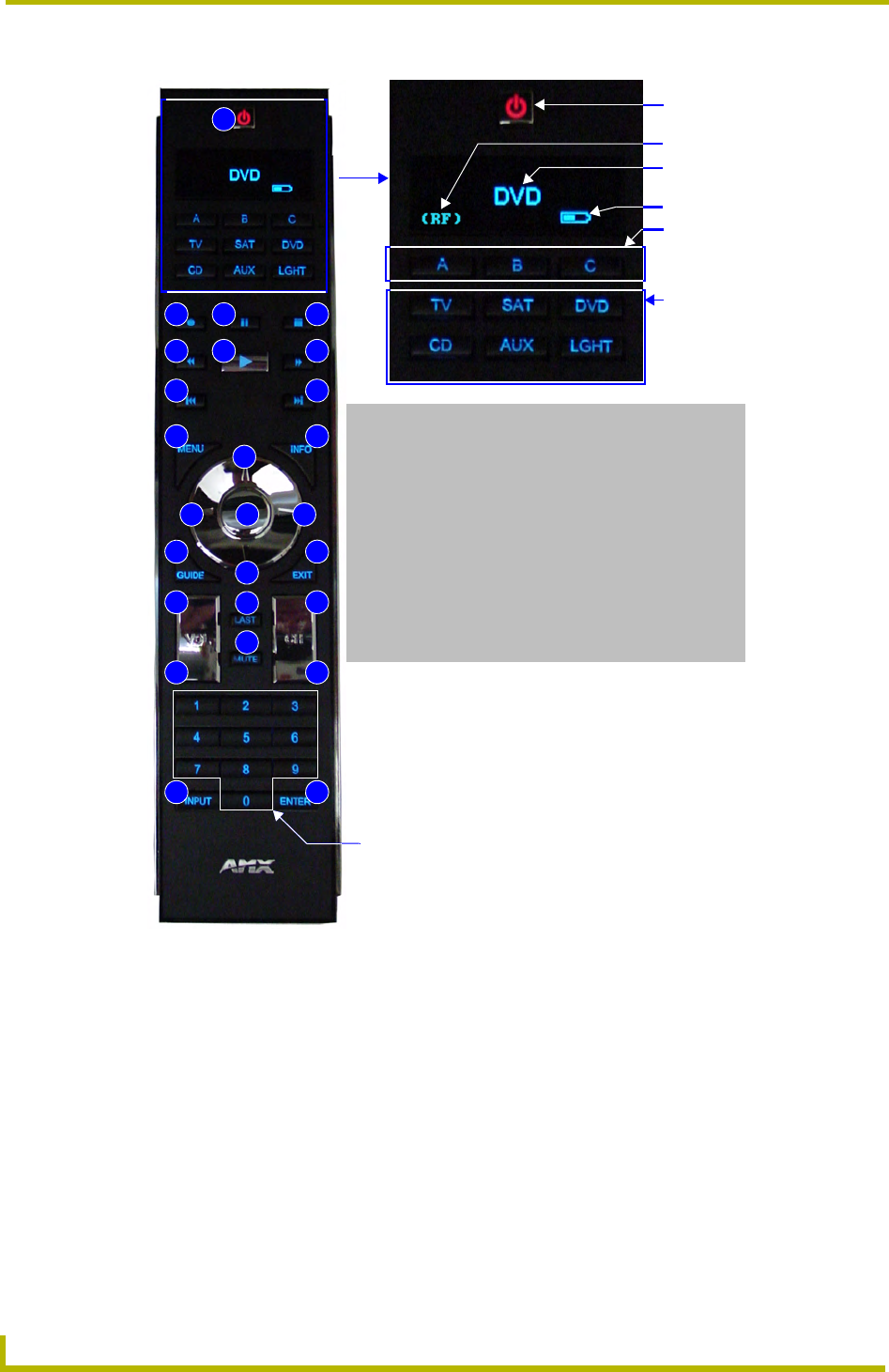

FIG. 1 The Mio R-2 Device
1 - Power
2 - Guide
3 - Exit
4 - Menu
5 - Information
6 - Move Up
7 - Move Down
8 - Move Left
9 - Move Right
10 - Select
11 - Volume Up
12 - Volume Down
13 - Channel Up
14 - Channel Down
15 - Last Viewed
16 - Mute
26 - Input
28 - Enter
38 - Stop
39 - Record
Power
Transmission Mode
Current Menu
Battery Meter
Custom Macro
Buttons
Custom Mode
Options
39
1
23
45
6
7
89
10
11
12
13
14
15
16
26 28
38
40
41
42
43
44 45
Numeral Keypad
Overview
3
Mio R-2
Specifications
The Mio R-2 device specifications are as follows:
Mio R-2 (FG147-418/433) Specifications
Battery 4 AAA Alkaline Batteries (5 hours battery life)
Transmission
Frequencies
• AMX 38 KHz/455 KHz IR
• 418 RF (1-way) (FG147-418)
• 433 RF (1-way) (FG147-433)
Transmission
Range (distance)
with Mio IR Receiver
• 100 feet at 38KHz (IR)
• 50 feet at 455KHz (IR)
• 300 feet at 418 (RF)
• 200 feet at 433 (RF)
Transmission
Range (angle)
• 140 degrees (+/-70° from perpendicular) horizontally from an axis extending from
the end of the remote. (IR)
• 40 degrees (+/-20° from perpendicular) vertically from an axis extending from the
end of the remote. (IR)
Top Components • LED - blue backlit buttons indicate device is awake
• Display (OLED) - 128 x 32 pixels, active area is 29.42mm x 7.98mm
• Pushbuttons - the power button is red backlit; the rest are blue backlit buttons. 45
buttons; 9 custom buttons (3 macro and 6 device).
Rear Component • Programming Port - 2.5 mm stereo female conductor jack
• Battery Door
• Rechargeable Battery Connection
Dimensions (HWD) 9.50 x 2.00 x .74 (241.3 mm x 50.8 mm x 18.80 mm)
Supported Languages: • Arabic
•English
•French
•German
• Greek
• Hebrew
•Hindi
• Italian
• Japanese
• Korean
• Mandarin Chinese
• Portuguese
• Russian
• Spanish
• Thai
Weight • .45 lbs (20 g) without batteries
• .55 lbs (25 g) with batteries
Operating Environment: • Operating Temperature: 0° to 50° C (32° to 122° F)
• Storage Temperature: -10° to 70° C (14° to 158° F)
Other AMX Equipment • DB-9 extension cable (FG10-727)
• Programming Cable - a 3 wire, 2.5 mm stereo jack (FG10-817)
• Custom engraving (FG147-01)
• Mio-RCC Kit (FG147-03K)
• Mio-RCC Charging Base (FG147-02)
• Mio-RBP Rechargeable Lithium Ion Battery (FG147-10)
• AXR-RF 418 MHZ RF Receiver (FG782-418)
• AXR-RF 433 MHZ RF Receiver (FG782-433)
Overview
4Mio R-2
FCC compliance
This device complies with Part 15 of the FCC rules. Subject to the following two conditions:
1. This device must not cause harmful interference and
2. This device must accept all interference, including interference that interferes with the
operation of this device.
Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
Mio R-2 Setup
5
Mio R-2
Mio R-2 Setup
Installing Your Custom Buttons
3. Flip and turn the Mio R-2 device so that the buttons are facing away from you and the device is
upside down.
4. Holding the device in both hands, place your thumbs on the battery door and push up to slide
the battery door free.
5. Unscrew the 6 screw points indicated in FIG. 2.
6. Turn the unit over so the buttons are facing you.
7. Lift the top assembly away from the PCB.
8. If necessary, push out the standard buttons from the front of the top assembly.
9. Drop on your custom button pad and verify the alignment with the guide posts on the PCB.
10. Place the top assembly back down on the PCB and return the unit over, exposing the 6 screw
points.
11. Tighten the 6 screw points.
12. Place the battery door back on the device, slide to lock it in place.
Inserting Batteries into The Mio R-2
To install your 4 AAA batteries into the Mio R-2 device:
1. Flip and turn the Mio R-2 device so that the buttons are facing away from you and the device is
upside down.
2. Holding the device in both hands, place your thumbs on the battery door and slide the battery
door free.
3. Insert the batteries as indicated inside the battery compartment.
4. Place the battery door back on the device, slide to lock it in place.
FIG. 2 Internal Mio R-2 Components
6 Screw Points
Programming Jack
Mio R-2 Setup
6Mio R-2
Battery Low Indicator
When the battery charge level is too low to sustain continuous operation, the LCD flashes, "Battery
Low" and the device shuts down.
Programming The Mio R-2
7
Mio R-2
Programming The Mio R-2
Most functionality of the Mio R-2 is handled using the application, KeypadBuilder. Go to
www.amx.com for the KeypadBuilder Instruction Manual.
There are a select number of Serial Commands the Mio R-2 recognizes. For a full list and
descriptions, consult the Persistent Serial Commands section on page 11.
Using Connector Ports on The Mio R-2
The programming jack is used for communication between the device and KeypadBuilder. The
programming jack uses a three-wire, 2.5 mm stereo jack, you can order the programming cable
(FG10-817) from AMX if you do not currently possess one. While loading your configuration file
make sure the device is situated as such that the batteries will not fall out. The load will fail if your
batteries fall out during the process.
To download KeypadBuilder Configuration Files:
1. Set the Mio R-2 Download mode to ON. See the Configuration Mode section for details.
2. Flip and turn the Mio R-2 device so that the buttons are facing away from you and the device is
upside down.
3. Holding the device in both hands, place your thumbs on the battery door and slide the battery
door free.
4. Connect the 2.5 mm stereo plug (male) end of the programming cable (FG10-817) into the
programming jack on the bottom side of the remote device.
5. If necessary, connect the DB-9 end of the programming cable to the female DB-9 connector on
the DB-9 extension cable (FG10-727).
6. Connect the female DB-9 terminal end of the extension cable to the port on the back of your
computer.
7. Configure the communication parameters in KeypadBuilder.
FIG. 3 Connecting The Keypad Device to Your PC
Stereo plug male DB-9 connector
Cable FG10-817 to cable FG10-727
to PC
programming
cable
Keypad device
Programming
jack
Mio R-2
Programming The Mio R-2
8Mio R-2
IR Code Matrix
The IR Code emitted depends upon which of the 6 configurable modes is selected. Below is the list
of codes for each button within each mode.
IR Code Matrix
Button Label Mode 1 Mode 2 Mode 3 Mode 4 Mode 5 Mode 6
1 Power Symbol 9 49 89 129 169 209
2 GUIDE 38 78 118 158 198 238
3 EXIT 37 77 117 157 197 237
4 MENU 31 71 111 151 191 231
5 INFO 39 79 119 159 199 239
6 L 32 72 112 152 192 232
7 M 33 73 113 153 193 233
8 K 34 74 114 154 194 234
9 A 35 75 115 155 195 235
10 SELECT 36 76 116 156 196 236
11 VOL + 24 64 104 144 184 224
12 VOL - 25 65 105 145 185 225
13 CH + 22 62 102 142 182 222
14 CH - 23 63 103 143 183 223
15 LAST 40 80 120 160 200 240
16 MUTE 26 66 106 146 186 226
17 1 11 51 91 131 171 211
18 2 12 52 92 132 172 212
19 3 13 53 93 133 173 213
20 4 14 54 94 134 174 214
21 5 15 55 95 135 175 215
22 6 16 56 96 136 176 216
23 7 17 57 97 137 177 217
24 8 18 58 98 138 178 218
25 9 19 59 99 139 179 219
26 INPUT 29 69 109 149 189 229
27 0 10 50 90 130 170 210
28 ENTER 21 61 101 141 181 221
29 A (Macro 1) 250 250 250 250 250 250
30 B (Macro 2) 251 251 251 251 251 251
31 C (Macro 3) 252 252 252 252 252 252
32 TV (Mode 1) 241 241 241 241 241 241
33 SAT (Mode 2) 242 242 242 242 242 242
34 DVD (Mode 3) 243 243 243 243 243 243
35 CD (Mode 4) 244 244 244 244 244 244
36 AUX (Mode 5) 245 245 245 245 245 245
37 LGHT (Mode 6) 246 246 246 246 246 246
38 STOP B2 42 82 122 162 202
39 REC J8 48 88 128 168 208
40 PAUSE C3 43 83 123 163 203
Programming The Mio R-2
9
Mio R-2
Configuration Mode
The configuration mode allows you to set the following device features:
IR Transmit Mode (38 KHz, 455 KHz or both 38 KHz IR and RF)
Timeout Adjustment
Download Mode
Debug Mode
Battery Type
LED Awake Brightness
LED Sleep Brightness
To enter configuration Mode:
1. Press and hold the STOP button and the INPUT button. The two buttons must be pressed
within 0.1 seconds of each other and held down for 2 seconds. The device indicates you are
now in configuration mode. See below for available modes.
2. Press the EXIT key when you are finished.
IR Transmit Mode
Pressing button "1" on the remote toggles the IR transmission mode between 38KHz, 455KHz, RF,
and both 38KHz IR and RF. The display indicates the current mode.
Timeout Adjustment
Press button "2" on the remote to change the sleep timeout from the default. Each time "2" is
pressed, the sleep timeout raises incrementally. The pre-determined sleep timeouts are:
3 seconds
6 seconds
9 seconds
12 seconds
The display indicates the selected sleep timeout.
IR Code Matrix (Cont.)
Button Label Mode 1 Mode 2 Mode 3 Mode 4 Mode 5 Mode 6
41 S. REV Z7 47 87 127 167 207
42 PLAY A1 41 81 121 161 201
43 S. FWD Y6 46 86 126 166 206
44 REW E5 45 85 125 165 205
45 FWD D4 44 84 124 164 204
Your settings will not be lost in the event your batteries die or are removed.
Programming The Mio R-2
10 Mio R-2
Download Mode
Pressing "3" on the remote toggles the Download mode OFF and ON. The Download mode must be
ON before you can download a file to the Mio R-2 device. While the Download mode is ON the
device will not go to sleep. A power cycle will return the device to Download OFF.
Debug Mode
Pressing button "4" on the remote toggles development mode between ON and OFF. The display
indicates the selected mode. In development mode, the display shows the IR code assigned to
buttons when pressed.
This mode is useful to the programmer when determining what IR codes are associated to each
mode.
Battery Type
Pressing button "6" on the remote toggles the battery type between Normal and Recharge. The
display indicates the selected type. The type of battery in the Mio R-2 dictates the battery type you
need to set.
LED Awake Brightness
Pressing button "7" on the remote toggles the Power LED brightness mode from LOW to MED and
then HIGH. The display indicates the selected mode.
LED Sleep Mode Brightness
Pressing button "8" on the remote toggles the Sleep brightness mode from OFF to LOW and then
MED. The Sleep brightness is the state the Mio R-2 assumes while in the charging cradle.
Programming The Mio R-2
11
Mio R-2
Persistent Serial Commands
There are a select number of persistent commands the Mio R-2 recognizes. Establish a
HyperTerminal session with your device to use the following commands:
Serial Commands
@BRT Set Brightness level
Syntax:
"'BRIT-<awake brightness level>,<sleep brightness
level>'"
Variables:
brightness level # = a value from 0 - 32.
"'@BRT-#'" (Set LED Awake brightness level)
"'@BRT-#,#'" (Set LED Awake brightness level, sleep brightness level)
Example:
(1) "'@BRT-16'"
Sets the awake brightness level to 50%.
(2) "'@BRT-32,5'"
Sets the awake brightness level to 100% and sleep brightness level to
approximately 15%
IRMODE # Sets the IR transmission frequency to either 455KHz or 38KHz.
Syntax:
"IRMODE #"
Variables:
# = 455 or 38
Example:
"IRMODE 455"
Sets the IR transmission frequency to 455KHz.
SLEEP-# Force the device into screen saver mode.
Syntax:
"'SLEEP-#'" (timed sleep; a persistent command)
Variables:
# = 0 - 60 in seconds; time to wait before going to sleep. Default is 30. 0 sets
the device to never sleep.
Example:
SEND_COMMAND Panel,"'SLEEP-45'"
Forces the device into screen saver mode after 45 seconds.
AMX reserves the right to alter specifications without notice at any time.
041-004-2978 4/06 ©2006 AMX Corporation. All rights reserved. AMX, the AMX logo, the building icon, the home icon, and the light bulb icon are all trademarks of AMX Corporation.
In Canada doing business as Panja Inc.
ARGENTINA • AUSTRALIA • BELGIUM • BRAZIL • CANADA • CHINA • ENGLAND • FRANCE • GERMANY • GREECE • HONG KONG • INDIA • INDONESIA • ITALY • JAPAN
LEBANON • MALAYSIA • MEXICO • NETHERLANDS • NEW ZEALAND • PHILIPPINES • PORTUGAL • RUSSIA • SINGAPORE • SPAIN • SWITZERLAND • THAILAND • TURKEY • USA
ATLANTA • BOSTON • CHICAGO • CLEVELAND • DALLAS • DENVER • INDIANAPOLIS • LOS ANGELES • MINNEAPOLIS • PHILADELPHIA • PHOENIX • PORTLAND • SPOKANE • TAMPA
3000 RESEARCH DRIVE, RICHARDSON, TX 75082 USA • 800.222.0193 • 469.624.8000 • 469-624-7153 fax • 800.932.6993 technical support • www.amx.com
Last Revision: 4/25/06

Navigation menu
