AMX MIOR2 Remote Control Transmitter User Manual Mio R2

AMX LLC Remote Control Transmitter Mio R2

Contents

Users Manual 2

Quick Start Guide
Mio R-2 Remote Control Device
Overview
The Mio R-2 remote provides custom control features, contained in an elegant
handheld rechargeable device. The Mio R-2 controls 6 different device modes,
supports 3 macro functions and is capable of executing 219 functions. The Mio R-2
can transmit in 38 KHz IR, 455 KHz IR, 418 RF (1-way) (FG147-418), 433 RF (1-way)
(FG147-433), or 38 KHz and one of the RF frequencies.
Selecting a source device sends a command to the master and runs predetermined
events associated with that source. Selecting a macro will run predefined events,
which might not be associated with sources listed, then return the device to its
previous mode.
You need KeypadBuilder to properly program this device. The application and
documentation are available from www.amx.com.
Touch And Tilt Sensor
The Mio R-2 wakes up upon touching either the chrome side rails or pressing a button.
When holding the remote and it times out, you can reawaken the device by tilting it.
Errant jostling such as a bumped table will not wake the device unless you are holding
it.
Specifications
The Mio R-2 device specifications are as follows:
Installing Your Custom Buttons
1. Flip and turn the Mio R-2 device so that the buttons are facing away from you
and the device is upside down.
2. Holding the device in both hands, place your thumbs on the battery door and
push up to slide the battery door free.
3. Unscrew the 6 screw points indicated in FIG. 2.
4. Turn the unit over so the buttons are facing you.
5. Lift the top assembly away from the PCB.
6. If necessary, push out the standard buttons from the front of the top assembly.
7. Drop on your custom button pad and verify the alignment with the guide posts on
the PCB.
8. Place the top assembly back down on the PCB and return the unit over, expos-
ing the 6 screw points.
9. Tighten the 6 screw points.
10. Place the battery door back on the device, slide to lock it in place.
Inserting Batteries into The Mio R-2
To install your 4 AAA batteries into the Mio R-2 device:
1. Flip and turn the Mio R-2 device so that the buttons are facing away from you
and the device is upside down.
2. Holding the device in both hands, place your thumbs on the battery door and
slide the battery door free.
3. Insert the batteries as indicated inside the battery compartment.
4. Place the battery door back on the device, slide to lock it in place.
Battery Low Indicator
When the battery charge level is too low to sustain continuous operation, the LCD
flashes, "Battery Low" and the device shuts down.
Programming The Mio R-2 Using KeypadBuilder
Most functionality of the Mio R-2 is handled using the application, KeypadBuilder. Go
to www.amx.com for the KeypadBuilder Instruction Manual.
There are a select number of Serial Commands the Mio R-2 recognizes. For a full list
and descriptions, consult the Mio R-2 Instruction Manual on www.amx.com.
Using Connector Ports on The Mio R-2
The programming jack is used for communication between the device and
KeypadBuilder. The programming jack uses a three-wire, 2.5 mm stereo jack, you can
order the programming cable (FG10-817) from AMX if you do not currently possess

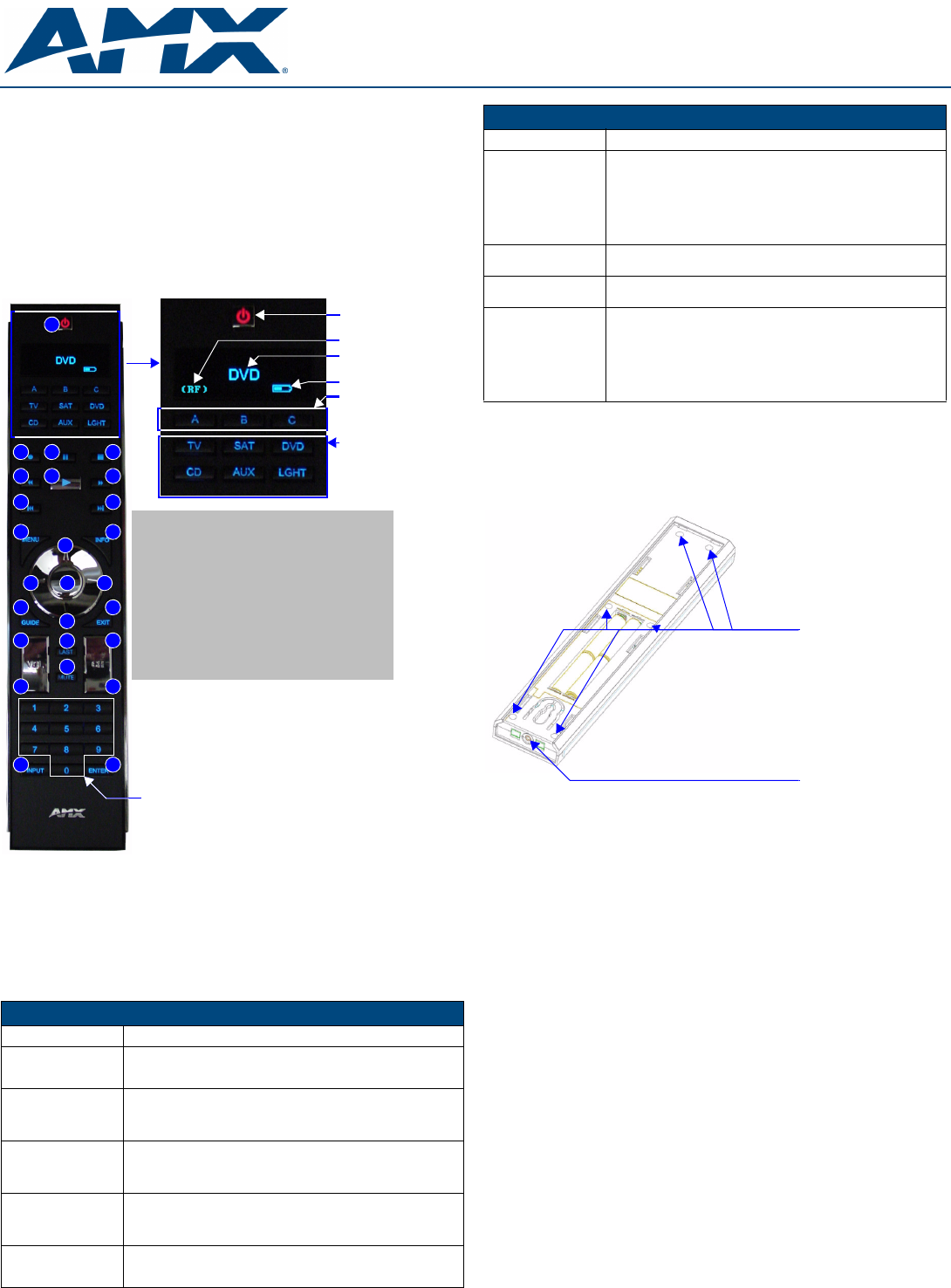

FIG. 1 The Mio R-2 Device
Mio R-2 (FG147-418/433) Specifications
Battery 4 AAA Alkaline Batteries (5 hours battery life)
Transmission
Frequencies
• AMX 38 KHz/455 KHz IR
• 418 RF (1-way) (FG147-418)
• 433 RF (1-way) (FG147-433)
Transmission
Range (distance)
with Mio IR Receiver
• 100 feet at 38KHz (IR)
• 50 feet at 455KHz (IR)
• 300 feet at 418 (RF)
• 200 feet at 433 (RF)
Transmission
Range (angle)
• 140 degrees (+/-70° from perpendicular) horizontally from an axis
extending from the end of the remote. (IR)
• 40 degrees (+/-20° from perpendicular) vertically from an axis
extending from the end of the remote. (IR)
Top Components • LED - blue backlit buttons indicate device is awake
• Display (OLED) - 128 x 32 pixels, active area is 29.42mm x 7.98mm
• Pushbuttons - the power button is red backlit; the rest are blue backlit
buttons. 45 buttons; 9 custom buttons (3 macro and 6 device).
Rear Component • Programming Port - 2.5 mm stereo female conductor jack
•Battery Door
• Rechargeable Battery Connection
1 - Power
2 - Guide
3 - Exit
4 - Menu
5 - Information
6 - Move Up
7 - Move Down
8 - Move Left
9 - Move Right
10 - Select
11 - Volume Up
12 - Volume Down
13 - Channel Up
14 - Channel Down
15 - Last Viewed
16 - Mute
26 - Input
28 - Enter
38 - Stop
39 - Record
40 - Pause
41 - Slow Reverse
42 - Play
43 - Slow Forward
44 - Rewind
45 - Forward
Power
Transmission Mode
Current Menu
Battery Meter
Custom Macro
Buttons
Custom Mode
Options
39
1
23
45
6
7
89
10
11
12
13
14
15
16
26 28
38
40
41
42
43
44 45
Numeral Keypad
Mio R-2 (FG147-418/433) Specifications (Cont.)
Dimensions (HWD) 9.50 x 2.00 x .74 (241.3 mm x 50.8 mm x 18.80 mm)
Supported Languages: • Arabic
• English
•French
•German
•Greek
•Hebrew
• Hindi
• Italian
• Japanese
• Korean
• Mandarin Chinese
• Portuguese
• Russian
• Spanish
•Thai
Weight • .45 lbs (20 g) without batteries
• .55 lbs (25 g) with batteries
Operating Environment: • Operating Temperature: 0° to 50° C (32° to 122° F)
• Storage Temperature: -10° to 70° C (14° to 158° F)
Other AMX Equipment • DB-9 extension cable (FG10-727)
• Programming Cable - a 3 wire, 2.5 mm stereo jack (FG10-817)
• Custom engraving (FG147-01)
• Mio-RCC Kit (FG147-03K)
• Mio-RCC Charging Base (FG147-02)
• Mio-RBP Rechargeable Lithium Ion Battery (FG147-10)
• AXR-RF 418 MHZ RF Receiver (FG782-418)
• AXR-RF 433 MHZ RF Receiver (FG782-433)
FIG. 2 Internal Mio R-2 Components
6 Screw Points
Programming Jack
For full warranty information, refer to the AMX Instruction Manual(s) associated with your Product(s).
041-004-2976 4/06
©2006 AMX. All rights reserved. AMX and the AMX logo are registered trademarks of AMX.
AMX reserves the right to alter specifications without notice at any time.
3000 RESEARCH DRIVE, RICHARDSON, TX 75082 • 800.222.0193 • fax 469.624.7153 • technical support 800.932.6993 • www.amx.com
93-0147-01 REV: A
one. While loading your configuration file make sure the device is situated as such
that the batteries will not fall out. The load will fail if your batteries fall out during the
process.
To download KeypadBuilder Configuration Files:
1. Set the Mio R-2 Download mode to ON. See the Configuration Mode section
for details.
2. Flip and turn the Mio R-2 device so that the buttons are facing away from you
and the device is upside down.
3. Holding the device in both hands, place your thumbs on the battery door and
slide the battery door free.
4. Connect the 2.5 mm stereo plug (male) end of the programming cable (FG10-
817) into the programming jack on the bottom side of the remote device.
5. If necessary, connect the DB-9 end of the programming cable to the female
DB-9 connector on the DB-9 extension cable (FG10-727).
6. Connect the female DB-9 terminal end of the extension cable to the port on the
back of your computer.
7. Configure the communication parameters in KeypadBuilder.
IR Code Matrix
The IR Code emitted depends upon which of the 6 configurable modes is selected.
Below is the list of codes for each button within each mode.
Configuration Mode
The configuration mode allows you to set the following device features:
• IR Transmit Mode (38 KHz, 455 KHz or both 38 KHz IR and RF)
• Timeout Adjustment
• Download Mode
• Debug Mode
• Battery Type
• LED Awake Brightness
• LED Sleep Brightness
To enter configuration Mode:
1. Press and hold the STOP button and the INPUT button. The two buttons must
be pressed within 0.1 seconds of each other and held down for 2 seconds. The
device indicates you are now in configuration mode. See below for available
modes.
2. Press the EXIT key when you are finished.
Note: Your settings will not be lost in the event your batteries die or are removed.
IR Transmit Mode
Pressing button "1" on the remote toggles the IR transmission mode between
38KHz, 455KHz, RF, and both 38KHz IR and RF. The display indicates the current
mode.
Timeout Adjustment
Press button "2" on the remote to change the sleep timeout from the default. Each
time "2" is pressed, the sleep timeout raises incrementally. The pre-determined sleep
timeouts are:
• 3 seconds
• 6 seconds
• 9 seconds
• 12 seconds
The display indicates the selected sleep timeout.
Download Mode
Pressing "3" on the remote toggles the Download mode OFF and ON. The Download
mode must be ON before you can download a file to the Mio R-2 device. While the
Download mode is ON the device will not go to sleep. A power cycle will return the
device to Download OFF.
Debug Mode
Pressing button "4" on the remote toggles development mode between ON and OFF.
The display indicates the selected mode. In development mode, the display shows
the IR code assigned to buttons when pressed.
This mode is useful to the programmer when determining what IR codes are
associated to each mode.
Battery Type
Pressing button "6" on the remote toggles the battery type between Normal and
Recharge. The display indicates the selected type. The type of battery in the Mio R-2
dictates the battery type you need to set.
LED Awake Brightness
Pressing button "7" on the remote toggles the Power LED brightness mode from
LOW to MED and then HIGH. The display indicates the selected mode.
LED Sleep Mode Brightness
Pressing button "8" on the remote toggles the Sleep brightness mode from OFF to
LOW and then MED. The Sleep brightness is the state the Mio R-2 assumes while in
the charging cradle.

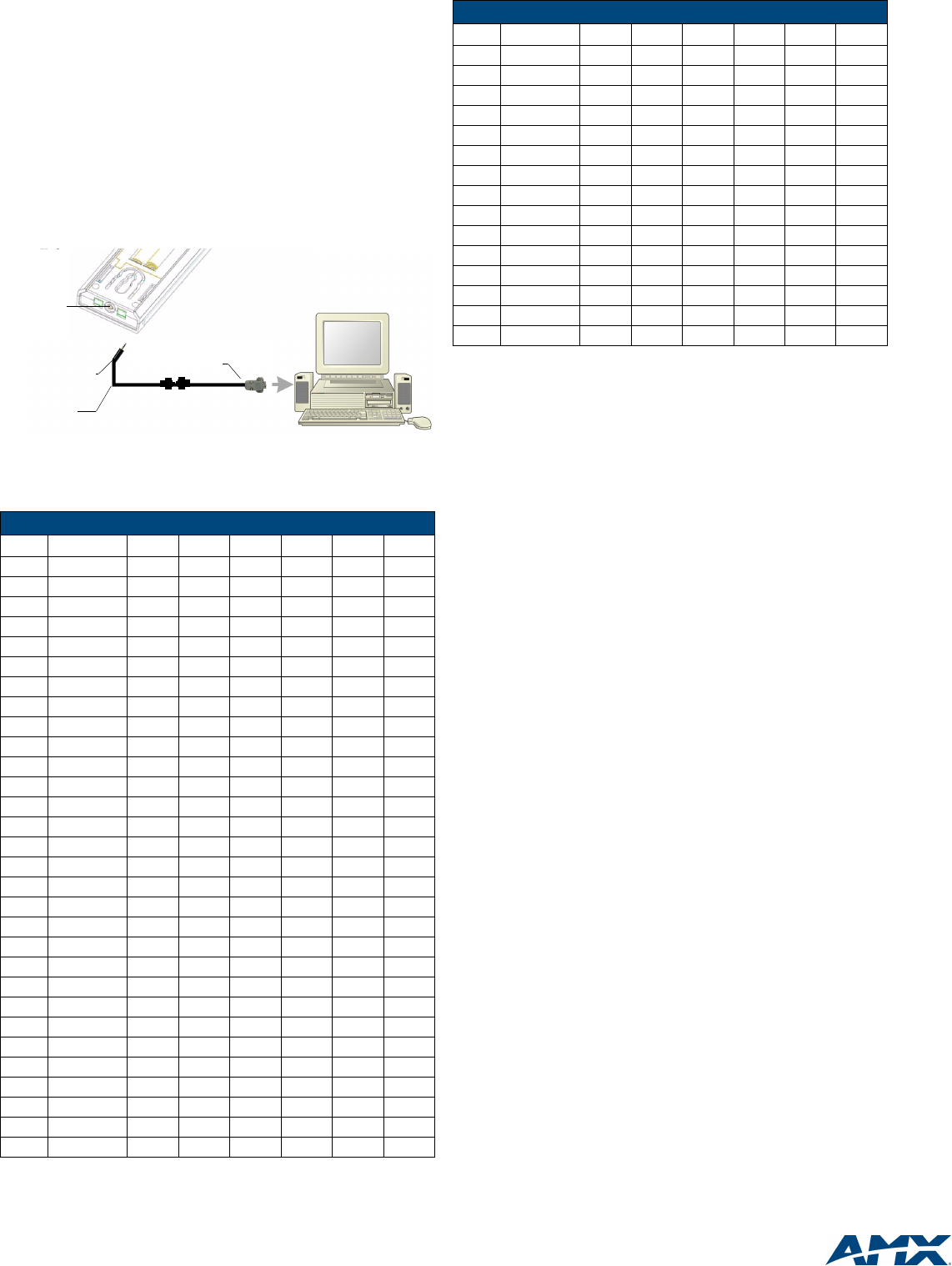

FIG. 3 Connecting The Keypad Device to Your PC
IR Code Matrix
Button Label Mode 1 Mode 2 Mode 3 Mode 4 Mode 5 Mode 6
1 Power Symbol 9 49 89 129 169 209
2 GUIDE 38 78 118 158 198 238
3 EXIT 3777117157197237
4 MENU 3171111151191231
5 INFO 3979119159199239
6 L 32 72 112 152 192 232
7 M 33 73 113 153 193 233
8 K 34 74 114 154 194 234
9 A 35 75 115 155 195 235
10 SELECT 36 76 116 156 196 236
11 VOL + 24 64 104 144 184 224
12 VOL - 25 65 105 145 185 225
13 CH + 22 62 102 142 182 222
14 CH - 23 63 103 143 183 223
15 LAST 40 80 120 160 200 240
16 MUTE 26 66 106 146 186 226
171 115191131171211
182 125292132172212
193 135393133173213
204 145494134174214
215 155595135175215
226 165696136176216
237 175797137177217
248 185898138178218
259 195999139179219
26 INPUT 29 69 109 149 189 229
270 105090130170210
28 ENTER 21 61 101 141 181 221
29 A (Macro 1) 250 250 250 250 250 250
30 B (Macro 2) 251 251 251 251 251 251
Stereo plug male DB-9 connector
Cable FG10-817 to cable FG10-727
to PC
programming
cable
Keypad device
Programming
jack
Mio R-2
IR Code Matrix (Cont.)
Button Label Mode 1 Mode 2 Mode 3 Mode 4 Mode 5 Mode 6
31 C (Macro 3) 252 252 252 252 252 252
32 TV (Mode 1) 241 241 241 241 241 241
33 SAT (Mode 2) 242 242 242 242 242 242
34 DVD (Mode 3) 243 243 243 243 243 243
35 CD (Mode 4) 244 244 244 244 244 244
36 AUX (Mode 5) 245 245 245 245 245 245
37 LGHT (Mode 6) 246 246 246 246 246 246
38 STOP B2 4282122162202
39 REC J8 4888128168208
40 PAUSE C3 4383123163203
41 S. REV Z7 4787127167207
42 PLAY A1 4181121161201
43 S. FWD Y6 4686126166206
44 REW E5 4585125165205
45 FWD D4 4484124164204
