QUICK START GUIDE
HPA-MYT-TX/RX MyTurnTM Source Selector
Overview
The HPA-MYT-TX MyTurn™ Source Selector Button (FG554-21) connects to the end of
a standalone MyTurn-Ready cable (HDMI, Mini-DP, DP, RGB, USB), or one thats installed
in a Retractable Cable Module (RCM). A user presses the button to send their device
content to a conference room display. When pressed, the button wirelessly transmits a
signal to the HPA-MYT-RX MyTurn Source Selector Wireless Receiver (FG554-23) that is
wired to an AMX master controller or an AMX switching device, such as a Solecis SDX or
Enova DVX. When used with a Solecis SDX, simple switching can be implemented with
no NetLinx programming required. Each MyTurn Source Selector Receiver can
accommodate up to 8 MyTurn Source Selector Buttons.
MyTurn Source Selector Buttons and Receivers have the following user features:
MyTurn Source Selector Button
• Push button – activates input at switcher to display device content
MyTurn Receiver
• Select Button – press momentarily to switch ports (indicated by LEDs)
– press and hold to enter “pairing” mode
– press and hold during power up to reset to factory defaults
Product Specifications .
MyTurn Source Selector Solution in a Conference Room
The eight outputs on the rear of the MyTurn Source Selector Receiver connect using
Phoenix connector to the SW inputs on Solecis SDX-510M-DX, or GPIO inputs on NI
Controllers or Enova DVX devices. When the MyTurn Source Selector Button paired with
that I/O port is triggered, the MyTurn Source Selector Receiver activates the AMX
device “SW” input or I/O port, signaling the system to switch the display to that port.
Following are examples of two typical MyTurn Source Selector installations.
Solecis SDX-410/510/810 Switchers
The MyTurn Source Selector Receiver connects to the AMX Solecis front AXLINK port
for power and ground as outlined in FIG. 3. Output ports (1 through 8) are wired to the
corresponding Solecis rear “SW” input that has a MyTurn Source Selector Button
equipped cable connected to it. This solution can be implemented without NetLinx
programming since the SW port is directly connected to the Receiver.
Note: Only on the 5x1 TX, set dipswitch #4 in the ON position (Direct Mode). This will set
the external button behavior to be in direct mode by default. Once the dipswitch is
turned ON the 5x1 TX must be rebooted in order for the setting to take effect.
Enova DVX Master/NetLinx Integrated Controller
The MyTurn Source Selector Receiver connects to an AMX DVX Master or a NetLinx
Controller using the GPIO interface as outlined in FIG. 4. The GPIO port can deliver
Power and Ground as well as receive switch inputs 1-8.
This solution requires NetLinx programming to correlate a GPIO input button event to
switch to a predetermined port on the DVX.
FIG. 1 HPA-MYT-TX MYTURN BUTTON (LEFT) AND HPX-MYT-RX MYTURN RECEIVER (RIGHT)
HPA-MYT-TX SPECIFICATIONS
Dimensions • 1.421” x .645” x 0.40” HWD (36mm x 16mm x 10mm)
Power: • Integrated 3VDC coin-cell battery (not replaceable)
Environment • Operating Temperature: 32° F (0° C) to 122° F (50° C)
• Operating Humidity: 20% to 85% RH
Top Panel: • Push-button
Compatibility: Flat Cable Assemblies:
• FG10-2192-xx - HDMI 4K60 MyTurn-Ready Flat Cable (xx=16 or 32 ft)
• FG10-2193-16 - DisplayPort 4K60 MyTurn-Ready Flat Cable
• FG10-2195-16 - RGB with Auto MyTurn-Ready Flat Cable
• FG10-2196-16 - Mini DisplayPort 4K60 MyTurn-Ready Flat Cable
• FG10-2197-16 - USB MyTurn-Ready Flat Cable
Retractable Cable Module (RCM) Assemblies:
• FG552-32 - HDMI 4K60 RCM with MyTurn-Ready Cable
• FG552-33 - DisplayPort 4K60 RCM with MyTurn-Ready Cable
• FG552-36 - Mini DisplayPort 4K60 RCM with MyTurn-Ready Cable
• FG552-35 - RGB with Stereo RCM with MyTurn-Ready Cable
• FG552-37 - USB 3.0 RCM with MyTurn-Ready Cable
Accessories: • HPX-2BTN-8ACC - 8 button inserts and 8 cable bands kit (optional)
• Installation Guide Included
HPA-MYT-RX SPECIFICATIONS
Dimensions (HWD) • 3.21” x 2.54” x 0.55” HWD (82.55mm x 69.85mm x 15.24mm)
Enclosure: • Polycarbonate plastic with matte finish
Input Voltage: • 8-15 VDC on the “+12V” input operates LEDs and I/O outputs
to Solecis, NI-Controller or DVX Switcher
Environment • Operating Temperature: 0° C (32° F) to 50° C (122° F)
• Operating Humidity: 20% to 85% RH
Front Panel: • 8 Yellow LEDs
• 1 Push button for pairing or port selection
Rear Panel: • 1 x 6 Phoenix screw-terminal - I/O 1-4 and Power/Ground
• 1 x 4 Phoenix screw-terminal - I/O 5-8
• 1 Green LED indicates power is applied, and flickers when any
wireless transmission is detected.
Accessories: • Quick Start Guide Included
MyTurn TX Button
Pairing and port
select button
MyTurn Receiver

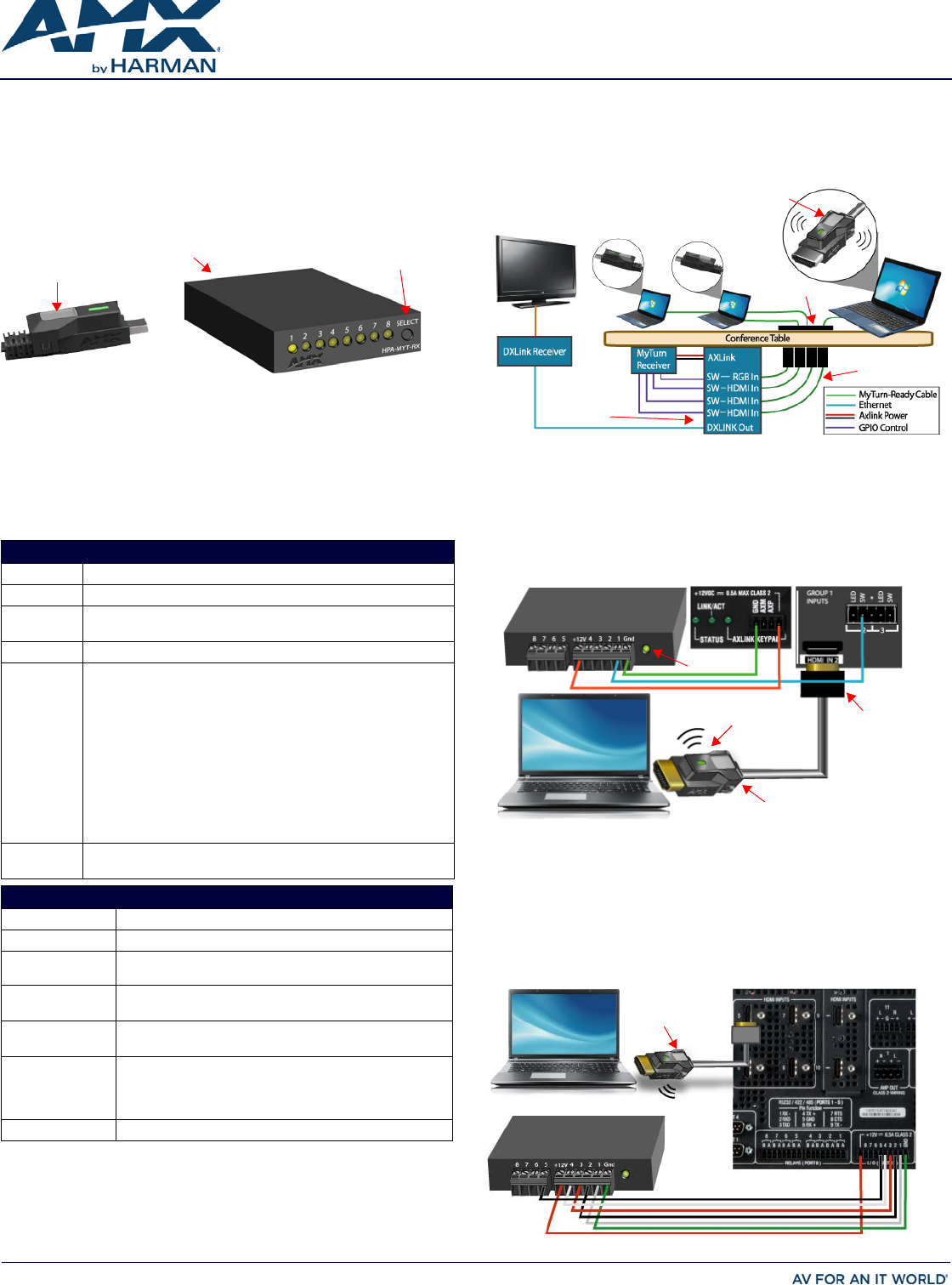

FIG. 2 MYTURN TO AMX SOLECIS DIGITAL SWITCHER CONNECTION EXAMPLE
FIG. 3 MYTURN SOURCE SELECTOR SW CONNECTION (1 CONNECTION SHOWN)
FIG. 4 MYTURN SOURCE SELECTOR DVX GPIO TERMINATIONS (5 CONNECTIONS SHOWN)
MyTurn-Ready Cables
in a HydraPort RCM
HydraPort
Chassis
Solecis SDX
MyTurn Button
HDMI
mDP DP
MyTurn-Ready
HDMI Cable
Power LED
MyTurn-Ready HDMI Cable
Source End
Solecis SDX-Front Solecis SDX-Rear
HPX-MYT-RX Receiver
HPX-MYT-TX
Button Display End
HDMI Cable with
HPA-MYT-TX
MyTurn Button
DVX Master
HPA-MYT-RX MyTurn Receiver
© 2016 Harman. All rights reserved. Hydraport, AMX, AV FOR AN IT WORLD, HARMAN, and their respective logos are registered trademarks of
HARMAN. Oracle, Java and any other company or brand name referenced may be trademarks/registered trademarks of their respective
companies.
AMX does not assume responsibility for errors or omissions. AMX also reserves the right to alter specifications without prior notice at any time.
The AMX Warranty and Return Policy and related documents can be viewed/downloaded at www.amx.com.
3000 RESEARCH DRIVE, RICHARDSON, TX 75082 AMX.com | 800.222.0193 | 469.624.8000 | +1.469.624.7400 | fax 469.624.7153
AMX (UK) LTD, AMX by HARMAN - Auster Road, Clifton Moor, York, YO30 4GD United Kingdom • +44 1904-343-100 • www.amx.com/eu/
93-0554-21 REV: A
Last Revised: 3/15/2016
Installation
Refer to the following steps to install the MyTurn Source Select Buttons and Receivers.
MyTurn Source Selector Receiver
Note: The MyTurn Source Selector Wireless Receiver must be installed within 10 meters
(32 ft) of the MyTurn Source Selector Buttons. Care must be taken to minimize
metal obstructions to the wireless signal (i.e., equipment racks).
1. Remove the Phoenix connector from the back of the receiver and wire the outputs
to the Solecis, DVX, or NX/NI Master Controller using the screw down terminals.
Ensure Power and Ground are connected as shown (FIG. 5). Use the AXLINK ports
for Power and Ground if connecting to a Solecis as described in FIG. 3.
Note: When connecting each output (1-8), note the device type, input port, location (ex.
HydraPort Pos-1) on the worksheet below-right for recording this data. It may be needed
when pairing the MyTurn Source Selector Buttons with the wireless receiver ports.
Refer to the wiring chart below for the appropriate wire gauge.
2. Connect the +12V and Ground wire ends to the MyTurn Source Selector Receiver
and GPIO or AxLink plugs first to ensure proper connection.
3. Connect the remaining outputs to the plugs on both ends.
4. Insert the plugs at the Receiver and then the GPIO or AxLink sockets. The green
LED on the rear of the Receiver will light when power is applied.
MyTurn Source Selector Button
The MyTurn Source Selector Button can be installed onto the end of any MyTurn-Ready
cable (FIG. 6). It is then wirelessly paired to the MyTurn Source Selector Receiver.
1. At the source end of the cable, clip the MyTurn Source Selector Button onto the
MyTurn-Ready connector over-mold with the LED over the connector end (FIG. 7).
2. There are short and tall securing clips. The Tall clip is used on the RGB+Stereo
MyTurn-Ready cable due to the bulk of the over-mold. Press the clip into the
MyTurn-Ready cable channel until it clicks over the MyTurn-Ready button.
3. Pair each MyTurn Source Select Button as it is installed. Refer to the install
worksheet f illed out during the MyTurn Source Selector Receiver installation.
MyTurn Pairing
Perform the following steps to pair each MyTurn Source Selector Button with each port
on the MyTurn Source Selector Receiver.
Caution: A receiver will hear every MyTurn Source Select Button within its proximity
(receivers in adjoining conference rooms will likely see each other's TX's but will ignore
any that it is not paired with.) It is the responsibility of the installer to only put one
receiver at a time into pairing mode to avoid inadvertent behavior.
1. Press and hold the Select button on the front of the MyTurn Source Selector
Receiver for approximately 3 seconds. The yellow port LEDs will all flash and Port
1 will blink awaiting the wireless MyTurn Source Selector Button press to pair.
2. Press the MyTurn Source Select Button to pair it with the blinking port or press
Select to select another port to pair with. Upon successful pairing, the selected
LED will turn on solid for one second, and then the LED flashing will advance to the
next output to indicate the device is still in pairing mode. The receiver will pair the
first transmitter it hears when pairing a particular output.
3. Repeat the MyTurn Source Select Button installation and pairing procedure for
each button required. To exit the pairing mode, press the Select button for 3
seconds again. All front yellow LEDs will flash 3 times and then the first output
will be selected. Pairing mode will exit after 2 minutes of no action.
Note: Successive momentary presses of the front panel button on the receiver will
keep the unit in pairing mode, resetting the pairing timeout counter, and advance
the slot assignment to the next output in a round-robin fashion.
4. If the unit has exited pairing mode before all ports are paired, press and hold the
Select button for 3 seconds again to enter the pairing mode and momentarily
press the button multiple times to advance the pairing to restart where the last
port was set. A new pairing will overwrite the prior pairing.
5. Secure the device under the table once all cabling and pairing is complete.
Return to Factory Default
To return a receiver to the factory default settings, perform the following steps:
Note: Returning to factory defaults will wipe any pairing data from the system memory.
1. Hold the SELECT button and apply power. Continue holding the SELECT button for
another 3 seconds. All receiver output status LEDs will simultaneously flash three
times on startup (after being returned to factory settings).
Operation
To operate the MyTurn Source Selector Button after installation is complete, just
connect the cable source end to the presenting device and momentarily push the
MyTurn Source Selector Button. The LED on the button will momentarily flash green.
The device content is now viewable on the main display.
Installation Worksheet
Additional Documentation
Refer to the catalog page on www.amx.com (Dealer Site) for additional product
documentation.

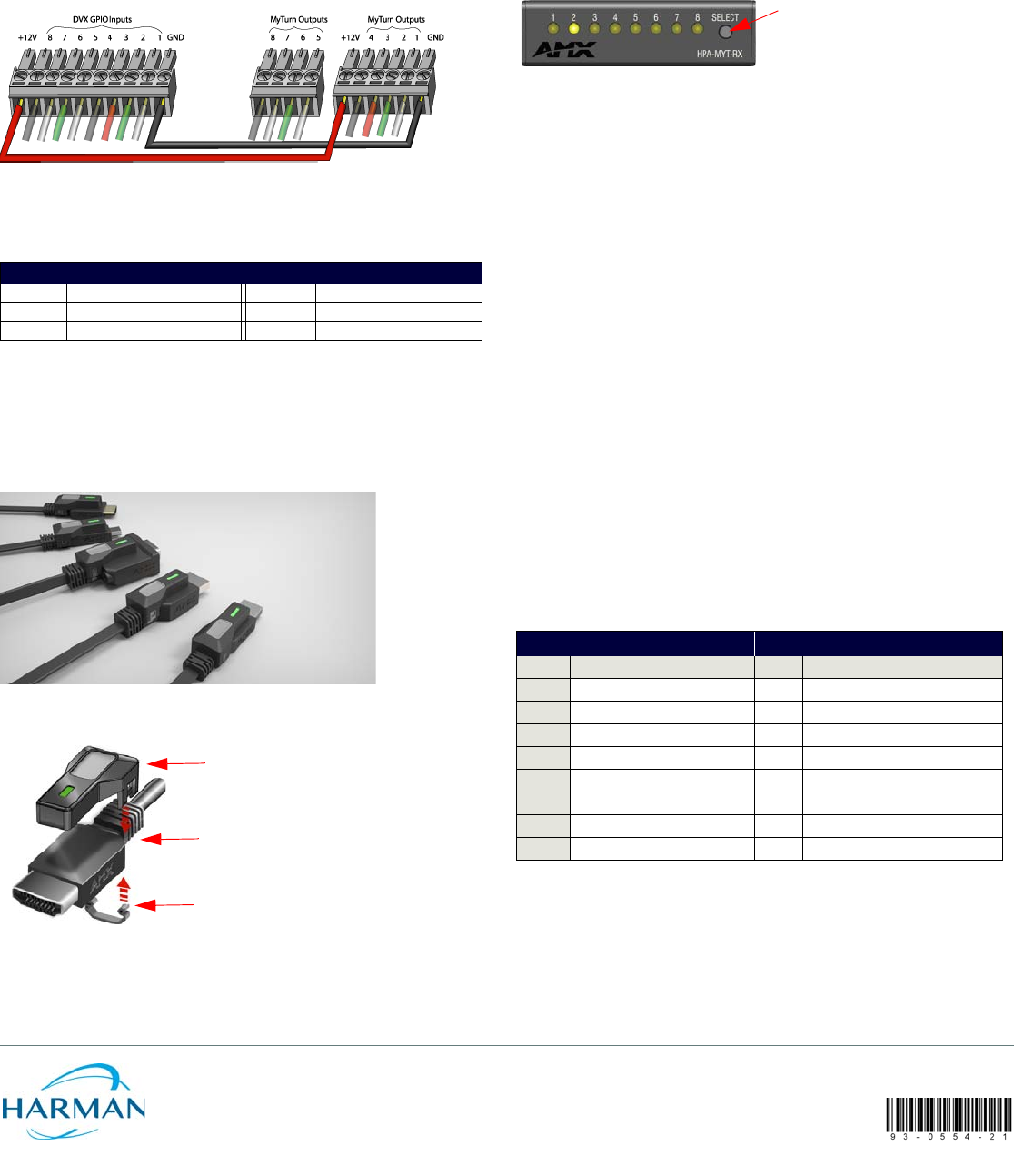

FIG. 5 PHOENIX CONNECTOR WIRING (DVX/NI-CONTROLLER GPIO TO MYTURN RECEIVER)
WIRING GUIDELINES
Wire Size Maximum wiring length Wire Size Maximum wiring length
18 AWG 154.83 feet (47.19 meters) 22 AWG 63.40 feet(19.32 meters)
20 AWG 98.30 feet(29.96 meters) 24 AWG 38.68 feet (11.79 meters)
FIG. 6 MYTURN-READY SOURCE SELECTOR BUTTONS SHOWN MOUNTED ON VARIOUS CABLES
FIG. 7 MYTURN-READY SOURCE SELECTOR BUTTON CLIPPING ONTO CABLE END
RGB+Stereo
HDMI
mDP
DP
USB Type A
Clip installs under cable and latches
MyTurn Button clips into
Channel in MyTurn-Ready
source cable channel
cable over-mold
over the MyTurn Button
FIG. 8 MYTURN SOURCE SELECTOR WIRELESS RECEIVER - SELECT BUTTON
MYTURN RECEIVER DEVICE INPUT
