ANG Technology R1 Multi-function Rollable Bluetooth Keyboard User Manual User s manual
Shenzhen ANG Technology Co., Ltd. Multi-function Rollable Bluetooth Keyboard User s manual
User Manual
1
R1 User manual

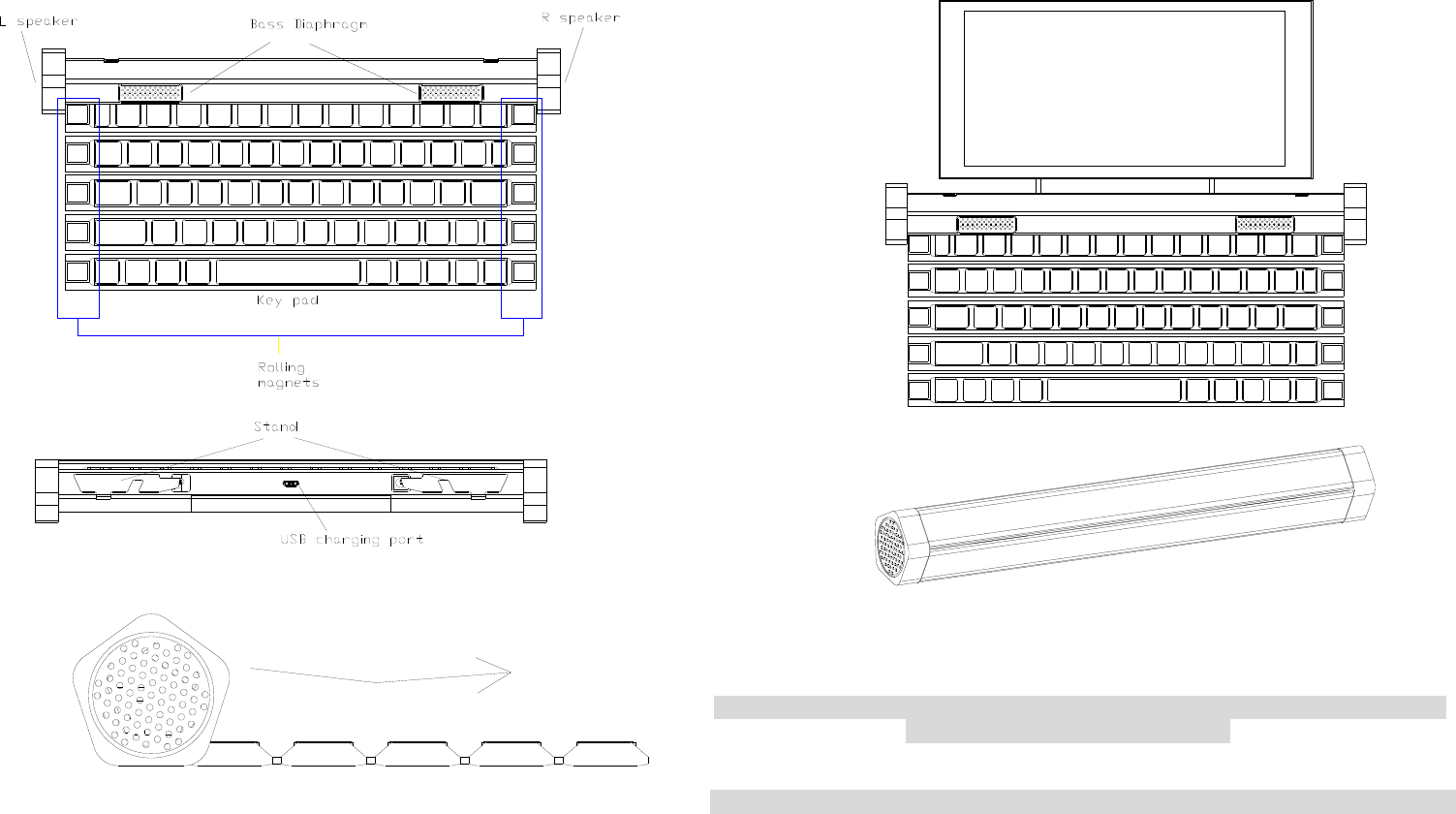

Multi-function Rolly Bluetooth Keyboard and Multi-function Bluetooth Speaker
Bluetooth Keyboard
Function Operation LED indicator
Power on Press the Power button for 2 seconds Blue LED blink
Power off Press the Power button for 2 seconds, and release it Red off
until the Red LED is quickly blinking twice
pairing mode Make sure the keyboard is off. Press and hold FN Blue LED blink
key and press C key Blue LEDs blinking.
Caps lock Short press Caps Lock key Blue LED lights
2
Bluetooth Speaker
Function Operation LED indicator Voice Prompt
Power on Press the MFB button for 2 seconds, and release Blue LED blink power on
it till the blue LED is quickly blinking twice.
Power off Press the MFB button for 2 seconds LED off power off
pairing mode Make sure the speaker is off. Press and hold MFB Blue & Red LEDs blink Pairing
button for4 seconds, and release it until the blue & alternatively.
red LEDs blinking.
Answer calling Short press MFB button
Pause music Short press MFB button
Play music Short press MFB button
Recalling Double click MFB button
Charging Use charging cable speaker red lights
finish charging blue lights
How to use R1
1. Speakers and keyboard separately, press to the speaker MFB BUTTON for 2 seconds, boot into the pair mode.
2. Open the SETTINGS entry for the device to be connected, The Bluetooth for ON.
3. When the search to R1, select R1, when the display has been connected, The earphone LED into only blue in the blink.
4. Pick up the keyboard to press the power button for 2 seconds, the blue light slow flash, and then press the FN button, do not loose, press the “C” key, the blue light flashes slowly,
that is into the pair mode.
5. Open the SETTINGS entry for the device to be connected, The Bluetooth for ON. when the search to” R1 keyborad”, select R1 keyboard, when the display has been connected,the blue LED stop blink。
6. Start to enjoy R1
Power button
Keyboard LED
MFB button
Speaker LED
Charging dot
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
