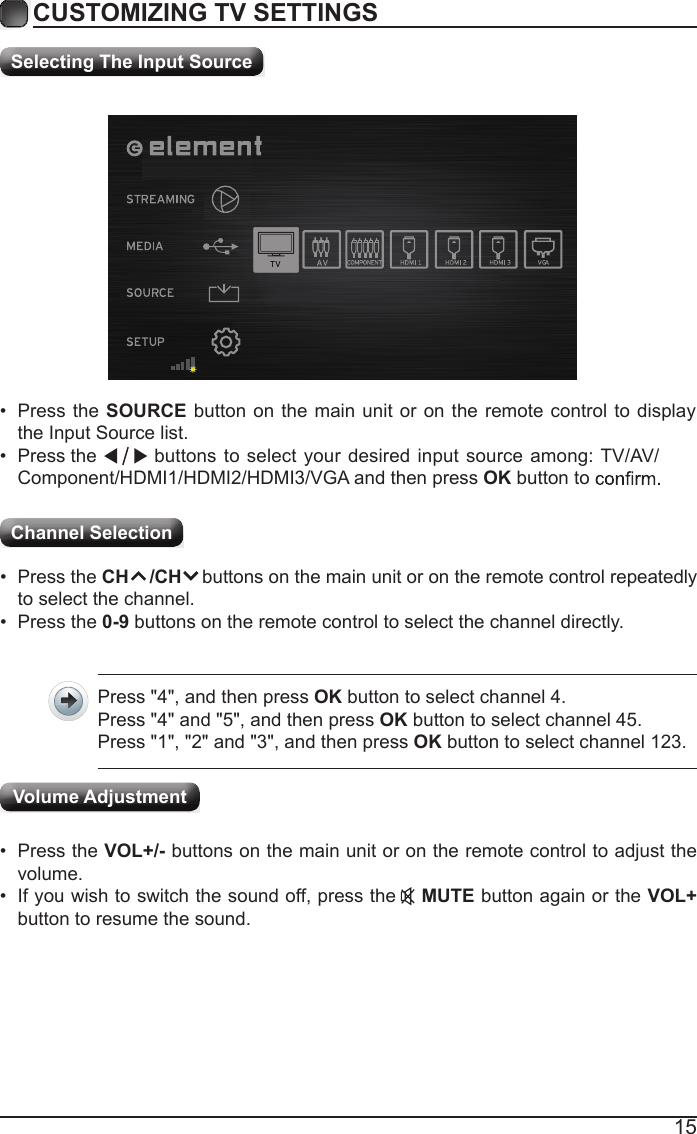

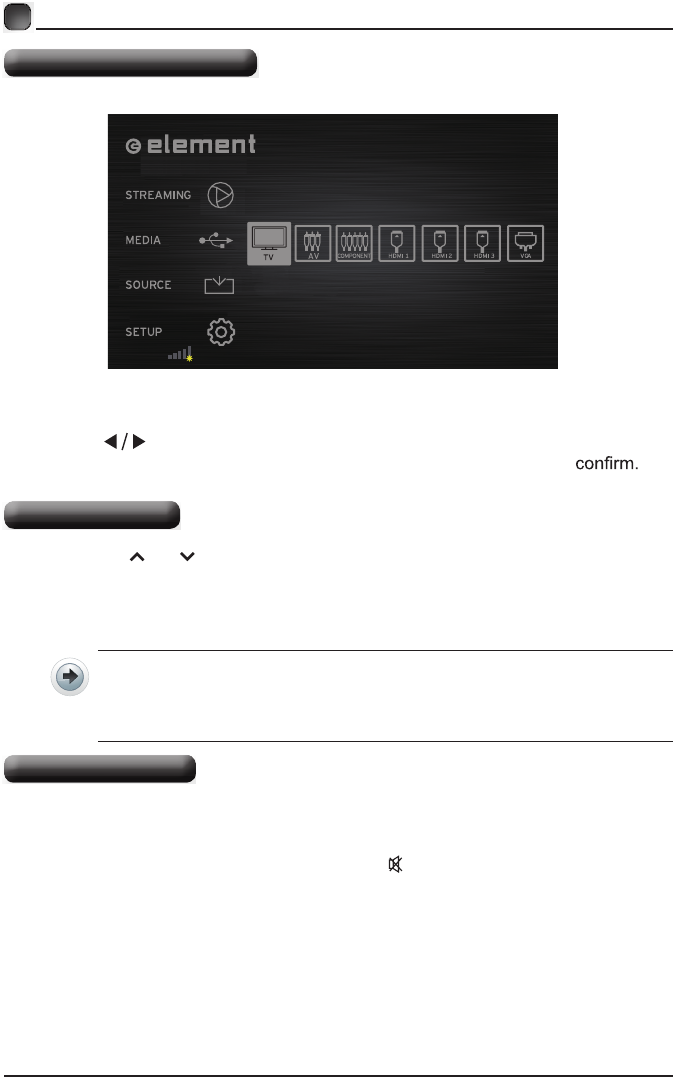

15CUSTOMIZING TV SETTINGSChannel Selection Selecting The Input Source• Press the SOURCE button on the main unit or on the remote control to display the Input Source list.• Press the buttons to select your desired input source among: TV/AV/Component/HDMI1/HDMI2/HDMI3/VGA and then press OK button to • Press the CH /CH buttons on the main unit or on the remote control repeatedly to select the channel.• Press the 0-9 buttons on the remote control to select the channel directly.Press "4", and then press OK button to select channel 4.Press "4" and "5", and then press OK button to select channel 45.Press "1", "2" and "3", and then press OK button to select channel 123.• Press the VOL+/- buttons on the main unit or on the remote control to adjust the volume.• If you wish to switch the sound off, press the MUTE button again or the VOL+ button to resume the sound.Volume Adjustment

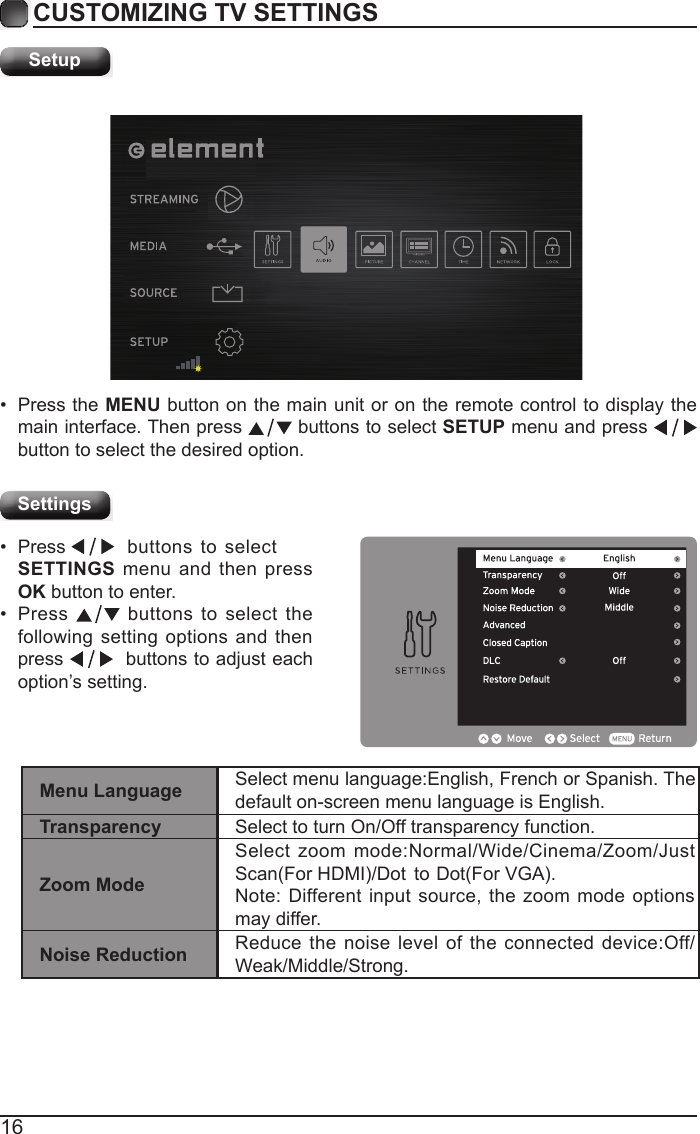

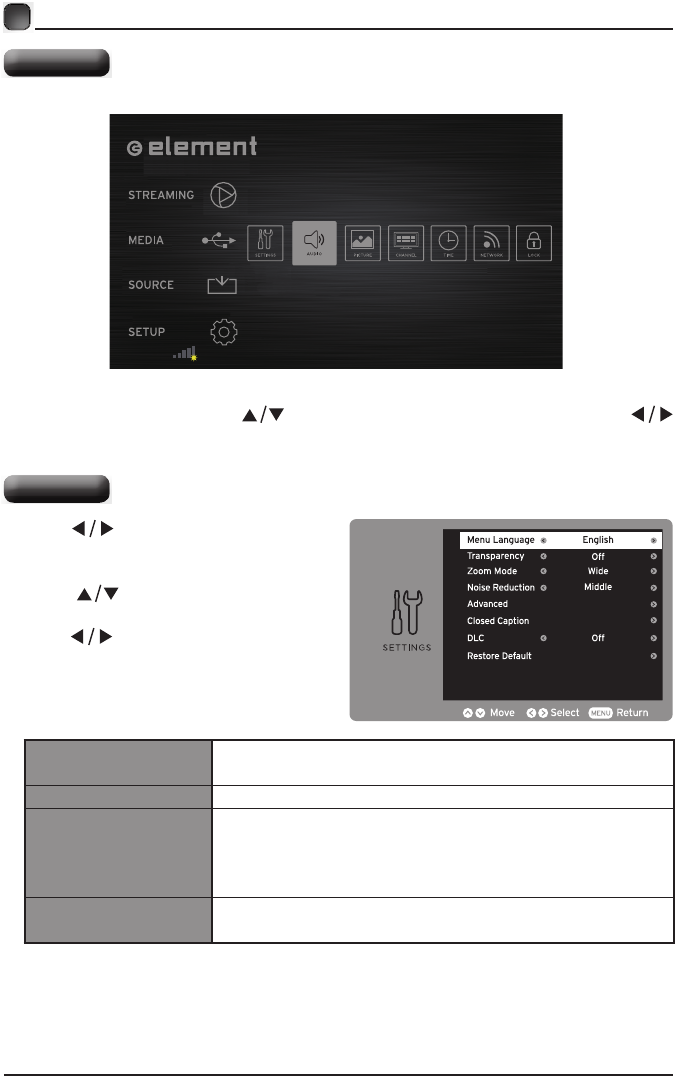

16CUSTOMIZING TV SETTINGSSetupSettings• Press the MENU button on the main unit or on the remote control to display the main interface. Then press buttons to select SETUP menu and press button to select the desired option. • Press SETTINGS menu and then press OK button to enter. • Press buttons to selectbuttons to select the following setting options and then press buttons to adjust each option’s setting. Menu Language Select menu language:English, French or Spanish. The default on-screen menu language is English.Transparency Select to turn On/Off transparency function.Zoom ModeSelect zoom mode:Normal/Wide/Cinema/Zoom/Just Scan(For HDMI)/Dot to Dot(For VGA).Note: Different input source, the zoom mode options may differ.Noise Reduction Reduce the noise level of the connected device:Off/Weak/Middle/Strong.

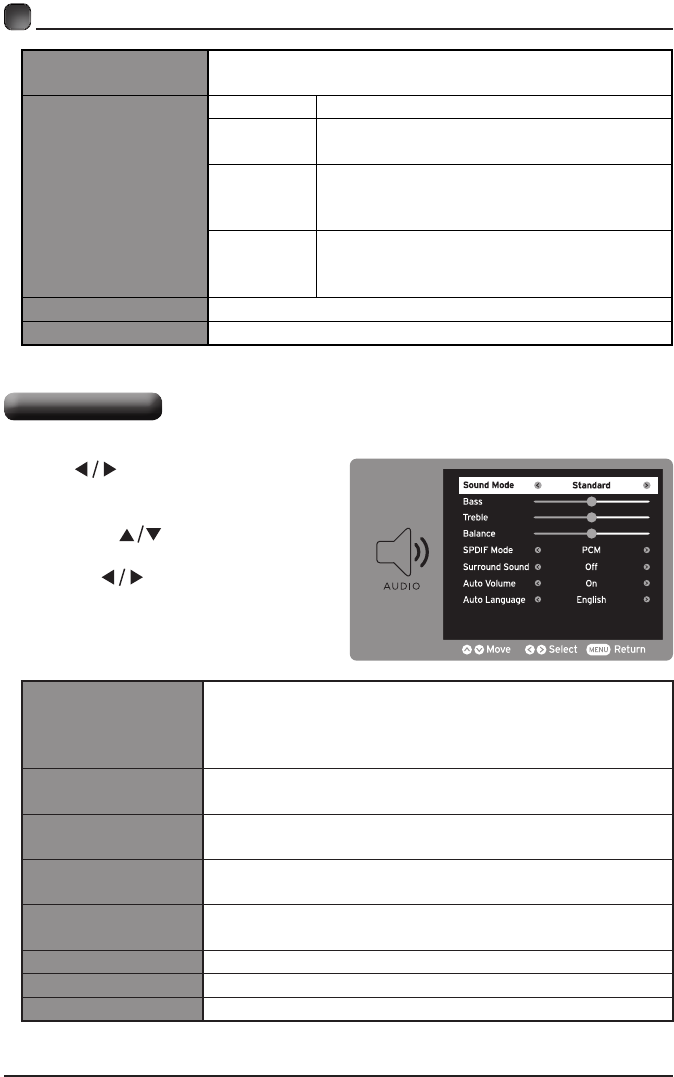

17CUSTOMIZING TV SETTINGSAudio SettingsAdvancedClosed CaptionCC Mode Select CC mode : On, Off or CC on Mute.Basic SelectionBasic Selection: CC1, CC2, CC3, CC4, Text1, Text2, Text3, Text4.Advanced SelectionAdvanced Selection: Service1, Service2, Service3, Service4, Service5, and Service6.OptionOptions: Mode, Font, Size, Edge Effect, Edge Color, Text Color, Background Color, Text Opacity, Background Opacity.DLC Select to turn On/Off the dynamic luminance control.Restore Default Restore the TV to factory default settings.Sound ModeAllow the selection of an audio-enhancement technique: Standard/Music/Movie/UserAlternative: you may press the S.MODE button to select the sound mode directly.Bass Control the relative intensity of lower-pitched sounds. (For User mode)Treble Control the relative intensity of higher-pitched sounds. (For User mode)Balance Adjust the relative volume of the speaker in a multiple speaker system.SPDIF Mode Select the digital audio output mode between RAW/PCM.Surround Sound Provide an enhanced listening experience.Auto Volume Volume levels are automatically controlled.Audio Language Select audio language among: English, French, Spanish• Press buttons to select AUDIO menu and then press OK button to enter.• Press the buttons to select the following audio options and then press the buttons to adjust each option’s setting.Adjust advanced option’s setting: Horizontal POS,Vertical POS.Clock,Phase or Auto. (VGA source mode only)

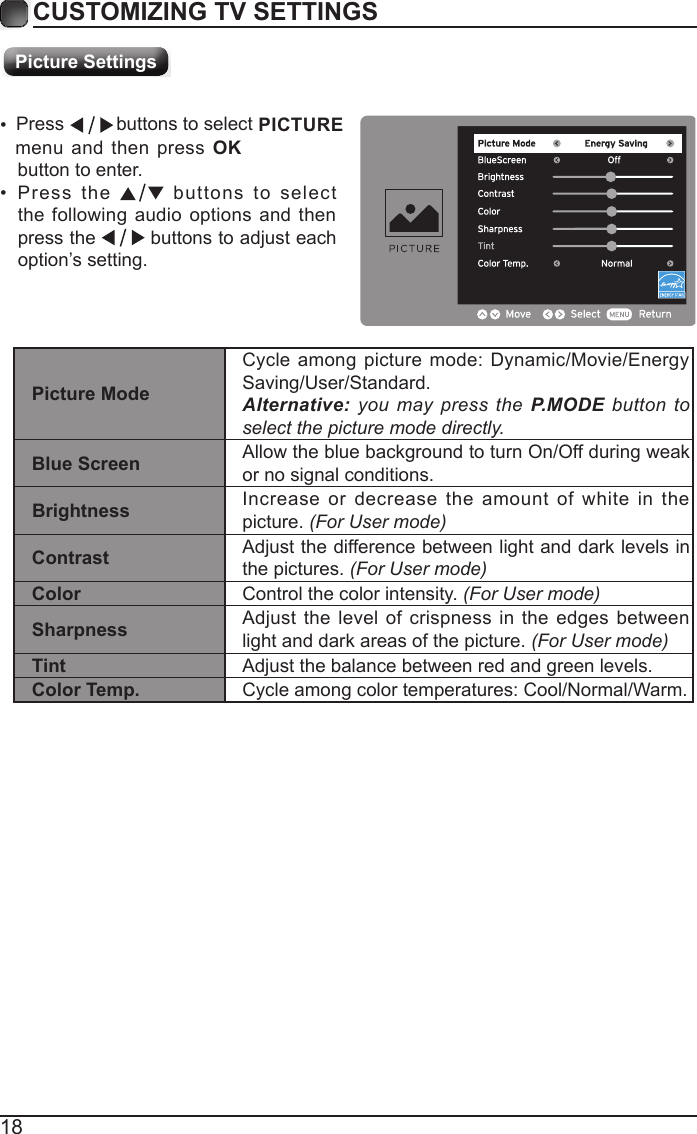

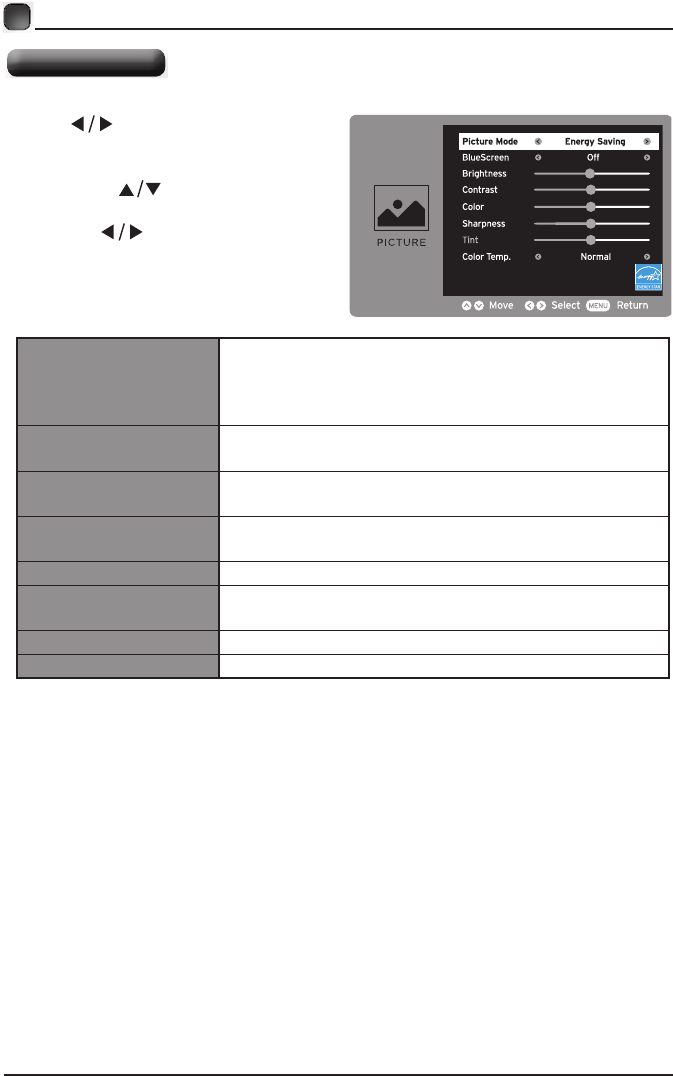

18Picture SettingsCUSTOMIZING TV SETTINGSPicture ModeCycle among picture mode: Dynamic/Movie/Energy Saving/User/Standard.Alternative: you may press the P.MODE button to select the picture mode directly.Blue Screen Allow the blue background to turn On/Off during weak or no signal conditions.Brightness Increase or decrease the amount of white in the picture. (For User mode)Contrast Adjust the difference between light and dark levels in the pictures. (For User mode)Color Control the color intensity. (For User mode)Sharpness Adjust the level of crispness in the edges between light and dark areas of the picture. (For User mode)Tint Adjust the balance between red and green levels.Color Temp. Cycle among color temperatures: Cool/Normal/Warm.• Press buttons to select PICTURE menu and then press OK button to enter.• Press the buttons to select the following audio options and then press the buttons to adjust each option’s setting.

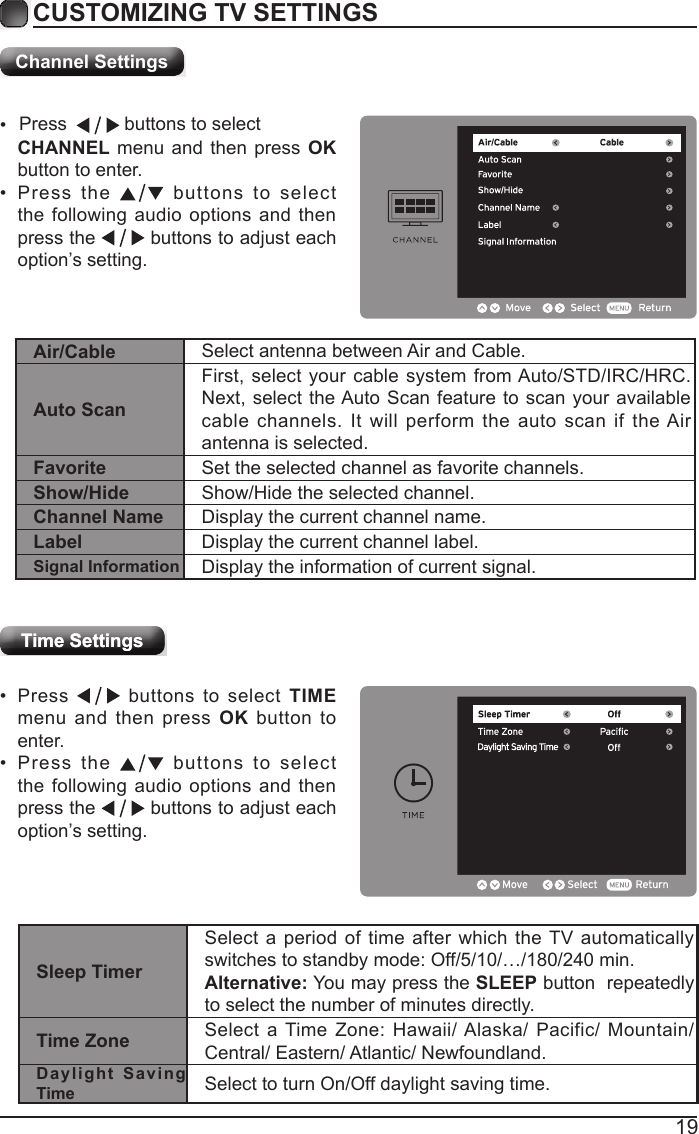

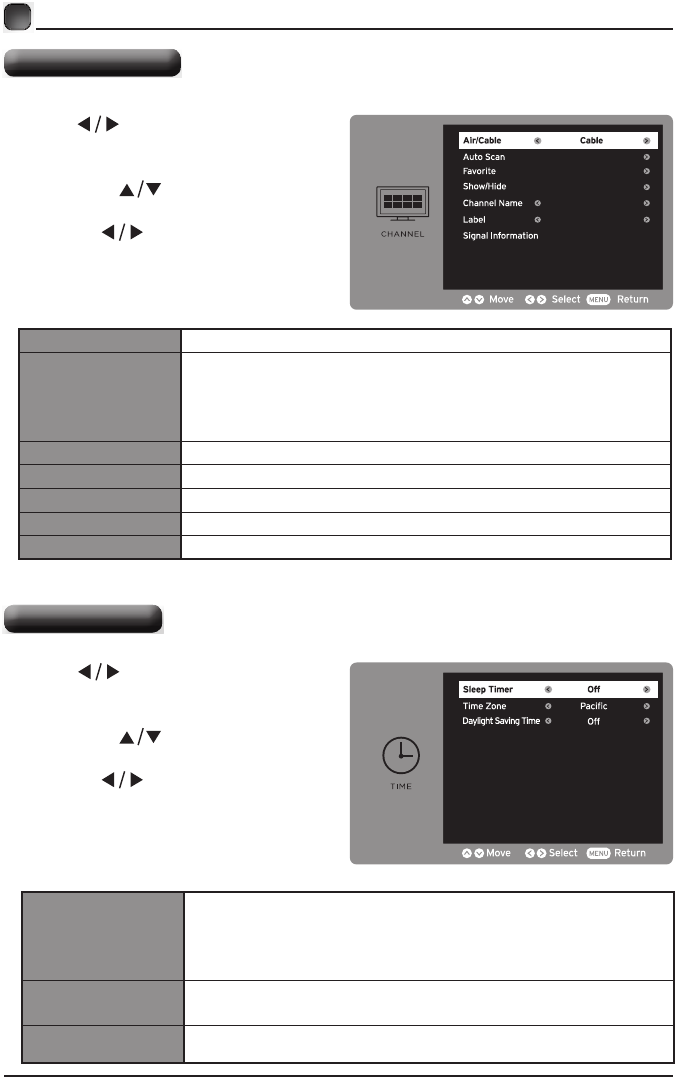

19CUSTOMIZING TV SETTINGSChannel SettingsTime SettingsTime SettingsAir/Cable Select antenna between Air and Cable. Auto ScanFirst, select your cable system from Auto/STD/IRC/HRC. Next, select the Auto Scan feature to scan your available cable channels. It will perform the auto scan if the Air antenna is selected.Favorite Set the selected channel as favorite channels.Show/Hide Show/Hide the selected channel.Channel Name Display the current channel name.Label Display the current channel label.Signal Information Display the information of current signal.Sleep TimerSelect a period of time after which the TV automatically switches to standby mode: Off/5/10/…/180/240 min.Alternative: You may press the SLEEP button repeatedly to select the number of minutes directly. Time Zone Select a Time Zone: Hawaii/ Alaska/ Pacific/ Mountain/ Central/ Eastern/ Atlantic/ Newfoundland.Daylight Sa vin g Time Select to turn On/Off daylight saving time.• Press buttons to select CHANNEL menu and then press OK button to enter.• Press the buttons to select the following audio options and then press the buttons to adjust each option’s setting.• Press buttons to select TIME menu and then press OK button to enter.• Press the buttons to select the following audio options and then press the buttons to adjust each option’s setting.

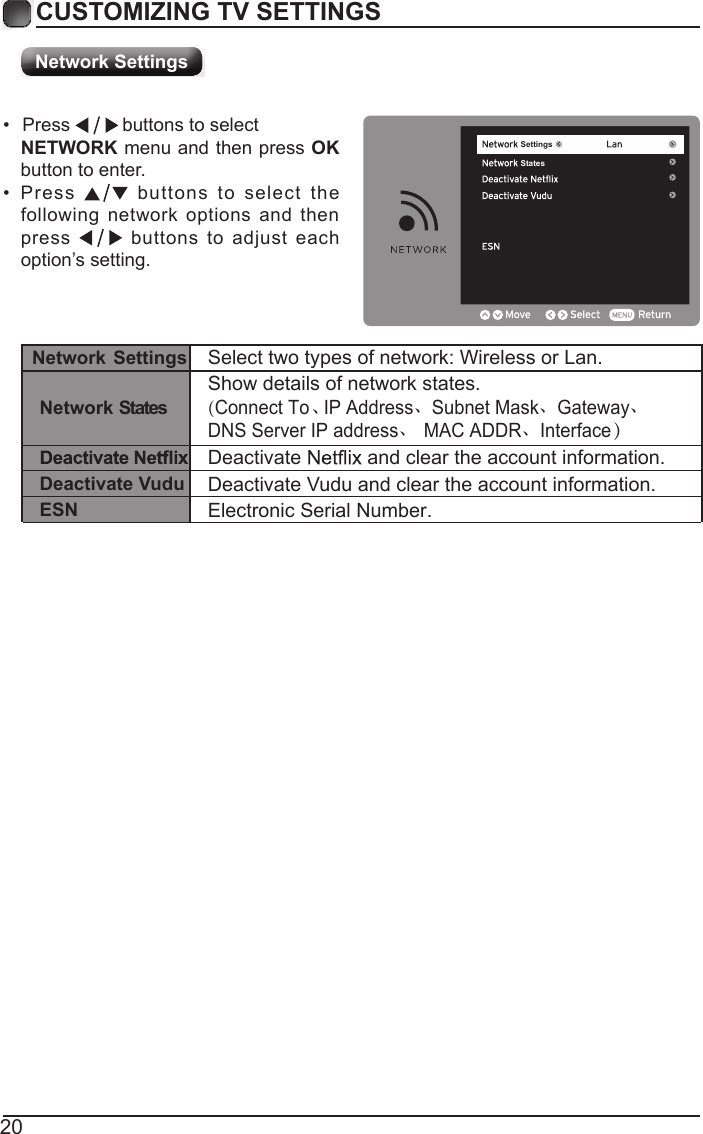

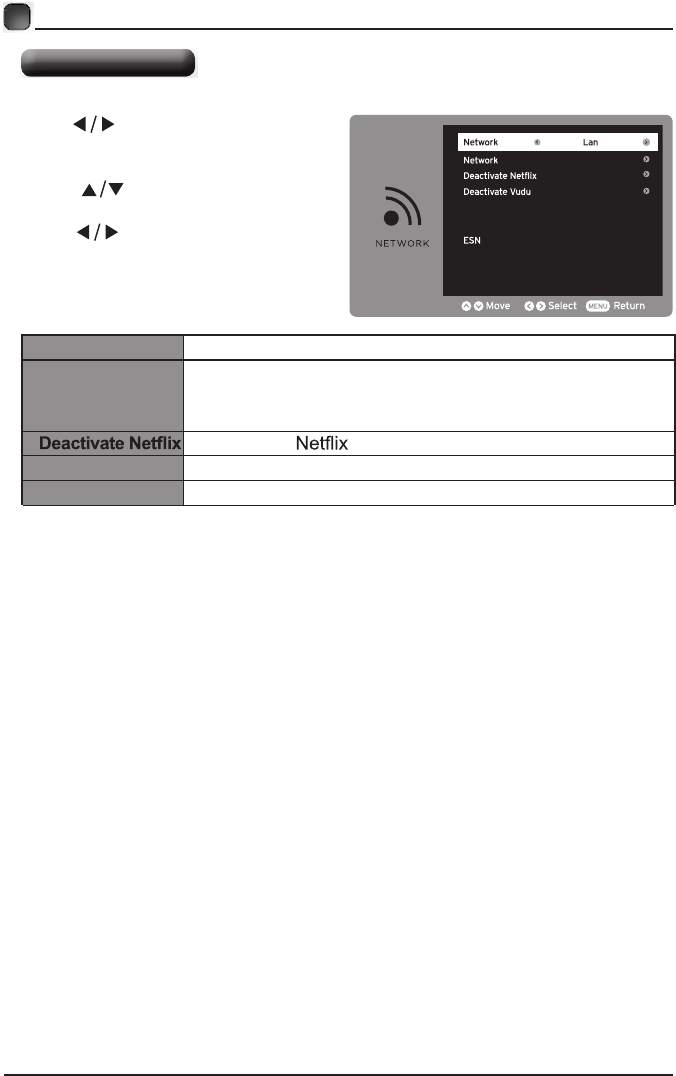

20CUSTOMIZING TV SETTINGSNetwork Settings• Press buttons to select NETWORK menu and then press OK button to enter. • Press buttons to select the following network options and then press buttons to adjust each option’s setting. Select two types of network: Wireless or Lan.SettingsStatesShow details of network states.(Connect To、IP Address、Subnet Mask、Gateway、DNS Server IP address、MAC ADDR、Interface）Network SettingsNetwork StatesDeactivate and clear the account information.Deactivate Vudu Deactivate Vudu and clear the account information.ESN Electronic Serial Number.

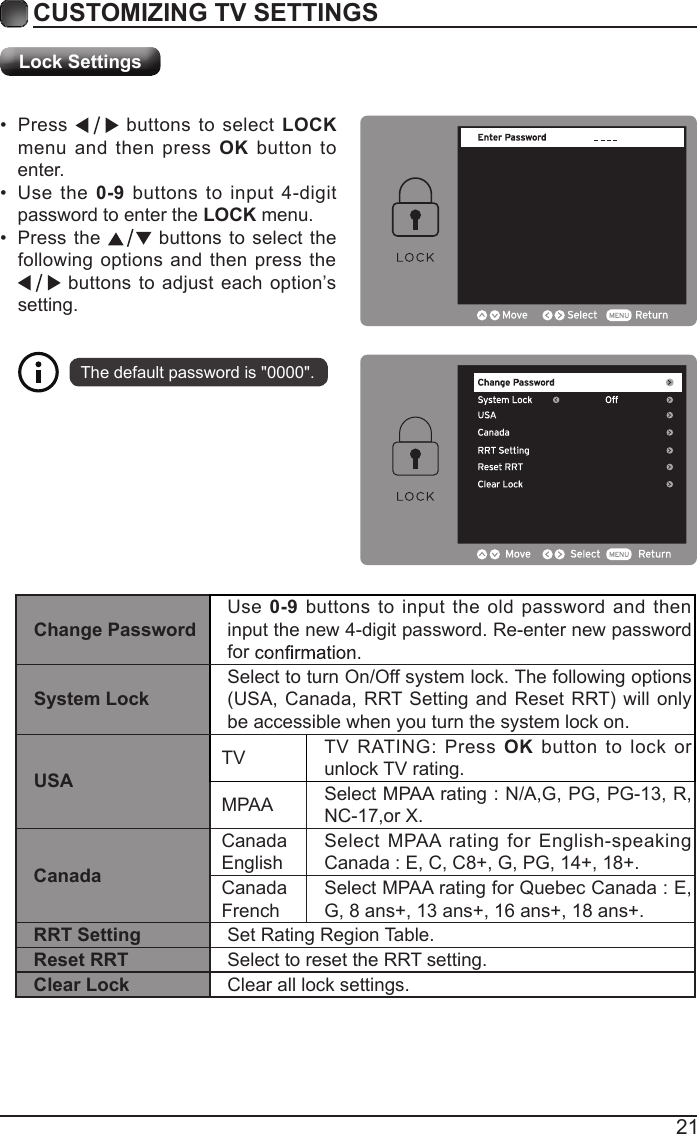

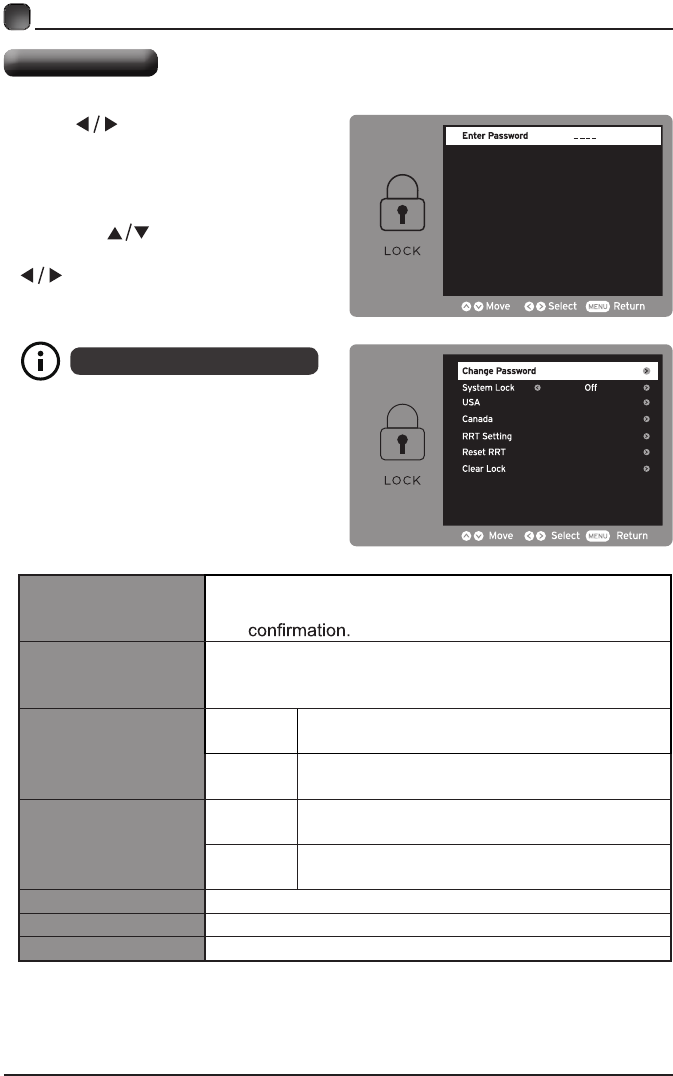

21CUSTOMIZING TV SETTINGS• Press buttons to select LOCK menu and then press OK button to enter. • Use the 0-9 buttons to input 4-digit password to enter the LOCK menu.• Press the buttons to select the following options and then press the buttons to adjust each option’s setting.The default password is "0000".Lock SettingsChange PasswordUse 0-9 buttons to input the old password and then input the new 4-digit password. Re-enter new password for System LockSelect to turn On/Off system lock. The following options (USA, Canada, RRT Setting and Reset RRT) will only be accessible when you turn the system lock on.USATV TV RATING: Press OK button to lock or unlock TV rating.MPAA Select MPAA rating : N/A,G, PG, PG-13, R, NC-17,or X.CanadaCanada EnglishSelect MPAA rating for English-speaking Canada : E, C, C8+, G, PG, 14+, 18+.Canada FrenchSelect MPAA rating for Quebec Canada : E, G, 8 ans+, 13 ans+, 16 ans+, 18 ans+.RRT Setting Set Rating Region Table.Reset RRT Select to reset the RRT setting.Clear Lock Clear all lock settings.

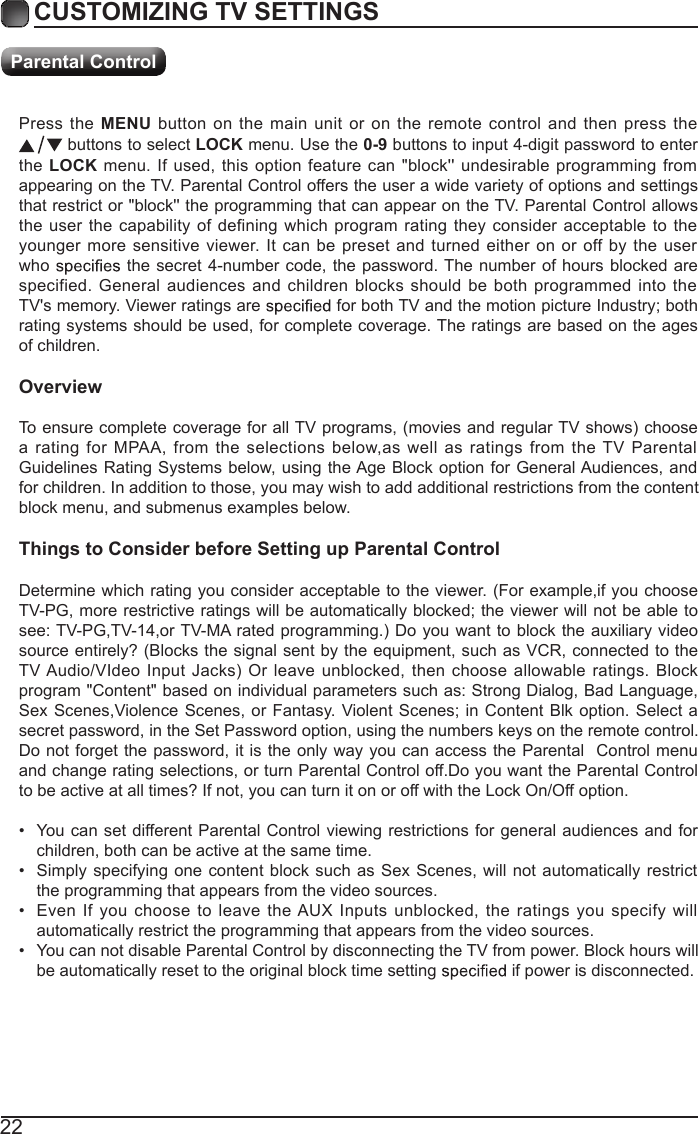

22Press the MENU button on the main unit or on the remote control and then press the buttons to select LOCK menu. Use the 0-9 buttons to input 4-digit password to enter the LOCK menu. If used, this option feature can "block'' undesirable programming from appearing on the TV. Parental Control offers the user a wide variety of options and settings that restrict or "block'' the programming that can appear on the TV. Parental Control allows the user the capability of defining which program rating they consider acceptable to the younger more sensitive viewer. It can be preset and turned either on or off by the user who the secret 4-number code, the password. The number of hours blocked are specified. General audiences and children blocks should be both programmed into the TV's memory. Viewer ratings are for both TV and the motion picture Industry; both rating systems should be used, for complete coverage. The ratings are based on the ages of children.OverviewTo ensure complete coverage for all TV programs, (movies and regular TV shows) choose a rating for MPAA, from the selections below,as well as ratings from the TV Parental Guidelines Rating Systems below, using the Age Block option for General Audiences, and for children. In addition to those, you may wish to add additional restrictions from the content block menu, and submenus examples below.Things to Consider before Setting up Parental ControlDetermine which rating you consider acceptable to the viewer. (For example,if you choose TV-PG, more restrictive ratings will be automatically blocked; the viewer will not be able to see: TV-PG,TV-14,or TV-MA rated programming.) Do you want to block the auxiliary video source entirely? (Blocks the signal sent by the equipment, such as VCR, connected to the TV Audio/VIdeo Input Jacks) Or leave unblocked, then choose allowable ratings. Block program "Content" based on individual parameters such as: Strong Dialog, Bad Language, Sex Scenes,Violence Scenes, or Fantasy. Violent Scenes; in Content Blk option. Select a secret password, in the Set Password option, using the numbers keys on the remote control.Do not forget the password, it is the only way you can access the Parental Control menu and change rating selections, or turn Parental Control off.Do you want the Parental Control to be active at all times? If not, you can turn it on or off with the Lock On/Off option.• You can set different Parental Control viewing restrictions for general audiences and for children, both can be active at the same time.• Simply specifying one content block such as Sex Scenes, will not automatically restrict the programming that appears from the video sources.• Even If you choose to leave the AUX Inputs unblocked, the ratings you specify will automatically restrict the programming that appears from the video sources.• You can not disable Parental Control by disconnecting the TV from power. Block hours will be automatically reset to the original block time setting if power is disconnected.CUSTOMIZING TV SETTINGSParental Control

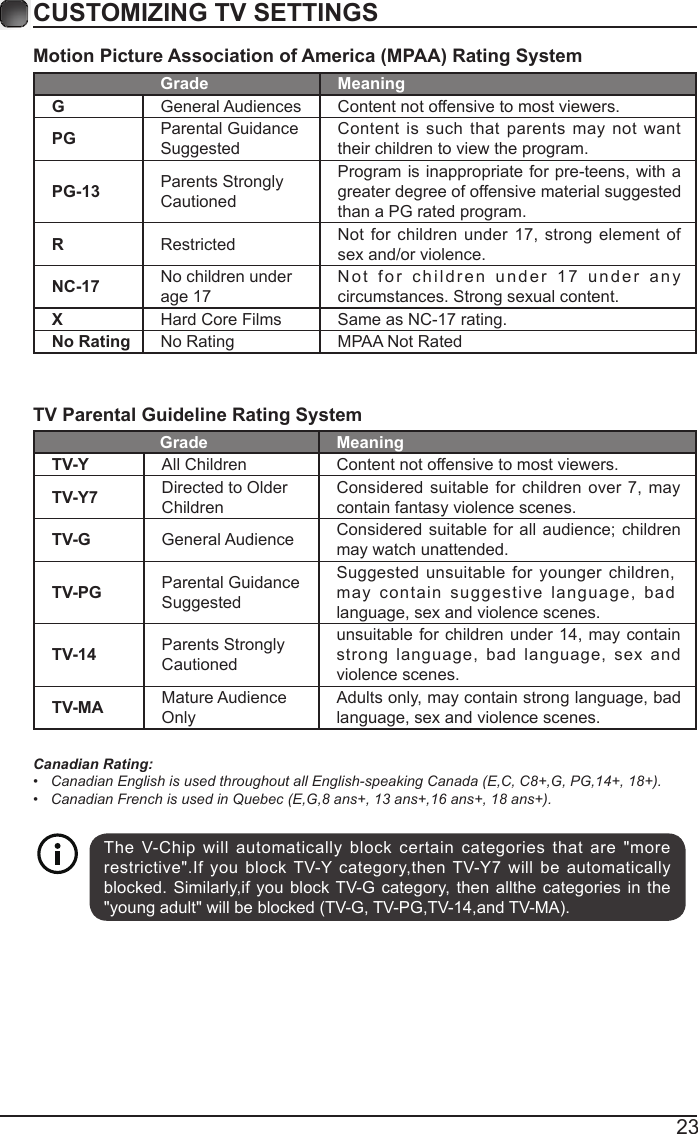

23Motion Picture Association of America (MPAA) Rating SystemGrade MeaningGGeneral Audiences Content not offensive to most viewers.PG Parental Guidance SuggestedContent is such that parents may not want their children to view the program.PG-13 Parents Strongly CautionedProgram is inappropriate for pre-teens, with a greater degree of offensive material suggested than a PG rated program.RRestricted Not for children under 17, strong element of sex and/or violence.NC-17 No children under age 17N o t f or children under 1 7 under an y circumstances. Strong sexual content.XHard Core Films Same as NC-17 rating.No Rating No Rating MPAA Not RatedTV Parental Guideline Rating System Grade MeaningTV-Y All Children Content not offensive to most viewers.TV-Y7 Directed to Older ChildrenConsidered suitable for children over 7, may contain fantasy violence scenes.TV-G General Audience Considered suitable for all audience; children may watch unattended.TV-PG Parental Guidance SuggestedSuggested unsuitable for younger children, may contain suggestive language, bad language, sex and violence scenes.TV-14 Parents Strongly Cautionedunsuitable for children under 14, may contain strong language, bad language, sex and violence scenes.TV-MA Mature Audience OnlyAdults only, may contain strong language, bad language, sex and violence scenes.Canadian Rating:• Canadian English is used throughout all English-speaking Canada (E,C, C8+,G, PG,14+, 18+).• Canadian French is used in Quebec (E,G,8 ans+, 13 ans+,16 ans+, 18 ans+).CUSTOMIZING TV SETTINGSThe V-Chip will automatically block certain categories that are "more restrictive".If you block TV-Y category,then TV-Y7 will be automatically blocked. Similarly,if you block TV-G category, then allthe categories in the "young adult" will be blocked (TV-G, TV-PG,TV-14,and TV-MA).
24TROUBLESHOOTING If your TV does not operate normally or cannot be turned on, please check the following troubleshooting questions. Remember also to check any other connected electronic device, such as DVD or blu-ray player to pinpoint the problem. If the TV still fails to operate normally, please contact technical support (Refer to Warraty page).SYMPTOM POSSIBLE CAUSE REMEDYDead. No LED lit No power to the TV. • Check all connections to the TV's AC socket.Dead. No LED lit red Set in standby mode.• Press either the Power button or the Standby button on the remote control. Blue screen No signal. • Press the SOURCE button to select the correct source.Incorrect source selected.Noisy, snowy, ghosting picture (TV) Poor antenna signal.• If using an indoor antenna, try adjusting the antenna position. Check antenna connections.No soundSound "Mute". • Turn sound "Mute" off.Volume set too low. • Check volume settings.External leads not connected "if used".• Check that all external leads are connected properly.PASSWORDLost passwordSelect the SET Password setting in the LOCK menu, thenenter the following master password “8899”. The masterpassword clears your previous password and allows you toenter a new password.

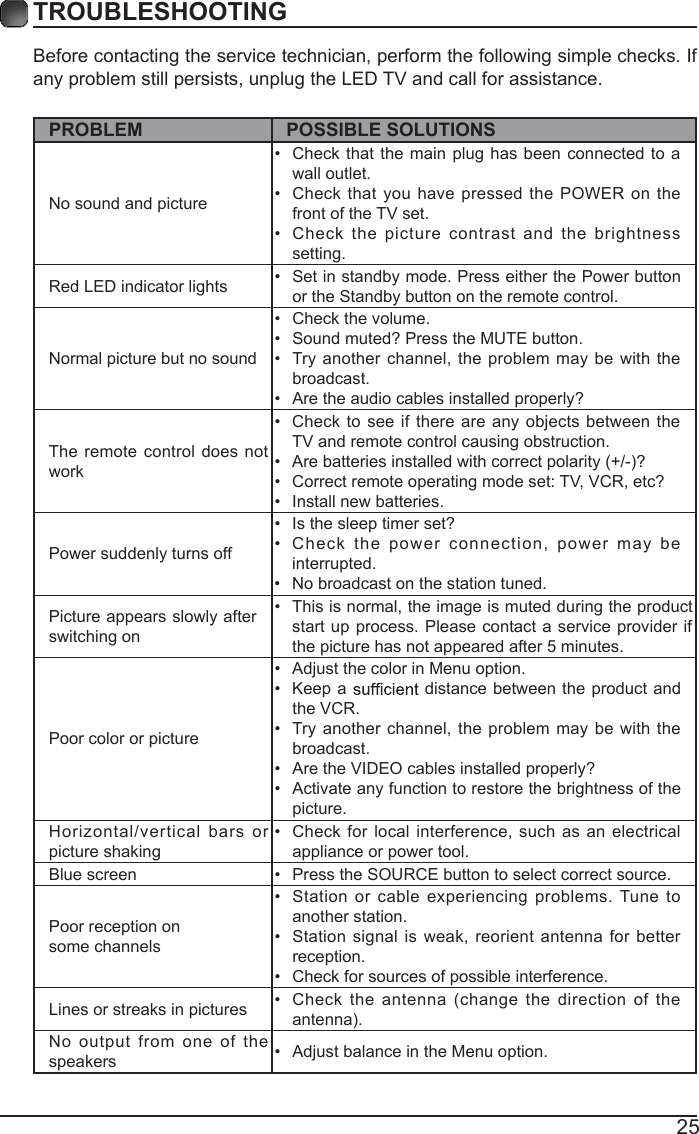

25Before contacting the service technician, perform the following simple checks. If any problem still persists, unplug the LED TV and call for assistance.PROBLEM POSSIBLE SOLUTIONSNo sound and picture• Check that the main plug has been connected to a wall outlet.• Check that you have pressed the POWER on the front of the TV set.• Check the picture contrast and the brightness setting.Red LED indicator lights • Set in standby mode. Press either the Power button or the Standby button on the remote control. Normal picture but no sound• Check the volume.• Sound muted? Press the MUTE button. • Try another channel, the problem may be with the broadcast. • Are the audio cables installed properly? The remote control does not work• Check to see if there are any objects between the TV and remote control causing obstruction. • Are batteries installed with correct polarity (+/-)?• Correct remote operating mode set: TV, VCR, etc?• Install new batteries. Power suddenly turns off • Is the sleep timer set?• Check the power connection, power may be interrupted. • No broadcast on the station tuned. Picture appears slowly after switching on • This is normal, the image is muted during the product start up process. Please contact a service provider if the picture has not appeared after 5 minutes. Poor color or picture• Adjust the color in Menu option.• Keep a distance between the product and the VCR.• Try another channel, the problem may be with the broadcast.• Are the VIDEO cables installed properly?• Activate any function to restore the brightness of the picture.Horizontal/vertical bars or picture shaking• Check for local interference, such as an electrical appliance or power tool.Blue screen • Press the SOURCE button to select correct source.Poor reception on some channels• Station or cable experiencing problems. Tune to another station.• Station signal is weak, reorient antenna for better reception.• Check for sources of possible interference. Lines or streaks in pictures • Check the antenna (change the direction of the antenna).No output from one of the speakers • Adjust balance in the Menu option.TROUBLESHOOTING

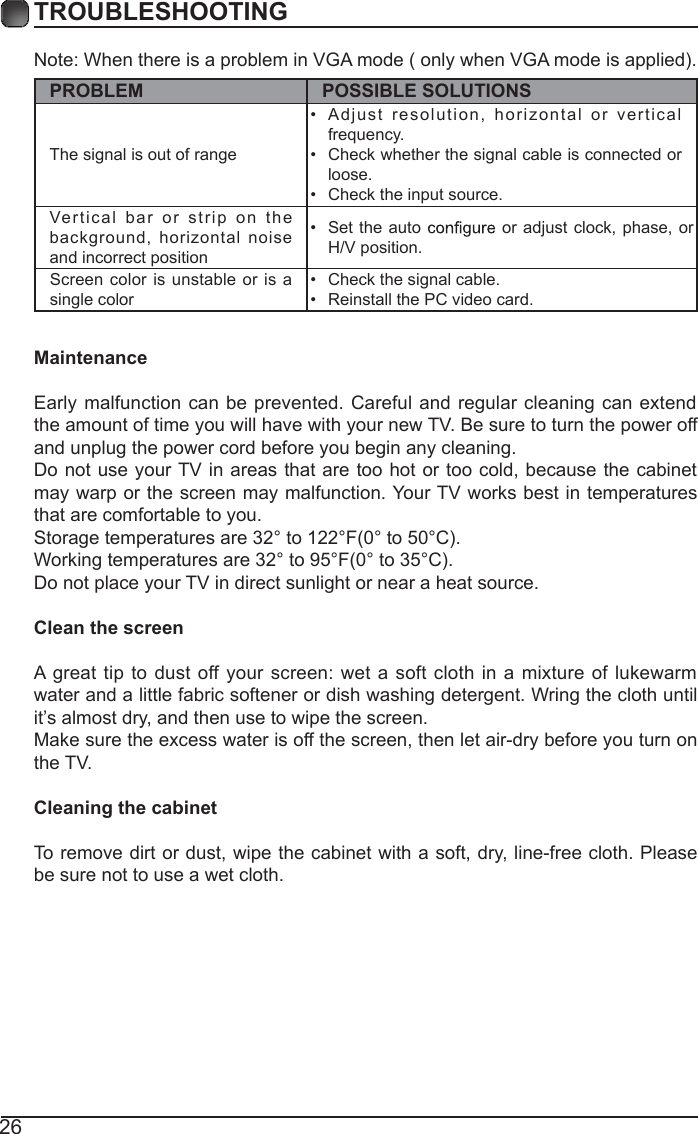

26TROUBLESHOOTINGNote: When there is a problem in VGA mode ( only when VGA mode is applied). PROBLEM POSSIBLE SOLUTIONSThe signal is out of range • Adjust resolution, horizontal or v ertical frequency.• Check whether the signal cable is connected or loose.• Check the input source. Vertical bar or s trip on the background, horizontal noise and incorrect position • Set the auto or adjust clock, phase, or H/V position. Screen color is unstable or is a single color • Check the signal cable.• Reinstall the PC video card. MaintenanceEarly malfunction can be prevented. Careful and regular cleaning can extend the amount of time you will have with your new TV. Be sure to turn the power off and unplug the power cord before you begin any cleaning.Do not use your TV in areas that are too hot or too cold, because the cabinet may warp or the screen may malfunction. Your TV works best in temperatures that are comfortable to you.Storage temperatures are 32° to 122°F(0° to 50°C).Working temperatures are 32° to 95°F(0° to 35°C).Do not place your TV in direct sunlight or near a heat source.Clean the screenA great tip to dust off your screen: wet a soft cloth in a mixture of lukewarm water and a little fabric softener or dish washing detergent. Wring the cloth until it’s almost dry, and then use to wipe the screen.Make sure the excess water is off the screen, then let air-dry before you turn on the TV. Cleaning the cabinetTo remove dirt or dust, wipe the cabinet with a soft, dry, line-free cloth. Please be sure not to use a wet cloth.

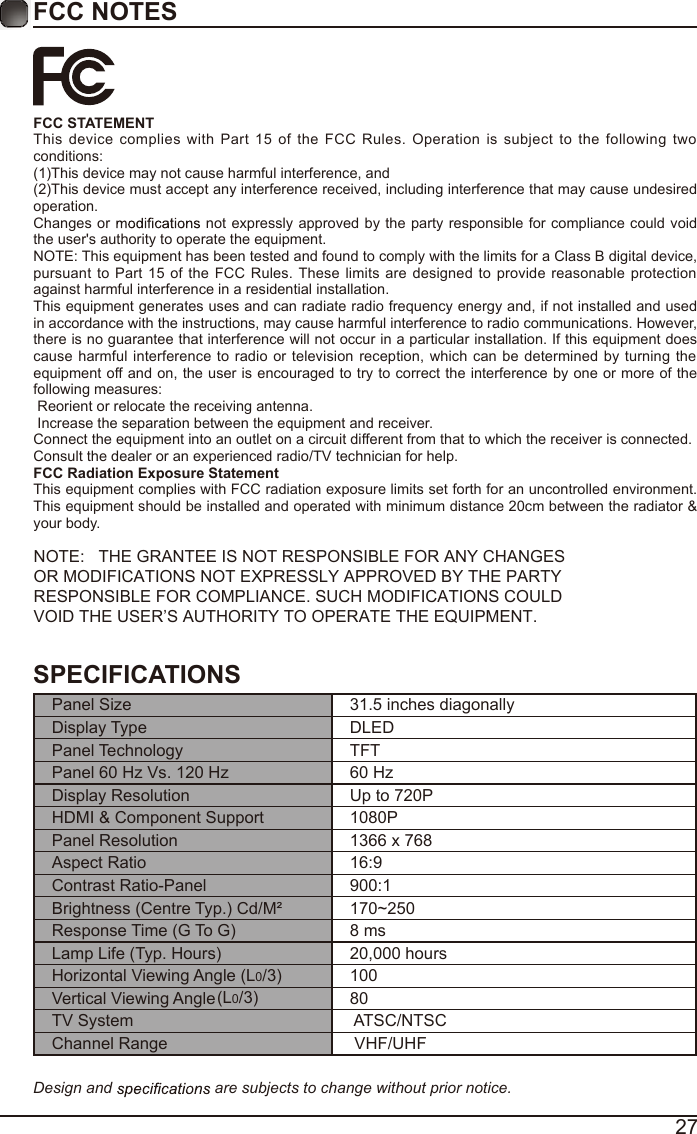

27FCC NOTESFCC STATEMENTThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)This device may not cause harmful interference, and(2)This device must accept any interference received, including interference that may cause undesired operation. Changes or not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver.Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.Consult the dealer or an experienced radio/TV technician for help.FCC Radiation Exposure StatementThis equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.NOTE: THE GRANTEE IS NOT RESPONSIBLE FOR ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.SPECIFICATIONSPanel Size 31.5 inches diagonally Display Type DLEDPanel Technology TFTPanel 60 Hz Vs. 120 Hz 60 HzDisplay Resolution Up to 720PHDMI & Component Support 1080PPanel Resolution 1366 x 768Aspect Ratio 16:9Contrast Ratio-Panel 900:1Brightness (Centre Typ.) Cd/M² 170~250Response Time (G To G) 8 msLamp Life (Typ. Hours) 20,000 hoursHorizontal Viewing Angle (L0/3)(L0/3) 100Vertical Viewing Angle 80TV System ATSC/NTSCChannel Range VHF/UHFDesign and are subjects to change without prior notice.

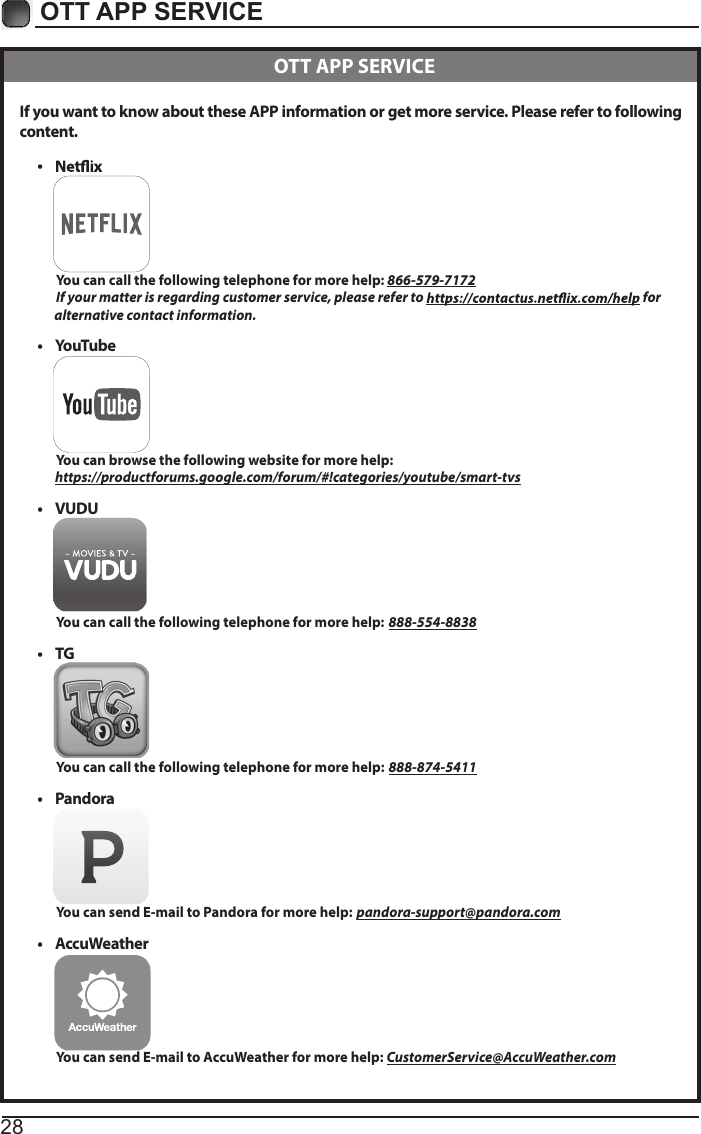

28OTT APP SERVICE If you want to know about these APP information or get more service. Please refer to following content.• You can call the following telephone for more help: 866-579-7172 If your matter is regarding customer service, please refer to for alternative contact information.• YouTube You can browse the following website for more help: https://productforums.google.com/forum/#!categories/youtube/smart-tvs• VUDU You can call the following telephone for more help: 888-554-8838• TG You can call the following telephone for more help: 888-874-5411• Pandora You can send E-mail to Pandora for more help: pandora-support@pandora.com• AccuWeather You can send E-mail to AccuWeather for more help: CustomerService@AccuWeather.com OTT APP SERVICE

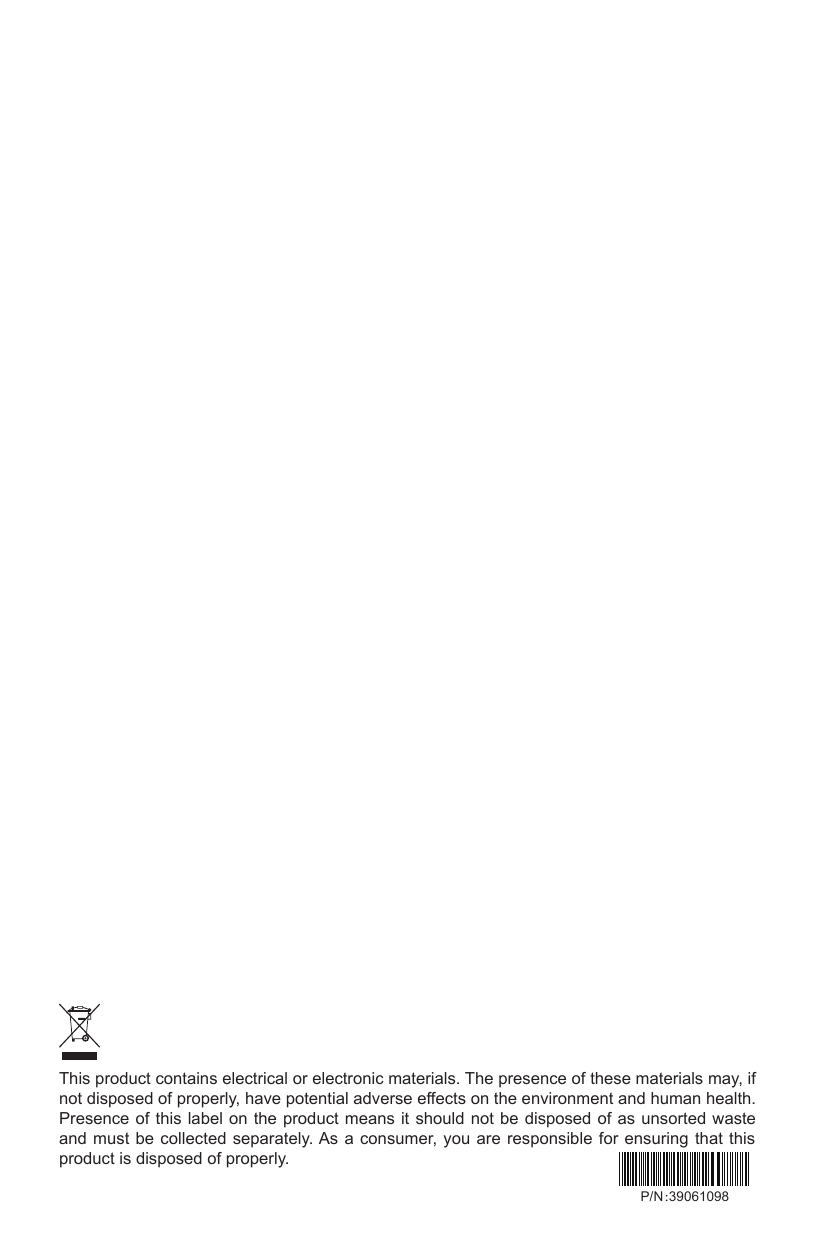

This product contains electrical or electronic materials. The presence of these materials may, if not disposed of properly, have potential adverse effects on the environment and human health.Presence of this label on the product means it should not be disposed of as unsorted waste and must be collected separately. As a consumer, you are responsible for ensuring that this product is disposed of properly.P/N：39061098
