ANHUI KONKA ELECTRONIC CO., LTD LCD TV Users Manual

Users Manual

WD40FT2108

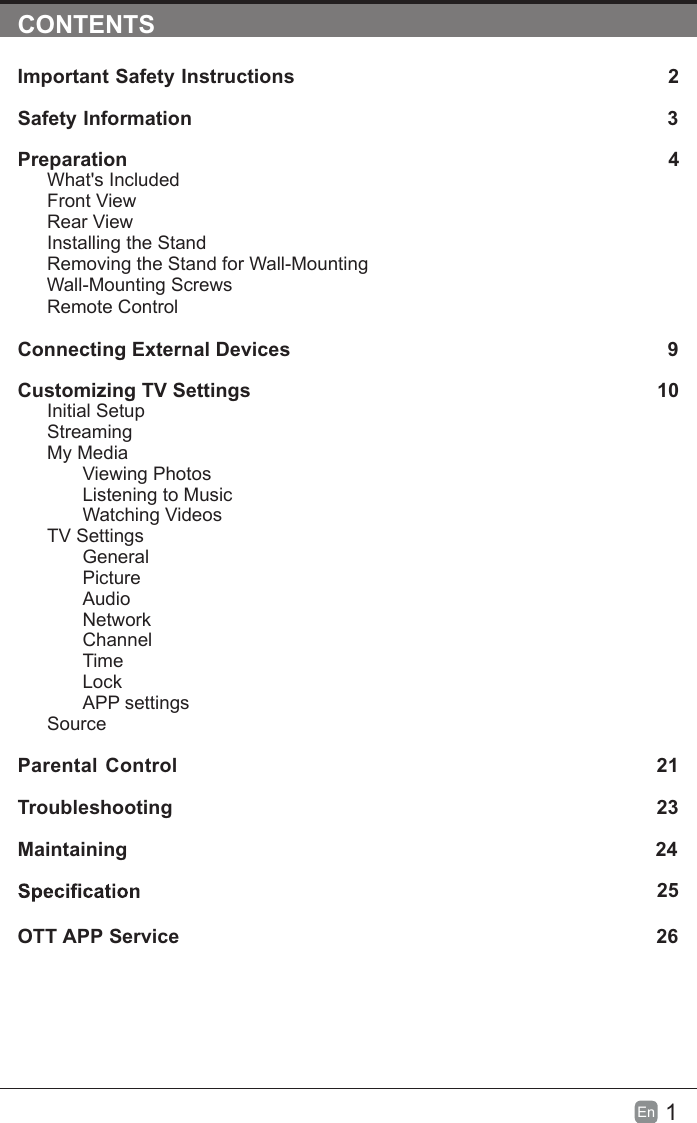

1En  CONTENTSImportant Safety Instructions                                                         2Safety Information                                                                            3Preparation                                                                                            4What's IncludedFront ViewRear ViewInstalling the StandRemoving the Stand for Wall-Mounting         Wall-Mounting ScrewsRemote ControlConnecting External Devices                                                  9Customizing TV Settings                                                               10Initial SetupStreamingMy MediaViewing PhotosListening to MusicWatching VideosTV SettingsGeneralPictureAudioNetworkChannelTimeLockAPP settingsSource Parental Control                                                               21Troubleshooting                                                                   23Maintaining                                                                                                24                                                                                  25OTT APP Service                                                                              26

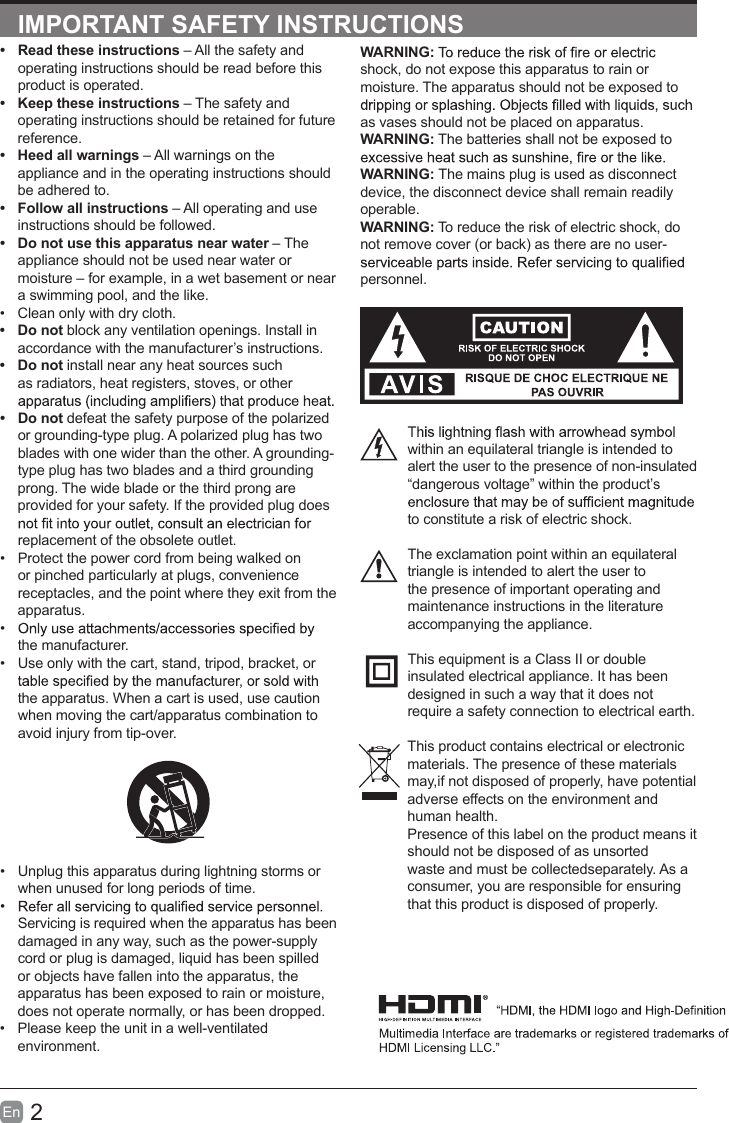

2En  IMPORTANT SAFETY INSTRUCTIONSWARNING:shock, do not expose this apparatus to rain or moisture. The apparatus should not be exposed to as vases should not be placed on apparatus. WARNING: The batteries shall not be exposed to WARNING: The mains plug is used as disconnect device, the disconnect device shall remain readily operable.WARNING: To reduce the risk of electric shock, do not remove cover (or back) as there are no user-personnel.within an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage” within the product’s to constitute a risk of electric shock.The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the appliance. This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth.This product contains electrical or electronicmaterials. The presence of these materialsmay,if not disposed of properly, have potentialadverse effects on the environment and human health.Presence of this label on the product means itshould not be disposed of as unsorted waste and must be collectedseparately. As a consumer, you are responsible for ensuring that this product is disposed of properly.•  Read these instructions – All the safety and operating instructions should be read before this product is operated. •  Keep these instructions – The safety and operating instructions should be retained for future reference. •  Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to. •  Follow all instructions – All operating and use instructions should be followed. •  Do not use this apparatus near water – The appliance should not be used near water or moisture – for example, in a wet basement or near a swimming pool, and the like.•  Clean only with dry cloth.•  Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.•  Do not install near any heat sources such as radiators, heat registers, stoves, or other •  Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does replacement of the obsolete outlet.•  Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.• the manufacturer.•  Use only with the cart, stand, tripod, bracket, or the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. •  Unplug this apparatus during lightning storms or when unused for long periods of time.• Servicing is required when the apparatus has been damaged in any way, such as the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.•  Please keep the unit in a well-ventilated environment.

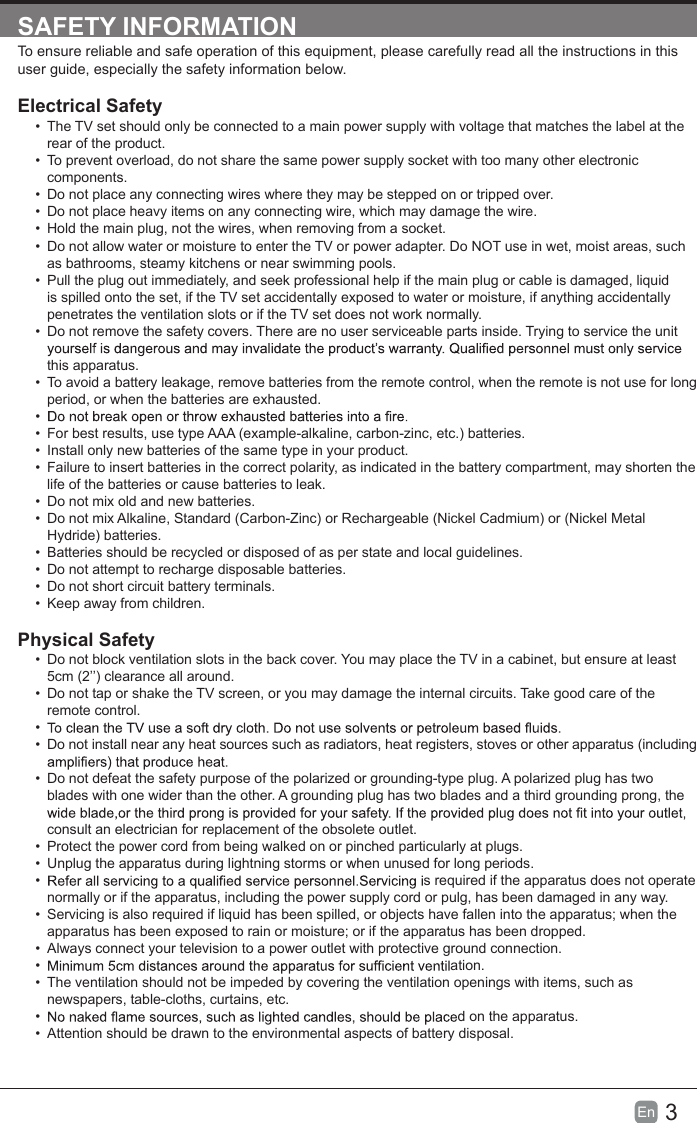

3En  SAFETY INFORMATIONTo ensure reliable and safe operation of this equipment, please carefully read all the instructions in this user guide, especially the safety information below.Electrical Safety •  The TV set should only be connected to a main power supply with voltage that matches the label at the rear of the product.•  To prevent overload, do not share the same power supply socket with too many other electronic components.•  Do not place any connecting wires where they may be stepped on or tripped over.•  Do not place heavy items on any connecting wire, which may damage the wire.•  Hold the main plug, not the wires, when removing from a socket.•  Do not allow water or moisture to enter the TV or power adapter. Do NOT use in wet, moist areas, such as bathrooms, steamy kitchens or near swimming pools.•  Pull the plug out immediately, and seek professional help if the main plug or cable is damaged, liquid is spilled onto the set, if the TV set accidentally exposed to water or moisture, if anything accidentally penetrates the ventilation slots or if the TV set does not work normally.•  Do not remove the safety covers. There are no user serviceable parts inside. Trying to service the unit this apparatus.•  To avoid a battery leakage, remove batteries from the remote control, when the remote is not use for long period, or when the batteries are exhausted.• •  For best results, use type AAA (example-alkaline, carbon-zinc, etc.) batteries.•  Install only new batteries of the same type in your product.•  Failure to insert batteries in the correct polarity, as indicated in the battery compartment, may shorten the life of the batteries or cause batteries to leak.•  Do not mix old and new batteries.•  Do not mix Alkaline, Standard (Carbon-Zinc) or Rechargeable (Nickel Cadmium) or (Nickel Metal Hydride) batteries.•  Batteries should be recycled or disposed of as per state and local guidelines.•  Do not attempt to recharge disposable batteries.•  Do not short circuit battery terminals.•  Keep away from children.Physical Safety •  Do not block ventilation slots in the back cover. You may place the TV in a cabinet, but ensure at least 5cm (2’’) clearance all around.•  Do not tap or shake the TV screen, or you may damage the internal circuits. Take good care of the remote control.• •  Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including •  Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding plug has two blades and a third grounding prong, the consult an electrician for replacement of the obsolete outlet. •  Protect the power cord from being walked on or pinched particularly at plugs. •  Unplug the apparatus during lightning storms or when unused for long periods.•  s required if the apparatus does not operate normally or if the apparatus, including the power supply cord or pulg, has been damaged in any way.•  Servicing is also required if liquid has been spilled, or objects have fallen into the apparatus; when the apparatus has been exposed to rain or moisture; or if the apparatus has been dropped.•  Always connect your television to a power outlet with protective ground connection. •  ation.•  The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.•  d on the apparatus.•  Attention should be drawn to the environmental aspects of battery disposal.

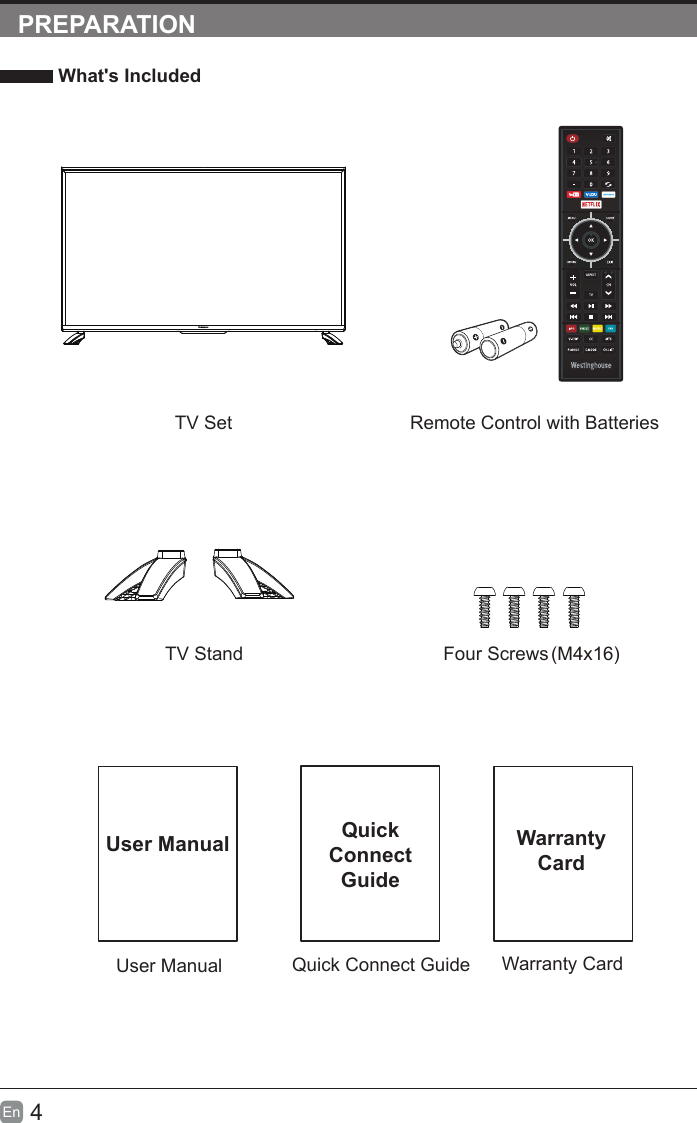

4En  PREPARATION What's IncludedQuick Connect GuideQuickConnect GuideUser ManualUser ManualRemote Control with BatteriesWarranty CardWarranty CardTV SetTV Stand Four Screws )  61x4M(902.7169ASPECTSLEEPCH.LIST

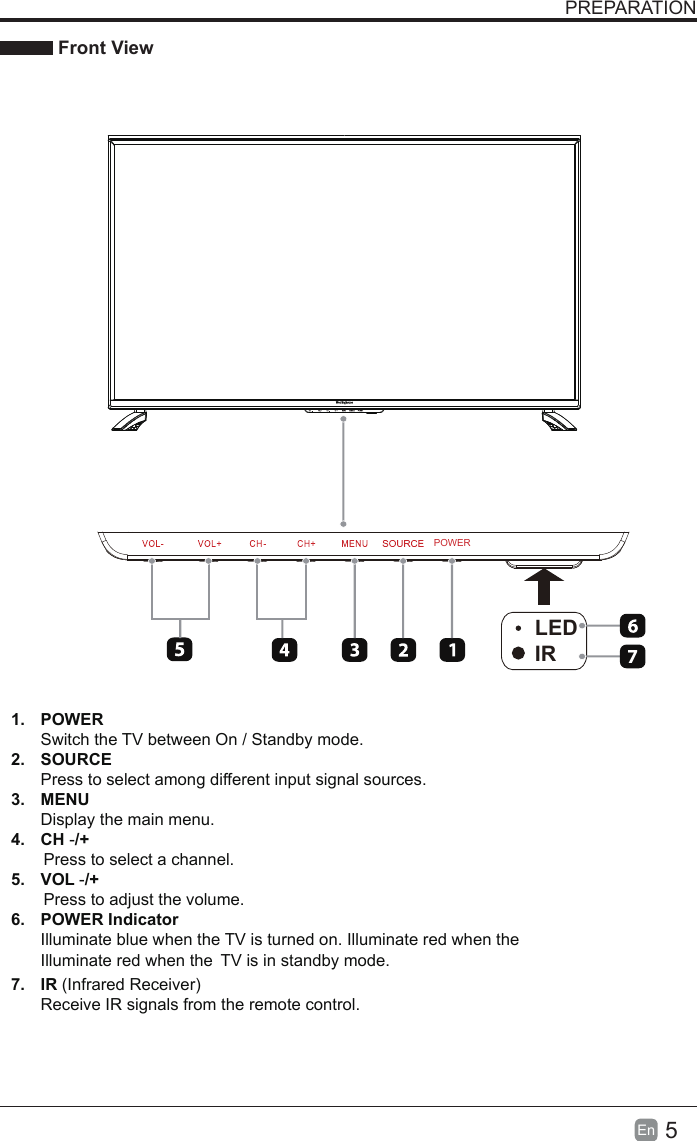

5En  PREPARATION Front View1.  POWER Switch the TV between On / Standby mode.2.  SOURCEPress to select among different input signal sources.3.  MENUDisplay the main menu.4.  CH       Press to select a channel.5.  VOL -/+-/+       Press to adjust the volume.6.  POWER IndicatorIlluminate blue when the TV is turned on. Illuminate red when theIlluminate red when the TV is in standby mode.7.  IR (Infrared Receiver)Receive IR signals from the remote control.LEDIRPOWER7902.7169

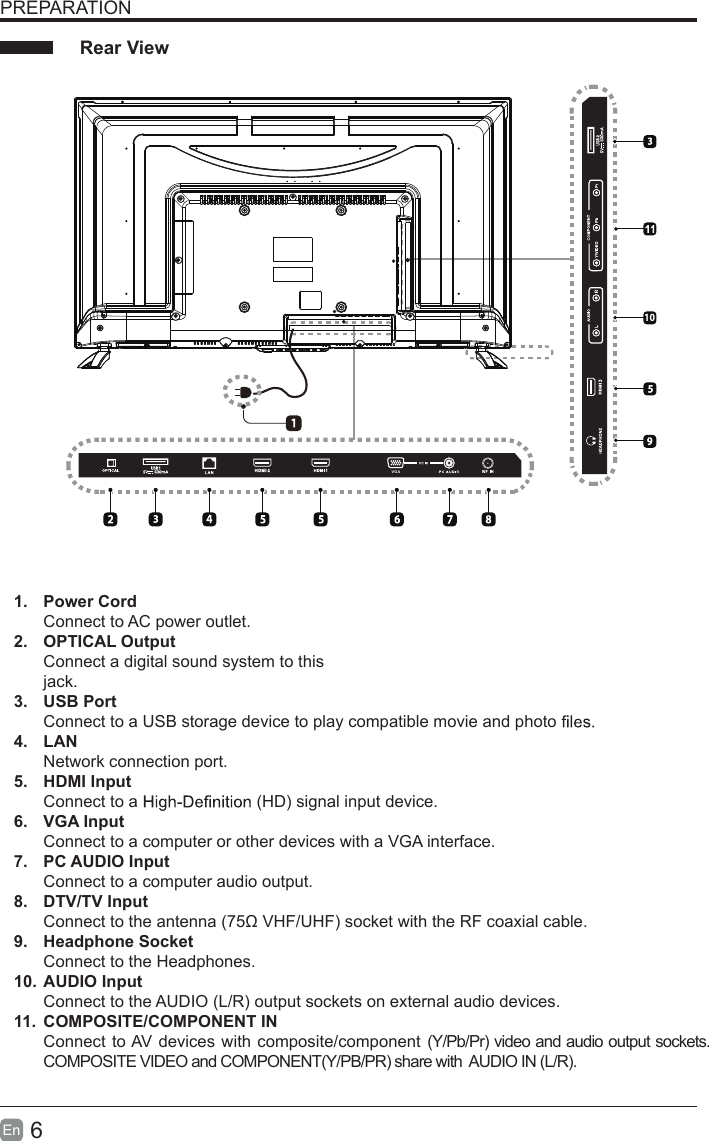

6En  PREPARATION Rear View1.  Power CordConnect to AC power outlet.2.  OPTICAL OutputConnect a digital sound system to thisjack.3.  USB PortConnect to a USB storage device to play compatible movie and photo   4.  LANNetwork connection port.5.  HDMI InputConnect to a   (HD) signal input device.6.  VGA InputConnect to a computer or other devices with a VGA interface.7.  PC AUDIO InputConnect to a computer audio output.8.  DTV/TV Input Connect to the antenna (75Ω VHF/UHF) socket with the RF coaxial cable.9.  Headphone SocketConnect to the Headphones.10. AUDIO InputConnect to the AUDIO (L/R) output sockets on external audio devices.11.  COMPOSITE/COMPONENT IN   Connect to AV devices with composite/component (Y/Pb/Pr) video and audio output sockets. COMPOSITE VIDEO and COMPONENT(Y/PB/PR) share with   AUDIO IN (L/R).10VG A

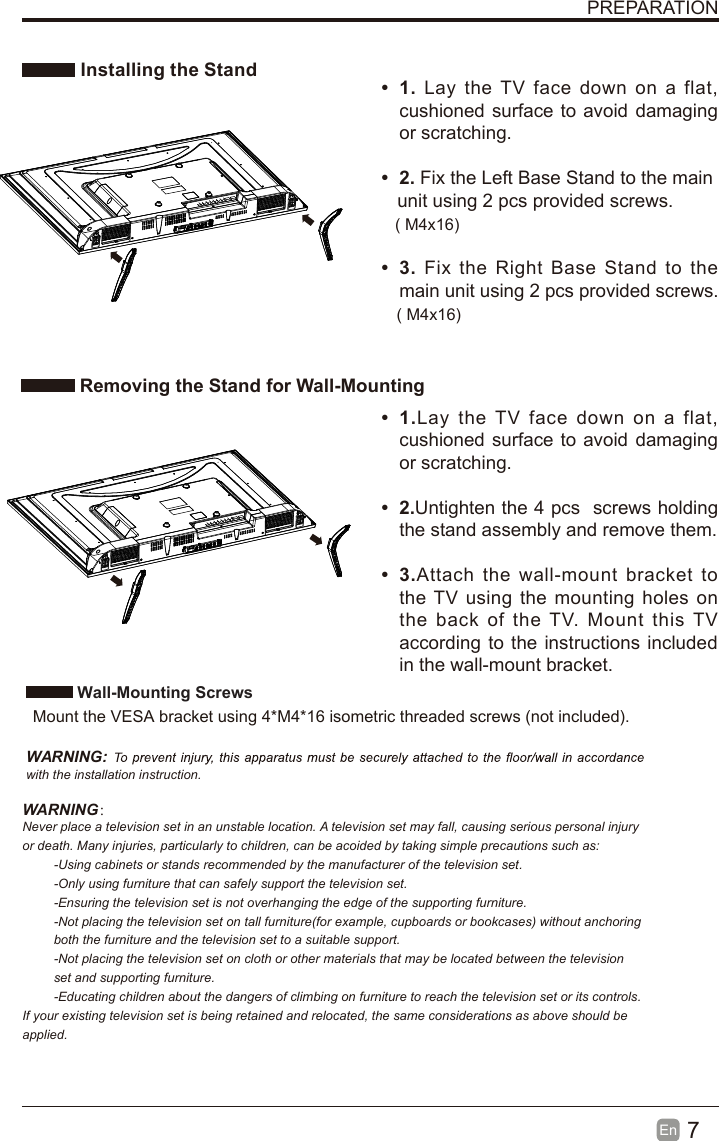

7En  PREPARATION Installing the Stand Removing the Stand for Wall-Mounting•  1. Lay the TV  face  down  on  a  flat, cushioned surface to avoid  damaging or scratching.     •  2. Fix the Left Base Stand to the main   unit using 2 pcs provided screws.•  3. Fix  the  Right  Base  Stand  to  the main unit using 2 pcs provided screws.•  1.Lay  the  TV  face  down  on  a  flat, cushioned surface to avoid  damaging or scratching.•  2.Untighten the 4 pcs  screws holding the stand assembly and remove them.    •  3.Attach  the  wall-mount  bracket  to the TV using the mounting holes on the  back  of  the  TV.  Mount  this TV according to the instructions included in the wall-mount bracket.  Wall-Mounting Screws  Mount the VESA bracket using 4*M4*16 isometric threaded screws (not included).   WARNING: with the installation instruction.WARNING:Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be acoided by taking simple precautions such as:-Using cabinets or stands recommended by the manufacturer of the television set.-Only using furniture that can safely support the television set.-Ensuring the television set is not overhanging the edge of the supporting furniture.-Not placing the television set on tall furniture(for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.-Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture.-Educating children about the dangers of climbing on furniture to reach the television set or its controls.If your existing television set is being retained and relocated, the same considerations as above should be applied.( M4x16)( M4x16)

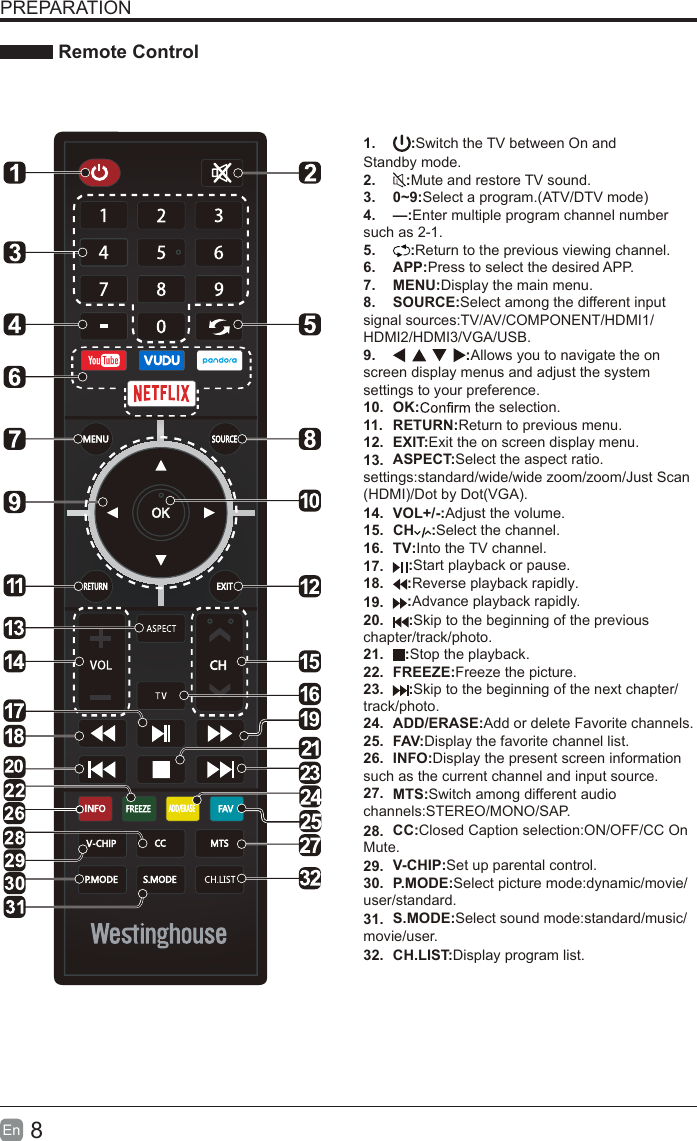

8En  PREPARATION Remote Control1.  :Switch the TV between On and Standby mode.2.  :Mute and restore TV sound.3.  0~9:Select a program.(ATV/DTV mode)4.  —:Enter multiple program channel number such as 2-1.5.  :Return to the previous viewing channel.6.  APP:Press to select the desired APP.7.  MENU:Display the main menu.8.  SOURCE:Select among the different input signal sources:TV/AV/COMPONENT/HDMI1/HDMI2/HDMI3/VGA/USB.9.  :Allows you to navigate the on screen display menus and adjust the system settings to your preference.10.  OK:  the selection.11.  RETURN:Return to previous menu.12.  EXIT:Exit the on screen display menu.13. 14.  VOL+/-:Adjust the volume.15.  CH :Select the channel.16.  TV:Into the TV channel.17. :Stop the playback.18. :Skip to the beginning of the previous chapter/track/photo.19. :Skip to the beginning of the next chapter/ track/photo.20. :Reverse playback rapidly.21. :Advance playback rapidly.22.  FREEZE:Freeze the picture.23. :Start playback or pause.24.  ADD/ERASE:Add or delete Favorite channels.25.  FAV:Display the favorite channel list.26.  INFO:Display the present screen information such as the current channel and input source.27. S.MODE:Select sound mode:standard/music/movie/user.28. P.MODE:Select picture mode:dynamic/movie/user/standard.29. CH.LIST:Display program list.30. V-CHIP:Set up parental control.ASPECT:Select the aspect ratio. settings:standard/wide/wide zoom/zoom/Just Scan (HDMI)/Dot by Dot(VGA).32.31. CC:Closed Caption selection:ON/OFF/CC On Mute.MTS:Switch among different audio channels:STEREO/MONO/SAP.

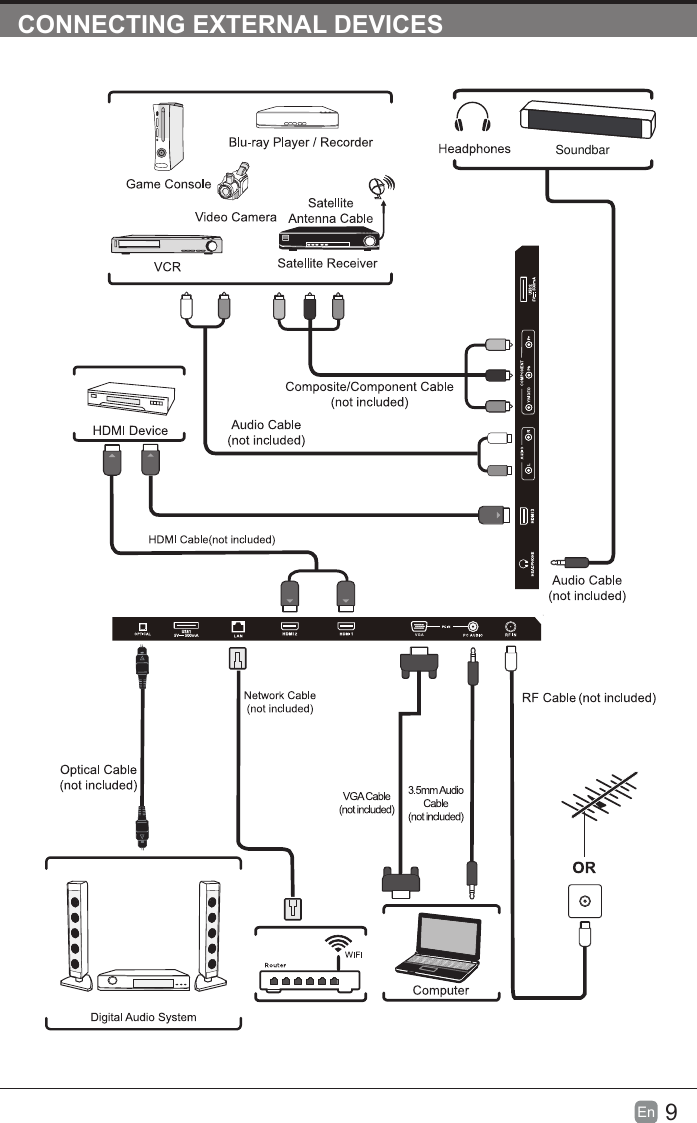

9En  CONNECTING EXTERNAL DEVICESSoundbarVG A

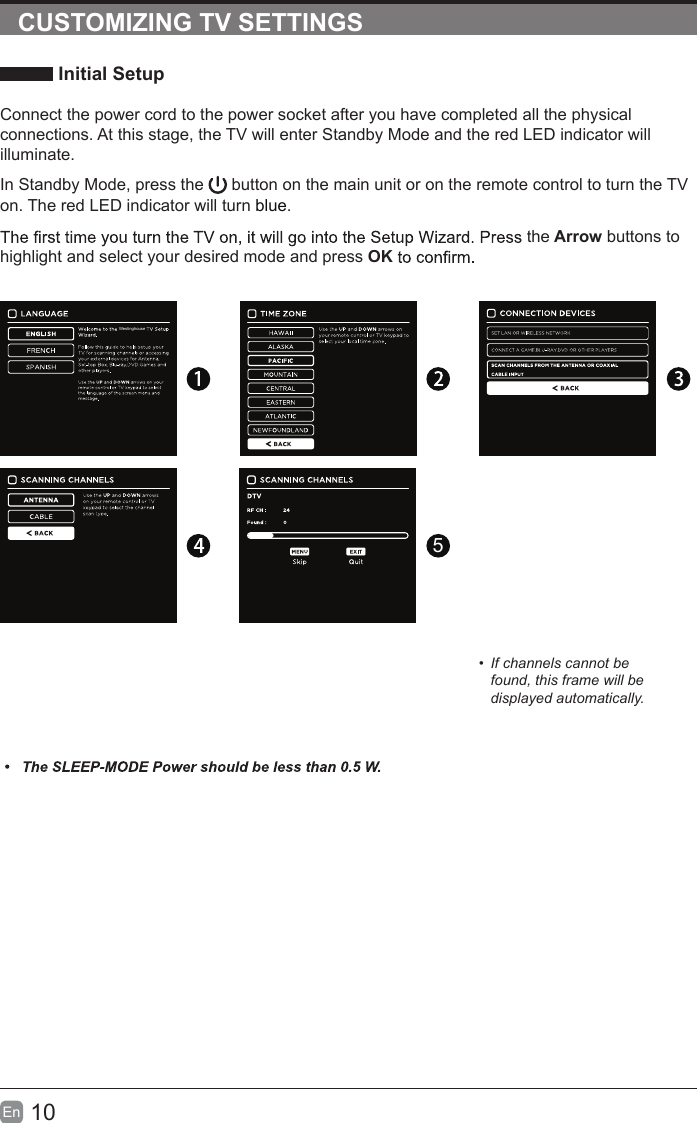

10En  CUSTOMIZING TV SETTINGS Initial SetupConnect the power cord to the power socket after you have completed all the physical connections. At this stage, the TV will enter Standby Mode and the red LED indicator will illuminate. In Standby Mode, press the   button on the main unit or on the remote control to turn the TV on. The red LED indicator will turn blue.the Arrow buttons to highlight and select your desired mode and press OK5•  If channels cannot be found, this frame will be displayed automatically.Westinghouse

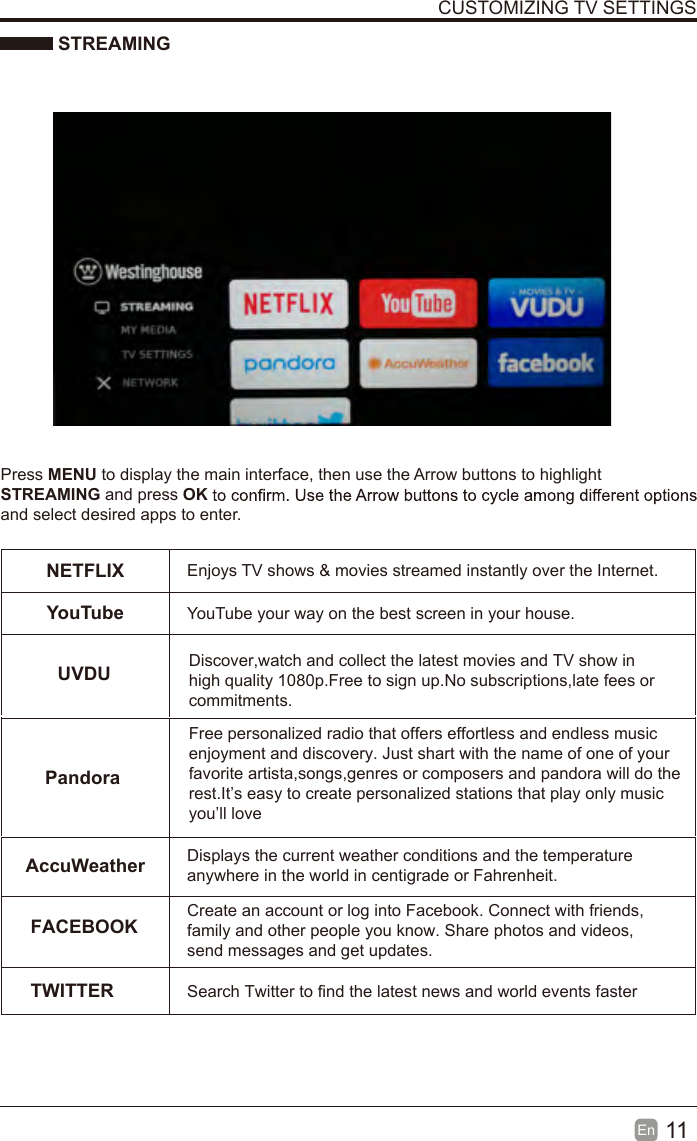

11En  CUSTOMIZING TV SETTINGS STREAMINGPress MENU to display the main interface, then use the Arrow buttons to highlight STREAMING and press OKand select desired apps to enter.NETFLIX Enjoys TV shows & movies streamed instantly over the Internet.YouTubeUVDUPandoraFACEBOOKYouTube your way on the best screen in your house.Discover,watch and collect the latest movies and TV show inhigh quality 1080p.Free to sign up.No subscriptions,late fees orcommitments.  Free personalized radio that offers effortless and endless musicenjoyment and discovery. Just shart with the name of one of yourfavorite artista,songs,genres or composers and pandora will do therest.It’s easy to create personalized stations that play only musicyou’ll loveAccuWeather Displays the current weather conditions and the temperature anywhere in the world in centigrade or Fahrenheit.Create an account or log into Facebook. Connect with friends, family and other people you know. Share photos and videos, send messages and get updates. TWITTER Search Twitter to find the latest news and world events faster

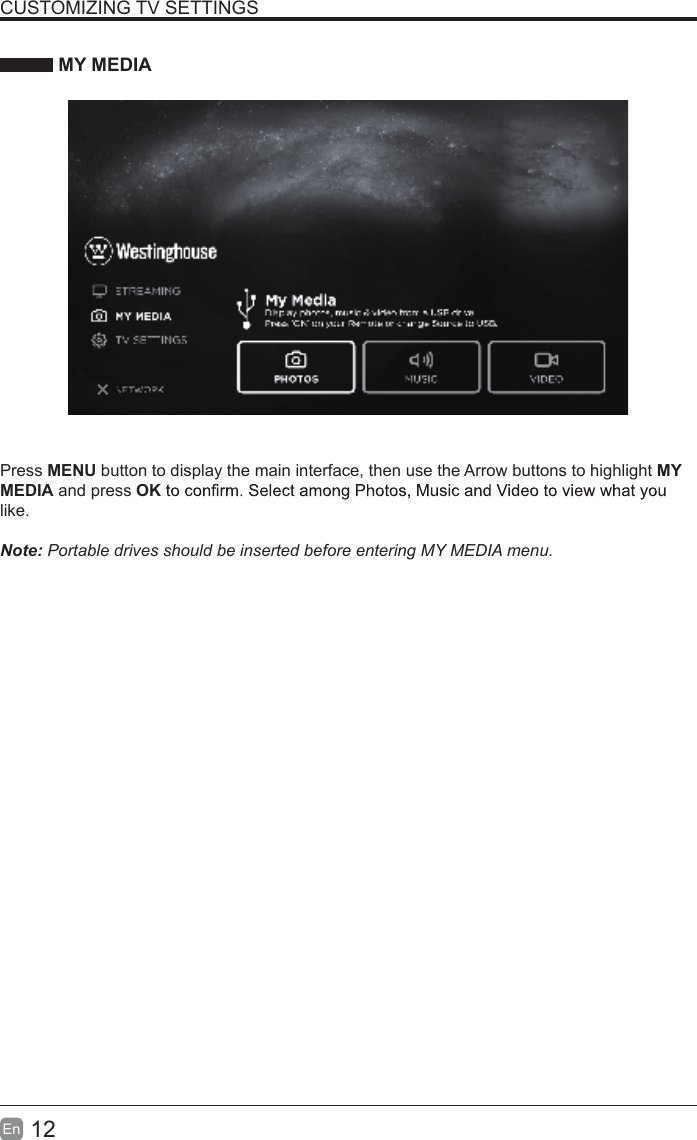

12En  CUSTOMIZING TV SETTINGS MY MEDIAPress MENU button to display the main interface, then use the Arrow buttons to highlight MY MEDIA and press OKlike.  Note: Portable drives should be inserted before entering MY MEDIA menu.

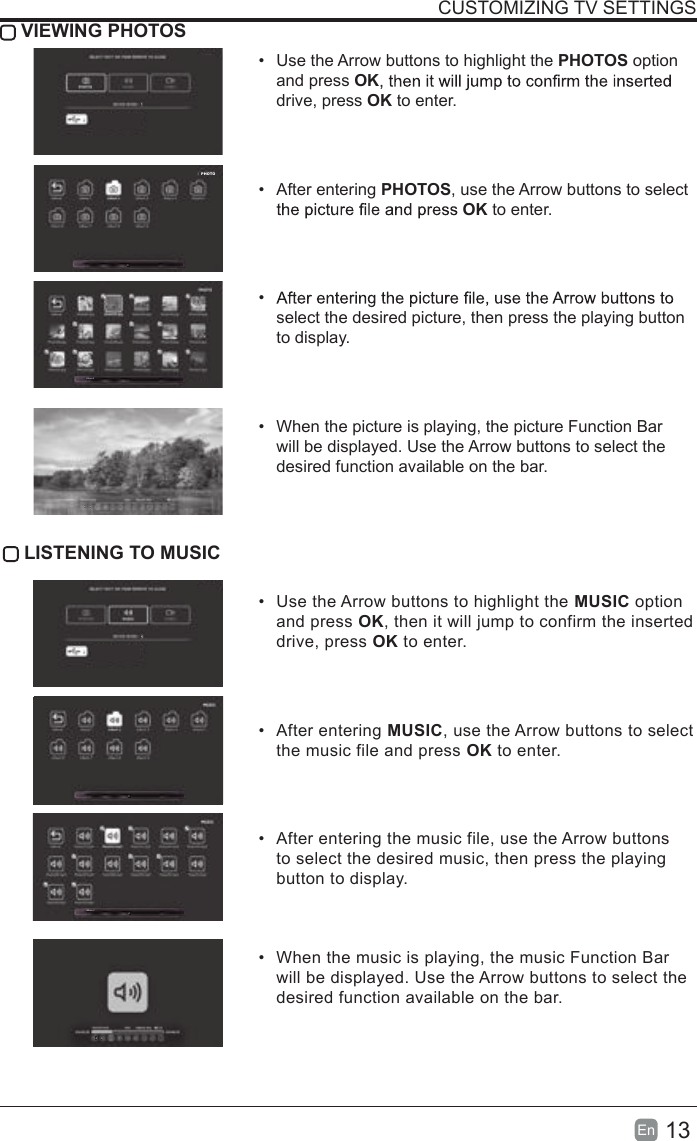

13En  CUSTOMIZING TV SETTINGS VIEWING PHOTOS•  Use the Arrow buttons to highlight the PHOTOS option and press OKdrive, press OK to enter.•  After entering PHOTOS, use the Arrow buttons to select OK to enter.• select the desired picture, then press the playing button to display.•  When the picture is playing, the picture Function Bar will be displayed. Use the Arrow buttons to select the desired function available on the bar. LISTENING TO MUSIC•  Use the Arrow buttons to highlight the MUSIC option and press OK, then it will jump to confirm the inserted drive, press OK to enter.•  After entering MUSIC, use the Arrow buttons to select the music file and press OK to enter.•  After entering the music file, use the Arrow buttons to select the desired music, then press the playing button to display.•  When the music is playing, the music Function Bar will be displayed. Use the Arrow buttons to select the desired function available on the bar.PHOTO/Album 2/Album 2004

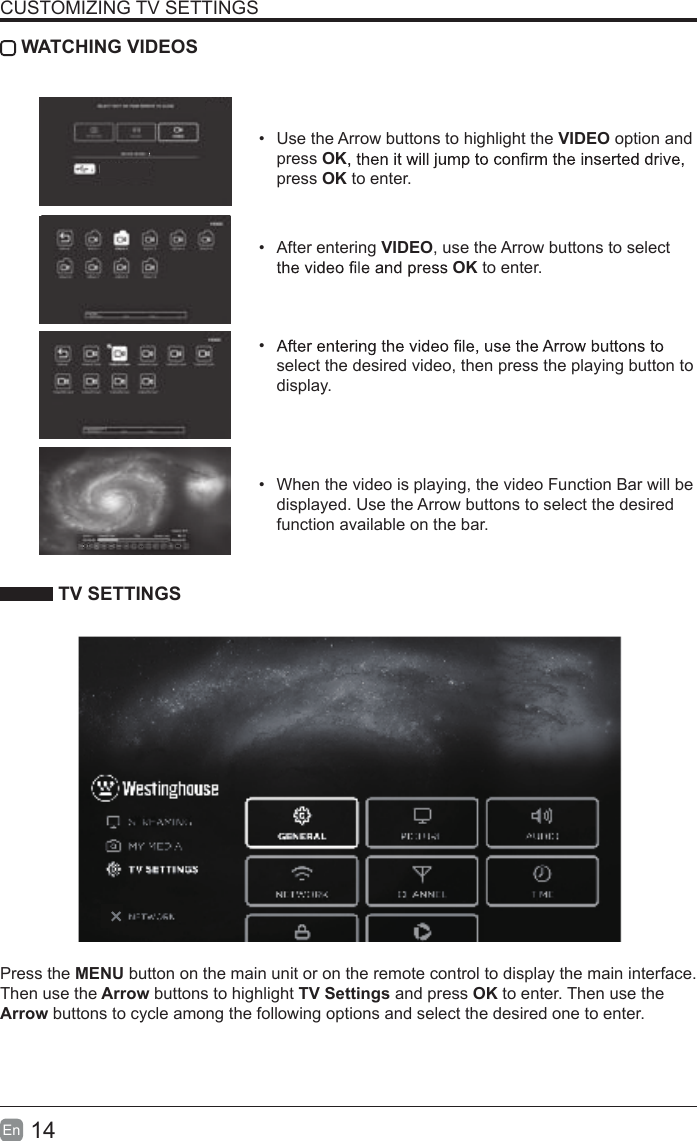

14En  CUSTOMIZING TV SETTINGS WATCHING VIDEOS•  Use the Arrow buttons to highlight the VIDEO option and press OKpress OK to enter.•  After entering VIDEO, use the Arrow buttons to select OK to enter. • select the desired video, then press the playing button to display.•  When the video is playing, the video Function Bar will be displayed. Use the Arrow buttons to select the desired function available on the bar. TV SETTINGSPress the MENU button on the main unit or on the remote control to display the main interface. Then use the Arrow buttons to highlight TV Settings and press OK to enter. Then use the Arrow buttons to cycle among the following options and select the desired one to enter. AB

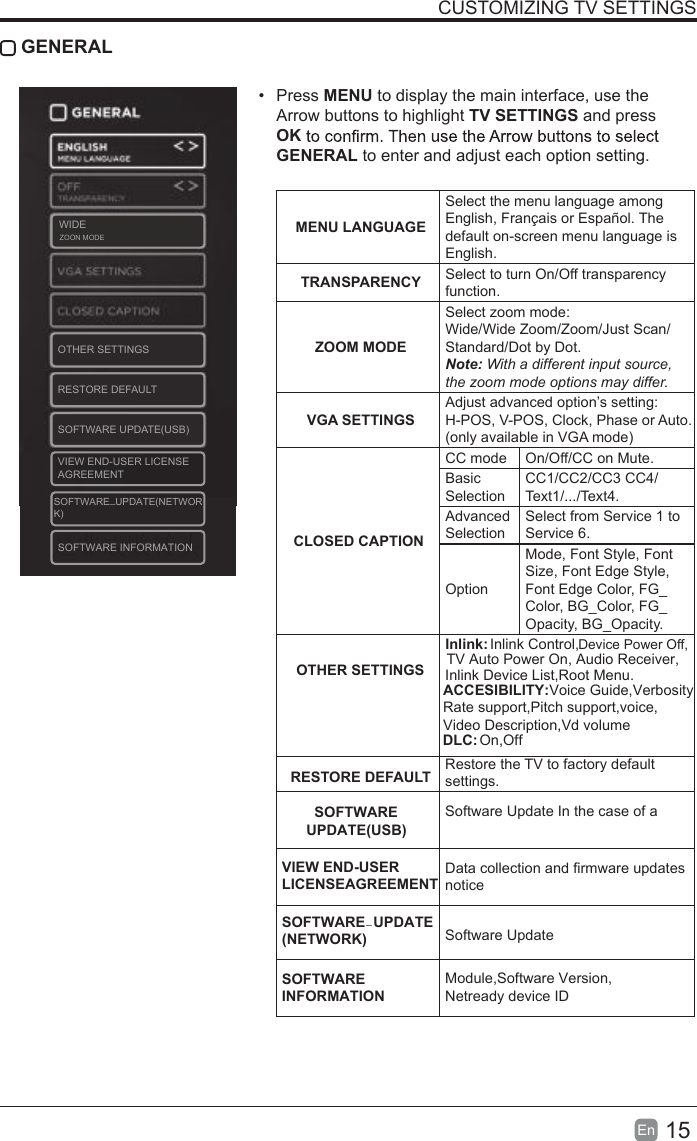

15En  CUSTOMIZING TV SETTINGS GENERAL•  Press MENU to display the main interface, use the Arrow buttons to highlight TV SETTINGS and press OKGENERAL to enter and adjust each option setting.  MENU LANGUAGESelect the menu language among English, Français or Español. The default on-screen menu language is English.TRANSPARENCY Select to turn On/Off transparency function.ZOOM MODESelect zoom mode: Wide/Wide Zoom/Zoom/Just Scan/Standard/Dot by Dot.Note: With a different input source, the zoom mode options may differ.VGA SETTINGSAdjust advanced option’s setting: H-POS, V-POS, Clock, Phase or Auto. (only available in VGA mode)CLOSED CAPTIONCC mode On/Off/CC on Mute.Basic SelectionCC1/CC2/CC3 CC4/Text1/.../Text4.Advanced SelectionSelect from Service 1 to Service 6.OptionMode, Font Style, Font Size, Font Edge Style, Font Edge Color, FG_Color, BG_Color, FG_Opacity, BG_Opacity. OTHER SETTINGSInlink:DLC:ACCESIBILITY:Voice Guide,VerbosityRate support,Pitch support,voice,Video Description,Vd volumeOn,Off  Inlink Control, Device Power Off, TV Auto Power On, Audio Receiver,Inlink Device List,Root Menu. RESTORE DEFAULT Restore theSoftware Update In the case of aData collection and firmware updates notice TV to factory default settings.WIDEOTHER SETTINGSRESTORE DEFAULTSOFTVIEW END-USER LICENSEAGREEMENTWARE UPDATE(USB)  SOFTWARE UPDATE(USB)VIEW END-USER LICENSEAGREEMENTSoftware UpdateSOFTWARE  UPDATE(NETWORK)Module,Software Version,Netready device IDSOFTWARE INFORMATIONZOON MODESOFTWARE  UPDATE(NETWORK)_是非成败转头SOFTWARE INFORMATION_

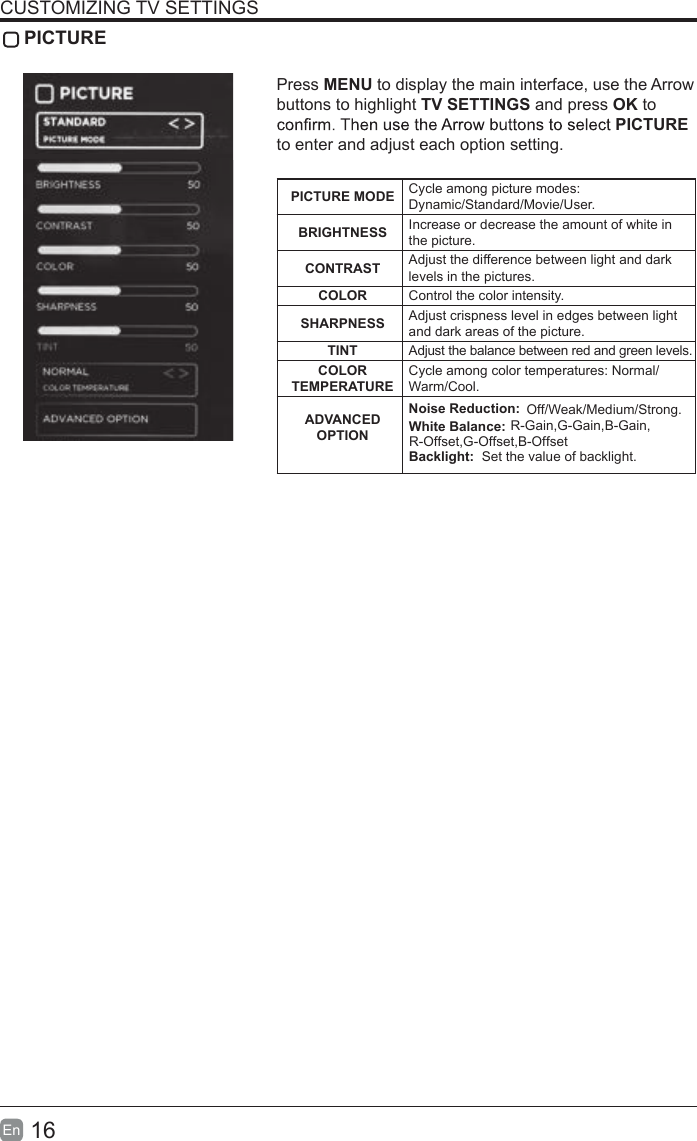

16En  CUSTOMIZING TV SETTINGS PICTUREPress MENU to display the main interface, use the Arrow buttons to highlight TV SETTINGS and press OK to PICTURE to enter and adjust each option setting.PICTURE MODE Cycle among picture modes:Dynamic/Standard/Movie/User.BRIGHTNESS Increase or decrease the amount of white in the picture.CONTRAST Adjust the difference between light and dark levels in the pictures.COLOR Control the color intensity.SHARPNESS Adjust crispness level in edges between light and dark areas of the picture.TINT Adjust the balance between red and green levels.COLOR TEMPERATURECycle among color temperatures: Normal/Warm/Cool.ADVANCED OPTIONNoise Reduction:  Off/W                           R-Gain,G-Gain,B-Gain,R-Offset,G-Offset,B-Offseteak/Medium/Strong.White Balance:Backlight:  Set the value of backlight.

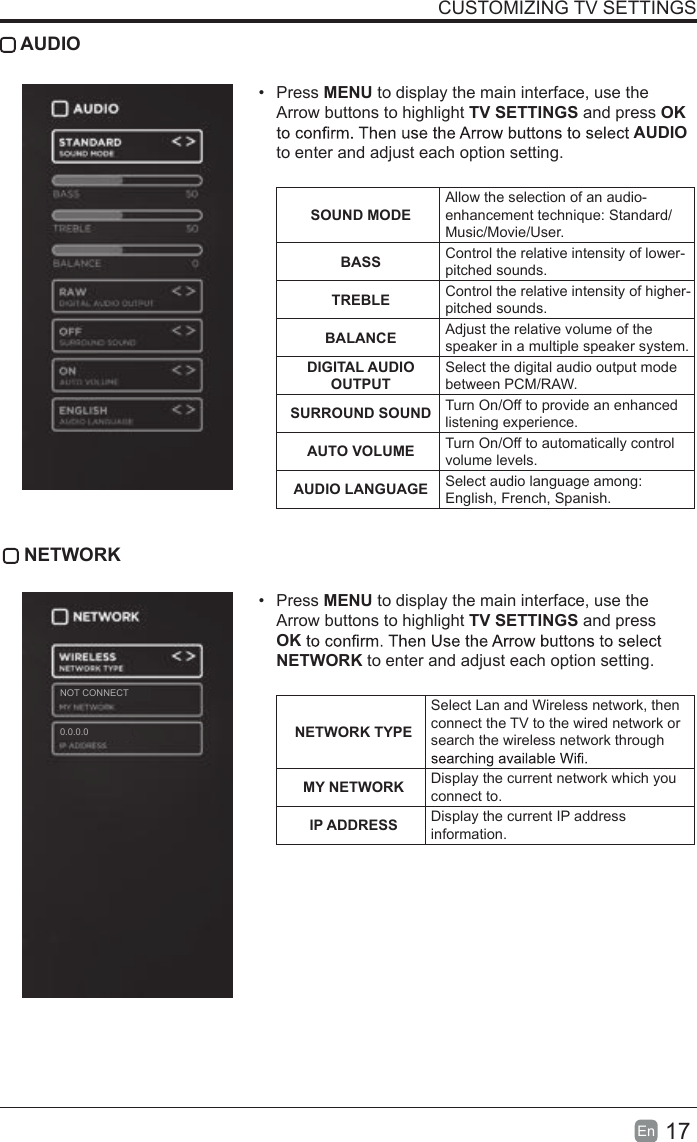

17En  CUSTOMIZING TV SETTINGS AUDIO•  Press MENU to display the main interface, use the Arrow buttons to highlight TV SETTINGS and press OK AUDIO to enter and adjust each option setting.   SOUND MODEAllow the selection of an audio-enhancement technique: Standard/Music/Movie/User.BASS Control the relative intensity of lower-pitched sounds.TREBLE Control the relative intensity of higher-pitched sounds.BALANCE Adjust the relative volume of the speaker in a multiple speaker system.DIGITAL AUDIO OUTPUTSelect the digital audio output mode between PCM/RAW.SURROUND SOUND Turn On/Off to provide an enhanced listening experience.AUTO VOLUME Turn On/Off to automatically control volume levels.AUDIO LANGUAGE Select audio language among: English, French, Spanish. NETWORK•  Press MENU to display the main interface, use the Arrow buttons to highlight TV SETTINGS and press OKNETWORK to enter and adjust each option setting. NETWORK TYPESelect Lan and Wireless network, then connect the TV to the wired network or search the wireless network through MY NETWORK Display the current network which you connect to.IP ADDRESS Display the current IP address information.0.0.0.0NOT CONNECT

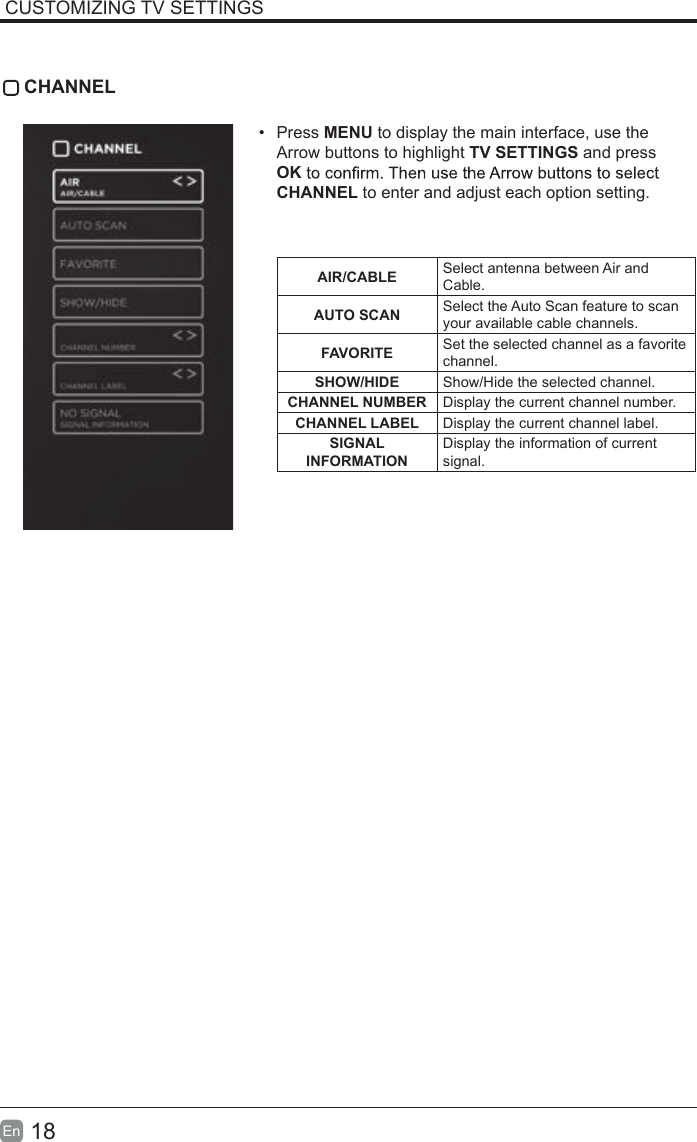

18En  CUSTOMIZING TV SETTINGS CHANNEL•  Press MENU to display the main interface, use the Arrow buttons to highlight TV SETTINGS and press OKCHANNEL to enter and adjust each option setting. AIR/CABLE Select antenna between Air and Cable.AUTO SCAN Select the Auto Scan feature to scan your available cable channels.FAVORITE Set the selected channel as a favorite channel.SHOW/HIDE Show/Hide the selected channel.CHANNEL NUMBER Display the current channel number.CHANNEL LABEL Display the current channel label.SIGNAL INFORMATIONDisplay the information of current signal.

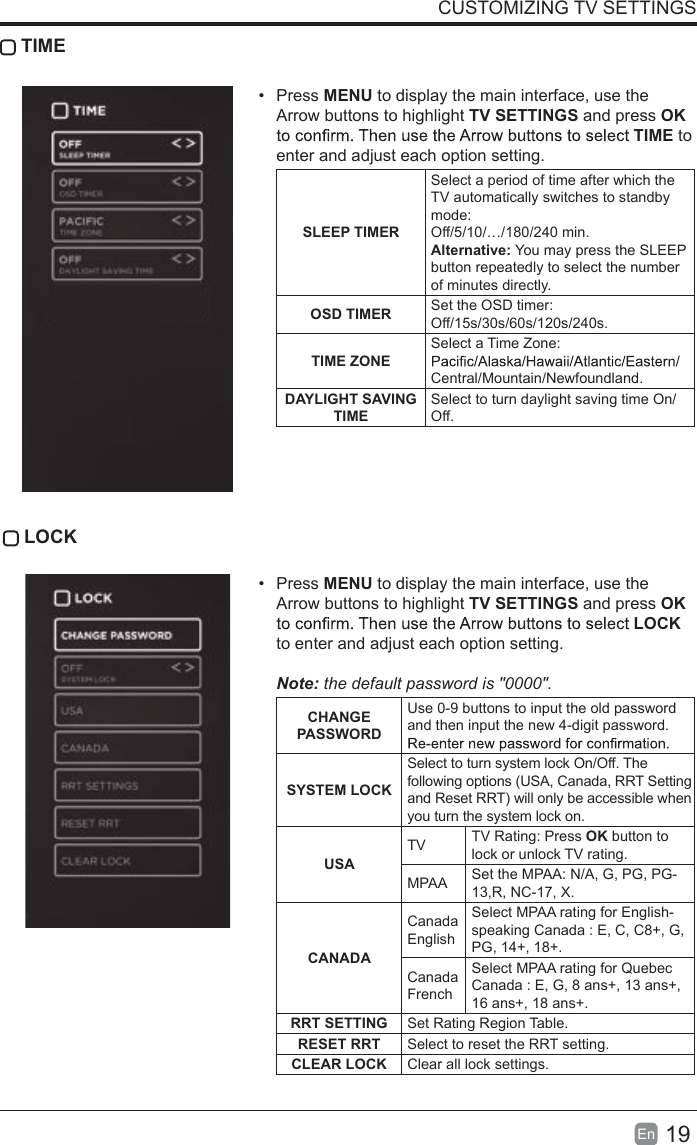

19En  CUSTOMIZING TV SETTINGS TIME•  Press MENU to display the main interface, use the Arrow buttons to highlight TV SETTINGS and press OK TIME to enter and adjust each option setting.SLEEP TIMERSelect a period of time after which the TV automatically switches to standby mode:Off/5/10/…/180/240 min. Alternative: You may press the SLEEP button repeatedly to select the number of minutes directly.OSD TIMER Set the OSD timer: Off/15s/30s/60s/120s/240s. TIME ZONE Select a Time Zone: Central/Mountain/Newfoundland.DAYLIGHT SAVING TIME Select to turn daylight saving time On/Off. LOCK•  Press MENU to display the main interface, use the Arrow buttons to highlight TV SETTINGS and press OK LOCK to enter and adjust each option setting. Note: the default password is "0000".  CHANGE PASSWORDUse 0-9 buttons to input the old password and then input the new 4-digit password. SYSTEM LOCKSelect to turn system lock On/Off. The following options (USA, Canada, RRT Setting and Reset RRT) will only be accessible when you turn the system lock on.USATV TV Rating: Press OK button to lock or unlock TV rating.MPAA Set the MPAA: N/A, G, PG, PG-13,R, NC-17, X.CANADACanada EnglishSelect MPAA rating for English-speaking Canada : E, C, C8+, G, PG, 14+, 18+.Canada FrenchSelect MPAA rating for Quebec Canada : E, G, 8 ans+, 13 ans+, 16 ans+, 18 ans+.RRT SETTING Set Rating Region Table.RESET RRT Select to reset the RRT setting.CLEAR LOCK Clear all lock settings.

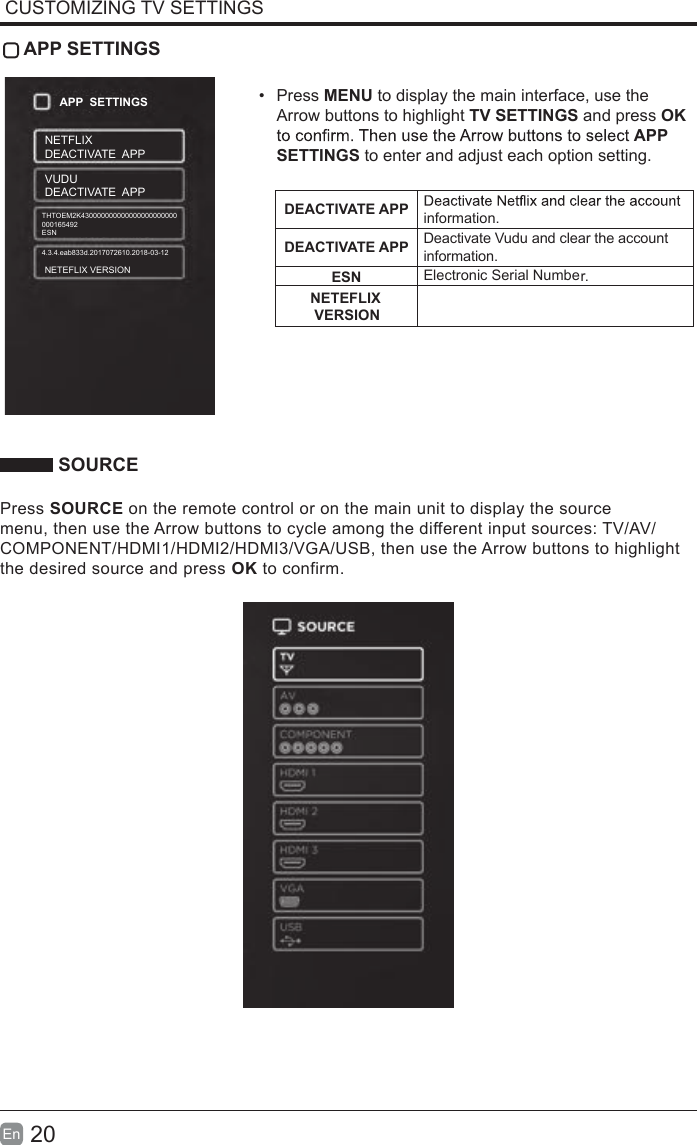

20En  CUSTOMIZING TV SETTINGS APP SETTINGS•  Press MENU to display the main interface, use the Arrow buttons to highlight TV SETTINGS and press OK APP SETTINGS to enter and adjust each option setting. SOURCEPress SOURCE on the remote control or on the main unit to display the source menu, then use the Arrow buttons to cycle among the different input sources: TV/AV/COMPONENT/HDMI1/HDMI2/HDMI3/VGA/USB, then use the Arrow buttons to highlight the desired source and press OK to confirm.DEACTIVATE APP information.DEACTIVATE APP Deactivate Vudu and clear the account information.NETEFLIX  VERSION  ESN Electronic Serial Number.APP  SETTINGSNETFLIXDEACTIVATE  APPVUDUDEACTIVATE  APP  THTOEM2K4300000000000000000000000001654924.3.4.eab833d.2017072610.2018-03-12ESNNETEFLIX VERSION

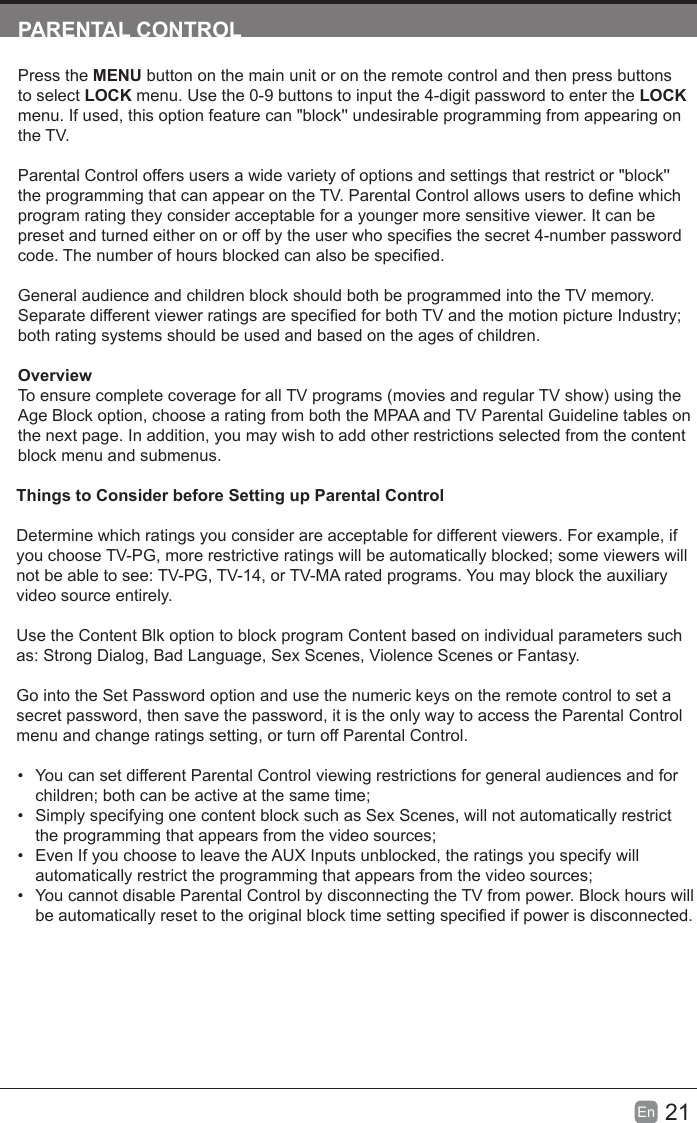

21En  PARENTALCONTROLPress the MENU button on the main unit or on the remote control and then press buttons to select LOCK menu. Use the 0-9 buttons to input the 4-digit password to enter the LOCK menu. If used, this option feature can "block'' undesirable programming from appearing on the TV.Parental Control offers users a wide variety of options and settings that restrict or "block'' the programming that can appear on the TV. Parental Control allows users to dene which program rating they consider acceptable for a younger more sensitive viewer. It can be preset and turned either on or off by the user who species the secret 4-number password code. The number of hours blocked can also be specied.General audience and children block should both be programmed into the TV memory. Separate different viewer ratings are specied for both TV and the motion picture Industry; both rating systems should be used and based on the ages of children.OverviewTo ensure complete coverage for all TV programs (movies and regular TV show) using the Age Block option, choose a rating from both the MPAA and TV Parental Guideline tables on the next page. In addition, you may wish to add other restrictions selected from the content block menu and submenus.Things to Consider before Setting up Parental ControlDetermine which ratings you consider are acceptable for different viewers. For example, if you choose TV-PG, more restrictive ratings will be automatically blocked; some viewers will not be able to see: TV-PG, TV-14, or TV-MA rated programs. You may block the auxiliary video source entirely.Use the Content Blk option to block program Content based on individual parameters such as: Strong Dialog, Bad Language, Sex Scenes, Violence Scenes or Fantasy.Go into the Set Password option and use the numeric keys on the remote control to set a secret password, then save the password, it is the only way to access the Parental Control menu and change ratings setting, or turn off Parental Control.•  You can set different Parental Control viewing restrictions for general audiences and for children; both can be active at the same time;•  Simply specifying one content block such as Sex Scenes, will not automatically restrict the programming that appears from the video sources;•  Even If you choose to leave the AUX Inputs unblocked, the ratings you specify will automatically restrict the programming that appears from the video sources;•  You cannot disable Parental Control by disconnecting the TV from power. Block hours will be automatically reset to the original block time setting specied if power is disconnected.

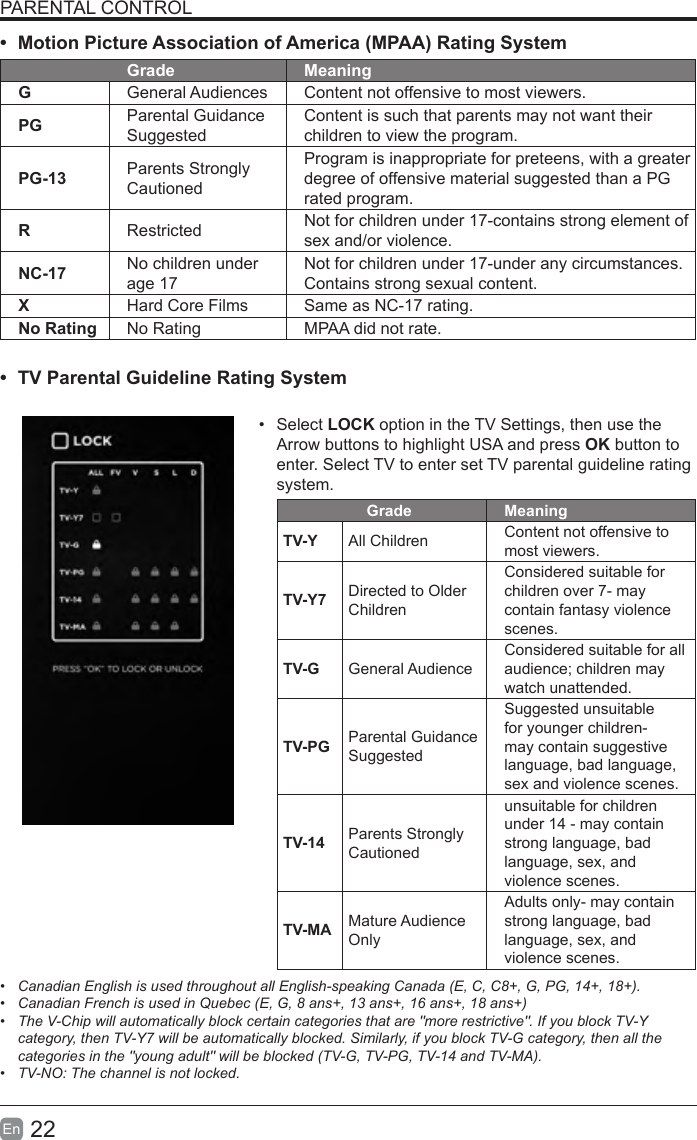

22En  PARENTAL CONTROL• Motion Picture Association of America (MPAA) Rating SystemGrade MeaningGGeneral Audiences Content not offensive to most viewers.PG Parental Guidance Suggested Content is such that parents may not want their children to view the program.PG-13 Parents Strongly CautionedProgram is inappropriate for preteens, with a greater degree of offensive material suggested than a PG rated program.RRestricted  Not for children under 17-contains strong element of sex and/or violence.NC-17 No children under age 17 Not for children under 17-under any circumstances. Contains strong sexual content.XHard Core Films Same as NC-17 rating.No Rating No Rating MPAA did not rate.• TV Parental Guideline Rating System •  Select LOCK option in the TV Settings, then use the Arrow buttons to highlight USA and press OK button to enter. Select TV to enter set TV parental guideline rating system.Grade MeaningTV-Y All Children Content not offensive to most viewers.TV-Y7 Directed to Older ChildrenConsidered suitable for children over 7- may contain fantasy violence scenes.TV-G General Audience Considered suitable for all audience; children may watch unattended.TV-PG Parental Guidance SuggestedSuggested unsuitable for younger children-may contain suggestive language, bad language, sex and violence scenes.TV-14 Parents Strongly Cautionedunsuitable for children under 14 - may contain strong language, bad language, sex, and violence scenes.TV-MA Mature Audience OnlyAdults only- may contain strong language, bad language, sex, and violence scenes.• Canadian English is used throughout all English-speaking Canada (E, C, C8+, G, PG, 14+, 18+). • Canadian French is used in Quebec (E, G, 8 ans+, 13 ans+, 16 ans+, 18 ans+) • The V-Chip will automatically block certain categories that are "more restrictive". If you block TV-Y category, then TV-Y7 will be automatically blocked. Similarly, if you block TV-G category, then all the categories in the "young adult" will be blocked (TV-G, TV-PG, TV-14 and TV-MA).• TV-NO: The channel is not locked.

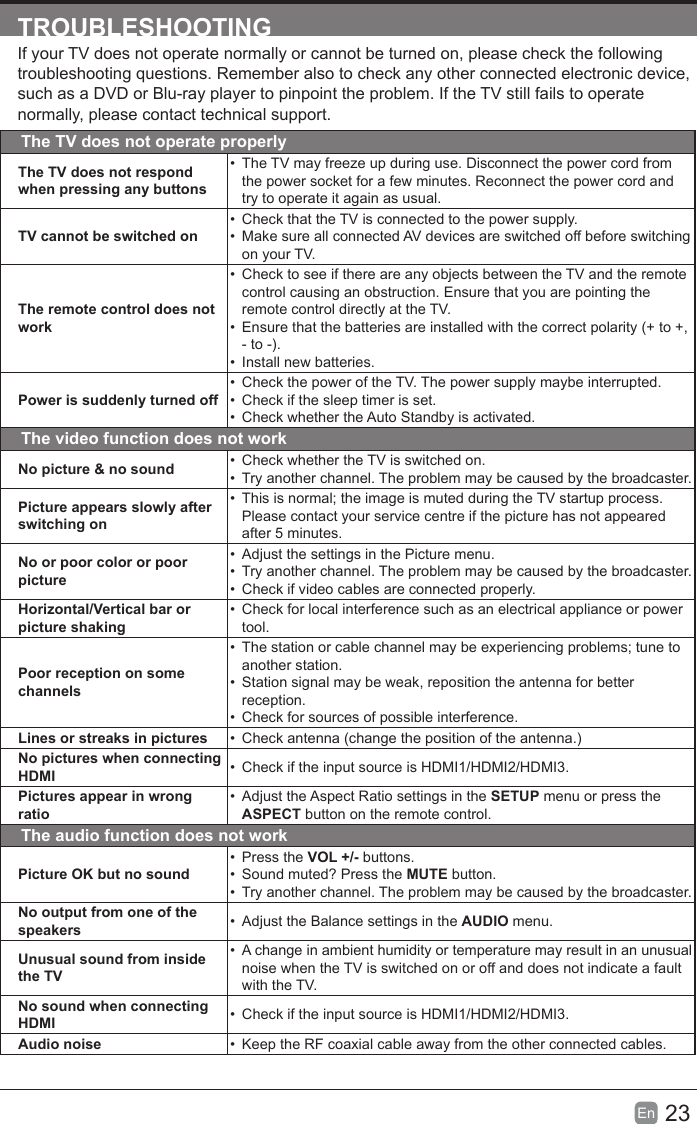

23En  TROUBLESHOOTINGIf your TV does not operate normally or cannot be turned on, please check the following troubleshooting questions. Remember also to check any other connected electronic device, such as a DVD or Blu-ray player to pinpoint the problem. If the TV still fails to operate normally, please contact technical support.The TV does not operate properlyThe TV does not respond when pressing any buttons•  The TV may freeze up during use. Disconnect the power cord from the power socket for a few minutes. Reconnect the power cord and try to operate it again as usual.TV cannot be switched on•  Check that the TV is connected to the power supply.•  Make sure all connected AV devices are switched off before switching on your TV.The remote control does not work•  Check to see if there are any objects between the TV and the remote control causing an obstruction. Ensure that you are pointing the remote control directly at the TV.•  Ensure that the batteries are installed with the correct polarity (+ to +, - to -).•  Install new batteries. Power is suddenly turned off•  Check the power of the TV. The power supply maybe interrupted.•  Check if the sleep timer is set.•  Check whether the Auto Standby is activated. The video function does not workNo picture & no sound •  Check whether the TV is switched on.•  Try another channel. The problem may be caused by the broadcaster.Picture appears slowly after switching on•  This is normal; the image is muted during the TV startup process. Please contact your service centre if the picture has not appeared after 5 minutes.No or poor color or poor picture•  Adjust the settings in the Picture menu.•  Try another channel. The problem may be caused by the broadcaster. •  Check if video cables are connected properly.Horizontal/Vertical bar or picture shaking•  Check for local interference such as an electrical appliance or power tool.Poor reception on some channels•  The station or cable channel may be experiencing problems; tune to another station.•  Station signal may be weak, reposition the antenna for better reception. •  Check for sources of possible interference.Linesorstreaksinpictures •  Check antenna (change the position of the antenna.)No pictures when connecting HDMI •  Check if the input source is HDMI1/HDMI2/HDMI3.Pictures appear in wrong ratio•  Adjust the Aspect Ratio settings in the SETUP menu or press the ASPECT button on the remote control.The audio function does not workPicture OK but no sound•  Press the VOL+/- buttons. •  Sound muted? Press the MUTE button.•  Try another channel. The problem may be caused by the broadcaster.No output from one of the speakers •  Adjust the Balance settings in the AUDIO menu.Unusual sound from inside the TV•  A change in ambient humidity or temperature may result in an unusual noise when the TV is switched on or off and does not indicate a fault with the TV.No sound when connecting HDMI •  Check if the input source is HDMI1/HDMI2/HDMI3.Audio noise •  Keep the RF coaxial cable away from the other connected cables.

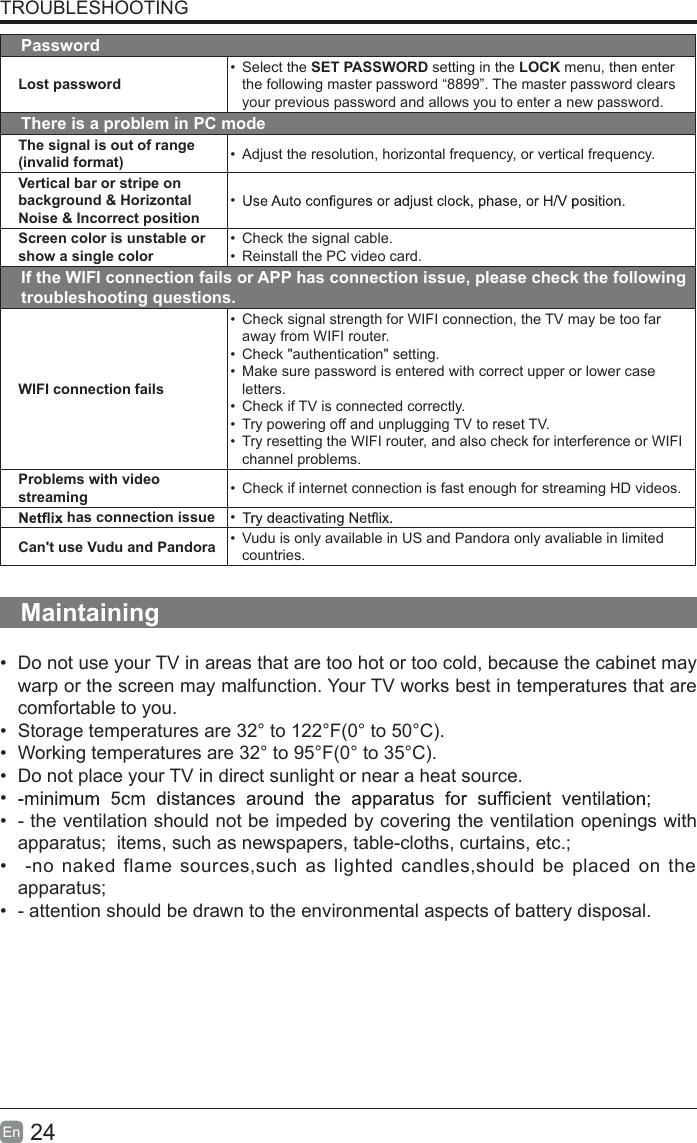

24En  TROUBLESHOOTINGPasswordLost password•  Select the SET PASSWORD setting in the LOCK menu, then enter the following master password “8899”. The master password clears your previous password and allows you to enter a new password.There is a problem in PC modeThe signal is out of range (invalid format) •  Adjust the resolution, horizontal frequency, or vertical frequency.Vertical bar or stripe on background & Horizontal Noise & Incorrect position• Screen color is unstable or show a single color•  Check the signal cable.•  Reinstall the PC video card.If the WIFI connection fails or APP has connection issue, please check the following troubleshooting questions.WIFI connection fails•  Check signal strength for WIFI connection, the TV may be too far away from WIFI router.•  Check "authentication" setting.•  Make sure password is entered with correct upper or lower case letters.•  Check if TV is connected correctly.•  Try powering off and unplugging TV to reset TV.•  Try resetting the WIFI router, and also check for interference or WIFI channel problems.Problems with video streaming • Check if internet connection is fast enough for streaming HD videos.  has connection issue • Can't use Vudu and Pandora •  Vudu is only available in US and Pandora only avaliable in limited countries.Maintaining•  Do not use your TV in areas that are too hot or too cold, because the cabinet may warp or the screen may malfunction. Your TV works best in temperatures that are comfortable to you.•  Storage temperatures are 32° to 122°F(0° to 50°C).•  Working temperatures are 32° to 95°F(0° to 35°C).•  Do not place your TV in direct sunlight or near a heat source.• •  - the ventilation should not be impeded by covering the ventilation openings with apparatus;  items, such as newspapers, table-cloths, curtains, etc.;•   -no naked flame sources,such as lighted candles,should be placed on  the apparatus;•  - attention should be drawn to the environmental aspects of battery disposal.

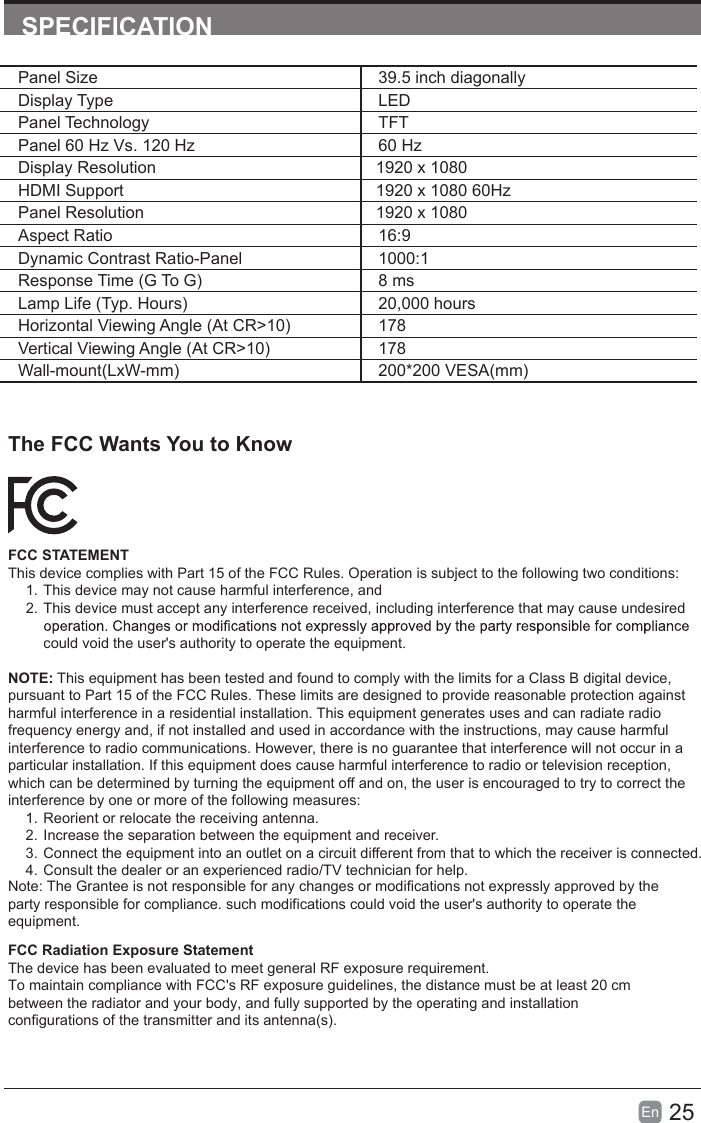

25En  SPECIFICATIONPanel Size 39.5 inch diagonally Display Type LEDPanel Technology  TFTPanel 60 Hz Vs. 120 Hz 60 HzDisplay Resolution  1920 x 1080HDMI Support 1920 x 1080 60HzPanel Resolution  1920 x 1080Aspect Ratio 16:9Dynamic Contrast Ratio-Panel 1000:1Response Time (G To G) 8 msLamp Life (Typ. Hours) 20,000 hoursHorizontal Viewing Angle (At CR>10) 178Vertical Viewing Angle (At CR>10) 178Wall-mount(LxW-mm) 200*200 VESA(mm)The FCC Wants You to KnowFCC STATEMENTThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:1. This device may not cause harmful interference, and2. This device must accept any interference received, including interference that may cause undesired could void the user's authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measureNote: The Grantee is not responsible for any changes or modifications not expressly approved by theparty responsible for compliance. such modifications could void the user's authority to operate theequipment.s:1. Reorient or relocate the receiving antenna.2. Increase the separation between the equipment and receiver.3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.4. Consult the dealer or an experienced radio/TV technician for help.FCC Radiation Exposure StatementThe device has been evaluated to meet general RF exposure requirement.To maintain compliance with FCC's RF exposure guidelines, the distance must be at least 20 cmbetween the radiator and your body, and fully supported by the operating and installationconfigurations of the transmitter and its antenna(s).

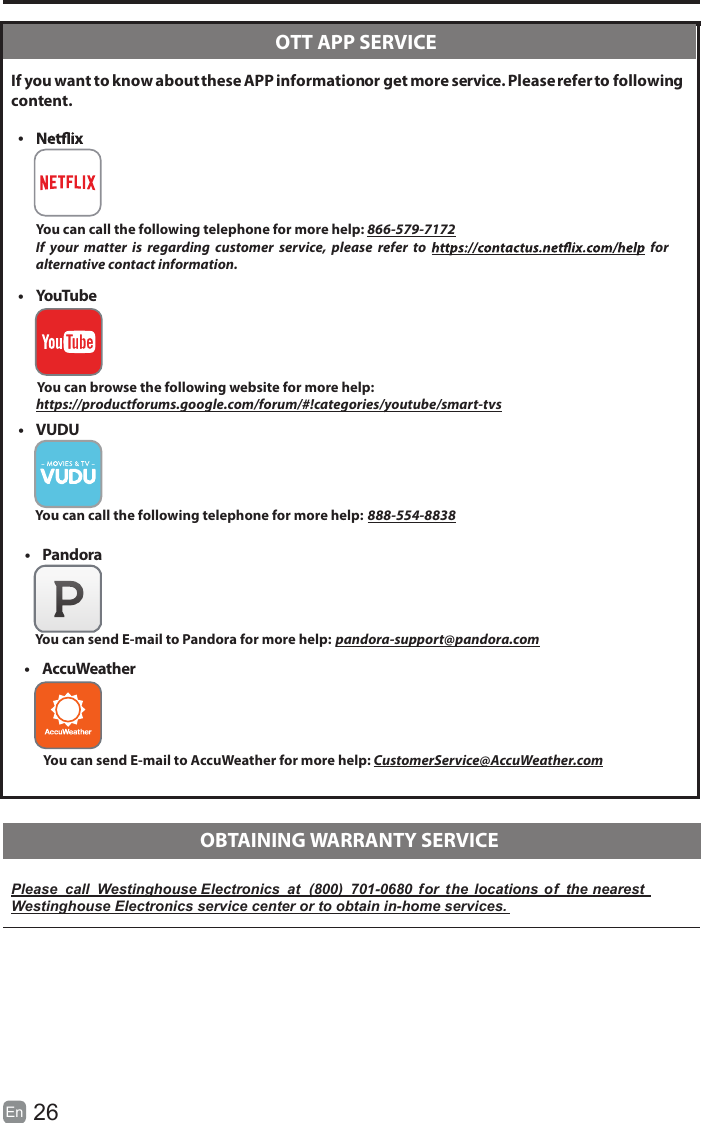

26En   If you want to know about these APP information or get more service. Please refer to following content.Please  call  Westinghouse Electronics  at  (800)  701-0680  for  the  locations  of  the nearestWestinghouse Electronics service center or to obtain in-home services.  OTT APP SERVICE  OBTAINING WARRANTY SERVICE•   You can call the following telephone for more help: 866-579-7172If  your  matter  is  regarding  customer  service,  please  refer  to    for     alternative contact information.•  YouTube          You can browse the following website for more help:         https://productforums.google.com/forum/#!categories/youtube/smart-tvs•  AccuWeather          You can send E-mail to AccuWeather for more help: CustomerService@AccuWeather.com•  VUDU          You can call the following telephone for more help: 888-554-8838•  Pandora          You can send E-mail to Pandora for more help: pandora-support@pandora.com
