ANHUI KONKA ELECTRONIC CO., LTD LCD TV Users Manual

Users Manual

WD40FT2108
1
En
CONTENTS
Important Safety Instructions 2
Safety Information 3
Preparation 4
What's Included
Front View
Rear View
Installing the Stand
Removing the Stand for Wall-Mounting
Wall-Mounting Screws
Remote Control

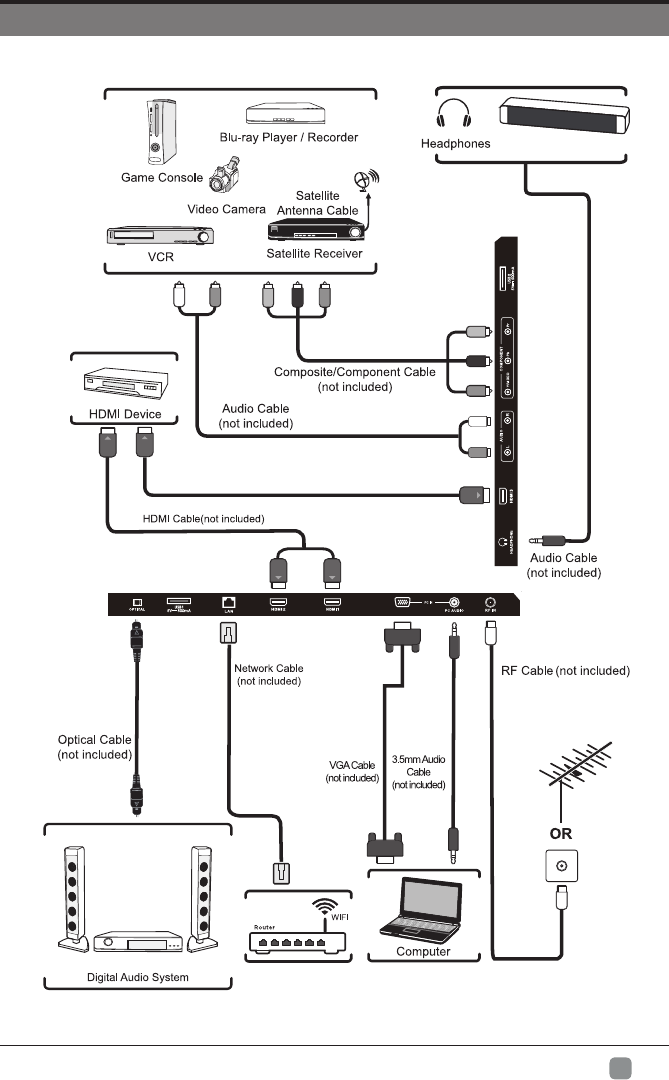

Connecting External Devices 9
Customizing TV Settings 10
Initial Setup
Streaming
My Media
Viewing Photos
Listening to Music
Watching Videos
TV Settings
General
Audio
Network
Channel
Time
Lock
APP settings
Source
Parental Control 21
Troubleshooting 23
Maintaining 24
25
OTT APP Service 26
2
En
IMPORTANT SAFETY INSTRUCTIONS
WARNING:
shock, do not expose this apparatus to rain or
moisture. The apparatus should not be exposed to
as vases should not be placed on apparatus.
WARNING: The batteries shall not be exposed to
WARNING: The mains plug is used as disconnect
device, the disconnect device shall remain readily
operable.
WARNING: To reduce the risk of electric shock, do
not remove cover (or back) as there are no user-
personnel.
within an equilateral triangle is intended to
alert the user to the presence of non-insulated
“dangerous voltage” within the product’s
to constitute a risk of electric shock.
The exclamation point within an equilateral
triangle is intended to alert the user to
the presence of important operating and
maintenance instructions in the literature
accompanying the appliance.
This equipment is a Class II or double
insulated electrical appliance. It has been
designed in such a way that it does not
require a safety connection to electrical earth.
This product contains electrical or electronic
materials. The presence of these materials
may,if not disposed of properly, have potential
adverse effects on the environment and
human health.
Presence of this label on the product means it
should not be disposed of as unsorted
waste and must be collectedseparately. As a
consumer, you are responsible for ensuring
that this product is disposed of properly.
• Read these instructions – All the safety and
operating instructions should be read before this
product is operated.
• Keep these instructions – The safety and
operating instructions should be retained for future
reference.
• Heed all warnings – All warnings on the
appliance and in the operating instructions should
be adhered to.
• Follow all instructions – All operating and use
instructions should be followed.
• Do not use this apparatus near water – The
appliance should not be used near water or
moisture – for example, in a wet basement or near
a swimming pool, and the like.
• Clean only with dry cloth.
• Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
• Do not install near any heat sources such
as radiators, heat registers, stoves, or other
• Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding-
type plug has two blades and a third grounding
prong. The wide blade or the third prong are
provided for your safety. If the provided plug does
replacement of the obsolete outlet.
• Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the
apparatus.
•
the manufacturer.
• Use only with the cart, stand, tripod, bracket, or
the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to
avoid injury from tip-over.
• Unplug this apparatus during lightning storms or
when unused for long periods of time.
•
Servicing is required when the apparatus has been
damaged in any way, such as the power-supply
cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
• Please keep the unit in a well-ventilated
environment.
3
En
SAFETY INFORMATION
To ensure reliable and safe operation of this equipment, please carefully read all the instructions in this
user guide, especially the safety information below.
Electrical Safety
• The TV set should only be connected to a main power supply with voltage that matches the label at the
rear of the product.
• To prevent overload, do not share the same power supply socket with too many other electronic
components.
• Do not place any connecting wires where they may be stepped on or tripped over.
• Do not place heavy items on any connecting wire, which may damage the wire.
• Hold the main plug, not the wires, when removing from a socket.
• Do not allow water or moisture to enter the TV or power adapter. Do NOT use in wet, moist areas, such
as bathrooms, steamy kitchens or near swimming pools.
• Pull the plug out immediately, and seek professional help if the main plug or cable is damaged, liquid
is spilled onto the set, if the TV set accidentally exposed to water or moisture, if anything accidentally
penetrates the ventilation slots or if the TV set does not work normally.
• Do not remove the safety covers. There are no user serviceable parts inside. Trying to service the unit
this apparatus.
• To avoid a battery leakage, remove batteries from the remote control, when the remote is not use for long
period, or when the batteries are exhausted.
•
• For best results, use type AAA (example-alkaline, carbon-zinc, etc.) batteries.
• Install only new batteries of the same type in your product.
• Failure to insert batteries in the correct polarity, as indicated in the battery compartment, may shorten the
life of the batteries or cause batteries to leak.
• Do not mix old and new batteries.
• Do not mix Alkaline, Standard (Carbon-Zinc) or Rechargeable (Nickel Cadmium) or (Nickel Metal
Hydride) batteries.
• Batteries should be recycled or disposed of as per state and local guidelines.
• Do not attempt to recharge disposable batteries.
• Do not short circuit battery terminals.
• Keep away from children.
Physical Safety
• Do not block ventilation slots in the back cover. You may place the TV in a cabinet, but ensure at least
5cm (2’’) clearance all around.
• Do not tap or shake the TV screen, or you may damage the internal circuits. Take good care of the
remote control.
•
• Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including
• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding plug has two blades and a third grounding prong, the
consult an electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched particularly at plugs.
• Unplug the apparatus during lightning storms or when unused for long periods.
• s required if the apparatus does not operate
normally or if the apparatus, including the power supply cord or pulg, has been damaged in any way.
• Servicing is also required if liquid has been spilled, or objects have fallen into the apparatus; when the
apparatus has been exposed to rain or moisture; or if the apparatus has been dropped.
• Always connect your television to a power outlet with protective ground connection.
• ation.
• The ventilation should not be impeded by covering the ventilation openings with items, such as
newspapers, table-cloths, curtains, etc.
• d on the apparatus.
• Attention should be drawn to the environmental aspects of battery disposal.
4
En
PREPARATION
What's Included
Quick Connect Guide
Quick
Connect
Guide
User Manual
User Manual
Remote Control with Batteries
Warranty Card
Warranty
Card
TV Set
TV Stand Four Screws ) 61x4M(
902.7169
ASPECT
SLEEP
CH.L
I
ST
5
En
PREPARATION

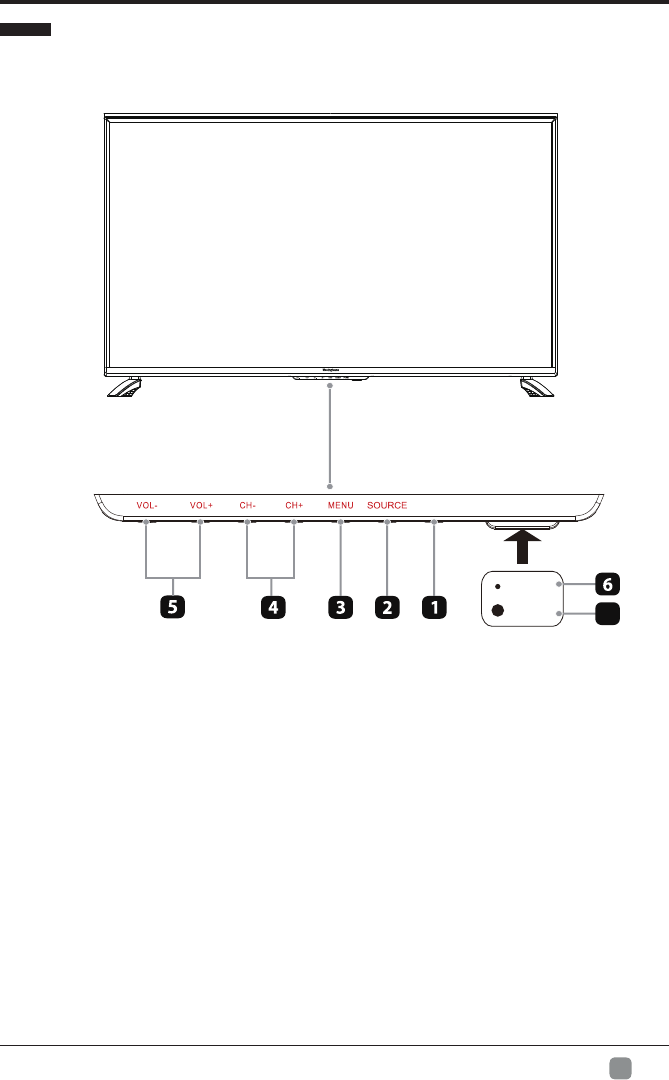

Front View
1. POWER
Switch the TV between On / Standby mode.
2. SOURCE
Press to select among different input signal sources.
3. MENU
Display the main menu.
4. CH
Press to select a channel.
5. VOL -/+
-/+
Press to adjust the volume.
6. POWER Indicator
Illuminate blue when the TV is turned on. Illuminate red when the
Illuminate red when the
TV is in standby mode.
7. IR (Infrared Receiver)
Receive IR signals from the remote control.
LED
IR
POWER
7
902.7169
6
En
PREPARATION
Rear View
1. Power Cord
Connect to AC power outlet.
2. OPTICAL Output
Connect a digital sound system to this
jack.
3. USB Port
Connect to a USB storage device to play compatible movie and photo
4. LAN
Network connection port.
5. HDMI Input
Connect to a (HD) signal input device.
6. VGA Input
Connect to a computer or other devices with a VGA interface.
7. PC AUDIO Input
Connect to a computer audio output.
8. DTV/TV Input
Connect to the antenna (75Ω VHF/UHF) socket with the RF coaxial cable.
9. Headphone Socket
Connect to the Headphones.
10. AUDIO Input
Connect to the AUDIO (L/R) output sockets on external audio devices.
11. COMPOSITE/COMPONENT IN
Connect to AV devices with composite/component (Y/Pb/Pr) video and audio output sockets.
COMPOSITE VIDEO and COMPONENT(Y/PB/PR) share with AUDIO IN (L/R).
10
VG A
7
En
PREPARATION
Installing the Stand
Removing the Stand for Wall-Mounting
• 1. Lay the TV face down on a flat,
cushioned surface to avoid damaging
or scratching.
• 2. Fix the Left Base Stand to the main
unit using 2 pcs provided screws.
• 3. Fix the Right Base Stand to the
main unit using 2 pcs provided screws.
• 1.Lay the TV face down on a flat,
cushioned surface to avoid damaging
or scratching.
• 2.Untighten the 4 pcs screws holding
the stand assembly and remove them.
• 3.Attach the wall-mount bracket to
the TV using the mounting holes on
the back of the TV. Mount this TV
according to the instructions included
in the wall-mount bracket.
Wall-Mounting Screws
Mount the VESA bracket using 4*M4*16 isometric threaded screws (not included).
WARNING:
with the installation instruction.
WARNING：
Never place a television set in an unstable location. A television set may fall, causing serious personal injury
or death. Many injuries, particularly to children, can be acoided by taking simple precautions such as:
-Using cabinets or stands recommended by the manufacturer of the television set.
-Only using furniture that can safely support the television set.
-Ensuring the television set is not overhanging the edge of the supporting furniture.
-Not placing the television set on tall furniture(for example, cupboards or bookcases) without anchoring
both the furniture and the television set to a suitable support.
-Not placing the television set on cloth or other materials that may be located between the television
set and supporting furniture.
-Educating children about the dangers of climbing on furniture to reach the television set or its controls.
If your existing television set is being retained and relocated, the same considerations as above should be
applied.
( M4x16)
( M4x16)
8
En
PREPARATION
Remote Control
1. :Switch the TV between On and
Standby mode.
2. :Mute and restore TV sound.
3. 0~9:Select a program.(ATV/DTV mode)
4. —:Enter multiple program channel number
such as 2-1.
5. :Return to the previous viewing channel.
6. APP:Press to select the desired APP.
7. MENU:Display the main menu.
8. SOURCE:Select among the different input
signal sources:TV/AV/COMPONENT/HDMI1/
HDMI2/HDMI3/VGA/USB.
9. :Allows you to navigate the on
screen display menus and adjust the system
settings to your preference.
10. OK: the selection.
11. RETURN:Return to previous menu.
12. EXIT:Exit the on screen display menu.
13.
14. VOL+/-:Adjust the volume.
15. CH :Select the channel.
16. TV:Into the TV channel.
17.
:Stop the playback.
18.
:Skip to the beginning of the previous
chapter/track/photo.
19.
:Skip to the beginning of the next chapter/
track/photo.
20.
:Reverse playback rapidly.
21.
:Advance playback rapidly.
22. FREEZE:Freeze the picture.
23.
:Start playback or pause.
24. ADD/ERASE:Add or delete Favorite channels.
25. FAV:Display the favorite channel list.
26. INFO:Display the present screen information
such as the current channel and input source.
27.
S.MODE:Select sound mode:standard/music/
movie/user.
28.
P.MODE:Select picture mode:dynamic/movie/
user/standard.
29.
CH.LIST:Display program list.
30.
V-CHIP:Set up parental control.
ASPECT:Select the aspect ratio.
settings:standard/wide/wide zoom/zoom/Just Scan
(HDMI)/Dot by Dot(VGA).
32.
31.
CC:Closed Caption selection:ON/OFF/CC On
Mute.
MTS:Switch among different audio
channels:STEREO/MONO/SAP.
9
En
CONNECTING EXTERNAL DEVICES
Soundbar
VG A
10
En
CUSTOMIZING TV SETTINGS
Initial Setup
Connect the power cord to the power socket after you have completed all the physical
connections. At this stage, the TV will enter Standby Mode and the red LED indicator will
illuminate.
In Standby Mode, press the button on the main unit or on the remote control to turn the TV
on. The red LED indicator will turn blue.
the Arrow buttons to
highlight and select your desired mode and press OK
5
• If channels cannot be
found, this frame will be
displayed automatically.
Westinghouse
11
En
CUSTOMIZING TV SETTINGS
STREAMING
Press MENU to display the main interface, then use the Arrow buttons to highlight
STREAMING and press OK
and select desired apps to enter.
NETFLIX Enjoys TV shows & movies streamed instantly over the Internet.
YouTube
UVDU
Pandora
FACEBOOK
YouTube your way on the best screen in your house.
Discover,watch and collect the latest movies and TV show in
high quality 1080p.Free to sign up.No subscriptions,late fees or
commitments.
Free personalized radio that offers effortless and endless music
enjoyment and discovery. Just shart with the name of one of your
favorite artista,songs,genres or composers and pandora will do the
rest.It’s easy to create personalized stations that play only music
you’ll love
AccuWeather Displays the current weather conditions and the temperature
anywhere in the world in centigrade or Fahrenheit.
Create an account or log into Facebook. Connect with friends,
family and other people you know. Share photos and videos,
send messages and get updates.
TWITTER Search Twitter to find the latest news and world events faster
12
En
CUSTOMIZING TV SETTINGS
MY MEDIA
Press MENU button to display the main interface, then use the Arrow buttons to highlight MY
MEDIA and press OK
like.
Note: Portable drives should be inserted before entering MY MEDIA menu.
13
En
CUSTOMIZING TV SETTINGS
VIEWING PHOTOS
• Use the Arrow buttons to highlight the PHOTOS option
and press OK
drive, press OK to enter.
• After entering PHOTOS, use the Arrow buttons to select
OK to enter.
•
select the desired picture, then press the playing button
to display.
• When the picture is playing, the picture Function Bar
will be displayed. Use the Arrow buttons to select the
desired function available on the bar.
LISTENING TO MUSIC
• Use the Arrow buttons to highlight the MUSIC option
and press OK, then it will jump to confirm the inserted
drive, press OK to enter.
• After entering MUSIC, use the Arrow buttons to select
the music file and press OK to enter.
• After entering the music file, use the Arrow buttons
to select the desired music, then press the playing
button to display.
• When the music is playing, the music Function Bar
will be displayed. Use the Arrow buttons to select the
desired function available on the bar.
/Album 2
/Album 2
0
0
4
14
En
CUSTOMIZING TV SETTINGS
WATCHING VIDEOS
• Use the Arrow buttons to highlight the VIDEO option and
press OK
press OK to enter.
• After entering VIDEO, use the Arrow buttons to select
OK to enter.
•
select the desired video, then press the playing button to
display.
• When the video is playing, the video Function Bar will be
displayed. Use the Arrow buttons to select the desired
function available on the bar.
TV SETTINGS
Press the MENU button on the main unit or on the remote control to display the main interface.
Then use the Arrow buttons to highlight TV Settings and press OK to enter. Then use the
Arrow buttons to cycle among the following options and select the desired one to enter.
AB
15
En
CUSTOMIZING TV SETTINGS
GENERAL
• Press MENU to display the main interface, use the
Arrow buttons to highlight TV SETTINGS and press
OK
GENERAL to enter and adjust each option setting.
MENU LANGUAGE
Select the menu language among
English, Français or Español. The
default on-screen menu language is
English.
TRANSPARENCY Select to turn On/Off transparency
function.
ZOOM MODE
Select zoom mode:
Wide/Wide Zoom/Zoom/Just Scan/
Standard/Dot by Dot.
Note: With a different input source,
the zoom mode options may differ.
VGA SETTINGS
Adjust advanced option’s setting:
H-POS, V-POS, Clock, Phase or Auto.
(only available in VGA mode)
CLOSED CAPTION
CC mode On/Off/CC on Mute.
Basic
Selection
CC1/CC2/CC3 CC4/
Text1/.../Text4.
Advanced
Selection
Select from Service 1 to
Service 6.
Option
Mode, Font Style, Font
Size, Font Edge Style,
Font Edge Color, FG_
Color, BG_Color, FG_
Opacity, BG_Opacity.
OTHER SETTINGS
Inlink:
DLC:
ACCESIBILITY:Voice Guide,Verbosity
Rate support,Pitch support,voice,
Video Description,Vd volume
On,Off
Inlink Control,
Device Power Off,
TV Auto Power On, Audio Receiver,
Inlink Device List,Root Menu.
RESTORE DEFAULT Restore the
Software Update In the case of a
Data collection and firmware updates
notice
TV to factory default
settings.
WIDE
OTHER SETTINGS
RESTORE DEFAULT
SOFT
VIEW END-USER LICENSE
AGREEMENT
WARE UPDATE(USB)
SOFTWARE
UPDATE(USB)
VIEW END-USER
LICENSEAGREEMENT
Software Update
SOFTWARE UPDATE
(NETWORK)
Module,Software Version,
Netready device ID
SOFTWARE
INFORMATION
ZOON MODE
SOFTWARE UPDATE(NETWOR
K)
_
是非成败转头
SOFTWARE INFORMATION
_
16
En
CUSTOMIZING TV SETTINGS
Press MENU to display the main interface, use the Arrow
buttons to highlight TV SETTINGS and press OK to
to enter and adjust each option setting.
PICTURE MODE Cycle among picture modes:
Dynamic/Standard/Movie/User.
BRIGHTNESS Increase or decrease the amount of white in
the picture.
CONTRAST Adjust the difference between light and dark
levels in the pictures.
COLOR Control the color intensity.
SHARPNESS Adjust crispness level in edges between light
and dark areas of the picture.
TINT Adjust the balance between red and green levels.
COLOR
TEMPERATURE
Cycle among color temperatures: Normal/
Warm/Cool.
ADVANCED
OPTION
Noise Reduction: Off/W
R-Gain,G-Gain,B-Gain,
R-Offset,G-Offset,B-Offset
eak/Medium/Strong.
White Balance:
Backlight: Set the value of backlight.
17
En
CUSTOMIZING TV SETTINGS
AUDIO
• Press MENU to display the main interface, use the
Arrow buttons to highlight TV SETTINGS and press OK
AUDIO
to enter and adjust each option setting.
SOUND MODE
Allow the selection of an audio-
enhancement technique: Standard/
Music/Movie/User.
BASS Control the relative intensity of lower-
pitched sounds.
TREBLE Control the relative intensity of higher-
pitched sounds.
BALANCE Adjust the relative volume of the
speaker in a multiple speaker system.
DIGITAL AUDIO
OUTPUT
Select the digital audio output mode
between PCM/RAW.
SURROUND SOUND Turn On/Off to provide an enhanced
listening experience.
AUTO VOLUME Turn On/Off to automatically control
volume levels.
AUDIO LANGUAGE Select audio language among:
English, French, Spanish.
NETWORK
• Press MENU to display the main interface, use the
Arrow buttons to highlight TV SETTINGS and press
OK
NETWORK to enter and adjust each option setting.
NETWORK TYPE
Select Lan and Wireless network, then
connect the TV to the wired network or
search the wireless network through
MY NETWORK Display the current network which you
connect to.
IP ADDRESS Display the current IP address
information.
0.0.0.0
NOT CONNECT
18
En
CUSTOMIZING TV SETTINGS
CHANNEL
• Press MENU to display the main interface, use the
Arrow buttons to highlight TV SETTINGS and press
OK
CHANNEL to enter and adjust each option setting.
AIR/CABLE Select antenna between Air and
Cable.
AUTO SCAN Select the Auto Scan feature to scan
your available cable channels.
FAVORITE Set the selected channel as a favorite
channel.
SHOW/HIDE Show/Hide the selected channel.
CHANNEL NUMBER Display the current channel number.
CHANNEL LABEL Display the current channel label.
SIGNAL
INFORMATION
Display the information of current
signal.
19
En
CUSTOMIZING TV SETTINGS
TIME
• Press MENU to display the main interface, use the
Arrow buttons to highlight TV SETTINGS and press OK
TIME to
enter and adjust each option setting.
SLEEP TIMER
Select a period of time after which the
TV automatically switches to standby
mode:
Off/5/10/…/180/240 min.
Alternative: You may press the SLEEP
button repeatedly to select the number
of minutes directly.
OSD TIMER Set the OSD timer:
Off/15s/30s/60s/120s/240s.
TIME ZONE Select a Time Zone:
Central/Mountain/Newfoundland.
DAYLIGHT SAVING
TIME Select to turn daylight saving time On/
Off.
LOCK
• Press MENU to display the main interface, use the
Arrow buttons to highlight TV SETTINGS and press OK
LOCK
to enter and adjust each option setting.
Note: the default password is "0000".
CHANGE
PASSWORD
Use 0-9 buttons to input the old password
and then input the new 4-digit password.
SYSTEM LOCK
Select to turn system lock On/Off. The
following options (USA, Canada, RRT Setting
and Reset RRT) will only be accessible when
you turn the system lock on.
USA
TV TV Rating: Press OK button to
lock or unlock TV rating.
MPAA Set the MPAA: N/A, G, PG, PG-
13,R, NC-17, X.
CANADA
Canada
English
Select MPAA rating for English-
speaking Canada : E, C, C8+, G,
PG, 14+, 18+.
Canada
French
Select MPAA rating for Quebec
Canada : E, G, 8 ans+, 13 ans+,
16 ans+, 18 ans+.
RRT SETTING Set Rating Region Table.
RESET RRT Select to reset the RRT setting.
CLEAR LOCK Clear all lock settings.
20
En
CUSTOMIZING TV SETTINGS
APP SETTINGS
• Press MENU to display the main interface, use the
Arrow buttons to highlight TV SETTINGS and press OK
APP
SETTINGS to enter and adjust each option setting.
SOURCE
Press SOURCE on the remote control or on the main unit to display the source
menu, then use the Arrow buttons to cycle among the different input sources: TV/AV/
COMPONENT/HDMI1/HDMI2/HDMI3/VGA/USB, then use the Arrow buttons to highlight
the desired source and press OK to confirm.
DEACTIVATE APP information.
DEACTIVATE APP Deactivate Vudu and clear the account
information.
NETEFLIX
VERSION
ESN Electronic Serial Number.
APP SETTINGS
NETFLIX
DEACTIVATE APP
VUDU
DEACTIVATE APP
THTOEM2K430000000000000000000000
000165492
4.3.4.eab833d.2017072610.2018-03-12
ESN
NETEFLIX VERSION
21
En
PARENTALCONTROL
Press the MENU button on the main unit or on the remote control and then press buttons
to select LOCK menu. Use the 0-9 buttons to input the 4-digit password to enter the LOCK
menu. If used, this option feature can "block'' undesirable programming from appearing on
the TV.
Parental Control offers users a wide variety of options and settings that restrict or "block''
the programming that can appear on the TV. Parental Control allows users to dene which
program rating they consider acceptable for a younger more sensitive viewer. It can be
preset and turned either on or off by the user who species the secret 4-number password
code. The number of hours blocked can also be specied.
General audience and children block should both be programmed into the TV memory.
Separate different viewer ratings are specied for both TV and the motion picture Industry;
both rating systems should be used and based on the ages of children.
Overview
To ensure complete coverage for all TV programs (movies and regular TV show) using the
Age Block option, choose a rating from both the MPAA and TV Parental Guideline tables on
the next page. In addition, you may wish to add other restrictions selected from the content
block menu and submenus.
Things to Consider before Setting up Parental Control
Determine which ratings you consider are acceptable for different viewers. For example, if
you choose TV-PG, more restrictive ratings will be automatically blocked; some viewers will
not be able to see: TV-PG, TV-14, or TV-MA rated programs. You may block the auxiliary
video source entirely.
Use the Content Blk option to block program Content based on individual parameters such
as: Strong Dialog, Bad Language, Sex Scenes, Violence Scenes or Fantasy.
Go into the Set Password option and use the numeric keys on the remote control to set a
secret password, then save the password, it is the only way to access the Parental Control
menu and change ratings setting, or turn off Parental Control.
• You can set different Parental Control viewing restrictions for general audiences and for
children; both can be active at the same time;
• Simply specifying one content block such as Sex Scenes, will not automatically restrict
the programming that appears from the video sources;
• Even If you choose to leave the AUX Inputs unblocked, the ratings you specify will
automatically restrict the programming that appears from the video sources;
• You cannot disable Parental Control by disconnecting the TV from power. Block hours will
be automatically reset to the original block time setting specied if power is disconnected.
22
En
PARENTAL CONTROL
• Motion Picture Association of America (MPAA) Rating System
Grade Meaning
GGeneral Audiences Content not offensive to most viewers.
PG Parental Guidance
Suggested Content is such that parents may not want their
children to view the program.
PG-13 Parents Strongly
Cautioned
Program is inappropriate for preteens, with a greater
degree of offensive material suggested than a PG
rated program.
RRestricted Not for children under 17-contains strong element of
sex and/or violence.
NC-17 No children under
age 17 Not for children under 17-under any circumstances.
Contains strong sexual content.
XHard Core Films Same as NC-17 rating.
No Rating No Rating MPAA did not rate.
• TV Parental Guideline Rating System
• Select LOCK option in the TV Settings, then use the
Arrow buttons to highlight USA and press OK button to
enter. Select TV to enter set TV parental guideline rating
system.
Grade Meaning
TV-Y All Children Content not offensive to
most viewers.
TV-Y7 Directed to Older
Children
Considered suitable for
children over 7- may
contain fantasy violence
scenes.
TV-G General Audience Considered suitable for all
audience; children may
watch unattended.
TV-PG Parental Guidance
Suggested
Suggested unsuitable
for younger children-
may contain suggestive
language, bad language,
sex and violence scenes.
TV-14 Parents Strongly
Cautioned
unsuitable for children
under 14 - may contain
strong language, bad
language, sex, and
violence scenes.
TV-MA Mature Audience
Only
Adults only- may contain
strong language, bad
language, sex, and
violence scenes.
• Canadian English is used throughout all English-speaking Canada (E, C, C8+, G, PG, 14+, 18+).
• Canadian French is used in Quebec (E, G, 8 ans+, 13 ans+, 16 ans+, 18 ans+)
• The V-Chip will automatically block certain categories that are "more restrictive". If you block TV-Y
category, then TV-Y7 will be automatically blocked. Similarly, if you block TV-G category, then all the
categories in the "young adult" will be blocked (TV-G, TV-PG, TV-14 and TV-MA).
• TV-NO: The channel is not locked.
23
En
TROUBLESHOOTING
If your TV does not operate normally or cannot be turned on, please check the following
troubleshooting questions. Remember also to check any other connected electronic device,
such as a DVD or Blu-ray player to pinpoint the problem. If the TV still fails to operate
normally, please contact technical support.
The TV does not operate properly
The TV does not respond
when pressing any buttons
• The TV may freeze up during use. Disconnect the power cord from
the power socket for a few minutes. Reconnect the power cord and
try to operate it again as usual.
TV cannot be switched on
• Check that the TV is connected to the power supply.
• Make sure all connected AV devices are switched off before switching
on your TV.
The remote control does not
work
• Check to see if there are any objects between the TV and the remote
control causing an obstruction. Ensure that you are pointing the
remote control directly at the TV.
• Ensure that the batteries are installed with the correct polarity (+ to +,
- to -).
• Install new batteries.
Power is suddenly turned off
• Check the power of the TV. The power supply maybe interrupted.
• Check if the sleep timer is set.
• Check whether the Auto Standby is activated.
The video function does not work
No picture & no sound • Check whether the TV is switched on.
• Try another channel. The problem may be caused by the broadcaster.
Picture appears slowly after
switching on
• This is normal; the image is muted during the TV startup process.
Please contact your service centre if the picture has not appeared
after 5 minutes.
No or poor color or poor
• Adjust the settings in the Picture menu.
• Try another channel. The problem may be caused by the broadcaster.
• Check if video cables are connected properly.
Horizontal/Vertical bar or
picture shaking
• Check for local interference such as an electrical appliance or power
tool.
Poor reception on some
channels
• The station or cable channel may be experiencing problems; tune to
another station.
• Station signal may be weak, reposition the antenna for better
reception.
• Check for sources of possible interference.
Linesorstreaksinpictures • Check antenna (change the position of the antenna.)
No pictures when connecting
HDMI • Check if the input source is HDMI1/HDMI2/HDMI3.
Pictures appear in wrong
ratio
• Adjust the Aspect Ratio settings in the SETUP menu or press the
ASPECT button on the remote control.
The audio function does not work
Picture OK but no sound
• Press the VOL+/- buttons.
• Sound muted? Press the MUTE button.
• Try another channel. The problem may be caused by the broadcaster.
No output from one of the
speakers • Adjust the Balance settings in the AUDIO menu.
Unusual sound from inside
the TV
• A change in ambient humidity or temperature may result in an unusual
noise when the TV is switched on or off and does not indicate a fault
with the TV.
No sound when connecting
HDMI • Check if the input source is HDMI1/HDMI2/HDMI3.
Audio noise • Keep the RF coaxial cable away from the other connected cables.
24
En
TROUBLESHOOTING
Password
Lost password
• Select the SET PASSWORD setting in the LOCK menu, then enter
the following master password “8899”. The master password clears
your previous password and allows you to enter a new password.
There is a problem in PC mode
The signal is out of range
(invalid format) • Adjust the resolution, horizontal frequency, or vertical frequency.
Vertical bar or stripe on
background & Horizontal
Noise & Incorrect position
•
Screen color is unstable or
show a single color
• Check the signal cable.
• Reinstall the PC video card.
If the WIFI connection fails or APP has connection issue, please check the following
troubleshooting questions.
WIFI connection fails
• Check signal strength for WIFI connection, the TV may be too far
away from WIFI router.
• Check "authentication" setting.
• Make sure password is entered with correct upper or lower case
letters.
• Check if TV is connected correctly.
• Try powering off and unplugging TV to reset TV.
• Try resetting the WIFI router, and also check for interference or WIFI
channel problems.
Problems with video
streaming • Check if internet connection is fast enough for streaming HD videos.
has connection issue •
Can't use Vudu and Pandora • Vudu is only available in US and Pandora only avaliable in limited
countries.
Maintaining
• Do not use your TV in areas that are too hot or too cold, because the cabinet may
warp or the screen may malfunction. Your TV works best in temperatures that are
comfortable to you.
• Storage temperatures are 32° to 122°F(0° to 50°C).
• Working temperatures are 32° to 95°F(0° to 35°C).
• Do not place your TV in direct sunlight or near a heat source.
•
• - the ventilation should not be impeded by covering the ventilation openings with
apparatus; items, such as newspapers, table-cloths, curtains, etc.;
• -no naked flame sources,such as lighted candles,should be placed on the
apparatus;
• - attention should be drawn to the environmental aspects of battery disposal.
25
En
SPECIFICATION
Panel Size 39.5 inch diagonally
Display Type LED
Panel Technology TFT
Panel 60 Hz Vs. 120 Hz 60 Hz
Display Resolution 1920 x 1080
HDMI Support 1920 x 1080 60Hz
Panel Resolution 1920 x 1080
Aspect Ratio 16:9
Dynamic Contrast Ratio-Panel 1000:1
Response Time (G To G) 8 ms
Lamp Life (Typ. Hours) 20,000 hours
Horizontal Viewing Angle (At CR>10) 178
Vertical Viewing Angle (At CR>10) 178
Wall-mount(LxW-mm) 200*200 VESA(mm)
The FCC Wants You to Know
FCC STATEMENT
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired
could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measure
Note: The Grantee is not responsible for any changes or modifications not expressly approved by the
party responsible for compliance. such modifications could void the user's authority to operate the
equipment.
s:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement
The device has been evaluated to meet general RF exposure requirement.
To maintain compliance with FCC's RF exposure guidelines, the distance must be at least 20 cm
between the radiator and your body, and fully supported by the operating and installation
configurations of the transmitter and its antenna(s).
26
En
If you want to know about these APP information or get more service. Please refer to following
content.
Please call Westinghouse Electronics at (800) 701-0680 for the locations of the nearest
Westinghouse Electronics service center or to obtain in-home services.
OTT APP SERVICE
OBTAINING WARRANTY SERVICE
•
You can call the following telephone for more help: 866-579-7172
If your matter is regarding customer service, please refer to for
alternative contact information.
• YouTube
You can browse the following website for more help:
https://productforums.google.com/forum/#!categories/youtube/smart-tvs
• AccuWeather
You can send E-mail to AccuWeather for more help: CustomerService@AccuWeather.com
• VUDU
You can call the following telephone for more help: 888-554-8838
• Pandora
You can send E-mail to Pandora for more help: pandora-support@pandora.com

Navigation menu
