1 Getting Started
1.1 Contents
1.2 Connections
1.3 12-pin Harness Connection
1.4 Mounting the BlueCube Media Player
1.5 Power On
1.6 Handheld Remote Control Charging
1.7 Handheld Remote Control Synchronizing
2 Location of Controls

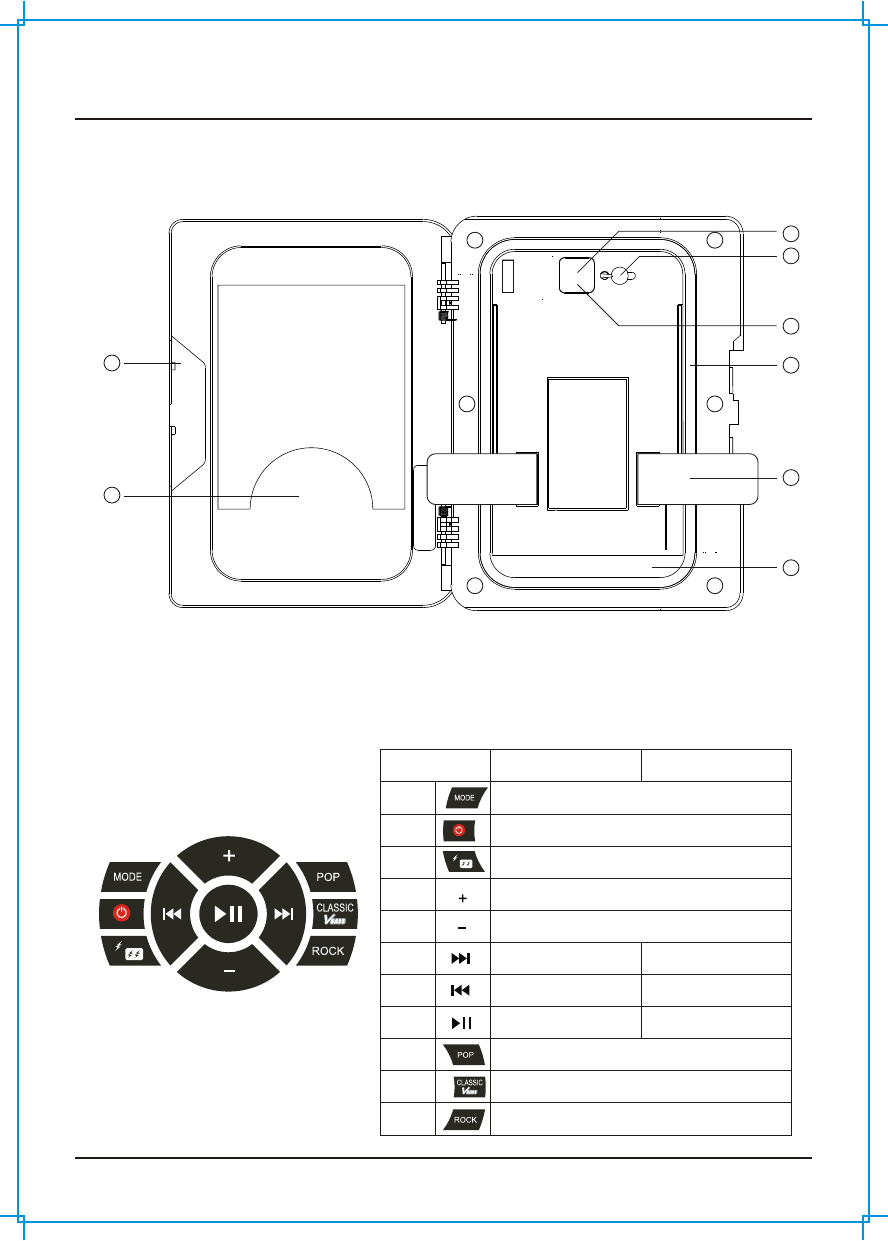

2.1 Digital Media Locker Controls
2.2 Door Keypad Controls
2.3 Wireless Handheld Remote Control
2.4 Using Audio Menu on Handheld Remote Control
2.5 Wired Remote Control
3. Listening to Devices
3.1 Listening via Bluetooth
3.1.1 Pairing with Bluetooth Device
3.1.2 Listening via Bluetooth Device
3.1.3 Multi-Link Features
3.2 Listening via Auxillary Input
3.3 Adjusting Volume Level
3.4 Using VBass
3.5 External Trigger

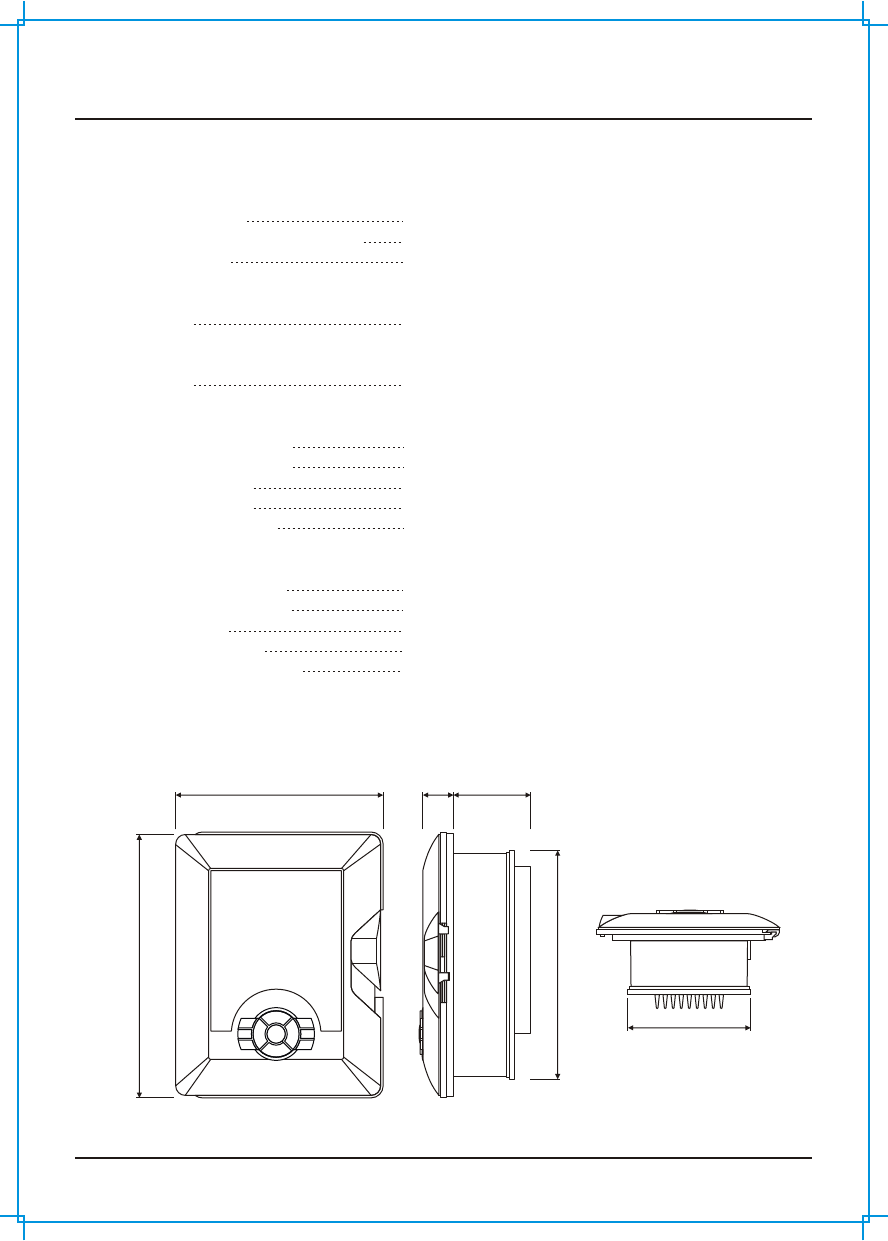

4 Specifications and Dimensions
4.1 Specifications
4.2 Dimensions
5 Warranty Information
6 FCC Statement
3
3
3
4
4
5
5
5
6
6
6
7
7
7
8
8
8
8
8
8
8
8
8
9
9
9
10
11
Table of Contents Bluecube Media Player AQ-DM-6BT
www.aquaticav.com 2
Getting Started Bluecube Media Player AQ-DM-6BT
www.aquaticav.com 3
1.1 Contents
AQ-DM-5BT BlueCube Media Player
2-Way RF Waterproof Remote Control, AQ-DM-6UBT-T (optional)
RF Remote Control Receiver, AQ-DM-6UBT-R (optional)
Jack Cable (3.5mm Male to 3.5 Female)
Wiring Harness (AQ-UNH-2)
Six (6) Staineless Steel Mounting Screws
Mounting template
Owner's Manual

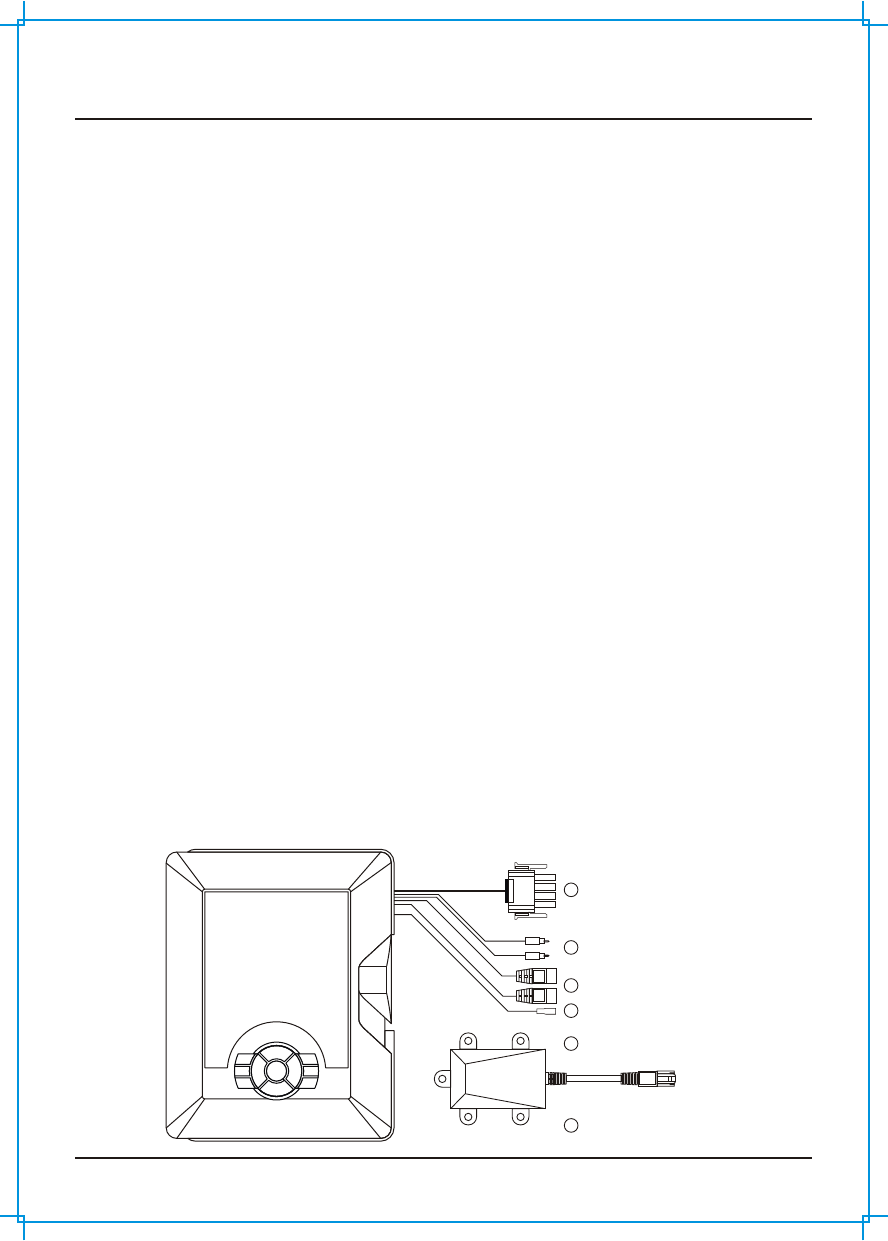

1.2 Connections
1: 12-pin Watertight Harness
The 12-pin harness supplies power and ground connection to the BlueCube Media Player and four (4)
speaker channel output connections from the BlueCube Media Player.
2: Auxiliary Outputs
Allows external amplifiers to be connected to power additional speakers.
3: 8-pin DIN Cable for remotes
Connect to optional wireless or wired Remote Control (sold separately). There are two DIN connectors.
4: EXT Trigger
Provide 12Vdc when EXT trigger is pressed on remote control (sold separately). There are two EXT
triggers.
5: RF Remote Control Receiver (optional)
tAllow RF remote Control signal to be received.
7: Bluetooth Antenna Connection
Connect to the Male SMA connector of the Bluetooth antenna. Do not excess torque on the SMA connector
(no more than 0.5N-m). Use hands to tighten the connection. (No wrench is used)
12-pin Watertight Harness1
2RCA Auxiliary Outputs (Grey)
3
4
8-pin DIN Cables (Black)
External Trigger
5RF Remote Receiver
(optional)
7Bluetooth Antenna Connection
(on the back side of the Locker).
Getting Started Bluecube Media Player AQ-DM-6BT
www.aquaticav.com 4

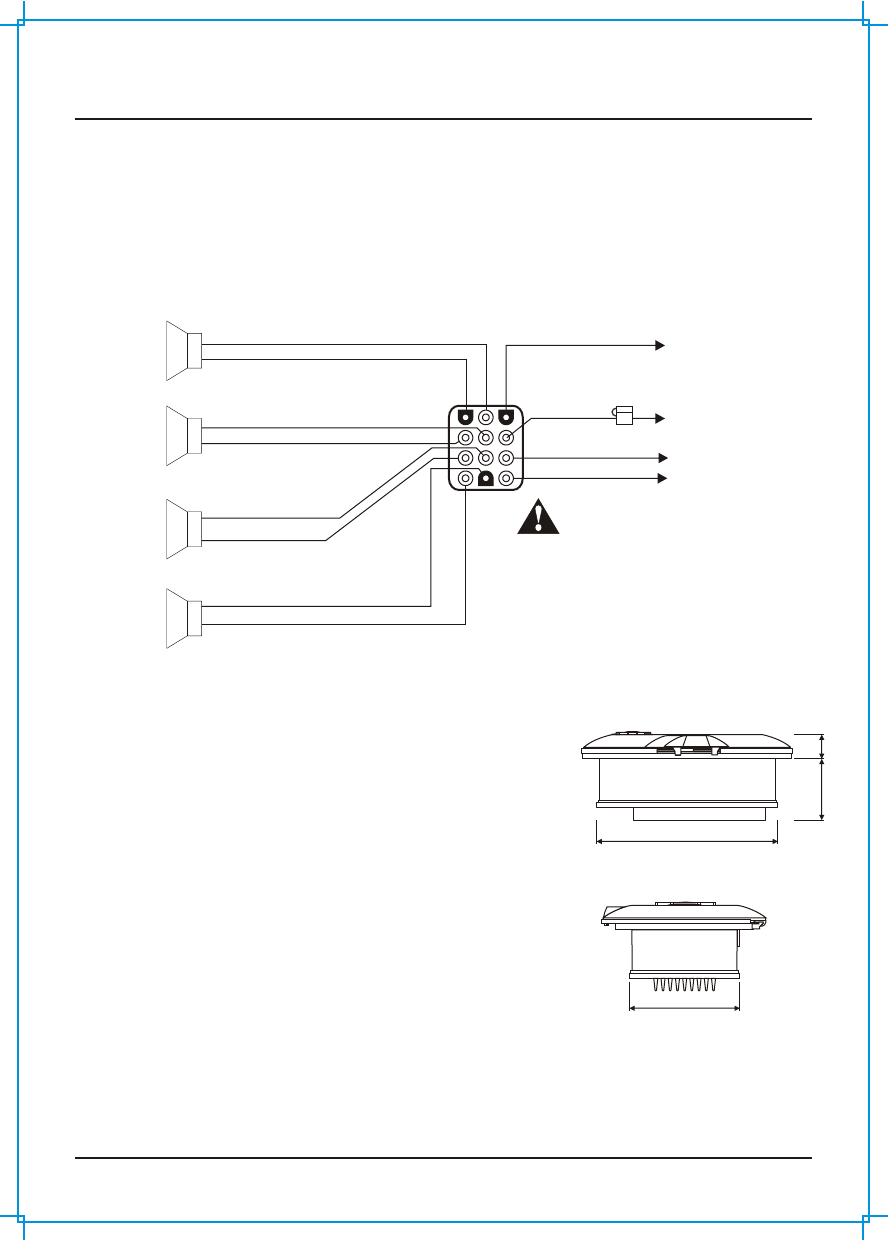

1.3 12-pin Harness Connection
The AQ-BC-6BT includes the universal harness AQ-UHN-2 in order to connect the BlueCube to power and
speakers.
All open wire connections should be soldered and protected against water and dust for best long term
performance.
Power Antenna (7)
DC Ground (10)
LR-(2) ACC
LR+(3)
LF-(5)
LF+(6)
RF-(8)
RF+(9)
RR-(11)
RR+(12)
FUS E BOX
Left Rear Speaker
+
-
Left Front Speaker
+
-
+
-
+
-
Right Front Speaker
Right Rear Speaker
Please put a
fuse into the box
(Red color)
(Blue color)
(Green/strip)
(Green color)
(White/strip)
(White color)
(Gray/strip)
(Gray color)
(Purple color)
(Purple/strip)
(Black color)
No lower than 2 Ohm load should be used
or damage may occur to the BlueCube Media
Player.
Make sure the polarity of speakrs are
connected correctly.
(Yellow color)
+12VDC(1)
1.4 Mounting the BlueCube Media Player
1. A mounting template is included. Aquatic AV recommends using
the 'measure twice, cut once' method.
2. Once the mounting hole is complete, make sure the outside
surface is clean and clear of debris. The Digital Media Locker
has an external water/dust proof gasket, but this requires a
clean and flat surface for best performance.
3. The Digital Media Locker has six (6) front screws. Drive the
screws using a screw driver. During final mounting, apply equal
pressure to all points for the best water/dust outer seal
performance. make sure screws are snug and do not over
tighten.
4. Review all outside surfaces of the Digital Media Locker to
ensure proper water/dust seal. This is important for long term
environmental protection performance for your digital media
device.
120
65
196.5
26
Getting Started Bluecube Media Player AQ-DM-6BT
www.aquaticav.com 5
1.5 Power On
Press the on/off button inside the locker.
Red Light: Power to the locker is ON, but the unit is in standby mode.
Blue Light: The unit is powered ON and looking for an audio source.
For applications that require low current draw and where battery drain may occur, the power button must be
turned OFF inside the unit. When the power button is in OFF position, the red LED will not lit.
For application where 12V battery is not used, such as in a Spa, the power button can be left ON and the
remote control or door controls can then be used to power on/off accordingly.
For detailed instructions, you can check out our online video:
"How to wire your Aquatic AV stereo system"
http://www.aquaticav.com/support/videos
1.6 Handheld Remote Control Charging (AQ-DM-6UBT-T sold separately)
The remote has a built-in Polymer Lithium rechargeable battery. It comes with a custom made charging
cable. Connect one end to the blades of the remote control and another the other end to any USB female
device (5V dc) for charging.
Make sure the remote has been charged before used.
1.7 Handheld Remote Control Synchronizing (AQ-DM-6UBT-T sold separately)
The remote has a receiver dongle (AQ-DM-6UBT-R) with a builtin male DIN connector. Connect the dongle
to the female DIN connector of locker (AQ-DM-6BT).
The remote should already be paired from the factory, but if you need to synchronize the remote, follow
below steps.
1. Make sure Digital Media Locker (AQ-BC-6BT) is powered ON (LED in red or blue)
2. Put the remote close to the dongle (AQ-DM-6UBT-R) (within 0.5 meter)
2. Press and hold mode until the LCD shows "Pairing in Progress". Release the button.
3. WIthin 2 seconds, the LCD will show "Paired". If it fails to pair, the LCD will show "Retry again". If this
happens, wait 5 seconds and repeat the above procedures.
For any additional remote controls, you will also need to synchroize those remote controls to the BlueCube
Media Player (AQ-BC-6BT).
If the pairing process is not successful, try again to put your remote close to the dongle.
Depending on the frequency of usage, the remote might drain its battery. Please charge the remote before
use. If the LCD shows nothing, it means that the battery has been drained.
If you have lost your remote control and buy a new remote control, please follow the above steps to pair the
remote control
Location of Controls Bluecube Media Player AQ-DM-6BT
www.aquaticav.com 6
2.1 Digital Media Locker Controls
2.2 Door Keypad Controls
1
2
3
8
5
7
1. Open/Close Latch & Protective Door
2. Door Control Keypad
3. Power ON/OFF Button
4. 3.5mm Aux Input for MP3 Device
4
6
5. Power ON/Standby LED
6. Water/Dust Protective Inner Gasket
7. Security Strap for digital Media Devices
8. Charging Compartment for Remote Control
Buttons AUX IN Mode Bluetooth Mode
Power
Mode
Volume
Up
Volume
Down
Pop
Rock
Fast
Forward
Fast
Rewind
Play/
Pause
Press once: Toggle Operational mode to Standby mode or vice versa
Press once: Change the source
Press and hold: no function
Press once: Volume up
Press and hold: Fast volume up
Press once: Volume down
Press and hold: Fast volume down
Press once: no function
Press and hold: no function
Press once: Next track
Press and hold: Fast Forward
Press once: no function
Press and hold: no function
Press once: Previous track
Press and hold: Fast backward
Press once: Toggle mute
Press and hold: no function
Press once: Play/Pause
Press and hold: no function
Press once: Preset Equailizer Setting Pop
Press and hold: no function
Press once: Preset Equailizer Setting Classic
Press and hold: Toggle VBass
Press once: Preset Equailizer Setting Rock
Press and hold: no function
Mode Press once: External Trigger 1
Press and hold: External Trigger 2
Classic
Location of Controls Bluecube Media Player AQ-DM-6BT
www.aquaticav.com 6

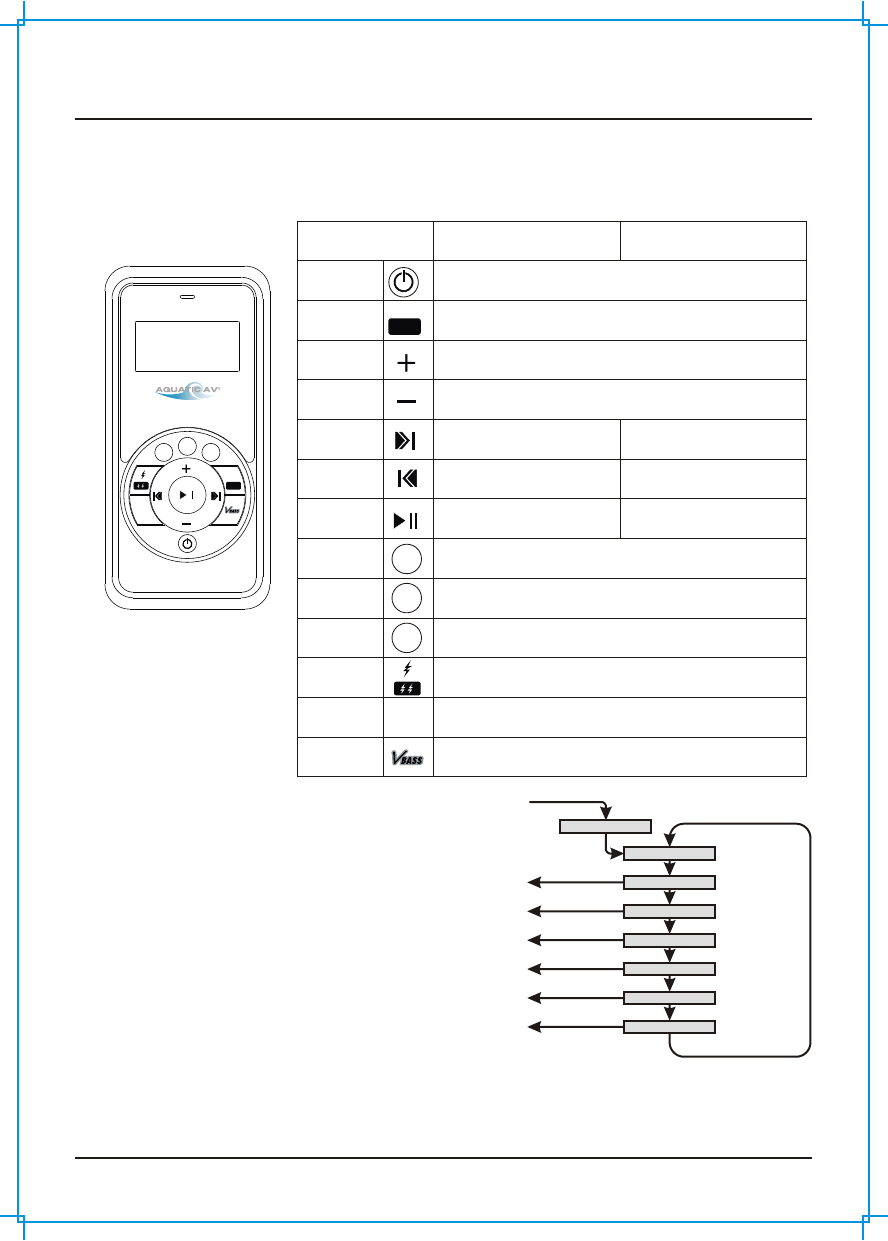

2.3 Wireless Handheld Remote Control AQ-RF6UBT-T (sold separately)
23
1
AUDIO AUDIO
MODEMODE
PAIRPAIR
AUDIO AUDIO
MODEMODE
PAIRPAIR
Buttons AUX IN Mode Bluetooth Mode
Power
Mode/Pair
Volume
Up
Volume
Down
2
3
EXT
Trigger
Audio
VBass
Fast
Forward
Fast
Rewind
Play/
Pause
11
2
3
Press once: Toggle Operational mode to Standby mode or vice versa
Press once: Change the source
Press and hold: Pair
Press once: Volume up
Press and hold: Fast volume up
Press once: Volume down
Press and hold: Fast volume down
Press once: no function
Press and hold: no function
Press once: Next track
Press and hold: Fast Forward
Press once: no function
Press and hold: no function
Press once: Previous track
Press and hold: Fast backward
Press once: Toggle mute
Press and hold: no function
Press once: Play/Pause
Press and hold: no function
Press once: no function
Press and hold: no function
Press once: no function
Press and hold: no function
Press once: no function
Press and hold: no function
Press once: Toggle EXT trigger 1 (12V dc)
Press and hold: Toggle EXT trigger 2 (12V dc)
Press once: no function
Press and hold: no function
Press once: Toggle VBass ON or OFF
Press and hold: no function
2.5 Wired Remote Control AQ-WR6 (sold separately)
Coming Soon!
AUDIO MENU
Short press AUDIO
BALANCE Use +/- to adjust
FADER
ROCK
BASS
TREBLE
Short press AUDIO
Use +/- to adjust
Use +/- to adjust
CLASSIC
POP
Use +/- to adjust
Short press AUDIO
Short press AUDIO
Short press AUDIO
Short press AUDIO
Short press AUDIO
Long press AUDIO
to save and exit
Short press AUDIO
Long press AUDIO
to save and exit
Long press AUDIO
to save and exit
Long press AUDIO
to save and exit
Long press AUDIO
to save and exit
Long press AUDIO
to save and exit
2.4 Using Audio Menu on Handheld Remote
Control (purchased separately)
BlueCube+ Media Player (AQ-BC-6UBT) has equiped with
a audio DSP to meet different listening experiences.
1. To enter audio menu, press once AUDIO button.
2. Each press of AUDIO button will advance to the next
audio setting as described on the right.
3. In the audio menu, press and hold will save and exit the
audio menu to the original mode.
If you have chosen preset equalizer (Rock, Classic, or
Pop), the previously set Bass, Treble will be overrided.
Listening to Devices Bluecube Media Player AQ-DM-6BT
www.aquaticav.com 7
3.1 Listening via Bluetooth
3.1.1 Pair with Bluetooth Device
1. Switch on your Bluetooth device.
2. Select 'AQUATIC AV' from the list of available devices to pair (no password is needed).
3.1.2 Listening via Bluetooth Device
1. Bluetooth mode will be activated once a Bluetooth device is paired.
2. Play the song from device and the sound will play through the Bluecube Media Player.
3. Press Play/Pause to play/pause the song.
4. Press Fast Rewind or Fast Forward buttons to play previous or next song
5. Track and volume can be controlled directly from your Bluetooth device or remote control.
3.1.3 Multi-link Feature
A second Bluetooth device can always pair to the BlueCube Media Player even when it has been
paired to another Bluetoot device.
3.2 Listening via Auxiliary Input
1. Connect your MP3 device ot the 3.5mm inputs
2. Secure the device with the anchor straps in the locker.
3. Secure the Digital Media Locker's protective door.
4. Press Mode on the remote control to select 'AUX IN' mode.
3.3 Adjust Volume Level
1. Press Volume Up once to increase the volume.
2. Press Volume Down once to reduce the volume.
3. Press and hold either Volume Up or Volume Down to increase or decrease audio volume
continuously.
3.4 Using VBass
1. VBass is a features to boost up the bass of the audio using latest DSP technology.
2. Press VBass once to toggle it ON or OFF.
3.5 External Trigger
Press EXT on the remote to toggle the External Trigger ON/OFF. When Ext Trigger is turned on, there
will +12V dc from EXT wire. This can be used for turn ON/OFF other devices.
Only one Bluetooth device can be connected with the Digital Media Locker at any time.
Always ensure to connect and disconnect your media player with dry hands!
Specifications & Dimensions Bluecube Media Player AQ-DM-6BT
www.aquaticav.com 8
4.1 Specifications
Media
Supported media
Supported media max. dimensions
Device control
Inputs
Auxiliary
Outputs
Pre-Out
Power
Output voltage @2 Ohm
Output voltage @4 Ohm
Operation voltage
Max current draw
Standby current draw
Multi-Environment Certifications
Waterproof / Dustproof
Conformal PCB coating
UV Protection
Salt/Frog protection
Stainless steel mountings
Bluetooth/MP3
via Bluetooth / MP3 device
107x184mm (WxH)
via Door Controls & optional RF Remote Control
1x 3.5mm Stereo Jack Socket
1x stereo pair RCA (4V rms)
4x 72W
4x 45W
9.6V - 14.4V
7A
6mA
Yes IP65 (Remote Control rated IP66)
Yes
500 hours stable. ASTM D4329 compliant
500 hours stable. ASTM B117 compliant
Yes
65
196.5
26
120
180
228
Warranty Information Bluecube Media Player AQ-DM-6BT
www.aquaticav.com 9
Aquatic AV offers a limited warranty of our products on the following terms:
Length of Warranty
2 years on audio systems, electronics, speakers, and accessories (receipt required).
Coverage
This warranty covers only the original purchaser of a Aquatic AV product purchased from an authorized Aquatic
AV dealer in the United States. In order to receive service, the purchaser must provide Aquatic AV with a copy
of the receipt stating the customer name, dealer name, product pruchased and date of purchase.
Defective products
Products found to be defective during the warranty period will be repaired or replaced (with a product deemed
to be equivalent) at Aquatic AV's discretion.
What is not covered
Damage caused by accident, abuse, improper operation, theft. Any cost or expernse related to the removal or
reinstallation of the product. Service performed by another other than an authorized Aquatic AV service center.
Any product with the serial number or tamper labels defaced, altered or removed. Subsequent damage to other
components. Any product not purchased from an authorized Aquatic AV dealer.
Limit on implied warranties
Any implied warranties including warranties of fitness for use and merchantability are limited in duration to the
period of the express warranty set forth above. Some states do not allow limitation on the length of an implied
warranty, so this limitation may not apply. No person is authorized to assume for Aquatic AV any other liability in
connection with the sale of the product.
How to obtain service
You must obtain a return material authorization number (RMA) to return any product to Aquatic AV. You are
responsible for shipping charges of returned products to Aquatic AV.
Please record the model and serial number[s] of your equipment in the spaced provided below as your
permanent record and will assist us with your factory warranty coverage. These numbers can be found on the
rear of the BlueCube Media Player.
Model number[s]: Serial number[s]:
FCC Statements Bluecube Media Player AQ-DM-6BT
www.aquaticav.com 10
FCC ID
MADE IN CHINA
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
NOTE:
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Consult the dealer or an experienced radio/TV technician for help.
The manufacturer is not responsible for any radio or TV interference
caused by unauthorized modifications to this equipment. Such
modifications could void the user authority to operate the equipment.
:WBQAQRFDM6D
products with watertight reputation
Aquatic AV
282 Kinney Drive
San Jose, CA65112, USA
E-mail: info@aquaticav.com
US & Canada: 1 877 579 2782
International: +1 408 559 1668
Fax: +1 408 559 0125
www.aquaticav.com

Navigation menu
