AQUATIC AV AQRFDM6D Multimedia Locker User Manual IB DM 6UBT V0 1 20161206

AQUATIC AV Multimedia Locker IB DM 6UBT V0 1 20161206

Contents

15_AQ-DM-6UBT UserMan

products with watertight reputation
AQ
TM
DIGITAL MEDIA LOCKER
for Bluetooth, USB, iPhone, iPod, MP3 devices, and FM Radio
OWNER'S MANUAL
PLEASE READ THIS INSTRUCTION MANUAL BEFORE
INSTALLATION AND OPERATION
! !
23
1
AUDIO AUDIO
MODEMODE
PAIRPAIR
Bluetooth
USB 2.0
AQ-DM-6UBT
3
3
3
4
4
5
5
5
6
6
7
8
9
9
9
9
9
9
9
9
9
9
9
10
10
10
10
10
11
11
11
12
12
12
13
13
13
14
15
Table of Contents AQ-DM-6BT
www.aquaticav.com 2
1 Getting Started
1.1 Contents
1.2 Connections
1.3 12-pin Harness Connection
1.4 Mounting the BlueCube Media Player
1.5 Power On
1.6 Handheld Remote Control Charging
1.7 Handheld Remote Control Synchronizing
2 Location of Controls
2.1 Digital Media Locker Controls
2.2 Door Keypad Controls
2.3 Wireless Handheld Remote Control
3. Listening to Devices
3.1 Listening via USB
3.1.1 USB thumb drive
3.1.2 Navi Search
3.1.3 Random Playing
3.1.4 Device Charging
3.2 Listening via Bluetooth
3.1.1 Pairing with Bluetooth Device
3.1.2 Listening via Bluetooth Device
3.1.3 Multi-Link Features
3.3 Listening via Auxiliary Input
4. Listening to FM Radio
4.1 Enter FM Radio Mode
4.2 Scan or Seek FM Radio Channels
4.3 Saving Radio Channel to Memory
4.4 Listening to Saved Radio Memory
4.5 Adjust Volume Level
5. Additional Features
5.1 External 12V Trigger
5.2 Connectng Multiple Amplifiers or High Current Draw Lighting Systems
5.3 Internal Docking Light
5.4 Using Audio Menu on Handheld Remote Control
5.5 Using VBass

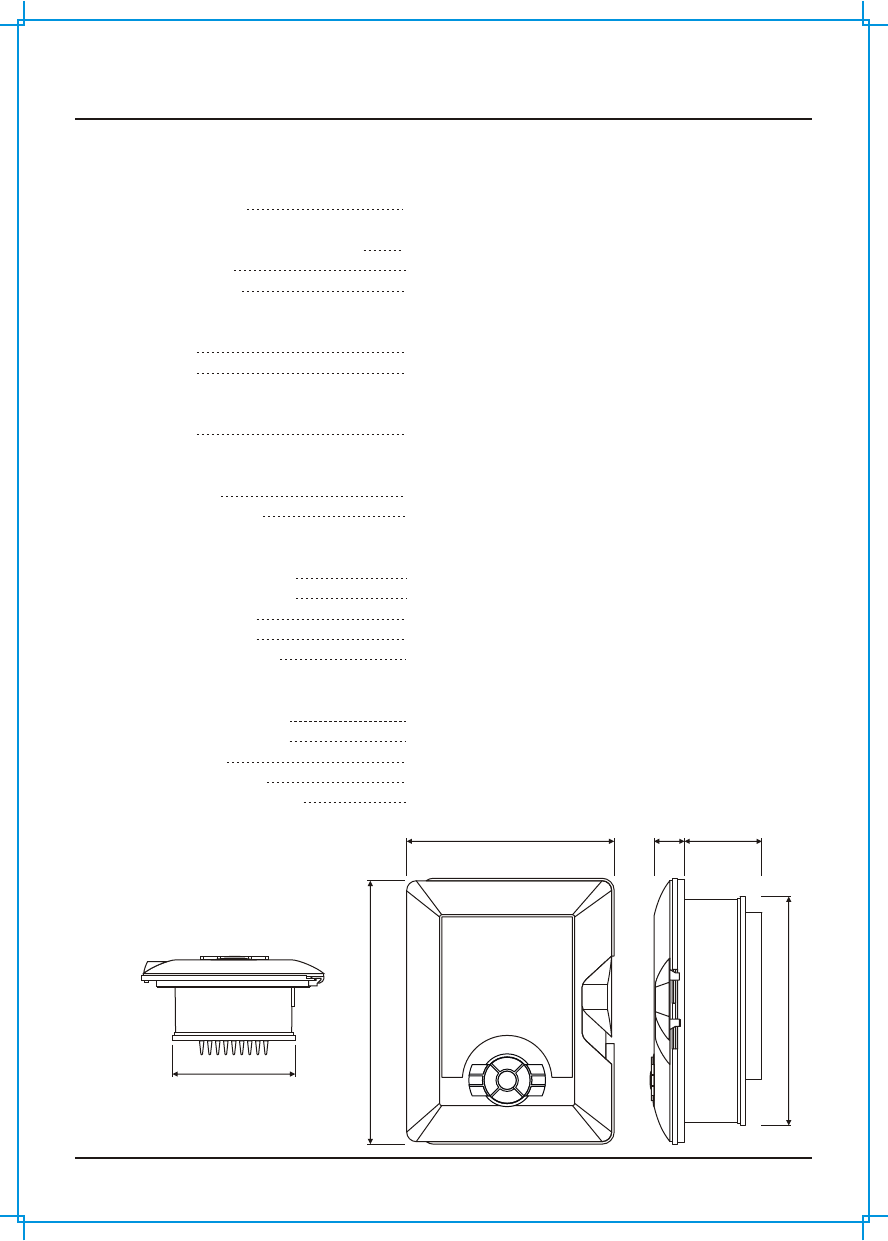

6. Specifications and Dimensions
6.1 Specifications
6.2 Dimensions
7. Warranty Information
8. FCC Statement
Getting Started
www.aquaticav.com 3

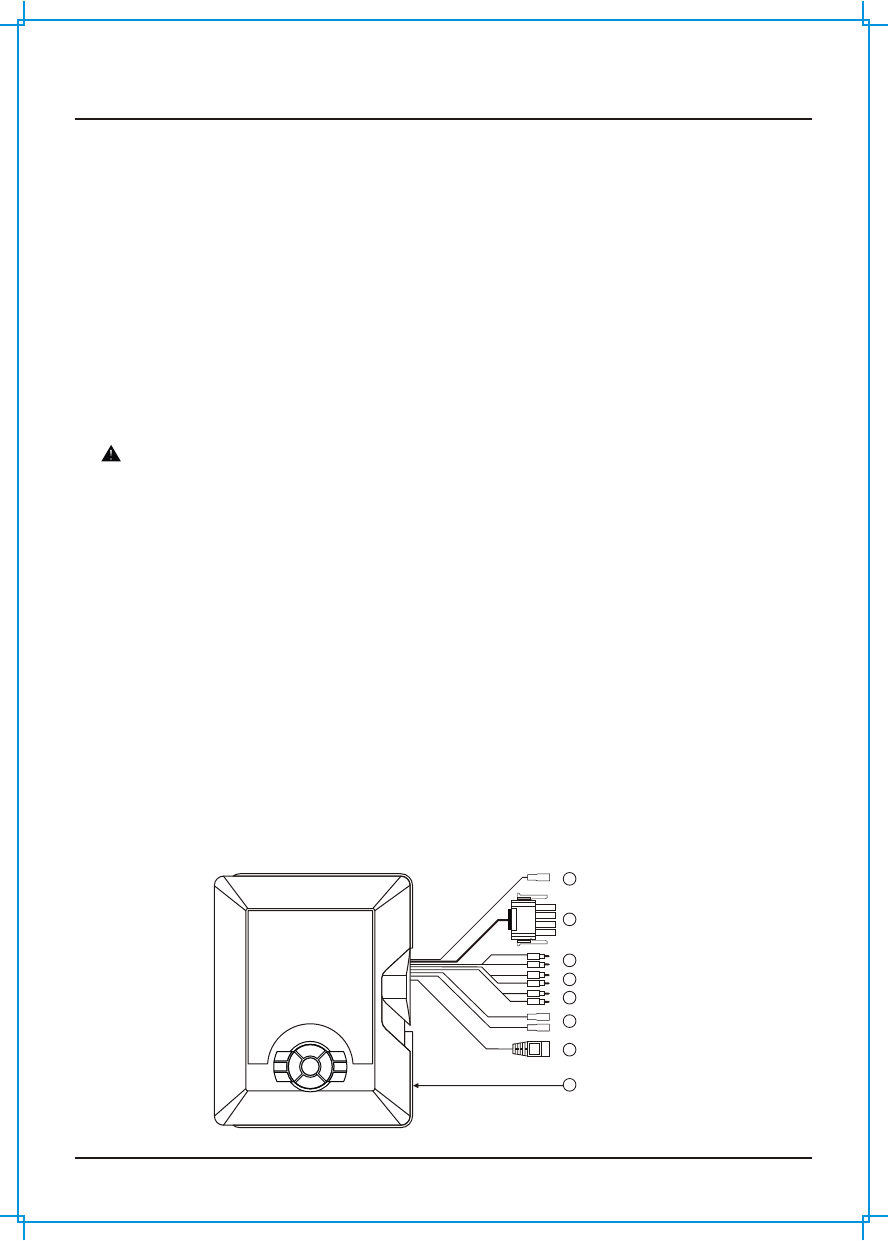

1.1 Contents
AQ-DM-5UBT BlueCube Media Player
2-Way RF Waterproof Remote Control, AQ-DM-6UBT-T
Jack Cable (3.5mm Male to 3.5 Female)
Wiring Harness (AQ-UNH-2)
Six (6) Staineless Steel Mounting Screws
Mounting template
Owner's Manual
12-pin Watertight Harness1
2
3
FM Radio Antenna Jack
RCA Auxiliary Outputs (Rear)
6
8-pin DIN Cable (Black)
External 12V Trigger wire (Brown)
4RCA Auxiliary Outputs (Front)
5RCA Auxiliary Outputs (Front)
7
8Bluetooth Antenna Connector
(Back side of the Locker)
1.2 Connections
1: 12-pin Watertight Harness
The 12-pin harness supplies power and ground connection to the BlueCube Media Player and four (4) speaker
channel output connections from the BlueCube Media Player.
Do not cut or modify the 12-pin harness on the unit side or warranty will be void.
2: FM Radio Antenna Jack
Connect antenna (AQ-ANT-1 sold separately) to female antenna receptacle. For best FM performance, make sure
the antenna is extended to the highest achievable position.
3: Auxiliary Outputs - Rear
Allows external amplifiers to be connected to power additional speakers.
4: Auxiliary Outputs - Front
Allows external amplifiers to be connected to power additional speakers.
5: Auxiliary Inputs
Connect to a portable audio player through the AUX IN cable on the back of the BlueCube+ Media Player.
6: 12V DC External Trigger
Allows for an external light or relay to be triggered (2A max load). There are two external triggers.
7: Wired Remote 8-pin DIN Connector
Connect to a wired Remote Control
8: Bluetooth Antenna Connection
Connect to the Male SMA connector of the Bluetooth antenna (AQ-BTANT-1). Do not apply excessive torque on
the SMA connector (no more than 0.5N-m). Use hands to tighten the connection. (No wrench is used)
Getting Started
www.aquaticav.com 4

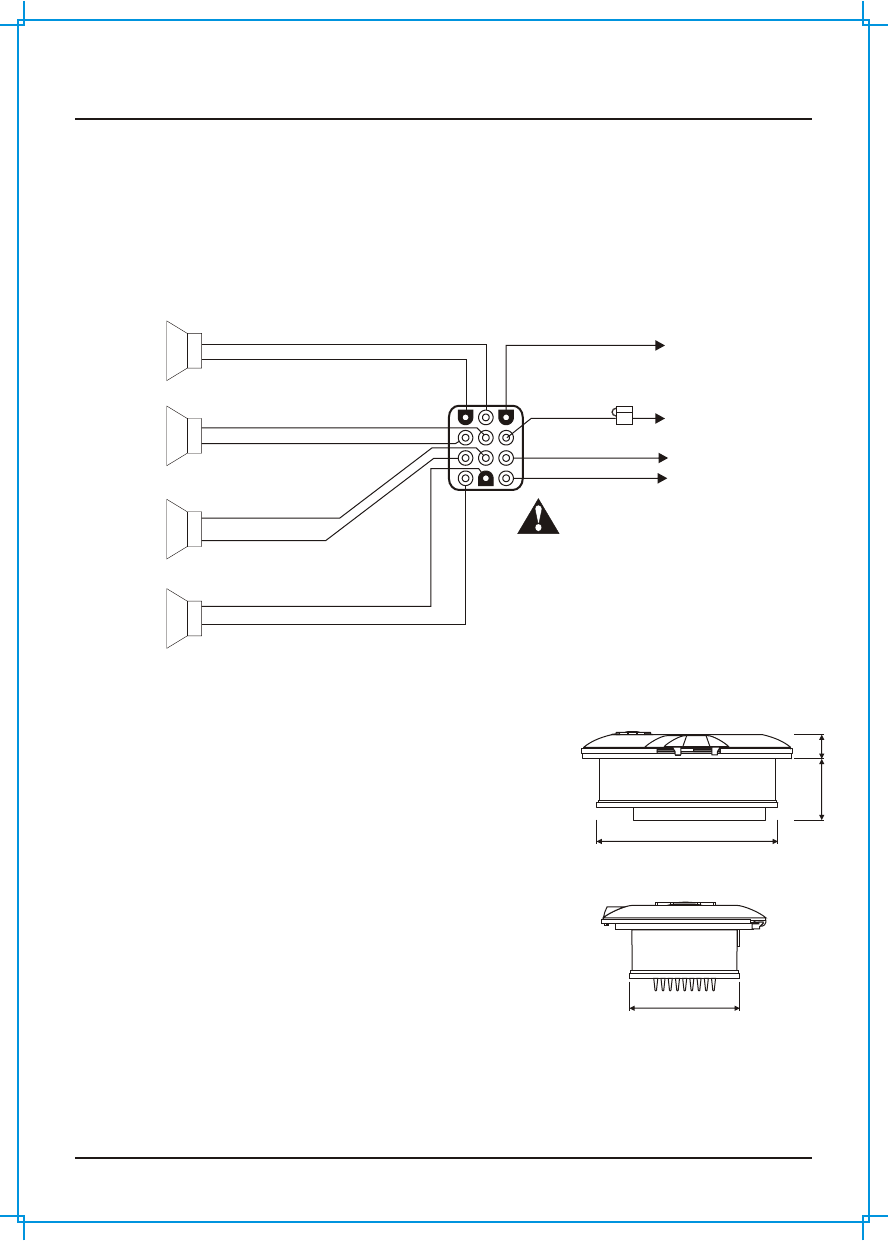

1.3 12-pin Harness Connection
The AQ-BC-6BT includes the universal harness AQ-UHN-2 in order to connect the BlueCube to power and
speakers.
All open wire connections should be soldered and protected against water and dust for best long term
performance.
Power Antenna (7)
DC Ground (10)
LR-(2) ACC
LR+(3)
LF-(5)
LF+(6)
RF-(8)
RF+(9)
RR-(11)
RR+(12)
FUS E BOX
Left Rear Speaker
+
-
Left Front Speaker
+
-
+
-
+
-
Right Front Speaker
Right Rear Speaker
Please put a
fuse into the box
(Red color)
(Blue color)
(Green/strip)
(Green color)
(White/strip)
(White color)
(Gray/strip)
(Gray color)
(Purple color)
(Purple/strip)
(Black color)
No lower than 2 Ohm load should be used
or damage may occur to the BlueCube Media
Player.
Make sure the polarity of speakrs are
connected correctly.
(Yellow color)
+12VDC(1)
1.4 Mounting the BlueCube Media Player
1. A mounting template is included. Aquatic AV recommends using
the 'measure twice, cut once' method.
2. Once the mounting hole is complete, make sure the outside
surface is clean and clear of debris. The Digital Media Locker
has an external water/dust proof gasket, but this requires a
clean and flat surface for best performance.
3. The Digital Media Locker has six (6) front screws. Drive the
screws using a screw driver. During final mounting, apply equal
pressure to all points for the best water/dust outer seal
performance. make sure screws are snug and do not over
tighten.
4. Review all outside surfaces of the Digital Media Locker to
ensure proper water/dust seal. This is important for long term
environmental protection performance for your digital media
device.
120
65
196.5
26
Getting Started
www.aquaticav.com 5
1.5 Power On
Press the on/off button inside the locker.
Red Light: Power to the locker is ON, but the unit is in standby mode.
Blue Light: The unit is powered ON and looking for an audio source.
For applications that require low current draw and where battery drain may occur, the power button must be
turned OFF inside the unit. When the power button is in OFF position, the red LED will not lit.
For application where 12V battery is not used, such as in a Spa, the power button can be left ON and the
remote control or door controls can then be used to power on/off accordingly.
For detailed instructions, you can check out our online video:
"How to wire your Aquatic AV stereo system"
http://www.aquaticav.com/support/videos
1.6 Handheld Remote Control Charging (AQ-DM-6UBT-T sold separately)
The remote has a built-in Polymer Lithium rechargeable battery. It comes with a custom made charging
cable. Connect one end to the blades of the remote control and another the other end to any USB female
device (5V dc) for charging.
Make sure the remote has been charged before used.
1.7 Handheld Remote Control Synchronizing (AQ-DM-6UBT-T sold separately)
The remote has a receiver dongle (AQ-DM-6UBT-R) with a builtin male DIN connector. Connect the dongle
to the female DIN connector of locker (AQ-DM-6UBT).
The remote should already be paired from the factory, but if you need to synchronize the remote, follow
below steps.
1. Make sure Digital Media Locker (AQ-BC-6UBT) is powered ON (LED in red or blue)
2. Put the remote close to the dongle (AQ-DM-6UBT-R) (within 0.5 meter)
2. Press and hold mode until the LCD shows "Pairing in Progress". Release the button.
3. WIthin 2 seconds, the LCD will show "Paired". If it fails to pair, the LCD will show "Retry again". If this
happens, wait 5 seconds and repeat the above procedures.
For any additional remote controls, you will also need to synchroize those remote controls to the BlueCube
Media Locker (AQ-BC-6UBT).
If the pairing process is not successful, try again to put your remote close to the dongle.
Depending on the frequency of usage, the remote might drain its battery. Please charge the remote before
use. If the LCD shows nothing, it means that the battery has been drained.
If you have lost your remote control and buy a new remote control, please follow the above steps to pair the
remote control
Location of Controls
www.aquaticav.com 6

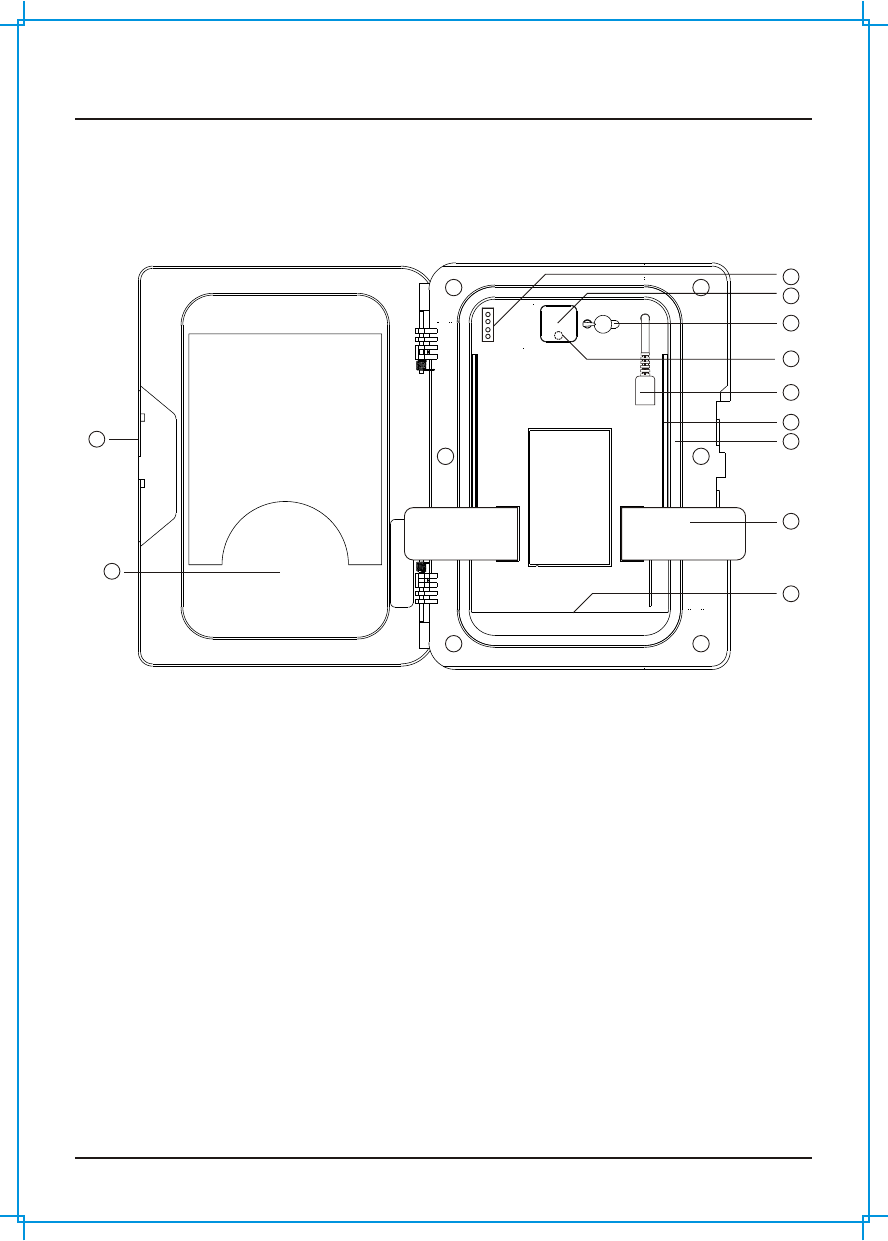

2.1 Digital Media Locker Controls
1
2
4
11
10
1. Open/Close Latch & Protective Door
2. Door Control Keypad
3. LED Mode Indicator
4. Power ON/Standby LED
5. 3.5mm Aux Input for MP3 Device
6. Power ON/OFF LED
5
3
6
9
7
8
7. USB Connector
8. Back Lighting
9. Water/Dust Protection Gasket
10. Security Strap for digital Media Devices
11. Charging Compartment for Remote Control
Location of Controls
www.aquaticav.com 7

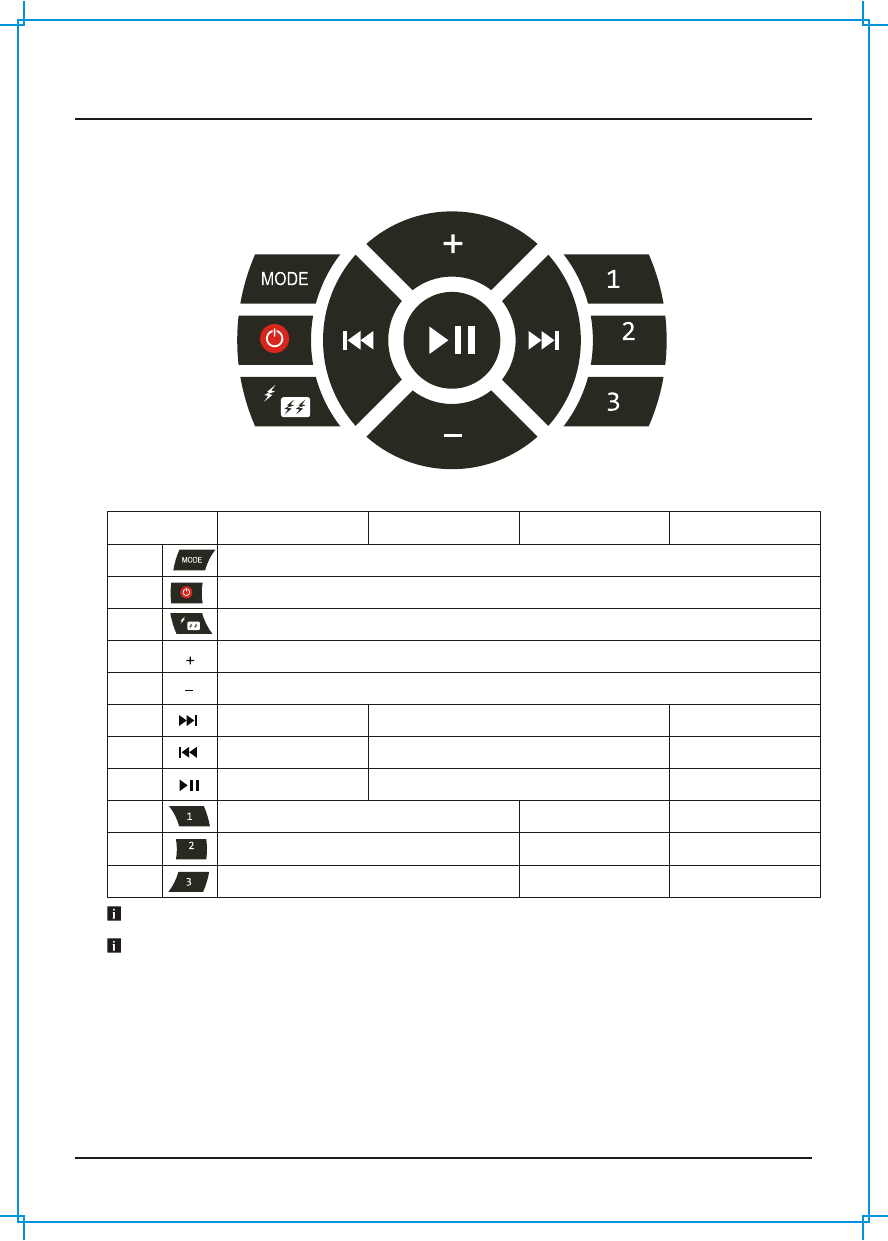

2.2 Door Keypad Controls
Buttons AUX IN Mode Bluetooth Mode
Power
Mode
Volume
Up
Volume
Down
Fast
Forward
Fast
Rewind
Play/
Pause
Press once: Toggle Operational mode to Standby mode or vice versa
Press once: Change the source
Press and hold: no function
Press once: Volume up
Press and hold: Fast volume up
Press once: Volume down
Press and hold: Fast volume down
Press once: no function
Press and hold: no function
Press once: Next track
Press and hold: Fast Forward
Press once: no function
Press and hold: no function
Press once: Previous track
Press and hold: Fast backward
Press once: Toggle mute
Press and hold: no function
Press once: Play/Pause
Press and hold: no function
Mode Press once: External Trigger 1 *
Press and hold: External Trigger 2 *
2 /
Random
USB Mode FM Radio
Press once: + 0.05kHz
Press and hold: Scan up
Press once: -0.05kHz
Press and hold: Scan down
Press once: Toggle mute
Press and hold: no function
RANDOM
RANDOM
1
3
Press once: no function
Press and hold: no function
Press once: no function
Press and hold: no function
Press once: Toggle mute
Press and hold: no function
Press once: Preset 1
Press and hold: Save to Preset 1
Press once: Preset 2
Press and hold: Save to Preset 2
Press once: Preset 3
Press and hold: Save to Preset 3
Press once: Folder up
Press and hold: no function
Press once: no function
Press and hold: Random
Press once: Folder down
Press and hold: no function
The keypad on the door has a set of keys fewer than those on the remote but has exactly the same functions correspondingly.
This keypad allows you to operate the dock without the remote control.
* On some spa installation, this function will switch between internal speakers and door speakers, if equipped.
Location of Controls
www.aquaticav.com 8

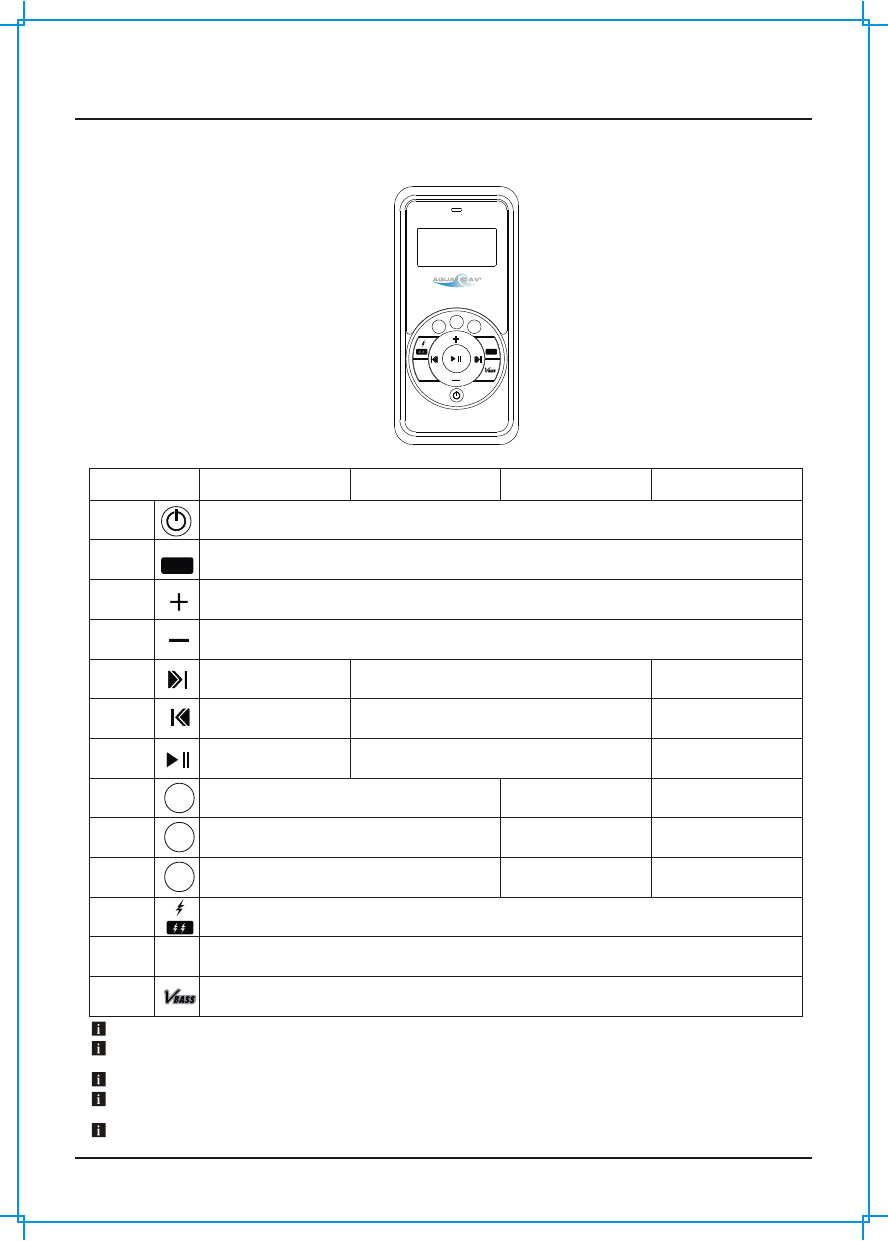

2.3 Wireless Handheld Remote Control AQ-RF6UBT-T (sold separately)
23
1
AUDIO AUDIO
MODEMODE
PAIRPAIR
Buttons AUX IN Mode Bluetooth Mode USB Mode FM Radio
Press once: Toggle mute
Press and hold: no function
AUDIO AUDIO
MODEMODE
PAIRPAIR
1
2
3
Power
Mode/Pair
Volume
Up
Volume
Down
2
3
EXT
Trigger
Audio
VBass
Fast
Forward
Fast
Rewind
Play/
Pause
1
Press once: Toggle Operational mode to Standby mode or vice versa
Press once: Change the source
Press and hold: no function
Press once: Volume up
Press and hold: Fast volume up
Press once: Volume down
Press and hold: Fast volume down
Press once: External Trigger 1
Press and hold: External Trigger 2
Press once: no function
Press and hold: no function
Press once: Next track
Press and hold: Fast Forward
Press once: + 0.05kHz
Press and hold: Scan up
Press once: no function
Press and hold: no function
Press once: Previous track
Press and hold: Fast backward
Press once: -0.05kHz
Press and hold: Scan down
Press once: Play/Pause
Press and hold: no function
Press once: Toggle mute
Press and hold: no function
Press once: no function
Press and hold: no function
Press once: no function
Press and hold: no function
Press once: Toggle mute
Press and hold: no function
Press once: Preset 1
Press and hold: Save to Preset 1
Press once: Preset 2
Press and hold: Save to Preset 2
Press once: Preset 3
Press and hold: Save to Preset 3
Press once: Folder up
Press and hold: no function
Press once: no function
Press and hold: Random
Press once: Folder down
Press and hold: no function
Press once: Enter Audio Menu
Press and hold: Exit Audio Menu
Press once: Toggle VBass ON or OFF
Press and hold: no function
If your music player is connected via the Auxiliary input, you will not be able to control track or receive track information.
In order to prolong remote battery life, the LCD will shut off in 5 seconds if no button is pressed. To turn remote back on, press
any key once and then press the command desired.
DSP (Classic, Pop, and Rock) will be turned OFF when Bass and Treble are set.
When in Bluetooth mode, Repeat and Random playback function must be enabled via your phone media device and not from
remote control.
* On some spa installation, this function will switch between internal speakers and door speakers, if equipped.
Listening to Devices
www.aquaticav.com 9
3.1 Listening via USB
3.1.1 USB thumb drive
1. Attach your USB thumb drive to the femal USB socket of the BlueCube+ Media Player.
2. Press MODE on the remote to select USB mode.
3. Press to play or pause the music.
4. Press once / to play previous / next song file.
5. Press and hold / to fast forward / fast rewind the song file.
3.1.2 Navi Search
You can navigate folders in the USB thumb drive.
1. Press 1 once will go to the next folder.
2. Press 3 once will go to the last folder.
3.1.3 Random Playing
Press and hold 2 will toggle Random Play in USB mode.
3.1.2 Charging
The USB socket can deliver 2.1A of current to charge a device battery.
3.2 Listening via Bluetooth
3.2.1 Pair with Bluetooth Device
1. Switch on your Bluetooth device.
2. Select 'AQUATIC AV' from the list of available devices to pair (no password is needed).
3.2.2 Listening via Bluetooth Device
1. Bluetooth mode will be activated once a Bluetooth device is paired in any mode. Use MODE to
change to the Bluetooth mode to listen to music.
2. Play the song from device and the sound will play through the Bluecube Media Player.
3. Press to play/pause the song.
4. Press / to play previous or next song
5. Press and hold / to fast forward / fast rewind the song file.
Track and volume can also be controlled directly from your Bluetooth device or remote control.
3.2.3 Multi-link
A second Bluetooth device an always pair to the BlueCube Media Player even when it has been paired
to another Bluetoot device.
3.3 Listening via Auxiliary Input
1. Connect your MP3 device ot the RCA inputs
2. Press MODE on the remote control to select 'AUX' mode.
IMPORTANT: Only one Auxiliary input (RCA) can be used at any one time.
Always ensure to connect and disconnect your media player with dry hands!
Only one Bluetooth device can be connected with the Digital Media Locker at any time.
Listening to FM Radio
www.aquaticav.com 10
4.1 Enter FM Radio Mode
1. Press MODE on the remote control to switch to FM radio mode.
2. Press to mute or unmute the audio
4.2 Scan or Seek FM Radio Channels
1. Press and hold / to seek another station
2. Press once / to -0.05kHz or +0.05kHz to the frequency.
4.3 Saving Radio Channel to Memory
To save the current frequency to memory, press and hold 1, 2 or 3 for more than 2 seconds. The
station will be stored into relevant button.
4.4 Listening to Saved Radio Memory
Press the 1, 2, or 3 preset button once to listen to the station stored in that button.
4.5 Adjust Volume Level
1. Press + once to increase the volume one step.
2. Press - once to reduce the volume one step.
3. Press and hold either + or - to increase or decrease audio volume continuously.
If this is the first time you listen to FM radio, the default frequency will be 87.5MHz, as shown on the remote LCD.
FM radio is only available when you are in FM Radio mode.
Additional Features
www.aquaticav.com 11
5.1 External 12V Trigger
Aquatic AV understands the need for more flexible remote applications. With the BlueCube+ Media
Player, Auquatic AV has provided an independent 12V 'accessory' trigger, activated from the RF
wireless remote. This could activate any 12V based device like 12V lights or 12V motors.
In any operational mode, press the (12V TRIGGER) button to activate. Press again to deactivate.
Depending on the versions, if there are two external trigger wires, you can also activate the second
external trigger by press and hold for the second external trigger.
5.2 Connecting Multiple Amplifiers or High Current Draw Lighting Systems
Aquatic AV strongly recommend you speak to our technical service staff or your local Aquatic AV dealer if you are
considering this feature.
Load on External Trigger(s) should not exceed 2A.

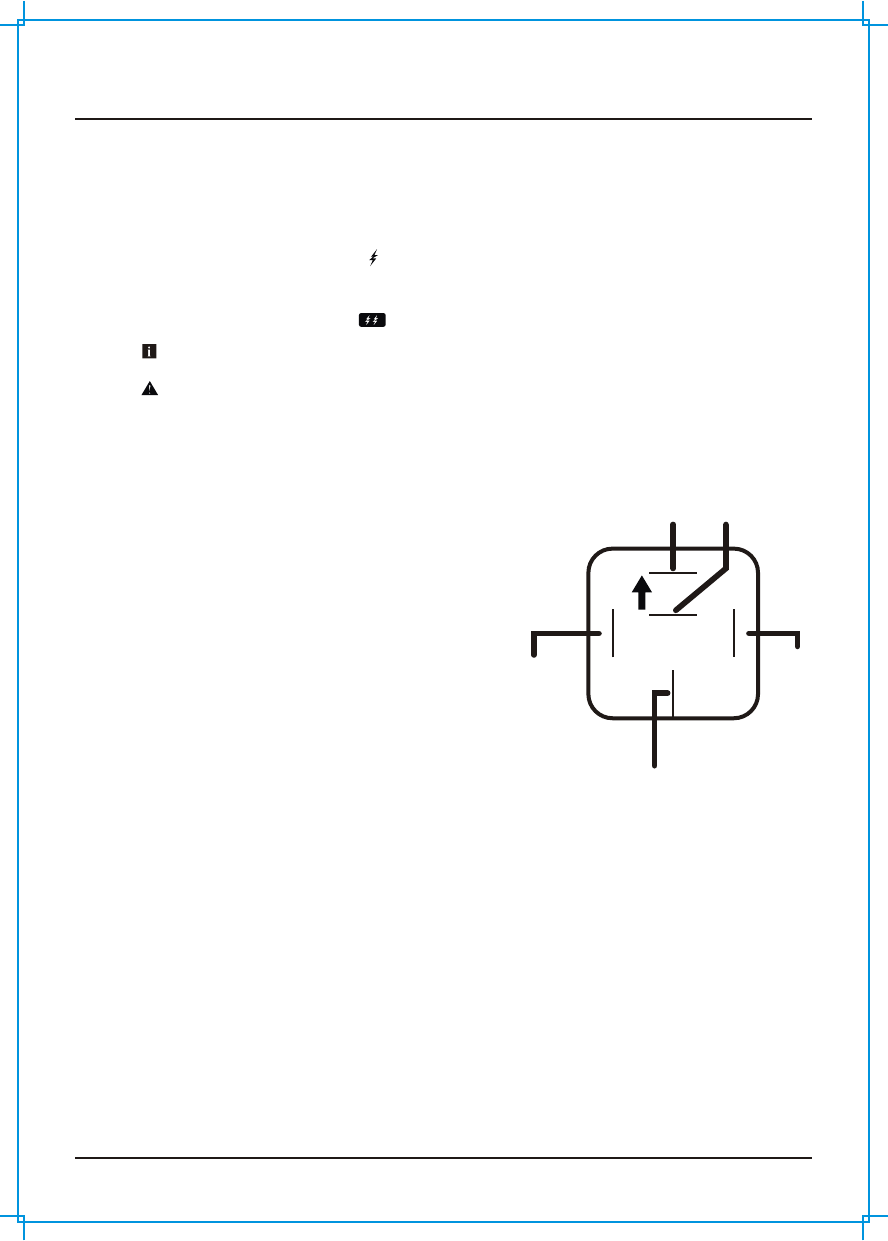

Wiring a Single Pole Single Throw (SPST) Relay
The SPST is necessary to protect the stereo in
systems with multiple amplifiers. The AQ-BC-6UBT
remote and trigger wire provide 2A max current. While
this is enough to power a single amplifier, complex
systems with multiple amplifiers will require a SPST
relay.
Position 30: requires 12VDC from the main power
source (12V battery, power supply etc). This should be
the same power source that is powering your stereo.
Position 85: this is where you connect your ground
from your power source (12V battery, power supply,
etc.) This should be the same ground reference as
your stereo.
Position 86: position 86 is triggered 12V, and is sent
when your stereo is powered on.
87
87
30
8586
Triggered
12V DC from
stereo (Blue or
Brown wire)
Common
ground
12V DC output for amplifier
Triggered
12V DC from
stereo (Blue or
Brown wire)
For Aquatic AV stereos, position 86 can be connected to either the blue remote wire in the harness or
the brown 12V trigger on the rear of the unit. There differences are below:
Blue (recommended): The blue (remote wire) provides a 12V DC output when the stereo is
powered on. Meaning as soon as the stereo is powered on, the blue wire sends 12V DC through th
relay powering on the amplifier.
Brown: The brown (12V Trigger) provides 12V DC output when it is triggered via the lightning bolt
icon on the faceplate or handheld remote. This setup is more advantageous in a more complex
system with several zones, as it gives you control of when an amplifier is on or off.
Position 87: this is 12V DC output that you will provide 12V DC to the remote turn on to the amplifiers
in your system.
Additional Features
www.aquaticav.com 12
5.3 Internal Docking Light
The Digital Media Locker will by default have orange and brown wires connected. Use the trigger on
the remote to goggle the internal illumination light ON/OFF.

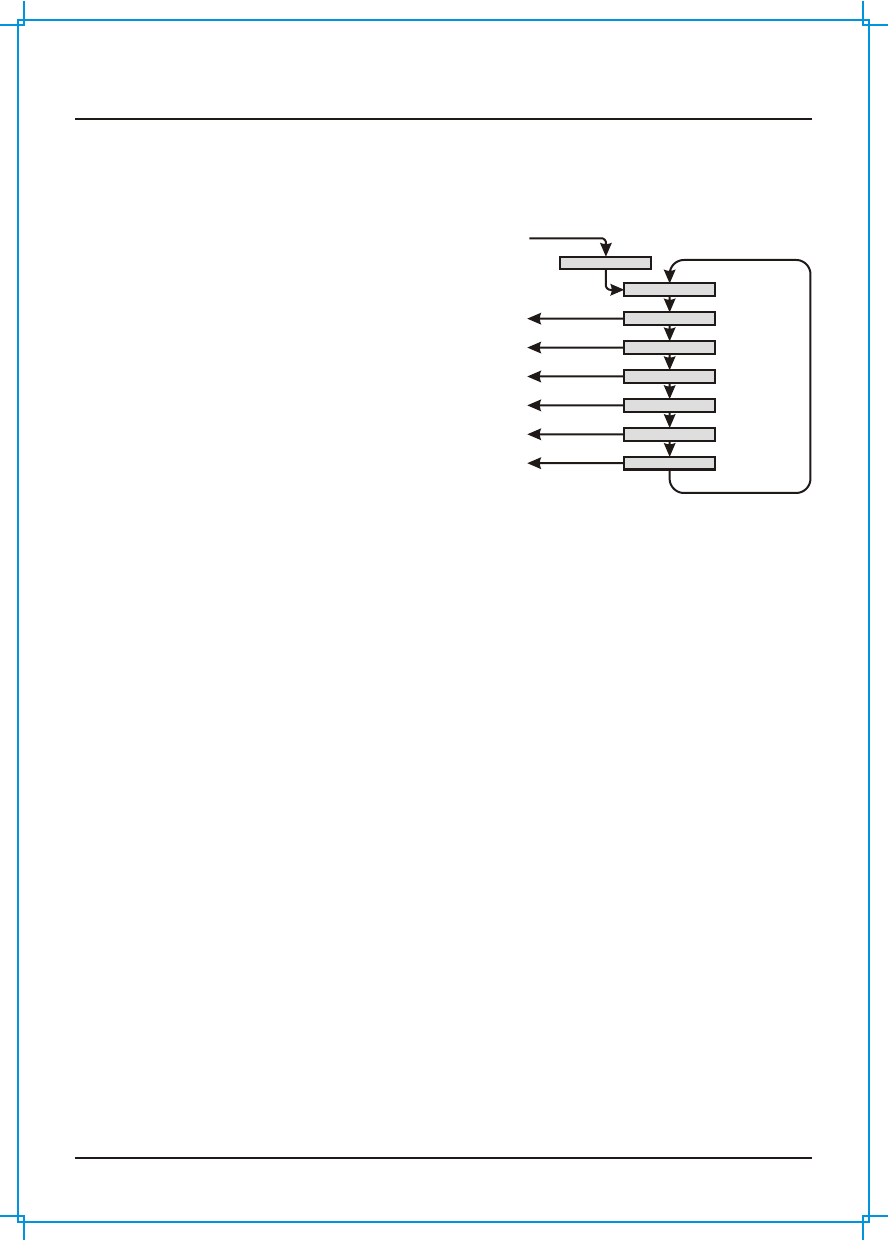

AUDIO MENU
Short press AUDIO
BALANCE Use +/- to adjust
FADER
ROCK
BASS
TREBLE
Short press AUDIO
Use +/- to adjust
Use +/- to adjust
CLASSIC
POP
Use +/- to adjust
Short press AUDIO
Short press AUDIO
Short press AUDIO
Short press AUDIO
Short press AUDIO
Long press AUDIO
to save and exit
Short press AUDIO
Long press AUDIO
to save and exit
Long press AUDIO
to save and exit
Long press AUDIO
to save and exit
Long press AUDIO
to save and exit
Long press AUDIO
to save and exit
5.4 Using Audio Menu on Handheld Remote
Control (purchased separately)
BlueCube+ Media Player (AQ-BC-6UBT) has equiped with
a audio DSP to meet different listening experiences.
1. To enter audio menu, press once AUDIO button.
2. Each press of AUDIO button will advance to the next
audio setting as described on the right.
3. In the audio menu, press and hold ADUIO will save and
exit the audio menu to the original mode.
If you have chosen preset equalizer (Rock, Classic, or
Pop), the previously set Bass, Treble will be overrided.
3.4 Using VBass
1. VBass is a features to boost up the bass of the audio using latest DSP technology.
2. Press VBass once to toggle it ON or OFF.
Specifications & Dimensions
www.aquaticav.com 13
6.1 Specifications
Media
Supported media
Supported media max. dimensions
Device control
Device charging
Inputs
USB
Auxiliary
Outputs
Pre-Out
FM Radio
FM pre-sets
US/Euro coverage
Power
Output voltage @2 Ohm
Output voltage @4 Ohm
Operation voltage
Max current draw
Standby current draw
Multi-Environment Certifications
Waterproof / Dustproof
Conformal PCB coating
UV Protection
Salt/Frog protection
Stainless steel mountings
Bluetooth/MP3/FM
via Bluetooth / MP3 device
107x184mm (WxH)
via Door Controls & optional RF Remote Control
via USB
USB 2.0
1x 3.5mm Stereo Jack Socket, 1x Stereo pair RCA input
2x stereo pair RCA (4V rms)
3
Yes
4x 72W
4x 45W
9.6V - 14.4V
7A
6mA
Yes IP65 (Remote Control rated IP66)
Yes
500 hours stable. ASTM D4329 compliant
500 hours stable. ASTM B117 compliant
Yes
65
196.5
26
120
180
228
6.2 Dimensions
Warranty Information
www.aquaticav.com 14
Aquatic AV offers a limited warranty of our products on the following terms:
Length of Warranty
2 years on audio systems, electronics, speakers, and accessories (receipt required).
Coverage
This warranty covers only the original purchaser of a Aquatic AV product purchased from an authorized Aquatic
AV dealer in the United States. In order to receive service, the purchaser must provide Aquatic AV with a copy
of the receipt stating the customer name, dealer name, product pruchased and date of purchase.
Defective products
Products found to be defective during the warranty period will be repaired or replaced (with a product deemed
to be equivalent) at Aquatic AV's discretion.
What is not covered
Damage caused by accident, abuse, improper operation, theft. Any cost or expernse related to the removal or
reinstallation of the product. Service performed by another other than an authorized Aquatic AV service center.
Any product with the serial number or tamper labels defaced, altered or removed. Subsequent damage to other
components. Any product not purchased from an authorized Aquatic AV dealer.
Limit on implied warranties
Any implied warranties including warranties of fitness for use and merchantability are limited in duration to the
period of the express warranty set forth above. Some states do not allow limitation on the length of an implied
warranty, so this limitation may not apply. No person is authorized to assume for Aquatic AV any other liability in
connection with the sale of the product.
How to obtain service
You must obtain a return material authorization number (RMA) to return any product to Aquatic AV. You are
responsible for shipping charges of returned products to Aquatic AV.
Please record the model and serial number[s] of your equipment in the spaced provided below as your
permanent record and will assist us with your factory warranty coverage. These numbers can be found on the
rear of the BlueCube Media Player.
Model number[s]: Serial number[s]:
FCC Statements
www.aquaticav.com 15
FCC ID
MADE IN CHINA
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
NOTE:
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Consult the dealer or an experienced radio/TV technician for help.
The manufacturer is not responsible for any radio or TV interference
caused by unauthorized modifications to this equipment. Such
modifications could void the user authority to operate the equipment.
:WBQAQRFDM6D
products with watertight reputation
Aquatic AV
282 Kinney Drive
San Jose, CA65112, USA
E-mail: info@aquaticav.com
US & Canada: 1 877 579 2782
International: +1 408 559 1668
Fax: +1 408 559 0125
www.aquaticav.com

Navigation menu
