ARESON Technology BL0002 WIRELESS MOUSE User Manual USERS MANUAL
ARESON Technology Corp. WIRELESS MOUSE USERS MANUAL
USERS MANUAL
Mini
Wireless
Laser
Mouse
Optical
Mouse
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
FCC NOTE:
The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the
user's authority to operate the equipment.
User’s Guide
Receiver Charging cable (optional)
ID reset button / Led
1. Insert the batteries
a. Remove the battery compartment cover on the top case of the mouse by pressing the
arrow sign on bottom of scroll bar.
b. Fit in the batteries accordingly to the diagram indicated in the battery cabinet.
c. Close the battery compartments cover properly.
Wheel button/
Battery cover button
ID reset button
Mouse
Low power Led /
Charging Led
Introduction

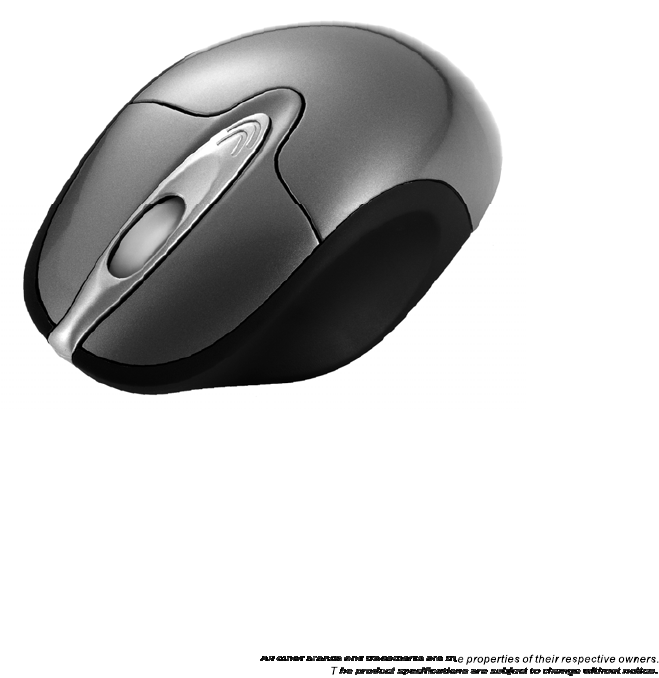

Congratulations on your purchase of the most innovative wireless mini mouse. With an
incredible sensitivity to surface details and high tracking speed than other mice, the mouse
can track reliably even on tricky polished or wood-grain surfaces. It offers even more
advance that will make you more productive and more comfortable.
A. Hardware Installation
27 MHz RF (distance 1.0m)
Using state-of-art technology. High tracking speed and sensitivity.
Longer battery life -- 6 months. (*Optional for specific laser long-life models)
One Channel/256 ID
Recharging by USB charging cable (optional)
Plug and Play! No need to set the channel ID.
Power on/off switch
2*AAA NiMH batteries (for charging models) or Alkaline batteries (for non-charging
models) included
1600 dpi (laser) or 800 dpi (optical)
Power on/off
switch
This product complies with IEC 60825-1, Class I laser product. (for Laser mouse
models only.)
Your product complies with FCC and CE rules.
Safety Notice
Please DO NOT direct the
laser beam at anyone's eyes.
(※ Only for laser model)
Features
+
-
Move backward
A wrong battery placement
may cause batteries overheat.
1
2
2 AAA batteries
Press the
battery cover button
Battery compartment cover
It is a MUST to fully charge the rechargeable batteries contained in this package at the first-time use. (for
charging models)
The unit offers a strong power saving management. Once the mouse accesses the sleeping mode, " to click any
button of the mouse" is compulsory to wake it up.
Power on/off:
Power on/off switch is designed to save the batteries power while non-usage of a longer period.
2. Connect the receiver
a. Turn off your PC.
b. Connect the receiver to USB port on PC
c. Turn on your PC PC USB port
Press ID reset button
Red Led indicator
blinks slowly
3. Establish communication between the mouse and receiver
A. Auto-link mode:
The mouse default has auto-link function, no need to reset ID when first time use.
B. Manual mode:
a. Please reset the ID when first time use if necessary. (step 1)
b. Press the ID reset button on the topside of the receiver, and note the red LED will blink
slowly. (step 2)
c. Press the ID reset button on the bottom of the mouse to set a new ID. (step 3) The red
LED indicator will blink at a faster rate when an identical ID is located. (step 4)
d. Press any button of the mouse to confirm the ID matching. The red LED indicator on the
receiver will blink any time the mouse sends it a signal.
Press ID reset button Red Led indicator
blinks faster
12 3 4 5
ID links OK!
[Charging cable] Red LED Light ON - Charging
[Charging cable] Green LED Light ON - Charge completed
[Mouse] Blue LED flashing - Low Battery
★ LED Display status
Charging cable
PC USB port
4-1. Recharge the batteries
(Only for models with the charging feature)
When the battery is low power, the blue LED will be flashed. Please recharge the batteries
by connecting the USB charging cable between the front of the mouse and your PC USB
port. (Make sure that you are using rechargeable batteries inside). It takes about 5-6 hours
to completely recharge the batteries.
The blue LED on the scroll wheel of the mouse is a low batteries power indicator. It
indicates that batteries inside the mouse are need to be recharged.
If the batteries are used up, you may need to take out the batteries, reinstall and
reset the ID to recharge it.
The mouse surface may be warm during charging process. It is a normal phenomenon.
Note
After Recharging
1. Disconnect the recharging cable from the mouse when charging is completed.
2. Make sure the communication between the mouse and the receiver is still available after
completing recharging batteries. If not, please refer to the ID setting instruction (refer to
No. 3) in the manual to reset the communication.
4-2. Replace the new batteries
(Only for models without the charging feature)
Please replace a pair of new batteries and follow the previous instructions. (2, 3)
Trouble Shooting
a. Make sure you have connected the receiver correctly to the computer's USB port.
b. For the best performance, we suggest you to locate the receiver with a distance from other electrical
devices, such as the computer, the computer monitor or external storage drives.
c. Make sure you have set the communication between the receiver and the mouse. Refer to the channel
setting instruction (refer to No. 3) in your manual.
d. Some system devices might conflict with the mouse. Confirm the IRQ/address settings of these
devices for conflicts, and change the settings as required.
e. Make sure that you are not working the mouse on glossy or reflective surfaces.
f. Try unplugging then reconnecting the receiver cable to your computer.
Battery use reminders
1. Please make sure the batteries used for recharging are "Rechargeable Batteries"
2. Remove worn-out batteries from equipment immediately and dispose of promptly.
3. Keep all batteries (used or new) out of the reach of children.
4. To have the batteries with a regular check and replace new batteries if not used for a long time.
5. Never dispose of batteries in fire, as they could explode.
6. Always replace all the batteries at the same time. Mixing old and new batteries or mining types (such
as alkaline with zinc carbon) will reduce overall performance and could cause leakage or rupture.
7. If the lower power indicator is blinking, please charge the battery through the USB charging cable
immediately. Otherwise, you may need to reset the batteries and ID, and then recharge the batteries
more than 4 hours.
8. Do not mix different types of batteries (e.g. Ni-MH, NiCd, alkaline, and etc) in the mouse.
9. Remove batteries from the electrical device if the device is not going to be used for a long time.
10. If the performance of the batteries decreases substantially, it is time to replace the batteries.
FCC Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and
your body.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
The blue LED on the scroll wheel of the mouse is a low batteries power indicator. It
indicates that batteries inside the mouse need to be replaced.
Note
Low power indicator
