ARESON Technology CL0006 Wireless Mouse User Manual Manual

Wheel button

Dpi button

ID reset button

Congratulations on your purchase of the most innovative wireless mouse. With an

incredible sensitivity to surface details and high tracking speed than other mice, the mouse

can track reliably even on tricky polished or wood-grain surfaces. It offers even more

One year battery life. (*Optional for specific laser long-life models)

Auto-Link, Plug and Play! No need to set the channel ID.

Power on/off switch.

800/1600 dpi switchable button.

2*AA Alkaline batteries included.

Power on/off switch

This product complies with IEC 60825-1, Class I laser product.

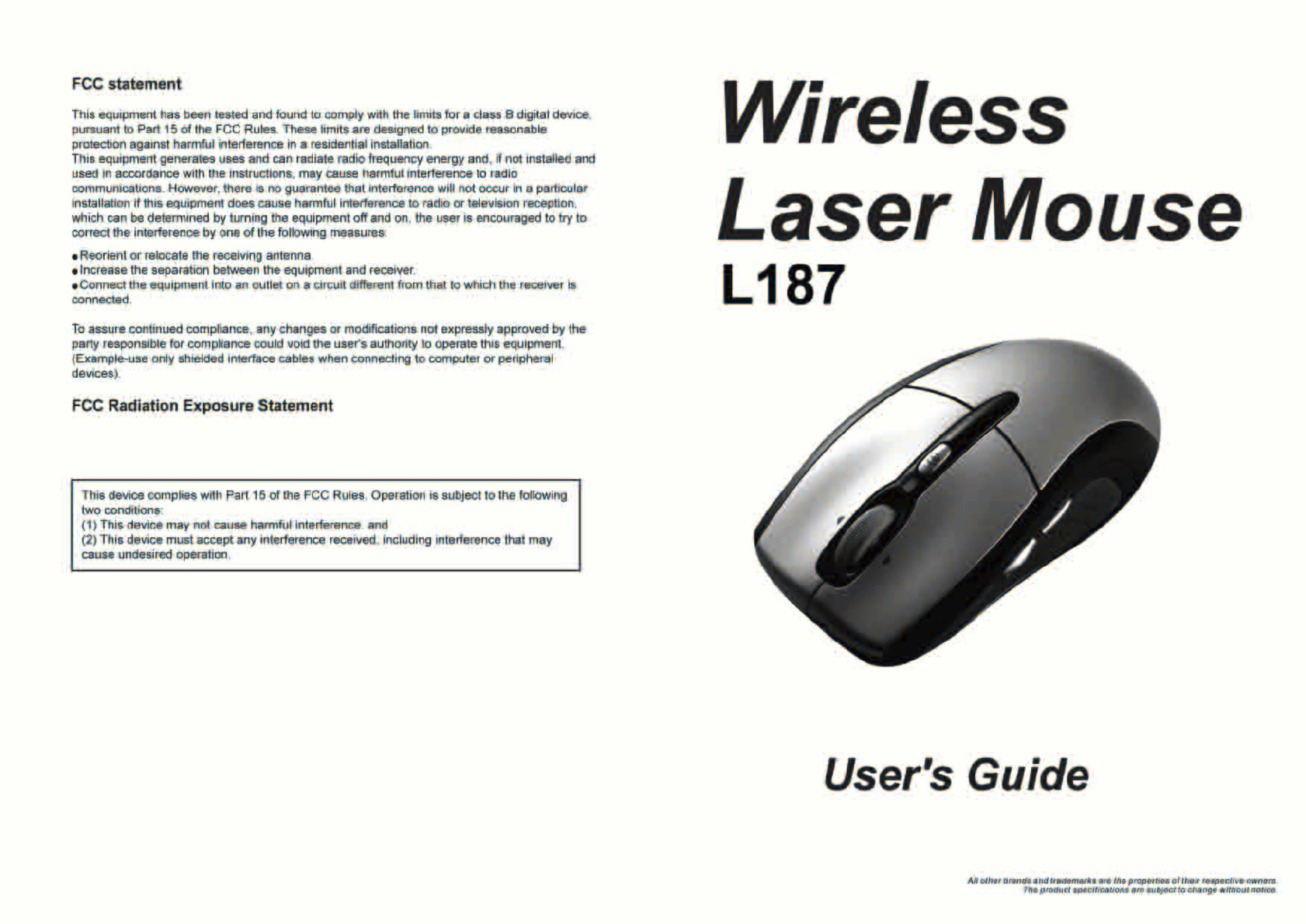

The product complies with FCC and CE rules.

Safety Notice

Please DO NOT direct the

a. Turn on your PC.

b. Connect the receivere to USB port on PC

The unit offers a strong power saving management. Once the mouse accesses the sleeping mode, " to click any

button of the mouse" is compulsory to wake it up.

Internet Forward & Backward button

a. Press the battery cover release button on the bottom of the mouse.

b. Remove the battery compartment cover on the top case of the mouse.

c. Fit in the batteries accordingly to the diagram indicated in the battery cabinet.

d. Close the battery compartments cover properly.

e. Make sure the Power on-off swich on the bottom of the mouse is ON.

f. The Low Power LED in the wheel bar will blink 3 seconds if the mouse power is on.

Low power indicator

Battery cover

A. Auto-link mode

1. Make sure the Power On-Off Switch on the bottom of the mouse is ON.

2. Operate the mouse, and the LED in the receiver will blink fast. Now the mouse and the

receiver is auto-linked successfully.

B. Manual mode

If you find the communication channel does not connect well, you can use following steps

to reset a new channel ID.

While the mouse is working, if encountering any interference, the mouse and the receiver will

automatically source out and transfer to another free channel. During the transferring, the

cursor movement may have a second delay.

Please replace a pair of new batteries and follow the previous instructions. (2, 3)

The red LED on the scroll wheel is a low batteries power indicator. It indicates that

batteries inside the mouse need to be replaced.

4-Way Scrolling:

a. Vertical Scrolling

Roll wheel up to scroll up; roll wheel down to scroll down.

b. Horizontal Scrolling

B. Driver Installation

The mouse features plug & play. It is not necessary to install the driver to operate the

mouse. The driver is an optional item included. However if the model purchased is with 4-

Way Scrolling function, you may require the mouse software driver to make the 4-Way

scrolling function effective.

1. Un-install or removing the current mouse driver

Before installing the driver of the mouse, we suggest that you check if any other mouse

driver installed in your system. If yes, in order not to make conflict, please un-install or

b. For the best performance, we suggest you to locate the receiver with a distance from other electrical devices, such as the

computer, the computer monitor or external storage drives.

c. Make sure you have set the communication between the receiver and the mouse. Refer to the channel setting instruction

(refer to No. 3) in your manual.

d. Some system devices might conflict with the mouse. Confirm the IRQ/address settings of these devices for conflicts, and

change the settings as required.

e. Make sure that you are not working the mouse on glossy or reflective surfaces.

f. Try unplugging then reconnecting the receiver cable to your computer.

1. Remove worn-out batteries from equipment immediately and dispose of promptly.

replacing the battery.

7. Do not mix different types of batteries (e.g. Ni-MH, NiCd, alkaline, and etc) in the mouse.

8. Remove batteries from the electrical device if the device is not going to be used for a long time.

9. If the performance of the batteries decreases substantially, it is time to replace the batteries.
