1. Check the parts in your box
CPE SET 1
DC 12V @ 1.25A Power Adapter 1
PoE DC Power Injector 1
Hose Clamps 2
CD user manual 1

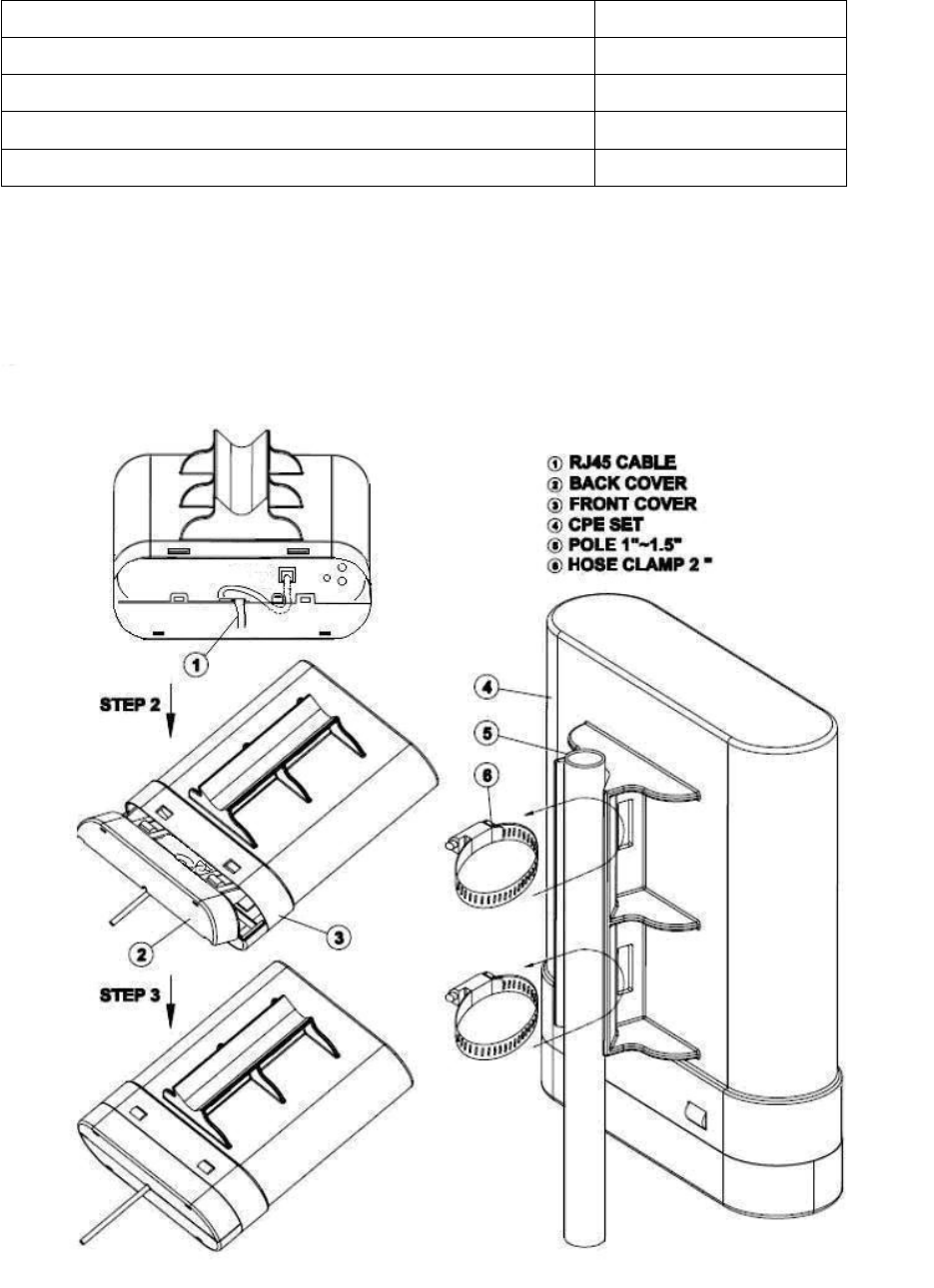

2. How to fix the CPE on the Pole (1”- 1.5”)
(For better water resistance please wrap the RJ45 connector)
3. PoE connection
1. Connect (POE) RJ45 Jack to CPE RJ45 Jack with good quality
Ethernet cable.
2. Connect (LAN) Jack to PC or Switch Hub LAN port.
3. Plug in the power adaptor to PoE DC jack.
4. CPE Connection

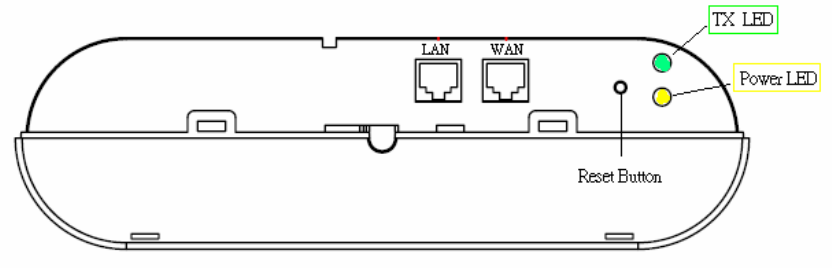

1. Open the CPE enclosure you will find one RJ45 Jacks two LEDs and
one reset button.
2. Connect the PoE cable to either LAN port.
3. To reset the CPE just press and hold the reset button for about 10
seconds and wait for 35 seconds to reboot the CPE.
Notice:
This CPE default operation mode is in Bridge mode. Please go to the
webpage and change the operation mode to other mode for your CPE.
5. CPE configuration
The WLAN Broadband Router is delivered with the following factory
default parameters on the Ethernet LAN interfaces.
Default IP Address: 10.10.10.254
Default IP subnet mask: 255.255.255.0
WEB login User Name: admin
WEB login Password: admin
The device has four operation modes (Gateway/Bridge/WISP/AP Client).
Bridge/WISP/AP Client:
The default IP addresses for the device are 10.10.10.254, so you need to
make sure the IP address of your PC is in the same subnet as the device,
such as 10.10.10.X.
It will take about 25 seconds to complete the boot up sequence after
power on from PoE.
Gateway:
The default IP addresses for the device are 172.32.1.254, so you need to
make sure the IP address of your PC is in the same subnet as the device,
such as 172.32.1.X.
It will take about 25 seconds to complete the boot up sequence after
power on from PoE.
