Please refer to the following pages for the OEM Application Guide and Warranty, Safety and Regulatory information.
Blue Nile OEM Application Guide
Document Nbr
Version 0.1
Date 11/29/2006
Motorola Internal Use Only
TBlue Nile OEM Application Guide
Revision History:
Date Version Author Description
11/29/06 0.1 hblarson Initial draft
11/29/2006T Motorola Internal Use Only Page 2 of 9
TBlue Nile OEM Application Guide
11/29/2006T Motorola Internal Use Only Page 3 of 9
Table of Contents
Revision History: .........................................................................................................................2
Table of Contents.........................................................................................................................3
Introduction................................................................................................................................4
Abbreviations and Acronyms.......................................................................................................4
Test Procedures...........................................................................................................................4
DC Power Requirements.............................................................................................................4
Test Set Up and Sample Preparation............................................................................................5
Downloading the BlueCore™3 firmware .....................................................................................5
Trimming the BlueCore™3 carrier frequency...............................................................................5
Operating the Blue Nile OEM module.........................................................................................6
Test Equipment ...........................................................................................................................6
Test Equipment List...................................................................................................................6
General Test Equipment ..........................................................................................................6
BlueCore™3 Firmware Download ..............................................................................................6
Test Equipment Setup................................................................................................................7
BlueCore™3 Flash Download and Carrier Frequency Trim Setup ....................................................7
Blue Nile Operational Setup .....................................................................................................7
DUT I/O Signal List.................................................................................................................8
DB25 Adapter Pin Assignments.................................................................................................9
TBlue Nile OEM Application Guide
11/29/2006T Motorola Internal Use Only Page 4 of
9
Introduction
This document describes how to set up the Blue Nile OEM board for bench testing.
Abbreviations and Acronyms
Acronym Description
BC03 BlueCore™3
BGA Ball Grid Array
CAT5 Category 5
CODEC Coder/Decoder
CSR Cambridge Silicon Radio
DAC Digital to Analog Converter
DC Direct Current
DUT Device Under Test
GPIB General Purpose Interface Bus
HLD High Level Design
I2S Inter-IC Sound
IC Integrated Circuit
MIC Microphone
PS Key Persistent Store Key
RF Radio Frequency
SPI Serial Peripheral Interface
WACA Wireless Audio Car Adapter
Table 1. Abbreviations and Acronyms

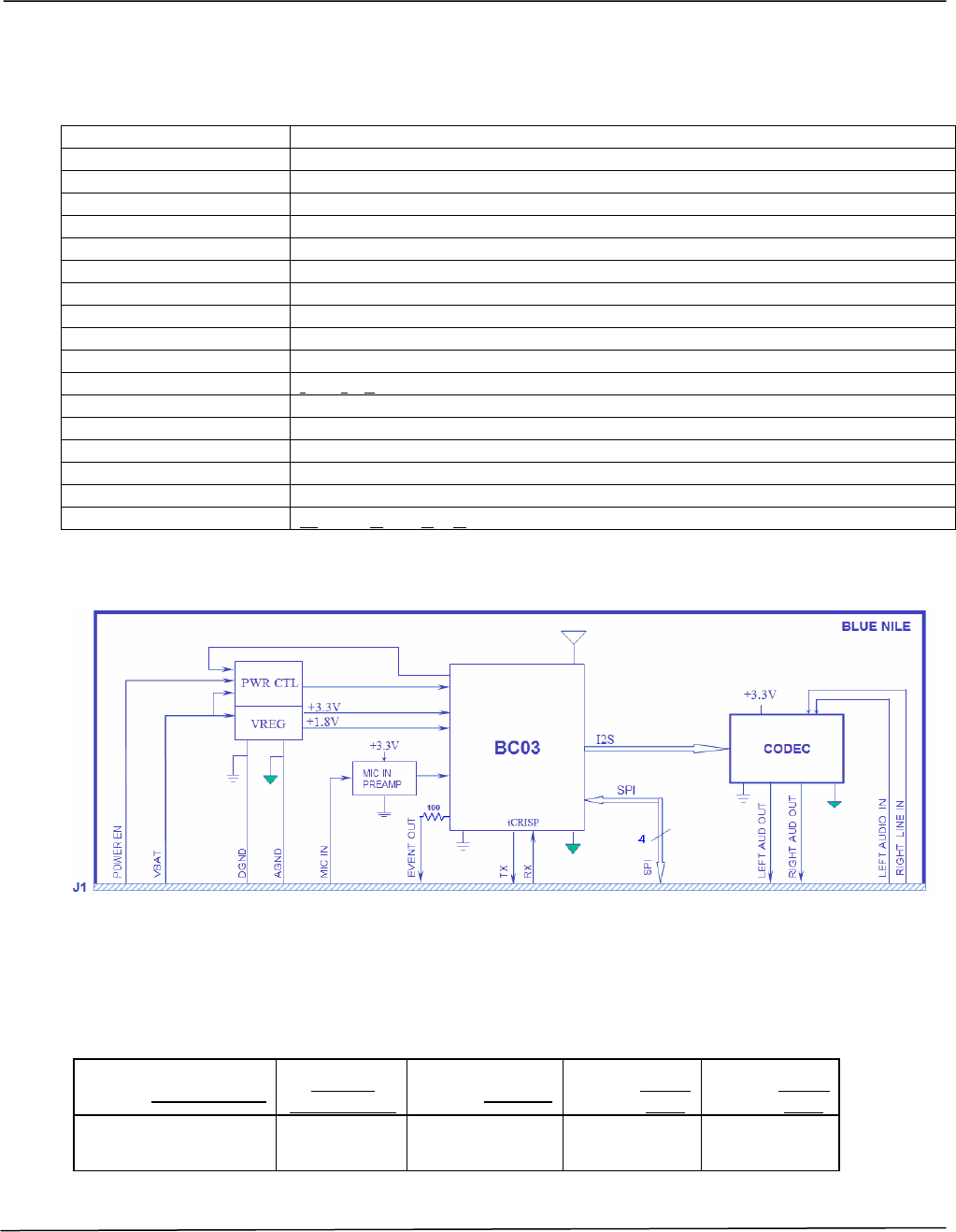

Figure 1. Blue Nile Block Diagram
Test Procedures
DC Power Requirements
Specifications Units of
Specification Nominal Lower
Limit Upper
Limit
Operating
Voltage VDC 13.5 10 16
Table 2. Power Supply Specifications
TBlue Nile OEM Application Guide
11/29/2006T Motorola Internal Use Only Page 5 of
9
Test Set Up and Sample Preparation
Downloading the BlueCore™3 firmware
Firmware is downloaded to the BC03 using a SPI connection from the computer parallel port through
the Blue Nile test fixture to SPI pins on the DUT interface connector.
1.
2.
3.
4.
1.
2.
3.
4.
5.
6.
7.
Make the connections as described in Figure 1.
Start CSR BlueFlash application
a. Choose LPT1 as output port.
b. Depress Choose File and navigate to the location of the firmware download file.
c. Depress Stop Processor. Download should become active.
d. Depress Download
The firmware download will run automatically.
When download is done Depress Start Processor.
Trimming the BlueCore™3 carrier frequency
The carrier frequency will be trimmed at center band for minimum error. The maximum error must be
less than ± 10 KHz.
Make the connections as described in Figure 1.
Start the BlueTest3 application.
a. Choose SPI Transport
b. Choose LPT1 Port
c. Depress Ok
LPT1 should open successfully.
Select TXSTART in the RF Test Mode window
a. Set LO Frequency to 2441 MHz.
b. Depress Execute.
c. Select CFG XTAL FTRIM in the RF Test Mode window.
d. Depress Execute.
Measure the RF carrier frequency using the RF Counter mode of a spectrum analyzer. Note
whether the frequency is out of tolerance high or low. If the carrier frequency is within
tolerance, proceed to Step 7. Otherwise, proceed to Step 6.
If the measured carrier frequency is out of tolerance
a. If the measured frequency is low, decrease the value in the Crystal Trim (hex)
window.
b. If the measured frequency is high, increase the value in the Crystal Trim (hex)
window.
c. Depress Execute.
d. Return to Step 5.
Open the PSTool application. Store the crystal trim value determined in Step 5 in PS Key
502 (PSKEY_ANA_FTRIM).
TBlue Nile OEM Application Guide
11/29/2006T Motorola Internal Use Only Page 6 of
9
Operating the Blue Nile OEM module
1.
2.
3.
4.
5.
6.
7.
8.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
1.
2.
3.
4.
Connect the equipment as shown in Figure 2.
Open the PSTool application.
In the Filter window, type the string: User Configuration Data
Scroll down and select User Configuration Data 7
The value of the PSKEY for User Configuration Data 7 will be displayed in the box
on the upper right part of the display.
If the value displayed for the PSKEY is 0000 0000, change the display to 1 and depress
the SET button.
Depress BC Reset button.
The DUT will now be in Test Mode.
Test Equipment
Test Equipment List
General Test Equipment
Spectrum analyzer (frequency trim only)
Desktop computer with Windows installed
Bluetooth RF test system
MMCX-SMA adapter
12V DC power supply
Blue Nile test fixture
CAT5 cable
DB25-RJ45 adapter
Windows Media Player application software or equivalent
PSTools application program from CSR BlueSuite
BlueTest application program from CSR BlueSuite (frequency trim only)
BlueCore™3 Firmware Download
DB25-RJ45 adapter
CAT5 cable
Blue Nile test fixture
CSR BlueFlash application software from CSR BlueSuite
TBlue Nile OEM Application Guide
11/29/2006T Motorola Internal Use Only Page 7 of
9
Test Equipment Setup
BlueCore™3 Flash Download and Carrier Frequency Trim Setup
Connect the equipment as shown in Figure 1.
1.
2. For carrier frequency trim, connect spectrum analyzer as shown.

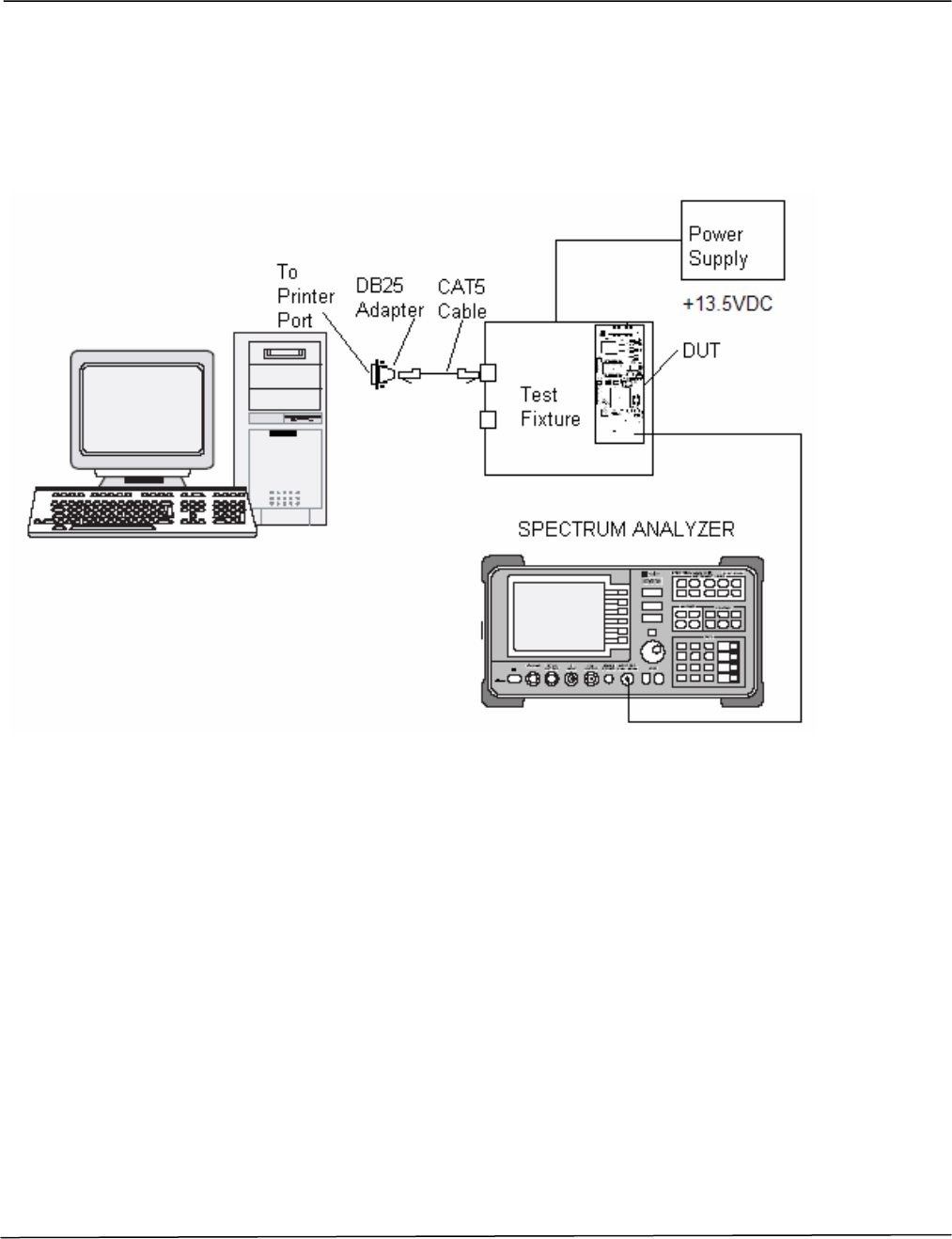

Figure 1. BlueCore™3 Flash Download and Carrier Frequency Trim Setup
Blue Nile Operational Setup
Connect the Blue Nile as shown in Figure 2 for operational testing.
TBlue Nile OEM Application Guide
11/29/2006T Motorola Internal Use Only Page 8 of
9

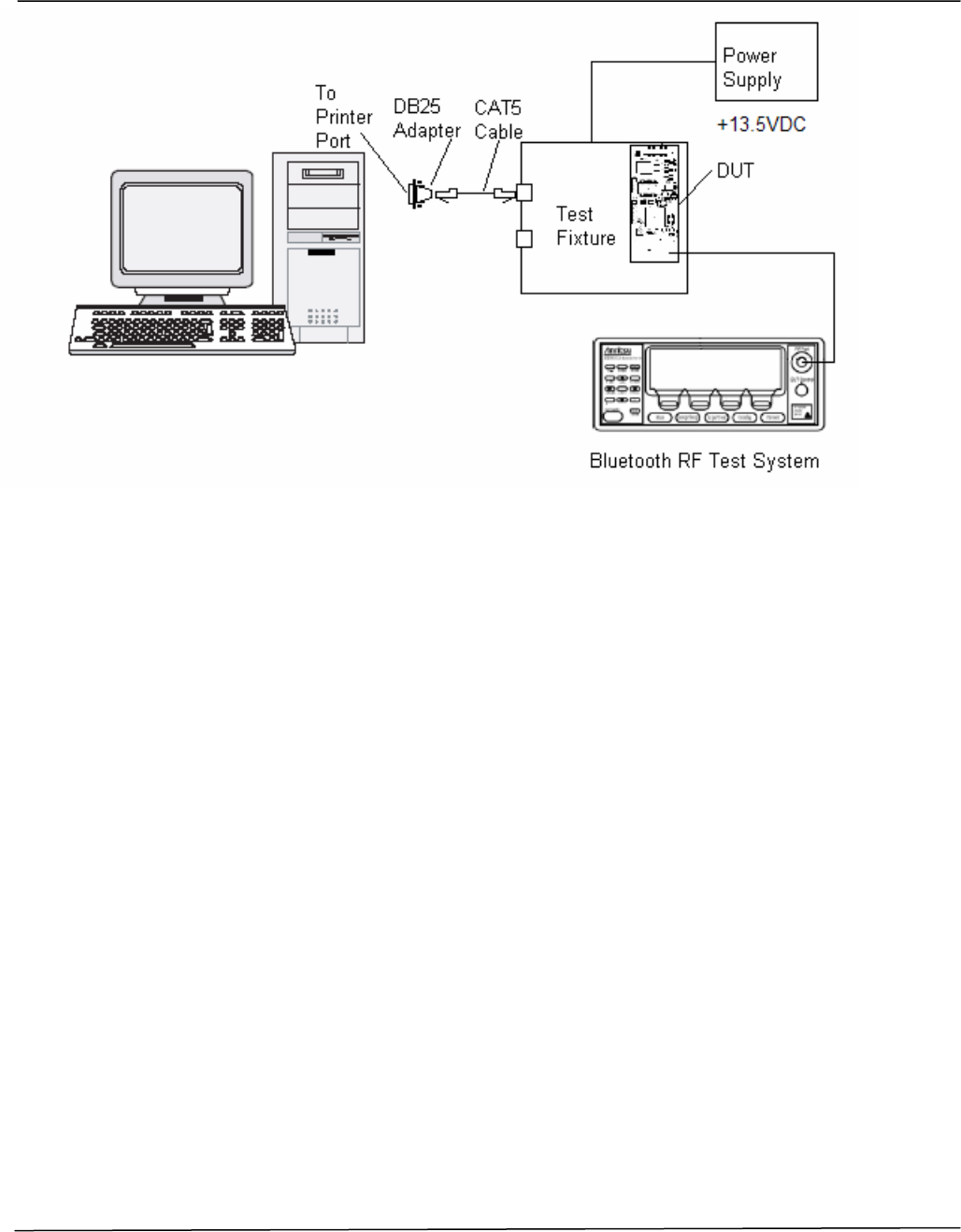

Figure 2. Blue Nile operational test setup.
DUT I/O Signal List
Pin Signal Name Pin
Signal Name
1 MIC IN I 2 VBAT I
3 DGND I 4 DGND I
5 iCRISP TX O 6 POWER ENABLE I
7 iCRISP RX I 8 EVENT OUT O
9 DGND I 10
DGND I
11 SPI CSB I 12
SPI MISO O
13 SPI CLK I 14
SPI MOSI I
15 AGND I 16
AGND I
17 RIGHT AUDIO OUT O 18
LEFT LINE INPUT I
19 LEFT AUDIO OUT O 20
RIGHT LINE INPUT I
Table 3. DUT I/O Signal List
TBlue Nile OEM Application Guide
11/29/2006T Motorola Internal Use Only Page 9 of
9
DB25 Adapter Pin Assignments
DB25 RJ45 Signal Name
2 1 Chip Select
5 2
10 3 MISO
4 4
8 5 MOSI
3 6
9 7 CLK
25 8 GND
Table 4. DB25 Pin Assignments
