The IP Allocation window for the client opens.

3. Scroll through the New Allocation values and select the address or method to use for the client’s DHCP

assignment:

•Click Address from DHCP Pool to set the client to accept any valid DHCP address available (standard

operation).

•Click any of the private fixed IP addresses (192.168.1.64 to 192.168.1.253) shown in the list to allocate

that IP address to the selected client.

4. Click the Save button to save the IP allocation settings. A red “Changes saved” message appears at the top of

the IP Allocation page.

Administrator’s Handbook

Link: HPNA

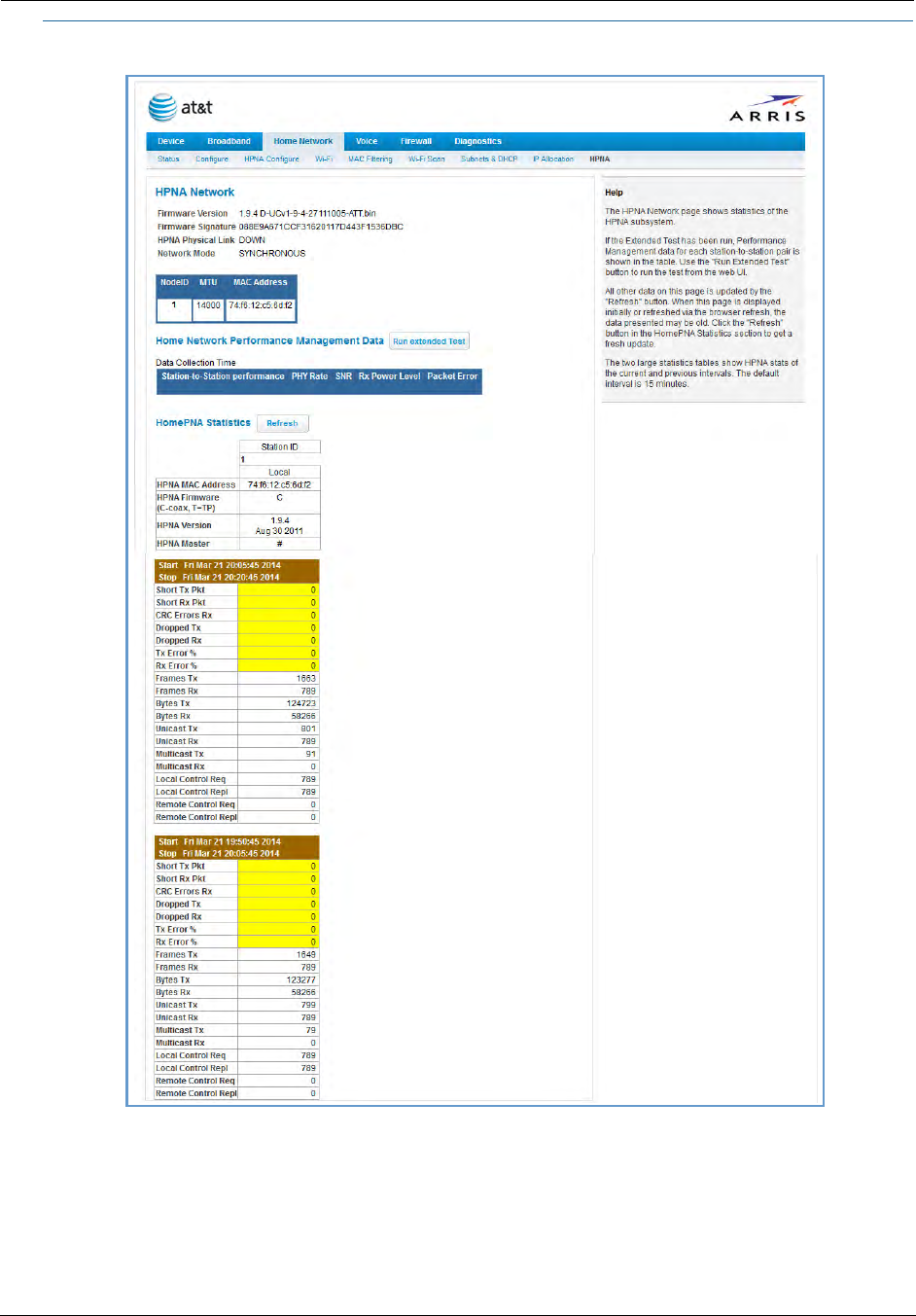

When you click the HPNA link, the HPNA Network page appears.

The HPNA Network page displays information about the NVG599 gateway’s HPNA-connected devices in 15-

minute intervals. You can test the performance of each station to station pair by clicking the Run extended Test

button.

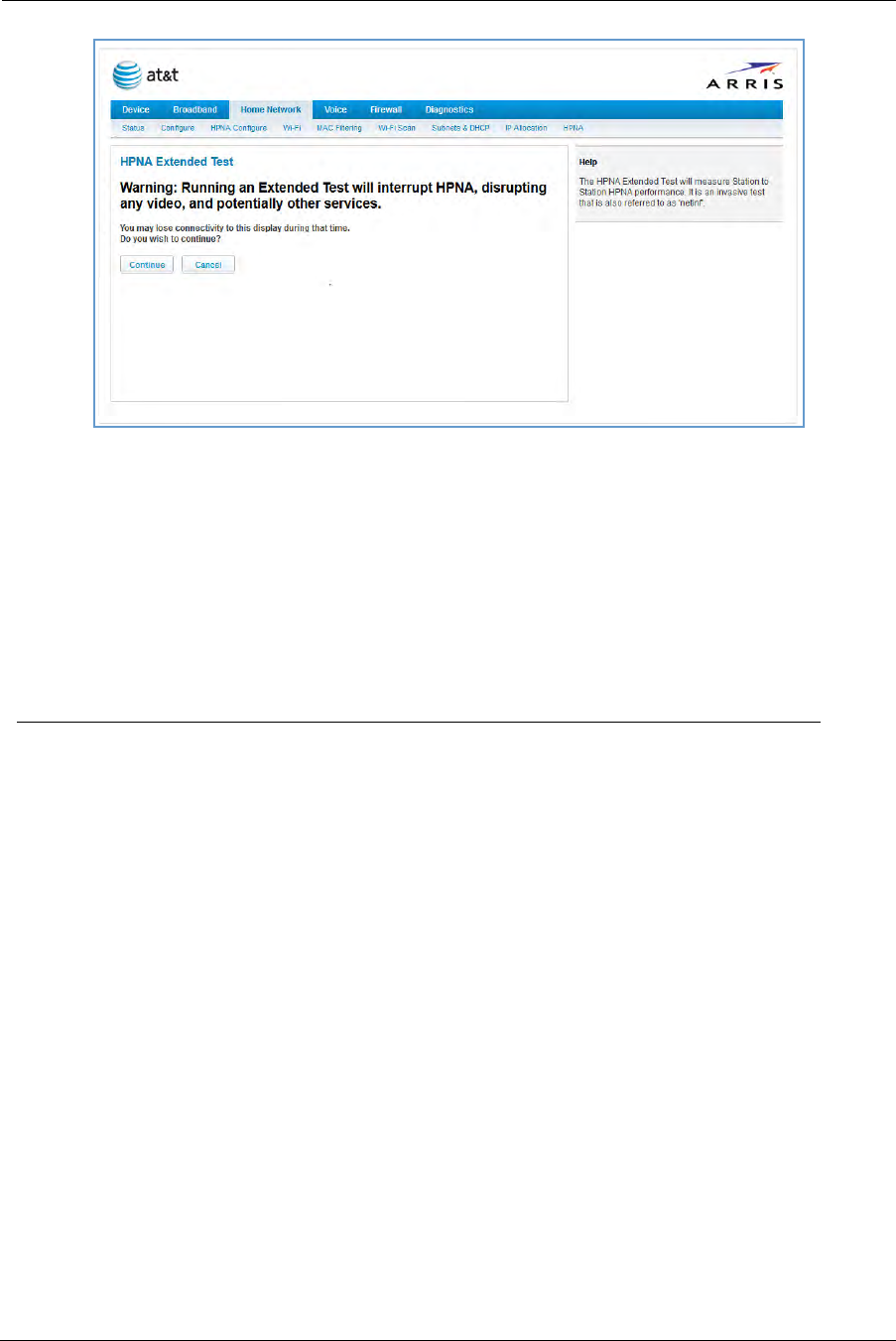

The following page appears as a warning about this invasive test.

If you do not run the extended test, the station-to-station performance section is not displayed.

You can generate updated statistics by clicking the Refresh button. HomePNA statistics for the current and

previous intervals are displayed below the following static values:

Station ID

HPNA MAC Address

HPNA Firmware (C-coax, T=TP)

HPNA Version

HPNA Master

Interval statistic fields supply the following information:

Label Statistic Displayed

Short Tx Pkt Transmitted Packets

Short Rx Pkt Received Packets

CRC Errors Rx Receipt errors

Dropped Tx Transmit packets dropped

Dropped Rx Receipt packets dropped

Tx Error % Percentage of transmitted errors

Rx Error % Percentage of receipt errors

Frames Tx Number of frames transmitted

Frames Rx Number of frames received

Bytes Tx Bytes transmitted

Bytes Rx Bytes received

Unicast Tx Number of unicast packets transmitted

Unicast Rx Number of unicast packets received

Multicast Tx Number of multicast packets transmitted

Multicast Rx Number of multicast packets received

Local Control Req Number of requests made to the device by local control

Local Control Repl Number of replies made by the device to local control

Administrator’s Handbook

Voice

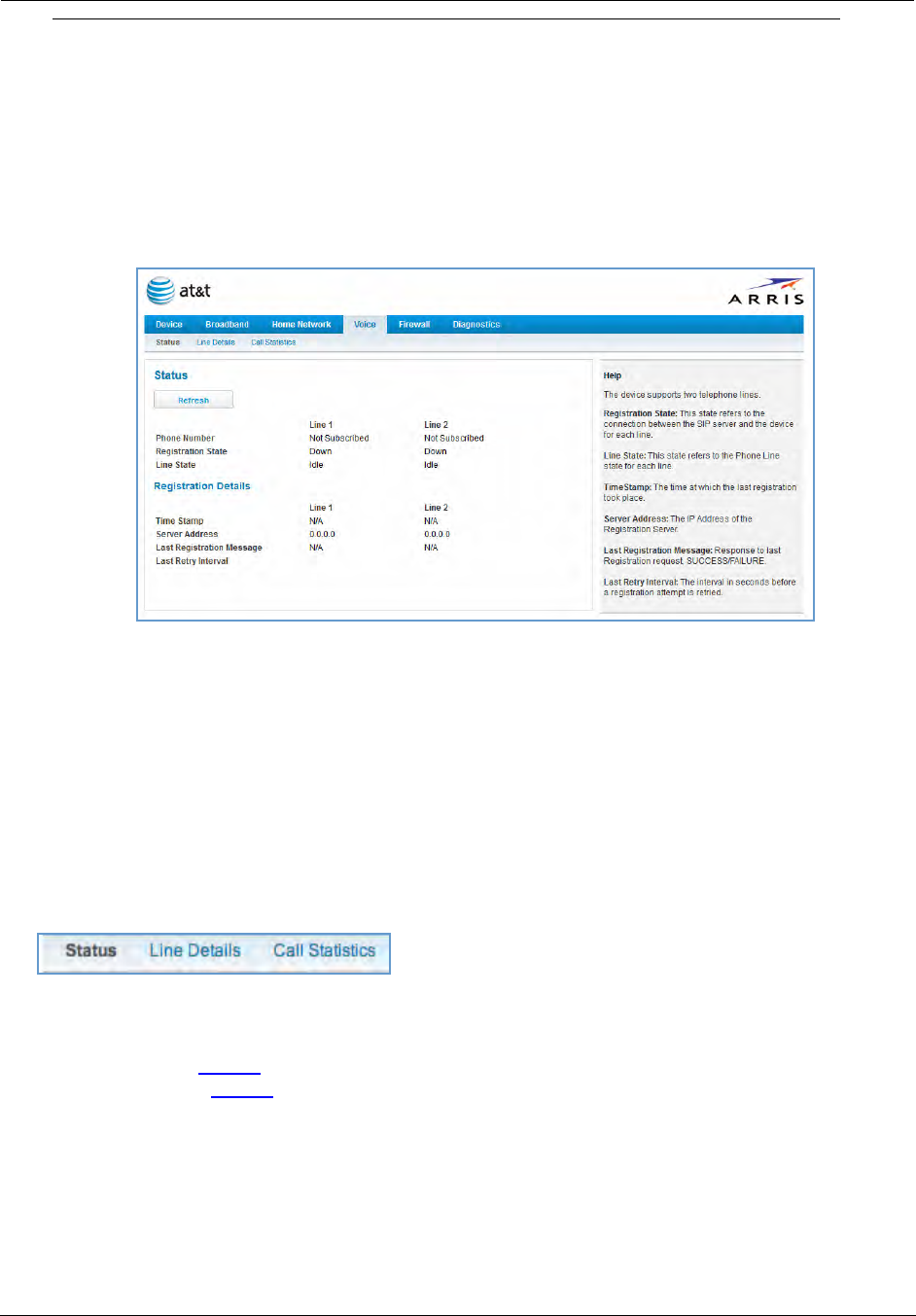

When you click the Voice tab, the Voice Status page appears.

Voice-over-IP (VoIP) refers to voice telephone calls transmitted over the Internet. This type of service differs

from traditional phone service that uses the Public Switched Telephone Network (PSTN). VoIP calls use an

Internet protocol, Session Initiation Protocol (SIP), to transmit sound over a network or the Internet in the form

of data packets.

The Voice page displays information about your VoIP phone lines, if configured. Your device supports two

phones, Line 1 and Line 2.

If either one or both are registered with a SIP server by your service provider or not registered, the Voice

page will display their Registration Details.

The links at the top of the Voice page provide access to a series of pages that allow you to configure and

monitor features of your device.

The links bar on the Voice page includes the following links. For more information about each link, see the

related section in this guide.

Line Details (see page 55)

Call Statistics (see page 56)

Remote Control Req Number of requests made to the device by remote control

Remote Control Repl Number of replies made by the device to remote control

Label Statistic Displayed

Link: Line Details

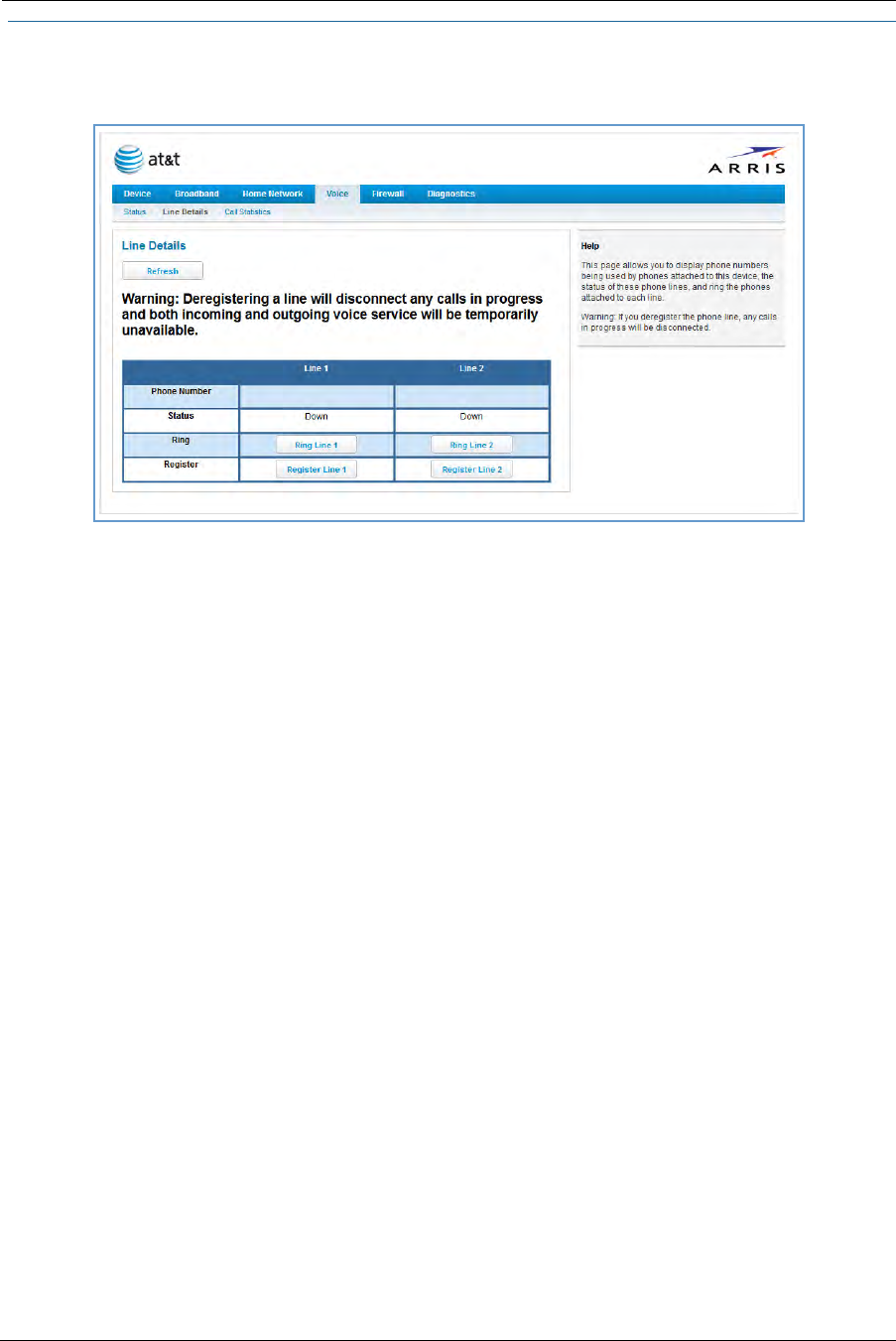

When you click the Line Details link, the Line Details page appears.

If your service provider has enabled your VoIP phone lines, you can register them by clicking the Register

Line 1 or Register Line 2 button.

To test if the lines are enabled, click the Ring Line 1 or Ring Line 2 button. If enabled and registered, the

respective phone will ring for 30 seconds.

To clear the current state of each phone line, click the Reset Line 1 or Reset Line 2 button. This will disconnect

any calls currently in progress as well.

To update the display, click the Refresh button.

Administrator’s Handbook

Link: Call Statistics

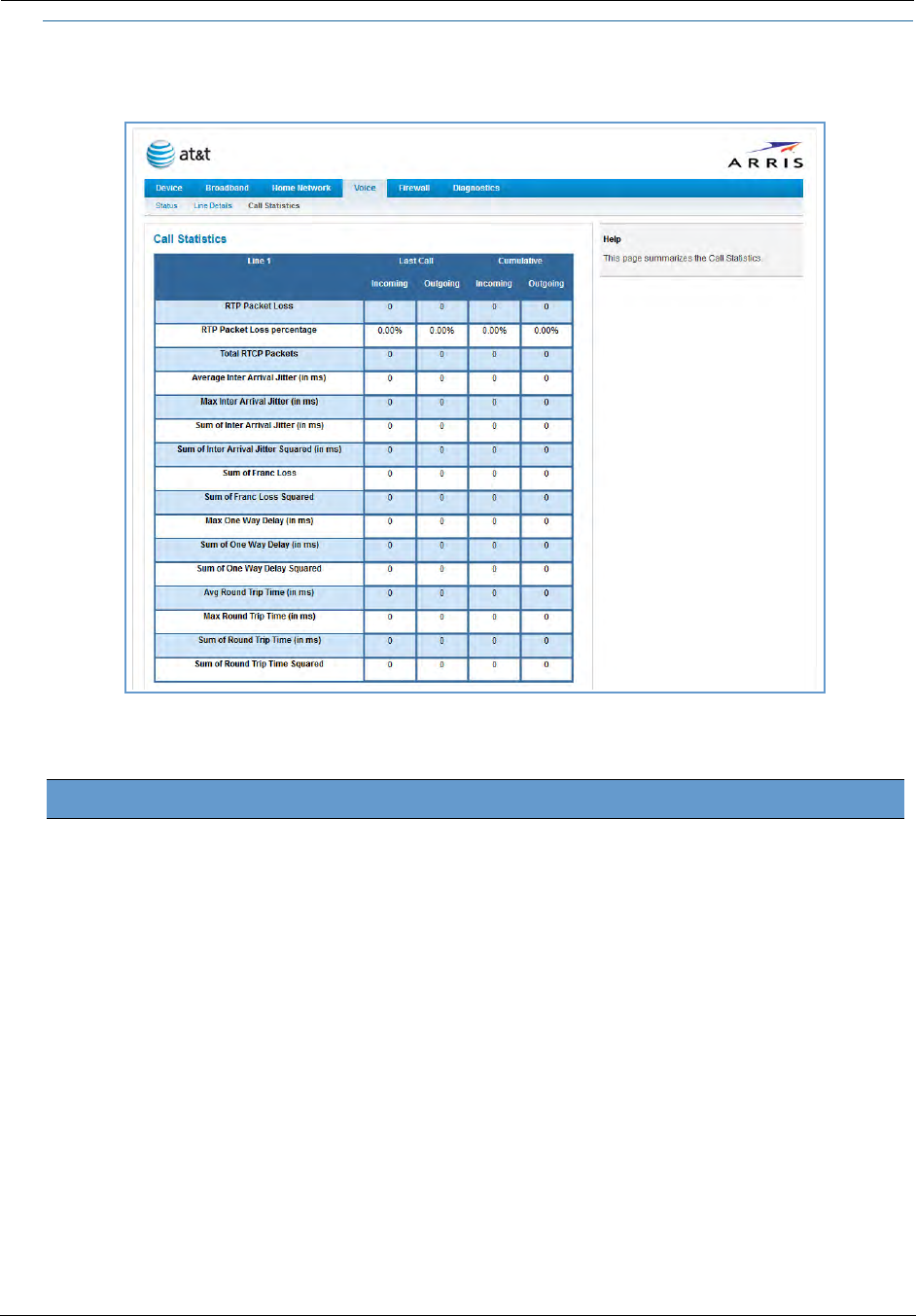

When you click Call Statistics, the Call Statistics page appears.

For Line 1 and Line 2, the two available phone lines, the Call Statistics page displays the following information:

Call Statistics - Line 1 and Line 2

Last Call/Cumulative – Incoming/Outgoing

RTP Packet Loss Real-time Transport Protocol packets dropped

RTP Packet Loss percentage Percent of Real-time Transport Protocol packets dropped

Total RTCP Packets Total Real-time Transport Control Protocol packets

Average Inter Arrival Jitter Calculated continuously in milliseconds as each data packet is received and averaged.

Max Inter Arrival Jitter The maximum value in milliseconds recorded as each data packet is received.

Sum of Inter Arrival Jitter Calculated continuously in milliseconds as each data packet is received and totalled.

Sum of Inter Arrival Jitter

Squared

Calculated continuously in milliseconds as each data packet is received and the total is

squared.

Sum of Frac Loss Fraction Lost: The fraction of RTP data packets lost since the previous SR or RR packet

was sent. This fraction is defined to be the number of packets lost divided by the num-

ber of packets expected. This number will be calculated on every RTCP SR packet. Sum

of the fraction lost is calculated with all the RTCP packets.

Sum of Frac Loss Squared Fraction lost is squared with every RTCP SR or RR packet. Sum of all values will give the

Sum of Franc Loss Squared.

For Line 1 and Line 2, the two available phone lines, the Call Summary section displays the following

information:

Max One Way Delay One-way delay will be calculated in milliseconds on every RTCP SR or RR packet. This

value is (systime - lsr - dslr) / 2

lsr means last SR timestamp

dslr means delay since last SR.

Sum of One Way Delay The sum of all the one-way delays calculated in milliseconds on every RTCP packet is

displayed as Sum of One Way Delay.

Sum of One Way Delay

Squared

One-way delay is squared with every RTCP SR or RR packet. Sum of all values will give

the Sum of One Way Delay Squared.

Avg Round Trip Time Average time in milliseconds from this local source to destination address and back

again for all logged calls

Max Round Trip Time Maximum amount of time in milliseconds from this local source to destination

address and back again for all logged calls

Sum of Round Trip Time Sum of time in milliseconds from this local source to destination address and back

again for all logged calls

Sum of Round Trip Time

Squared

Sum squared of time from this local source to destination address and back again for

all logged calls

Call Summary - Line 1 and Line 2

Current Call/Last Completed Call

Call Timestamp Date and time of the current call

Type May be Incoming or Outgoing

Duration Length of time in seconds of call connection

Codec in Use Audio codec used for decoding the call packet traffic.

Far-End Host Information SIP server IP information: IP address and port number

Far-End Caller Information Caller ID information, if available

Cumulative Since Last Reset

Administrator’s Handbook

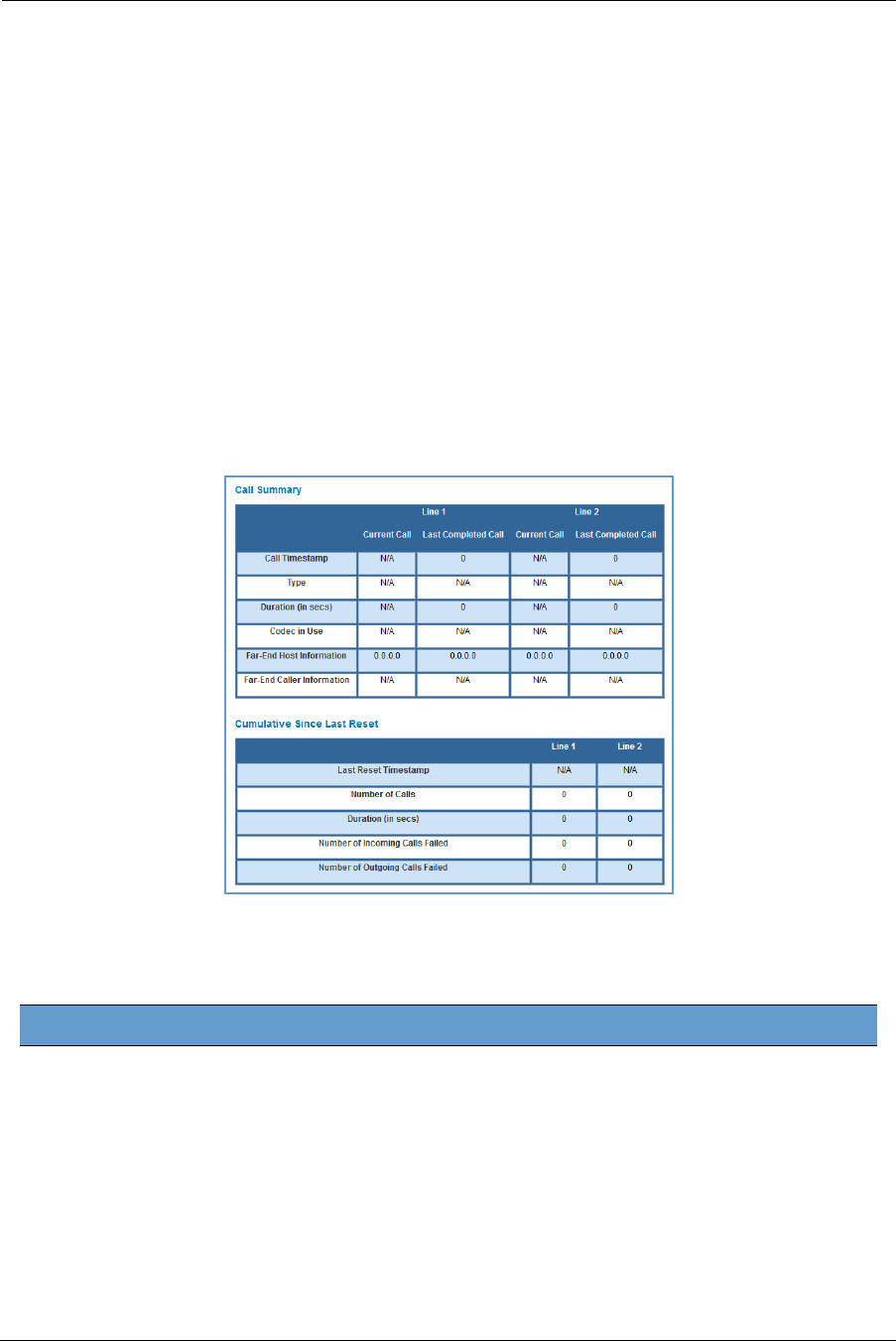

The following table shows VoIP line states during various conditions.

The following table provides the state changes during the boot-up procedure.

Last Reset Timestamp Date and time of the last call

Number of Calls Total number of calls for each VoIP line

Duration Time in seconds since the last call

Number of Incoming Calls Failed Number of incoming calls that fail to connect

Number of Outgoing Calls Failed Number of outgoing calls that fail to connect

VoIP Line

1/2 Hook state WAN IP Reg-state FXS

Voltage Tone LED

Disabled On/Off-hook Up Idle Off N/A Off

Enabled On-hook Up Registered On N/A Solid

Enabled Off-hook Up Registered On Dial tone Blink

Enabled On/Off hook Up Failure Off N/A Off

Enabled On/Off hook Down Idle Off N/A Off

VoIP Line

1/2 WAN Status Hook State Reg-state FXS

Voltage Tone LED

Disabled Down Off-hook Idle On-to-off Off Off

Enabled Down On/Off-hook Idle On Congestion Off

Enabled Up Off-hook Registered On Congestion.

Dial Tone played

after the hook

state is

changed.

Firewall

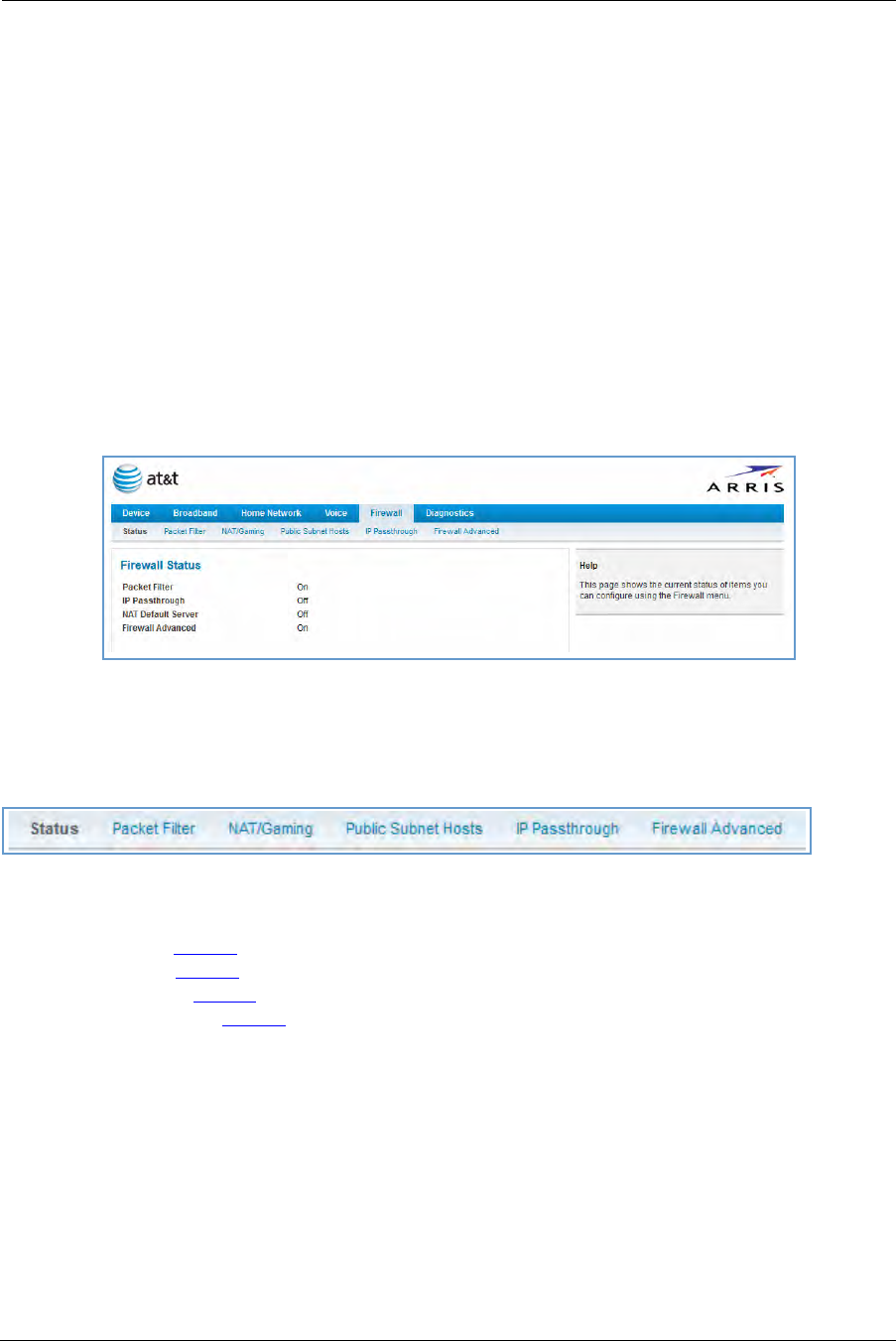

When you click the Firewall tab, the Firewall Status page appears. The Firewall page displays the status of your

system firewall elements.

All computer operating systems are vulnerable to attack from outside sources, typically at the operating

system or Internet Protocol (IP) layers. Stateful Inspection firewalls intercept and analyze incoming data

packets to determine whether they should be admitted to your private LAN, based on multiple criteria, or

blocked. Stateful inspection improves security by tracking data packets over a period of time, examining

incoming and outgoing packets. Outgoing packets that request specific types of incoming packets are tracked;

only those incoming packets constituting a proper response are allowed through the firewall.

Stateful inspection is a security feature that prevents unsolicited inbound access when network address

translation (NAT) is disabled. You can configure UDP and TCP “no-activity” periods that will also apply to NAT

timeouts if stateful inspection is enabled on the interface. Stateful Inspection parameters are active on a WAN

interface only if enabled on your system. Stateful inspection can be enabled on a WAN interface whether NAT

is enabled or not.

The Firewall Status page shows whether the each firewall feature is On or Off.

The links at the top of the Firewall page provide access to series of pages that allow you to configure security

features of your device.

The links bar on the Firewall page includes the following links. For more information about each link, see the

related section in this guide.

Packet Filter (see page 60)

NAT/Gaming (see page 67)

IP Passthrough (see page 72)

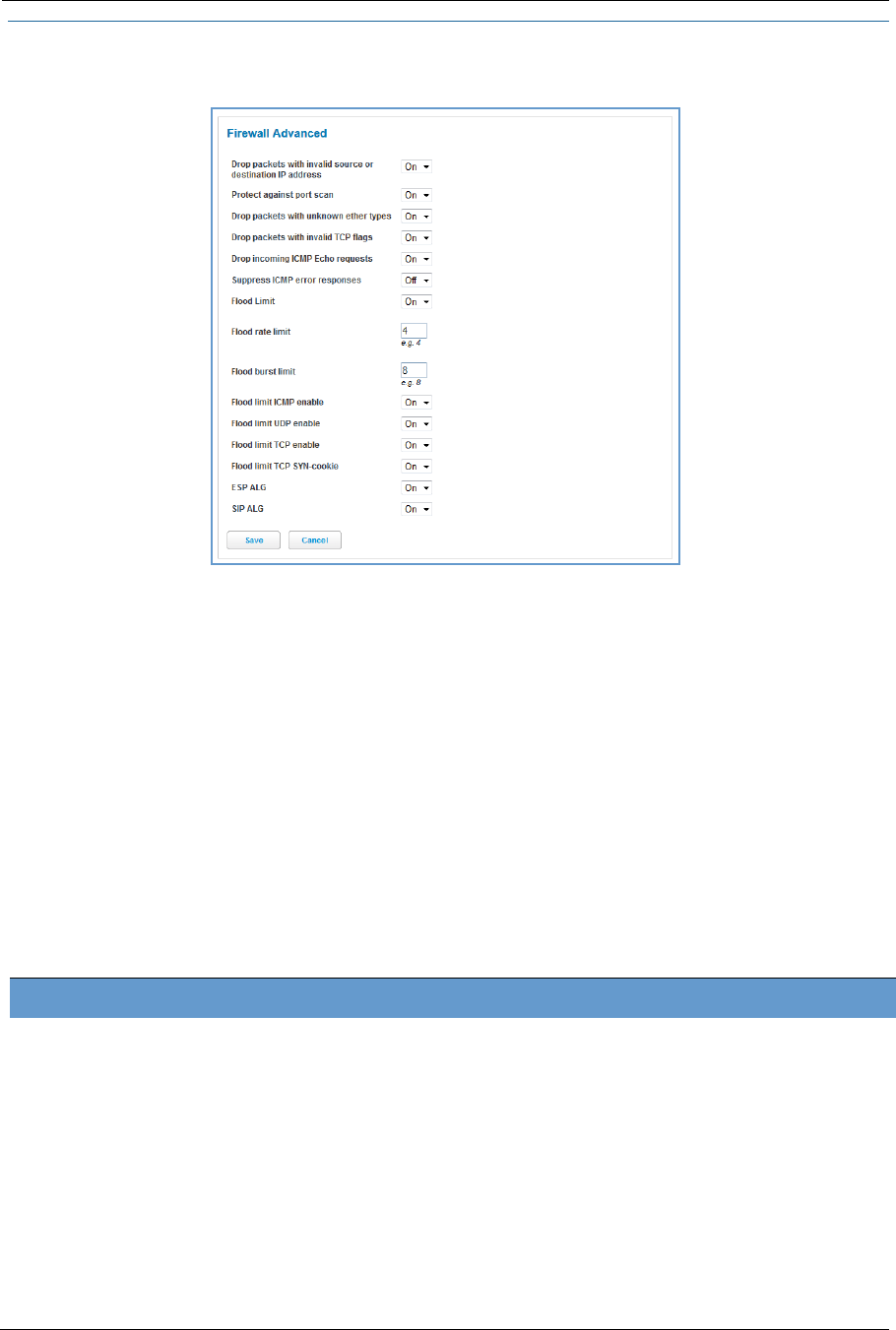

Firewall Advanced (see page 75)

Administrator’s Handbook

Link: Packet Filter

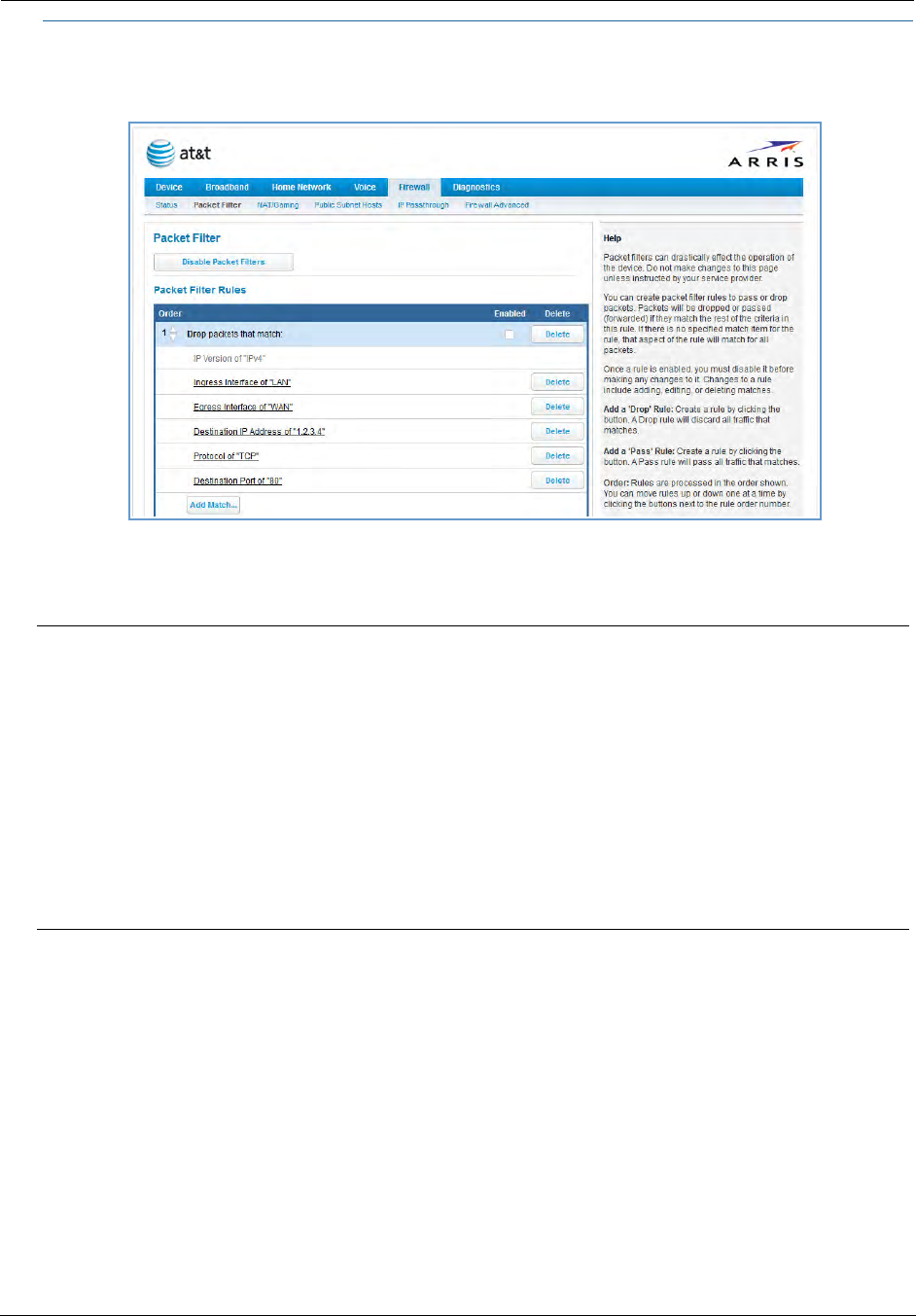

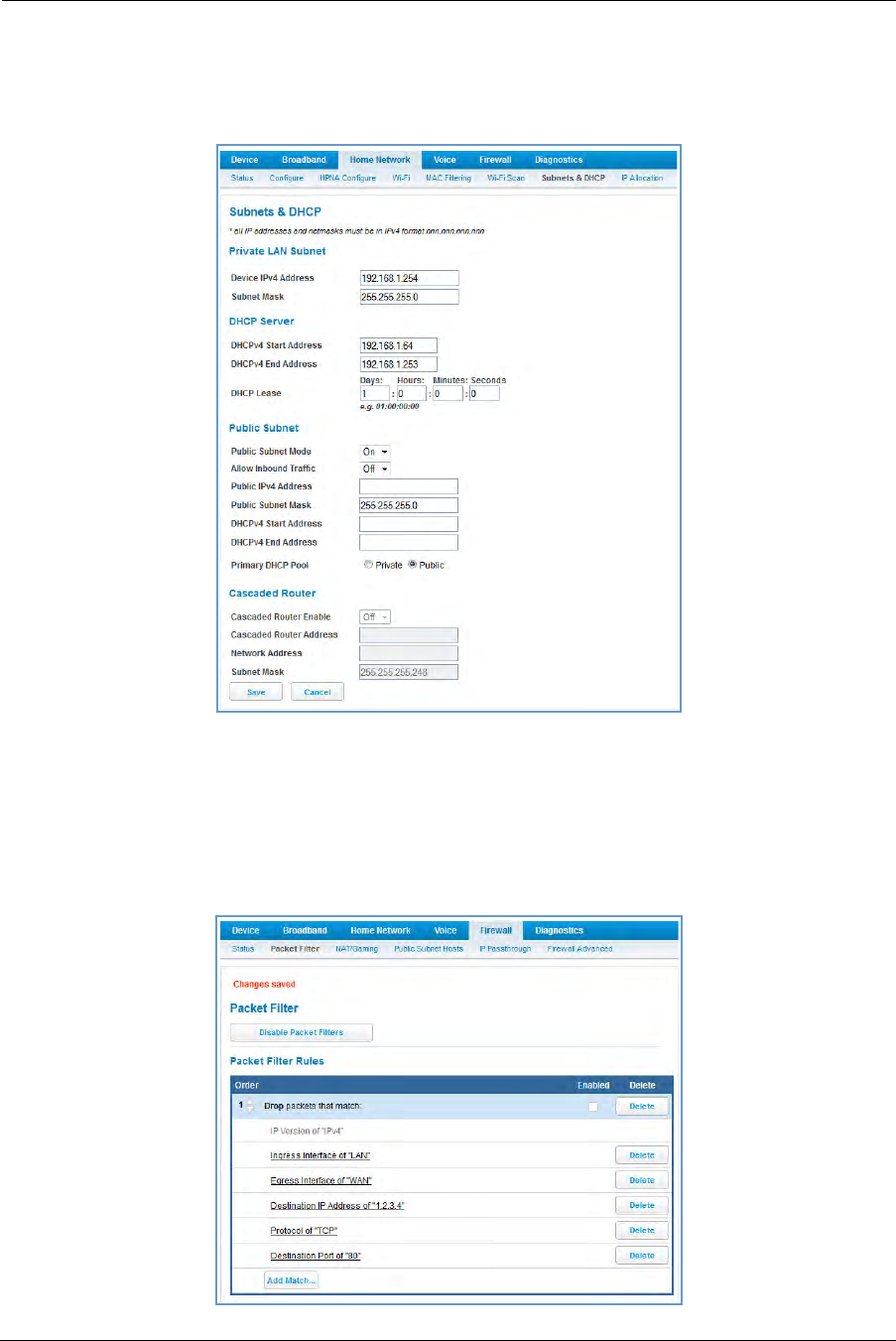

When you click the Packet Filter link, the Packet Filter page appears.

Security should be a high priority for anyone administering a network connected to the Internet. Using packet

filters to control network communications can greatly improve your network’s security. The Packet Filter

engine allows creation of a maximum of eight filtersets. Each filterset can have up to eight rules configured.

ARRIS’s packet filters are designed to provide security for the Internet connections made to and from your

network. You can customize the NVG599 device’s filtersets for a variety of packet filtering applications. Typically,

you use filters to selectively admit or refuse TCP/IP connections from certain remote networks and specific

hosts. You will also use filters to screen particular types of connections. This is commonly called firewalling

your network.

Before creating filtersets, you should read the next few sections to learn more about how these powerful

security tools work.



WARNING:

Before attempting to configure filters and filtersets, please read and understand this entire section thor-

oughly. The ARRIS NVG599 device incorporating NAT has advanced security features built in. Improperly add-

ing filters and filtersets increases the possibility of loss of communication with the device and the Internet.

Never attempt to configure filters unless you are local to the NVG599 device.

Although using filtersets can enhance network security, there are disadvantages:

• Filters are complex. Combining them in filtersets introduces subtle interactions, increasing the likelihood of

implementation errors.

• Enabling a large number of filters can have a negative impact on performance. Processing of packets will

take longer if they have to go through many checkpoints in addition to NAT.

• Too much reliance on packet filters can cause too little reliance on other security methods. Filtersets are

not a substitute for password protection, effective safeguarding of passwords, and general awareness of how

your network may be vulnerable.

Parts of a Filter

A filter consists of criteria based on packet attributes. A typical filter can match a packet on any one of the

following attributes:

The source IP address (where the packet was sent from)

The destination IP address (where the packet is going)

The type of higher-layer Internet protocol the packet is carrying, such as TCP or UDP

Other Filter Attributes

There are three other attributes to each filter:

The filter’s order (i.e., priority) in the filterset

Whether the filter is currently active

Whether the filter is set to forward packets or to block (discard) packets

Design Guidelines

Careful thought must go into designing a new filterset. You should consider the following guidelines:

Be sure the filterset’s overall purpose is clear from the beginning. A vague purpose can lead to a faulty set,

and that can actually make your network less secure.

Be sure each individual filter’s purpose is clear.

Determine how filter priority will affect the set’s actions. Test the set (on paper) by determining how the fil-

ters would respond to a number of different hypothetical packets.

Consider the combined effect of the filters. If every filter in a set fails to match on a particular packet, the

packet is:

• Forwarded if all the filters are configured to discard (not forward)

• Discarded if all the filters are configured to forward

• Discarded if the set contains a combination of forward and discard filters

An Approach to Using Filters

The ultimate goal of network security is to prevent unauthorized access to the network without compromising

authorized access. Using filtersets is part of reaching that goal.

Each filterset you design will be based on one of the following approaches:

That which is not expressly prohibited is permitted.

That which is not expressly permitted is prohibited.

We strongly recommend that you take the latter, and safer, approach to all of your filterset designs.

Administrator’s Handbook

Working with Packet Filters

To work with filters:

1. Accessing the Packet Filter page by clicking the Packet Filter link.

2. Globally turn filters on or off by clicking the Enable/Disable Packet Filters button.

3. Select the type of packet filter rule by clicking either the Add a ‘Drop’ Rule or Add a ‘Pass’ Rule button.

• If you select a drop rule, the specified packets will be blocked.

• If you select a pass rule, the specified packets will be forwarded.

4. Click the Add Match button to enter the source IP address or destination IP address this filter will match on.

As you create new matches, the list items change. There can only be one match from each match type for a

given rule. Match types like Source Port, Destination Port, and TCP Flags are only available if other matches

(for example, Protocol =TCP) have previously been created.

5. Select a protocol, if necessary, from the pull-down menu: ICMP, TCP, UDP, or None to specify any another IP

transport protocol.

If you chose by number, enter the Protocol by number here.

If you chose by name, enter the Protocol by name here.

Enter the Source Port this filter will match on.

Enter the Destination Port this filter will match on.

If you selected ICMP, enter the ICMP Type here.

When you are finished configuring the filter, click the Enter Match button.

The filter is automatically saved.

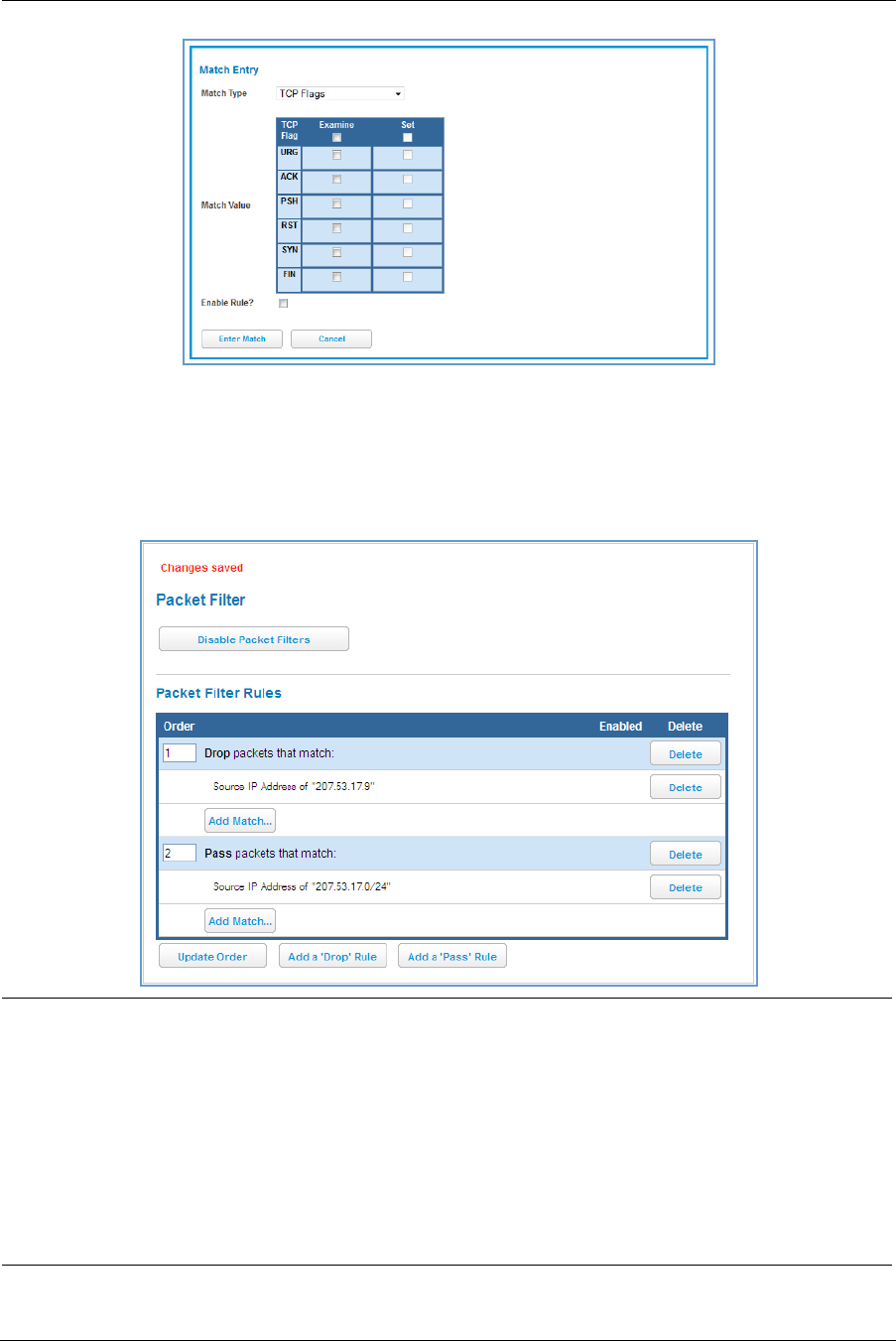

Packet Filter Rules List

Your entries to the packet filter rules list are displayed as a table.



NOTE:

Default Forwarding Filter

If you create one or more filters that have a matching action of forward, then action on a packet matching

none of the filters is to block any traffic.

Therefore, if the behavior you want is to force the routing of a certain type of packet and pass all others

through the normal routing mechanism, you must configure one filter to match the first type of packet and

apply Force Routing. A subsequent filter is required to match and forward all other packets.

Management IP traffic

If the Force Routing filter is applied to source IP addresses, it may inadvertently block communication with

the router itself. You can avoid this by preceding the Force Routing filter with a filter that matches the desti-

nation IP address of the NVG599 device itself.

Administrator’s Handbook

Example:

Assume a configured Custom Service/Hosted Application for an internal web server whose global port range is

8080-8080. Also assume that we want to allow only one external subnet access to this internal server:

207.53.17.0/24. And finally, assume that we want to disallow one IP address on that subnet, 207.53.17.9, from

access to that same server (perhaps they were abusing the system in some way). We would need the following

rules:

Input Rules

Rule

Order Action Source IP Destination IP Protocol Source

Port

Destination

Port

1 Drop 207.53.17.9 - TCP 8080

2 Pass 207.53.17.0/24 - TCP 8080

3 Drop - - TCP 8080



Caution:

If the packet filter or port forwarding rule involves TCP port 80 or 3389; or UDP port 47806, 43962, 69, 123,

or 53; or if you attempt to add or change a match such that this occurs and you are running in VDSL/Ethernet

mode, the following warning will appear.

Example 2

The following example uses the GUI to detail how to create a public subnet.

1. Select Home Network -> Subnets & DHCP from the Web management GUI.

2. Select On from the Public Subnet Enable drop-down menu.

3. Enter all applicable public subnet IP address information and select Save at the bottom of the view.

4. Select Firewall -> Packet Filter to create a packet filter that will allow specific traffic to flow to a public LAN

client.

Administrator’s Handbook

5. Scroll to the bottom of the screen and select Add a Pass Rule. This rule will allow traffic to flow through the

public subnet based on the match criteria that will be set up next.

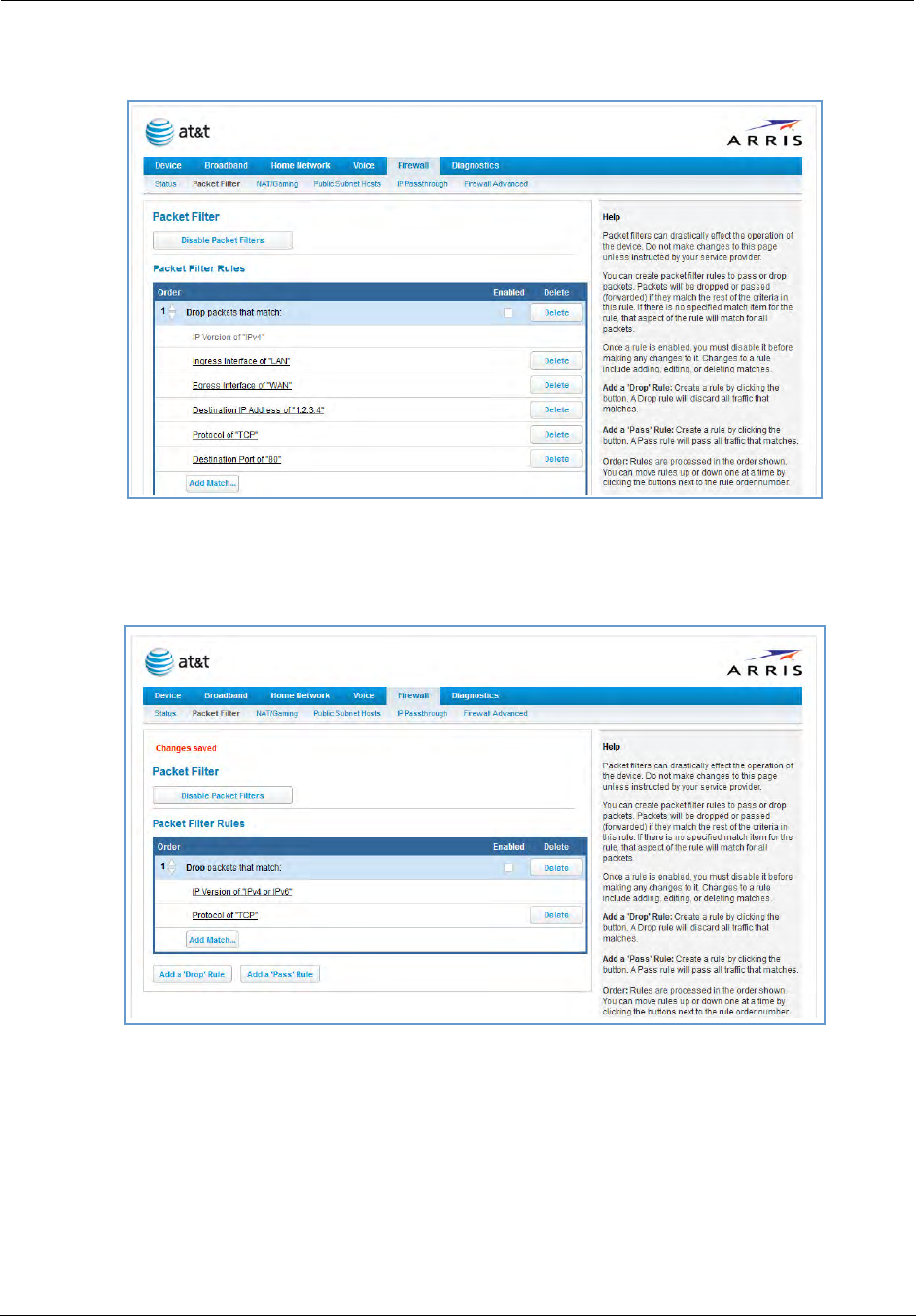

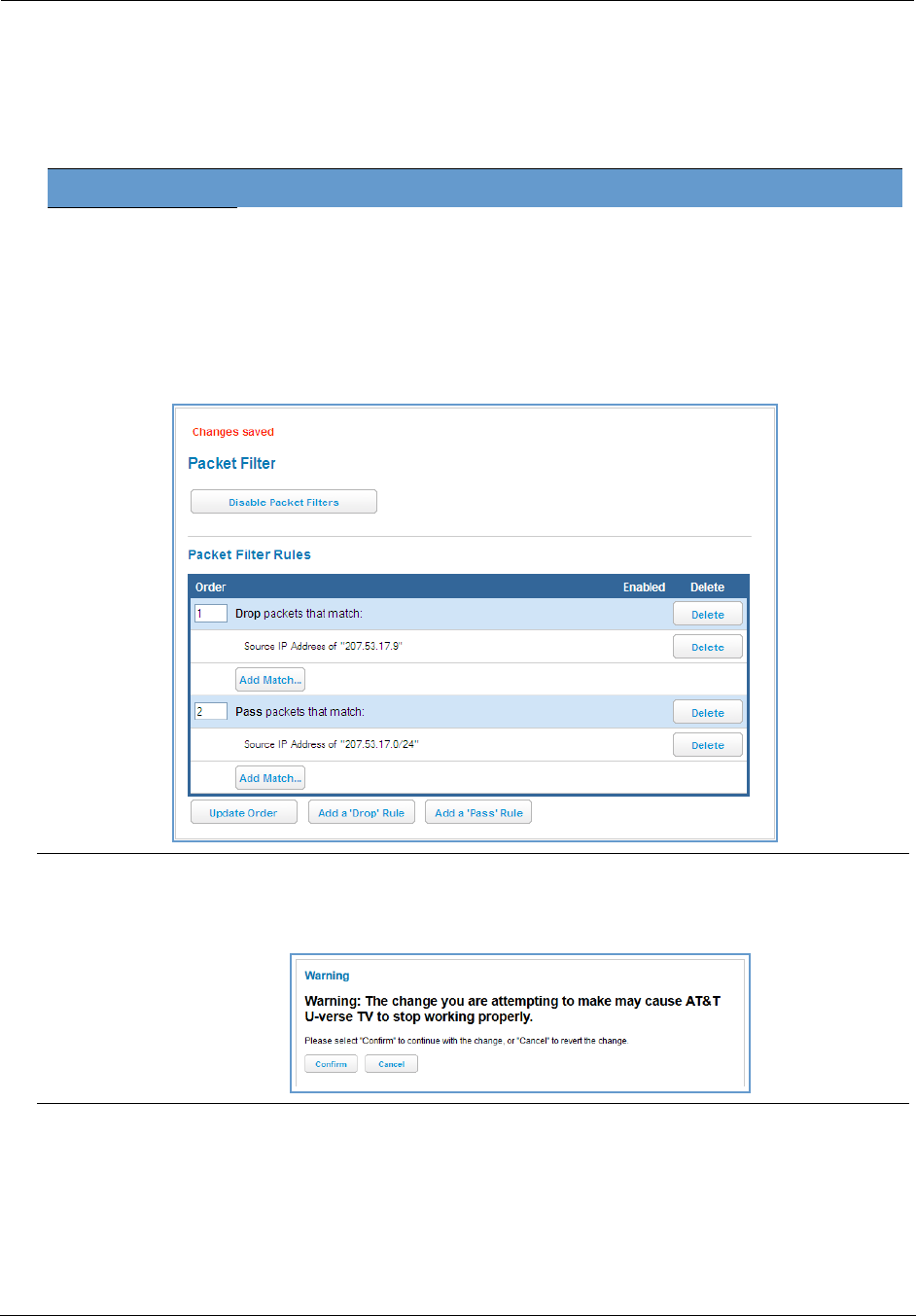

The new rule will be at the bottom of the Packet Rules list (as shown below).

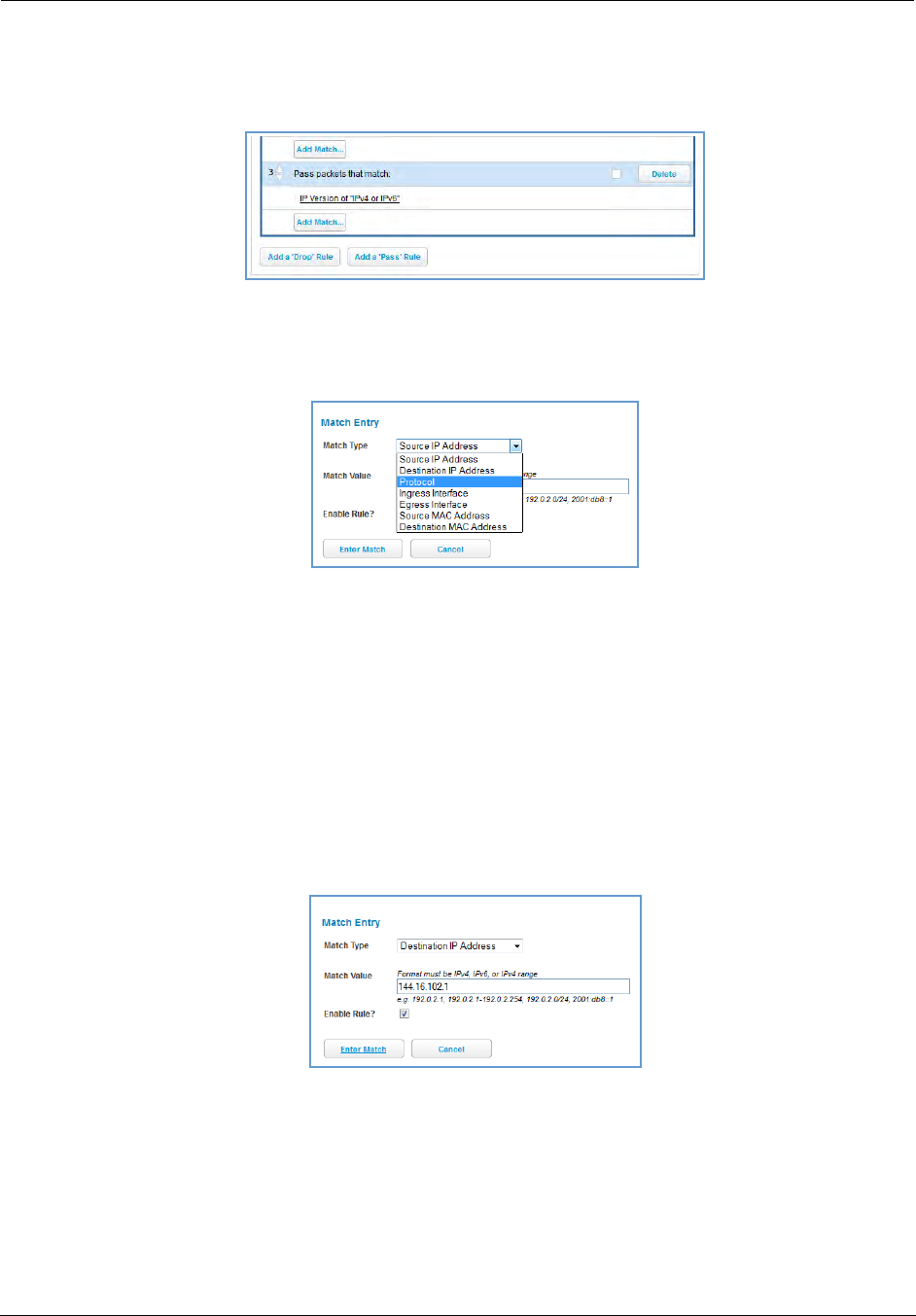

6. Select the Add Match button below the new rule created above. This opens the Match Entry view.

7. For this example, the filter will be made based on a TCP port. Select Protocol from the Match Type drop-

down menu. This automatically fills in TCP in the Match Value field. At this point do not enable the rule until

all criteria have been entered.

8. Click Enter Match. This will return the GUI to the Packet Rules list.

9. Select Add Match below the rule created earlier.

10.Select Destination Port from the Match Type drop-down menu and enter 21 (this value corresponds to FTP)

in the Match Value entry box.

11.Click Enter Match.

12.Select Add Match below the same rule created earlier.

13.Select Destination IP Address from the Match Type drop-down menu and enter the IP address entered in

Step 3 of this procedure.

14.Select the Enable Rule check box and click Enter Match. The GUI returns to the Packet Rules list and the rule

is active and grayed out. It cannot be edited without first disabling the rule.

Link: NAT/Gaming

When you click the NAT/Gaming link, the NAT/Gaming page appears.

The NAT/Gaming feature allows you to host internet applications when NAT (network address translation) is

enabled. You can host different games and software on different PCs.

From the Service drop-down menu, you can select any of a large number of predefined games and software.

(See “List of Supported Games and Software” on page 70.) In addition to choosing from these predefined

services you can also select a user defined custom service. (See “Custom Services” on page 68.)

For each supported game or service, you can view the protocols and port ranges used by the game or service

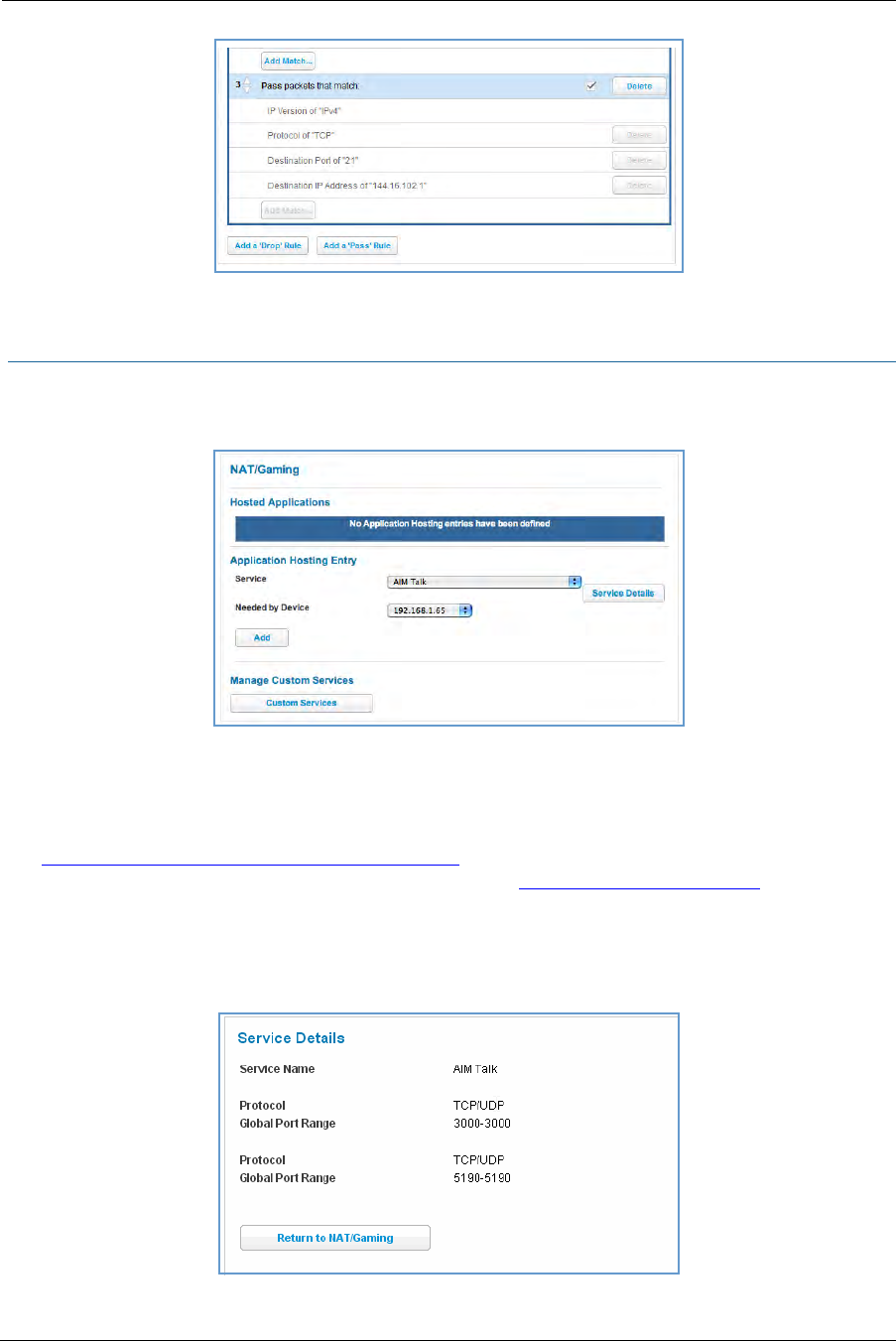

by clicking the Service Details button. For example:

1. Select a hosting device from the Needed by Device drop-down menu.

Administrator’s Handbook

2. Once you choose a software service or game, click Add.

Each time you enable a software service or game, your entry will be added to the list of Service names dis-

played on the NAT/Gaming page.

To remove a game or software from the hosted list, choose the game or software you want to remove and click

the Delete button.

Custom Services

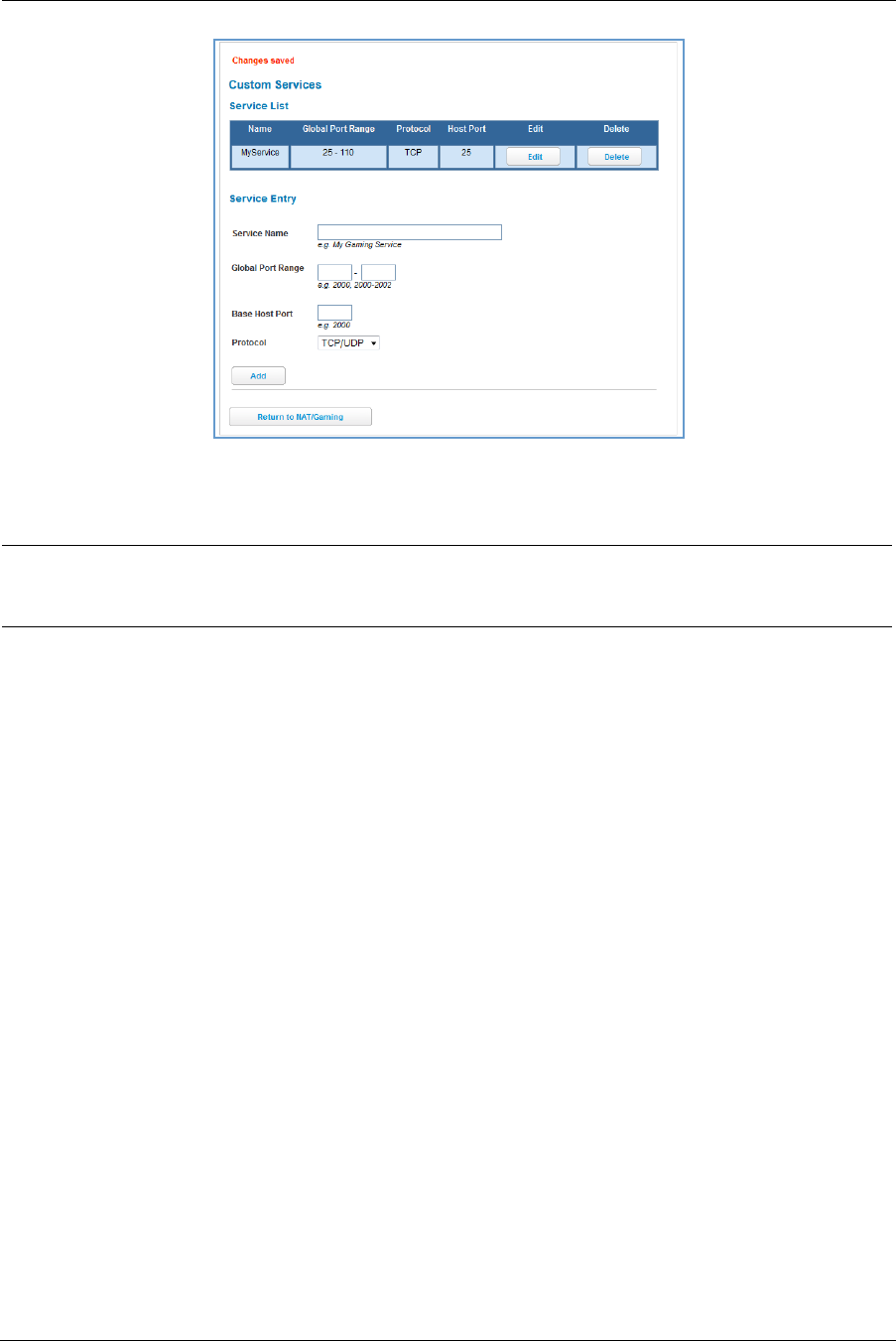

To configure a custom service, click the Custom Services button. The Custom Services page appears.

Enter the following information:

Service Name: A unique identifier for the custom service.

Global Port Range: Range of ports on which incoming traffic will be received.

Base Host Port: The port number at the start of the port range your NVG599 device should use when for-

warding traffic of the specified type(s) to the internal IP address.

Protocol: Protocol type of Internet traffic, TCP, UDP, or both.

Click the Add button.

Each time you add a custom service, your entry will be added to the list of service names displayed on the

Custom Services page. In addition, once you define a custom service it becomes available in the Service menu

on the NAT/Gaming page as one of the services to select.

Changes are saved immediately.

To remove this Service, click the Delete button. To edit this Service, click the Edit button.



NOTE:

You cannot edit a custom service if that service is active; it must be inactive before it can be edited.

Administrator’s Handbook

List of Supported Games and Software

AIM Talk Act of War - Direct Action Age of Empires II

Age of Empires, v.1.0 Age of Empires: The Rise of Rome,

v.1.0

Age of Mythology

Age of Wonders America's Army Apache

Asheron's Call Azureus Baldur's Gate I and II

Battlefield 1942 Battlefield Communicator Battlefield Vietnam

BitTornado BitTorrent Black and White

Blazing Angels Online Brothers in Arms - Earned in Blood Brothers in Arms Online

Buddy Phone CART Precision Racing, v 1.0 Calista IP Phone

Call of Duty Citrix Metaframe/ICA Client Close Combat III: The Russian Front,

v 1.0

Close Combat for Windows 1.0 Close Combat: A Bridge Too Far, v

2.0

Combat Flight Sim 2: WWII Pacific

Thr, v 1.0

Combat Flight Sim: WWII Europe

Series, v 1.0

Counter Strike DNS Server

Dark Reign Delta Force (Client and Server) Delta Force 2

Delta Force Black Hawk Down Diablo II Server Dialpad

DirecTV STB 1DirecTV STB 2DirecTV STB 3

Doom 3 Dues Ex Dune 2000

Empire Earth Empire Earth 2 F-16, Mig 29

F-22, Lightning 3 FTP Far Cry

Fighter Ace II GNUtella Grand Theft Auto 2 Multiplayer

H.323 compliant (Netmeeting,

CUSeeME)

HTTP HTTPS

Half Life Half Life 2 Steam Half Life 2 Steam Server

Half Life Steam Half Life Steam Server Halo

Hellbender for Windows, v 1.0 Heretic II Hexen II

Hotline Server ICQ 2001b ICQ Old

IMAP Client IMAP Client v.3 IPSec IKE

Internet Phone Jedi Knight II: Jedi Outcast Kali

KazaA Lime Wire Links LS 2000

Lord of the Rings Online MSN Game Zone MSN Game Zone DX

MSN Messenger Mech Warrior 3 MechWarrior 4: Vengeance

Medal of Honor Allied Assault Microsoft Flight Simulator 2000 Microsoft Flight Simulator 98

Microsoft Golf 1998 Edition, v 1.0 Microsoft Golf 1999 Edition Microsoft Golf 2001 Edition

Midtown Madness, v 1.0 Monster Truck Madness 2, v 2.0 Monster Truck Madness, v 1.0

Motocross Madness 2, v 2.0 Motocross Madness, v 1.0 NNTP

Need for Speed 3, Hot Pursuit Need for Speed, Porsche Net2Phone

Operation FlashPoint Outlaws POP-3

PPTP PlayStation Network Quake 2

Quake 3Quake 4Rainbow Six

RealAudio Return to Castle Wolfenstein Roger Wilco

Rogue Spear SMTP SNMP

SSH server ShoutCast Server SlingBox

Soldier of Fortune StarCraft StarLancer, v 1.0

Starfleet Command TFTP TeamSpeak

Telnet Tiberian Sun: Command and Con-

quer

Timbuktu

Total Annihilation Ultima Online Unreal Tournament Server

Urban Assault, v 1.0 VNC, Virtual Network Computing Warlords Battlecry

Warrock Westwood Online, Command and

Conquer

Win2000 Terminal Server

Wolfenstein Enemy Territory World of Warcraft X-Lite

XBox 360 Media Center XBox Live 360 Yahoo Messenger Chat

Yahoo Messenger Phone ZNES eDonkey

eMule eMule Plus iTunes

mIRC Auth-IdentD mIRC Chat mIRC DCC - IRC DCC

pcAnywhere (incoming)

Administrator’s Handbook

Link: IP Passthrough

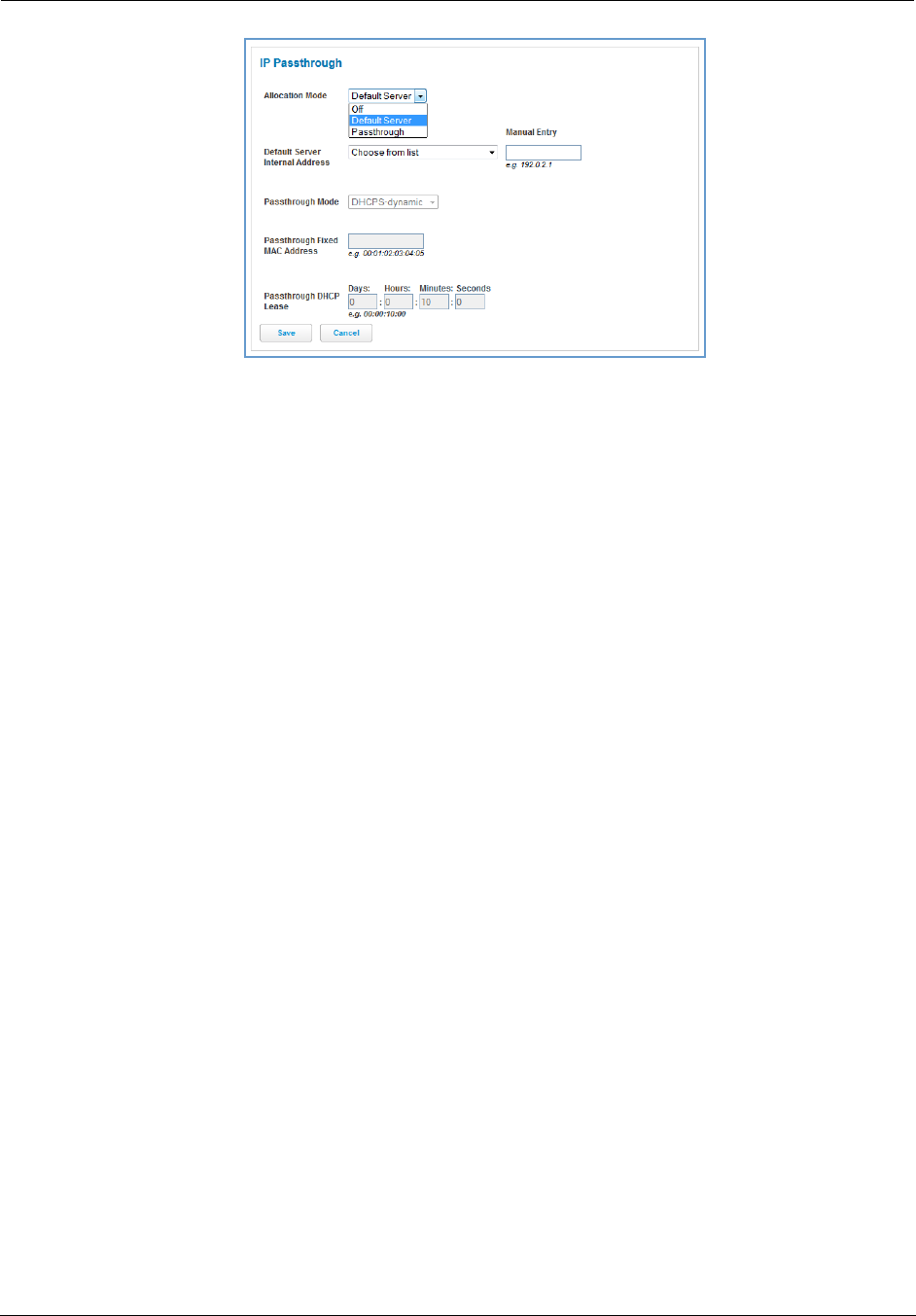

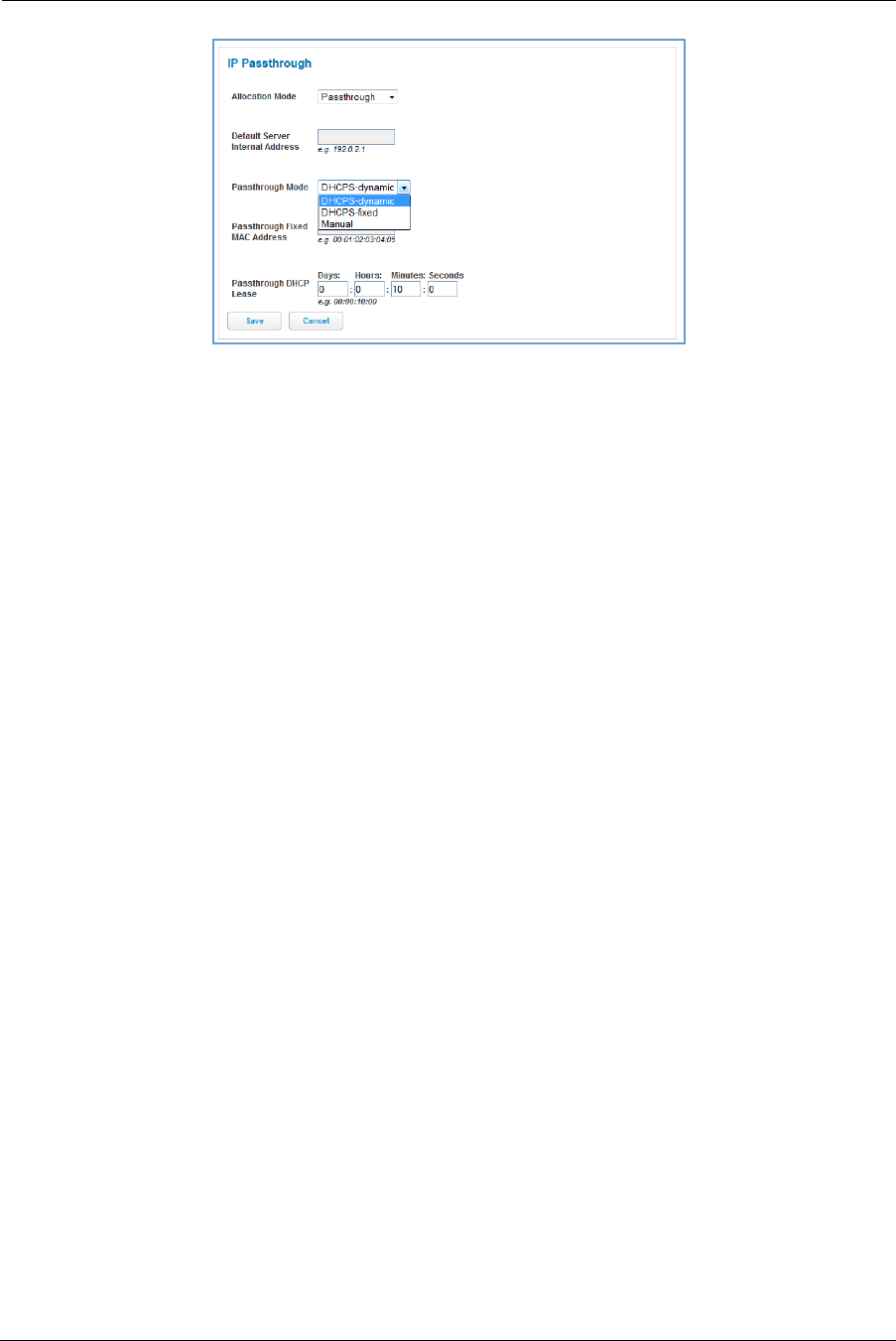

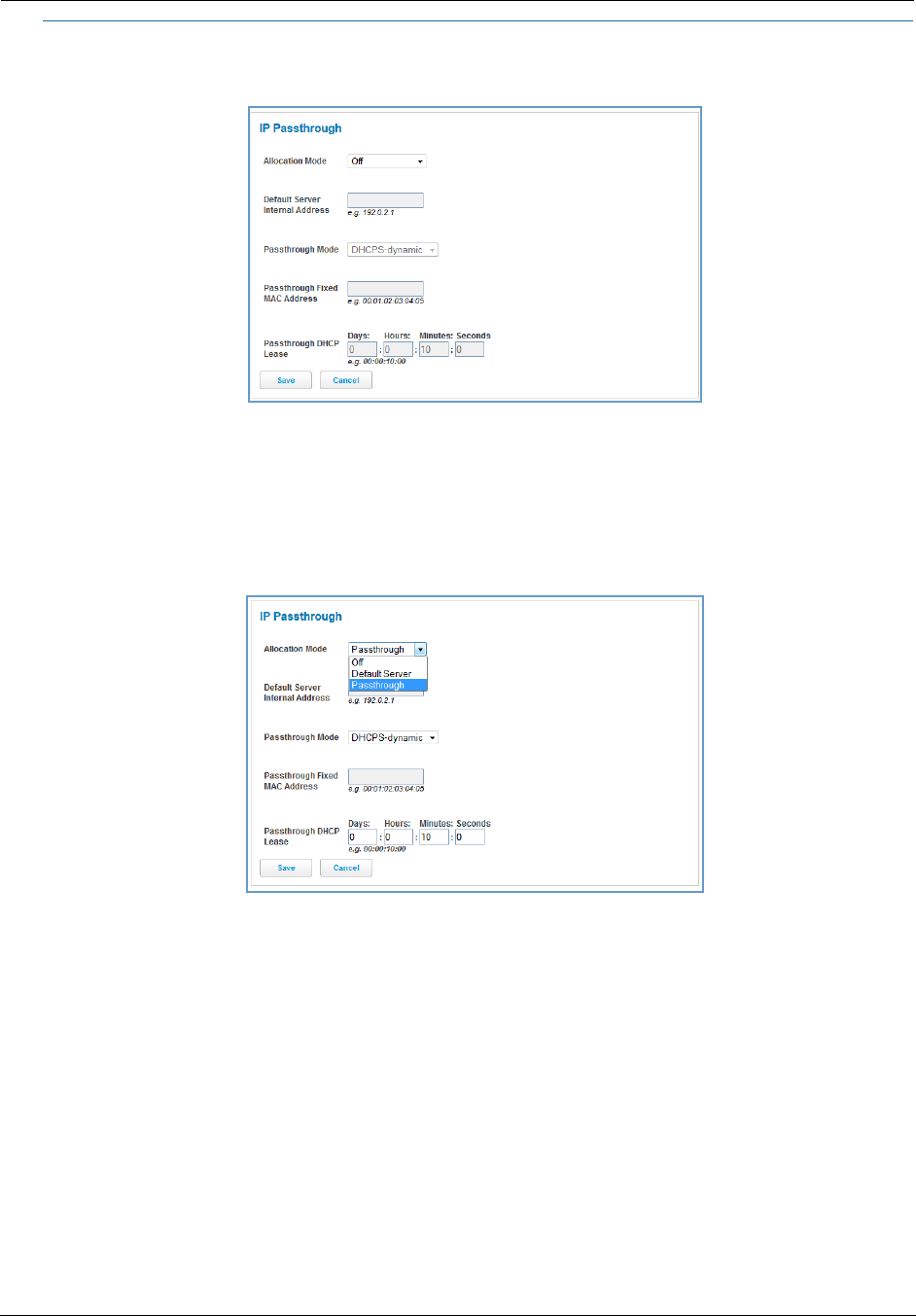

When you click the IP Passthrough link, the IP Passthrough page appears.

IP Passthrough

The IP Passthrough feature allows a single PC on the LAN to have the ARRIS Gateway’s public address assigned

to it. It also provides PAT (port address translation) (or NAPT – network address and port translation) via the

same public IP address for all other hosts on the private LAN subnet.

Using IP Passthrough, the public WAN IP is used to provide IP address translation for private LAN computers.

The public WAN IP is assigned and reused on a LAN computer.

DHCP address serving can automatically serve the WAN IP address to a LAN computer.

When DHCP is used for addressing the designated passthrough PC, the acquired or configured WAN address is

passed to DHCP, which will dynamically configure a single-servable-address subnet, and reserve the address for

the configured PC’s MAC address. This dynamic subnet configuration is based on the local and remote WAN

address and subnet mask.

The two DHCP modes assign the needed WAN IP information to the client automatically.

• You can select the MAC address of the PC you want to be the IP Passthrough client with fixed mode, or,

• with “first-come-first-served” – dynamic – the first client to renew its address will be assigned the WAN IP.

Manual mode is like statically configuring your PC. With Manual mode, you configure the TCP/IP Properties

of the LAN client PC you want to be the IP Passthrough client. You then manually enter the WAN IP address,

gateway address, and so on that matches the WAN IP address information of your ARRIS device. This mode

works the same as the DHCP modes. Unsolicited WAN traffic will get passed to this client. The client is still

able to access the ARRIS NVG599 device and other LAN clients on the 192.168.1.x network, etc.

The Passthrough DHCP Lease – By default, the passthrough host's DHCP leases will be shortened to two min-

utes. This allows for timely updates of the host's IP address, which will be a private IP address before the

WAN connection is established. After the WAN connection is established and has an address, the

passthrough host can renew its DHCP address binding to acquire the WAN IP address. You may alter this set-

ting.

Click Save. Changes take effect upon restart.

A Restriction

Because both the NVG599 device and the passthrough host will use the same IP address, new sessions that

conflict with existing sessions will be rejected by the NVG599. For example, suppose you are a teleworker using

an IPSec tunnel from the router and from the passthrough host. Both tunnels go to the same remote endpoint,

such as the VPN access concentrator at your employer’s office. In this case, the first one to start the IPSec

traffic will be allowed; the second one – because, from the WAN, it is indistinguishable – will fail.

Administrator’s Handbook

NAT Default Server

The NAT default server feature allows you to:

Direct your NVG599 device to forward all externally initiated IP traffic (TCP and UDP protocols only) to a

default host on the LAN, specified by your entry in the Internal Address field.

 Enable the default server for certain situations:

– Where you cannot anticipate what port number or packet protocol an in-bound application might use. For

example, some network games select arbitrary port numbers when a connection is opened.

– When you want all unsolicited traffic to go to a specific LAN host.

This feature allows you to direct unsolicited or non-specific traffic to a designated LAN station. With NAT on in

the device, these packets normally would be discarded. For instance, this feature could be used for application

traffic where you do not know in advance the port or protocol that will be used. Some game applications fit

this profile.

Click Save. Changes take effect immediately.

Link: Firewall Advanced

When you click the Firewall Advanced link the Firewall Advanced screen appears.

All computer operating systems are vulnerable to attack from outside sources, typically at the operating

system or Internet Protocol (IP) layers. Stateful inspection firewalls intercept and analyze incoming data

packets to determine whether they should be admitted to your private LAN, based on multiple criteria, or

blocked. Stateful inspection improves security by tracking data packets over a period of time, examining

incoming and outgoing packets. Outgoing packets that request specific types of incoming packets are tracked;

only those incoming packets constituting a proper response are allowed through the firewall.

Stateful inspection is a security feature that prevents unsolicited inbound access when NAT is disabled. You can

configure UDP and TCP “no-activity” periods that will also apply to NAT timeouts if stateful inspection is

enabled on the interface. Stateful Inspection parameters are active on a WAN interface only if enabled on your

NVG599 device. Stateful inspection can be enabled on a WAN interface whether NAT is enabled or not.

DoS Protection – Denial-of-service (DoS) attacks are common on the Internet, and can render an individual PC

or a whole network practically unusable by consuming all its resources. Your NVG599 includes default settings

to block the most common types of DoS attacks. For special requirements or circumstances, a variety of

additional blocking characteristics are offered. See the following table.

Menu item Function

Drop packets with invalid source or desti-

nation IP address

Whether packets with invalid source or destination IP address(es) are to be

dropped

Protect against port scan Whether to detect and drop port scans.

Drop packets with unknown ether types Whether packets with unknown ether types are to be dropped

Drop packets with invalid TCP flags Whether packets with invalid TCP flag settings (NULL, FIN, Xmas, etc.)

should be dropped

Drop incoming ICMP Echo requests Whether all ICMP echo requests are to be dropped; On or Off.

Flood Limit Whether packet flooding should be detected and offending packets be

dropped; On or Off.

Administrator’s Handbook

If you make any changes here, click the Save button.

Flood rate limit Specifies the number limit of packets per second before dropping the

remainder.

Flood burst limit Specifies the number limit of packets in a single burst before dropping the

remainder.

Flood limit ICMP enable Whether ICMP traffic packet flooding should be detected and offending

packets be dropped; On or Off.

Flood limit UDP enable Whether UDP traffic packet flooding should be detected and offending

packets be dropped; On or Off.

Flood limit UDP Pass multicast Allows exclusion of UDP multicast traffic. On by default.

Flood limit TCP enable Allows exclusion of TCP traffic. Off by default.

Flood limit TCP SYN-cookie Allows TCP SYN cookies flooding to be excluded.

Neighbor Discovery Attack protection Prevents downstream traffic from an upstream device that sends excessive

traffic but receives no replies; On or Off.

ESP Header Forwarding Allows the use of Encapsulating Security Payload (ESP) data payload encryp-

tion for IP Secure (IPsec) from qualifying endpoints; On or Off.

Authentication Header Forwarding Accept and forward IPSec packets with Authencation Headers, which may

be used by some IPSec implementations to validate packet sources ; On or

Off.

Reflexive ACL When IPv6 is enabled, Reflexive Access Control Lists can deny inbound IPv6

traffic unless this traffic results from returning outgoing packets (except as

configured through firewall rules).

Menu item Function

Diagnostics

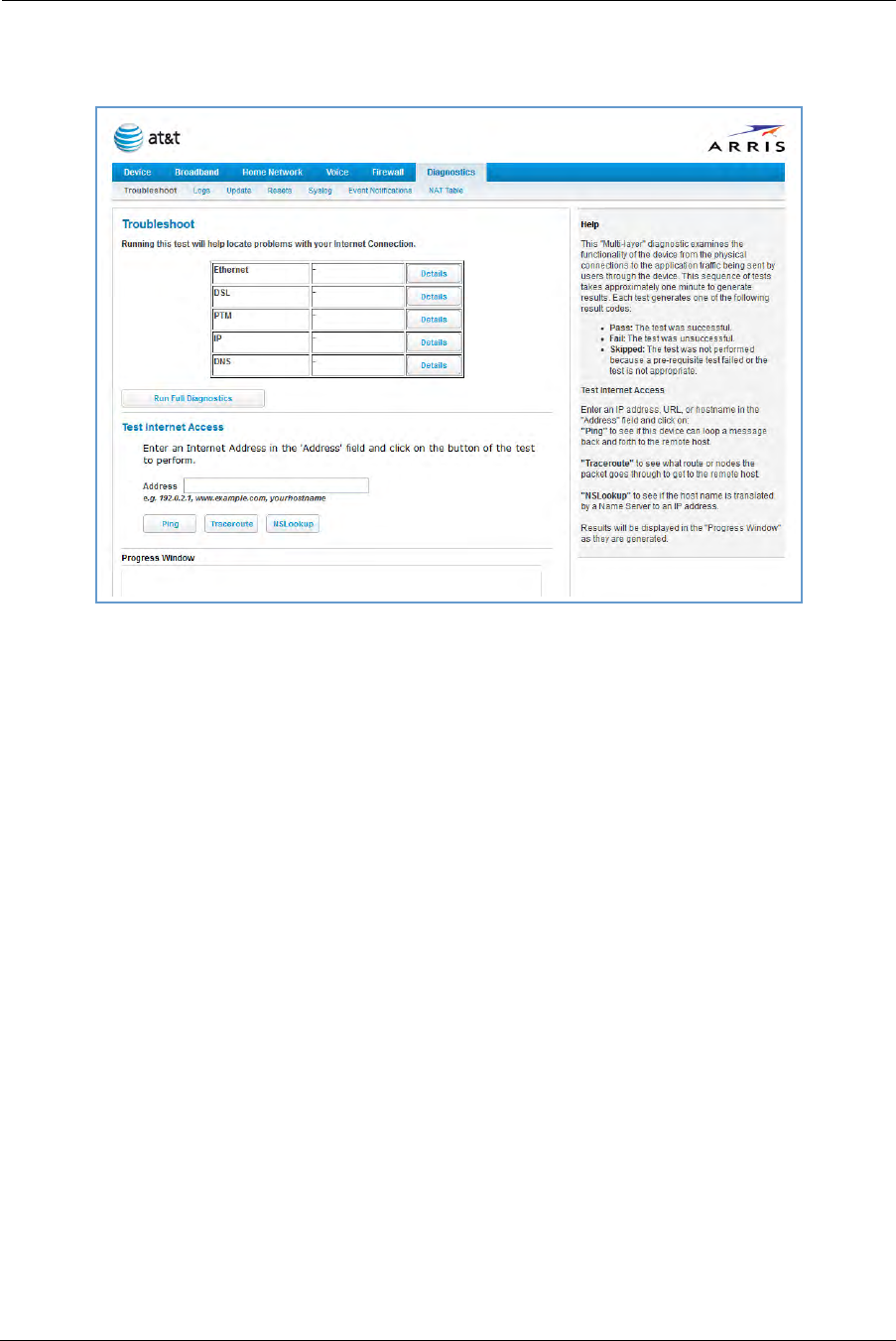

When you click the Diagnostics tab, the Troubleshoot page appears.

This automated multi-layer test examines the functions of the router from the physical connections to the data

traffic being sent by users through the router.

You can run all the tests in order by clicking the Run Full Diagnostics button.

The device will automatically test a number of components to determine any problems. You can see detailed

results of the tests by clicking the Details buttons for each item. The details presented depend on the

configuration of your router and your network type.

Administrator’s Handbook

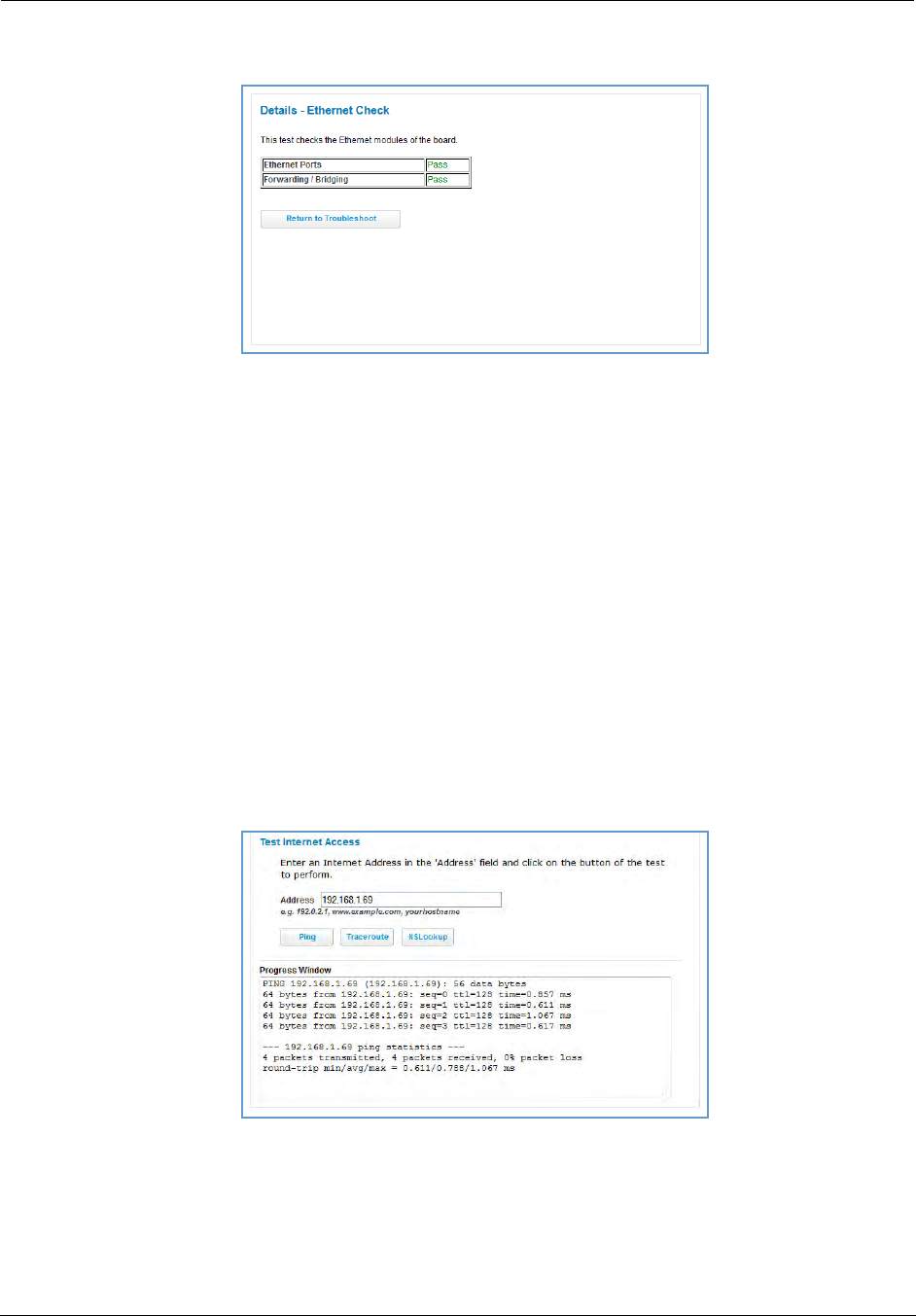

Here is an example of the Ethernet Details screen.

Test Internet Access

Internet access tests send a ping from the modem to either the LAN or WAN to verify connectivity. A ping could

be either an IP address (163.176.4.32) or domain name (www.arris.com). You enter a Web address URL or an IP

address in the respective field.

Click the Ping, Trace, or NSLookup button.

Results will be displayed in the Progress Window as they are generated.

Ping - tests the reachability of a particular network destination by sending an ICMP echo request and waiting

for a reply.

Traceroute - displays the path to a destination by showing the number of hops and the router addresses of

these hops.

NSLookup - converts a domain name to its IP address and vice versa.

To use the ping capability, type a destination address (domain name or IP address) in the text box and click the

Ping, Trace, or Lookup button. The results are displayed in the Progress Window.

This sequence of tests takes approximately one minute to generate results. Be sure to wait for the test to run to

completion.

Each test generates one of the following result codes:

Below are some specific tests:

Result Meaning

* PASS: The test was successful.

* FAIL: The test was unsuccessful.

* SKIPPED: The test was skipped because a test on which it depended failed.

* PENDING: The test timed out without producing a result. Try running the test again.

* WARNING: The test was unsuccessful. The service provider equipment your modem connects to may not

support this test.

Action If Ping Fails, Possible Causes Are:

From the Check Connection Page:

Ping the Internet default gateway IP address DSL is down, DSL settings are incorrect; gateway’s IP

address or subnet mask are wrong; gateway router is

down.

Ping an Internet site by IP address Site is down.

Ping an Internet site by name Servers are down; site is down.

From a LAN PC:

Ping the modem’s LAN IP address IP address and subnet mask of PC are not on the same

scheme as the modem; cabling or other connectivity

issue.

Ping an Internet site by IP address PC's subnet mask may be incorrect, site is down.

Ping an Internet site by name DNS is not properly configured on the PC, site is down.

Administrator’s Handbook

Link: Logs

When you click Logs, the Logs page appears.

The current status of the device is displayed for all logs: System, Firewall, or VoIP. Choose the log you want to

display from the drop-down menu.

You can clear all log entries by clicking the Clear Log button.

You can save logs to a text (.TXT) file by clicking the Save to File button. This will download the file to your

browser’s default download location on your hard drive. The file can be opened with your favorite text edi-

tor.



NOTE:

Some browsers, such as Internet Explorer for Windows XP, require that you specify the ARRIS device’s URL as

a “Trusted site” in “Internet Options: Security.” This is necessary to allow the download of the log text file to

the PC.

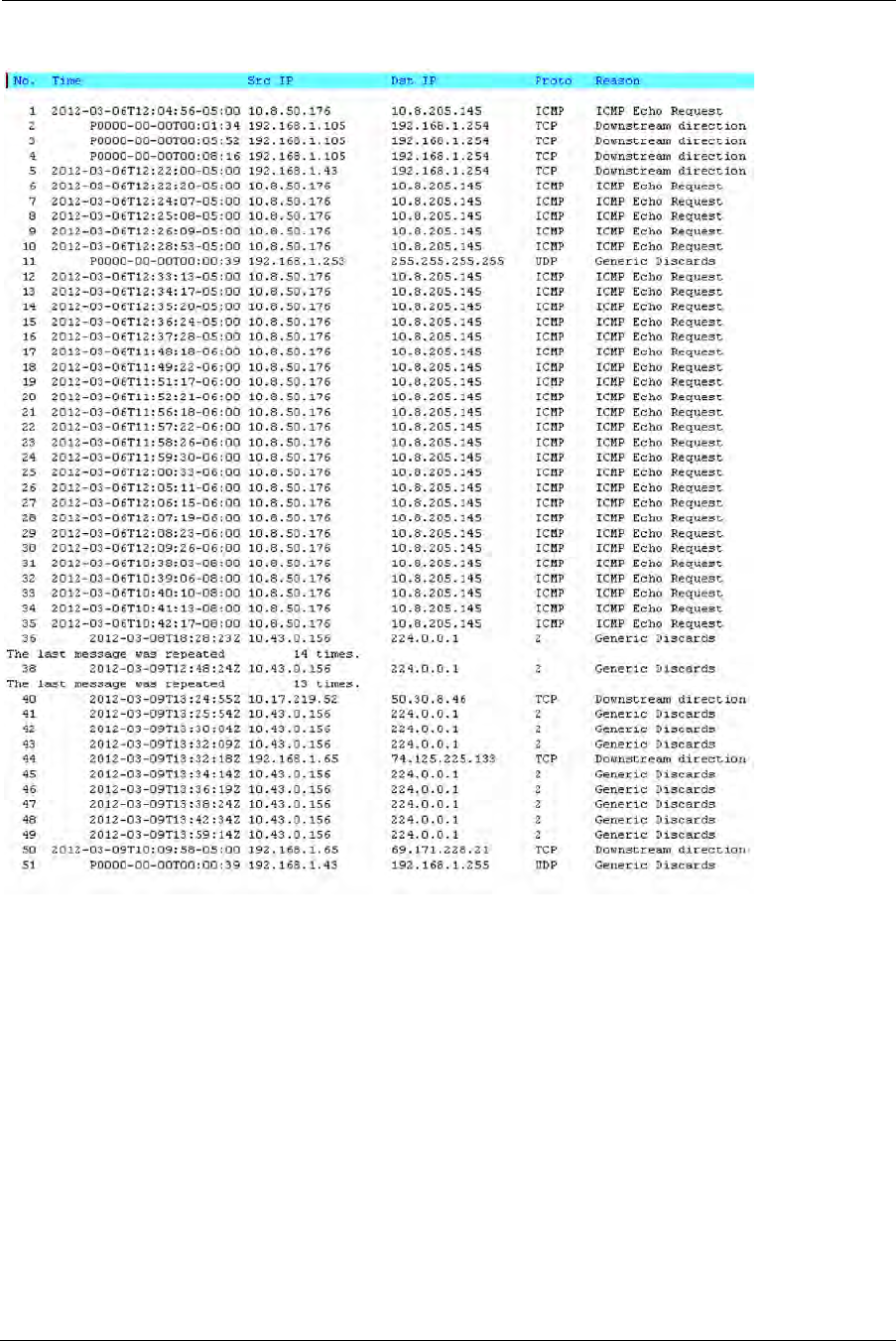

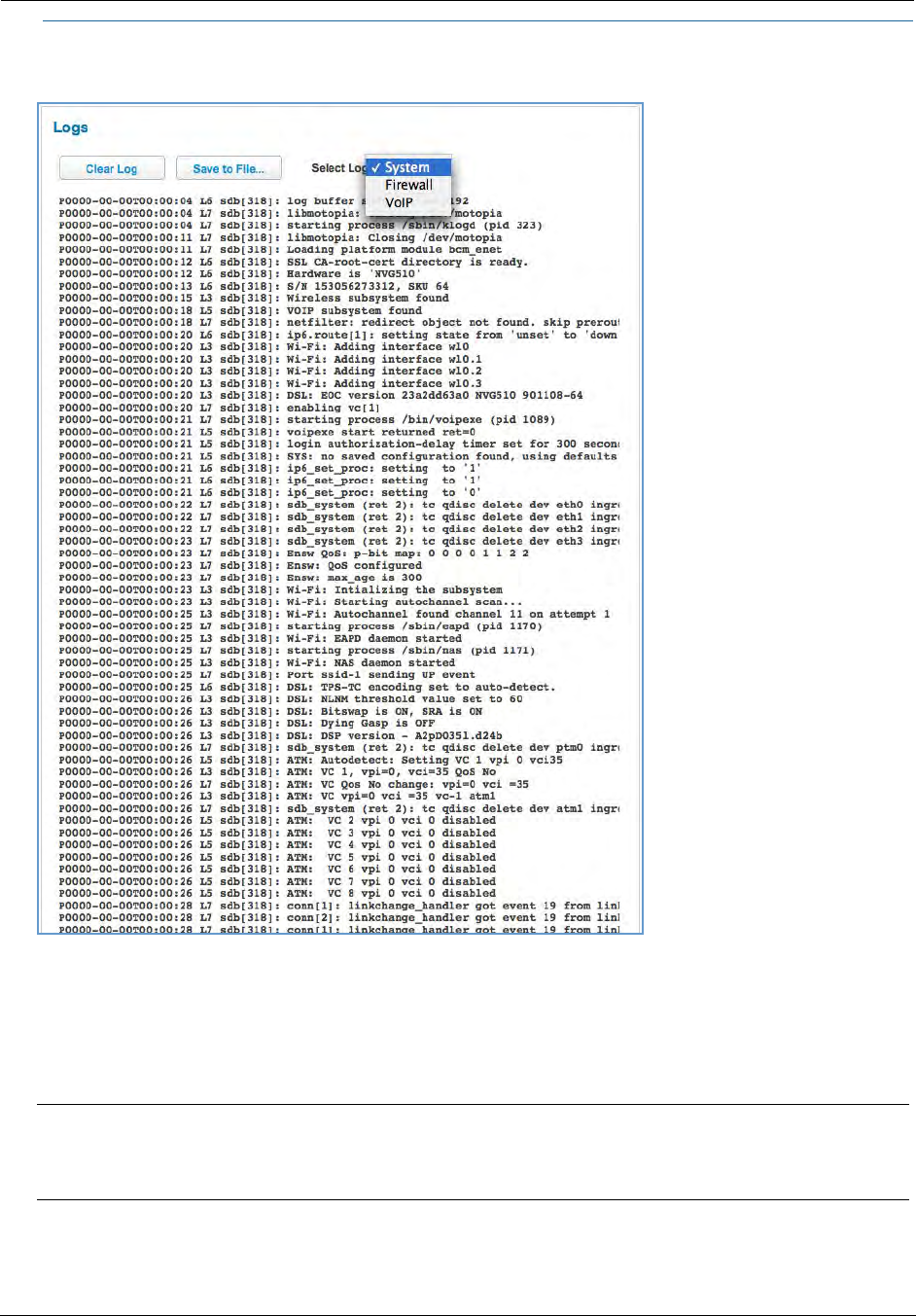

The following is an example log portion saved as a .TXT file:

Administrator’s Handbook

Link: Update

When you click Update, the Update page appears.

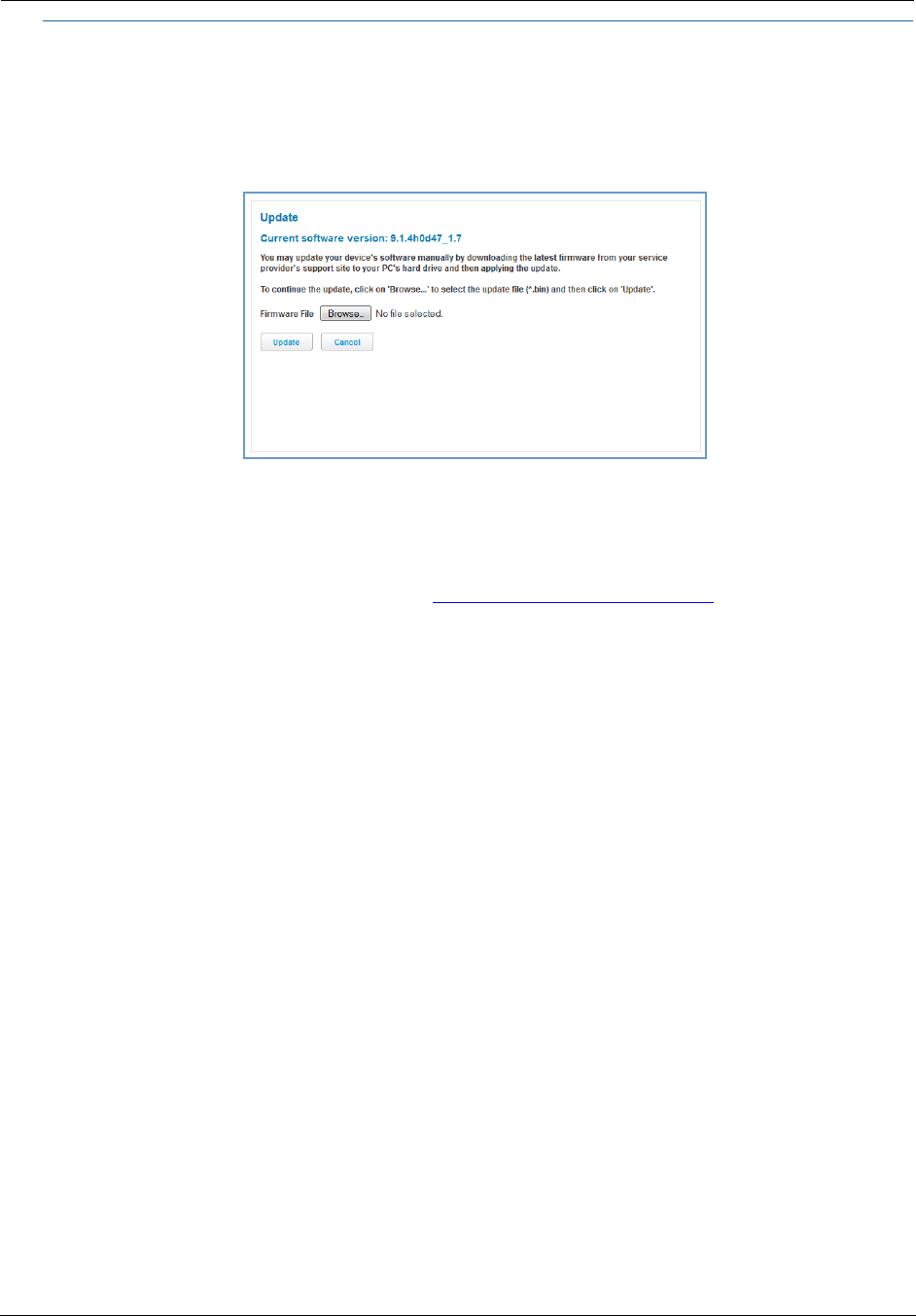

Operating system software is what makes your NVG599 device run, and occasionally it needs to be updated.

Your Current software version is displayed at the top of the page.

To update your software from a file on your PC, you must first download the software from your service

provider's support site to your PC's hard drive.

1. Browse your computer for the operating system file you downloaded and select the file.

2. Click the Update button.

The LEDs will operate normally as described in “Status Indicator Lights” on page 88.

3. The installation may take a few minutes and the Web page will indicate a 3-part countdown before returning

you to the Home page; wait for it to complete. During the software installation, you will lose Internet and

phone service. The LEDs will function as follows:

•The Power LED will flash Orange/Amber during firmware upgrade (flash writing to memory) and all

other LEDs will be off.

4. The Gateway will restart automatically.

As the device reboots, the LEDs display power-on behavior.

5. Your new operating system will then be running.

Link: Resets

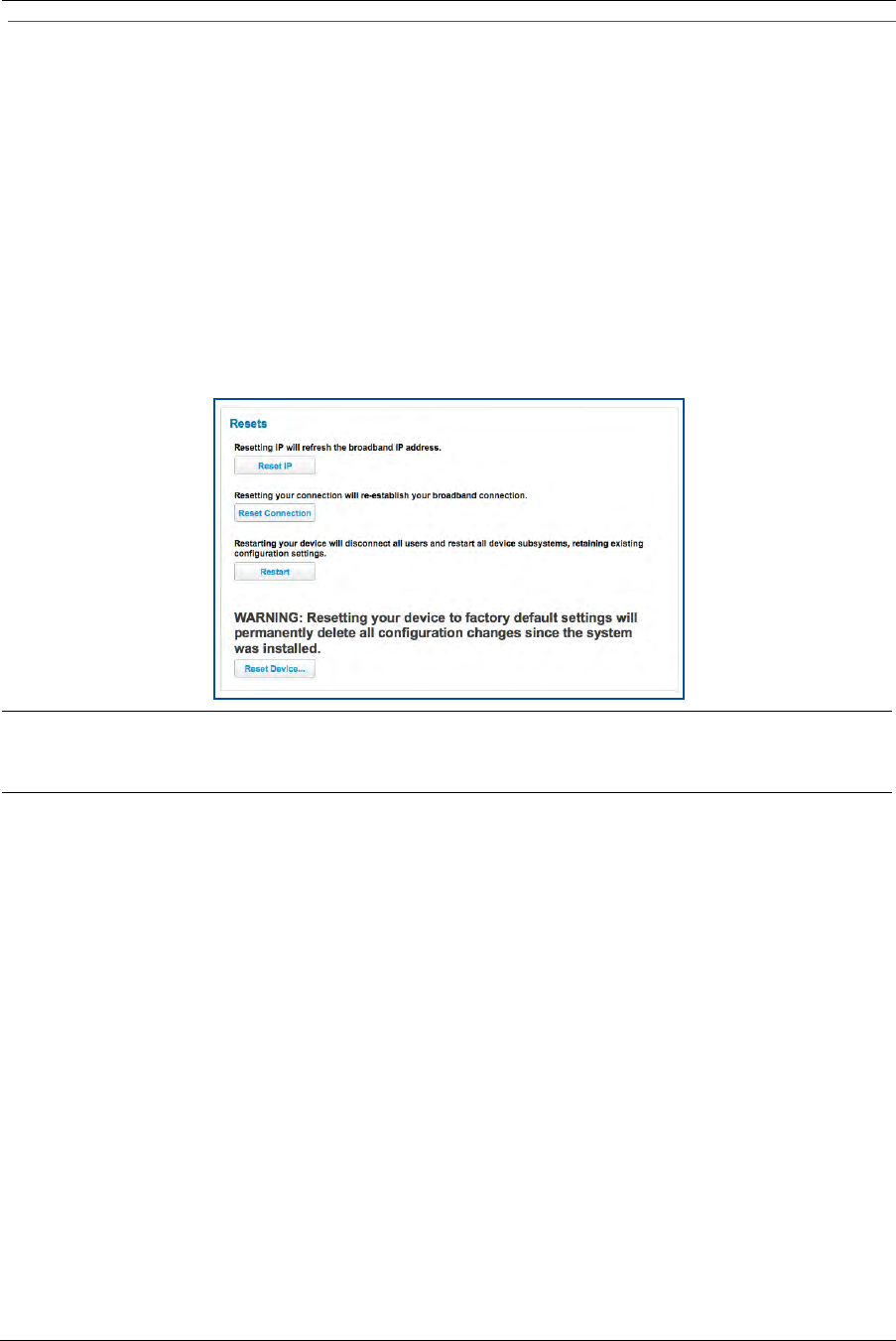

When you click the Resets link, the Resets page appears.

In some cases, you may need to clear all the configuration settings and start over again to program the

ARRIS NVG599 device. You can perform a factory reset to do this.

It might also be useful to reset your connection to the Internet without deleting all of your configuration

settings.

Click the Reset IP button to refresh your Internet WAN IP address. LAN-side users will be briefly disconnected

from the Internet, but will otherwise be unaffected.

Click the Reset Connection button to disconnect and reconnect all of your connections, including your VoIP

phones.

Click the Reset Device button to reset the Gateway back to its original factory default settings.

Click the Restart button to reboot the device. Previous configuration settings are still retained.



NOTE:

Exercise caution before performing a factory reset. This will erase any configuration changes that you may

have made and allow you to reprogram your NVG599 device.

Administrator’s Handbook

Link: Syslog

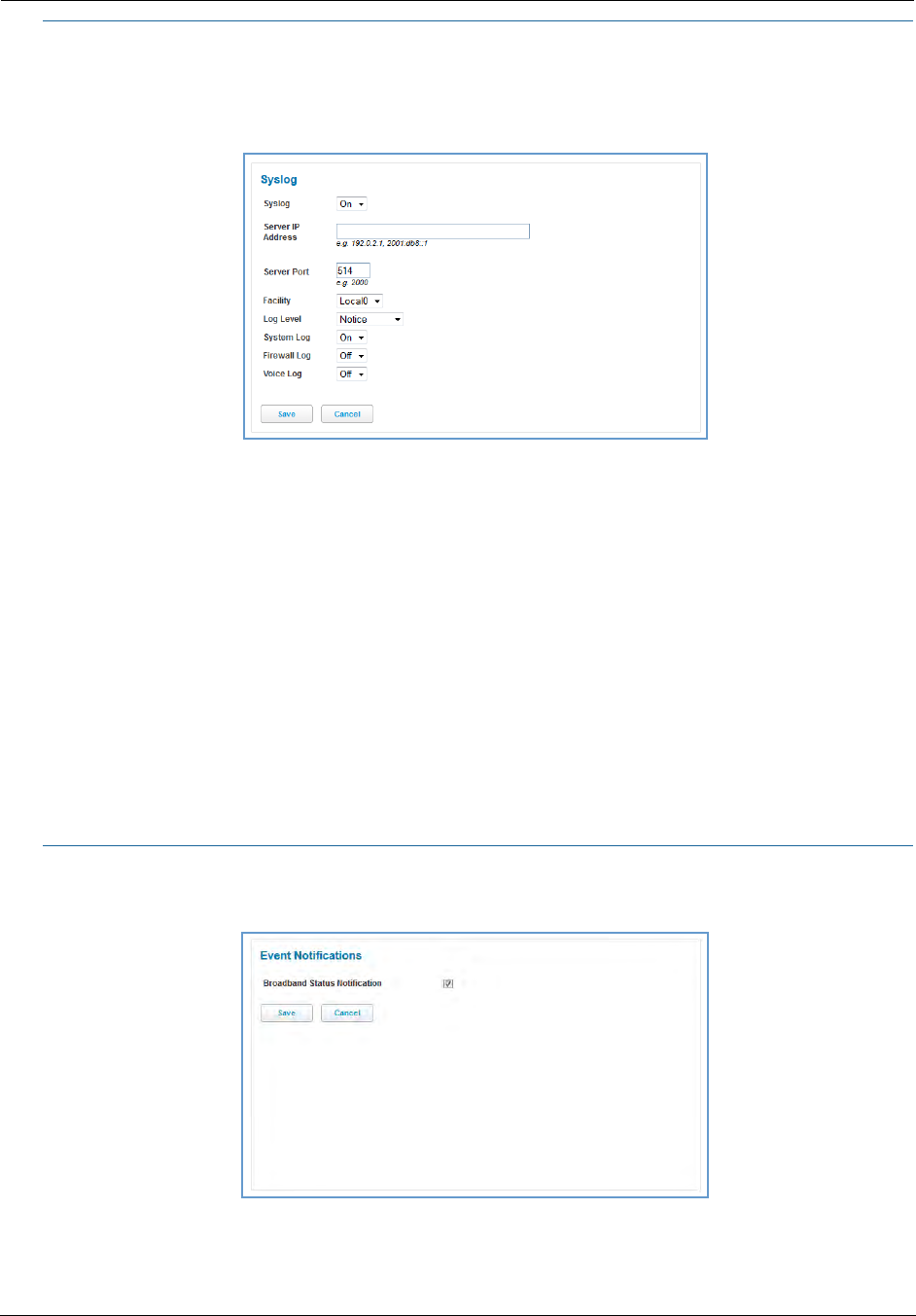

When you click the Syslog link the Syslog configuration page appears. You can configure a UNIX-compatible

(BSD Syslog protocol - RFC 3164) Syslog client to report a number of subsets of the events entered in the device

logs.

You can enable or disable the Syslog client dynamically. When enabled, it will report any appropriate and

previously unreported events.

You can specify the Syslog server’s address and port, if required, either in dotted decimal format or as a DNS

name of up to 63 characters.

You can specify the UNIX Syslog facility to use by selecting from the Facility drop-down menu.

From the Log Level drop-down menu, you can select a level from a list organized in decreasing severity level:

Emergency, Alert, Critical, Error, Warning, Notice, Info, or Debug.

By toggling each event descriptor to either On or Off, you can determine which ones are logged and which

are ignored.

You will need to install a Syslog client daemon program on your PC and configure it to report the events you

specified in the Syslog configuration screen.

Click the Save button.

Link: Event Notifications

When you click the Event Notifications link, the Event Notifications page appears.

If you select the Broadband Status Notification checkbox, the device will alert users on your network if the

connection to the Internet should fail. In that event, troubleshooting suggestions will display.

Link: NAT Table

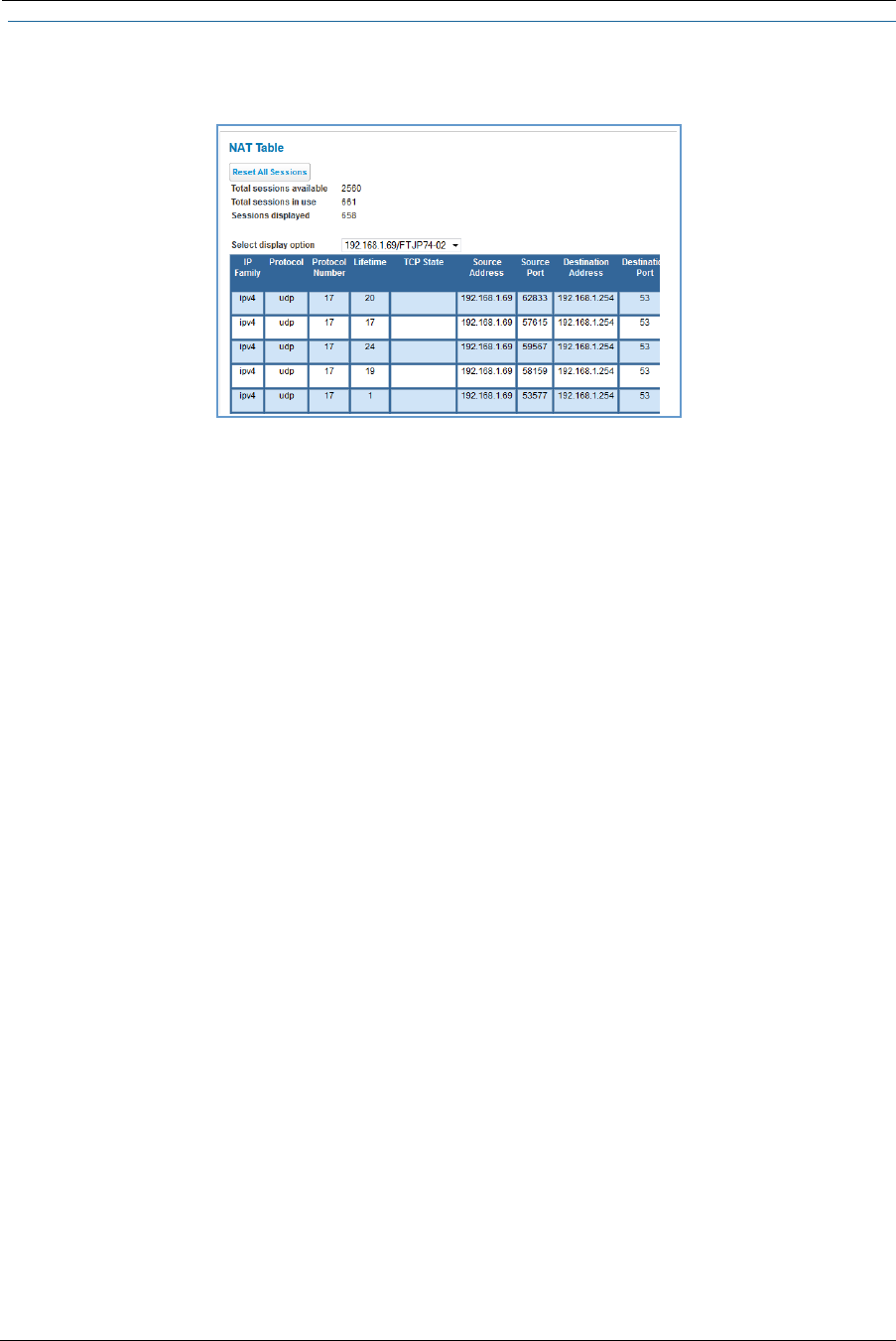

When you click the NAT Table link, the NAT Table page appears.

The NAT Table page displays the network address translation sessions in use by the NVG599 device. You can

use the drop-down menu to limit the displayed sessions to selected IP addresses.

To refresh all the sessions displayed, click the Reset button.

Administrator’s Handbook

CHAPTER 3 Basic Troubleshooting

This chapter gives some simple suggestions for troubleshooting problems with your NVG599 VDSL2 Gateway’s

initial configuration. This chapter covers the following topics:

Status Indicator Lights on page 88

Factory Reset Switch on page 95

Event Log Messages on page 96

Before troubleshooting, make sure you have:

Read this guide

Plugged in all the necessary cables

Set your PC’s TCP/IP controls to obtain an IP address automatically

Administrator’s Handbook

Status Indicator Lights

The first step in troubleshooting is to check the status indicator lights (LEDs) in the order outlined below.

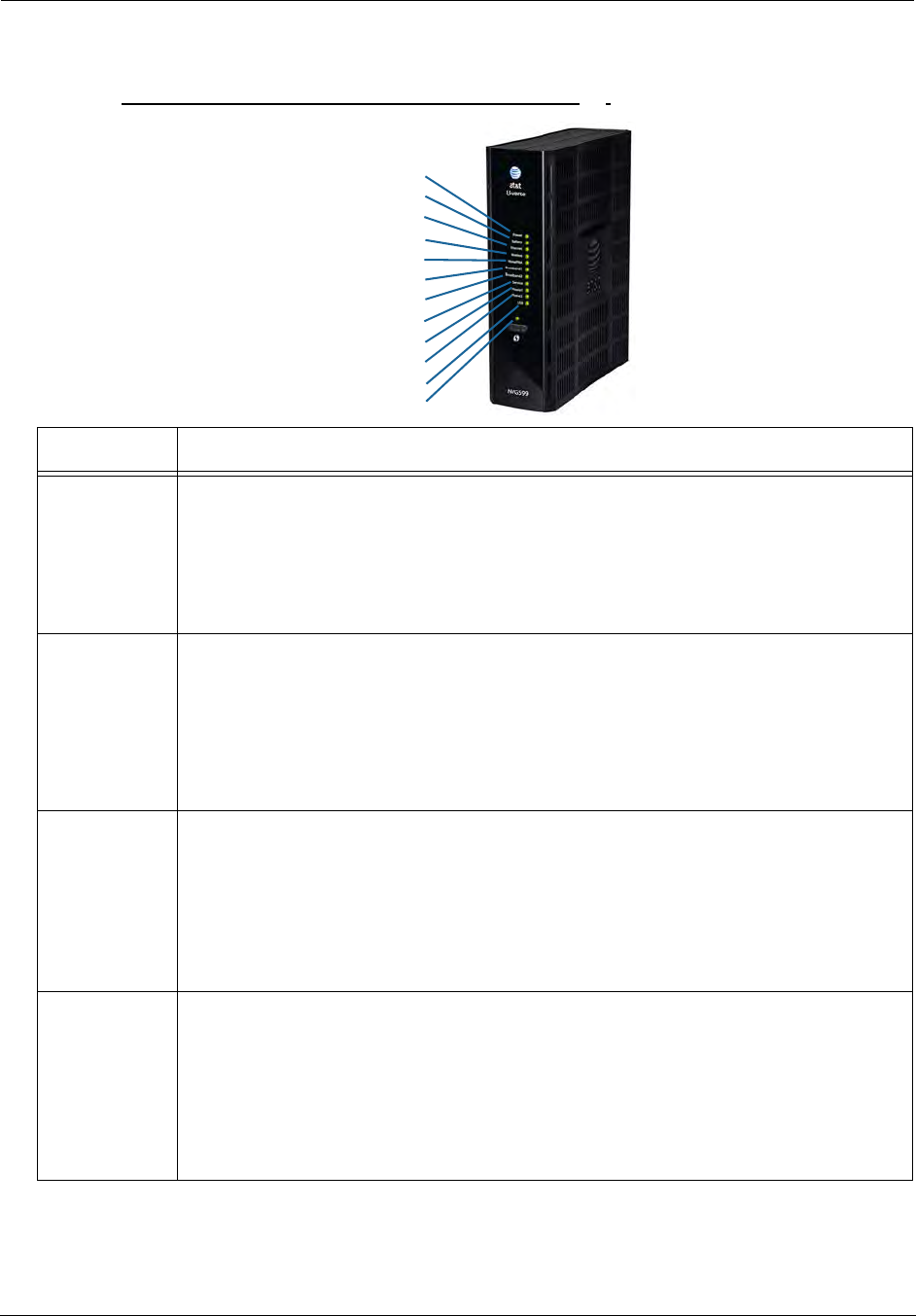

ARRIS NVG599 VDSL2 Gateway Status Indicator Lights

LED Activity

Power

Solid Green = The device is powered.

Flashing Green = A power-on self-test (POST) is in progress

Flashing Red = A POST failure (not bootable) or device malfunction occurred.

Flashing Amber = Firmware upgrade in progress (see below)

Off = The unit has no AC power. If the battery is in use, the Battery LED will indicate battery status,

and all other LEDs will be off.

Power during

Firmware

Upgrade

During the software installation, you will lose Internet and phone service. The LEDs will function as

follows:

1. As firmware is being loaded into flash, the LEDs operate normally.

2. During the firmware upgrade, which takes a few minutes, the Power LED will flashes amber

(flash writing to memory), and all other LEDs are off.

3. The NVG599 restarts automatically.

As the device reboots, the LEDs display power-on behavior.

All during

Boot process

• Power LED = Flashing Green

• All other LEDs = Off

If the device does not boot and fails its self-test or fails to perform initial load of the bootloader:

• Power LED = Flashing Red

• ALL other LEDs = Off

If the device boots and then detects a failure:

Power LED = Flashing Green starting POST, and then all LEDs will flash red, including Power LED.

Battery

Solid Green = Battery in place but not being used.

Flashing Green = Battery charging.

Solid Red = Battery backup mechanism has a fault.

Flashing Red = Battery needs to be replaced.

Solid Amber = Battery in use.

Flashing Amber = Low battery.

Off = No battery, or battery has no charge.

Side View Power

Battery

Ethernet

Wireless

HomePNA

USB

Broadband 1

Broadband 2

Service

Phone 1

Phone 2

WPS

Ethernet

Solid Green = Powered device connected to the associated port (includes devices with wake-on-LAN

capability where a slight voltage is supplied to the Ethernet connection).

Flickering Green = Activity seen from devices associated with the port. The flickering of the light is

synchronized to actual data traffic.

Off = The device is not powered, or no cable or no powered devices are connected to the associated

ports.

WiFi

Solid Green = Wi-Fi is powered.

Flickering Green = Activity seen from devices connected via Wi-Fi. The flickering of the light is syn-

chronized to actual data traffic.

Off = The device is not powered, or no powered devices are connected to the associated ports.

HomePNA

Solid Green = Powered device connected to the associated port (includes devices with wake-on-LAN

capability where a slight voltage is supplied to the Ethernet connection).

Flickering Green = Activity seen from devices associated with the port. The flickering of the light is

synchronized to actual data traffic.

Off = The device is not powered, or no cable or no powered devices are connected to the associated

ports.

Broadband

1**, 2

Solid Green = Good broadband connection (good DSL sync or Gigabit Ethernet).

Flashing Green = Attempting broadband connection (DSL attempting sync).

Flashing Green and Red = If, after three consecutive minutes, the broadband connection fails to be

established, the LED switches to Flashing Green alternating with a five second steady Red while

attempting or waiting to establish a broadband connection. This pattern continues until the broad-

band connection is successfully established.

Flashing Red = No DSL signal on the line. This display is not used during times of temporary ‘no tone’

during the training sequence.

Off = The device is not powered.

** Broadband 1 LED is also the Gigabit Ethernet WAN LED when that is in play (and DSL is not).

Service

Solid Green = IP connected. The device has a WAN IP address from DHCP or 802.1x authentication

and the broadband connection is up.

Flashing Green = Attempting connection, attempting IEEE 802.1X authentication, or attempting to

obtain DHCP information.

Red = Device attempted to become IP connected and failed (no DHCP response, 802.1x authentica-

tion failed, no IP address from IPCP, etc.). The Red state times out after two minutes, and the Service

indicator light returns to the Off state.

Off = The device is not powered or the broadband connection is not present.

Phone 1, 2

Solid Green = The associated VoIP line has been registered with a SIP proxy server.

Flashing Green = Indicates a telephone is off-hook on the associated VoIP line.

Off = VoIP not in use, line not registered, or NVG599 power off.

USB

Solid Green = Powered device connected to the associated port (includes devices with wake-on-LAN

capability where a slight voltage is supplied to the Ethernet connection).

Flickering Green = Activity seen from devices associated with the port. The flickering of the light is

synchronized to actual data traffic.

Off = The device is not powered, no cable or no powered devices connected to the associated ports.

LED Activity

Administrator’s Handbook

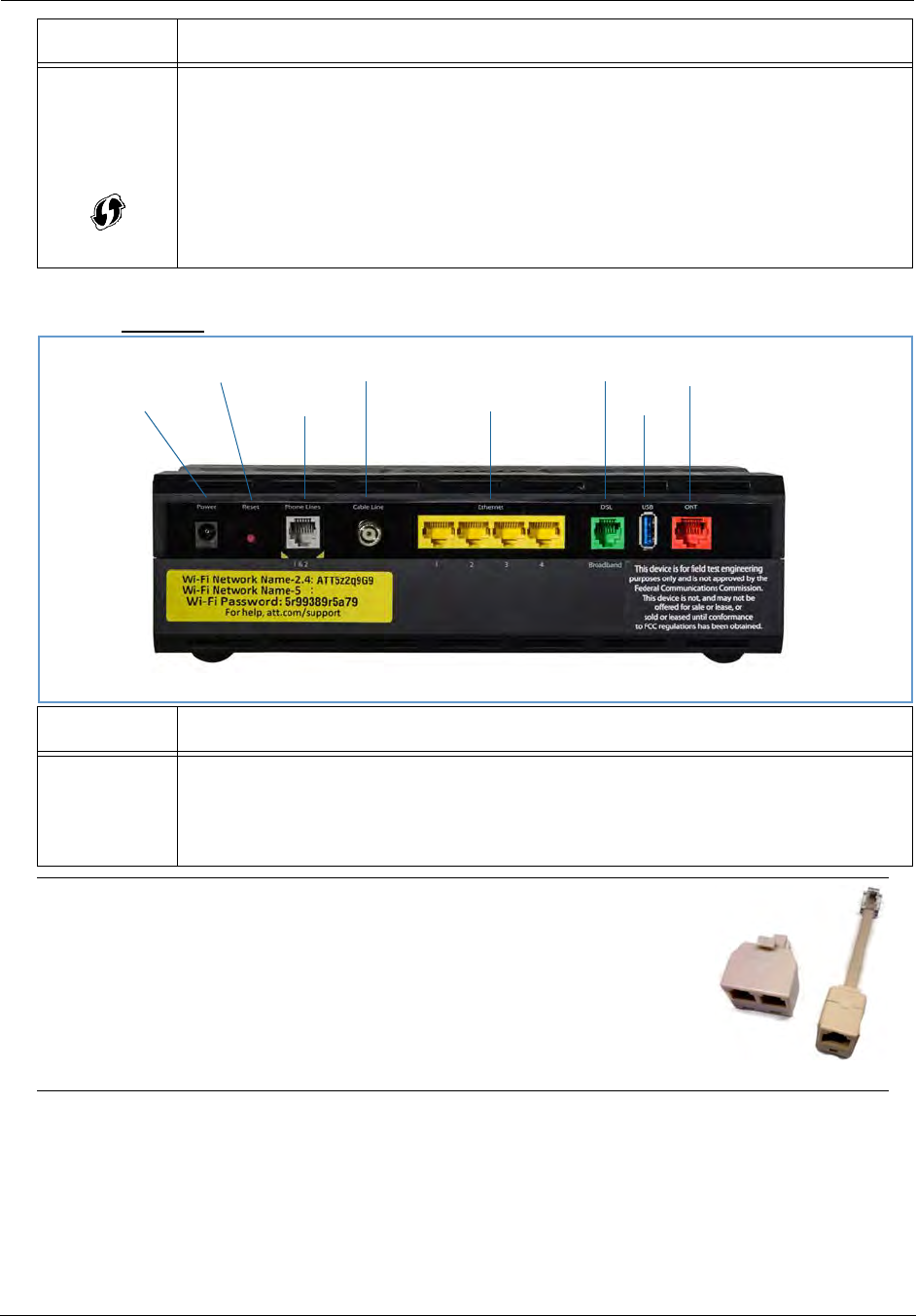

Rear View

WPS

(appears after

using WPS

button)

Solid Green = Wi-Fi Protected Setup has been completed successfully. LED should stay on for 5 min-

utes or until push button is pressed again.

Flashing Green = Continues for 2 minutes, indicating when WPS is broadcasting.

Flashing Red = Continues for 2 minutes, indicating a Session overlap was detected (possible security

risk).

Solid Red = Error unrelated to security, such as failure to find a partner, or WPS is disabled. LED

should stay solid red for 5 minutes or until push button is pressed again.

Off = The device is ready for WPS authentication.

LED Action

Ethernet

1,2 3,4

Flashing Amber = A Gigabit Ethernet device is connected to each port.

Solid Green = A 10/100 Ethernet device is connected.

Flickering Green = Ethernet traffic activity.

Off = The device is not powered, or no powered devices are connected to the associated ports.



NOTE:

The NVG599 supports two VoIP lines over one RJ11 VoIP port. In order to con-

nect two phone lines the supplied inner/outer pair splitter adapters must be

attached to the RJ11 VoIP port in order to terminate both lines. This is a spe-

cial-purpose splitter. You must only use the inner/outer pair splitter adapters

supplied by AT&T.

LED Activity

Gigabit Ethernet (WAN)

USB

DSL (WAN)

Ethernet (LAN)

F-Connector (HPNA)

RJ14 (FXS)

Reset

Power Jack

LED Function Summary Matrix

Power Solid Green =

The device is

powered.

Flashing Green =

A power-on self-

test (POST) is in

progress.

Orange/Amber =

Firmware

upgrade (see

“Power during

Firmware

Upgrade” on

page 88)

Flashing Red = A

POST failure (not

bootable) or

device malfunc-

tion occurred.

* When the

device encoun-

ters a POST fail-

ure, all indicator

lights on the

front of the

device continu-

ously flash.

Off = The unit

has no AC power.

Battery Solid Green =

Battery in place

but not being

used.

Flashing Green =

Battery charging.

Solid Amber =

Battery in use.

Flashing Amber =

Low battery.

Solid Red = Bat-

tery backup

mechanism has a

fault.

Flashing Red =

Battery needs to

be replaced.

Off = No battery

or battery has no

charge.

Cycle between

all colors = Bat-

tery conducting

self-test.

Ethernet Solid Green =

Powered device

connected to the

associated port

(includes devices

with wake-on-

LAN capability

where a slight

voltage is sup-

plied to the

Ethernet connec-

tion).

Flashing Green =

Activity seen

from devices

associated with

the port. The

flickering of the

light is synchro-

nized to actual

data traffic.

Off = The device

is not powered,

no cable or no

powered devices

connected to the

associated ports.

WiFi Solid Green = Wi-

Fi is powered.

Flashing Green =

Activity seen

from devices

connected via

Wi-Fi. The flick-

ering of the light

is synchronized

to actual data

traffic.

Off = The device

is not powered

or no powered

devices con-

nected to the

associated ports.

HomePNA Solid Green =

Powered device

connected to the

associated port

(includes devices

with wake-on-

LAN capability

where a slight

voltage is sup-

plied to the

Ethernet connec-

tion).

Flickering Green

= Activity seen

from devices

associated with

the port. The

flickering of the

light is synchro-

nized to actual

data traffic.

Off = The device

is not powered,

no cable or no

powered devices

connected to the

associated ports.

Administrator’s Handbook

Broadband

1**, 2

Solid Green =

Good broadband

connection (i.e.,

good DSL Sync).

** Broadband 1

LED is also the

Gigabit ethernet

WAN LED when

that is in play

(and DSL is not).

Flashing Green =

Attempting

broadband con-

nection (i.e., DSL

attempting sync).

Flashing Green &

Red = If the

broadband con-

nection fails to

be established

for more than

three consecu-

tive minutes the

LED switches to

Flashing Green

when attempt-

ing or waiting to

establish a

broadband con-

nection alternat-

ing with a five

second steady

Red. This pattern

continues until

the broadband

connection is

successfully

established.

Flashing Red =

No DSL signal on

the line. This is

only used when

there is no signal,

not during times

of temporary ‘no

tone’ during the

training

sequence.

Off = The device

is not powered.

Service Solid Green = IP

connected (The

device has a

WAN IP address

from DHCP or

802.1x authenti-

cation and the

broadband con-

nection is up).

Flashing Green =

Attempting PPP

connection.þ

Attempting IEEE

802.1X authenti-

cation or

attempting to

obtain DHCP

information.

Red = Device

attempted to

become IP con-

nected and failed

(no DHCP

response, 802.1x

authentication

failed, no IP

address from

IPCP, etc.). The

Red state times

out after two

minutes and the

Service indicator

light returns to

the Off state.

Off = The device

is not powered

or the broad-

band connection

is not present.

Phone 1, 2 Solid Green =

The associated

VoIP line has

been registered

with a SIP proxy

server.

Flashing Green =

Indicates a tele-

phone is off-hook

on the associated

VoIP line.

Off = VoIP not in

use, line not reg-

istered or

NVG599 power

off.

USB Solid Green =

Powered device

connected to the

associated port

(includes devices

with wake-on-

LAN capability

where a slight

voltage is sup-

plied to the

Ethernet connec-

tion).

Flickering Green

= Activity seen

from devices

associated with

the port. The

flickering of the

light is synchro-

nized to actual

data traffic.

Off = The device

is not powered,

no cable or no

powered devices

connected to the

associated ports.

WPS Solid Green = Wi-

Fi Protected

Setup has been

completed suc-

cessfully. It

should stay on

for 5 minutes or

until push but-

ton is pressed

again.

Flashing Green =

Indicates when

WPS is broad-

casting.

Solid Red = Error

unrelated to

security, such as

failed to find any

partner, or proto-

col prematurely

aborted. It

should stay Solid

Red for 5 min or

until push but-

ton is pressed

again.

Flashing Red =

Session overlap

detected (possi-

ble security risk)

in Scenario.

Off = WPS is

ready for WPS

authentication.

Administrator’s Handbook

If a status indicator light does not look correct, look for these possible problems:

LED Not Lit Possible Problems

Power Make sure the power adapter is plugged into the DSL modem properly.

Try a known good wall outlet.

If a power strip is used, make sure it is switched on.

Broadband Make sure that any telephone has a microfilter installed.

Make sure that you are using the correct cable. The DSL cable is the thinner stan-

dard telephone cable and is labeled “Data Cable.”

Make sure the DSL cable is plugged into the correct wall jack.

Make sure the DSL cable is plugged into the DSL port on the DSL modem.

Make sure the DSL line has been activated at the central office DSLAM.

Make sure the DSL modem is not plugged into a micro filter.

Ethernet Make sure the you are using the yellow Ethernet cable, not the DSL cable. The

Ethernet cable is thicker than the standard telephone cable.

Make sure the Ethernet cable is securely plugged into the Ethernet jack on the PC.

Make sure the Ethernet cable is securely plugged into the Ethernet port on the DSL

modem.

Make sure you have Ethernet drivers installed on the PC.

Make sure the PC’s TCP/IP properties for the Ethernet network control panel are

set to obtain an IP address via DHCP.

Make sure the PC has obtained an address in the 192.168.1.x range. (You may have

changed the subnet addressing.)

Make sure the PC is configured to access the Internet over a LAN.

Disable any installed network devices (Ethernet, HomePNA, wireless) that are not

being used to connect to the DSL modem.

Factory Reset Switch

Lose your access code? This section shows how to use the factory reset switch to reset the NVG599 so that you

can access the configuration screens once again.

If you don't have an access code, the only way to access the NVG599 is to follow these steps:

1. Referring to the diagram below, find the round Reset switch opening.

2. Carefully insert the point of a pen or an unwound paperclip into the opening.

If you press the factory reset switch for less than ten seconds, the device will be rebooted.

The indicator lights on the device will respond immediately and start blinking red within one second of the

reset switch being pressed.

The lights will blink whether the switch is still being pressed or has been released. The indicator lights will

flash for a minimum of five seconds, even if the reset switch is released within five seconds of being pressed.

If the reset switch is held for more than five seconds, it will continue to blink until released or until ten sec-

onds have elapsed (see below).

If you press the factory reset switch for a longer period of time, the device will be reset to the factory

default shipped settings. If the switch is held for ten seconds, the Power indicator continues to blink for an

additional five seconds, and then the indicator lights return to their normal operating mode, whether or not

the reset switch is still depressed.



NOTE:

Keep in mind that all of your settings will need to be reconfigured.

Reset Switch

Administrator’s Handbook

Log Event Messages

The system generates the log messages described in the following tables for events related to administrative

access, system operation, DSL issues, packet access, or firewall issues.

Administration-Related Log Messages

1. administrative access attempted: This log message is generated whenever the user attempts to access the

router's management interface.

2. administrative access authenti-

cated and allowed:

This log message is generated whenever the user attempts to access the

router's management interface and is successfully authenticated and

allowed access to the management interface.

3. administrative access allowed: If for some reason, a customer does not want password protection for the

management interface, this log message is generated whenever any user

attempts to access the router's management interface and is allowed access

to the management interface.

4. administrative access denied -

invalid user name:

This log message is generated whenever the user tries to access the router's

management interface and authentication fails because of an incorrect

username.

5. administrative access denied -

invalid password:

This log message is generated whenever the user tries to access the router's

management interface and authentication fails because of an incorrect

password.

6. administrative access denied -

telnet access not allowed:

This log message is generated whenever the user tries to access the router's

Telnet management interface from a public interface and is not permitted

because remote management is disabled.

7. administrative access denied -

web access not allowed:

This log message is generated whenever the user tries to access the router's

HTTP management interface from a public interface and is not permitted

because remote management is disabled.

System Log Messages

1. Received NTP Date and Time: This log message is generated whenever NTP receives date and time from

the server.

2. EN: IP up: This log message is generated whenever Ethernet WAN comes up.

3. WAN: Ethernet WAN1 activated

at 100000 Kbps:

This log message is generated when the Ethernet WAN link is up.

4. Device Restarted: This log message is generated when the router has been restarted.

DSL Log Messages (Most Common)

1. WAN: Data link

activated at <Rate> Kbps (rx/tx)

This log message is generated when the DSL link comes up.

2.WAN: Data link deactivated This log message is generated when the DSL link goes down.

3. RFC1483 up This log message is generated when RFC1483 link comes up.

4. RFC1483-<WAN-instance>: IP

down

This log message is generated when RFC1483 link goes down.

5. PPP: Channel <ID> up Dialout

Profile name: <Profile Name>

This log message is generated when a PPP channel comes up.

6. PPP-<WAN Instance> down:

This log message is generated when a PPP channel goes down. The reason

for the channel going down is displayed as well.

Access-Related Log Messages

1. permitted: This log message is generated whenever a packet is allowed to traverse

router interfaces or allowed to access the router itself.

2. attempt: This log message is generated whenever a packet attempts to traverse

router interfaces or attempts to access the router itself.

3. dropped - violation of security

policy:

This log message is generated whenever a packet, traversing the router or

destined to the router itself, is dropped by the firewall because it violates

the expected conditions.

4. dropped - invalid checksum: This log message is generated whenever a packet, traversing the router or

destined to the router itself, is dropped because of invalid IP checksum.

5. dropped - invalid data length: This log message is generated whenever a packet, traversing the router or

destined to the router itself, is dropped because the IP length is greater than

the received packet length or if the length is too small for an IP packet.

6. dropped - fragmented packet: This log message is generated whenever a packet, traversing the router, is

dropped because it is fragmented, stateful inspection is turned ON on the

packet's transmit or receive interface, and the deny-fragment option is

enabled.

7. dropped - cannot fragment: This log message is generated whenever a packet traversing the router is

dropped because the packet cannot be sent without fragmentation, but the

do-not-fragment bit is set.

8. dropped - no route found: This log message is generated whenever a packet, traversing the router or

destined to the router itself, is dropped because no route is found to for-

ward the packet.

9. dropped - invalid IP version: This log message is generated whenever a packet, traversing the router or

destined to the router itself, is dropped because the IP version is not 4.

10. dropped - possible land attack: This log message is generated whenever a packet, traversing the router or

destined to the router itself, is dropped because the packet is a TCP/UDP

packet and the source IP address and source port equals the destination IP

address and destination port.

11. TCP SYN flood detected: This log message is generated whenever a SYN packet destined to the

router's management interface is dropped because the number of SYN-sent

and SYN-receive messages exceeds one-half the number of allowable con-

nections in the router.

Administrator’s Handbook

12. Telnet receive DoS attack -

packets dropped:

This log message is generated whenever TCP packets destined to the

router's Telnet management interface are dropped due to overwhelming

receive data.

13. dropped - reassembly timeout: This log message is generated whenever packets, traversing the router or

destined to the router itself, are dropped because of reassembly timeout.

14. dropped - illegal size: This log message is generated whenever packets, traversing the router or

destined to the router itself, are dropped during reassembly because of ille-

gal packet size in a fragment.

Firewall Log Messages Detail (AT&T Requirement #841)

Reason Enumeration ( C ) Log Text Representation Why the Packet Was Logged

NM_LOGDROP_CAT_DIR DIRECTION Direction (generic)

NM_LOGDROP_CAT_DIR_UP DIRECTION-UP Upstream direction

NM_LOGDROP_CAT_DIR_DOWN DIRECTION-DOWN Downstream direction

NM_LOGDROP_CAT_ETH ETH Ethernet header (generic)

NM_LOGDROP_CAT_ETH_SRC_ADDR ETH-SRC Ethernet source MAC address

NM_LOGDROP_CAT_ETH_DST_ADDR ETH-DST Ethernet destination MAC address

NM_LOGDROP_CAT_ETH_PROT ETH-PROTOCOL Ethernet Protocol

NM_LOGDROP_CAT_ETH_VLAN ETH-VLAN Ethernet VLAN ID (where applica-

ble)

NM_LOGDROP_CAT_IP IP IP header (generic)

NM_LOGDROP_CAT_IP_SRC IP-SRC IP source address

NM_LOGDROP_CAT_IP_DST IP-DST IP destination address

NM_LOGDROP_CAT_IP_PROT IP-PROTOCOL IP Protocol

NM_LOGDROP_CAT_IP_SPOOF IP-SPOOF IP address is spoofed (could not

have been sent by a device legiti-

mately with the address in the

source address field)

NM_LOGDROP_CAT_IP_ILL IP-ILLEGAL IP address is illegal (either src or

dest)

NM_LOGDROP_CAT_TCP TCP TCP header (generic)

NM_LOGDROP_CAT_TCP_SRC_PORT TCP-SRC-PORT TCP source port

NM_LOGDROP_CAT_TCP_DST_PORT TCP-DST-PORT TCP destination port

NM_LOGDROP_CAT_TCP_FLAGS TCP-FLAGS TCP flags field

NM_LOGDROP_CAT_UDP UDP UDP header (generic)

NM_LOGDROP_CAT_UDP_SRC_PORT UDP-SRC-PORT UDP source port

NM_LOGDROP_CAT_UDP_DST_PORT UDP-DST-PORT UDP destination port

NM_LOGDROP_CAT_ICMP ICMP ICMP packet (generic)

NM_LOGDROP_CAT_ICMP_TYPE ICMP-TYPE ICMP Type field

NM_LOGDROP_CAT_ICMP_CODE ICMP-CODE ICMP Code field

NM_LOGDROP_CAT_ICMP6 ICMPv6 ICMPv6 (generic)

Access-Related Log Messages

NM_LOGDROP_CAT_POLICY POLICY Policy (generic). This currently

includes filterset rules, restricted

hosts, IPv6 profiles.

NM_LOGDROP_CAT_POLICY_INPUT POLICY-INPUT-GEN-DISCARD Packets destined for the CPE that

are generically discarded (we spec-

ify the packets we do want; the rest

are discarded.)

NM_LOGDROP_CAT_POLICY_WAN_MGMT POLICY-WAN-MGMT-ACCESS 1) Trying to access CPE service from

WAN side using LAN-side port

2) Trying to access CPE service from

LAN side using WAN-side IP address

3) Trying to access CPE service from

WAN side using IPv6

NM_LOGDROP_CAT_POLICY_ICMP_ECHO POLICY-ICMP-ECHO ICMP echo request discarded (more

specific than

NM_LOGDROP_CAT_ICMP_TYPE)

NM_LOGDROP_CAT_POLICY_UWC_RESTRICT POLICY-UWC-RESTRICT Packets dropped because of “Uni-

versal Wi-Fi Configuration” restric-

tions (currently unused)

NM_LOGDROP_CAT_POLICY_RESTRICTED_HO

POLICY-RESTRICTED-HOST Packets dropped because of

“Restricted Host” feature (either

content or time restrictions) (cur-

rently unused)

NM_LOGDROP_CAT_POLICY_WAN_DNS_QUE

POLICY-WAN-SIDE-DNS-

QUERY

DNS query packets received on a

WAN interface

NM_LOGDROP_CAT_POLICY_WAN_DHCP_TO

SRVR

POLICY-WAN-SIDE-DHCP-TO-

SRVR

DHCP Discover request received on

a WAN interface

NM_LOGDROP_CAT_POLICY_AH POLICY-IPV6-AH IPv6 packets with AH header (if so

configured)

NM_LOGDROP_CAT_POLICY_ESP POLICY-IPV6-ESP IPv6 packets with ESP header (if so

configured)

NM_LOGDROP_CAT_POLICY_DEP_HEADER POLICY-DEPRECATED-

HEADER

IPv6 packets with deprecated

header (currently this only includes

routing extension header type 0)

NM_LOGDROP_CAT_POLICY_CAPT_PORTAL POLICY-CAPTIVE-PORTAL [IPv6] packets dropped because

captive portal is enabled.

NM_LOGDROP_CAT_FLOW FLOW Packets rejected as a result of analy-

sis of multiple related packets

(generic)

NM_LOGDROP_CAT_FLOW_FLOOD FLOOD Packets rejected because of flood-

limiting

NM_LOGDROP_CAT_FLOW_PORTSCAN PORTSCAN Packets rejected because of port-

scan detection

NM_LOGDROP_CAT_FLOW_DOS_OTHER OTHER-DoS Packets rejected because of other

DoS detection. Currently this

includes downstream flows that

don't generate upstream responses

- specifically addressing IPv6 Neigh-

bor Discovery DoS attacks.

Firewall Log Messages Detail (AT&T Requirement #841)

Reason Enumeration ( C ) Log Text Representation Why the Packet Was Logged

Administrator’s Handbook

100

101

CHAPTER 4 Command Line Interface

The NVG599 VDSL2 Gateway operating software includes a command line interface (CLI) that lets you access

your NVG599 device over a Telnet connection. You can use the command line interface to enter and update the

unit’s configuration settings, monitor its performance, and restart it.

This chapter covers the following topics:

“Overview” on page 103

“Starting and Ending a CLI Session” on page 105

“Using the CLI Help Facility” on page 106

“About SHELL Commands” on page 106

“SHELL Commands” on page 107

“About CONFIG Commands” on page 118

“CONFIG Commands” on page 121

“Debug Commands” on page 178

Administrator’s Handbook

102

CONFIG Commands

“Connection Commands” on page 121

“Filter Set Commands” on page 124

“Queue Commands” on page 129

“IP Gateway Commands” on page 132

“IPv6 Commands” on page 132

“IP DNS Commands” on page 139

“IP IGMP Commands” on page 139

“NTP Commands” on page 142

“Application Layer Gateway (ALG) Commands” on page 142

“Dynamic DNS Commands” on page 143

“Link Commands” on page 143

“Management Commands” on page 146

“Remote Access Commands” on page 148

“Physical Interfaces Commands” on page 150

“PPPoE Relay Commands” on page 157

“NAT Pinhole Commands” on page 157

“Security Stateful Packet Inspection (SPI) Commands” on page 158

“VoIP Commands” on page 160

“System Commands” on page 173

103

Overview

The CLI has two major command modes: SHELL and CONFIG. Summary tables that list the commands are

provided below. Details of the entire command set follow in this section.

SHELL Commands

Command Description

arp Send ARP request

clear Erase all stored configuration information

clear_certificate Remove an SSL certificate that has been installed

clear_https_certkey Remove a secure HTTP certificate key value

clear_firewall_log Empty the contents of the firewall event log

clear_log Erase all stored log info in flash memory

configure Configure unit's options

diagnose Run self-test

download Download config file

exit Quit this shell

ffbb Show the number of POST fault states

help Get more: “help all” or “help help”

install Download and program an image into flash

log Add a message to the diagnostic log

loglevel Report or change diagnostic log level

netstat Show IP information

nslookup Send DNS query for host

ping Send ICMP echo request

quit Quit this shell

6rd-check Send a 6rd loopback packet to the border gateway

reset Reset subsystems

restart Restart unit

show Show system information

start Start subsystem

status Show basic status of unit

telnet Telnet to a remote host

traceroute Send traceroute probes

upload Upload config file

view Show configuration information

who Show who is using the shell

wps Enter Wireless Protection Settings mode

Administrator’s Handbook

104

CONFIG Commands

Command Verbs Description

delete Delete configuration list data

help Display a list of Help command options

save Save configuration data

script Print configuration data

set Set configuration data

validate Validate configuration settings

view View configuration data

Keywords

conn Connection options

ip TCP/IP protocol options

ip6 IPv6 protocol options

dns Domain Name System options

gfs Global filter set options

igmp IGMP configuration options

ntp Network Time Protocol options

gateway Gateway options

link WAN link options

management System management options

physical Physical interface options

dsl DSL configuration options

enet Ethernet options

pinhole Pinhole options

pppoe-relay Point to Point Protocol over Ethernet relay options

preferences Shell environment preferences

queue Queue options

security Security (firewall) options

system Gateway’s system options

target-ad-insertion Targeted Ad Insertion (TAI) options

voip IP Voice (VoIP) configuration options

log System activity logging options

Command Utilities

top Go to top level of configuration mode

quit Exit from configuration mode; return to shell mode

exit Exit from configuration mode; return to shell mode

105

Starting and Ending a CLI Session

To start a CLI session, you need to open a Telnet connection from a workstation on your network.

You initiate a Telnet connection by issuing the following command from an IP host that supports Telnet, for

example, a personal computer running a Telnet application such as NCSA Telnet.

telnet <ip_address>

You must know the IP address of the NVG599 device before you can make a Telnet connection to it. By default,

your NVG599 uses 192.168.1.254 as the IP address for its LAN interface. You can use a Web browser to

configure the NVG599 IP address.

Logging In

The command line interface log-in process emulates the log-in process for a UNIX host. To log in, enter the user

name and your password.

Entering the administrator password lets you display and update all NVG599 settings.

When you have logged in successfully, the command line interface lists the user name and the security level

associated with the password you entered in the diagnostic log.

Ending a CLI Session

You end a command line interface session by typing quit from the SHELL node of the command line interface

hierarchy.

Administrator’s Handbook

106

Using the CLI Help Facility

The help command displays online help for SHELL and CONFIG commands. To display a list of the commands

available to you from your current location within the command line interface hierarchy, type help or a

question mark (?).

To obtain help for a specific CLI command, type help <command>. You can truncate the help command to h

or a question mark when you request help for a CLI command.

About SHELL Commands

Begin in SHELL mode when you start a CLI session. SHELL mode lets you perform the following tasks:

Monitor NVG599 performance

Display and reset NVG599 device statistics

Issue administrative commands to restart NVG599 device functions

SHELL Prompt

When you are in SHELL mode, the CLI prompt is the name of the NVG599 device followed by a right angle

bracket (>). For example, if you open a CLI connection to the NVG599 device named “ARRIS-3000/9437188,”

you would see ARRIS-3000/9437188> as your CLI prompt.

SHELL Command Shortcuts

You can truncate most commands in the CLI to their shortest unique string. For example, you can use the

truncated command q in place of the full quit command to exit the CLI. However, you would need to enter rese

for the reset command, since the first characters of reset are common to the restart command.

The only commands you cannot truncate are restart and clear. To prevent accidental interruption of

communications, you must enter the restart and clear commands in their entirety.

You can use the Up and Down arrow keys to scroll backward and forward through recent commands you have

entered. Alternatively, you can use the !! command to repeat the last command you entered.

107

SHELL Commands

Common Commands

arp nnn.nnn.nnn.nnn

Sends an Address Resolution Protocol (ARP) request to match the nnn.nnn.nnn.nnn IP address to an Ethernet

hardware address.

clear [ yes ]

Clears the configuration settings in an NVG599 device. You are prompted to confirm the clear command by

entering yes.

clear_certificate

Removes an SSL certificate that has been installed.

clear_https_certkey

Removes any Secure HTTP certificate key value installed in the NVG599.

configure

Puts the command line interface into Configure mode, which lets you configure your NVG599 with config

commands. The config commands are described starting on page 121.

download [ server_address ] [ filename ] [ confirm ]

Installs a file of configuration parameters into the NVG599 device from a TFTP (Trivial File Transfer Protocol)

server. The TFTP server must be accessible on your Ethernet network.

You can include one or more of the following arguments with the download command. If you omit arguments,

the console prompts you for this information.

The server_address argument identifies the IP address of the TFTP server from which you want to copy the

NVG599 configuration file.

The filename argument identifies the path and name of the configuration file on the TFTP server.

If you include the optional confirm keyword, the download begins as soon as all information is entered.

You can also download an SSL certificate file from a trusted certification authority (CA), on platforms that

support SSL, as follows:

download [-cert] [server_address ] [filename] [confirm]

ffbb

Displays the number of times that the NVG599 device has entered a Power-On Self-Test (POST) fault state.

install [ server_address ] [ filename ] [ confirm ]

Downloads a new version of the NVG599 operating software from a TFTP (Trivial File Transfer Protocol) server,

validates the software image, and programs the image into the NVG599 memory. After you install new

operating software, you must restart the NVG599 device.

Administrator’s Handbook

108

The server_address argument identifies the IP address of the TFTP server on which your NVG599 operating

software is stored. The filename argument identifies the path and name of the operating software file on the

TFTP server.

If you include the optional keyword confirm, you will not be prompted to confirm whether or not you want to

perform the operation.

log message_string

Adds the message in the message_string argument to the NVG599 diagnostic log.

loglevel [ level ]

Displays or modifies the types of log messages you want the NVG599 to record. If you enter the loglevel

command without the optional level argument, the command line interface displays the current log level

setting.

You can enter the loglevel command with the level argument to specify the types of diagnostic messages you

want to record. All messages with a level number equal to or greater than the level you specify are recorded.

For example, if you specify log level 3, the diagnostic log will retain high-level informational messages (level 3),

warnings (level 4), and failure messages (level 5).

Use the following values for the level argument:

1 or low – Low-level informational messages or greater; includes trivial status messages.

2 or medium – Medium-level informational messages or greater; includes status messages that can help

monitor network traffic.

3 or high – High-level informational messages or greater; includes status messages that may be significant

but do not constitute errors.

4 or warning – Warnings or greater; includes recoverable error conditions and useful operator information.

5 or failure – Failures; includes messages describing error conditions that may not be recoverable.

netstat -i

Displays the IP interfaces for your NVG599.

netstat -r

Displays the IP routes stored in your NVG599.

nslookup [ hostname | ip_address ]

Performs a domain name system lookup for a specified host.

The hostname argument is the name of the host for which you want DNS information; for example,

nslookup klaatu.

The ip_address argument is the IP address, in dotted decimal notation, of the device for which you want

DNS information.

ping [-s size] [-c count ] [ hostname | ip_address ]

Causes the NVG599 to issue a series of ICMP Echo requests for a device with the specified name or IP address.

The hostname argument is the name of the device you want to ping; for example,

ping ftp.arris.com.

The ip_address argument is the IP address, in dotted decimal notation, of the device you want to locate. If a

host using the specified name or IP address is active, it returns one or more ICMP echo replies, confirming

that it is accessible from your network.

109

The -s size argument lets you specify the size of the ICMP packet.

The -c count argument lets you specify the number of ICMP packets generated for the ping request. Values

greater than 250 are truncated to 250.

You can use the ping command to determine whether a hostname or IP address is already in use on your

network. You cannot use the ping command to ping the NVG599 device’s own IP address.

quit

Exits the NVG599 command line interface.

6rd-check [-s size] [-c count] conn_name

Generates and sends 6rd (IPv6 Rapid Deployment) loopback packets to the 6rd gateway.

reset arp

Clears the Address Resolution Protocol (ARP) cache on your unit.

reset crash

Clears crash-dump information, which identifies the contents of the NVG599 registers at the point of system

malfunction.

reset dhcp server

Clears the DHCP lease table in the NVG599 device.

reset enet [ all ]

Resets Ethernet statistics to zero. Resets individual LAN switch port statistics as well as wireless and WAN

Ethernet statistics (where applicable).

reset firewall-log

Rewinds the firewall log to the first entry.

reset ipmap

Clears the IPMap table (NAT).

reset log

Rewinds the diagnostic log display to the top of the existing NVG599 diagnostic log. The reset log command

does not clear the diagnostic log. The next show log command will display information from the beginning of

the log file.

reset wan

This function resets WAN interface statistics.

Administrator’s Handbook

110

restart [ seconds ]

Restarts your NVG599 device. If you include the optional seconds argument, your NVG599 will restart when

the specified number of seconds have elapsed. You must enter the complete restart command to initiate a

restart.

show all-info

Displays all settings currently configured in the NVG599 device.

show bridge interfaces

Displays bridge interfaces maintained by the NVG599 device.

show bridge table

Displays the bridging table maintained by the NVG599 device.

show config

Dumps the ARRIS Gateway’s configuration script just as the script command does in Configure mode.

show crash

Displays the most recent crash information, if any, for your NVG599 device.

show dhcp server leases

Displays the DHCP leases stored in RAM by your NVG599 device.

show dhcp client

Displays the DHCP clients stored in RAM by your NVG599 device.

show dsl [ all ]

Displays DSL port statistics, such as upstream and downstream connection rates and noise levels.

show dslf device-association

Displays LAN devices that conform with the TR111 Gateway requirement. It displays IP address, manufacture

OUI, and serial number.

show enet [ all ]

Displays Ethernet interface statistics maintained by the NVG599 device. Supports display of individual LAN

switch port statistics as well as WAN Ethernet statistics (where applicable).

Example:

Ethernet driver full statistics - LAN

10/100/1000 Ethernet

Port Status: Link up

111

General:

Transmit OK : 253

Receive OK : 22

Tx Errors : 0

Rx Errors : 0

Receiver:

Dropped Packets : 0

Transmitter:

Collisions : 0

Dropped Packet : 0

Upper Layers:

Rx No Handler : 0

Rx No Message : 0

Rx Octets : 4781

Rx Unicast Pkts : 22

Rx Multicast Pkts : 0

Tx Discards : 0

Tx Octets : 17204

10/100/1000 Ethernet port 1

Port Status: Link down

10/100/1000 Ethernet port 2

Port Status: Link up

Duplex: Full

Speed: 1000BASE-T

Transmit OK : 253

Transmit unicastpkts : 0

Tx Octets : 16192

Tx Collision : 0

Receive OK : 24

Receive unicastpkts : 0

Receive errors : 0

Rx Octets : 4781

10/100/1000 Ethernet port 3

Port Status: Link down

10/100/1000 Ethernet port 4

Port Status: Link down

HPNA port 5 (counter values include management traffic)

Port Status: Link up

Duplex: Full

Speed: 200 MBPS

Transmit OK : 1702

Transmit unicastpkts : 1173

Tx Octets : 226117

Tx Collision : 0

Receive OK : 1168

Receive unicastpkts : 1168

Receive errors : 0

Rx Octets : 202156

Ethernet driver statistics - Wireless

Port Status: Link down

Ethernet driver full statistics - PTM WAN

Port Status: Link down

Administrator’s Handbook

112

Ethernet driver full statistics - WAN

10/100/1000 Ethernet

Port Status: Link down

Ethernet driver full statistics - 10/100 Ethernet

Port Status: Link up

Type: 100BASET Duplex: Full

General:

Transmit OK : 434

Receive OK : 267

Tx Errors : 0

Rx Errors : 0

Receiver:

Incompl Packet Errors : 0

No RBD's For Packet : 0

Carrier Sense Lost : 0

Deferred Replen : 0

Transmitter:

TX Retries : 0

Single Collisions : 0

No Buf For Packet : 0

Upper Layers:

Rx No Handler : 0

Rx No Message : 0

Rx Octets : 30773

Rx Unicast Pkts : 267

Rx Multicast Pkts : 0

Tx Discards : 0

Tx Octets : 31692

10/100 Ethernet phy.enet.port

Port Status: Link up

Duplex: Full-duplex active

Speed: 100BASE-T

Transmit OK : 434

Transmit unicastpkts : NA

Receive OK : 267

Receive unicastpkts : 267

show enet tx-queue

"show enet tx-queue"

This is an output of what is should look like:

NOS/128600225699776/UNLOCKED> show enet tx-queue

No transmit software queue configured on Ethernet port 1

No transmit software queue configured on Ethernet port 2

No transmit software queue configured on Ethernet port 3

No transmit software queue configured on Ethernet port 4

No transmit software queue configured on Ethernet port 5

No transmit software queue configured on Ethernet port 6

Ethernet switch queue stats:

Port 1:

TxQ1: 54257

TxQ2: 0

113

TxQ3: 0

TxQ4: 508

Port 2:

TxQ1: 55767

TxQ2: 0

TxQ3: 0

TxQ4: 508

Port 3:

TxQ1: 0

TxQ2: 0

TxQ3: 0

TxQ4: 0

Port 4:

TxQ1: 0

TxQ2: 0

TxQ3: 0

TxQ4: 0

Port 5:

TxQ1: 92950

TxQ2: 0

TxQ3: 0

TxQ4: 508

show group-mgmt

Displays the IGMP Snooping table. See “IP IGMP Commands” on page 139 for detailed explanation.

show ip arp

Displays the Ethernet address resolution table stored in your NVG599 device.

show ip igmp

Displays the contents of the IGMP Group Address table and the IGMP Report table maintained by your NVG599

device.

show ip interfaces

Displays the IP interfaces for your NVG599 device.

show ip firewall

Displays firewall statistics.

show ip lan-discovery

Displays the LAN Host Discovery table of hosts on the wired or wireless LAN, and whether or not they are

currently online.

show ip routes

Displays the IP routes stored in your NVG599 device.

show ipmap

Displays IPMap table (NAT).

Administrator’s Handbook

114

show ipv6 interfaces

Displays IPv6 interfaces.

show ipv6 routes

Displays the IPv6 route table.

show ipv6 neighbors

Displays the IPv6 neighbor table.

show ipv6 dhcp server leases

Displays the DHCPv6 server lease table.

show ipv6 statistics

Displays IPv6 statistics information.

show log

Displays blocks of information from the NVG599 diagnostic log. To see the entire log, you can repeat the show

log command, or you can enter show log all.

show firewall-log

Displays blocks of information from the NVG599 firewall log.

show memory [ all ]

Displays memory usage information for your NVG599 device. If you include the optional all argument, your

NVG599 will display a more detailed set of memory statistics.

show ptm

Displays statistics information for each PTM session.

show post-results

Displays Power-On Self-Test results.

show pppoe

Displays status information for each PPPoE socket, such as the socket state, service names, and host ID values.

show rootcert

Dumps the Subject line for the list of all the trusted root certificates for the 802.1x supplicant.

show rtsp

Displays RTSP ALG session activity data.

115

show status

Displays the current status of an NVG599 device, the device's hardware and software revision levels, a

summary of errors encountered, and the length of time the device has been running since it was last restarted.

Identical to the status command.

show summary

Displays a summary of WAN, LAN, and gateway information.

show vlan

Displays detail of VLAN status and statistics.

show wireless [ all ]

Shows wireless status and statistics.

show wireless clients [ MAC_address ]

Displays details on connected clients, or more details on a particular client if the MAC address is added as an

argument.

show voip

Displays VoIP call statistics.

show voiplog

Displays VoIP event logs.

telnet [ hostname | ip_address ] [ port ]

Lets you open a Telnet connection to the specified host through your NVG599 device.

The hostname argument is the name of the device to which you want to connect, for example, telnet

ftp.arris.com.

The ip_address argument is the IP address, in dotted decimal notation, of the device to which you want to

connect.

The port argument is the number of the port over which you want to open a Telnet session.

traceroute ( ip_address | hostname )

Traces the routing path to an IP destination.

upload [ server_address ] [ filename ] [ confirm ]

Copies the current configuration settings of the NVG599 to a TFTP (Trivial File Transfer Protocol) server. The

TFTP server must be accessible on your Ethernet network. The server_address argument identifies the IP

address of the TFTP server on which you want to store the NVG599 settings. The filename argument identifies

the path and name of the configuration file on the TFTP server. If you include the optional confirm keyword,

you will not be prompted to confirm whether or not you want to perform the operation.

view config

Dumps the NVG599 device’s configuration just as the view command does in Configure mode.

Administrator’s Handbook

116

who

Displays the names of the current shell and PPP users.

wps

Enters the wireless WPS (Wi-Fi Protected Setup) mode.

WPS Commands

The following commands are available in WPS mode:

pushbutton

Sets the NVG599 device to WPS “pushbutton” mode, initiating protected setup.

Sets the NVG599 device to PIN mode, enabling authorized devices to be identified and added by MAC address

personal identification number.

list

Lists the WPS-ready client devices (enrollees) known to the NVG599.

self-pin

Displays the NVG599’s own Personal Identification Number (PIN) value.

WAN Commands

atmping vccn [ segment | end-to-end ]

Lets you check the ATM connection reachability and network connectivity. This command sends five

Operations, Administration, and Maintenance (OAM) loopback calls to the specified VPI/VCI destination. There

is a five second total timeout interval.

Use the segment argument to ping a neighbor switch.

Use the end-to-end argument to ping a remote end node.

reset dhcp client release [ vcc-id ]

Releases the DHCP lease the NVG599 device is currently using to acquire the IP settings for the specified DSL

port. The vcc-id identifier is an “index” letter in the range B-I, and does not directly map to the VCC in use.

Enter the reset dhcp client release command without the variable to see the letter assigned to each virtual

circuit.

reset dhcp client renew [ vcc-id ]

Renews the DHCP lease the NVG599 device is currently using to acquire the IP settings for the specified DSL

port. The vcc-id identifier is an “index” letter in the range B-I, and does not directly map to the VCC in use.

Enter the reset dhcp client release command without the variable to see the letter assigned to each virtual

circuit.

117

reset dsl

Resets any open DSL connection.

reset ppp vccn

Resets the point-to-point connection over the specified virtual circuit. This command only applies to virtual

circuits that use PPP framing.

show atm [all]

Displays ATM statistics for the NVG599 device. The optional all argument displays a more detailed set of ATM

statistics.

show ppp [{ stats | lcp | ipcp }]

Displays information about open PPP links. You can display a subset of the PPP statistics by including an

optional stats, lcp, or ipcp argument for the show ppp command.

start ppp vccn

Opens a PPP link on the specified virtual circuit.

Administrator’s Handbook

118

About CONFIG Commands

You can reach the Configuration mode of the command line interface by typing configure (or any truncation of

configure, such as con or config) at the CLI SHELL prompt.

CONFIG Mode Prompt

When you are in CONFIG mode, the CLI prompt consists of the name of the NVG599 device followed by your

current node in the hierarchy and two right angle brackets (>>). For example, when you enter CONFIG mode

(by typing config at the SHELL prompt), the prompt ARRIS-3000/9437188 (top)>> reminds you

that you are at the top of the CONFIG hierarchy. If you move to the IP node in the CONFIG hierarchy (by typing

ip at the CONFIG prompt), the prompt changes to ARRIS-3000/9437188 (ip)>> to identify your

current location.

Some CLI commands are not available until certain conditions are met. For example, you must enable IP for an

interface before you can enter IP settings for that interface.

Navigating the CONFIG Hierarchy

Moving from CONFIG to SHELL — You can navigate from anywhere in the CONFIG hierarchy back to the

SHELL level by entering quit at the CONFIG prompt and pressing Enter.

ARRIS-3000/9437188 (top)>> quit

ARRIS-3000/9437188 >

Moving from top to a subnode — You can navigate from the top node to a subnode by entering the node

name (or the significant letters of the node name) at the CONFIG prompt and pressing RETURN. For example,

you move to the IP subnode by entering ip and pressing Enter.

ARRIS-3000/9437188 (top)>> ip

ARRIS-3000/9437188 (ip)>>

As a shortcut, you can enter the significant letters of the node name in place of the full node name at the

CONFIG prompt. The significant characters of a node name are the letters that uniquely identify the node. For

example, since only one CONFIG node starts with “b,” you could enter the letter “b” to move to the bridge

node.

Jumping down several nodes at once — You can jump down several levels in the CONFIG hierarchy by

entering the complete path to a node.

Moving up one node — You can move up through the CONFIG hierarchy one node at a time by entering the

up command.

Jumping to the top node — You can jump to the top level from anywhere in the CONFIG hierarchy by enter-

ing the top command.

Moving from one subnode to another — You can move from one subnode to another by entering a partial

path that identifies how far back to climb.

Moving from any subnode to any other subnode — You can move from any subnode to any other subnode

by entering a partial path that starts with a top-level CONFIG command.

Scrolling backward and forward through recent commands — You can use the Up and Down arrow keys

to scroll backward and forward through recent commands you have entered. When the command you want

appears, press Enter to execute it.

Entering Commands in CONFIG Mode

CONFIG commands consist of keywords and arguments. Keywords in a CONFIG command specify the action

you want to take or the entity on which you want to act. Arguments in a CONFIG command specify the values

appropriate to your site. For example, the following CONFIG command consists of three keywords (ip, dns and

domain-name) and one argument (domain_name_value).

119

set ip dns domain-name domain_name_value

When you use the command to configure your NVG599 device, you would replace the argument with a value

appropriate to your site.

For example:

set ip dns domain-name arris.com

Guidelines: CONFIG Commands

The following table provides guidelines for entering and formatting CONFIG commands.

If a command is ambiguous or miskeyed, the CLI prompts you to enter additional information. For example,

you must specify which virtual circuit you are configuring when you are setting up an NVG599 device.

Displaying Current Gateway Settings

You can use the view command to display the current CONFIG settings for your NVG599. If you enter the view

command at the top level of the CONFIG hierarchy, the CLI displays the settings for all enabled functions. If you

enter the view command at an intermediate node, you see settings for that node and its subnodes.

Step Mode: A CLI Configuration Technique

The NVG599 command line interface includes a step mode to automate the process of entering configuration

settings. When you use the CONFIG step mode, the command line interface prompts you for all required and

optional information. You can then enter the configuration values appropriate for your site without having to

enter complete CLI commands.

When you are in step mode, the command line interface prompts you to enter required and optional settings.

If a setting has a default value or a current setting, the command line interface displays the default value for

the command in parentheses. If a command has a limited number of acceptable values, those values are

presented in brackets, with each value separated by a vertical line.

Command

Component Rules for Entering CONFIG Commands

Command Verbs CONFIG commands must start with a command verb (set, view, delete).

You can truncate CONFIG verbs to three characters (set, vie, del).

CONFIG verbs are case-insensitive. You can enter SET, Set, or set.

Keywords Keywords are case-insensitive. You can enter Ethernet, ETHERNET, or ethernet as a keyword with-

out changing its meaning.

Keywords can be abbreviated to the length that they are differentiated from other keywords.

Argument Text Text strings can be as many as 64 characters long, unless otherwise specified. In some cases they

may be as long as 255 bytes.

Special characters are represented using backslash notation.

Text strings can be enclosed in double (“) or single (‘) quotation marks. If the text string includes

an embedded space, it must be enclosed in quotation marks.

Special characters are represented using backslash notation.

Numbers Enter numbers as integers, or in hexadecimal format, where so noted.

IP Addresses Enter IP addresses in dotted decimal notation (0 to 255).

Administrator’s Handbook

120

For example, the following CLI step command indicates that the default value is off and that valid entries are

limited to on and off.

option (off) [on | off]: on

You can accept the default value for a field by pressing the Enter key. To use a different value, type it and press

Enter.

You can enter the CONFIG step mode by entering set from the top node of the CONFIG hierarchy. You can enter

step mode for a particular service by entering set service_name. In stepping set mode (press Control-X Enter)

to exit. For example:

ARRIS-3000/9437188 (top)>> set system

...

system

name (“ARRIS-3000/9437188”): Mycroft

Diagnostic Level (High): medium

Stepping mode ended.

Validating Your Configuration

You can use the validate CONFIG command to make sure that your configuration settings have been entered

correctly. If you use the validate command, the NVG599 device verifies that all required settings for all services

are present and that settings are consistent.

ARRIS-3000/9437188 (top)>> validate

Error: Subnet mask is incorrect

Global Validation did not pass inspection!

You can use the validate command to verify your configuration settings at any time. Your NVG599 device

automatically validates your configuration any time you save a modified configuration.

121

CONFIG Commands

This section describes the keywords and arguments for the various CONFIG commands.

Connection Commands

The conn commands are used to create connections, for example, a WAN or LAN connection. There may be

more than one of each depending on your model. The name commands correspond to the system object IDs

(OIDs), but you can name them yourself.

set conn name name link-oid value

Sets the connection named name to point to an associated link specified by the link-oid value.

set conn name name type [ static | dhcpc | ppp ]

Specifies whether the type of the connection named name is static, DHCPC, or PPP.

set conn name name side [ lan | wan ]

Specifies whether this connection is LAN- or WAN-side. A connection can be either lan or wan.

set conn name name lan-type [ private | public | public-delegated ]

Specifies whether this connection’s LAN is private, public, or public-delegated. The default is private, the usual

type of local network.

set conn name name dhcp-server-enable [ on | off ]

Turns the DHCP server for this connection on or off. The DHCP server can be enabled per connection. The

default is on.

set conn name name mcast-forwarding [ off | on ]

Turns IP IGMP multicast forwarding for this connection off or on. The default is off.

set conn name name rip-send [ off | v1 | v2 | v1-compat | v2-md5 ]

Specifies whether the device should use Routing Information Protocol (RIP) broadcasts to advertise its routing

tables to other gateways. RIP Version 2 (RIP-2) is an extension of the original Routing Information Protocol (RIP-

1) that expands the amount of useful information in the RIP packets. While RIP-1 and RIP-2 share the same

basic algorithms, RIP-2 supports several additional features, including inclusion of subnet masks in RIP packets

and implementation of multicasting instead of broadcasting (which reduces the load on hosts that do not

support routing protocols. RIP-2 with MD5 authentication is an extension of RIP-2 that increases security by

requiring an authentication key when routes are advertised. Depending on your network needs, you can

configure your device to support RIP-1, RIP-2, or RIP-2MD5.

If you specify v2-MD5, you must also specify a rip-send-key. Keys are ASCII strings with a maximum of 31

characters, and must match the other gateway keys for proper operation of MD5 support. The default is off.

set conn name name rip-receive [ off | v1 | v2 | v1-compat | v2-md5 ]

Specifies whether the device should use Routing Information Protocol (RIP) broadcasts to update its routing

tables with information received from other gateways on the other side of the connection. If you specify v2-

md5, you must also specify a rip-receive-key. Keys are ASCII strings with a maximum of 31 characters, and must

match the other gateway keys for proper operation of MD5 support. The default is off.

Administrator’s Handbook

122

set conn name name icmp-echo-drop [ off | on ]

If set to on, drops echo-requests received on the particular interface. The default is off.

set conn name name icmp-err-suppress [ off | on ]

An additional option to suppress ICMP error messages on WAN IP interfaces. The default is off.

set conn name name static ipaddr ipaddr

Specifies a static IP address when the connection type has been set to static. The default is 192.168.1.254.

Example:

NOS/128600225634272/conf

Config Mode v1.3

NOS/128600225634272 (top)>> conn

NOS/128600225634272 (conn)>> set

conn

(conn) node list ...

"LAN"

"WAN"

Select (name) node to modify from list,

or enter new (name) to create.

conn name (?):

name "LAN"

link-oid ("LAN") [ LAN | WAN | PPPoE | ]:

type (static) [ static | dhcpc | ppp ]:

side (lan) [ lan | wan ]:

lan-type (private) [ private | public | public-delegated ]:

mcast-forwarding (off) [ off | on ]:

rip-send (off) [ off | v1 | v2 | v1-compat | v2-md5 ]:

rip-receive (off) [ off | v1 | v2 | v1-compat | v2-md5 ]:

fs-egress ("") [ Security | QosUpstream | WanEgress | ]:

fs-ingress ("") [ Security | QosUpstream | WanEgress | ]:

static

ipaddr ("192.168.1.254"):

netmask ("255.255.255.0"):

dhcp-server-enable (on) [ off | on ]:

dhcp-server

start-addr ("192.168.1.64"):

end-addr ("192.168.1.253"):

lease-time (01:00:00:00):

subnet-order (1) [ 1 - 8 ]:

gen-option

(gen-option) node list ...

Select (name) node to modify from list,

or enter new (name) to create.

gen-option name (?):

option-group

(option-group) node list ...

Select (name) node to modify from list,

or enter new (name) to create.

option-group name (?):



NOTE:

You must also set the gateway address OR turn it off, otherwise the settings cannot be saved. See “IP Gate-

way Commands” on page 132.

123

filterset

(filterset) node list ...

Select (name) node to modify from list,

or enter new (name) to create.

filterset name (?):

name "WAN"

link-oid ("WAN") [ LAN | WAN | PPPoE | ]:

type (dhcpc) [ static | dhcpc | ppp ]: static

side (wan) [ lan | wan ]:

mcast-forwarding (off) [ off | on ]:

nat-enable (on) [ off | on ]:

rip-receive (off) [ off | v1 | v2 | v1-compat | v2-md5 ]:

icmp-echo-drop (on) [ off | on ]:

icmp-err-suppress (off) [ off | on ]:

fs-egress ("WanEgress") [ Security | QosUpstream | WanEgress | ]:

fs-ingress ("") [ Security | QosUpstream | WanEgress | ]:

static

ipaddr (""): 10.3.53.100

netmask ("255.255.255.0"):

NOS/128600225634272 (conn)>> set ip gateway address 10.3.53.1

NOS/128600225634272 (conn)>> save

If you do not want the gateway use this command to turn it off:

set ip gateway enable off

set conn name name static netmask netmask

Specifies a static netmask when the connection type has been set to static. The default is 255.255.255.0.

set conn name name dhcp-server start-addr ipaddr

If dhcp-server-enable is set to on, specifies the first address in the DHCP address range. The NVG599 can

reserve a sequence of up to 253 IP addresses within a subnet, beginning with the specified address for dynamic

assignment. The default is 192.168.1.64

set conn name name dhcp-server end-addr ipaddr

If dhcp-server-enable is set to on, specifies the last address in the DHCP address range. The default is

192.168.1.253

set conn name name dhcp-server lease-time seconds

If dhcp-server-enable is set to on, specifies the default length for DHCP leases issued by the NVG599. Lease

time is in seconds. Default is 3600.

set conn name name dhcp-server subnet-order [1... 8]

If dhcp-server-enable is set to on, specifies the order in which to address the first of 8 possible subnets.

Ordinarily, this is the first one, the default 1.

set conn name name nat-enable [ on | off ]

Specifies whether you want the NVG599 device to use network address translation (NAT) when communicating

with remote gateways. NAT lets you conceal details of your network from remote gateways. It also permits all

LAN devices to share a single IP address. By default, address NAT is turned on.

Administrator’s Handbook

124

set conn name name dhcp-client discover-time seconds

The DHCP client parameters appear when the connection type has been set to dhcpc. The discover-time value

is in seconds; the default is 30.

set conn name name dhcp-client dns-enable [ on | off ]

Allows you to enable or disable the default behavior of acting as a DNS proxy. The default is on.

set conn name name dhcp-client dns-override [ off | on ]

Allows you to enable or disable overriding default DNS behavior. The default is off.

set conn name name dhcp-client vendor-class string

The vendor-class default information varies by model and components. This is information that identifies the

unit.

set conn name name fs-egress filterset_name

Attaches a user filterset to a connection, which is applied to transmitted packets. See “Filter Set Commands”

on page 124.

set conn name name fs-ingress filterset_name

Attaches a user filter set to a connection, which is applied to received packets. See “Filter Set Commands” on

page 124.

Filter Set Commands

Filter sets provide packet filtering and QoS configuration. Packets are identified by characteristics that allow

QoS and forwarding decisions to be made. These characteristics can be at the MAC layer, IP layer, TCP | UDP |

ICMP layer(s), or (in applicable circumstances) 802.1q/p (VLAN-tagging) layer.

Your NVG599 device is capable of adding and stripping 802.1Q tags to and from frames before transmission on

its LAN interfaces. See also “Link Commands” on page 143 for more information.

A maximum of 8 filter sets are supported. Each filter set can have up to 8 rules configured. A maximum 8

egress queues are supported. Each queue can have up to 8 entries.

A filter set rule identifies packet attributes to match with its match parameters. It acts on these packets using

its default action parameters.

set filterset name filterset_name rule number order number

Determines order of execution of filter set rules (1 before 2, etc). If order is unspecified, the value of order is

set to 1 more than the last order in the filter set. If order is set to an already existing order value, order values

of other rules are incremented automatically.

set filterset name filterset_name rule number enable [ on | off ]

Dynamically enables or disables the specified filter set rule.

125

set filterset name filterset_name rule number match-eth-proto number

Matches Ethernet protocol field to the supplied value.

set filterset name filterset_name rule number match-eth-length number

Matches Ethernet length field to the supplied value.

set filterset name filterset_name rule number match-eth-p-bits number

Matches VLAN priority bits.

set filterset name filterset_name rule number match-eth-vid number

Matches VLAN ID number.

set filterset name filterset_name rule number match-eth-src-mac-addr

mac_address

Matches supplied source MAC address field.

set filterset name filterset_name rule number match-eth-dst-mac-addr

mac_address

Matches supplied destination MAC address field.

set filterset name filterset_name rule number match-src-ip-addr

ip_address_range

Matches supplied value with packet's source IP address field.

set filterset name filterset_name rule number match-dst-ip-addr

ip_address_range

Matches supplied value with packet's destination IP address field.

set filterset name filterset_name rule number match-protocol protocol_string

Matches supplied value with packet's protocol field.

set filterset name filterset_name rule number match-tos [ number |

descriptive_value ]

Matches TOS field from numeric value 0-255; or one of the following descriptive values:

Minimize-Delay (0x10)

Maximize-Throughput (0x08)

Maximize-Reliability (0x04)

Minimize-Cost (0x02)

Normal-Service (0x00)

set filterset name filterset_name rule number match-dscp [ number |

diffserv_class_string ]

Matches DiffServ class with supplied numerical value, which can be in decimal (ex: 32) or in Hex (ex: 0x20);

Administrator’s Handbook

126

Or match the supplied DiffServ class. This value may be any of the BE, EF, AFxx or CSx classes. A full list is:

{ "CS0", 0x00 }

{ "CS1", 0x08 }

{ "CS2", 0x10 }

{ "CS3", 0x18 }

{ "CS4", 0x20 }

{ "CS5", 0x28 }

{ "CS6", 0x30 }

{ "CS7", 0x38 }

{ "BE", 0x00 }

{ "AF11", 0x0a }

{ "AF12", 0x0c }

{ "AF13", 0x0e }

{ "AF21", 0x12 }

{ "AF22", 0x14 }

{ "AF23", 0x16 }

{ "AF31", 0x1a }

{ "AF32", 0x1c }

{ "AF33", 0x1e }

{ "AF41", 0x22 }

{ "AF42", 0x24 }

{ "AF43", 0x26 }

{ "EF", 0x2e }

set filterset name filterset_name rule number match-src-port number [ number ]

Matches TCP|UDP source port field or port range.

set filterset name filterset_name rule number match-dst-port number

[number ]

Matches TCP|UDP destination port field or port range.

set filterset name filterset_name rule number match-tcp-flags tcp_flag_string

Matches TCP flags in a packet. The flag string is comma-delimited.

set filterset name filterset_name rule number match-packet-length number

[number ]

Matches packet length against value or range.

set filterset name filterset_name rule number action forward [ pass | drop |

reject ]

Executes the named filter set’s default action: pass, drop, or reject.

set filterset name filterset_name rule number match-qos-marker-enable [ off |

on ]

Turns the function of tagging the packet according to the queue marker name on or off. Default is off.

127

set filterset name filterset_name rule number action set-qos-marker

qos_marker_string

Tags the packet according to the queue marker name. See “Queue Commands” on page 129.

set filterset name filterset_name rule number action set-tos number

Sets the packet TOD field to the supplied value.

set filterset name filterset_name rule number action set-dscp [ number |

diffserv_class_string ]

Sets the DSCP field to the supplied value.

set filterset name filterset_name rule number action set-eth-p-bits number

Sets VLAN priority bits to the supplied value.

set filterset filterset_name rule number action do-filterset name

Executes the supplied filter set.

Default Actions

If a packet passes through all of a filter's rules without a match, then the filter set's default actions come into

play. These behave the same way that rule actions behave.

set filterset name filterset_name default-action set-qos-marker

qos_marker_string

Tags the packet according to the queue marker name.

set filterset name filterset_name default-action set-tos number

Sets the packet TOS field to the supplied value.

set filterset name filterset_name default-action set-dscp [ number

|diffserv_class_string ]

Sets the DSCP field to the supplied value.

set filterset name filterset_name default-action set-eth-p-bits number

Sets VLAN priority bits to the supplied value.

set filterset name filterset_name default-action do-filterset name

Executes the supplied filter set.

set filterset name filterset_name default-action forward [ pass | drop | reject ]

Executes the named filter set’s default action: pass, drop, or reject.

Administrator’s Handbook

128

Global Filter Set (“IPv6 Firewall”) Commands

Global filter sets exist at the root level of the hierarchy, outside the umbrella of both the “ip” and “ip6”

subtrees, since they pertain to both.

Global filter set rules allow for the specification of these match attributes:

IP Protocol

Source and/or destination port:

UDP

TCP

TCP flags, for rules that specify TCP traffic

ICMP type, for IP-protocol types 1 (ICMP) and 58 (IPv6-ICMP)

LAN-side device/range:

By MAC address (or current IPv4/6 address, host name, equivalently)

IPv4 address, range, or subnet

IPv6 address or subnet

WAN-side range:

IPv4 address, range, or subnet

IPv6 address or subnet

Ingress and egress interface, by link-oid (such as “LAN”)

set gfs name filterset_name enable [ on | off ]

Dynamically enables or disables the specified filter set rule.

set gfs name filterset_name default-action value [ pass | drop ]

Executes the named filter set’s default action: pass or drop.

set gfs name filterset_name rule number enable [ on | off ]

Dynamically enables or disables the specified filter set rule.

set gfs name filterset_name rule number active [ on | off ]

Activates or deactivates the specified filter set rule.

set gfs name filterset_name rule number type [ either | ipv4 | ipv6 ]

Specifies whether the named filter set rule applies to IPv4, IPv6, or both (either).

set gfs name filterset_name rule number action value [ pass | drop | accept ]

Executes the named filter set’s action: pass, drop, or accept.

set gfs name filterset_name rule number order number

Determines order of execution of filter set rules (1 before 2, etc). If order is unspecified, the value of order is

set to 1 more than the last order in the filter set. If order is set to an already existing order value, order values

of other rules are incremented automatically.

set gfs name filterset_name rule number match number category [ src-ip-addr |

mac | in-link-oid

129

| out-link-oid | icmp-type ]

Matches on the following categories:

set gfs name filterset_name rule number match number value [ value (category-

specific) ]

Queue Commands

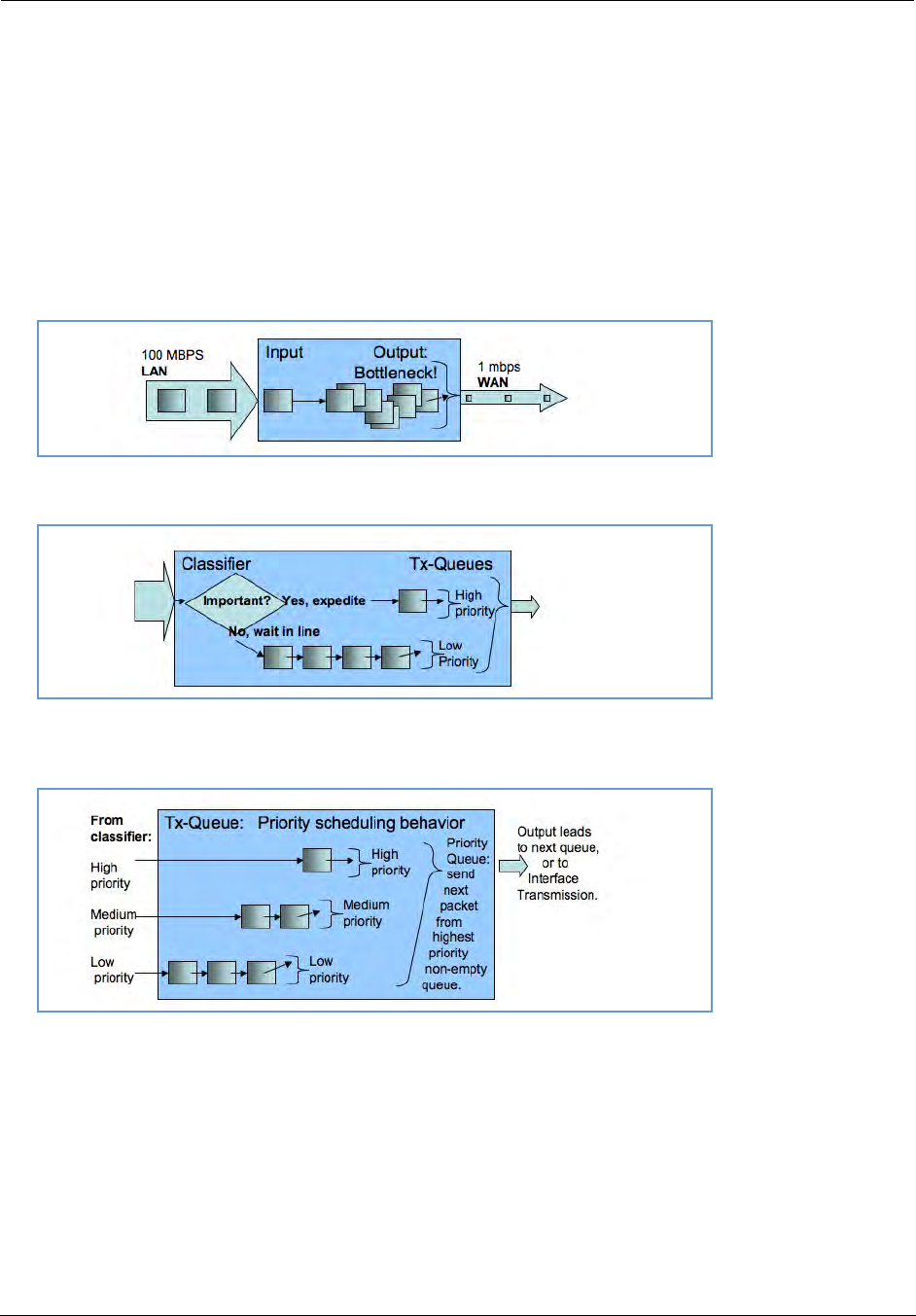

Queue configuration typically requires a classification component to set a QoS marker to a packet and a

queueing component to schedule the marked packets to the link. This is accomplished using filter sets (“Filter

Set Commands” on page 124).

The basic queue's size and length are controls for how many packets and total bytes can be enqueued before it

is considered to be full. Once it is full, any attempts to enqueue another packet will result in a “tail-drop.”

Both constraints are simultaneously used, such that the queue is full when either packet count or byte count

exceeds the limit. This allows flexibility in obtaining a balance, where a large number of small packets, but only

a small number of large packets can be enqueued.

If there are no tail-drops – that is, the queue is not blocked from sending and doesn't over-fill and dump

packets – then these queue size/bytes parameters do not affect anything. Their only function is to adjust the

threshold at which the queue is considered full, which dictates when tail-drops will occur. So if there are no

tail-drops, then increasing the queue length will have no effect. Increasing the queue length has no effect

unless there are tail-drops.

The maximum size/bytes of a queue balances how much burstiness can be buffered versus having a queue that

is simply too long.

Burstiness smoothing requires queueing up the buffers. For example, if the upstream line rate is 1 mbps, but

the traffic source sends 100 mbps bursts for 10 ms every second (which coincidentally averages 1 mbps) then

src-ip-addr (ip[4|6] address or subnet spec (type ip4 or ip6 only))

dst-ip-addr (ip[4|6] address or subnet spec (type ip4 or ip6 only))

ip-proto (0-255 or iana-defined string equivalents)

src-port (1-65535[:1-65535], only if ip-proto == TCP or UDP)

dst-port (1-65535[:1-65535], only if ip-proto == TCP or UDP)

tcp-flags (only if ip-proto == TCP)

icmp-type (only if ip-proto == ICMP or IPv6 ICMP)

src-host-mac (MAC address of src)

dst-host-mac (MAC address of dest)

in-link-oid (oid of ingress link oid)

out-link-oid (oid of egress link oid)



NOTE:

A rule cannot contain data that specifies both IPv6 and IPv4 at the same time, and thus be applicable to nei-

ther iptables nor ip6tables; however, a rule can be IP-version agnostic, in which case it will be applied to both

iptables and ip6tables, given the proper conditions. For instance, if a LAN-side device has both an IPv4

address and a routable IPv6 address, then one can specify a rule for this device by referring to its MAC

address, and if no other match attributes of the rule preclude its use in both tables, the rule will be applied to

both iptables and ip6tables (given the assumption that the LAN Host Discovery database contains both

addresses).

Administrator’s Handbook

130

the router will have to buffer enough (about a full second worth of traffic) so that the burst of traffic doesn't

get tail-dropped when it arrives and is enqueued at the same time in the same burst.

On the other hand, it is undesirable to buffer too much data in the queue(s) since the packets may be stale by

the time they are sent. It may be desirable to drop the traffic sufficiently that there are queuing disciplines

such as Random Early Discard (RED) that do not drop packets from the tail of the queue. Instead, RED drops

packets towards the front of the queue, so that the congestion is noticed more quickly in order for the sender

to scale back bandwidth usage to avoid drops.

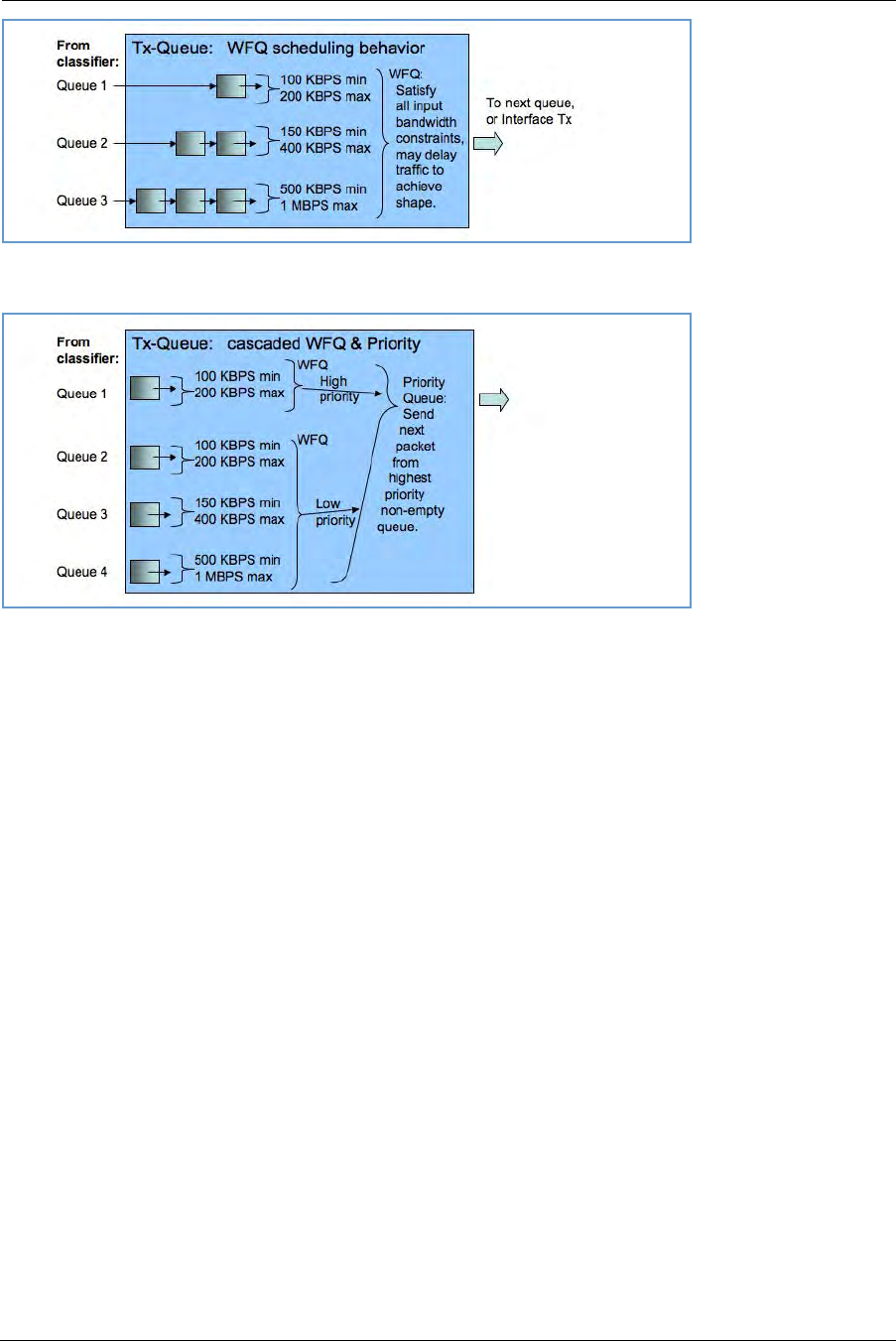

The following types of queue “building blocks” are supported:

basic queue

ingress queue

priority queue

wfq (weighted fair queue)

Basic queues have three different packet dropping options:

byte|packet fifo (bpfifo)

random early discard (red)

stochastic fairness queuing (sfq)

set queue name queue_name type [ basic | ingress | priority | wfq ]

Sets the type of queue.

set queue name queue_name options [ off | red | sfq ]

Sets the queue packet dropping options.

set queue name queue_name size [ 1... 64 ]

Sets the maximum number of packets that can be enqueued.

set queue name queue_name bytes [ 2048... 131072 ]

Sets the maximum total number of bytes that can be enqueued.

set queue name queue_name perturb [ 0... 100 ]

Sets the interval in seconds for queue algorithm perturbation when queue option is sfq.

set queue name queue_name police-rate [ 0... 100000000 ]

Sets the rate in milliseconds that is used for policing traffic when the queue type is ingress.

set queue name queue_name police-burst [ 0... 100000000 ]

Sets the burst rate in milliseconds that is used for policing traffic when the queue type is ingress.

set queue name queue_name bw-sharing [ on | off ]

Enables or disables bandwidth sharing, when the queue type is either priority or wfq.

131

set queue namip-proto-mode [ bps | relative ]

Sets the mode of the weighted fair queue. The bps keyword indicates that weights are defined as bits-per-

second. The relative keyword indicates that weights are defined as a proportion of the sum of the weights of

all inputs to the wfq.

set queue name queue_name entry number input queue_name

Sets the input to a priority or weighted fair queue.

set queue name queue_name entry number marker queue_marker

Sets the marker with which packets must be marked to be directed to this queue entry's input queue when the

type is priority or wfq.

set queue name queue_name entry number priority [ 0... 255 ]

Sets the priority level of this queue. A lower value indicates a higher priority. All entries of equal priority will be

subject to a round robin algorithm.

For (strict) priority queue, the higher priority gets link resource first.

For wfq queue, each entry gets reserved bandwidth according to its weight. If different priority is given, any

excess bandwidth is offered to higher priority entry first; otherwise any excess bandwidth is distributed to

the weights ratio.

set queue name queue_name entry number weight [ 0... 100 ]

Sets the weight level of this weighted fair queue. Weight units are dependent on bps-mode setting.

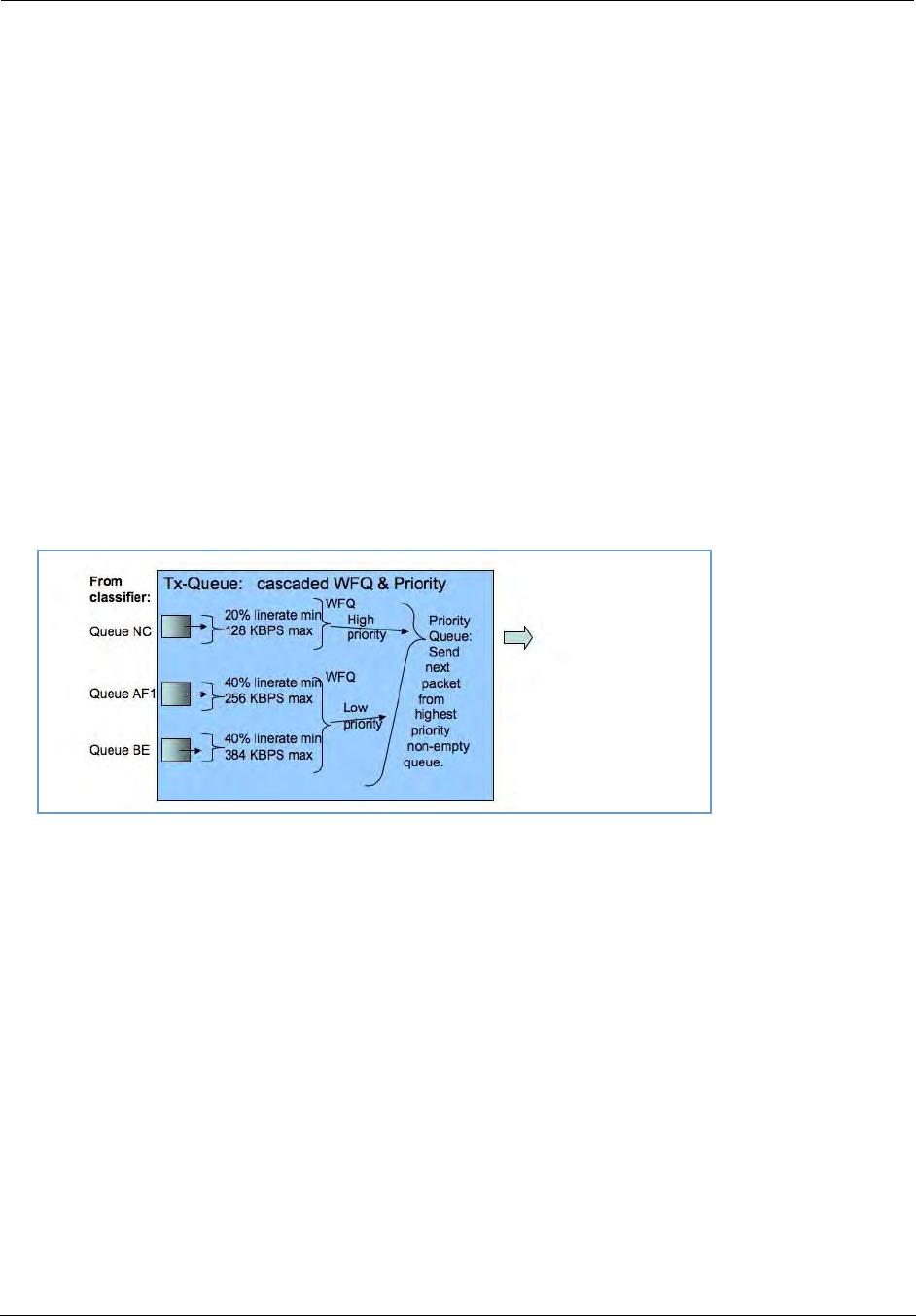

If bps-mode is set to bps, then setting the weight to 0 will allocate the remaining available bandwidth to the

queue entry.

If no priority specified, excess bandwidth will be distributed proportionately to the weight ratio.

set queue name queue_name entry number peak [ 0... 100,000,000 ]

Sets the peak level of this weighted fair queue. The peak parameter is a number from 0 through 100,000,000 in

bits/second. It must be at least 50,000 for best effect. It is the peak data rate allowed on the queue entry, and

usually supports bandwidth sharing, that is, if other queues are not busy and there is spare bandwidth, then a

busy queue is allowed to go up to the peak rate.

set queue name queue_name default-entry queue_name

Indicates the input queue used if there is no match between the packet queue marker and the configured

markers in any of the queue's inputs when the queue type is priority or wfq.

Administrator’s Handbook

132

IP Gateway Commands

set ip gateway enable [ on | off ]

Specifies the conn of the gateway. Normally, this would be the WAN connection. Specifies whether the

NVG599 should send packets to a default gateway if it does not know how to reach the destination host.

set ip gateway conn-oid value

Sets the default gateway to point to an associated link specified by the conn-oid value.

set ip gateway address ip_address

Specifies the IP address of a host on a local or remote network in standard dotted-quad format.

IPv6 Commands

set ip6 enable [ on | off ]

Enables/disables IPv6 globally. The default is off. When enabled, the following default configuration is created:

set ip6 enable on

set ip6 conn name "WANv6" enable on

set ip6 conn name "WANv6" type rd

set ip6 conn name "WANv6" mtu 1472

set ip6 conn name "WANv6" side wan

set ip6 conn name "WANv6" mcast-forwarding off

set ip6 conn name "WANv6" icmp-echo-drop on

set ip6 conn name "WANv6" traffic-class-clear on

set ip6 conn name "WANv6" 6rd-tunnel type cpe

set ip6 conn name "WANv6" 6rd-tunnel ipv4-conn "WAN"

set ip6 conn name "WANv6" 6rd-tunnel use-dhcp-values off

set ip6 conn name "WANv6" 6rd-tunnel prefix "::"

set ip6 conn name "WANv6" 6rd-tunnel prefix-length 1

set ip6 conn name "WANv6" 6rd-tunnel ipv4-common-bits 0

set ip6 conn name "WANv6" 6rd-tunnel relay-ipv4-addr "0.0.0.0"

set ip6 conn name "WANv6" 6rd-tunnel ipv4-tx-tos-mode off

set ip6 conn name "WANv6" 6rd-tunnel force-tx-to-br on

set ip6 conn name "WANv6" 6rd-tunnel anti-spoof-enable on

set ip6 conn name "WANv6" 6rd-tunnel tx-df-bit-set on

set ip6 conn name "LANv6" enable off

set ip6 gateway enable on

set ip6 gateway conn "WANv6"

set ip6 gateway address "::"

set ip6 dhcp-server enable on

set ip6 dhcp-server information-only off

set ip6 dhcp-server preference 255

set ip6 dhcp-server authoritative on

set ip6 dhcp-server rapid-commit on

set ip6 dhcp-server unicast off

set ip6 dhcp-server leasequery off

set ip6 dhcp-server pd-enable on

set ip6 dhcp-server default-lease-time 2592000

set ip6 dhcp-server preferred-lifetime 604800

set ip6 dhcp-server T1 302400

set ip6 dhcp-server T2 483840

133

set ip6 dhcp-server info-refresh-time 86400

set ip6 dns primary-address ""

set ip6 dns secondary-address ""

Default IPv6 security configuration values:

set security spi ip6 src-mcast-drop off

set security spi ip6 invalid-mcast-scope-drop on

set security spi ip6 forbidden-addr-drop on

set security spi ip6 deprecated-ext-hdr-drop on

set security spi ip6 src-addr-from-lan-unassigned-drop on

set security spi ip6 lan-assigned-src-addr-from-wan-drop on

set security spi ip6 ula-drop on

set security spi ip6 ignore-dns-from-wan on

set security spi ip6 ignore-dhcp-from-wan on

set security spi ip6 esp-hdr-drop on

set security spi ip6 ah-hdr-drop on

set security spi ip6 allow-inbound off

set security spi ip4 invalid-addr-drop on

set security spi ip4 private-addr-drop off

set security spi flood-limit enable off

set security ip6 firewall-level low

set security ip6 enable on

ip6 gateway conn

set ip6 gateway enable [ on | off ]

Enables or disables IPv6 default gateway.

set ip6 gateway conn value

Sets the default gateway to point to an associated link specified by the conn-oid value. Normally, this would be

the WAN connection.

set ip6 gateway address ipv6_address

Specifies the IPv6 address of a host on a local or remote network in standard IPv6 format.

ip6 conn

set ip6 conn name name enable [ on | off ]

Enables/disables the IPv6 connection named name.

set ip6 conn name name type [ static | autoconf | rd | dp | aiccu ]

Type of connection. See below for connection types.

set ip6 conn name name mtu octets

Specified MTU of connection.

set ip6 conn name name side [ lan | wan ]

Specified whether the connection is LAN side or WAN side.

Administrator’s Handbook

134

set ip6 conn name name mcast-fwding [ off | on ]

Turns IPv6 multicast forwarding for this connection off or on. The default is off. (not yet implemented)

set ip6 conn name name old-prefix-purge-timer

The time in seconds for which old, invalid prefixes are advertised with a lifetime of zero. The intent is to “flush

out” global prefixes on attached IPv6 hosts that suddenly become invalid.

Static Connections

ip6 conn (type = static): Statically configured IPv6 connection.

set ip6 conn name name static link-oid link_name

Sets the connection named name to point to an associated link specified by the link-oid link_name.

set ip6 conn name name static ipaddr ipv6_address

Specifies a static IPv6 address.

set ip6 conn name name static prefix-length value

Specifies the prefix length of the connection's static IPv6 address. Default is 64.

6rd Connections

ip6 conn (type = rd, side = wan). This WAN connection type is a 6rd tunnel over an IPv4 conn in

accordance with RFC 5569.

set ip6 conn name name 6rd-tunnel type [ cpe | gateway ]

The 6rd connection can operate in “cpe” or “gateway” mode as configured by the type parameter. “cpe” mode

is used when operating as a CPE; “gateway” mode is used when operating as a “6rd relay,” as per RFC 5569.

set ip6 conn name name 6rd-tunnel ipv4-conn-oid ipv4_name

Sets the 6rd connection named name to tunnel over an associated IPv4 connection named ipv4_name.

set ip6 conn name name 6rd-tunnel use-dhcp-values [ off | on ]

If this parameter is on, 6rd-provisioned parameters are obtained via the underlying DHCPv4 client associated

with the IPv4 connection named ipv4-name. See the Internet Engineering Task Force document, “draft-ietf-

softwire-ipv6-6rd-10” for DHCP format description.

ip6 conn (type = rd, 6rd-tunnel use-dhcp-values = off).

set ip6 conn name name 6rd-tunnel prefix IPv6_address

6rd domain prefix.

set ip6 conn name name 6rd-tunnel prefix-length value [ 1 - 63 ]

6rd domain prefix length.

135

set ip6 conn name name 6rd-tunnel ipv4-common-bits value [ 0 - 31 ]

The number of bits common to all IPv4 addresses within the 6rd domain. The top-most bits of the IPv4 address

will be “subtracted” from the 6rd address. If the whole 32-bit IPv4 address is contained in the 6rd IPv6 address,

this value is set to zero. Default is 0, meaning all 42 bits of the IPv4 address are embedded in the 6rd prefix.

set ip6 conn name name 6rd-tunnel relay-ipv4-addr IPv4_address

The IPv4 anycast address of the 6rd border gateway.

set ip6 conn name name 6rd-tunnel ipv4-tx-tos-mode [ off | use-ipv6 ]

The off parameter sets the TOS field in the IPv4 header to zero for transmitted 6rd packets. The keyword use-

ipv6 sets the the TOS field in the IPv4 headerto the DS field of the 6rd-encapsulated IPv6 packet.

set ip6 conn name name 6rd-tunnel ipv4-tx-to-br [ off | on ]

If the off parameter is used, each packet set to a destination IPv6 address within the originating 6rd domain is

sent directly to the 6rd endpoint. If the keyword on is used, all packets are transmitted to the 6rd border

gateway.

AICCU (SixXS tunnel broker) Connections

ip6 conn (type = aiccu, side = wan). This connection type enables an IPv6 connection to the IPv6 Internet

over an IPv4/NAT/UDP tunnel to a tunnel endpoint administered by tunnel broker SIXXS (www.sixxs.net).

You set up an account with SIXXS, and subsequently get assigned a tunnel and a subnet (usually a /48 subnet).

set ip6 conn name name aiccu username username

Sets the connection’s SIXXS user name.

set ip6 conn name name aiccu password password

Sets the connection’s SIXXS password.

Delegated Prefix Connections

ip6 conn (type = dp, side = lan). A connection of type “delegated prefix” obtains its global prefix

information from one or more prefixes from another IPv6 connection (typically a WAN), if available. For a

delegated prefix connection to become fully operational, its underlying link must be up and the IPv6

connection that delegates the prefix must have created one or more prefixes from which to draw the delegated

prefix connection's global prefix.

set ip6 conn name name dp link-oid link_name

Sets the connection to obtain its prefix from the specified link.

set ip6 conn name name dp conn-oid ipv6_conn_name

Sets the delegated prefix connection named name to obtain its prefix from IPv6 connection named

ipv6_conn_name.

Administrator’s Handbook

136

set ip6 conn name name dp subnet-length value [ 0 - 16 ]

The length of the subnet portion of the delegated prefix. Default is 0.

set ip6 conn name name dp subnet-id value [ 0 - 65535 ]

If a subnet length is specified, the value that would occupy the of the subnet portion of the connection's IPv6

prefix. Default is 0.

set ip6 conn name name dp stay-up [ off | on ]

If the delegated prefix parameter stay-up is set to on, the global prefix assigned from the connection

delegating the prefix remains active in the event that the connection delegating the prefix goes down, and the

prefix becomes invalid. This enables local LAN-side hosts to continue to use the global prefix uninterrupted. If

parameter stay-up is set to off, the connection's delegated prefix becomes invalid when the connection named

ipv6-conn-name delegating the prefix goes down.

Router Advertisement and DHCPv6 Server

ip6 conn (side = lan). Router advertisements and the DHCPv6 server are available on LAN-side connections

as the means to provide clients with stateful or stateless IPv6 prefixes and addresses, as well as addition client

parameters such as MTU size and IPv6-addressable DNS servers.

set ip6 conn name name radv enable [ off | on ]

The on parameter sets router advertisement to enabled for this connection.

set ip6 conn name name radv min-rtr-adv-interval seconds [ 3 - 1350 ]

The minimum time allowed between sending unsolicited multicast router advertisements from the link, in

seconds.

set ip6 conn name name radv max-rtr-adv-interval seconds [ 4 - 1800 ]

The maximum time allowed between sending unsolicited multicast router advertisements from the interface,

in seconds.

set ip6 conn name name dhcp-server enable [ off | on ]

The on parameter sets the DHCPv6 server to enabled for this connection.

set ip6 conn name name dhcp-server addr-count value [ 0 - 256 ]

The number of IPv6 addresses available to serve to DHCPv6 stateful clients. If the addr-count parameter is set

to zero, the DHCPv6 server operates in “stateless” mode.

set ip6 conn name name dhcp-server start-addr-offset value [ 0 - 65536 ]

If the addr-count parameter is greater than zero, the start address is an offset from the base address of the

prefix that is assigned to the LAN connection.

set ip6 conn name name dhcp-server lease-time seconds [ 180 - 8553600 ]

DHCPv6 lease time.

137

set ip6 conn name name dhcp-server dns-server optional IPv6 address

IPv6 address of advertised DNS server (optional).

IPv6 DHCP Server

set ip6 dhcp-server enable [ on | off ]

Globally enables or disables DHCPv6 servers on all IPv6 LAN connections. The default is on.

set ip6 dhcp-server information-only [ off | on ]

The on parameter sets DHCPv6 servers on all IPv6 LAN connections to operate in stateless “information-only”

mode. The default is off.

set ip6 dhcp-server preference 255

Sets the preference option, as defined in RFC1315, sec. 22.8. The preference option in the server’s Advertise

message may assist a DHCPv6 client in selecting from more than one server on the LAN.

set ip6 dhcp-server authoritative [ on | off ]

If a client requests an IP address on a given network segment that the server knows is not valid for that

segment, and authoritative is set to on, the server will respond with a DHCPNAK message, causing the client to

forget its IP address and try to get a new one. If authoritative is set to off, the server will ignore the client’s

request. The default is on.

set ip6 dhcp-server rapid-commit [ on | off ]

Enables or disables the rapid commit option per RFC 3315 Section 22.14. The default is on.

set ip6 dhcp-server unicast [ off | on ]

Enables or disables server unicast option per RFC 3315 Section 22.12. The default is off.

set ip6 dhcp-server leasequery [ off | on ]

Enables or disables DHCPv6 Leasequery option per RFC 5007. The default is off.

set ip6 dhcp-server pd-enable [ on | off }

Enables or disables prefix delegation globally on all DHCPv6 servers on all IPv6 LAN connections, overriding

individual DHCPv6 server settings. The default is on.

set ip6 dhcp-server default-lease-time seconds

Sets the global DHCPv6 lease time setting in seconds. The default is 2592000 (30 days).

set ip6 dhcp-server preferred-lifetime seconds

Sets the global DHCPv6 preferred lifetime of prefixes in seconds, per RFC 3633. The default is 604800 (7 days).

Administrator’s Handbook

138

set ip6 dhcp-server T1 seconds

set ip6 dhcp-server T2 seconds

Sets global DHCPv6 T1, T2 values, per RFC 3315 for local NA addresses:

And also per global DHCPv6 T1, T2 values, per RFC 3633 for PD prefixes:

set ip6 dhcp-server info-refresh-time seconds

In seconds, per RFC 4242: The information refresh time option specifies an upper bound for how long a client

should wait before refreshing information retrieved from DHCPv6 in stateless mode. The default is 86400 (24

hours).

Static Routes

ip6 static-route

set ip6 static-route name conn-oid ipv6_conn_name

Route is directed to IPv6 connection named ipv6_conn_name.

set ip6 static-route name nexthop IPv6_address

Next-hop IPv6 address for forwarding. Can be a global or link-local address.

set ip6 static-route name prefix IPv6_prefix

IPv6 prefix.

set ip6 static-route name prefix-length value [ 1 - 64 ]

IPv6 prefix-length.

set ip6 static-route name metric value [ 0 - 255 ]

Metric assigned to route.

The time at which the client contacts the server from which the addresses in the IA_NA were obtained to

extend the lifetimes of the addresses assigned to the IA_NA; T1 is a time duration relative to the current

time expressed in seconds. Defaults to 302400 (3.5 days).

The time at which the client contacts any available server to extend the lifetimes of the addresses

assigned to the IA_NA; T2 is a time duration relative to the current time expressed in seconds. Defaults to

483840 (5.6 days).

The time at which the requesting router should contact the delegating router from which the prefixes in

the IA_PD were obtained to extend the lifetimes of the prefixes delegated to the IA_PD; T1 is a time dura-

tion relative to the current time expressed in seconds.

The time at which the requesting router should contact any available delegating router to extend the life-

times of the prefixes assigned to the IA_PD; T2 is a time duration relative to the current time expressed in

seconds.

139

IP DNS Commands

set ip dns domain-name domain_name

Specifies the default domain name for your network. When an application needs to resolve a host name, it

appends the default domain name to the host name and asks the DNS server if it has an address for the fully

qualified host name.

set ip dns primary-address ip_address

Specifies the IP address of the primary DNS name server.

set ip dns secondary-address ip_address

Specifies the IP address of the secondary DNS name server. Enter 0.0.0.0 if your network does not have a

secondary DNS name server.

set ip dns proxy-enable [ on | off ]

Allows you to disable the default behavior of acting as a DNS proxy. The default is on.

IP IGMP Commands

Multicasting is a method for transmitting large amounts of information to many, but not all, computers over an

internet. One common use is to distribute real-time voice, video, and data services to the set of computers

which have joined a distributed conference. Other uses include updating the address books of mobile

computer users in the field, or sending out company newsletters to a distribution list.

Since a router should not be used as a passive forwarding device, NVG599 devices use a protocol for

forwarding multicasting: Internet Group Management Protocol (IGMP).

NVG599 devices support IGMP Version 1, Version 2, or Version 3.

IGMP “Snooping” is a feature of Ethernet Layer 2 switches that “listens in” on the IGMP conversation between

computers and multicast routers. Through this process, it builds a database of locations where the multicast

routers reside by noting IGMP general queries used in the querier selection process and by listening to other

router protocols.

From the host point of view, the snooping function listens at a port level for an IGMP report. The switch then

processes the IGMP report and starts forwarding the relevant multicast stream onto the host's port. When the

switch receives an IGMP leave message, it processes the leave message, and if appropriate, stops the multicast

stream to that particular port. Basically, customer IGMP messages although processed by the switch are also

sent to the multicast routers.

In order for IGMP snooping to function with IGMP Version 3, it must always track the full source filter state of

each host on each group, as was previously done with Version 2 only when fast leave support was enabled.

IGMP Version 3 supports source filtering, which is the ability for group memberships to incorporate source

address filtering. This ability allows source-specific multicast (SSM). By adding source filtering, a gateway that

proxies IGMP can more selectively join the specific multicast group for which there are interested LAN

multicast receivers.

These features require no user configuration on the gateway.

Administrator’s Handbook

140

You can set the following options:

IGMP Snooping – Enables the NVG599 to “listen in” to IGMP traffic. The NVG599 discovers multicast group

membership for the purpose of restricting multicast transmissions to only those ports which have requested

them. This restriction helps to reduce overall network traffic from streaming media and other bandwidth-

intensive IP multicast applications.

Robustness – A way of indicating how sensitive to lost packets the network is. IGMP can recover from

robustness minus 1 lost IGMP packet. The default value is 2.

Query Interval – The amount of time in seconds between IGMP General Query messages sent by the querier

gateway. The default query interval is 125 seconds.

Query Response Interval – The maximum amount of time in tenths of a second that the IGMP gateway waits

to receive a response to a General Query message. The default query response interval is 10 seconds and

must be less than the query interval.

Unsolicited Report Interval – The amount of time in seconds between repetitions of a particular computer’s

initial report of membership in a group. The default unsolicited report interval is 10 seconds.

Querier Version – Version of the IGMP querier: version 1, version 2, or version 3. If you know you will be

communicating with other hosts that are limited to v1 or v2, for backward compatibility, select accordingly;

otherwise, allow the default v3.

Last Member Query Interval – The amount of time in tenths of a second that the IGMP gateway waits to

receive a response to a Group-Specific Query message. The last member query interval is also the amount of

time in seconds between successive Group-Specific Query messages. The default last member query interval

is 1 second (10 deci-seconds).

Last Member Query Count – The number of Group-Specific Query messages sent before the gateway

assumes that there are no members of the host group being queried on this interface. The default last mem-

ber query count is 2.

Fast Leave – Set to off by default, fast leave enables a non-standard expedited leave mechanism. The querier

keeps track of which client is requesting which channel by IP address. When a leave message is received, the

querier can check its internal table to see if there are any more clients on this group. If there are none, it

immediately sends an IGMP leave message to the upstream querier.

Log Enable – If set to on, all IGMP messages on both the LAN and the WAN will be logged.

Wireless Multicast to Unicast conversion – Only available if IGMP snooping is enabled. If set to on, the gate-

way replaces the multicast MAC address with the physical MAC address of the wireless client. If there is

more than one wireless client interested in the same multicast group, the gateway will revert to multicasting

the stream immediately. When one or more wireless clients leave a group, and the gateway determines that

only a single wireless client is interested in the stream, it will once again unicast the stream.

set ip igmp querier-version [ 1 | 2 | 3 ]

Sets the IGMP querier version: version 1, version 2, or version 3. If you know you will be communicating with

other hosts that are limited to v1, for backward compatibility, select 1; otherwise, allow the default 3.

set ip igmp robustness value

Sets IGMP robustness range: 2 – 255. The default is 2.

set ip igmp query-interval value

Sets the query-interval range: 10 seconds – 600 seconds. The default is 125 seconds.



NOTE:

IGMP querier version is relevant only if the gateway is configured for IGMP forwarding. If any IGMP v1 rout-

ers are present on the subnet, the querier must use IGMP v1. The use of IGMP v1 must be administratively

configured, since there is no reliable way of dynamically determining whether IGMP v1 routers are present

on a network. IGMP forwarding is enabled per the IP profile and the WAN connection profile.

141

set ip igmp query-response-interval value

Sets the query-response interval range in deci-seconds (tenths of a second): 5 – 255. The default is 100 deci-

seconds.

set ip igmp unsolicited-report-interval value

Sets the unsolicited report interval: the amount of time in seconds between repetitions of a particular

computer’s initial report of membership in a group. The default is 10 seconds.

set ip igmp fast-leave [ off | on ]

Sets fast leave on or off. Set to on by default, fast leave enables a non-standard expedited leave mechanism.

The querier keeps track of which client is requesting which channel by IP address. When a leave message is

received, the querier can check its internal table to see if there are any more clients on this group. If there are

none, it immediately sends an IGMP leave message to the upstream querier.

set ip igmp max-group-memberships value

Sets the maximum number of IGMP group memberships. Default is 20.

set ip igmp fwd-admin-groups [ off | on ]

Turns Admin group forwarding off or on. Default is off.

set ip igmp last-member-interval value

Sets the last member query interval: the amount of time in tenths of a second that the IGMP gateway waits to

receive a response to a Group-Specific Query message. The last member query interval is also the amount of

time in seconds between successive Group-Specific Query messages. The default is 1 second (10 deci-seconds).

set ip igmp last-member-count value

Sets the last member query count: the number of Group-Specific Query messages sent before the gateway

assumes that there are no members of the host group being queried on this interface. The default is 2.

set ip igmp default-fwd-allow [ on | off ]

Turns default forwarding on or off. The default is on.

set ip igmp snoop-entry-time seconds

The snoop-entry-time value is the amount of time an entry will remain in the snooping table (in seconds) after

being added. An entry is added when a join is seen from a multicast client. Any new joins (triggered by

upstream queries) will reset the timeout back to the value of seconds. If no additional joins are seen, the entry

will expire after the value of seconds. Default is 130.

set ip igmp snooping-unreg-mode [ block | flood ]

The snooping-unreg-mode value can be set to block or flood. This value indicates what should happen to

unregistered multicast traffic – traffic that hasn't been subscribed to by any clients. If set to flood, the traffic

will be sent to all LAN ports. If set to block, the traffic will not be sent to any LAN ports; it will be dropped.

Default is block.

Administrator’s Handbook

142

NTP Commands

set ip ntp enable [ on | off ]

Enables or disables acquiring the time of day from an NTP (Network Time Protocol) server.

set ip ntp server-address server_address

set ip ntp alt-server-address alt_server_address

Specifies the NTP server(s) to use for time updates. The NTP server-address and alt-server-address values can

be entered as DNS names as well as IP addresses.

set ip ntp update-period minutes

Specifies how often, in minutes, the gateway should update the clock. Default is 1440.

Application Layer Gateway (ALG) Commands

These commands allow you to enable or disable the router’s support for a variety of application layer gateways

(ALGs). An application layer gateway (ALG) is a NAT component that helps certain application sessions to pass

cleanly through NAT. Each ALG has a slightly different function based on the particular application’s protocol-

specific requirements.

An internal client first establishes a connection with the ALG. The ALG determines if the connection should be

allowed or not and then establishes a connection with the destination computer. All communications go

through two connections – client to ALG and ALG to destination. The ALG monitors all traffic against its rules

before deciding whether or not to forward it. Because the ALG is the only address seen by the public Internet,

the internal network is concealed. In some situations, it may be desirable to disable some of the ALGs.

set ip alg esp-enable [ on | off ]

Turns the ESP (Encapsulating Security Payload) ALG for file transfers on or off. Default is on.

set ip alg esp-setup-timeout value

Specifies the timeout value for the ESP ALG setup. Default is 180.

set ip alg esp-stream-timeout value

Specifies the timeout value for the ESP ALG streaming. Default is 300.

set ip alg ftp-enable [ on | off ]

Turns the FTP (File Transfer Protocol) ALG for file transfers on or off. Default is on.

set ip alg h323-enable [ on | off ]

Turns the H323 ALG for audio, video, and data communications across IP-based networks on or off. Default is

on.

set ip alg pptp-enable [ on | off ]

Turns the PPTP (Point-to-Point Transfer Protocol) ALG for authentication on or off. Default is on.

143

set ip alg sip-enable [ on | off ]

Turns the SIP (Session Initiation Protocol) ALG for voice communication initiation on or off. Default is on.

set ip alg tftp-enable [ on | off ]

Turns the TFTP (Trivial File Transfer Protocol) ALG for simple file transfers and firmware updates on or off.

Default is on.

Dynamic DNS Commands

set ip dynamic-dns enable [ off | on ]

Enables or disables dynamic DNS. Dynamic DNS support allows you to use the free services of

www.dyndns.org. Dynamic DNS automatically directs any public Internet request for your computer's name to

your current dynamically-assigned IP address. This allows you to get to the IP address assigned to your

gateway, even though your actual IP address may change as a result of a PPPoE connection to the Internet.

set ip dynamic-dns service-type [ dyndns ]

set ip dynamic-dns username myusername

set ip dynamic-dns password mypassword

set ip dynamic-dns hostname myhostname

set ip dynamic-dns retries [ 1 - 64 ]

Enables or disables dynamic DNS services. The default is off. If you specify dyndns.org, you must supply your

host name, user name for the service, and password. Number of retries defaults to 5.

Default Server Settings

set ip wan-allocation mode [ normal | defaultserver ]

Sets the WAN mode to direct your NVG599 to forward all externally initiated IP traffic (TCP and UDP protocols

only) to a default host on the LAN, otherwise this feature is disabled. Default is normal.

Link Commands

The link commands represent physical connections. Currently, port-based VLAN support is provided at this

level. Your NVG599 device is capable of adding and stripping 802.1Q tags to and from frames before

transmission on its LAN interfaces. See also “Filter Set Commands” on page 124 and “Queue Commands” on

page 129 for more information.

set link name name type [ ethernet | ppp ]

Specifies whether the type of the link named name is ethernet or ppp.

set link name name mtu-override [ 0 - 1500 ]

Specifies whether the maximum transmission unit value should be set to other than the standard 1500. A

setting of 0 (zero) turns off override.

set link name name igmp-snooping [ off | on ]

Turns igmp-snooping off or on on the link named name.

Administrator’s Handbook

144

set link name name port-vlan ports [ lan-1... 4 | hpna | ssid-1...4 | ptm | vc-1 | vc-

2 ]

Specifies a port-based VLAN on the selected ports on the link named name.

set link name name port-vlan priority [ 0 - 7 ]

Specifies the 802.1p priority bit. If you set this to a value greater than 0, all packets of this VLAN with unmarked

priority bits (pbits) will be re-marked to this priority.

set link name name tagged-vlan name integer ports

[ lan-1... 4 | hpna | ssid-1...4 | ptm | vc-1 | vc-2 ]

Specifies a tagged VLAN on the selected port on the link named name. Default is ptm.

set link name name tagged-vlan name integer vid vlan_id

Specifies a VLAN ID (VID) on the selected link named name. Default is 0.

set link name name tagged-vlan name integer priority [ 0 - 7 ]

Specifies the 802.1p priority bit. If you set this to a value greater than 0, all packets of this VLAN with unmarked

priority bits (pbits) will be re-marked to this priority.

set link name name supplicant type [ none | eap-tls ]

Specifies whether the EAP TLS supplicant is enabled on the link named name. Default is eap-tls.

set link name name supplicant priority [ 0 - 7 ]

Sets the supplicant priority on the link named name when supplicant type is eap-tls. Default is 0.

set link name name ppp sub-link link_name

Specifies a name link_name for this secondary link when one is required.

set link name name ppp auth-type [ on | off ]

Enables or disables PPP login authorization.

set link name name ppp username uname

Specifies a user name uname for authentication on the specified link when ppp auth-type is set to on.

set link name name ppp password pwd

Specifies a password pwd for authentication on the specified link when ppp auth-type is set to on.

set link name name ppp magic-number [ on | off ]

Enables or disables LCP magic number negotiation.

145

set link name name ppp protocol-compression [ off | on ]

Specifies whether you want the NVG599 to compress the PPP Protocol field when it transmits datagrams over

the PPP link.

set link name name ppp max-failures integer

Specifies the maximum number of Configure-NAK messages the PPP module can send without having sent a

Configure-ACK message. The integer argument can be any number between 1 and 20.

set link name name ppp max-configures integer

Specifies the maximum number of unacknowledged configuration requests that your NVG599 will send. The

integer argument can be any number between 1 and 20.

set link name name ppp max-terminates integer

Specifies the maximum number of unacknowledged termination requests that your NVG599 will send before

terminating the PPP link. The integer argument can be any number between 1 and 10.

set link name name ppp restart-timer integer

Specifies the number of seconds the NVG599 should wait before retransmitting a configuration or termination

request. The integer argument can be any number between 1 and 30.

set link name name ppp connection-type [ instant-on | always-on ]

Specifies whether a PPP connection is maintained by the NVG599 device when it is unused for extended

periods. If you specify always-on, the NVG599 never shuts down the PPP link. If you specify instant-on, the

NVG599 shuts down the PPP link after the number of seconds specified in the timeout setting (below) if no

traffic is moving over the circuit.

set link name name ppp echo-request [ on | off ]

Specifies whether you want your NVG599 to send LCP echo requests. You should turn off LCP echoing if you do

not want the NVG599 to drop a PPP link to a nonresponsive peer.

set link name name ppp echo-failures integer

Specifies the maximum number of lost echoes the NVG599 should tolerate before bringing down the PPP

connection. The integer argument can be any number from between 1 and 20.

set link name name ppp echo-interval integer

Specifies the number of seconds the NVG599 should wait before sending another echo from an LCP echo

request. The integer argument can be any number from between 5 and 300 (seconds).

set link name name ppp mru integer

Specifies the maximum receive unit (MRU) for the PPP interface. The integer argument can be any number

between 128 and 1492 for PPPoE; 1500 otherwise.

Administrator’s Handbook

146

set link name name ppp peer-dns [ on | off ]

Controls whether the NVG599 accepts name server addresses from the peer.

The default is on, which means the NVG599 expects to get name server addresses when the PPP link comes

up. This especially applies when the primary WAN connection is PPP.

However, there are some unusual situations where the PPP connection is not the primary WAN, for example

when the connection is used only for management. In that situation it may be desirable to not pick up more

name server addresses. You can do that by setting the parameter to off.

Specifies an ISP name or a class or quality of service. The service name tells the access concentrator which

network service the NVG599 is trying to reach.

set link name name pppoe ac-name name

Specifies this particular access concentrator (AC) unit from all others. Some access provider networks may

have multiple PPPoE servers, and having the NVG599 indicate an AC name specifies to which one the NVG599

is trying to connect.

Management Commands

All management related items are grouped in this section.

set management account administrator username username

Specifies the username for the administrative user. The default is admin.

set management account user username username

Specifies the username for the non-administrative user. The default is user.

set management cwmp enable [ off | on ]

Turns cwmp (TR-069 CPE WAN Management Protocol) on or off. TR-069 allows a remote auto-config server

(ACS) to provision and manage the NVG599 device. TR-069 protects sensitive data on the NVG599 by not

advertising its presence, and by password protection.

set management cwmp acs-url acs_url:port_number

set management cwmp acs-username acs_username

set management cwmp acs-password acs_password

If TR-069 WAN-side management services are enabled, specifies the auto-config server URL and port number.

A user name and password must also be supplied, if TR-069 is enabled.



NOTE:

This is an expert-mode setting that will rarely be used. The setting should be left on, unless you are an expert

user who knows you do not want the NVG599 to acquire any name server addresses from this PPP connec-

tion.

147

The auto-config server is specified by URL and port number. The format for the ACS URL is as follows:

http://some_url.com:port_number

http://123.45.678.910:port_number

On units that support SSL, the format for the ACS URL can also be:

https://some_url.com:port_number

https://123.45.678.910:port_number

TR-064

DSL Forum TR-064 (“LAN Side CPE Configuration”) is an extension of UPnP (Universal Plug-and-Play). It defines

more services to locally manage the NVG599 device. While UPnP allows open access to configure the device's

features, TR-064 requires a password to execute any command that changes the device's configuration.

set management lanmgmt enable [ off | on ]

Turns TR-064 LAN side management services on or off. The default is off.

set management shell idle-timeout [ 1...120 ]

Specifies a timeout period of inactivity for Telnet access to the NVG599 device, after which a user must re-log

in to the NVG599. Default is 15 minutes for Telnet.

set management shell ssh-port [ 1 - 65534 ]

Specifies the port number for secure shell (SSH) communication with the NVG599. Defaults to port 0 (off).

set management shell telnet-port [ 1 - 65534 ]

Specifies the port number for Telnet (CLI) communication with the NVG599 device. Because port numbers in

the range 0-1024 are used by other protocols, you should use numbers in the range 1025-65534 when

assigning new port numbers to the NVG599 Telnet configuration interface. A setting of 0 (zero) will turn the

server off.

set management upnp enable [ off | on ]

Turns Universal Plug-and-Play (UPnP) on or off.

set management web http-port [ 1 - 65534 ]

Specifies the port number for HTTP (Web) communication with the NVG599 device. Because port numbers in

the range 0-1024 are used by other protocols, you should use numbers in the range 1025-65534 when

assigning new port numbers to the NVG599 Web configuration interface. A setting of 0 (zero) will turn the

server off.

set management web https-port [ 1 - 65534 ]

Sets the secure Web access port for secure management of the NVG599. Default is port 443.

Administrator’s Handbook

148

set management web https-cert-cn string

Specifies a certificate from a trusted certificate authority to identify the secure Web access.

set management web idle-timeout [ 1...120 ]

Specifies a timeout period of inactivity for HTTP access to the NVG599 device, after which a user must log in to

the NVG599. Default is 5 minutes for HTTP.

set management web isp-help-desk phone_number_string

Specifies the ISP Help Desk phone number as it appears in the Web UI. For AT&T, the default is: 1-800-288-

2020.

Remote Access Commands

set management remote-access http-port [ 1 - 65534 ]

Sets the Web access port for remote access management of the NVG599. Default is port 51003.

set management remote-access http-idle-timeout [ 1...120 ]

Specifies a timeout period of inactivity for remote HTTP access to the NVG599, after which a user must log in

to the device. Default is 20 minutes for HTTP.

set management remote-access http-total-timeout [ 1...120 ]

Specifies a total timeout period of inactivity for remote HTTP access to the NVG599, after which a user must

set management remote-access http-max-clients number

Specifies the maximum number of client sessions for remote Web access management. Defaults to 1 (one).

set management remote-access https-port [ 1 - 65534 ]

Sets the secure Web access port for remote access management of the NVG599. Default is port 51443.

set management remote-access https-idle-timeout [ 1...120 ]

Specifies a timeout period of inactivity for secure remote HTTPS access to the NVG599 device, after which a

user must log in to the device. Default is 20 minutes for HTTPS.

set management remote-access https-total-timeout [ 1...120 ]

Specifies a total timeout period of inactivity for secure remote HTTPS access to the NVG599 device, after which

a user must log in to the device. Default is 20 minutes for HTTPS.

set management remote-access https-max-clients number

Specifies the maximum number of client sessions for secure remote Web access management. Defaults to 1.



NOTE:

You cannot specify a port setting of 0 (zero) for both the Web and Telnet ports at the same time. This would

prevent you from accessing the NVG599.

149

set management remote-access telnet-port [ 1 - 65534 ]

Specifies the port number for remote access Telnet (CLI) communication with the NVG599 device. Because

port numbers in the range 0-1024 are used by other protocols, you should use numbers in the range 1025-

65534 when assigning new port numbers to the NVG599 Telnet configuration interface. A setting of 0 (zero)

will turn the server off. Defaults to port 0.

set management remote-access telnet-idle-timeout [ 1...120 ]

Specifies a timeout period of inactivity for remote Telnet access to the NVG599 device, after which a user must

set management remote-access telnet-total-timeout [ 1...120 ]

Specifies a total timeout period of inactivity for remote Telnet access to the NVG599 device, after which a user

must log in to the device. Default is 20 minutes for Telnet.

set management remote-access telnet-max-clients number

Specifies the maximum number of client sessions for remote Telnet access management. Defaults to 4.

set management remote-access ssh-port [ 1 - 65534 ]

Specifies the port number for secure shell (SSH) communication with the NVG599. Defaults to port 22.

set management remote-access ssh-idle-timeout [ 1...120 ]

Specifies a timeout period of inactivity for remote secure shell (SSH) access to the NVG599 device, after which

a user must log in to the device. Default is 5 minutes for SSH.

set management remote-access ssh-total-timeout [ 1...120 ]

Specifies a total timeout period of inactivity for remote secure shell (SSH) access to the NVG599 device, after

which a user must log in to the device. Default is 20 minutes for SSH.

set management remote-access ssh-max-clients number

Specifies the maximum number of client sessions for remote secure shell (SSH) access management. Defaults

to 4.

set management lan-redirect enable [ off | on ]

If set to on and a WAN failure condition is detected, the LAN client's browser is redirected to a Web page of

failure and Help text information. The redirect will only occur once, as the Web UI maintains a state variable to

determine whether the redirect has occurred; to continually redirect would block the user from reconfiguring

the router.

set management lan-redirect missing-filter-notify [ on | off ]

If set to on and a missing filter on the line is detected, the LAN client's browser is redirected to a Web page of

failure and Help text information. The redirect will only occur once, as the Web UI maintains a state variable to

determine whether the redirect has occurred; to continually redirect would block the user from reconfiguring

the router.

Administrator’s Handbook

150

set management lan-access wan-cpe-mgmt-block [ off | web | all ]

Blocks management of the device from the LAN via the Web or all interface(s).

TR-064

DSL Forum TR-064 (“LAN Side CPE Configuration”) is an extension of UPnP (Universal Plug-and-Play). It defines

more services to locally manage the NVG599 device. While UPnP allows open access to configure the device's

features, TR-064 requires a password to execute any command that changes the device's configuration.

set management lanmgmt enable [ off | on ]

Turns TR-064 LAN-side management services on or off. The default is off.

Physical Interfaces Commands

DSL interfaces

set physical dsl enable [ off | on ]

Turns the physical DSL interface off or on. Default is on.

set physical dsl dsl-mode [ auto | single | bonded ]

Sets the mode for the DSL connection, whether a single line or bonded. If the default auto is set, the device

will try both single and bonded, attempting to detect and lock on the mode in use.

set physical dsl loopback [ off | on ]

Turns the DSL loopback mode off or on. Default is off.

set physical dsl annexm [ off | on ]

Turns optional DSL Annex M off or on. Default is off. If enabled, data rates can be as high as 12 or 24 Mbit/s

downstream and 3 Mbit/s upstream depending on the distance from the DSLAM to the customer's premises.

set physical dsl modulation auto [ off | on ]

Turns automatic DSL modulation off or on. Default is off.

set physical dsl modulation vdsl2 [ off | on ]

Turns VDSL2 DSL modulation off or on. Default is on.

set physical dsl modulation adsl2 [ off | on ]

Turns ADSL2 DSL modulation off or on. Default is on.

set physical dsl modulation adsl2+ [ off | on ]

Turns ADSL2+ DSL modulation off or on. Default is on.

set physical dsl modulation annex-l [ off | on ]

Turns Annex-l DSL modulation off or on. Default is off.

151

set physical dsl modulation annex-m [ off | on ]

Turns Annex-M DSL modulation off or on. Default is off.

set physical dsl profile-8a [ on | off ]

Enables or disables VDSL2 profile 8a governing upstream and downstream bandwidth. Default is on.

set physical dsl profile-8b [ on | off ]

Enables or disables VDSL2 profile 8b governing upstream and downstream bandwidth. Default is on.

set physical dsl profile-8c [ on | off ]

Enables or disables VDSL2 profile 8c governing upstream and downstream bandwidth. Default is on.

set physical dsl profile-8d [ on | off ]

Enables or disables VDSL2 profile 8d governing upstream and downstream bandwidth. Default is on.

set physical dsl profile-12a [ on | off ]

Enables or disables VDSL2 profile 12a governing upstream and downstream bandwidth. Default is on.

set physical dsl profile-12b [ on | off ]

Enables or disables VDSL2 profile 12b governing upstream and downstream bandwidth. Default is on.

set physical dsl profile-17a [ on | off ]

Enables or disables VDSL2 profile 17a governing upstream and downstream bandwidth. Default is on.

set physical dsl profile-30a [ on | off ]

Enables or disables VDSL2 profile 30a governing upstream and downstream bandwidth. Default is off.

set physical dsl bit-swap [ on | off ]

Turns DSL bit-swapping on or off. Bit-swapping is resilient to loss of hand-shake commands. Default is on.

set physical dsl trellis [ on | off ]

Turns trellis error correction encoding on or off. Default is on.

set physical dsl vectoring-enable [ off | on ]

Enables or disables VDSL2 vectoring. Vectoring enables VDSL2 to achieve its highest potential data rates,

exceeding 100 Mbps. Default is off.

set physical dsl vectoring-timeout-ms milliseconds

If vectoring-enable is set to on, specifies a timeout interval in milliseconds. Default is 5000.

Administrator’s Handbook

152

set physical dsl nlnm-threshold [ 0 - 480 ]

Specifies the New Low Noise Model (NLNM) value between 0 and 480. Default is 60.

set physical dsl transport [ atm | ptm | auto | off ]

Sets the DSL transport mode: Asynchronous (atm), Packet (ptm), Automatic (auto), or none (off). Default is

ptm.

set physical dsl atm vcc 1 enable [ off | on ]

Turns ATM on or off on vcc 1. Default is on.

set physical dsl atm vcc 1 aal-type [ aal5 | aal0pkt | aal0cell ]

Sets the ATM Adaptation Layer type (aal-type): AAL5, AAL0-packet, or AAL0-cell. Default is aal5.

set physical dsl atm vcc 1 datapath [ phy0fast | phy0interleaved ]

Sets the ATM datapath, Fast Path or Interleaved. Default is phy0fast.

set physical dsl atm vcc 1 encap-type [ llcsnap-eth | llcsnap-rtip | llcencaps-ppp

| vcmux-eth | vcmux-ipoa | vcmux-pppoa ]

Specifies the data link encapsulation type. Default is llcsnap-eth.

set physical dsl atm vcc 1 vpi [ 0 - 255 ]

Sets the virtual path identifier (VPI) for the circuit. Default is 0.

set physical dsl atm vcc 1 vci [ 32 - 65535 ]

Sets the virtual channel identifier (VCI) for the circuit. Default is 35.

set physical dsl atm vcc 2 enable [ off | on ]

Turns ATM on or off on vcc 2. Default is on.

set physical dsl atm vcc 2 aal-type [ aal5 | aal0pkt | aal0cell ]

Sets the ATM adaptation layer type (aal-type): AAL5, AAL0-packet, or AAL0-cell. Default is aal5.

set physical dsl atm vcc 2 datapath [ phy0fast | phy0interleaved ]

Sets the ATM datapath, Fast Path or Interleaved. Default is phy0fast.

set physical dsl atm vcc 2 encap-type [ llcsnap-eth | llcsnap-rtip | llcencaps-ppp

| vcmux-eth | vcmux-ipoa | vcmux-pppoa ]

Specifies the data link encapsulation type. Default is llcsnap-eth.

set physical dsl atm vcc 2 vpi [ 0 - 255 ]

Sets the virtual path identifier (VPI) for the circuit. Default is 8.

153

set physical dsl atm vcc 2 vci [ 32 - 65535 ]

Sets the virtual channel identifier (VCI) for the circuit. Default is 35.

set physical dsl atm vcc vcc_num tx-queue queue_name

Attaches the egress queue template to the ATM VC when the queue type is egress.

set physical dsl atm vcc vcc_num rx-queue queue_name

Attaches the ingress queue to the ATM VC when the queue type is ingress.

set physical dsl ptm datapath [ phy0fast | phy0interleaved ]

Sets the ATM datapath, Fast Path or Interleaved. Default is phy0fast.

set physical dsl ptm priority [ low | high ]

Sets the packet transfer mode (PTM) priority. Default is low.

set physical dsl ptm tx-queue queue_name

Attaches the egress queue template to the PTM interface when the queue type is egress.

set physical dsl ptm rx-queue queue_name

Attaches the ingress queue to the PTM interface when the queue type is ingress.

set physical dsl atm vcc 1 auto-vpi-vci [ on | off ]

Turns automatic VPI/VCI detection on or off. If you leave the default on, the device will try a series of VPI/VCI

pairs that are commonly used by service providers. When one pair succeeds, the device will use this one for

future connections.

set physical dsl atm vcc 1 vpi-vci-list vpi_vci_pairs

Specifies the series of VPI/VCI pairs that the device will use to attempt a connection. The default set ("0/35 8/35

0/43 0/51 0/59 8/43 8/51 8/59") can be changed.

set physical dsl atm vcc 1 qos enable [ off | on ]

Turns QoS off or on on the virtual circuit. Default is off.

set physical dsl power-save enable [ off | on ]

Turns power saving mode off or on. Default is off.

Administrator’s Handbook

154

Ethernet Interfaces

set physical enet [ 1 - 4 ] mac-addr-override mac_addr

You can override your NVG599 device’s Ethernet MAC address with any necessary setting. Some ISPs require

your account to be identified by the MAC address, among other things. Enter your 12-character Ethernet MAC

override address as instructed by your service provider, for example: 12 34 AB CD 19 64

set physical enet [ 1 - 4 ] port media [ auto | 100-fd | 100-hd | 10-fd | 10-hd ]

Sets the Ethernet port’s media flow control: Automatic, 100 Mbps Full-Duplex, 100 Mbps Half-Duplex, 10 Mbps

Full-Duplex, or 10 Mbps Half-Duplex. Default is auto.

set physical enet [ 1 - 4 ] port mdix [ auto | on | off ]

Sets the Ethernet port’s crossover detection. Default is off.

set physical enet [ 1 - 4 ] tx-queue queue_name

Attaches the egress queue template to the Ethernet interface when the queue type is egress.

set physical enet [ 1 - 4 ] rx-queue queue_name

Attaches the ingress queue to the Ethernet interface when the queue type is ingress.

set physical enet [ 1 - 4 ] port power-save enable ""

Turns power saving mode off or on.

set physical ensw max-age seconds

Sets the maximum delay on the Ethernet switch in seconds. Default is 300 (5 minutes).

set physical ensw qos-mode [ off | p-bit ]

Sets QoS up on Ethernet switch, classified by priority-bit mapping. Default is off. When p-bit is selected,

packets will be mapped from their priority (even if untagged) to one of four queues per-port in the Ethernet

switch.

See “Quality of Service (QoS) Examples” on page 217 for more information.

set physical ensw p-bit-map pbit-to-4queue-map

Sets the mapping from the 8 priority-bits to the four queues in the Ethernet switch. The lowest priority queue

is “1”, and the highest priority queue is “4”.

Example: Mapping is “1 1 2 2 3 3 4 4", where priority bit values 0 and 1 would map to queue 1, and values 2

and 3 would map to queue 2, etc.



NOTE:

This setting only applies to packets sent from the host CPU to a switch port; it does not apply to port-to-port

traffic.

155

Wireless Interfaces

set physical wireless enable [ on | off ]

Enables or disables the wireless capability for supported Wi-Fi devices. Default is on.

Sets and locks the NVG599 into the wireless transmission mode you want: bg, b-only, g-only, bgn, n-only, an,

or a-only. For compatibility with clients using 802.11b (up to 11 Mbps transmission), 802.11g (up to 20+

Mbps), 802.11a (up to 54 Mbit/s using the 5 GHz band), or 802.11n (from 54 Mbit/s to 600 Mbit/s with the use

of four spatial streams at a channel width of 40 MHz), select b/g/n. To limit your wireless LAN to one mode or

the other, select g-only, n-only, a-only, or b-only, or some combination that applies to your setup. Default is

bgn.

set physical wireless auto-channel [ off | on ]

Turns auto-channel selection on or off.

set physical wireless bandwidth [ narrow | wide ]

Specifies whether the Wi-Fi channel is narrow or wide band. Default is narrow in compliance with FCC

requirements.

set physical wireless default-channel [ 1... 11 ]

(1 through 11, for North America) on which the network will broadcast. This is a frequency range within the

2.4 Ghz band. Channel selection can have a significant impact on performance, depending on other wireless

activity close to this router. Channel selection is not necessary at the client computers; the clients will scan the

available channels seeking access points using the same SSID as the client. Defaults to 6.

set physical wireless power [ 1 - 100 ]

Sets some value lower than 100 percent transmit power if your NVG599 device is located close to other Wi-Fi

devices and causes interference. Defaults to 100 (percent).

set physical wireless mul2uni [ off | on ]

Turns wireless “many-to-one” packet scheduling off or on. Default is off.

set physical wireless ssid 1 enable [ on | off ]

Enables or disables the first (default) Wi-Fi SSID.

set physical wireless ssid 1 name name

Specifies a name for the first Wi-Fi SSID. Defaults to a unique value per router of the form “ATTxxx”.

set physical wireless ssid 1 access-type [ none | allow | deny ]

Specifies the type of address list for defining MAC address filtering. If set to allow, only hosts with the specified

addresses will be permitted to join the WLAN of the specified SSID. If set to deny, any hosts except those with

the specified addresses will be permitted to join the specified SSID. Default is none.

Administrator’s Handbook

156

set physical wireless ssid 1 access-list mac_address

Specifies the MAC address of devices controlled by MAC address filtering.

set physical wireless ssid 1 hidden [ off | on ]

Enables or disables SSID hiding for the specified SSID. If set to on, the specified SSID will not appear on client

scans. Clients must log into the SSID with the exact SSID name and credentials specified for that SSID.

set physical wireless ssid 1 isolate [ off | on ]

If set to on, blocks wireless clients from communicating with other wireless clients on the WLAN side of the

NVG599. Defaults to off.

set physical wireless ssid 1 security [ none | wep | wpa ]

Sets the wireless privacy type: none, wep, or wpa-psk. Default is none.

set physical wireless ssid 2 enable [ off | on ]

Enables or disables the second available SSID.

set physical wireless ssid 3 enable [ off | on ]

Enables or disables the third available SSID.

set physical wireless ssid 4 enable [ off | on ]

Enables or disables the fourth available SSID.

set physical wireless wps [ on | off ]

Enables or disables Wi-Fi Protected Setup (WPS) for simplified security configuration with Wi-Fi clients that

support it.

set physical wireless wmm enable [ off | on ]

Enables or disables Wi-Fi multimedia settings for multimedia queueing characteristics.

set physical wireless wmm power-save [ off | on ]

Turns power saving mode off or on for wireless multimedia when wmm enable is on. Default is on.

157

PPPoE Relay Commands

set pppoe-relay enable [ on | off ]

Allows the NVG599 device to forward PPPoE packets. Default is on.

set pppoe-relay max-sessions [ 0... 4 ]

Specifies the maximum number of PPPoE relay sessions. Default is 4.

NAT Pinhole Commands

NAT pinholes let you pass specific types of network traffic through the NAT interfaces on the NVG599. NAT

pinholes allow you to route selected types of network traffic, such as FTP requests or HTTP (Web) connections,

to a specific host behind the NVG599 transparently.

To set up NAT pinholes, you identify the type(s) of traffic you want to redirect by port number, and you specify

the internal host to which each specified type of traffic should be directed.

The following list identifies protocol type and port number for common TCP/IP protocols:

FTP (TCP 21)

Telnet (TCP 23)

SMTP (TCP 25),

TFTP (UDP 69)

set pinhole name name protocol [ tcp | udp ]

Specifies the identifier for the entry in the NVG599 device's pinhole table. You can name pinhole table entries

sequentially (1, 2, 3), by port number (21, 80, 23), by protocol, or by some other naming scheme. Specifies the

type of protocol being redirected.

set pinhole name name ext-port-range [ 0 - 49151 ]

Specifies the first and last port number in the range being translated.

set pinhole name name int-addr ipaddr

Specifies the IP address of the internal host to which traffic of the specified type should be transferred.

set pinhole name name int-start-port [ 0 - 65535 ]

Specifies the port number your NVG599 device should use when forwarding traffic of the specified type. Under

most circumstances, you would use the same number for the external and internal port.



NOTE:

When configuring a PPPoE connection, you must also configure the required PPPoE authentication details

(such as user name and password combinations) on the client computer.

Administrator’s Handbook

158

Security Stateful Packet Inspection (SPI) Commands

set security firewall-level [ low | high | off ]

All computer operating systems are vulnerable to attack from outside sources, typically at the operating

system or Internet Protocol (IP) layers. Stateful inspection firewalls intercept and analyze incoming data

packets to determine whether they should be admitted to your private LAN, based on multiple criteria, or

blocked. Stateful inspection improves security by tracking data packets over a period of time, examining

incoming and outgoing packets. Outgoing packets that request specific types of incoming packets are tracked;

only those incoming packets constituting a proper response are allowed through the firewall.

The high setting is recommended, but for special circumstances, a low level of firewall protection is available.

You can also turn all firewall protection off. Defaults to low.

set security spi ip4 invalid-addr-drop [ on | off ]

Enables or disables whether broadband packets with invalid source or destination addresses should be

dropped. Default is on.

set security spi ip4 private-addr-drop [ on | off ]

Enables or disables whether broadband packets with private source or destination addresses should be

dropped. Default is off.

set security spi unknown-ethertypes-drop [ on | off ]

Enables or disables whether packets with unknown ether types are to be dropped. Default is on.

set security spi portscan-protect [ on | off ]

Enables or disables whether to detect and drop port scans. Default is on.

set security spi invalid-tcp-flags-drop [ on | off ]

Enables or disables whether packets with invalid TCP flag settings (NULL, FIN, Xmas, etc.) are to be dropped.

Default is on.

set security spi ip4 invalid-addr-drop [ on | off ]

Blocks broad sets of addresses that should not be used as either source or destination addresses, or both.

These include the following:

The default is on.

IP address/mask Source or destination

10.0.0.0/8 source

192.168.0.0.0/16 source

169.254.0.0/16 source

172.16.0.0/12 source

224.0.0.0/4 Source / destination

224.0.0.0/5 Source / destination

0.0.0.0/8 Source / destination

255.255.255.255 destination

159

set security spi ip4 private-addr-drop [ off | on ]

Drops packets sourced or destined for private IPv4 addresses. The default is off.

set security spi flood-limit enable [ on | off ]

Enables or disables whether packet flooding should be detected and offending packets be dropped. Default is

on.

set security spi flood-limit limit pps_value

Sets a maximum packets-per-second (PPS) value for packet flood criterion. Defaults to 4.

set security spi flood-limit burst-limit max_value

Sets a maximum value in a packet-burst for packet flood criterion. Defaults to 8.

set security spi flood-limit icmp enable [ on | off ]

Enables or disables whether ICMP packet flooding should be detected and offending packets be dropped.

Defaults to on.

set security spi flood-limit udp enable [ off | on ]

Enables or disables whether UDP packet flooding should be detected and offending packets be dropped.

Defaults to off.

set security spi flood-limit tcp enable [ off | on ]

Enables or disables whether TCP packet flooding should be detected and offending packets be dropped.

Defaults to off.

set security spi flood-limit tcp syn-cookie [ on | off ]

Allows TCP SYN cookies flooding to be excluded. Defaults to on.

Reflexive ACL

set security spi ip6 allow-inbound [ on | off ]

Turns reflexive ACL on or off for IPv6.

Reflexive access control lists (ACL) provide that Layer 4 session information is used to make decisions about

what packets to route. Reflexive ACL reduces exposure to spoofing and denial-of-service attacks, because

desired inbound packet flows are usually in response to outbound traffic.

ARRIS 9.x DSL gateways use the relevant session information about whether the packet flow was initiated from

the LAN side (upstream) or WAN side (downstream). If the parameter security.spi.ip6.allow-inbound is set to

off, then sessions which are initiated from the WAN side are disallowed. Upstream sessions are never

precluded because of reflexive ACL. (Of course there may be other reasons that particular packets are

dropped.)

For IPv4, NAT is generally enabled, thus reflexive ACL is usually not an issue.

Administrator’s Handbook

160

VoIP Commands

(supported models only)

Voice-over-IP (VoIP) refers to the ability to make voice telephone calls over the Internet. This differs from

traditional phone calls that use the public switched telephone network (PSTN). VoIP calls use an Internet

protocol, Session Initiation Protocol (SIP), to transmit sound over a network or the Internet in the form of data

packets. Certain ARRIS gateway models have one or more voice ports for connecting telephone handsets.

These models support VoIP. If your gateway is a VoIP model, you can configure the VoIP features.

VoIP Profile Settings

set voip profile [ 1 - 4 ] prof-enable [ on | off ]

Enables or disables the use and configuration of the specified VoIP profile on the NVG599.

set voip profile [ 1 - 4 ] proxy-server address

Specifies the IP address or fully-qualified domain name of the SIP proxy server that stations using the profile

will connect to.

set voip profile [ 1 - 4 ] proxy-port port

Sets the well-known port number the station using the profile will use to connect to the SIP proxy. Default is

5060.

set voip profile [ 1 - 4 ] proxy-transport udp

Assigns a proxy transport protocol to the VoIP profile. Default is udp.

set voip profile [ 1 - 4 ] registrar-server address

Specifies the IP address or fully-qualified domain name of the SIP registrar (server) that stations using the

profile will connect to.

set voip profile [ 1 - 4 ] registrar-port portnumber

Sets the well-known port number the user agent using the profile will use to connect to the SIP registrar.

Default is 5060.

set voip profile [ 1 - 4 ] registrar-transport [ tcp | udp | tls ]

Assigns a registrar transport protocol to the VoIP profile. Default is udp.

set voip profile [ 1 - 4 ] sip-expires [ 0 – 65535 ]

Specifies the SIP registration server timeout duration from 0 – 65535 seconds for the specified profile. Default

is 3600 (1 hour).

set voip profile [ 1 - 4 ] outbound-proxy-server address

Specifies the SIP outbound proxy server for the specified profile by fully qualified server name or IP address.

set voip profile [ 1 - 4 ] outbound-proxy-port portnumber

Specifies the SIP outbound proxy server port for the specified profile. Default is 5060.

161

set voip profile [ 1 - 4 ] sip-user-domain name

Sets the SIP user domain value to be used by the VoIP profile.

set voip profile [ 1 - 4 ] sip-user-port [ 1 - 65535 ]

Specifies the SIP user port for the specified phone, Default is 5060.

set voip profile [ 1 - 4 ] sip-user-transport [ tcp | udp ]

Assigns a transport protocol to the identified VoIP SIP profile. Default is udp.

set voip profile [ 1 - 4 ] invite-expires seconds

Assigns the “lifespan” of a SIP INVITE message for the identified profile.

set voip profile [ 1 - 4 ] reinvite-expires seconds

Sets the amount of time a SIP user agent with the named profile will consider a re-INVITE message valid.

set voip profile [ 1 - 4 ] reg-retry-interval seconds

Specifies the number of seconds that must elapse before a SIP user agent using the named profile may attempt

to retry registration.

set voip profile [ 1 - 4 ] reg-min-expires seconds

Assign the profile a minimum length of time until a registration expires and must be renewed.

set voip profile [ 1 - 4 ] registration-period seconds

Sets the amount of time that a registration remains valid.

set voip profile [ 1 - 4 ] max-retrans-invite times

Assigns the profile a maximum number of INVITE message retries. Default: 3.

set voip profile [ 1 - 4 ] max-retrans-non-invite times

Assigns the profile a maximum number of non-INVITE message retransmissions. Default: 4.

set voip profile [ 1 - 4 ] sip-publish-method PUBLISH

Sets the specified profile’s SIP event state publication method to PUBLISH.

set voip profile [ 1 - 4 ] sip-publish-destination "DEFAULT"

Sets the specified profile’s SIP event state published destination to DEFAULT.

set voip profile [ 1 - 4 ] sip-publish-destination2 "NULL"

Clears (assign to NULL) the specified SIP profile’s second published destination.

Administrator’s Handbook

162

set voip profile [ 1 - 4 ] sip-publish-invocation never

Sets the specified profile to never invoke PUBLISH.

set voip profile [ 1 - 4 ] sip-publish-interval seconds

Assigns the publication interval to the specified profile.

set voip profile [ 1 - 4 ] sip-publish-count -1

Sets the number of SIP publication events for the profile.

set voip profile [ 1 - 4 ] sip-advanced-setting sip-hk-flash-mode info

Assigns a SIP HK Flash mode to the profile.

set voip profile [ 1 - 4 ] sip-advanced-setting sip-session-refresher auto

Assigns a SIP session refresh method to the identified profile.

set voip profile [ 1 - 4 ] sip-advanced-setting sip-session-timer-value [value]

Configures the SIP session timer value for the profile. Default: 2280.

set voip profile [ 1 - 4 ] sip-advanced-setting sip-dynamic-payload [value]

Sets the dynamic payload value for the identified profile. Default: 101.

set voip profile [ 1 - 4 ] sip-advanced-setting sip-dtmf-mode [inband | rfc2833 |

info]

Assigns a DTMF signaling mode for the SIP profile.

inband: sends the DTMF digits as a normal inband tone.

rfc2833: (default) sends the DTMF digits as an event as part of the RTP packet header information.

info: sends the DTMF digits in the SIP INFO message.

Default: rfc2833.

set voip profile [ 1 - 4 ] sip-advanced-setting sip-digit-map

"O=15,I=6,S=3(*#101<:@C03>|*#103<:@C06>|T0|T*xx|T*xxx|E[2-

9]11|E[01]911|1[2-9]xxxxxxxxx|T[2-9]xxxxxx|[2-9]xxxxxxxxx|n.)"

Assigns the specified digit map to the SIP profile.

set voip profile [ 1 - 4 ] sip-advanced-setting sip-compact-header [ on | off ]

Sets the profile to use compact format when set to on. Sends the SIP messages with compact headers,

reducing the size of the SIP messages.

set voip profile [ 1 - 4 ] sip-advanced-setting sip-q-value [ 0 - 10 ]

Assigns a prioritizing SIP q-value to the profile. Default: 10.

163

set voip profile [ 1 - 4 ] sip-advanced-setting sip-qos-tos [ 0 - 255 ]

Specifies the SIP DiffServ type of service (ToS) values for Quality of Service (QoS) assignment. Default: 160.

set voip profile [ 1 - 4 ] sip-advanced-setting sip-qos-p-bit [ 0 - 7 ]

Assigns a Quality of Service priority bit (p-bit) value to the SIP profile. Default: 6.

set voip profile [ 1 - 4 ] sip-advanced-setting sip-qos-marker [ value ]

Assigns a QoS packet marker to the SIP profile. Default: VO.

set voip profile [ 1 - 4 ] sip-advanced-setting fax-redundancy-level [ 0 - 1 ]

Specifies the level of fax redundancy for t38 fax data rate management. Default: 1.

set voip profile [ 1 - 4 ] sip-advanced-setting sip-init-de-register [ on | off ]

Turns SIP de-registration on or off for the profile. Default: or both.

set voip profile [ 1 - 4 ] sip-advanced-setting sip-known-ip-list "[string]"

Specifies a known IP address list of SIP servers for the SIP profile.

set voip profile [ 1 - 4 ] sip-advanced-setting sip-allow-ip-list "[string]"

Defines a string of named SIP servers that the profile may use.

set voip profile [ 1 - 4 ] sip-advanced-setting sip-t1-timer-value 500

Assigns a SIP t1 (estimated round trip time) value to the profile.

set voip profile [ 1 - 4 ] sip-advanced-setting sip-t2-timer-value 4000

Assigns a SIP t2 (maximum non-INVITE retransmit time) value to the profile.

set voip profile [ 1 - 4 ] sip-advanced-setting sip-t4-timer-value 5000

Assigns a SIP t4 (message clear time) value to the profile.

set voip profile [ 1 - 4 ] sip-advanced-setting sip-timer-a-value 500

Assigns a SIP A timer (UDP INVITE retransmit interval) value to the profile.

set voip profile [ 1 - 4 ] sip-advanced-setting sip-timer-b-value 32000

Assigns a SIP B timer (INVITE transaction timeout) value to the profile.

set voip profile [ 1 - 4 ] sip-advanced-setting sip-timer-c-value 0

Assigns a SIP C timer value to the profile.

set voip profile [ 1 - 4 ] sip-advanced-setting sip-timer-d-value 32000

Assigns a SIP D timer (response retransmission time) value to the profile.

Administrator’s Handbook

164

set voip profile [ 1 - 4 ] sip-advanced-setting sip-timer-e-value 500

Assigns a SIP E timer (UDP non-INVITE retransmit interval) value to the profile.

set voip profile [ 1 - 4 ] sip-advanced-setting sip-timer-f-value 32000

Assigns a SIP F timer (non-INVITE retransmit interval) value to the profile.

set voip profile [ 1 - 4 ] sip-advanced-setting sip-timer-g-value 500

Assigns a SIP G timer (INVITE response retransmit interval) value to the profile.

set voip profile [ 1 - 4 ] sip-advanced-setting sip-timer-h-value 32000

Assigns a SIP H timer (ACK reciept wait time) value to the profile.

set voip profile [ 1 - 4 ] sip-advanced-setting sip-timer-i-value 5000

Assigns a SIP I timer (ACK retransmit wait time) value to the profile.

set voip profile [ 1 - 4 ] sip-advanced-setting sip-timer-j-value 32000

Assigns a SIP J timer (non-INVITE retransmit request wait time) value to the profile.

set voip profile [ 1 - 4 ] sip-advanced-setting sip-timer-k-value 0

Assigns a SIP K timer (response retransmission wait time) value to the profile.

set voip profile [ 1 - 4 ] sip-advanced-setting sip-reset-code "code"

Sets the SIP reset code for the profile. Default: 101

set voip profile [ 1 - 4 ] sip-advanced-setting sip-timer-shortinterdigit-value

[value]

Sets an interdigit (short) timer value for the profile. Default: 0

set voip profile [ 1 - 4 ] sip-advanced-setting sip-timer-interdigit-value [value]

Sets an interdigit timer value to the profile. Default: 0.

set voip profile [ 1 - 4 ] rtp-advanced-setting rtp-qos-tos [value]

Assigns a Real Time Protocol terms of service number code to the VoIP profile. Default: 184.

set voip profile [ 1 - 4 ] rtp-advanced-setting rtp-qos-p-bit [ 0 - 7]

Sets a Real Time Protocol Priority bit (P-bit) value to the VoIP profile. Default: 6.

set voip profile [ 1 - 4 ] rtp-advanced-setting rtp-qos-marker "string"

Assigns a Real Time Protocol QoS packet marker to the VoIP profile. Default VO.

165

set voip profile [ 1 - 4 ] rtp-advanced-setting rtp-port-range-start [value]

Defines the beginning of the VoIP Real Time Protocol port range assigned to the profile. Default: 6002.

set voip profile [ 1 - 4 ] rtp-advanced-setting rtp-port-range-end [value]

Defines the end of the VoIP Real Time Protocol port range assigned to the profile. Default: 6200.

set voip profile [ 1 - 4 ] rtp-advanced-setting rtcp-option [ on | off ]

Configures the Real Time Control Protocol (RTCP) setting for the VoIP profile.

set voip profile [ 1 - 4 ] rtp-advanced-setting rtcp-repeat-interval [value]

Assigns a Real Time Control Protocol repeat interval value to the VoIP RTP profile. Default: 5000

set voip profile [ 1 - 4 ] advanced-telephony-setting fxs-port-setting-for-fxo [

none | fxs1 | fxs2 | both | emgncy ]

Sets a port to be used for the FXS (foreign exchange station) interface port to the FXO (foreign exchange office)

interface—the phone—port. Default is none.

set voip profile [ 1 - 4 ] advanced-telephony-setting t38-option [ on | off ]

Enables or disables T.38 fax capability for the VoIP profile.

set voip profile [ 1 - 4 ] advanced-telephony-setting sip-dynamic-line-selection

[ on | off ]

Turns dynamic (next available) line selection off or on for the identified VoIP profile. Default is off.

set voip profile [ 1 - 4 ] advanced-telephony-setting sip-dns-ns [ on | off ]

Enables or disables SIP DNS NS records (for Authoritative Name Server zone specification).

set voip profile [ 1 - 4 ] advanced-telephony-setting sip-dns-naptr [ on | off ]

Enables or disables the Name Authority Pointer (NAPTR) DNS function in the SIP profile.

set voip profile [ 1 - 4 ] advanced-telephony-setting sip-dns-srv [ on | off ]

Enables or disables the use of DNS Service Locator (SRV) functions in the profile.

set voip profile [ 1 - 4 ] advanced-telephony-setting announcement-setting

announcement-battery-alert-option [ on | off ]

Enables or disables the autonomous announcement of battery alert conditions in the VoIP profile.

set voip profile [ 1 - 4 ] advanced-telephony-setting battery-notification-setting

battery-notification-interval [value]

Specifies the number of seconds between battery notification messages.

Administrator’s Handbook

166

set voip profile [ 1 - 4 ] advanced-telephony-setting battery-notification-setting

battery-notification-tod-start "[HH:MM]AM | [HH:MM]PM"

Assigns a start time for battery notification message generation to the profile.

set voip profile [ 1 - 4 ] advanced-telephony-setting battery-notification-setting

battery-notification-tod-end "[HH:MM]AM | [HH:MM]PM"

Assigns an end time for battery notification message generation to the profile.

set voip profile [ 1 - 4 ] advanced-telephony-setting testline-setting voip-

testline-mode Always

Assigns a line test mode to the VoIP profile specified.

set voip profile [ 1 - 4 ] advanced-telephony-setting testline-setting

voip-testline-maxlenX5s [value]

Sets the maximum X5s length to the profile’s testline settings. Default: 6.

set voip profile [ 1 - 4 ] advanced-telephony-setting testline-setting

voip-testline-maxfreq [value]

Sets the maximum frequency of line tests for the VoIP profile. Default: 10.

set voip profile [ 1 - 4 ] user-account [ 1 - 4 ] enable [ on | off ]

Enables or disables the identified VoIP user account (individual account) on the specified VoIP profile.

set voip profile [ 1 - 4 ] user-account [ 1 - 4 ] voip-testline-option [ on | off ]

Enables or disables the test line option for the named user account on the VoIP profile. Default: off.

set voip profile [ 1 - 4 ] user-account [ 1 - 4 ] fxs-line 1

Sets a line in the user account to support FXS (foreign exchange station) interface. Default is none.

set voip profile [ 1 - 4 ] user-account [ 1 - 4 ] sip-user-disp-name “[string]”

Assigns a display name for the identified user account on the specified VoIP profile. Default: 1000.

set voip profile [ 1 - 4 ] user-account [ 1 - 4 ] sip-user-name “[string]”

Adds a user name value to the VoIP profile SIP user account. Default: 1000.

set voip profile [ 1 - 4 ] user-account [ 1 - 4 ] sip-user-password “[string]”

Sets the SIP password for the user account on the VoIP profile.



NOTE:

User account settings may be specified for disabled user accounts, but the features will not be available

unless the account is enabled.

167

set voip profile [ 1 - 4 ] user-account [ 1 - 4 ] sip-user-auth-id “[string]”

Defines a user authentication ID value for the user account on the VoIP profile. Default: 1000.

set voip profile [ 1 - 4 ] user-account [ 1 - 4 ] sip-uri ""

Assigns a SIP Uniform Resource Identifier (URI) to the specified user account.

set voip profile [ 1 - 4 ] user-account [ 1 - 4 ] sip-subscribe-expires [time]

Sets the expiration timer value for SIP subscriptions by the identified user account. Default: 3600.

set voip profile [ 1 - 4 ] user-account [ 1 - 4 ] sip-service-outage-detect [ on | off]

Enables or disables the detection of SIP service outages by the user account.

set voip profile [ 1 - 4 ] user-account [ 1 - 4 ] codec G711U priority [ 1 - 7 | none ]

Assigns a priority value to the Mu-law (G711U) codec on the user account. Default: 1

set voip profile [ 1 - 4 ] user-account [ 1 - 4 ] codec G711U packetization-time

[value]

Assigns a packetization time value to the Mu-law (G711U) codec on the user account. Default: 20

set voip profile [ 1 - 4 ] user-account [ 1 - 4 ] codec G711A priority [ 1 - 7 | none ]

Assigns a priority value to the a-law (G711A) codec on the user account. Default: 2

set voip profile [ 1 - 4 ] user-account [ 1 - 4 ] codec G711A packetization-time

[value]

Assigns a packetization time value to the a-law (G711A) codec on the user account. Default: 20

set voip profile [ 1 - 4 ] user-account [ 1 - 4 ] codec G729 priority [ 1 - 7 | none ]

Assigns a priority value to the G.729 codec on the user account. Default: 7

set voip profile [ 1 - 4 ] user-account [ 1 - 4 ] codec G729 packetization-time

[value]

Assigns a packetization time value to the G.729 codec on the user account. Default: 20

set voip profile [ 1 - 4 ] user-account [ 1 - 4 ] codec G729 annexb-support [ on |

off ]

Enables or disables G.729 Annex-B support on the specified user account. Default: off.

set voip profile [ 1 - 4 ] user-account [ 1 - 4 ] codec G726_16 priority [ 1 - 7 |

none ]

Assigns a priority value to the 16 kbit/s G.726 codec on the user account. Default: 3.

Administrator’s Handbook

168

set voip profile [ 1 - 4 ] user-account [ 1 - 4 ] codec G726_16 payload-type

[value]

Assigns a payload value to the 16 kbit/s G.726 codec on the user account. Default: 102.

set voip profile [ 1 - 4 ] user-account [ 1 - 4 ] codec G726_16 packetization-time

[value]

Assigns a packetization time value to the 16 kbit/s G.726 codec on the user account. Default: 20

set voip profile [ 1 - 4 ] user-account [ 1 - 4 ] codec G726_24 priority [ 1 - 7 | none

]

Assigns a priority value to the 24 kbit/s G.726 codec on the user account. Default: 4

set voip profile [ 1 - 4 ] user-account [ 1 - 4 ] codec G726_24 payload-type

[value]

Assigns a payload value to the 24 kbit/s G.726 codec on the user account. Default: 103

set voip profile [ 1 - 4 ] user-account [ 1 - 4 ] codec G726_24 packetization-time

[value]

Assigns a packetization time value to the 24 kbit/s G.726 codec on the user account. Default: 20

set voip profile [ 1 - 4 ] user-account [ 1 - 4 ] codec G726_32 priority [ 1 - 7 | none

]

Assigns a priority value to the 32 kbit/s G.726 codec on the user account. Default: 5.

set voip profile [ 1 - 4 ] user-account [ 1 - 4 ] codec G726_32 packetization-time

[value]

Assigns a packetization time value to the 32 kbit/s G.726 codec on the user account. Default: 20

set voip profile [ 1 - 4 ] user-account [ 1 - 4 ] codec G726_40 priority [ 1 - 7 | none

]

Assigns a priority value to the 40 kbit/s G.726 codec on the user account. Default: 6.

set voip profile [ 1 - 4 ] user-account [ 1 - 4 ] codec G726_40 payload-type

[value]

Assigns a payload value to the 40 kbit/s G.726 codec on the user account. Default: 105.

set voip profile [ 1 - 4 ] user-account [ 1 - 4 ] codec G726_40 packetization-time

[value]

Assigns a packetization time value to the 40 kbit/s G.726 codec on the user account. Default: 20

set voip profile [ 1 - 4 ] user-account [ 1 - 4 ] codec AMR priority [ 1 - 7 | none ]

Assigns a priority value to the Adaptive Multi-Rate (AMR) - Narrowband audio codec on the user account.

Default: none.

169

set voip profile [ 1 - 4 ] user-account [ 1 - 4 ] codec AMR payload-type [value]

Assigns a payload value to the AMR codec on the user account. Default: 120

set voip profile [ 1 - 4 ] user-account [ 1 - 4 ] codec AMR packetization-time

[value]

Assigns a packetization time value to the AMR codec on the user account. Default: 20

set voip profile [ 1 - 4 ] user-account [ 1 - 4 ] codec AMR_WB priority [ 1 - 7 |

none ]

Assigns a priority value to the Adaptive Multi-Rate Wideband (AMR-WB) audio codec on the user account.

Default: none.

set voip profile [ 1 - 4 ] user-account [ 1 - 4 ] codec AMR_WB payload-type

[value]

Assigns a payload value to the AMR-WB codec on the user account. Default: 122

set voip profile [ 1 - 4 ] user-account [ 1 - 4 ] codec AMR_WB packetization-time

[value]

Assigns a packetization time value to the AMR-WB codec on the user account. Default: 20

set voip profile [ 1 - 4 ] user-account [ 1 - 4 ] call-feature

call-forwarding-all-option [ on | off ]

Turns unconditional call forwarding on or off for the specified user account.

set voip profile [ 1 - 4 ] user-account [ 1 - 4 ] call-feature

call-forwarding-on-busy-option [ on | off ]

Enables or disables call forwarding when the line is busy for the specified user account.

set voip profile [ 1 - 4 ] user-account [ 1 - 4 ] call-feature

call-forwarding-on-no-answer-option [ on | off ]

Turns no-answer call forwarding on or off for the specified user account.

set voip profile [ 1 - 4 ] user-account [ 1 - 4 ] call-feature call-waiting-option [ on

| off ]

Eanbles or disables call waiting for the specified user account.

set voip profile [ 1 - 4 ] user-account [ 1 - 4 ] call-feature call-conferencing-

option [ on | off ]

Enables or disables 3-way conferencing for the user account.

set voip profile [ 1 - 4 ] user-account [ 1 - 4 ] call-feature do-not-disturb-option [

on | off ]

Activates or deactivates the ring-prevention (do not disturb) option for the specified user account.

Administrator’s Handbook

170

set voip profile [ 1 - 4 ] user-account [ 1 - 4 ] call-feature subscribe-mwi-option [

on | off ]

Enables or disables the message waiting indicator for the user account.

set voip profile [ 1 - 4 ] user-account [ 1 - 4 ] call-feature subscribe-send-mes-

sage [ on | off ]

Enables or disables message sending for the user account.

set voip profile [ 1 - 4 ] user-account [ 1 - 4 ] call-feature

anonymous-call-block-option [ on | off ]

Sets the user account to block (on) or accept (off) calls from unidentified sources.

set voip profile [ 1 - 4 ] user-account [ 1 - 4 ] call-feature call-transfer-option

[on | off ]

Enables or disables the call transfer function on the user account.

set voip profile [ 1 - 4 ] user-account [ 1 - 4 ] call-feature

call-disconnsupervision-option [ on | off ]

Enables or disables disconnection supervision on the user account.

set voip profile [ 1 - 4 ] user-account [ 1 - 4 ] call-feature call-osi-signaldur [

value ]

Assigns an OSI signal duration value to the account. Default: 800.

set voip profile [ 1 - 4 ] user-account [ 1 - 4 ] dsp-settings

echo-option [ echo-off | echo-on | echo-on-nlp |echo-on-cng-nlp ]

Specifies the conditions under which the user account will invoke or disable echo cancellation. Default: echo-

on-cng-nlp

set voip profile [ 1 - 4 ] user-account [ 1 - 4 ] dsp-settings echo-tail-length 0

Specifies the length of the Digital Signal Processor (DSP) echo tail in milliseconds. Default: 0.

set voip profile [ 1 - 4 ] user-account [ 1 - 4 ] dsp-settings vad-option [ on | off ]

Enables or disables voice activity deetection (VAD) in the DSP for the user account.

171

Targeted Ad Insertion Commands

set targeted-ad-insertion enable [ on | off ]

Turns targeted ad insertion on or off. Default is on.

set targeted-ad-insertion v-zone-ad [ on | off ]

Specifies whether the targeted ad is zone-specific. Default is on.

set targeted-ad-insertion sender-ssrc [ 0... n ]

Specifies the synchronization source identifier for the sender.

set targeted-ad-insertion carousel-ip-address ip_address

Specifies the IP address of the ad carousel server.

set targeted-ad-insertion carousel-port [ 0... n ]

Specifies the port of the ad carousel server.

set targeted-ad-insertion vcc-group-id [ 0... n ]

Specifies the VCC group identifier of the ad carousel server.

set targeted-ad-insertion key-identification-counter [ 0... n ]

Sets a counter value for the ad key indentifier.

set targeted-ad-insertion authentication-key string

Specifies an authentication key for the targeted ads.

set targeted-ad-insertion channel-change-notification [ on | off ]

Turns the “change the channel’ notification on or off. Default is on.

set targeted-ad-insertion retransmit [ on | off ]

Turns ad retransmission on or off. Default is on.

set targeted-ad-insertion unicast-filter [ on | off ]

Turns unicast filtering on or off. Default is on.

set targeted-ad-insertion blocked-unicast-sources string

Specifies names of unicast targeted ad sources to be blocked.

set targeted-ad-insertion hello-interval seconds

Specifies an interval for ad insertion in seconds. Default is 7200 (2 hours).

Administrator’s Handbook

172

set targeted-ad-insertion hello-retransmit-min seconds

Specifies a minimum interval for retransmission of ad insertion in seconds. Default is 15 seconds.

set targeted-ad-insertion hello-retransmit-max seconds

Specifies a maximum interval for retransmission of ad insertion in seconds. Default is 300 seconds.

set targeted-ad-insertion vcc-ip-address ip_address

Specifies the VCC IP address of the ad carousel server.

set targeted-ad-insertion vcc-port [ 0... n ]

Specifies the VCC port of the ad carousel server.

set targeted-ad-insertion zones zone_number

Specifies the zone for targeted ads when v-zone-ad is set to on.

set targeted-ad-insertion during-ad-timeout value

Sets a timeout value. Default is 25,000.

173

System Commands

set system name name

Specifies the name of your NVG599 device. Each NVG599 is assigned a name as part of its factory initialization.

The default name for an NVG599 device consists of the word “ARRIS-7000/XXX” where “XXX” is the serial

number of the device; for example, ARRIS-7000/9437188. A system name can be 1 – 255 characters long. Once

you have assigned a name to your NVG599, you can enter that name in the address text field of your browser

to open a connection to your NVG599.

A time-zone setting of 0 is Coordinated Universal Time (UTC); options are -12 through 12 (+/- 1 hour

increments from UTC time).

set system auto-daylight-savings [ on | off ]

Time zones honoring Daylight Saving Time may be automatically designated.

set system firewall-log enable [ on | off ]

Turns firewall logging on or off. The firewall log tracks attempted violations of the firewall rules. Default is on.

set system firewall-log persist [ on | off ]

When set to on, causes the log information to be kept in flash memory. Default is off.

set system firewall-log file-size [ 4096... 65536 ]

Specifies a size for the firewall logs. The most recent entries are posted to the beginning of the log. When the

log becomes full, the oldest entries are dropped. The default is 16384.

set system firewall-log file-count [ 2... 8 ]

Specifies the number of possible log files. The default is 4.

set system fastpath software-enable [ on | off ]

Enables or disables the fastpath accelerator processor. Fastpath works on only TCP and UDP. Default is on.

set system fastpath hardware-enable [ off | on ]

Enables or disables the fastpath accelerator processor. Default is off.

set system fastpath mcast-mode 3

Sets the mode for multicast on the fastpath accelerator processor.



NOTE:

Some broadband cable-oriented service providers use the system name as an important identification and

support parameter. If your NVG599 device is part of this type of network, do not alter the system name

unless specifically instructed by your service provider.

Administrator’s Handbook

174

set system scheduler enable [ off | on ]

Turns the system scheduler feature on or off. The default is off.

set system scheduler enable-time hr:min

Specifies a time at which to turn the system on. Default is midnight (00:00). The enable-time parameter must

be supplied in 24-hour military time, colon separated, for example “05:21”.

set system scheduler disable-time hr:min

Specifies a time at which to turn the system off. Default is 5 o’clock (05:00). The disable-time parameter must

be supplied in 24-hour military time, colon separated, for example “21:44”.

set system calendar-update enable [ on | off ]

Turns the calendar update feature on or off. The device will periodically poll the update server for new

operating system software. The default is on.

set system calendar-update interval [ monthly | biweekly ]

Specifies how often the device should poll the update server, monthly or biweekly. The default is monthly.

set system calendar-update protocol [ http | https | tftp ]

Specifies the protocol for accessing the update server. The default is http.

set system calendar-update server server_address

Specifies the address of the update server by name or IP address. The default is "cpems.bellsouth.net".

set system calendar-update username string

Specifies the user name for the update server. The default is anonymous.

set system calendar-update password string

Specifies the password for the update server. The default is guest.

set system calendar-update fwverfile filename

Specifies the firmware version filename to the update server. For the AT&T NVG599 the file is

netopiaNVG599_64.txt.

set system calendar-update day day_of_month

Specifies the numerical day of the month for the update server to be polled, for example, 21.

set system calendar-update time hr:min_AMPM

Specifies the time of day for the update server to be polled, in the format HOUR:MINUTEAM/PM. For example:

06:00AM.

175

set system supplicant enable [ on | off ]

Turns on the 802.1x supplicant functionality. You must set the corresponding type field in the WAN link to

activate it:

NOS/142253966608 (top)>> set link name WAN supplicant

supplicant

type (none) [ none | eap-tls ]:

priority (0) [ 0 - 7 ]:

Default is on.

set system supplicant dest-broadcast [ off | on ]

Mostly useful for debugging. If this is set to on, the destination MAC address FF:FF:FF:FF:FF:FF is used when

the supplicant sends 802.lx packets. If this is off, the EAPOL-specific destination address of 01:80:C2:00:00:03 is

used. Default is off.

set system supplicant eap-tls-identity string

Sets the identity sent by the supplicant in response to an Identity request from an 802.1x authenticator.

set system supplicant server-cert-check [ on | off ]

If set to on, examines the certificate chain sent by an 802.1x authenticator for validation, and ensures that the

root cert of this chain is accepted by the CPE (is in its trust list). Default is on.

set system syslog enable [ on | off ]

Enables or disables the NVG599 Syslog function. The Syslog function is disabled by default. If Syslog is enabled,

the following additional Syslog settings may be configured:

set system syslog server-ip <IPv4/IPv6 Address>

set system syslog server-port <port>

set system syslog facility [ local0 ... local7 ]

set system syslog level [ 0 ... 7 ]

set system syslog log-system [ on | off ]

set system syslog log-firewall [ on | off ]

set system syslog log-igmp [ on | off ]

set system syslog log-voice [ on | off ]

You must specify the Syslog server’s IP address and any custom UDP port number to identify system logging

messages with the set system syslog server-ip <IPv4/IPv6 Address> and set system syslog server-port <port>

commands. After the Syslog server is specified, you may turn on any or all of the logging categories.

The receiving server must have a properly configured Syslog server package active.

set system syslog server-ip <IPv4/IPv6 Address>

Specifies the IP address (in IPv4 dotted decimal notation or IPv6 colon-separated hexadecimal notation) of the

server that Syslog messages will be sent to.

set system syslog server-port <port>

Customizes the UDP port number that the Syslog function marks messages to the logging server package with

(range: 1 - 65535, default: 514).

Administrator’s Handbook

176

set system syslog facility [ local0 ... local7 ]

Specifies the local facility number that Syslog messages are sent to (range: local0 - local7, default: local0).

set system syslog level [ 0 ... 7 ]

Sets the severity level of Syslog messages the NVG599 will send to the Syslog server. Each severity level

includes all higher-level messages (e.g; a level of 2 [Critical] will also send Alert and Emergency messages). The

severity levels are arranged and enumerated as follows:

0 : Emergency

1 : Alert

2 : Critical

3 : Error

4 : Warning

5 : Notice (default)

6 : Info

7 : Debug

set system syslog log-system [ on | off ]

Enables or disables the generation of system log messages for the Syslog server. If the Syslog function is

enabled, system log is enabled (on) by default.

set system syslog log-firewall [ on | off ]

Enables or disables the delivery of firewall log messages to the Syslog server. Firewall log is disabled by default.

set system syslog log-igmp [ on | off ]

Enables or disables the delivery of IGMP log messages to the Syslog server. The IGMP log is disabled by default.

set system syslog log-voice [ on | off ]

Enables or disables the generation of voice log messages for the Syslog server. Voice log is disabled by default.

set system voice-check enable [ off | on ]

When this is set to on, and a voice call is in progress when a software update is scheduled, the software update

is deferred for the voice-check interval until the call is completed, that is, the call state becomes “idle.” If set to

off, and a voice call is in progress when an update is scheduled, the call is torn down. The default is on.

set system voice-check interval [ 60 - 86400 ]

Specifies the interval in seconds for the device to wait before attempting a software update, when a software

update is scheduled but a voice call is in progress, when voice-check enable is set to on. The default is 300 (5

minutes).

set system voice-check max-time [ 300 - 604800 ]

Specifies the maximum time in seconds for the device to continue to attempt a scheduled software update if a

voice call is in progress and voice-check enable is set to on. The default is 3600 (1 hour).

177

set system log buffer-size [ 4096... 65536 ]

Specifies a size for the system log. The most recent entries are posted to the beginning of the log. When the log

becomes full, the oldest entries are dropped. The default is 16384.

set system log level [ low | medium | high | alerts | failures ]

Specifies the types of log messages you want the NVG599 device to record. All messages with a level equal to

or greater than the level you specify are recorded. For example, if you specify set system diagnostic-level

medium, the diagnostic log will retain medium-level informational messages, alerts, and failure messages.

Use the following guidelines:

low - Low-level informational messages or greater; includes trivial status messages.

medium - Medium-level informational messages or greater; includes status messages that can help monitor

network traffic.

high - High-level informational messages or greater; includes status messages that may be significant but do

not constitute errors. The default.

alerts - Warnings or greater; includes recoverable error conditions and useful operator information.

failures - Failures; includes messages describing error conditions that may not be recoverable.

Administrator’s Handbook

178

Debug Commands

When you are in SHELL mode, the Debug prompt consists of the name of the NVG599 device followed by the

word “DEBUG” and a right angle bracket (>). For example, if you open a CLI connection to the NVG599 named

“ARRIS-3000/9437188” and then type debug you would see ARRIS-3000/9437188/DEBUG> as your

prompt.

Debug level is available for field debugging purposes. There is no service and quality level guarantee from

ARRIS. This level is intended for SEs or Telco lab personnel, not for normal operation at home for end users.

More commands are available. To display the options, type help all.

Disclaimer and Warning Text

The following is displayed when entering Debug level from normal Config level.

“Warning: Accessing these commands may impact the normal operation of this device. Exit now if you

entered by mistake.”

Commands

console

Makes this session the console.

mirror <src-port> <dst-port>

Mirrors one port's traffic to another. Causes traffic transmitted or received on <src-port> to be mirrored on

<dst-port>. Ports must support Ethernet (IPoA and PPPoA ATM ports are not supported).

mirror off

Turns off port mirroring.

show fastpath

Displays entries in fastpath.

show cpu

Displays CPU usage as a percentage and CPU load averages over 1, 5, and 15 minute periods.

TR-069 CLI CShell Commands (debug mode)

tr69 GetParameterValues <path>

tr69 SetParameterValues <path> = <value>

tr69 GetParameterNames <path> <nextlevel>

tr69 Addobject <path>

tr69 Deleteobject <path>

Example:

tr69 GetParameterValues InternetGatewayDevice.



NOTE:

CLI and ACS sessions are mutually exclusive and should not be used at the same time

179

CHAPTER 5 Technical Specifications and Safety

Information

Description

Dimensions:

9.8 in H x 7.9 in L x 2.8 in W (250 mm H x 200 mm L x 77 mm W)

1.97 lbs (.89 kg) (without integrated battery)

2.47 lbs (1 kg) (with integrated battery)

Communications interfaces: The ARRIS Gateways have a 4-port 10/100/1000Base-T Ethernet switch for

your LAN connections, an FXS port for VoIP connections, a HomePNA 3.1 coax port, a USB 2.0 network port,

and a 400 mW wireless radio for Wi-Fi connections.

WAN interfaces: Bonded VDSL2/single line VDSL2/bonded ADSL2+/single line ADSL, RJ-14; One-port 10/100/

1000 Ethernet, RJ-45

Power Supply

115VAC 42W/12VDC@3.5A (2phone,5REN, RINGING)

Environment

Operating temperature: 0°C to 42°C (32° F to 107° F); 8% to 95% (Non Condensing) Relative Humidity

Storage temperature: –20° C to 85° C (–4° F to 185° F)

Relative storage humidity: 20 to 80% non-condensing

Software and protocols

Software media: Software preloaded on internal flash memory; field upgrades done via download to

internal flash memory via CLI or web upload.

Routing: IPv4 , IPv6/6rd; DHCP server/relay; DNS Proxy, Dynamic DNS Support; Multiple subnet support

WAN support: PPPoA, DHCP, static IP address; ADSL, ADSL2/2+, ADSL2 Reach Extended protocol (ITU G.992.3

annex L)

Administrator’s Handbook

180

Security: Stateful Packet Inspection Firewall; Virtual DMZ/IP pass-through; Denial of Service (DoS)

protection; VPN Pass-through (PPTP, L2TP, IPSec)

Wi-Fi Security. WEP (64-bit, 128-bit, 256-bit) encryption 802.1x, WPA, WPA-PSK, 802.11i/WPA2, WPA2-PSK

EAP-TLS, EAP-TTLS, EAP-SIM MAC Address filtering

Management/configuration methods: HTTP (Web server), telnet command line interface

Diagnostics: Ping, event logging, routing table displays, statistics counters, web-based management,

traceroute, nslookup, and diagnostic commands.

Agency approvals

North America

Safety Approvals:

United States – UL 60950, Third Edition

Canada – CSA: CAN/CSA-C22.2 No. 60950-00

EMC:

United States – FCC Part 15 Class B

Canada – ICES-003

Telecom:

United States – 47 CFR Part 68

Canada – CS-03

Integrated Battery:

Hazardous Materials Regulations and Procedures CFR Title 49, Section 173,

Subsection 185

UL60950/CAN/CSA-C22.2 No. 60950—Recognized component (U.S. and Canada)

UL 2054—Recognized component (U.S. and Canada)

UN Manual of test and Criteria, sect. 38.3, CE, IEC62133

California Code of Regulation Title 20

181

Manufacturer’s Declaration of Conformance

United States. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions:

1. This device may not cause harmful interference, and

2. this device must accept any interference received, including interference that may cause undesired opera-

tion.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause harmful interference to

radio communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

Reorient or relocate the device.

Increase the distance between the equipment being interfered with and the device.

Connect the device to an outlet on a circuit different from the outlet to which the equipment being inter-

fered with is connected.

Consult the retailer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance

could void the user’s authority to operate this equipment.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Operations within the 5.15 ~ 5.25GHz band are restricted to indoor use only. This device is intended for

indoor use only.

Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits as set forth

for an uncontrolled environment. This equipment should be installed and operated maintaining a minimum

distance of 20cm between the device and your body.

Service requirements. In the event of equipment malfunction, if under warranty we will exchange a

product deemed defective. Under FCC rules, no customer is authorized to repair this equipment. This

restriction applies regardless of whether the equipment is in or out of warranty.

Technical Support for Hardware Products



WARNING:

This is a Class B product. In a domestic environment this product may cause radio interference, in which case

the user may be required to take adequate measures. Adequate measures include increasing the physical dis-

tance between this product and other electrical devices.

Changes or modifications to this unit not expressly approved by the party responsible for compliance could

void the user’s authority to operate the equipment.



RESTRICTIONS:

Do not install this device out doors.

This device is restricted from transmitting in the 5600-5650 MHz band.

WARNING:

Installing and operating this device out doors is a violation of FCC rules.

Administrator’s Handbook

182

1-877-466-8646

http://www.arrisi.com/consumer

Canada. This Class B digital apparatus meets all requirements of the Canadian Interference -Causing

Equipment Regulations.

Cet appareil numérique de la classe B respecte toutes les exigences du Réglement sur le matériel brouilleur du

Canada.

Declaration for Canadian users

NOTICE: The Canadian Industry Canada label identifies certified equipment. This certification means that the

equipment meets certain telecommunications network protective, operation, and safety requirements. The

Department does not guarantee the equipment will operate to the user’s satisfaction.

Before installing this equipment, users should ensure that it is permissible to be connected to the facilities

of the local telecommunications company. The equipment must also be installed using an acceptable

method of connection. In some cases, the company’s inside wiring associated with a single line individual

service may be extended by means of a certified connector assembly (telephone extension cord). The

customer should be aware that compliance with the above conditions may not prevent degradation of

service in some situations.

Repairs to the certified equipment should be made by an authorized Canadian maintenance facility

designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment

malfunctions, may give the telecommunications company cause to request the user to disconnect the

equipment.

Users should ensure for their own protection that the electrical ground connections of the power utility,

telephone lines, and internal metallic water pipe system, if present, are connected together. This precaution

may be particularly important in rural areas.

NOTICE: This equipment meets the applicable Industry Canada Terminal Equipment Technical Specifications.

This is confirmed by the registration number. The abbreviation, IC, before the registration number signifies

that registration was performed based on a Declaration of Conformity indicating that Industry Canada

technical specifications were met. It does not imply that Industry Canada approved the equipment.

AVIS : Le présent matériel est conforme aux spécifications techniques d’Industrie Canada applicables au

matériel terminal. Cette conformité est confirmée par le numéro d'enregistrement. Le sigle IC, placé devant

le numéro d'enregistrement, signifie que l’enregistrement s’est effectué conformément à une déclaration de

conformité et indique que les spécifications techniques d'Industrie Canada ont été respectées. Il n’implique

pas qu’Industrie Canada a approuvé le matériel.

Caution

Users should not attempt to make such connections themselves, but should contact the appropriate electric

inspection authority, or electrician, as appropriate.

NOTICE: The Ringer Equivalence Number (REN) for this terminal equipment is 0.1. The REN assigned to each

terminal equipment provides an indication of the maximum number of terminals allowed to be connected to a



IMPORTANT:

This product was tested for FCC compliance under conditions that included the use of shielded cables and

connectors between system components. Changes or modifications to this product not authorized by the

manufacturer could void your authority to operate the equipment.

183

telephone interface. The termination on an interface may consist of any combination of devices subject only to

the requirement that the sum of the Ringer Equivalence Numbers of all the devices does not exceed five.

AVIS : L'indice d'équivalence de la sonnerie (IES) du présent matériel est de 0.1. L'IES assigné à chaque

dispositif terminal indique le nombre maximal de terminaux qui peuvent être raccordés à une interface

téléphonique. La terminaison d'une interface peut consister en une combinaison quelconque de dispositifs, à

la seule condition que la somme d'indices d'équivalence de la sonnerie de tous les dispositifs n'excède pas 5.

Important Safety Instructions

Caution

DO NOT USE BEFORE READING THE INSTRUCTIONS: Do not connect the Ethernet ports to a carrier or carriage

service provider’s telecommunications network or facility unless: a) you have the written consent of the

network or facility manager, or b) the connection is in accordance with a connection permit or connection

rules.

Connection of the Ethernet ports may cause a hazard or damage to the telecommunication network or facility,

or persons, with consequential liability for substantial compensation.

Caution

The direct plug-in power supply serves as the main power disconnect; locate the direct plug-in power supply

near the product for easy access.

For use only with CSA Certified Class 2 power supply, rated 12VDC, 1.0A.

Telecommunication installation cautions

Never install telephone wiring during a lightning storm.

Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations.

Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at

the network interface.

Use caution when installing or modifying telephone lines.

Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk

of electric shock from lightning.

Do not use the telephone to report a gas leak in the vicinity of the leak.

Administrator’s Handbook

184

47 CFR Part 68 Information

FCC Requirements

1. The Federal Communications Commission (FCC) has established Rules which permit this device to be directly

connected to the telephone network. Standardized jacks are used for these connections. This equipment should not be

used on party lines or coin phones.

2. If this device is malfunctioning, it may also be causing harm to the telephone network; this device should be

disconnected until the source of the problem can be determined and until repair has been made. If this is not done, the

telephone company may temporarily disconnect service.

3. The telephone company may make changes in its technical operations and procedures; if such changes affect the

compatibility or use of this device, the telephone company is required to give adequate notice of the changes. You will

be advised of your right to file a complaint with the FCC.

4. If the telephone company requests information on what equipment is connected to their lines, inform them of:

a. The telephone number to which this unit is connected.

b. The ringer equivalence number. [0.XB]

c. The USOC jack required. [RJ11C]

d. The FCC Registration Number. [XXXUSA-XXXXX-XX-E]

Items (b) and (d) are indicated on the label. The Ringer Equivalence Number (REN) is used to determine how many

devices can be connected to your telephone line. In most areas, the sum of the REN's of all devices on any one line

should not exceed five (5.0). If too many devices are attached, they may not ring properly.

FCC Statements

a) This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the

bottom of this equipment is a label that contains, among other information, a product identifier in the format

US:AAAEQ##TXXXX. If requested, this number must be provided to the telephone company.

b) List all applicable certification jack Universal Service Order Codes (“USOC”) for the equipment: RJ11.

c) A plug and jack used to connect this equipment to the premises wiring and telephone network must comply

with the applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant telephone cord and

modular plug is provided with this product. It is designed to be connected to a compatible modular jack that is

also compliant. See installation instructions for details.

d) The REN is used to determine the number of devices that may be connected to a telephone line. Excessive

RENs on a telephone line may result in the devices not ringing in response to an incoming call. In most but not

all areas, the sum of RENs should not exceed five (5.0). To be certain of the number of devices that may be

connected to a line, as determined by the total RENs, contact the local telephone company. For products

approved after July 23, 2002, the REN for this product is part of the product identifier that has the format

US:AAAEQ##TXXXX. The digits represented by ## are the REN without a decimal point (e.g., 03 is a REN of 0.3).

For earlier products, the REN is separately shown on the label.

e) If this equipment, the NVG599 device, causes harm to the telephone network, the telephone company will

notify you in advance that temporary discontinuance of service may be required. But if advance notice isn’t

practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your

right to file a complaint with the FCC if you believe it is necessary.

f) The telephone company may make changes in its facilities, equipment, operations or procedures that could

affect the operation of the equipment. If this happens the telephone company will provide advance notice in

order for you to make necessary modifications to maintain uninterrupted service.

g) If trouble is experienced with this equipment, theNVG599 device, for warranty information, please contact:

185

Technical Support for Hardware Products

1-877-466-8646

http://moto.force.com/customercare360

If the equipment is causing harm to the telephone network, the telephone company may request that you

disconnect the equipment until the problem is resolved.

h) This equipment not intended to be repaired by the end user. In case of any problems, please refer to the

troubleshooting section of the Product User Manual before calling ARRIS Technical Support.

i) Connection to party line service is subject to state tariffs. Contact the state public utility commission, public

service commission or corporation commission for information.

j) If your home has specially wired alarm equipment connected to the telephone line, ensure that the

installation of this ARRIS NVG599 VDSL2 Gateway does not disable your alarm equipment. If you have

questions about what will disable alarm equipment, consult your telephone company or qualified installer.

RF Exposure Statement:

NOTE: Installation of the wireless models must maintain at least 20 cm between the wireless NVG599 device

and any body part of the user to be in compliance with FCC RF exposure guidelines.

Electrical Safety Advisory

Telephone companies report that electrical surges, typically lightning transients, are very destructive to

customer terminal equipment connected to AC power sources. This has been identified as a major nationwide

problem. Therefore it is advised that this equipment be connected to AC power through the use of a surge

arrestor or similar protection device.

Administrator’s Handbook

186

Caring for the Environment by Recycling

Recycling your ARRIS Equipment

Please do not dispose of this product with your

residential or commercial waste. Some countries

or regions, such as the European Union, have set

up systems to collect and recycle electrical and

electronic waste items. Contact your local

authorities for information about practices

established for your region. If collection systems

are not available, call ARRIS Customer Service for

assistance.

Genbrug af dit ARRIS-udstyr

Dette produkt må ikke bortskaffes sammen med husholdningsaffald eller

erhvervsaffald. Nogle lande eller områder, f.eks. EU, har oprettet systemer

til indsamling og genbrug af elektriske og elektroniske affaldsprodukter.

Kontakt de lokale myndigheder for oplysninger om gældende

fremgangsmåder i dit område. Hvis der ikke findes tilgængelige

indsamlingssystemer, kan du kontakte ARRIS Kundeservice.

Recycling bei Geräten von ARRIS

Bitte entsorgen Sie dieses Produkt nicht als gewöhnlichen Haus- oder

Büromüll. In einigen Ländern und Gebieten, z. B. in der Europäischen Union,

wurden Systeme für die Rücknahme und Wiederverwertung von

Elektroschrott eingeführt. Erkundigen Sie sich bitte bei Ihrer Stadtoder

Kreisverwaltung nach der geltenden Entsorgungspraxis. Falls bei Ihnen noch

kein Abfuhroder Rücknahmesystem besteht, wenden Sie sich bitte an den

Kundendienst von ARRIS.

Reciclaje de su equipo ARRIS

No deseche este producto junto con sus residuos residenciales o

comerciales. Algunos países o regiones, tales como la Unión Europea, han

organizado sistemas para recoger y reciclar desechos eléctricos y

electrónicos. Comuníquese con las autoridades locales para obtener

información acerca de las prácticas vigentes en su región. Si no existen

sistemas de recolección disponibles, solicite asistencia llamando el Servicio

al Cliente de ARRIS.

Recyclage de votre équipement ARRIS

Veuillez ne pas jeter ce produit avec vos ordures ménagères ou vos rebuts

d'entreprise. Certains pays ou certaines régions comme l'Union Européenne

ont mis en place des systèmes de collecte et de recyclage des produits

électriques et électroniques mis au rebut. Veuillez contacter vos autorités

locales pour vous informer des pratiques instaurées dans votre region. Si

aucun système de collecte n'est disponible, veuillez appeler le Service

clientèle de ARRIS qui vous apportera son assistance.

When you see this symbol on

an ARRIS product, do not

dispose of the product with

residential or commercial

waste.

Beskyttelse af miljøet med

genbrug

Når du ser dette symbol på et

ARRIS-produkt, må produktet

ikke bortskaffes sammen med

husholdningsaffald eller

erhvervsaffald.

Umweltschutz durch

Recycling

Wenn Sie dieses Zeichen auf

einem Produkt von ARRIS

sehen, entsorgen Sie das

Produkt bitte nicht als

gewöhnlichen Hausoder

Büromüll.

Cuidar el medio ambiente

mediante el reciclaje

Cuando vea este símbolo en un

producto ARRIS, no lo deseche

junto con residuos residenciales

o comerciales.

Recyclage pour le respect

de l'environnement

Lorsque vous voyez ce symbole

sur un produit ARRIS, ne le jetez

pas avec vos ordures ménagères

ou vos rebuts d'entreprise.

187

Uw ARRIS-materiaal recycleren.

Gooi dit product niet bij het huishoudelijk afval het of bedrijfsafval. In

sommige landen of regio's zoals de Europese Unie, zijn er bepaalde

systemen om elektrische of elektronische afvalproducten in te zamelen en

te recycleren. Neem contact op met de plaatselijke overheid voor

informatie over de geldende regels in uw regio. Indien er geen systemen

bestaan, neemt u contact op met de klantendienst van ARRIS.

Recykling posiadanego sprz´tu ARRIS

Produktu nie nale y wyrzucaç do komunalnych pojemników na Êmieci. W

niektórych krajach i regionach, np. w Unii Europejskiej, istniejà systemy

zbierania i recyklingu sprz´tu elektrycznego i elektronicznego. Informacje o

utylizacji tego rodzaju odpadów nale y uzyskaç od w³adz lokalnych. JeÊli w

danym regionie nie istniejà systemy zbierania odpadów elektrycznych i

elektronicznych, informacje o utylizacji nale y uzyskaç od biura obs³ugi

klienta firmy ARRIS (ARRIS Customer Service).

Reciclagem do seu equipamento ARRIS

Não descarte este produto junto com o lixo residencial ou comercial. Alguns

países ou regiões, tais como a União Européia, criaram sistemas para

colecionar e reciclar produtos eletroeletrônicos. Para obter informações

sobre as práticas estabelecidas para sua região, entre em contato com as

autoridades locais. Se não houver sistemas de coleta disponíveis, entre em

contato com o Serviço ao Cliente da ARRIS para obter assistência.

Återvinning av din ARRIS-utrustning

Kasta inte denna produkt tillsammans med det vanliga avfallet. Vissa länder

eller regioner, som t.ex. EU, har satt upp ett system för insamling och

återvinning av el- och elektronikavfall. Kontakta dina lokala myndigheter för

information om vilka regler som gäller i din region. Om det inte finns något

insamlingssystem ska du kontakta ARRIS kundtjänst för hjälp.

Milieubewust recycleren

Als u dit symbool op een ARRIS-

product ziet, gooi het dan niet

bij het huishoudelijk afval of het

bedrijfsafval.

Dba³oÊç o Êrodowisko -

recykling

Produktów ARRIS oznaczonych

tym symbolem nie nale y

wyrzucaç do komunalnych

pojemników na Êmieci.

Cuidando do meio

ambiente através da

reciclagem

Quando você ver este símbolo

em um produto ARRIS, não

descarte o produto junto com

lixo residencial ou comercial.

Var rädd om miljön

genom återvinning

När du ser den här symbolen på

en av ARRIS produkter ska du

inte kasta produkten

tillsammans med det vanliga

avfallet.

Administrator’s Handbook

188

ARRIS

189

Because ARRIS Group, Inc. has included certain software source code in this product, ARRIS includes the

following text required by the respective copyright holders:

Open Source Software Information

For instructions on how to obtain a copy of any source code being made publicly available by ARRIS related to software

used in this ARRIS product you may send your request in writing to:

ARRIS Group, Inc.

OSS Management

2450 Walsh Avenue

Santa Clara, CA 95051

USA

The ARRIS website opensource.arrisi.com also contains information regarding ARRIS’s use of open source. ARRIS has

created the opensource.arrisi.com to serve as a portal for interaction with the software community-at-large.

This document contains additional information regarding licenses, acknowledgments and required copyright notices for

open source packages used in this ARRIS product.

aiccu 2007.01.15

The SixXS License - http://www.sixxs.net/

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following

conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following

disclaimer in the documentation and/or other materials provided with the distribution.

3. Neither the name of SixXS nor the names of its contributors may be used to endorse or promote products derived from

this software without specific prior permission.

THIS SOFTWARE IS PROVIDED BY SIXXS AND CONTRIBUTORS ``AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL SIXXS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT,

INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF

SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND

ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR

OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH

DAMAGE.

ASN.1 object dumping code

c-ares async resolver library

http://daniel.haxx.se/projects/c-ares/

Original ares library by Greg Hudson, MIT

ftp://athena-dist.mit.edu/pub/ATHENA/ares

Administrator’s Handbook

190

Permission to use, copy, modify, and distribute this software and its documentation for any purpose and without fee is

hereby granted, provided that the above copyright notice appear in all copies and that both that copyright notice and this

permission notice appear in supporting documentation, and that the name of M.I.T. not be used in advertising or publicity

pertaining to distribution of the software without specific, written prior permission. M.I.T. makes no representations about

the suitability of this software for any purpose. It is provided "as is" without express or implied warranty.

dhcpcd - DHCP client daemon 5.5.0

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following

conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following

disclaimer in the documentation and/or other materials provided with the distribution.

THIS SOFTWARE IS PROVIDED BY THE AUTHOR AND CONTRIBUTORS ``AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT,

INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF

SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND

ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR

OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH

DAMAGE.

dhcp (dhcp-isc) 4.1.1-P1

Permission to use, copy, modify, and/or distribute this software for any purpose with or without fee is hereby granted,

provided that the above copyright notice and this permission notice appear in all copies.

THE SOFTWARE IS PROVIDED "AS IS" AND ISC DISCLAIMS ALL WARRANTIES WITH REGARD TO THIS SOFTWARE INCLUDING

ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS. IN NO EVENT SHALL ISC BE LIABLE FOR ANY SPECIAL,

DIRECT, INDIRECT, OR CONSEQUENTIAL DAMAGES OR ANY DAMAGES WHATSOEVER RESULTING FROM LOSS OF USE, DATA

OR PROFITS, WHETHER IN AN ACTION OF CONTRACT, NEGLIGENCE OR OTHER TORTIOUS ACTION, ARISING OUT OF OR IN

CONNECTION WITH THE USE OR PERFORMANCE OF THIS SOFTWARE.
