User Manual

WECB460WEBGUIGuide

FCC Statement:

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one of the

following measures:

● Reorient or relocate the receiving antenna.

● Increase the separation between the equipment and receiver.

● Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

● Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the

party responsible for compliance could void the user’s authority to operate this

equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference,

and (2) this device must accept any interference received, including

interference that may cause undesired operation.

For product available in the USA/Canada market, only channel 1~11 can be

operated. Selection of other channels is not possible.

This device and it's antennas(s) must not be co-located or operating in conjunction

with any other antenna or transmitter except in accordance with FCC multi-transmitter

product procedures.

This device is going to be operated in 5.15~5.25GHz frequency range, it is

restricted in indoor environment only.

IMPORTANT NOTE:

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an

uncontrolled environment. This equipment should be

installed and operated with minimum distance 20cm between the radiator &

your body.

IC Statement:

This device complies with Industry Canada license-exempt RSS standard(s).

Operation is subject to the following two conditions: (1) this device may

not cause interference, and (2) this device must accept any interference,

including interference that may cause undesired operation of the device.

LeprésentappareilestconformeauxCNRd'IndustrieCanadaapplicablesauxappareilsradio

exemptsdelicence.L'exploitationestautoriséeauxdeuxconditionssuivantes:(1)l'appareil

nedoitpasproduiredebrouillage,et(2)l'utilisateurdel'appareildoitacceptertout

brouillageradioélectriquesubi,mêmesilebrouillageestsusceptibled'encompromettrele

fonctionnement.

For product available in the USA/Canada market, only channel 1~11 can be

operated. Selection of other channels is not possible.

PourlesproduitsdisponiblesauxÉtats‐Unis/Canadadumarché,seullecanal1à11peuvent

êtreexploités.Sélectiond'autrescanauxn'estpaspossible.

This device and it's antennas(s) must not be co-located or operating in conjunction

with any other antenna or transmitter except in accordance with IC multi-transmitter

product procedures.

Cetappareiletsonantenne(s)nedoitpasêtreco‐localisésoufonctionnementenassociation

avecuneautreantenneoutransmetteur.

The device for the band 5150-5250 MHz is only for indoor usage to reduce

potential for harmful interference to co-channel mobile satellite systems.

lesdispositifsfonctionnantdanslabande5150‐5250MHzsontréservésuniquementpour

une

utilisationàl’intérieurafinderéduirelesrisquesdebrouillagepréjudiciableauxsystèmesde

satellitesmobilesutilisantlesmêmescanaux;

IC Radiation Exposure Statement:

This equipment complies with IC RSS-102 radiation exposure limits set forth

for an uncontrolled environment. This equipment should be

installed and operated with minimum distance 20cm between the radiator &

your body.

Cetéquipementestconformeauxlimitesd'expositionauxrayonnementsICétablies

pourunenvironnementnoncontrôlé.Cetéquipementdoitêtreinstalléetutilisé

avecunminimumde20cmdedistanceentrelasourcederayonnementet

votrecorps.

1. BasicWEBGUI

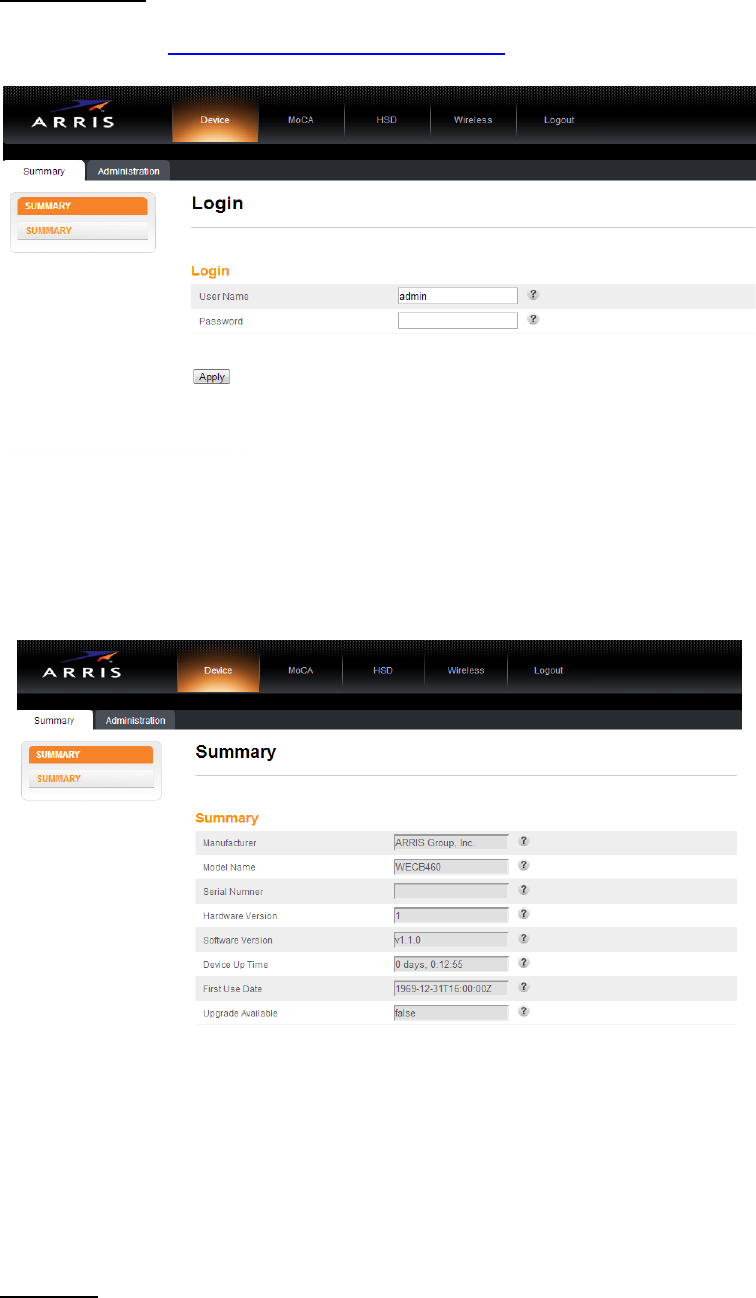

a. ConnecttoWECB(http://www.myarrismocarepeater.net)viawebbrowser

b. Loginwithadmin/password,thewebpagewillbeautomaticallyredirectedto

devicesummarypage.Theread‐onlyfielddisplayingreyoutfontstyle.

2. 2.4GWiFi

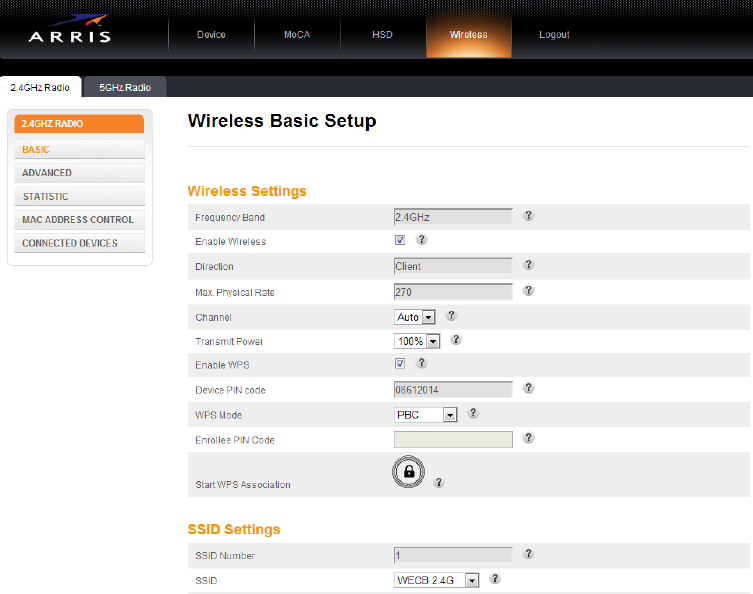

a. Click“Wireless”tagonthetop,thewirelessbasicsetuppagewillbedisplayed.

Usermaymodifythewirelesssettinghere.

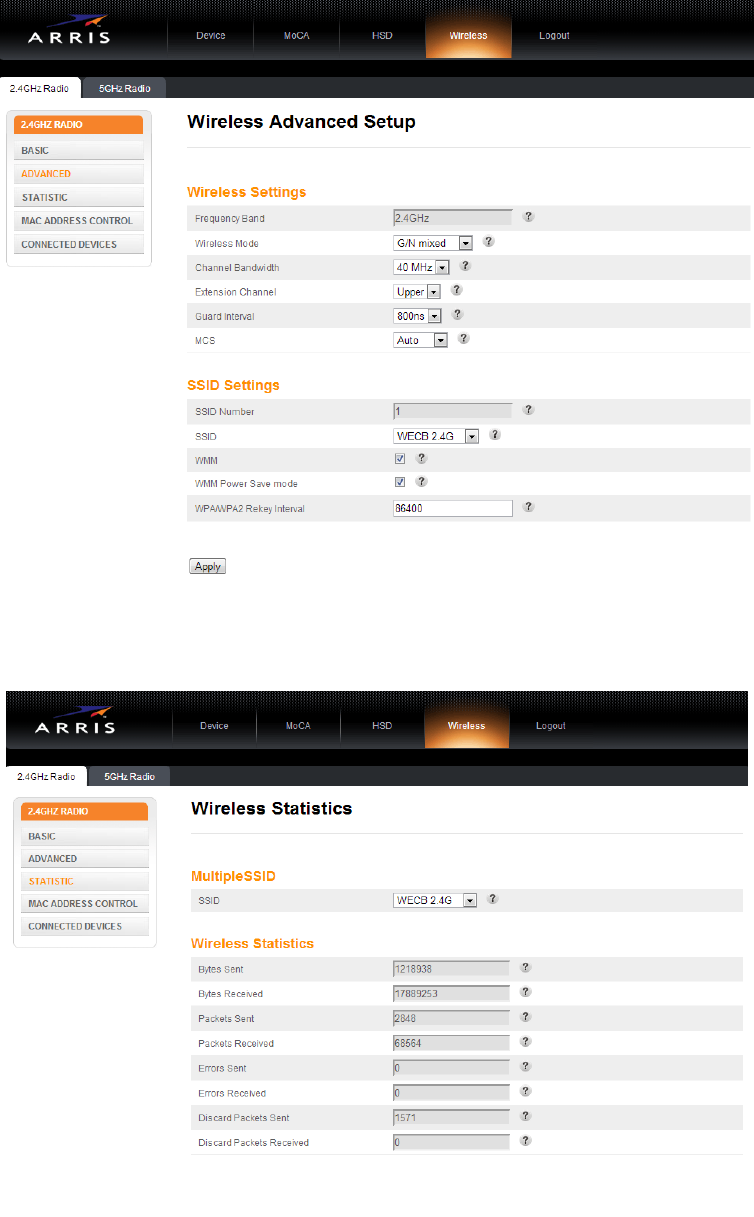

b. Inwirelessadvancedpage,usermaychangethewirelessmodein11b/g/nmode

andthenbridgetransmissionsignals,theSSIDalsocanbeupdatedhere.

c. Inwirelessstatisticpage,itwilldisplaycurrentwirelessinterfacecounting

information.

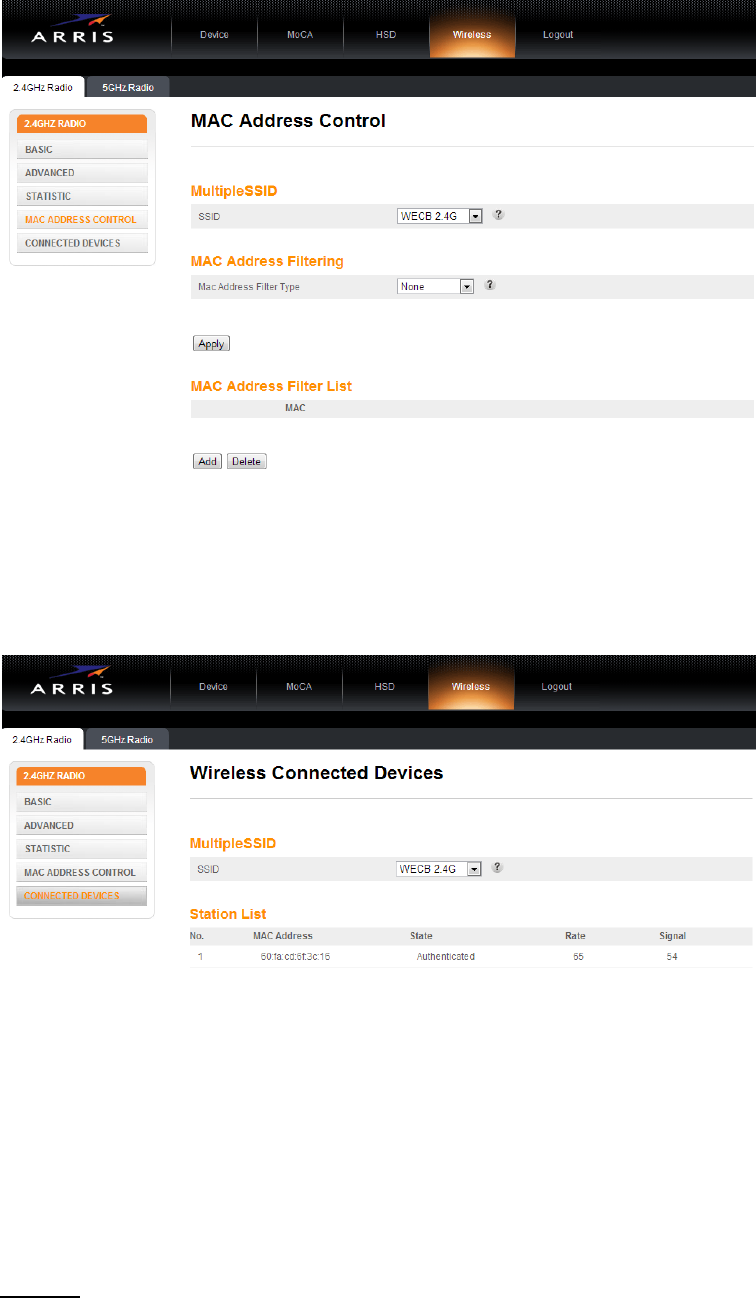

d. InMACaddresscontrolpage,usermayaddMACfilterlisttoblockspecificdevice

whichconnectedtoWECB.

e. Inwirelessconnecteddevicepage,itwilldisplayallconnecteddeviceforcurrent

wirelessnetwork.

3. 5GWiFi

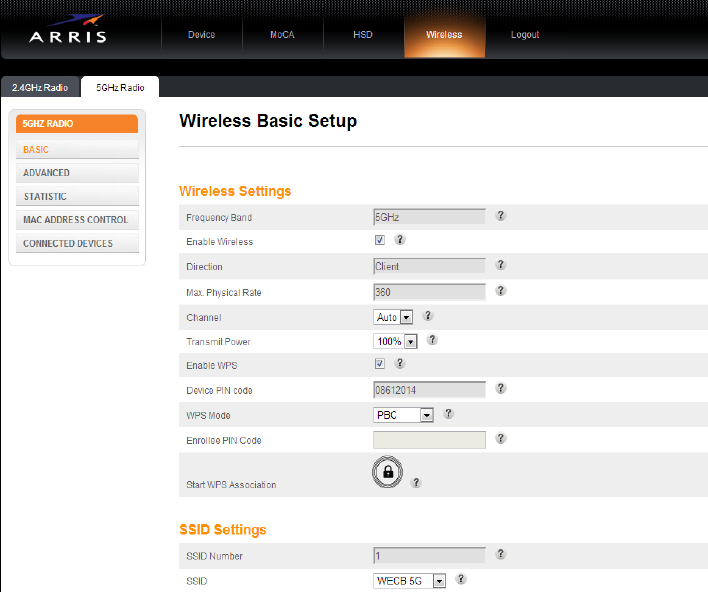

a. Click“5GHzRadio”tagonthemiddletop,the5Gwirelessbasicsetuppagewill

bedisplayed.Usermaymodifythewirelesssettinghere.

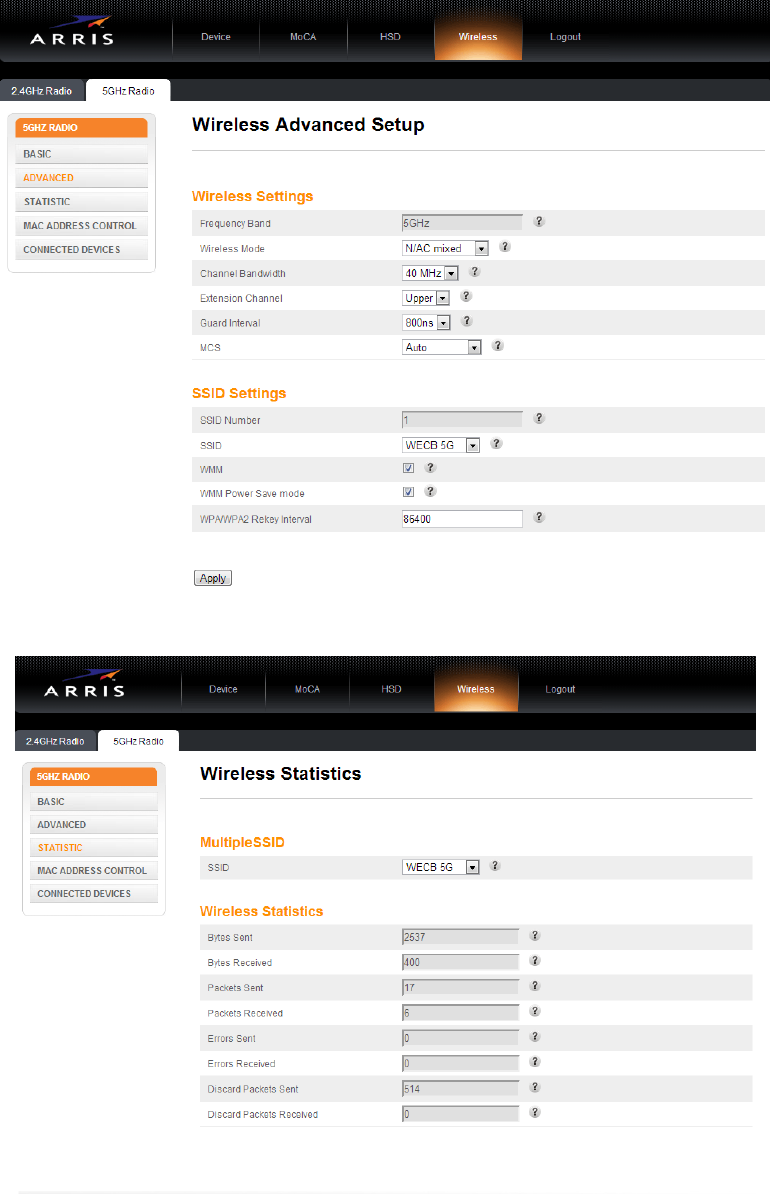

b. Inwirelessadvancedpage,usermaychangethewirelessmodein11b/g/nmode

andthenbridgetransmissionsignals,theSSIDalsocanbeupdatedhere.

c. Inwirelessstatisticpage,itwilldisplaycurrentwirelessinterfaceinformation.

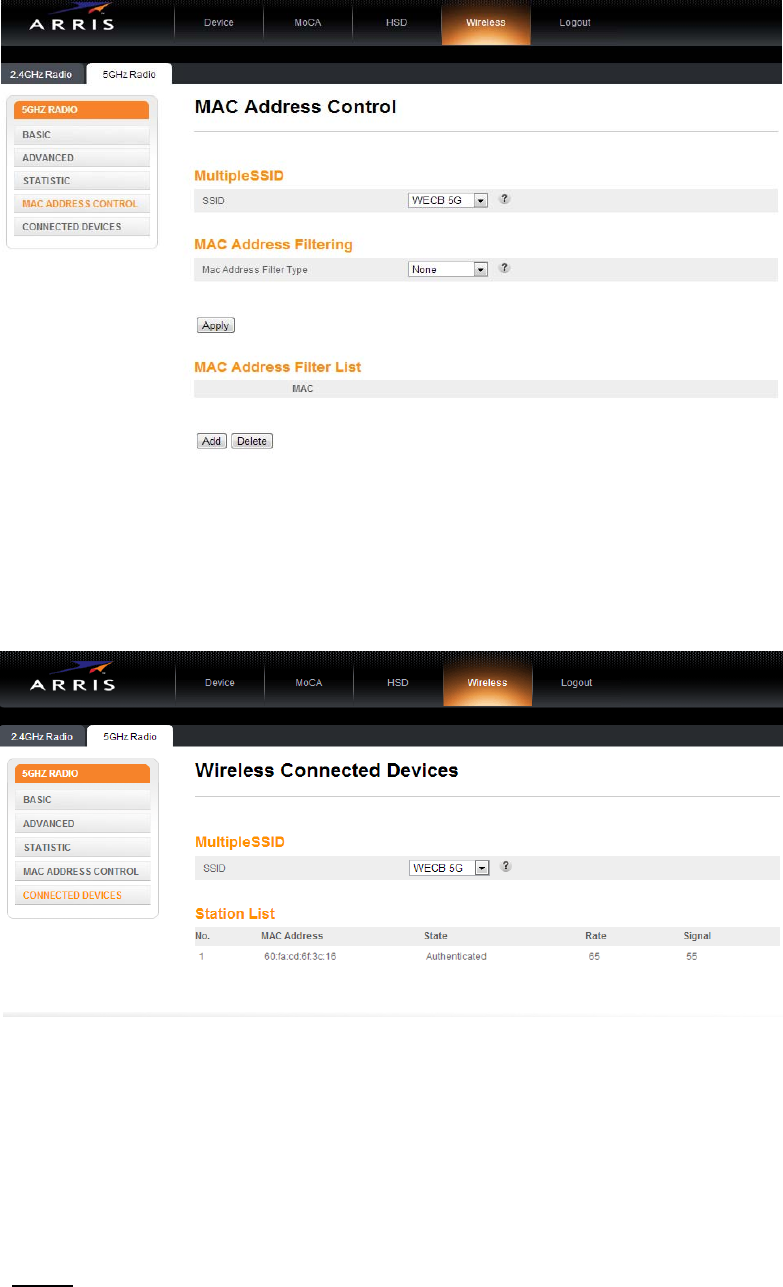

d. InMACaddresscontrolpage,usermayaddMACfilterlisttoblockspecificdevice

whichconnectedtoWECB.

e. Inwirelessconnecteddevicepage,itwilldisplayallconnecteddeviceforcurrent

wirelessnetwork.

4. MoCA

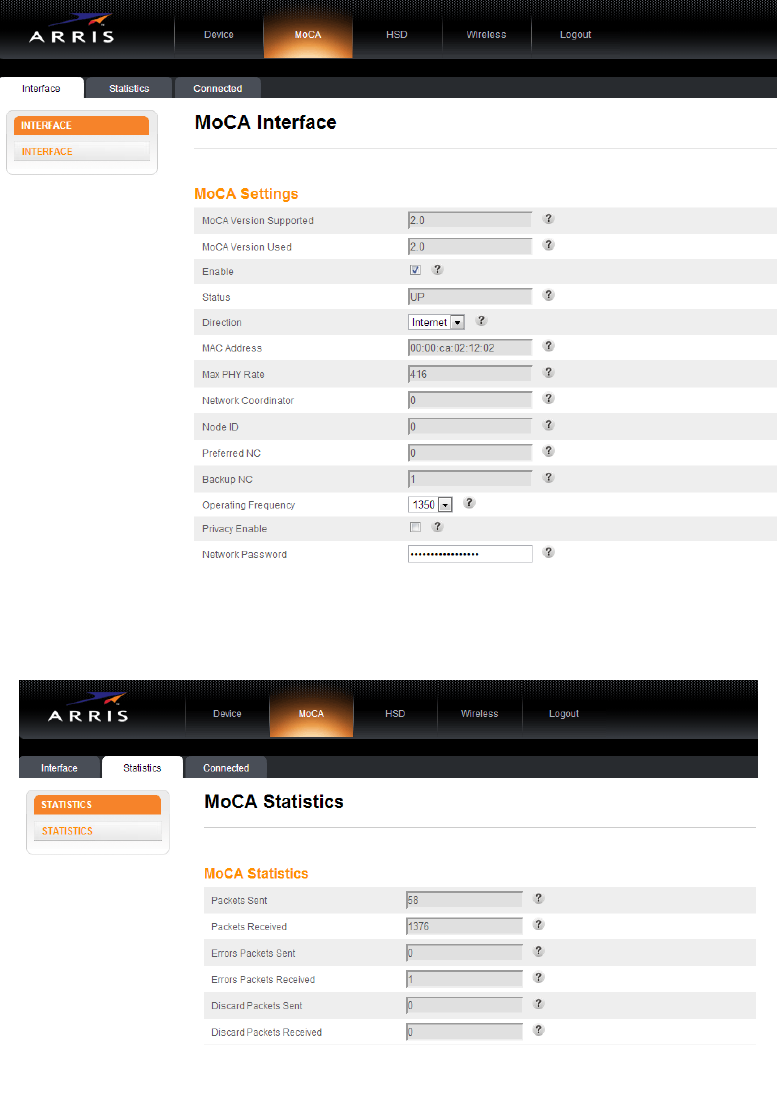

a. Click“MoCA”tagonthetop,itwillshowcurrentsettingsofMoCAinterface,

includingsomeextrainformation,forexample,currentMoCAversion.

b. InMoCAstatisticpage,itwilldisplaycurrenttranslateinformation.

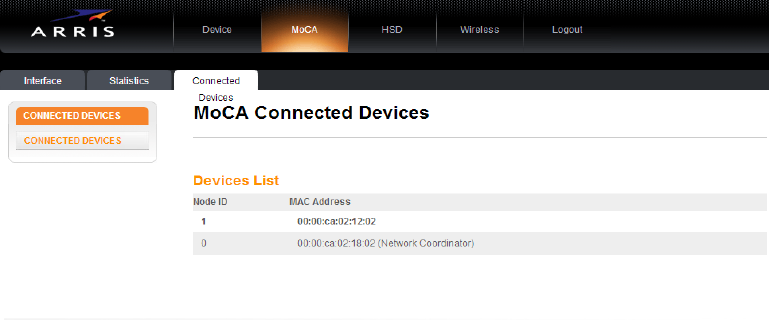

c. InMoCAconnecteddevicepagelist,itwillshowallMoCAdevicesinthenetwork

anduseboldfontaslocalMoCAdeviceMACaddress.
