ARRIS Group, Inc. Battery Backup Reference Guide
ARRIS >
User manual
Touchstone XBB1
-A Battery Backup
Device
Reference Guide
Release 2.5 DRAFT 1.4 October 2016
October 2016
Touchstone XBB1-A Battery Backup Device Reference Guide
Release 2.5 DRAFT 1.4
ARRIS Copyrights and Trademarks
© 2016 ARRIS Enterprises LLC. All Rights Reserved.
No part of this publication may be reproduced in any form or by any means or used to make
any derivative work (such as translation, transformation, or adaptation) without written
permission from ARRIS Enterprises LLC. (“ARRIS”). ARRIS reserves the right to revise this
publication and to make changes in content from time to time without obligation on the part
of ARRIS to provide notification of such revision or change.
ARRIS and the ARRIS logo are all trademarks of ARRIS Enterprises LLC. Other trademarks and
trade names may be used in this document to refer to either the entities claiming the marks
or the names of their products. ARRIS disclaims proprietary interest in the marks and names
of others.
ARRIS provides this guide without warranty of any kind, implied or expressed, including, but
not limited to, the implied warranties of merchantability and fitness for a particular purpose.
ARRIS may make improvements or changes in the product(s) described in this manual at any
time.
The capabilities, system requirements and/or compatibility with third-party products
described herein are subject to change without notice.
Patent Notice
Protected under one or more of the following U.S. patents: http://www.arris.com/legal
Other patents pending.
Release 2.5 DRAFT 1.4 October 2016 Touchstone XBB1-A Battery Backup Device Reference Guide
© 2016 ARRIS Enterprises LLC. All Rights Reserved. 3
Table of Contents
1. Safety Requirements ............................................................................................... 4
2. Battery Disposal Guidelines ..................................................................................... 5
3. Product Overview ................................................................................................... 6
4. Installing the XBB1-A Battery Backup Device ........................................................... 7
If Your TG3482 Was Shipped With a Standard Power Cable .................................... 7
If Your TG3482 Was Shipped With a XBB1-A Battery Backup Device....................... 8
5. Index .................................................................................................................... 11
Release 2.5 DRAFT 1.4 October 2016 Touchstone XBB1-A Battery Backup Device Reference Guide
© 2016 ARRIS Enterprises LLC. All Rights Reserved. 4
Chapter 1
Safety Requirements
The ARRIS Battery Backup Device complies with the applicable requirements for
performance, construction, labeling, and information when used as outlined below:
CAUTION
Risk of shock
Mains voltages inside this unit. No user serviceable parts inside. Refer service to qualified
personnel only!
CAUTION
Risk of explosion
Replacing the battery with an incorrect type, heating a battery above 75°C, or incinerating a
battery, can cause product failure and a risk of fire or battery explosion. Do not dispose of in
fire. Recycle or dispose of used batteries responsibly and in accordance with local
ordinances.
Do not use product near water (i.e. wet basement, bathtub, sink or near a swimming
pool, etc.), to avoid risk of electrocution.
The product shall be cleaned using only a damp, lint-free, cloth. No solvents or cleaning
agents shall be used.
Do not use spray cleaners or aerosols on the device.
Do not locate the equipment within 6 feet (1.9 m) of a flame or ignition source (i.e. heat
registers, space heaters, fireplaces, etc.).
Equipment should be installed near the power outlet and should be easily accessible.
In areas of high surge events or poor grounding situations and areas prone to lightning
strikes, additional surge protection may be required (i.e. PF11VNT3 from American
Power Conversion).
Ensure proper ventilation. Position the Battery Backup Device so that air flows freely
around it.
Do not mount the Battery Backup Device on surfaces that are sensitive to heat and/or
which may be damaged by the heat generated by the device or other accessories.
FCC Caution: Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate this equipment.
Chapter 1: Battery Disposal Guidelines
Release 2.5 DRAFT 1.4 October 2016 Touchstone XBB1-A Battery Backup Device Reference Guide
© 2016 ARRIS Enterprises LLC. All Rights Reserved. 5
Battery Disposal Guidelines
To ensure compliance with current and future rechargeable battery take-back laws, ARRIS
has joined Call2Recycle, a collection program for rechargeable batteries throughout North
America. US and Canadian customers should visit http://www.call2recycle.org to properly
recycle your lithium-ion battery backup units (BBUs).
Release 2.5 DRAFT 1.4 October 2016 Touchstone XBB1-A Battery Backup Device Reference Guide
© 2016 ARRIS Enterprises LLC. All Rights Reserved. 6
Chapter 2
Product Overview
The XBB1-A Battery Backup Device is a backup battery unit that is capable of providing
secondary DC voltage to a TG3482 Telephony Gateway through the use of an internal
rechargeable lithium-ion battery. The battery can provide at least eight hours of on-hook
backup time to the TG3482.
The XBB1-A charges its internal battery by using DC power from the connected TG3482. In
addition, the XBB1-A will notify you if any significant events occur (for example, if the battery
is removed or is no longer operational).
Release 2.5 DRAFT 1.4 October 2016 Touchstone XBB1-A Battery Backup Device Reference Guide
© 2016 ARRIS Enterprises LLC. All Rights Reserved. 7
Chapter 3
Installing the XBB1-A Battery Backup
Device
Your TG3482 Telephony Gateway may be shipped with a standard power cable, or it may be
shipped with a XBB1-A Battery Backup Device.
If Your TG3482 Was Shipped With a Standard Power Cable
If your TG3482 Telephony Gateway was shipped with a standard power cable, follow these
steps to install the XBB1-A Battery Backup Device:

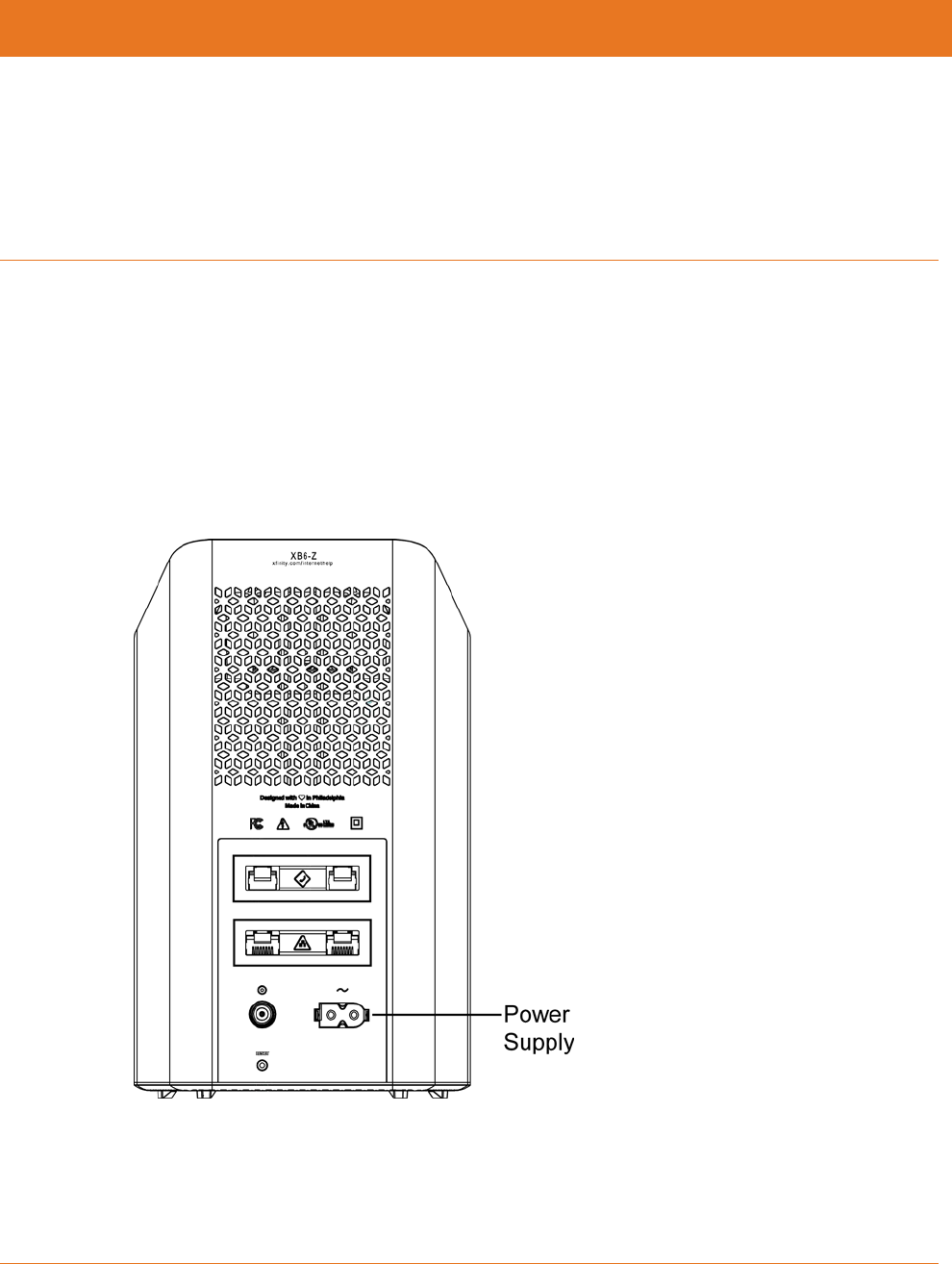

1. Disconnect the standard power cable from the power cord connector on the back of the
TG3482.
Chapter 3: Installing the XBB1-A Battery Backup Device
Release 2.5 DRAFT 1.4 October 2016 Touchstone XBB1-A Battery Backup Device Reference Guide
© 2016 ARRIS Enterprises LLC. All Rights Reserved. 8

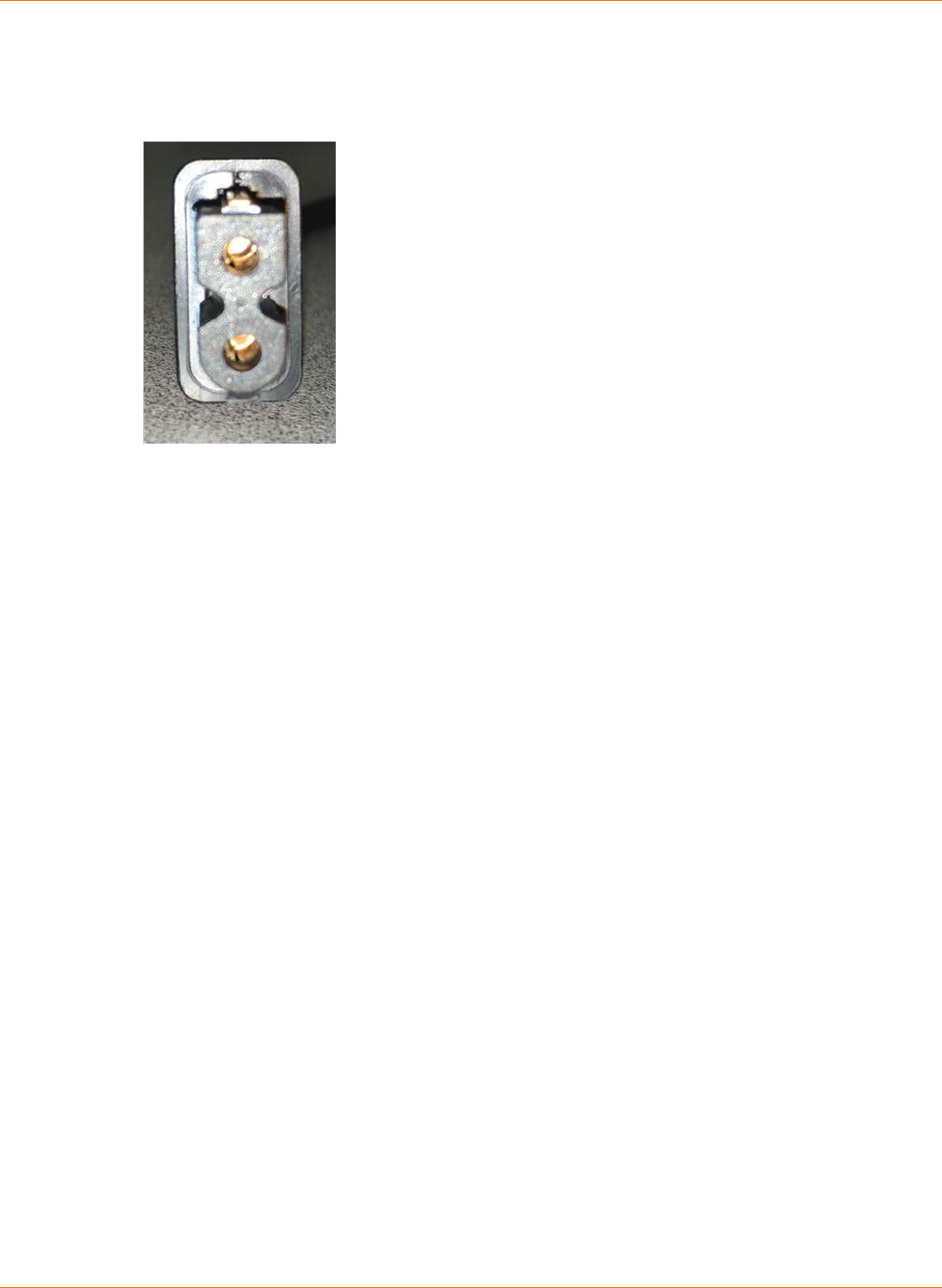

2. Insert the custom end of the standard power cable into the appropriate connector on
the XBB1-A's internal battery. The custom end of the cable looks like the following photo
and is designed to fit either into either the power cord connector on the back of the
TG3482 or into the XBB1-A's internal battery.
3. Insert the custom end of the XBB1-A into the power cord connector on the back of the
TG3482.
4. Insert the polarized AC plug into a standard power outlet.
5. Double-check that the AC power cord is securely connected to the body of the battery
unit.
As long as all of the connections for the XBB1-A are securely made, the XBB1-A will provide
power to your TG3482, and the battery unit will charge.
If the power supply is interrupted after the battery is fully charged, then the battery will
provide DC power to the TG3482. Once AC power is restored, the battery unit will begin to
charge again.
If Your TG3482 Was Shipped With a XBB1-A Battery Backup
Device
If your TG3482 Telephony Gateway was shipped with a XBB1-A Battery Backup Device,
follow these steps to install the XBB1-A Battery Backup Device:
Chapter 3: Installing the XBB1-A Battery Backup Device
Release 2.5 DRAFT 1.4 October 2016 Touchstone XBB1-A Battery Backup Device Reference Guide
© 2016 ARRIS Enterprises LLC. All Rights Reserved. 9

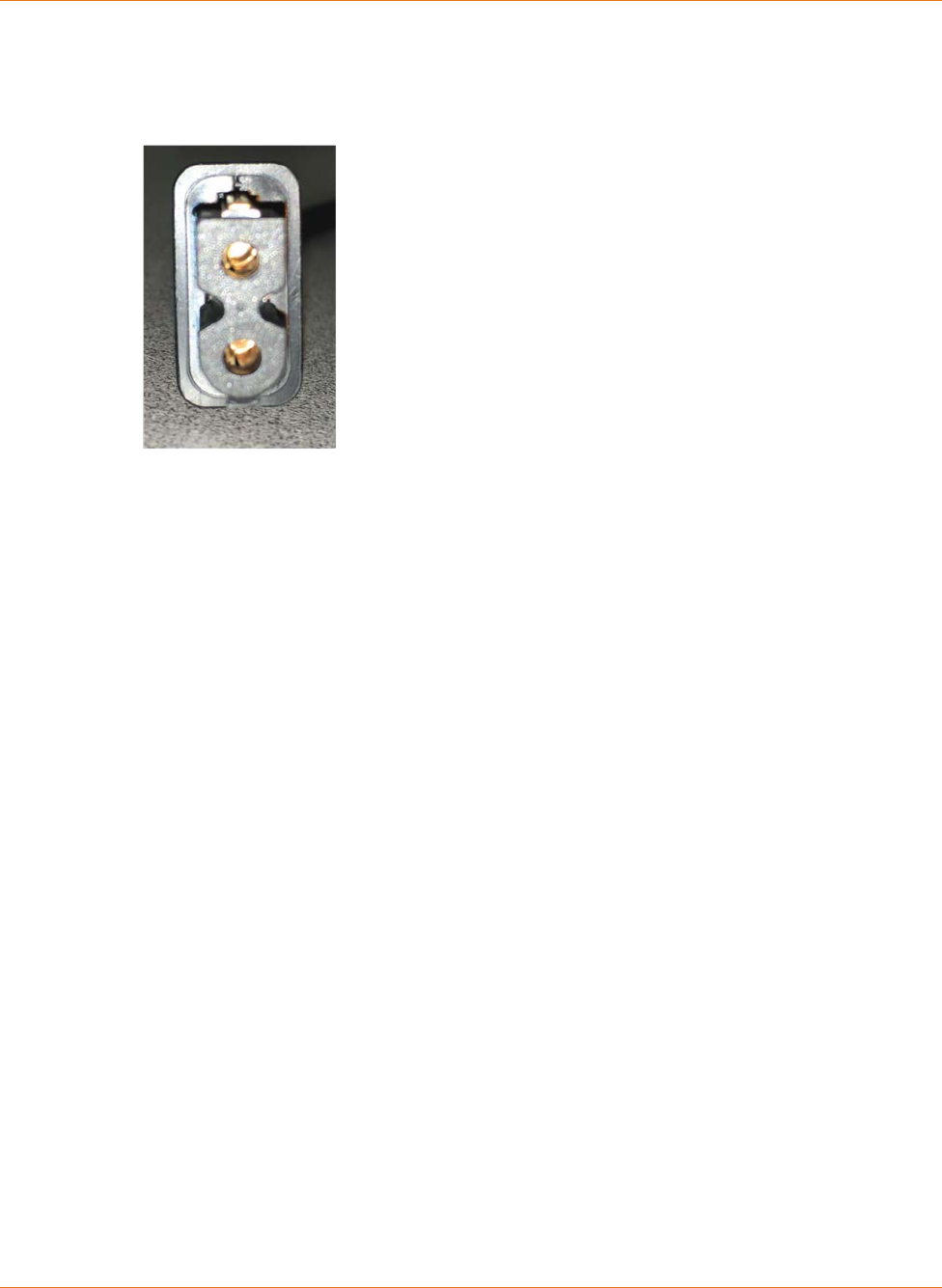

1. Insert the custom end of the XBB1-A into the power cord connector on the back of the
TG3482. The custom end of the XBB1-A Battery Backup Device looks like the following
photo and is designed to fit into the power cord connector on the back of the TG3482.
2. Insert the polarized AC plug into a standard power outlet.
3. Double-check that the AC power cord is securely connected to the body of the battery
unit.
As long as all of the connections for the XBB1-A are securely made, the XBB1-A will provide
power to your TG3482, and the battery unit will charge.
If the power supply is interrupted after the battery is fully charged, then the battery will
provide DC power to the TG3482. Once AC power is restored, the battery unit will begin to
charge again.
Release 2.5 DRAFT 1.4 October 2016 Touchstone XBB1-A Battery Backup Device Reference Guide
© 2016 ARRIS Enterprises LLC. All Rights Reserved. 11
Index
B
Battery Disposal Guidelines • 5
I
Installing the XBB1-A Battery Backup Device • 7
P
Product Overview • 6
S
Safety Requirements • 4
