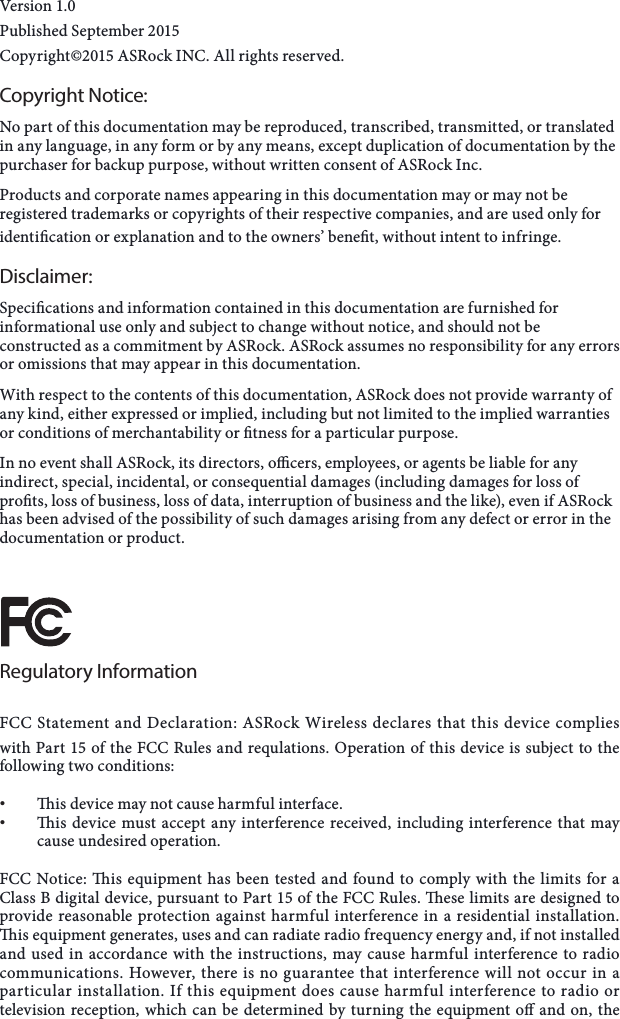

Version 1.0 Published September 2015 Copyright©2015 ASRock INC. All rights reserved.Copyright Notice:No part of this documentation may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser for backup purpose, without written consent of ASRock Inc.Products and corporate names appearing in this documentation may or may not be registered trademarks or copyrights of their respective companies, and are used only for identication or explanation and to the owners’ benet, without intent to infringe. Disclaimer:Specications and information contained in this documentation are furnished for informational use only and subject to change without notice, and should not be constructed as a commitment by ASRock. ASRock assumes no responsibility for any errors or omissions that may appear in this documentation. With respect to the contents of this documentation, ASRock does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warranties or conditions of merchantability or tness for a particular purpose.In no event shall ASRock, its directors, ocers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of prots, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product. Regulatory InformationFCC Statement and Declaration: ASRock Wireless declares that this device complies with Part 15 of the FCC Rules and requlations. Operation of this device is subject to the following two conditions:• is device may not cause harmful interface.• is device must accept any interference received, including interference that may cause undesired operation.FCC Notice: is equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. ese limits are designed to provide reasonable protection against harmful interference in a residential installation. is equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the
user is encouraged to try and correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the distance between the equipment and the receiver.• Connect the equipment to an outlet on a circuit dierence from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help.FCC Caution: Any changes or modifications not expressly approved by the part y responsible for compliance could void the user’s authority to operate this equipment.IMPORTANT NOTE:Radiation Exposure Statementis equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. To maintain compliance with FCC RF exposure compliance requirement, please follow operation instructions as documented in this manual.This transmitter must not be co-located or operating in conjunction with ant other antenna or transmitter.Industry Canada Statement:is Class B digital apparatus complies with Canadian ICE-003.Cet appareil numerique de la classe B conforme a la norme NMB-003 du CanadaThis device complies with RSS standards of the Industry Canada Rules. Operation is subjext to the following two conditions:(1) is device may not cause harmful interference, and(2) This device must accept any interference received, including interference that may cause undesired operation.Ce dispositif est conforme a la norme CNR- standards d’Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage prejudiciable, et(2) ce dispositif doit accepter tout brouillage recu, y compris un brouillage susceptible de provoquer un fonctionnement indesirable.IMPORTANT NOTERadiation Exposure Statement:is equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. is equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body.Déclaration d’exposition aux radiations:Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps.Caution: e device for operation in the band 5150-5250 MHz is only for indoor use to

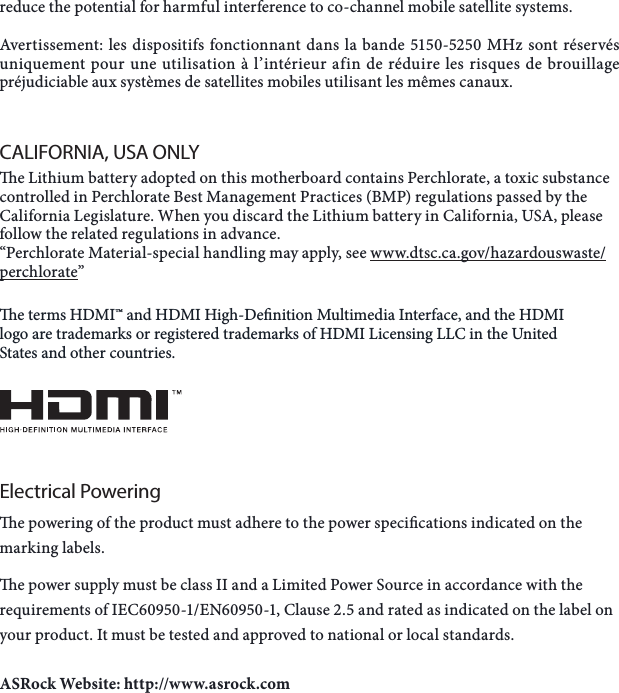

reduce the potential for harmful interference to co-channel mobile satellite systems.Avertissement: les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux.CALIFORNIA, USA ONLYe Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance controlled in Perchlorate Best Management Practices (BMP) regulations passed by the California Legislature. When you discard the Lithium battery in California, USA, please follow the related regulations in advance.“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/perchlorate” e terms HDMI™ and HDMI High-Denition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.Electrical Poweringe powering of the product must adhere to the power specications indicated on the marking labels.e power supply must be class II and a Limited Power Source in accordance with the requirements of IEC60950-1/EN60950-1, Clause 2.5 and rated as indicated on the label on your product. It must be tested and approved to national or local standards.ASRock Website: http://www.asrock.com

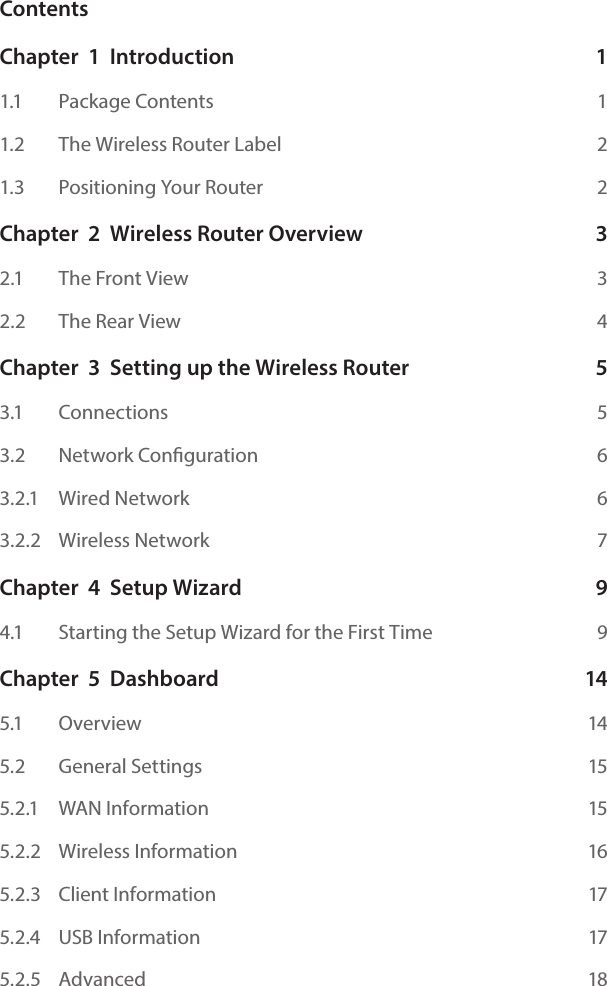

ContentsChapter 1 Introduction 11.1 Package Contents 11.2 The Wireless Router Label 21.3 Positioning Your Router 2Chapter 2 Wireless Router Overview 32.1 The Front View 32.2 The Rear View 4Chapter 3 Setting up the Wireless Router 53.1 Connections 53.2 Network Conguration 63.2.1 Wired Network 63.2.2 Wireless Network 7Chapter 4 Setup Wizard 94.1 Starting the Setup Wizard for the First Time 9Chapter 5 Dashboard 145.1 Overview 145.2 General Settings 155.2.1 WAN Information 155.2.2 Wireless Information 165.2.3 Client Information 175.2.4 USB Information 175.2.5 Advanced 18

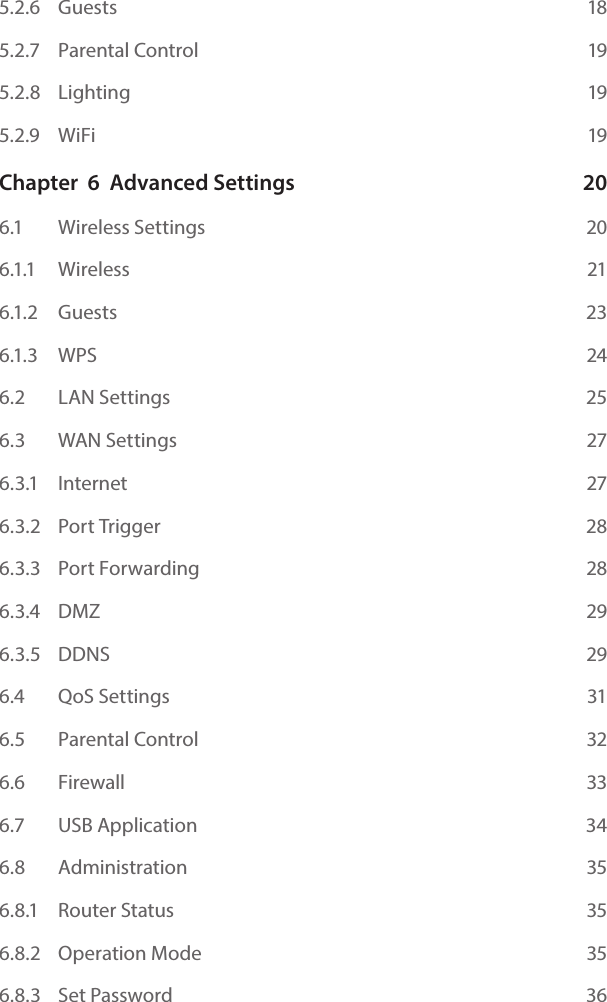

5.2.6 Guests 185.2.7 Parental Control 195.2.8 Lighting 195.2.9 WiFi 19Chapter 6 Advanced Settings 206.1 Wireless Settings 206.1.1 Wireless 216.1.2 Guests 236.1.3 WPS 246.2 LAN Settings 256.3 WAN Settings 276.3.1 Internet 276.3.2 Port Trigger 286.3.3 Port Forwarding 286.3.4 DMZ 296.3.5 DDNS 296.4 QoS Settings 316.5 Parental Control 326.6 Firewall 336.7 USB Application 346.8 Administration 356.8.1 Router Status 356.8.2 Operation Mode 356.8.3 Set Password 36

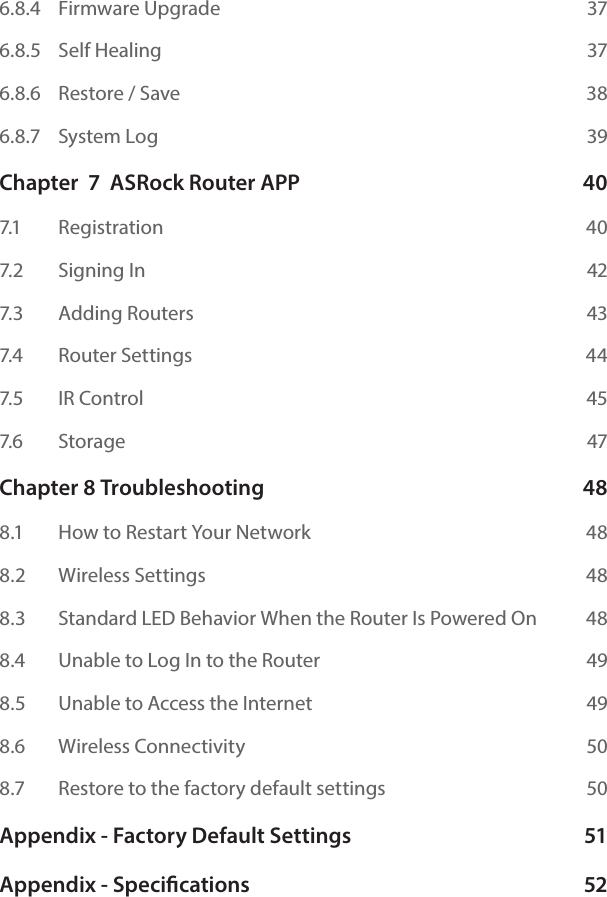

6.8.4 Firmware Upgrade 376.8.5 Self Healing 376.8.6 Restore / Save 386.8.7 System Log 39Chapter 7 ASRock Router APP 407.1 Registration 407.2 Signing In 427.3 Adding Routers 437.4 Router Settings 447.5 IR Control 457.6 Storage 47Chapter 8 Troubleshooting 488.1 How to Restart Your Network 488.2 Wireless Settings 488.3 Standard LED Behavior When the Router Is Powered On 488.4 Unable to Log In to the Router 498.5 Unable to Access the Internet 498.6 Wireless Connectivity 508.7 Restore to the factory default settings 50Appendix - Factory Default Settings 51Appendix - Specications 52
PB 1EnglishASRock G10 Gaming RouterChapter 1 IntroductionASRock AC2600 G10 Gaming Router is equipped with four high-performance internal antennas oering a combined speed of 2.53Gbps. Ideal for homes where high volumes of network trac is needed. e dynamic Quality of Service (QoS) feature optimizes the networking performances on your devices. With the ASRock APP, you can even remote control your home appliances.1.1 Package Contents• ASRock AC2600 G10 Gaming Router• HDMI 2-in-1 Router • Power Adapter • Network RJ45 Cable• Micro USB Cable • HDMI Cable • Quick Installation GuideKeep the original packaging material in case you would need future warranty services such as repair or replacement.

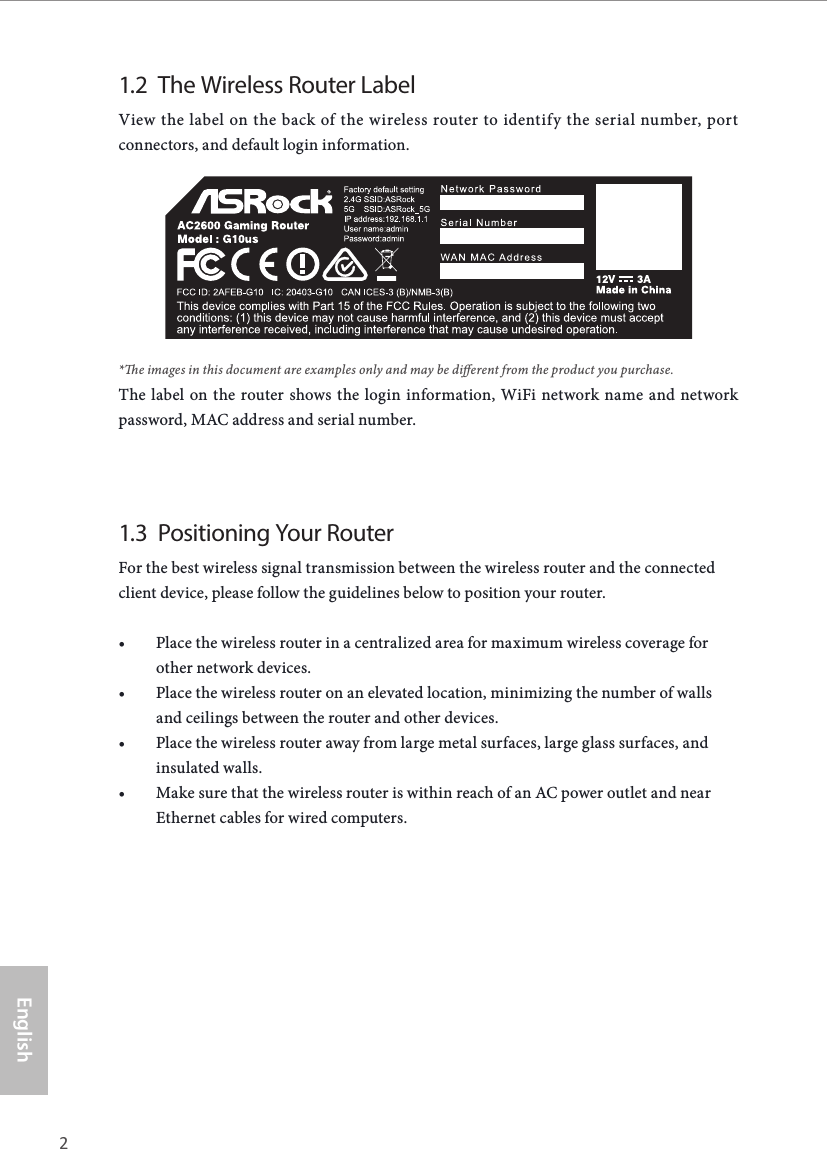

2 3EnglishASRock G10 Gaming Router1.2 The Wireless Router LabelView the label on the back of the wireless router to identify the serial number, port connectors, and default login information.*e images in this document are examples only and may be dierent from the product you purchase.The label on the router shows the login information, WiFi network name and network password, MAC address and serial number.1.3 Positioning Your RouterFor the best wireless signal transmission between the wireless router and the connected client device, please follow the guidelines below to position your router.• Place the wireless router in a centralized area for maximum wireless coverage for other network devices.• Place the wireless router on an elevated location, minimizing the number of walls and ceilings between the router and other devices.• Place the wireless router away from large metal surfaces, large glass surfaces, and insulated walls.• Make sure that the wireless router is within reach of an AC power outlet and near Ethernet cables for wired computers.

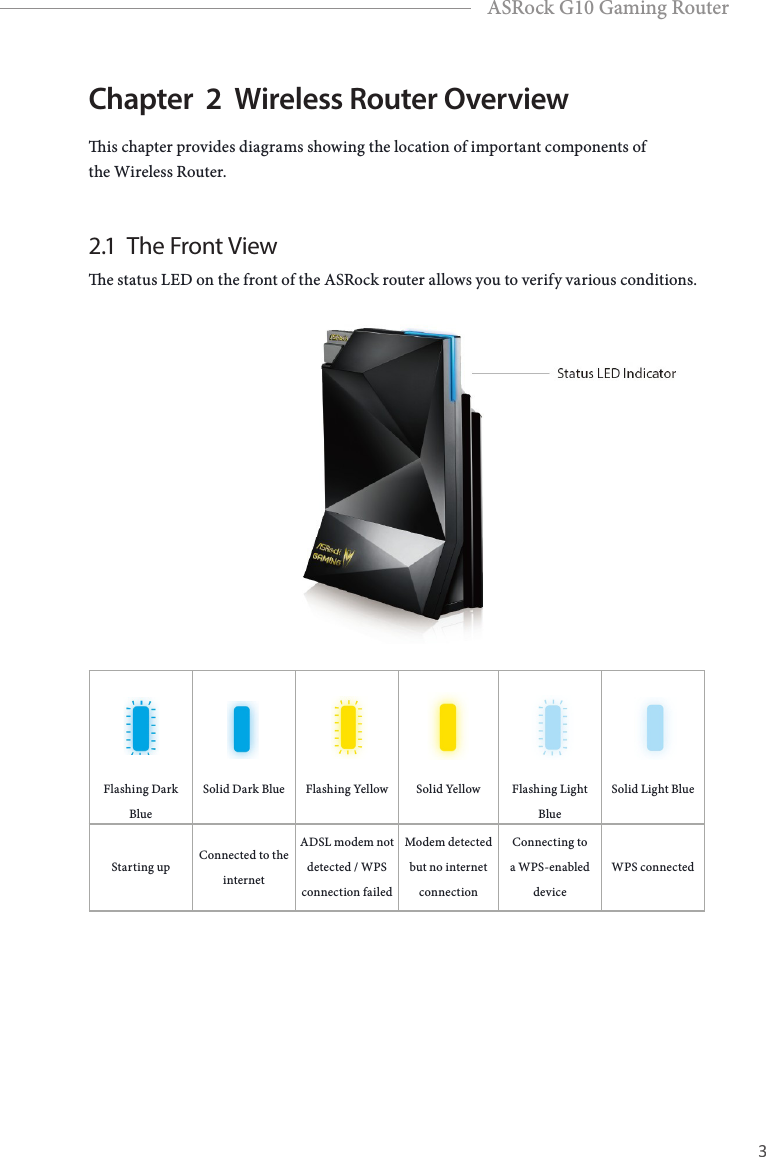

2 3EnglishASRock G10 Gaming RouterChapter 2 Wireless Router Overviewis chapter provides diagrams showing the location of important components of the Wireless Router.2.1 The Front Viewe status LED on the front of the ASRock router allows you to verify various conditions. Flashing Dark BlueSolid Dark Blue Flashing Yellow Solid Yellow Flashing Light BlueSolid Light BlueStarting upConnected to the internetADSL modem not detected / WPS connection failedModem detected but no internet connectionConnecting to a WPS-enabled deviceWPS connected

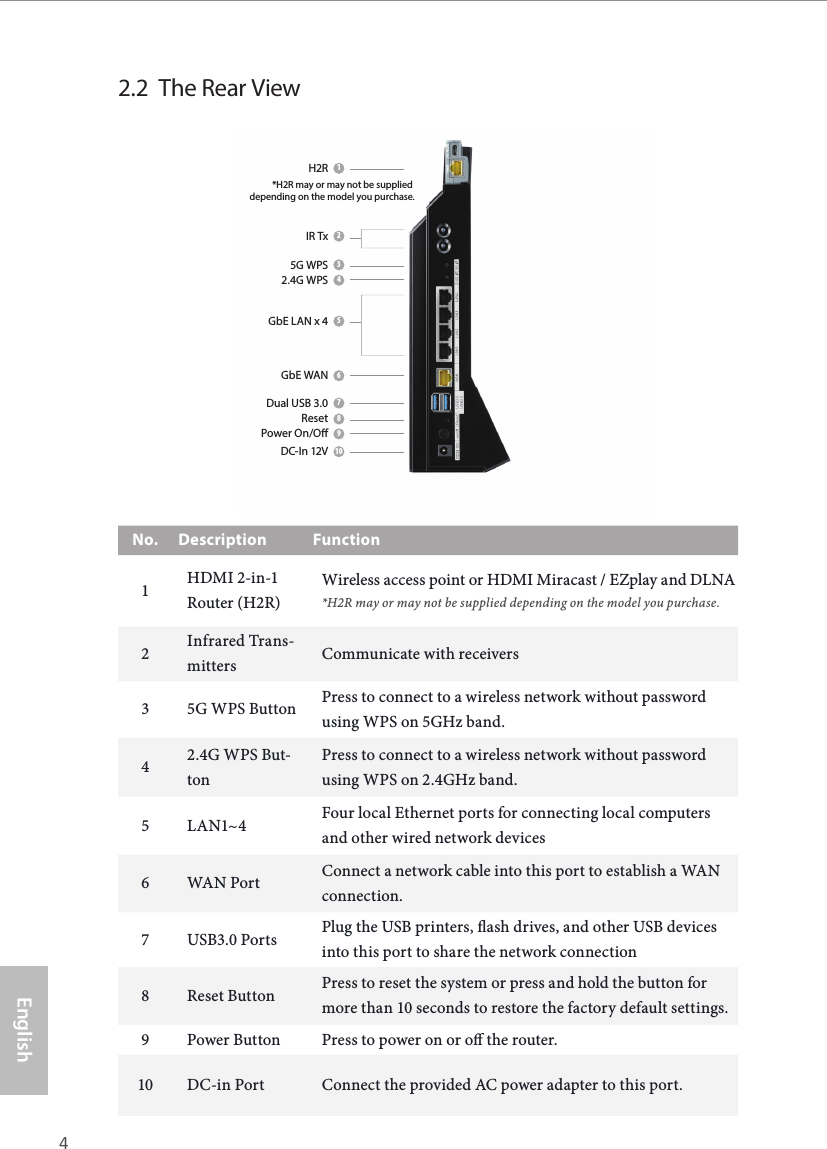

4 5EnglishASRock G10 Gaming Router2.2 The Rear View12345678910IR TxGbE LAN x 45G WPSGbE WANDual USB 3.0ResetPower On/ODC-In 12V2.4G WPSH2R*H2R may or may not be supplied depending on the model you purchase.No. Description Function1HDMI 2-in-1 Router (H2R)Wireless access point or HDMI Miracast / EZplay and DLNA *H2R may or may not be supplied depending on the model you purchase.2Infrared Trans-mitters Communicate with receivers3 5G WPS Button Press to connect to a wireless network without password using WPS on 5GHz band.42.4G WPS But-tonPress to connect to a wireless network without password using WPS on 2.4GHz band.5LAN1~4 Four local Ethernet ports for connecting local computers and other wired network devices6WAN Por t Connect a network cable into this port to establish a WAN connection.7USB3.0 Ports Plug the USB printers, ash drives, and other USB devices into this port to share the network connection8 Reset Button Press to reset the system or press and hold the button for more than 10 seconds to restore the factory default settings.9 Power Button Press to power on or o the router. 10 DC-in Port Connect the provided AC power adapter to this port.

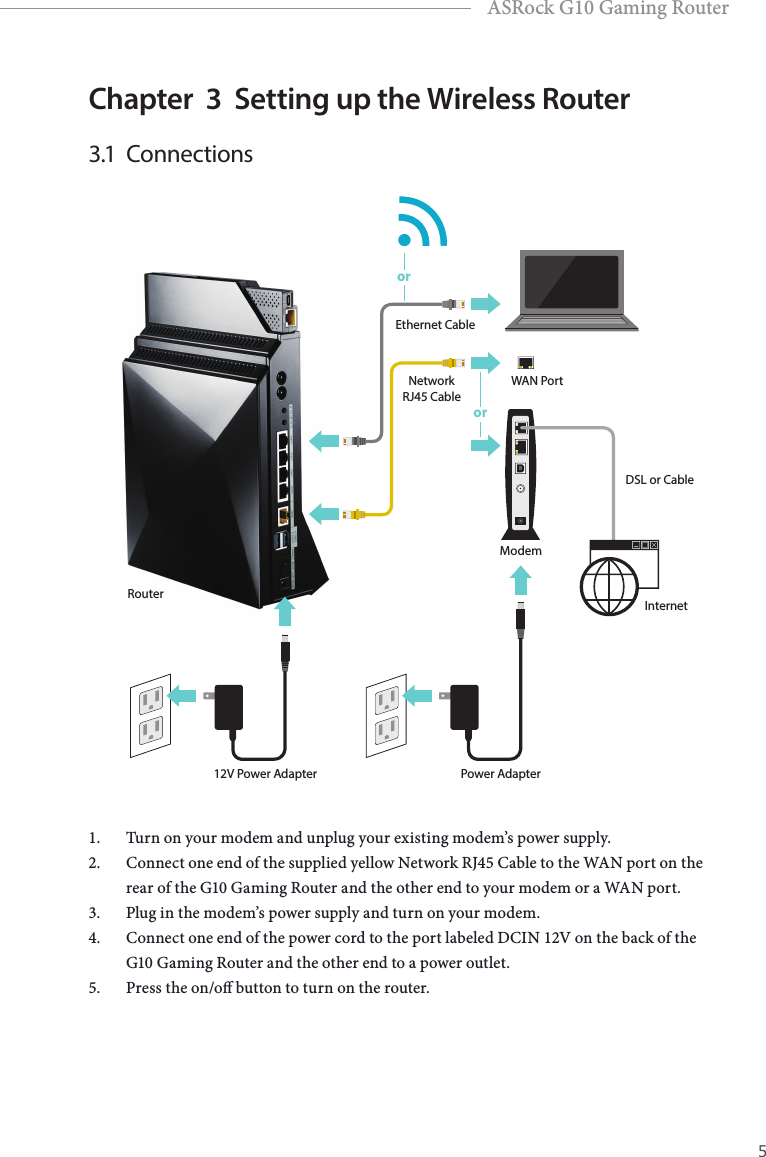

4 5EnglishASRock G10 Gaming RouterChapter 3 Setting up the Wireless Router3.1 ConnectionsEthernet CableNetworkRJ45 CableDSL or CablePower Adapter12V Power AdapterRouterModemInternetWAN Portoror1. Turn on your modem and unplug your existing modem’s power supply.2. Connect one end of the supplied yellow Network RJ45 Cable to the WAN port on the rear of the G10 Gaming Router and the other end to your modem or a WAN port.3. Plug in the modem’s power supply and turn on your modem.4. Connect one end of the power cord to the port labeled DCIN 12V on the back of the G10 Gaming Router and the other end to a power outlet. 5. Press the on/o button to turn on the router.

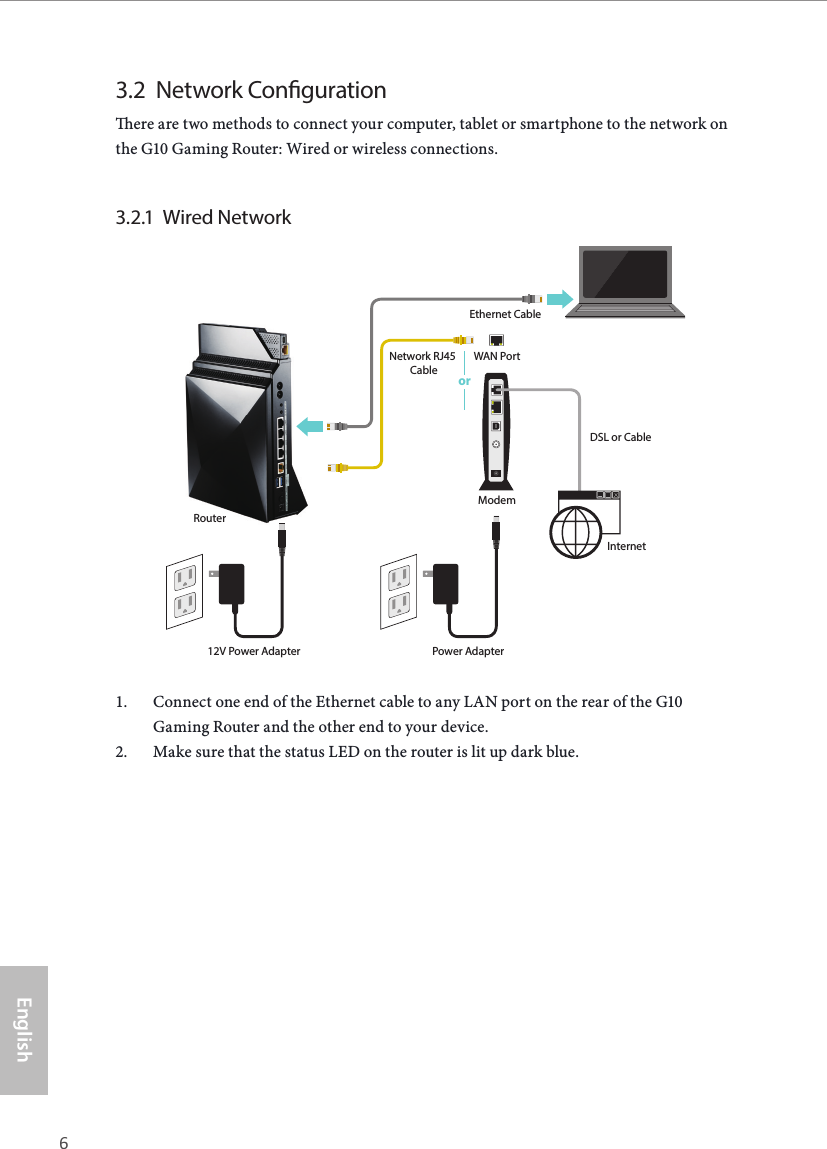

6 7EnglishASRock G10 Gaming Router3.2 Network Congurationere are two methods to connect your computer, tablet or smartphone to the network on the G10 Gaming Router: Wired or wireless connections.3.2.1 Wired NetworkEthernet CableRouterNetwork RJ45 CableDSL or CablePower Adapter12V Power AdapterModemInternetWAN Portor1. Connect one end of the Ethernet cable to any LAN port on the rear of the G10 Gaming Router and the other end to your device.2. Make sure that the status LED on the router is lit up dark blue.

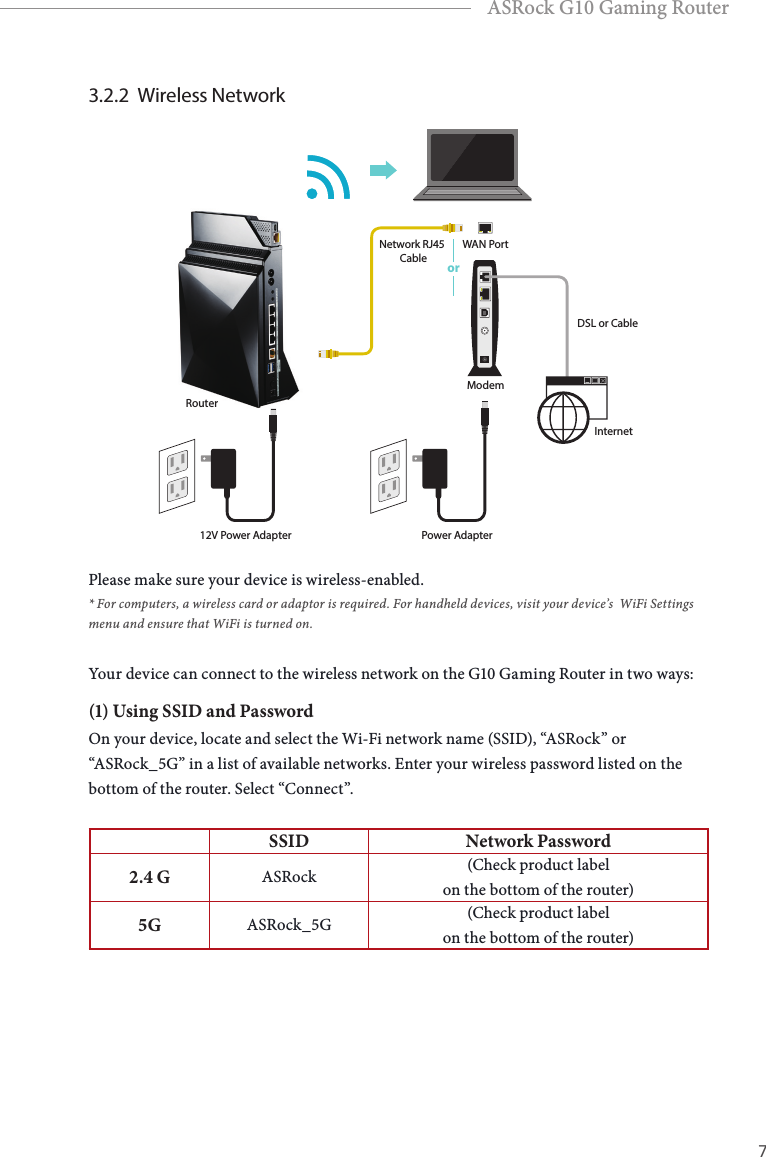

6 7EnglishASRock G10 Gaming Router3.2.2 Wireless NetworkRouterNetwork RJ45 CableDSL or CablePower Adapter12V Power AdapterModemInternetWAN PortorPlease make sure your device is wireless-enabled.* For computers, a wireless card or adaptor is required. For handheld devices, visit your device’s WiFi Settings menu and ensure that WiFi is turned on.Your device can connect to the wireless network on the G10 Gaming Router in two ways: (1) Using SSID and PasswordOn your device, locate and select the Wi-Fi network name (SSID), “ASRock” or “ASRock_5G” in a list of available networks. Enter your wireless password listed on the bottom of the router. Select “Connect”.SSID Network Password2.4 G ASRock (Check product label on the bottom of the router)5G ASRock_5G (Check product label on the bottom of the router)
8 9EnglishASRock G10 Gaming Router(2) Using WPS (Wi-Fi Protected Setup)WPS stands for Wi-Fi Protected Setup and it is a wireless networking standard that tries to make connections between a router and wireless devices faster and easier. Press and hold the WPS 2.4G/5G button on the rear of the G10 Gaming Router for more than 5 seconds. e status LED on the front of the router will ash light blue at this stage.If you use a handheld device, locate and press the WPS button shown as two curved arrows to connect. If you use a computer, locate and select the Wi-Fi network name (SSID), “ASRock” or “ASRock_5G”. Select “Connect”. When WPS is connected successfully, the Status LED indicator on the front of the router turns to a solid light blue. *e WPS function may or may not be supported depending on your device.LED Indicator Variations: Successful Pairing:Pairing Failed:Pairing (About 2 mins) Pairing successfully (5 secs)WAN connectedPress the “WPS“ button2.4G WPS5G WPSPairing (About 2 mins) Pairing failed (About 1 min)WAN connectedPress the “WPS“ button2.4G WPS5G WPS

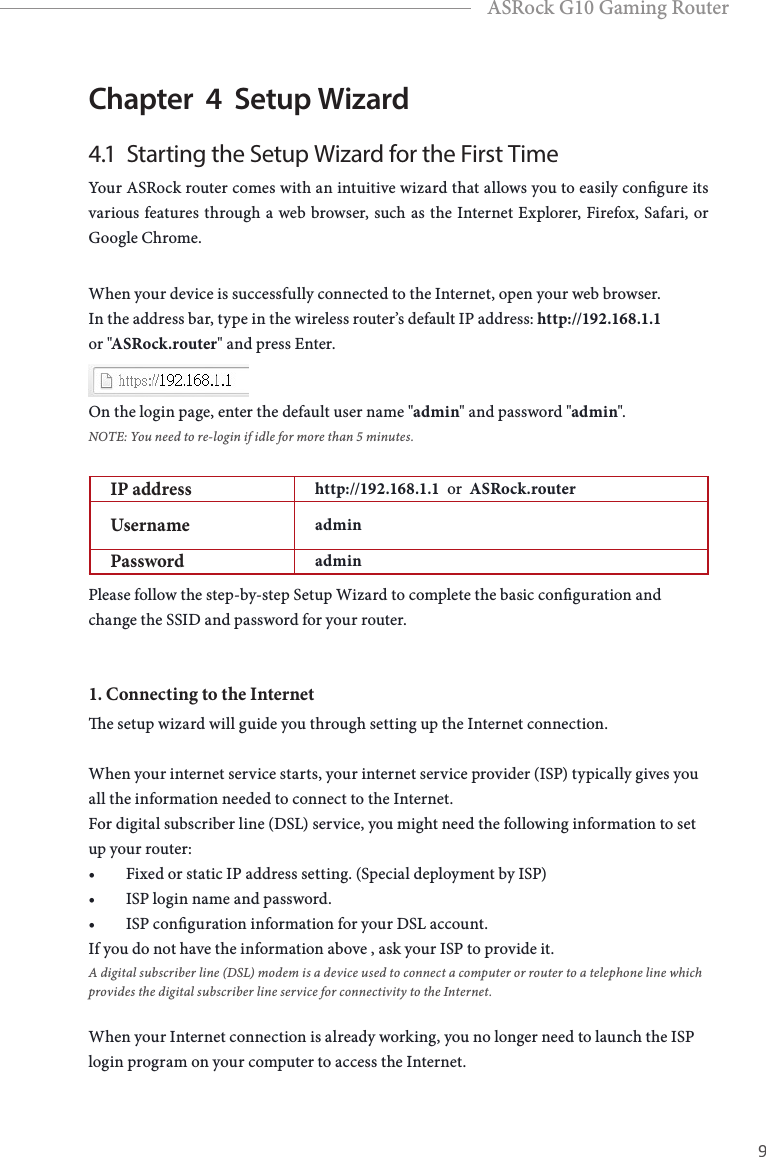

8 9EnglishASRock G10 Gaming RouterChapter 4 Setup Wizard 4.1 Starting the Setup Wizard for the First TimeYour ASRock router comes with an intuitive wizard that allows you to easily congure its various features through a web browser, such as the Internet Explorer, Firefox, Safari, or Google Chrome.When your device is successfully connected to the Internet, open your web browser. In the address bar, type in the wireless router’s default IP address: http://192.168.1.1 or "ASRock.router" and press Enter. On the login page, enter the default user name "admin" and password "admin".NOTE: You need to re-login if idle for more than 5 minutes.IP address http://192.168.1.1 or ASRock.routerUsername adminPassword adminPlease follow the step-by-step Setup Wizard to complete the basic conguration and change the SSID and password for your router.1. Connecting to the Internete setup wizard will guide you through setting up the Internet connection. When your internet service starts, your internet service provider (ISP) typically gives you all the information needed to connect to the Internet. For digital subscriber line (DSL) service, you might need the following information to set up your router:• Fixed or static IP address setting. (Special deployment by ISP)• ISP login name and password.• ISP conguration information for your DSL account.If you do not have the information above , ask your ISP to provide it. A digital subscriber line (DSL) modem is a device used to connect a computer or router to a telephone line which provides the digital subscriber line service for connectivity to the Internet.When your Internet connection is already working, you no longer need to launch the ISP login program on your computer to access the Internet.

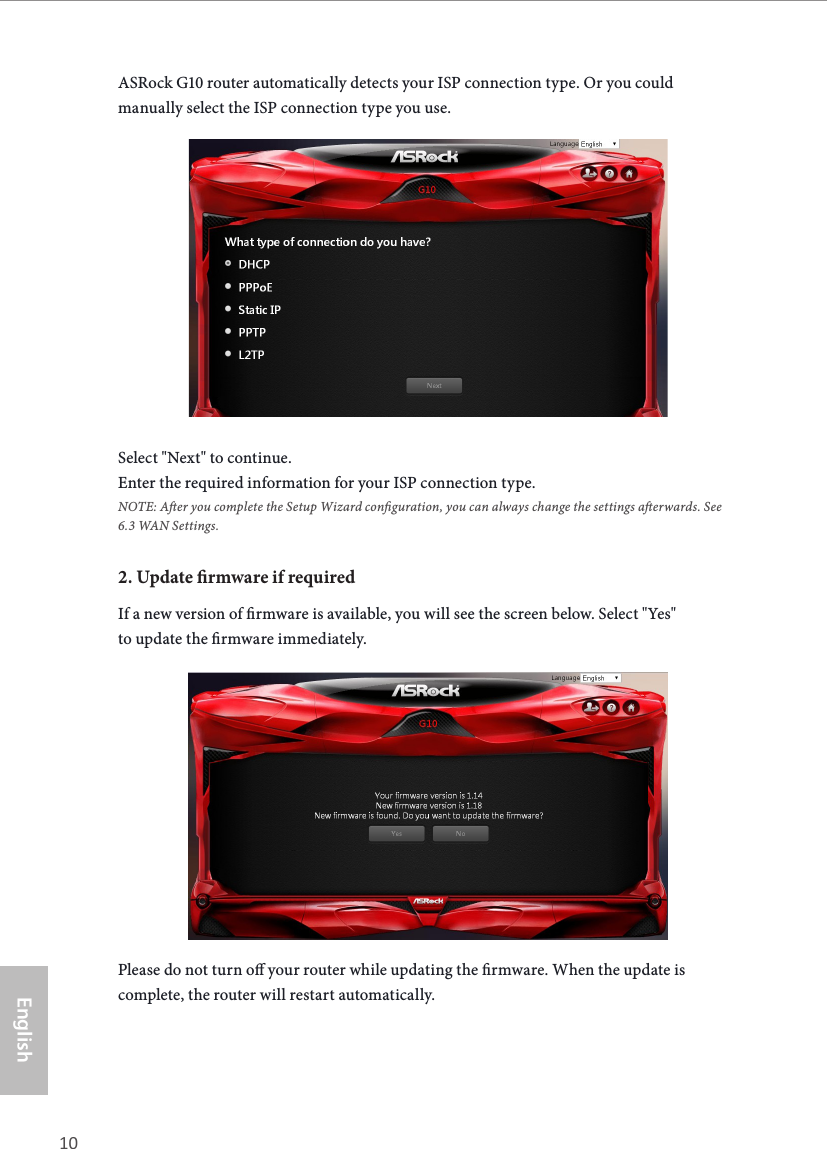

10 11EnglishASRock G10 Gaming RouterASRock G10 router automatically detects your ISP connection type. Or you could manually select the ISP connection type you use.Select "Next" to continue.Enter the required information for your ISP connection type.NOTE: Aer you complete the Setup Wizard conguration, you can always change the settings aerwards. See6.3 WAN Settings.2. Update rmware if requiredIf a new version of rmware is available, you will see the screen below. Select "Yes" to update the rmware immediately.Please do not turn o your router while updating the rmware. When the update is complete, the router will restart automatically.

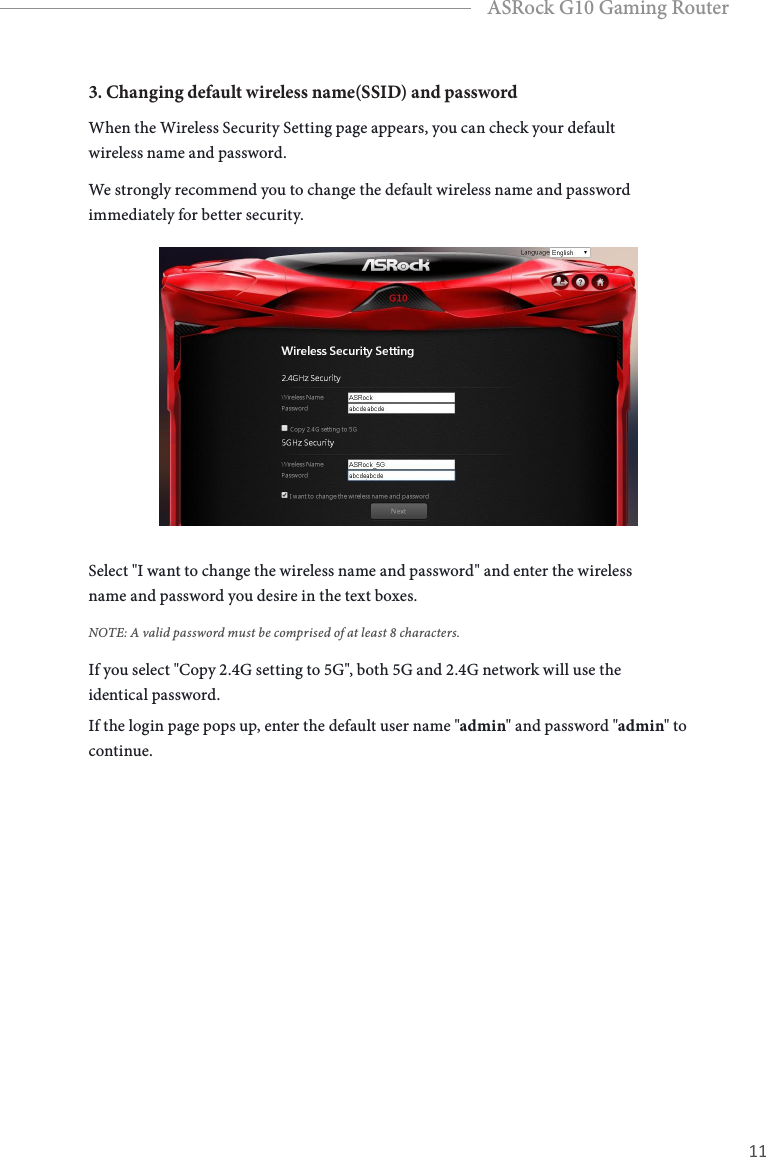

10 11EnglishASRock G10 Gaming Router3. Changing default wireless name(SSID) and passwordWhen the Wireless Security Setting page appears, you can check your default wireless name and password. We strongly recommend you to change the default wireless name and password immediately for better security. Select "I want to change the wireless name and password" and enter the wireless name and password you desire in the text boxes. NOTE: A valid password must be comprised of at least 8 characters.If you select "Copy 2.4G setting to 5G", both 5G and 2.4G network will use the identical password.If the login page pops up, enter the default user name "admin" and password "admin" to continue.

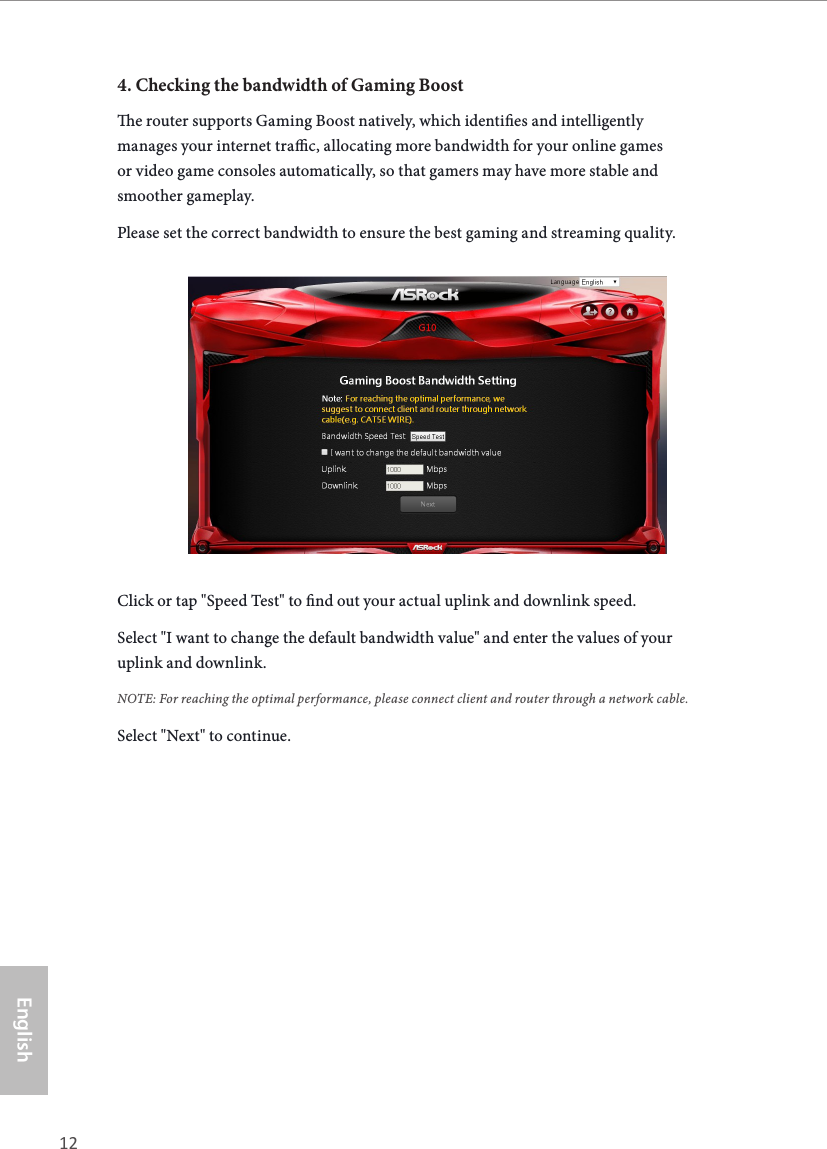

12 13EnglishASRock G10 Gaming Router4. Checking the bandwidth of Gaming Booste router supports Gaming Boost natively, which identies and intelligently manages your internet trac, allocating more bandwidth for your online games or video game consoles automatically, so that gamers may have more stable and smoother gameplay.Please set the correct bandwidth to ensure the best gaming and streaming quality.Click or tap "Speed Test" to nd out your actual uplink and downlink speed. Select "I want to change the default bandwidth value" and enter the values of your uplink and downlink. NOTE: For reaching the optimal performance, please connect client and router through a network cable.Select "Next" to continue.

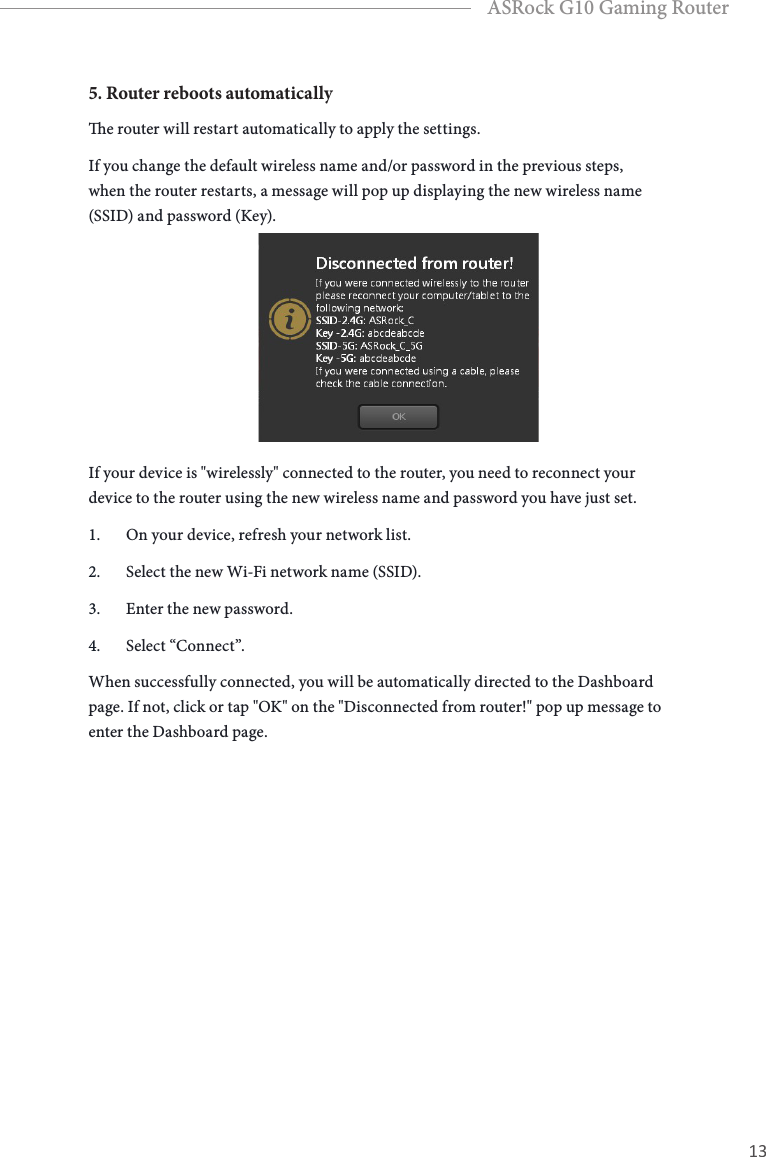

12 13EnglishASRock G10 Gaming Router5. Router reboots automaticallye router will restart automatically to apply the settings. If you change the default wireless name and/or password in the previous steps, when the router restarts, a message will pop up displaying the new wireless name (SSID) and password (Key). If your device is "wirelessly" connected to the router, you need to reconnect your device to the router using the new wireless name and password you have just set.1. On your device, refresh your network list. 2. Select the new Wi-Fi network name (SSID). 3. Enter the new password.4. Select “Connect”.When successfully connected, you will be automatically directed to the Dashboard page. If not, click or tap "OK" on the "Disconnected from router!" pop up message to enter the Dashboard page.

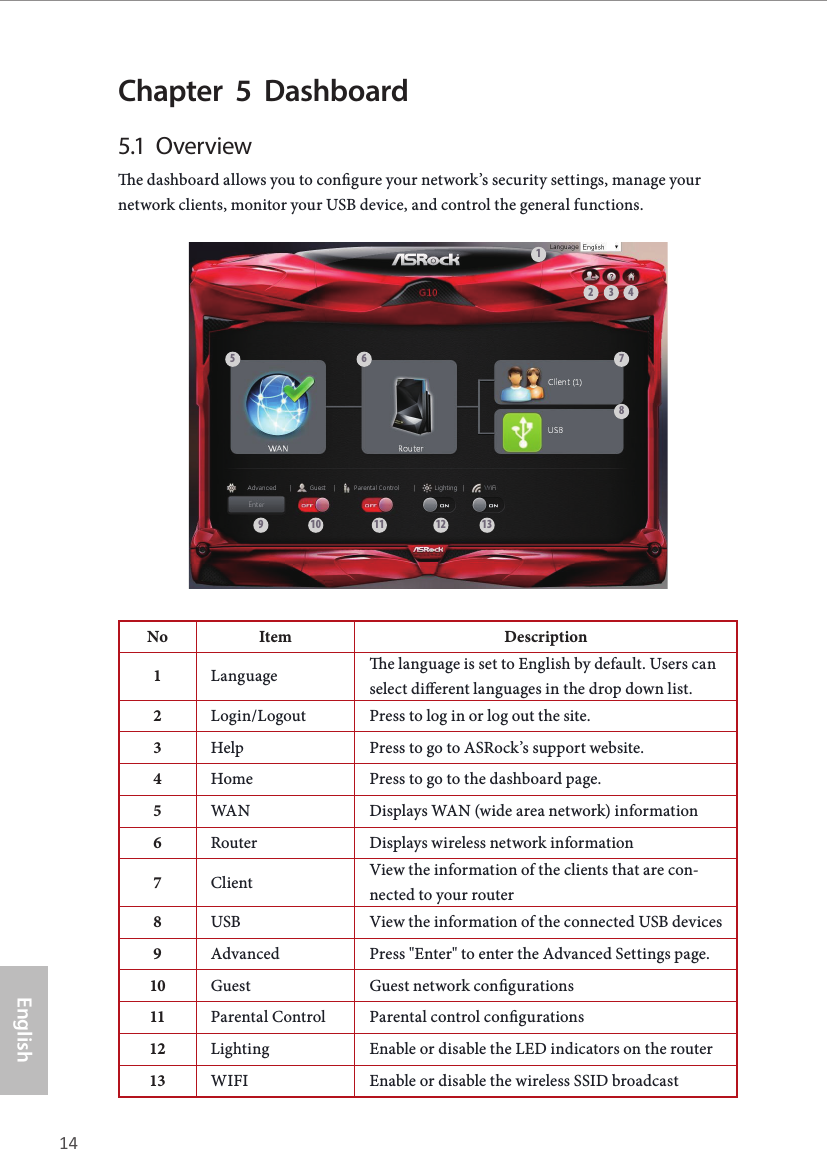

14 15EnglishASRock G10 Gaming RouterChapter 5 Dashboard5.1 Overviewe dashboard allows you to congure your network’s security settings, manage your network clients, monitor your USB device, and control the general functions.5 6 789 10 11 12 13213 4No Item Description1Language e language is set to English by default. Users can select dierent languages in the drop down list.2Login/Logout Press to log in or log out the site. 3Help Press to go to ASRock’s support website.4Home Press to go to the dashboard page.5WAN Displays WAN (wide area network) information6Router Displays wireless network information7Client View the information of the clients that are con-nected to your router8USB View the information of the connected USB devices9Advanced Press "Enter" to enter the Advanced Settings page. 10 Guest Guest network congurations11 Parental Control Parental control congurations12 Lighting Enable or disable the LED indicators on the router13 WIFI Enable or disable the wireless SSID broadcast

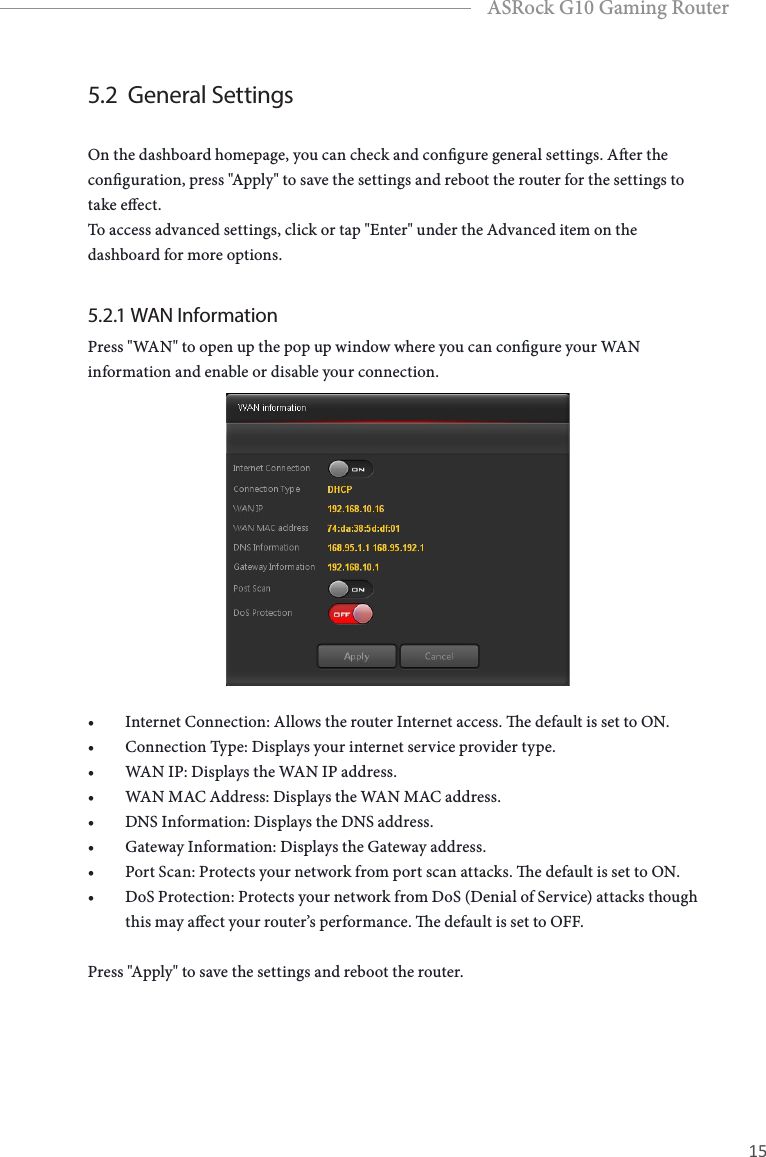

14 15EnglishASRock G10 Gaming Router5.2 General SettingsOn the dashboard homepage, you can check and congure general settings. Aer the conguration, press "Apply" to save the settings and reboot the router for the settings to take eect.To access advanced settings, click or tap "Enter" under the Advanced item on the dashboard for more options.5.2.1 WAN InformationPress "WAN" to open up the pop up window where you can congure your WAN information and enable or disable your connection.• Internet Connection: Allows the router Internet access. e default is set to ON.• Connection Type: Displays your internet service provider type.• WAN IP: Displays the WAN IP address.• WAN MAC Address: Displays the WAN MAC address.• DNS Information: Displays the DNS address.• Gateway Information: Displays the Gateway address.• Port Scan: Protects your network from port scan attacks. e default is set to ON.• DoS Protection: Protects your network from DoS (Denial of Service) attacks though this may aect your router’s performance. e default is set to OFF.Press "Apply" to save the settings and reboot the router.

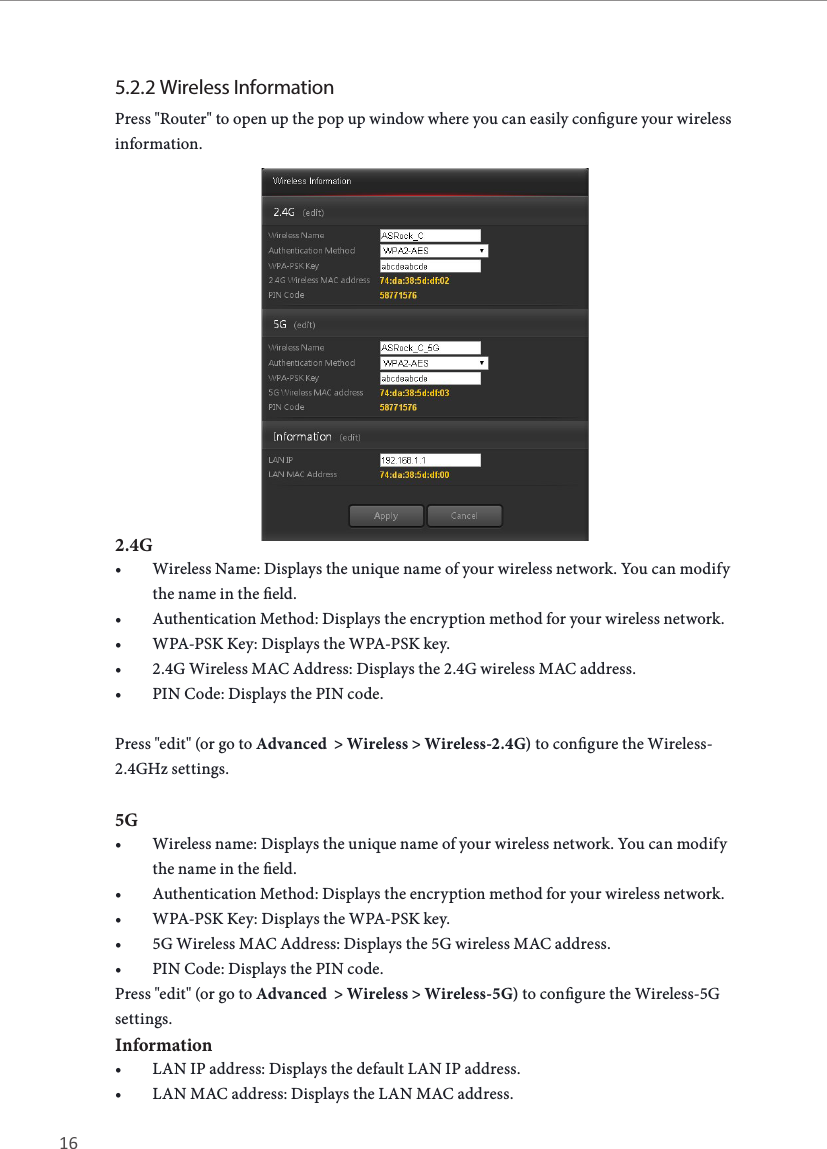

16 17ASRock G10 Gaming Router5.2.2 Wireless InformationPress "Router" to open up the pop up window where you can easily congure your wireless information. 2.4G• Wireless Name: Displays the unique name of your wireless network. You can modify the name in the eld.• Authentication Method: Displays the encryption method for your wireless network.• WPA-PSK Key: Displays the WPA-PSK key.• 2.4G Wireless MAC Address: Displays the 2.4G wireless MAC address.• PIN Code: Displays the PIN code.Press "edit" (or go to Advanced > Wireless > Wireless-2.4G) to congure the Wireless-2.4GHz settings. 5G• Wireless name: Displays the unique name of your wireless network. You can modify the name in the eld.• Authentication Method: Displays the encryption method for your wireless network.• WPA-PSK Key: Displays the WPA-PSK key.• 5G Wireless MAC Address: Displays the 5G wireless MAC address.• PIN Code: Displays the PIN code.Press "edit" (or go to Advanced > Wireless > Wireless-5G) to congure the Wireless-5G settings. Information• LAN IP address: Displays the default LAN IP address.• LAN MAC address: Displays the LAN MAC address.
16 17EnglishASRock G10 Gaming RouterPress "edit" (or go to Advanced > LAN) to congure the LAN settings. Press "Apply" to save the settings and reboot the router.5.2.3 Client InformationPress "Client" to open up the pop up window where you can check your client information. You will see the IP address, device name, MAC address of all the wired and wireless devices connected to your router.5.2.4 USB InformationPress “USB” to open up the pop up window where you can check the device name, total space, free space of the connected USB device(s).• Safely Remove USB Device: Select the USB device(s) you want to remove and press Safely Remove USB Device to disconnect the USB device(s) safely.• Advanced: Press "Advanced" (or go to Advanced > USB Application) to congure advanced settings. When a USB device is reconnected to the router, press "Home" to go to the dashboard page

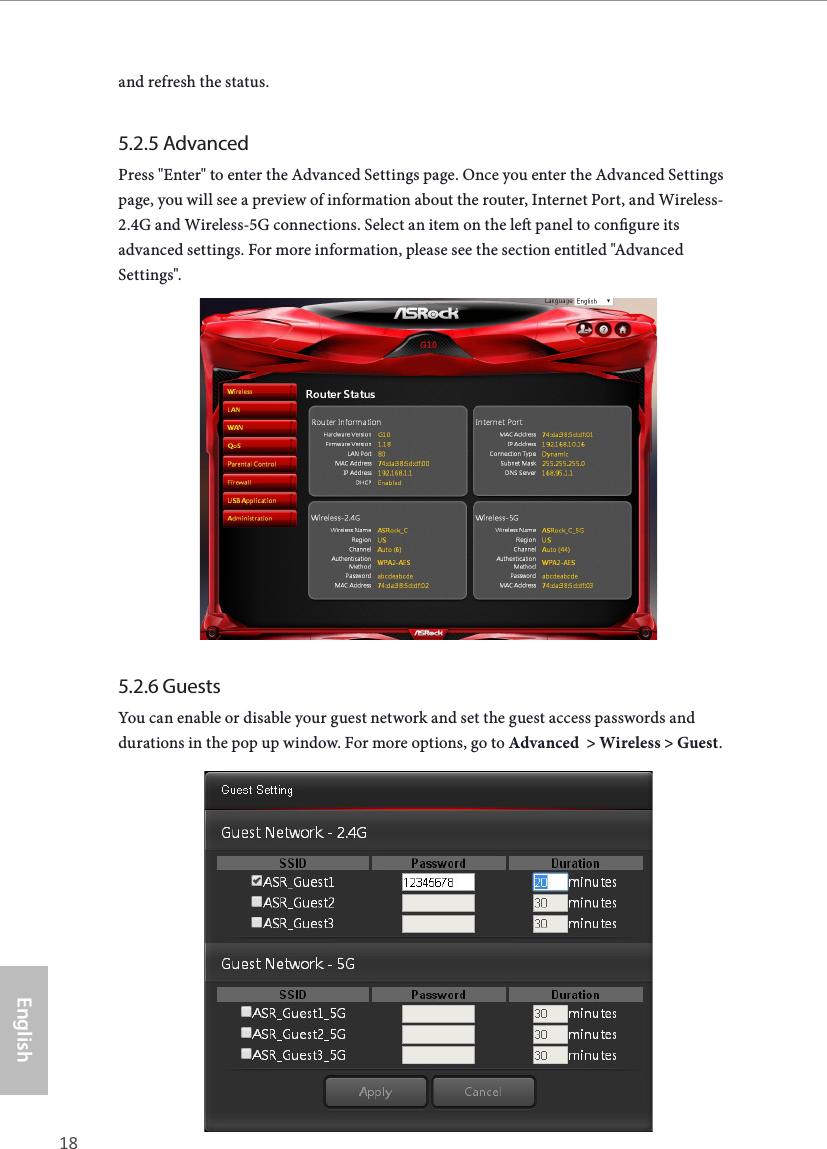

18 19EnglishASRock G10 Gaming Routerand refresh the status.5.2.5 AdvancedPress "Enter" to enter the Advanced Settings page. Once you enter the Advanced Settings page, you will see a preview of information about the router, Internet Port, and Wireless-2.4G and Wireless-5G connections. Select an item on the le panel to congure its advanced settings. For more information, please see the section entitled "Advanced Settings".5.2.6 GuestsYou can enable or disable your guest network and set the guest access passwords and durations in the pop up window. For more options, go to Advanced > Wireless > Guest.

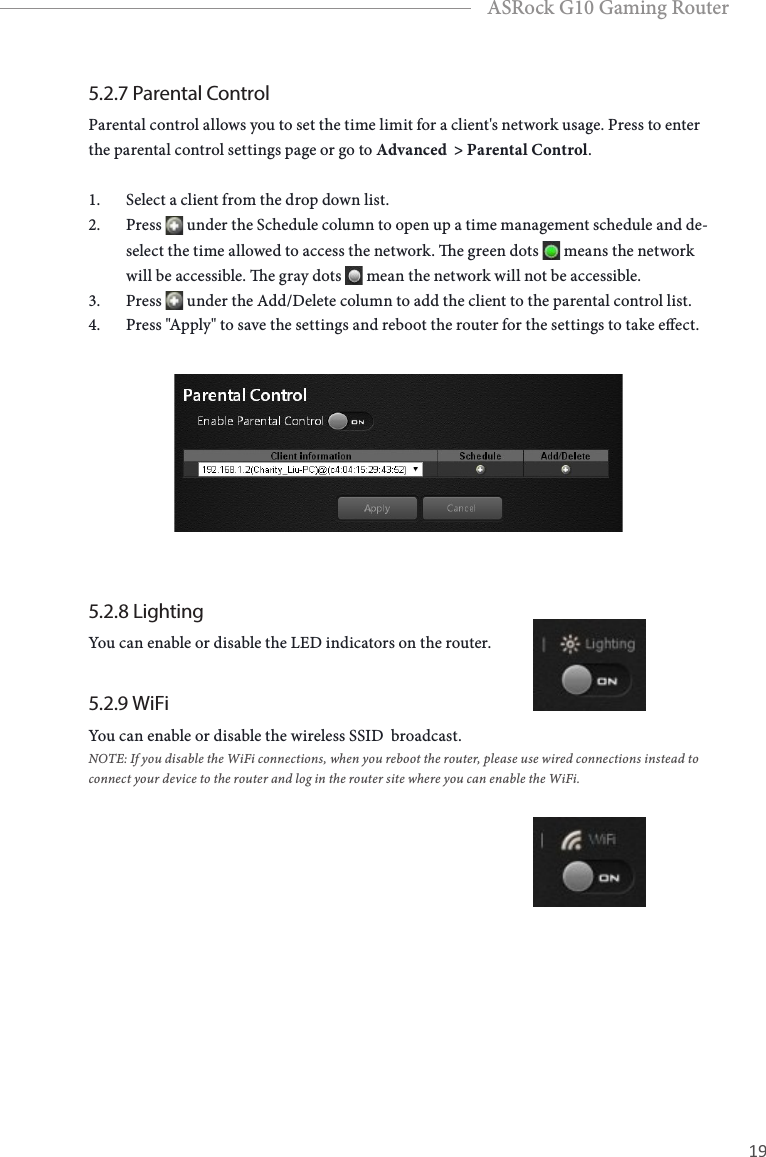

18 19EnglishASRock G10 Gaming Router5.2.7 Parental ControlParental control allows you to set the time limit for a client's network usage. Press to enter the parental control settings page or go to Advanced > Parental Control. 1. Select a client from the drop down list. 2. Press under the Schedule column to open up a time management schedule and de-select the time allowed to access the network. e green dots means the network will be accessible. e gray dots mean the network will not be accessible.3. Press under the Add/Delete column to add the client to the parental control list. 4. Press "Apply" to save the settings and reboot the router for the settings to take eect.5.2.8 LightingYou can enable or disable the LED indicators on the router. 5.2.9 WiFiYou can enable or disable the wireless SSID broadcast. NOTE: If you disable the WiFi connections, when you reboot the router, please use wired connections instead to connect your device to the router and log in the router site where you can enable the WiFi.

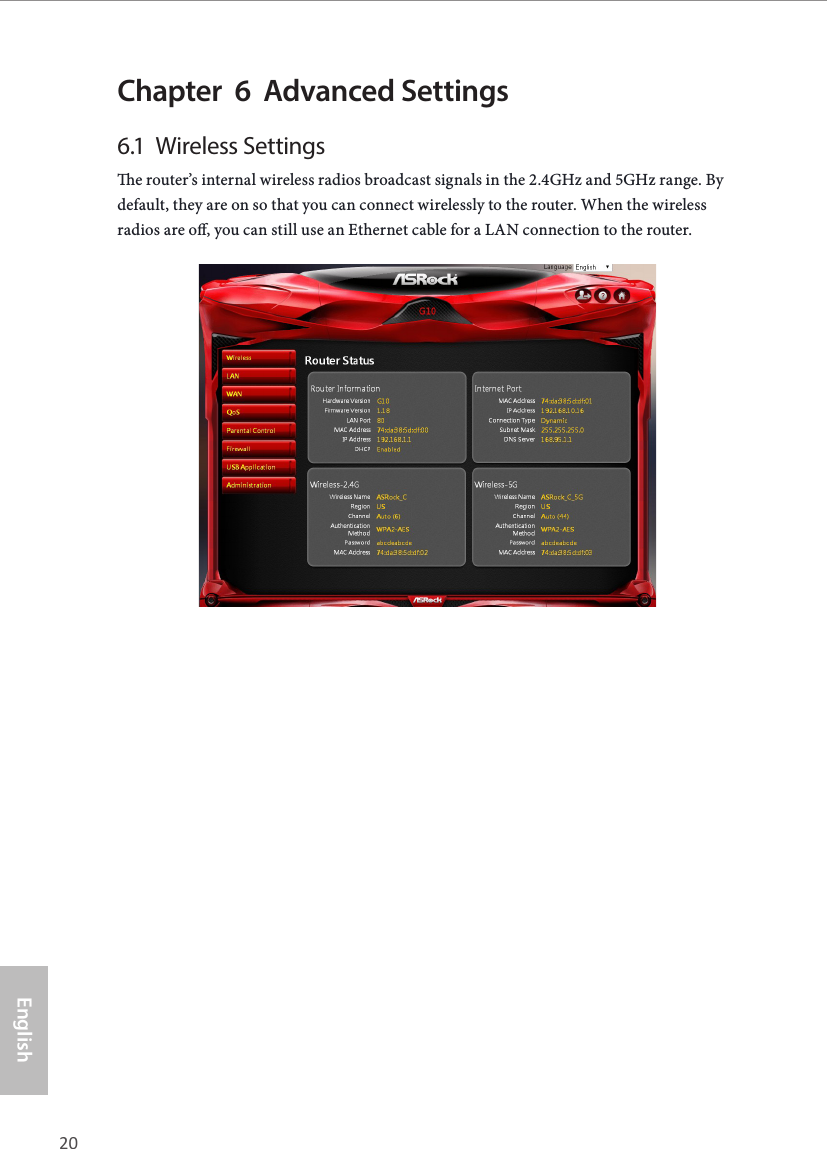

20 21EnglishASRock G10 Gaming RouterChapter 6 Advanced Settings6.1 Wireless Settingse router’s internal wireless radios broadcast signals in the 2.4GHz and 5GHz range. By default, they are on so that you can connect wirelessly to the router. When the wireless radios are o, you can still use an Ethernet cable for a LAN connection to the router.

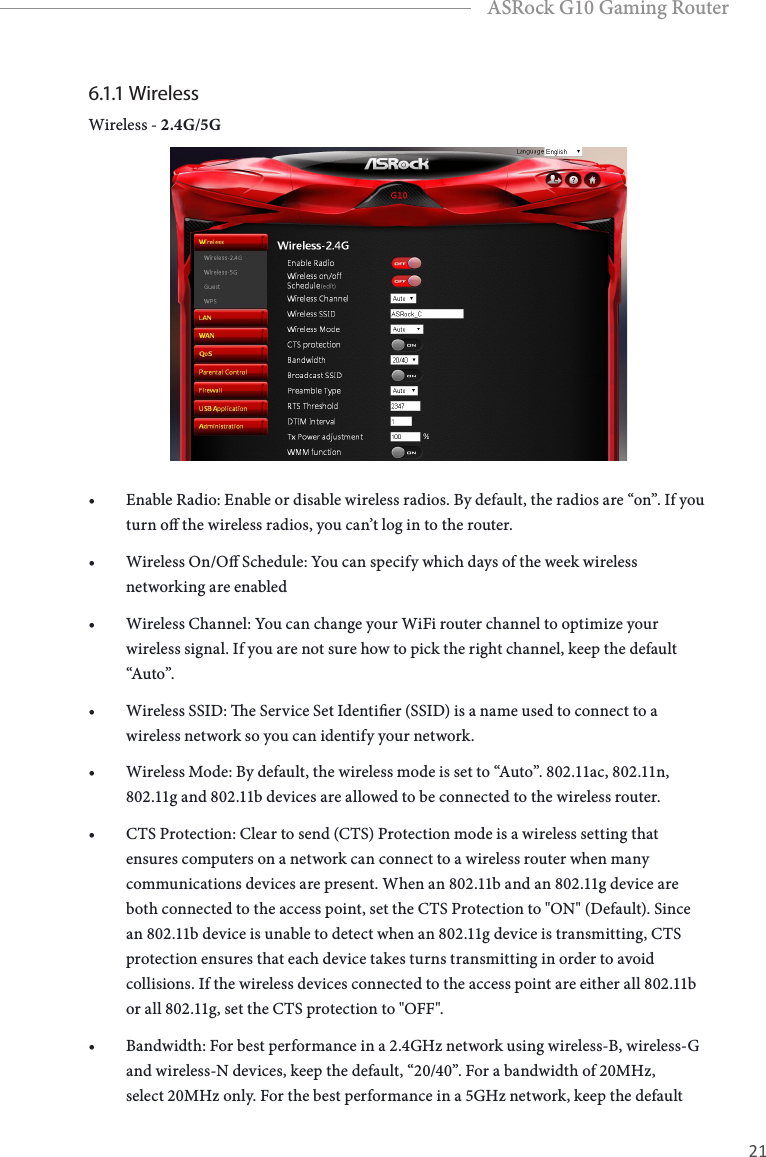

20 21EnglishASRock G10 Gaming Router6.1.1 WirelessWireless - 2.4G/5G• Enable Radio: Enable or disable wireless radios. By default, the radios are “on”. If you turn o the wireless radios, you can’t log in to the router. • Wireless On/O Schedule: You can specify which days of the week wireless networking are enabled• Wireless Channel: You can change your WiFi router channel to optimize your wireless signal. If you are not sure how to pick the right channel, keep the default “Auto”.• Wireless SSID: e Service Set Identier (SSID) is a name used to connect to a wireless network so you can identify your network.• Wireless Mode: By default, the wireless mode is set to “Auto”. 802.11ac, 802.11n, 802.11g and 802.11b devices are allowed to be connected to the wireless router.• CTS Protection: Clear to send (CTS) Protection mode is a wireless setting that ensures computers on a network can connect to a wireless router when many communications devices are present. When an 802.11b and an 802.11g device are both connected to the access point, set the CTS Protection to "ON" (Default). Since an 802.11b device is unable to detect when an 802.11g device is transmitting, CTS protection ensures that each device takes turns transmitting in order to avoid collisions. If the wireless devices connected to the access point are either all 802.11b or all 802.11g, set the CTS protection to "OFF". • Bandwidth: For best performance in a 2.4GHz network using wireless-B, wireless-G and wireless-N devices, keep the default, “20/40”. For a bandwidth of 20MHz, select 20MHz only. For the best performance in a 5GHz network, keep the default

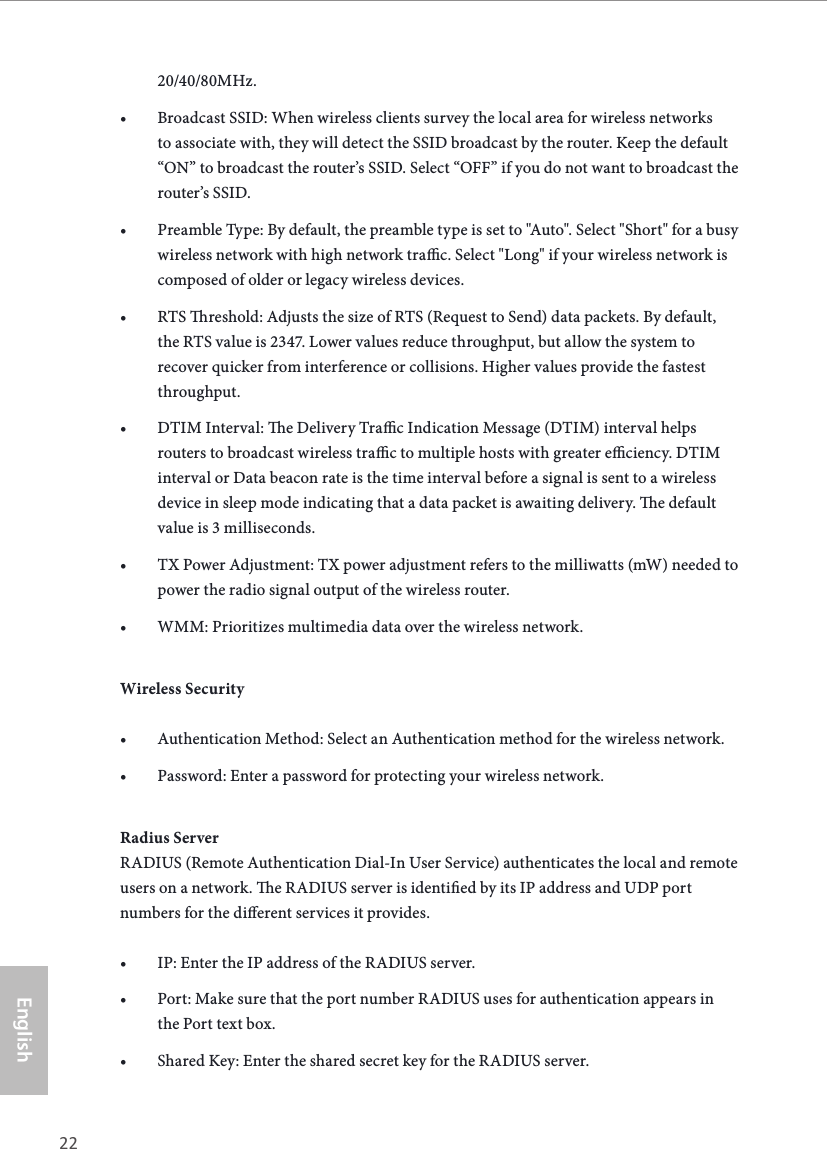

22 23EnglishASRock G10 Gaming Router20/40/80MHz.• Broadcast SSID: When wireless clients survey the local area for wireless networks to associate with, they will detect the SSID broadcast by the router. Keep the default “ON” to broadcast the router’s SSID. Select “OFF” if you do not want to broadcast the router’s SSID.• Preamble Type: By default, the preamble type is set to "Auto". Select "Short" for a busy wireless network with high network trac. Select "Long" if your wireless network is composed of older or legacy wireless devices.• RTS reshold: Adjusts the size of RTS (Request to Send) data packets. By default, the RTS value is 2347. Lower values reduce throughput, but allow the system to recover quicker from interference or collisions. Higher values provide the fastest throughput.• DTIM Interval: e Delivery Trac Indication Message (DTIM) interval helps routers to broadcast wireless trac to multiple hosts with greater eciency. DTIM interval or Data beacon rate is the time interval before a signal is sent to a wireless device in sleep mode indicating that a data packet is awaiting delivery. e default value is 3 milliseconds. • TX Power Adjustment: TX power adjustment refers to the milliwatts (mW) needed to power the radio signal output of the wireless router.• WMM: Prioritizes multimedia data over the wireless network.Wireless Security• Authentication Method: Select an Authentication method for the wireless network.• Password: Enter a password for protecting your wireless network.Radius ServerRADIUS (Remote Authentication Dial-In User Service) authenticates the local and remote users on a network. e RADIUS server is identied by its IP address and UDP port numbers for the dierent services it provides. • IP: Enter the IP address of the RADIUS server.• Port: Make sure that the port number RADIUS uses for authentication appears in the Port text box. • Shared Key: Enter the shared secret key for the RADIUS server.

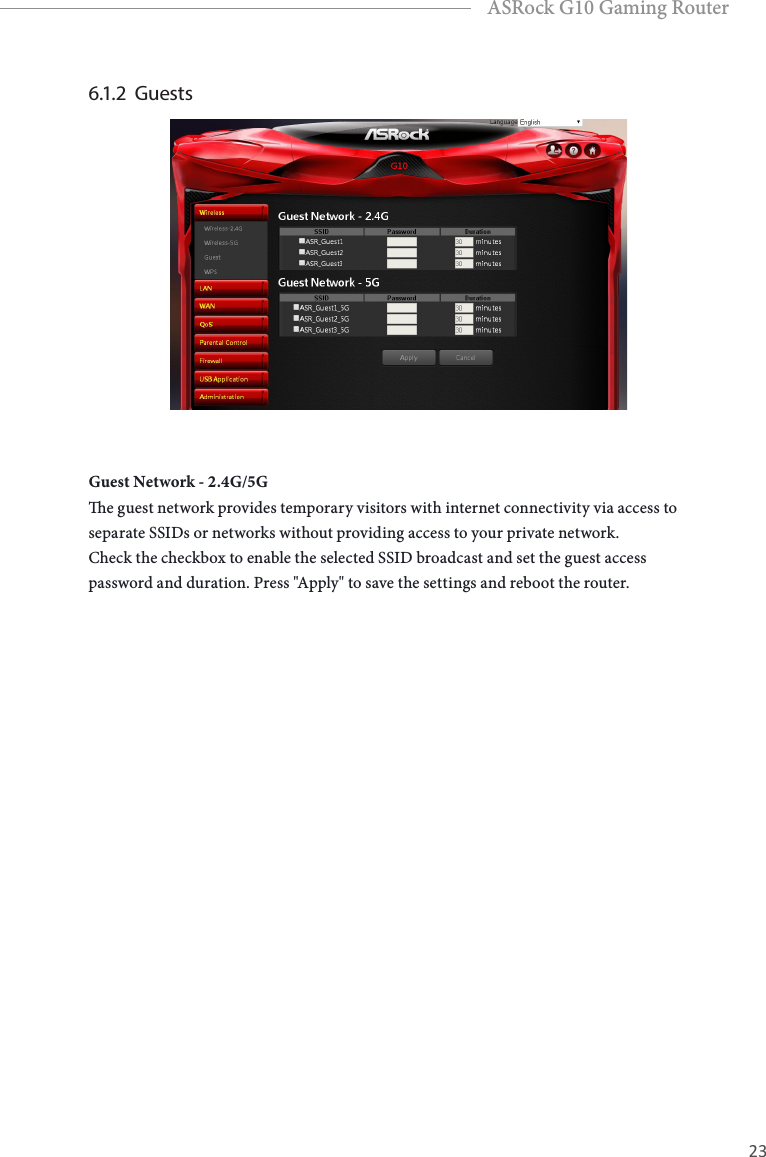

22 23EnglishASRock G10 Gaming Router6.1.2 Guests Guest Network - 2.4G/5Ge guest network provides temporary visitors with internet connectivity via access to separate SSIDs or networks without providing access to your private network.Check the checkbox to enable the selected SSID broadcast and set the guest access password and duration. Press "Apply" to save the settings and reboot the router.

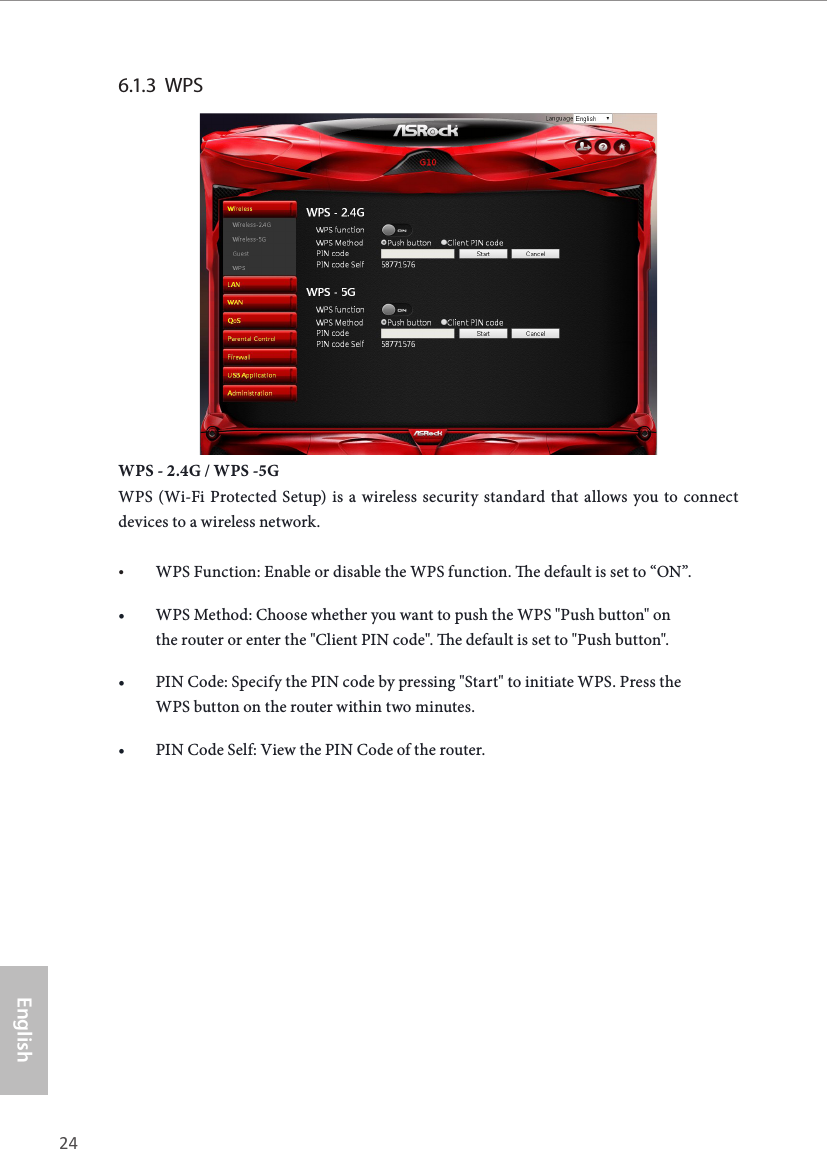

24 25EnglishASRock G10 Gaming Router6.1.3 WPS WPS - 2.4G / WPS -5GWPS (Wi-Fi Protected Setup) is a wireless security standard that allows you to connect devices to a wireless network.• WPS Function: Enable or disable the WPS function. e default is set to “ON”.• WPS Method: Choose whether you want to push the WPS "Push button" on the router or enter the "Client PIN code". e default is set to "Push button".• PIN Code: Specify the PIN code by pressing "Start" to initiate WPS. Press the WPS button on the router within two minutes.• PIN Code Self: View the PIN Code of the router.

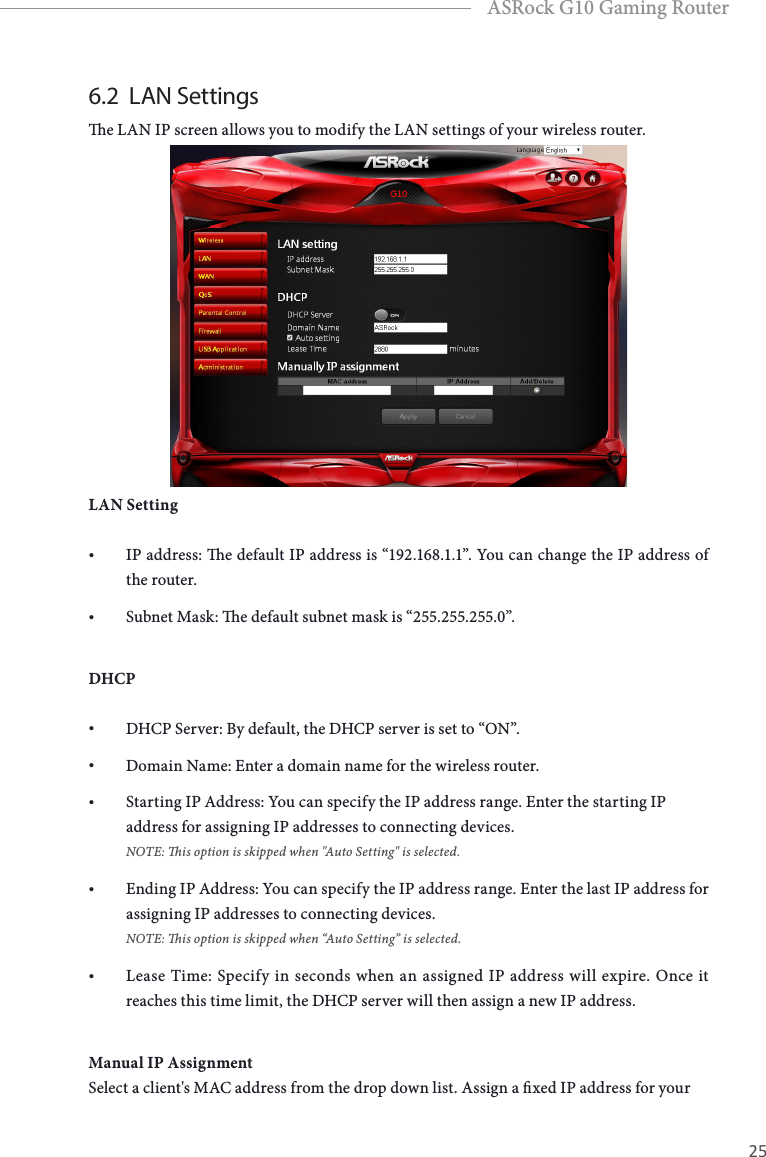

24 25EnglishASRock G10 Gaming Router6.2 LAN Settingse LAN IP screen allows you to modify the LAN settings of your wireless router. LAN Setting• IP address: e default IP address is “192.168.1.1”. You can change the IP address of the router.• Subnet Mask: e default subnet mask is “255.255.255.0”.DHCP• DHCP Server: By default, the DHCP server is set to “ON”.• Domain Name: Enter a domain name for the wireless router.• Starting IP Address: You can specify the IP address range. Enter the starting IP address for assigning IP addresses to connecting devices. NOTE: is option is skipped when "Auto Setting" is selected.• Ending IP Address: You can specify the IP address range. Enter the last IP address for assigning IP addresses to connecting devices. NOTE: is option is skipped when “Auto Setting” is selected.• Lease Time: Specify in seconds when an assigned IP address will expire. Once it reaches this time limit, the DHCP server will then assign a new IP address. Manual IP AssignmentSelect a client's MAC address from the drop down list. Assign a xed IP address for your
26 27EnglishASRock G10 Gaming Routerclient device. Press under the Add/Delete column to add the client to the list. Press "Apply" to save the settings and reboot the router.

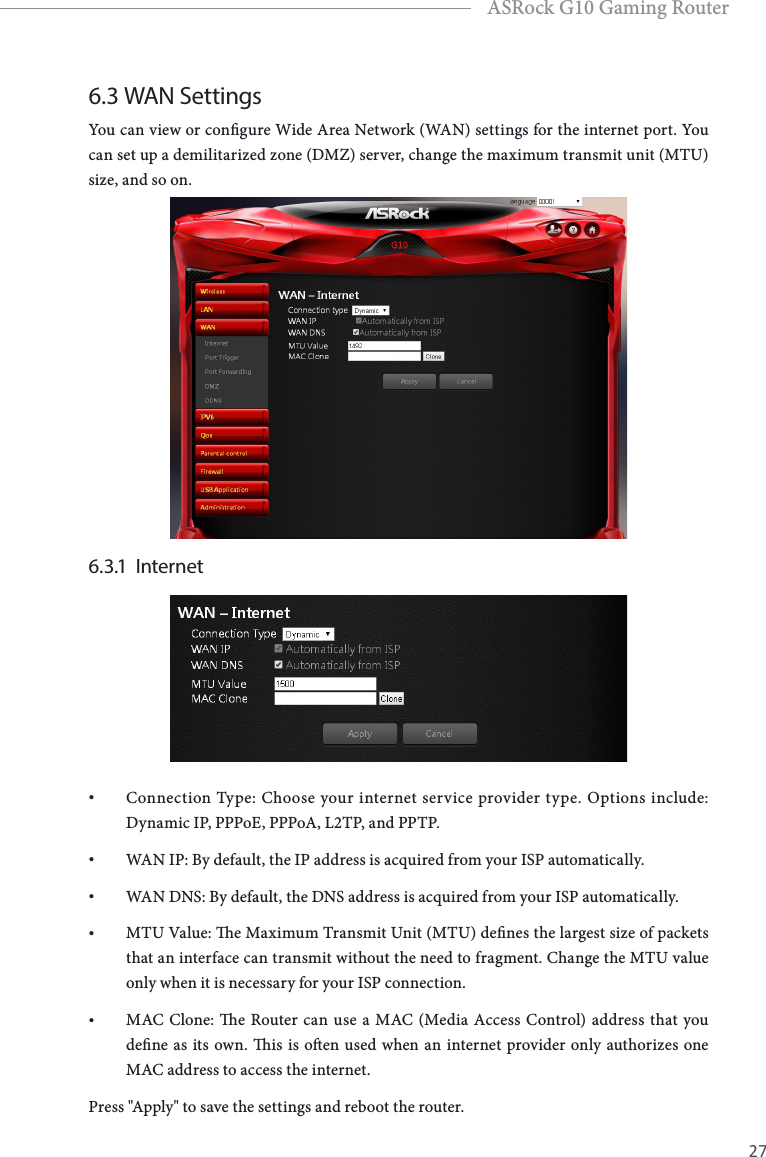

26 27EnglishASRock G10 Gaming Router6.3 WAN SettingsYou can view or congure Wide Area Network (WAN) settings for the internet port. You can set up a demilitarized zone (DMZ) server, change the maximum transmit unit (MTU) size, and so on.6.3.1 Internet• Connection Type: Choose your internet service provider type. Options include: Dynamic IP, PPPoE, PPPoA, L2TP, and PPTP.• WAN IP: By default, the IP address is acquired from your ISP automatically.• WAN DNS: By default, the DNS address is acquired from your ISP automatically.• MTU Value: e Maximum Transmit Unit (MTU) denes the largest size of packets that an interface can transmit without the need to fragment. Change the MTU value only when it is necessary for your ISP connection.• MAC Clone: e Router can use a MAC (Media Access Control) address that you dene as its own. is is oen used when an internet provider only authorizes one MAC address to access the internet. Press "Apply" to save the settings and reboot the router.

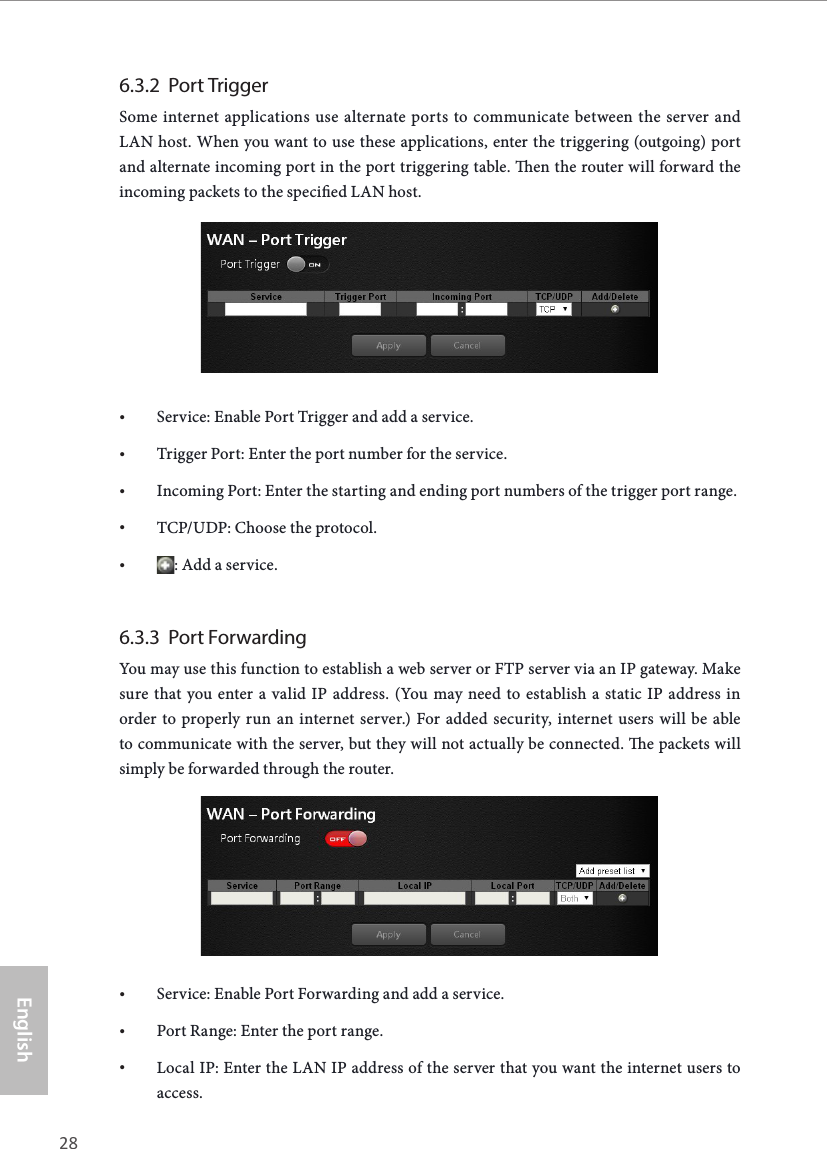

28 29EnglishASRock G10 Gaming Router6.3.2 Port TriggerSome internet applications use alternate ports to communicate between the server and LAN host. When you want to use these applications, enter the triggering (outgoing) port and alternate incoming port in the port triggering table. en the router will forward the incoming packets to the specied LAN host.• Service: Enable Port Trigger and add a service.• Trigger Port: Enter the port number for the service.• Incoming Port: Enter the starting and ending port numbers of the trigger port range.• TCP/UDP: Choose the protocol.• : Add a service.6.3.3 Port ForwardingYou may use this function to establish a web server or FTP server via an IP gateway. Make sure that you enter a valid IP address. (You may need to establish a static IP address in order to properly run an internet server.) For added security, internet users will be able to communicate with the server, but they will not actually be connected. e packets will simply be forwarded through the router.• Service: Enable Port Forwarding and add a service.• Port Range: Enter the port range.• Local IP: Enter the LAN IP address of the server that you want the internet users to access.

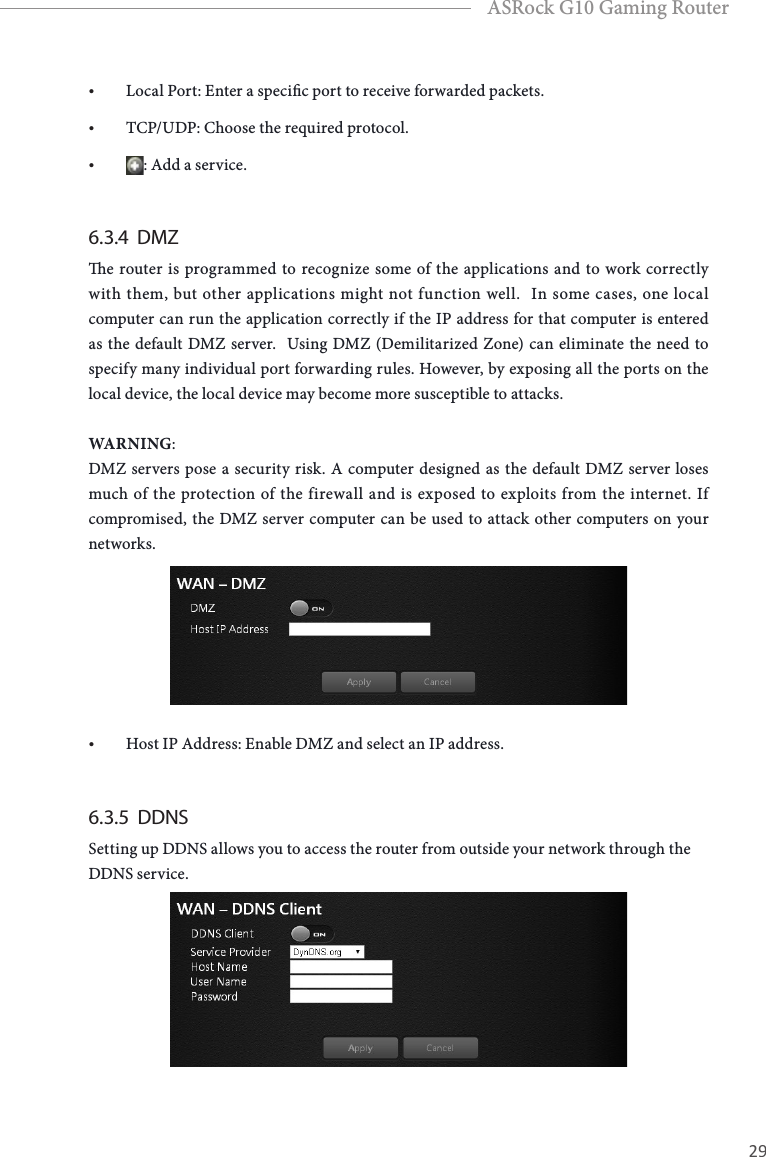

28 29EnglishASRock G10 Gaming Router• Local Port: Enter a specic port to receive forwarded packets.• TCP/UDP: Choose the required protocol.• : Add a service.6.3.4 DMZe router is programmed to recognize some of the applications and to work correctly with them, but other applications might not function well. In some cases, one local computer can run the application correctly if the IP address for that computer is entered as the default DMZ server. Using DMZ (Demilitarized Zone) can eliminate the need to specify many individual port forwarding rules. However, by exposing all the ports on the local device, the local device may become more susceptible to attacks.WARNING:DMZ servers pose a security risk. A computer designed as the default DMZ server loses much of the protection of the firewall and is exposed to exploits from the internet. If compromised, the DMZ server computer can be used to attack other computers on your networks.• Host IP Address: Enable DMZ and select an IP address.6.3.5 DDNSSetting up DDNS allows you to access the router from outside your network through the DDNS service.

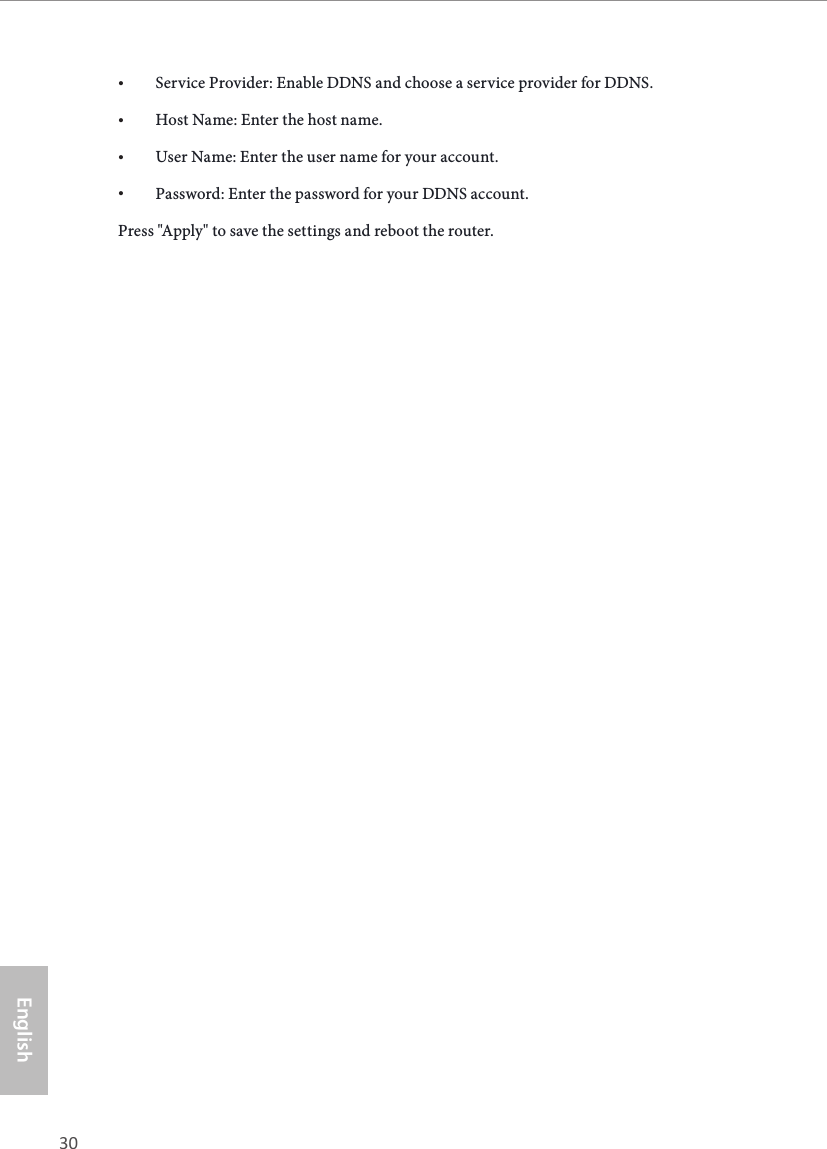

30 31EnglishASRock G10 Gaming Router• Service Provider: Enable DDNS and choose a service provider for DDNS.• Host Name: Enter the host name.• User Name: Enter the user name for your account.• Password: Enter the password for your DDNS account.Press "Apply" to save the settings and reboot the router.
