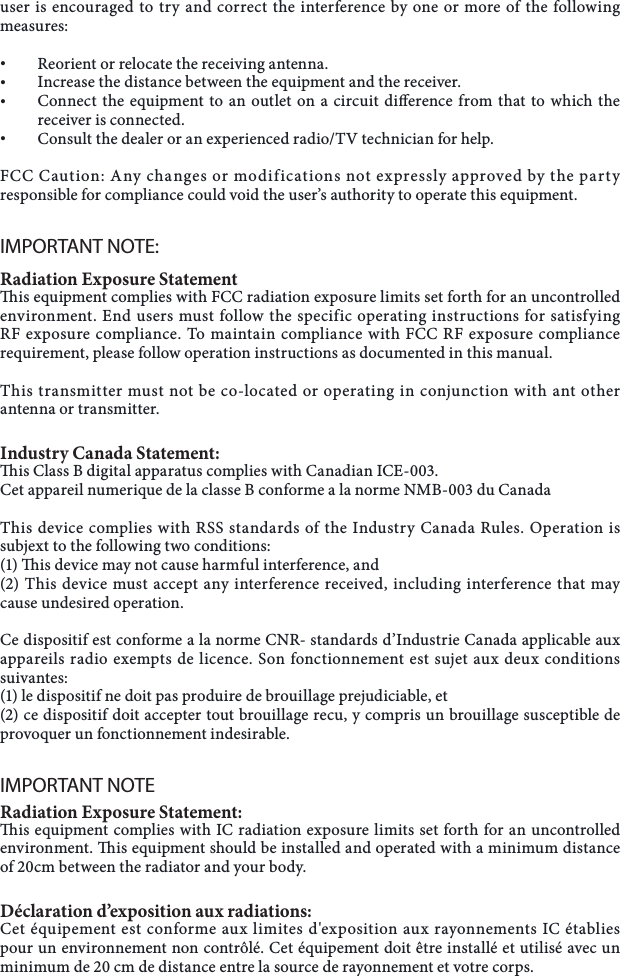

user is encouraged to try and correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the distance between the equipment and the receiver.• Connect the equipment to an outlet on a circuit dierence from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help.FCC Caution: Any changes or modifications not expressly approved by the part y responsible for compliance could void the user’s authority to operate this equipment.IMPORTANT NOTE:Radiation Exposure Statementis equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. To maintain compliance with FCC RF exposure compliance requirement, please follow operation instructions as documented in this manual.This transmitter must not be co-located or operating in conjunction with ant other antenna or transmitter.Industry Canada Statement:is Class B digital apparatus complies with Canadian ICE-003.Cet appareil numerique de la classe B conforme a la norme NMB-003 du CanadaThis device complies with RSS standards of the Industry Canada Rules. Operation is subjext to the following two conditions:(1) is device may not cause harmful interference, and(2) This device must accept any interference received, including interference that may cause undesired operation.Ce dispositif est conforme a la norme CNR- standards d’Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage prejudiciable, et(2) ce dispositif doit accepter tout brouillage recu, y compris un brouillage susceptible de provoquer un fonctionnement indesirable.IMPORTANT NOTERadiation Exposure Statement:is equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. is equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body.Déclaration d’exposition aux radiations:Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps.

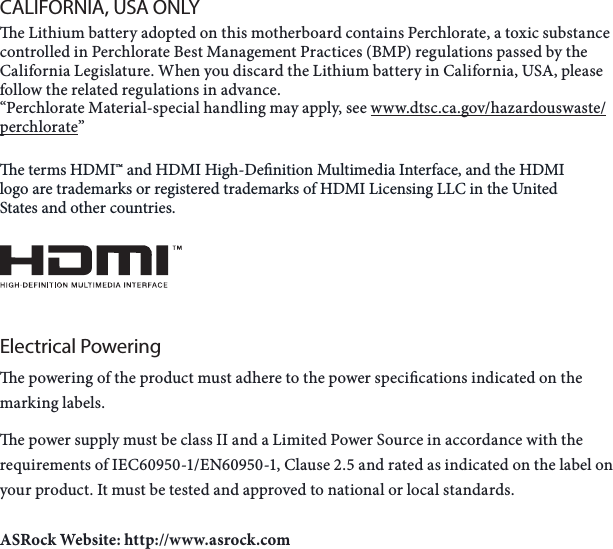

CALIFORNIA, USA ONLYe Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance controlled in Perchlorate Best Management Practices (BMP) regulations passed by the California Legislature. When you discard the Lithium battery in California, USA, please follow the related regulations in advance.“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/perchlorate” e terms HDMI™ and HDMI High-Denition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.Electrical Poweringe powering of the product must adhere to the power specications indicated on the marking labels.e power supply must be class II and a Limited Power Source in accordance with the requirements of IEC60950-1/EN60950-1, Clause 2.5 and rated as indicated on the label on your product. It must be tested and approved to national or local standards.ASRock Website: http://www.asrock.com

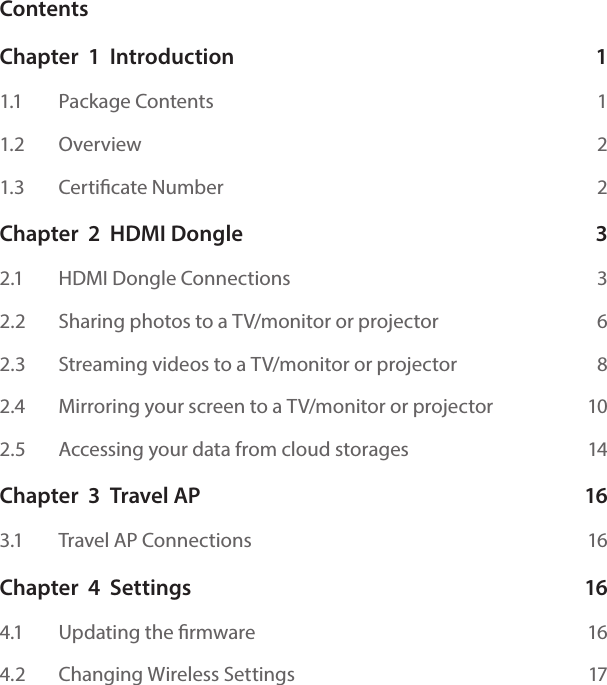

ContentsChapter 1 Introduction 11.1 Package Contents 11.2 Overview 21.3 Certicate Number 2Chapter 2 HDMI Dongle 32.1 HDMI Dongle Connections 32.2 Sharing photos to a TV/monitor or projector 62.3 Streaming videos to a TV/monitor or projector 82.4 Mirroring your screen to a TV/monitor or projector 102.5 Accessing your data from cloud storages 14Chapter 3 Travel AP 163.1 Travel AP Connections 16Chapter 4 Settings 164.1 Updating the rmware 164.2 Changing Wireless Settings 17

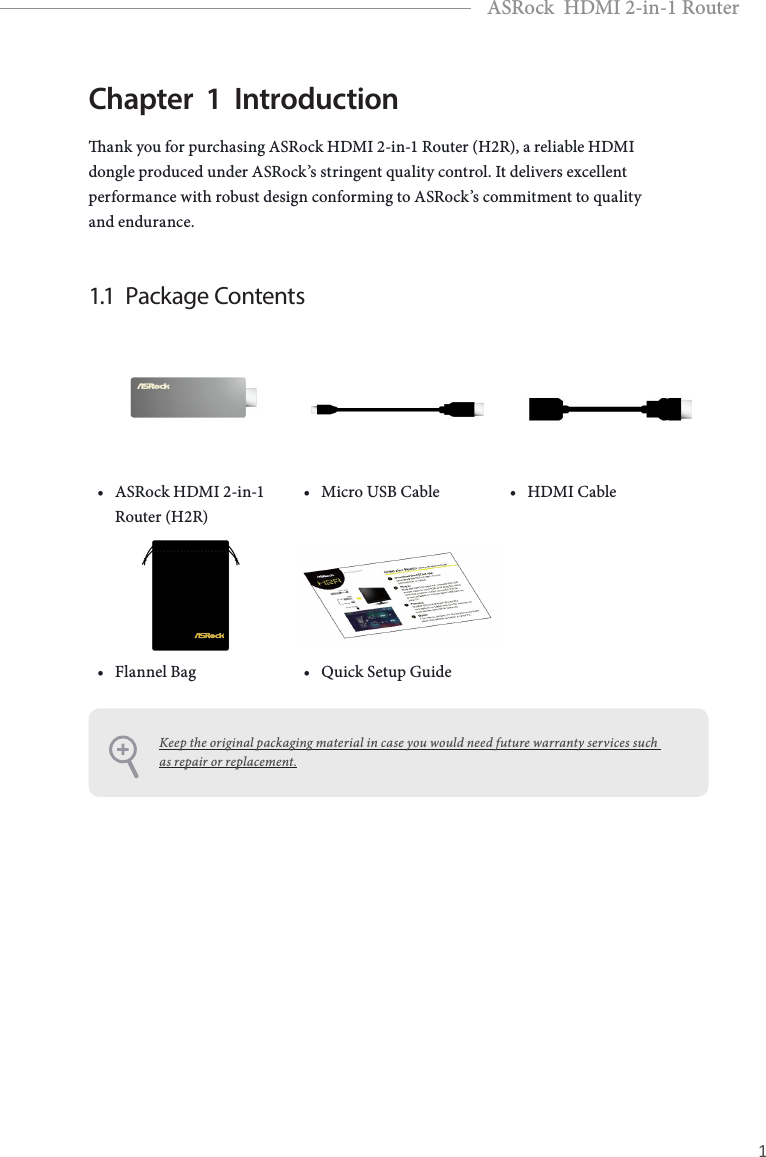

PB 1EnglishASRock HDMI 2-in-1 RouterChapter 1 Introductionank you for purchasing ASRock HDMI 2-in-1 Router (H2R), a reliable HDMI dongle produced under ASRock’s stringent quality control. It delivers excellent performance with robust design conforming to ASRock’s commitment to quality and endurance.1.1 Package Contents• ASRock HDMI 2-in-1 Router (H2R)• Micro USB Cable • HDMI Cable• Flannel Bag • Quick Setup GuideKeep the original packaging material in case you would need future warranty services such as repair or replacement.

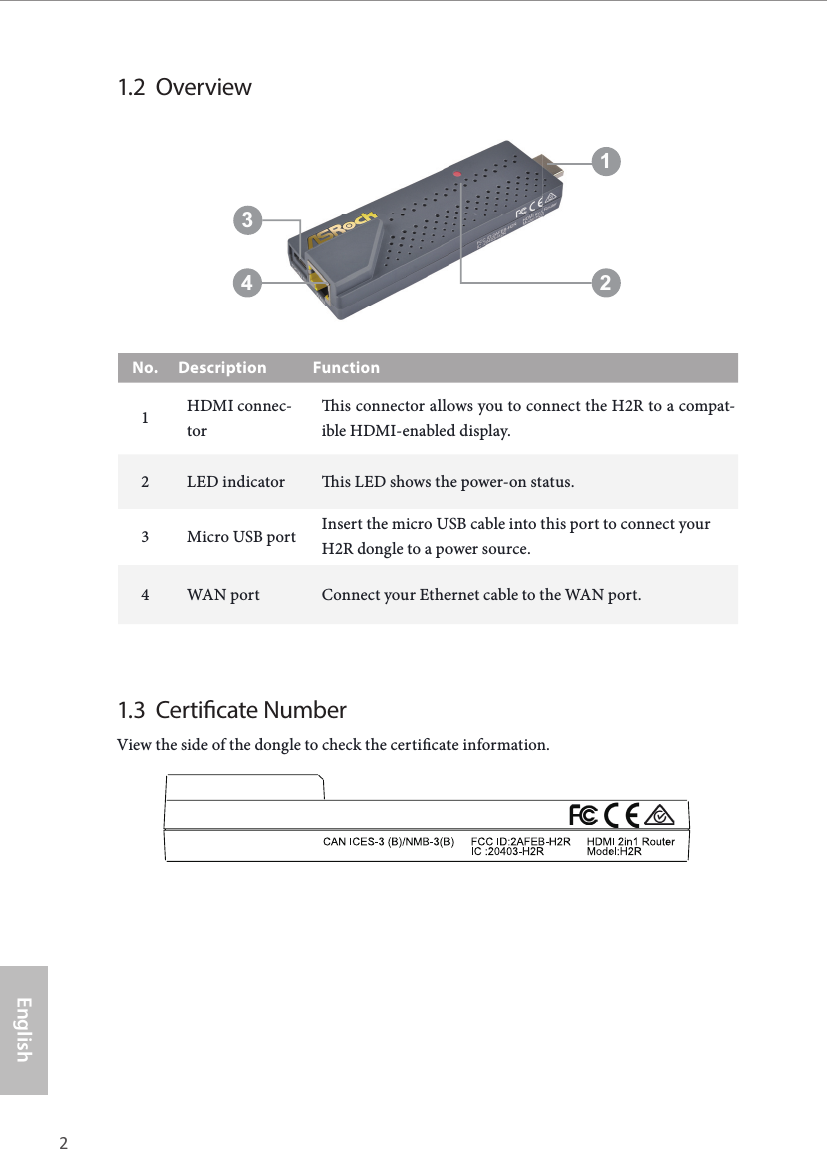

2 3EnglishASRock HDMI 2-in-1 Router1.2 Overview12431.3 Certicate NumberView the side of the dongle to check the certicate information.No. Description Function1HDMI connec-toris connector allows you to connect the H2R to a compat-ible HDMI-enabled display.2LED indicator is LED shows the power-on status.3 Micro USB port Insert the micro USB cable into this port to connect your H2R dongle to a power source.4WAN por t Connect your Ethernet cable to the WAN port.

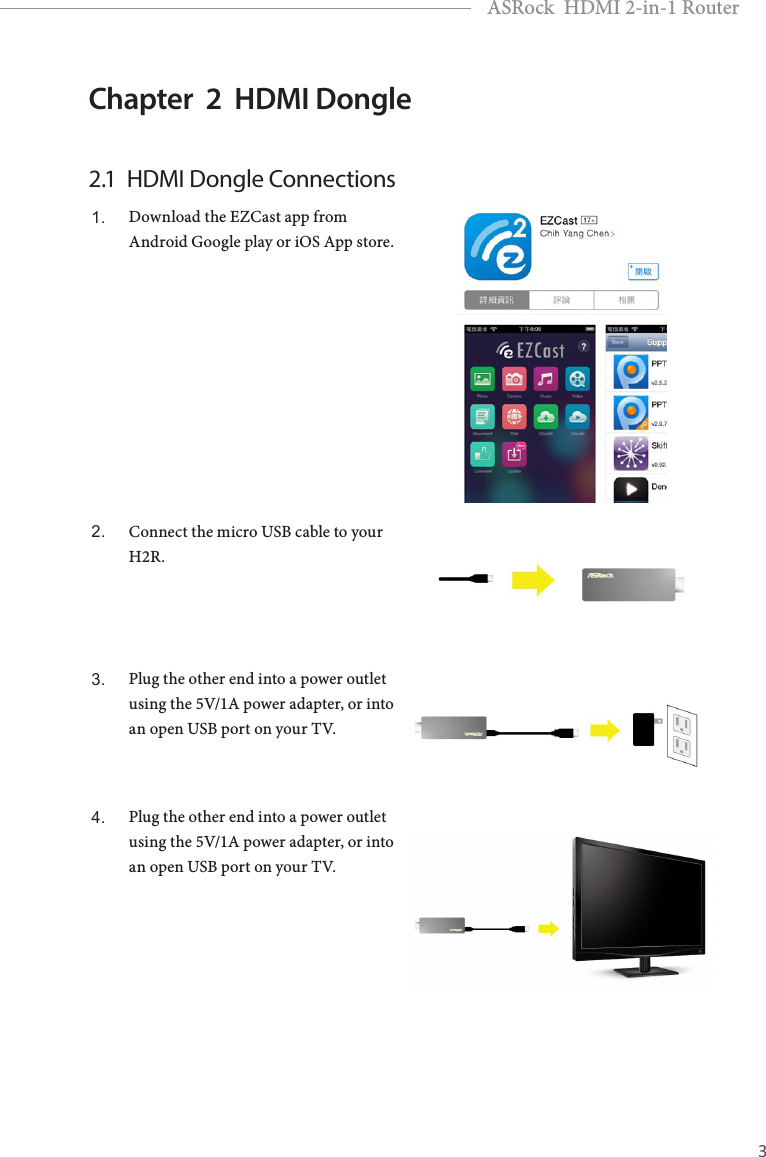

2 3EnglishASRock HDMI 2-in-1 RouterChapter 2 HDMI Dongle2.1 HDMI Dongle Connections1. Download the EZCast app from Android Google play or iOS App store.2. Connect the micro USB cable to your H2R.3. Plug the other end into a power outlet using the 5V/1A power adapter, or into an open USB port on your TV.4. Plug the other end into a power outlet using the 5V/1A power adapter, or into an open USB port on your TV.

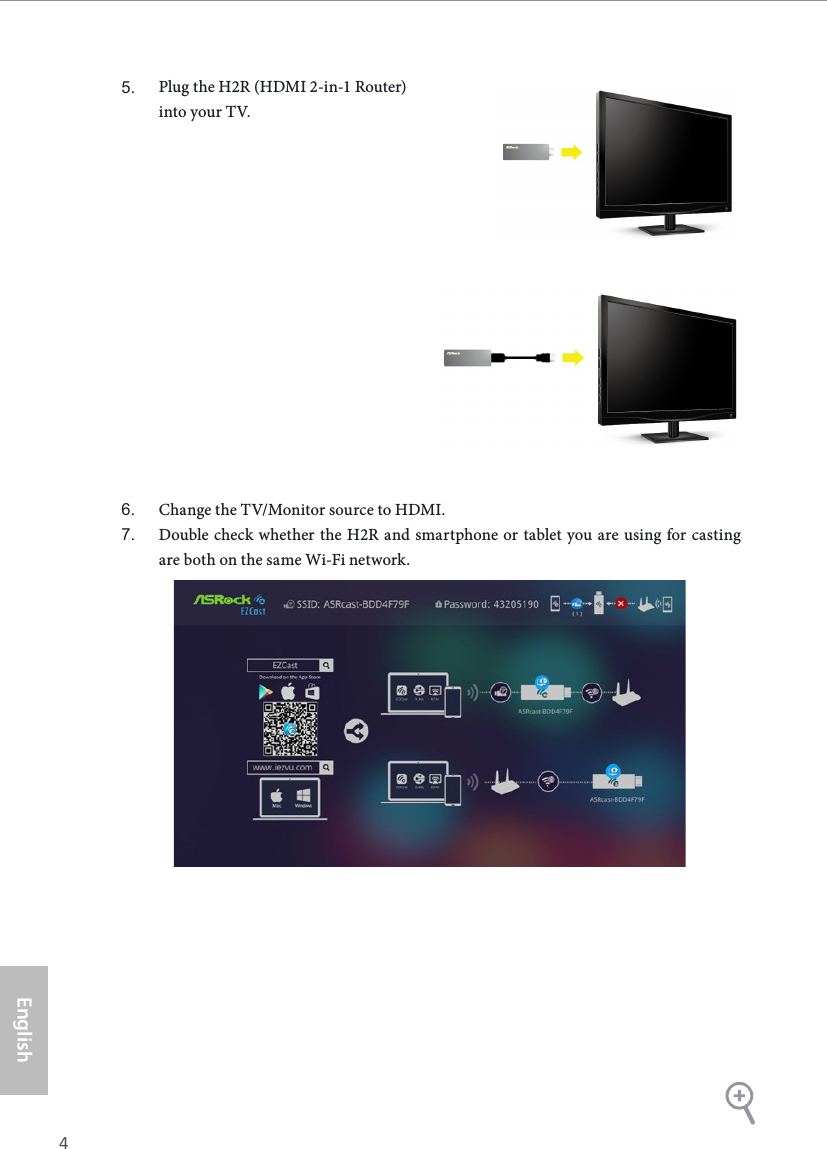

4 5EnglishASRock HDMI 2-in-1 Router5. Plug the H2R (HDMI 2-in-1 Router) into your TV.6. Change the TV/Monitor source to HDMI.7. Double check whether the H2R and smartphone or tablet you are using for casting are both on the same Wi-Fi network.

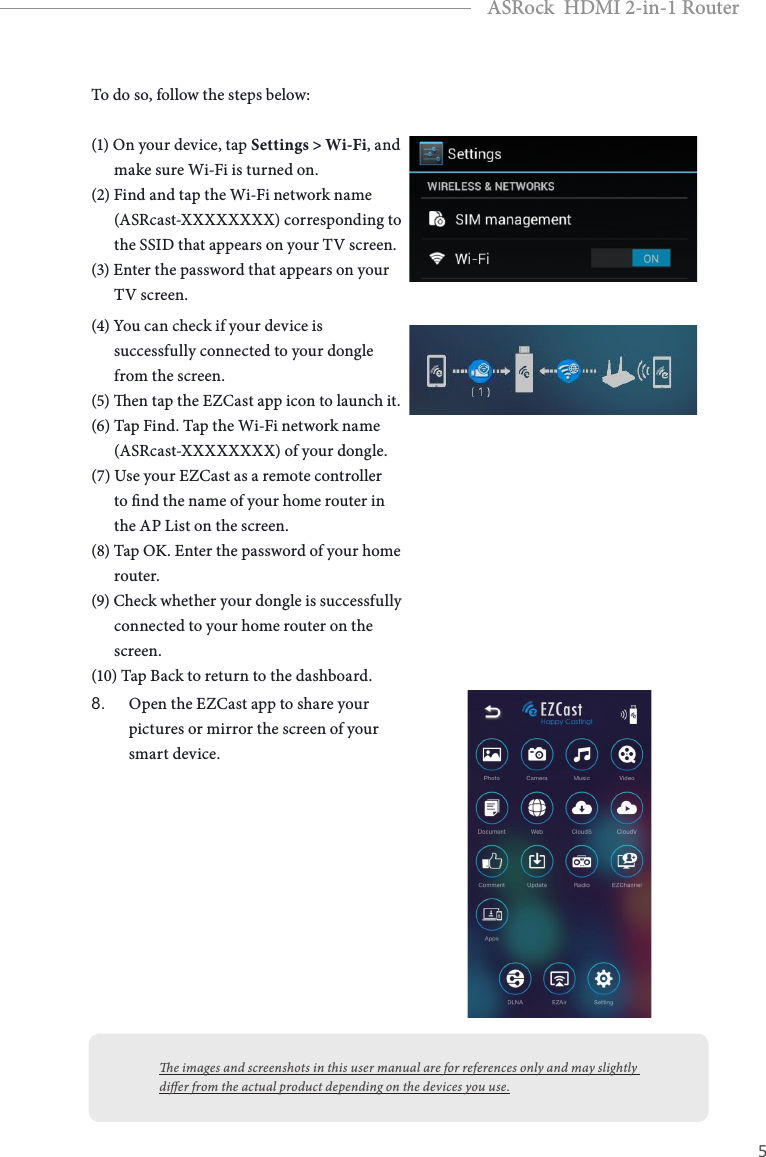

4 5EnglishASRock HDMI 2-in-1 RouterTo do so, follow the steps below:(1) On your device, tap Settings > Wi-Fi, and make sure Wi-Fi is turned on.(2) Find and tap the Wi-Fi network name (ASRcast-XXXXXXXX) corresponding to the SSID that appears on your TV screen.(3) Enter the password that appears on your TV screen.(4) You can check if your device is successfully connected to your dongle from the screen.(5) en tap the EZCast app icon to launch it.(6) Tap Find. Tap the Wi-Fi network name (ASRcast-XXXXXXXX) of your dongle.(7) Use your EZCast as a remote controller to nd the name of your home router in the AP List on the screen.(8) Tap OK. Enter the password of your home router.(9) Check whether your dongle is successfully connected to your home router on the screen.(10) Tap Back to return to the dashboard.8. Open the EZCast app to share your pictures or mirror the screen of your smart device.e images and screenshots in this user manual are for references only and may slightly dier from the actual product depending on the devices you use.

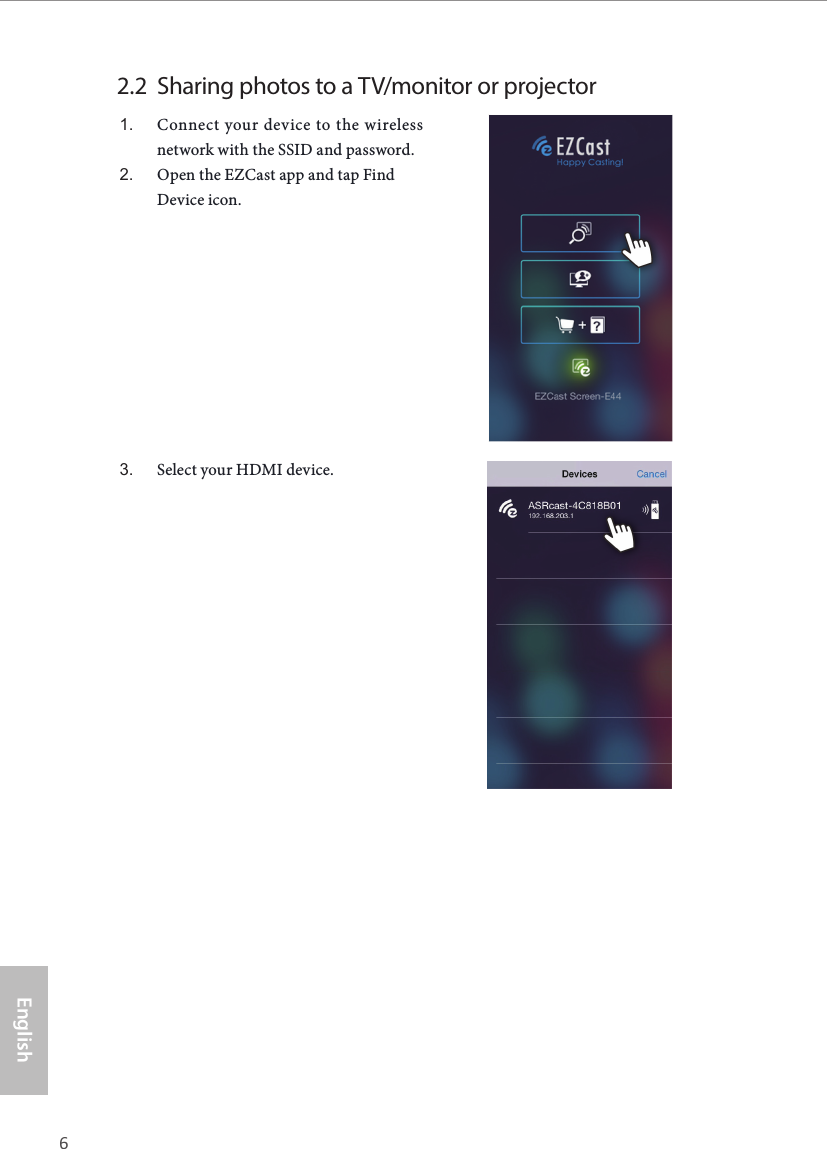

6 7EnglishASRock HDMI 2-in-1 Router2.2 Sharing photos to a TV/monitor or projector1. Connect your device to the wireless network with the SSID and password.2. Open the EZCast app and tap Find Device icon.3. Select your HDMI device.

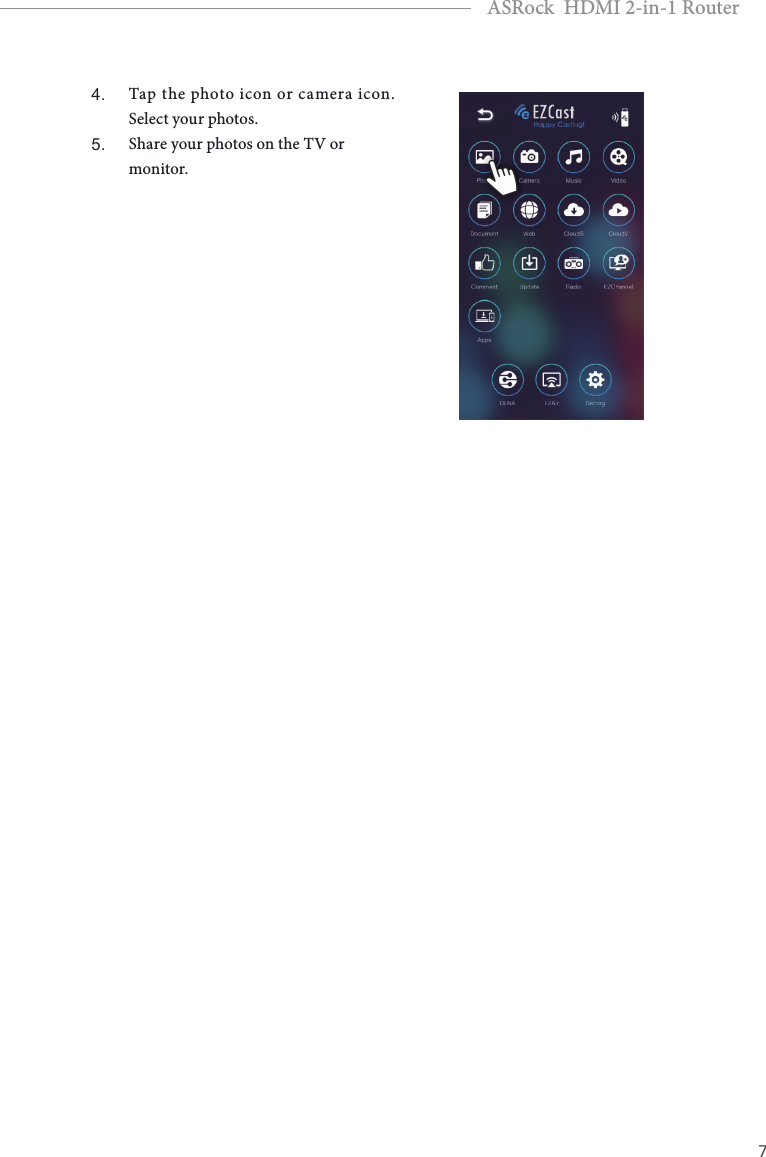

6 7EnglishASRock HDMI 2-in-1 Router4. Tap the photo icon or camera icon. Select your photos.5. Share your photos on the TV or monitor.
8 9EnglishASRock HDMI 2-in-1 Router2.3 Streaming videos to a TV/monitor or projector1. Open the EZCast app and tap Find Device icon.2. Select your HDMI device.

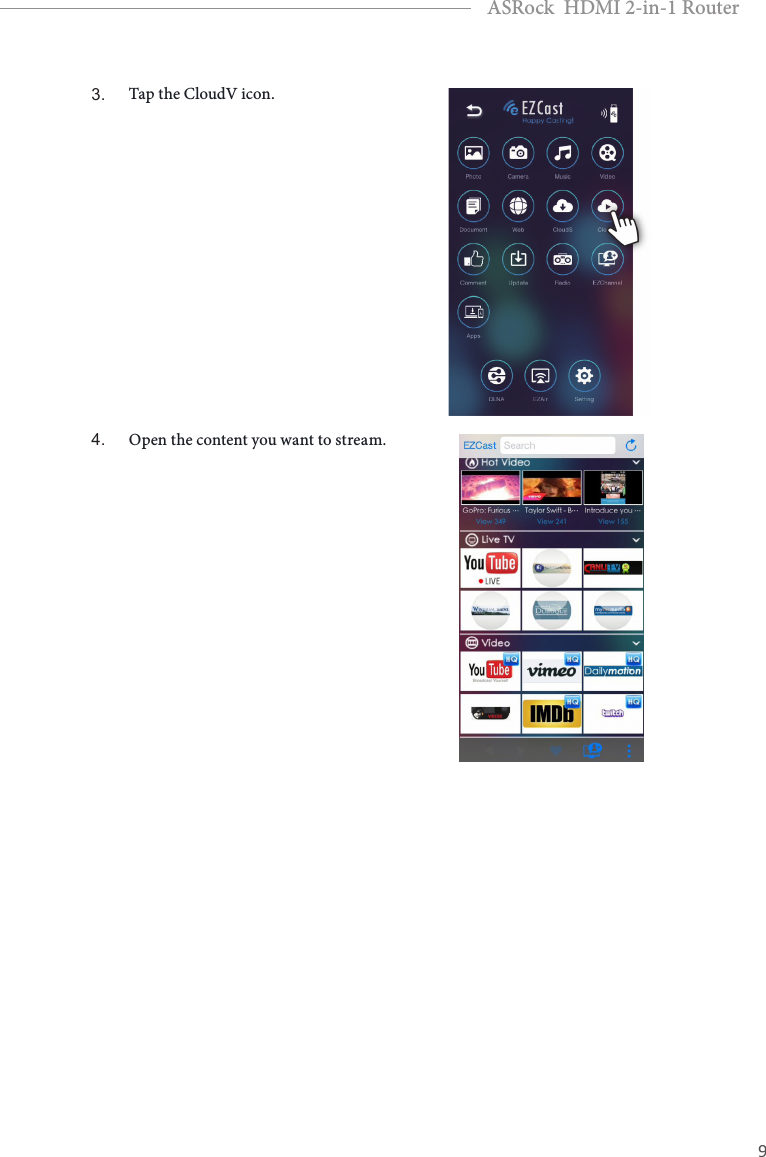

8 9EnglishASRock HDMI 2-in-1 Router3. Tap the CloudV icon.4. Open the content you want to stream.

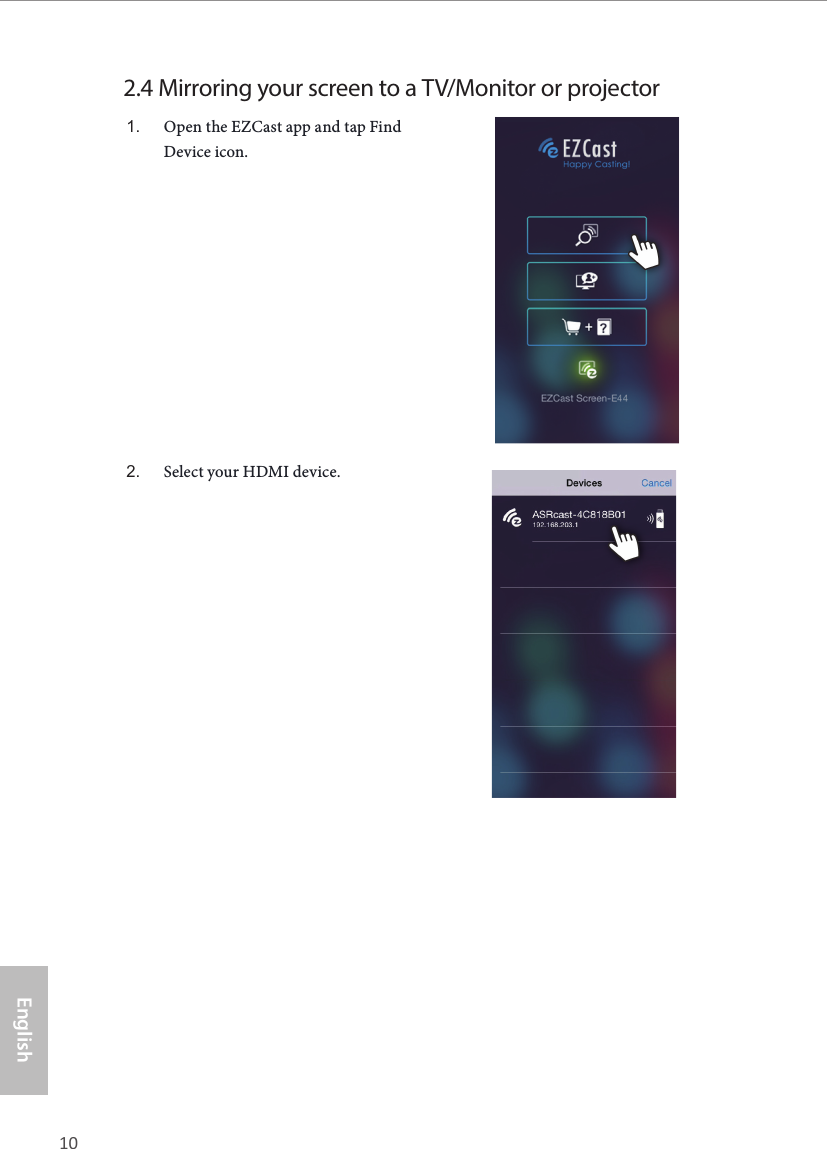

10 11EnglishASRock HDMI 2-in-1 Router2.4 Mirroring your screen to a TV/Monitor or projector1. Open the EZCast app and tap Find Device icon.2. Select your HDMI device.

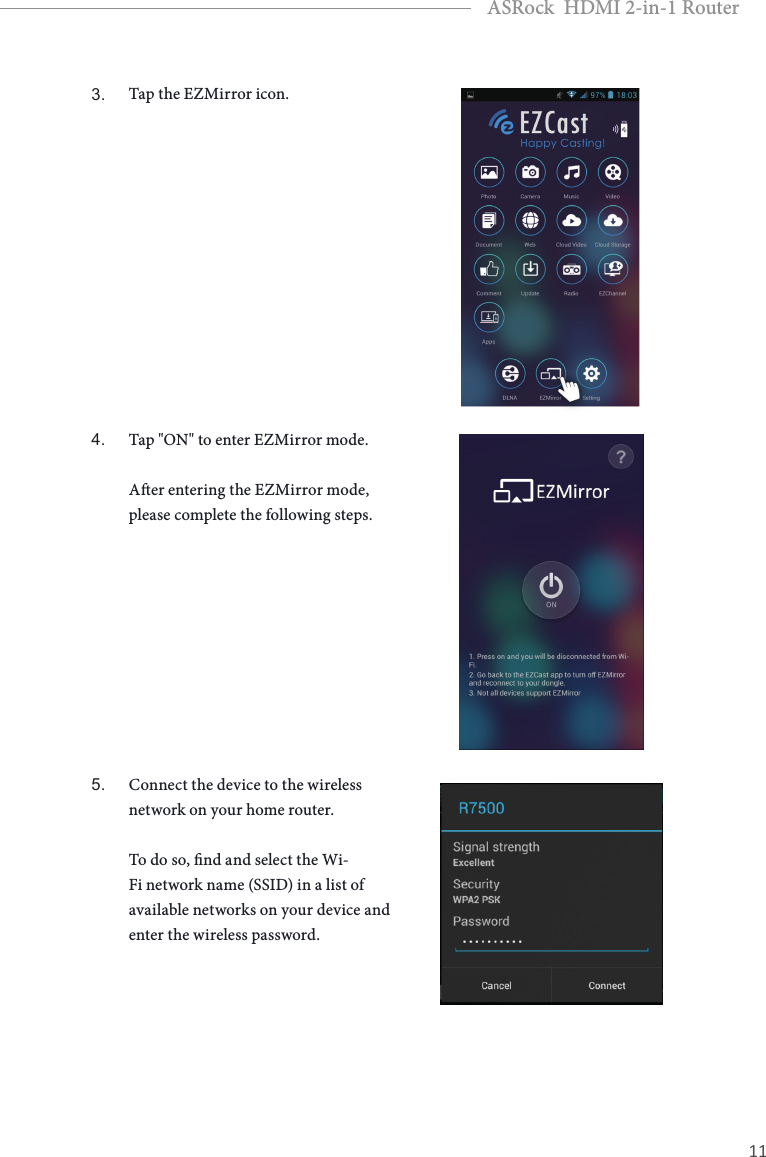

10 11EnglishASRock HDMI 2-in-1 Router3. Tap the EZMirror icon.4. Tap "ON" to enter EZMirror mode. Aer entering the EZMirror mode, please complete the following steps.5. Connect the device to the wireless network on your home router. To do so, nd and select the Wi-Fi network name (SSID) in a list of available networks on your device and enter the wireless password.

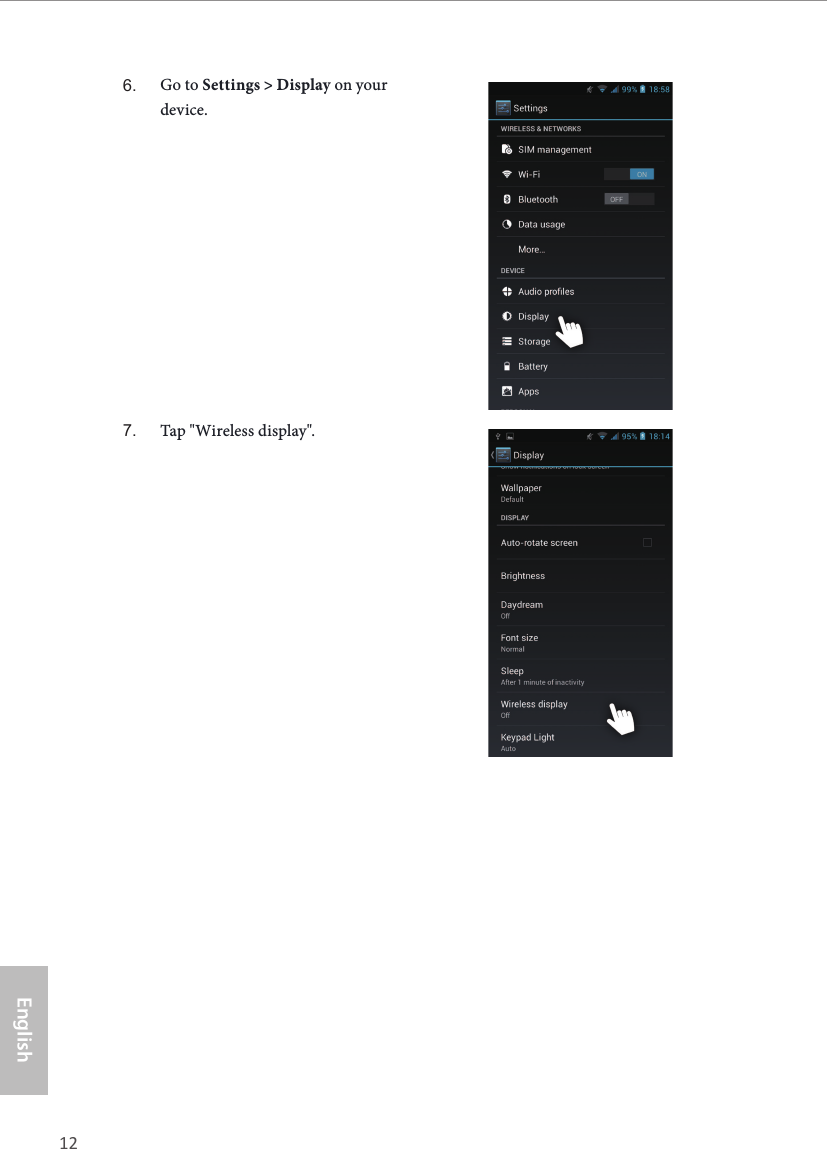

12 13EnglishASRock HDMI 2-in-1 Router6. Go to Settings > Display on your device.7. Tap "Wireless display".
12 13EnglishASRock HDMI 2-in-1 Router8. Enable "Wireless display".9. Tap to select your device.10. e screen of your device will be mirrored to a TV or monitor.e names of the item in the screenshots are for references only and may be dierent depending on the devices and OS you use.

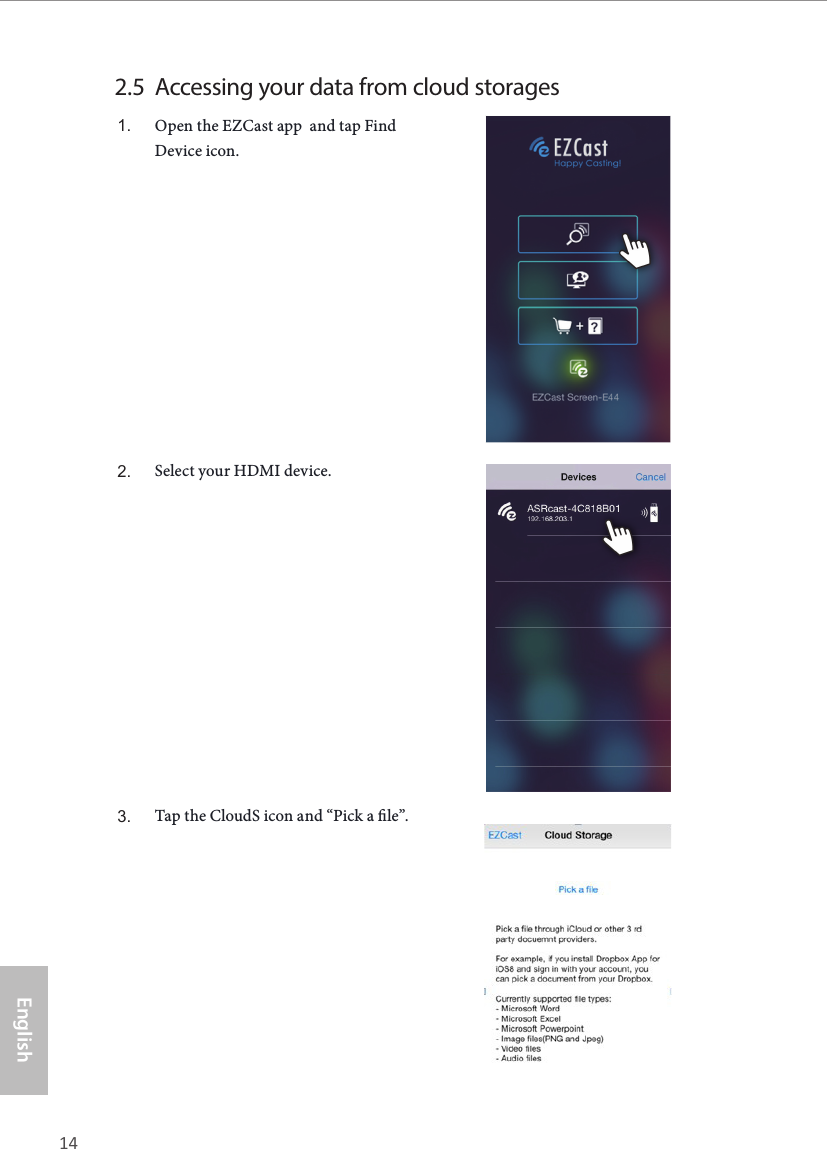

14 15EnglishASRock HDMI 2-in-1 Router2.5 Accessing your data from cloud storages1. Open the EZCast app and tap Find Device icon.2. Select your HDMI device.3. Tap the CloudS icon and “Pick a le”.

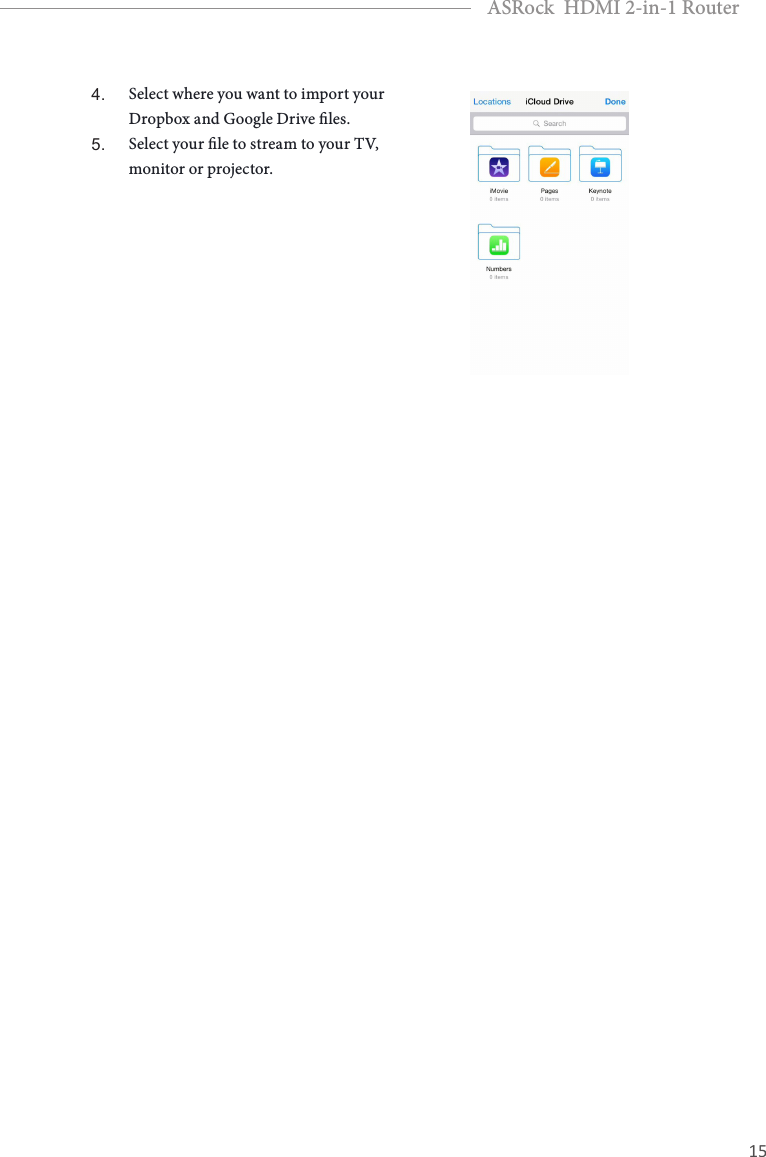

14 15EnglishASRock HDMI 2-in-1 Router4. Select where you want to import your Dropbox and Google Drive les.5. Select your le to stream to your TV, monitor or projector.

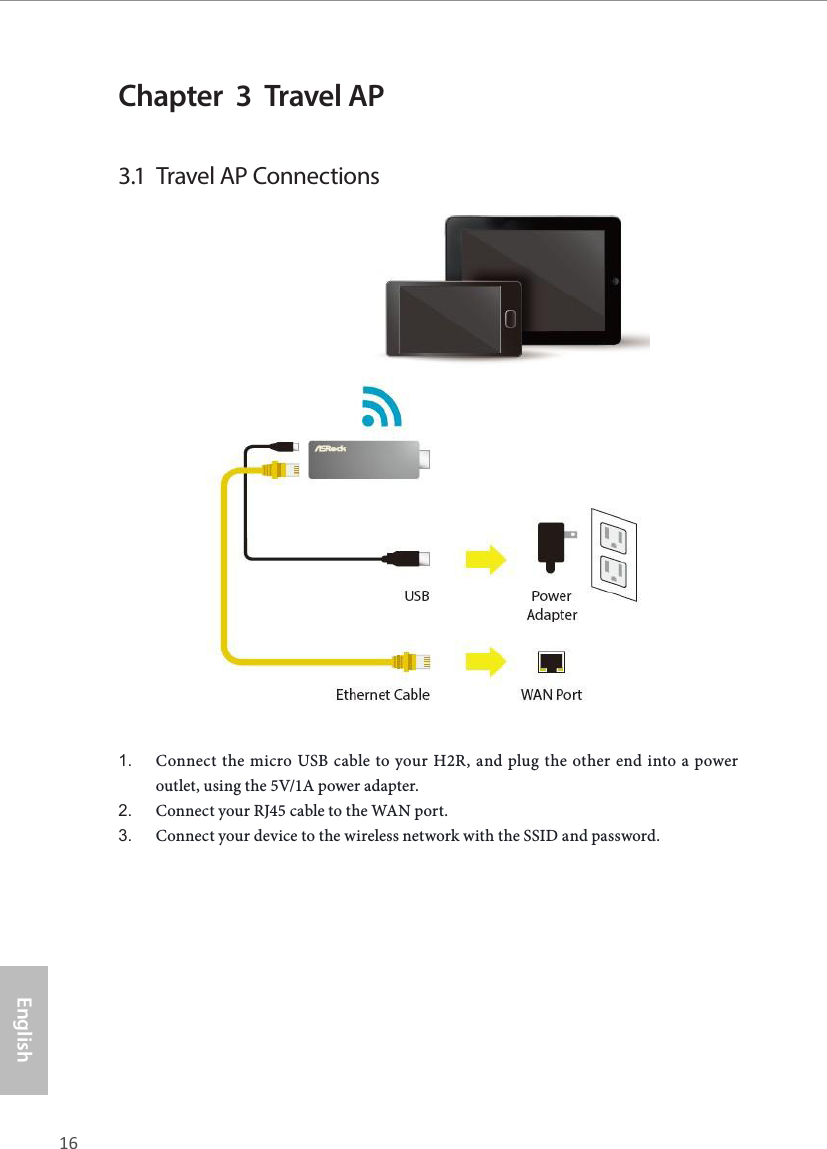

16 17EnglishASRock HDMI 2-in-1 RouterChapter 3 Travel AP3.1 Travel AP Connections1. Connect the micro USB cable to your H2R, and plug the other end into a power outlet, using the 5V/1A power adapter. 2. Connect your RJ45 cable to the WAN port.3. Connect your device to the wireless network with the SSID and password.

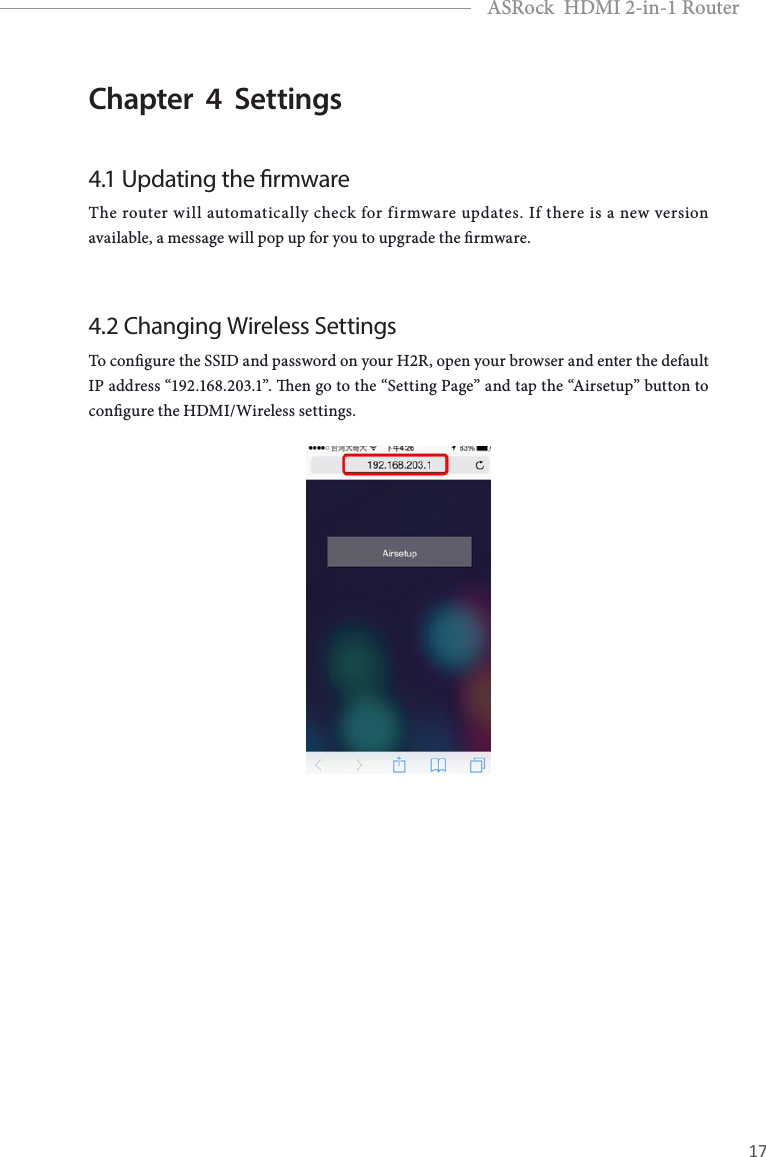

16 17EnglishASRock HDMI 2-in-1 RouterChapter 4 Settings4.1 Updating the rmwareThe router will automatically check for firmware updates. If there is a new version available, a message will pop up for you to upgrade the rmware.4.2 Changing Wireless SettingsTo congure the SSID and password on your H2R, open your browser and enter the default IP address “192.168.203.1”. en go to the “Setting Page” and tap the “Airsetup” button to congure the HDMI/Wireless settings.
