X10R/X10/X10SAC1300 IoT RouterUser ManualVersion 1.0Published January 2017Copyright©2017 ASRock Rack INC. All rights reserved.

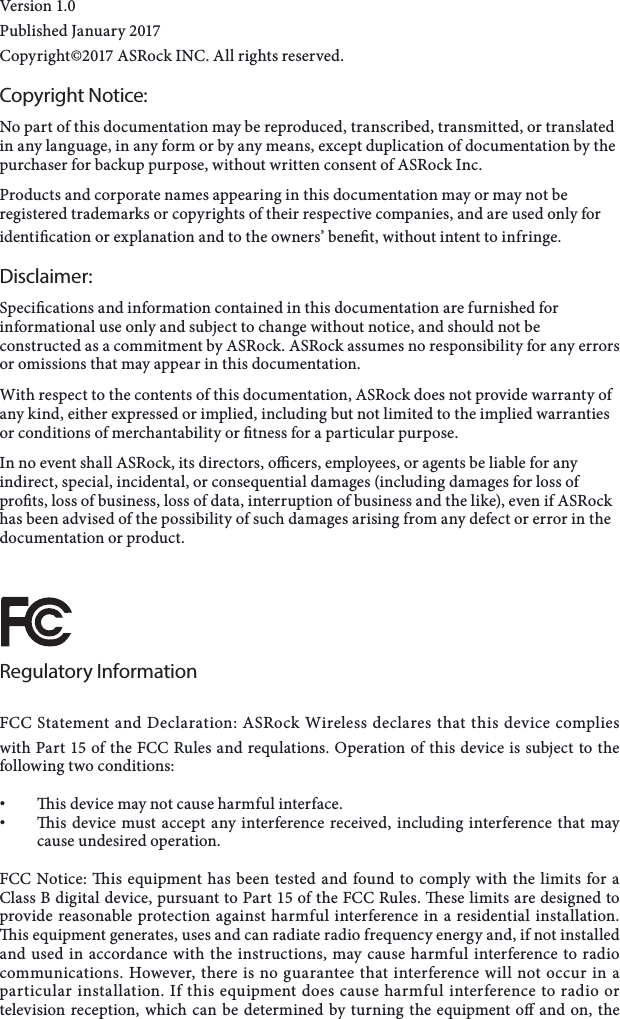

Version 1.0 Published January 2017 Copyright©2017 ASRock INC. All rights reserved.Copyright Notice:No part of this documentation may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser for backup purpose, without written consent of ASRock Inc.Products and corporate names appearing in this documentation may or may not be registered trademarks or copyrights of their respective companies, and are used only for identication or explanation and to the owners’ benet, without intent to infringe. Disclaimer:Specications and information contained in this documentation are furnished for informational use only and subject to change without notice, and should not be constructed as a commitment by ASRock. ASRock assumes no responsibility for any errors or omissions that may appear in this documentation. With respect to the contents of this documentation, ASRock does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warranties or conditions of merchantability or tness for a particular purpose.In no event shall ASRock, its directors, ocers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of prots, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product. Regulatory InformationFCC Statement and Declaration: ASRock Wireless declares that this device complies with Part 15 of the FCC Rules and requlations. Operation of this device is subject to the following two conditions:• is device may not cause harmful interface.• is device must accept any interference received, including interference that may cause undesired operation.FCC Notice: is equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. ese limits are designed to provide reasonable protection against harmful interference in a residential installation. is equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the
user is encouraged to try and correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the distance between the equipment and the receiver.• Connect the equipment to an outlet on a circuit dierence from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help.FCC Caution: Any changes or modif ications not expressly approved by the part y responsible for compliance could void the user’s authority to operate this equipment.IMPORTANT NOTE:Radiation Exposure Statementis equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. To maintain compliance with FCC RF exposure compliance requirement, please follow operation instructions as documented in this manual.FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Industry Canada Statement:This device complies with RSS standards of the Industry Canada Rules. Operation is subjext to the following two conditions:(1) is device may not cause harmful interference, and(2) This device must accept any interference received, including interference that may cause undesired operation.Ce dispositif est conforme a la norme CNR- standards d’Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage prejudiciable, et(2) ce dispositif doit accepter tout brouillage recu, y compris un brouillage susceptible de provoquer un fonctionnement indesirable.IMPORTANT NOTERadiation Exposure Statement:is equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. is equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body.Déclaration d’exposition aux radiations:Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps.Caution: e device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems.

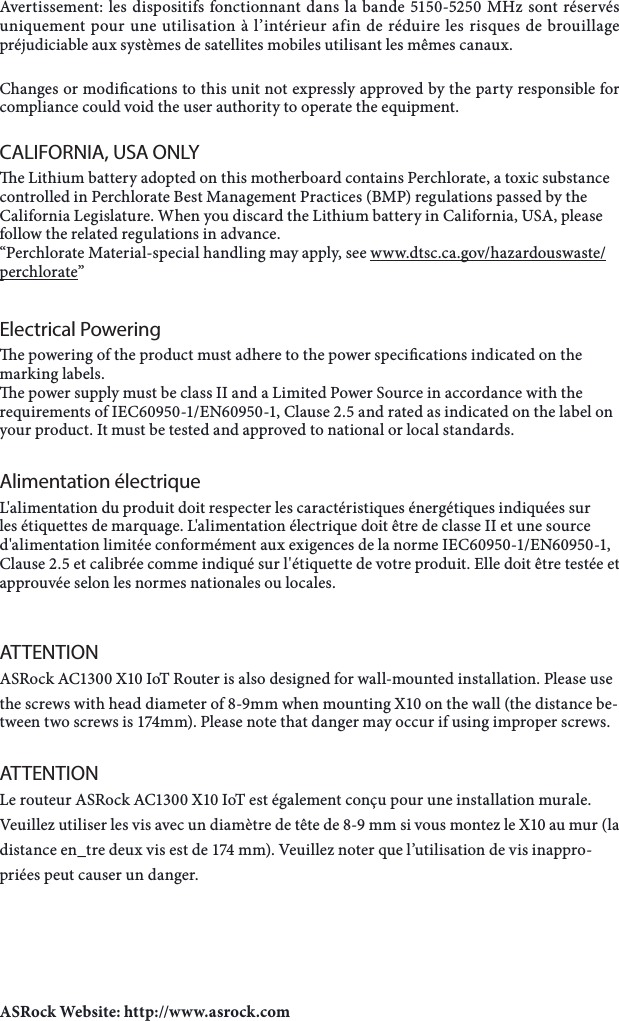

Avertissement: les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux.Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment.CALIFORNIA, USA ONLYe Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance controlled in Perchlorate Best Management Practices (BMP) regulations passed by the California Legislature. When you discard the Lithium battery in California, USA, please follow the related regulations in advance.“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/perchlorate” Electrical Poweringe powering of the product must adhere to the power specications indicated on the marking labels.e power supply must be class II and a Limited Power Source in accordance with the requirements of IEC60950-1/EN60950-1, Clause 2.5 and rated as indicated on the label on your product. It must be tested and approved to national or local standards.Alimentation électriqueL'alimentation du produit doit respecter les caractéristiques énergétiques indiquées sur les étiquettes de marquage. L'alimentation électrique doit être de classe II et une source d'alimentation limitée conformément aux exigences de la norme IEC60950-1/EN60950-1, Clause 2.5 et calibrée comme indiqué sur l'étiquette de votre produit. Elle doit être testée et approuvée selon les normes nationales ou locales.ATTENTIONASRock AC1300 X10 IoT Router is also designed for wall-mounted installation. Please use the screws with head diameter of 8-9mm when mounting X10 on the wall (the distance be-tween two screws is 174mm). Please note that danger may occur if using improper screws.ATTENTIONLe routeur ASRock AC1300 X10 IoT est également conçu pour une installation murale. Veuillez utiliser les vis avec un diamètre de tête de 8-9 mm si vous montez le X10 au mur (la distance en_tre deux vis est de 174 mm). Veuillez noter que l’utilisation de vis inappro-priées peut causer un danger.ASRock Website: http://www.asrock.com

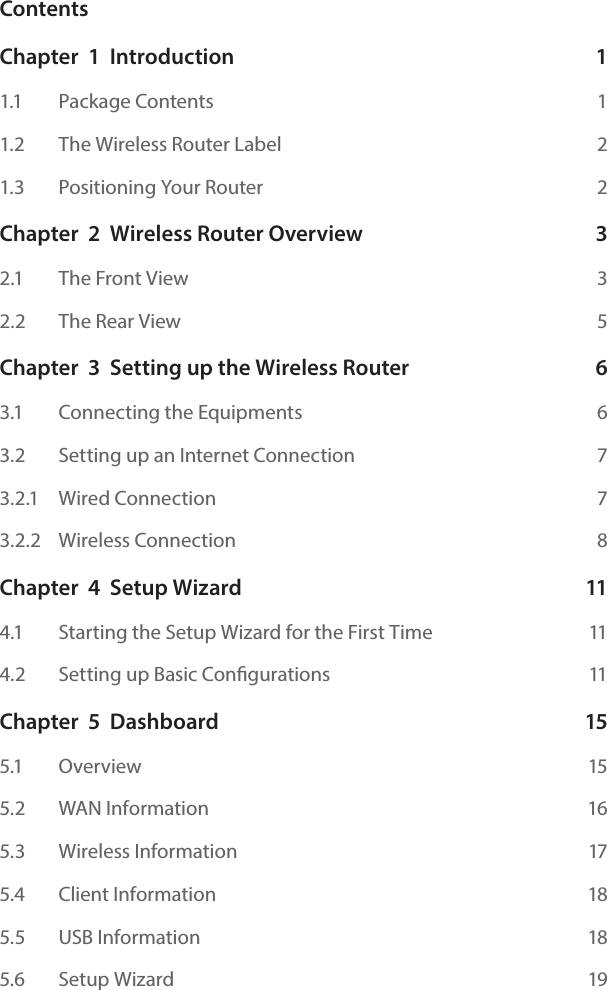

ContentsChapter 1 Introduction 11.1 Package Contents 11.2 The Wireless Router Label 21.3 Positioning Your Router 2Chapter 2 Wireless Router Overview 32.1 The Front View 32.2 The Rear View 5Chapter 3 Setting up the Wireless Router 63.1 Connecting the Equipments 63.2 Setting up an Internet Connection 73.2.1 Wired Connection 73.2.2 Wireless Connection 8Chapter 4 Setup Wizard 114.1 Starting the Setup Wizard for the First Time 114.2 Setting up Basic Congurations 11Chapter 5 Dashboard 155.1 Overview 155.2 WAN Information 165.3 Wireless Information 175.4 Client Information 185.5 USB Information 185.6 Setup Wizard 19

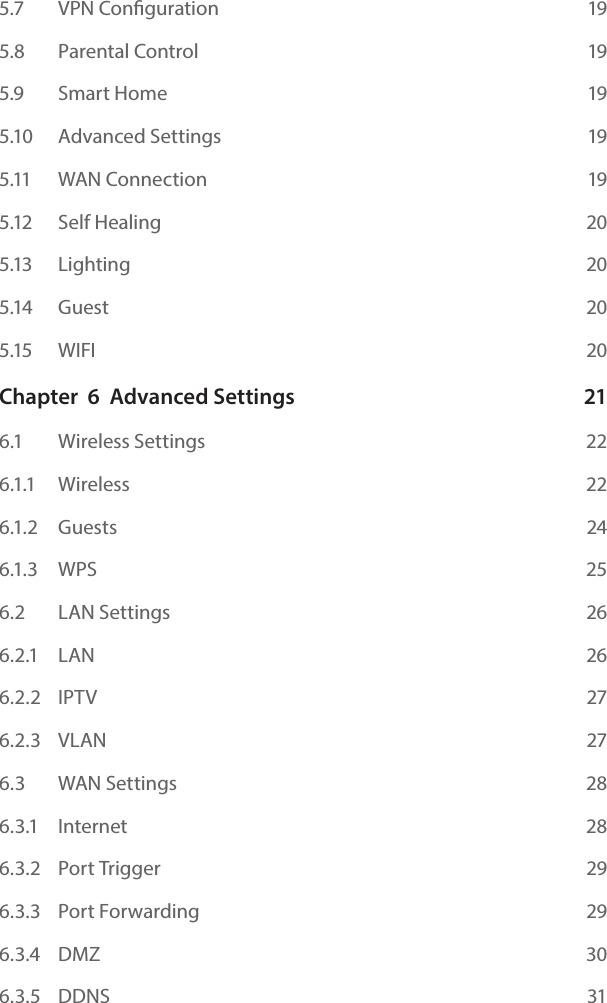

5.7 VPN Conguration 195.8 Parental Control 195.9 Smart Home 195.10 Advanced Settings 195.11 WAN Connection 195.12 Self Healing 205.13 Lighting 205.14 Guest 205.15 WIFI 20Chapter 6 Advanced Settings 216.1 Wireless Settings 226.1.1 Wireless 226.1.2 Guests 246.1.3 WPS 256.2 LAN Settings 266.2.1 LAN 266.2.2 IPTV 276.2.3 VLAN 276.3 WAN Settings 286.3.1 Internet 286.3.2 Port Trigger 296.3.3 Port Forwarding 296.3.4 DMZ 306.3.5 DDNS 31

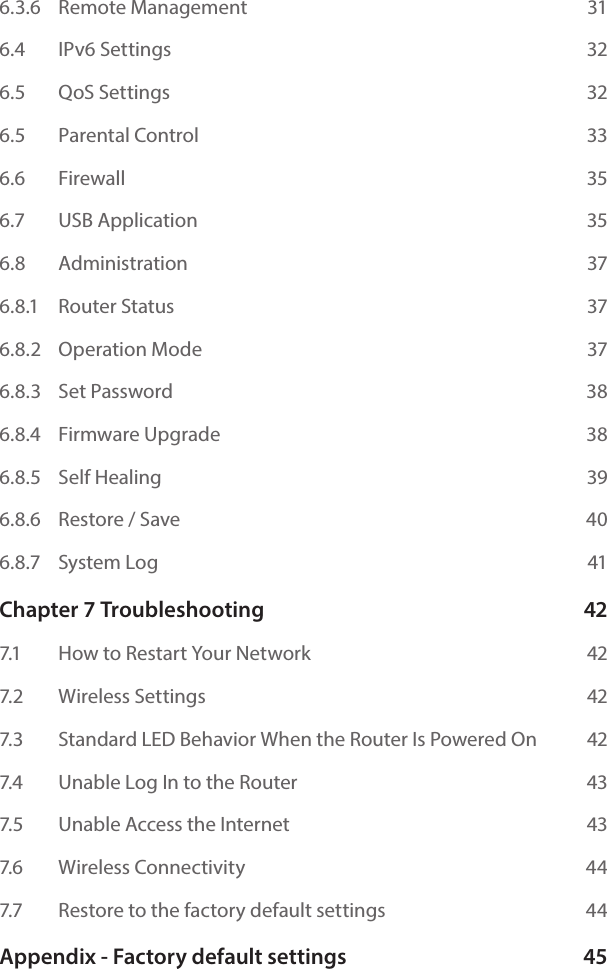

6.3.6 Remote Management 316.4 IPv6 Settings 326.5 QoS Settings 326.5 Parental Control 336.6 Firewall 356.7 USB Application 356.8 Administration 376.8.1 Router Status 376.8.2 Operation Mode 376.8.3 Set Password 386.8.4 Firmware Upgrade 386.8.5 Self Healing 396.8.6 Restore / Save 406.8.7 System Log 41Chapter 7 Troubleshooting 427.1 How to Restart Your Network 427.2 Wireless Settings 427.3 Standard LED Behavior When the Router Is Powered On 427.4 Unable Log In to the Router 437.5 Unable Access the Internet 437.6 Wireless Connectivity 447.7 Restore to the factory default settings 44Appendix - Factory default settings 45

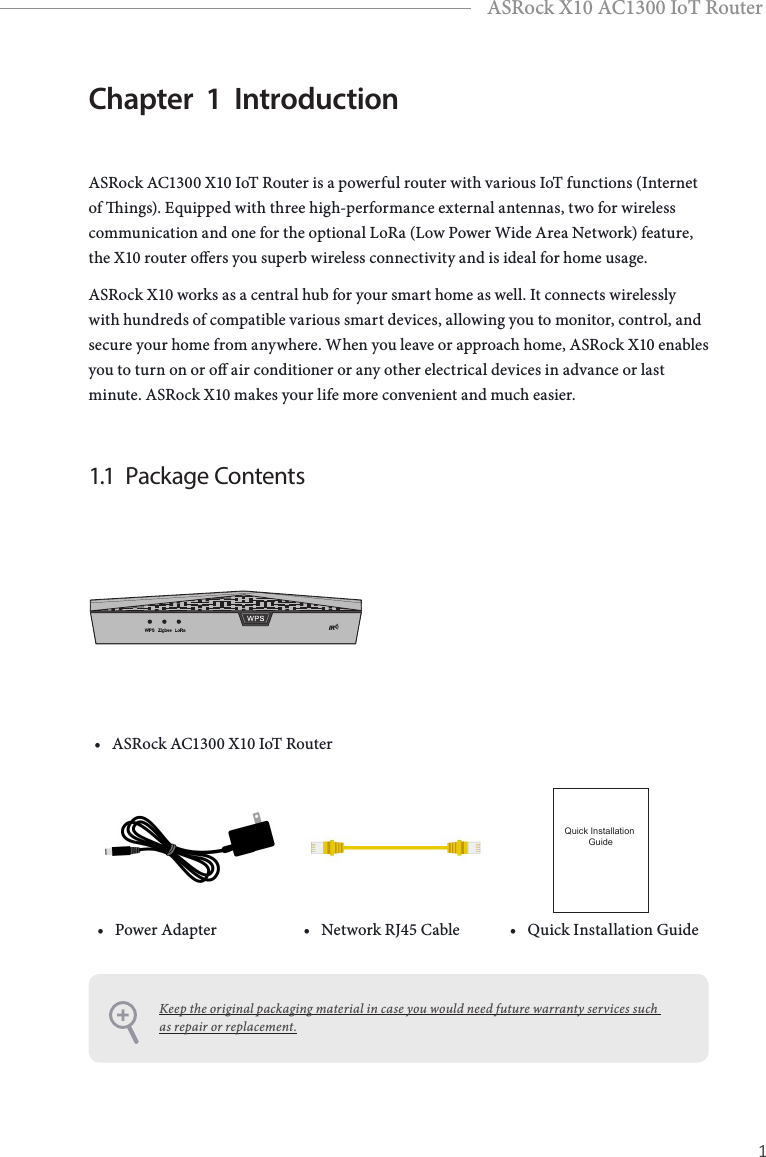

PB 1EnglishASRock X10 AC1300 IoT RouterChapter 1 IntroductionASRock AC1300 X10 IoT Router is a powerful router with various IoT functions (Internet of ings). Equipped with three high-performance external antennas, two for wireless communication and one for the optional LoRa (Low Power Wide Area Network) feature, the X10 router oers you superb wireless connectivity and is ideal for home usage.ASRock X10 works as a central hub for your smart home as well. It connects wirelessly with hundreds of compatible various smart devices, allowing you to monitor, control, and secure your home from anywhere. When you leave or approach home, ASRock X10 enables you to turn on or o air conditioner or any other electrical devices in advance or last minute. ASRock X10 makes your life more convenient and much easier.1.1 Package Contents• ASRock AC1300 X10 IoT RouterQuick Installation Guide• Power Adapter • Network RJ45 Cable • Quick Installation GuideKeep the original packaging material in case you would need future warranty services such as repair or replacement.

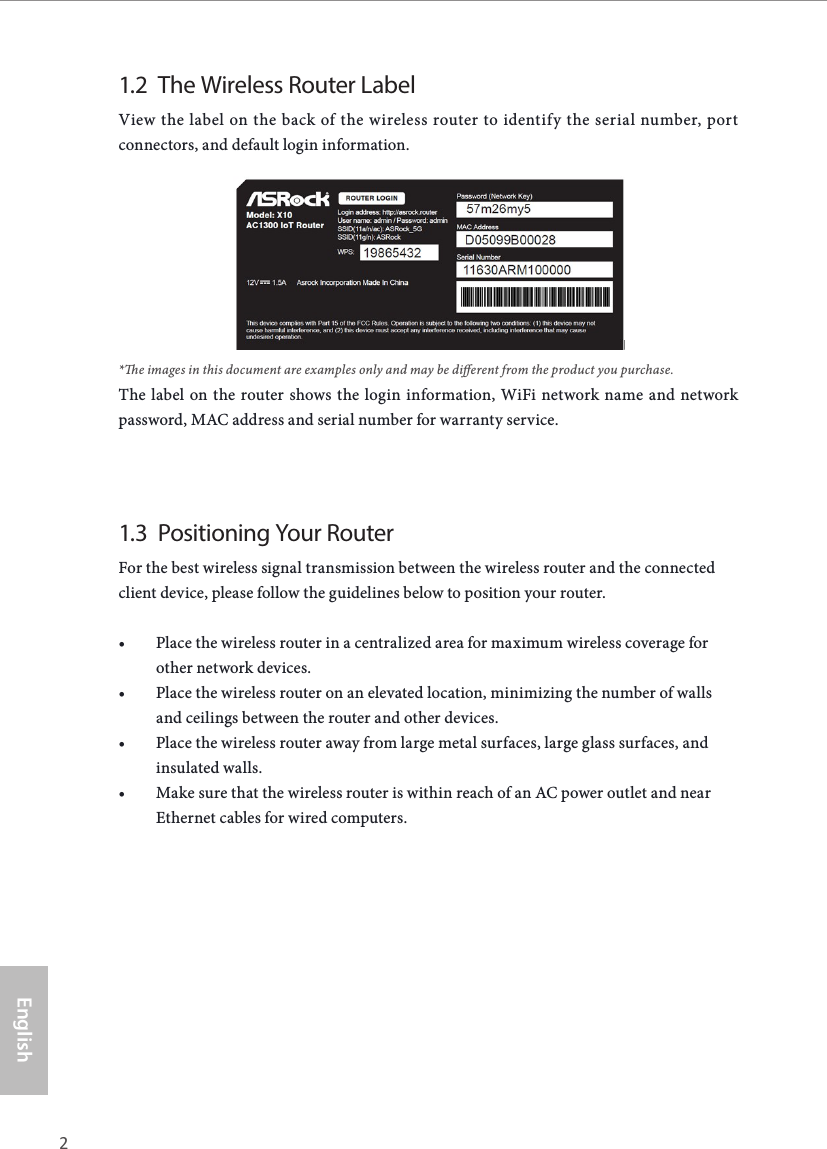

2 3EnglishASRock X10 AC1300 IoT Router1.2 The Wireless Router LabelView the label on the back of the wireless router to identify the serial number, port connectors, and default login information.*e images in this document are examples only and may be dierent from the product you purchase.The label on the router shows the login information, WiFi network name and network password, MAC address and serial number for warranty service.1.3 Positioning Your RouterFor the best wireless signal transmission between the wireless router and the connected client device, please follow the guidelines below to position your router.• Place the wireless router in a centralized area for maximum wireless coverage for other network devices.• Place the wireless router on an elevated location, minimizing the number of walls and ceilings between the router and other devices.• Place the wireless router away from large metal surfaces, large glass surfaces, and insulated walls.• Make sure that the wireless router is within reach of an AC power outlet and near Ethernet cables for wired computers.

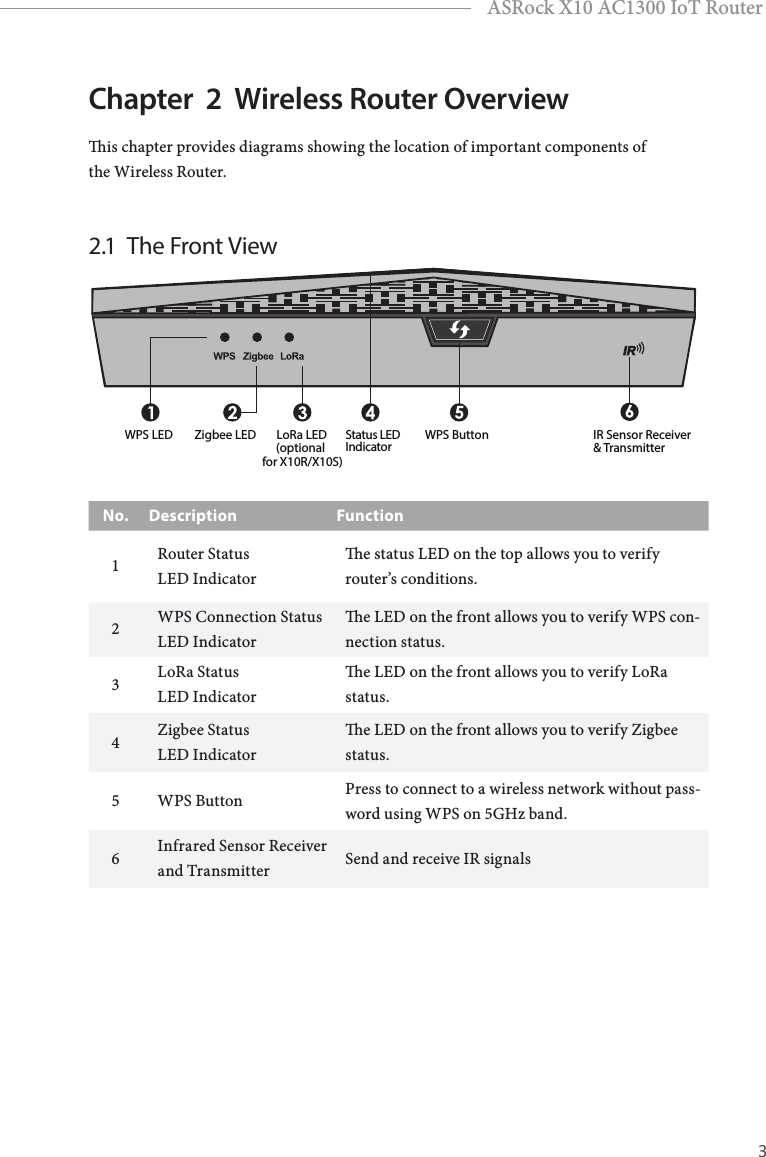

2 3EnglishASRock X10 AC1300 IoT RouterChapter 2 Wireless Router Overviewis chapter provides diagrams showing the location of important components of the Wireless Router.2.1 The Front ViewWPS ButtonWPS LED Zigbee LED LoRa LED Status LEDIndicator(optional IR Sensor Receiver & Transmitterfor X10R/X10S)No. Description Function1Router Status LED Indicator e status LED on the top allows you to verify router’s conditions.2WPS Connection Status LED Indicator e LED on the front allows you to verify WPS con-nection status.3LoRa Status LED Indicator e LED on the front allows you to verify LoRa status.4Zigbee Status LED Indicator e LED on the front allows you to verify Zigbee status.5 WPS Button Press to connect to a wireless network without pass-word using WPS on 5GHz band.6Infrared Sensor Receiver and Transmitter Send and receive IR signals
4 5EnglishASRock X10 AC1300 IoT RouterStatus LED Denitions• Router Status LED Indicator Flashing Blue Starting upSolid Blue Connected to the internetFlashing Red ADSL modem not detected / WPS connection failedSolid Red Modem detected but no internet connection• WPS Connection Status LED IndicatorFlashing White Connecting to a WPS-enabled deviceSolid White WPS connected• LoRa Status LED IndicatorFlashing White Pairing to a LoRa deviceSolid White LoRa device connected• Zigbee Status LED IndicatorFlashing White Pairing to a Zigbee deviceSolid White Zigbee device connected

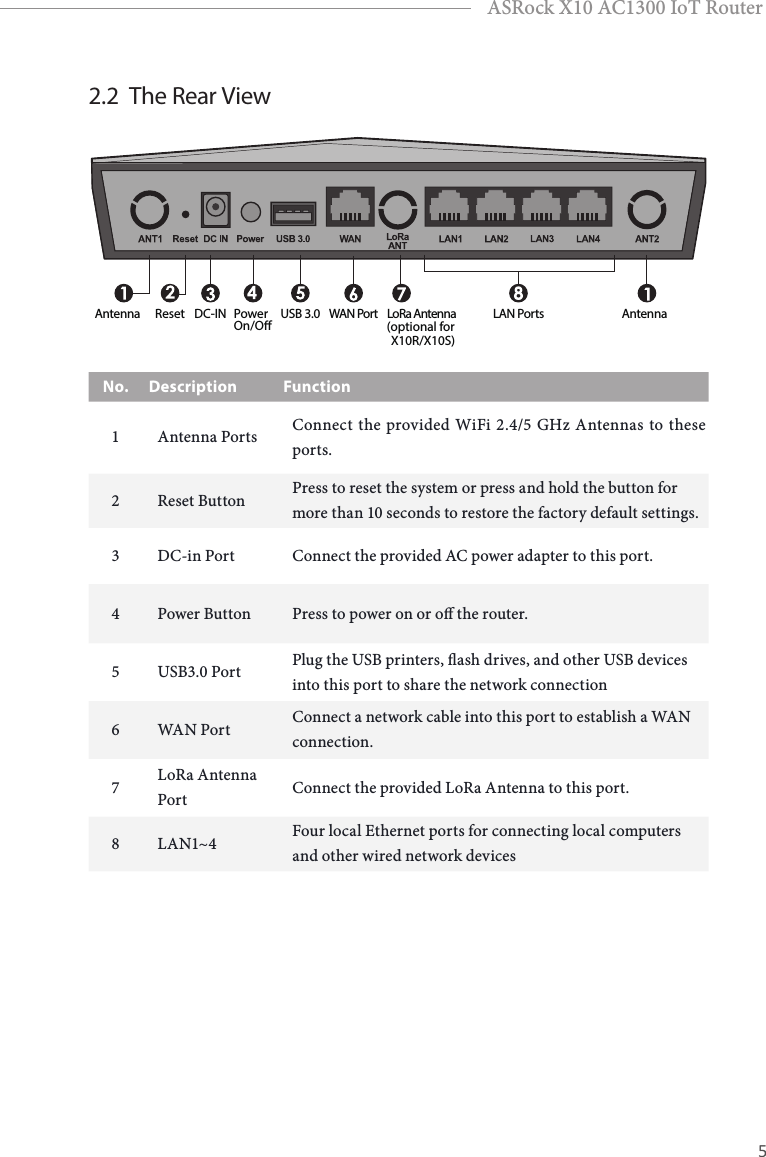

4 5EnglishASRock X10 AC1300 IoT RouterNo. Description Function1Antenna Ports Connect the provided WiFi 2.4/5 GHz Antennas to these ports.2 Reset Button Press to reset the system or press and hold the button for more than 10 seconds to restore the factory default settings.3DC-in Port Connect the provided AC power adapter to this port.4 Power Button Press to power on or o the router.5USB3.0 Port Plug the USB printers, ash drives, and other USB devices into this port to share the network connection6WAN Por t Connect a network cable into this port to establish a WAN connection.7LoRa Antenna Port Connect the provided LoRa Antenna to this port.8LAN1~4 Four local Ethernet ports for connecting local computers and other wired network devices2.2 The Rear ViewAntenna AntennaReset DC-IN PowerOn/O USB 3.0 LAN PortsLoRa AntennaWAN Port (optional forX10R/X10S)

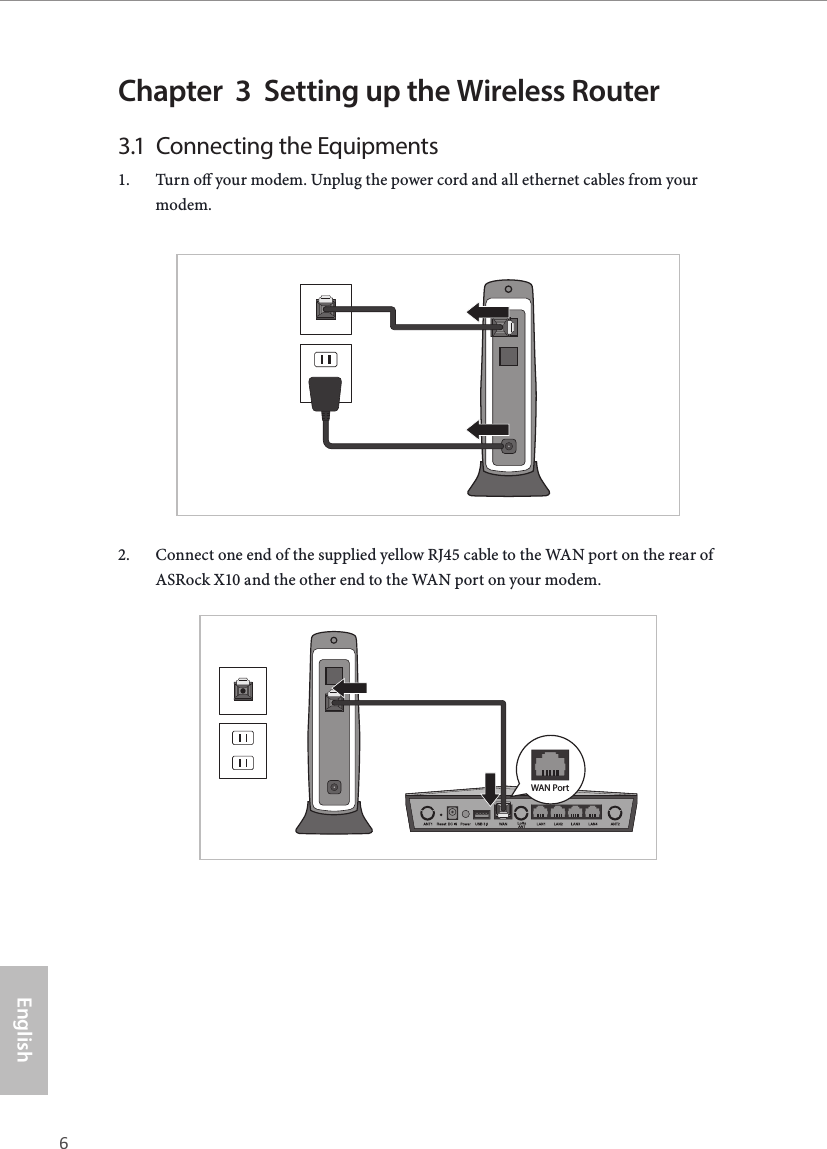

6 7EnglishASRock X10 AC1300 IoT RouterChapter 3 Setting up the Wireless Router3.1 Connecting the Equipments1. Turn o your modem. Unplug the power cord and all ethernet cables from your modem.2. Connect one end of the supplied yellow RJ45 cable to the WAN port on the rear of ASRock X10 and the other end to the WAN port on your modem.WAN Port

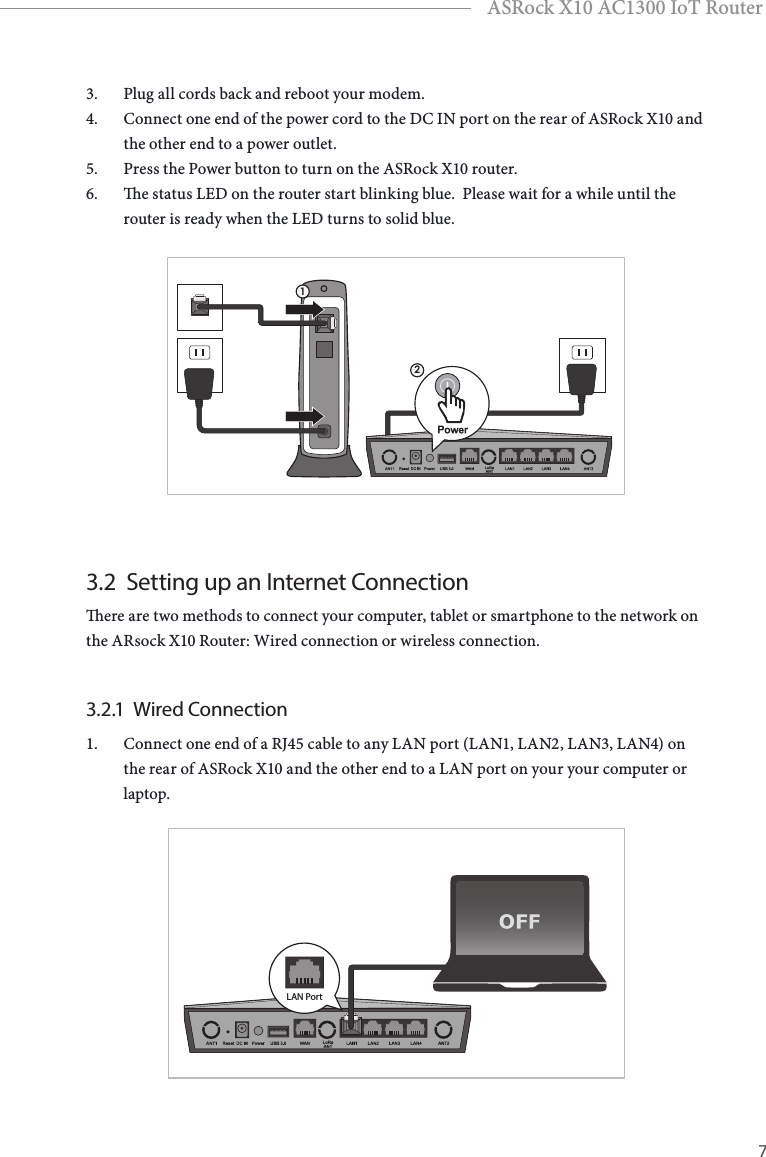

6 7EnglishASRock X10 AC1300 IoT Router3. Plug all cords back and reboot your modem. 4. Connect one end of the power cord to the DC IN port on the rear of ASRock X10 and the other end to a power outlet. 5. Press the Power button to turn on the ASRock X10 router.6. e status LED on the router start blinking blue. Please wait for a while until the router is ready when the LED turns to solid blue.123.2 Setting up an Internet Connectionere are two methods to connect your computer, tablet or smartphone to the network on the ARsock X10 Router: Wired connection or wireless connection.3.2.1 Wired Connection1. Connect one end of a RJ45 cable to any LAN port (LAN1, LAN2, LAN3, LAN4) on the rear of ASRock X10 and the other end to a LAN port on your your computer or laptop.LAN Port
8 9EnglishASRock X10 AC1300 IoT Router2. Turn on your computer or laptop. 3. Make sure that the status LED on the router lights up blue.4. Now start to set up basic con gruations. (see “Setup Wizard”)3.2.2 Wireless ConnectionBefore you start, turn on your device and make sure your device is wireless-enabled.* For computers, a wireless card or adaptor is required. For handheld devices, visit your device’s WiFi Settings menu and ensure that WiFi is turned on.

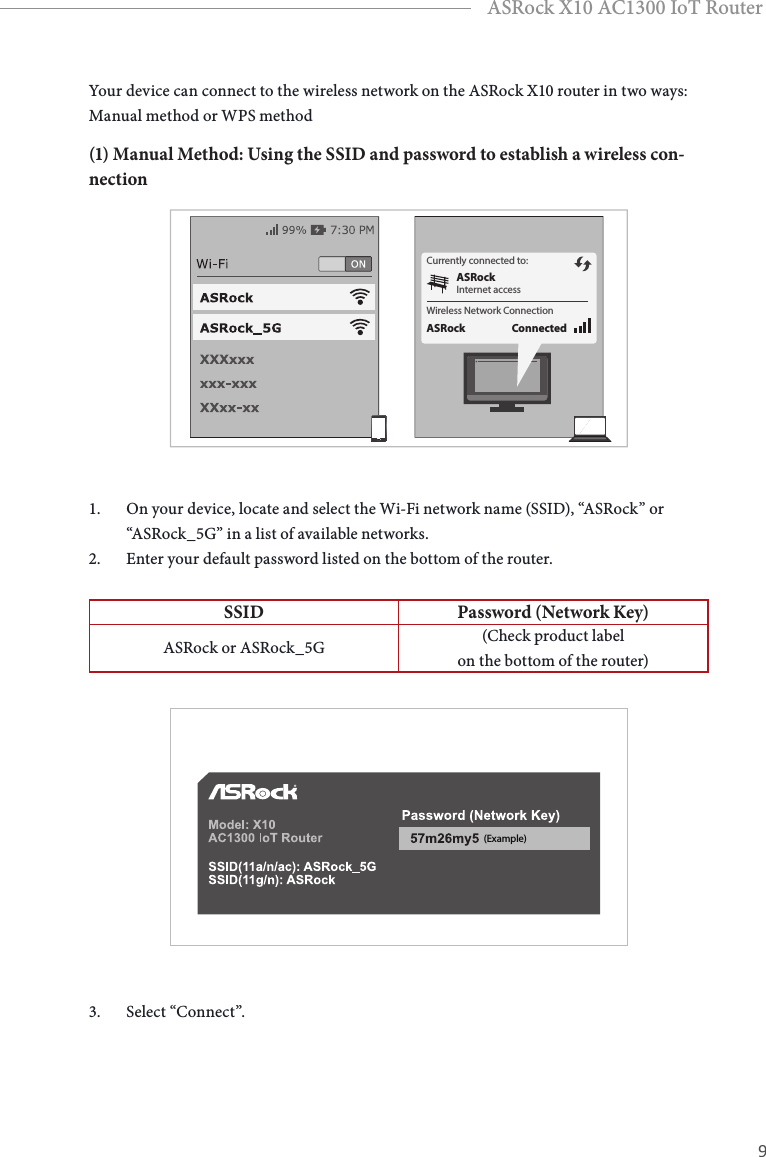

8 9EnglishASRock X10 AC1300 IoT RouterYour device can connect to the wireless network on the ASRock X10 router in two ways: Manual method or WPS method(1) Manual Method: Using the SSID and password to establish a wireless con-nectionCurrently connected to:Wireless Network ConnectionASRock ConnectedASRockInternet access1. On your device, locate and select the Wi-Fi network name (SSID), “ASRock” or “ASRock_5G” in a list of available networks. 2. Enter your default password listed on the bottom of the router. SSID Password (Network Key)ASRock or ASRock_5G (Check product label on the bottom of the router)(Example)3. Select “Connect”.

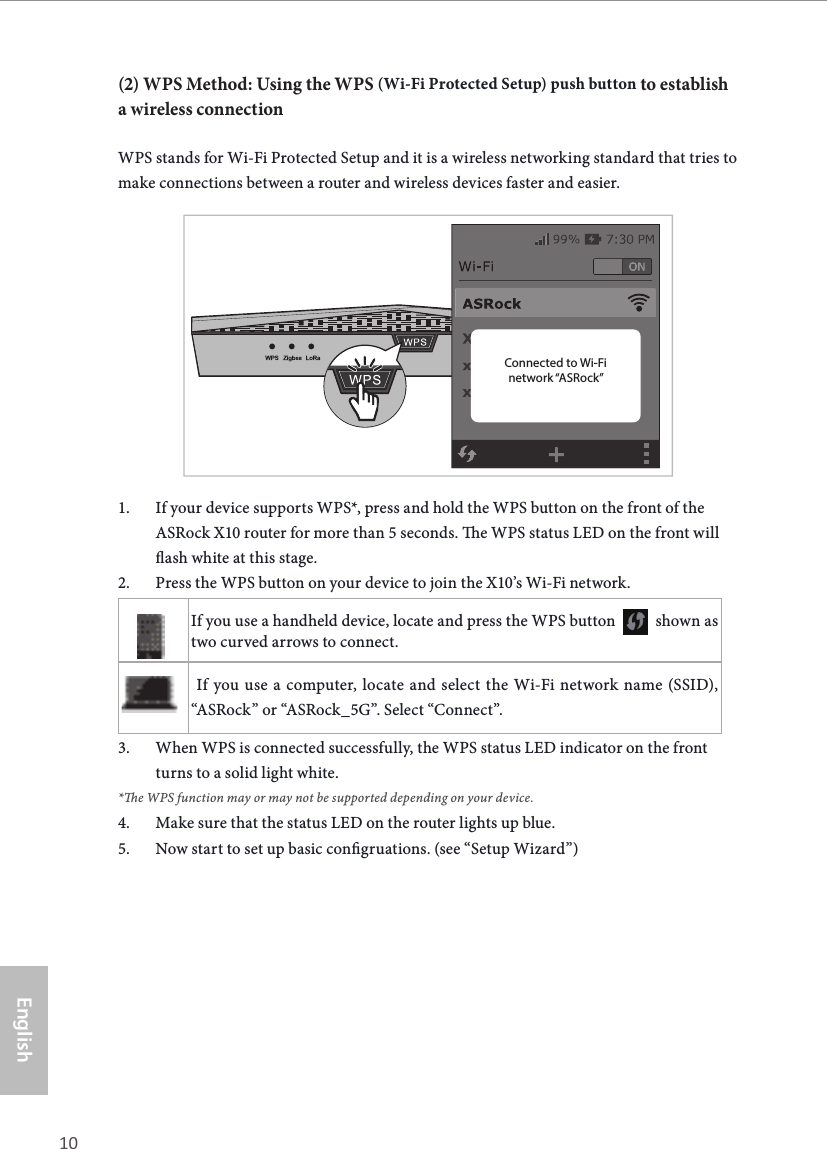

10 11EnglishASRock X10 AC1300 IoT Router(2) WPS Method: Using the WPS (Wi-Fi Protected Setup) push button to establish a wireless connectionWPS stands for Wi-Fi Protected Setup and it is a wireless networking standard that tries to make connections between a router and wireless devices faster and easier. Connected to Wi-Finetwork “ASRock”1. If your device supports WPS*, press and hold the WPS button on the front of the ASRock X10 router for more than 5 seconds.  e WPS status LED on the front will  ash white at this stage.2. Press the WPS button on your device to join the X10’s Wi-Fi network.If you use a handheld device, locate and press the WPS button shown as two curved arrows to connect. If you use a computer, locate and select the Wi-Fi network name (SSID), “ASRock” or “ASRock_5G”. Select “Connect”. 3. When WPS is connected successfully, the WPS status LED indicator on the front turns to a solid light white. * e WPS function may or may not be supported depending on your device.4. Make sure that the status LED on the router lights up blue.5. Now start to set up basic con gruations. (see “Setup Wizard”)

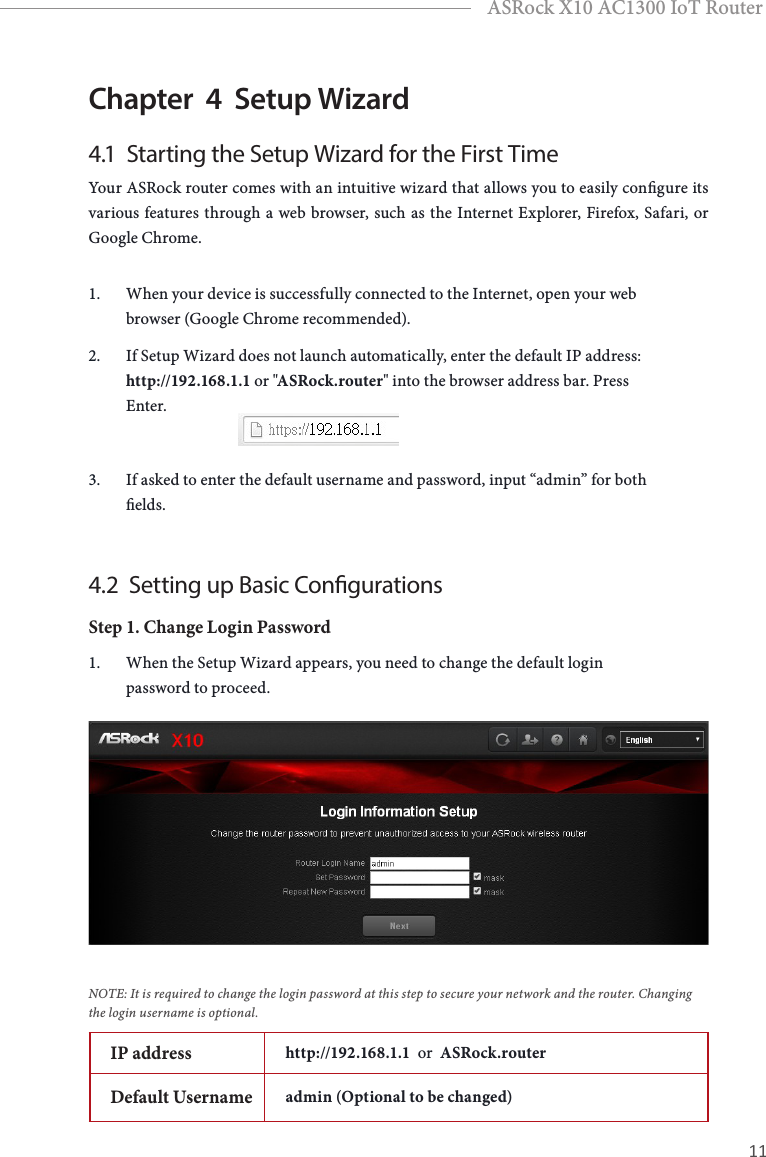

10 11EnglishASRock X10 AC1300 IoT RouterChapter 4 Setup Wizard4.1 Starting the Setup Wizard for the First TimeYour ASRock router comes with an intuitive wizard that allows you to easily congure its various features through a web browser, such as the Internet Explorer, Firefox, Safari, or Google Chrome.1. When your device is successfully connected to the Internet, open your web browser (Google Chrome recommended). 2. If Setup Wizard does not launch automatically, enter the default IP address: http://192.168.1.1 or "ASRock.router" into the browser address bar. Press Enter. 3. If asked to enter the default username and password, input “admin” for both elds. 4.2 Setting up Basic CongurationsStep 1. Change Login Password1. When the Setup Wizard appears, you need to change the default login password to proceed. NOTE: It is required to change the login password at this step to secure your network and the router. Changing the login username is optional. IP address http://192.168.1.1 or ASRock.routerDefault Username admin (Optional to be changed)
12 13EnglishASRock X10 AC1300 IoT RouterPassword (Required to be changed) *Passwords must be at least 5 characters and are case sensitive.2. Write down your new username and password on your Quick Start Guide or somewhere else that you can keep it carefully.3. Press "Next" to continue. en follow the step-by-step Setup Wizard to complete the basic conguration.NOTE: You need to re-login if idle for more than 5 minutes.Step 2. Update rmware if requiredWhen you proceed, if a new version of rmware is available, you will see the screen below. Select “Yes” to update the rmware immediately. If your rmware is already up-to-date, you will skip this step.ATTENTION! Please do NOT turn o your router while updating the rmware. When the update is complete, the router will restart automatically.Step 3. Connect to the Internete setup wizard will automatically detect the Internet connection type provided by your ISP and guide you to nish all necessary steps.

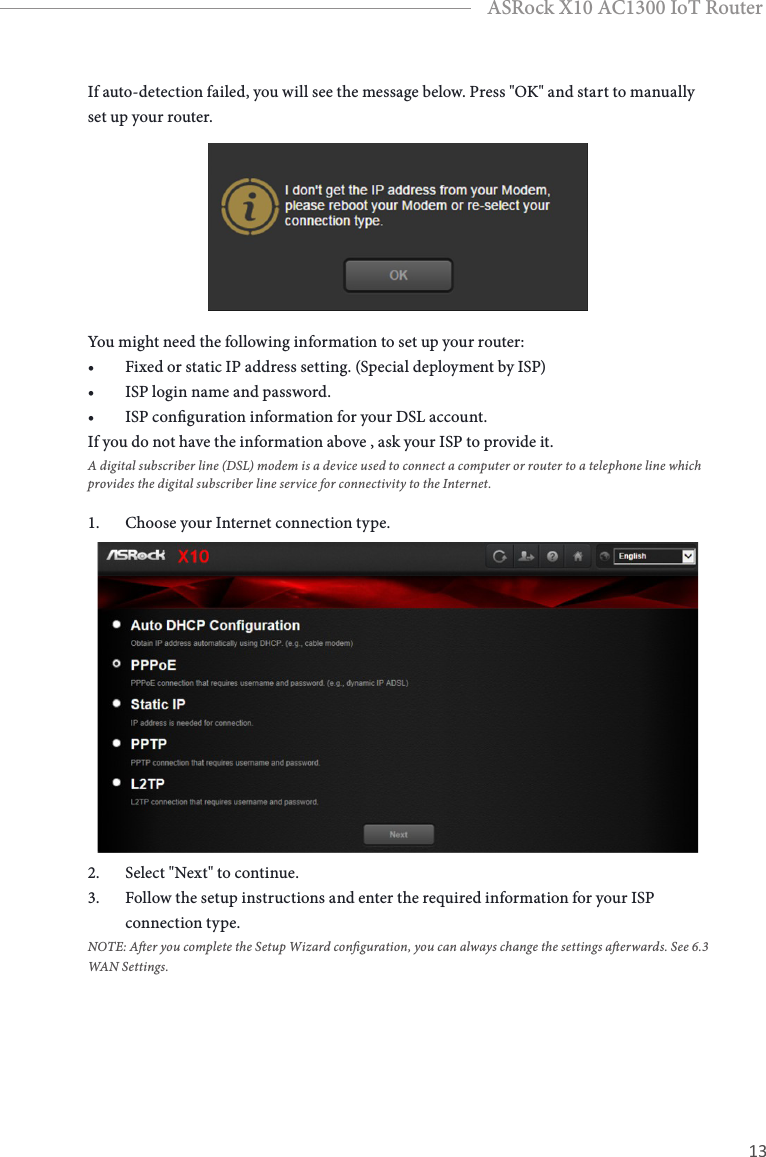

12 13EnglishASRock X10 AC1300 IoT RouterIf auto-detection failed, you will see the message below. Press "OK" and start to manually set up your router. You might need the following information to set up your router:• Fixed or static IP address setting. (Special deployment by ISP)• ISP login name and password.• ISP conguration information for your DSL account.If you do not have the information above , ask your ISP to provide it. A digital subscriber line (DSL) modem is a device used to connect a computer or router to a telephone line which provides the digital subscriber line service for connectivity to the Internet.1. Choose your Internet connection type. 2. Select "Next" to continue.3. Follow the setup instructions and enter the required information for your ISP connection type.NOTE: Aer you complete the Setup Wizard conguration, you can always change the settings aerwards. See 6.3 WAN Settings.
14 15EnglishASRock X10 AC1300 IoT RouterStep 4. Change default wireless name(SSID) and passwordWhen the Wireless Security Setting page appears, you can check your default wireless name and password. We strongly recommend you to change the default wireless name and password immediately for better network security. 1. Select "I want to change the wireless name and password". 2. Enter the wireless name and password you desire in the text boxes. NOTE: A valid password must be comprised of at least 8 characters.3. If you select "Copy 2.4G setting to 5G", the identical password is used for both 5G and 2.4G networks.4. Press "Next" to continue.If you are asked to enter the login information to proceed, enter the wireless name and password you have set in the Step 4. 5. en the Dashbaord page appears. Please see "Dashboard" for more instructions.

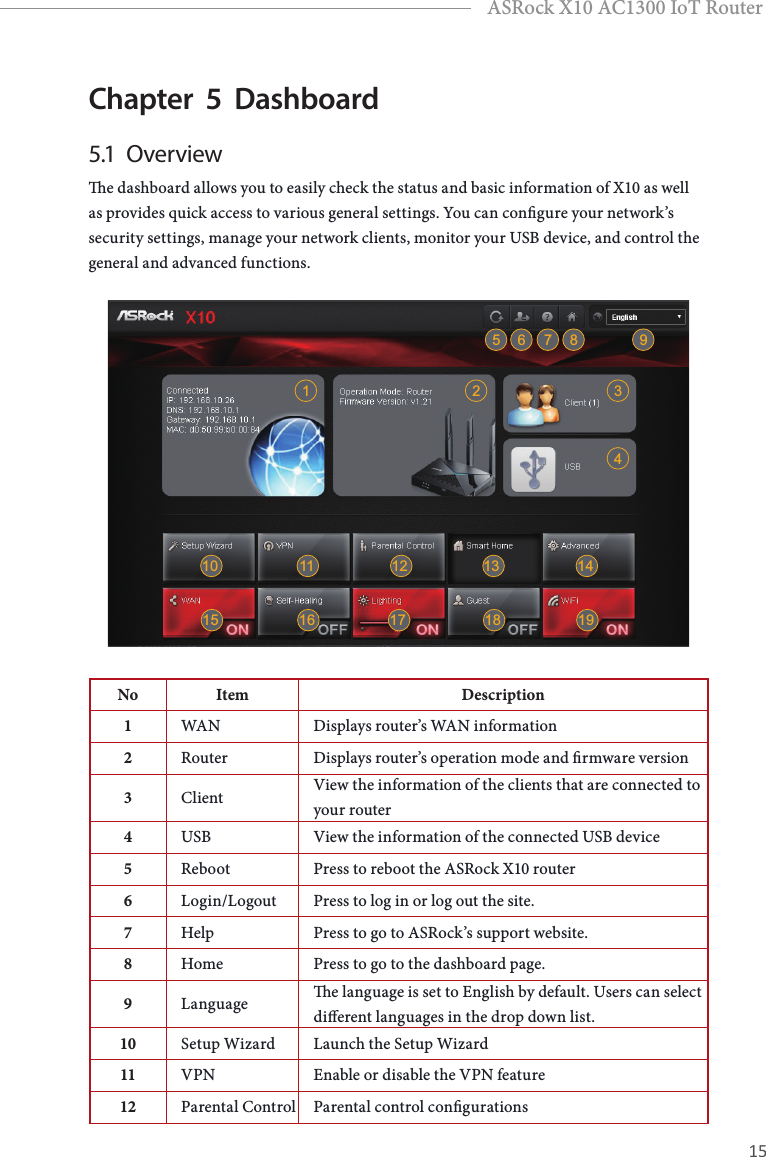

14 15EnglishASRock X10 AC1300 IoT RouterChapter 5 Dashboard5.1 Overviewe dashboard allows you to easily check the status and basic information of X10 as well as provides quick access to various general settings. You can congure your network’s security settings, manage your network clients, monitor your USB device, and control the general and advanced functions.1 2 345 6 7 8 910 11 12 13 1415 16 17 18 19No Item Description1WAN Displays router’s WAN information2Router Displays router’s operation mode and rmware version3Client View the information of the clients that are connected to your router4USB View the information of the connected USB device5Reboot Press to reboot the ASRock X10 router6Login/Logout Press to log in or log out the site. 7Help Press to go to ASRock’s support website.8Home Press to go to the dashboard page.9Language e language is set to English by default. Users can select dierent languages in the drop down list.10 Setup Wizard Launch the Setup Wizard11 VPN Enable or disable the VPN feature12 Parental Control Parental control congurations

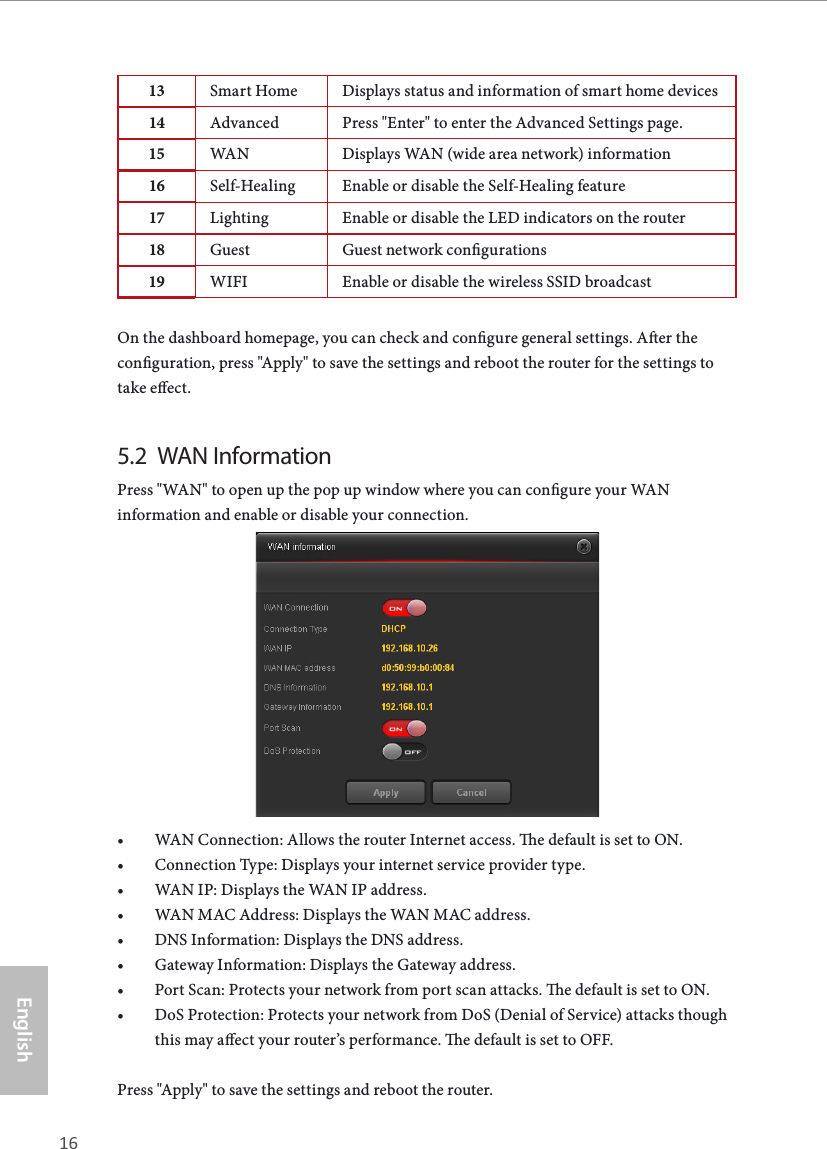

16 17EnglishASRock X10 AC1300 IoT Router13 Smart Home Displays status and information of smart home devices14 Advanced Press "Enter" to enter the Advanced Settings page. 15 WAN Displays WAN (wide area network) information16 Self-Healing Enable or disable the Self-Healing feature17 Lighting Enable or disable the LED indicators on the router18 Guest Guest network congurations19 WIFI Enable or disable the wireless SSID broadcastOn the dashboard homepage, you can check and congure general settings. Aer the conguration, press "Apply" to save the settings and reboot the router for the settings to take eect.5.2 WAN InformationPress "WAN" to open up the pop up window where you can congure your WAN information and enable or disable your connection.• WAN Connection: Allows the router Internet access. e default is set to ON.• Connection Type: Displays your internet service provider type.• WAN IP: Displays the WAN IP address.• WAN MAC Address: Displays the WAN MAC address.• DNS Information: Displays the DNS address.• Gateway Information: Displays the Gateway address.• Port Scan: Protects your network from port scan attacks. e default is set to ON.• DoS Protection: Protects your network from DoS (Denial of Service) attacks though this may aect your router’s performance. e default is set to OFF.Press "Apply" to save the settings and reboot the router.

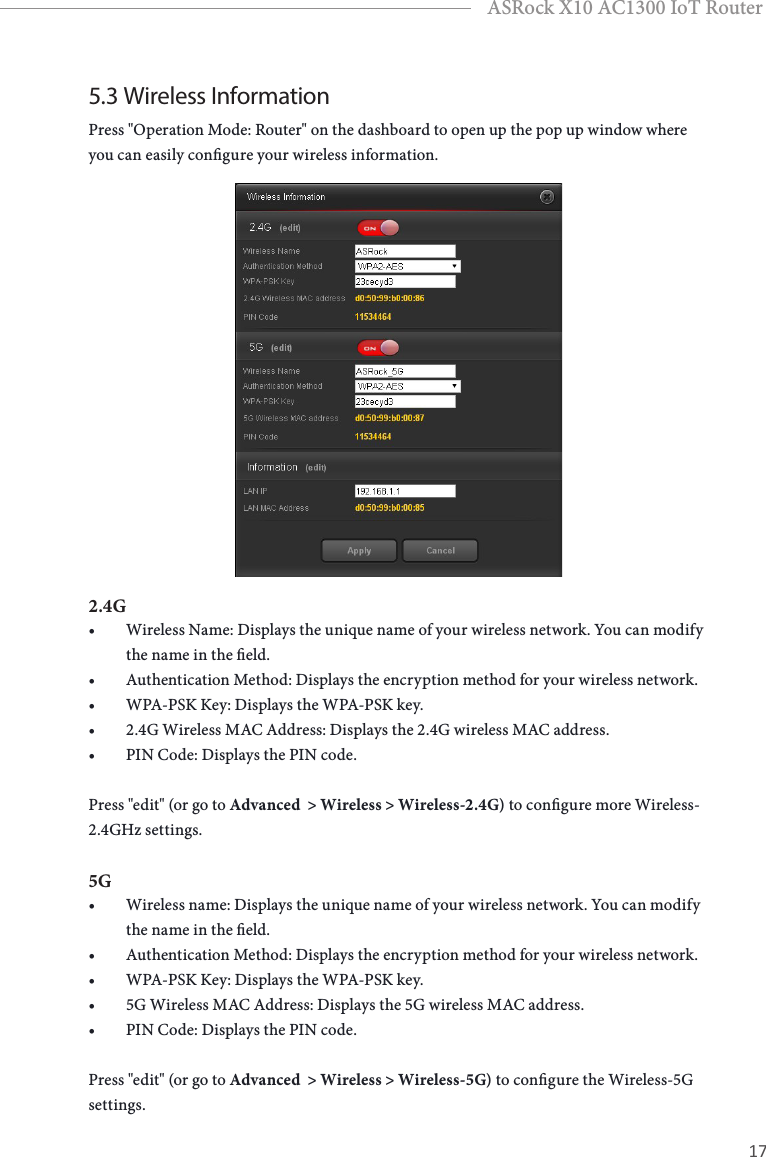

16 17ASRock X10 AC1300 IoT Router5.3 Wireless InformationPress "Operation Mode: Router" on the dashboard to open up the pop up window where you can easily congure your wireless information. 2.4G• Wireless Name: Displays the unique name of your wireless network. You can modify the name in the eld.• Authentication Method: Displays the encryption method for your wireless network.• WPA-PSK Key: Displays the WPA-PSK key.• 2.4G Wireless MAC Address: Displays the 2.4G wireless MAC address.• PIN Code: Displays the PIN code.Press "edit" (or go to Advanced > Wireless > Wireless-2.4G) to congure more Wireless-2.4GHz settings. 5G• Wireless name: Displays the unique name of your wireless network. You can modify the name in the eld.• Authentication Method: Displays the encryption method for your wireless network.• WPA-PSK Key: Displays the WPA-PSK key.• 5G Wireless MAC Address: Displays the 5G wireless MAC address.• PIN Code: Displays the PIN code.Press "edit" (or go to Advanced > Wireless > Wireless-5G) to congure the Wireless-5G settings.

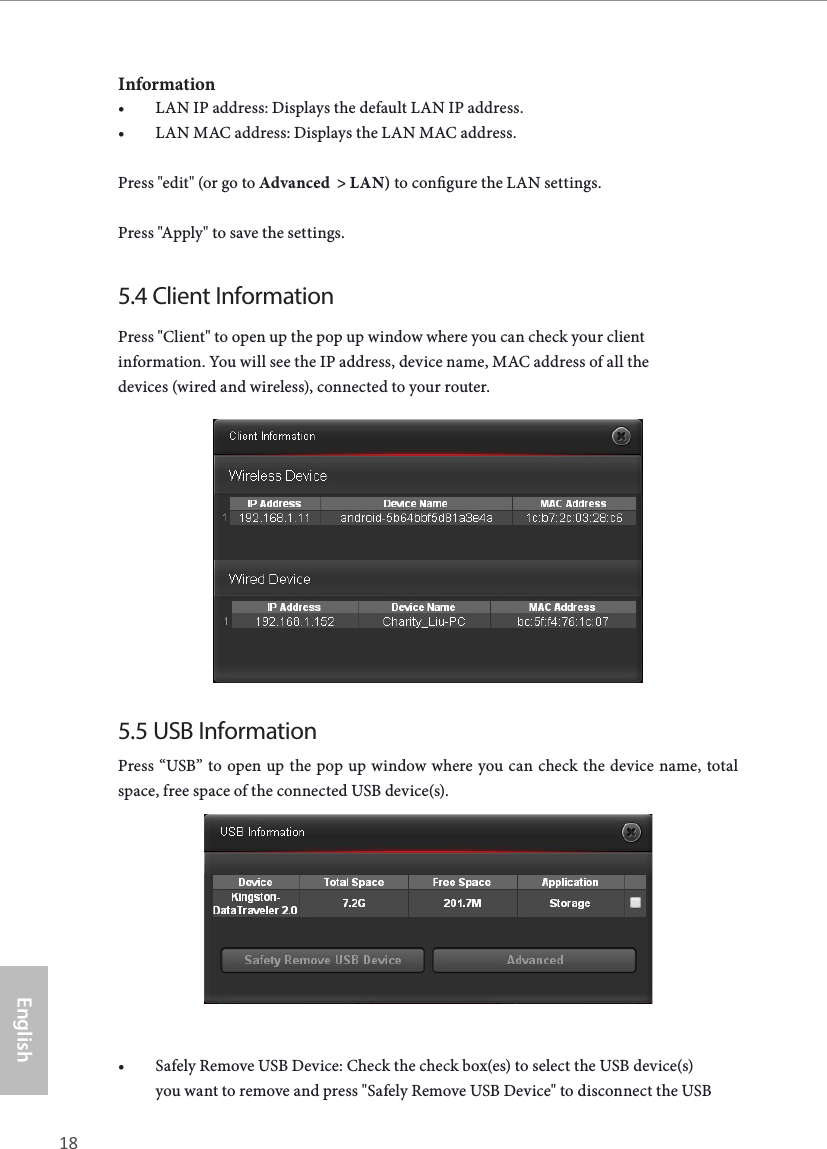

18 19EnglishASRock X10 AC1300 IoT RouterInformation• LAN IP address: Displays the default LAN IP address.• LAN MAC address: Displays the LAN MAC address.Press "edit" (or go to Advanced > LAN) to congure the LAN settings. Press "Apply" to save the settings.5.4 Client InformationPress "Client" to open up the pop up window where you can check your client information. You will see the IP address, device name, MAC address of all the devices (wired and wireless), connected to your router.5.5 USB InformationPress “USB” to open up the pop up window where you can check the device name, total space, free space of the connected USB device(s).• Safely Remove USB Device: Check the check box(es) to select the USB device(s) you want to remove and press "Safely Remove USB Device" to disconnect the USB

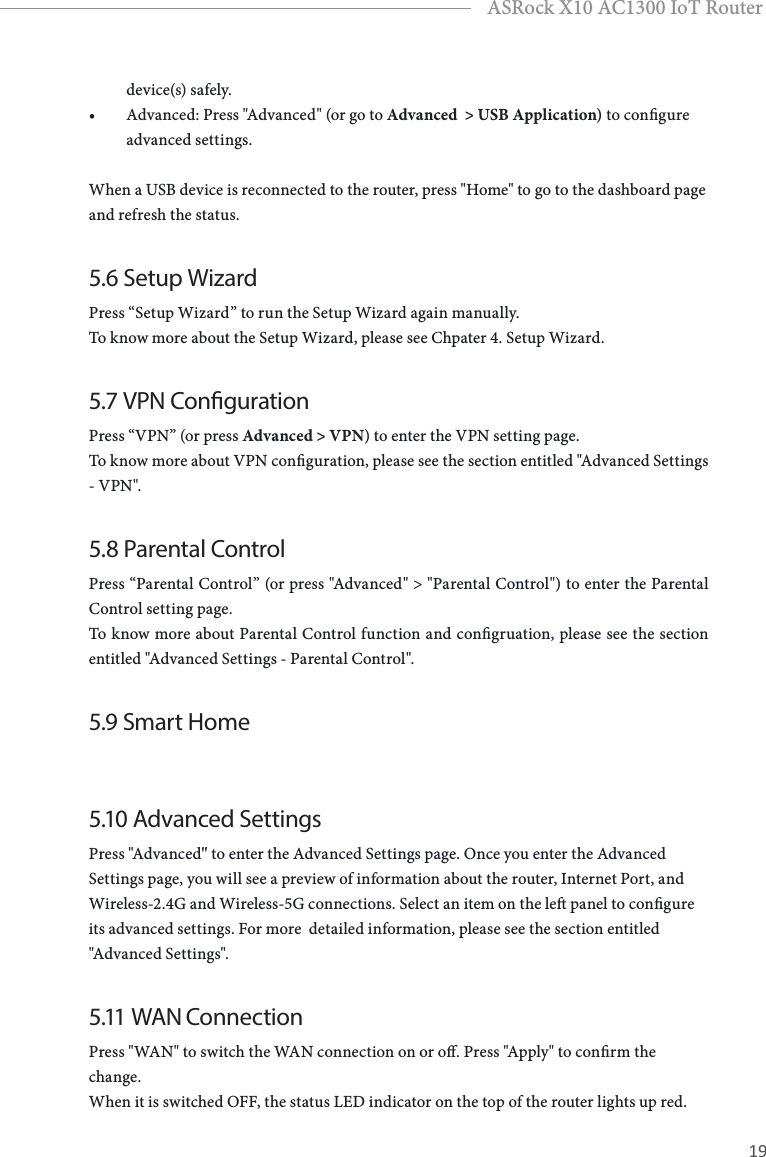

18 19EnglishASRock X10 AC1300 IoT Routerdevice(s) safely.• Advanced: Press "Advanced" (or go to Advanced > USB Application) to congure advanced settings. When a USB device is reconnected to the router, press "Home" to go to the dashboard page and refresh the status.5.6 Setup WizardPress “Setup Wizard” to run the Setup Wizard again manually. To know more about the Setup Wizard, please see Chpater 4. Setup Wizard.5.7 VPN CongurationPress “VPN” (or press Advanced > VPN) to enter the VPN setting page. To know more about VPN conguration, please see the section entitled "Advanced Settings - VPN".5.8 Parental ControlPress “Parental Control” (or press "Advanced" > "Parental Control") to enter the Parental Control setting page. To know more about Parental Control function and congruation, please see the section entitled "Advanced Settings - Parental Control".5.9 Smart Home5.10 Advanced Settings Press "Advanced" to enter the Advanced Settings page. Once you enter the Advanced Settings page, you will see a preview of information about the router, Internet Port, and Wireless-2.4G and Wireless-5G connections. Select an item on the le panel to congure its advanced settings. For more detailed information, please see the section entitled "Advanced Settings".5.11 WAN ConnectionPress "WAN" to switch the WAN connection on or o. Press "Apply" to conrm the change.When it is switched OFF, the status LED indicator on the top of the router lights up red.

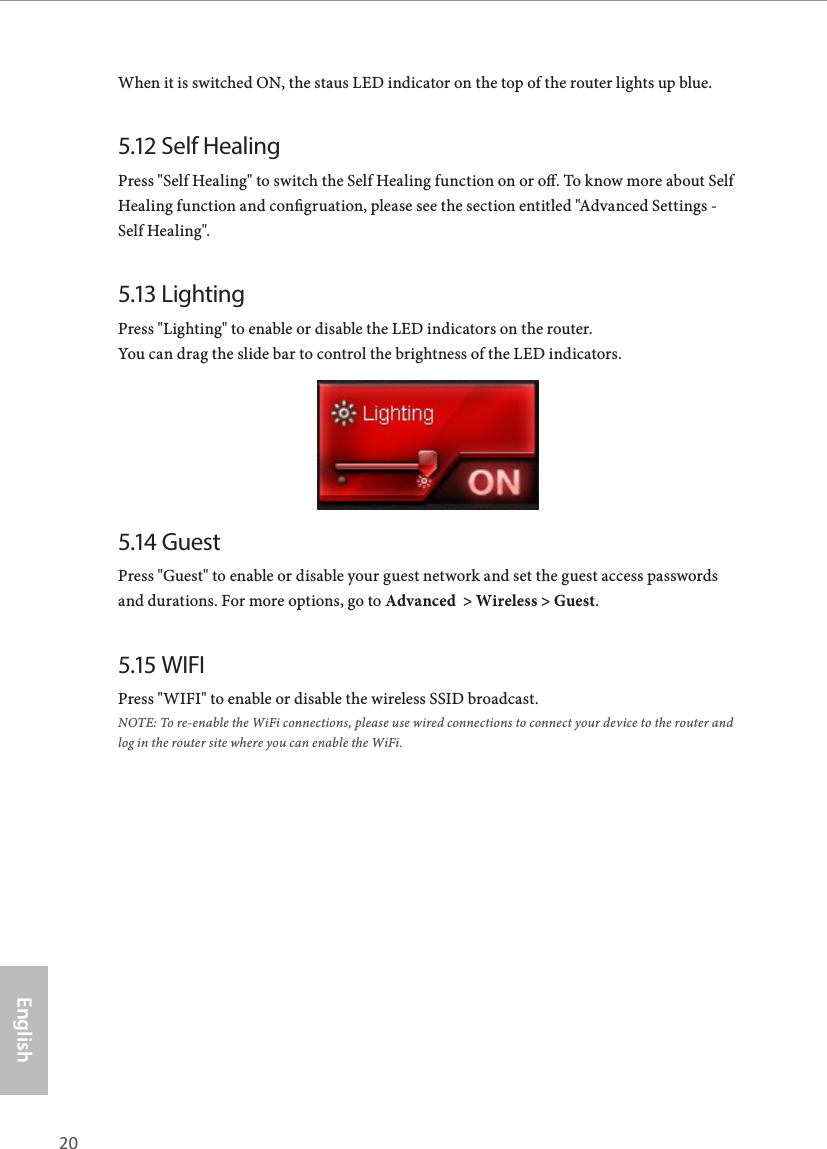

20 21EnglishASRock X10 AC1300 IoT RouterWhen it is switched ON, the staus LED indicator on the top of the router lights up blue.5.12 Self Healing Press "Self Healing" to switch the Self Healing function on or o. To know more about Self Healing function and congruation, please see the section entitled "Advanced Settings - Self Healing".5.13 Lighting Press "Lighting" to enable or disable the LED indicators on the router. You can drag the slide bar to control the brightness of the LED indicators.5.14 GuestPress "Guest" to enable or disable your guest network and set the guest access passwords and durations. For more options, go to Advanced > Wireless > Guest.5.15 WIFIPress "WIFI" to enable or disable the wireless SSID broadcast. NOTE: To re-enable the WiFi connections, please use wired connections to connect your device to the router and log in the router site where you can enable the WiFi.

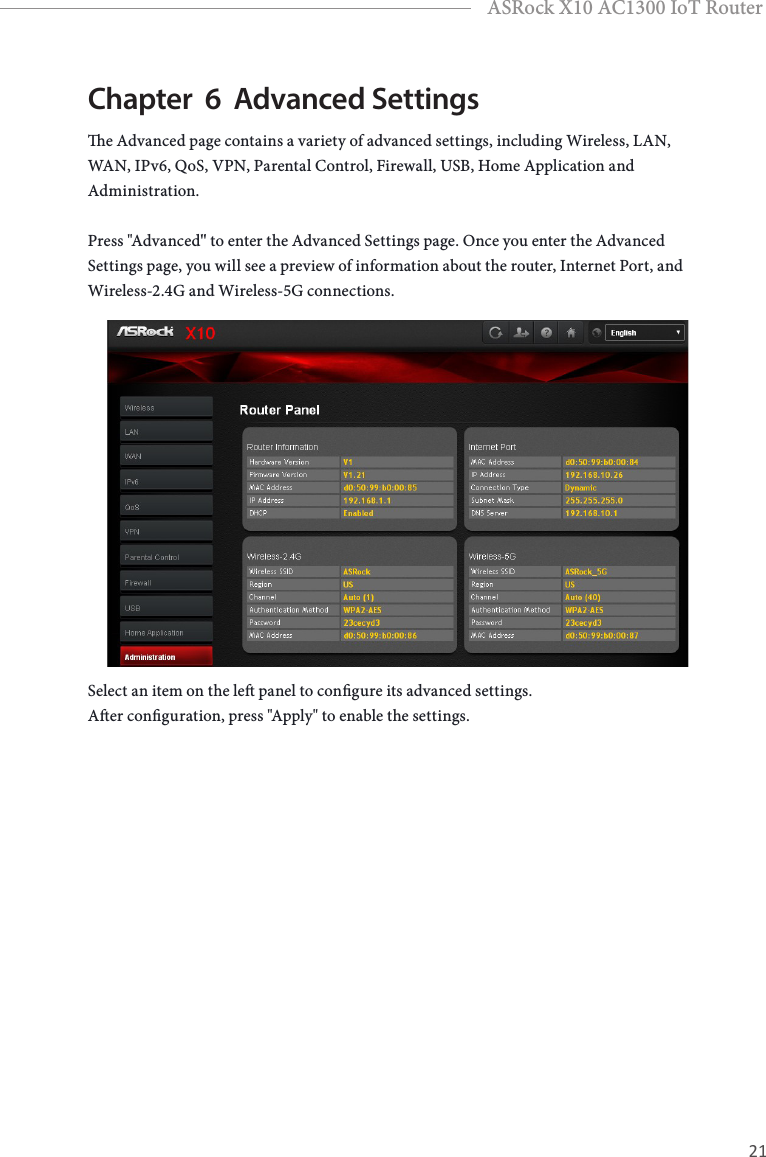

20 21EnglishASRock X10 AC1300 IoT RouterChapter 6 Advanced Settingse Advanced page contains a variety of advanced settings, including Wireless, LAN, WAN, IPv6, QoS, VPN, Parental Control, Firewall, USB, Home Application and Administration.Press "Advanced" to enter the Advanced Settings page. Once you enter the Advanced Settings page, you will see a preview of information about the router, Internet Port, and Wireless-2.4G and Wireless-5G connections. Select an item on the le panel to congure its advanced settings. Aer conguration, press "Apply" to enable the settings.

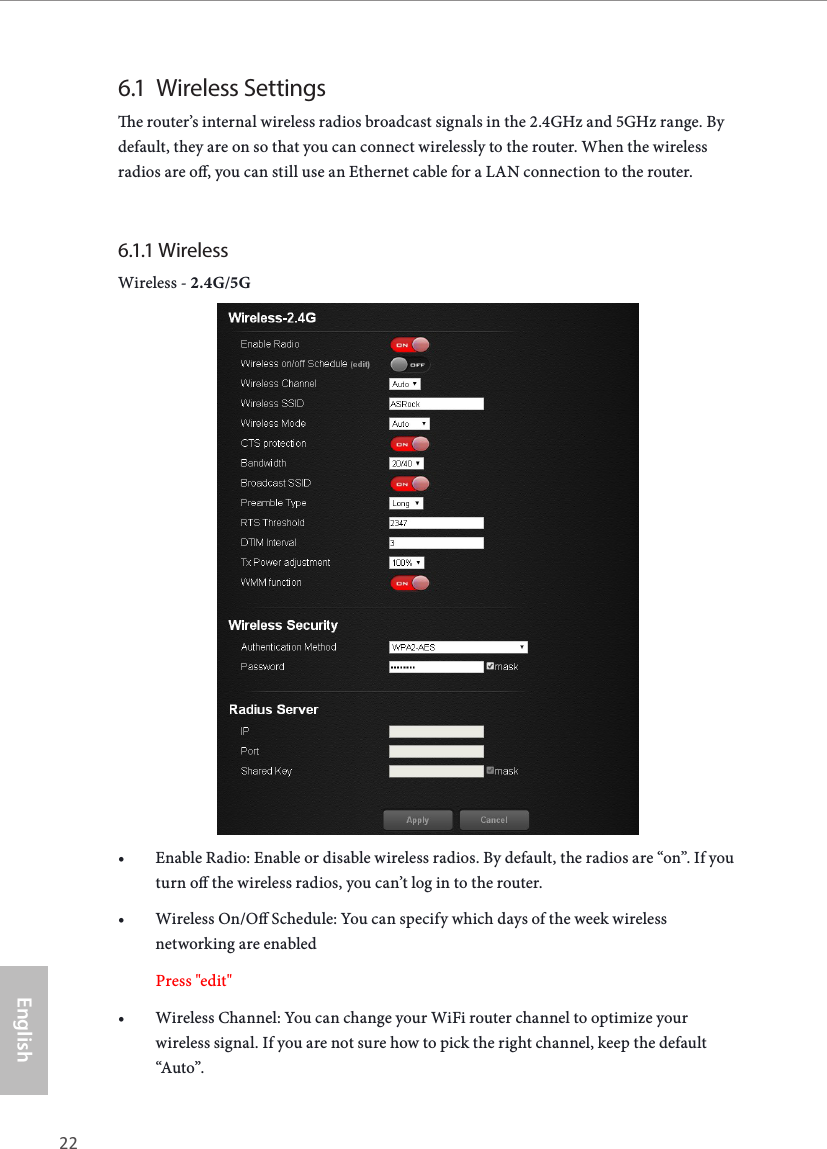

22 23EnglishASRock X10 AC1300 IoT Router6.1 Wireless Settingse router’s internal wireless radios broadcast signals in the 2.4GHz and 5GHz range. By default, they are on so that you can connect wirelessly to the router. When the wireless radios are o, you can still use an Ethernet cable for a LAN connection to the router.6.1.1 WirelessWireless - 2.4G/5G• Enable Radio: Enable or disable wireless radios. By default, the radios are “on”. If you turn o the wireless radios, you can’t log in to the router. • Wireless On/O Schedule: You can specify which days of the week wireless networking are enabled Press "edit" • Wireless Channel: You can change your WiFi router channel to optimize your wireless signal. If you are not sure how to pick the right channel, keep the default “Auto”.

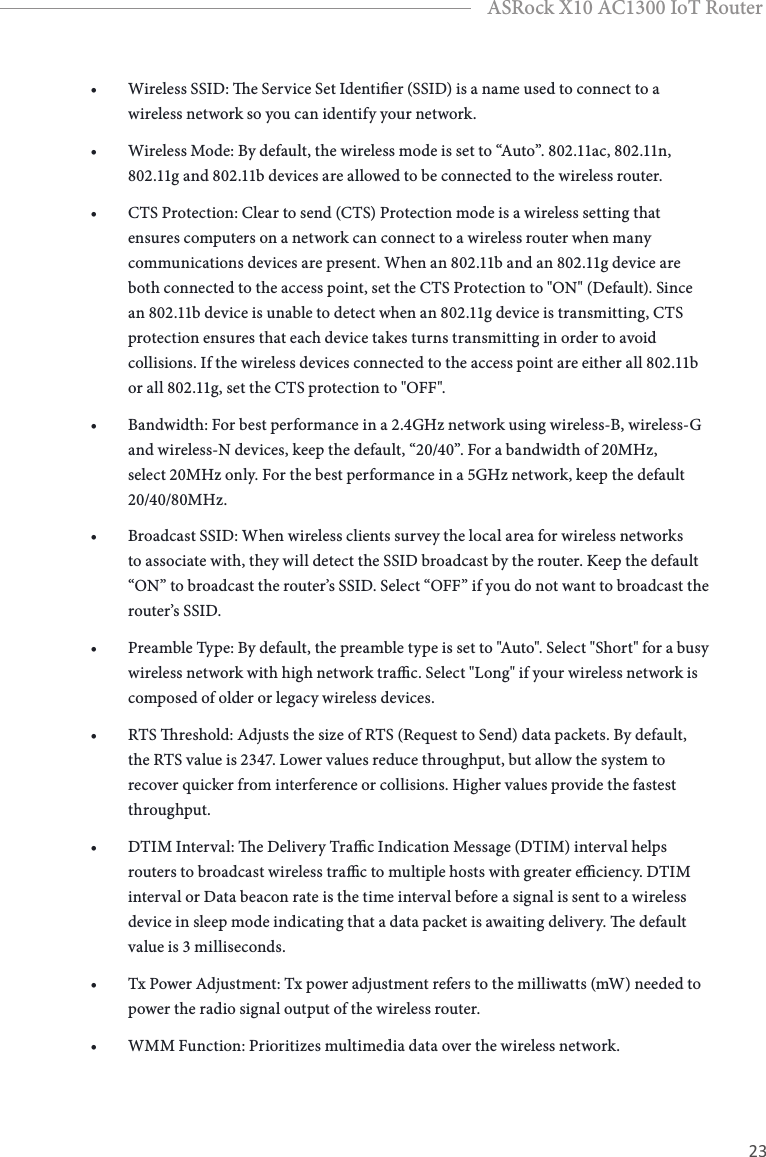

22 23EnglishASRock X10 AC1300 IoT Router• Wireless SSID: e Service Set Identier (SSID) is a name used to connect to a wireless network so you can identify your network.• Wireless Mode: By default, the wireless mode is set to “Auto”. 802.11ac, 802.11n, 802.11g and 802.11b devices are allowed to be connected to the wireless router.• CTS Protection: Clear to send (CTS) Protection mode is a wireless setting that ensures computers on a network can connect to a wireless router when many communications devices are present. When an 802.11b and an 802.11g device are both connected to the access point, set the CTS Protection to "ON" (Default). Since an 802.11b device is unable to detect when an 802.11g device is transmitting, CTS protection ensures that each device takes turns transmitting in order to avoid collisions. If the wireless devices connected to the access point are either all 802.11b or all 802.11g, set the CTS protection to "OFF". • Bandwidth: For best performance in a 2.4GHz network using wireless-B, wireless-G and wireless-N devices, keep the default, “20/40”. For a bandwidth of 20MHz, select 20MHz only. For the best performance in a 5GHz network, keep the default 20/40/80MHz.• Broadcast SSID: When wireless clients survey the local area for wireless networks to associate with, they will detect the SSID broadcast by the router. Keep the default “ON” to broadcast the router’s SSID. Select “OFF” if you do not want to broadcast the router’s SSID.• Preamble Type: By default, the preamble type is set to "Auto". Select "Short" for a busy wireless network with high network trac. Select "Long" if your wireless network is composed of older or legacy wireless devices.• RTS reshold: Adjusts the size of RTS (Request to Send) data packets. By default, the RTS value is 2347. Lower values reduce throughput, but allow the system to recover quicker from interference or collisions. Higher values provide the fastest throughput.• DTIM Interval: e Delivery Trac Indication Message (DTIM) interval helps routers to broadcast wireless trac to multiple hosts with greater eciency. DTIM interval or Data beacon rate is the time interval before a signal is sent to a wireless device in sleep mode indicating that a data packet is awaiting delivery. e default value is 3 milliseconds. • Tx Power Adjustment: Tx power adjustment refers to the milliwatts (mW) needed to power the radio signal output of the wireless router.• WMM Function: Prioritizes multimedia data over the wireless network.

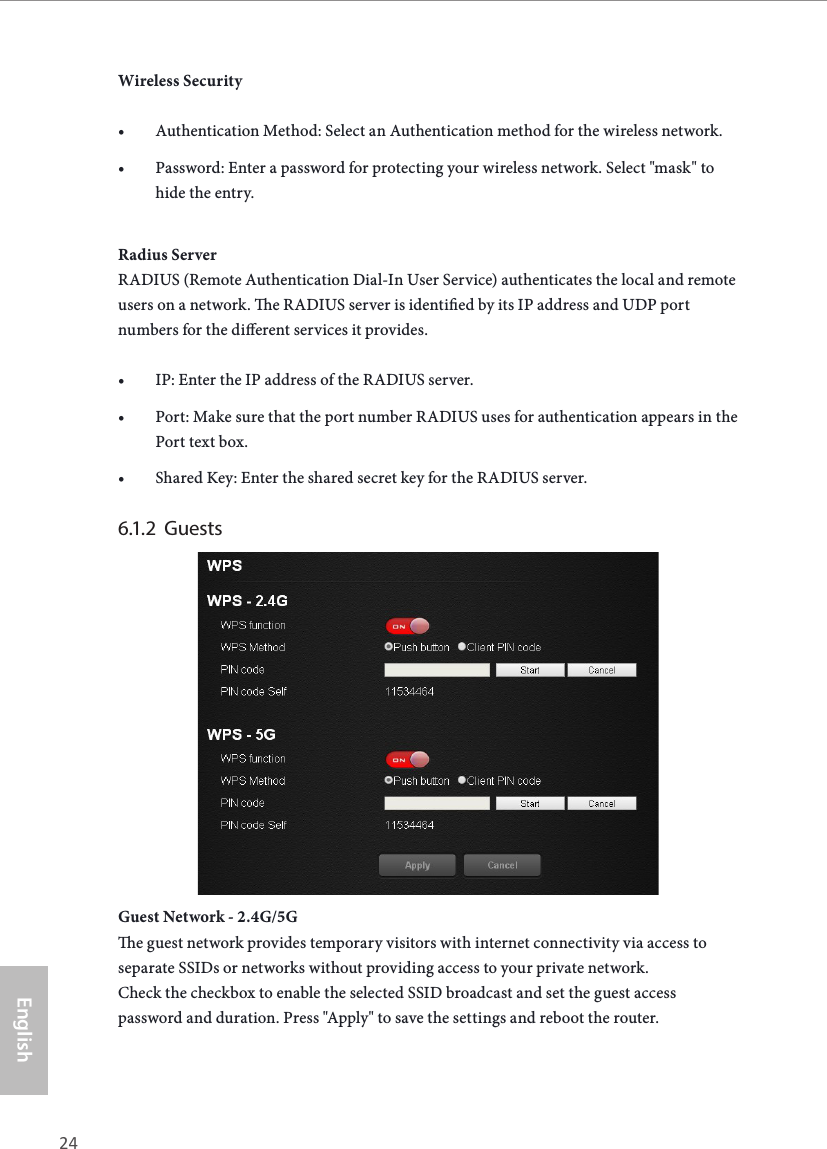

24 25EnglishASRock X10 AC1300 IoT RouterWireless Security• Authentication Method: Select an Authentication method for the wireless network.• Password: Enter a password for protecting your wireless network. Select "mask" to hide the entry.Radius ServerRADIUS (Remote Authentication Dial-In User Service) authenticates the local and remote users on a network. e RADIUS server is identied by its IP address and UDP port numbers for the dierent services it provides. • IP: Enter the IP address of the RADIUS server.• Port: Make sure that the port number RADIUS uses for authentication appears in the Port text box. • Shared Key: Enter the shared secret key for the RADIUS server. 6.1.2 Guests Guest Network - 2.4G/5Ge guest network provides temporary visitors with internet connectivity via access to separate SSIDs or networks without providing access to your private network.Check the checkbox to enable the selected SSID broadcast and set the guest access password and duration. Press "Apply" to save the settings and reboot the router.

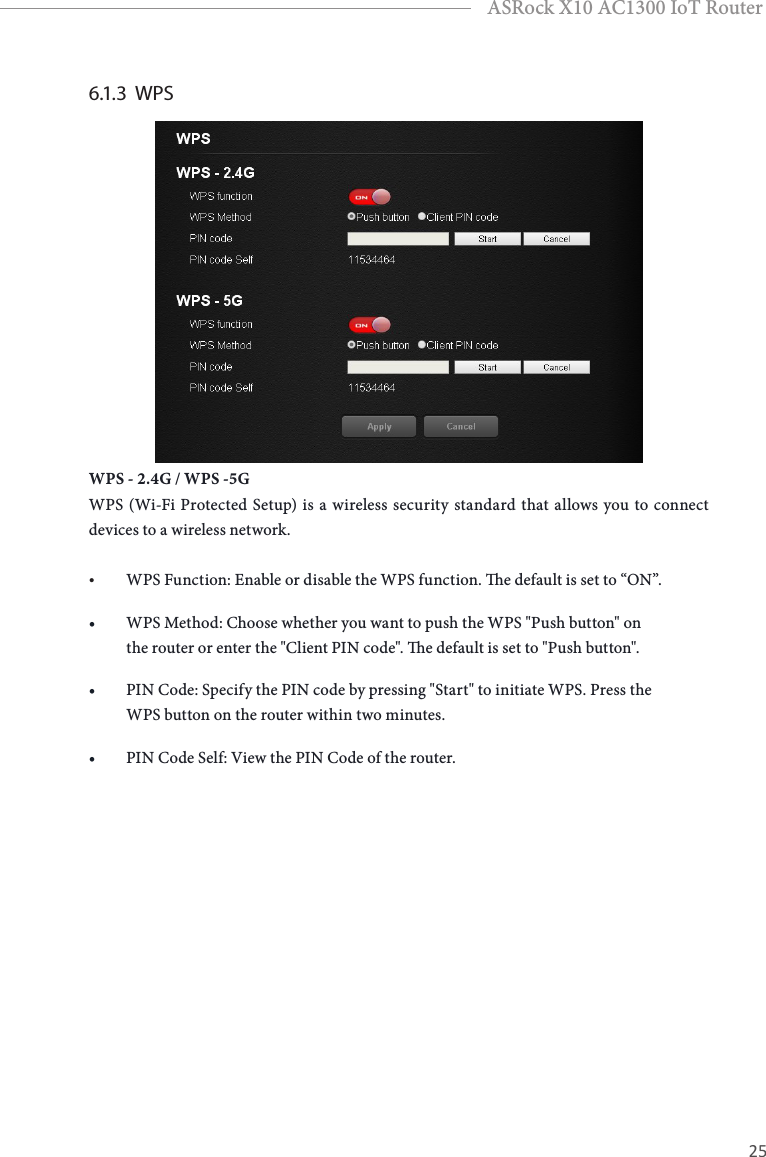

24 25EnglishASRock X10 AC1300 IoT Router6.1.3 WPS WPS - 2.4G / WPS -5GWPS (Wi-Fi Protected Setup) is a wireless security standard that allows you to connect devices to a wireless network.• WPS Function: Enable or disable the WPS function. e default is set to “ON”.• WPS Method: Choose whether you want to push the WPS "Push button" on the router or enter the "Client PIN code". e default is set to "Push button".• PIN Code: Specify the PIN code by pressing "Start" to initiate WPS. Press the WPS button on the router within two minutes.• PIN Code Self: View the PIN Code of the router.

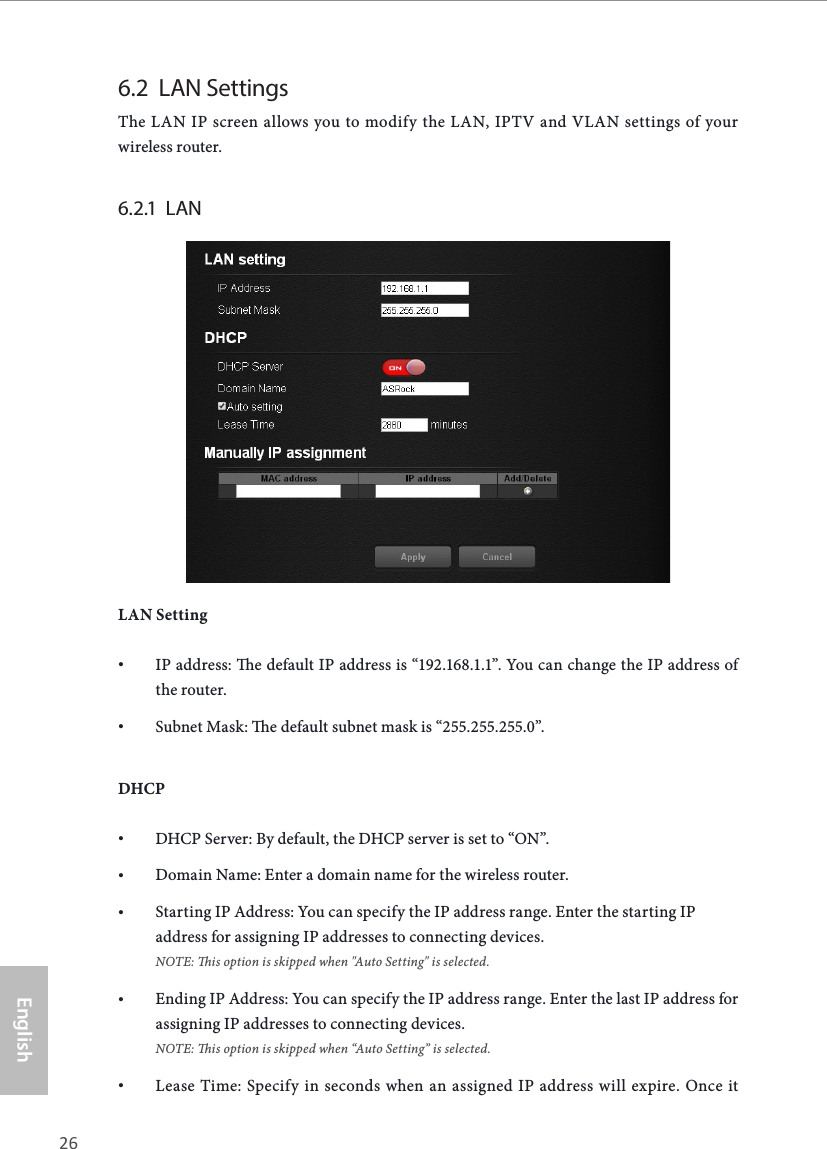

26 27EnglishASRock X10 AC1300 IoT Router6.2 LAN SettingsThe LAN IP screen allows you to modify the LAN, IPTV and VLAN settings of your wireless router. 6.2.1 LAN LAN Setting• IP address: e default IP address is “192.168.1.1”. You can change the IP address of the router.• Subnet Mask: e default subnet mask is “255.255.255.0”.DHCP• DHCP Server: By default, the DHCP server is set to “ON”.• Domain Name: Enter a domain name for the wireless router.• Starting IP Address: You can specify the IP address range. Enter the starting IP address for assigning IP addresses to connecting devices. NOTE: is option is skipped when "Auto Setting" is selected.• Ending IP Address: You can specify the IP address range. Enter the last IP address for assigning IP addresses to connecting devices. NOTE: is option is skipped when “Auto Setting” is selected.• Lease Time: Specify in seconds when an assigned IP address will expire. Once it
26 27EnglishASRock X10 AC1300 IoT Routerreaches this time limit, the DHCP server will then assign a new IP address. Manual IP AssignmentSelect a client's MAC address from the drop down list. Assign a xed IP address for your client device. Press under the Add/Delete column to add the client to the list. Press "Apply" to save the settings and reboot the router.6.2.2 IPTV 6.2.3 VLAN

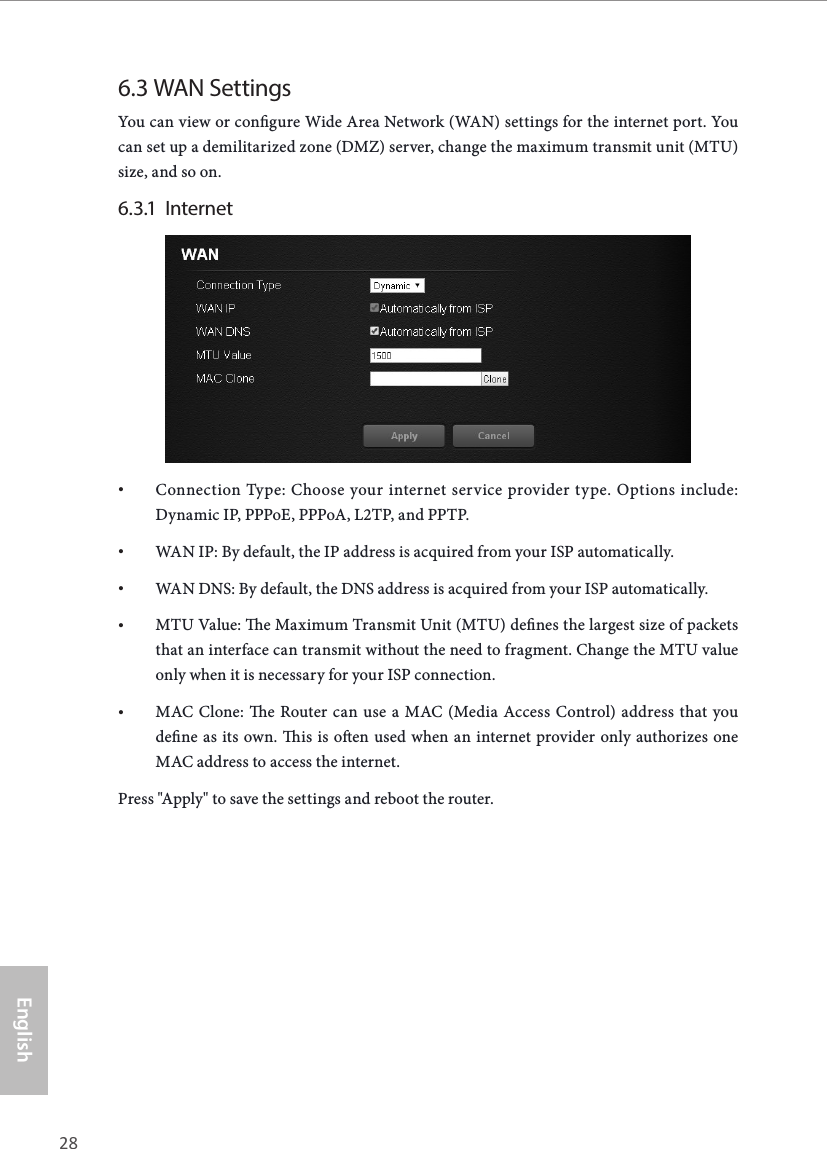

28 29EnglishASRock X10 AC1300 IoT Router6.3 WAN SettingsYou can view or congure Wide Area Network (WAN) settings for the internet port. You can set up a demilitarized zone (DMZ) server, change the maximum transmit unit (MTU) size, and so on.6.3.1 Internet• Connection Type: Choose your internet service provider type. Options include: Dynamic IP, PPPoE, PPPoA, L2TP, and PPTP.• WAN IP: By default, the IP address is acquired from your ISP automatically.• WAN DNS: By default, the DNS address is acquired from your ISP automatically.• MTU Value: e Maximum Transmit Unit (MTU) denes the largest size of packets that an interface can transmit without the need to fragment. Change the MTU value only when it is necessary for your ISP connection.• MAC Clone: e Router can use a MAC (Media Access Control) address that you dene as its own. is is oen used when an internet provider only authorizes one MAC address to access the internet. Press "Apply" to save the settings and reboot the router.

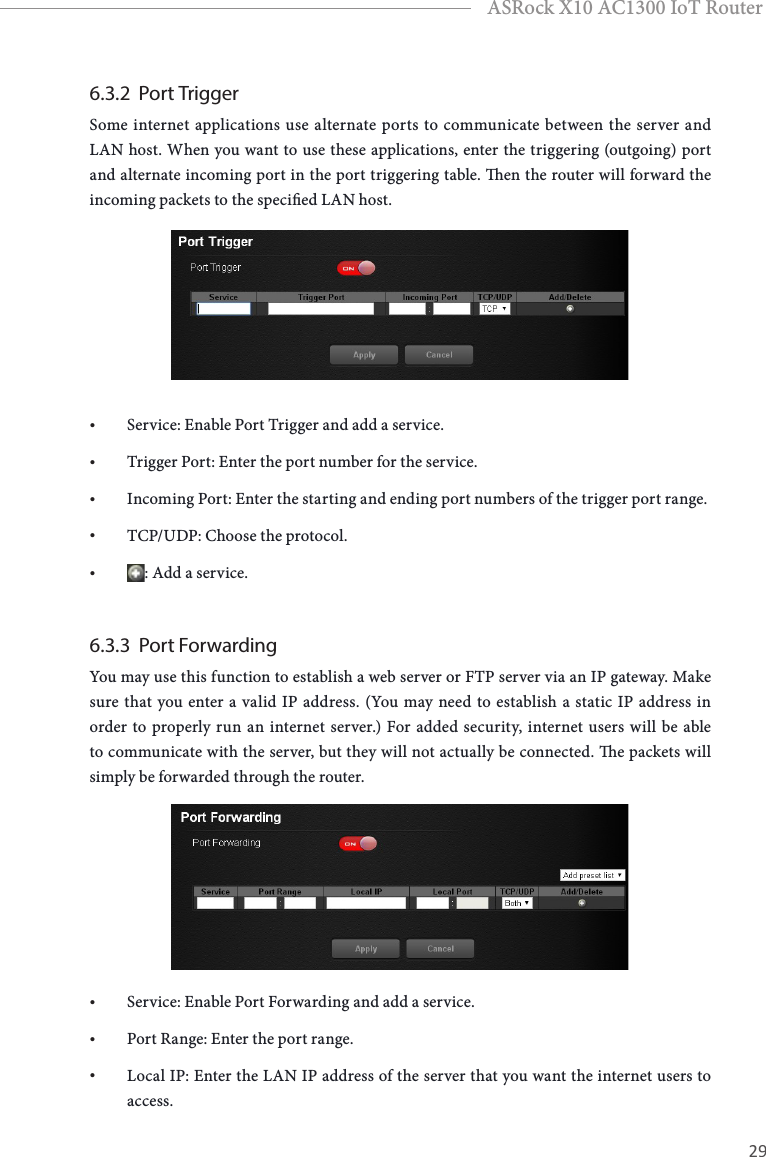

28 29EnglishASRock X10 AC1300 IoT Router6.3.2 Port TriggerSome internet applications use alternate ports to communicate between the server and LAN host. When you want to use these applications, enter the triggering (outgoing) port and alternate incoming port in the port triggering table. en the router will forward the incoming packets to the specied LAN host.• Service: Enable Port Trigger and add a service.• Trigger Port: Enter the port number for the service.• Incoming Port: Enter the starting and ending port numbers of the trigger port range.• TCP/UDP: Choose the protocol.• : Add a service.6.3.3 Port ForwardingYou may use this function to establish a web server or FTP server via an IP gateway. Make sure that you enter a valid IP address. (You may need to establish a static IP address in order to properly run an internet server.) For added security, internet users will be able to communicate with the server, but they will not actually be connected. e packets will simply be forwarded through the router.• Service: Enable Port Forwarding and add a service.• Port Range: Enter the port range.• Local IP: Enter the LAN IP address of the server that you want the internet users to access.

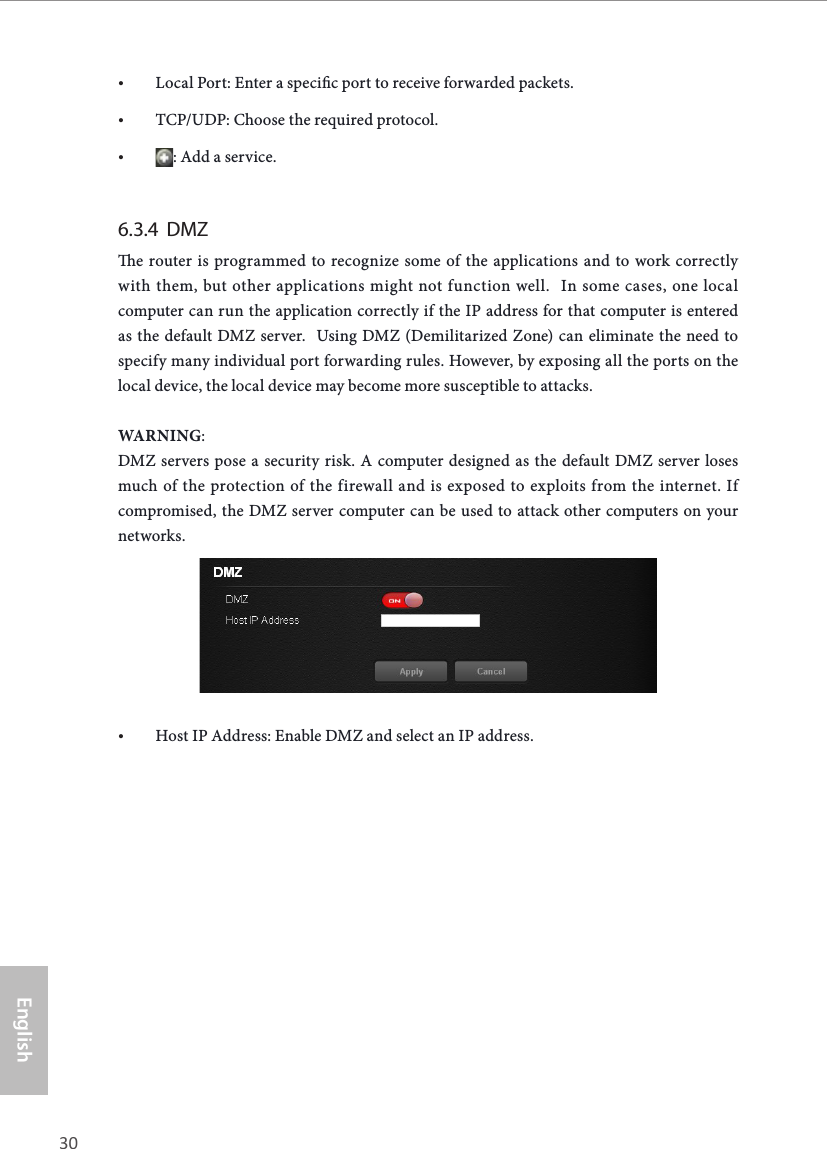

30 31EnglishASRock X10 AC1300 IoT Router• Local Port: Enter a specic port to receive forwarded packets.• TCP/UDP: Choose the required protocol.• : Add a service.6.3.4 DMZe router is programmed to recognize some of the applications and to work correctly with them, but other applications might not function well. In some cases, one local computer can run the application correctly if the IP address for that computer is entered as the default DMZ server. Using DMZ (Demilitarized Zone) can eliminate the need to specify many individual port forwarding rules. However, by exposing all the ports on the local device, the local device may become more susceptible to attacks.WARNING:DMZ servers pose a security risk. A computer designed as the default DMZ server loses much of the protection of the firewall and is exposed to exploits from the internet. If compromised, the DMZ server computer can be used to attack other computers on your networks.• Host IP Address: Enable DMZ and select an IP address.

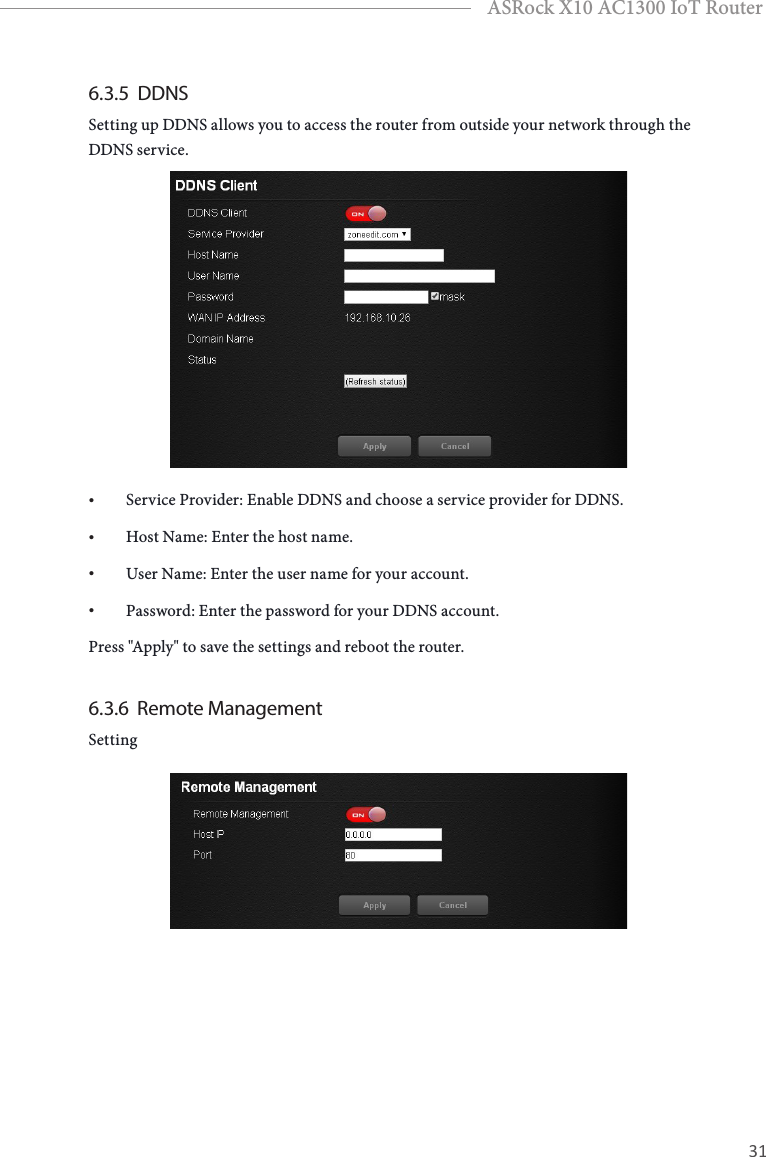

30 31EnglishASRock X10 AC1300 IoT Router6.3.5 DDNSSetting up DDNS allows you to access the router from outside your network through the DDNS service.• Service Provider: Enable DDNS and choose a service provider for DDNS.• Host Name: Enter the host name.• User Name: Enter the user name for your account.• Password: Enter the password for your DDNS account.Press "Apply" to save the settings and reboot the router.6.3.6 Remote ManagementSetting

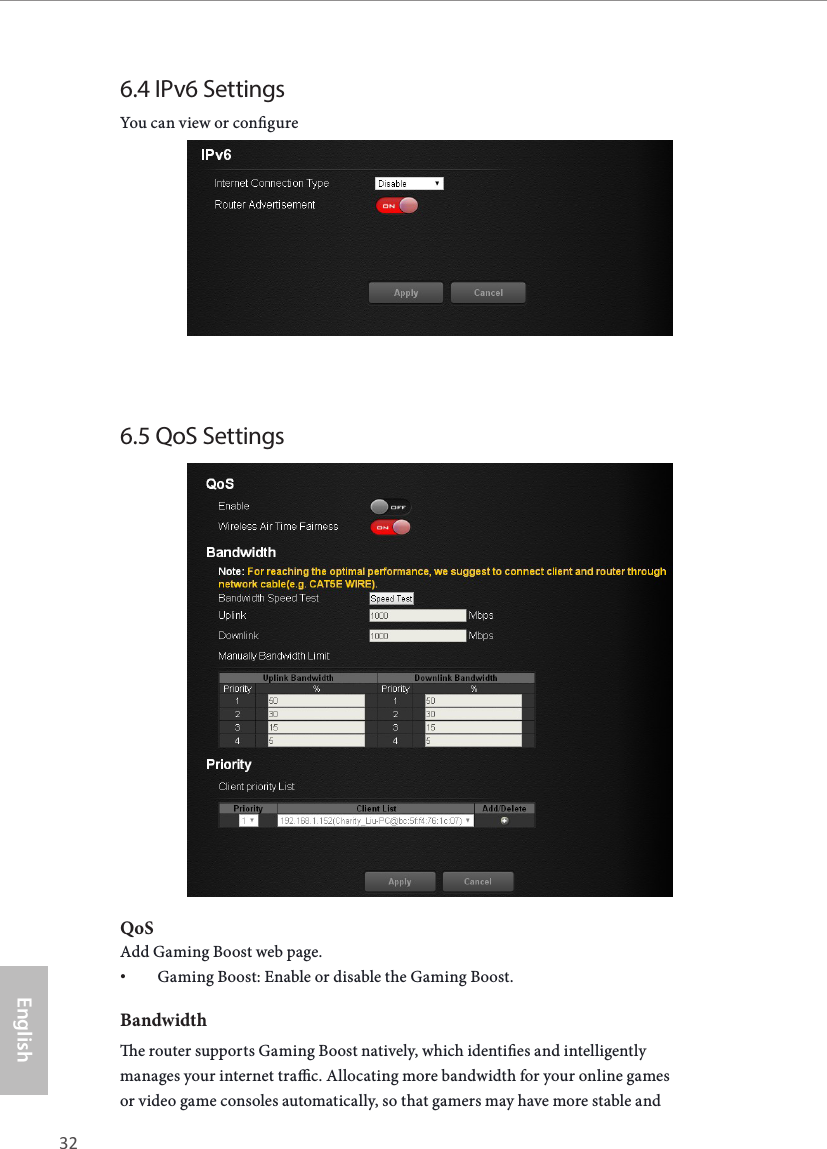

32 33EnglishASRock X10 AC1300 IoT Router6.4 IPv6 SettingsYou can view or congure 6.5 QoS SettingsQoSAdd Gaming Boost web page.• Gaming Boost: Enable or disable the Gaming Boost. Bandwidthe router supports Gaming Boost natively, which identies and intelligently manages your internet trac. Allocating more bandwidth for your online games or video game consoles automatically, so that gamers may have more stable and

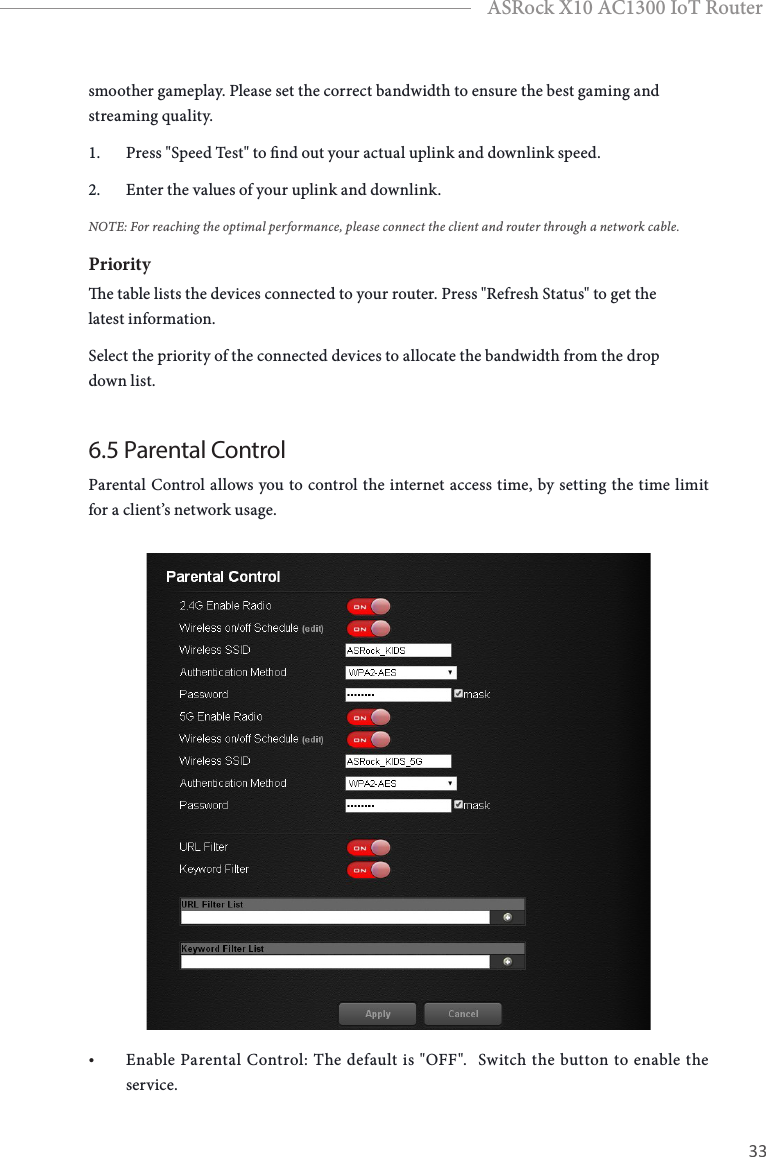

32 33EnglishASRock X10 AC1300 IoT Routersmoother gameplay. Please set the correct bandwidth to ensure the best gaming and streaming quality.1. Press "Speed Test" to nd out your actual uplink and downlink speed. 2. Enter the values of your uplink and downlink. NOTE: For reaching the optimal performance, please connect the client and router through a network cable.Prioritye table lists the devices connected to your router. Press "Refresh Status" to get the latest information.Select the priority of the connected devices to allocate the bandwidth from the drop down list.6.5 Parental Control Parental Control allows you to control the internet access time, by setting the time limit for a client’s network usage.• Enable Parental Control: The default is "OFF". Switch the button to enable the service.

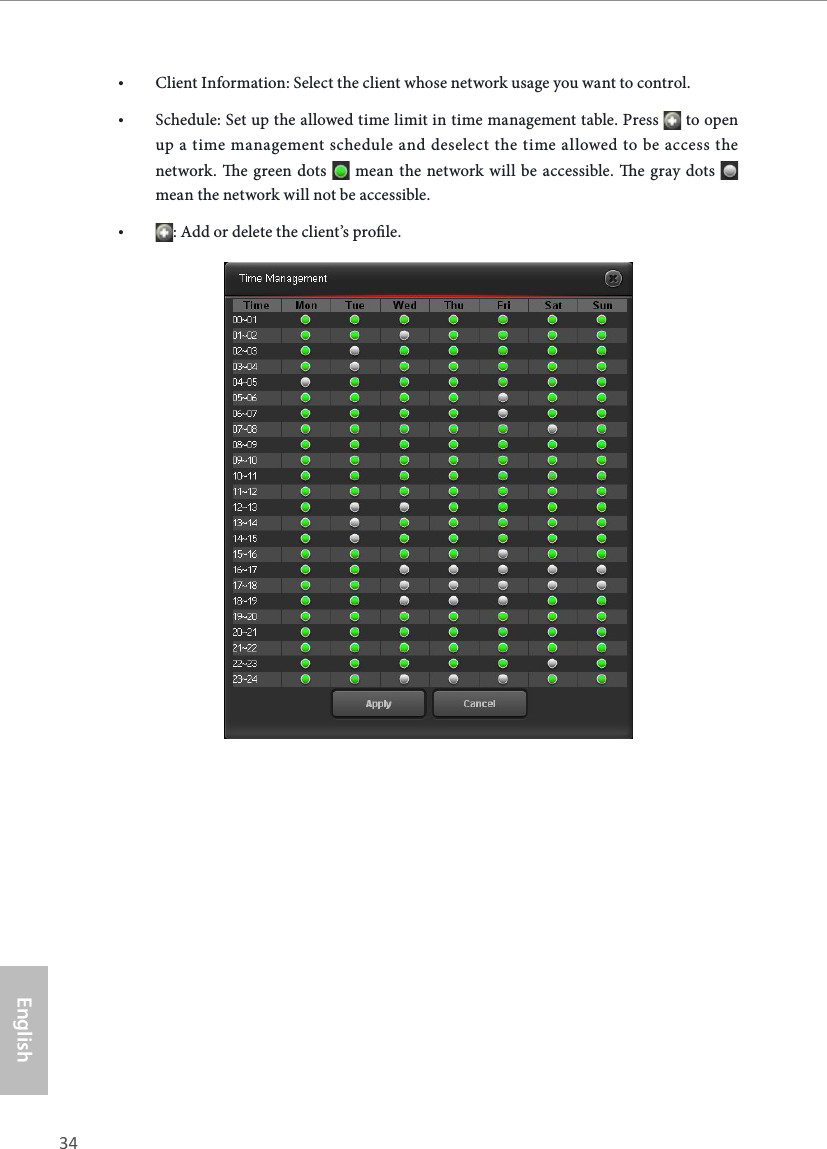

34 35EnglishASRock X10 AC1300 IoT Router• Client Information: Select the client whose network usage you want to control.• Schedule: Set up the allowed time limit in time management table. Press to open up a time management schedule and deselect the time allowed to be access the network. e green dots mean the network will be accessible. e gray dots mean the network will not be accessible.• : Add or delete the client’s prole.

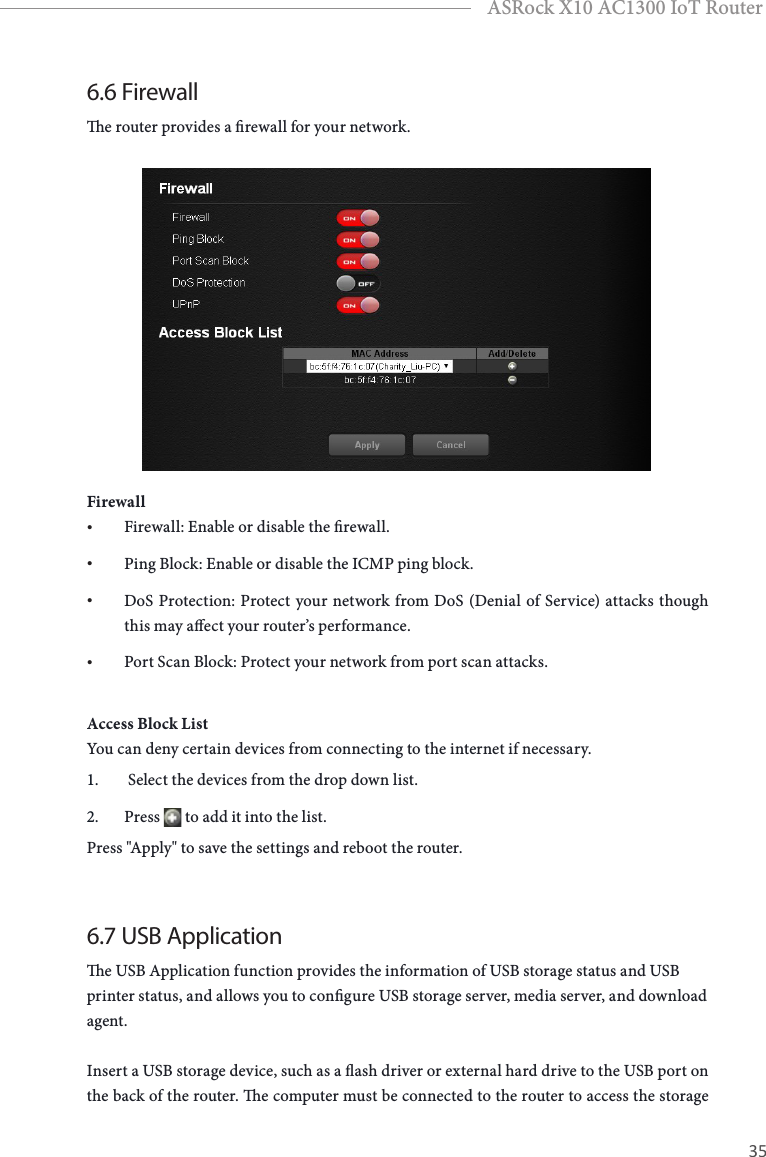

34 35EnglishASRock X10 AC1300 IoT Router6.6 Firewalle router provides a rewall for your network.Firewall• Firewall: Enable or disable the rewall.• Ping Block: Enable or disable the ICMP ping block.• DoS Protection: Protect your network from DoS (Denial of Service) attacks though this may aect your router’s performance.• Port Scan Block: Protect your network from port scan attacks.Access Block ListYou can deny certain devices from connecting to the internet if necessary. 1. Select the devices from the drop down list.2. Press to add it into the list. Press "Apply" to save the settings and reboot the router.6.7 USB Applicatione USB Application function provides the information of USB storage status and USB printer status, and allows you to congure USB storage server, media server, and download agent.Insert a USB storage device, such as a ash driver or external hard drive to the USB port on the back of the router. e computer must be connected to the router to access the storage

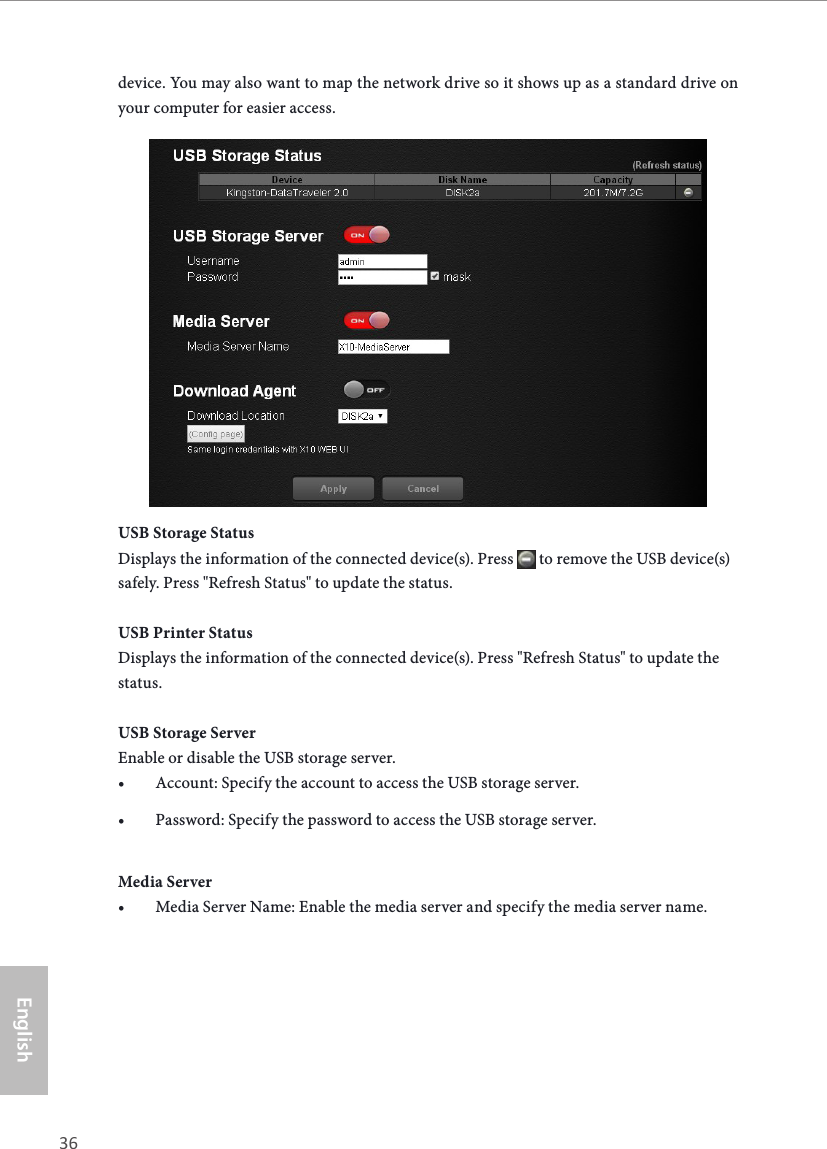

36 37EnglishASRock X10 AC1300 IoT Routerdevice. You may also want to map the network drive so it shows up as a standard drive on your computer for easier access.USB Storage StatusDisplays the information of the connected device(s). Press to remove the USB device(s) safely. Press "Refresh Status" to update the status. USB Printer StatusDisplays the information of the connected device(s). Press "Refresh Status" to update the status.USB Storage ServerEnable or disable the USB storage server. • Account: Specify the account to access the USB storage server.• Password: Specify the password to access the USB storage server.Media Server• Media Server Name: Enable the media server and specify the media server name.

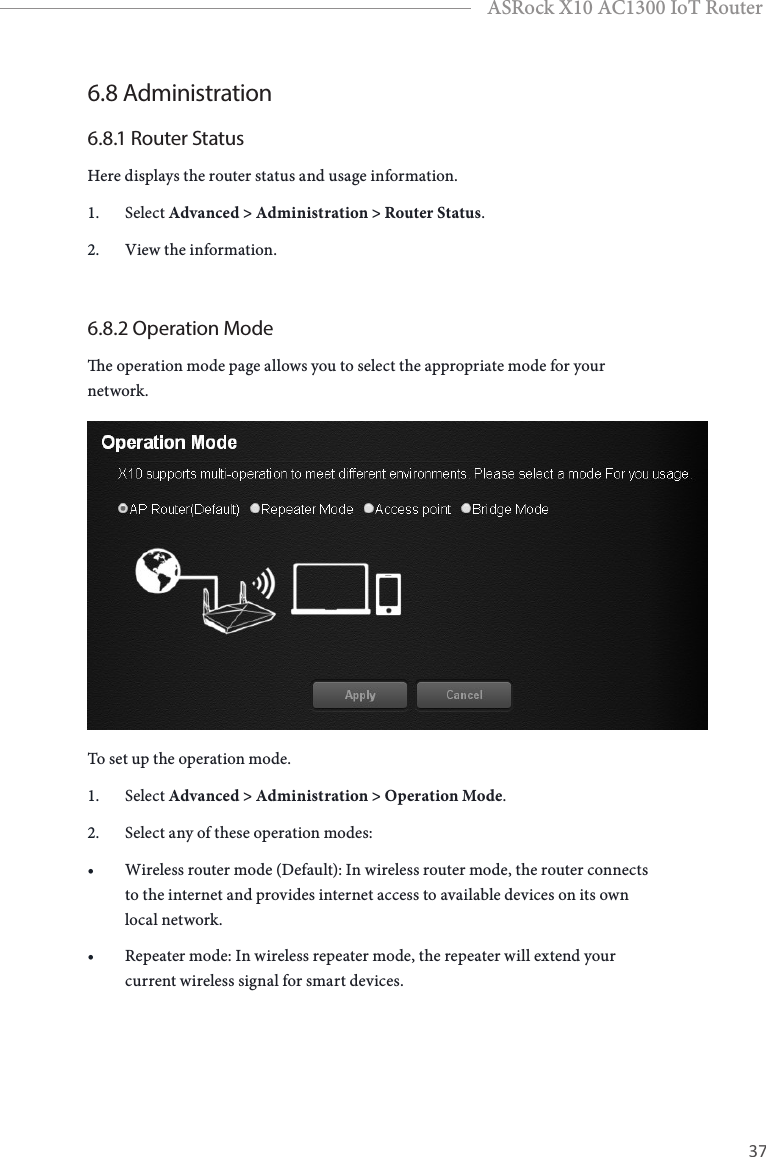

36 37EnglishASRock X10 AC1300 IoT Router6.8 Administration6.8.1 Router StatusHere displays the router status and usage information.1. Select Advanced > Administration > Router Status.2. View the information.6.8.2 Operation Modee operation mode page allows you to select the appropriate mode for your network.To set up the operation mode.1. Select Advanced > Administration > Operation Mode.2. Select any of these operation modes: • Wireless router mode (Default): In wireless router mode, the router connects to the internet and provides internet access to available devices on its own local network.• Repeater mode: In wireless repeater mode, the repeater will extend your current wireless signal for smart devices.
38 39EnglishASRock X10 AC1300 IoT Router6.8.3 Set PasswordLets you change the default password and user name to log in the router. is password is not the one that you use for wireless access.To set a new password and user name:1. Select Administration > Set Password.2. Router Login Name: Type the new log-in name for your router. e default is “admin”.3. Old Password: Display the default password or type the previously set password.4. Set Password: Type the new password for your router.5. Repeat New Password: Type the new password for your router again to double check.6. Press “Apply” to change the setting. Reboot the router for the settings to take eect.6.8.4 Firmware Upgradee router rmware is stored in ash memory. You can check to see if new rmware is available and update your product.

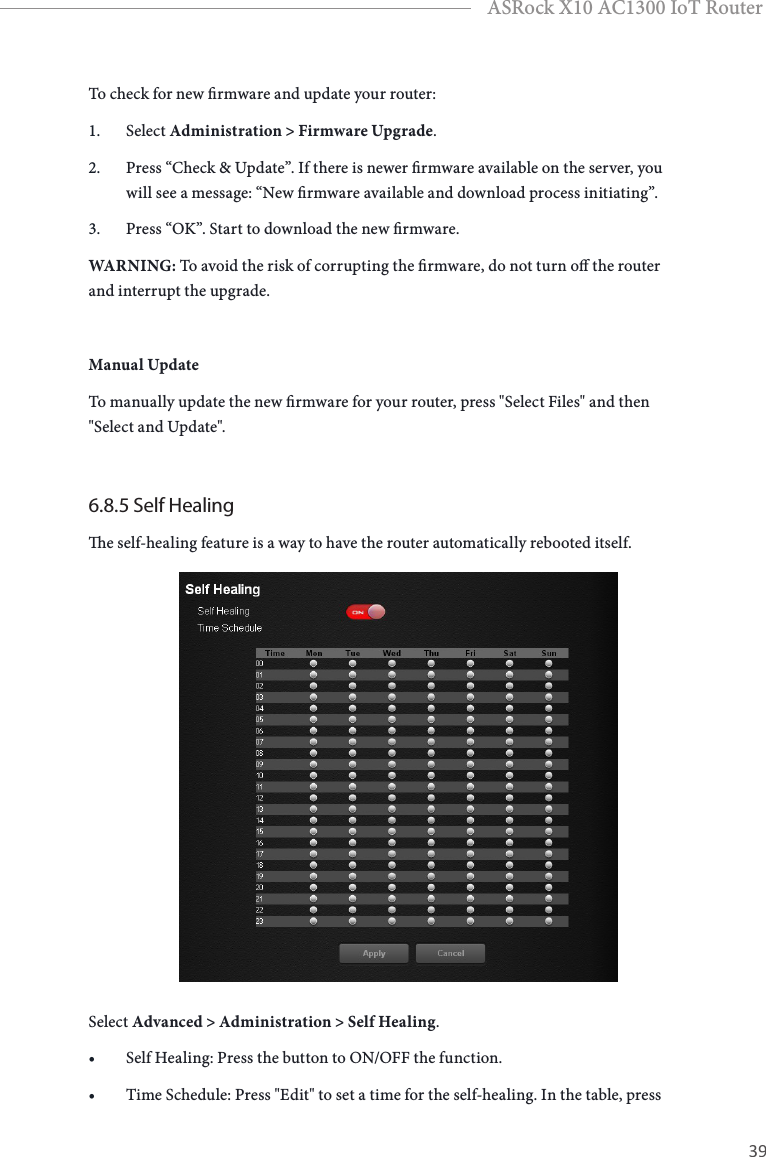

38 39EnglishASRock X10 AC1300 IoT RouterTo check for new rmware and update your router:1. Select Administration > Firmware Upgrade.2. Press “Check & Update”. If there is newer rmware available on the server, you will see a message: “New rmware available and download process initiating”.3. Press “OK”. Start to download the new rmware.WARNING: To avoid the risk of corrupting the rmware, do not turn o the router and interrupt the upgrade.Manual UpdateTo manually update the new rmware for your router, press "Select Files" and then "Select and Update". 6.8.5 Self Healinge self-healing feature is a way to have the router automatically rebooted itself.Select Advanced > Administration > Self Healing.• Self Healing: Press the button to ON/OFF the function.• Time Schedule: Press "Edit" to set a time for the self-healing. In the table, press

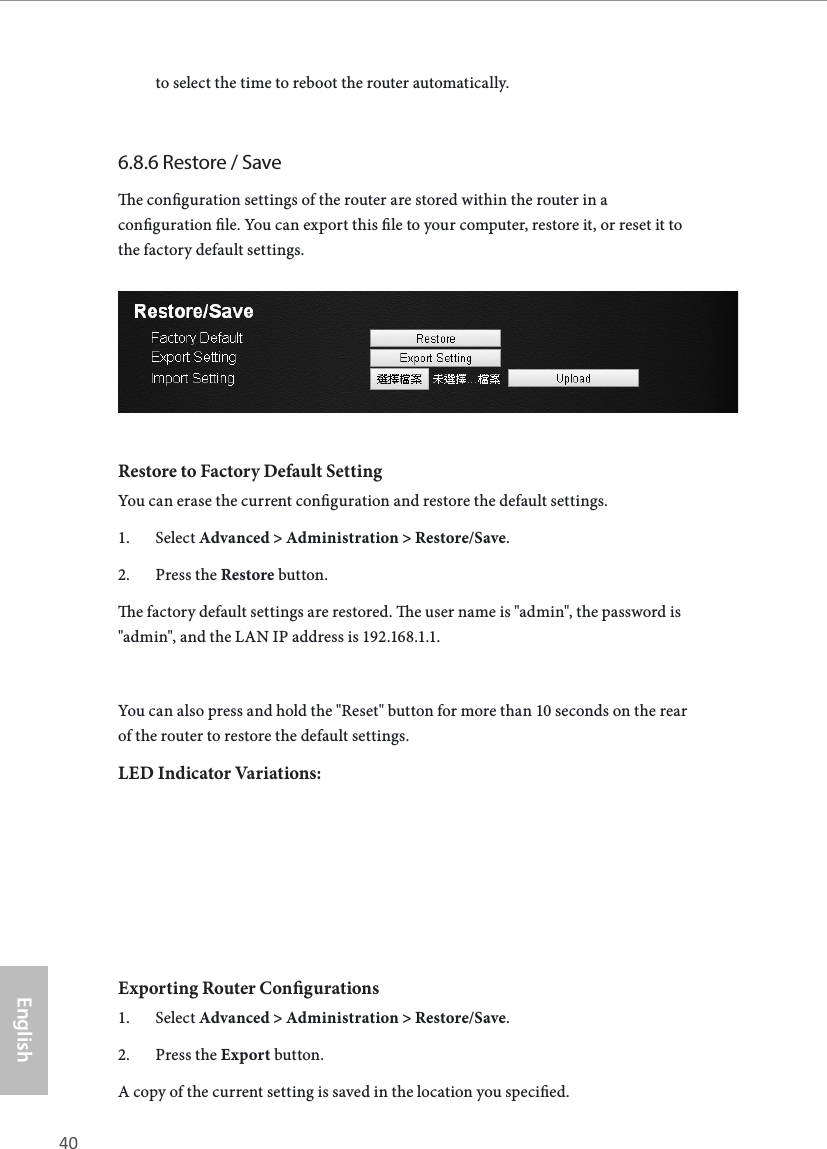

40 41EnglishASRock X10 AC1300 IoT Routerto select the time to reboot the router automatically.6.8.6 Restore / Savee conguration settings of the router are stored within the router in a conguration le. You can export this le to your computer, restore it, or reset it to the factory default settings.Restore to Factory Default SettingYou can erase the current conguration and restore the default settings.1. Select Advanced > Administration > Restore/Save.2. Press the Restore button.e factory default settings are restored. e user name is "admin", the password is "admin", and the LAN IP address is 192.168.1.1.You can also press and hold the "Reset" button for more than 10 seconds on the rear of the router to restore the default settings.LED Indicator Variations:Exporting Router Congurations1. Select Advanced > Administration > Restore/Save.2. Press the Export button.A copy of the current setting is saved in the location you specied.

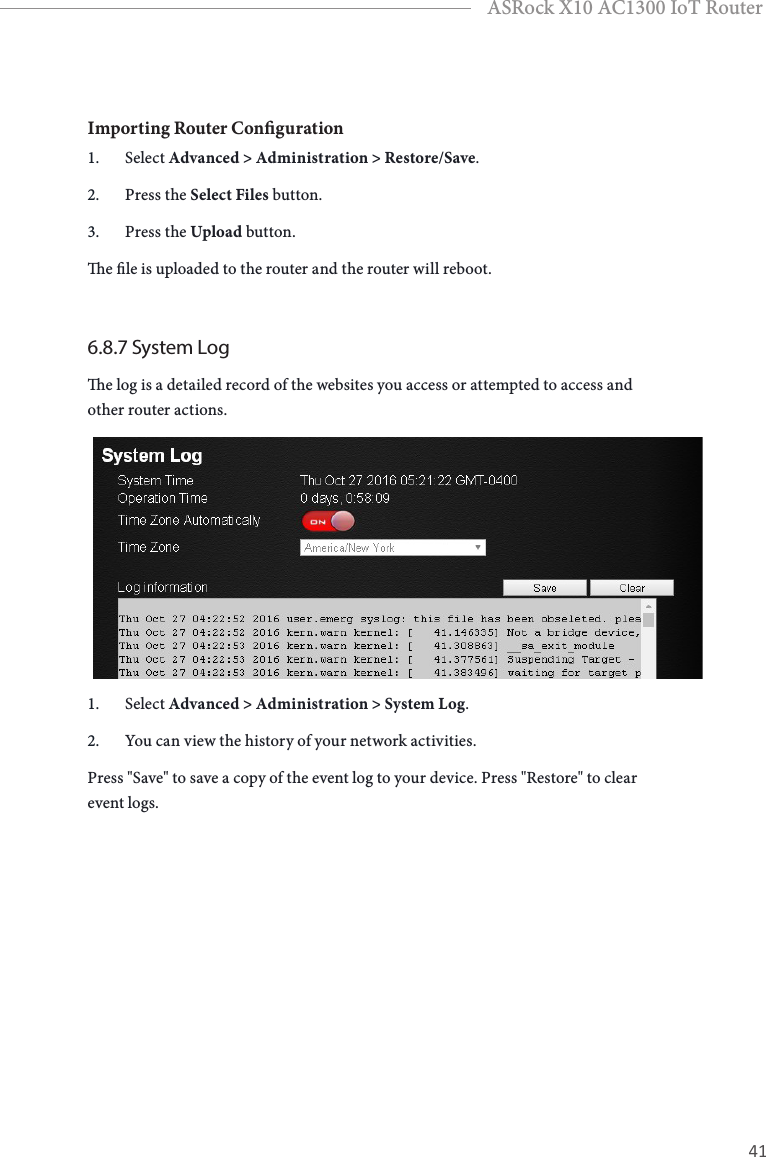

40 41EnglishASRock X10 AC1300 IoT RouterImporting Router Conguration1. Select Advanced > Administration > Restore/Save.2. Press the Select Files button.3. Press the Upload button.e le is uploaded to the router and the router will reboot.6.8.7 System Loge log is a detailed record of the websites you access or attempted to access and other router actions.1. Select Advanced > Administration > System Log.2. You can view the history of your network activities.Press "Save" to save a copy of the event log to your device. Press "Restore" to clear event logs.

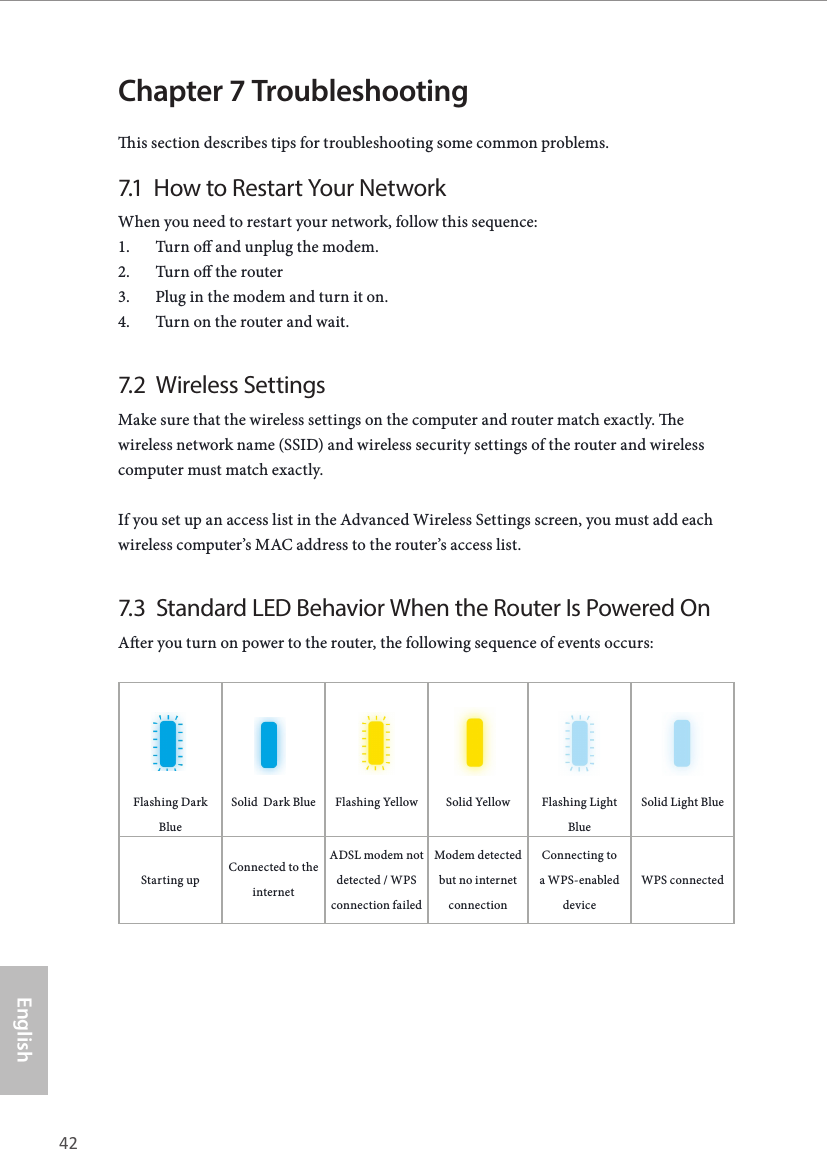

42 43EnglishASRock X10 AC1300 IoT RouterChapter 7 Troubleshootingis section describes tips for troubleshooting some common problems.7.1 How to Restart Your NetworkWhen you need to restart your network, follow this sequence:1. Turn o and unplug the modem.2. Turn o the router3. Plug in the modem and turn it on.4. Turn on the router and wait.7.2 Wireless SettingsMake sure that the wireless settings on the computer and router match exactly. e wireless network name (SSID) and wireless security settings of the router and wireless computer must match exactly.If you set up an access list in the Advanced Wireless Settings screen, you must add each wireless computer’s MAC address to the router’s access list.7.3 Standard LED Behavior When the Router Is Powered OnAer you turn on power to the router, the following sequence of events occurs:Flashing Dark BlueSolid Dark Blue Flashing Yellow Solid Yellow Flashing Light BlueSolid Light BlueStarting upConnected to the internetADSL modem not detected / WPS connection failedModem detected but no internet connectionConnecting to a WPS-enabled deviceWPS connected

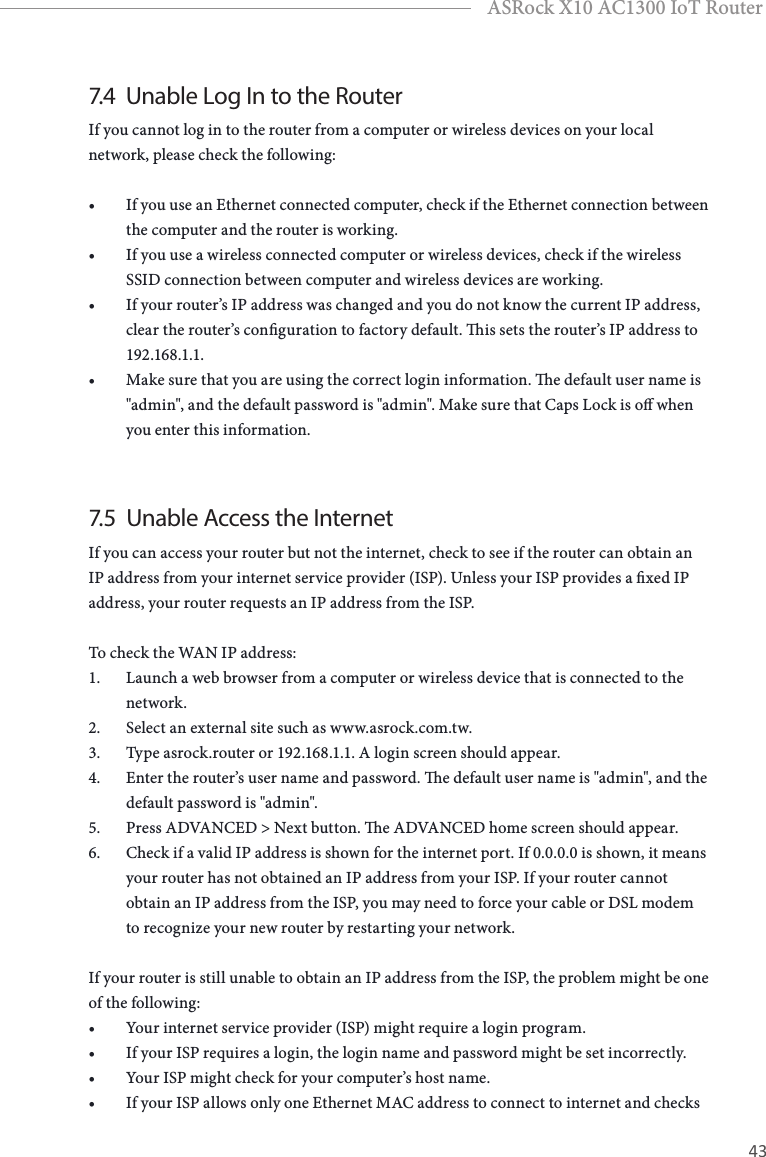

42 43EnglishASRock X10 AC1300 IoT Router7.4 Unable Log In to the RouterIf you cannot log in to the router from a computer or wireless devices on your local network, please check the following:• If you use an Ethernet connected computer, check if the Ethernet connection between the computer and the router is working.• If you use a wireless connected computer or wireless devices, check if the wireless SSID connection between computer and wireless devices are working.• If your router’s IP address was changed and you do not know the current IP address, clear the router’s conguration to factory default. is sets the router’s IP address to 192.168.1.1.• Make sure that you are using the correct login information. e default user name is "admin", and the default password is "admin". Make sure that Caps Lock is o when you enter this information.7.5 Unable Access the InternetIf you can access your router but not the internet, check to see if the router can obtain an IP address from your internet service provider (ISP). Unless your ISP provides a xed IP address, your router requests an IP address from the ISP.To check the WAN IP address:1. Launch a web browser from a computer or wireless device that is connected to the network.2. Select an external site such as www.asrock.com.tw.3. Type asrock.router or 192.168.1.1. A login screen should appear.4. Enter the router’s user name and password. e default user name is "admin", and the default password is "admin".5. Press ADVANCED > Next button. e ADVANCED home screen should appear.6. Check if a valid IP address is shown for the internet port. If 0.0.0.0 is shown, it means your router has not obtained an IP address from your ISP. If your router cannot obtain an IP address from the ISP, you may need to force your cable or DSL modem to recognize your new router by restarting your network.If your router is still unable to obtain an IP address from the ISP, the problem might be one of the following:• Your internet service provider (ISP) might require a login program.• If your ISP requires a login, the login name and password might be set incorrectly.• Your ISP might check for your computer’s host name.• If your ISP allows only one Ethernet MAC address to connect to internet and checks

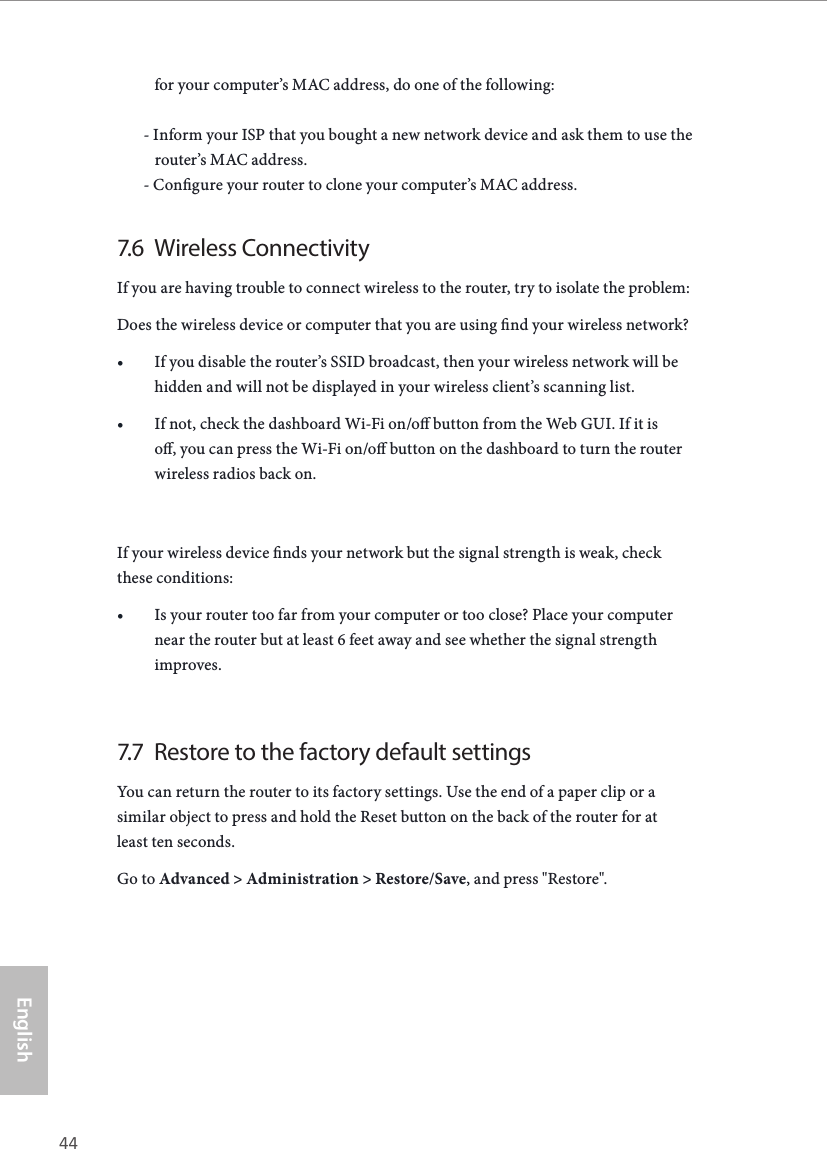

44 45EnglishASRock X10 AC1300 IoT Routerfor your computer’s MAC address, do one of the following: - Inform your ISP that you bought a new network device and ask them to use the router’s MAC address. - Congure your router to clone your computer’s MAC address.7.6 Wireless ConnectivityIf you are having trouble to connect wireless to the router, try to isolate the problem:Does the wireless device or computer that you are using nd your wireless network?• If you disable the router’s SSID broadcast, then your wireless network will be hidden and will not be displayed in your wireless client’s scanning list.• If not, check the dashboard Wi-Fi on/o button from the Web GUI. If it is o, you can press the Wi-Fi on/o button on the dashboard to turn the router wireless radios back on.If your wireless device nds your network but the signal strength is weak, check these conditions:• Is your router too far from your computer or too close? Place your computer near the router but at least 6 feet away and see whether the signal strength improves.7.7 Restore to the factory default settingsYou can return the router to its factory settings. Use the end of a paper clip or a similar object to press and hold the Reset button on the back of the router for at least ten seconds.Go to Advanced > Administration > Restore/Save, and press "Restore".

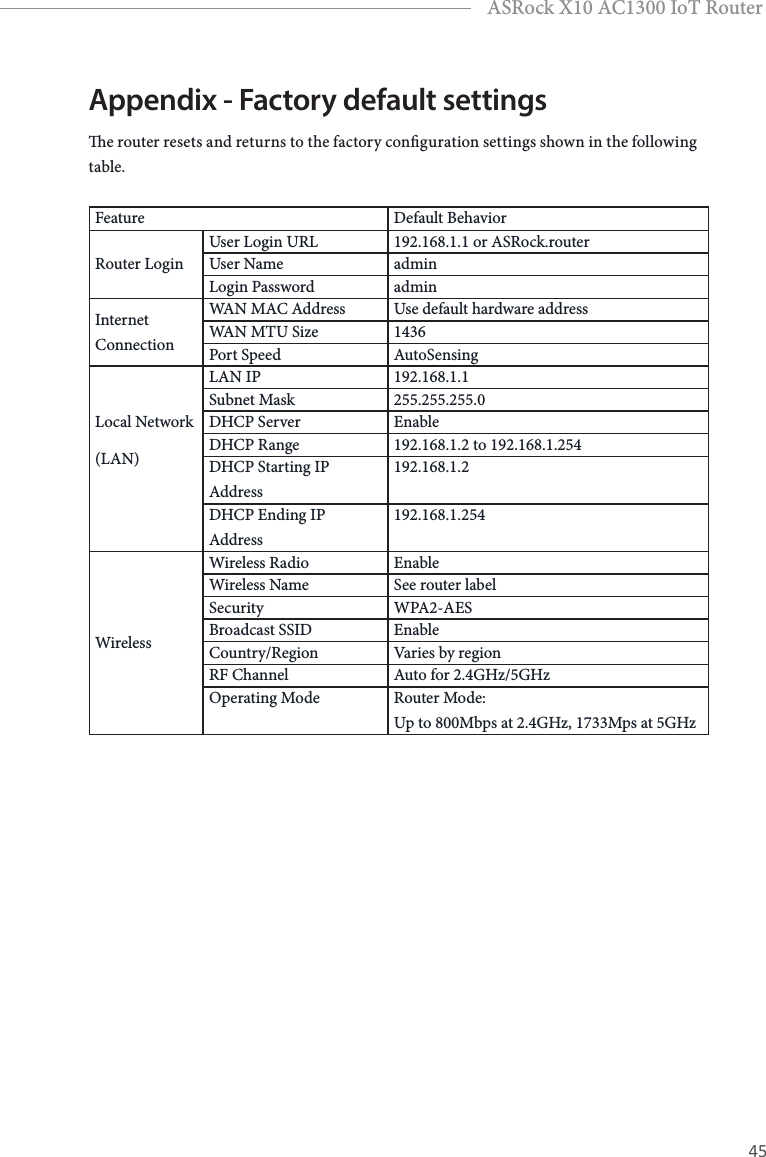

44 45EnglishASRock X10 AC1300 IoT RouterAppendix - Factory default settingse router resets and returns to the factory conguration settings shown in the following table.Feature Default BehaviorRouter LoginUser Login URL 192.168.1.1 or ASRock.routerUser Name adminLogin Password adminInternet ConnectionWAN MAC Address Use default hardware addressWAN MTU Size 1436Port Speed AutoSensingLocal Network(LAN)LAN IP 192.168.1.1Subnet Mask 255.255.255.0DHCP Server EnableDHCP Range 192.168.1.2 to 192.168.1.254DHCP Starting IP Address192.168.1.2DHCP Ending IP Address192.168.1.254WirelessWireless Radio EnableWireless Name See router labelSecurity WPA2-AESBroadcast SSID EnableCountry/Region Varies by regionRF Channel Auto for 2.4GHz/5GHzOperating Mode Router Mode: Up to 800Mbps at 2.4GHz, 1733Mps at 5GHz
