ASRock orporation X10 AC1300 IoT Router User Manual

ASRock Incorporation AC1300 IoT Router Users Manual

Users Manual

X10R/X10/X10S
AC1300 IoT Router
User Manual
Version 1.0
Published January 2017
Copyright©2017 ASRock Rack INC. All rights reserved.
Version 1.0
Published January 2017
Copyright©2017 ASRock INC. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or translated
in any language, in any form or by any means, except duplication of documentation by the
purchaser for backup purpose, without written consent of ASRock Inc.
Products and corporate names appearing in this documentation may or may not be
registered trademarks or copyrights of their respective companies, and are used only for
identication or explanation and to the owners’ benet, without intent to infringe.
Disclaimer:
Specications and information contained in this documentation are furnished for
informational use only and subject to change without notice, and should not be
constructed as a commitment by ASRock. ASRock assumes no responsibility for any errors
or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRock does not provide warranty of
any kind, either expressed or implied, including but not limited to the implied warranties
or conditions of merchantability or tness for a particular purpose.
In no event shall ASRock, its directors, ocers, employees, or agents be liable for any
indirect, special, incidental, or consequential damages (including damages for loss of
prots, loss of business, loss of data, interruption of business and the like), even if ASRock
has been advised of the possibility of such damages arising from any defect or error in the
documentation or product.
Regulatory Information
FCC Statement and Declaration: ASRock Wireless declares that this device complies
with Part 15 of the FCC Rules and requlations. Operation of this device is subject to the
following two conditions:
• is device may not cause harmful interface.
• is device must accept any interference received, including interference that may
cause undesired operation.
FCC Notice: is equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. ese limits are designed to
provide reasonable protection against harmful interference in a residential installation.
is equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment o and on, the
user is encouraged to try and correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit dierence from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modif ications not expressly approved by the part y
responsible for compliance could void the user’s authority to operate this equipment.
IMPORTANT NOTE:
Radiation Exposure Statement
is equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. End users must follow the specific operating instructions for satisfying
RF exposure compliance. To maintain compliance with FCC RF exposure compliance
requirement, please follow operation instructions as documented in this manual.
FCC Radiation Exposure Statement: This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled environment. This equipment should be
installed and operated with minimum distance 20cm between the radiator and your body.
Industry Canada Statement:
This device complies with RSS standards of the Industry Canada Rules. Operation is
subjext to the following two conditions:
(1) is device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
Ce dispositif est conforme a la norme CNR- standards d’Industrie Canada applicable aux
appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions
suivantes:
(1) le dispositif ne doit pas produire de brouillage prejudiciable, et
(2) ce dispositif doit accepter tout brouillage recu, y compris un brouillage susceptible de
provoquer un fonctionnement indesirable.
IMPORTANT NOTE
Radiation Exposure Statement:
is equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment. is equipment should be installed and operated with a minimum distance
of 20cm between the radiator and your body.
Déclaration d’exposition aux radiations:
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies
pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un
minimum de 20 cm de distance entre la source de rayonnement et votre corps.
Caution: e device for operation in the band 5150-5250 MHz is only for indoor use to
reduce the potential for harmful interference to co-channel mobile satellite systems.
Avertissement: les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés
uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage
préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux.
Changes or modications to this unit not expressly approved by the party responsible for
compliance could void the user authority to operate the equipment.
CALIFORNIA, USA ONLY
e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”
Electrical Powering
e powering of the product must adhere to the power specications indicated on the
marking labels.
e power supply must be class II and a Limited Power Source in accordance with the
requirements of IEC60950-1/EN60950-1, Clause 2.5 and rated as indicated on the label on
your product. It must be tested and approved to national or local standards.
Alimentation électrique
L'alimentation du produit doit respecter les caractéristiques énergétiques indiquées sur
les étiquettes de marquage. L'alimentation électrique doit être de classe II et une source
d'alimentation limitée conformément aux exigences de la norme IEC60950-1/EN60950-1,
Clause 2.5 et calibrée comme indiqué sur l'étiquette de votre produit. Elle doit être testée et
approuvée selon les normes nationales ou locales.
ATTENTION
ASRock AC1300 X10 IoT Router is also designed for wall-mounted installation. Please use
the screws with head diameter of 8-9mm when mounting X10 on the wall (the distance be-
tween two screws is 174mm). Please note that danger may occur if using improper screws.
ATTENTION
Le routeur ASRock AC1300 X10 IoT est également conçu pour une installation murale.
Veuillez utiliser les vis avec un diamètre de tête de 8-9 mm si vous montez le X10 au mur (la
distance en_tre deux vis est de 174 mm). Veuillez noter que l’utilisation de vis inappro-
priées peut causer un danger.
ASRock Website: http://www.asrock.com
Contents
Chapter 1 Introduction 1
1.1 Package Contents 1
1.2 The Wireless Router Label 2
1.3 Positioning Your Router 2
Chapter 2 Wireless Router Overview 3
2.1 The Front View 3
2.2 The Rear View 5
Chapter 3 Setting up the Wireless Router 6

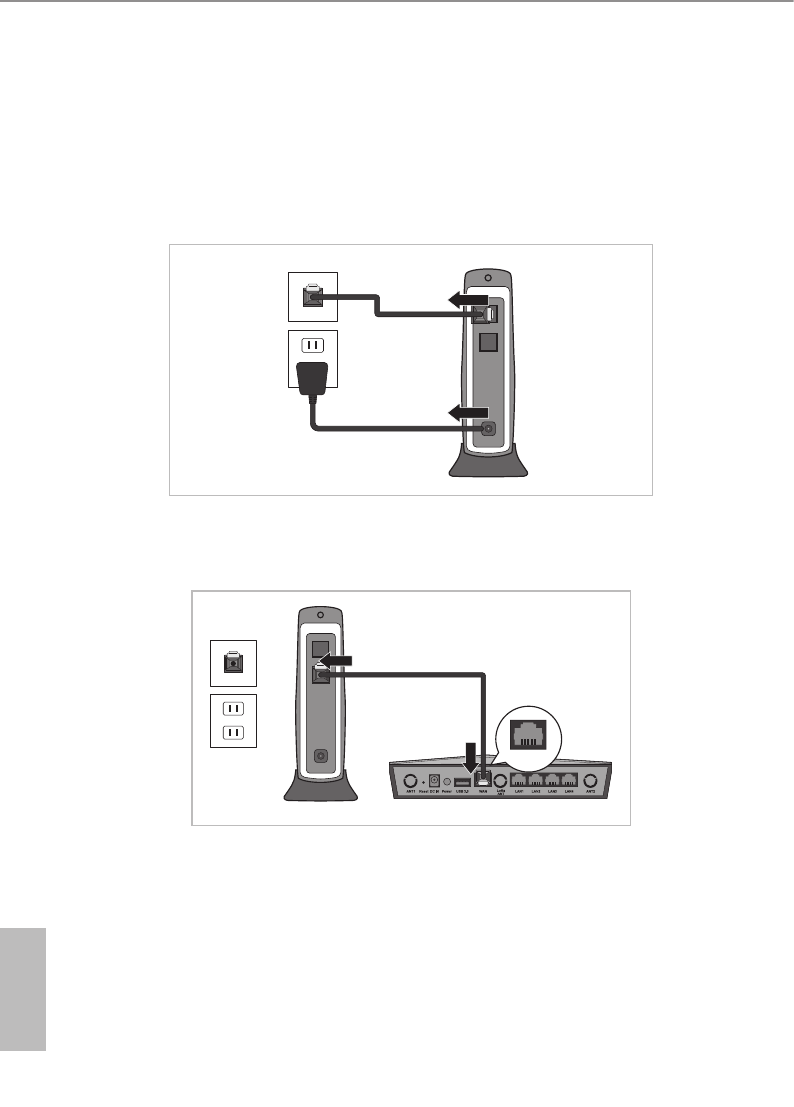

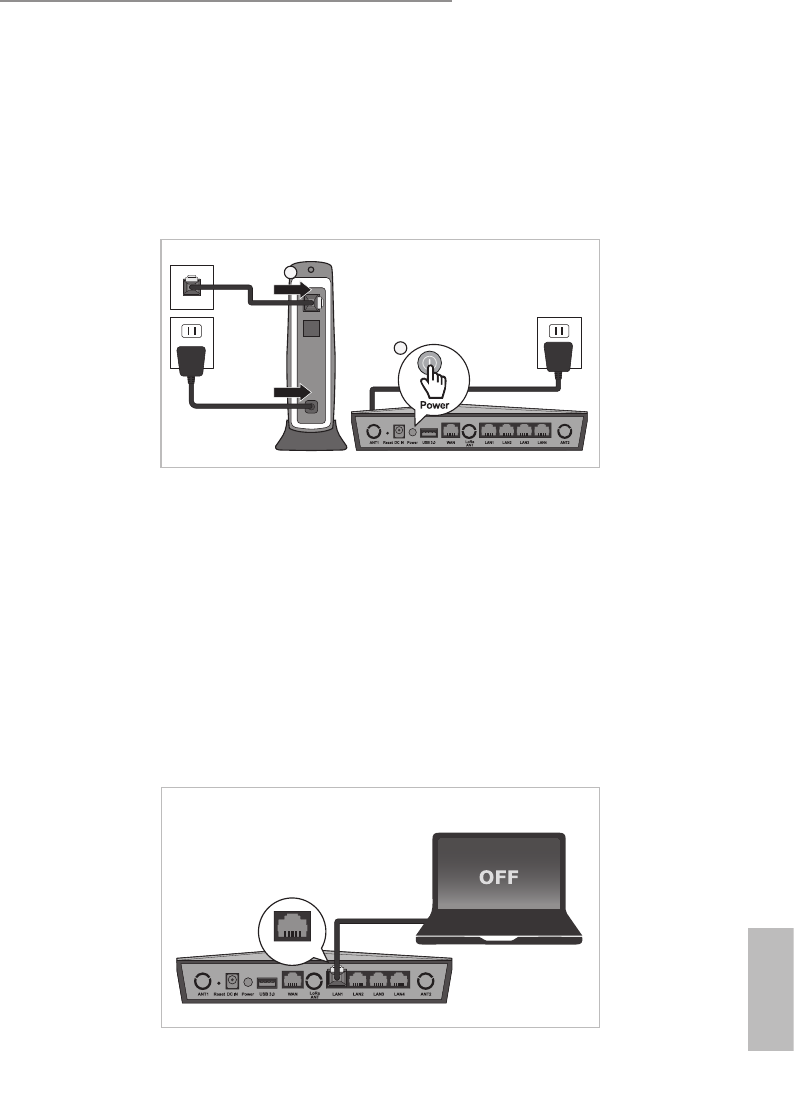

3.1 Connecting the Equipments 6
3.2 Setting up an Internet Connection 7
3.2.1 Wired Connection 7

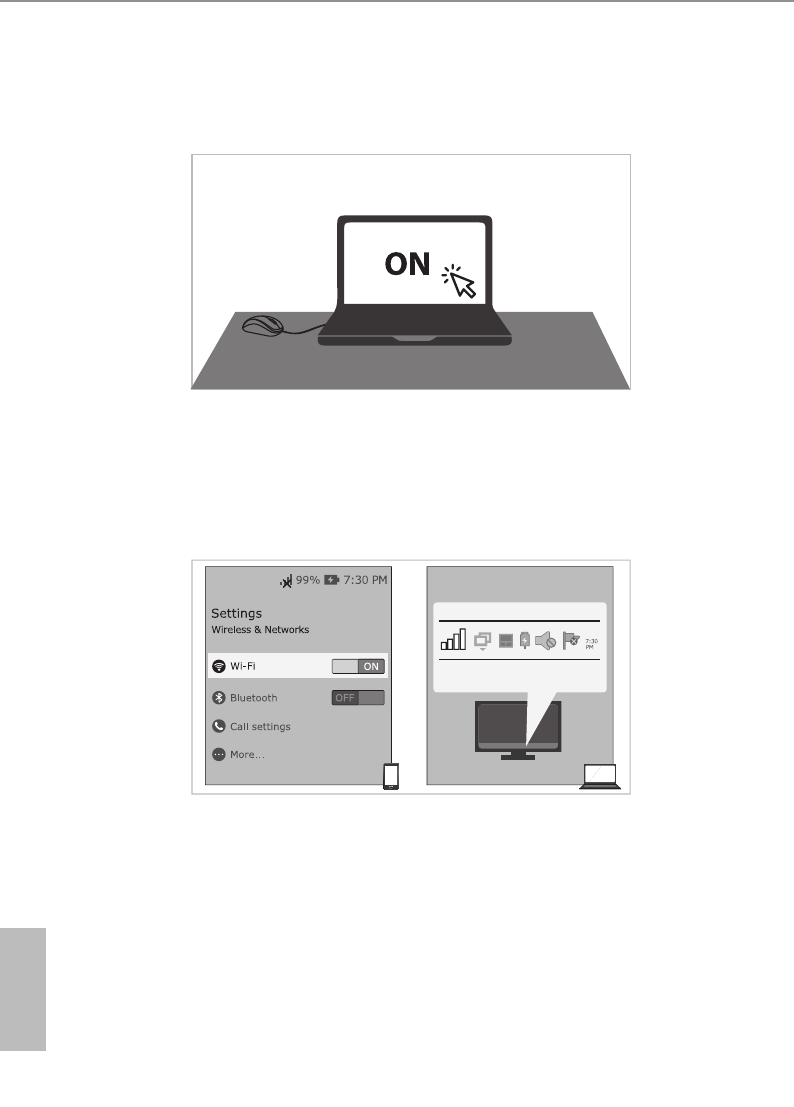

3.2.2 Wireless Connection 8
Chapter 4 Setup Wizard 11

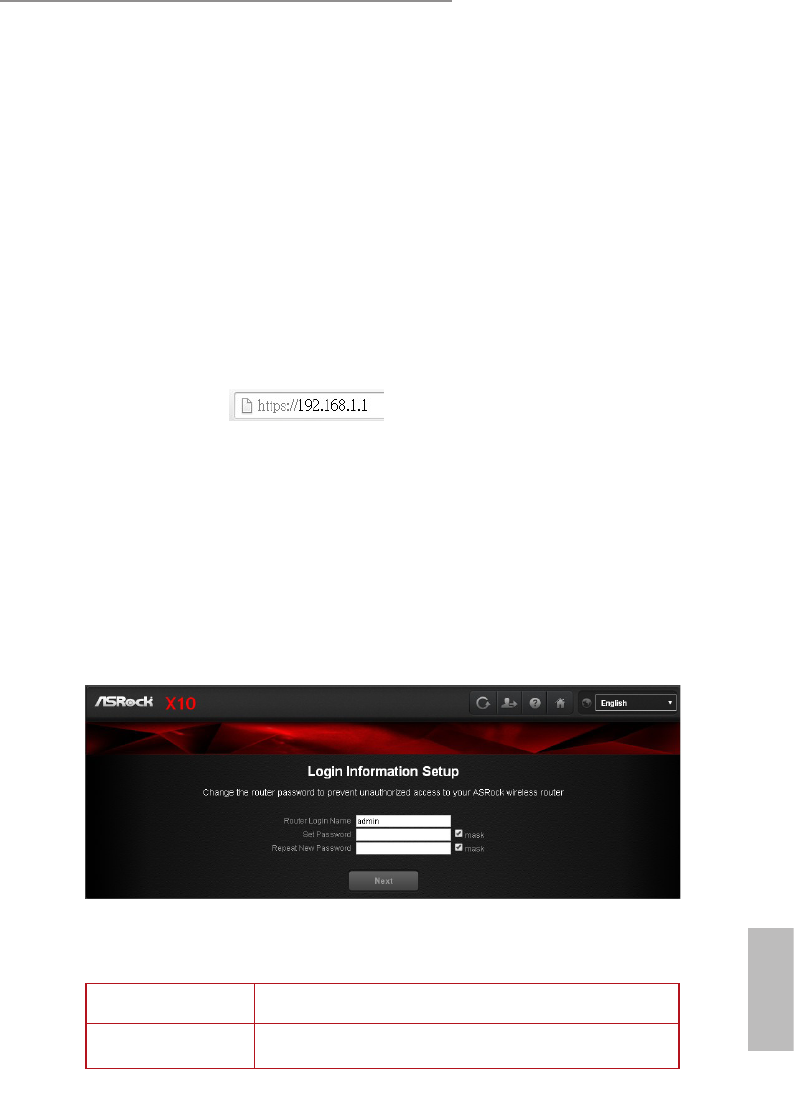

4.1 Starting the Setup Wizard for the First Time 11

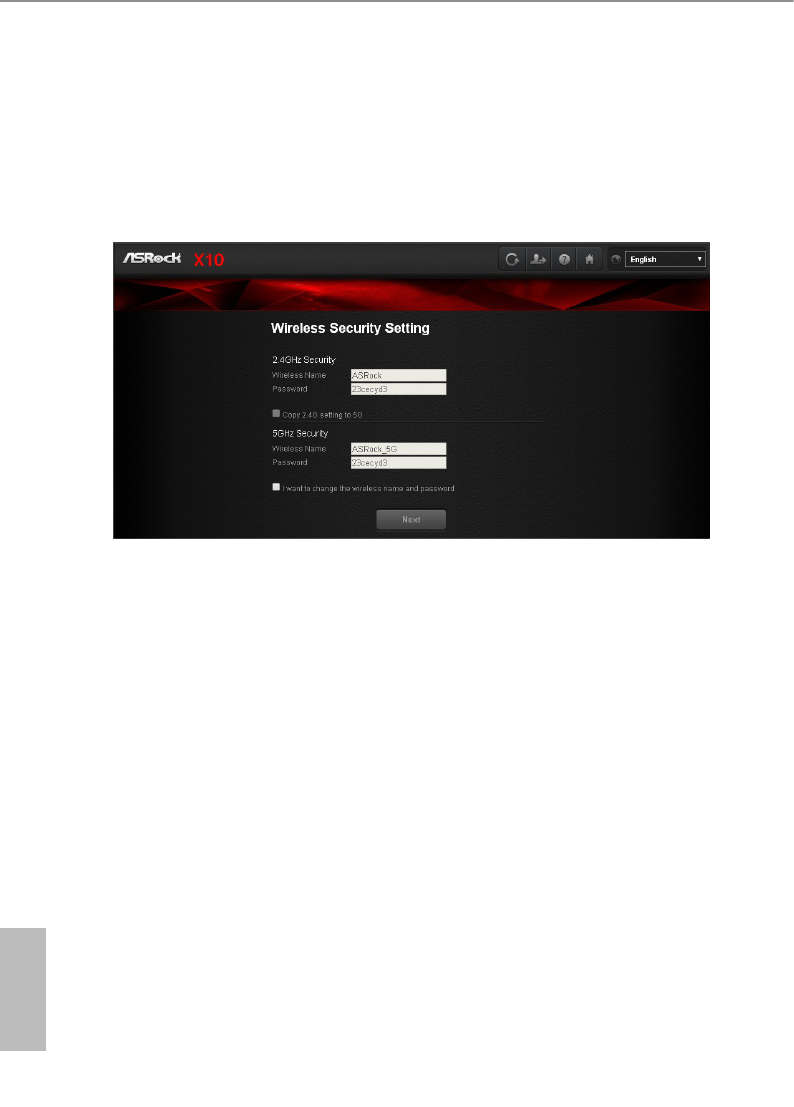

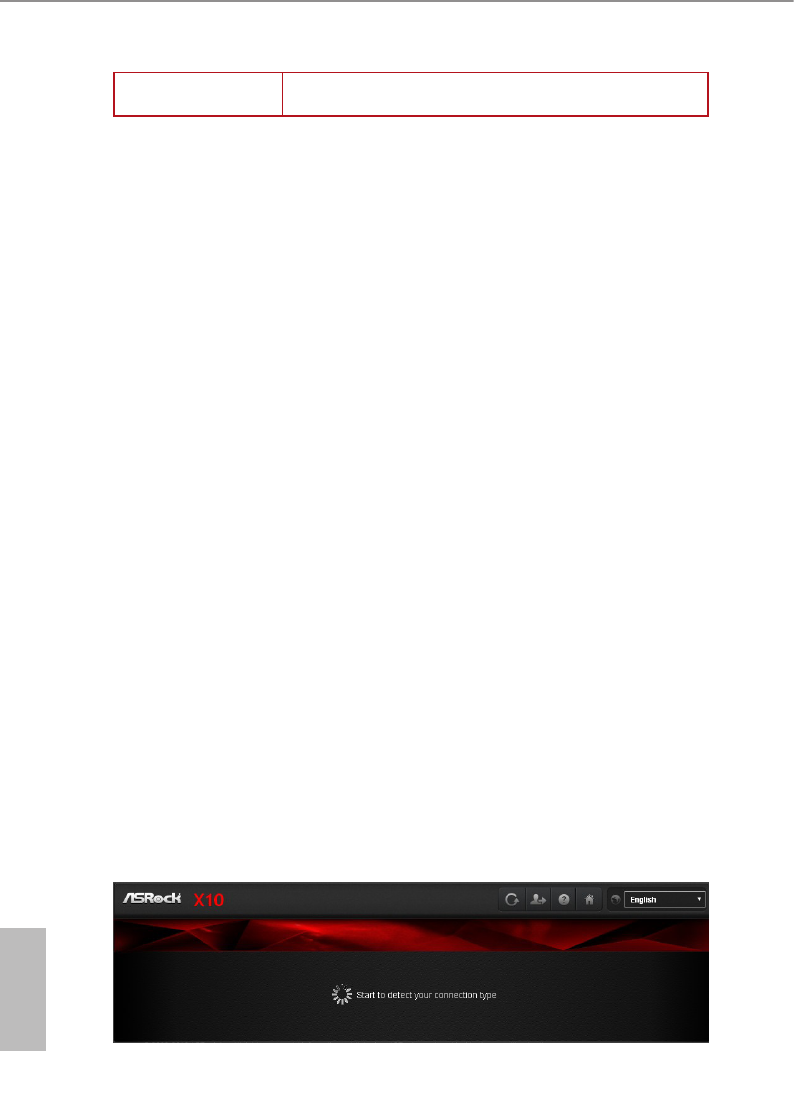

4.2 Setting up Basic Congurations 11
Chapter 5 Dashboard 15
5.1 Overview 15
5.2 WAN Information 16
5.3 Wireless Information 17

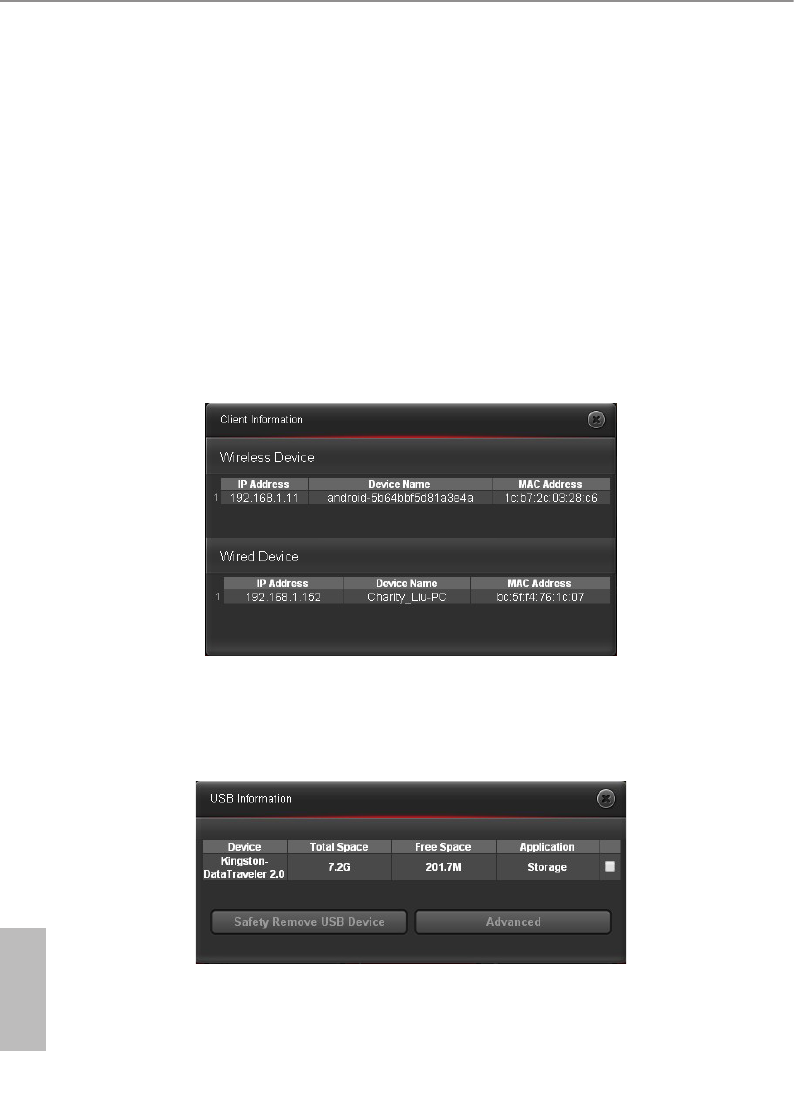

5.4 Client Information 18
5.5 USB Information 18
5.6 Setup Wizard 19
5.7 VPN Conguration 19
5.8 Parental Control 19
5.9 Smart Home 19
5.10 Advanced Settings 19
5.11 WAN Connection 19
5.12 Self Healing 20

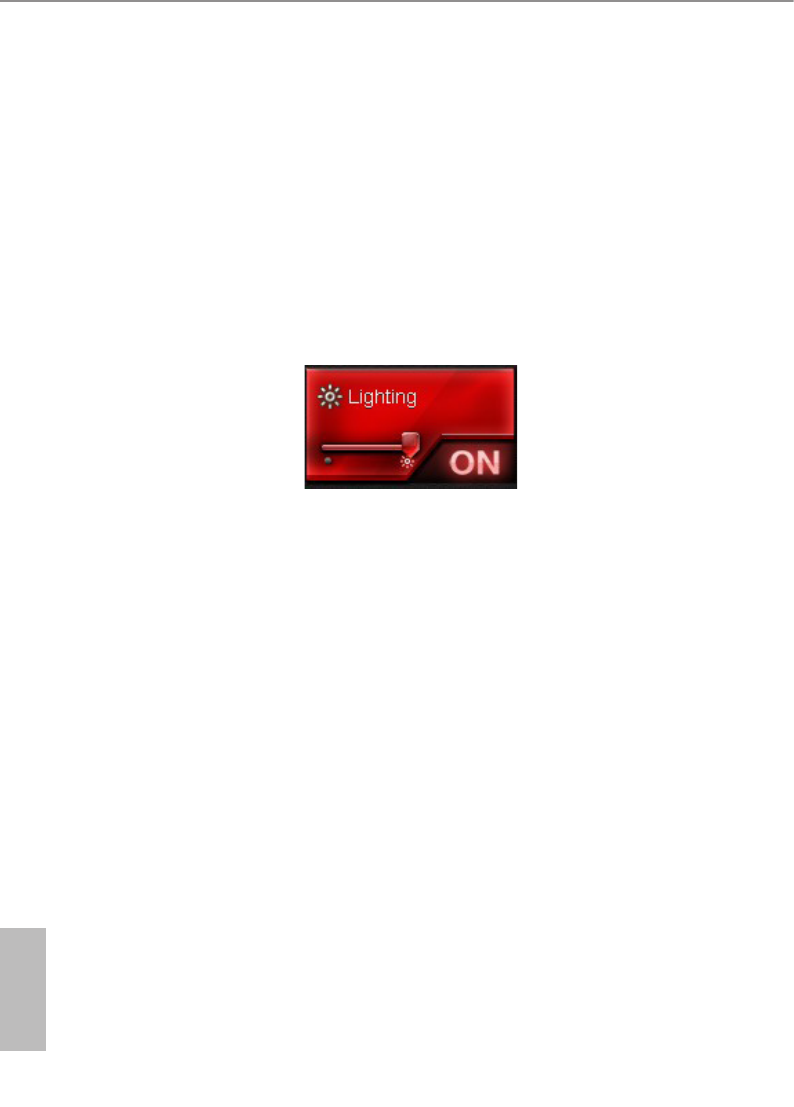

5.13 Lighting 20
5.14 Guest 20
5.15 WIFI 20
Chapter 6 Advanced Settings 21
6.1 Wireless Settings 22

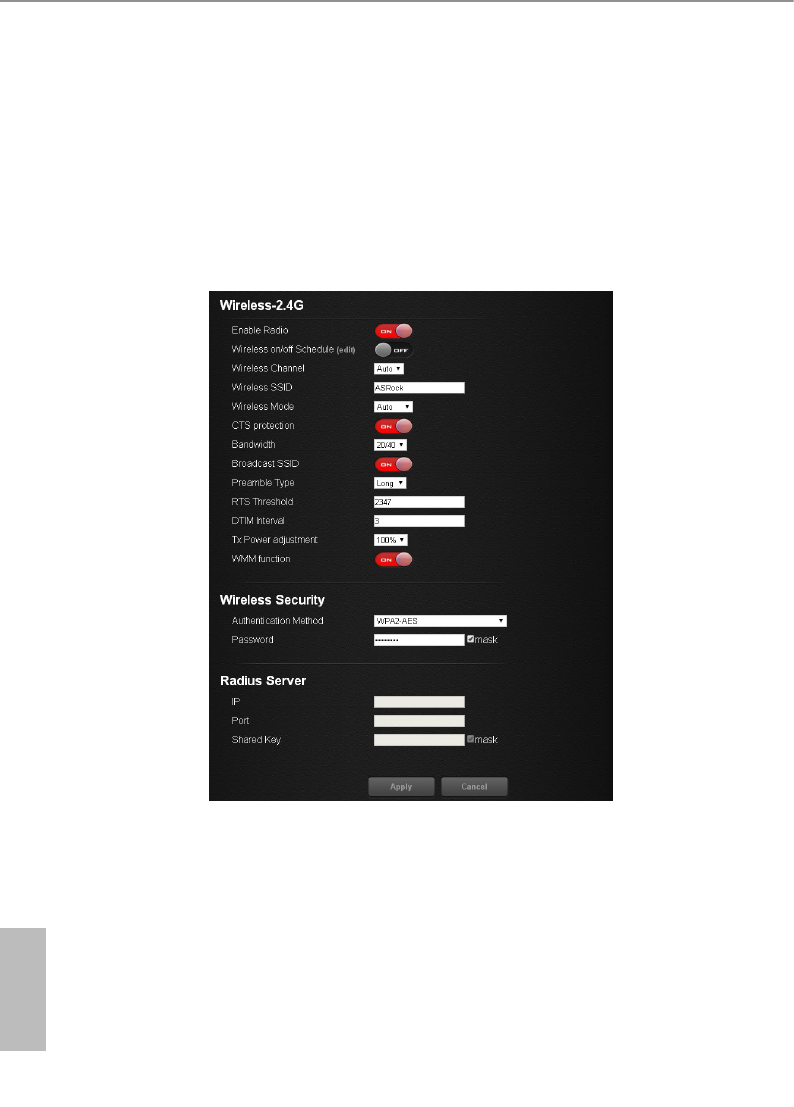

6.1.1 Wireless 22
6.1.2 Guests 24

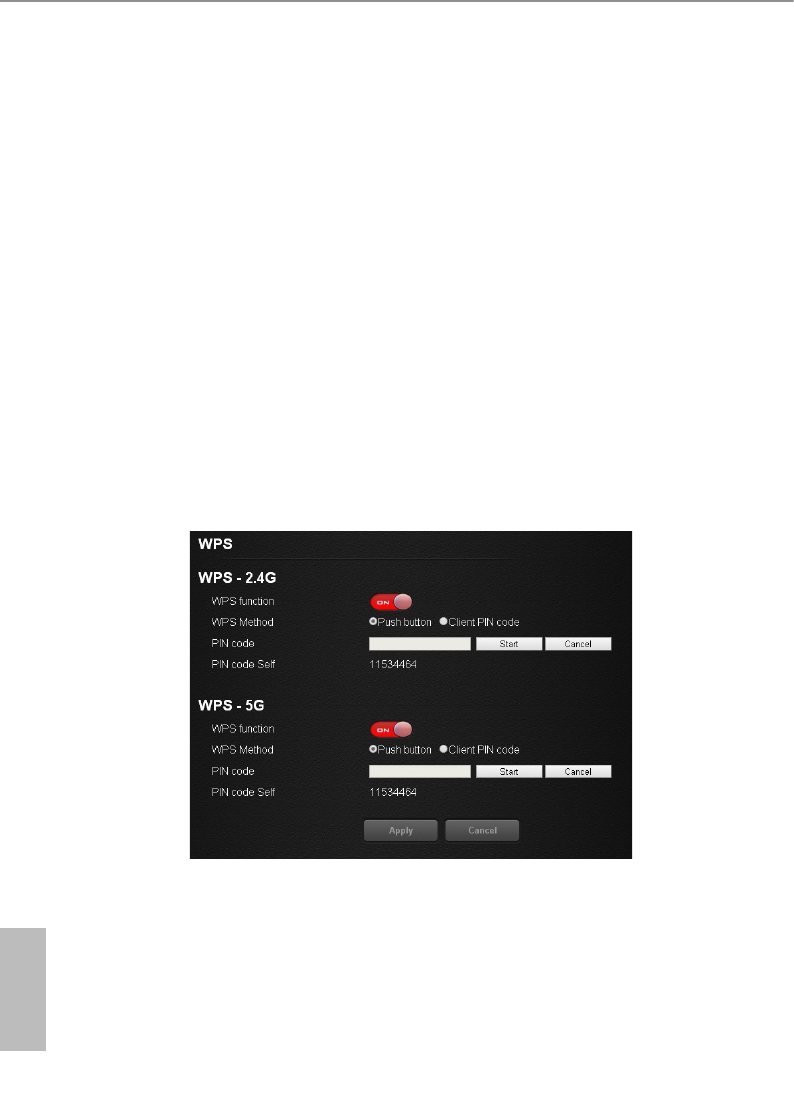

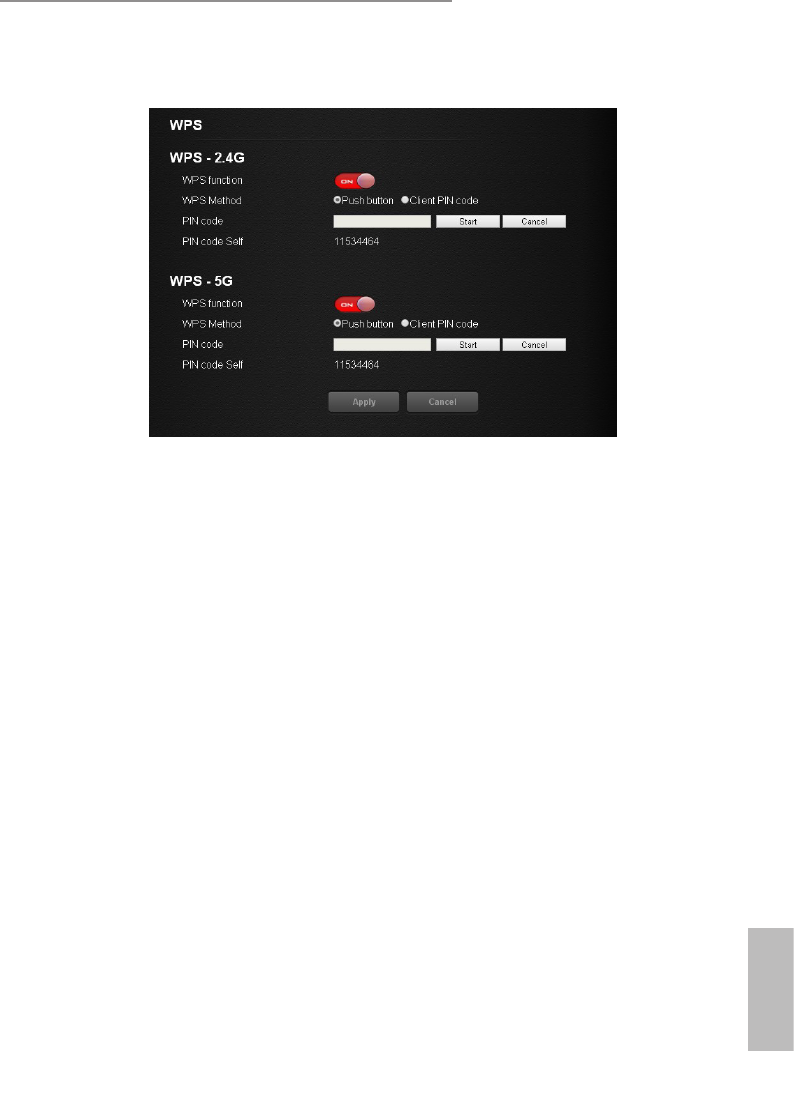

6.1.3 WPS 25
6.2 LAN Settings 26

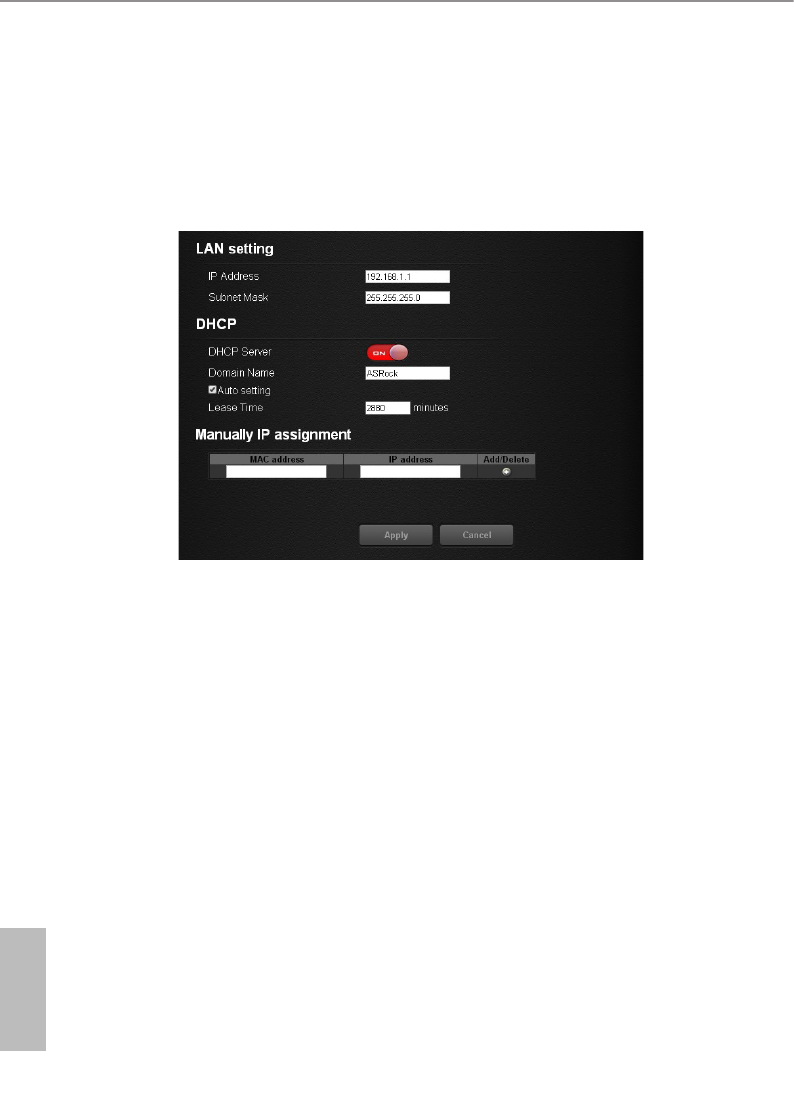

6.2.1 LAN 26
6.2.2 IPTV 27
6.2.3 VLAN 27
6.3 WAN Settings 28

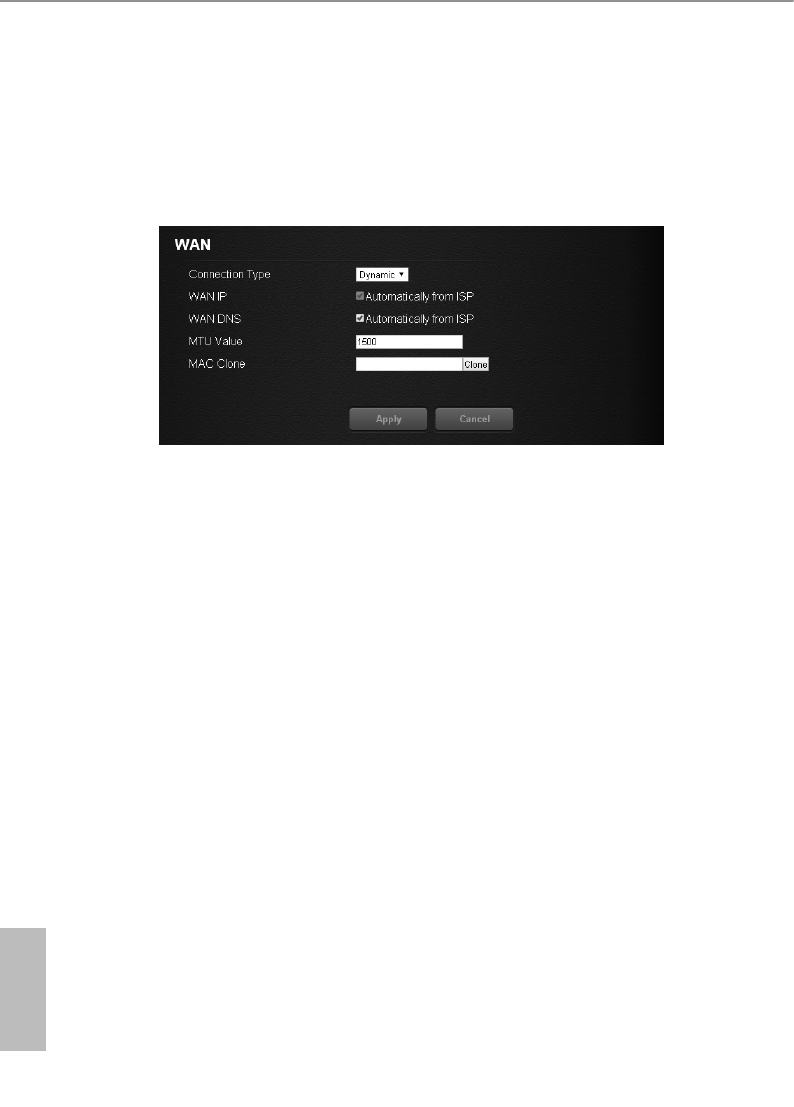

6.3.1 Internet 28

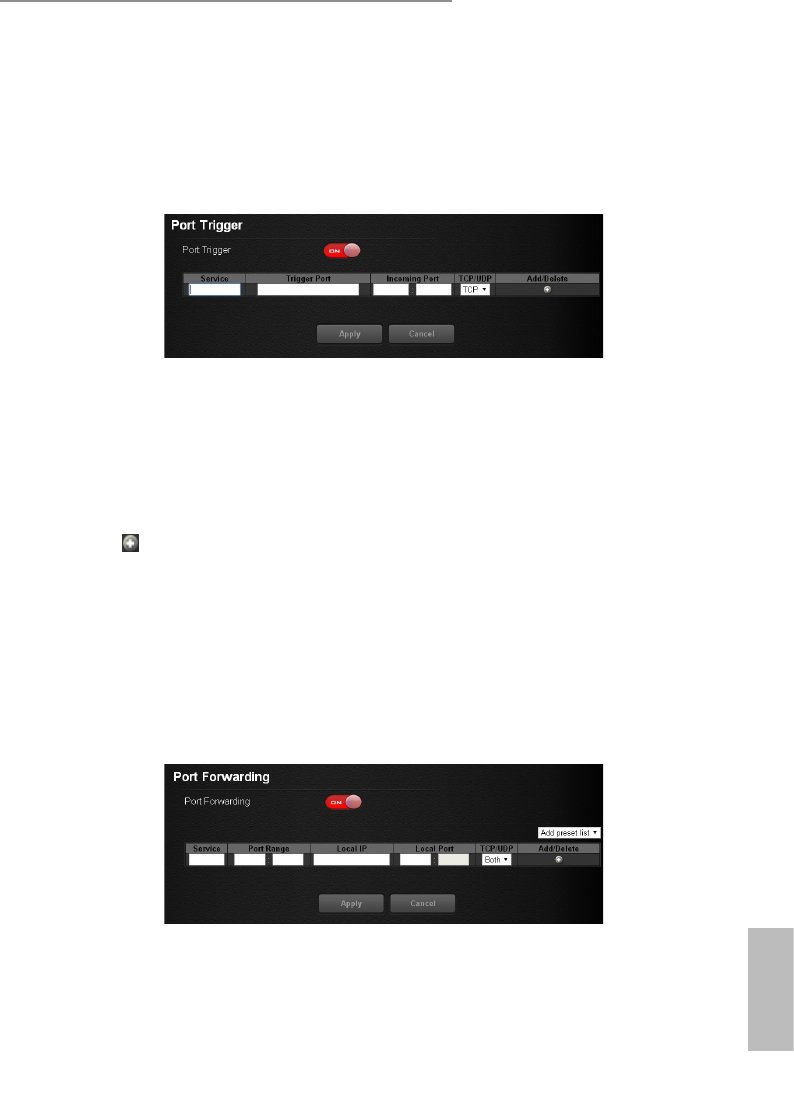

6.3.2 Port Trigger 29
6.3.3 Port Forwarding 29

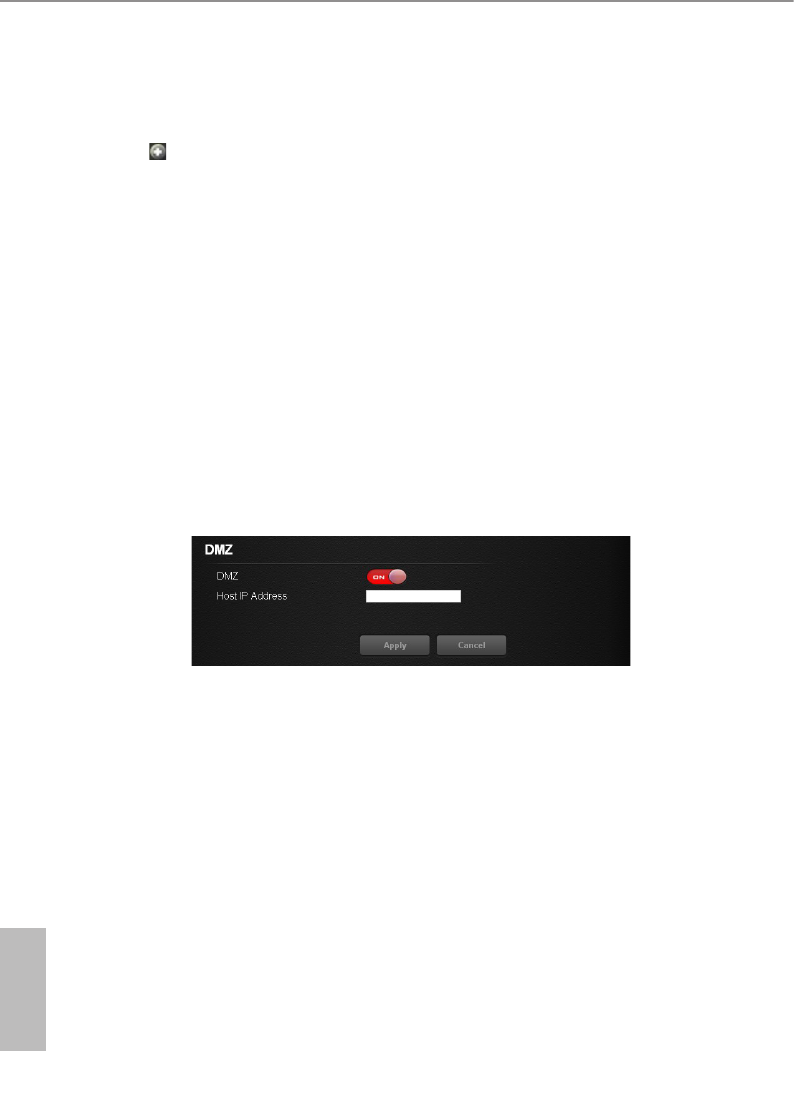

6.3.4 DMZ 30

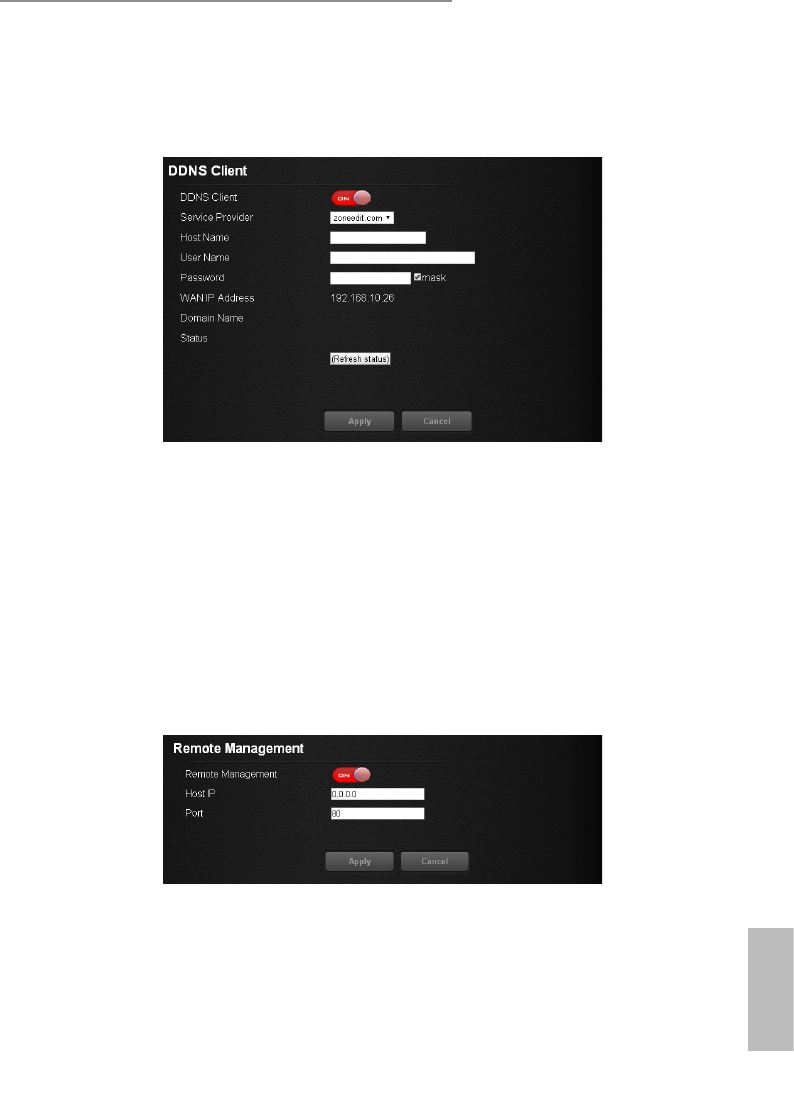

6.3.5 DDNS 31
6.3.6 Remote Management 31

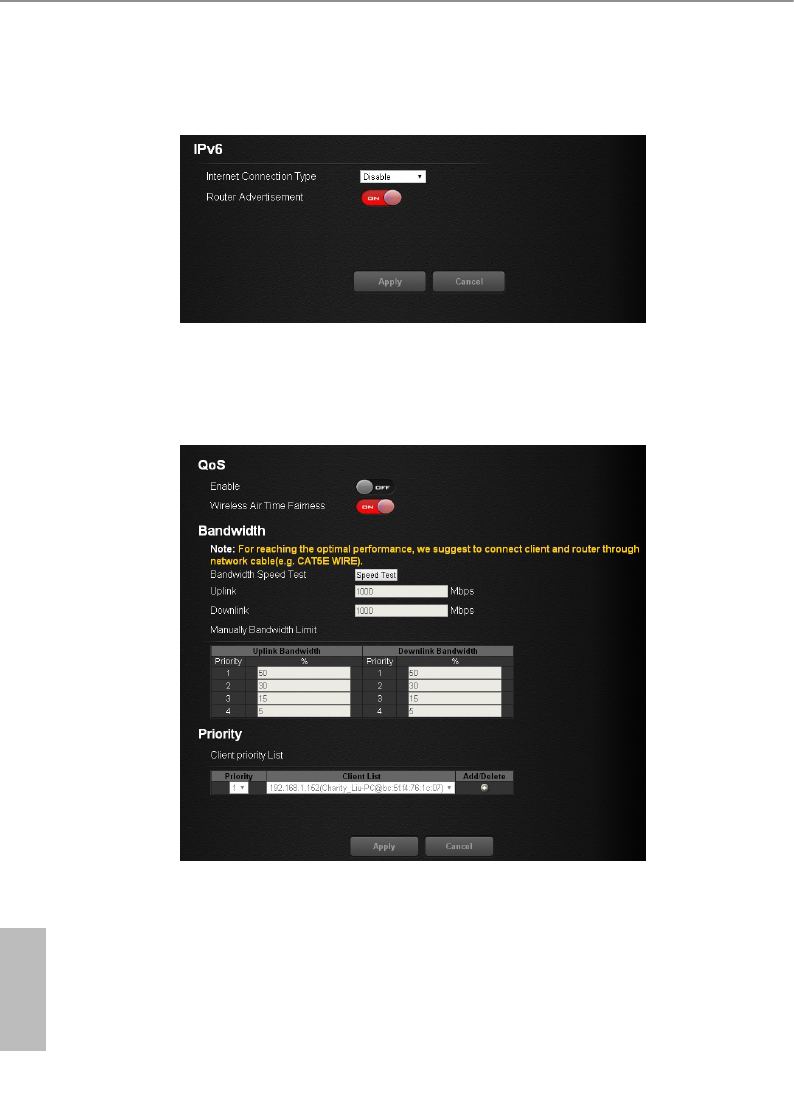

6.4 IPv6 Settings 32
6.5 QoS Settings 32

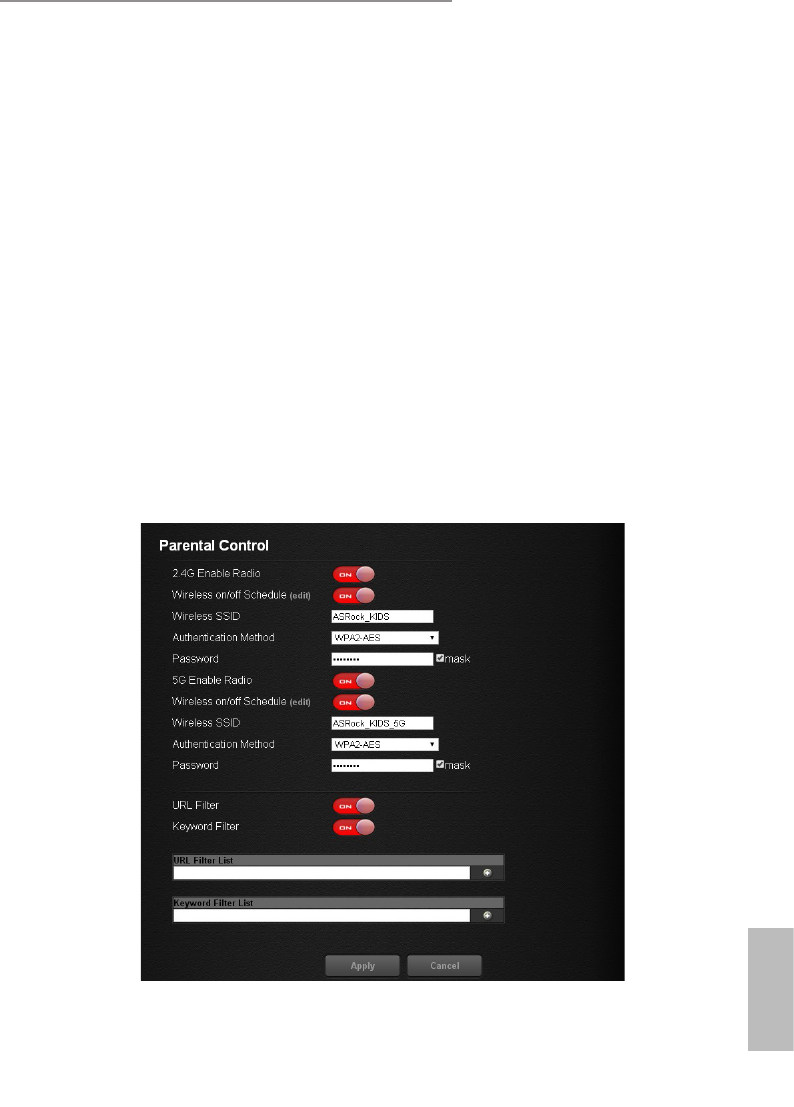

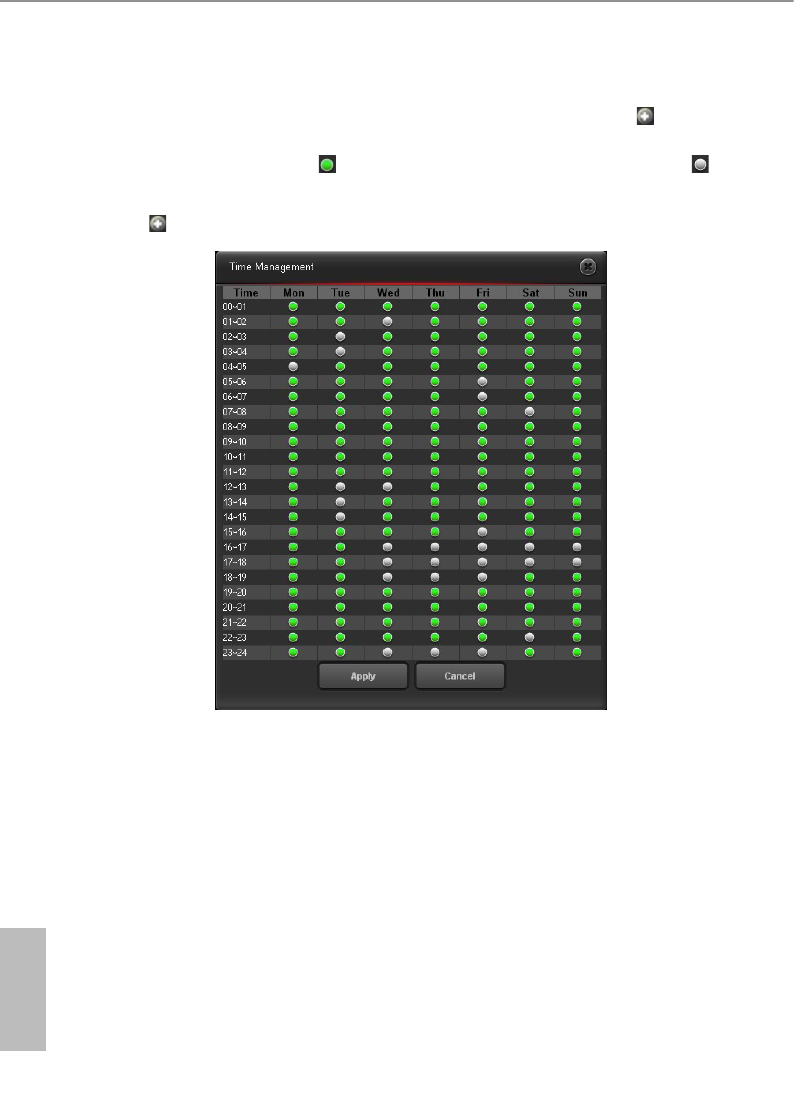

6.5 Parental Control 33

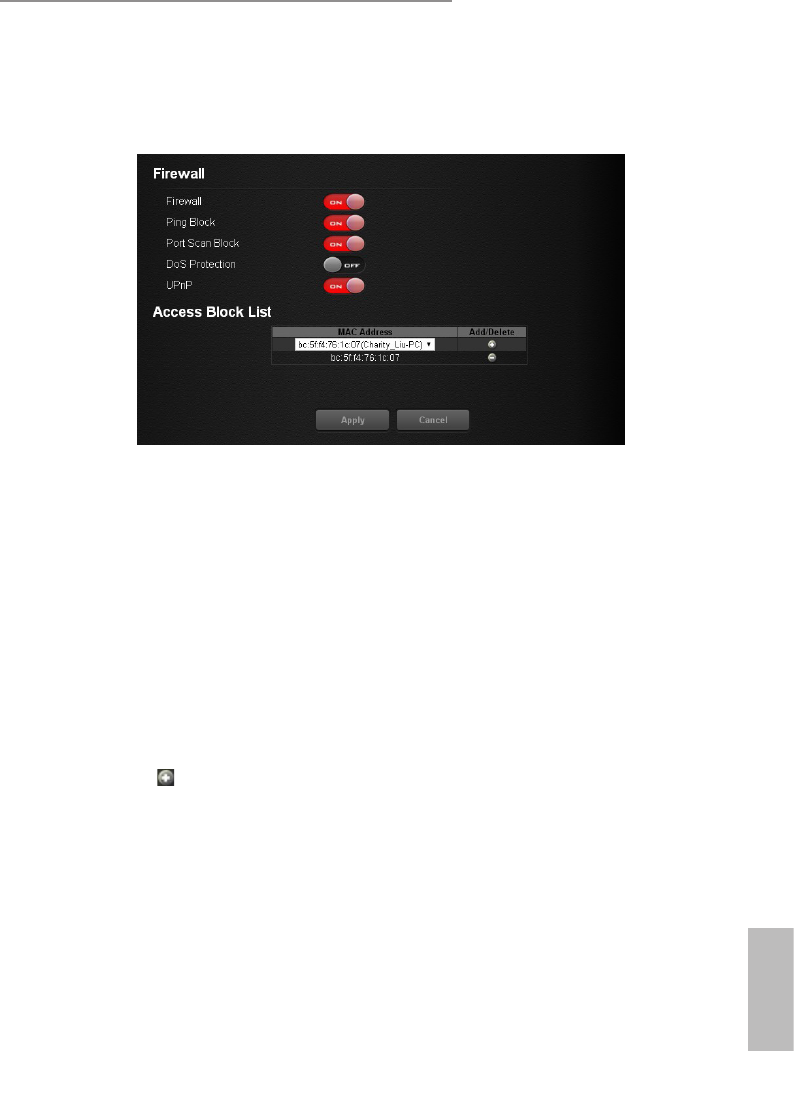

6.6 Firewall 35
6.7 USB Application 35
6.8 Administration 37

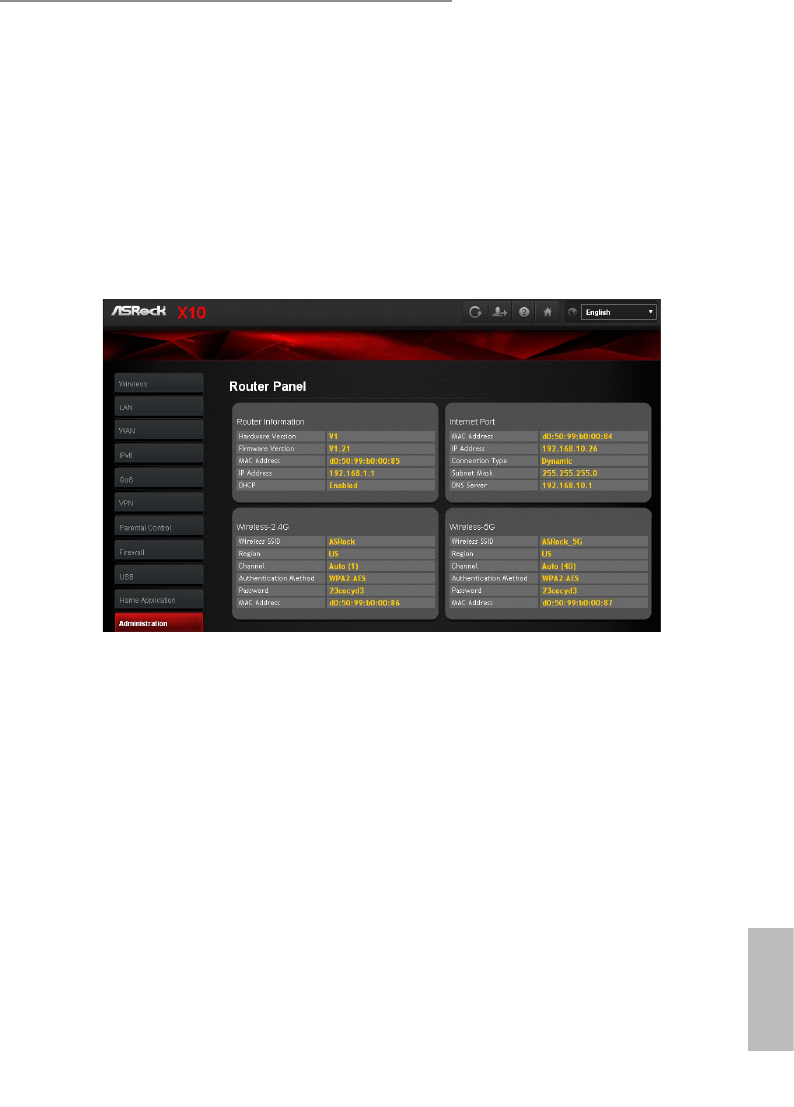

6.8.1 Router Status 37

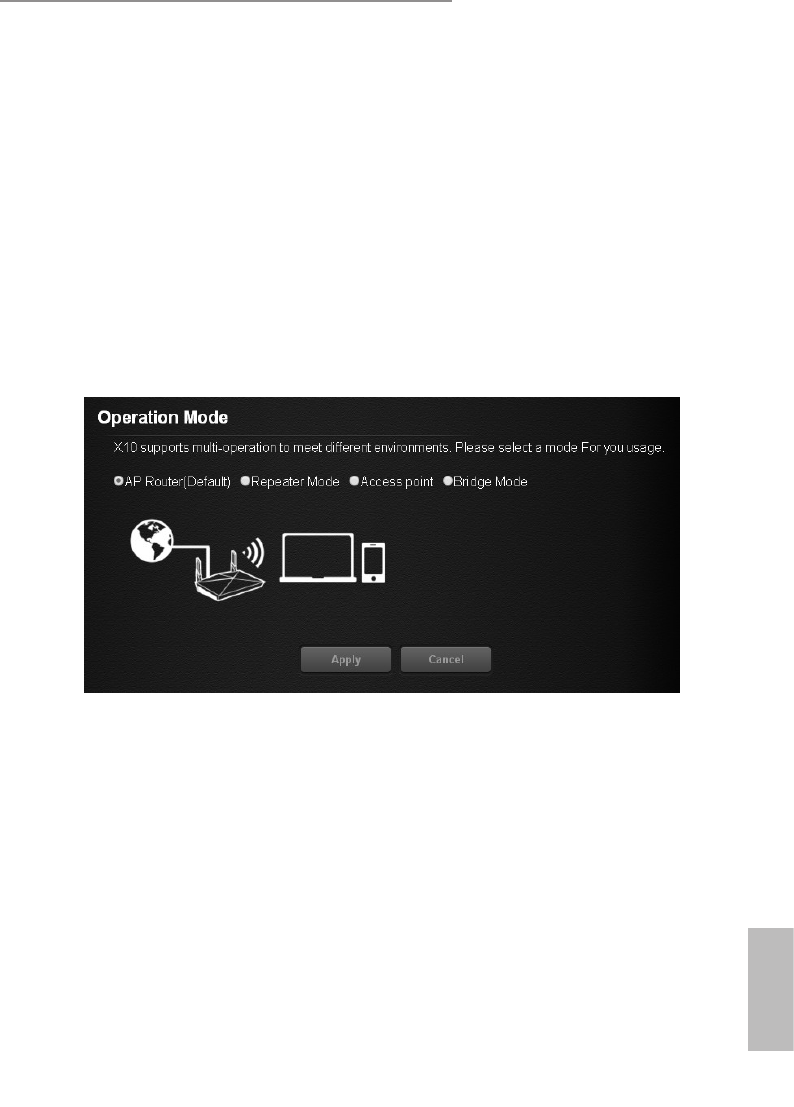

6.8.2 Operation Mode 37

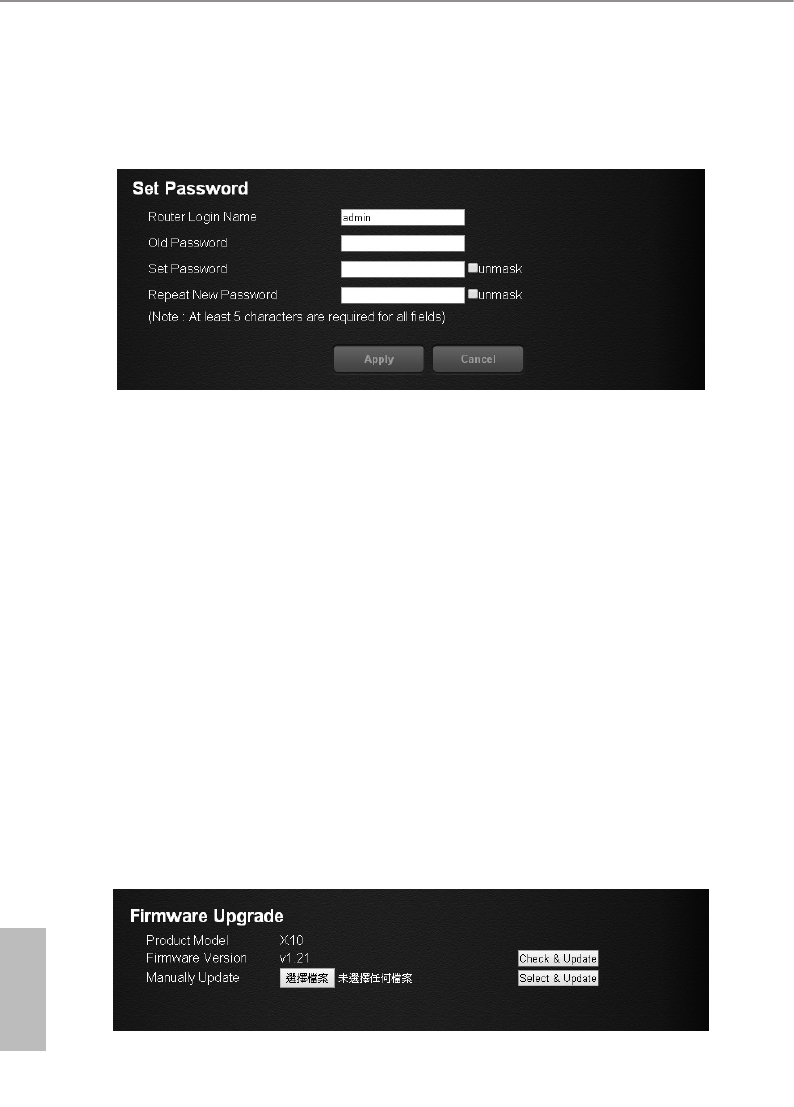

6.8.3 Set Password 38
6.8.4 Firmware Upgrade 38

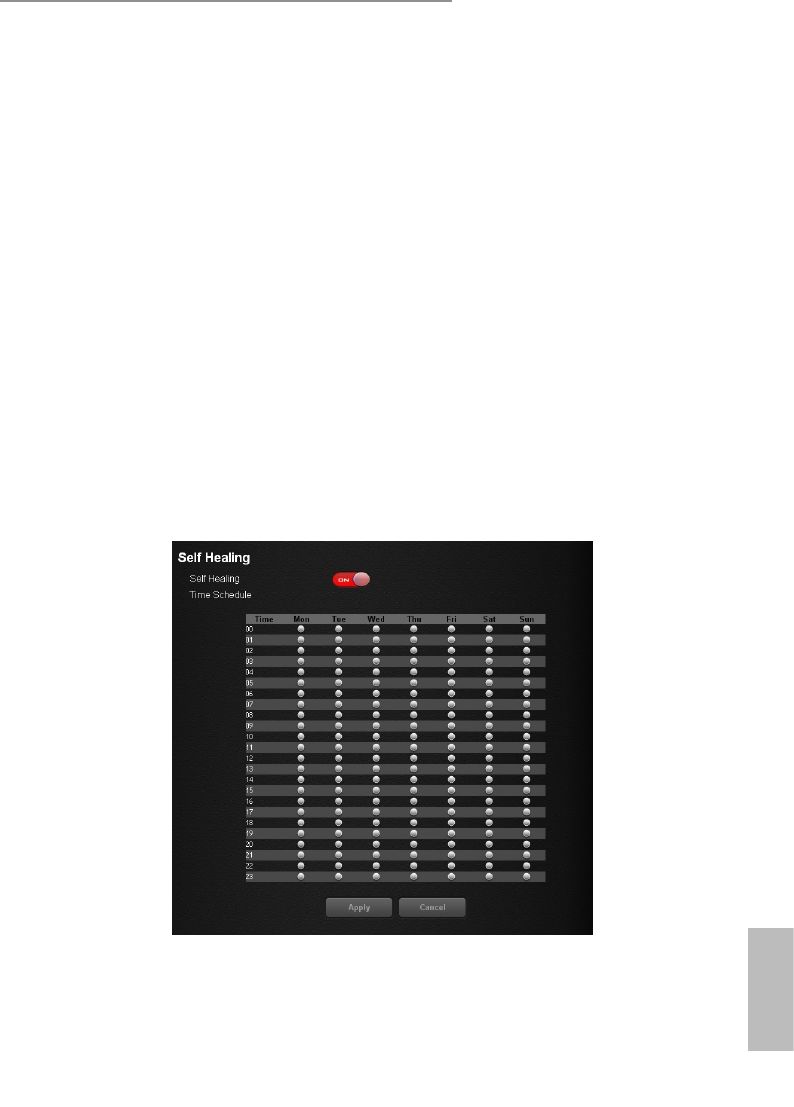

6.8.5 Self Healing 39

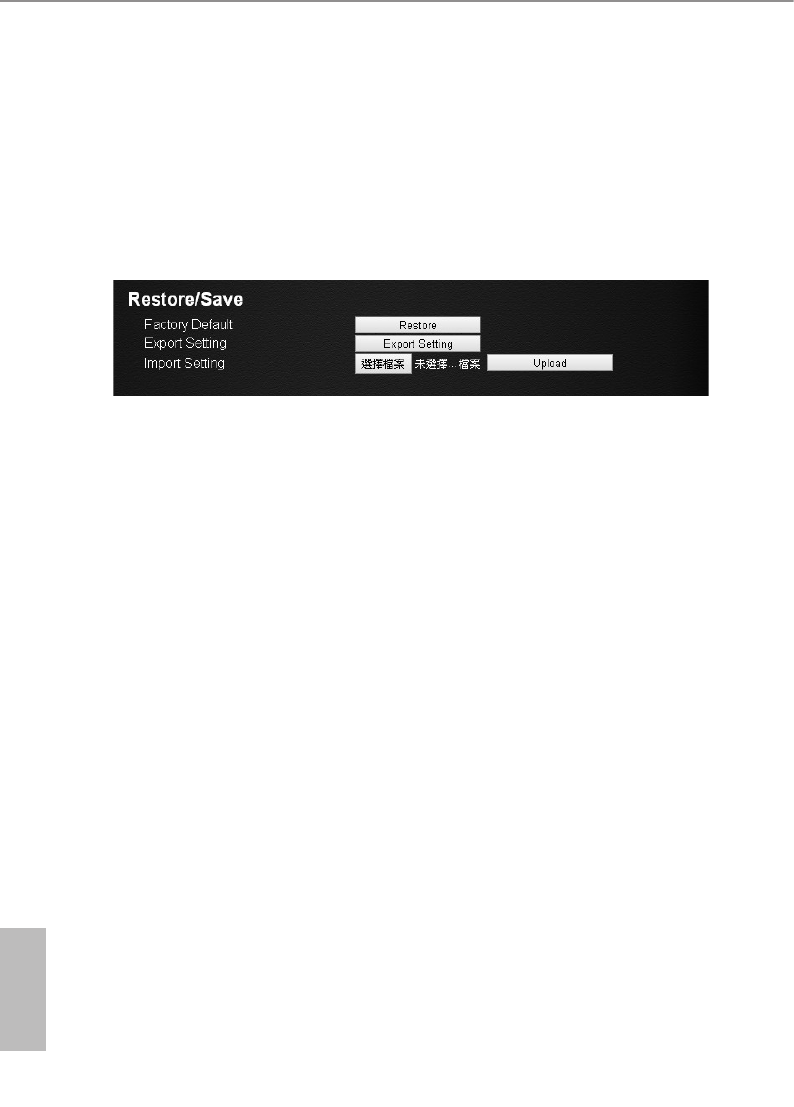

6.8.6 Restore / Save 40

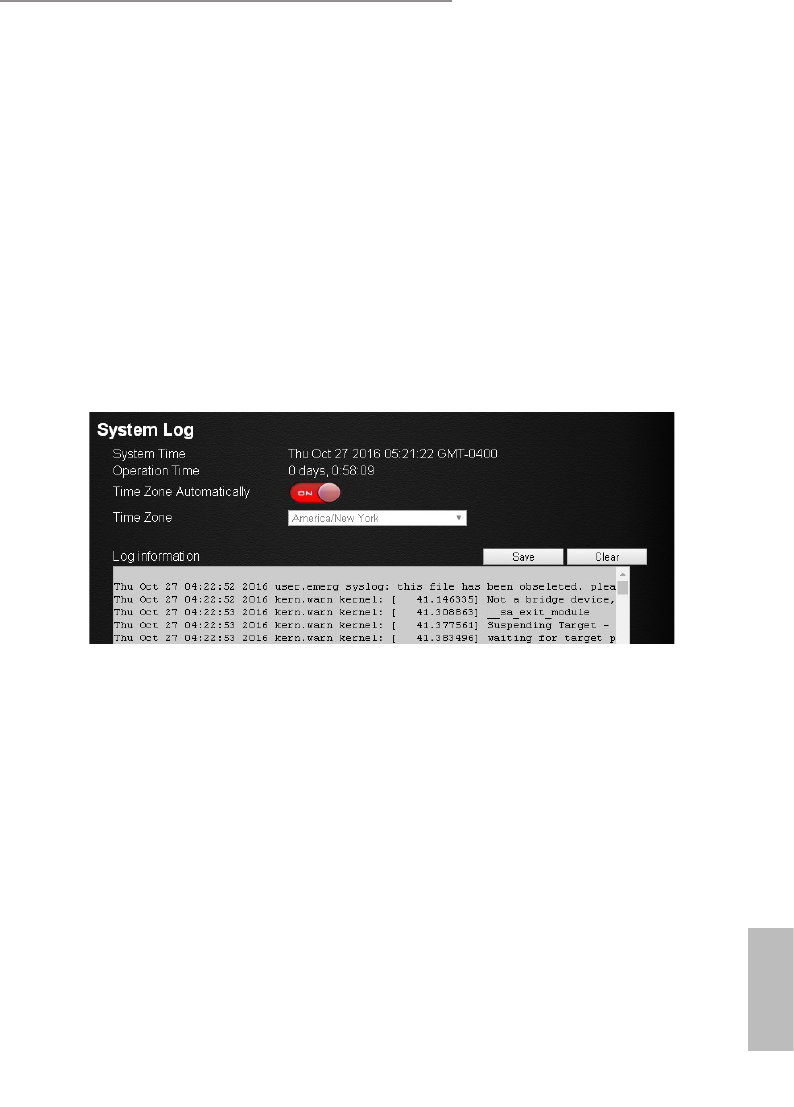

6.8.7 System Log 41
Chapter 7 Troubleshooting 42
7.1 How to Restart Your Network 42
7.2 Wireless Settings 42

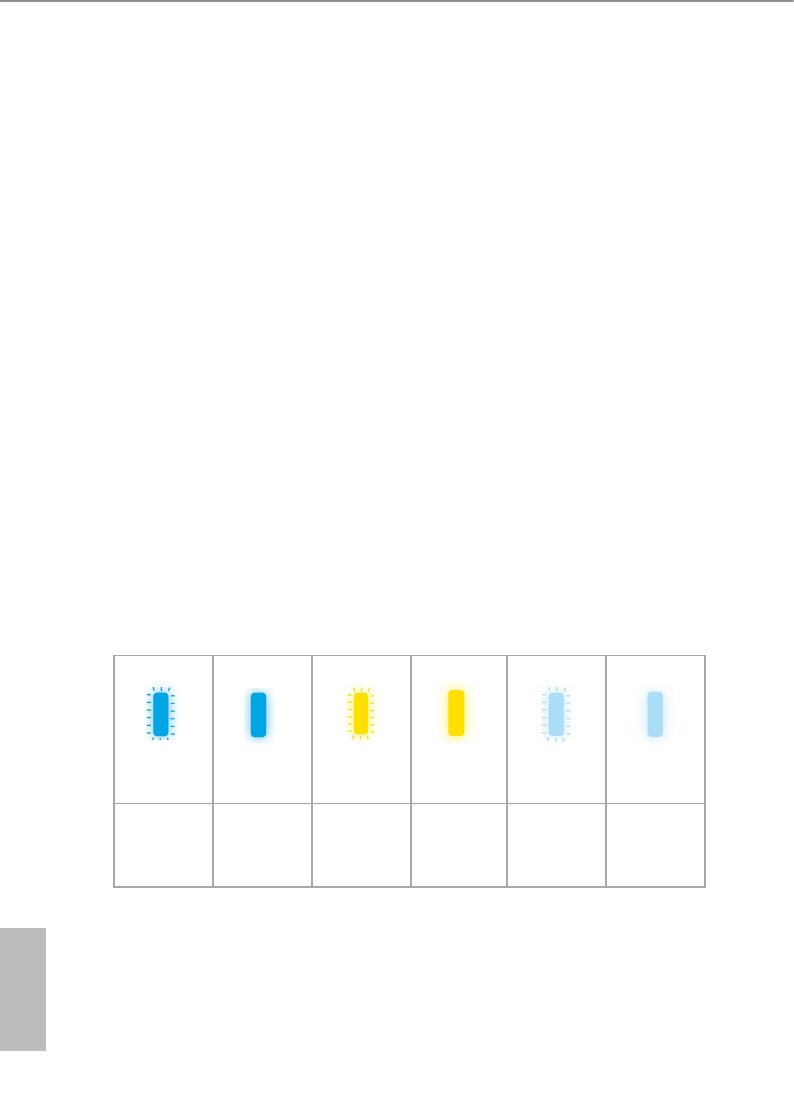

7.3 Standard LED Behavior When the Router Is Powered On 42
7.4 Unable Log In to the Router 43
7.5 Unable Access the Internet 43
7.6 Wireless Connectivity 44
7.7 Restore to the factory default settings 44
Appendix - Factory default settings 45
PB 1
English
ASRock X10 AC1300 IoT Router
Chapter 1 Introduction
ASRock AC1300 X10 IoT Router is a powerful router with various IoT functions (Internet
of ings). Equipped with three high-performance external antennas, two for wireless
communication and one for the optional LoRa (Low Power Wide Area Network) feature,
the X10 router oers you superb wireless connectivity and is ideal for home usage.
ASRock X10 works as a central hub for your smart home as well. It connects wirelessly
with hundreds of compatible various smart devices, allowing you to monitor, control, and
secure your home from anywhere. When you leave or approach home, ASRock X10 enables
you to turn on or o air conditioner or any other electrical devices in advance or last
minute. ASRock X10 makes your life more convenient and much easier.

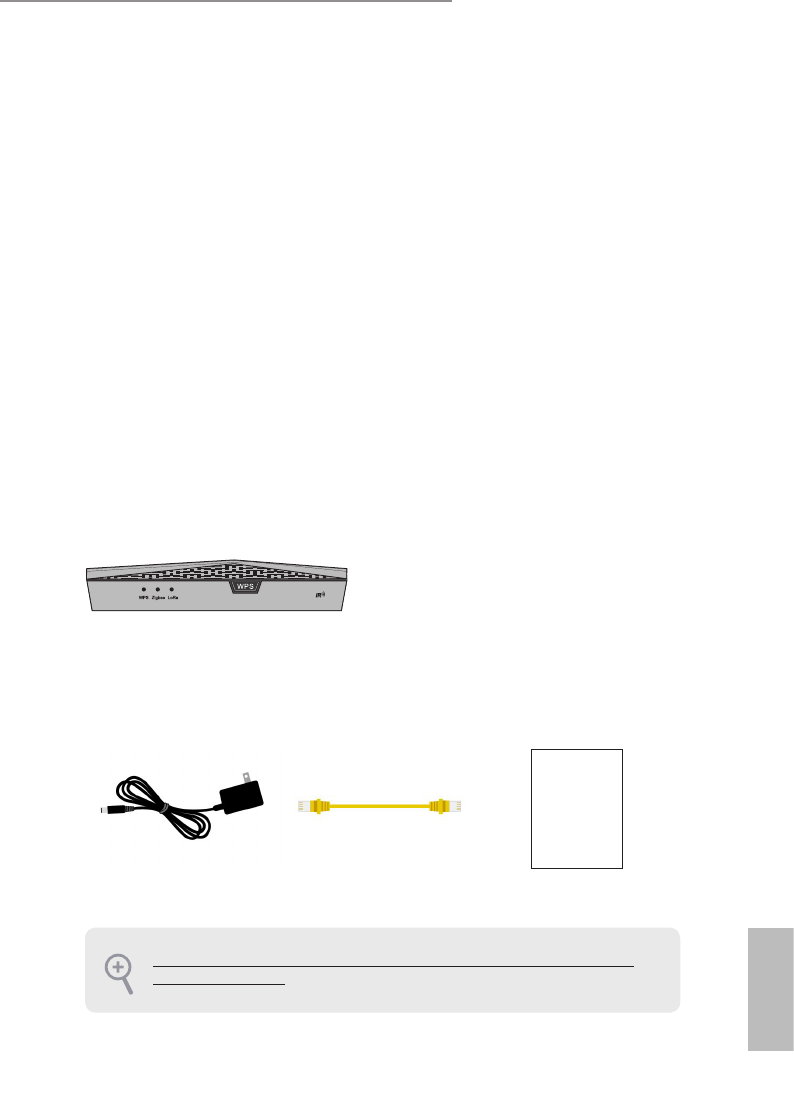

1.1 Package Contents
• ASRock AC1300 X10 IoT Router
Quick Installation
Guide
• Power Adapter • Network RJ45 Cable • Quick Installation Guide
Keep the original packaging material in case you would need future warranty services such
as repair or replacement.
2 3
English
ASRock X10 AC1300 IoT Router

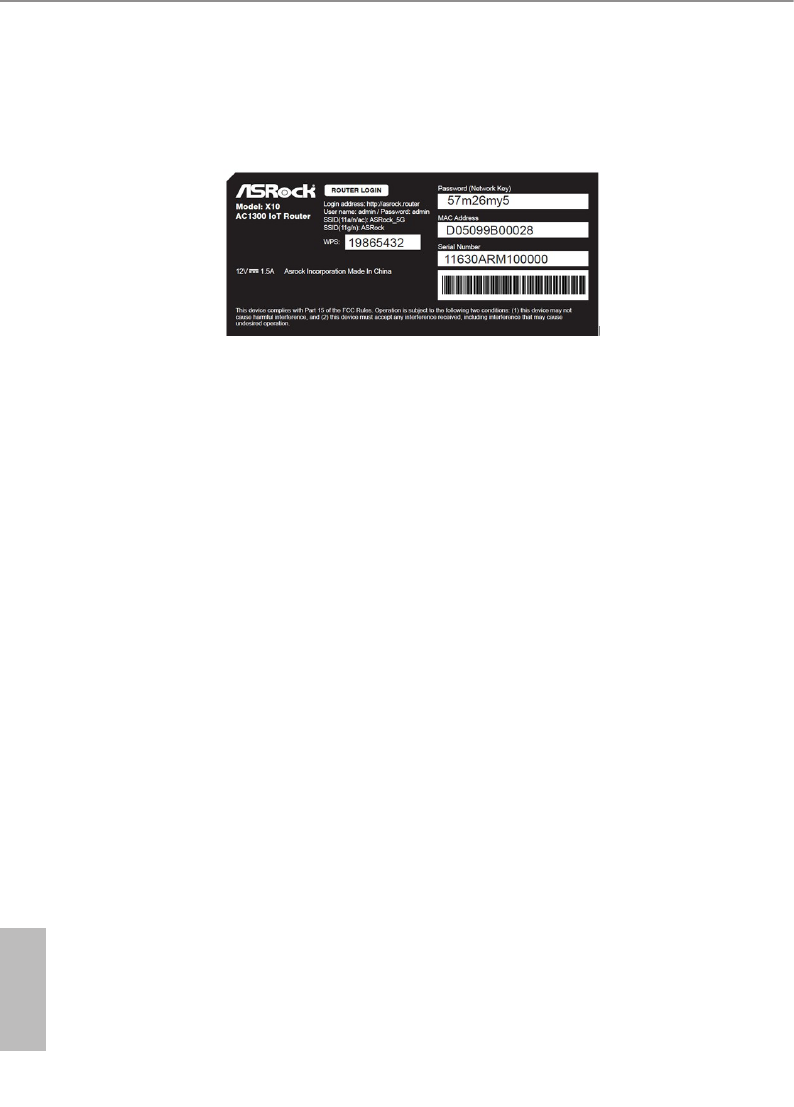

1.2 The Wireless Router Label
View the label on the back of the wireless router to identify the serial number, port
connectors, and default login information.
*e images in this document are examples only and may be dierent from the product you purchase.

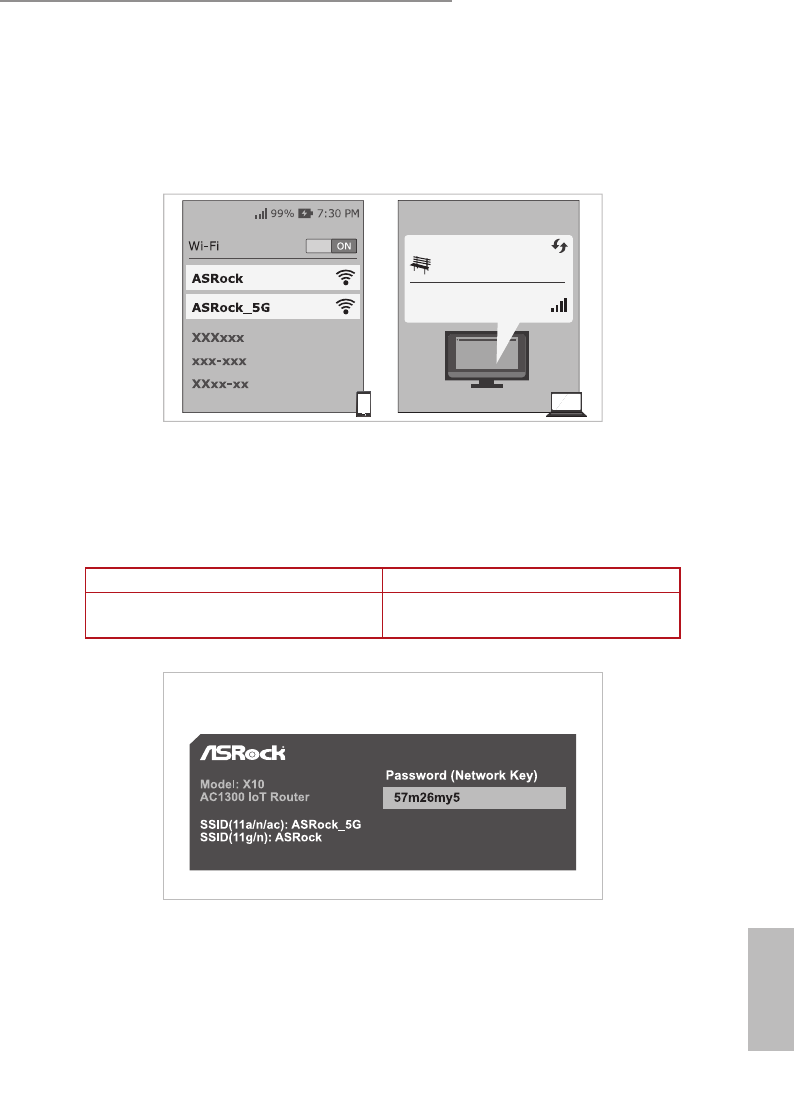

The label on the router shows the login information, WiFi network name and network
password, MAC address and serial number for warranty service.
1.3 Positioning Your Router
For the best wireless signal transmission between the wireless router and the connected
client device, please follow the guidelines below to position your router.
• Place the wireless router in a centralized area for maximum wireless coverage for
other network devices.
• Place the wireless router on an elevated location, minimizing the number of walls
and ceilings between the router and other devices.
• Place the wireless router away from large metal surfaces, large glass surfaces, and
insulated walls.
• Make sure that the wireless router is within reach of an AC power outlet and near
Ethernet cables for wired computers.
2 3
English
ASRock X10 AC1300 IoT Router
Chapter 2 Wireless Router Overview
is chapter provides diagrams showing the location of important components of
the Wireless Router.

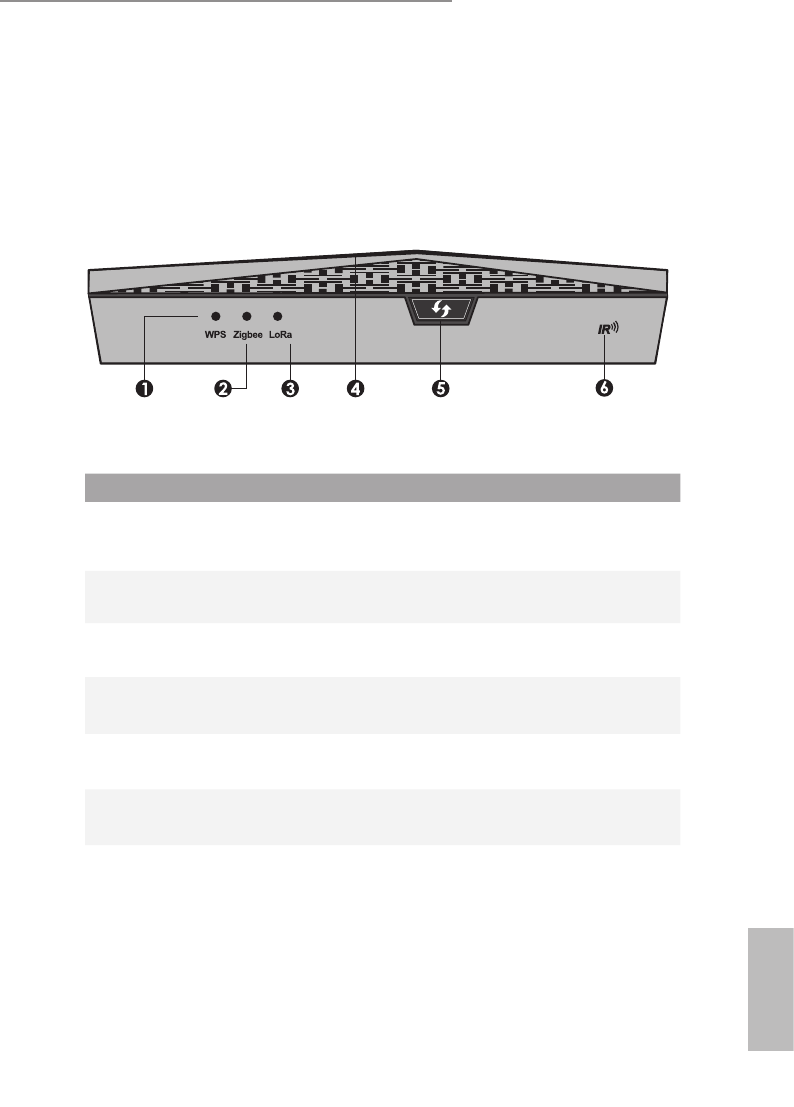

2.1 The Front View
WPS ButtonWPS LED Zigbee LED LoRa LED Status LED
Indicator
(optional
IR Sensor Receiver
& Transmitter
for X10R/X10S)
No. Description Function
1Router Status
LED Indicator
e status LED on the top allows you to verify
router’s conditions.
2WPS Connection Status
LED Indicator
e LED on the front allows you to verify WPS con-
nection status.
3LoRa Status
LED Indicator
e LED on the front allows you to verify LoRa
status.
4Zigbee Status
LED Indicator
e LED on the front allows you to verify Zigbee
status.
5 WPS Button Press to connect to a wireless network without pass-
word using WPS on 5GHz band.
6Infrared Sensor Receiver
and Transmitter Send and receive IR signals
4 5
English
ASRock X10 AC1300 IoT Router
Status LED Denitions
• Router Status LED Indicator
Flashing Blue Starting up
Solid Blue Connected to the internet
Flashing Red ADSL modem not detected / WPS connection failed
Solid Red Modem detected but no internet connection
• WPS Connection Status LED Indicator
Flashing White Connecting to a WPS-enabled device
Solid White WPS connected
• LoRa Status LED Indicator
Flashing White Pairing to a LoRa device
Solid White LoRa device connected
• Zigbee Status LED Indicator
Flashing White Pairing to a Zigbee device
Solid White Zigbee device connected
4 5
English
ASRock X10 AC1300 IoT Router
No. Description Function
1Antenna Ports Connect the provided WiFi 2.4/5 GHz Antennas to these
ports.
2 Reset Button Press to reset the system or press and hold the button for
more than 10 seconds to restore the factory default settings.
3DC-in Port Connect the provided AC power adapter to this port.
4 Power Button Press to power on or o the router.
5USB3.0 Port Plug the USB printers, ash drives, and other USB devices
into this port to share the network connection
6WAN Por t Connect a network cable into this port to establish a WAN
connection.
7LoRa Antenna
Port Connect the provided LoRa Antenna to this port.
8LAN1~4 Four local Ethernet ports for connecting local computers
and other wired network devices
2.2 The Rear View
Antenna AntennaReset DC-IN Power
On/O USB 3.0 LAN PortsLoRa AntennaWAN Port (optional for
X10R/X10S)
6 7
English
ASRock X10 AC1300 IoT Router
Chapter 3 Setting up the Wireless Router
3.1 Connecting the Equipments
1. Turn o your modem. Unplug the power cord and all ethernet cables from your
modem.
2. Connect one end of the supplied yellow RJ45 cable to the WAN port on the rear of
ASRock X10 and the other end to the WAN port on your modem.
WAN Port
6 7
English
ASRock X10 AC1300 IoT Router
3. Plug all cords back and reboot your modem.
4. Connect one end of the power cord to the DC IN port on the rear of ASRock X10 and
the other end to a power outlet.
5. Press the Power button to turn on the ASRock X10 router.
6. e status LED on the router start blinking blue. Please wait for a while until the
router is ready when the LED turns to solid blue.
1
2
3.2 Setting up an Internet Connection
ere are two methods to connect your computer, tablet or smartphone to the network on
the ARsock X10 Router: Wired connection or wireless connection.
3.2.1 Wired Connection
1. Connect one end of a RJ45 cable to any LAN port (LAN1, LAN2, LAN3, LAN4) on
the rear of ASRock X10 and the other end to a LAN port on your your computer or
laptop.
LAN Port
8 9
English
ASRock X10 AC1300 IoT Router
2. Turn on your computer or laptop.
3. Make sure that the status LED on the router lights up blue.
4. Now start to set up basic con gruations. (see “Setup Wizard”)
3.2.2 Wireless Connection
Before you start, turn on your device and make sure your device is wireless-enabled.
* For computers, a wireless card or adaptor is required. For handheld devices, visit your device’s WiFi Settings
menu and ensure that WiFi is turned on.
8 9
English
ASRock X10 AC1300 IoT Router
Your device can connect to the wireless network on the ASRock X10 router in two ways:
Manual method or WPS method
(1) Manual Method: Using the SSID and password to establish a wireless con-
nection
Currently connected to:
Wireless Network Connection
ASRock Connected
ASRock
Internet access
1. On your device, locate and select the Wi-Fi network name (SSID), “ASRock” or
“ASRock_5G” in a list of available networks.
2. Enter your default password listed on the bottom of the router.
SSID Password (Network Key)
ASRock or ASRock_5G (Check product label
on the bottom of the router)
(Example)
3. Select “Connect”.
10 11
English
ASRock X10 AC1300 IoT Router

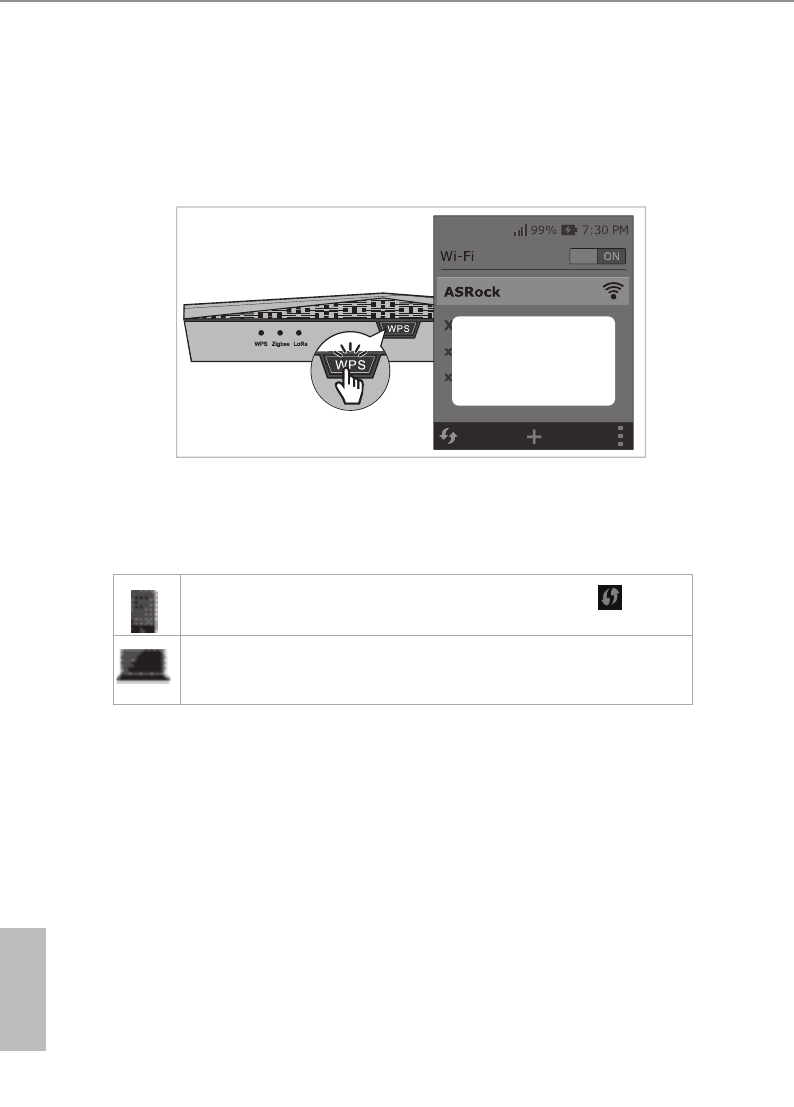

(2) WPS Method: Using the WPS (Wi-Fi Protected Setup) push button to establish
a wireless connection
WPS stands for Wi-Fi Protected Setup and it is a wireless networking standard that tries to
make connections between a router and wireless devices faster and easier.
Connected to Wi-Fi
network “ASRock”
1. If your device supports WPS*, press and hold the WPS button on the front of the
ASRock X10 router for more than 5 seconds.  e WPS status LED on the front will
ash white at this stage.
2. Press the WPS button on your device to join the X10’s Wi-Fi network.
If you use a handheld device, locate and press the WPS button shown as
two curved arrows to connect.
If you use a computer, locate and select the Wi-Fi network name (SSID),
“ASRock” or “ASRock_5G”. Select “Connect”.
3. When WPS is connected successfully, the WPS status LED indicator on the front
turns to a solid light white.
* e WPS function may or may not be supported depending on your device.
4. Make sure that the status LED on the router lights up blue.
5. Now start to set up basic con gruations. (see “Setup Wizard”)
10 11
English
ASRock X10 AC1300 IoT Router
Chapter 4 Setup Wizard
4.1 Starting the Setup Wizard for the First Time
Your ASRock router comes with an intuitive wizard that allows you to easily congure its
various features through a web browser, such as the Internet Explorer, Firefox, Safari, or
Google Chrome.
1. When your device is successfully connected to the Internet, open your web
browser (Google Chrome recommended).
2. If Setup Wizard does not launch automatically, enter the default IP address:
http://192.168.1.1 or "ASRock.router" into the browser address bar. Press
Enter.
3. If asked to enter the default username and password, input “admin” for both
elds.
4.2 Setting up Basic Congurations
Step 1. Change Login Password
1. When the Setup Wizard appears, you need to change the default login
password to proceed.
NOTE: It is required to change the login password at this step to secure your network and the router. Changing
the login username is optional.
IP address http://192.168.1.1 or ASRock.router
Default Username admin (Optional to be changed)
12 13
English
ASRock X10 AC1300 IoT Router
Password (Required to be changed)
*Passwords must be at least 5 characters and are case sensitive.
2. Write down your new username and password on your Quick Start Guide or
somewhere else that you can keep it carefully.
3. Press "Next" to continue. en follow the step-by-step Setup Wizard to
complete the basic conguration.
NOTE: You need to re-login if idle for more than 5 minutes.
Step 2. Update rmware if required
When you proceed, if a new version of rmware is available, you will see the screen
below. Select “Yes” to update the rmware immediately. If your rmware is already
up-to-date, you will skip this step.
ATTENTION! Please do NOT turn o your router while updating the rmware.
When the update is complete, the router will restart automatically.
Step 3. Connect to the Internet
e setup wizard will automatically detect the Internet connection type provided by your
ISP and guide you to nish all necessary steps.
12 13
English
ASRock X10 AC1300 IoT Router

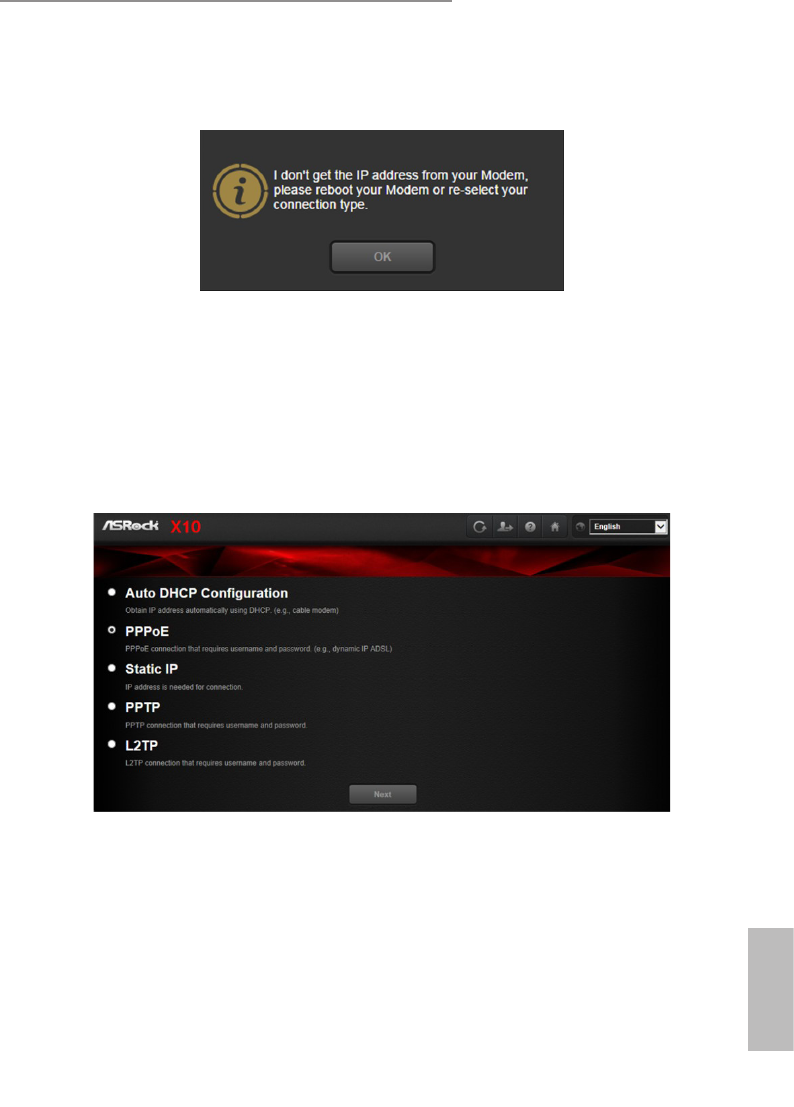

If auto-detection failed, you will see the message below. Press "OK" and start to manually
set up your router.
You might need the following information to set up your router:
• Fixed or static IP address setting. (Special deployment by ISP)
• ISP login name and password.
• ISP conguration information for your DSL account.
If you do not have the information above , ask your ISP to provide it.
A digital subscriber line (DSL) modem is a device used to connect a computer or router to a telephone line which
provides the digital subscriber line service for connectivity to the Internet.
1. Choose your Internet connection type.
2. Select "Next" to continue.
3. Follow the setup instructions and enter the required information for your ISP
connection type.
NOTE: Aer you complete the Setup Wizard conguration, you can always change the settings aerwards. See 6.3
WAN Settings.
14 15
English
ASRock X10 AC1300 IoT Router
Step 4. Change default wireless name(SSID) and password
When the Wireless Security Setting page appears, you can check your default
wireless name and password.
We strongly recommend you to change the default wireless name and password
immediately for better network security.
1. Select "I want to change the wireless name and password".
2. Enter the wireless name and password you desire in the text boxes.
NOTE: A valid password must be comprised of at least 8 characters.
3. If you select "Copy 2.4G setting to 5G", the identical password is used for both
5G and 2.4G networks.
4. Press "Next" to continue.
If you are asked to enter the login information to proceed, enter the wireless name
and password you have set in the Step 4.
5. en the Dashbaord page appears. Please see "Dashboard" for more instructions.
14 15
English
ASRock X10 AC1300 IoT Router
Chapter 5 Dashboard
5.1 Overview
e dashboard allows you to easily check the status and basic information of X10 as well
as provides quick access to various general settings. You can congure your network’s
security settings, manage your network clients, monitor your USB device, and control the
general and advanced functions.
1 2 3
4
5 6 7 8 9
10 11 12 13 14
15 16 17 18 19
No Item Description
1WAN Displays router’s WAN information
2Router Displays router’s operation mode and rmware version
3Client View the information of the clients that are connected to
your router
4USB View the information of the connected USB device
5Reboot Press to reboot the ASRock X10 router
6Login/Logout Press to log in or log out the site.
7Help Press to go to ASRock’s support website.
8Home Press to go to the dashboard page.
9Language e language is set to English by default. Users can select
dierent languages in the drop down list.
10 Setup Wizard Launch the Setup Wizard
11 VPN Enable or disable the VPN feature
12 Parental Control Parental control congurations
16 17
English
ASRock X10 AC1300 IoT Router
13 Smart Home Displays status and information of smart home devices
14 Advanced Press "Enter" to enter the Advanced Settings page.
15 WAN Displays WAN (wide area network) information
16 Self-Healing Enable or disable the Self-Healing feature
17 Lighting Enable or disable the LED indicators on the router
18 Guest Guest network congurations
19 WIFI Enable or disable the wireless SSID broadcast
On the dashboard homepage, you can check and congure general settings. Aer the
conguration, press "Apply" to save the settings and reboot the router for the settings to
take eect.
5.2 WAN Information
Press "WAN" to open up the pop up window where you can congure your WAN
information and enable or disable your connection.
• WAN Connection: Allows the router Internet access. e default is set to ON.
• Connection Type: Displays your internet service provider type.
• WAN IP: Displays the WAN IP address.
• WAN MAC Address: Displays the WAN MAC address.
• DNS Information: Displays the DNS address.
• Gateway Information: Displays the Gateway address.
• Port Scan: Protects your network from port scan attacks. e default is set to ON.
• DoS Protection: Protects your network from DoS (Denial of Service) attacks though
this may aect your router’s performance. e default is set to OFF.
Press "Apply" to save the settings and reboot the router.
16 17
ASRock X10 AC1300 IoT Router
5.3 Wireless Information
Press "Operation Mode: Router" on the dashboard to open up the pop up window where
you can easily congure your wireless information.
2.4G
• Wireless Name: Displays the unique name of your wireless network. You can modify
the name in the eld.
• Authentication Method: Displays the encryption method for your wireless network.
• WPA-PSK Key: Displays the WPA-PSK key.
• 2.4G Wireless MAC Address: Displays the 2.4G wireless MAC address.
• PIN Code: Displays the PIN code.
Press "edit" (or go to Advanced > Wireless > Wireless-2.4G) to congure more Wireless-
2.4GHz settings.
5G
• Wireless name: Displays the unique name of your wireless network. You can modify
the name in the eld.
• Authentication Method: Displays the encryption method for your wireless network.
• WPA-PSK Key: Displays the WPA-PSK key.
• 5G Wireless MAC Address: Displays the 5G wireless MAC address.
• PIN Code: Displays the PIN code.
Press "edit" (or go to Advanced > Wireless > Wireless-5G) to congure the Wireless-5G
settings.
18 19
English
ASRock X10 AC1300 IoT Router
Information
• LAN IP address: Displays the default LAN IP address.
• LAN MAC address: Displays the LAN MAC address.
Press "edit" (or go to Advanced > LAN) to congure the LAN settings.
Press "Apply" to save the settings.
5.4 Client Information
Press "Client" to open up the pop up window where you can check your client
information. You will see the IP address, device name, MAC address of all the
devices (wired and wireless), connected to your router.
5.5 USB Information
Press “USB” to open up the pop up window where you can check the device name, total
space, free space of the connected USB device(s).
• Safely Remove USB Device: Check the check box(es) to select the USB device(s)
you want to remove and press "Safely Remove USB Device" to disconnect the USB
18 19
English
ASRock X10 AC1300 IoT Router
device(s) safely.
• Advanced: Press "Advanced" (or go to Advanced > USB Application) to congure
advanced settings.
When a USB device is reconnected to the router, press "Home" to go to the dashboard page
and refresh the status.
5.6 Setup Wizard
Press “Setup Wizard” to run the Setup Wizard again manually.
To know more about the Setup Wizard, please see Chpater 4. Setup Wizard.
5.7 VPN Conguration
Press “VPN” (or press Advanced > VPN) to enter the VPN setting page.
To know more about VPN conguration, please see the section entitled "Advanced Settings
- VPN".
5.8 Parental Control
Press “Parental Control” (or press "Advanced" > "Parental Control") to enter the Parental
Control setting page.
To know more about Parental Control function and congruation, please see the section
entitled "Advanced Settings - Parental Control".
5.9 Smart Home
5.10 Advanced Settings
Press "Advanced" to enter the Advanced Settings page. Once you enter the Advanced
Settings page, you will see a preview of information about the router, Internet Port, and
Wireless-2.4G and Wireless-5G connections. Select an item on the le panel to congure
its advanced settings. For more detailed information, please see the section entitled
"Advanced Settings".
5.11 WAN Connection
Press "WAN" to switch the WAN connection on or o. Press "Apply" to conrm the
change.
When it is switched OFF, the status LED indicator on the top of the router lights up red.
20 21
English
ASRock X10 AC1300 IoT Router
When it is switched ON, the staus LED indicator on the top of the router lights up blue.
5.12 Self Healing
Press "Self Healing" to switch the Self Healing function on or o. To know more about Self
Healing function and congruation, please see the section entitled "Advanced Settings -
Self Healing".
5.13 Lighting
Press "Lighting" to enable or disable the LED indicators on the router.
You can drag the slide bar to control the brightness of the LED indicators.
5.14 Guest
Press "Guest" to enable or disable your guest network and set the guest access passwords
and durations. For more options, go to Advanced > Wireless > Guest.
5.15 WIFI
Press "WIFI" to enable or disable the wireless SSID broadcast.
NOTE: To re-enable the WiFi connections, please use wired connections to connect your device to the router and
log in the router site where you can enable the WiFi.
20 21
English
ASRock X10 AC1300 IoT Router
Chapter 6 Advanced Settings
e Advanced page contains a variety of advanced settings, including Wireless, LAN,
WAN, IPv6, QoS, VPN, Parental Control, Firewall, USB, Home Application and
Administration.
Press "Advanced" to enter the Advanced Settings page. Once you enter the Advanced
Settings page, you will see a preview of information about the router, Internet Port, and
Wireless-2.4G and Wireless-5G connections.
Select an item on the le panel to congure its advanced settings.
Aer conguration, press "Apply" to enable the settings.
22 23
English
ASRock X10 AC1300 IoT Router
6.1 Wireless Settings
e router’s internal wireless radios broadcast signals in the 2.4GHz and 5GHz range. By
default, they are on so that you can connect wirelessly to the router. When the wireless
radios are o, you can still use an Ethernet cable for a LAN connection to the router.
6.1.1 Wireless
Wireless - 2.4G/5G
• Enable Radio: Enable or disable wireless radios. By default, the radios are “on”. If you
turn o the wireless radios, you can’t log in to the router.
• Wireless On/O Schedule: You can specify which days of the week wireless
networking are enabled
Press "edit"
• Wireless Channel: You can change your WiFi router channel to optimize your
wireless signal. If you are not sure how to pick the right channel, keep the default
“Auto”.
22 23
English
ASRock X10 AC1300 IoT Router
• Wireless SSID: e Service Set Identier (SSID) is a name used to connect to a
wireless network so you can identify your network.
• Wireless Mode: By default, the wireless mode is set to “Auto”. 802.11ac, 802.11n,
802.11g and 802.11b devices are allowed to be connected to the wireless router.
• CTS Protection: Clear to send (CTS) Protection mode is a wireless setting that
ensures computers on a network can connect to a wireless router when many
communications devices are present. When an 802.11b and an 802.11g device are
both connected to the access point, set the CTS Protection to "ON" (Default). Since
an 802.11b device is unable to detect when an 802.11g device is transmitting, CTS
protection ensures that each device takes turns transmitting in order to avoid
collisions. If the wireless devices connected to the access point are either all 802.11b
or all 802.11g, set the CTS protection to "OFF".
• Bandwidth: For best performance in a 2.4GHz network using wireless-B, wireless-G
and wireless-N devices, keep the default, “20/40”. For a bandwidth of 20MHz,
select 20MHz only. For the best performance in a 5GHz network, keep the default
20/40/80MHz.
• Broadcast SSID: When wireless clients survey the local area for wireless networks
to associate with, they will detect the SSID broadcast by the router. Keep the default
“ON” to broadcast the router’s SSID. Select “OFF” if you do not want to broadcast the
router’s SSID.
• Preamble Type: By default, the preamble type is set to "Auto". Select "Short" for a busy
wireless network with high network trac. Select "Long" if your wireless network is
composed of older or legacy wireless devices.
• RTS reshold: Adjusts the size of RTS (Request to Send) data packets. By default,
the RTS value is 2347. Lower values reduce throughput, but allow the system to
recover quicker from interference or collisions. Higher values provide the fastest
throughput.
• DTIM Interval: e Delivery Trac Indication Message (DTIM) interval helps
routers to broadcast wireless trac to multiple hosts with greater eciency. DTIM
interval or Data beacon rate is the time interval before a signal is sent to a wireless
device in sleep mode indicating that a data packet is awaiting delivery. e default
value is 3 milliseconds.
• Tx Power Adjustment: Tx power adjustment refers to the milliwatts (mW) needed to
power the radio signal output of the wireless router.
• WMM Function: Prioritizes multimedia data over the wireless network.
24 25
English
ASRock X10 AC1300 IoT Router
Wireless Security
• Authentication Method: Select an Authentication method for the wireless network.
• Password: Enter a password for protecting your wireless network. Select "mask" to
hide the entry.
Radius Server
RADIUS (Remote Authentication Dial-In User Service) authenticates the local and remote
users on a network. e RADIUS server is identied by its IP address and UDP port
numbers for the dierent services it provides.
• IP: Enter the IP address of the RADIUS server.
• Port: Make sure that the port number RADIUS uses for authentication appears in the
Port text box.
• Shared Key: Enter the shared secret key for the RADIUS server.
6.1.2 Guests
Guest Network - 2.4G/5G
e guest network provides temporary visitors with internet connectivity via access to
separate SSIDs or networks without providing access to your private network.
Check the checkbox to enable the selected SSID broadcast and set the guest access
password and duration. Press "Apply" to save the settings and reboot the router.
24 25
English
ASRock X10 AC1300 IoT Router
6.1.3 WPS
WPS - 2.4G / WPS -5G
WPS (Wi-Fi Protected Setup) is a wireless security standard that allows you to connect
devices to a wireless network.
• WPS Function: Enable or disable the WPS function. e default is set to “ON”.
• WPS Method: Choose whether you want to push the WPS "Push button" on
the router or enter the "Client PIN code". e default is set to "Push button".
• PIN Code: Specify the PIN code by pressing "Start" to initiate WPS. Press the
WPS button on the router within two minutes.
• PIN Code Self: View the PIN Code of the router.
26 27
English
ASRock X10 AC1300 IoT Router
6.2 LAN Settings
The LAN IP screen allows you to modify the LAN, IPTV and VLAN settings of your
wireless router.
6.2.1 LAN
LAN Setting
• IP address: e default IP address is “192.168.1.1”. You can change the IP address of
the router.
• Subnet Mask: e default subnet mask is “255.255.255.0”.
DHCP
• DHCP Server: By default, the DHCP server is set to “ON”.
• Domain Name: Enter a domain name for the wireless router.
• Starting IP Address: You can specify the IP address range. Enter the starting IP
address for assigning IP addresses to connecting devices.
NOTE: is option is skipped when "Auto Setting" is selected.
• Ending IP Address: You can specify the IP address range. Enter the last IP address for
assigning IP addresses to connecting devices.
NOTE: is option is skipped when “Auto Setting” is selected.
• Lease Time: Specify in seconds when an assigned IP address will expire. Once it
26 27
English
ASRock X10 AC1300 IoT Router
reaches this time limit, the DHCP server will then assign a new IP address.
Manual IP Assignment
Select a client's MAC address from the drop down list. Assign a xed IP address for your
client device. Press under the Add/Delete column to add the client to the list.
Press "Apply" to save the settings and reboot the router.
6.2.2 IPTV
6.2.3 VLAN
28 29
English
ASRock X10 AC1300 IoT Router
6.3 WAN Settings
You can view or congure Wide Area Network (WAN) settings for the internet port. You
can set up a demilitarized zone (DMZ) server, change the maximum transmit unit (MTU)
size, and so on.
6.3.1 Internet
• Connection Type: Choose your internet service provider type. Options include:
Dynamic IP, PPPoE, PPPoA, L2TP, and PPTP.
• WAN IP: By default, the IP address is acquired from your ISP automatically.
• WAN DNS: By default, the DNS address is acquired from your ISP automatically.
• MTU Value: e Maximum Transmit Unit (MTU) denes the largest size of packets
that an interface can transmit without the need to fragment. Change the MTU value
only when it is necessary for your ISP connection.
• MAC Clone: e Router can use a MAC (Media Access Control) address that you
dene as its own. is is oen used when an internet provider only authorizes one
MAC address to access the internet.
Press "Apply" to save the settings and reboot the router.
28 29
English
ASRock X10 AC1300 IoT Router
6.3.2 Port Trigger
Some internet applications use alternate ports to communicate between the server and
LAN host. When you want to use these applications, enter the triggering (outgoing) port
and alternate incoming port in the port triggering table. en the router will forward the
incoming packets to the specied LAN host.
• Service: Enable Port Trigger and add a service.
• Trigger Port: Enter the port number for the service.
• Incoming Port: Enter the starting and ending port numbers of the trigger port range.
• TCP/UDP: Choose the protocol.
• : Add a service.
6.3.3 Port Forwarding
You may use this function to establish a web server or FTP server via an IP gateway. Make
sure that you enter a valid IP address. (You may need to establish a static IP address in
order to properly run an internet server.) For added security, internet users will be able
to communicate with the server, but they will not actually be connected. e packets will
simply be forwarded through the router.
• Service: Enable Port Forwarding and add a service.
• Port Range: Enter the port range.
• Local IP: Enter the LAN IP address of the server that you want the internet users to
access.
30 31
English
ASRock X10 AC1300 IoT Router
• Local Port: Enter a specic port to receive forwarded packets.
• TCP/UDP: Choose the required protocol.
• : Add a service.
6.3.4 DMZ
e router is programmed to recognize some of the applications and to work correctly
with them, but other applications might not function well. In some cases, one local
computer can run the application correctly if the IP address for that computer is entered
as the default DMZ server. Using DMZ (Demilitarized Zone) can eliminate the need to
specify many individual port forwarding rules. However, by exposing all the ports on the
local device, the local device may become more susceptible to attacks.
WARNING:
DMZ servers pose a security risk. A computer designed as the default DMZ server loses
much of the protection of the firewall and is exposed to exploits from the internet. If
compromised, the DMZ server computer can be used to attack other computers on your
networks.
• Host IP Address: Enable DMZ and select an IP address.
30 31
English
ASRock X10 AC1300 IoT Router
6.3.5 DDNS
Setting up DDNS allows you to access the router from outside your network through the
DDNS service.
• Service Provider: Enable DDNS and choose a service provider for DDNS.
• Host Name: Enter the host name.
• User Name: Enter the user name for your account.
• Password: Enter the password for your DDNS account.
Press "Apply" to save the settings and reboot the router.
6.3.6 Remote Management
Setting
32 33
English
ASRock X10 AC1300 IoT Router
6.4 IPv6 Settings
You can view or congure
6.5 QoS Settings
QoS
Add Gaming Boost web page.
• Gaming Boost: Enable or disable the Gaming Boost.
Bandwidth
e router supports Gaming Boost natively, which identies and intelligently
manages your internet trac. Allocating more bandwidth for your online games
or video game consoles automatically, so that gamers may have more stable and
32 33
English
ASRock X10 AC1300 IoT Router
smoother gameplay. Please set the correct bandwidth to ensure the best gaming and
streaming quality.
1. Press "Speed Test" to nd out your actual uplink and downlink speed.
2. Enter the values of your uplink and downlink.
NOTE: For reaching the optimal performance, please connect the client and router through a network cable.
Priority
e table lists the devices connected to your router. Press "Refresh Status" to get the
latest information.
Select the priority of the connected devices to allocate the bandwidth from the drop
down list.
6.5 Parental Control
Parental Control allows you to control the internet access time, by setting the time limit
for a client’s network usage.
• Enable Parental Control: The default is "OFF". Switch the button to enable the
service.
34 35
English
ASRock X10 AC1300 IoT Router
• Client Information: Select the client whose network usage you want to control.
• Schedule: Set up the allowed time limit in time management table. Press to open
up a time management schedule and deselect the time allowed to be access the
network. e green dots mean the network will be accessible. e gray dots
mean the network will not be accessible.
• : Add or delete the client’s prole.
34 35
English
ASRock X10 AC1300 IoT Router
6.6 Firewall
e router provides a rewall for your network.
Firewall
• Firewall: Enable or disable the rewall.
• Ping Block: Enable or disable the ICMP ping block.
• DoS Protection: Protect your network from DoS (Denial of Service) attacks though
this may aect your router’s performance.
• Port Scan Block: Protect your network from port scan attacks.
Access Block List
You can deny certain devices from connecting to the internet if necessary.
1. Select the devices from the drop down list.
2. Press to add it into the list.
Press "Apply" to save the settings and reboot the router.
6.7 USB Application
e USB Application function provides the information of USB storage status and USB
printer status, and allows you to congure USB storage server, media server, and download
agent.
Insert a USB storage device, such as a ash driver or external hard drive to the USB port on
the back of the router. e computer must be connected to the router to access the storage
36 37
English
ASRock X10 AC1300 IoT Router
device. You may also want to map the network drive so it shows up as a standard drive on
your computer for easier access.
USB Storage Status
Displays the information of the connected device(s). Press to remove the USB device(s)
safely. Press "Refresh Status" to update the status.
USB Printer Status
Displays the information of the connected device(s). Press "Refresh Status" to update the
status.
USB Storage Server
Enable or disable the USB storage server.
• Account: Specify the account to access the USB storage server.
• Password: Specify the password to access the USB storage server.
Media Server
• Media Server Name: Enable the media server and specify the media server name.
36 37
English
ASRock X10 AC1300 IoT Router
6.8 Administration
6.8.1 Router Status
Here displays the router status and usage information.
1. Select Advanced > Administration > Router Status.
2. View the information.
6.8.2 Operation Mode
e operation mode page allows you to select the appropriate mode for your
network.
To set up the operation mode.
1. Select Advanced > Administration > Operation Mode.
2. Select any of these operation modes:
• Wireless router mode (Default): In wireless router mode, the router connects
to the internet and provides internet access to available devices on its own
local network.
• Repeater mode: In wireless repeater mode, the repeater will extend your
current wireless signal for smart devices.
38 39
English
ASRock X10 AC1300 IoT Router
6.8.3 Set Password
Lets you change the default password and user name to log in the router. is
password is not the one that you use for wireless access.
To set a new password and user name:
1. Select Administration > Set Password.
2. Router Login Name: Type the new log-in name for your router. e default is “admin”.
3. Old Password: Display the default password or type the previously set
password.
4. Set Password: Type the new password for your router.
5. Repeat New Password: Type the new password for your router again to double
check.
6. Press “Apply” to change the setting. Reboot the router for the settings to take
eect.
6.8.4 Firmware Upgrade
e router rmware is stored in ash memory. You can check to see if new rmware
is available and update your product.
38 39
English
ASRock X10 AC1300 IoT Router
To check for new rmware and update your router:
1. Select Administration > Firmware Upgrade.
2. Press “Check & Update”. If there is newer rmware available on the server, you
will see a message: “New rmware available and download process initiating”.
3. Press “OK”. Start to download the new rmware.
WARNING: To avoid the risk of corrupting the rmware, do not turn o the router
and interrupt the upgrade.
Manual Update
To manually update the new rmware for your router, press "Select Files" and then
"Select and Update".
6.8.5 Self Healing
e self-healing feature is a way to have the router automatically rebooted itself.
Select Advanced > Administration > Self Healing.
• Self Healing: Press the button to ON/OFF the function.
• Time Schedule: Press "Edit" to set a time for the self-healing. In the table, press
40 41
English
ASRock X10 AC1300 IoT Router
to select the time to reboot the router automatically.
6.8.6 Restore / Save
e conguration settings of the router are stored within the router in a
conguration le. You can export this le to your computer, restore it, or reset it to
the factory default settings.
Restore to Factory Default Setting
You can erase the current conguration and restore the default settings.
1. Select Advanced > Administration > Restore/Save.
2. Press the Restore button.
e factory default settings are restored. e user name is "admin", the password is
"admin", and the LAN IP address is 192.168.1.1.
You can also press and hold the "Reset" button for more than 10 seconds on the rear
of the router to restore the default settings.
LED Indicator Variations:
Exporting Router Congurations
1. Select Advanced > Administration > Restore/Save.
2. Press the Export button.
A copy of the current setting is saved in the location you specied.
40 41
English
ASRock X10 AC1300 IoT Router
Importing Router Conguration
1. Select Advanced > Administration > Restore/Save.
2. Press the Select Files button.
3. Press the Upload button.
e le is uploaded to the router and the router will reboot.
6.8.7 System Log
e log is a detailed record of the websites you access or attempted to access and
other router actions.
1. Select Advanced > Administration > System Log.
2. You can view the history of your network activities.
Press "Save" to save a copy of the event log to your device. Press "Restore" to clear
event logs.
42 43
English
ASRock X10 AC1300 IoT Router
Chapter 7 Troubleshooting
is section describes tips for troubleshooting some common problems.
7.1 How to Restart Your Network
When you need to restart your network, follow this sequence:
1. Turn o and unplug the modem.
2. Turn o the router
3. Plug in the modem and turn it on.
4. Turn on the router and wait.
7.2 Wireless Settings
Make sure that the wireless settings on the computer and router match exactly. e
wireless network name (SSID) and wireless security settings of the router and wireless
computer must match exactly.
If you set up an access list in the Advanced Wireless Settings screen, you must add each
wireless computer’s MAC address to the router’s access list.
7.3 Standard LED Behavior When the Router Is Powered On
Aer you turn on power to the router, the following sequence of events occurs:
Flashing Dark
Blue
Solid Dark Blue Flashing Yellow Solid Yellow Flashing Light
Blue
Solid Light Blue
Starting up
Connected to the
internet
ADSL modem not
detected / WPS
connection failed
Modem detected
but no internet
connection
Connecting to
a WPS-enabled
device
WPS connected
42 43
English
ASRock X10 AC1300 IoT Router
7.4 Unable Log In to the Router
If you cannot log in to the router from a computer or wireless devices on your local
network, please check the following:
• If you use an Ethernet connected computer, check if the Ethernet connection between
the computer and the router is working.
• If you use a wireless connected computer or wireless devices, check if the wireless
SSID connection between computer and wireless devices are working.
• If your router’s IP address was changed and you do not know the current IP address,
clear the router’s conguration to factory default. is sets the router’s IP address to
192.168.1.1.
• Make sure that you are using the correct login information. e default user name is
"admin", and the default password is "admin". Make sure that Caps Lock is o when
you enter this information.
7.5 Unable Access the Internet
If you can access your router but not the internet, check to see if the router can obtain an
IP address from your internet service provider (ISP). Unless your ISP provides a xed IP
address, your router requests an IP address from the ISP.
To check the WAN IP address:
1. Launch a web browser from a computer or wireless device that is connected to the
network.
2. Select an external site such as www.asrock.com.tw.
3. Type asrock.router or 192.168.1.1. A login screen should appear.
4. Enter the router’s user name and password. e default user name is "admin", and the
default password is "admin".
5. Press ADVANCED > Next button. e ADVANCED home screen should appear.
6. Check if a valid IP address is shown for the internet port. If 0.0.0.0 is shown, it means
your router has not obtained an IP address from your ISP. If your router cannot
obtain an IP address from the ISP, you may need to force your cable or DSL modem
to recognize your new router by restarting your network.
If your router is still unable to obtain an IP address from the ISP, the problem might be one
of the following:
• Your internet service provider (ISP) might require a login program.
• If your ISP requires a login, the login name and password might be set incorrectly.
• Your ISP might check for your computer’s host name.
• If your ISP allows only one Ethernet MAC address to connect to internet and checks
44 45
English
ASRock X10 AC1300 IoT Router
for your computer’s MAC address, do one of the following:
- Inform your ISP that you bought a new network device and ask them to use the
router’s MAC address.
- Congure your router to clone your computer’s MAC address.
7.6 Wireless Connectivity
If you are having trouble to connect wireless to the router, try to isolate the problem:
Does the wireless device or computer that you are using nd your wireless network?
• If you disable the router’s SSID broadcast, then your wireless network will be
hidden and will not be displayed in your wireless client’s scanning list.
• If not, check the dashboard Wi-Fi on/o button from the Web GUI. If it is
o, you can press the Wi-Fi on/o button on the dashboard to turn the router
wireless radios back on.
If your wireless device nds your network but the signal strength is weak, check
these conditions:
• Is your router too far from your computer or too close? Place your computer
near the router but at least 6 feet away and see whether the signal strength
improves.
7.7 Restore to the factory default settings
You can return the router to its factory settings. Use the end of a paper clip or a
similar object to press and hold the Reset button on the back of the router for at
least ten seconds.
Go to Advanced > Administration > Restore/Save, and press "Restore".
44 45
English
ASRock X10 AC1300 IoT Router
Appendix - Factory default settings
e router resets and returns to the factory conguration settings shown in the following
table.
Feature Default Behavior
Router Login
User Login URL 192.168.1.1 or ASRock.router
User Name admin
Login Password admin
Internet
Connection
WAN MAC Address Use default hardware address
WAN MTU Size 1436
Port Speed AutoSensing
Local Network
(LAN)
LAN IP 192.168.1.1
Subnet Mask 255.255.255.0
DHCP Server Enable
DHCP Range 192.168.1.2 to 192.168.1.254
DHCP Starting IP
Address
192.168.1.2
DHCP Ending IP
Address
192.168.1.254
Wireless
Wireless Radio Enable
Wireless Name See router label
Security WPA2-AES
Broadcast SSID Enable
Country/Region Varies by region
RF Channel Auto for 2.4GHz/5GHz
Operating Mode Router Mode:
Up to 800Mbps at 2.4GHz, 1733Mps at 5GHz

Navigation menu
