ASSALOY Global Solutions Norway AS 681402004 Bluetooth Low Energy Module User Manual

ASSA ABLOY Hospitality AS Bluetooth Low Energy Module

User Manual

Title
Installation of BLE Module 681402004
Category
Installation of BLE Module
Type
Author
Revision
Date
Page (of)
Susan Jansson
8
20150302
1 (13)
ASSA ABLOY HOSPITALTY AS.
ASSA ABLOY
Installation of BLE
Module 681402004
Title
Installation of BLE Module 681402004
Category
Installation of BLE Module
Type
Author
Revision
Date
Page (of)
Susan Jansson
8
20150302
2 (13)
ASSA ABLOY HOSPITALTY AS.
Copyrights
The information in this document is subject to change at the sole
discretion of
ASSA ABLOY Hospitality AS without notice.
Any use, operation or repair in contravention of this document is at your
own risk.
ASSA ABLOY Hospitality AS does not assume any responsibility for
incidental or consequential damages arising from the use of this manual.
All information and drawings in this document are the property of ASSA
ABLOY Hospitality AS.
Unauthorized use and reproduction is prohibited.
VingCard is a registered trademark of ASSA ABLOY Hospitality AS.
Title
Installation of BLE Module 681402004
Category
Installation of BLE Module
Type
Author
Revision
Date
Page (of)
Susan Jansson
8
20150302
3 (13)
ASSA ABLOY HOSPITALTY AS.
Installation of BLE Module 681402004
BLE Module 681402004 is only used in Assa Abloy Hospitality AS products. The
BLE Module 681402004 is factory mounted in the Assa Abloy Hospitality AS
products which in this document are referred to as “The Host System”.
In addition, the BLE Module can be installed on Assa Abloy Hospitality AS existing
installed products at our customer’s locations. These updates are solely carried
out by Assa Abloy Hospitality Engineers.
The customer or end user of the BLE Module have no contact with the Module as
it is unseen to the end user so there are no special precautions the customer
needs to take in terms of installing or usage of BLE Module 681402004.
Each manual for the different Assa Abloy Hospitality AS end products, in which
the BLE module 681402004 is installed, will contain the FCC and Industry
Canada statements given below.
FCC statements
FCC (Federal Communications Commission) statements
This device comply with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1) The BLE Module may not cause harmful interference, and
2) The BLE Module must accept any interference received, including
interference that may cause undesired operation.
This device complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. The antenna used for this transmitter must be
installed to provide a separation distance of at least 20 cm from all persons and
must not be co-located or operating in conjunction with any other antenna or
transmitter.
Important Note: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation.
This transmitter must not be co-located or operating in conjunction with any
other antennas or transmitters.
Title
Installation of BLE Module 681402004
Category
Installation of BLE Module
Type
Author
Revision
Date
Page (of)
Susan Jansson
8
20150302
4 (13)
ASSA ABLOY HOSPITALTY AS.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
The concerned end product must be labeled to say
“Contains FCC ID: Y7V-681402004”
Industry Canada statements
This device comply with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
1) The BLE Module may not cause interference, and
2) The BLE Module must accept any interference, including interference that
may cause undesired operation of the device.
Important note: To comply with Industry Canada RF radiation exposure limits
for general population, the antennas used for these transmitters are exempted
from Routine Evaluation Limits – SAR Evaluation in accordance with RSS-102
section 2.5.1.
The concerned end product must be labeled to say
“Contains IC: 9514A-68102004”
Déclarations d’Industry Canada
Cet équipement est conforme aux normes d’exemption de licence RSS d’Industry
Canada. Son utilisation est soumise aux deux conditions suivantes:
1) Le module BLE ne doit pas provoquer d’interférence, et
2) Le module BLE doit accepter toute interférence, y compris des
interférences susceptibles de provoquer un fonctionnement indésirable de
l’équipement.
Remarque importante : Pour respecter les limites d’exposition aux
radiofréquences d’Industry Canada pour le grand public, les antennes utilisées
pour ces émetteurs-transmetteurs sont exemptées des limites d’évaluation de
routine – évaluation SAR, conformément à la norme RSS-102 section 2.5.1.
Le produit final concerné doit porter une étiquette avec la mention:
“Contient IC: 9514A-68102004”
Title
Installation of BLE Module 681402004
Category
Installation of BLE Module
Type
Author
Revision
Date
Page (of)
Susan Jansson
8
20150302
5 (13)
ASSA ABLOY HOSPITALTY AS.

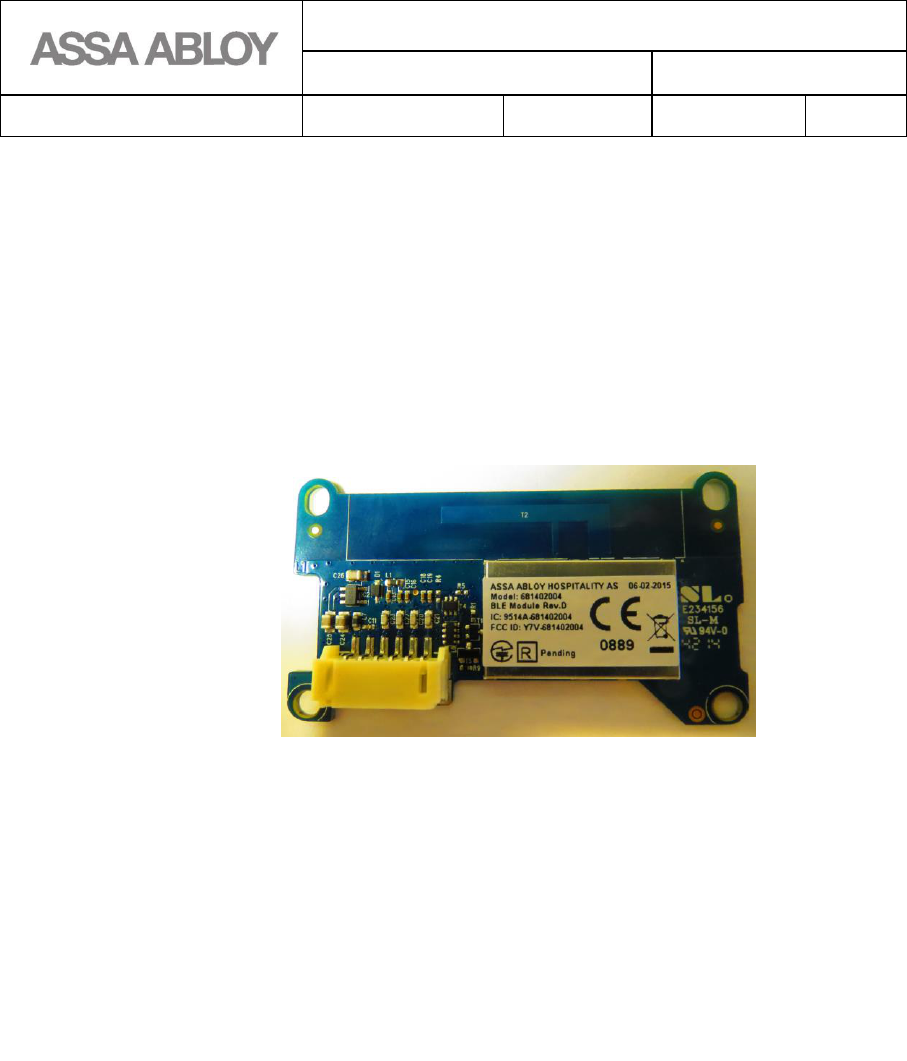

BLE Module 681402004 Installation
Since the BLE Module 681402004 is not and will not be supplied to the end user
on its own and the BLE Module 681402004 will only be installed and or replaced
on the Host Systems by Assa Abloy Hospitality AS Engineers; only a quick
generic installation guide of the BLE Module 681402004 to the Host System is
given.
Following parts are needed to connect BLE Module to the Host System
ITEM
NO.
PART
NUMBER
DESCRIPTION
QTY.
1
683081114
Y-Cable Zigbee Endnode
Classic Assy.
1
2
4825976
Cable Sleeve
1
3
4825793
Housing BLE
1
4
4825796
Shield BLE
1
5
4825943
Screw Standoff
2
6
681402004
BLE Module
1
7
4826006
Host System label with information of installed BLE
1
Title
Installation of BLE Module 681402004
Category
Installation of BLE Module
Type
Author
Revision
Date
Page (of)
Susan Jansson
8
20150302
6 (13)
ASSA ABLOY HOSPITALTY AS.

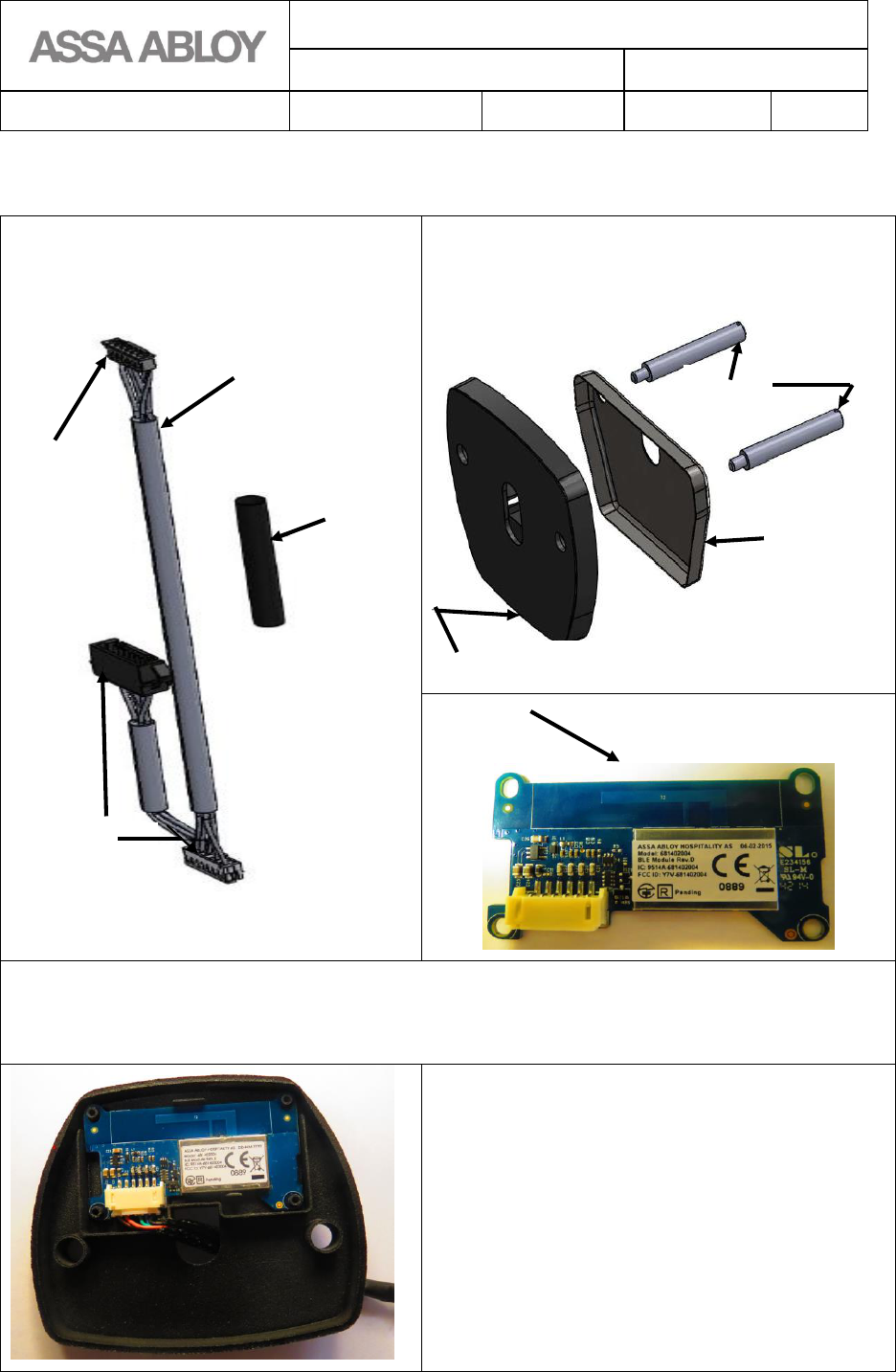

Installation Procedure
Y-Cable Zigbee Endnode Classic
Assy. and Cable Sleeve
BLE Housing, Shield BLE, & Screw
Standoff
6) BLE Module
Insert the Cable Sleeve on the side of Y-Cable Zigbee Endnode Classic Assy. cable
to be connected to the “BLE Module”. Thread the cable via the Shield BLE and
Housing BLE; connect the Y-Cable to the BLE Module. Mount the BLE Module in
the Housing, and cover it with the Shield. Mount the Screw Standoff.
2) Cable
Sleeve
1) Y-Cable Zigbee
Endnode
3) Housing BLE
4) Shield
BLE
5) Screw
Standoff
Interfaces to
the Host
System
Interface
to BLE
Module
Title
Installation of BLE Module 681402004
Category
Installation of BLE Module
Type
Author
Revision
Date
Page (of)
Susan Jansson
8
20150302
7 (13)
ASSA ABLOY HOSPITALTY AS.

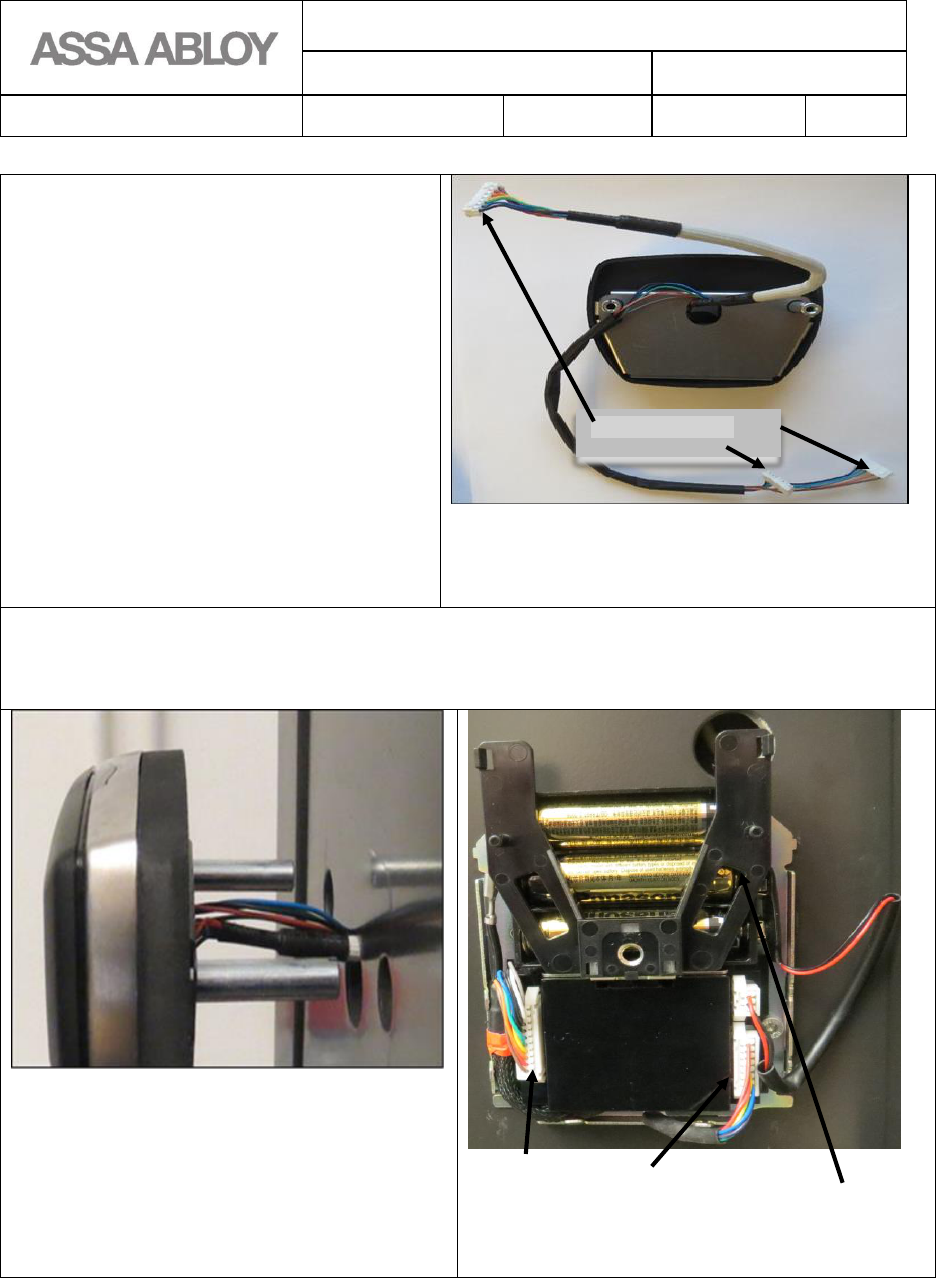

A mounted BLE Module in the
housing and Y-Cable connected
BLE Module with Y-Cable connected and
Screw Standoff mounted, covered by the
BLE shield.
Thread the rest of Y-cable which will go to the Host System through the door,
alien the Screw standoff, connected the Y-cable to the appropriate connectors on
the Host system.
To Host System
Y-Cable connected
to the Host System
Battery pack 4.5V
Title
Installation of BLE Module 681402004
Category
Installation of BLE Module
Type
Author
Revision
Date
Page (of)
Susan Jansson
8
20150302
8 (13)
ASSA ABLOY HOSPITALTY AS.

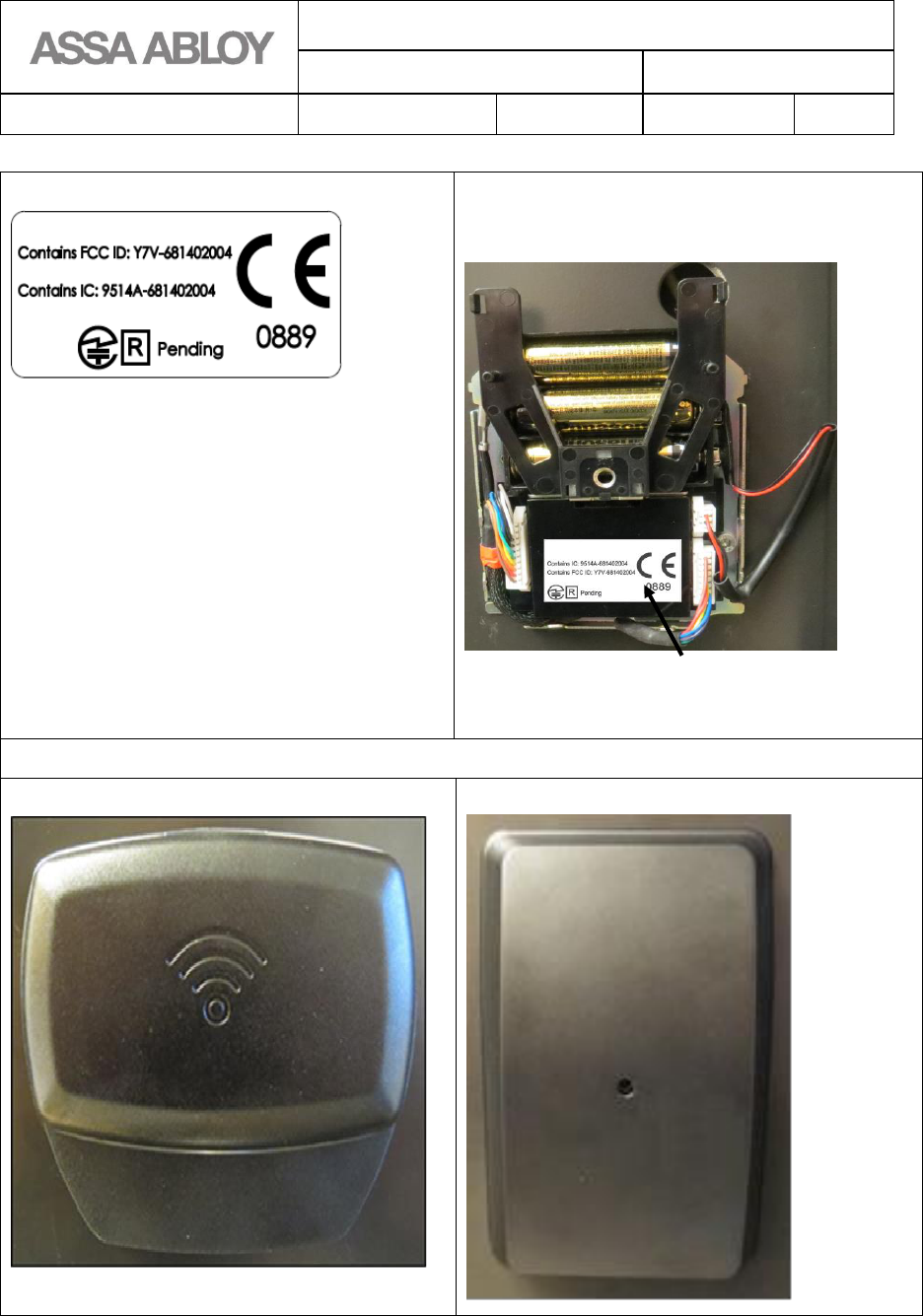

7)Host system label concerning BLE
The Host System label indicating the
presence of the BLE module in the
system should be attached as indicated:

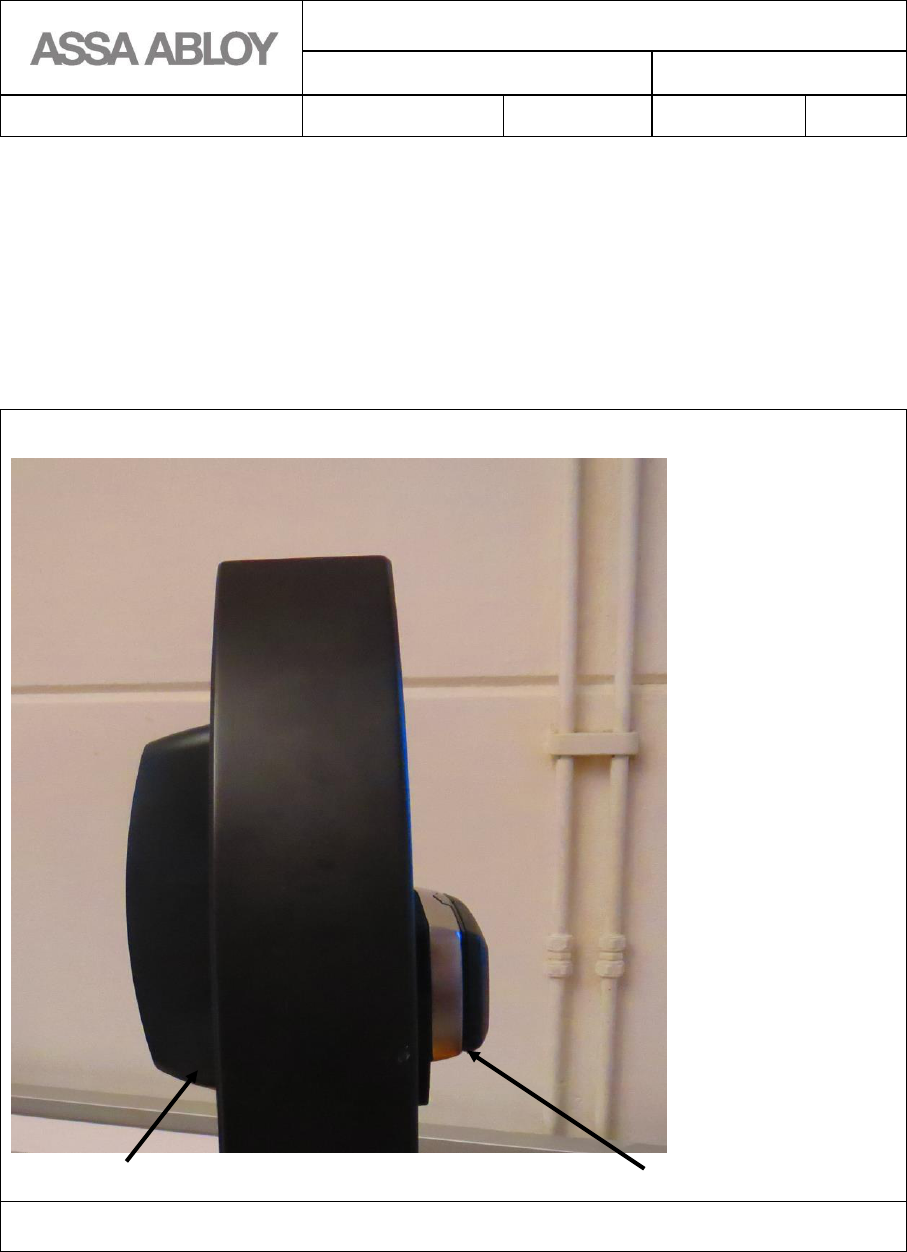

Installed the Back Host System cover
Front Host system
Back Host System Cover
Host Label indicating the presence of BLE
module with FCC and IC Identification
Title
Installation of BLE Module 681402004
Category
Installation of BLE Module
Type
Author
Revision
Date
Page (of)
Susan Jansson
8
20150302
9 (13)
ASSA ABLOY HOSPITALTY AS.
BLE Module Replacing Procedure
The only tool need is Screwdriver Torx T20S for removing the screws on the Host
System.
Remove the Host System Cover.
Disconnect the Y-Cable connectors (coming
from the BLE module) from the Host System,
and remove the Host System screws
connected to BLE module item 5: Screw
standoff.
Y-Cable connected
to the Host System
Screws connected to BLE Module
Screw standoff.
Title
Installation of BLE Module 681402004
Category
Installation of BLE Module
Type
Author
Revision
Date
Page (of)
Susan Jansson
8
20150302
10 (13)
ASSA ABLOY HOSPITALTY AS.

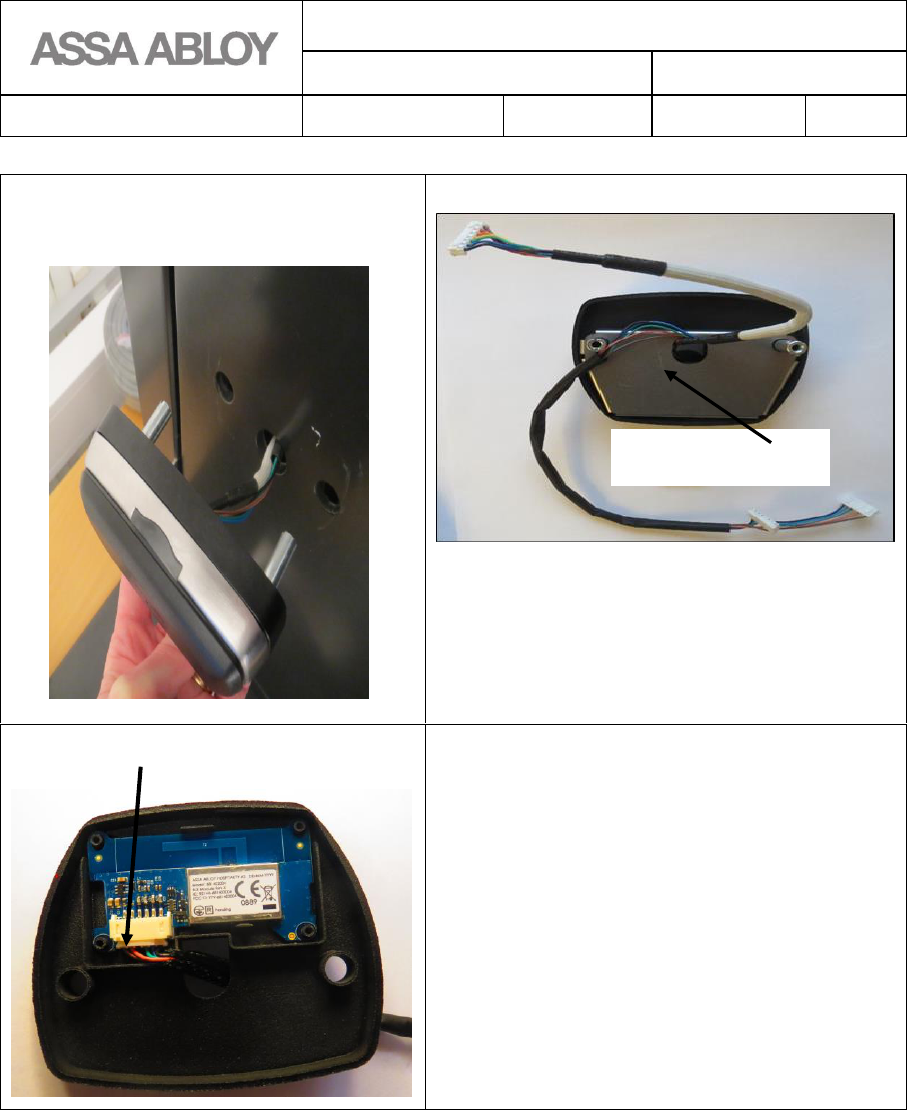

From the front side of the Host
system, pull out the unit where BLE
module is mounted.
Unmount the BLE shield.
Disconnect the Y-cable from the
BLE Module
Remove the BLE Module from the BLE
housing and replace it.
Unmount the BLE
shield
Title
Installation of BLE Module 681402004
Category
Installation of BLE Module
Type
Author
Revision
Date
Page (of)
Susan Jansson
8
20150302
11 (13)
ASSA ABLOY HOSPITALTY AS.

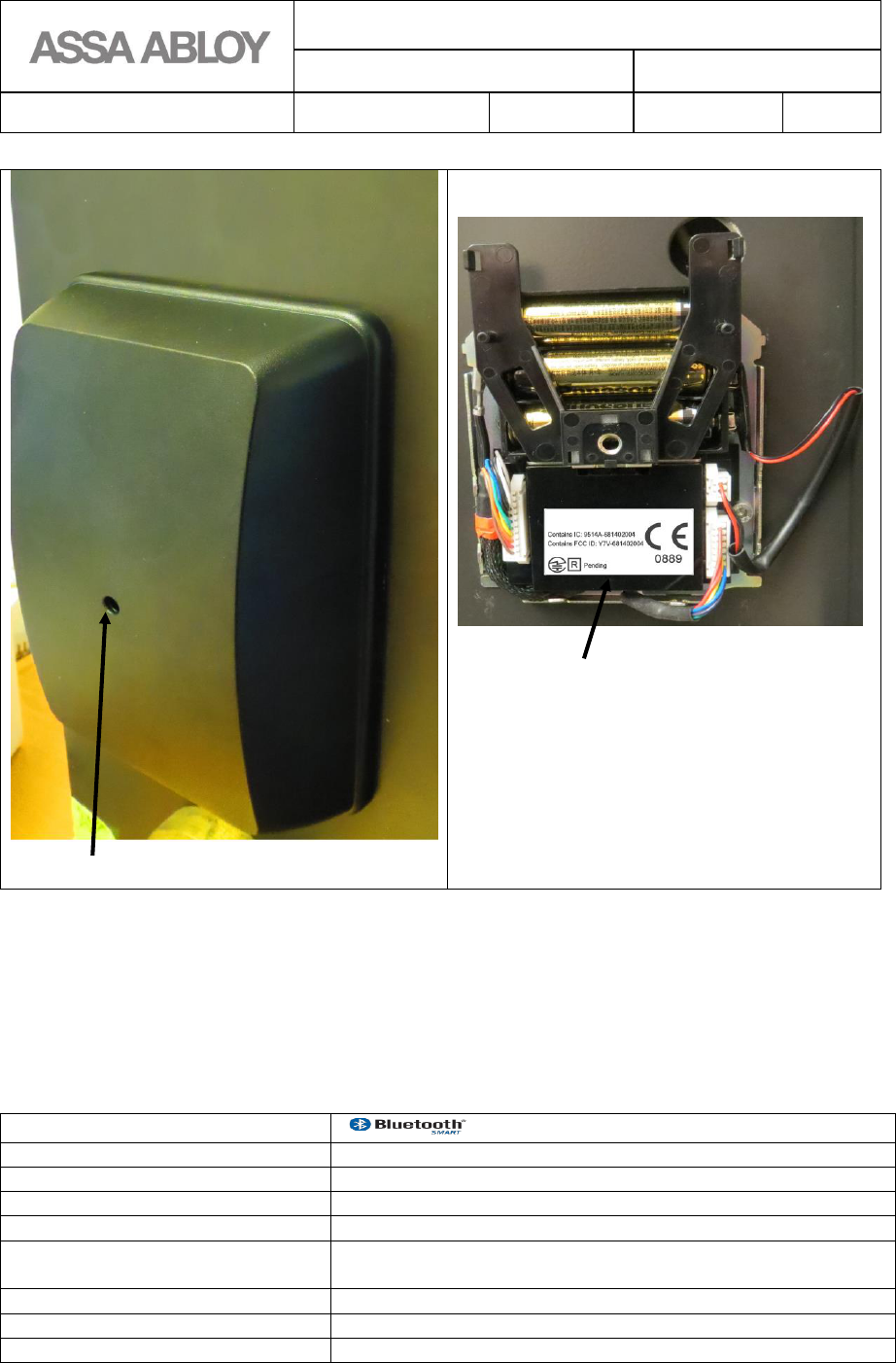

Viewing FCC an IC information label on the Host
System
All Host Systems where a BLE Module is installed; has an attached label with FCC and IC
identities.
To gain access to this label once the module has been installed in the Host System, the
only tool need is a Torx T20s screwdriver, which is readily available from any
hardware store. Following procedure should be followed to gain access to the label:
The Host System
Use Torx T20s screwdriver and open the Host System Back cover to access the label
Back Host System
Front Host System
Title
Installation of BLE Module 681402004
Category
Installation of BLE Module
Type
Author
Revision
Date
Page (of)
Susan Jansson
8
20150302
12 (13)
ASSA ABLOY HOSPITALTY AS.
After opening the Back Cover, the Label
can be accessed
BLE Module 681402004 Operation
BLE Module 681402004 operates only on Assa Abloy Hospitality Host Systems, and is
solely installed, maintained, and debugged by Assa Abloy Hospitality Engineers.
BLE Module Specifications
Radio technologies utilized
BLE [Bluetooth low energy]
Frequency ranges of operation
2.400 GHz-2.4835 GHz
Channel plan
40 2-MHz channels
Transmitter antenna gain
3.5dBi, Impedance 50 ohm
Antenna Type
Inverted F-antenna (internal PCB)
Maximum expected conducted
power
2.51mW
Operating Temperature
-10O C to +50O C
Operating humidity
10% to 90% non-condensed relative humidity
Power supply requirements
+6VDC -5% - +50%
Open with Torx T20s screwdriver
Label on the Host with following statements:
Contains FCC ID: Y7V-681402004
Contains IC: 9514A-68102004
Title
Installation of BLE Module 681402004
Category
Installation of BLE Module
Type
Author
Revision
Date
Page (of)
Susan Jansson
8
20150302
13 (13)
ASSA ABLOY HOSPITALTY AS.
Overview functionality of the BLE Module
When a BLE Module comes from the production, it will be in an ‘advertise’ mode that is
always searching for another BLE device.
In a hotel environment the BLE Module is set in ‘dormant’ mode and it will search for a
BLE device when the Host System tells it to go out and search.
When the BLE Module has found a BLE device and started the handshake, the
communication between the BLE Module and the BLE device starts, they share
information between them and the door opens, then the Host System tells the BLE
Module to go to sleep.
If the BLE Module doesn't find any device to do the handshake with, the Host System
tells it to go down to sleep and stays in sleep until the Host System tells it to start
searching for BLE devices.

Navigation menu
