Aperio® Hub
AH20/AH30
Installation Instructions
2
AH20/AH30 - FCC and Industry Canada Statements 3
AH20/AH30 - Placement of Communication Hub 4
AH20 (J100) - Connections 5-6
AH20 (J103) - Connections 7
AH20 - DIP Switch Configuration Table 8
AH30 (J100) - Connections 9
AH30 - DIP Switch Configuration Table 10
AH30 - RS485 Bus Connection 11
AH30 - RS485 Addressing 12-13
AH20/AH30 - Communication Hub LED Indication 14
AH20/AH30 - Technical Data 15
ETL marking
Recognized component
Conforms to ANSI/UL standard 294, ANSI/UL 60950-1
Certified to CAN/CSA standard C22.2 No. 60950-1
4002570
AH20/AH30 - Table of Contents
3
AH20/AH30 - FCC and Industry Canada Statements
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determi-
ned by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry
Canada. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux
appareils radio exempts de licence.L’exploitation est autorisée aux deux
conditions suivantes:
1. l’appareil ne doit pas produire de brouillage, et
2. l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si
le brouillage est susceptible d’en compromettre le fonctionnement.
The term “IC:” before the equipment certification number only signifies that the Indu-
stry Canada technical specifications were met.
Le terme “IC” devant le numéro de certification signifie seulement que les
spécifications techniques Industrie Canada ont été respectées.
FCC Caution: Any changes or modifications not expressly approved by the party respon-
sible for compliance could void the user’s authority to operate this equipment.
This radio transmitter (IC: 9504A-AH20R02) has been approved by Industry Canada to
operate with the antenna types listed below with the maximum permissible gain indi-
cated. Antenna types not included in this list, having a gain greater than the maximum
gain indicated for that type, are strictly prohibited for use with this device.
Antenna type: ASSA ABLOY AH-ANTENNA-1, max gain 2,15 dBi.
Le présent émetteur radio (IC: 9504A-AH20R02) a été approuvé par Industrie Canada
pour fonctionner avec les types d’antenne énumérés ci-dessous et ayant un gain
admissible maximal. Les types d’antenne non inclus dans cette liste, et dont le gain est
supérieur au gain maximal indiqué, sont strictement interdits pour l’exploitation de
l’émetteur.
D’antenne énumérés: ASSA ABLOY AH-ANTENNA-1, Gain maximal indiqué 2,15 dBi.
4
AH20/AH30 - Placement of Communication Hub

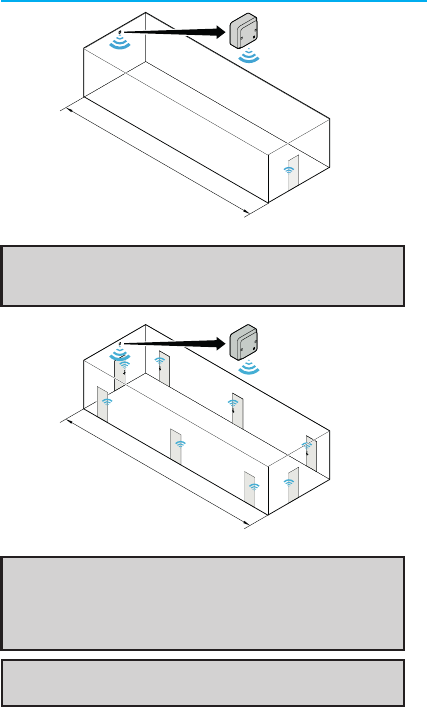

AH20/30 - Placement of the Hub, 1 door
Note: AH20/AH30 can be installed with an Aperio bottom cover or
Americas adaptor plate.
< 15 m / ~ 50 ft
AH30 (RS485 Hub) - Placement of the Hub, 1-8 doors
Note: Note: AH20/AH30 must be installed into a junction box ex
European 2-Gang, Aperio bottom cover or with Americas adaptor
plate to junction box. AH20/AH30 must be installed by qualified
and trained personal. Indoor installation only!
< 15 m / ~ 50 ft
Note: The Aperio Communication hubs are not rated to be
installed in the plenum space.
5

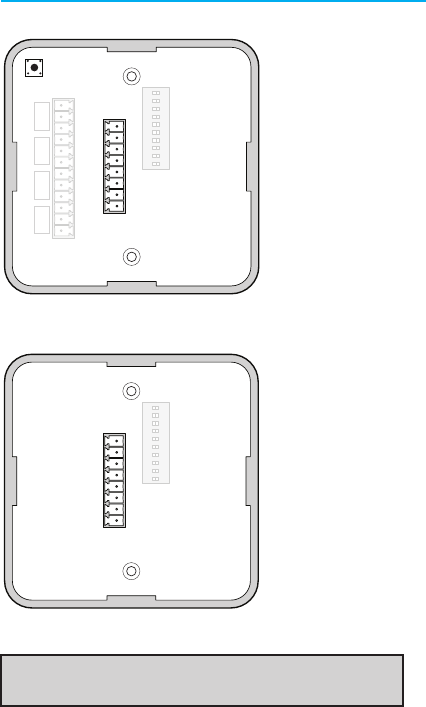

AH20 (J100) - Connections
AH20 Advanced Wiegand Connectors (J100)
AH20 Standard Wiegand Connectors (J100)
Note: The installation must comply with national wiring regulations.
A
B
D1
D0
RED
GREEN
GND
8-24V
J100
S100
S101
J103
NCL1
COM1
NOP1
NCL2
COM2
NOP2
NCL3
COM3
NOP3
NCL4
COM4
NOP4
12345678910
ON
K500 K501 K502 K503
A
B
D1
D0
RED
GREEN
GND
8-24V
J100
S100
S101
J103
NCL1
COM1
NOP1
NCL2
COM2
NOP2
NCL3
COM3
NOP3
NCL4
COM4
NOP4
12345678910
ON
K500 K501 K502 K503
6
Hub
ConneCtor DesCription
DATA 1 Wiegand Data 1 signal. Output from Communication Hub.
Used to transmit credentials.
DATA 0 Wiegand Data 0 signal. Output from Communication Hub.
Used to transmit credentials.
RED
Wiegand Red LED signal. Input to Communication Hub. Used
for access decision. Leave unconnected if DIP switch 1 is
selected “OFF”. Signal is active low.
GREEN
Wiegand Green LED signal. Input to Communication Hub.
Used for access decision. Signal is active low.
See DIP 1 for alternate instructions.
GND GND = Signal ground. Should be connected to EAC system
GND and power supply GND.
8-24 VDC Power supply input, 8-24 VDC, 2 W.
AH20 (J100) - Connections

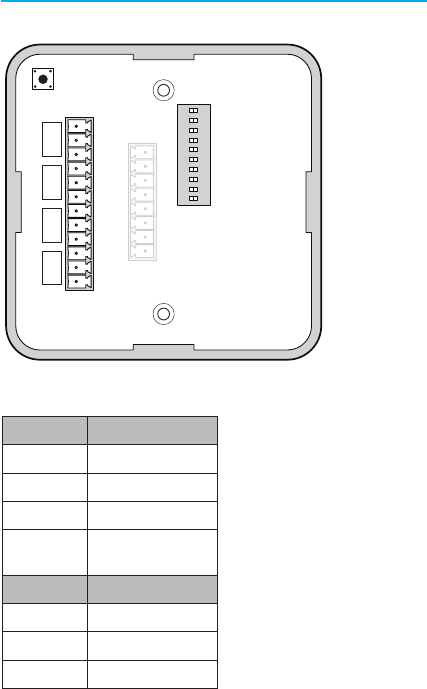

Communication Hub hardware version AH20 has four
Wiegand signals plus power supply. The purpose and
connection of these signals are described in the table
below.
AH20 Connectors (J100)
7
AH20 Advanced Wiegand (J103) - Connections
AH20 Advanced Wiegand Connectors (J103)
Relay max voltage: 30 VDC
Relay max current: 1 A
resistive load
On the AH20 advanced
wiegand communication
hub, four form C relays are
available. The purpose of the
four relays is to provide door
status information to the
EAC system.
relays DesCription
Relay 1/K500 DPS (Door Position)
Relay 2/K501 RX (Request to exit)
Relay 3/K502 Battery Alarm Output
Relay 4/K503 Tamper Alarm Output/
Lock Jammed
relay ContaCts DesCription
NCL Normally Closed
COM Common
NOP Normally Open
A
B
D1
D0
RED
GREEN
GND
8-24V
J100
S100
S101
J103
NCL1
COM1
NOP1
NCL2
COM2
NOP2
NCL3
COM3
NOP3
NCL4
COM4
NOP4
12345678910
ON
K500 K501 K502 K503
8

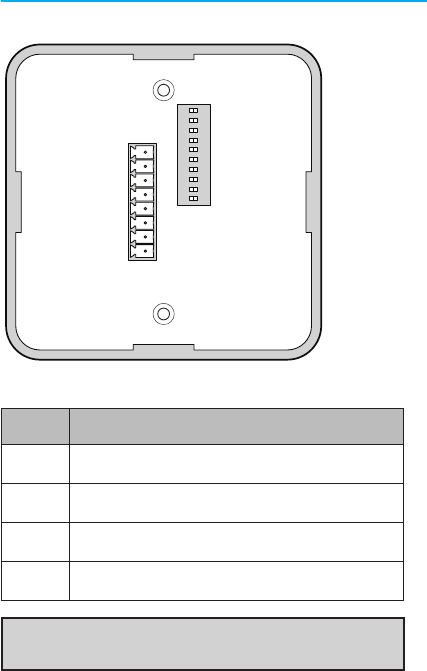

Dip
switCH
number
label DesCription
1 A0
Controls use of Red LED signal for access decision.
ON => Red LED is used.
OFF => Red LED is ignored.
2 A1 Set to OFF by default. Reserved for future use.
3 A2
Controls addition of parity bits if required.
ON => Addition of parity bits is enabled.
OFF => Addition of parity bits is disabled.
Credentials are transmitted as received.
4 A3
Controls byte order of transmitted credentials.
ON => The byte order is reversed on the Wiegand
interface compared to what is received from the
Aperio® lock.
OFF => The byte order is left as is.
5 A4
Used in “Pairing Mode”.
ON => Starts in pairing mode.
OFF => Normal use.
6-8 Not applicable (only used for AH30).
9 Not used.
10 INT/
EXT Internal/External Antenna Use, ON = Internal
AH20 - DIP Switch Configuration Table (S101)
9
AH30 (J100) - Connections
AH30 (J100) Connectors
Hub
ConneCtor DesCription
ARS485 Data A.
BRS485 Data B.
GND GND = Signal ground. Should be connected to EAC system
GND and power supply GND.
8-24 VDC Power supply input, 8-24 VDC, 1.1 W.
Note: The installation must comply with national wiring regulations.
A
B
D1
D0
RED
GREEN
GND
8-24V
J100
S100
S101
J103
NCL1
COM1
NOP1
NCL2
COM2
NOP2
NCL3
COM3
NOP3
NCL4
COM4
NOP4
12345678910
ON
K500 K501 K502 K503
10
Dip
switCH
number
label DesCription
1-5
A0-A4
Controls RS485 addressing BIT 0-BIT 4.
ON => Address bit set.
OFF => Address bit NOT set.
See AH30 - RS485 Addressing Reference on page 13.
6 DOWN
Controls use of RS485 pull down resistor.
ON => 620 Ohm pull down connected/enabled.
OFF => 620 Ohm pull down disconnected/disabled.
7 UP
Controls use of RS485 and pull up resistor.
ON =>620 Ohm pull up connected/enabled.
OFF => 620 Ohm pull up disconnected/disabled.
8 TERM
Controls use of termination resistor between RS485
A and RS485 B.
ON =>100 Ohm termination resistor connected/
enabled.
OFF => 100 Ohm termination resistor disconnected/
disabled.
9 Not used.
10 INT/EXT
Controls use of external antenna if required.
ON =>Selects use of internal antenna.
OFF => Selects use of external antenna.
AH30 - DIP Switch Configuration Table (S101)
11
Communication Hub Connections, examples
AH30 - RS485 Bus Connection
Examples of connection of multiple Communication Hubs
to a single RS-485 bus of an EAC system:
EAC system
A
B
A
Termination
enabled
B
A
B
A
B
Hub 1
DIP 6 OFF
DIP 7 OFF
DIP 8 OFF
Hub 2
DIP 6 OFF
DIP 7 OFF
DIP 8 OFF
Hub N
End of Bus
DIP 6 ON
DIP 7 ON
DIP 8 ON
EAC system
A
B
A
Termination
enabled
B
A
B
Hub 2
DIP 6 OFF
DIP 7 OFF
DIP 8 ON
Hub 1
DIP 6 ON
DIP 7 ON
DIP 8 ON
Note: The RS485 bus cable should be of type twisted pair. The
maximum cable length of 1000 meters should not be exceeded.
12
aDDress a0 a1 a2 a3 a4*
0 Pairing Active
1 ON
2 ON
3 ON ON
4 ON
5 ON ON
6 ON ON
7 ON ON ON
8 ON
9 ON ON
10 ON ON
11 ON ON ON
12 ON ON
13 ON ON ON
14 ON ON ON
15 ON ON ON ON
Address examples
AH30 - RS485 Addressing
13
AH30 - RS485 Addressing
aDDress a0 a1 a2 a3 a4*
16 ON
17 ON ON
18 ON ON
19 ON ON ON
20 ON ON
21 ON ON ON
22 ON ON ON
23 ON ON ON ON
24 ON ON
25 ON ON ON
26 ON ON ON
27 ON ON ON ON
28 ON ON ON
29 ON ON ON ON
30 ON ON ON ON
31 ON ON ON ON ON
Address examples
* = A4 is only supported on AH30 in 1 - 1 mode.
14
The Communication Hub has a single LED that supports an
optical scheme with red, green and yellow. The indication
scheme is described by the two figures below:
AH20/AH30 - Communication Hub LED Indication
GreenOnline
Green + One
Red Flash
Aperio® Lock
Offline
Green + Two
Red Flashes
EAC Offline
Green + Three
Red Flashes
Aperio® Lock and
EAC Offline
Yellow + Off,
Fast Flash
UHF
Communication
YellowPairing Active
Note: With the software tool Aperio® Programming Application
and a USB radio dongle, further system installation parameters
can be set.
15
Physical Dimensions 82 mm x 82 mm x 37 mm (H x W x T)
Power Supply 8-24 VDC
Power Rating 2 W (AH20 Advanced)
1.1 W (AH30 and AH20 Standard)
Radio Standard
IEEE 802.15.4 (2400 – 2483,5MHz)
16 channels (11-26)
AES 128 bit encryption
Receiver Sensitivity -100 dBm 20%PER
Wireless Transmit
Power
10 dBm/MHz. Peak value from average detector
according to EN ETSI 300 328 Maximum spectral
density.
Wireless Operating
Range
Indoors up to 15 m / ~ 50 ft depending upon
installed environment.
Internal Antenna Two cross polarized dipoles.
External Antenna
One reverse polarity SMA external antenna
connector. AH20/30 is certified and is only allowed
to be used with ASSA ABLOY external antenna
AH-ANTENNA-1.
Operating
Temperature 5 °C to 35 °C.
Humidity < 95 % non-condensing.
IP Classification IP20
Safety and
Emissions
FCC 47CFR (2016) Part 15 subpart B and subpart C
IC RSS-GEN issue 4 (2014)
IC RSS-247 issue 2 (2017)
EN ETSI 301 489-1 v2.1.1
EN ETSI 301 489-17 v3.1.1
EN ETSI 300 328 v2.1.1
EN 60950-1:2006/A11:2009/A1:2010/A12:2011/
A2:2013
UL 294-2010
C22.2
AH20/AH30 - Technical Data
16
www.assaabloy.com/aperio
ASSA ABLOY, the global leader
in door opening solutions
D000732543-F-US
