ASSALOY MODBLE9052 Bluetooth Smart Low Energy Radio Module User Manual 15 0143 Exhibit Cover
ASSA ABLOY Inc. Bluetooth Smart Low Energy Radio Module 15 0143 Exhibit Cover
ASSALOY >
Manual
5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598
Certification Exhibit
FCC ID: U4A-MODBLE9052
IC: 6982A-MODBLE9052
FCC Rule Part: 15.247
IC Radio Standards Specification: RSS-247
ACS Project Number: 15-0143
Manufacturer: Assa Abloy Inc.
Model: BLE9052
Manual
Assa Abloy: Sargent Manufacturing and Corbin Russwin Factory Installaon
Instrucons
Factory Installation Instructions for P 1\2\WI1\IP1 reader assemblies Models BIKMPS, BIMPS, BCKMP and
BCMP with Bluetooth Smart Model BLE9052 Assembly: 52-9052 RF Module.
FCC Specic Statement:
“NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable pro-
tection against harmful interference in a residential installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that inter-
ference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.”
General Statements (For all devices):
Warning: Changes or modications to this device not expressly approved by Assa Abloy could void the
user’s authority to operate the equipment.
Industry Canada Specic Statements:
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a
type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce po-
tential radio interference to other users, the antenna type and its gain should be so chosen that the
equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful com-
munication.
Conformément à la réglementation d’Industrie Canada, le présent émetteur radio peut fonctionner
avec une antenne d’un type et d’un gain maximal (ou inférieur) approuvé pour l’émetteur par Indus-
trie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l’intention des autres
utilisateurs, il faut choisir le type d’antenne et son gain de sorte que la puissance isotrope rayonnée
équivalente (p.i.r.e.) ne dépasse pas l’intensité nécessaire à l’établissement d’une communication
satisfaisante.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to
the following two conditions: (1) this device may not cause interference, and (2) this device must ac-
cept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio ex-
empts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit
pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique
subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
Copyright © 2015, ASSA ABLOY Inc. All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY Inc. is prohibited. BTMN2A • PAGE 1
09/15
Operation is subject to the following two conditions:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
RF Exposure
For Mobile Devices include the following:
“This equipment complies with FCC radiation exposure limits set forth for an uncontrolled envi-
ronment. This equipment should be installed and operated with minimum distance 20cm be-
tween the radiator and your body. This transmitter must not be co-located or operating in con-
junction with any other antenna or transmitter.”
Pour les usagers résidant au Canada (French):
L’exploitation est autorisée aux deux conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
Énoncé d’exposition à la radiation
Pour les appareils mobiles sont les suivants:
“Cet équipement est conforme aux limites d’exposition à la radiation RF
FCC prévues pour un environnement non contrôlé. Cet équipement doit être
installé et doit fonctionner avec une distance minimum de 20 centimètres des
utilisateurs et des personnes Environnantes. Cet émetteur ne doit pas être co-
localisées ou opérant en conjointement avec une autre antenne ou émetteur
IC Detachable Antenna Statement:
This radio transmitter Model BLE9052 has been approved by Industry Canada to operate with the antenna
types listed below with the maximum permissible gain and required antenna impedance for each antenna
type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated
for that type, are strictly prohibited for use with this device.
Le présent émetteur radio Model BLE9052 a été approuvé par Industrie Canada pour fonctionner
avec les types d’antenne énumérés ci-dessous et ayant un gain admissible maximal et l’impédance
requise pour chaque type d’antenne. Les types d’antenne non inclus dans cette liste, ou dont le gain
est supérieur au gain maximal indiqué, sont strictement interdits pour l’exploitation de l’émetteur.
The antenna type used on the Px BT LED Sounder board assembly: 52-9052 with antenna 52-4891 is of
type: Dipole
The antenna shall have an impedance of 50 ohms.
The measured GAIN for the antenna to be utilized in the transmitter Model BLE9052 can be found in the
table below:
Table: Model BLE9052 antenna 52-4891 Gain
P1\P2\WI1\IP1 Model BLE9052 Assembly: 52-9052 BLE READER
Frequency TRP (dBm) EIRP(dBm) Eciency TX Power (dBm) Antenna Gain (dBi)
2402 -6.85 -0.44 0.206538 -0.12 -0.32
2426 -6.05 0.49 0.248313 0.21 0.28
2480 -4.8 1.4 0.331131 0.35 1.05
Users in the USA and Canada English:
Copyright © 2015, ASSA ABLOY Inc. All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY Inc. is prohibited. BTMN2A • PAGE 2
09/15

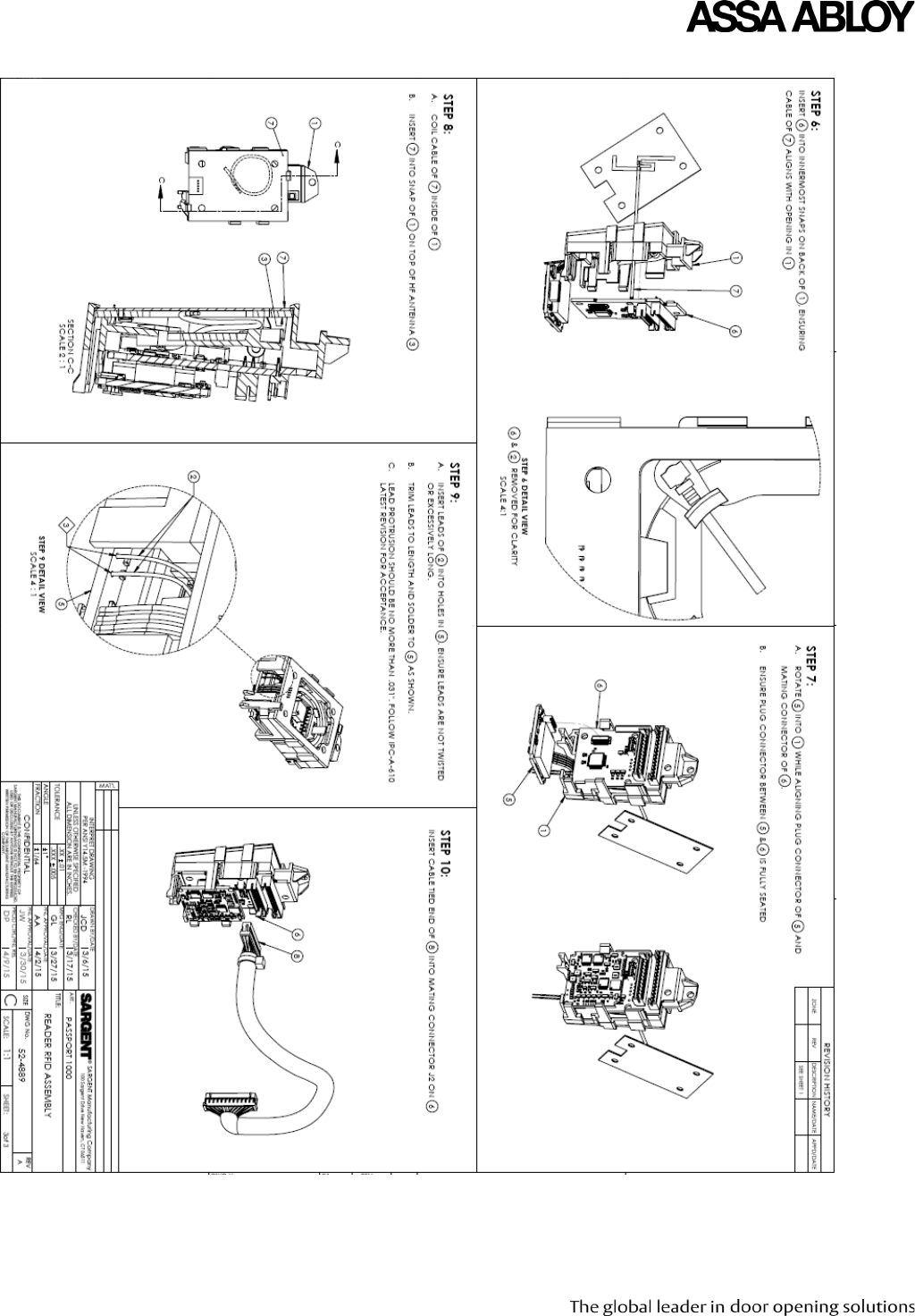

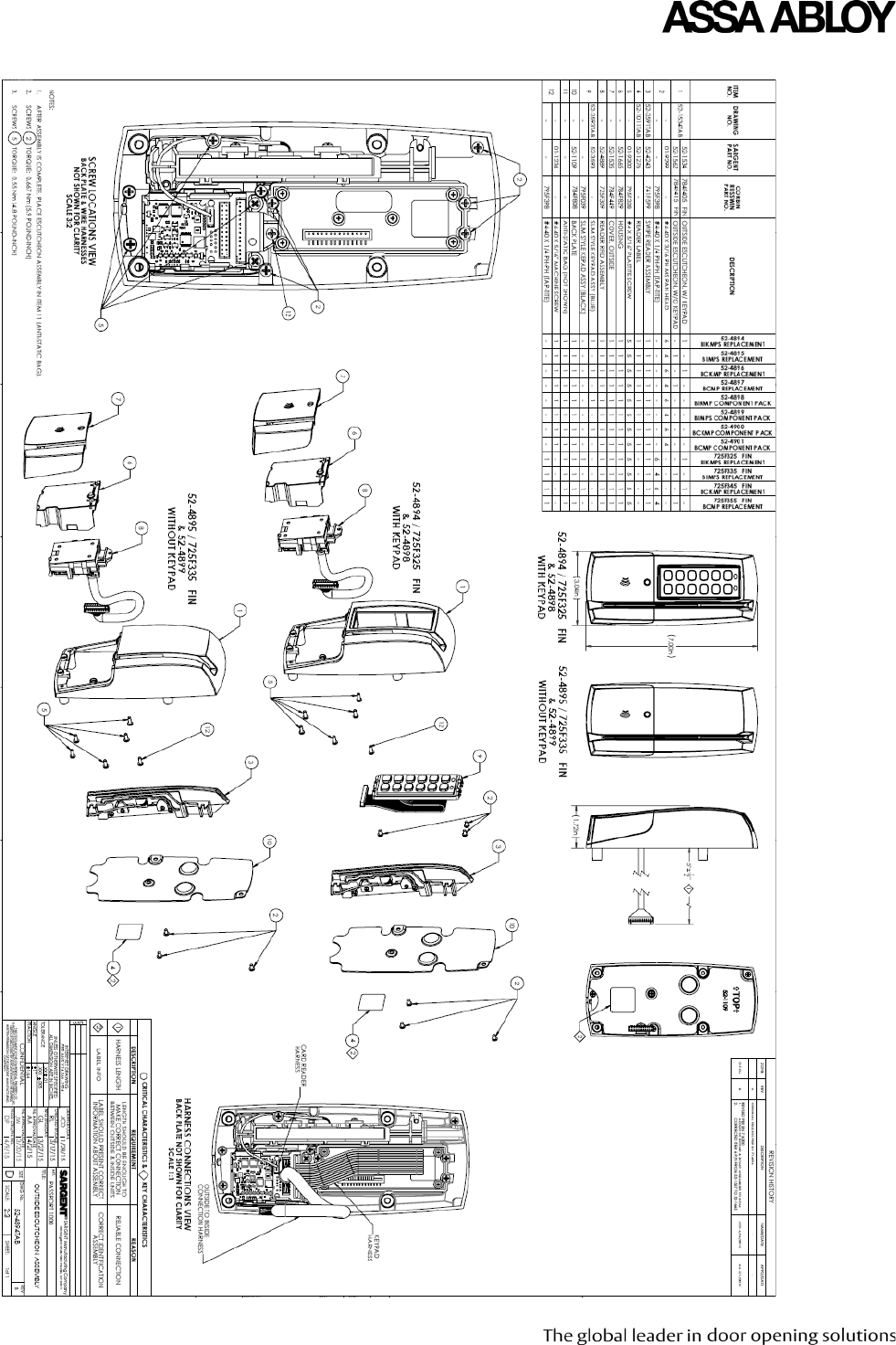

Assembly Drawings and Instrucons:
52-4894TAB
52-4889
Factory Conguraon Instrucons:
The assembly 52-9052-0000-000 P 1\2\WI1\IP1 BT shall be programmed at the manufacturing facility
with rmware. The rmware version to be programmed into the unit shall be V5.09, which applies an
adversing rate of 20ms and a RSSI tap sensivity of -55dB.
Field Conguraon Instrucons:
At the customer site, encrypon keys are loaded by a “Mobile Keys” cered technician using an
HID conguraon card. This installaon can be performed on mobile enabled readers only. Once the
“Mobile Keys” have been loaded interface with mobile devices can be achieved.
The HID BLE Conguraon applicaon is currently available on Android OS and provides addional
conguraon that can be used to congure tap sensivity and transmission power. Transmission power
is restricted to a maximum of 0dBm. The HID BLE Conguraon applicaon can be used to upgrade
the BLE devices rmware using the OTA technology. Field rmware upgrades can only be performed
through and HID cered technician that are authorized to use a controlled administraon card.
