5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598

Certification Exhibit

FCC ID: U4A-SCYPROX4

IC: 6982A-SCYPROX4

FCC Rule Part: 15.209, 15.249

IC Radio Standards Specification: RSS-210

ACS Project Number: 11-0282.W06

Manufacturer: Assa Abloy

Model: N2-PA/PK

User Manual

A8078B

08/11

permission of Sargent Manufacturing Company is prohibited.

Proﬁle Series

v.N2 with

Aperio™

Technology

Mortise Lock

Installation Instructions

v.N2

1-800-810-WIRE • www.sargentlock.com • A8078B

Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.

08/22/11

Table of Contents

Warning ...................................................................................2

General Description .................................................................3

Speciﬁcations ..........................................................................3

System Overview .....................................................................3

Parts Breakdown .....................................................................4

Lock Installation ......................................................................6

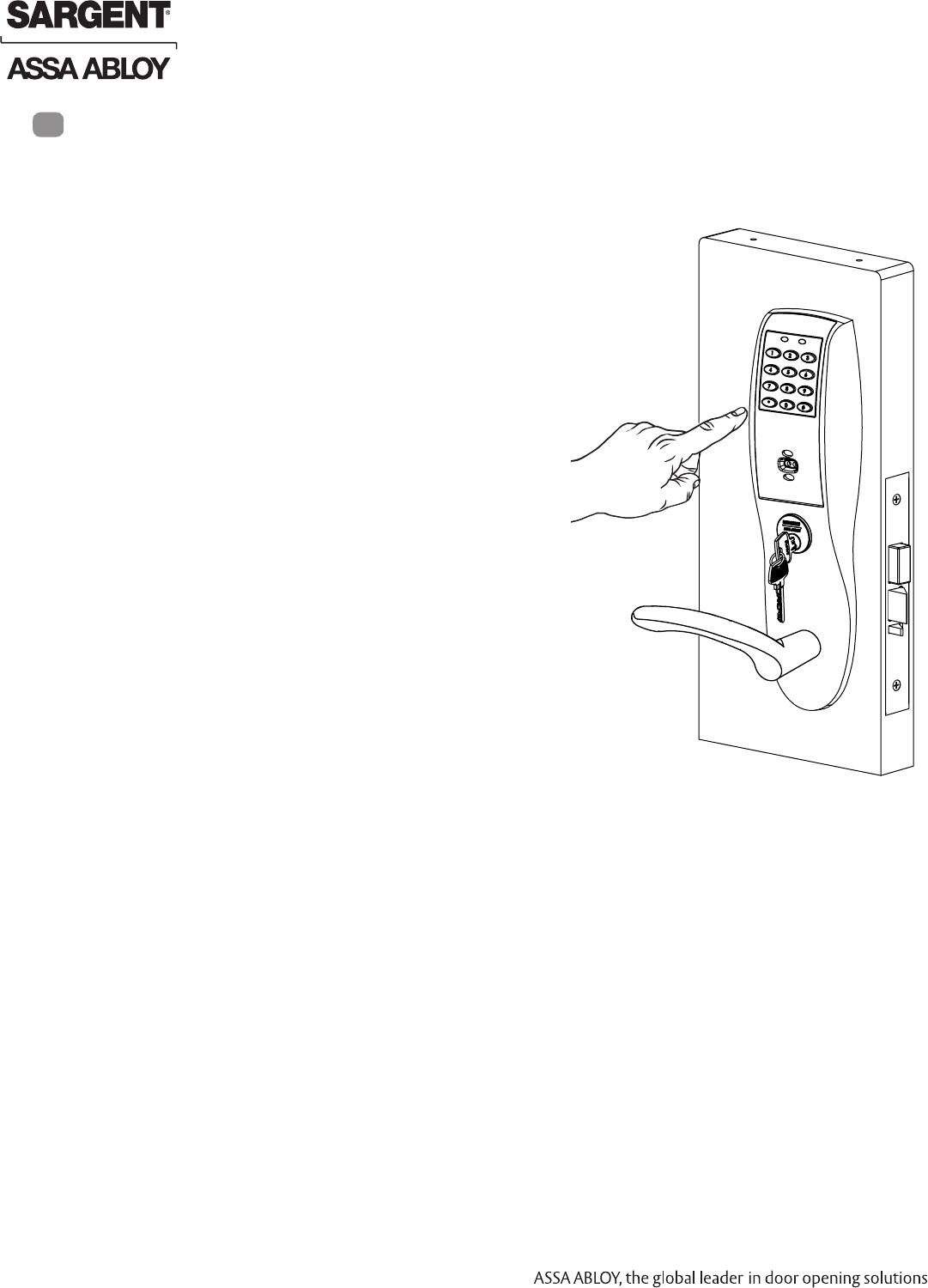

Operational Check ................................................................14

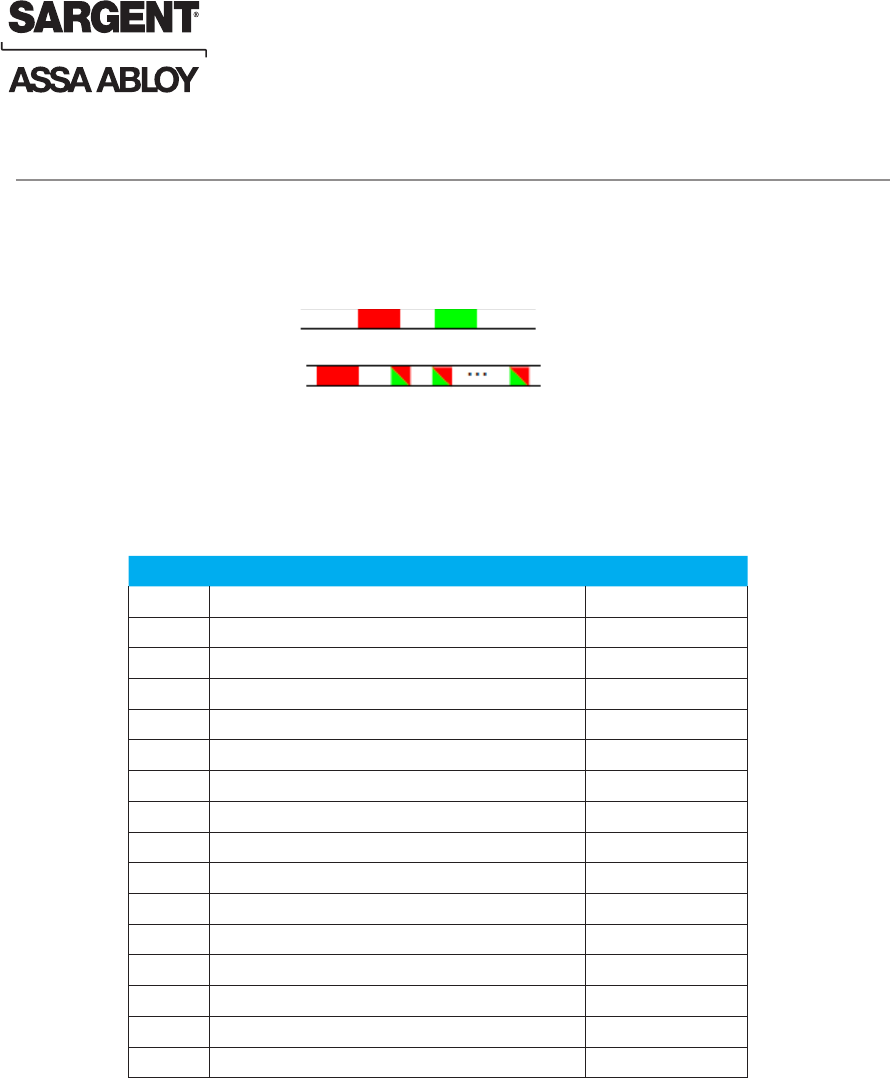

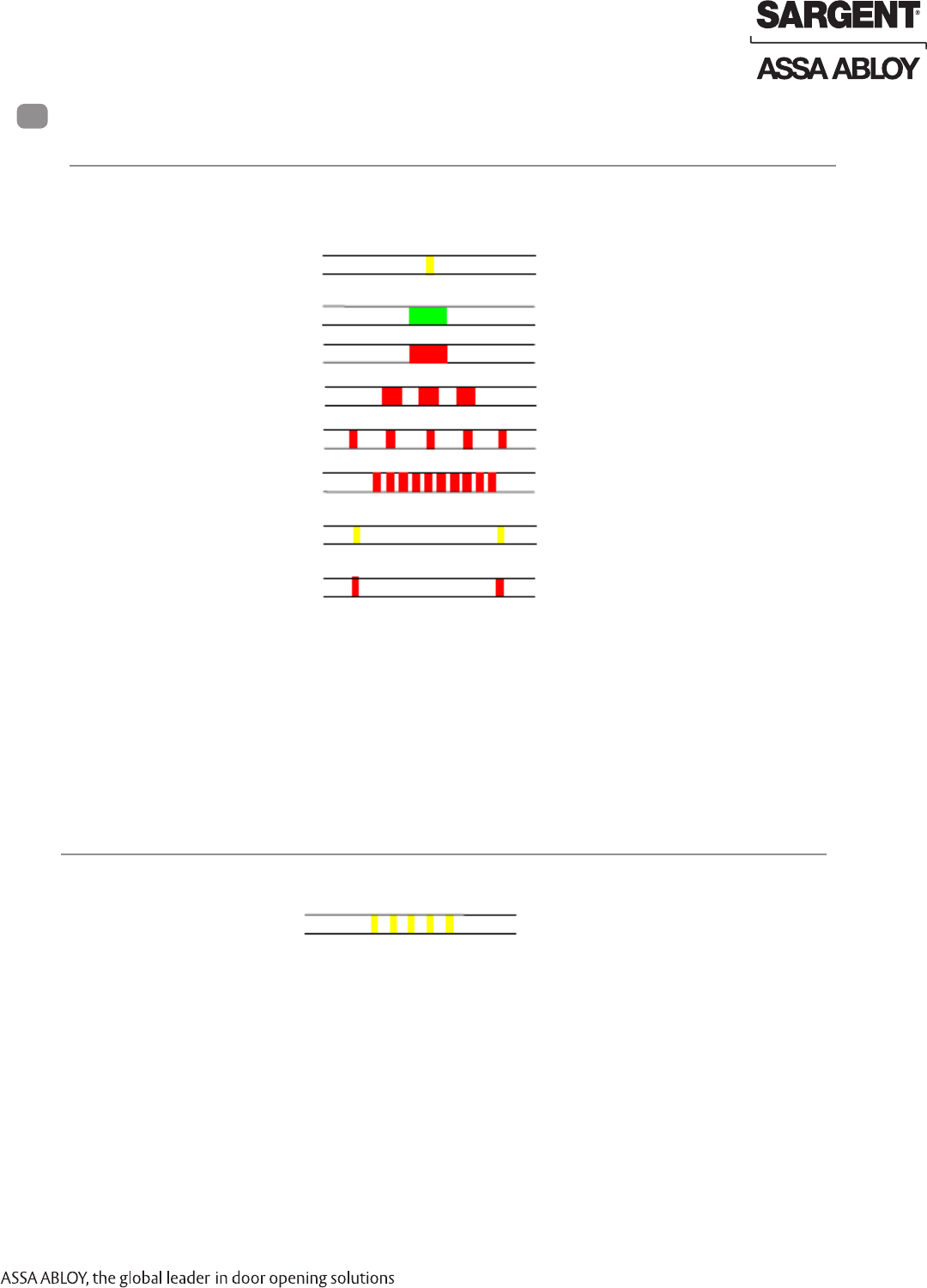

Lock LED Indications ............................................................15

Warning: Changes or modications to this device not expressly approved by ASSA

ABLOY could void the user’s authority to operate the equipment.

Warning

FCC:

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses, and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there is

no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful Interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiv-

er is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Industry Canada:

This Class B digital apparatus meets all requirements of the Canadian Interference Causing

Equipment Regulations. Operation is subject to the following two conditions: (1) this device

may not cause harmful interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

Cet appareillage numérique de la classe B répond à toutes les exigences de l’interférence

canadienne causant des règlements d’équipement. L’opération est sujette aux deux conditions

suivantes: (1) ce dispositif peut ne pas causer l’interférence nocive, et (2) ce dispositif

doit accepter n’importe quelle interférence reçue, y compris l’interférence qui peut causer

l’opération peu désirée.

“This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with minimum distance 20cm

between the radiator and your body. This transmitter must not be co-located or operating in

conjunction with any other antenna or transmitter.”

Under Industry Canada regulations, this radio transmitter may only operate using an antenna

of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To

reduce potential radio interference to other users, the antenna type and its gain should be so

chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary

for successful communication.

08/22/11

1-800-810-WIRE • www.sargentlock.com • A8078B 3

Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.

Profile Series v.N2 Mortise Lock

Warning: SARGENT Mfg. Co. Prole Series v.N2 locksets utilizing a door position switch (DPS) are not rated for,

or intended for use in life safety applications.

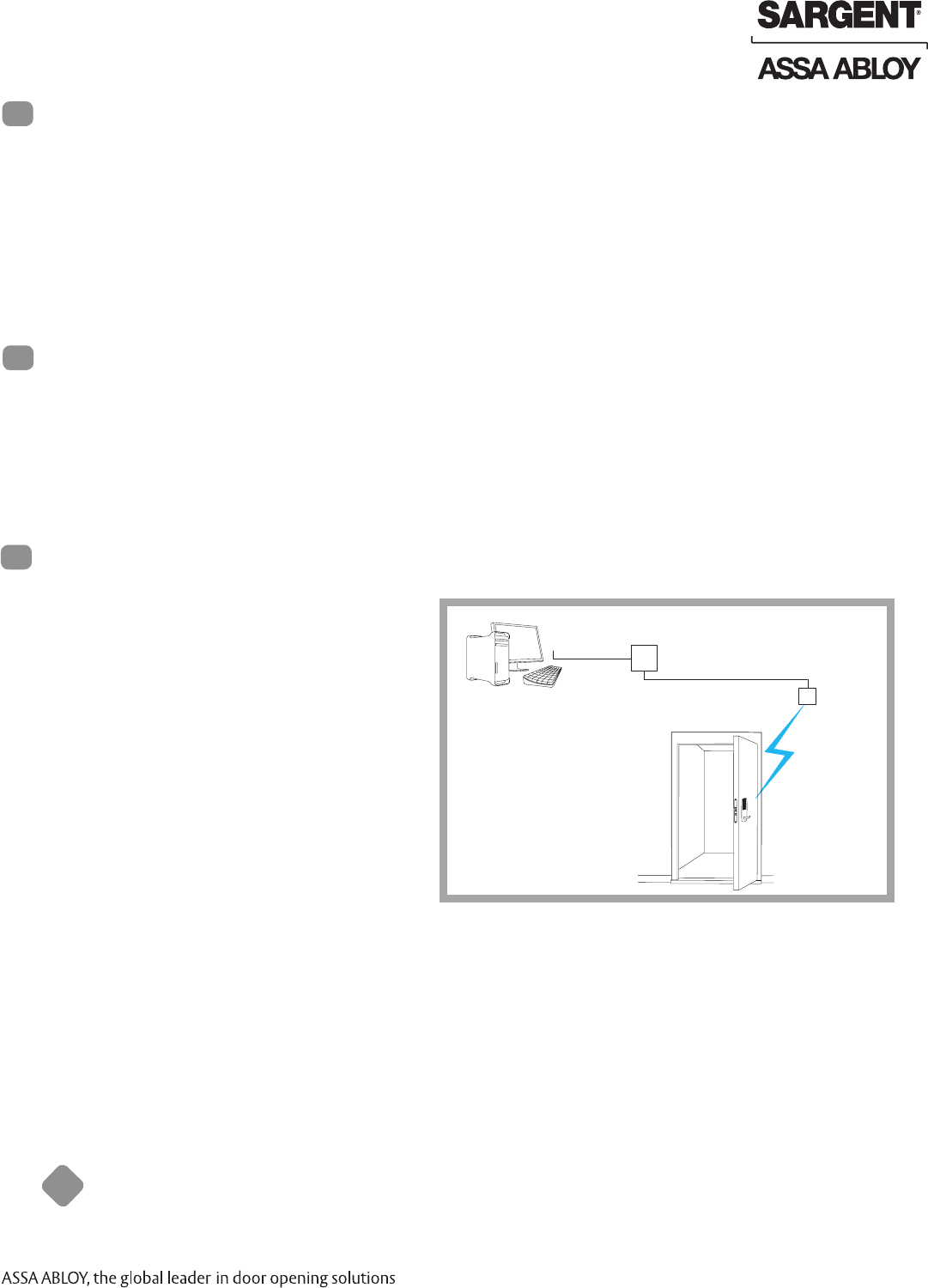

System Overview

!To comply with “Fire Listed” doors, the batteries must be replaced with alkaline batteries only.

Specifications

General Description

The SARGENT® Prole Series v.N2 lock with Aperio™ Technology makes it easy and cost-effective to bring

access control to additional doors. It uses local wireless communication between the lock and an Aperio hub

to connect to an access control system, eliminating the greatest cost and inconvenience of traditional access

control – the wiring at the door. The Prole Series v.N2 is available with HID® 125 kHz proximity or iCLASS®

13.56 MHz smart card technology, and all technology features are supported by the physical security of SAR-

GENT ANSI/BHMA Grade 1 hardware.

This product is operated by six (6) “AA” alkaline batteries. SARGENT mortise locks are designed with quality

components to provide high security, performance and durability.

The Aperio mortise lock may be used for both indoor and outdoor applications. A weather-protective

gasket is recommended for outdoor applications.

Lock

• IEEE 802.15.4 UHF interface

• AES 128 bit encryption

Credential Support

• HID 13.56 MHz iCLASS (full authentication, all formats)

• 125 kHz proximity credentials

When a user presents a supported credential to

the lock, the Aperio system is designed to send

the credential wirelessly to the Aperio Hub. The

Aperio Hub (wired through RS-485 or Wiegand)

then communicates with an EAC (Electronic

Access Control) system. The EAC system provides

the access decision to the Aperio Hub where

access to the lock is either granted or denied.

Access Control Panel

Aperio Hub

Electronic Access

Control System

TCP/IP

RS-485/Wiegand

IEEE 802.15.4

(2.4GHz)

4 1-800-810-WIRE • www.sargentlock.com • A8078B

Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.

08/22/11

Profile Series v.N2 Mortise Lock

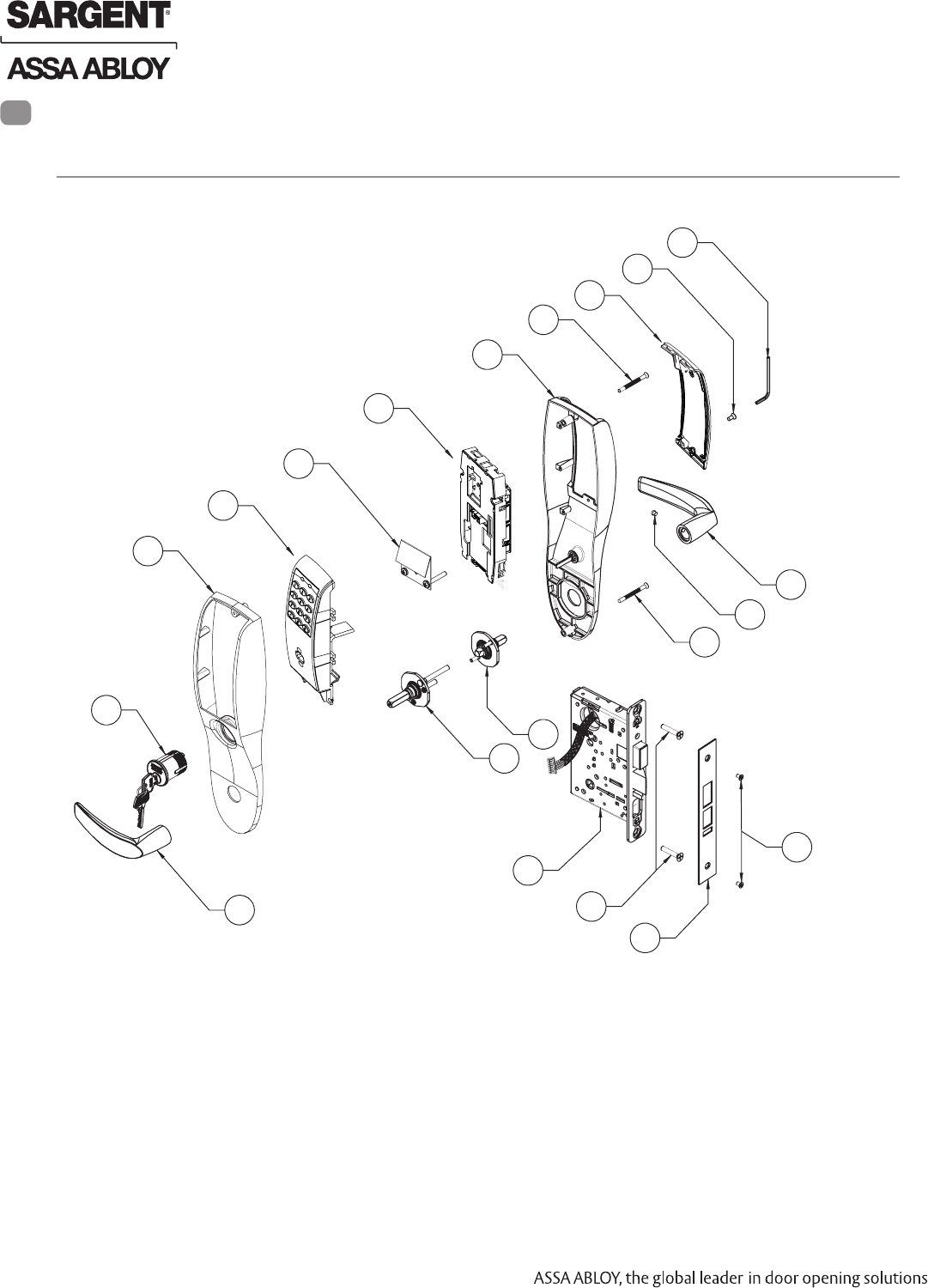

Parts Breakdown

13.56 MHz iCLASS & 125 kHz Prox

08/22/11

1-800-810-WIRE • www.sargentlock.com • A8078B 5

Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.

Profile Series v.N2 Mortise Lock

1 Outside Lever Reference 8200 Catalog for available levers 1

2 Inside Lever Reference 8200 Catalog for available levers 1

3 82-0495 O/S Escutcheon only with Cylinder 1

82-0493 O/S Escutcheon only without Cylinder 1

4 82-0492 Inside Escutcheon only without Thumb Turn 1

82-0494 Inside Escutcheon only with Thumb Turn 1

5 52-5291 Aperio Electronic Replacement Pack, 13.56 MHz iCLASS 1

52-5319 Aperio Electronic Replacement Pack, Prox only, N2-PA

7 52-4340 Battery Cover Assembly 1

8 01-1212 Security Screw 1

9 52-2427 Proﬁle Screw Pack - Specify Finish (Includes: Fire Stop Plate, Trim

Mounting Screws, Security Allen Wrench)

10 Consult Factory Lever Handle Screw (Depends on Lever Style) 1

11 Consult Factory Inside Adapter Assembly (Depends on Lever Style) 1

12 Consult Factory Outside Adapter Assembly (Depends On Lever Style) 1

13 N2-82276-hand-ﬁnish Lockbody with Dead Bolt with Cylinder 1

N2-82277-hand-ﬁnish Lockbody with Dead Bolt without Cylinder

N2-82278-hand-ﬁnish Lockbody without Dead Bolt with Cylinder

N2-82279-hand-ﬁnish Lockbody without Dead Bolt without Cylinder

14 82-0084 Faceplate with Dead Bolt (shown) 1

82-0081 Faceplate without Dead Bolt 1

15 77-4336 Mortise Screw Pack - Specify Finish (Includes: Wood and Metal

Lock body Screws, Faceplate Screws, and Strike Screws)

16 Consult Factory #43 Mortise Cylinder 1

ITEM PART NO. DESCRIPTION QTY.

Parts Breakdown 13.56 MHz iCLASS and 125 kHz (Continued)

6 1-800-810-WIRE • www.sargentlock.com • A8078B

Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.

08/22/11

Profile Series v.N2 Mortise Lock

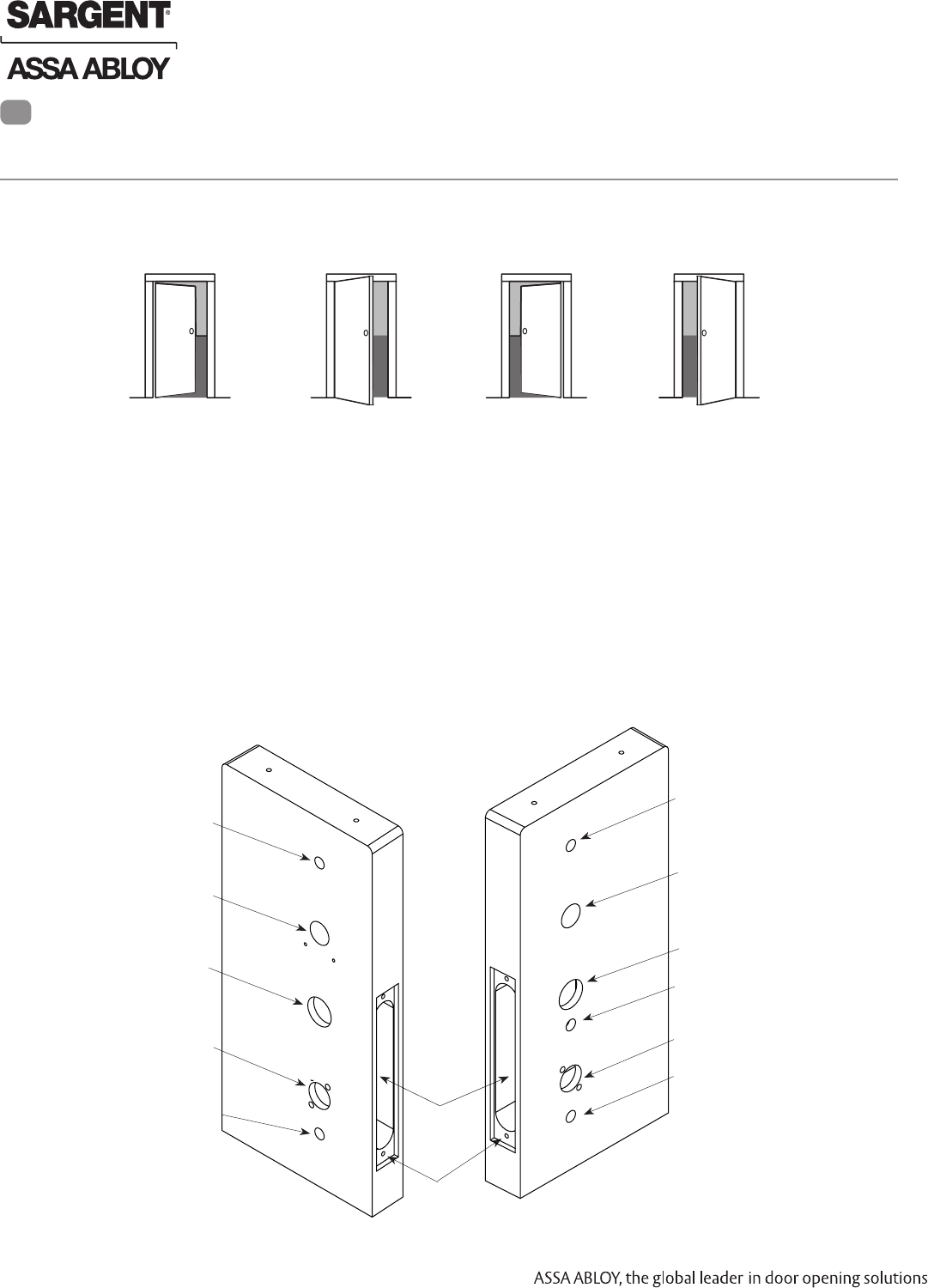

A. Verify Hand and Bevel of Door

Stand on outside of locked door when determining door hand.

Lock Installation

Left Hand

Hinges Left

Open Inward

LHRB

Left Hand

Reverse Bevel

Hinges Left

Open Outward

Right Hand

Hinges Right

Open Inward

RHRB

Right Hand

Reverse Bevel

Hinges Right

Open Outward

Fig. 1A

1 Prepare Door

B. Door Preparation

Prior to installation, all holes must be free of burrs, debris and sharp edges.

Prepare door according to appropriate template (see website www.intelligentopenings.com):

• Field Template: A7457 (ships with product)

• Door Manufacture’s Template: 4533

Outside Cylinder Hole

(only with cylinder installation)

Outside of Door Inside of Door

Ribbon Cable Hole

(Controller to Keypad, if used)

Lever Handle Hole

Through-bolt Hole

Ribbon Cable Hole

(Controller to Keypad)

Inside of Lockbody Wire Hole

Lever Handle Hole

Through-bolt Hole

Pre-drilled

and/or

Tapped Holes

Mortised

Pocket

Thumb Turn Lever Hole

Fig. 1B

Through-bolt Hole

08/22/11

1-800-810-WIRE • www.sargentlock.com • A8078B 7

Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.

Profile Series v.N2 Mortise Lock

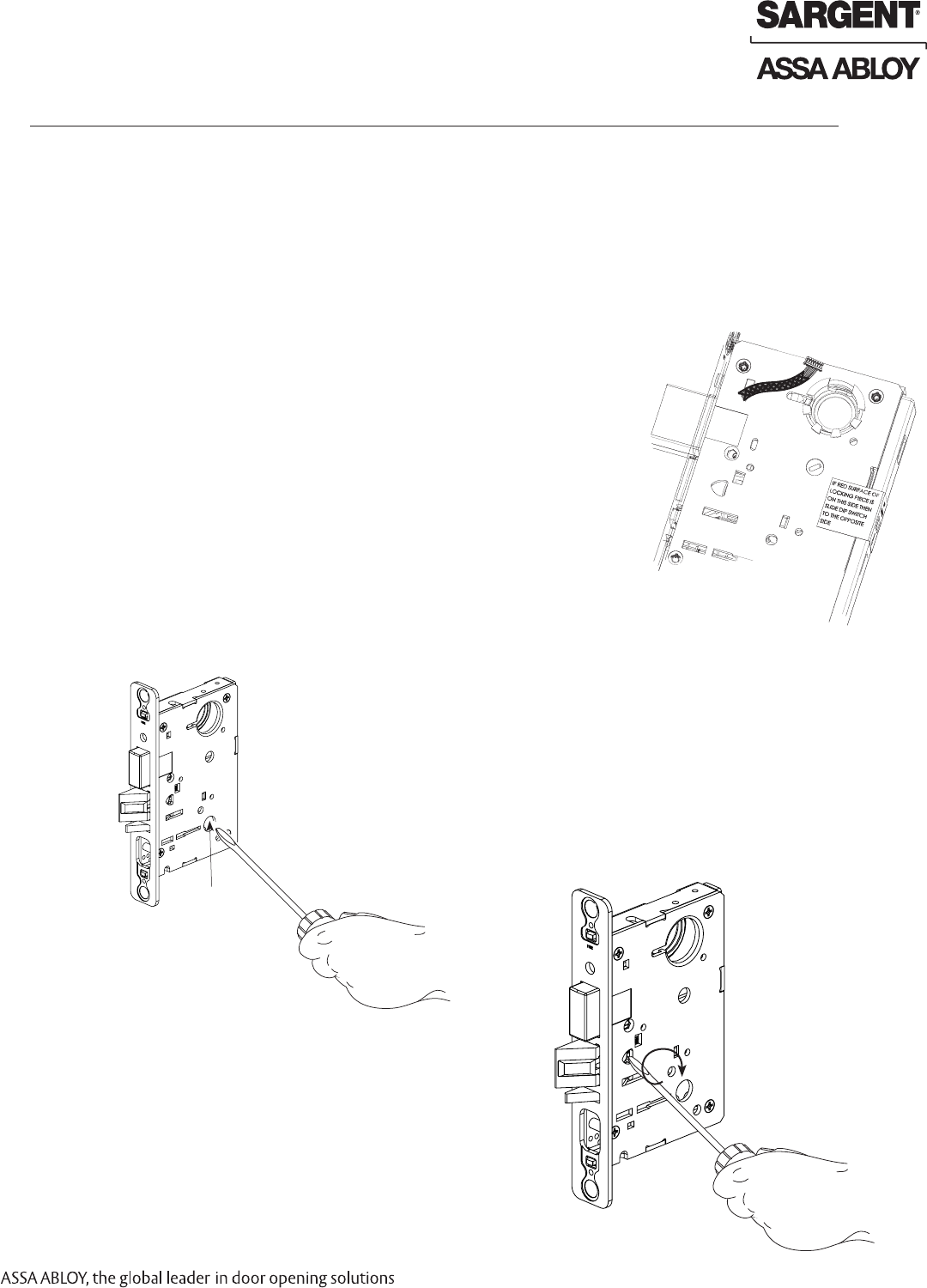

2 How to Change Hand of Lock body

Beveled surface of latchbolt must face strike.

The deadlatch is self adjusting.

To change the hand of the latchbolt:

1. Insert the blade of a slotted screwdriver approximately

1/4” into the spade shape slot behind latch.

2. Rotate the screwdriver 90° to push latchbolt out

until back of bolt clears lock case front.

3. Rotate latchbolt 180° until the latchbolt drops

back into the lockbody.

Note: Latch cannot be unscrewed.

The red surface of locking piece must face the outside/locked side of door. To rotate locking piece (Fig. 2A):

1. Position lock body so the red surface of the locking piece is visible.

2. Insert blade type screwdriver into locking piece slot to rotate locking piece toward back of lock body.

3. Rotate the locking piece 180° until RED surface is on opposite side.

Note: Red indicates locked side (outside).

Push In

Right Hand Shown

Locking

Guide

Slot

Fig. 2A

A. Reverse Lock Hand

C. Reverse Latch Hand

Fig. 2B

B. Wire Harness

Make sure the plastic retaining ring is seated

correctly (Fig. 2B):

1. Visually note how the wires are currently routed; they must

be similarly routed after changing hand to prevent dam-

age caused by snagging on the cylinder cam.

2. Remove the black plastic retaining ring from the lock body.

3. Carefully pull the wires through the opposite lock body hole.

4. Position the retaining ring so that the large slot is ori-

ented towards the top of the lock body.

5. Push the retaining ring into the lock body so that it fully seats as shown Fig.

2B.

Note: The wired do not run through the center of the ring,

they run through the slot in the retaining ring.

6. Visually check that the wires are routed so that

they will not catch on the cylinder cam.

Fig. 2C

8 1-800-810-WIRE • www.sargentlock.com • A8078B

Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.

08/22/11

Profile Series v.N2 Mortise Lock

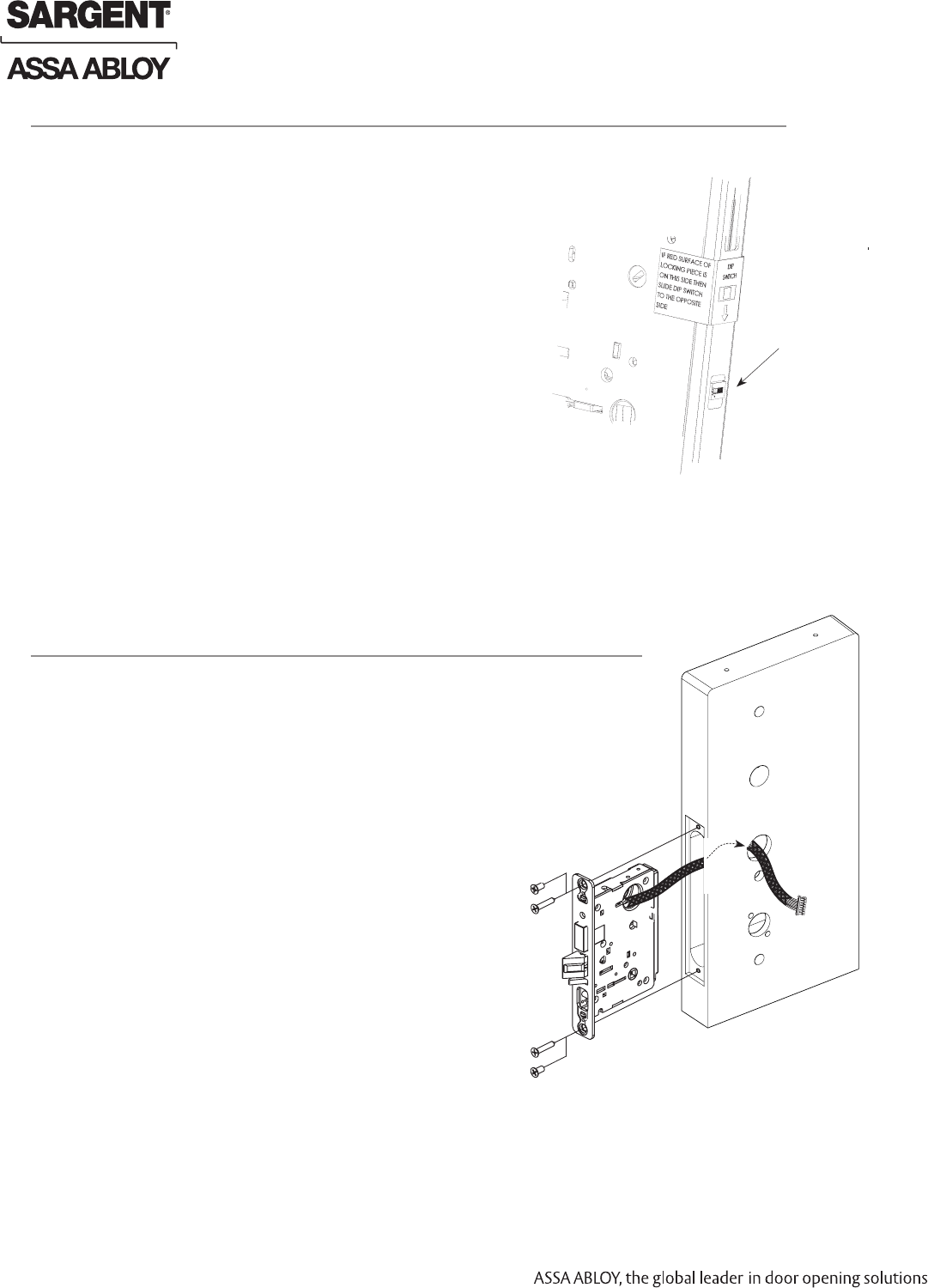

3 Mortise Lock Body DIP Switch Settings

Fig. 3A

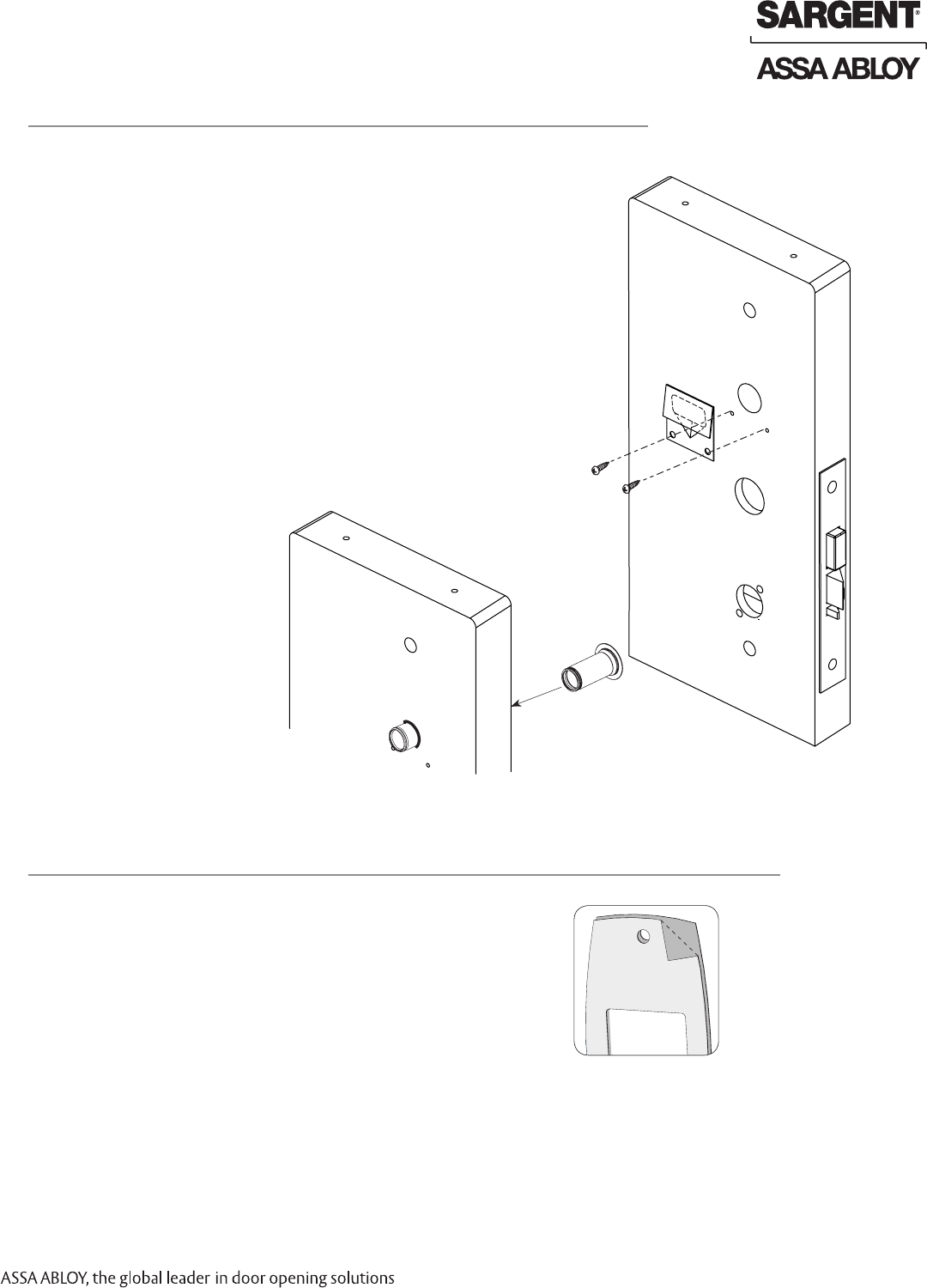

4 Install Lockbody

To install the Lockbody:

1. Feed the wires rst through the mortise pocket then feed the wires from

the lockbody through the inside door prep for the mortise cutout (Fig. 4A).

Note: Connectors and wires must be fed through the non-cylinder side.

2. The wires from the lockbody exit the inside door prep through

the mortise cutout.

3. Loosely secure the lockbody in the door with two #12 x 1-1/4”

wood screws or #12-24 x 1/2” machine screws.

Note: Do not completely tighten at this time.

(2) #12-24 x 1/2” Long

Flat Head Screws

for Metal Doors

(2) #12 x 1-1/4” Long

Flat Head Screws

for Metal Doors

Fig. 4A

Mortise

Connectors

Inside of Door

DIP switch

NOTE: The DIP switch RX settings located on

the rear of the mortise lockbody must be set prior

to lock installation. Failure to follow sticker directions will

cause inaccurate RX activity to be reported to the access

control panel.

Set DIP switch for appropriate door application by sliding the

DIP switch to the side opposite the red surface of the locking

slide.

08/22/11

1-800-810-WIRE • www.sargentlock.com • A8078B 9

Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.

Profile Series v.N2 Mortise Lock

5 Door Options

A. Fire Stop Plate (P/N 52-0033)

B. Weather Conduit (P/N 52-2847)

Install weather conduit (part number 52-2847) on

NON Fire-Rated exterior doors only (Fig. 5B).

1. Carefully insert the weather conduit into the

ribbon cable hole on the inside of the door.

2. Place the O-ring around the

weather conduit on the outside

and up against the door (Fig. 5B).

Fig. 5A

Outside of Door

(2) Self-Tapping #8 x 1/2”

Screws for Wood and

Metal Doors

Fire

Stop

Plate

Outside of Door

Fig. 5B

For exterior applications, use weatherseal gasket

between escutcheon and outside door surface.

To apply weatherseal gasket:

1. Carefully remove the backing from the gasket (Fig. 6A).

2. Apply gasket to escutcheon:

a. Starting in one place, press the adhesive side

of the gasket rmly against the escutcheon.

b. Work around the escutcheon, pressing the

sticky side of the gasket rmly against

the escutcheon edge.

c. The gasket should be aligned so that all

edges of the escutcheon are covered.

6 Install Gasket (for Exterior Doors)

Fig. 6A

Fire-rated doors require a re stop plate on the outside of the door

(Fig. 5A).

1. Drill (2) 1/8” x 1-1/4” deep holes in the door, if not already present.

Refer to template for re-stop prep locations.

2. Attach with ap up and out using (2) #8 x 1/2”

self-tapping screws for wood and metal doors.

10 1-800-810-WIRE • www.sargentlock.com • A8078B

Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.

08/22/11

Profile Series v.N2 Mortise Lock

8 Install Lock

1. With outside lever horizontal, locate the outside escutcheon on the door,

while directing the mounting posts through the

door and lock body (Fig.8A).

Make sure the lever spindle is properly

engaged in lock.

2. On the inside of the door, insert spindle

into the square hole of mortise lock.

3. Slide inside adapter and plate assembly

over spindle and loosely secure with

2 through-bolt screws (#8-32 x 5/8”).

Note: For 82276 and 82278, loosely thread |

cylinder through escutcheon and into the lock

body before tightening the lock case screws and

escutcheon through bolts.

4. Loosely install the optional cylinder, if present.

5. Fully tighten the lock case screws and

escutcheon through bolts.

1. Attach escutcheons to the door after

the wires are connected.

Note: The 43 cylinder may be used

with or without a gasket.

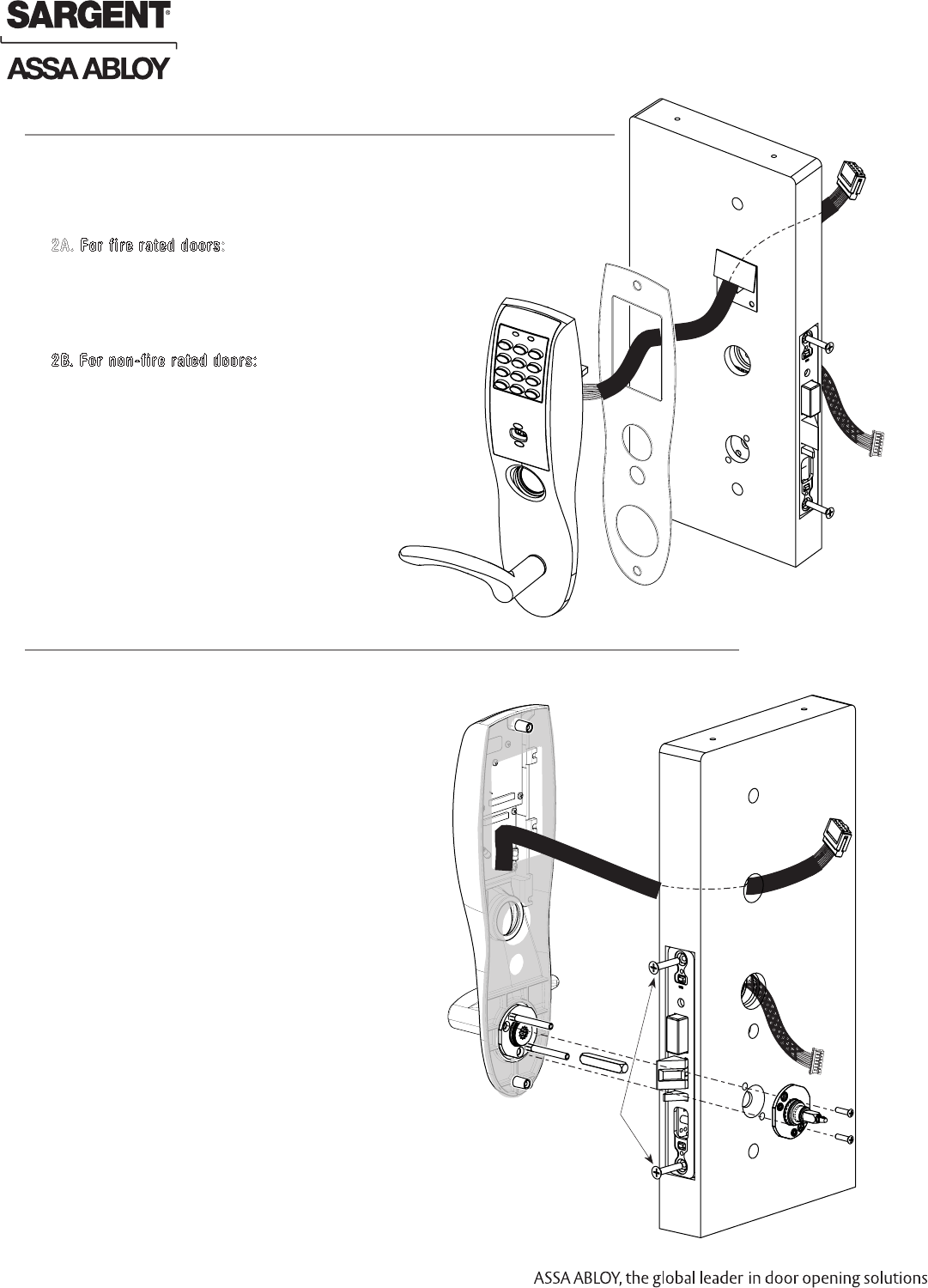

2A. For fire rated doors: Feed ribbon cable

with connector from outside of door through weatherseal

gasket and re stop plate (Fig. 7A).

Note: Install ribbon cable with

cable exiting down.

2B. For non-fire rated doors: Feed ribbon

cable with connector from outside of door through

weatherseal gasket (if used) and weather conduit.

Note: Install ribbon cable with cable exiting down.

7 Install Outside Escutcheon

Fig. 6A

Outside of Door

Lock Case Screws

Inside of Door

Fig. 8A

08/22/11

1-800-810-WIRE • www.sargentlock.com • A8078B 11

Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.

Profile Series v.N2 Mortise Lock

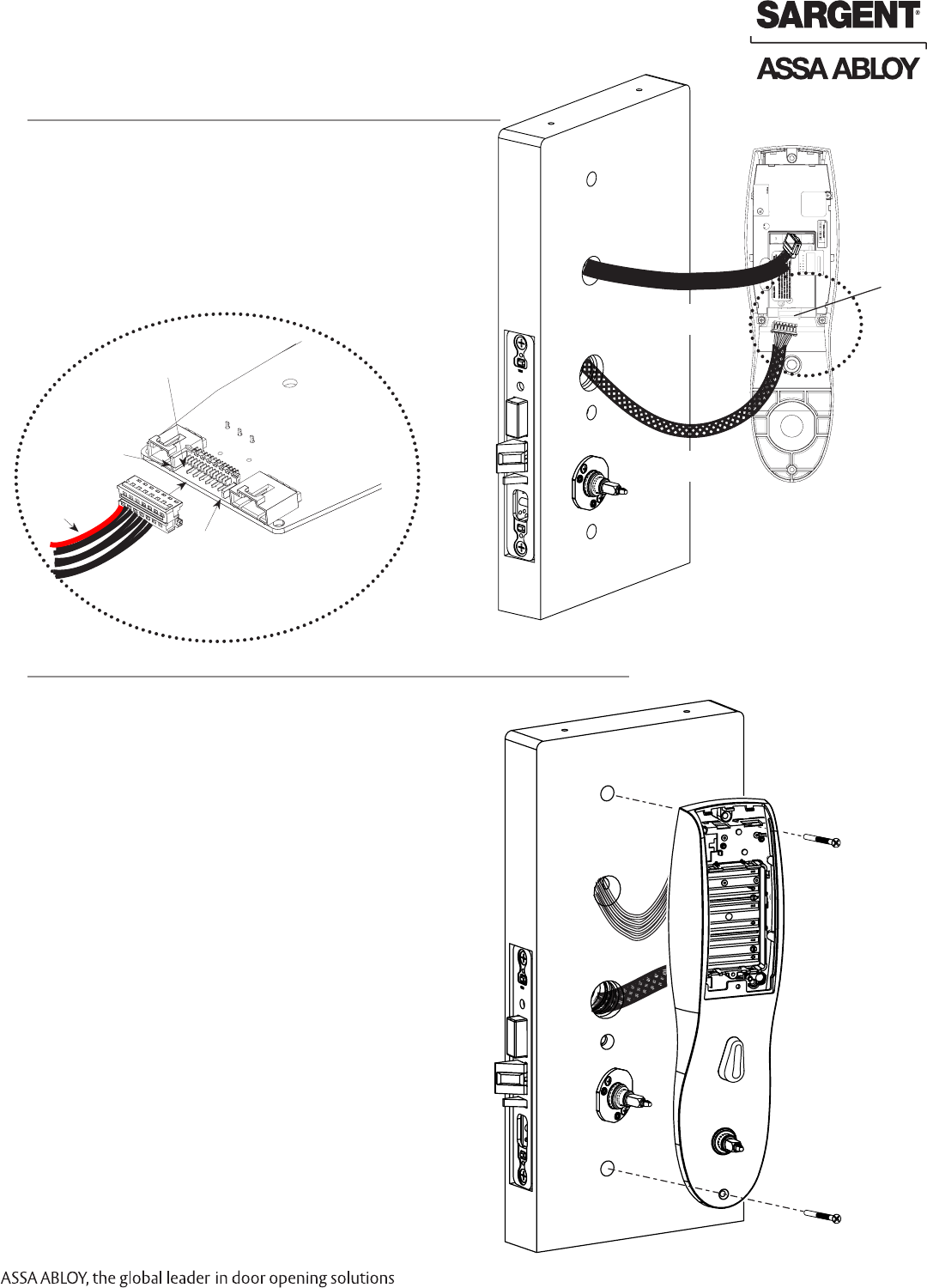

9 Inside Escutcheon Connections

Before the controller is attached to the door:

1. Connect the cable from the mortise lock

to the bottom of the controller assembly (TB1).

Note: The red wire aligns with the Pin 1 indicator on

the left of the PC board. There are two guide pins

built into the PC board to aid in proper alignment.

2. Attach the reader assembly ribbon cable

into the controller assembly (TB2).

Inside of Door

Fig. 9A

Mortise

Connector

Reader

Ribbon Cable

10 Install Inside Esutcheon

1. Gently fold the excess ribbon cable into the ribbon cable hole and

mortise and wires into the inside of lock body wire hole,

being careful not to pinch wires.

2. Insert (2) #8-32 x 1-1/4” screws through inside

escutcheon and thread into outside escutcheon.

Straighten escutcheons and tighten securely.

Inside of Door

Fig. 10A

Fig. 9A Detail

Pin 1 indicator

Small alignment

key

Wide alignment

key

Red wire

(Pin 1)

aligns on

the left.

TB1

TB2

12 1-800-810-WIRE • www.sargentlock.com • A8078B

Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.

08/22/11

Profile Series v.N2 Mortise Lock

Inside of Door

Fig. 11B

Fig. 11A

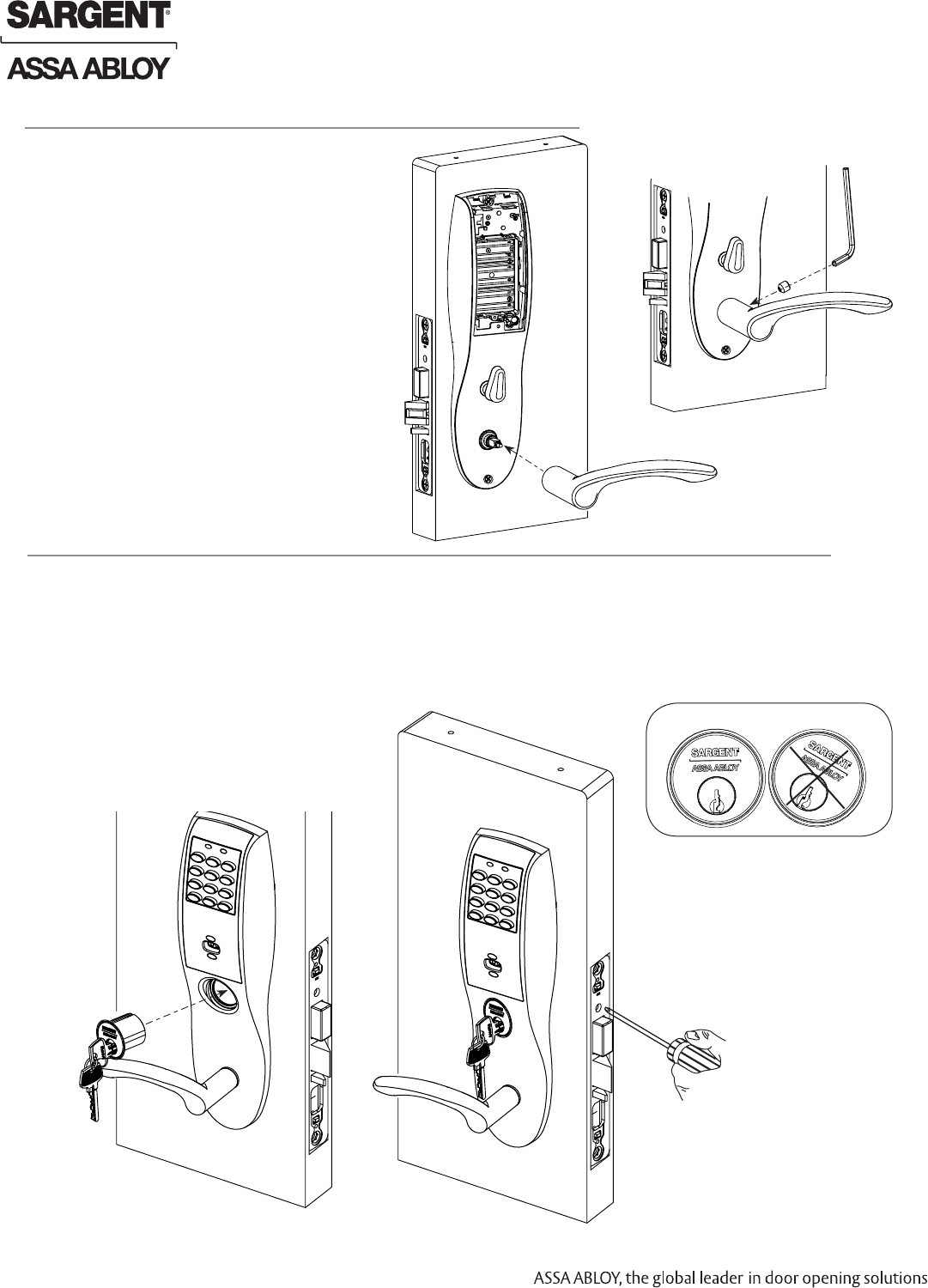

Install and Secure Cylinder

Fig. 12A

Outside of Door

Install Inside Lever

1. Slide lever handle onto spindle until fully

seated (Fig. 11A).

2. Tighten the set screw securely

with 1/8” hex wrench (Fig. 11B).

1. Slide cylinder through the spring and screw into lockbody, rotating the cylinder

clockwise (Fig. 12A). Cylinder should be ush with rosette/collar.

Note: The 43 cylinder may be used when installing this product with or without a gasket.

Note: SARGENT logo must be horizontal and on the top of the cylinder (Fig. 12B).

2. Secure the cylinder by tightening the cylinder clamp screw located

above the deadbolt using a #2 Phillips screwdriver (Fig. 12C).

Using the key, test cylinder functions:

• 82278 Function: Key retracts latch.

• 82276 Function: Key retracts latch

and projects and retracts deadbolt.

Fig. 12B

Correct Incorrect

#2 Phillips

Screwdriver

Cylinder

Clamp

Screw

Fig. 12C

08/22/11

1-800-810-WIRE • www.sargentlock.com • A8078B 13

Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.

Profile Series v.N2 Mortise Lock

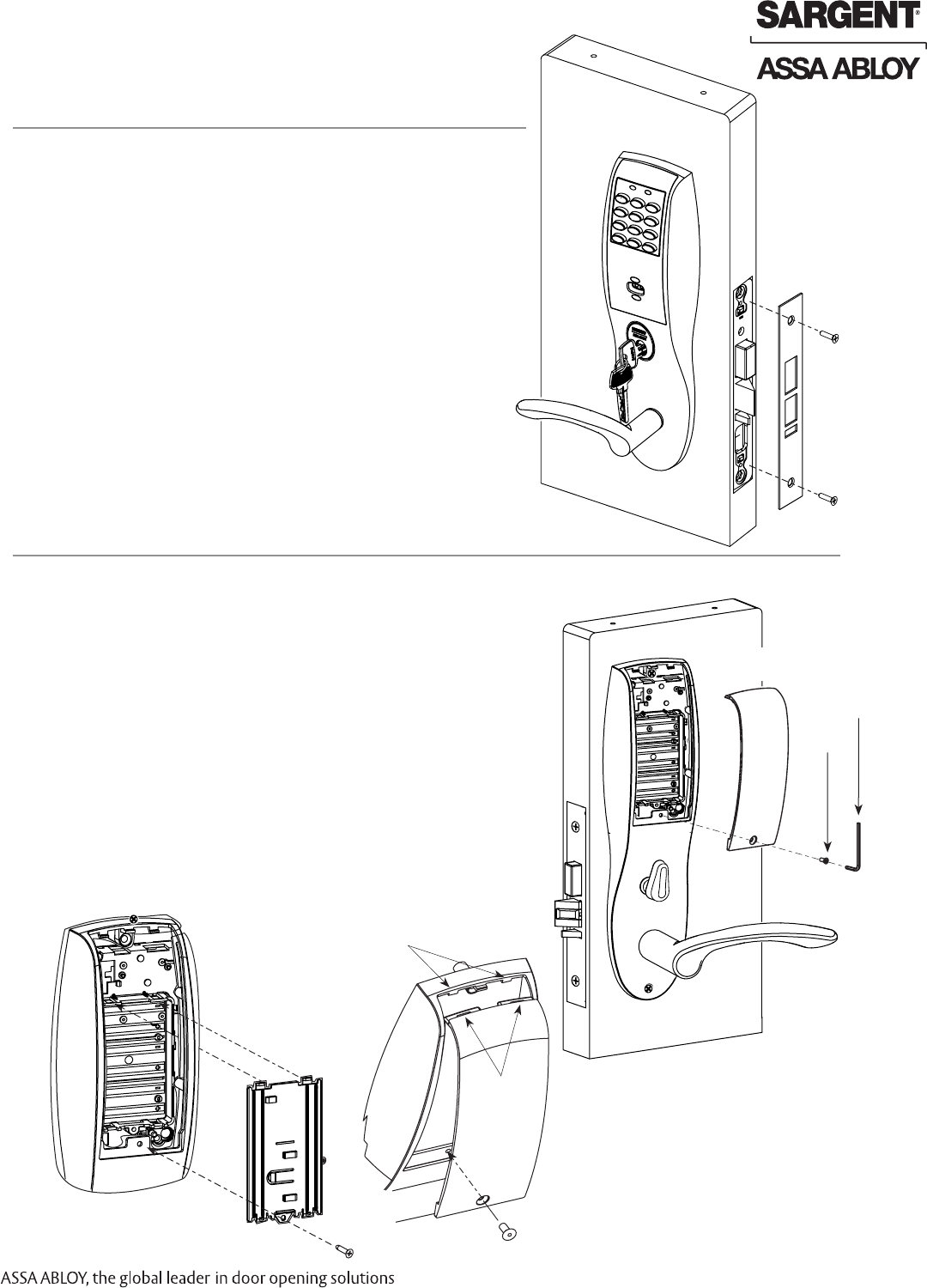

Attach Front Plate

Attach front plate with (2) at head screws.

Fig. 13A

Outside of Door

install or Replace Batteries

1. To install or replace batteries, rst remove the battery cover

(if necessary) using the provided security tool (Fig.14A).

2. Unscrew the bottom screw of the battery keeper and remove

the battery keeper, being careful not to break the

top tabs holding it in place (Fig.14B).

3. Place (6) “AA” alkaline batteries in the compartment,

being careful to align polarity properly.

4. Replace battery keeper, being careful to engage

tabs on the top to hold it in place (Fig. 14B).

5. Attach battery cover to inside escutcheon,

making sure to line up tabs with retaining slots

in battery cover (Fig. 14C).

6. Secure with the security screw using tool. (Fig. 14A).

Fig. 14B

Fig. 14C

Tabs

Retaining

Slots Inside of Door

Fig. 14A

Security Tool

(01-029)

Battery

Cover

Security

Screw

NOTE: Ensure the tamper switch activator does not fall

out of the cover during assembly. A tamper event mes-

sage will be sent to the EAC panel if tamper is enabled.

14 1-800-810-WIRE • www.sargentlock.com • A8078B

Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.

08/22/11

Profile Series v.N2 Mortise Lock

For 82276- and 82278-function mortise locks with cylinders:

1. Insert key into cylinder and rotate.

There should be no friction against lock case, wire harness or any other obstructions.

(Refer to Section -6 Wiring if harness friction exists).

2. Check that the key retracts the latch:

The key should rotate freely.

3. Throw the deadbolt:

Check that the key retracts both the deadbolt and the latch.

4. Try the inside lever:

Ensure it retracts latch and deadbolt (if provided).

5. Present a valid iCLASS or 125 kHz prox creden-

tial to unlock outside lever and retract latch.

Operational Check

08/22/11

1-800-810-WIRE • www.sargentlock.com • A8078B 15

Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.

Profile Series v.N2 Mortise Lock

The lock has three LEDs that support an optical scheme with red, yellow and green.

The indication scheme is described by the gures below:

Fig. Lock Normal operation LED indication

Lock LED Indications

NOTE: When the lock mechanism is blocked (lock jammed) the knob must be turned to release it.

The “Error in lock” indication is also shown instead of the POST ashes if the battery is not accepted

as new after a power¬on¬reset.

Lock Normal Operation LED indication

Lock Maintenence LED Indication

Some special LED indication schemes are used during lock maintenance actions:

Enter configuration

mode Five yellow flashes (.125 s each)

Fig. Lock maintenance LED indication

Card read

(congurable)

Access granted,

EAC ofine or online

Access denied,

EAC online

Access denied,

EAC ofine

Lock mechanism is

blocked when closing

Error in lock,

maintenance required

Time to replace the battery

Battery reached end of life,

lock disabled

One yellow ash (.25 second)

One green ash (1 second)

One red ash (1 second)

Three red ashes (.5 s each)

Continuous red ashes blocked when

closing (.125 seconds every 1 second)

Ten red ashes (.125 s each), maintenance

required; repeated if lock can’t close

Continuous yellow ashes

(.25 seconds every 5 seconds)

Continuous red ashes of life,

(.25 seconds every 5 seconds)

SARGENT Manufacturing

100 Sargent Drive

New Haven, CT 06511 USA

800-810-WIRE (9473) • www.sargentlock.com

Founded in the early 1800s, SARGENT® is a market leader in locksets, cylinders, door closers, exit devices,

electro-mechanical products and access control systems for new construction, renovation, and replacement applications.

The company’s customer base includes commercial construction, institutional, and industrial markets.

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

ASSA ABLOY is the global leader in door opening solutions, dedicated to

satisfying end-user needs for security, safety and convenience. A8078B - 08/11

Lock Self Test LED Indication

After replacing the battery, a Power On Self Test (POST) is performed. The result is indicated

using a series of red and green LED ashes as is described by the gure below:

One red, one green ash

(1 second each)

One red ash followed by 16 red or

green ashes (.5 s each)

Fig. Lock POST LED indication

The rst ash is always red. If the POST fails, the color of the 16 trailing ashes indicate the

status of each individual test as described by the following table:

Blink Meaning if Red Code in Event Log

2 Main board firmware corrupt 0x0001

3 Override list corrupt 0x0002

4 Production data corrupt 0x0004

5 Security data corrupt 0x0008

6 Configuration data corrupt 0x0010

7 Battery power low 0x0020

8 RFID reader circuit error 0x0040

9 Voltage regulator error 0x0080

10 Card detection circuit error 0x0100

11 Secure area communication error 0x0200

12 Secure area memory corrupt 0x0400

13 Secure area sensor or motor error 0x0800

14 Radio modem communication error 0x1000

15 Radio modem memory corrupt 0x2000

16 Radio modem configuration error 0x4000

17 Radio modem RF circuit error 0x8000

NOTE: If the battery is not accepted as new after a power on reset, no POST is performed.

Instead, the 10 quick red ashes used to indicate Error in lock is shown.

ASSALOY SCYPROX4 Microprocessor Controlled Networked Lock User Manual 11 0282

ASSA ABLOY Inc. Microprocessor Controlled Networked Lock 11 0282

Manual

Navigation menu

Namespaces

Views

Navigation
