Manual - YRD210-ZB HTML Version

Manual - YRD210-ZB

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598

Certification Exhibit

FCC ID: U4A-YRHCPZB0

IC: 6982A-YRHCPZB0

FCC Rule Part: 15.247

IC Radio Standards Specification: RSS-210

ACS Project Number: 12-0001

Manufacturer: Assa Abloy Inc.

Models: YRDZB, YRD210-ZB, YRD220-ZB, YRT210-ZB, YRT220-ZB

Manual – YRD210-ZB

Yale Real Living™ Push Button Deadbolt

Installation and Programming Instructions

For Technical Assistance call Yale at 1-800-810-WIRE (9473)

NOTE TO INSTALLER

FAILURE TO FOLLOW THESE INSTRUCTIONS

COULD RESULT IN DAMAGE TO THE PRODUCT

AND VOID THE FACTORY WARRANTY

An ASSA ABLOY Group brand

P/N AYRD210-INST-FUL Rev B

This document is available on our website in printed Spanish and French. Go to www.yalerealliving.com.

Click “Product Information & Documentation” and then “Installation Instructions”.

Este documento está disponible en español en nuestra página de internet. Vaya a www.yalerealliving.com.

Presione “Información del Producto y Documentación” y luego “Instrucciones de Instalación”.

Ce document est disponible sur notre site Web dans le français imprimé. Allez à www.yalerealliving.com.

Cliquez sur le “ ; Information sur le produit et Documentation” et puis “Installation Instructions”.

An ASSA ABLOY Group brand

P/N AYRD210-INST-FUL Rev B

Warnings ..................................................................................................................... 2-4

Reset Lock to Factory Default ..................................................................................3

Introduction .....................................................................................................................4

Installation

Components and Tools .............................................................................................5

Prepare Lock for Installation .....................................................................................6

Install Lock ............................................................................................................ 7-8

Programming

Programming Features-Menus-Keys-Deﬁnitions ............................................... 9-10

Lock Operation ................................................................................................. 11-12

Miscellaneous Information

Hardware Troubleshooting ......................................................................................13

Programming Troubleshooting ...............................................................................14

Installing the Network Module ................................................................................15

Replace/Install Cylinder ..........................................................................................16

Sample Pin Code Management Sheets ........................................................... 17-18

TABLE OF CONTENTS

WARNINGS

IMPORTANT: The accuracy of the door preparation is critical for the proper functioning and

security of this product. Misalignment can cause performance degradation and a lessening of

security.

Finish Care: This lockset is designed to provide the highest standard of product quality and

performance. Care should be taken to ensure a long-lasting ﬁnish. When cleaning is required

use a soft, damp cloth. Using lacquer thinner, caustic soaps, abrasive cleaners or polishes

could damage the coating and result in tarnishing.

FCC:

FCC ID: U4A-YRHCPZW0 (Z-Wave); U4A-YRHCPZB0 (Zigbee)

Model(s): YRD210-ZW, YRD210-ZB

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses, and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there is

no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful Interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Warning: Changes or modiﬁcations to this device not expressly approved by Yale Security, Inc.

could void the user's authority to operate the equipment.

An ASSA ABLOY Group brand

P/N AYRD210-INST-FUL Rev B

IMPORTANT: Do not install batteries until the lock is completely installed on door.

For your convenience, the Yale Real Living lock will automatically determine

whether it will function as a right or left-handed lock. (The "hand" or "handing"

of the lock, is determined by the side of the entry door that the hinges are on

when standing outside the door)

When the batteries are properly inserted for the ﬁrst time, the lock will attempt

to determine its handing - whether the lock is installed on the door or not. If the

lock is not completely installed on the door, it could hand itself incorrectly.

Should this occur, the lock must be installed on the door and then reset to its

factory defaults, allowing the lock to "hand" itself correctly.

To reset the lock to factory default, see the following:

The following procedure clears the automatic handing of the

lock and returns the lock to programming default - deleting

all user codes and setting the Master PIN code* back to the

default ("12345678").

1. Remove the batteries and then remove the inside escutcheon

to access the reset button.

2. The reset button (see image at right) is located above the

PCB cable connector.

3. Hold down the reset button for a minimum of 3 seconds and

then reinstall the batteries; once the batteries are properly

installed, release the reset button.

4. Reassemble the lock by reversing the same steps on page 6.

All features should now be returned to factory default.

Reset Lock to Factory Default

Cable

Reset Button

Inside Escutcheon

*The default Master PIN code must be changed prior to programming of the lock.

To Ensure Proper Lock Handing and for an explanation

of how to determine your lock handing, please read this

important note.

NOTE: The bolt must be in a retracted (unlocked) position when

installing the lockset and before batteries are installed.

An ASSA ABLOY Group brand

P/N AYRD210-INST-FUL Rev B

INTRODUCTION

The Yale Real Living™ Stand-alone Push Button Deadbolt Lock combines a robust lockset with a

contemporary electronic aesthetic.

Users beneﬁt from a push button keypad that makes day-to-day access effortless for simple updates

to user information in the event of stafﬁng changes or security breaches. Yale Real Living™ is engi-

neered for quick and easy installation and ﬁts in place of a standard deadbolt lock door prep (ANSI/

BHMA A156.115).

If this is an RF-enabled network lock, it needs to be located within 50 - 100 feet of another network

controller. That distance is inﬂuenced by objects between the lock and the controller and may be

expanded depending on proximity to other RF network devices. Also, if the lock is connected to a

network controller, it is recommended that it is programmed through the centralized user interface

(PC or hand-held device) to ensure communication between the lock and the controller unit.

Industry Canada:

Canadian ID: 6982A-YRHCPZW0 (Z-Wave); 6982A-YRHCPZB0 (Zigbee)

Model(s): YRD210-ZW, YRD210-ZB

This Class B digital apparatus meets all requirements of the Canadian Interference Causing

Equipment Regulations. Operation is subject to the following two conditions: (1) this device may

not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation.

Cet appareillage numérique de la classe B répond à toutes les exigences de l’interférence canadienne

causant des règlements d’équipement. L’opération est sujette aux deux conditions suivantes: (1) ce

dispositif peut ne pas causer l’interférence nocive, et (2) ce dispositif doit accepter n’importe quelle

interférence reçue, y compris l’interférence qui peut causer l’opération peu désirée.

For the U4A-YRHCPZB0 and 6982A-YRHCPZB0, the following statement applies:

“This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with minimum distance 20cm between

the radiator and your body. This transmitter must not be co-located or operating in conjunction with any

other antenna or transmitter.”

Section 7.1.2 of RSS-GEN Under Industry Canada regulations, this radio transmitter may only operate

using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry

Canada. To reduce potential radio interference to other users, the antenna type and its gain should be

so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for

successful communication.

En vertu des règlements d'Industrie Canada, cet émetteur radio ne peut fonctionner avec une antenne

d'un type et un maximum (ou moins) approuvés pour gagner de l'émetteur par Industrie Canada. Pour

réduire le risque d'interférence aux autres utilisateurs, le type d'antenne et son gain doivent être choisies

de façon que la puissance isotrope rayonnée équivalente (PIRE) ne dépasse pas ce qui est nécessaire

pour une communication réussie.

Section 7.1.3 of RSS-GEN This Device complies with Industry Canada License-exempt RSS standard(s).

Operation is subject to the following two conditions: 1) this device may not cause interference, and 2)

this device must accept any interference, including interference that may cause undesired operation of

the device.

Cet appareil est conforme avec Industrie Canada RSS standard exemptes de licence(s). Son

fonctionnement est soumis aux deux conditions suivantes: 1) ce dispositif ne peut causer des

interférences, et 2) cet appareil doit accepter toute interférence, y compris les interférences qui peuvent

causer un mauvais fonctionnement du dispositif.

An ASSA ABLOY Group brand

P/N AYRD210-INST-FUL Rev B

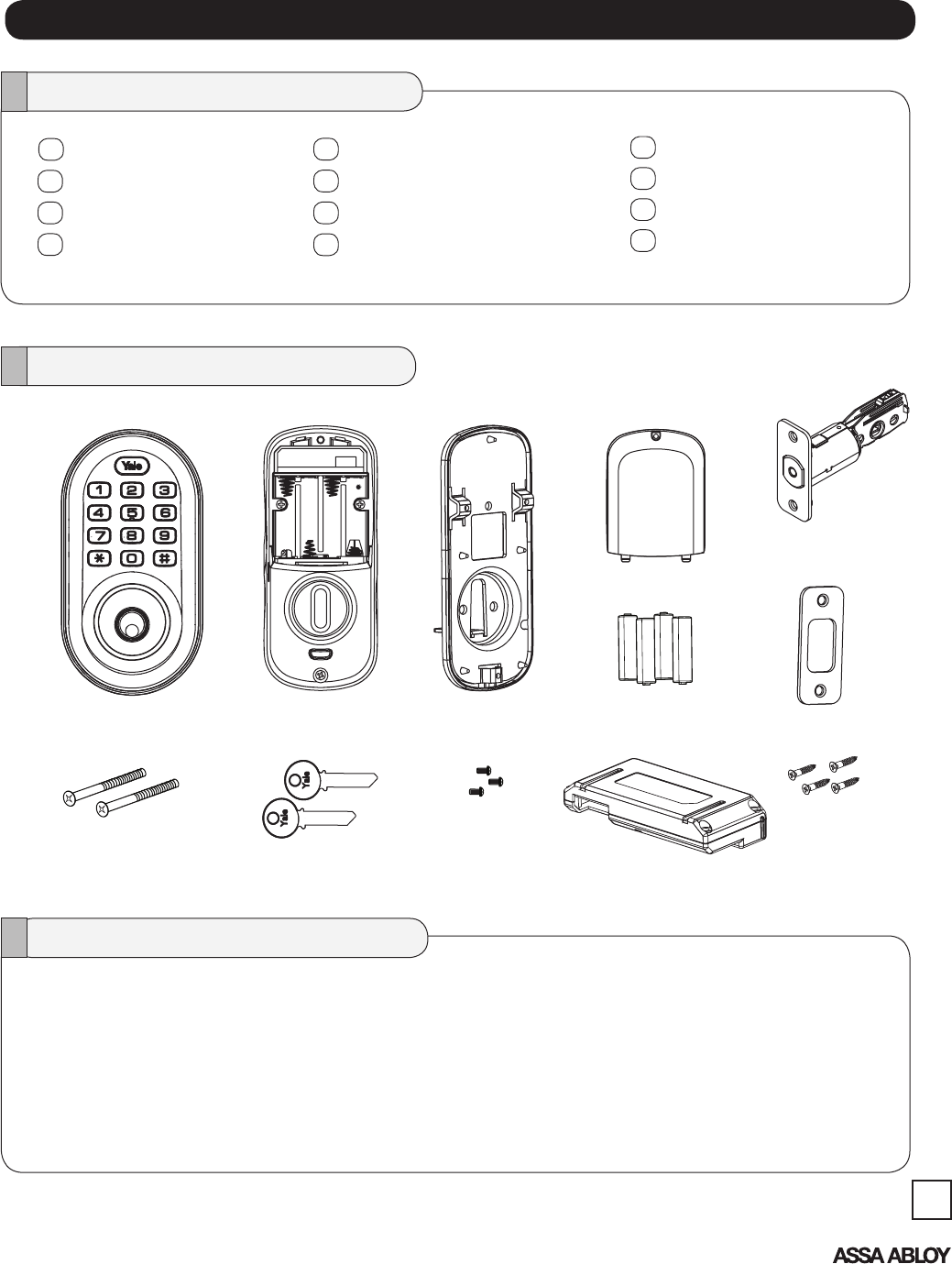

Lock Installation

#2 Phillips screwdriver

Door Prep

2-1/8" (54mm) hole saw

1" (26mm) boring bit

7/64" (2.5mm) drill bit

Chisel & hammer

Parts Illustrations

Tools Needed

Quick Start Guide

Installation Instructions

Door Marker

Outside Escutcheon

Bolt

Strike Plate

Screw Pack

Keys

Included in the box. . .

COMPONENTS AND TOOLS

Inside Escutcheon

Inside Mounting Plate

Battery Cover

4 AA Alkaline Batteries

INSTALLATION

Outside

Escutcheon

Inside

Escutcheon

4 AA Alkaline

Batteries

(2) Through

bolts Keys

Battery Cover

Bolt

Strike Plate

Inside

Mounting

Plate

Network Module

(Optional)

(3) Inside Escutcheon

Mounting screws

(4) Bolt & Strike Plate

Mounting Screws

An ASSA ABLOY Group brand

P/N AYRD210-INST-FUL Rev B

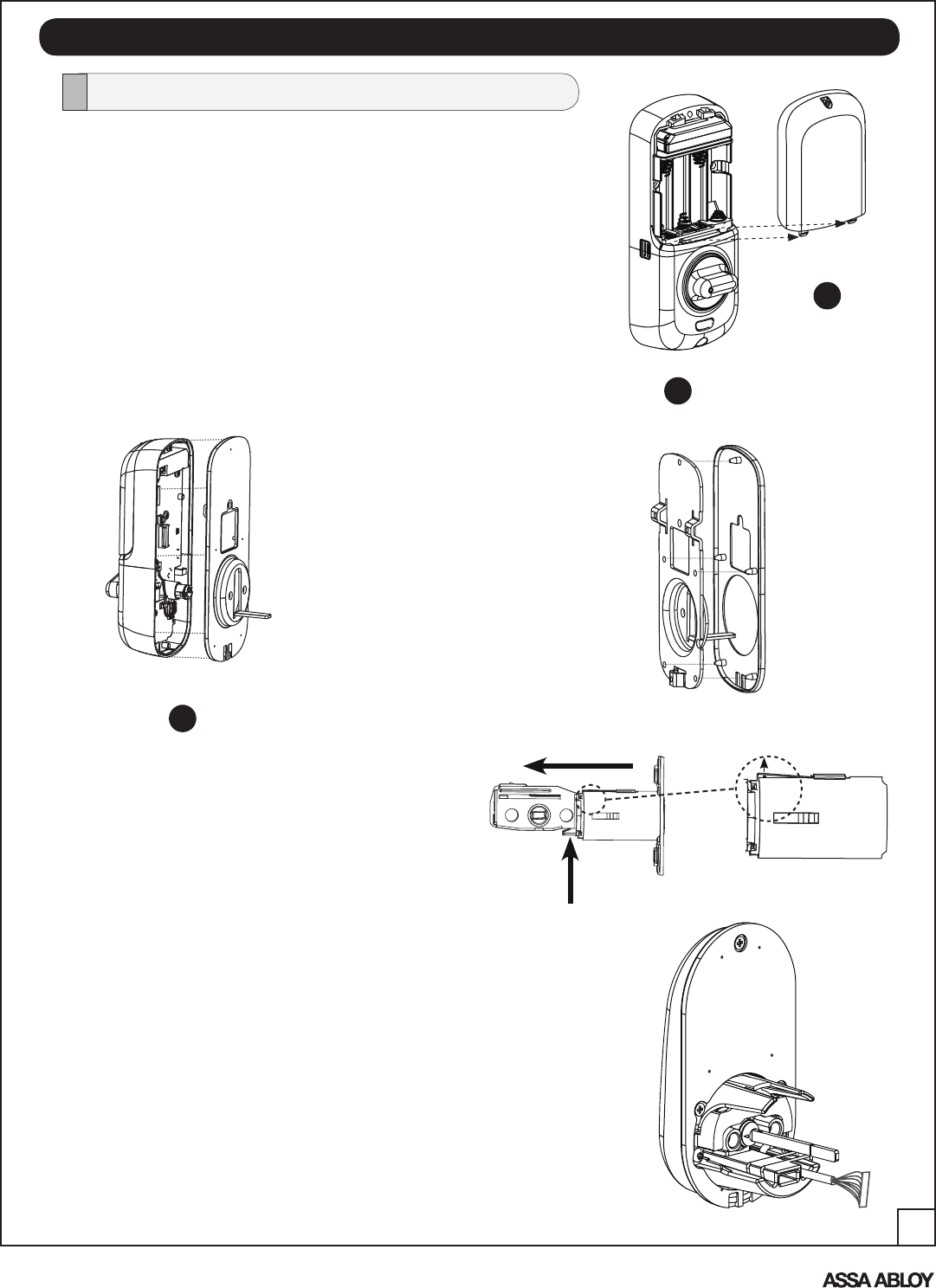

PREPARE LOCK FOR INSTALLATION

Unpack the Lock

The lock is packed representative of how it will install on

the door.

Before installing the lock on the door:

A. Inside escutcheon

1. Loosen the screw (Phillips #2) holding the battery

cover. (The screw remains attached to battery

cover)

2. Slide the battery cover up and out (note the two tabs

at bottom of battery cover).

3. Remove the inside mounting plate (with gasket) from

the back (door side) of the inside escutcheon.

Battery Cover

Inside Escutcheon

C. The outside escutcheon (with gasket) remains assembled.

Inside Escutcheon & Mounting Plate

(with gasket)

Outside Escutcheon

a. Ensure that gasket

on Inside Mounting

Plate is properly

ﬁtted. Note the

positioning of the

gasket's ﬁve rubber

nubs (Figure 3A) .

Figure 3A

B. Bolt

Note: Bolt ships with backset in 2-3/8" posi-

tion. If required, press small black button on

underside of bolt and pull to extend to 2-3/4"

backset position. Figure 3B

Detail 3B1

An ASSA ABLOY Group brand

P/N AYRD210-INST-FUL Rev B

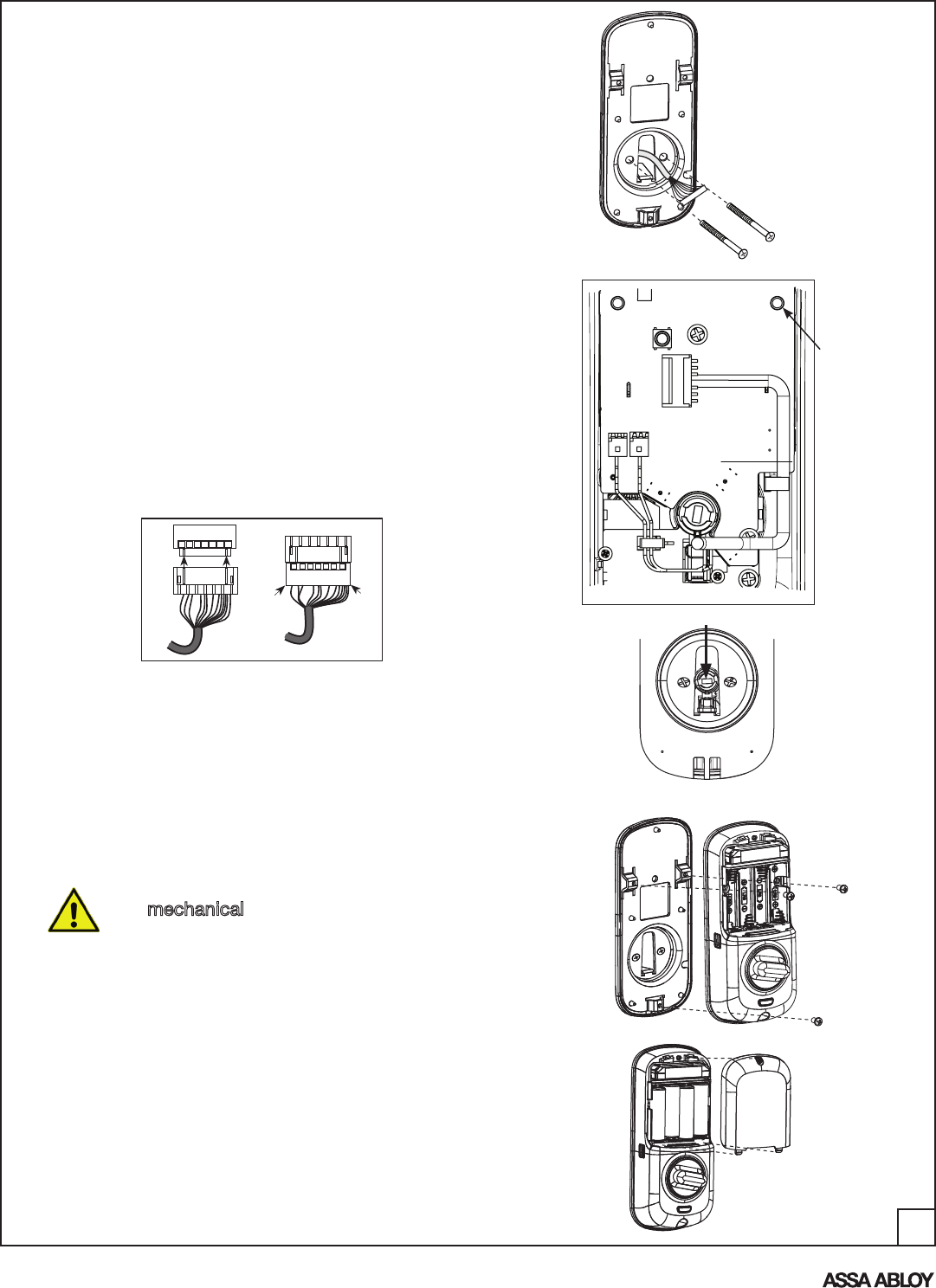

1. Install bolt in door.

NOTE: The bolt must be in a retracted (unlocked) position

when installing the lockset.

Attach with (2) M4 x 25.4mm [8-32 x 1"] screws supplied.

2. Install strike on the door frame, making sure to allow

for the bolt to be centered in the strike.

3. Install outside escutcheon.

As you position the outside escutcheon, route the

cable through 2-1/8" diameter hole (Figure 3A).

INSTALL LOCK

Figure 4A

Figure 3B

Figure 3A

4. Holding the outside escutcheon ﬂush to the door,

position the inside mounting plate by ﬁrst routing

the cable and connector through the mounting

plate's 1/2" hole (Fig. 4A) and then inserting the

mounting plate “tongue“ into the bottom slot of the

outside escutcheon (Fig. 4B).

(2) M4 x 25.4mm

[8-32 x 1"]

Flat Head

Combination Screws

(2) M4 x 25.4mm

[8-32 x 1"]

Flat Head

Combination Screws

Figure 4B

“Tongue”

NOTE: Cable goes under bolt (see Fig. 3B).

An ASSA ABLOY Group brand

P/N AYRD210-INST-FUL Rev B

5. Secure both assemblies using (2) M6 x 59.5mm

pan head machine screws, making sure that

outside escutcheon is vertically aligned.

Hand-tighten until snug. Do not over-tighten.

7. Install inside escutcheon on inside mounting

plate. Note the horizontal orientation of the tail-

piece (Fig. 7A) as you insert the inside escutcheon

(thumb turn should be vertical).

8. Install and secure using (3) M4 x 8mm [8-32 x 5/16"]

pan head screws through the inside escutcheon into

the mounting plate.

6. Attach cable assembly to the inside escutcheon

PC board by lining up notches on top of cable

connector to slots on PCB connector (Fig. 6B).

Note that connector should be pressed in ﬁrmly us-

ing thumbs until completely seated (proper position

indicated by arrows on PCB as in Fig. 6A & 6B ) .

Figure 6B

Figure 7A

Figure 6A

CAUTION:

Use care when assembling to ensure that

the cable lies against the back recessed

area of the inside escutcheon (Fig. 6A).

Position and bend cable, using the harness

clip as shown in Fig. 6A to prevent binding

when installing the escutcheon over the

mounting plate. Route cable

as indicated -

do not cover

hole

IMPORTANT: Before installing the batteries, test

the mechanical operation of the lock by using

both thumb turn and the key. The movement of the

bolt should be smooth and unobstructed. If

operation is not smooth, review the previous steps

to ensure proper installation.

9. Insert four (4) AA alkaline batteries. The lock responds

with a series of beeps, a red/blue ﬂash and a quick ﬂash

of all keypad LEDs. When activating the lock for the

ﬁrst time, the lock will adjust for proper handing.

Note: Refer to programming instructions prior to completion of

step 10.

10. Install battery cover and tighten Phillips head screw.

NOTE: The bolt must be in a retracted (unlocked) position

prior to installing the batteries.

An ASSA ABLOY Group brand

P/N AYRD210-INST-FUL Rev B

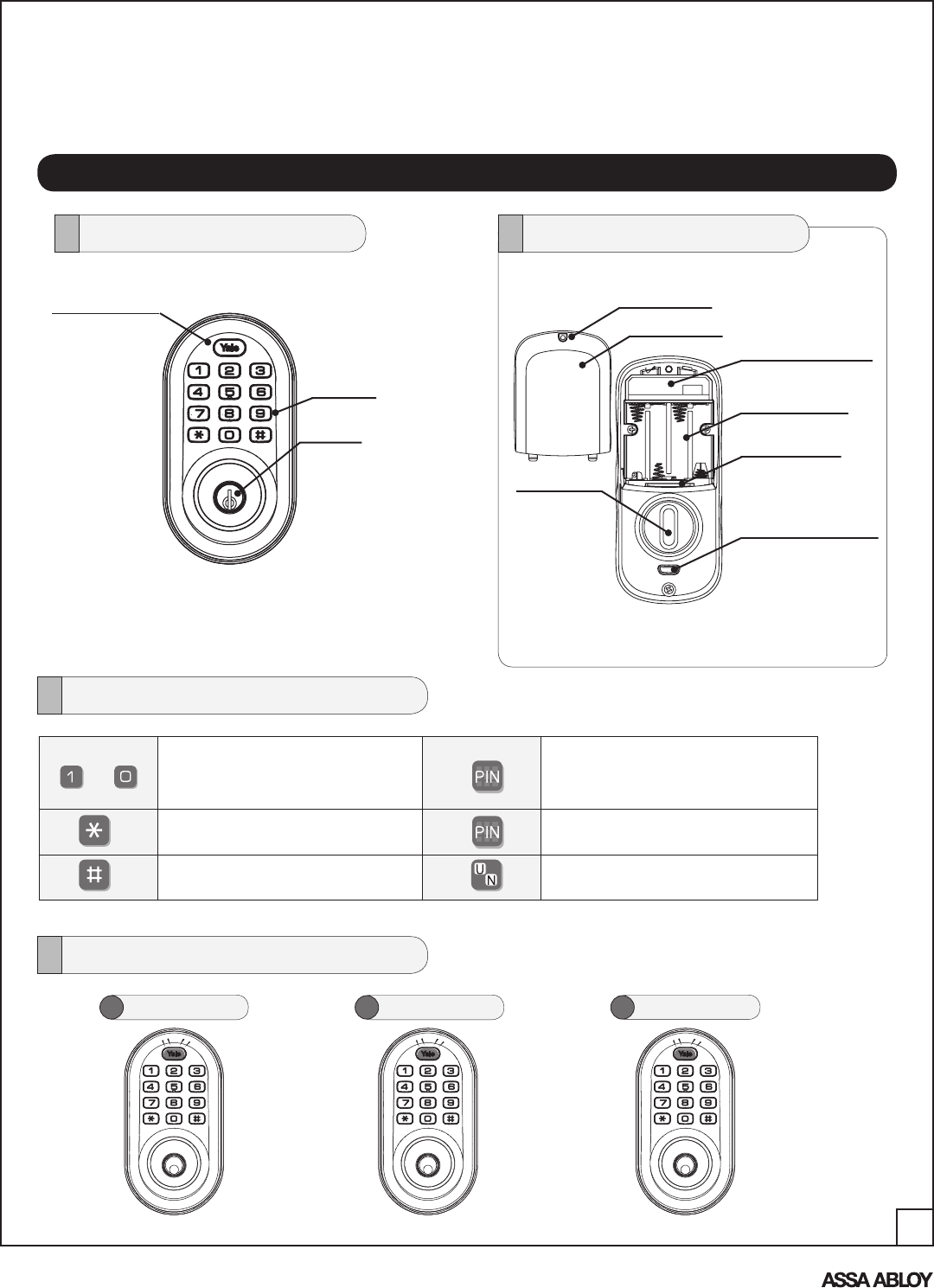

PROGRAMMING FEATURES - MENUS - KEYS - DEFINITIONS

Phillips Screw

Network Module Slot

Alkaline Batteries

4 AA Type

Thumb Turn

Status Indicator

Battery Cover

Outside Inside

Status Indicator

Numbers

Privacy Mode Button

Menu and Icons Used in This Guide

Cylinder

Click the indicated number. Enter Master PIN code (4-8 digits in

length).

(Factory default: 12345678)

Press the Star key on the keypad to Enter

or Accept entry. Enter User PIN. Can be 4-8 digits in

length.

Press the Pound key on the keypad to

enter Menu mode.

User Number (1 - 25);

RF Controlled (1 - 250).

Low Battery Warning

1 Lock-out Mode

2 Return to previous step

Status Indicators

RED RED &

BLUE

PROGRAMMING

Programming Features-Menus-Keys-Deﬁnitions ............................................... 8-10

Operation .......................................................................................................... 11-13

An ASSA ABLOY Group brand

P/N AYRD210-INST-FUL Rev B

Lockout Mode: This feature is enabled by the Master code. When enabled, it restricts all

user PIN code access. When attempting to enter a code while the unit is in Lockout, the

Status Indicator ﬂashes RED and BLUE; the keypad ﬂashes as well.

Low Battery: When battery power is low, the Status Indicator ﬂashes RED. If battery

power is completely lost, use the key override.

Master PIN Code: The Master code is used for programming and for feature settings.

NOTE: The default Master Pin Code must be changed prior to programming the

lock. The Master code will also operate the lock.

Privacy Mode: This button located under the thumb turn on the inside escutcheon, ac-

tivates and deactivates the keypad and is indicated by a BLUE ﬂash every ten (10) sec-

onds. It is also overridden by mechanically operating the thumb turn or key.

Auto Re-lock Time: After successful code entry and the unit unlocks, it will automatically

re-lock after a default of thirty (30) seconds. Re-lock time is adjustable from ﬁve (5) to

thirty (30) seconds.

One Touch Re-Lock: When the bolt is retracted, activating the keypad will extend the bolt

(during Auto Re-Lock duration or when Auto Re-Lock is disabled).

Shutdown Time: The unit will shutdown for a default of sixty (60) seconds and not allow

operation after the wrong code entry limit has been met. When the unit is in Shutdown,

the Status Indicator ﬂashes RED and BLUE; the keypad ﬂashes as well.

Silent Mode: Choosing Silent (3) in Audio mode shuts off the code conﬁrmation tone

playback for use in quiet areas. Audio mode is enabled or disabled through feature pro-

gramming by the Master code.

Status LED: Located on inside escutcheon.

User PIN Code: The User code operates the lock. Maximum number of user codes is

250 with Network Module; without Network Module, maximum is 25 user codes.

Wrong Code Entry Limit: After a speciﬁed number of unsuccessful attempts at entering

a valid PIN code the unit will shut down and not allow operation. Wrong code entry limit is

adjustable from three (3) to ten (10) times through feature settings (up to 5 times with no

RF network enabled - default is 5; 10 with RF network enabled).

Deﬁnitions

Settings Factory Defaults

Master Code 12345678

Auto Re-lock Enabled

Audio Enabled

Re-lock Time *30 Seconds

Wrong Code Entry Limit *5 Times

Shutdown Time *60 Seconds

Factory Defaults

*Adjustable with Network Module

An ASSA ABLOY Group brand

P/N AYRD210-INST-FUL Rev B

Lock Operation

Enter current Master PIN code,

followed by the key.

Enter '1' to change Master PIN code,

followed by the key.

Enter the new Master PIN code (4~8

digits), followed by the key.

1. Enter the 8-digit default Master PIN code (12345678) followed by the key.

2. Enter “1” followed by the key.

3. Enter new 4-8 digit Master PIN code followed by the key.

Change Default Master Code Before Programming*

User Codes can only be programmed through the Master Code.

1. Enter the 4-8 digit Master PIN code followed by the key.

2. Enter “2“ followed by the key.

3. Enter the User number to be registered (1-25) followed by the key.

4. Enter a 4-8 digit PIN code for the User number followed by the key.

Set Up User Codes

Note: When registering User codes, the code must be entered with in 20 seconds.

If time expires, no codes are registered and the process must be re-started.

PIN code structure

Maximum number of user codes is 250 with Network Module; without Network Module,

maximum is 25 user codes.

Lockout is a Menu feature that restricts Pin code access (except Master).

Privacy mode is set by pressing and holding the button (found below thumb turn) for a

duration of four beeps. This deactivates the keypad, and because it is set from the inside,

provides a secure lock for the convenience of the occupant(s).

Privacy Mode vs. Lockout Mode

*Default Master PIN Code must be changed prior to programming the lock.

An ASSA ABLOY Group brand

P/N AYRD210-INST-FUL Rev B

Feature Programming Through Menu Mode Using Master Code*

1. Enter the 4-8 digit Master PIN code followed by the key.

2. Enter digit corresponding to the function to be performed followed by the key.

Note: If the lock is connected to a network controller, it is recommended that it is

programmed through the centralized user interface (PC or hand-held device) to en-

sure communication between the lock and the controller unit.

Master PIN Setting

User PIN Deletion

Audio Mode

All Code Lock-out

*Network Module Setting

Enable

Disable

Delete

Disable

User Number (UN)

1~25: without network module

1~250: with network module

1 2

User PIN Registration

Complete

UComplete

Auto Re-lock

Enable

Disable

*This function appears

only with network module

installed

Enter PIN code.

Complete the code entry

by pressing the key.

Unlock.

Open Door with PIN Code

For quiet areas, select Disable (3)

in Audio Mode.

CAUTION: When joining a network your controller may or may not

be aware of any previously saved user codes stored in the lock. It is

recommended that all user codes be deleted from the lock prior to

joining a network.

An ASSA ABLOY Group brand

P/N AYRD210-INST-FUL Rev B

Cycle the lock in both the locked and the unlocked positions. If problems are found:

TROUBLESHOOTING

Hardware Troubleshooting

MISCELLANEOUS

Hardware Troubleshooting ......................................................................................13

Programming Troubleshooting ...............................................................................14

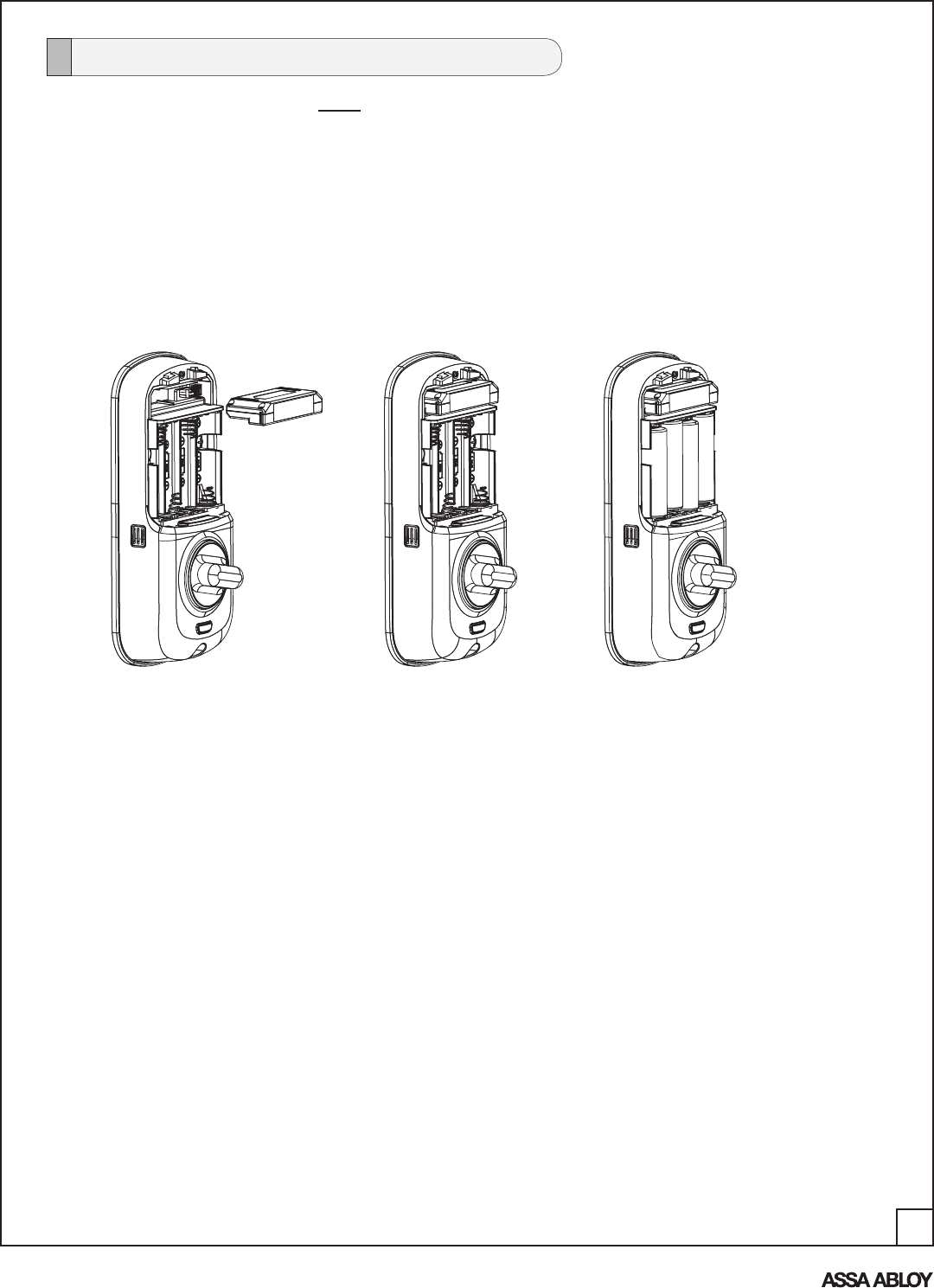

Installing the Network Module ................................................................................15

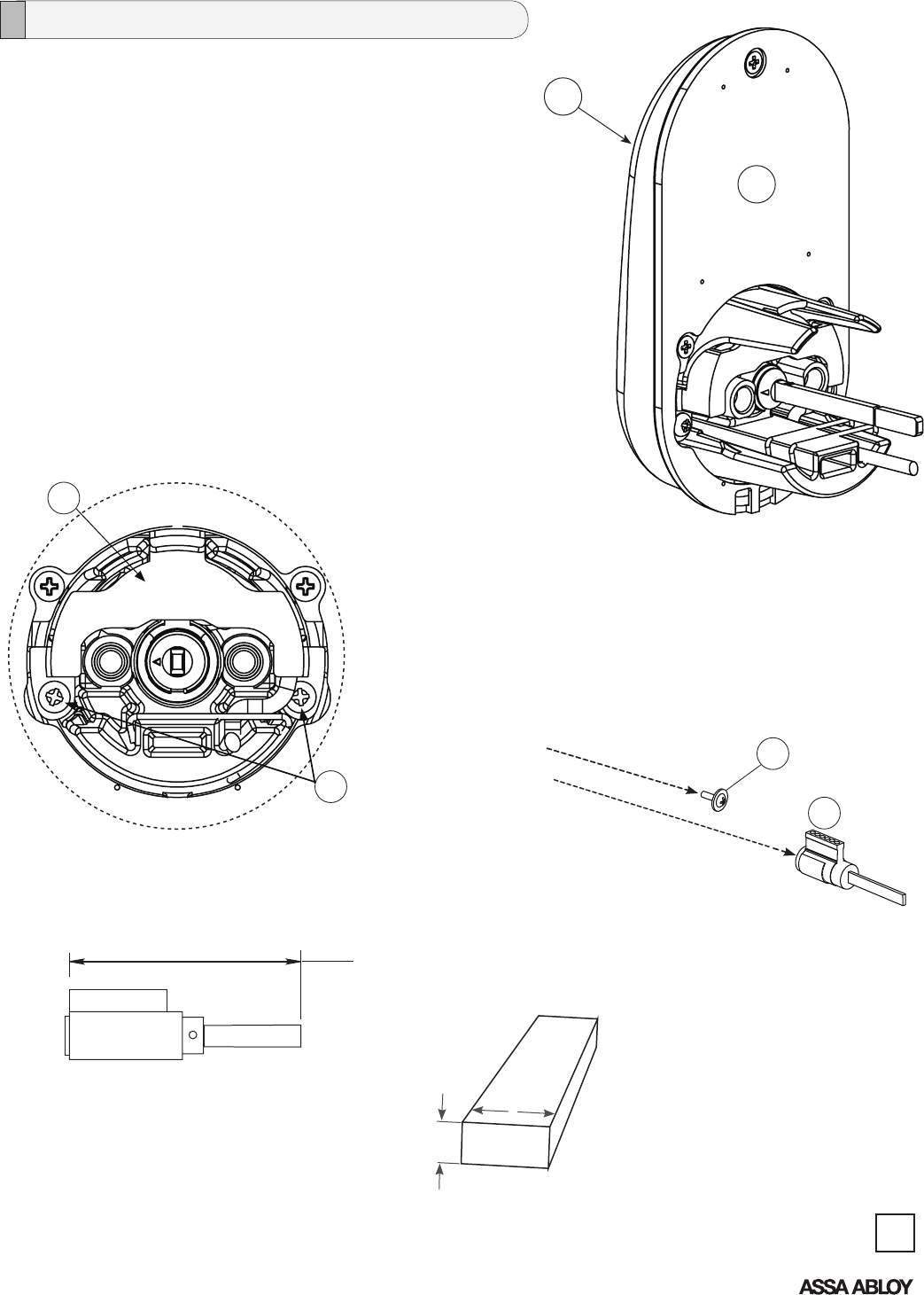

How to Replace/Install Cylinder .............................................................................16

Sample Pin Code Management Sheets ........................................................... 17-18

Yale Real Living™ locks are automatically handed. On startup, hold down the reset button

and wait while the lock tests bolt operation. The default Master Pin Code must be changed

before any other programming.

Symptom Suggested Action

Door is binding a. Check that door and frame are properly aligned and door is free swinging.

b. Check hinges: They should not be loose or have excessive wear on knuckles.

Bolt will not deadlock a. Check for sufﬁcient clearance of the bolt within the strike-side jamb. Correct this by increasing

the depth of the pocket for the bolt.

b. Check for misalignment of bolt and/or strike which may be preventing bolt from properly

entering the strike. With the door open, extend and retract the bolt; if it is smooth, check the

strike alignment.

Bolt does not extend or retract smoothly a. Bolt and strike are misaligned, see above.

b. Check the backset of door relative to adjustments already made to bolt.

c. Verify proper door preparation and re-bore holes that are too small or misaligned.

d. Verify keypad cable/connector is routed under the bolt (see Fig. A).

e. Verify bolt is installed correct side up (Fig. A). .

Figure A

An ASSA ABLOY Group brand

P/N AYRD210-INST-FUL Rev B

Programming Troubleshooting

* When batteries are replaced, Network Module locks have a real time clock that will be set through the User Interface (UI); it

is recommended to verify correct date and time particularly those locks operating under Daylight Saving Time (DST).

Symptom Suggested Action

Lock does not respond – door is

open and accessible.

• Press each keypad button to see if they respond when pressed.

• Check batteries are installed and oriented correctly (polarity) in the battery case.

• Check batteries are in good condition; replace batteries* if discharged.

• Check to see if cable is fully connected and not pinched.

Lock does not respond – door is

locked and inaccessible.

• Lock may be in Privacy mode (set from inside room). Mechanical key will grant access.

• Batteries may be completely discharged.

• Use mechanical key to gain entry and replace batteries*.

Unit chimes to indicate code accep-

tance, but the door will not open.

• Check to see if there is another locking device on the door.

• Check the door gaps for any foreign objects between door and frame.

• Check that the cable is ﬁrmly connected to the PC board.

Unit operates to allow access, but will

not automatically re-lock.

• Check to see if Auto Re-lock Mode is enabled.

• Disable Auto Re-lock Mode to lock the door (automatically).

• If low battery indicator is lit (see below), change batteries*.

PIN codes will not register. • PIN codes must consist of 4 to 8 digits to register.

• The same PIN code cannot be used for multiple users.

• Registration/management of PIN codes is set by the authority of the Master Code.

• Contact the Master user

• User codes must be entered within 20 seconds or the process will have to be restarted.

• The star (*) or pound (#) cannot be used as part of the PIN code.

Upon entering a PIN code and press-

ing the star (*) key, the lock gives

a series of beeps, ﬂashes red and

blue LEDs seven times, and does not

unlock.

• Lockout Mode is enabled.

• Only the Master can enable/disable Lockout Mode.

• Contact the Master user.

Upon entering a PIN code and press-

ing the (*) key, there are different

tones.

• Check to see if the lock is set to Lockout Mode.

• Setting/managing Lockout Mode is done through Master Code only. Contact the Master

user.

The unit operates, but it makes

no sound.

• Enable Audio Mode.

The unit displays intermittent RED

ﬂashes.

• This is the Low Battery indicator alerting that it is time to replace the batteries. Replace

all four (4) batteries* with new AA Alkaline batteries.

Upon entering a PIN code and press-

ing the star (*) key, the unit responds

with a series of beeps and the keypad

ﬂashes three times.

• The digits entered were incorrect or incomplete. Re-enter the correct code followed by

the star key.

** Network Module locks only

An ASSA ABLOY Group brand

P/N AYRD210-INST-FUL Rev B

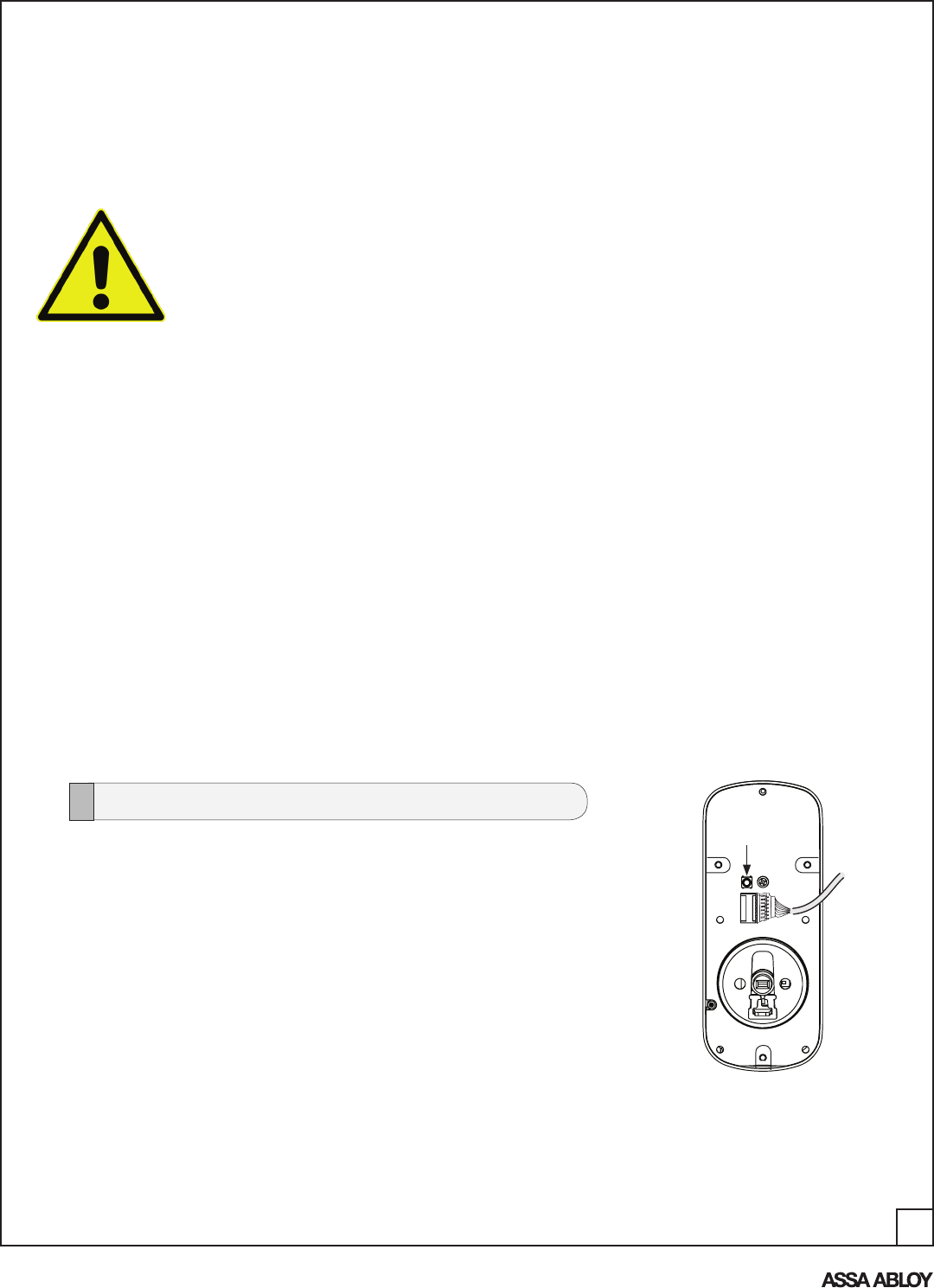

IMPORTANT: The batteries must be removed prior to removing and/or inserting the

network module:

• Remove batteries

• Remove and/or insert network module

• Reinstall batteries

Installing the Network Module

Use feature programming step 7 (page 13) for enrollment of the

Network Module.

An ASSA ABLOY Group brand

P/N AYRD210-INST-FUL Rev B

1. Remove cylinder:

A. Remove outside escutcheon from door.

B. Remove rubber gasket.

C. Remove two screws holding plastic guide

in place.

D. Remove plastic guide.

E. Remove screw with washer holding cylinder in

place (visible after plastic guide is removed).

F. Remove cylinder by pulling towards the

door side of escutcheon.

Before installing cylinder, please be sure you have

correct length tailpiece.

2. Install new cylinder:

A. Reverse previous steps for removing cylinder.

How to Replace or Install Cylinder

1-3/8"* to 2" thick doors, L = 3-1/2" (88.8mm)

2" to 2-1/4" thick doors, L = 3-3/4" (95.3mm)

*Requires addition of Thin Door Kit.

Cylinder tailpiece information:

T = .098" (2.5mm)

W = .2" (5.2mm)

Tailpiece

An ASSA ABLOY Group brand

P/N AYRD210-INST-FUL Rev B

PIN CODE MANAGEMENT SAMPLE SHEETS

PIN Code Management (No Network Module - Up to 25 Users)

Location: Door Number: User User Name User # PIN Code

User Type User Name User # PIN Code

Master User 13

User 1 User 14

User 2 User 15

User 3 User 16

User 4 User 17

User 5 User 18

User 6 User 19

User 7 User 20

User 8 User 21

User 9 User 22

User 10 User 23

User 11 User 24

User 12 User 25

An ASSA ABLOY Group brand

P/N AYRD210-INST-FUL Rev B

PIN Code Management (With Network Module - Up to 250 Users) - Duplicate Sheet to record entries

User Type User Name User # PIN Code User User Name User # PIN Code

Master User ___

User ___ User ___

ONLINE LITERATURE AND TEMPLATES

For the latest information on Yale products visit our website at

www.yalelocks.com. Click on the “Literature” button to ﬁnd the

most up-to-date catalogs, parts manuals, templates, speciﬁca-

tions and installation instructions.

An ASSA ABLOY Group brand

P/N AYRD210-INST-FUL Rev B

Yale Locks & Hardware

100 Yale Avenue, Lenoir City, TN 37771 • Product Support Tel 800.810.WIRE (9473) • www.yalelocks.com

Yale Locks & Hardware is a division of Yale Security Inc., an ASSA ABLOY Group company.

Yale Security Inc., an ASSA ABLOY Group company.

written permission of Yale Security Inc., an ASSA ABLOY Group company is prohibited.

YALE, with its unique global reach and range of products, is the world’s favorite lock — the preferred solution for securing your home, family

and personal belongings.

ASSA ABLOY is the global leader in door opening solutions, dedicated to satisfying end-user needs for security, safety and convenience.

ASSALOY YRHCPZB0 Yale Real Living Electronic Zigbee Lock User Manual 12 0001 Exhibit Cover

ASSA ABLOY Inc. Yale Real Living Electronic Zigbee Lock 12 0001 Exhibit Cover

Contents

Manual - YRD210-ZB

Navigation menu

Namespaces

Views

Navigation
