Yale Real Living™ Push Button Deadbolt
Installation and Programming Instructions
For Technical Assistance call Yale at 1-800-810-WIRE (9473)
NOTE TO INSTALLER
FAILURE TO FOLLOW THESE INSTRUCTIONS
COULD RESULT IN DAMAGE TO THE PRODUCT
AND VOID THE FACTORY WARRANTY
An ASSA ABLOY Group brand
P/N AYRD210-INST-FUL Rev B
This document is available on our website in printed Spanish and French. Go to www.yalerealliving.com.
Click “Product Information & Documentation” and then “Installation Instructions”.
Este documento está disponible en español en nuestra página de internet. Vaya a www.yalerealliving.com.
Presione “Información del Producto y Documentación” y luego “Instrucciones de Instalación”.
Ce document est disponible sur notre site Web dans le français imprimé. Allez à www.yalerealliving.com.
Cliquez sur le “ ; Information sur le produit et Documentation” et puis “Installation Instructions”.
2
An ASSA ABLOY Group brand
P/N AYRD210-INST-FUL Rev B
Warnings ..................................................................................................................... 2-4
Reset Lock to Factory Default ..................................................................................3
Introduction .....................................................................................................................4
Installation
Components and Tools .............................................................................................5
Prepare Lock for Installation .....................................................................................6
Install Lock ............................................................................................................ 7-8
Programming
Programming Features-Menus-Keys-Definitions ............................................... 9-10
Lock Operation ................................................................................................. 11-12
Miscellaneous Information
Hardware Troubleshooting ......................................................................................13
Programming Troubleshooting ...............................................................................14
Installing the Network Module ................................................................................15
Replace/Install Cylinder ..........................................................................................16
Sample Pin Code Management Sheets ........................................................... 17-18
TABLE OF CONTENTS
WARNINGS
IMPORTANT: The accuracy of the door preparation is critical for the proper functioning and
security of this product. Misalignment can cause performance degradation and a lessening of
security.
Finish Care: This lockset is designed to provide the highest standard of product quality and
performance. Care should be taken to ensure a long-lasting finish. When cleaning is required
use a soft, damp cloth. Using lacquer thinner, caustic soaps, abrasive cleaners or polishes
could damage the coating and result in tarnishing.
FCC:
FCC ID: U4A-YRHCPZW0 (Z-Wave); U4A-YRHCPZB0 (Zigbee)
Model(s): YRD210-ZW, YRD210-ZB
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful Interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications to this device not expressly approved by Yale Security, Inc.
could void the user's authority to operate the equipment.
3
An ASSA ABLOY Group brand
P/N AYRD210-INST-FUL Rev B
IMPORTANT: Do not install batteries until the lock is completely installed on door.
For your convenience, the Yale Real Living lock will automatically determine
whether it will function as a right or left-handed lock. (The "hand" or "handing"
of the lock, is determined by the side of the entry door that the hinges are on
when standing outside the door)
When the batteries are properly inserted for the first time, the lock will attempt
to determine its handing - whether the lock is installed on the door or not. If the
lock is not completely installed on the door, it could hand itself incorrectly.
Should this occur, the lock must be installed on the door and then reset to its
factory defaults, allowing the lock to "hand" itself correctly.
To reset the lock to factory default, see the following:
The following procedure clears the automatic handing of the
lock and returns the lock to programming default - deleting
all user codes and setting the Master PIN code* back to the
default ("12345678").
1. Remove the batteries and then remove the inside escutcheon
to access the reset button.

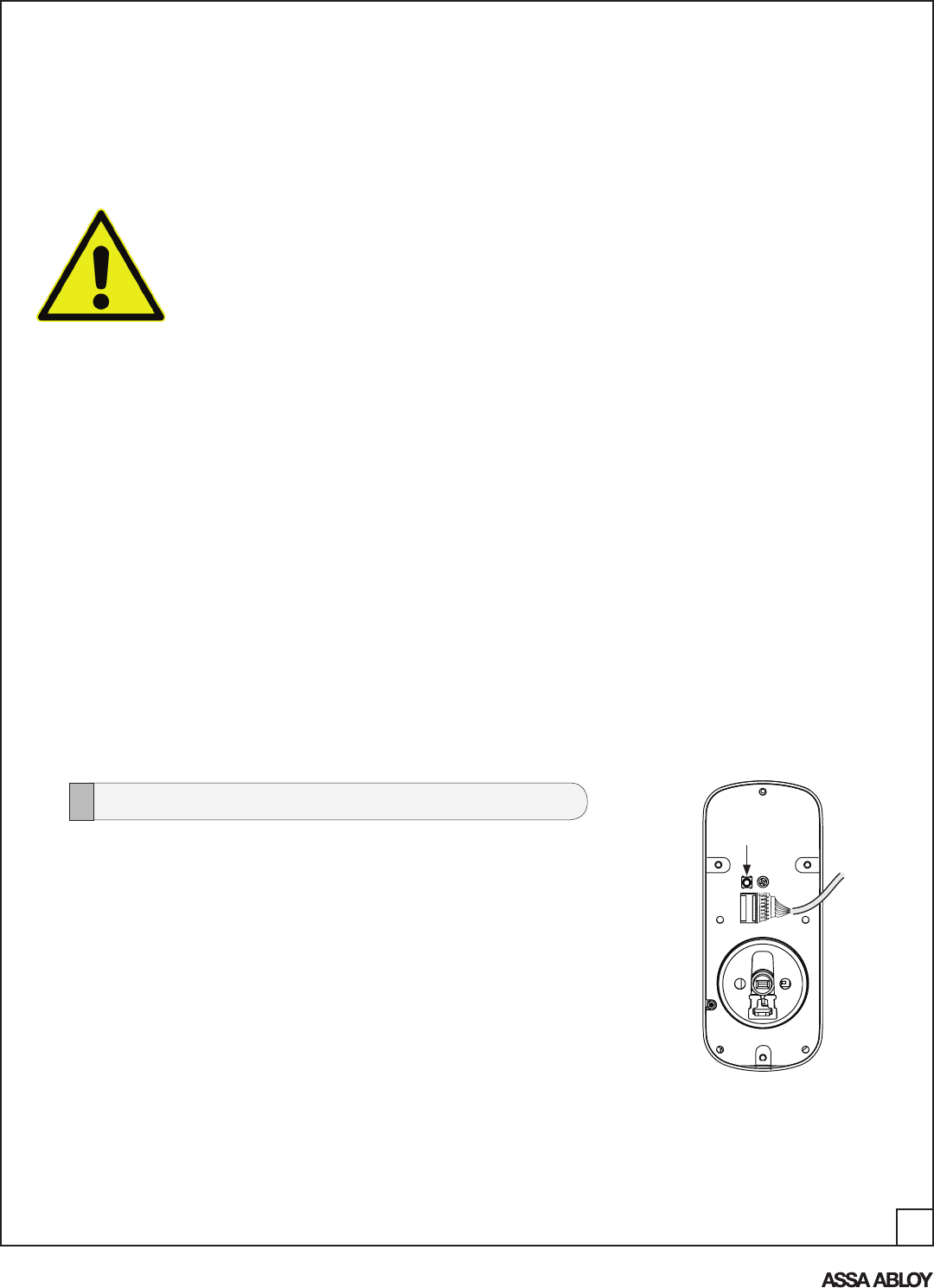

2. The reset button (see image at right) is located above the
PCB cable connector.
3. Hold down the reset button for a minimum of 3 seconds and
then reinstall the batteries; once the batteries are properly
installed, release the reset button.
4. Reassemble the lock by reversing the same steps on page 6.
All features should now be returned to factory default.
Reset Lock to Factory Default
Cable
Reset Button
Inside Escutcheon
*The default Master PIN code must be changed prior to programming of the lock.
To Ensure Proper Lock Handing and for an explanation
of how to determine your lock handing, please read this
important note.
NOTE: The bolt must be in a retracted (unlocked) position when
installing the lockset and before batteries are installed.
4
An ASSA ABLOY Group brand
P/N AYRD210-INST-FUL Rev B
INTRODUCTION
The Yale Real Living™ Stand-alone Push Button Deadbolt Lock combines a robust lockset with a
contemporary electronic aesthetic.
Users benefit from a push button keypad that makes day-to-day access effortless for simple updates
to user information in the event of staffing changes or security breaches. Yale Real Living™ is engi-
neered for quick and easy installation and fits in place of a standard deadbolt lock door prep (ANSI/
BHMA A156.115).
If this is an RF-enabled network lock, it needs to be located within 50 - 100 feet of another network
controller. That distance is influenced by objects between the lock and the controller and may be
expanded depending on proximity to other RF network devices. Also, if the lock is connected to a
network controller, it is recommended that it is programmed through the centralized user interface
(PC or hand-held device) to ensure communication between the lock and the controller unit.
Industry Canada:
Canadian ID: 6982A-YRHCPZW0 (Z-Wave); 6982A-YRHCPZB0 (Zigbee)
Model(s): YRD210-ZW, YRD210-ZB
This Class B digital apparatus meets all requirements of the Canadian Interference Causing
Equipment Regulations. Operation is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Cet appareillage numérique de la classe B répond à toutes les exigences de l’interférence canadienne
causant des règlements d’équipement. L’opération est sujette aux deux conditions suivantes: (1) ce
dispositif peut ne pas causer l’interférence nocive, et (2) ce dispositif doit accepter n’importe quelle
interférence reçue, y compris l’interférence qui peut causer l’opération peu désirée.
For the U4A-YRHCPZB0 and 6982A-YRHCPZB0, the following statement applies:
“This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm between
the radiator and your body. This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.”
Section 7.1.2 of RSS-GEN Under Industry Canada regulations, this radio transmitter may only operate
using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry
Canada. To reduce potential radio interference to other users, the antenna type and its gain should be
so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for
successful communication.
En vertu des règlements d'Industrie Canada, cet émetteur radio ne peut fonctionner avec une antenne
d'un type et un maximum (ou moins) approuvés pour gagner de l'émetteur par Industrie Canada. Pour
réduire le risque d'interférence aux autres utilisateurs, le type d'antenne et son gain doivent être choisies
de façon que la puissance isotrope rayonnée équivalente (PIRE) ne dépasse pas ce qui est nécessaire
pour une communication réussie.
Section 7.1.3 of RSS-GEN This Device complies with Industry Canada License-exempt RSS standard(s).
Operation is subject to the following two conditions: 1) this device may not cause interference, and 2)
this device must accept any interference, including interference that may cause undesired operation of
the device.
Cet appareil est conforme avec Industrie Canada RSS standard exemptes de licence(s). Son
fonctionnement est soumis aux deux conditions suivantes: 1) ce dispositif ne peut causer des
interférences, et 2) cet appareil doit accepter toute interférence, y compris les interférences qui peuvent
causer un mauvais fonctionnement du dispositif.
5
An ASSA ABLOY Group brand
P/N AYRD210-INST-FUL Rev B
Lock Installation
#2 Phillips screwdriver
Door Prep
2-1/8" (54mm) hole saw
1" (26mm) boring bit
7/64" (2.5mm) drill bit
Chisel & hammer

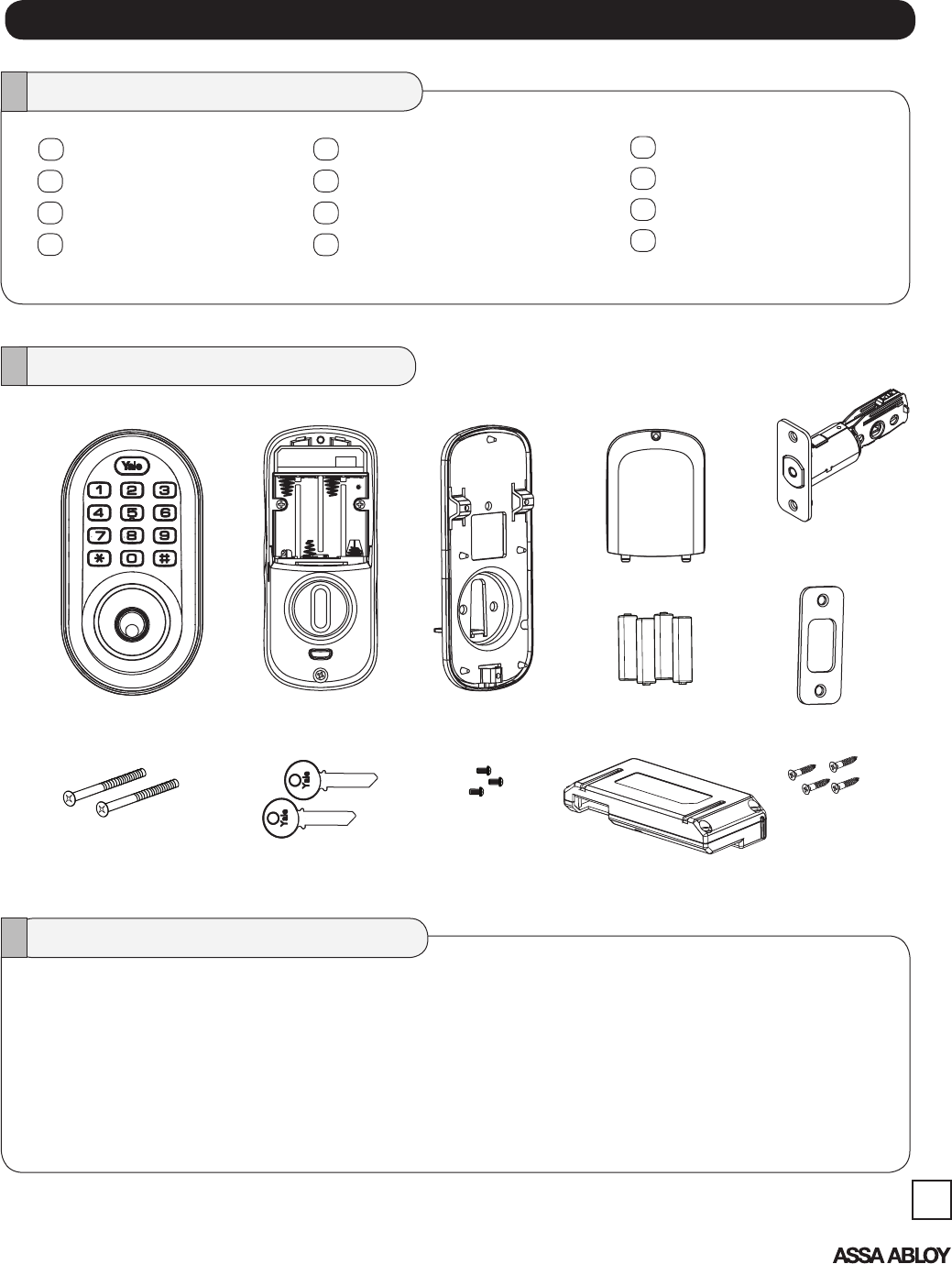

Parts Illustrations
Tools Needed
Quick Start Guide
Installation Instructions
Door Marker
Outside Escutcheon
Bolt
Strike Plate
Screw Pack
Keys
Included in the box. . .
COMPONENTS AND TOOLS
Inside Escutcheon
Inside Mounting Plate
Battery Cover
4 AA Alkaline Batteries
INSTALLATION
Outside
Escutcheon
Inside
Escutcheon
4 AA Alkaline
Batteries
(2) Through
bolts Keys
Battery Cover
Bolt
Strike Plate
Inside
Mounting
Plate
Network Module
(Optional)
(3) Inside Escutcheon
Mounting screws
(4) Bolt & Strike Plate
Mounting Screws
6
An ASSA ABLOY Group brand
P/N AYRD210-INST-FUL Rev B
PREPARE LOCK FOR INSTALLATION
Unpack the Lock
The lock is packed representative of how it will install on
the door.
Before installing the lock on the door:
A. Inside escutcheon
1. Loosen the screw (Phillips #2) holding the battery
cover. (The screw remains attached to battery
cover)
2. Slide the battery cover up and out (note the two tabs
at bottom of battery cover).
3. Remove the inside mounting plate (with gasket) from
the back (door side) of the inside escutcheon.
Battery Cover
Inside Escutcheon
C. The outside escutcheon (with gasket) remains assembled.
Inside Escutcheon & Mounting Plate
(with gasket)
Outside Escutcheon
1
2
3
a. Ensure that gasket
on Inside Mounting
Plate is properly
fitted. Note the
positioning of the
gasket's five rubber
nubs (Figure 3A) .
Figure 3A
B. Bolt
Note: Bolt ships with backset in 2-3/8" posi-
tion. If required, press small black button on
underside of bolt and pull to extend to 2-3/4"
backset position. Figure 3B
Detail 3B1
7
An ASSA ABLOY Group brand
P/N AYRD210-INST-FUL Rev B

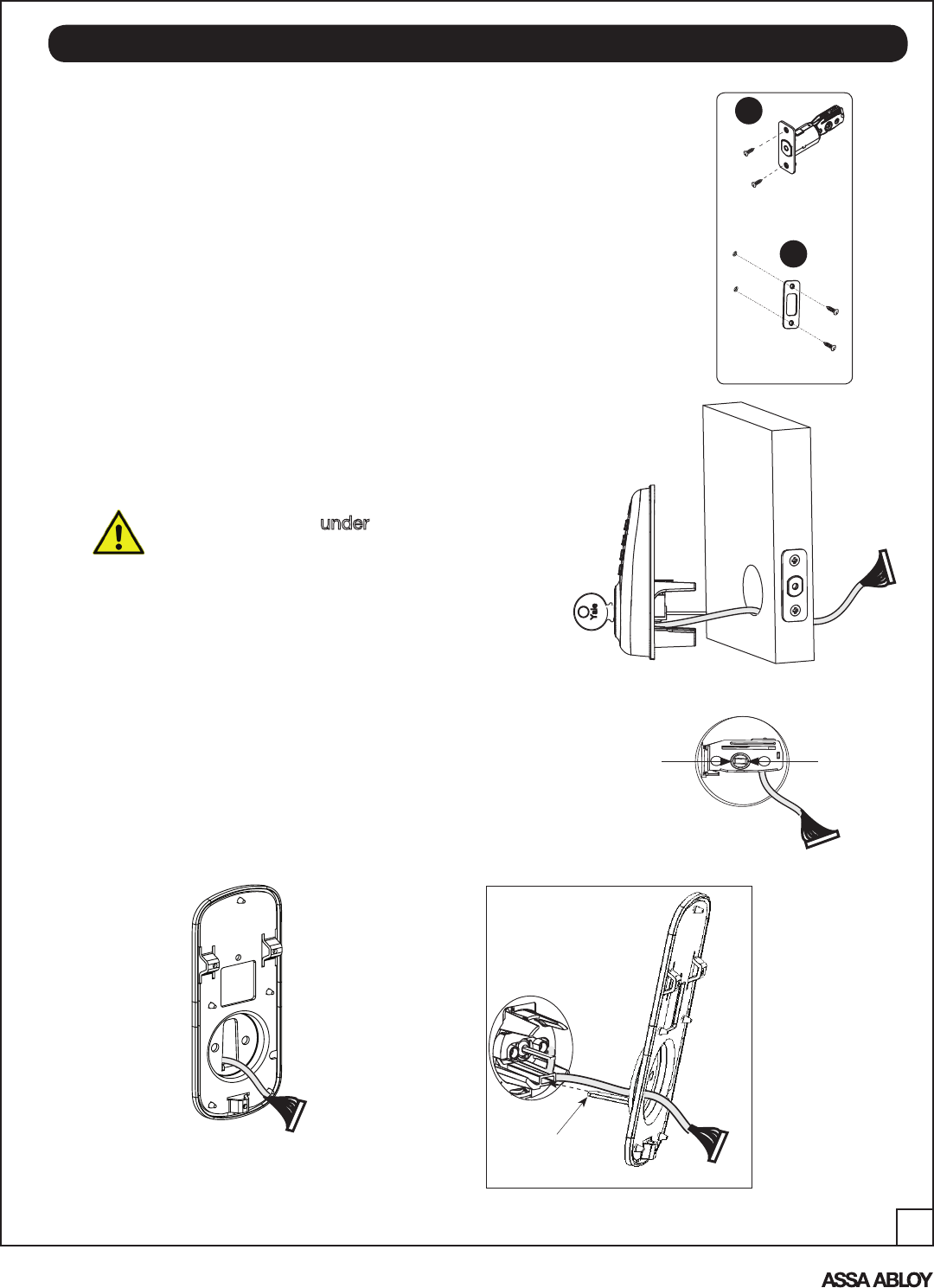

1. Install bolt in door.
NOTE: The bolt must be in a retracted (unlocked) position
when installing the lockset.
Attach with (2) M4 x 25.4mm [8-32 x 1"] screws supplied.
2. Install strike on the door frame, making sure to allow
for the bolt to be centered in the strike.
3. Install outside escutcheon.
As you position the outside escutcheon, route the
cable through 2-1/8" diameter hole (Figure 3A).
INSTALL LOCK
Figure 4A
Figure 3B
Figure 3A
4. Holding the outside escutcheon flush to the door,
position the inside mounting plate by first routing
the cable and connector through the mounting
plate's 1/2" hole (Fig. 4A) and then inserting the
mounting plate “tongue“ into the bottom slot of the
outside escutcheon (Fig. 4B).
(2) M4 x 25.4mm
[8-32 x 1"]
Flat Head
Combination Screws
(2) M4 x 25.4mm
[8-32 x 1"]
Flat Head
Combination Screws
1
2
Figure 4B
“Tongue”
NOTE: Cable goes under bolt (see Fig. 3B).
8
An ASSA ABLOY Group brand
P/N AYRD210-INST-FUL Rev B

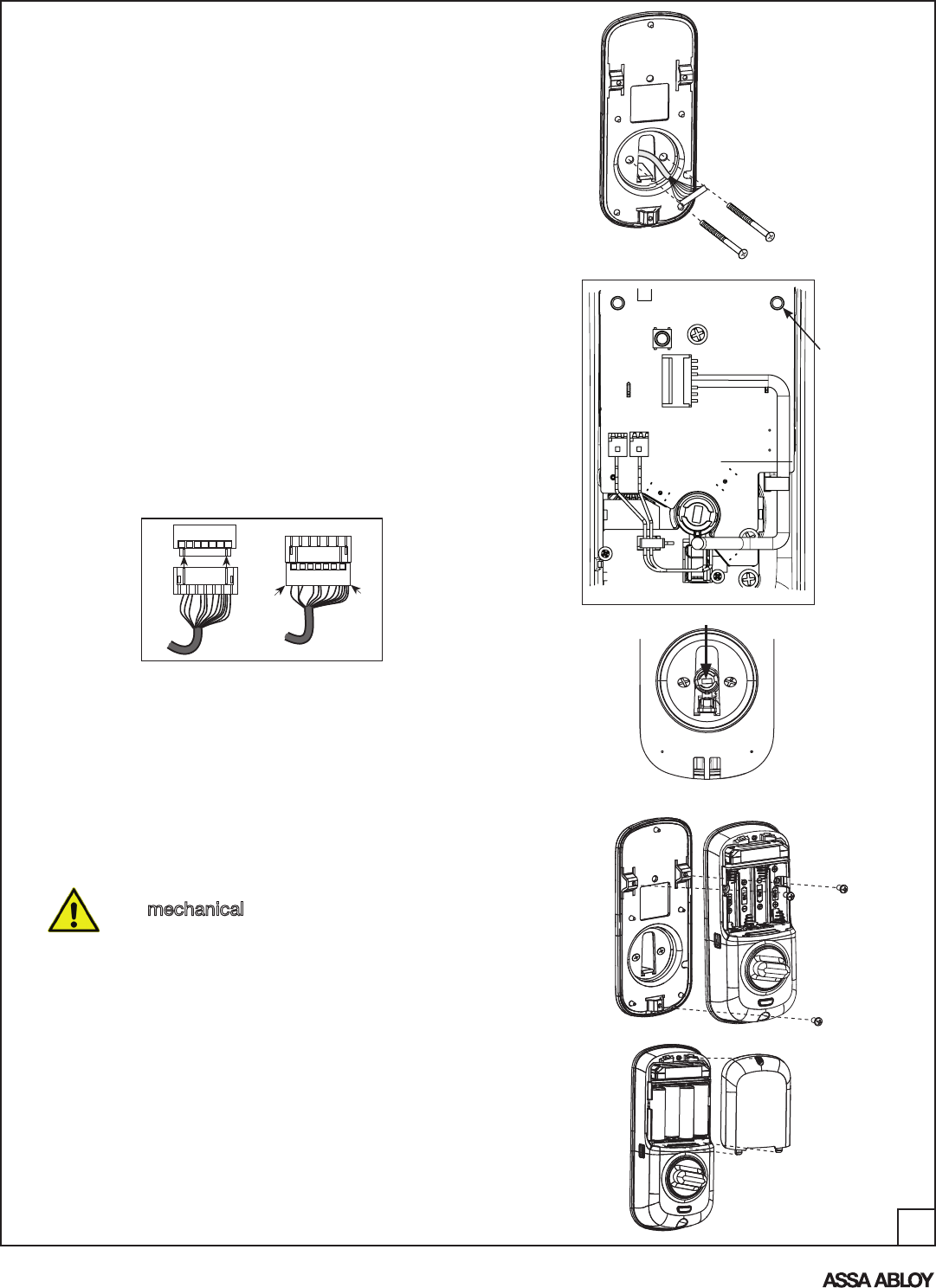

5. Secure both assemblies using (2) M6 x 59.5mm
pan head machine screws, making sure that
outside escutcheon is vertically aligned.
Hand-tighten until snug. Do not over-tighten.
7. Install inside escutcheon on inside mounting
plate. Note the horizontal orientation of the tail-
piece (Fig. 7A) as you insert the inside escutcheon
(thumb turn should be vertical).
8. Install and secure using (3) M4 x 8mm [8-32 x 5/16"]
pan head screws through the inside escutcheon into
the mounting plate.

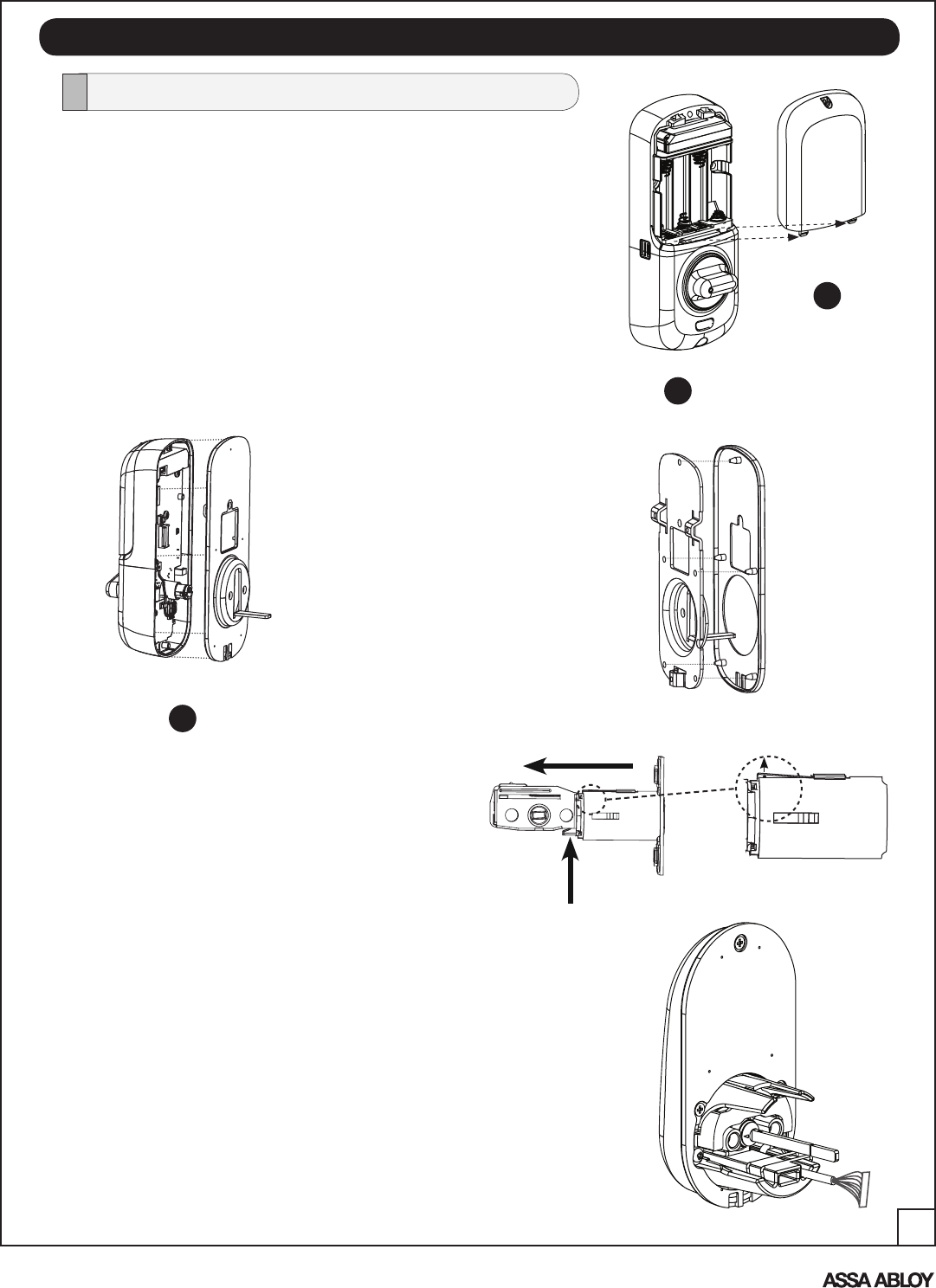

6. Attach cable assembly to the inside escutcheon
PC board by lining up notches on top of cable
connector to slots on PCB connector (Fig. 6B).
Note that connector should be pressed in firmly us-
ing thumbs until completely seated (proper position
indicated by arrows on PCB as in Fig. 6A & 6B ) .
Figure 6B
Figure 7A
Figure 6A
CAUTION:
Use care when assembling to ensure that
the cable lies against the back recessed
area of the inside escutcheon (Fig. 6A).
Position and bend cable, using the harness
clip as shown in Fig. 6A to prevent binding
when installing the escutcheon over the
mounting plate. Route cable
as indicated -
do not cover
hole
IMPORTANT: Before installing the batteries, test
the mechanical operation of the lock by using
both thumb turn and the key. The movement of the
bolt should be smooth and unobstructed. If
operation is not smooth, review the previous steps
to ensure proper installation.
9. Insert four (4) AA alkaline batteries. The lock responds
with a series of beeps, a red/blue flash and a quick flash
of all keypad LEDs. When activating the lock for the
first time, the lock will adjust for proper handing.
Note: Refer to programming instructions prior to completion of
step 10.
10. Install battery cover and tighten Phillips head screw.
NOTE: The bolt must be in a retracted (unlocked) position
prior to installing the batteries.
9
An ASSA ABLOY Group brand
P/N AYRD210-INST-FUL Rev B

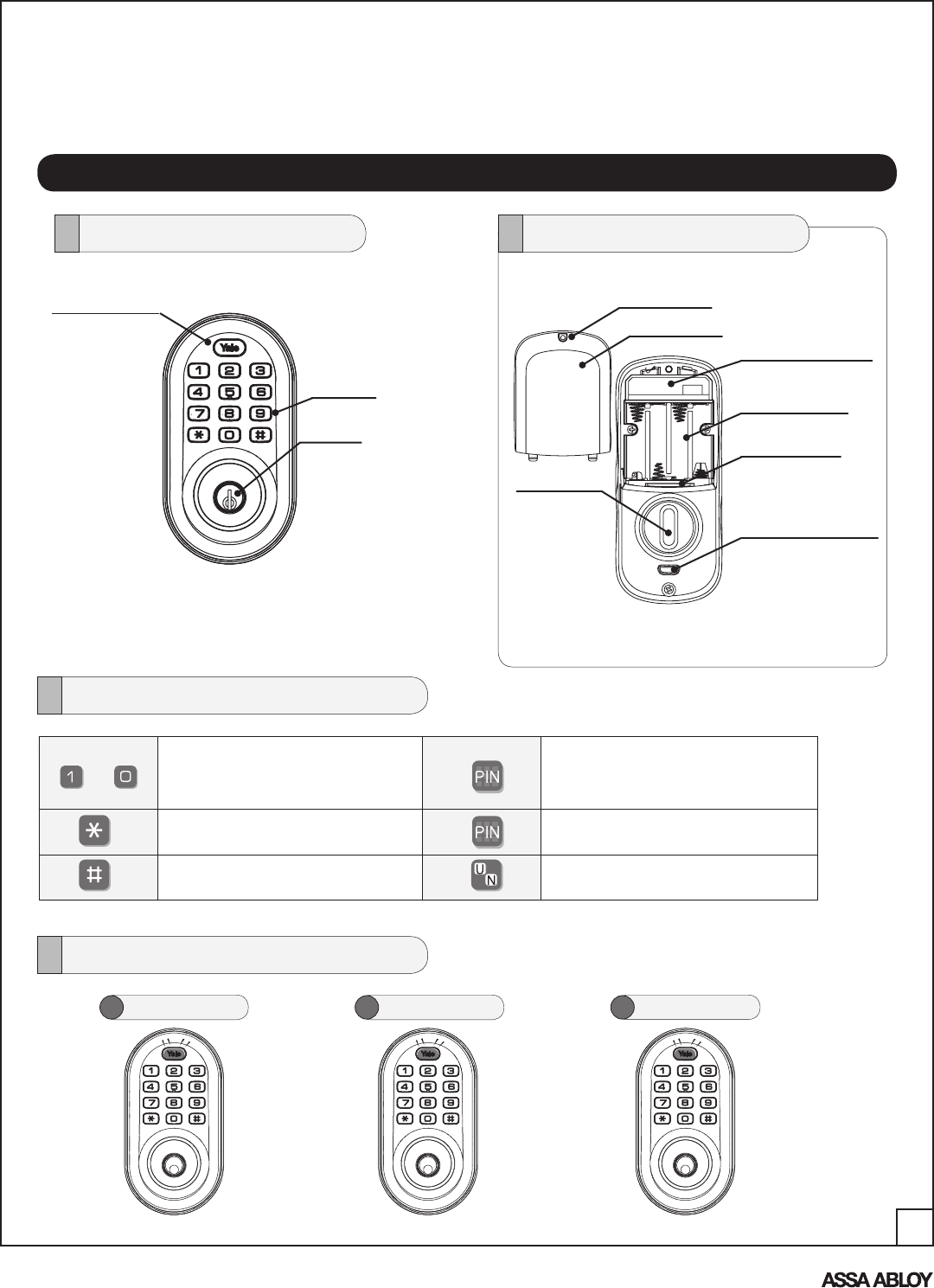

PROGRAMMING FEATURES - MENUS - KEYS - DEFINITIONS
Phillips Screw
Network Module Slot
Alkaline Batteries
4 AA Type
Thumb Turn
Status Indicator
Battery Cover
Outside Inside
Status Indicator
Numbers
Privacy Mode Button
Menu and Icons Used in This Guide
Cylinder
Click the indicated number. Enter Master PIN code (4-8 digits in
length).
(Factory default: 12345678)
Press the Star key on the keypad to Enter
or Accept entry. Enter User PIN. Can be 4-8 digits in
length.
Press the Pound key on the keypad to
enter Menu mode.
User Number (1 - 25);
RF Controlled (1 - 250).
~M
U
Low Battery Warning
1 Lock-out Mode
2 Return to previous step
3
Status Indicators
RED RED &
BLUE
BLUE
PROGRAMMING
Programming Features-Menus-Keys-Definitions ............................................... 8-10
Operation .......................................................................................................... 11-13
10
An ASSA ABLOY Group brand
P/N AYRD210-INST-FUL Rev B
Lockout Mode: This feature is enabled by the Master code. When enabled, it restricts all
user PIN code access. When attempting to enter a code while the unit is in Lockout, the
Status Indicator flashes RED and BLUE; the keypad flashes as well.
Low Battery: When battery power is low, the Status Indicator flashes RED. If battery
power is completely lost, use the key override.
Master PIN Code: The Master code is used for programming and for feature settings.
NOTE: The default Master Pin Code must be changed prior to programming the
lock. The Master code will also operate the lock.
Privacy Mode: This button located under the thumb turn on the inside escutcheon, ac-
tivates and deactivates the keypad and is indicated by a BLUE flash every ten (10) sec-
onds. It is also overridden by mechanically operating the thumb turn or key.
Auto Re-lock Time: After successful code entry and the unit unlocks, it will automatically
re-lock after a default of thirty (30) seconds. Re-lock time is adjustable from five (5) to
thirty (30) seconds.
One Touch Re-Lock: When the bolt is retracted, activating the keypad will extend the bolt
(during Auto Re-Lock duration or when Auto Re-Lock is disabled).
Shutdown Time: The unit will shutdown for a default of sixty (60) seconds and not allow
operation after the wrong code entry limit has been met. When the unit is in Shutdown,
the Status Indicator flashes RED and BLUE; the keypad flashes as well.
Silent Mode: Choosing Silent (3) in Audio mode shuts off the code confirmation tone
playback for use in quiet areas. Audio mode is enabled or disabled through feature pro-
gramming by the Master code.
Status LED: Located on inside escutcheon.
User PIN Code: The User code operates the lock. Maximum number of user codes is
250 with Network Module; without Network Module, maximum is 25 user codes.
Wrong Code Entry Limit: After a specified number of unsuccessful attempts at entering
a valid PIN code the unit will shut down and not allow operation. Wrong code entry limit is
adjustable from three (3) to ten (10) times through feature settings (up to 5 times with no
RF network enabled - default is 5; 10 with RF network enabled).
Definitions
Settings Factory Defaults
Master Code 12345678
Auto Re-lock Enabled
Audio Enabled
Re-lock Time *30 Seconds
Wrong Code Entry Limit *5 Times
Shutdown Time *60 Seconds
Factory Defaults
*Adjustable with Network Module
11
An ASSA ABLOY Group brand
P/N AYRD210-INST-FUL Rev B

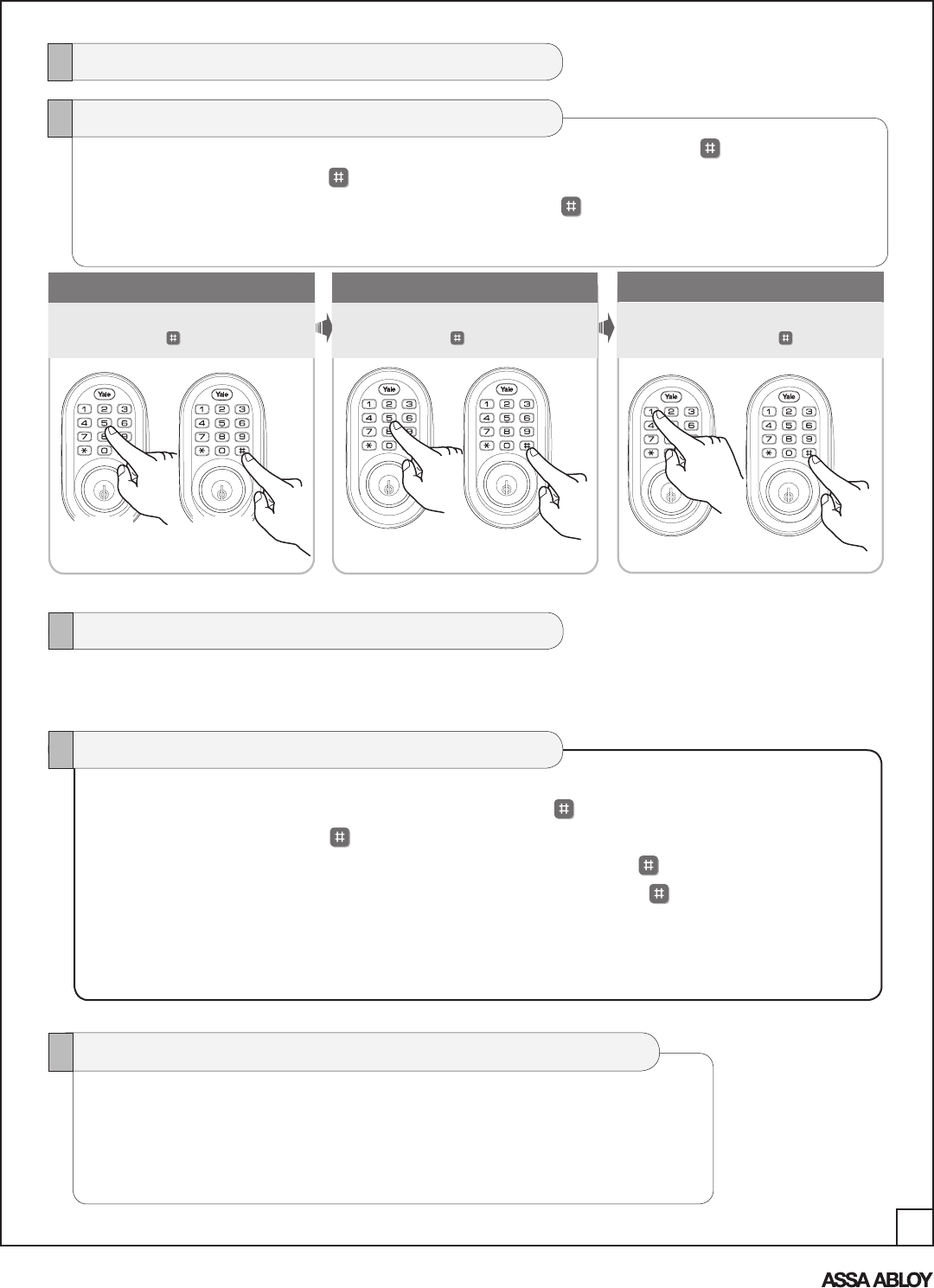

Lock Operation
1
Enter current Master PIN code,
followed by the key.
1
Enter '1' to change Master PIN code,
followed by the key.
2
Enter the new Master PIN code (4~8
digits), followed by the key.
3
1. Enter the 8-digit default Master PIN code (12345678) followed by the key.
2. Enter “1” followed by the key.
3. Enter new 4-8 digit Master PIN code followed by the key.
Change Default Master Code Before Programming*
User Codes can only be programmed through the Master Code.
1. Enter the 4-8 digit Master PIN code followed by the key.
2. Enter “2“ followed by the key.
3. Enter the User number to be registered (1-25) followed by the key.
4. Enter a 4-8 digit PIN code for the User number followed by the key.
Set Up User Codes
Note: When registering User codes, the code must be entered with in 20 seconds.
If time expires, no codes are registered and the process must be re-started.
PIN code structure
Maximum number of user codes is 250 with Network Module; without Network Module,
maximum is 25 user codes.
Lockout is a Menu feature that restricts Pin code access (except Master).
Privacy mode is set by pressing and holding the button (found below thumb turn) for a
duration of four beeps. This deactivates the keypad, and because it is set from the inside,
provides a secure lock for the convenience of the occupant(s).
Privacy Mode vs. Lockout Mode
*Default Master PIN Code must be changed prior to programming the lock.
12
An ASSA ABLOY Group brand
P/N AYRD210-INST-FUL Rev B

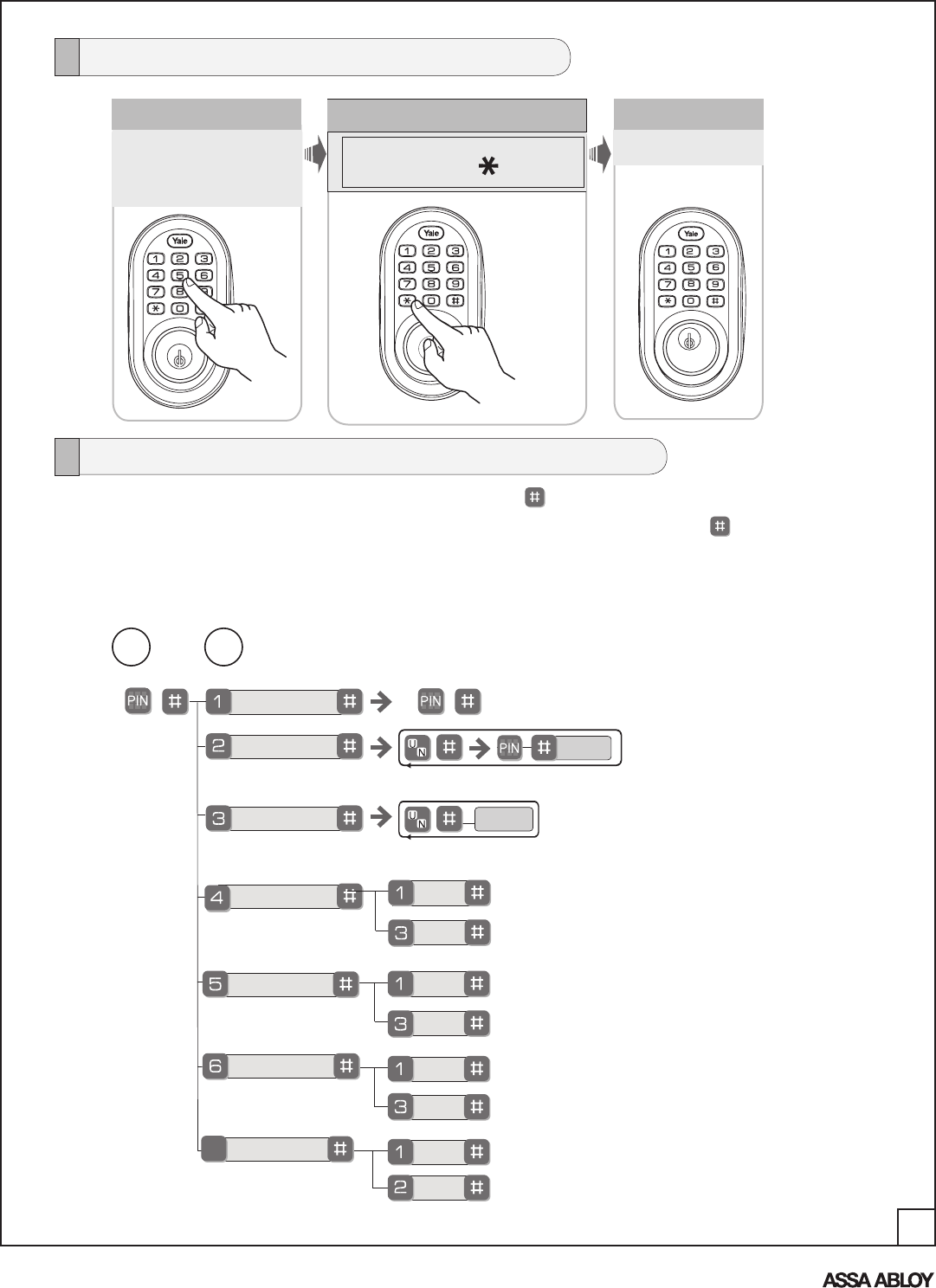

Feature Programming Through Menu Mode Using Master Code*
1. Enter the 4-8 digit Master PIN code followed by the key.
2. Enter digit corresponding to the function to be performed followed by the key.
Note: If the lock is connected to a network controller, it is recommended that it is
programmed through the centralized user interface (PC or hand-held device) to en-
sure communication between the lock and the controller unit.
Master PIN Setting
MM
User PIN Deletion
Audio Mode
All Code Lock-out
*Network Module Setting
Enable
Enable
Register
Disable
Delete
Disable
User Number (UN)
1~25: without network module
1~250: with network module
1 2
User PIN Registration
Complete
UComplete
Auto Re-lock
7
Enable
Disable
*This function appears
only with network module
installed
1
Enter PIN code.
2
Complete the code entry
by pressing the key.
Unlock.
3
Open Door with PIN Code
For quiet areas, select Disable (3)
in Audio Mode.
CAUTION: When joining a network your controller may or may not
be aware of any previously saved user codes stored in the lock. It is
recommended that all user codes be deleted from the lock prior to
joining a network.
13
An ASSA ABLOY Group brand
P/N AYRD210-INST-FUL Rev B
Cycle the lock in both the locked and the unlocked positions. If problems are found:
TROUBLESHOOTING
Hardware Troubleshooting
MISCELLANEOUS
Hardware Troubleshooting ......................................................................................13
Programming Troubleshooting ...............................................................................14
Installing the Network Module ................................................................................15
How to Replace/Install Cylinder .............................................................................16
Sample Pin Code Management Sheets ........................................................... 17-18
Yale Real Living™ locks are automatically handed. On startup, hold down the reset button
and wait while the lock tests bolt operation. The default Master Pin Code must be changed
before any other programming.
Symptom Suggested Action
Door is binding a. Check that door and frame are properly aligned and door is free swinging.
b. Check hinges: They should not be loose or have excessive wear on knuckles.
Bolt will not deadlock a. Check for sufficient clearance of the bolt within the strike-side jamb. Correct this by increasing
the depth of the pocket for the bolt.
b. Check for misalignment of bolt and/or strike which may be preventing bolt from properly
entering the strike. With the door open, extend and retract the bolt; if it is smooth, check the
strike alignment.
Bolt does not extend or retract smoothly a. Bolt and strike are misaligned, see above.
b. Check the backset of door relative to adjustments already made to bolt.
c. Verify proper door preparation and re-bore holes that are too small or misaligned.
d. Verify keypad cable/connector is routed under the bolt (see Fig. A).
e. Verify bolt is installed correct side up (Fig. A). .
Figure A
14
An ASSA ABLOY Group brand
P/N AYRD210-INST-FUL Rev B
Programming Troubleshooting
* When batteries are replaced, Network Module locks have a real time clock that will be set through the User Interface (UI); it
is recommended to verify correct date and time particularly those locks operating under Daylight Saving Time (DST).
Symptom Suggested Action
Lock does not respond – door is
open and accessible.
• Press each keypad button to see if they respond when pressed.
• Check batteries are installed and oriented correctly (polarity) in the battery case.
• Check batteries are in good condition; replace batteries* if discharged.
• Check to see if cable is fully connected and not pinched.
Lock does not respond – door is
locked and inaccessible.
• Lock may be in Privacy mode (set from inside room). Mechanical key will grant access.
• Batteries may be completely discharged.
• Use mechanical key to gain entry and replace batteries*.
Unit chimes to indicate code accep-
tance, but the door will not open.
• Check to see if there is another locking device on the door.
• Check the door gaps for any foreign objects between door and frame.
• Check that the cable is firmly connected to the PC board.
Unit operates to allow access, but will
not automatically re-lock.
• Check to see if Auto Re-lock Mode is enabled.
• Disable Auto Re-lock Mode to lock the door (automatically).
• If low battery indicator is lit (see below), change batteries*.
PIN codes will not register. • PIN codes must consist of 4 to 8 digits to register.
• The same PIN code cannot be used for multiple users.
• Registration/management of PIN codes is set by the authority of the Master Code.
• Contact the Master user
• User codes must be entered within 20 seconds or the process will have to be restarted.
• The star (*) or pound (#) cannot be used as part of the PIN code.
Upon entering a PIN code and press-
ing the star (*) key, the lock gives
a series of beeps, flashes red and
blue LEDs seven times, and does not
unlock.
• Lockout Mode is enabled.
• Only the Master can enable/disable Lockout Mode.
• Contact the Master user.
Upon entering a PIN code and press-
ing the (*) key, there are different
tones.
• Check to see if the lock is set to Lockout Mode.
• Setting/managing Lockout Mode is done through Master Code only. Contact the Master
user.
The unit operates, but it makes
no sound.
• Enable Audio Mode.
The unit displays intermittent RED
flashes.
• This is the Low Battery indicator alerting that it is time to replace the batteries. Replace
all four (4) batteries* with new AA Alkaline batteries.
Upon entering a PIN code and press-
ing the star (*) key, the unit responds
with a series of beeps and the keypad
flashes three times.
• The digits entered were incorrect or incomplete. Re-enter the correct code followed by
the star key.
** Network Module locks only
15
An ASSA ABLOY Group brand
P/N AYRD210-INST-FUL Rev B

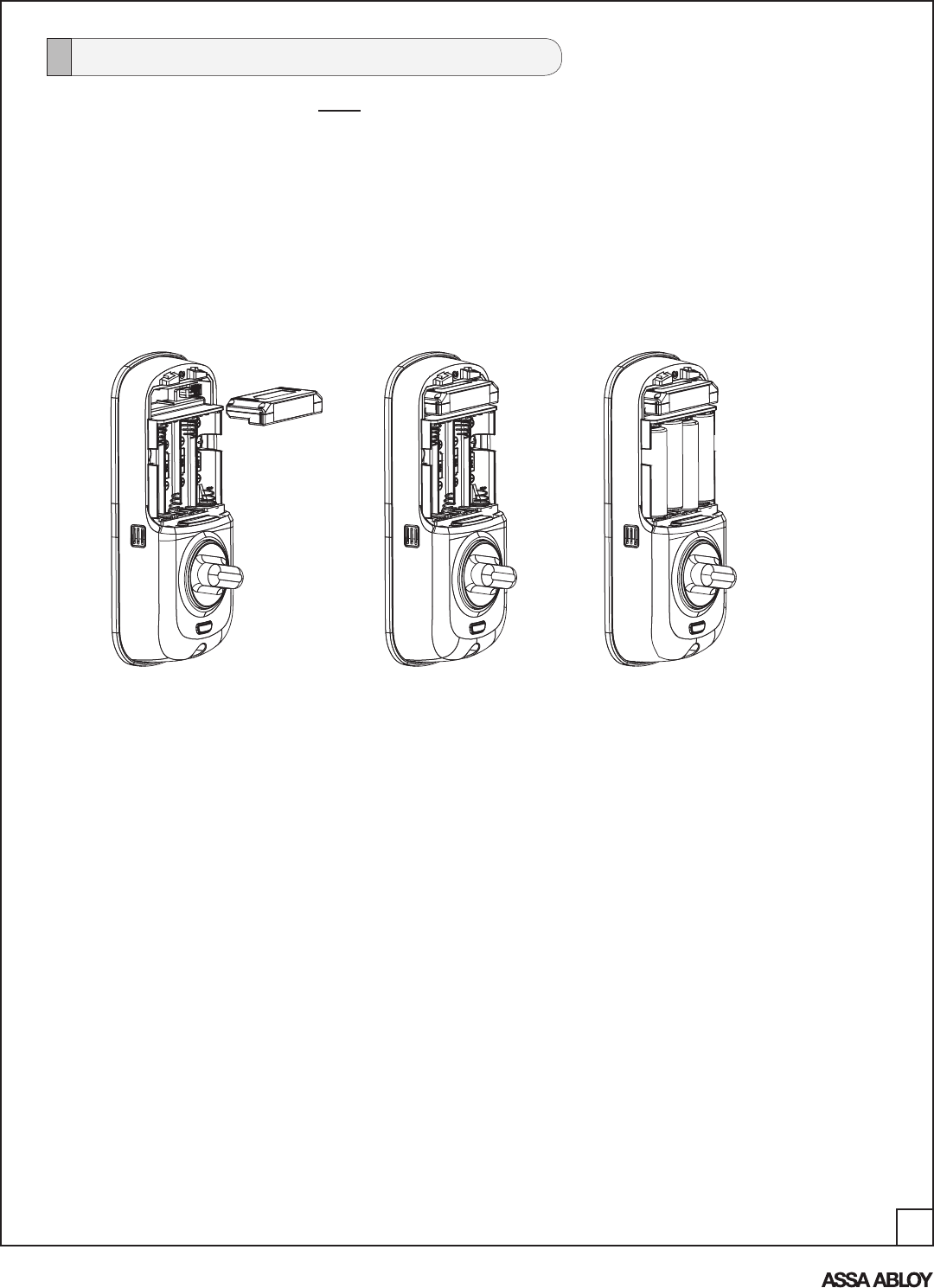

IMPORTANT: The batteries must be removed prior to removing and/or inserting the
network module:
• Remove batteries
• Remove and/or insert network module
• Reinstall batteries
Installing the Network Module
Use feature programming step 7 (page 13) for enrollment of the
Network Module.
16
An ASSA ABLOY Group brand
P/N AYRD210-INST-FUL Rev B
1. Remove cylinder:
A. Remove outside escutcheon from door.
B. Remove rubber gasket.
C. Remove two screws holding plastic guide
in place.
D. Remove plastic guide.
E. Remove screw with washer holding cylinder in
place (visible after plastic guide is removed).
F. Remove cylinder by pulling towards the
door side of escutcheon.
Before installing cylinder, please be sure you have
correct length tailpiece.
2. Install new cylinder:
A. Reverse previous steps for removing cylinder.
How to Replace or Install Cylinder
A
B
D
C
F
E
1-3/8"* to 2" thick doors, L = 3-1/2" (88.8mm)
2" to 2-1/4" thick doors, L = 3-3/4" (95.3mm)
*Requires addition of Thin Door Kit.
L
Cylinder tailpiece information:
T = .098" (2.5mm)
W = .2" (5.2mm)
w
T
Tailpiece
17
An ASSA ABLOY Group brand
P/N AYRD210-INST-FUL Rev B
PIN CODE MANAGEMENT SAMPLE SHEETS
PIN Code Management (No Network Module - Up to 25 Users)
Location: Door Number: User User Name User # PIN Code
User Type User Name User # PIN Code
Master User 13
User 1 User 14
User 2 User 15
User 3 User 16
User 4 User 17
User 5 User 18
User 6 User 19
User 7 User 20
User 8 User 21
User 9 User 22
User 10 User 23
User 11 User 24
User 12 User 25
18
An ASSA ABLOY Group brand
P/N AYRD210-INST-FUL Rev B
PIN Code Management (With Network Module - Up to 250 Users) - Duplicate Sheet to record entries
User Type User Name User # PIN Code User User Name User # PIN Code
Master User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
User ___ User ___
ONLINE LITERATURE AND TEMPLATES
For the latest information on Yale products visit our website at
www.yalelocks.com. Click on the “Literature” button to find the
most up-to-date catalogs, parts manuals, templates, specifica-
tions and installation instructions.
An ASSA ABLOY Group brand
P/N AYRD210-INST-FUL Rev B
Yale Locks & Hardware
100 Yale Avenue, Lenoir City, TN 37771 • Product Support Tel 800.810.WIRE (9473) • www.yalelocks.com
Yale Locks & Hardware is a division of Yale Security Inc., an ASSA ABLOY Group company.
Yale® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company. All rights reserved. Yale Real Living™ is a trademark of
Yale Security Inc., an ASSA ABLOY Group company.
Copyright © 2011, Yale Security Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without express
written permission of Yale Security Inc., an ASSA ABLOY Group company is prohibited.
YALE, with its unique global reach and range of products, is the world’s favorite lock — the preferred solution for securing your home, family
and personal belongings.
ASSA ABLOY is the global leader in door opening solutions, dedicated to satisfying end-user needs for security, safety and convenience.

Navigation menu
