Adding a wireless network
If the device fails to automatically detect the wireless network you want to connect to, you can
add the network. Ask for the wireless network settings from your network administrator.
To add a wireless network:
1. To launch the Wi-Fi settings page, you
can do either of the following:
• Tap Settings after selecting a wireless
network to connect your device to.
• Tap Start > Settings > Connections
tab > Wi-Fi.
Tap Wireless > Add New...
2. Enter a name for the network and select
an item from the Connects to: drop-
down menu. Then tap Next.
3. Set authentication, data encryption
and network key. Refer to your network
administrator for these information. Then
tap Next.
4. If you need to change the EAP type,
check the adapter box and then change
the EAP type.
5. Tap Finish when done.
62
Using Wi-Fi Manager
The Wi-Fi Manager shows connection status and information on a wireless network, and allows
you to manually scan your area for available wireless networks.
To open Wi-Fi Manager, you can do either of the following:
• Tap > Wi-Fi Manager.
• Tap Start > Settings > Connections tab > Wi-Fi Manager.
There are four tabs in the Wi-Fi Manager:
Wi-Fi Status
This page shows the current connection status and link information.
Setting
This page allows you to dene settings for establishing a device-to-
device wireless connection as well as power saving settings.
NOTE:
We recommend to set the Power Save to Enable.
63
IP Info
This page shows the network information and
provides a way to get the new IP address from the
DHCP server.
The Renew button enables you to request the DHCP
server for a new IP address. This function would take
several seconds to get the new IP address.
The Ping button serves as the network’s diagnostic
tool. It enables you to detect if your device is
connected to the network.
Site Survey
This page shows the nearest available wireless
networks.
Each wireless network is preceded by an icon for
easy identication. The network channel,
RSSI, and BSSID are also displayed in columns.
64
Setting a GPRS connection
Your P550 allows you to connect via General Packet Radio Service (GPRS). GPRS is a
wireless communication standard that runs at speeds of up to 115 kbps, compared to 9.6
kbps of the current Global System for Mobile Communication (GSM). It supports a wide range
of bandwidth that allows sending and receiving small bursts of data, such as email and web
browsing.
To set a GPRS connection in your device:
1. From the Today screen, tap Start > Settings > Connections
tab > Connections.
2. From the Connections screen, tap Add a new modem
connection.
3. Enter a unique name for the connection then select Cellular
Line (GPRS) from the modem list.
65
4. Key in the Access point name.
5. Key in your user name, password, and domain then tap Finish.
Contact your network administrator for assistance.
NOTE:
The GPRS and USB connections cannot be used at the same time.
66
Connecting GPRS
To connect GPRS:
1. From the Today screen, tap Start > Settings > Connections
tab > Connections.
2. From the Connections screen, tap Manage existing
connections.
3. Tap and hold on an existing connection then from the pop-up
menu tap Connect.
Tap Delete if you want to delete the selected connection.
4. When connected, tap to exit.
67
If you have set a default GPRS connection, it automatically connects when you launch an
application that connects to the Internet.
1. Launch any application that connects to the Internet (such as
Internet Explorer). The device will automatically connect to
your default GPRS connection. A pop-up callout appears to
display the connection status.
2. When connected, you can start browsing the Internet. If you
are using Internet Explorer, the default site will be displayed.
Disconnecting GPRS
To disconnect GPRS:
1. Tap / from the status bar.
2. From the pop-up callout, tap Disconnect.
NOTES:
• If your ActiveSync is set to sync with Exchange Server automatically,
synchronization will occur after you connect again.
• GPRS will automatically reconnect everytime you launch an application that
requires GPRS connection (such as Internet Explorer or Pocket MSN).
68
Using the GPRS Tool
The GPRS Tool allows you to conveniently select and connect to your GPRS service provider.
To connect via GPRS Tool:
1. From the Today screen, tap Start > Settings > Connections
tab > Network Setting.
You can also tap / on the status bar then tap Settings
from the pop-up callout.
2. From the Network Setting screen, select your GPRS provider
from the list.
NOTES:
• Operators vary in different regions.
• The GPRS and USB connections cannot be used at the same time.
69
GSM/3G Switch
This function allows you to conveniently switch network type. The options include Automatic,
3G, and GSM. The default setting is Automatic, which allows the device to search for the
proper service automatically.
To choose network type:
1. From the Today Screen, tap Start > Settings >
Connections tab > GSM/3G Networks.
2. Select a proper network type. Then tap when nished.
3. A message pops up. Tap and restart your device to make
this change effective.
NOTES:
• Network type varies with different service providers.
• Ensure you choose the right network type for your SIM card.
70
71
GPS features
Chapter
• GPS Catcher
• External GPS
5
72
GPS Catcher
The GPS Catcher allows you to update the GPS data in your device. The GPS data contains
important information about the status of satellite, current date, and time for determining the
satellite position.
Updating GPS data
To update GPS data:
1. Tap Start > Programs > GPS Catcher. 2. Connect your device to a PC with the USB
cable. Then tap Update. The update
process starts.
NOTE:
To make a successful update, make sure ActiveSync
4.5 is installed in your PC and your PC is connected to
the Internet.
73
3. Tap when nished.
Setting GPS Catcher
To set GPS Catcher:
1. From the GPS Catcher screen,
tap Menu > Setting.
NOTE:
The GPS data expires in three days. You
need to update it when it expires.
You can also set GPS Catcher to update
automatically, refer to the following section
Setting GPS Catcher.
2. Check the options at your preference.
Tap when nished.
74
P550 allows you to use an external GPS device to receive GPS data. To use an external
device, you need to set connection between P750 and your external GPS device.
Setting external GPS device
To set an external GPS device:
External GPS
1. Tap Start > Settings > System tab >
External GPS.
2. From the Programs tab, select a program
port.
NOTE:
The other GPS application in P750 will use
the same COM Port as you set here. Ensure
that this port is also available in the other GPS
applications.
75
3. From the Hardware tab, specify a
hardware port and baud rate for your
external GPS device to use.
Refer to the user guide of your external
GPS device for details.
4. From the Access tab, check the Manage
GPS automatically (recommended)
check box.
NOTE:
If you clear this check box, some GPS related
application in P550 may not be able to obtain
GPS data.
76
77
Multimedia features
Chapter
• Using the camera
• Viewing pictures and videos
6
78
The built-in two-megapixel camera allows you to take photos and record audio/video clips.
Launching the camera
To start using the camera, you can do either of the following:
• Tap Start > Programs > Pictures & Videos > Camera.
• Press the Camera button on the right side of your device.
Using the camera
Camera button
To exit the Camera:
• Tap the exit icon on the camera screen.
NOTE:
• By default, the preview screen is set to landscape.
• After launching the camera, your device is set to
camera mode by default.
• In camera mode, the camera button function as
shutter button.
Camera/shutter button
79
Navigation button functions in camera mode
The following describes the navigation button functions in Camera mode:
Up
Forward
Down
Backward
ENTER/ACTION Button
Up In camera preview mode, press for video mode.
In the camera or video option menu, press to select menu items.
Down In video preview mode, press for camera mode.
In the video or camera options menu, press to select menu items.
Backward In camera mode and if the resolution is not 1600x1200, press to
zoom in.
Forward In camera mode and if the resolution is not 1600x1200, press to
zoom out.
Enter/Action button Press to take picture or start/stop recording video.
Press to execute a selected menu item or to display more menu
items.
80
Available capture modes
Your device camera can be set to two capture modes:
• Camera mode - Camera mode allows you to take photos, and save them to your device
or miniSD. You can also congure the camera to match an environment, set picture size,
select magnication, adjust the picture quality, apply effects, and modify other advanced
settings.
• Video mode - Video mode enables you to record audio/video clips. Like in camera
mode, it also allows you to select the magnication, set the video size, enable ash light,
enable macro mode, apply some effects, select target storage, and modify advanced
video settings.
Supported formats
Using the camera mode or video mode, the images or video clip captured are stored in the
following formats:
• Still image (Camera mode) - JPEG (.jpg)
• Video mode) - 3GP (.3gp), MPEG-4 (.mp4)
81
Camera mode screen
The following describes the screen icons in Camera mode:
Capture mode icon
Picture quality icon
Flash light status
Macro mode status
Default storage icon
Scene mode icon
Timer icon
Burst mode status
Effects icon
Picture resolution
Tap to close camera
Tap to zoom in
Tap to zoom out
Tap to launch Pictures
and Videos
Tap to launch
camera menu
Number of
available shots
Capture modes:
Camera mode
Video mode
82
Camera mode icons
• Capture mode icon [ / ] - indicates the current capture mode.
• Picture quality icon [ / / ]- indicates the picture quality used.
• Flash light status icon [ / / ] - indicates the camera ash status.
• Macro mode icon [ ] - this icon appears when the camera is in macro mode.
• Default storage icon [ / ] - indicates default storage for captured images.
• Scene mode icon [ / / ] - indicates the scene mode used.
• Timer icon [ / ] - when the camera timer is enabled (5 seconds or 10 seconds), the
corresponding timer icon appears. When you press the shutter button or the navigation
button to take a picture, the count down begins and picture is taken after the time set.
• Burst mode icon [ / ] - indicates the number of frames in burst mode.
• Effects icon [ / / ] - indicates the effect used.
• Picture resolution [ / / / / / ] - shows the resolution used.
When set to 1600x1200 resolution, the zoom in/zoom out function is disabled.
• Exit icon [ ] - tap to exit camera.
• Zoom In [ ] - tap to zoom in view of subject on screen.
• Zoom Out [ ] - tap to zoom out view of subject on screen.
• Thumbnails [ ]- tap to launch Pictures and Videos application and preview
your images in thumbnails.
• Menu [ ] - tap to launch camera menu options.
83

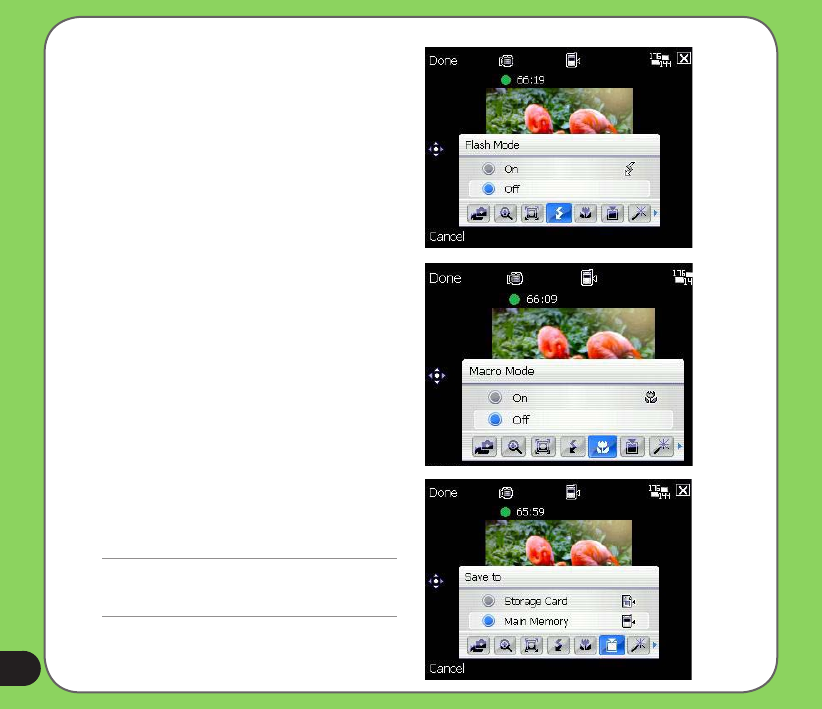

Camera options menu
The camera options menu allows you to change various camera and picture settings.
To launch options menu:
1. Tap Menu from the camera screen.
2. From the shortcut menu, tap an icon to
display contents.
Camera options
shortcut menu
84
Change Mode
The Change Mode option allows you to set
capture mode into Camera or Video mode.
Scene
The Scene option allows you to select
presets appropriately for a night scene or
sports event. Select Auto to use best setting
for any scene.
Picture Size
Allows you to set the frame size of picture.
85
Picture Quality
This option provides three picture quality
presets: Normal, Fine, and Super Fine. By
default, the picture quality is set to Super
Fine.
Flash Mode
This option allows you to change the ash
mode to suit a variety of lighting situations.
Macro Mode
Enables or disables the macro photography
feature.
86
Zoom
Allows you to change the maximum
magnication allowed.
SelfTimer
Sets the delay of shutter release to 5 or 10
seconds after you have pressed the
camera/shutter button.
Burst
Allows you to take 4 or 9 pictures in
succession with one press of the camera/
shutter button.
87
Frame
Allows you to set a frame. This feature is
only available when the resolution is set to
320x240.
Effect
The Effect option allows you to apply some
effects to the subject. Select from the
following conguration options: Black-White,
Negative, and Sepia. Set to Normal for no
effect.
Save to
Allows you to select the default storage for
captured pictures.
NOTE:
Insert a miniSD card before setting default storage
to Storage Card.
88
Advanced
This option allows you to set the following:
- Filename prex format
- Filename prex
- File number
- Date and time stamp
- Shutter sound
- Burst interval
89
Taking photos
After launching the camera, your device is set to Camera mode by default. If set otherwise,
tap Menu > Change Mode > Camera Mode then tap Done.
You can also tap the camera mode icon on the screen to set to camera mode.
To take a photo:
1. Aim the device at your subject then
half-press camera/shutter button to
auto-focus on subject.
While camera/shutter button is
half-pressed, you can see the
auto-focus frame on the center of the
screen. The frame turns green indicating
the auto-focus is nished.
IMPORTANT:
The auto-focus range is effective only from 8~80 cm,
if you want to skip this feature, press the navigation
button action button to take a picture.
2. Full-press the camera/shutter button or press the navigation button action button to
capture image.
When the icon appears, make sure the device is stable and not shaking.
3. Repeat steps 1 to 2 to take more photos.
NOTE:
The image is automatically saved to the default storage location and can be viewed using the Pictures and Videos
application.
Camera mode icon
Auto-focus frame
Auto-focus frame
90
Video mode screen
The following describes the screen icons in Video mode:
Capture mode icon
Remaining video
recording time
Default storage icon
Video resolution
Tap to close camera
Tap to zoom in
Tap to zoom out
Tap to launch Pictures
and Videos
Capture mode icons:
Camera mode
Video mode
Tap to launch
video menu
Recording indicator
Green: Ready
Red: Recording
91
Video mode icons
• Capture mode icon [ / ] - indicates the current capture mode.
• Flash light status icon [ ] - this icon appears when the ash light is enabled.
• Macro mode icon [ ] - this icon appears when the video is in macro mode.
• Default storage icon [ / ] - indicates default storage for captured video clips.
• Effects icon [ / / ] - indicates the effect used.
• Video Size [ / / ] - shows the resolution used.
• Exit icon [ ] - tap to close camera.
• Zoom In [ ] - tap to zoom in view of subject on screen.
• Zoom Out [ ] - tap to zoom out view of subject on screen.
• Thumbnails [ ]- tap to launch Pictures and Videos application and play
your video.
• Menu [ ] - tap to launch video menu options.
92
Video options menu
The video options menu allows you to change various video and playback settings.
To launch video options menu:
1. Tap Menu from the video screen.
2. From the shortcut menu, tap an icon to
display contents.
Video options
shortcut menu
93
Change Mode
The Change Mode option allows you to set
your device into Camera or Video capture
mode.
Zoom
Allows you to change the maximum
magnication allowed.
Video Size
Allows you to set the frame size of video.
94
Flash Mode
This option allows you to change the ash
mode to suit a variety of lighting situations.
Macro Mode
Enables or disables the macro photography
feature.
Save to
Allows you to select the default storage
location for recorded video.
NOTE:
Insert a miniSD card before setting default storage
to Storage Card.
95
Effect
The Effect option allows you to apply some
effects to the subject. Select from the
following conguration options: Black-White,
Negative, and Sepia. Set to Normal for no
effect.
Advanced
This option allows you to set the following:
- Video letype
- Filename prex format
- Filename prex
- File number
- Enable or disable audio when recording
Tap to display
more options
96
Recording videos
Set the device to video capture mode to record videos.
To set video mode, do either of the following:
To record video:
1. Aim the device at your subject then
half-press camera/shutter button to
auto-focus on subject.
While camera/shutter button is
half-pressed, the auto-focus frame
appears on the center of the screen.
Video mode icon
• Tap Menu > Change Mode > Video Mode
then tap Exit.
• Tap the video mode icon on the screen.
Auto-focus frame
IMPORTANT:
The auto-focus range is effective only from 8~80
cm, if you want to skip this feature, press the
navigation button action button to record a video.
97
2. Full-press the camera/shutter button
or press the navigation button action
button to begin recording.
The record indicator turns from green
to red while video is recording.
3. Full-press the camera/shutter button
or press the navigation button action
button again to stop recording.
NOTE:
• The video clip is automatically saved to the default storage location.
• Use Windows Media Player Mobile to playback video clip in your device.
• Use Apple® QuickTime™ player, if you wish to play video clips in your computer. You can download QuickTime™
installer from www.apple.com/quicktime.
4. Repeat steps 1 to 3 to record another video.
Record indicator
98
Use the Pictures and Videos Application to preview stored images and playback video clips.
Viewing pictures and videos
To view pictures and videos:
1. Tap Start > Programs > Pictures and Videos.
2. Tap the picture or video clip you want to see.
• To view pictures or launch video clips stored in miniSD card, tap the folder list (labeled
My Pictures), and tap storage card.
• To view pictures stored in My Pictures folder on your device, tap My Pictures then tap
picture thumbnail.
• To playback video clips in My Videos folder on your device, tap My Videos then tap
video thumbnail.
Viewing pictures and videos
99
Other features
Chapter
• Windows® Live
• Internet Share
• Setting ring tone
• Wake-up setting
• System information
• Restoring factory default settings
7
100
Windows® Live
Windows® Live
Windows® Live is an instant messaging software that is preinstalled in your device. It allows
you to:
• Send and receive instant messages to your contacts who are online;
• Access your Hotmail® account and send and receive e-mail messages; and
• Search the Web and get results delivered to your phone in an easy-to-read format.
To use Windows Live Messenger:
You must have a Microsoft Passport™ account or a Microsoft Exchange e-mail account.
You must have a Passport to use the MSN Messenger Service. If you have a Hotmail® or MSN
account, you already have a Passport. Once you have obtained either a Microsoft Passport or
Microsoft Exchange account, you are ready to set up your account.
Signing up in Windows Live Messenger
1. Tap Start > Programs > Windows Live.
If you already use MSN Messenger on your computer, your contacts
will show up on your device.
Sign up for a Microsoft Passport account at http://www.passport.
com.
Get a free Microsoft Hotmail e-mail address at http://www.hotmail.
com.
101
2. Tap Sign in to Windows Live, then
tap Accept.3. Enter your e-mail address and
password. Then tap Next.
Windows Live Search:
With Windows live search, you can quickly
search the web for information, directions,
maps and images.
1. Tap Start > Programs > Windows
Live icon
2. Enter the information you want in the
search bar, and tap
102
With Internet Sharing, your computer can use your P550 as a modem for connecting to the
Internet.
To use Internet Sharing:
1. Connect your device to the computer using Bluetooth or a USB cable.
2. Tap Start > Programs > Internet Sharing.
3. Select the PC connection type.
4. Select the network connection your device uses to connect to the Internet.
5. Tap Connect.
Internet Sharing
NOTE:
• If you want to use USB as PC connection, install Microsoft ActiveSync 4.2 or later version on your PC before using
Internet Sharing.
• If you want to use Bluetooth as PC connection, initiate and complete the Bluetooth Personal Area Network (PAN)
partnership on your PC before using Internet Sharing.
103
With P550 you can add and congure your favorite music as your device ring tone. You can
easily congure your favorite song or sound as your ring tone with the following compatible
audio formats: aac, amr, .mp3, .wav, .wma, and .mid.
Adding ring tone to selection
To add ring tone to the selection category under phone setting:
1. Tap Start > Settings > Personal tab > Ring tones.
2. Select a specic le extension from the list box.
3. Tap to check a ring tone le that you want to add.
Tap to try ring tone sound and tap to stop.
Setting ring tone
104
Changing the ring tone
To change the ring tone:
1. Tap Start > Settings > Personal tab > Phone.
2. Select a ring tone from the Ring tone list box. The songs or sounds that you added as
ring tone appears on this list along with the default ring tones that came with the device.
Tap to try ring tone sound and tap to stop.
3. Tap when nished.
105
You can set the wake-up actions whenever your device is in sleep mode.
To set the wake-up action:
1. Tap Start > Settings > Personal tab > Wakeup source.
2. Select from the available wake-up actions.
Tap Select All to select all actions or tap Select None to deselect all available actions.
3. Tap when nished.
Wake-up setting
106
The System Information contains important device information including the current device
settings and version.
To launch the System Information:
1. Tap Start > Settings > System tab > System Information.
2. Tap the Device Info tab for device hardware information.
3. Tap Version tab to display the ROM, Boot, Radio, MP, and Battery version.
System information
Device Info Version
107
This option allows you to restore the default factory settings.
To restore default settings:
1. Tap Start > Settings > System tab > Default Settings.
2. Key in ‘1234’ in the Password eld to conrm that you want to restore to default settings.
4. Tap when done.
You can also press the Up navigation key and the power button to restore the device to its
factory default settings.
Restoring default factory settings
WARNING:
This option will delete all les stored in this device.
Backup the storage card to another device if it is set to be read by this device only. This device can no longer read the
locked storage card after restoring to system default settings.
108
109
Device components status
Chapter
• ASUS Status icon
8
110
The ASUS status icon allows you to easily check and see the current status of the following
device components: CPU, USB, LCD brightness, Battery power, memory, miniSD card, and
storage.
To check the status of these components, tap the ASUS Status icon on the Today screen.
ASUS status icon
CPU: Allows you to set the CPU mode. Set to
Automatic Mode to automatically change the CPU
speed according to the CPU loading.
USB: Allows you to set the USB connection mode.
Brightness: Tap to adjust the LCD brightness on
battery power or external power.
Power: Displays the remaining battery power and
allows you to set advanced power saving features.
Memory: Displays the total, currently used, and
remaining memory available.
Storage memory: Displays the total, used, and
remaining storage card memory.
( Appears only when a MiniSD card is inserted in the device)
Storage card: Tap to display the contents of the
storage installed.
Settings: Allows you to select the items to display in
this ASUS Status pop-up menu.
111
CPU mode setting
Allows you to select the CPU mode (Turbo,
Standard, Power Saving). Tap to check
Automatic Mode to automatically change the
CPU speed according to the CPU loading.
USB setting
Allows you to set the USB connection mode.
• ActiveSync (Turbo mode) - allows a high
speed serial connection between your
device and PC. Select this when using
ActiveSync.
• ActiveSync (Normal mode) - allows a low
speed serial connection between your
device and PC. Select this when using
ActiveSync.
• Mass storage device (card reader) - turns
your device into a mass storage unit similar
to a card reader.
112
LCD Brightness
Adjusts the LCD brightness on battery power
and external power.
Power
Displays the battery power status. The Advanced settings allows you to set a
time when to turn-off the device if not used.
113
Memory
Displays the total, in use and free memory.
Storage card memory
Displays the total, in use, and available
storage card memory.
114
ASUS Status Settings
Allows you to select the items to display in
the ASUS Settings pop-up menu.
Programs running in memory
Allows you to activate or stop any program
running on memory.
IMPORTANT:
When you exit a running program, you are actually
only minimizing it and the program remains in the
memory. You can stop these programs from running
in the background using this option.
115
116
Appendix
• RF Exposure Information (SAR)
• Notices
• Safety information
• Contact information
117
RF Exposure Information (SAR)
THIS MODEL MEETS INTERNATIONAL GUIDELINES FOR EXPOSURE TO RADIO WAVES
Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits
for exposure to radio waves recommended by international guidelines. These guidelines were
developed by the independent scientic organization ICNIRP and include safety margins
designed to assure the protection of all persons, regardless of age and health.
The guidelines use a unit of measurement known as the Specic Absorption Rate, or SAR.
The ICNIRP SAR limit for mobile devices used by the general public is 2 W/kg and the highest
SAR value for this device when tested at the ear was 0.41 W/kg*. As mobile devices offer a
range of functions, they can be used in other positions, such as on the body as described in
this user guide. In this case, the highest tested SAR value is 1.99 W/kg*.
As SAR is measured utilizing the device’s highest transmitting power, the actual SAR of
this device while operating is typically below that indicated above. This is due to automatic
changes to the power level of the device to ensure it only uses the minimum level required to
reach the network.
While there may be differences between the SAR levels of various phones and at various
positions, they all meet the governmental requirements for safe exposure. The improvements
to this product model could cause differences in the SAR value for later products; in all cases,
products are designed to be within the guidelines.
The World Health Organization has stated that present scientic information does not indicate
the need for any special precautions for the use of mobile devices. They note that if you
want to reduce your exposure then you can do so by limiting the length of calls or using a
‘handsfree’ device to keep the mobile phone away from the head and body.
118
Additional Information can be found on the websites of the World Health Organization
(http://www.who.int/emf).
* The tests are carried out in accordance with international guidelines for testing. The limit incorporates
a substantial margin for safety to give additional protection for the public and to account for any
variations in measurements. Additional related information includes the ASUS testing protocol,
assessment procedure, and measurement uncertainty range for this product.
FCC Regulations
• This mobile phone complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
• This mobile phone has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiated radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Changes or modications not expressly approved by the party responsible for compliance could void the
user‘s authority to operate the equipment.
119
RF Exposure Information (FCC SAR)
This model phone meets the government’s requirements for exposure to radio waves.
This phone is designed and manufactured not to exceed the emission limits for exposure to radio
frequency (RF) energy set by the Federal Communications Commission of the U.S. Government.
The exposure standard for wireless mobile phones employs a unit of measurement known as the Specic
Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. *Tests for SAR are conducted using
standard operating positions accepted by the FCC with the phone transmitting at its highest certied
power level in all tested frequency bands. Although the SAR is determined at the highest certied power
level, the actual SAR level of the phone while operating can be well below the maximum value. This is
because the phone is designed to operate at multiple power levels so as to use only the poser required to
reach the network. In general, the closer you are to a wireless base station antenna, the lower the power
output.
The highest SAR value for the model phone as reported to the FCC when tested for use at the ear
is 0.749 W/kg and when worn on the body, as described in this user guide, is 0.904 W/kg (Body-
worn measurements differ among phone models, depending upon available enhancements and FCC
requirements.)
While there may be differences between the SAR levels of various phones and at various positions, they
all meet the government requirement.
The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels
evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model phone
is on le with the FCC and can be found under the Display Grant section of http://www.fcc.gov/oet/fccid
after searching on FCC ID: MSQ-1520.
For body worn operation, this phone has been tested and meets the FCC RF exposure guidelines for
use with an accessory that contains no metal and the positions the handset a minimum of 1.5 cm from
the body. Use of other enhancements may not ensure compliance with FCC RF exposure guidelines. If
you do no t use a body-worn accessory and are not holding the phone at the ear, position the handset a
minimum of 1.5 cm from your body when the phone is switched on.
120
Replaceable batteries
If an equipment is provided with a replaceable battery and if replacement by an
incorrect type could result in an explosion (such as with some lithium batteries),
the following applies:
– The battery is placed in an OPERATOR ACCESS AREA, there shall be a
marking close to the battery or a statement in both the operating and the
servicing instructions;
– If the battery is placed elsewhere in the equipment, there shall be a marking
close to the battery or a statement in the servicing instructions.
The marking or statement shall include the following or similar text:
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED
BY AN INCORRECT TYPE.
DISPOSE USED BATTERIES ACCORDING TO
THE INSTRUCTIONS
Notices
121
Operator access with a tool
If a TOOL is necessary to gain access to an OPERATOR ACCESS AREA, either
all other compartments within that area containing a hazard shall be inaccessible
to the OPERATOR by the use of the same TOOL, or such compartments shall be
marked to discourage OPERATOR access.
An acceptable marking for an electric shock hazard is (ISO 3864, No. 5036).
Equipment for restricted access locations
For equipment intended only for installation in a RESTRICTED ACCESS
LOCATION, the installation instructions shall contain a statement to this effect.
122
WARNING
The user needs to switch off the device when exposed to areas with potentially
explosive atmospheres such as petrol stations, chemical storage depots and
blasting operations.
123
ASUS
Address: 15 Li-Te Road, Peitou, Taipei, Taiwan
Tel: 886-2-2894-3447; Fax: 886-2-2890-7698
Declaration
We declare that the IMEI codes for this product, P550, are unique to each unit
and only assigned to this model. The IMEI of each unit is factory set and cannot
be altered by the user and that it complies with the relevant IMEI integrity related
requirements expressed in the GSM standards.
Should you have any questions or comments regarding this matter, please have our
best attention.
Sincerely yours,
ASUSTeK COMPUTER INC.
Tel: 886-2-2894-3447
Fax: 886-2-2890-7698
E-mail: http://vip.asus.com/eservice/techserv.aspx
124
Safety Information
Phone care
You should never attempt to open the phone casing. There are no user-serviceable parts inside and you
might damage sensitive electronic circuits and components. Unauthorized disassembly will void the warranty.
You should never leave your phone in the window of your car or otherwise expose it to strong sunlight or
excessive heat for a prolonged period. This may damage it.
You should never handle your phone with wet hands or expose it to moisture or liquids of any kind.
Continuous changes from a cold to a warm environment may lead to condensation inside the phone, resulting
in corrosion and possible damage.
If you pack your phone in your suitcase during travel, beware of damage. Cramming a suitcase may crack the
LCD display. Remember to switch off your wireless connections during air travel.
As with all other radio devices, touching the built-in antenna area during telephone conversation may impair the
quality and lead to shorter standby time due to increased power consumption.
The battery
Your device is equipped with a high-performance Li-Ion battery. Optional battery types may be available; check
with your local retailer. Observe the maintenance guidelines and your battery should give you a long service
life.
• At the beginning of the battery’s life, fully charge and discharge (let it go at) three times.
• Do not overcharge the Li-Ion battery, as this can result in a reduction in battery performance and
lifespan. The recommended maximum charge time is three hours.
• Avoid repeated short charging. It is preferable to let the battery go at and then recharge it completely.
• Avoid charging in strong heat or extreme cold. Ambient room temperature is preferable. The battery has
its optimum performance in an ambient temperature of +5 °C to +50 °C.
• Do not store the battery near a re or heat source.
125
• Use only the battery approved by the manufacturer.
• Never replace the battery with a non-approved battery.
• Never soak the battery in water or any other uid.
• Never try to open the battery as it contains substances that might be harmful if swallowed or allowed to
come into contact with unprotected skin.
• Never short-circuit the battery, as it may overheat and cause a re. Keep it away from jewellery and
other metal objects.
• Never dispose of the battery in a re. It could explode and release harmful substances into the
environment.
• Never dispose of the battery with your regular household waste. Take it to a hazardous material
collection point.
• Do not touch the battery terminals.
The charger
• Use only the charger supplied with your device.
• Never pull the charger cord to release it from the mains – pull the charger itself.
WARNING!
There is a risk of explosion if the battery is replaced by an incorrect type.
Memory card
• Do not remove or insert a memory card or turn off the handset while data on the card is being edited.
• Do not touch the metal terminals with your hands or metal objects.
• Do not bend the memory card or subject it to violent impacts. Keep it away from water and high
temperatures.
• Keep all memory cards out of reach of small children.
• Do not short circuit the contact points or expose it to liquids or moisture. When not in use, keep it in the
antistatic container it came in.
• Do not use force when inserting or handling the card, and do not expose it to excessive heat or strong
magnetic elds.
126
Cleaning and storing
• Your device should always be handled with care and protected from dirt, dust and dampness. To avoid
scratches, never place your phone face down.
• If cleaning is necessary, switch off the device and wipe carefully with a soft, slightly damp (not wet)
cloth. Use a cotton swab to clean the camera lens. Allow the phone to dry completely before switching it
on. Never use solvents for cleaning.
• If you are not going to use your device for some time, fully charge the battery and store the phone in a
dry place away from direct sunlight. Your device should be switched off during storage. Recharge every
6 to 12 months.
• Never expose your phone to heat or strong sunlight.
• Never expose your phone to moisture or liquids of any kind.
• Do not paint your phone or otherwise block the keypad, microphone, or earpiece function with stickers.
WARNING!
Failure to follow these instructions may lead to serious personal injury and possible
property damage.
Driving safety
Never use the handheld devices while driving. It is an offense while driving to hold a phone or cradle it in your
neck, at any point during the setup, making or taking of a phone call, text message or any other data related
mobile communication. Use of fully installed car kits are still permitted, as are the use of alternate handsfree
accessories.
In the interest of safety, we would recommend the use of a cradle while using any form of handsfree accessory.
While driving, we recommend that you use voicemail wherever possible, and that you listen to your messages
when you are not in the car. If you must make a handsfree call when driving, keep it brief.
An airbag inates with great force. Do not place objects, including both installed or portable wireless
equipment, in the area over the airbag or in the airbag deployment area. If in-vehicle wireless equipment is
improperly installed and the air bag inates, serious injury could result.
127
Electronic devices
Most modern electronic equipment is shielded from RF energy.
However, certain electronic equipment may not be shielded against the RF signals from your device.
Pacemakers
The Health Industry Manufacturers’ Association recommends that a minimum separation of six (6”) inches
be maintained between a phone and a pacemaker to avoid potential interference with the pacemaker. These
recommendations are consistent with the independent research by and recommendations of Wireless
Technology Research.
If you have a pacemaker:
• Always keep your phone more than six inches from your pacemaker when turned on.
• Do not carry your phone in a breast pocket.
• Use the ear opposite the pacemaker to minimize the potential for interference.
• If you have any reason to suspect that interference is taking place, turn off your device immediately.
Hearing aids
Some digital devices may interfere with some hearing aids. In the event of such interference, call ASUS
Customer Service to discuss alternatives.
Other medical devices
If you use any other personal medical device, consult the manufacturer of your device to determine if it is
adequately shielded from external RF energy. Your physician may be able to assist you in obtaining this
information.
Turn off your device in healthcare facilities when any regulations posted in these areas instruct you to do so.
Hospitals or healthcare facilities may be using equipment that could be sensitive to external RF energy.
128
Vehicles
RF signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles.
Check with the manufacturer or its representative regarding your vehicle. You should also consult the
manufacturer of any equipment added to your vehicle.
Posted facilities
Turn off your device where posted notices so require.
Magnetic media
Magnetic elds generated by Pocket PC Phone phones may damage data on magnetic storage media, such as
credit cards, computer discs or tapes. Do not place your device next to such media.
You should never expose your device to strong magnetic elds as this may cause temporary malfunction.
Other Safety Guidelines
Aircraft
Regulations prohibit using your phone while in the air. Switch off your device before boarding an aircraft or turn
off the wireless connections.
Blasting areas
To avoid interfering with blasting operations, turn off your device when in a ‘blasting area’ or in areas posted:
‘Turn off two-way radio.’ Obey all signs and instructions.
Potentially explosive environments
Turn off your device when in any area with a potentially explosive environment and obey all signs and
instructions.
129
Sparks in such areas could cause an explosion or re resulting in bodily injury or even death.
Areas with a potentially explosive environment are often, but not always, clearly marked. They include fuelling
areas such as gas stations, below decks on boats, fuel or chemical transfer or storage facilities, vehicles using
liquied petroleum gas (such as propane or butane), areas where the air contains chemicals or articles, such
as grain, dust, or metal powders, and any other area where you would normally be advised to turn off your
vehicle’s engine.
Choking
Keep your device away from children as the SIM card and other small parts present a choking hazard.
Cautions
Your Pocket PC Phone is a high quality piece of equipment. Before operating, read all instructions and
cautionary markings on (1) AC Adapter (2) Battery and (3) Product Using Battery.
• Do not use this device in an extreme environment where high temperature or high humidity exists.
• Do not abuse the device. Avoid striking, shaking or giving it a shock. When not using the unit, lay it
down to avoid possible damage due to instability.
• Do not expose this device to rain or spilled beverages.
• Do not use unauthorized accessories.
• Do not disassemble the device or its accessories. If service or repair is required, return the unit to an
authorized service center. If the unit is disassembled, a risk of electric shock or re may result.
• Do not short-circuit the battery terminals with metal items.
130
Contact information
ASUSTeK COMPUTER INC. (Taiwan)
Hotline: 0800-093-456 (Toll-Free call from Taiwan only)
Fax: 886-2-2895-9254
E-mail: http://vip.asus.com/eservice/techserv.aspx
WWW: http://tw.asus.com
ASUSTeK COMPUTER INC. (Asia-Pacic)
Hotline: 886-2-2894-3447
Fax: 886-2-2890-7698
E-mail: http://vip.asus.com/eservice/techserv.aspx
WWW: http://www.asus.com
ASUS COMPUTER GmbH (Germany/Austria)
Hotline: +49-2102-9599-10
Fax: +49-2102-9599-11
E-mail: http://www.asus.de/support/support.htm
WWW: http://www.asus.de
ASUS COMPUTER (China)
Tel: +86-10-82667575
E-Mail: http://vip.asus.com.cn/eservice/techserv.aspx.

Navigation menu
