USERS MANUAL 1 OF 2

Zhone 6218-i3 4-Port Wi-Fi
Ethernet Router
User Manual
Version 1.0
Version Date: June 20, 2007
Document #: BD-ZU0011-10
Zhone 4-Port Wireless Ethernet Router
User Manual
1
Version 1.0
Document #: BD-ZU0011-10
Table of Contents
GENERAL INFORMATION .......................................................................... 3
Package Contents ........................................................................ 3
Important Safety Instructions.......................................................... 3
Front Panel View ......................................................................... 4
Back Panel View .......................................................................... 5
INSTALLING THE ROUTER......................................................................... 6
Connect the ADSL Line and Telephone ........................................ 6
Connect the PC to the Router................................................... 6
Connect the Power Adapter ..................................................... 6
INSTALLATION DIAGRAM.......................................................................... 7
MOUNTING THE ROUTER ......................................................................... 8
CONFIGURING YOUR COMPUTER ................................................................. 9
Windows 2000............................................................................. 9
Windows XP ..............................................................................10

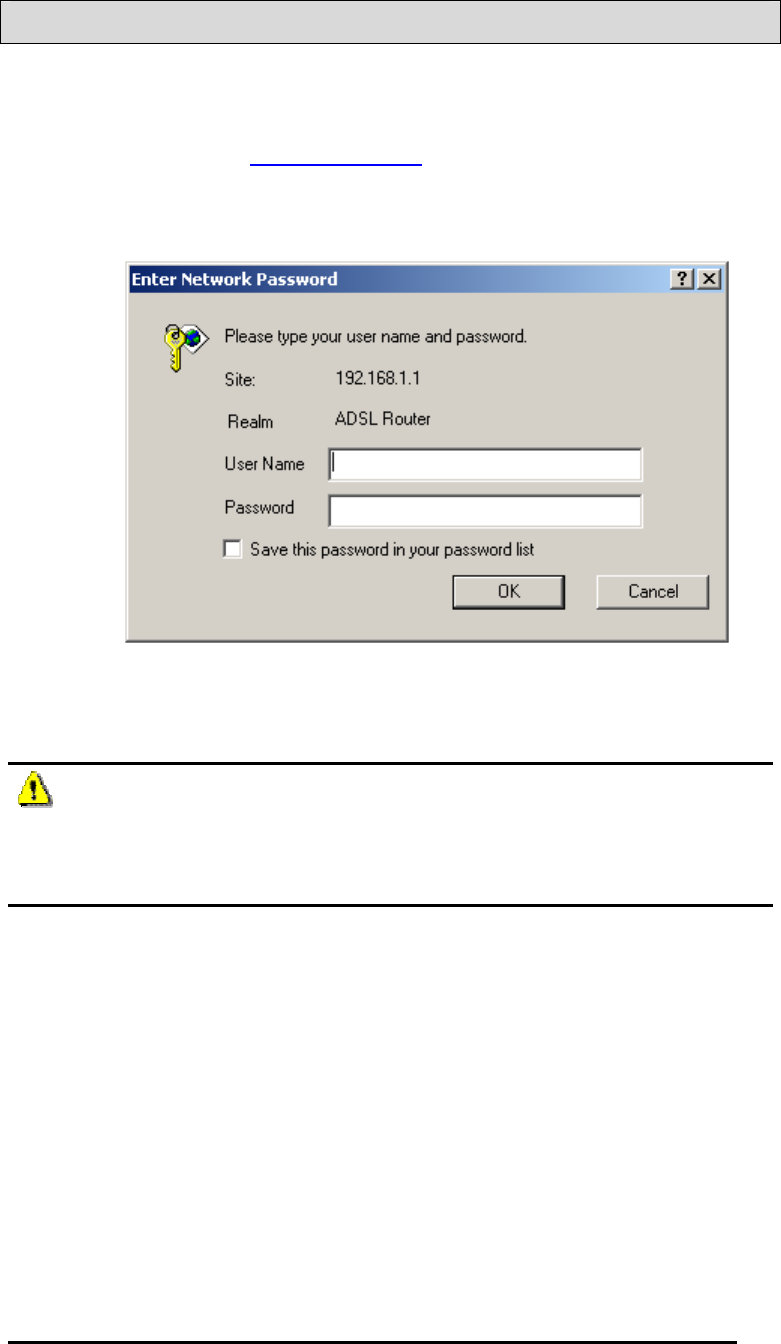

LOG IN TO THE ROUTER.........................................................................11

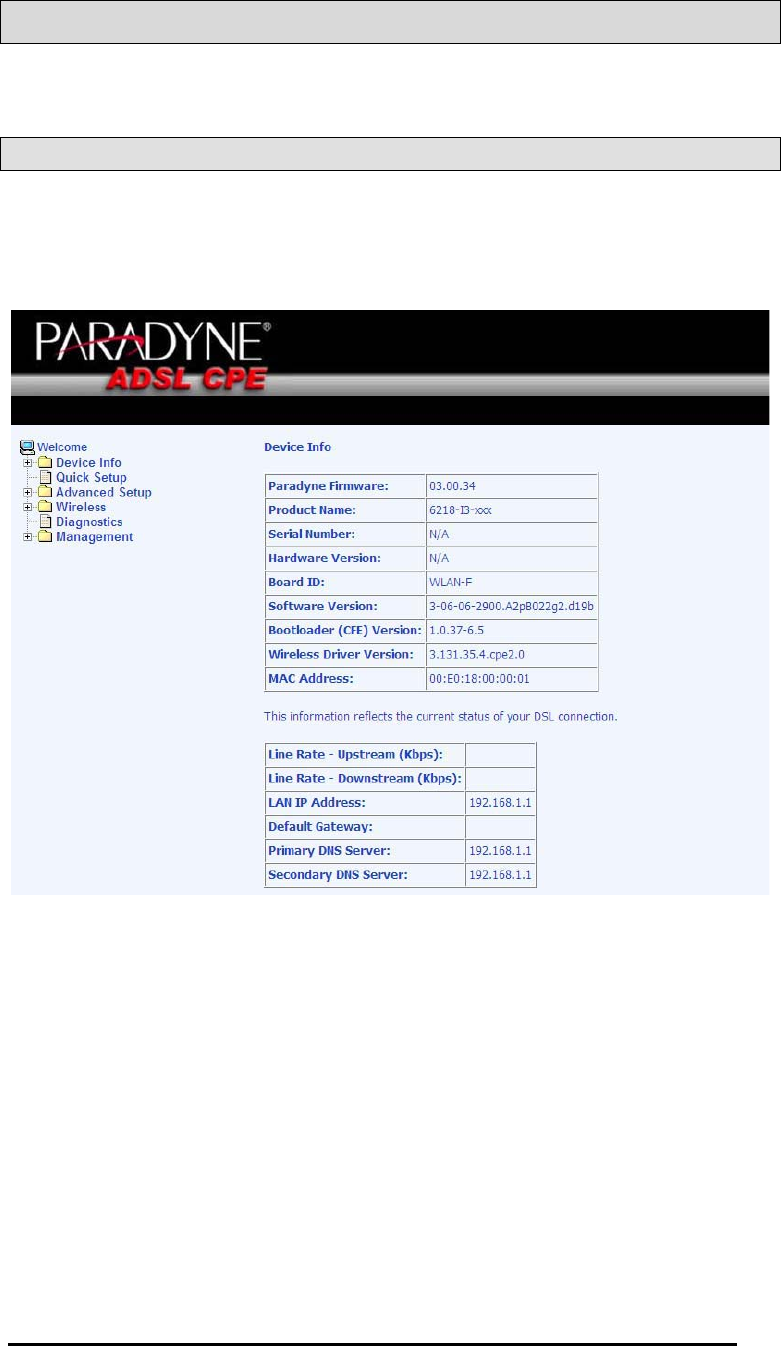

DEVICE INFO ....................................................................................12
Summary..................................................................................12

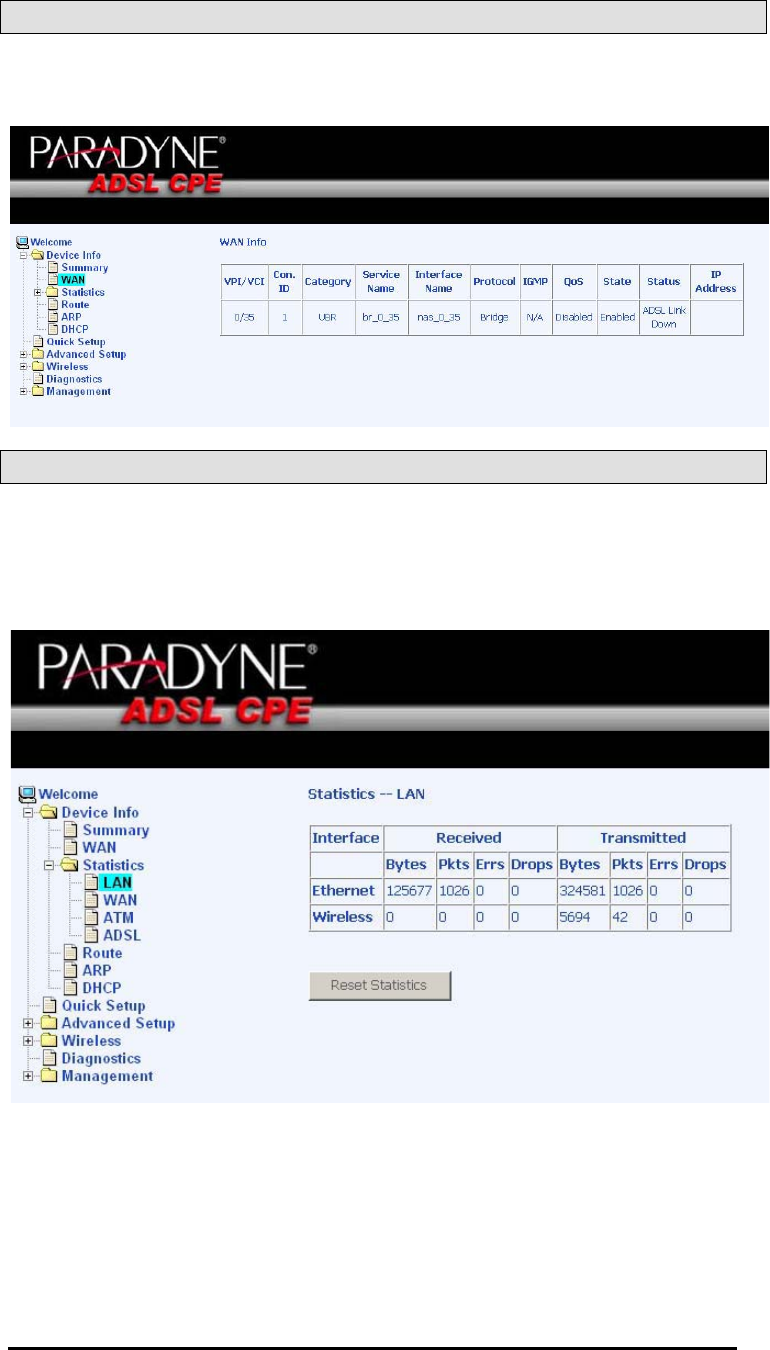

WAN .......................................................................................13
Statistics..................................................................................13
LAN Statistics .....................................................................13

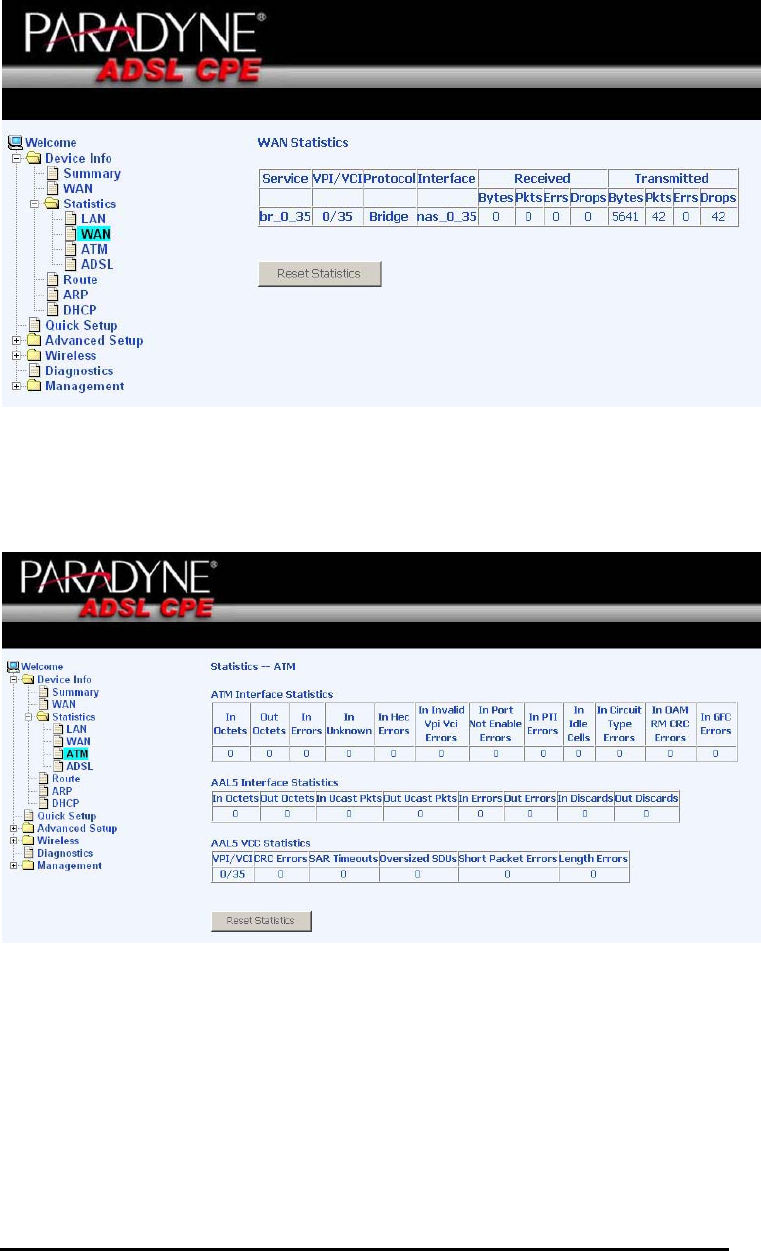

WAN Statistics ....................................................................14
ATM Statistics.....................................................................14
ADSL Statistics ....................................................................15

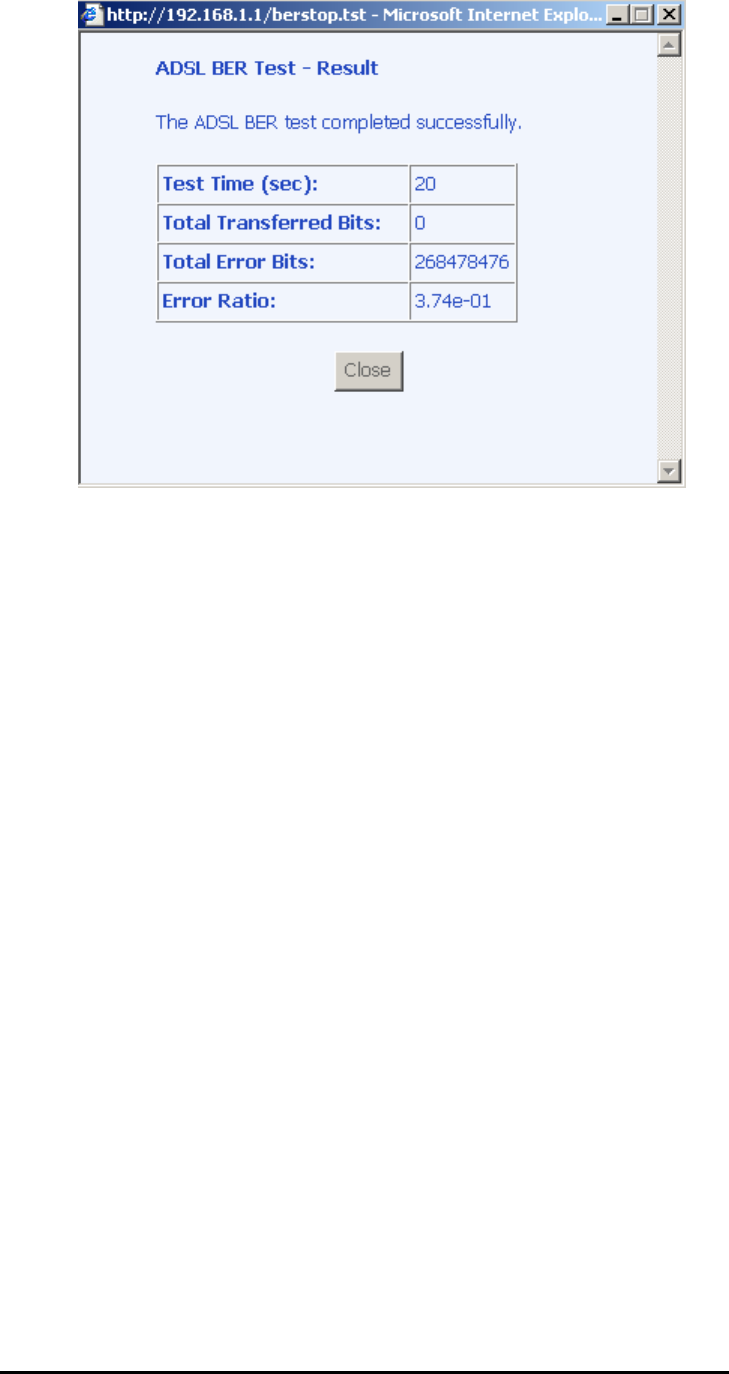

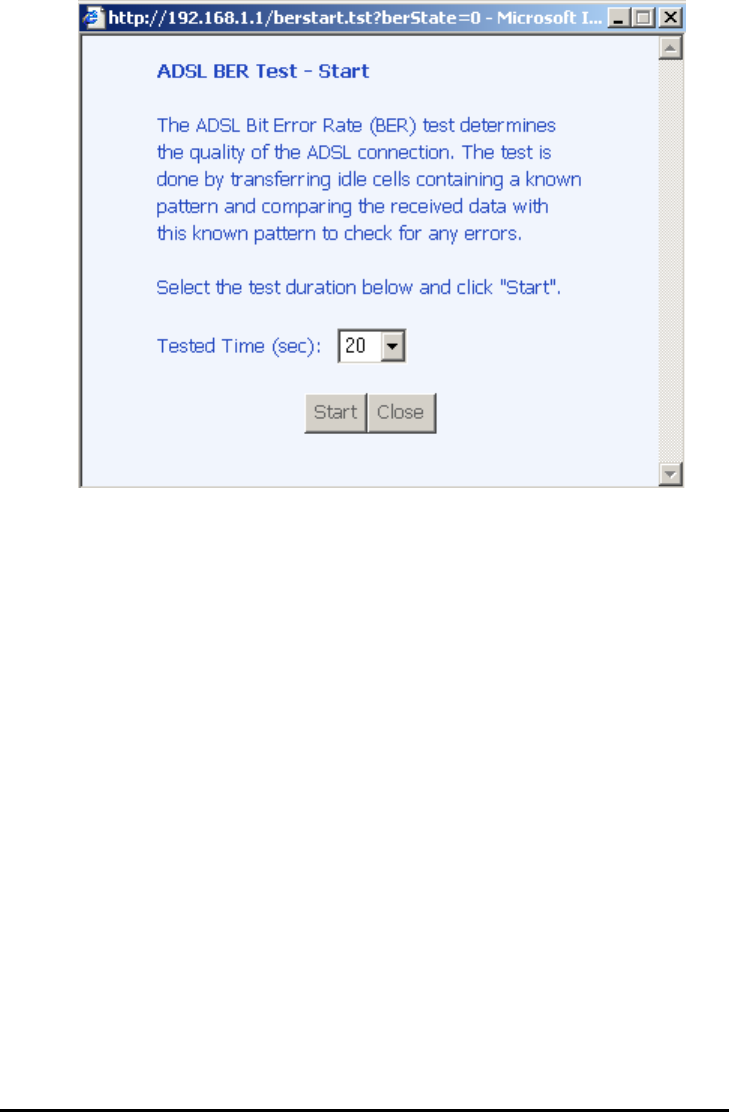

ADSL BER Test ....................................................................16

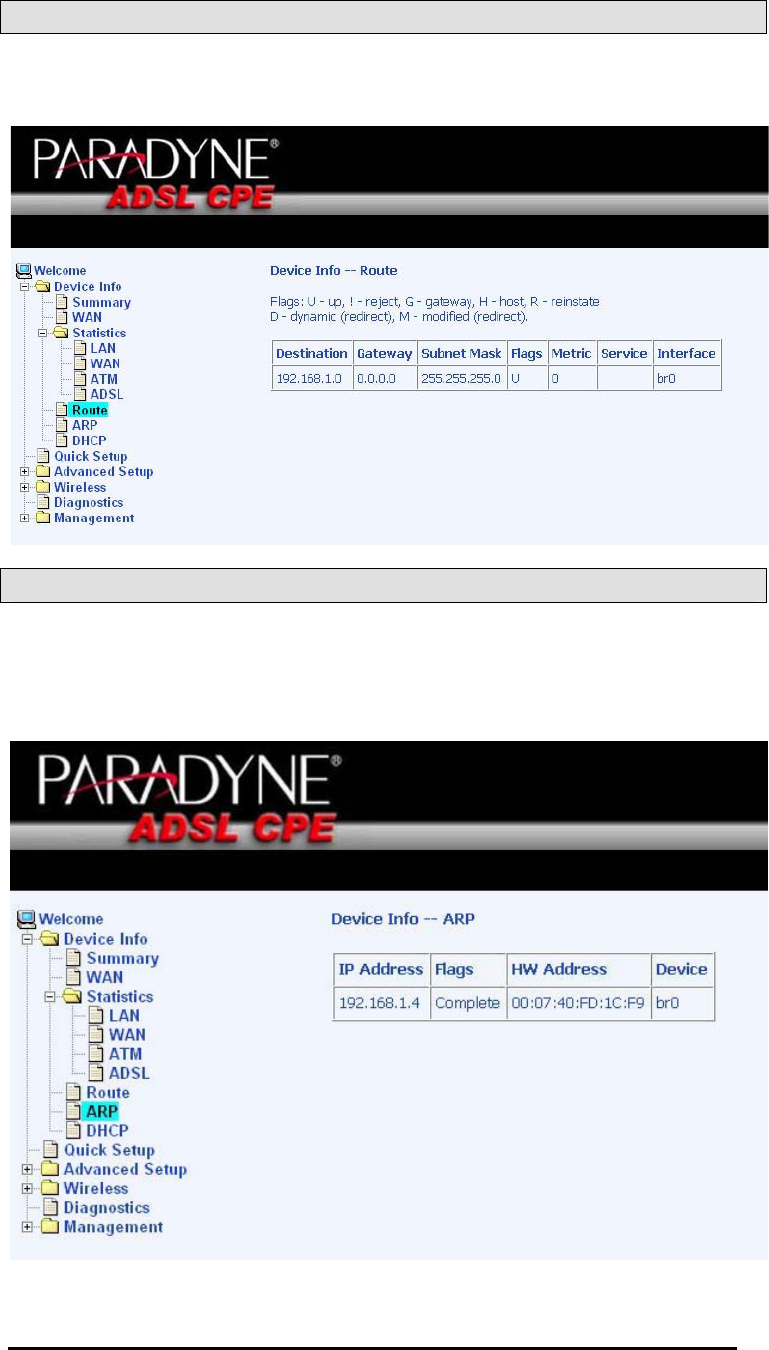

Route......................................................................................18
ARP ........................................................................................18

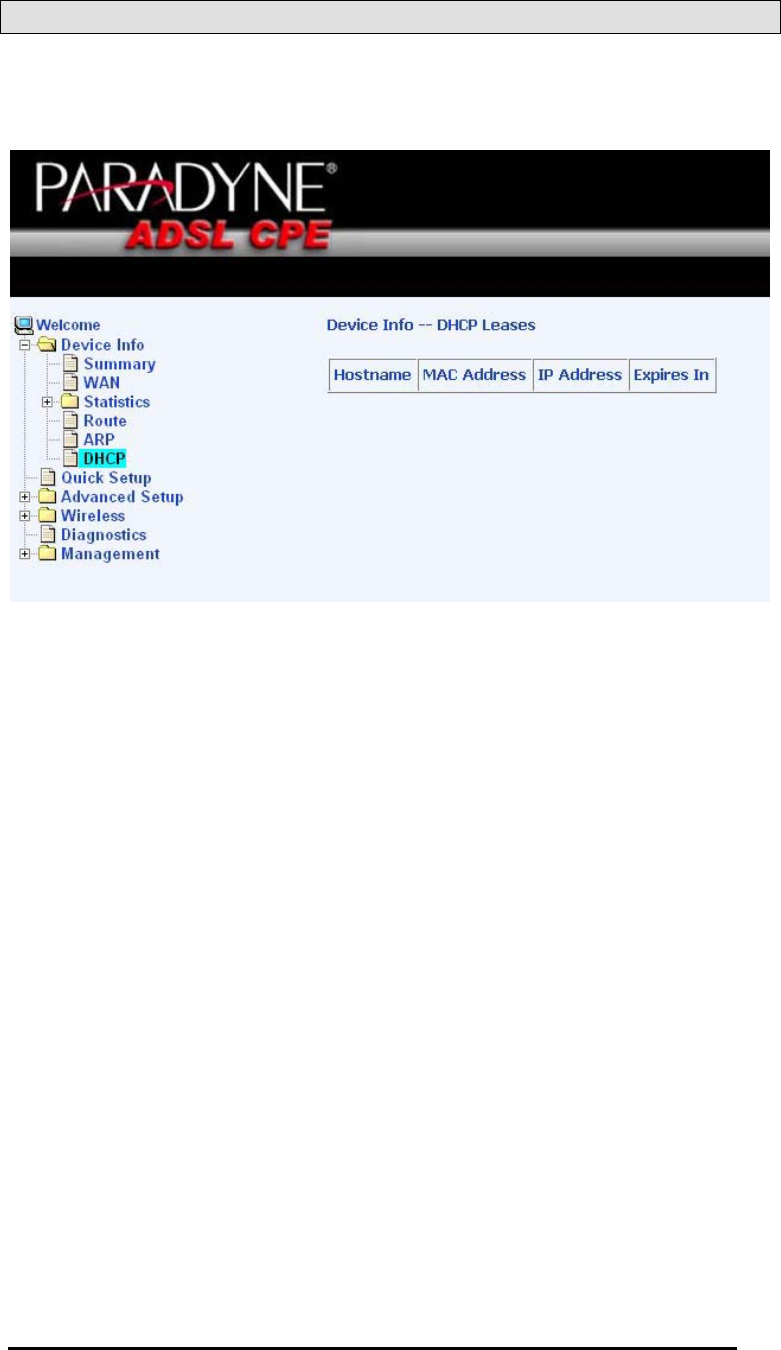

DHCP ......................................................................................19

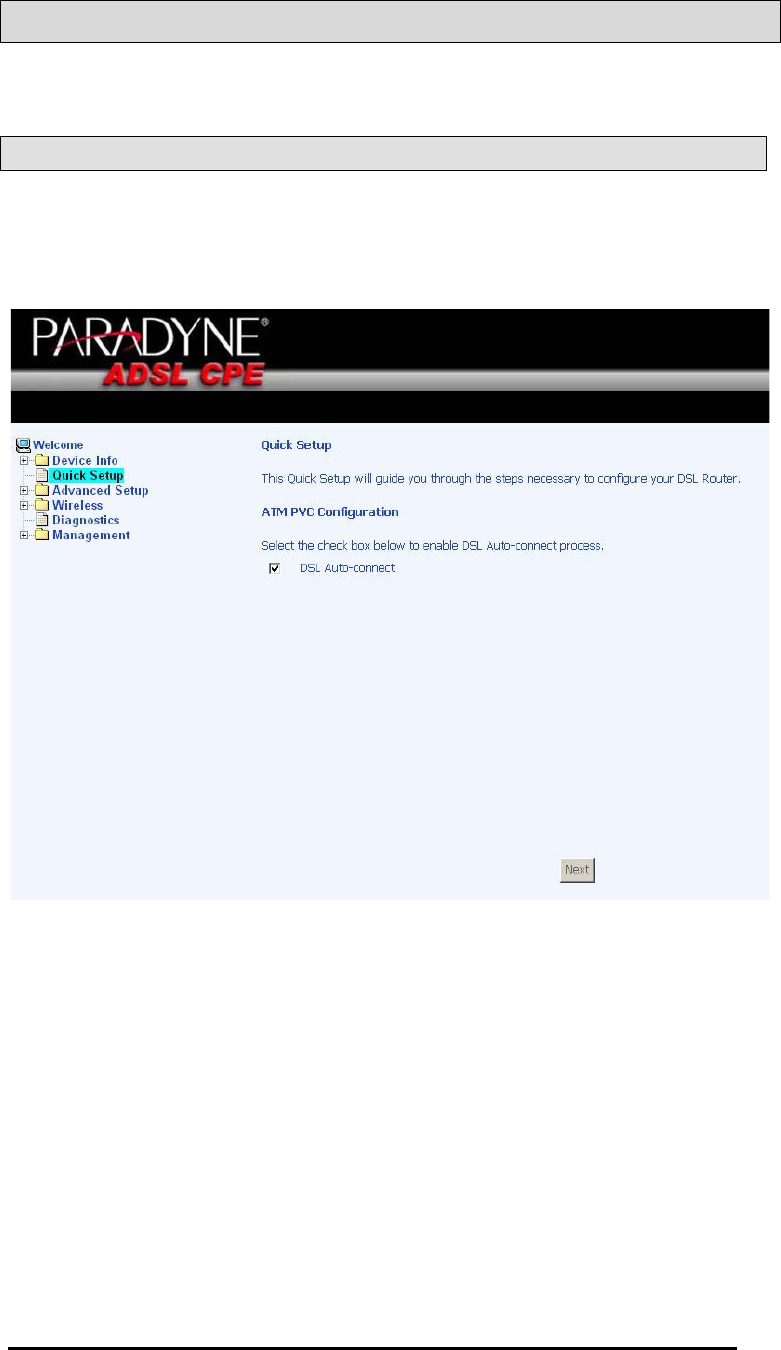

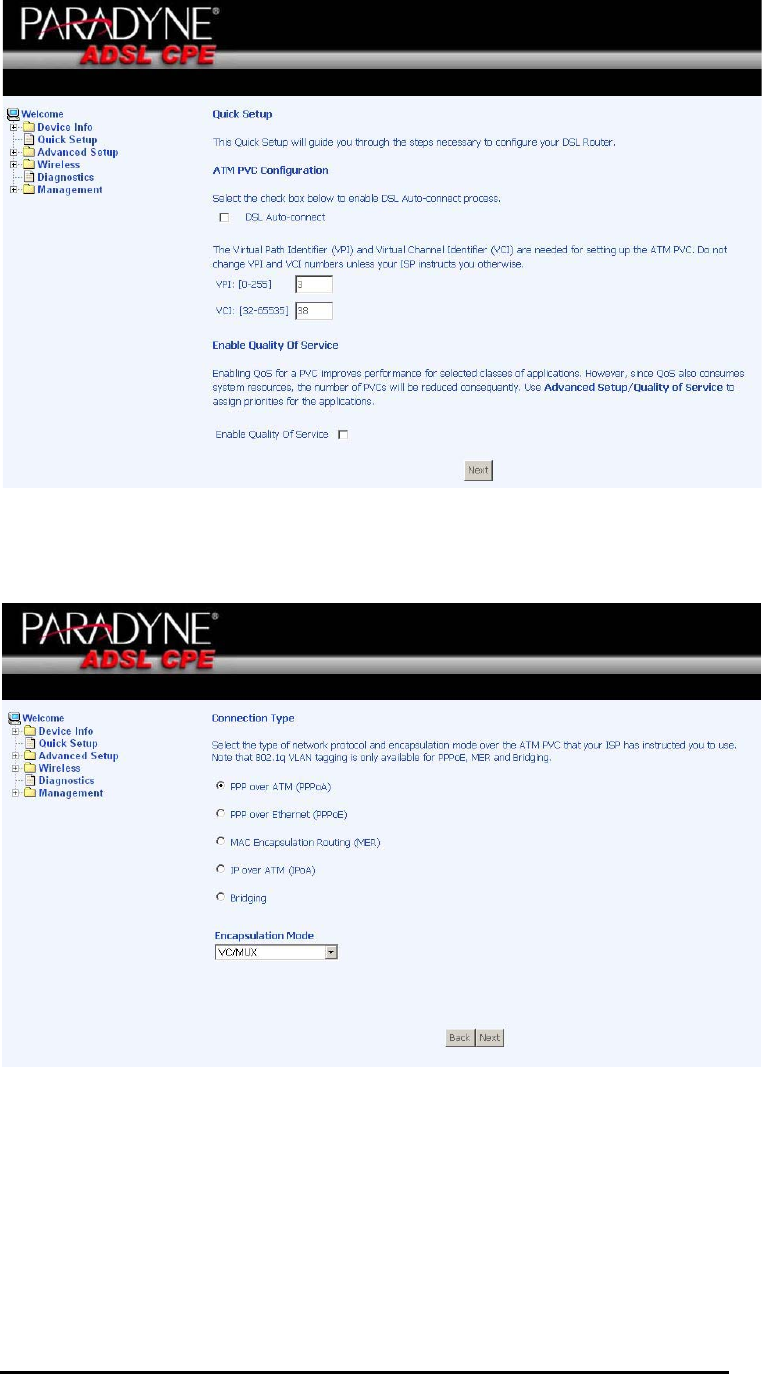

QUICK SETUP ...................................................................................20

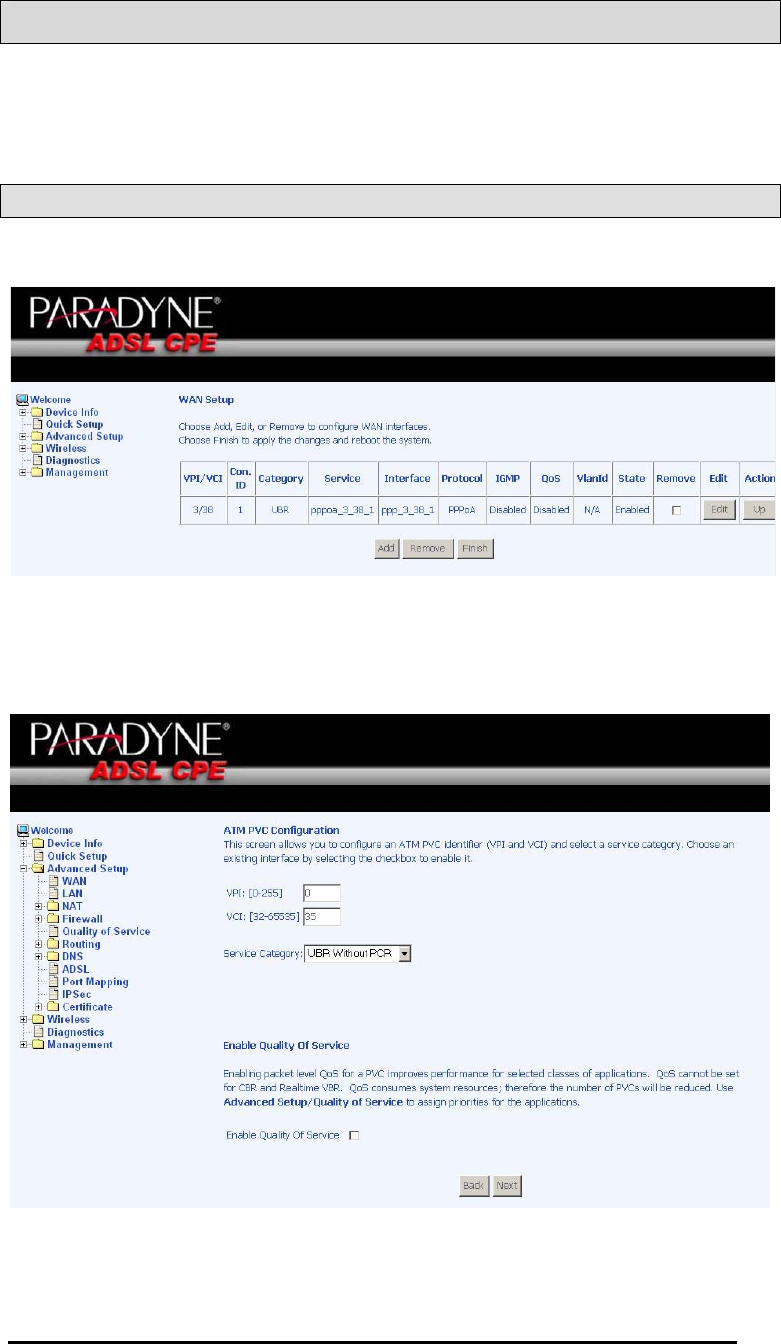

ATM PVC Configuration ................................................................20
ADVANCED SETUP...............................................................................25
WAN .......................................................................................25
Connection Type .................................................................26

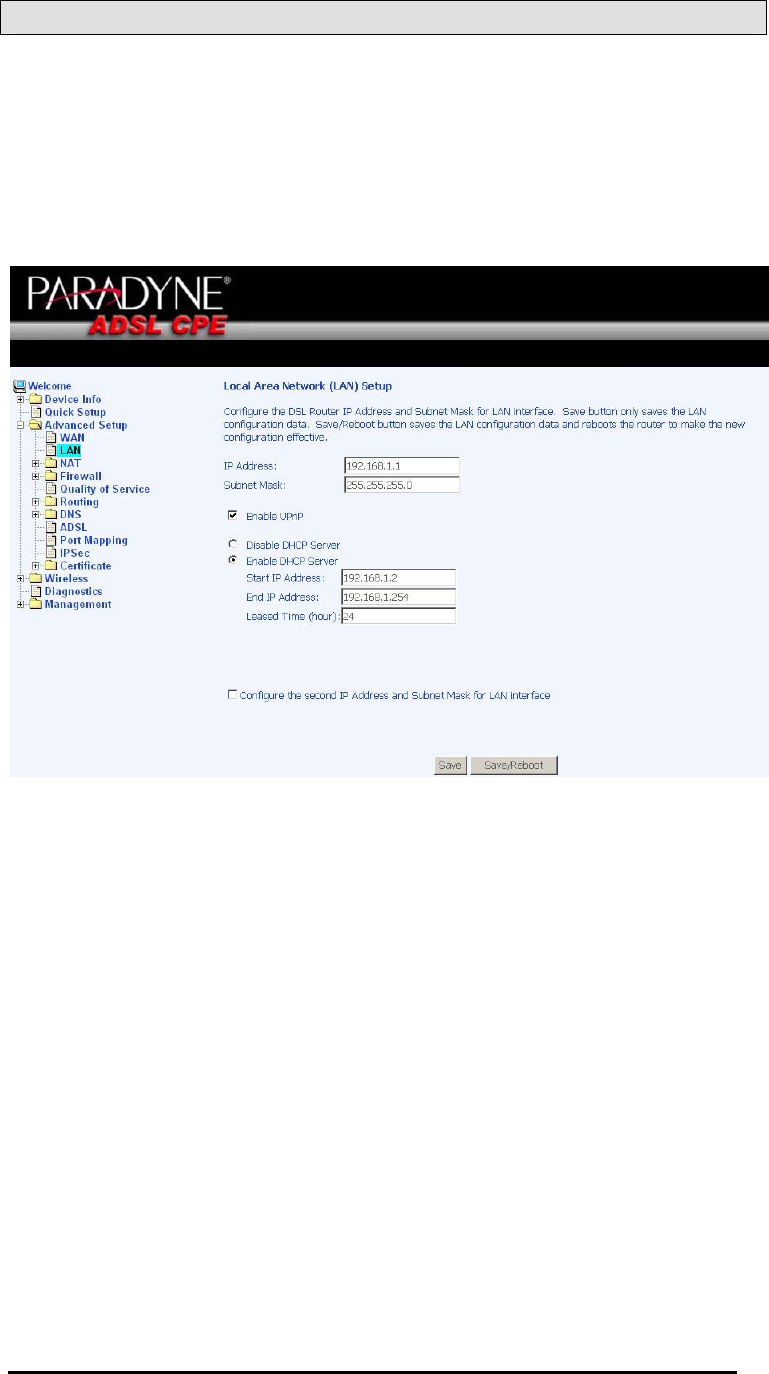

LAN Local Area Network (LAN) Setup................................................29
NAT ........................................................................................30

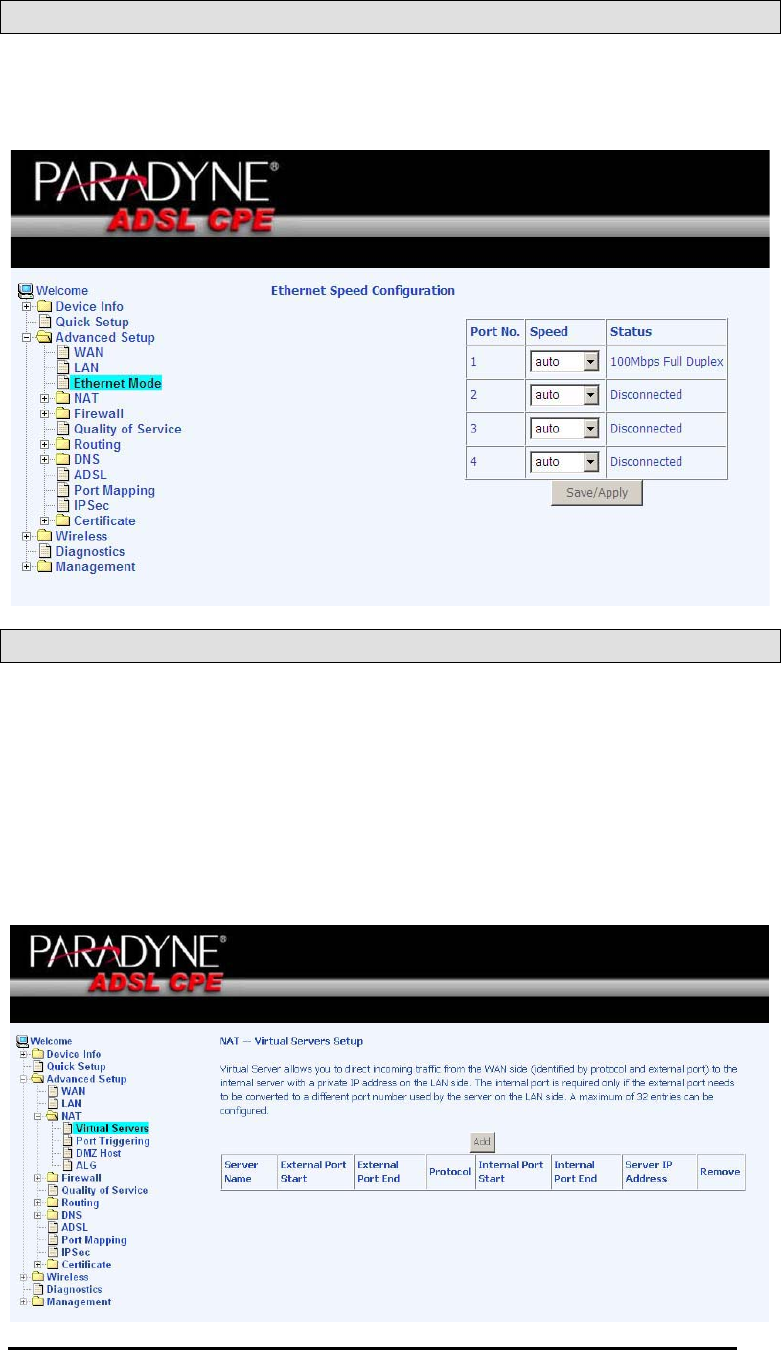

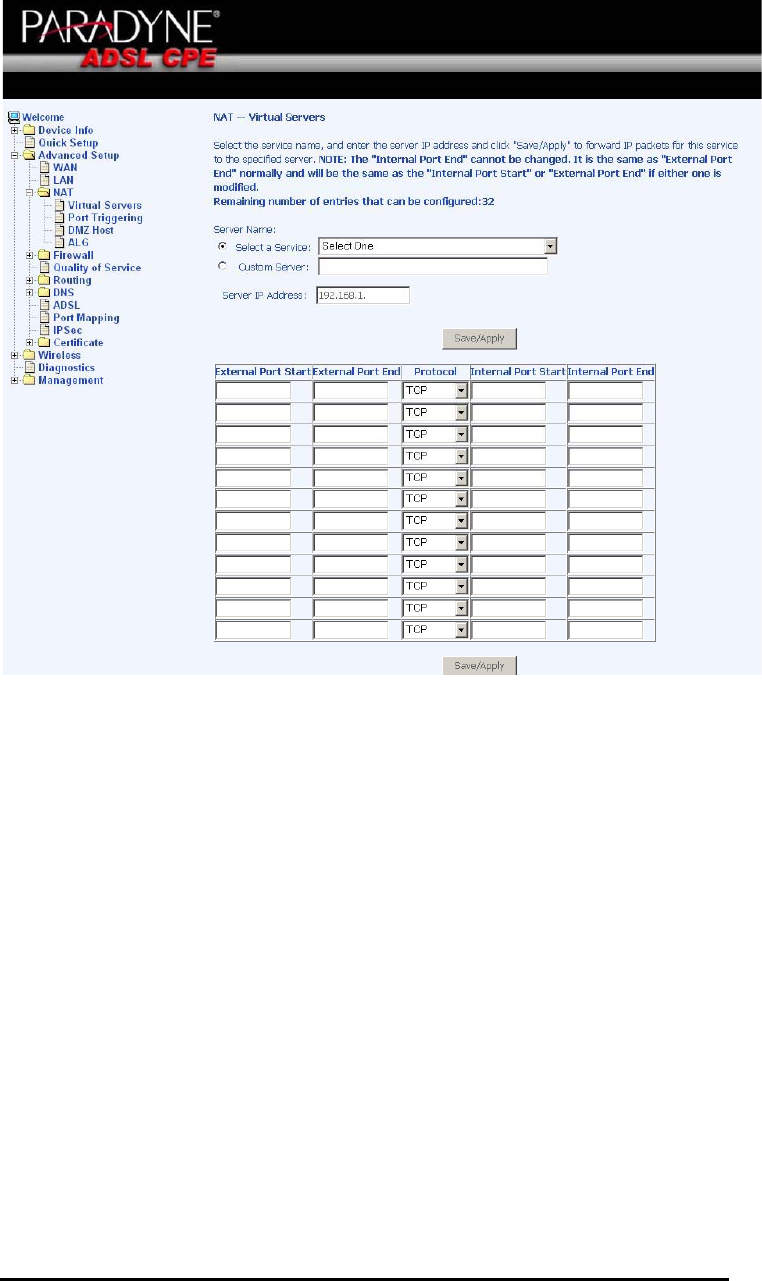

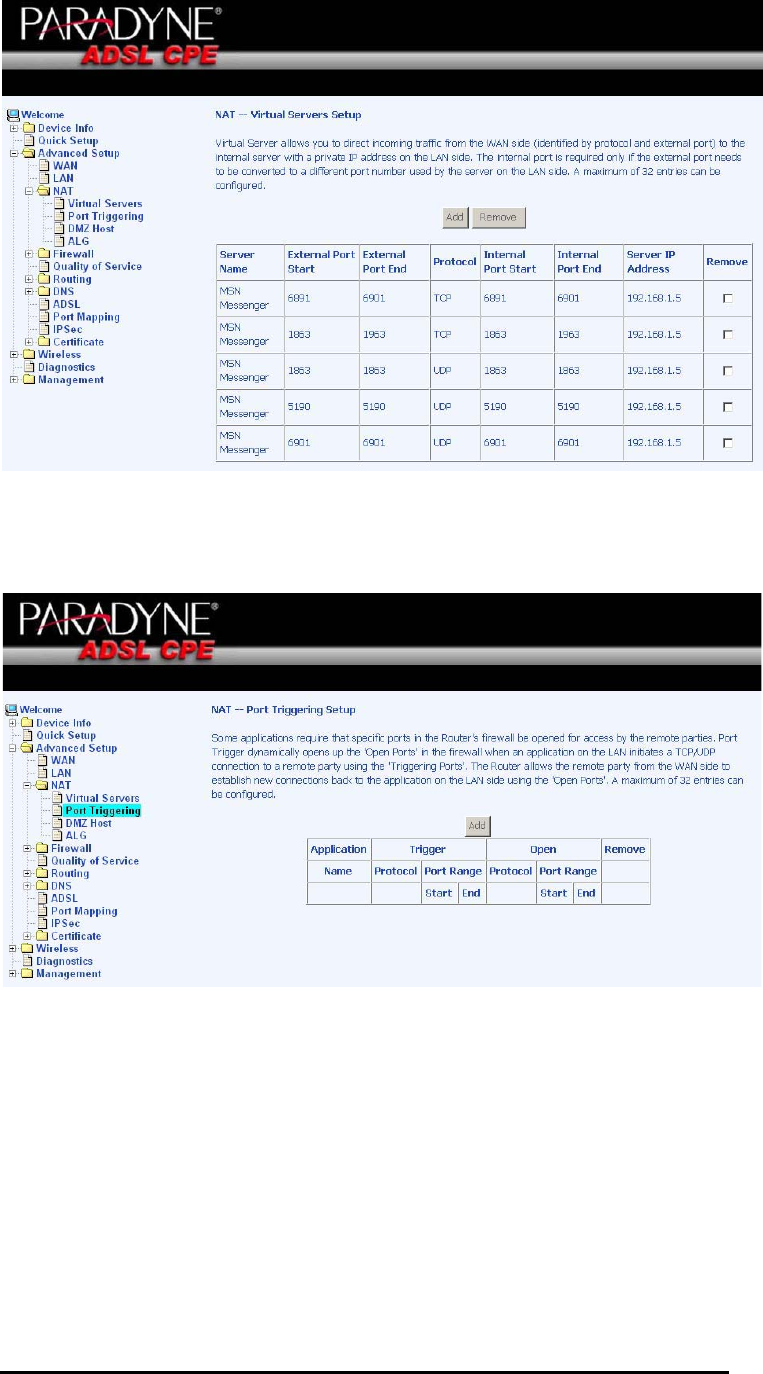

Virtual Servers ....................................................................30

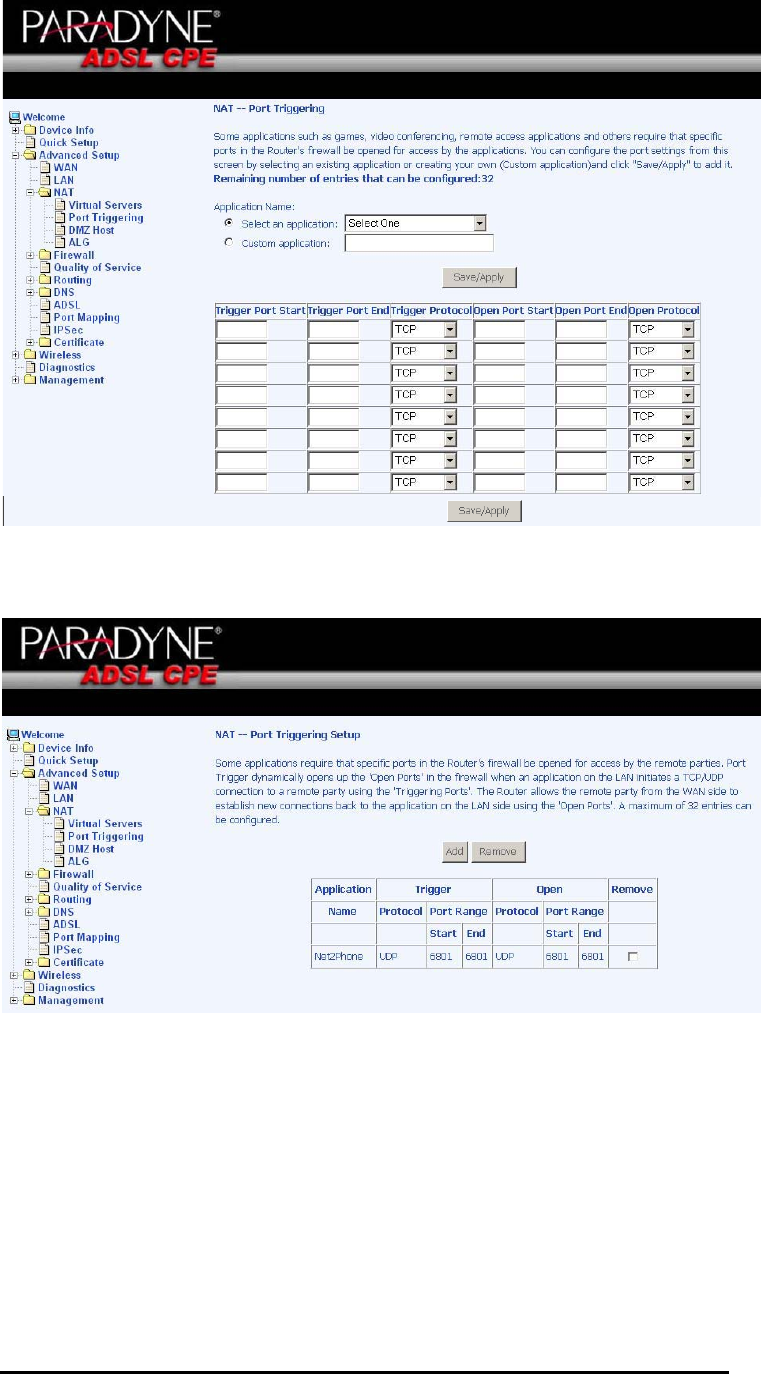

Port Triggering ...................................................................32

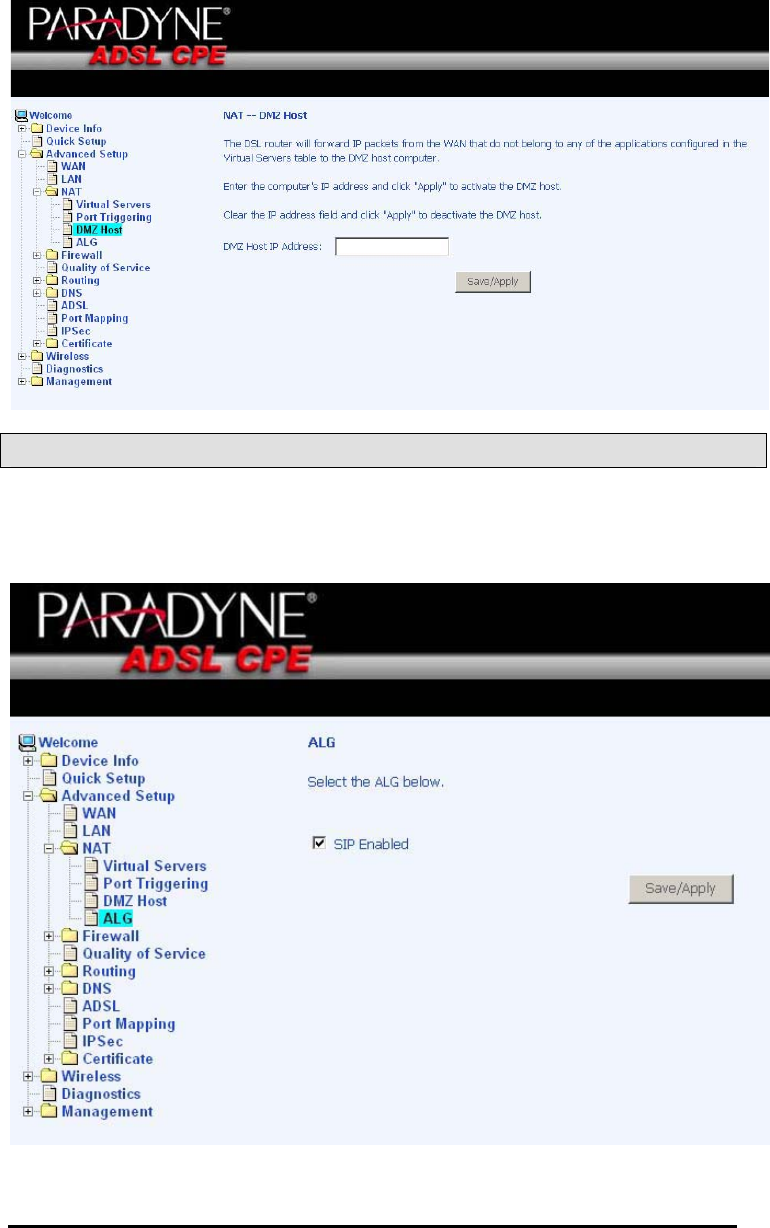

DMZ Host ..........................................................................34
ALG ........................................................................................34
Firewall...................................................................................35

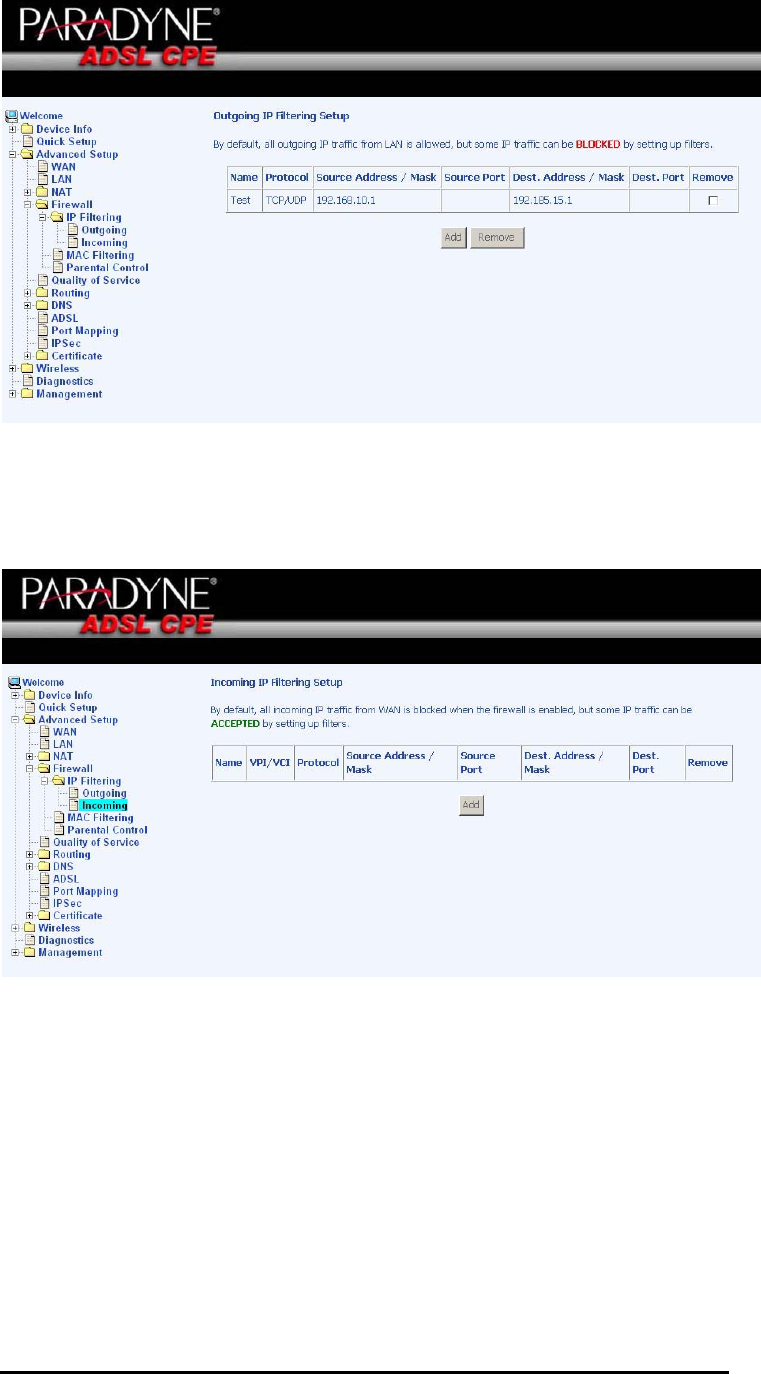

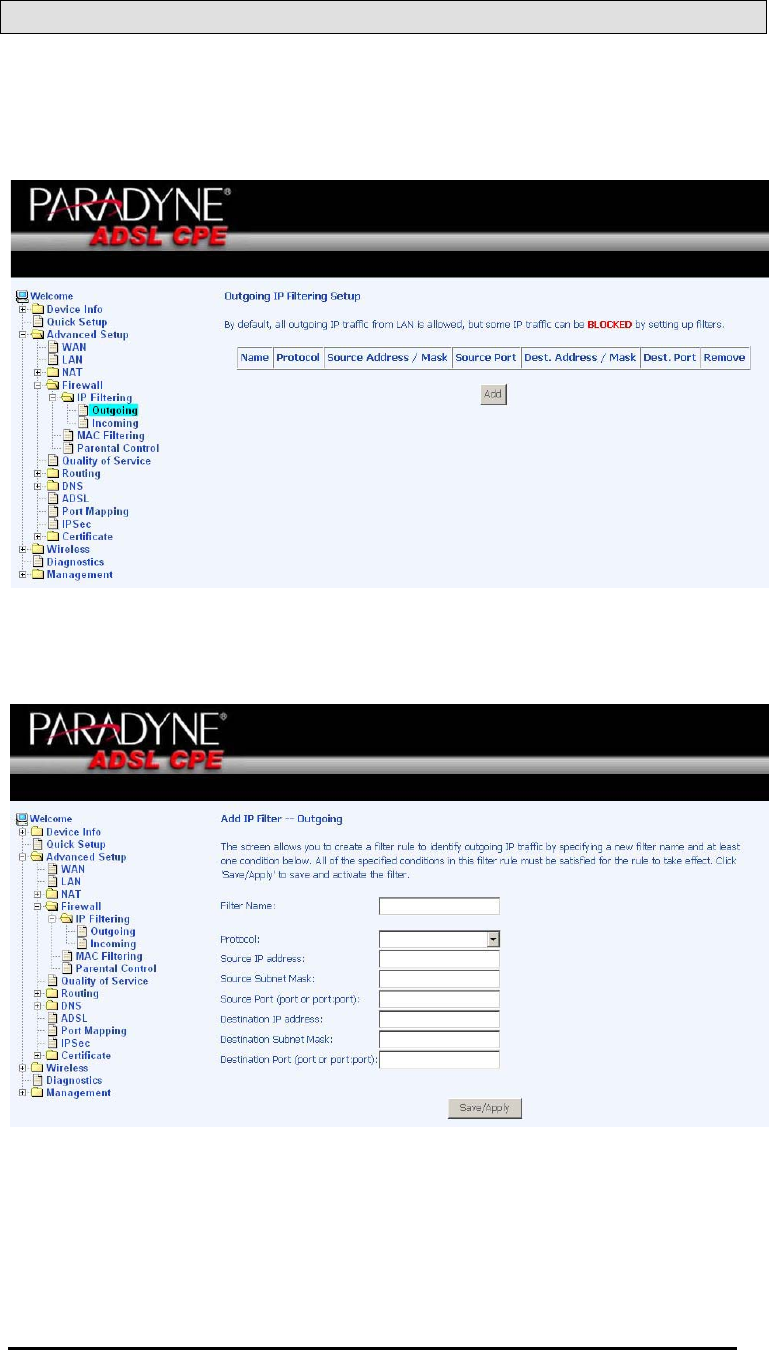

IP Filtering—Outgoing ...........................................................35

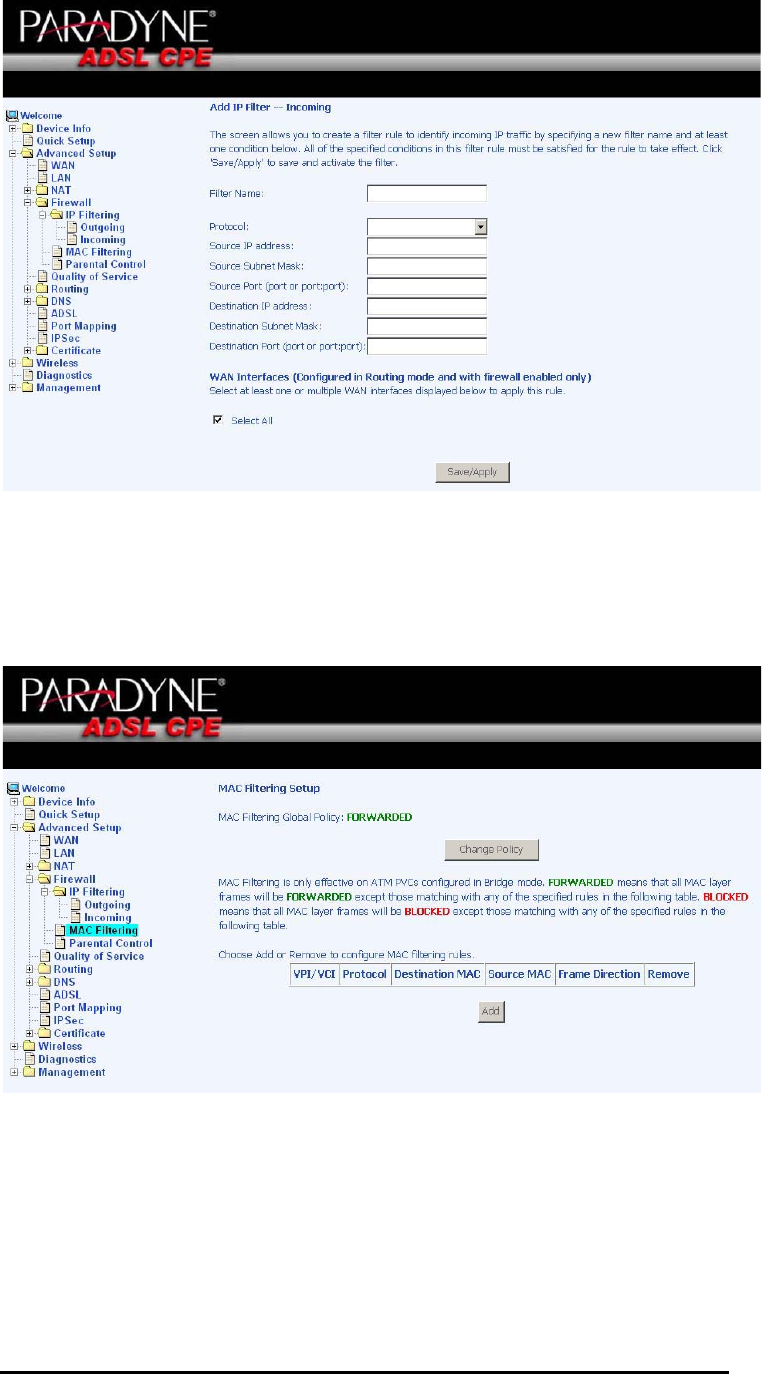

IP Filtering—Incoming ...........................................................36

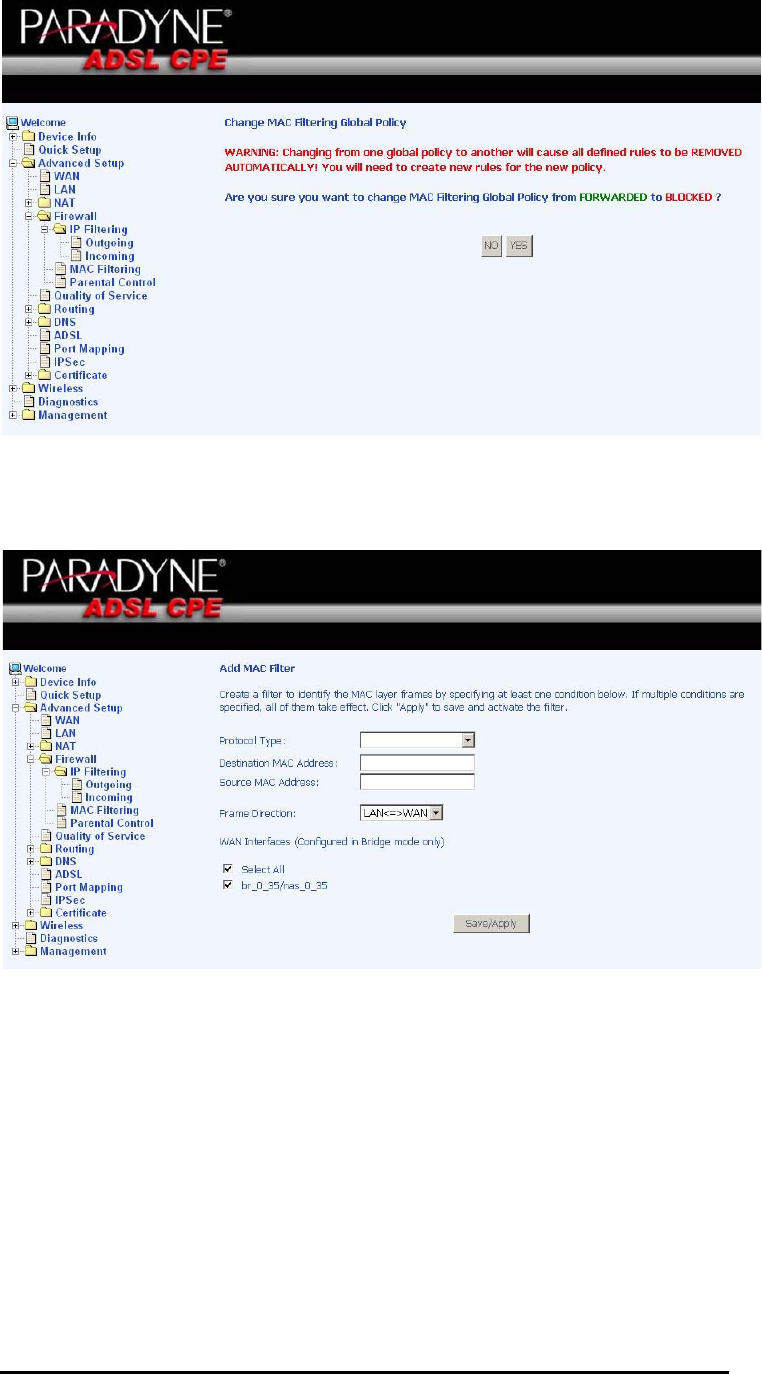

MAC Filtering .....................................................................37

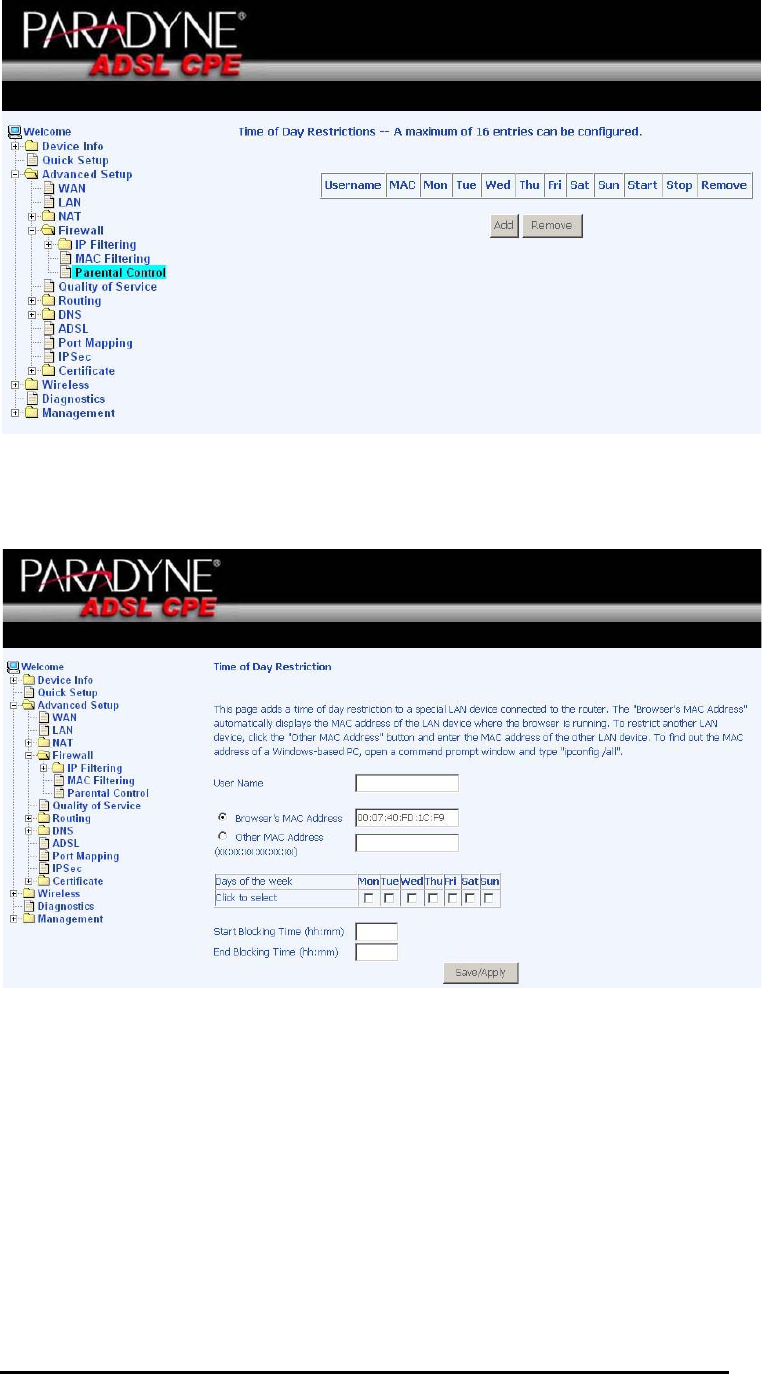

Parental Control .....................................................................38
Quality of Service .......................................................................40
Routing ...................................................................................41
Default Gateway .................................................................41
Static Route.......................................................................42
RIP ..................................................................................43
DNS ........................................................................................44
DNS Server ........................................................................44
Dynamic DNS ......................................................................45
ADSL .......................................................................................46
DSL Advanced Settings ..........................................................47
Zhone 4-Port Wireless Ethernet Router
User Manual
2
Version 1.0
Document #: BD-ZU0011-10
Tone Settings .....................................................................47
Port Mapping.............................................................................48
IPSec.......................................................................................49
Certificate ...............................................................................50
Local ...............................................................................50
Trusted CA ........................................................................53
WIRELESS.......................................................................................54
Basic.......................................................................................54
Security ...................................................................................54
MAC Filter................................................................................59
Wireless Bridge ..........................................................................60
Advanced .................................................................................61
Quality of Service .......................................................................64
Station Info ..............................................................................66
DIAGNOSTICS ...................................................................................67
MANAGEMENT ..................................................................................68
Settings ...................................................................................68
Backup Settings...................................................................68
Restore User Settings............................................................69
Restore Default...................................................................69
System Log ...............................................................................70
Configure System Log............................................................71
TR-069 Client ............................................................................71
Internet Times...........................................................................72
Access Control ...........................................................................73
Services ............................................................................73
IP Addresses.......................................................................73
Passwords .........................................................................74
Update Software ........................................................................75
Reboot Router ...........................................................................75
General Information
The 4-Port Wireless Ethernet Router features 4 LAN ports for added convenience
and accessibility.
Package Contents
Included in the package is one of each of the following—
x 4-Port Wireless Ethernet Router
x 12V 1.5A power adapter
x RJ-11 telephone cable
x RJ-45 Ethernet cable
x User Manual
Zhone 4-Port Wireless Ethernet Router
User Manual
3
Version 1.0
Document #: BD-ZU0011-10
Important Safety Instructions
x Place your router on a flat surface close to the cables in a location with
sufficient ventilation.
x To prevent overheating, do not obstruct the ventilation openings of this
equipment.
x Plug this equipment into a surge protector to reduce the risk of damage
from power surges and lightning strikes.
x Operate this equipment only from an electrical outlet with the correct
power source as indicated on the adapter.
x Do not open the cover of this equipment. Opening the cover will void any
warranties on the equipment.
x Unplug equipment first before cleaning. A damp cloth can be used to clean
the equipment. Do not use liquid / aerosol cleaners or magnetic / static
cleaning devices.
Front Panel View
Zhone 4-Port Wireless Ethernet Router
User Manual
4
Version 1.0
Document #: BD-ZU0011-10
LED Mode Indication
Solid Router is powered on.
Power Router is not powered. Check if the router is plugged in
and if the power switch is turned on.
No light
Connection established. The router is able to
communicate with your ISP via ADSL.
Solid
Status
Flashing The router is trying to connect to your ISP.
Solid ADSL is connected.
No light ADSL is not connected. The ALARM led will be red.
Link
Blinking The router is connected to ADSL.
Solid Router is connected to the LAN.
No light No connection to the LAN. Check if the LAN cable is
connected to the router.
LAN1-
LAN4
Blinking LAN traffic
Solid Wireless is enabled.
No light Wireless is disabled.
AP
Blinking There is wireless traffic.

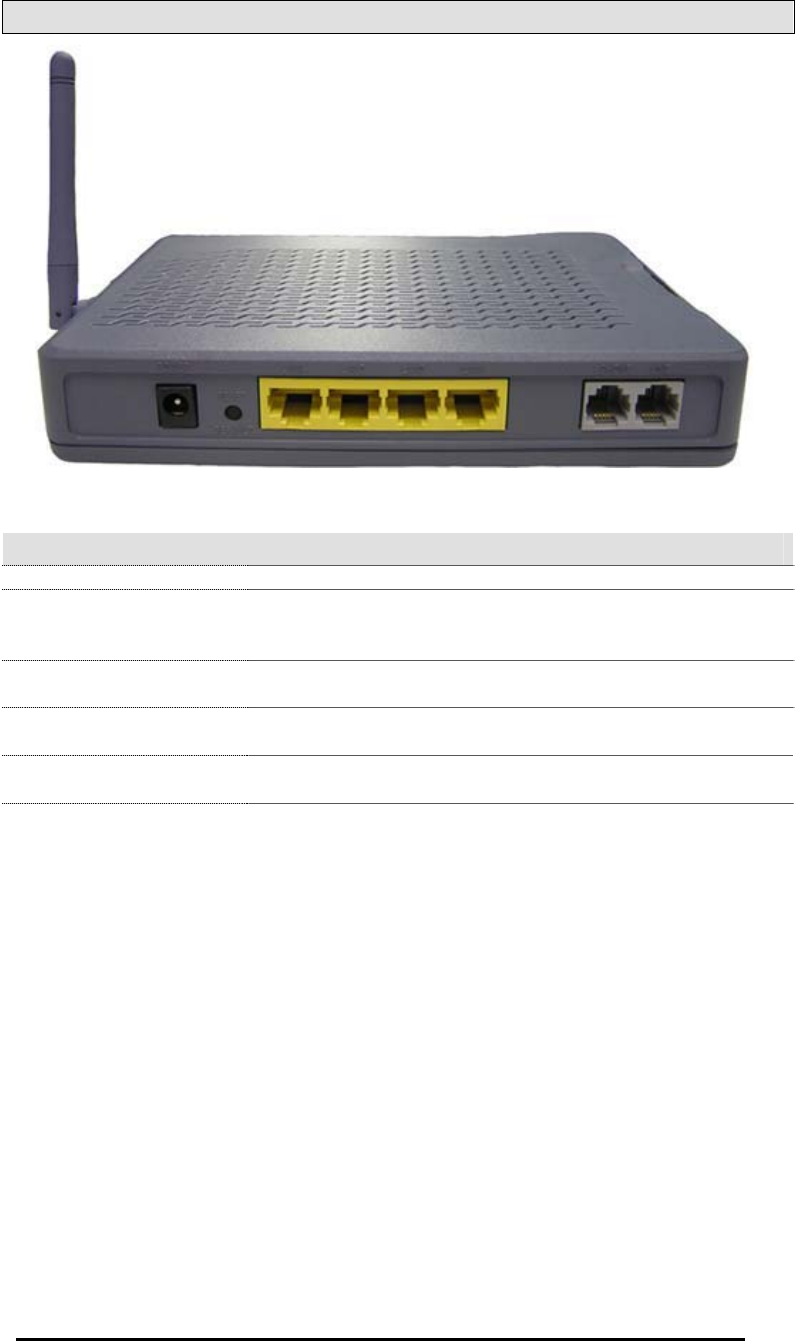

Back Panel View
NOTE: The below port descriptions are listed as they appear on the back panel from left to
right.
Port Description
Power Connects to a 15VAC 1A power adapter.
Restart—press the button for less than 4 seconds.
Reset / Default Default settings—press the button for 4 seconds or
longer.
RJ-45 connects the unit to an Ethernet device such as a
PC or a switch.
LAN1-LAN4
RJ-11 cable connects to telephone (no external splitter
necessary; unit has internal splitter).
Phone
RJ-11 cable connects between telephone and the LINE
port using a splitter (not included) if needed.
Line
Zhone 4-Port Wireless Ethernet Router
User Manual
5
Version 1.0
Document #: BD-ZU0011-10
Zhone 4-Port Wireless Ethernet Router
User Manual
6
Version 1.0
Document #: BD-ZU0011-10
Installing the Router
Connect the ADSL Line and Telephone
x Connect one end of an RJ-11 cable from your ADSL connection and the
other end to the LINE port of the router using a splitter if needed.
NOTE: See connections on the installation diagram.
Connect the PC to the Router
x To use the Ethernet connection, connect the Ethernet cable from the
computer directly to the router.
x Connect one end of the Ethernet cable to one of the 4 ports labeled LAN
(LAN1 – LAN4) on the back of the router and attach the other end to the
Ethernet port of your computer.
Connect the Power Adapter
x Complete the process by connecting the AC power adapter to the POWER
connector on the back of the device and plug the adapter into a wall outlet
or power strip. Then turn on and boot up your PC and any LAN devices,
such as hubs or switches, and any computers connected to them.

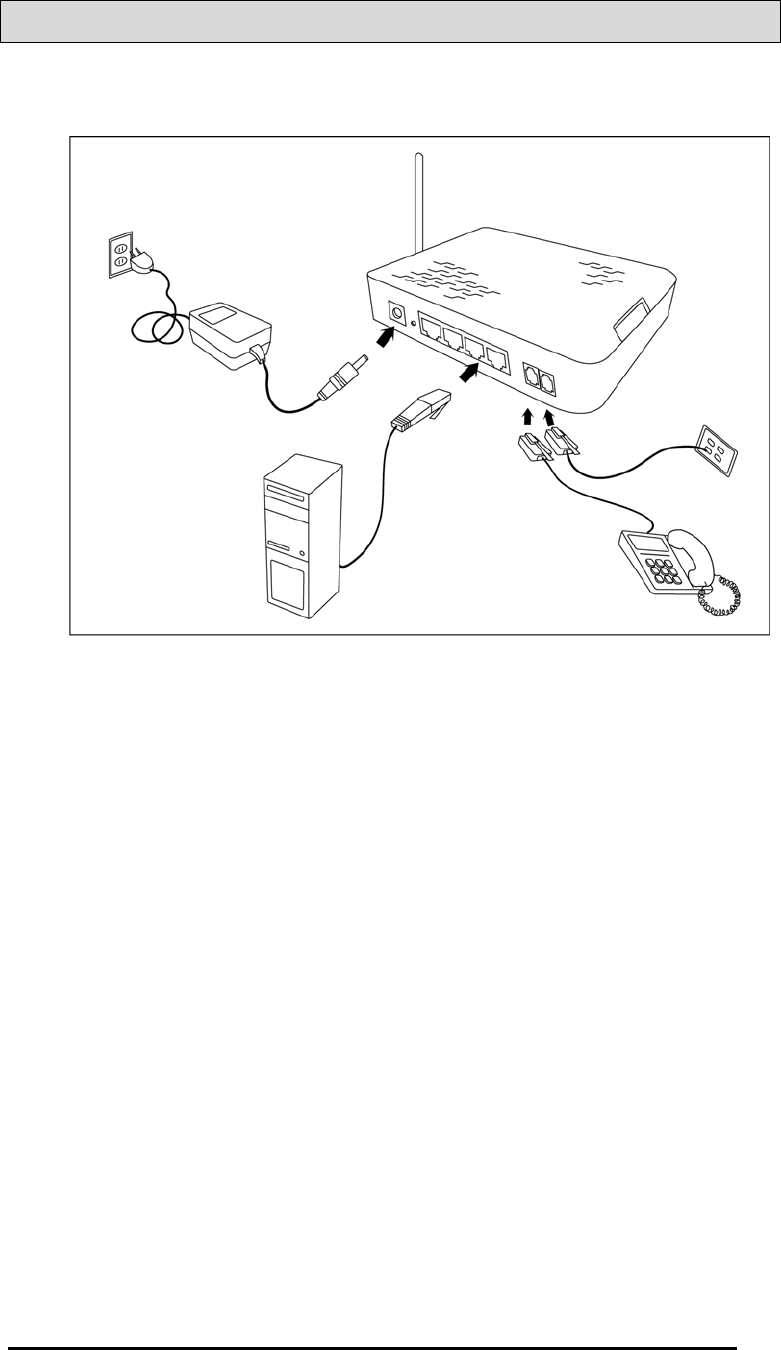

Installation Diagram
Zhone 4-Port Wireless Ethernet Router
User Manual
7
Version 1.0
Document #: BD-ZU0011-10

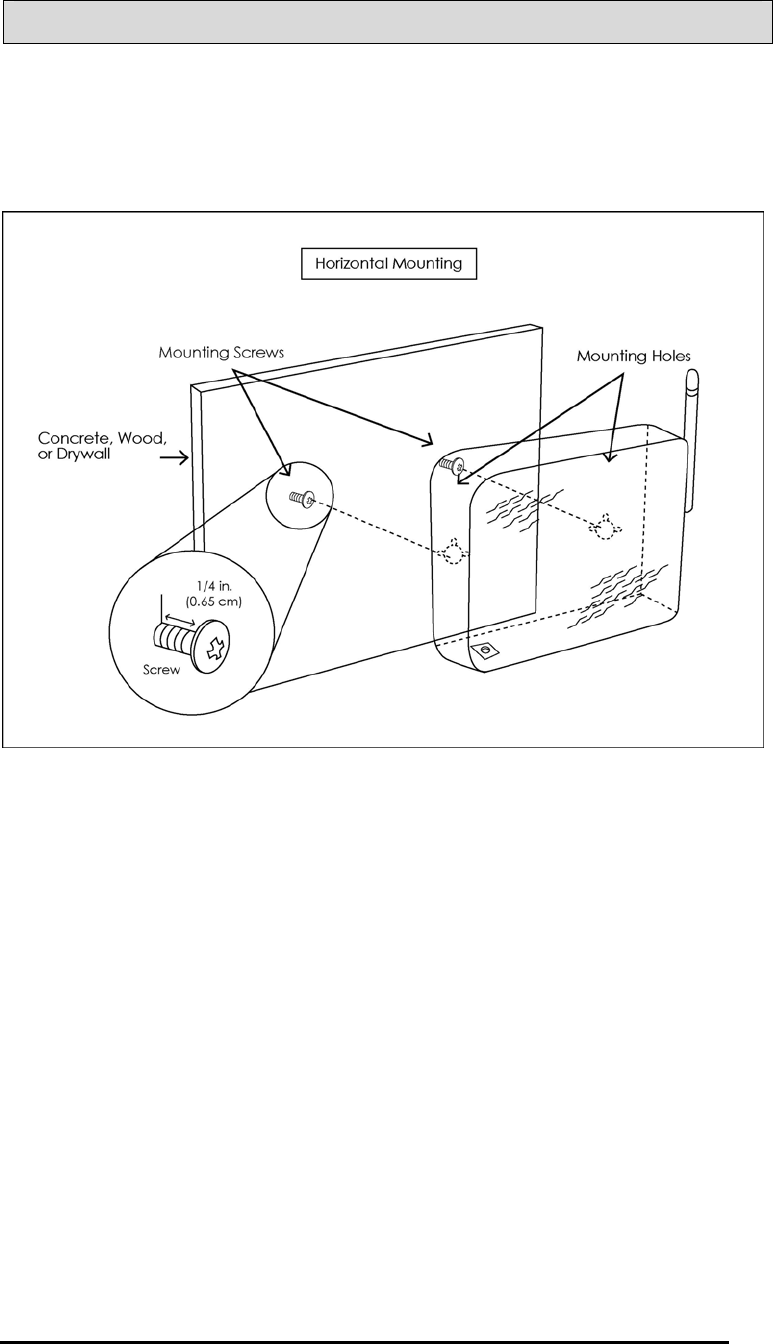

Mounting the Router
The router can be mounted on the wall with the screws provided. Mounting can be
done on wall material including concrete, wood, or drywall. Select an appropriate
location free from obstructions or any possible interference. Make sure the cables
can be easily attached to the router without strain. The illustration below shows
how to mount the router horizontally on a wall.
Zhone 4-Port Wireless Ethernet Router
User Manual
8
Version 1.0
Document #: BD-ZU0011-10
Zhone 4-Port Wireless Ethernet Router
User Manual
9
Version 1.0
Document #: BD-ZU0011-10
Configuring Your Computer
Prior to accessing the router through the LAN or the USB port, note the following
necessary configurations—
x Your PC’s TCP/IP address: 192.168.1.__( the last number is any number
between 2 and 254)
x The router’s default IP address: 192.168.1.1
x Subnet mask: 255.255.255.0
Below are the procedures for configuring your computer. Follow the instructions
for the operating system that you are using.
Windows 2000
1. In the Windows taskbar, click on the Start button and point to Settings,
Control Panel, and Network and Dial-up Connections (in that order).
2. Click on Local Area Connection. When you have the Local Area Connection
Status window open, click on Properties.
3. Listed in the window are the installed network components. If the list
includes Internet Protocol (TCP/IP), then the protocol has already been
enabled, and you can skip to Step 10.
4. If Internet Protocol (TCP/IP) does not appear as an installed component,
then click on Install.
5. In the Select Network Component Type window, click on protocol and then
the Add button.
6. Select Internet Protocol (TCP/IP) from the list and then click on OK.
7. If prompted to restart your computer with the new settings, click OK.
8. After your computer restarts, click on the Network and Dial-up Connections
icon again, and right click on the Local Area Connection icon and then
select Properties.
9. In the Local Area Connection Properties dialog box, select Internet Protocol
(TCP/IP) and then click on Properties.
10. In the Internet Protocol (TCP/IP) Properties dialog box, click in the radio
button labeled Use the following IP address and type 192.168.1.x (where x
is any number between 2 and 254) and 255.255.255.0 in the IP address field
and Subnet Mask field.
11. Click on OK twice to save your changes and then close the Control Panel.
Zhone 4-Port Wireless Ethernet Router
User Manual
10
Version 1.0
Document #: BD-ZU0011-10
Windows XP
1. In the Windows taskbar, click on the Start button and point to Settings and
then click Network Connections.
2. In the Network Connections window, right click on the Local Area
Connection icon and click on properties.
3. Listed in the Local Area Connection window are the installed network
components. Make sure the box for Internet Protocol (TCP/IP) is checked
and then click on Properties.
4. In the Internet Protocol (TCP/IP) Properties dialog box, click in the radio
button labeled Use the following IP address and type 192.168.1.x (where x
is any number between 2 and 254) and 255.255.255.0 in the IP address field
and Subnet Mask field.
5. Click on OK twice to save your changes and then close the Control Panel.
Log in to the Router
This section will explain how to log in to your router using the following steps—
1. Launch your web browser.
http://192.168.1.1
Zhone 4-Port Wireless Ethernet Router
User Manual
11
Version 1.0
Document #: BD-ZU0011-10
2. Enter the URL in the address bar and press Enter.
A login screen like the one below will be displayed after you connect to the user
interface.
3. Enter your user name and password, and then click on OK to display the
user interface.
NOTE: There are two default user name and password combinations. The
user / user name and password combination can display device status, but cannot
change or save configurations. The admin / admin combination can perform all
functions. Passwords can be changed at any time.
Device Info
This section describes the system information that can be accessed using the menu
items under Device Info.
Summary
Access the general information of the router by clicking on “Summary” under
“Device Info”. It shows details of the router such as the version of the software,
bootloader, LAN IP address, etc. It also displays the current status of your DSL
connection as shown below—
Zhone 4-Port Wireless Ethernet Router
User Manual
12
Version 1.0
Document #: BD-ZU0011-10
WAN
Access the WAN status report from the router by clicking on “WAN” under “Device
Info”. Below is how the screen will look once a WAN connection is set up.
Statistics
LAN Statistics
Access the LAN statistics from the router by clicking on the “LAN” item under
“Statistics”
Zhone 4-Port Wireless Ethernet Router
User Manual
13
Version 1.0
Document #: BD-ZU0011-10
WAN Statistics
Access the WAN statistics from the router by clicking on the “WAN” item under
“Statistics”.
ATM Statistics
Access ATM statistics from the router by clicking on the “ATM” item under
“Statistics”.
Zhone 4-Port Wireless Ethernet Router
User Manual
14
Version 1.0
Document #: BD-ZU0011-10
ADSL Statistics
You can view ADSL statistics by clicking on the “ADSL” item under “Statistics”.
Information contained in this screen is useful for troubleshooting and diagnostics of
connection problems.
Zhone 4-Port Wireless Ethernet Router
User Manual
15
Version 1.0
Document #: BD-ZU0011-10
ADSL BER Test
ABit Error Rate Test (BER Test) is a test that reflects the ratio of error bits to the
total number transmitted.
If you click on the ADSL BER Test button at the bottom of the ADSL Statistics page,
the following pop-up screen will appear allowing you to set the tested time and to
begin the test.
Below is an ADSL BER Test result screen displaying information about the test and
the error bits and ratio.
Zhone 4-Port Wireless Ethernet Router
User Manual
16
Version 1.0
Document #: BD-ZU0011-10
Zhone 4-Port Wireless Ethernet Router
User Manual
17
Version 1.0
Document #: BD-ZU0011-10
Route
Access the routing status report from the router by clicking on the “Route” item
under “Device Info”.
ARP
Access the ARP status report from the router by clicking on the “ARP” item under
“Device Info”. ARP (Address Resolution Protocol) maps the IP address to the
physical address, labeled HW Address (the MAC address) and helps to identify
computers on the LAN.
Zhone 4-Port Wireless Ethernet Router
User Manual
18
Version 1.0
Document #: BD-ZU0011-10
DHCP
Access the DHCP Leases screen by clicking “DHCP” under “Statistics”. This shows
the computers, identified by the hostname and MAC address that have acquired IP
addresses by the DHCP server with the time that the lease for the IP address is up.
Zhone 4-Port Wireless Ethernet Router
User Manual
19
Version 1.0
Document #: BD-ZU0011-10
Quick Setup
This section will explain how to quickly configure the router for the sole purpose of
connecting to the Internet.
ATM PVC Configuration
To enable the auto-connect process, click on the box labeled DSL Auto-connect, a
process that will automatically detect the first usable PVC and automatically detect
PPPoE, PPPoA, and Bridge Protocol (with DHCP Server available). To continue,
click on the Next button.
If you uncheck the DSL Auto-connect box, the resulting screen is seen below. Enter
the VPI / VCI as indicated by your ISP and decide whether or not to enable quality
of service and click on Next.
Zhone 4-Port Wireless Ethernet Router
User Manual
20
Version 1.0
Document #: BD-ZU0011-10
Following is the Connection Type screen where you select the type of network
protocol and encapsulation mode over the ATM PVC that your ISP has instructed you
to use. The following is a PPPoA example. Click on Next to continue.

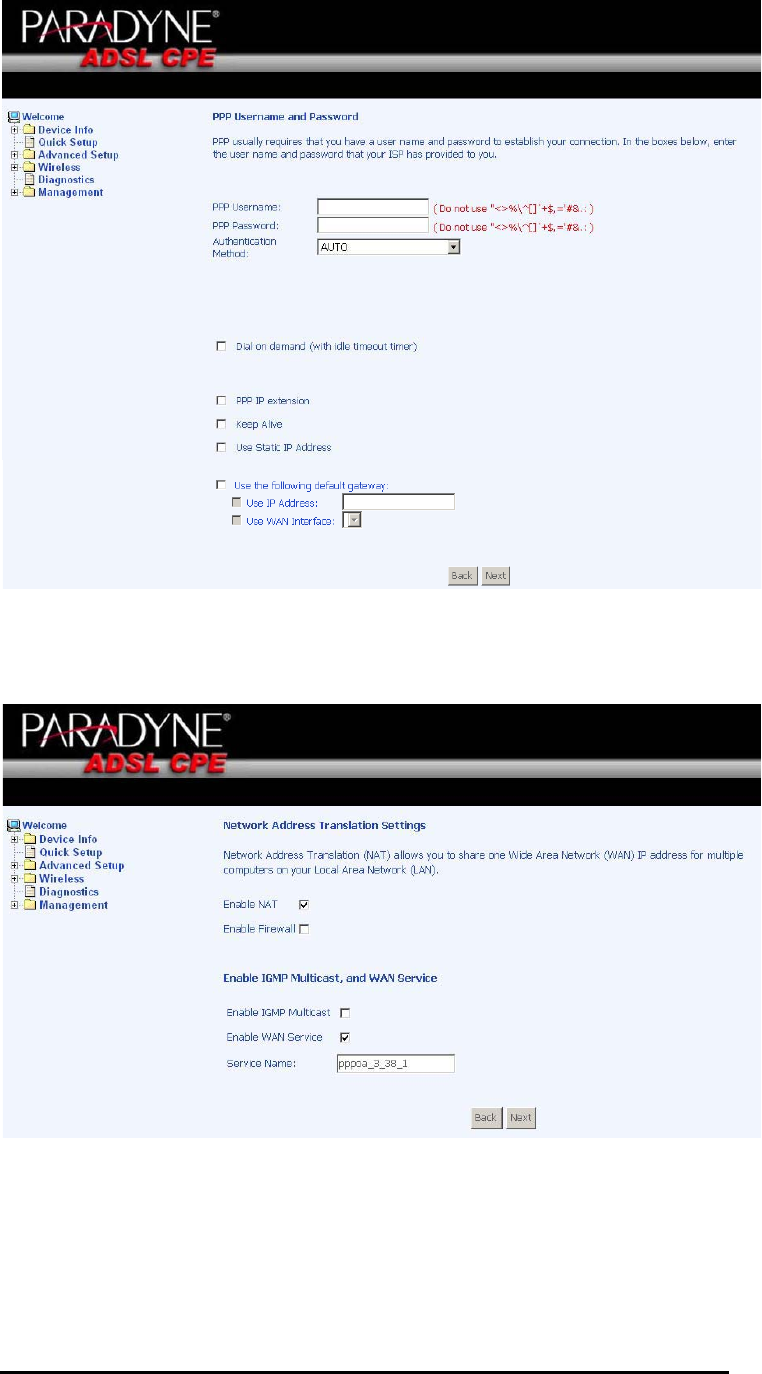

Enter the PPP username and password as given by your ISP. Then decide if you will
be using any features such as dial on demand, PPP IP extension, keep alive and
then click on Next.
Zhone 4-Port Wireless Ethernet Router
User Manual
21
Version 1.0
Document #: BD-ZU0011-10
The next step is to configure the Network Address Translation (NAT) settings. For
the example, NAT will be enabled. The remaining fields are left as default and
then click on Next to continue.

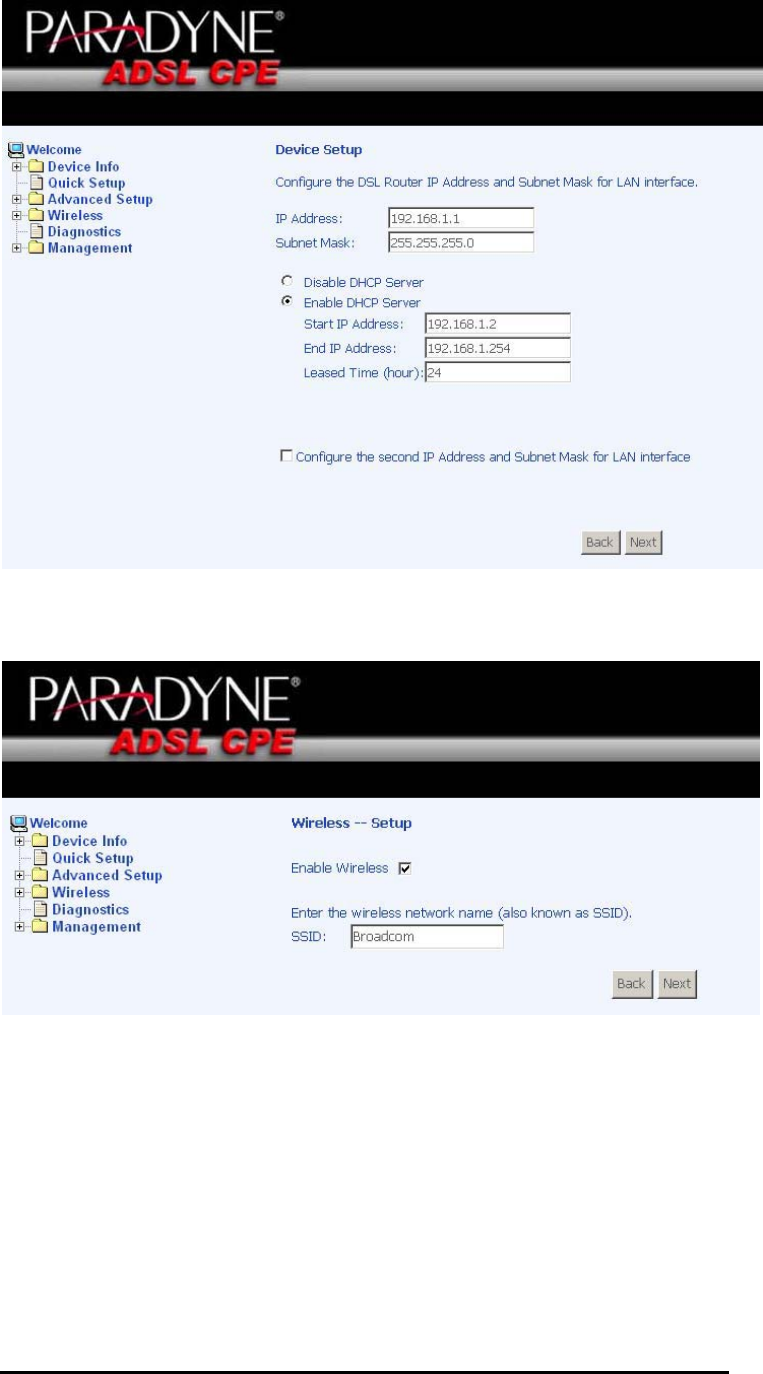

You can configure the DSL Router IP address and Subnet Mask for the LAN interface
to correspond to your LAN’s IP Subnet. If you want the DHCP server to
automatically assign IP addresses, then enable the DHCP server and enter the range
of IP addresses that the DHCP server can assign to your computers. Disable the
DHCP server if you would like to manually assign IP addresses. Click on Next to
continue.
Zhone 4-Port Wireless Ethernet Router
User Manual
22
Version 1.0
Document #: BD-ZU0011-10
The next screen allows you to enable or disable the router’s wireless option. Also
be sure to enter the SSID and click on Next to continue.

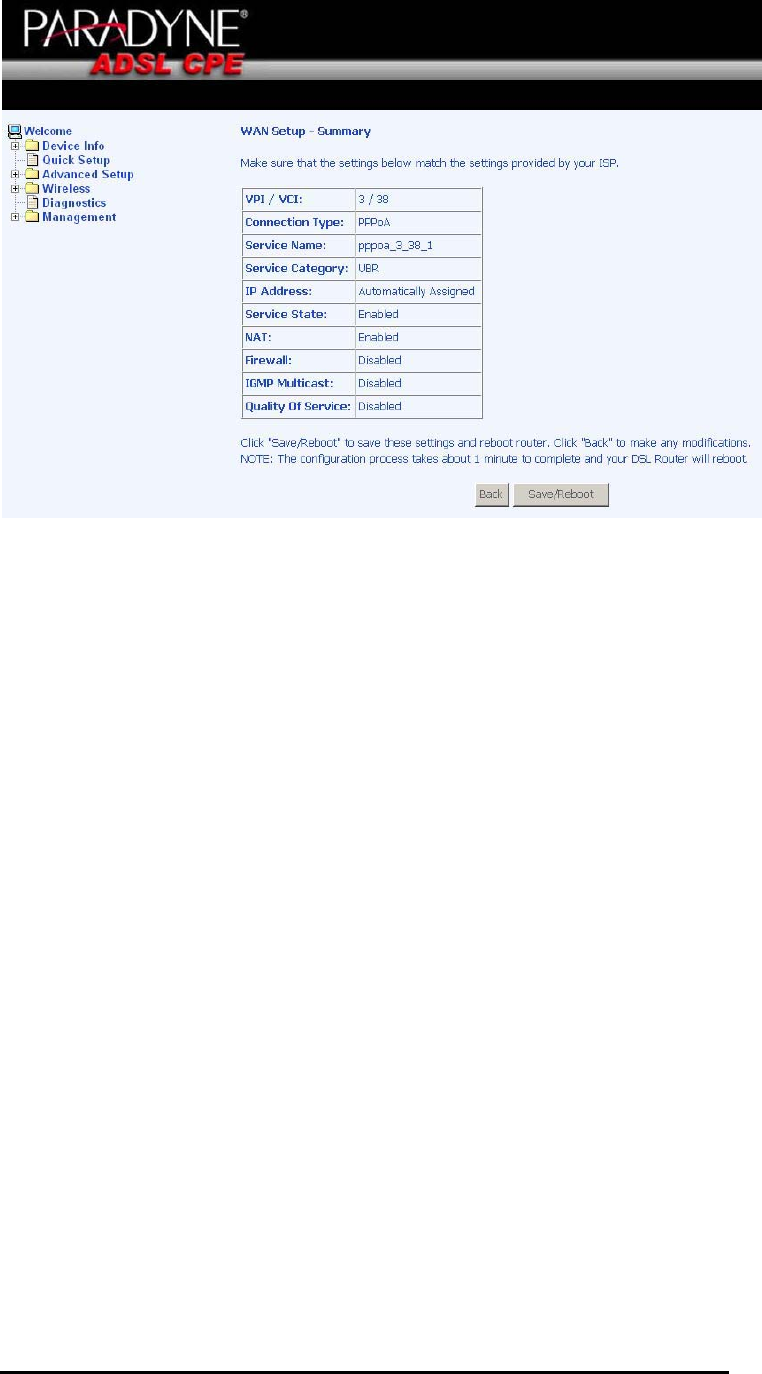

After all of the WAN configurations have been made, the WAN Setup Summary
screen displays all WAN settings that you have made. Check that the settings are
correct before clicking on the Save / Reboot button. Clicking on Save / Reboot will
save your settings and restart your router.
Zhone 4-Port Wireless Ethernet Router
User Manual
23
Version 1.0
Document #: BD-ZU0011-10
Zhone 4-Port Wireless Ethernet Router
User Manual
24
Version 1.0
Document #: BD-ZU0011-10
Advanced Setup
This section of the setup is an advanced version of the quick setup. If you want to
make specific configurations to your router such as firewall, port mapping, quality
of service, DNS, etc., consider going through this advanced setup for a more
comprehensive configuration.
WAN
Configure the WAN settings as provided by your ISP.
Click on the Add button if you want to add a new connection for the WAN
interface. The ATM PVC Configuration screen follows as seen below. The ATM PVC
Configuration screen allows you to configure an ATM PVC identifier (VPI and VCI)
and select a service category.
Zhone 4-Port Wireless Ethernet Router
User Manual
25
Version 1.0
Document #: BD-ZU0011-10
Zhone 4-Port Wireless Ethernet Router
User Manual
26
Version 1.0
Document #: BD-ZU0011-10
Find out the following values from your ISP before you change them.
x VPI: Virtual Path Identifier. The valid range is 0 to 255.
x VCI: Virtual Channel Identifier. The valid range is 32 to 65535.
x Service Category: Five classes of traffic are listed—
oUBR Without PCR (Unspecified Bit Rate without Peak Cell Rate)—
UBR service is suitable for applications that can tolerate variable
delays and some cell losses. Applications suitable for UBR service
include text/data/image transfer, messaging, distribution, and
retrieval and also for remote terminal applications such as
telecommuting.
oUBR With PCR (Unspecified Bit Rate with Peak Cell Rate)--
oCBR (Constant Bit Rate)—used by applications that require a fixed
data rate that is continuously available during the connection time.
It is commonly used for uncompressed audio and video information
such as videoconferencing, interactive audio (telephony), audio /
video distribution (e.g. television, distance learning, and pay-per-
view), and audio / video retrieval (e.g. video-on-demand and audio
library).
oNon Realtime VBR (Non-Real-time Variable Bit Rate)—can be used
for data transfers that have critical response-time requirements
such as airline reservations, banking transactions, and process
monitoring.
oRealtime VBR (Real-time Variable Bit Rate)—used by time-sensitive
applications such as real-time video. Rt-VBR service allows the
network more flexibility than CBR.

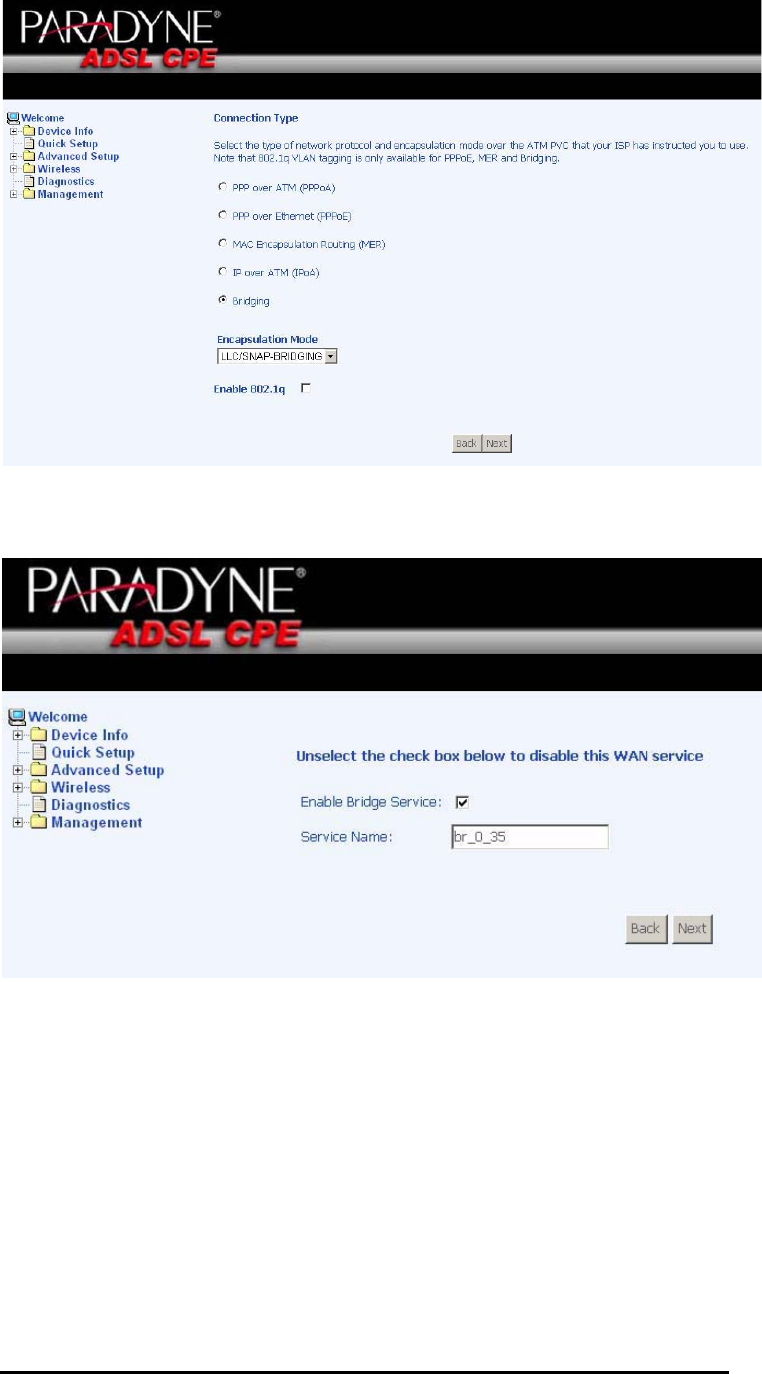

Connection Type
This screen shows the below types of network protocols and encapsulation modes—
x PPP over ATM (PPPoA)
x PPP over Ethernet (PPPoE)
x MAC Encapsulation Routing (MER)
x IP over ATM (IpoA)
x Bridging
Select the mode that your ISP has instructed you to use and click on Next.
After you click on Next, the below screen appears allowing you disable the bridge
service if desired.

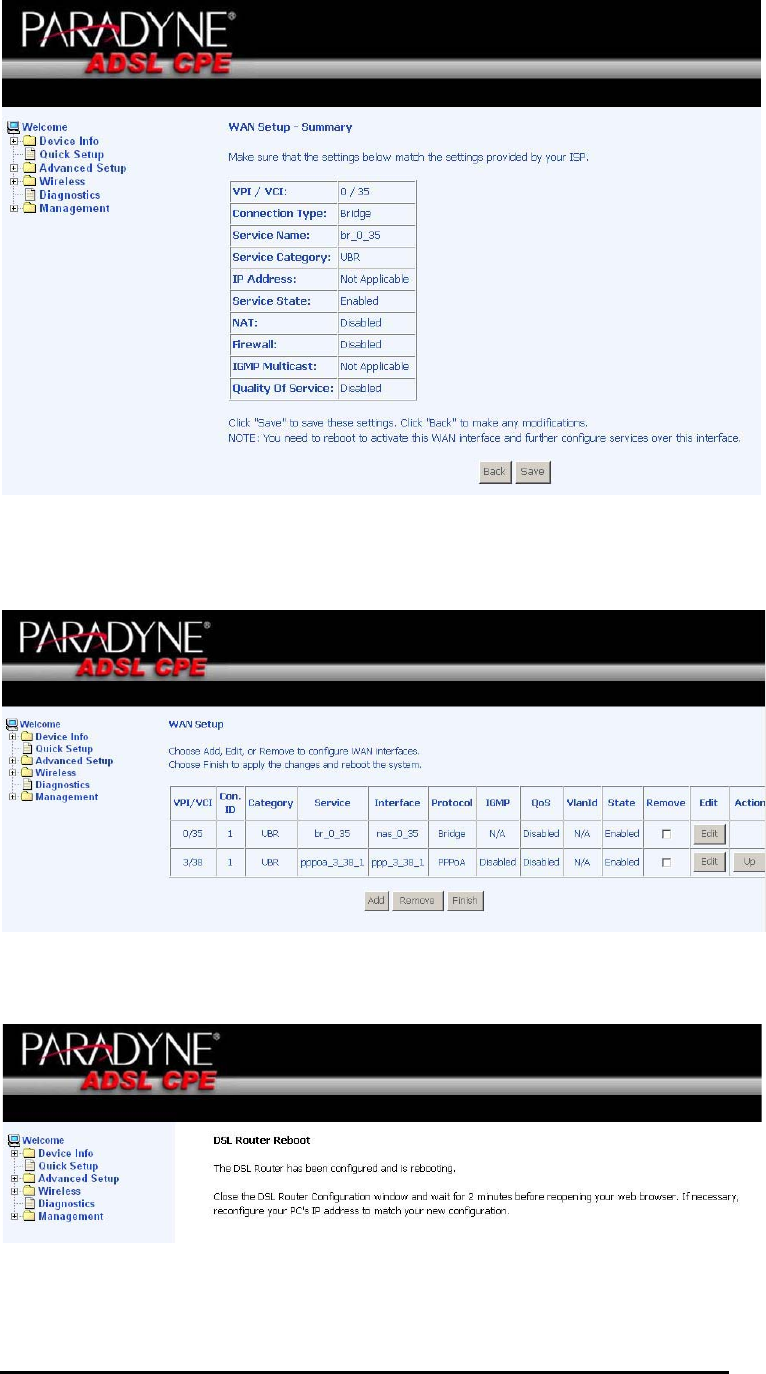

When the settings are complete, the next screen shows a WAN Setup – Summary
screen displaying the WAN configurations made. Click on Save to save the settings.
Zhone 4-Port Wireless Ethernet Router
User Manual
27
Version 1.0
Document #: BD-ZU0011-10
After the settings are saved, the below screen will follow displaying the WAN
settings that you made with the option to Add or Remove any of the connections
that you have made. When satisfied with the settings click on the Finish button.
After selecting the Finish button, the below screen will appear. At this point, the
router will reboot to save the changes made.
Zhone 4-Port Wireless Ethernet Router
User Manual
28
Version 1.0
Document #: BD-ZU0011-10
LAN Local Area Network (LAN) Setup
You can configure the DSL Router IP address and Subnet Mask for the LAN interface
to correspond to your LAN’s IP Subnet. If you want the DHCP server to
automatically assign IP addresses, then enable the DHCP server and enter the range
of IP addresses that the DHCP server can assign to your computers. Disable the
DHCP server if you would like to manually assign IP addresses. Click on Next to
continue. The Save button only saves the LAN configuration data, but does not
apply the configurations. Select the Save/Reboot button to save the LAN
configuration data and reboot the router and apply the new configurations.
Zhone 4-Port Wireless Ethernet Router
User Manual
29
Version 1.0
Document #: BD-ZU0011-10
Ethernet Mode
Ethernet mode allows you to select the speed of your Ethernet connection. Modes
include—auto, 100 full, 100 half, 10 full and 10 half. If you select “auto” then the
router will use the common mode that all the connected interfaces can operate at.
NAT
If you enable NAT (Network Address Translation), you can configure the Virtual
Server, Port Triggering, and DMZ Host.
Virtual Servers
A virtual server allows you to direct incoming traffic from the WAN side to a
specific IP address on the LAN side. The following figure shows the screen that
allows you to configure your virtual server(s). Click on the Add button to configure
a virtual server.
Zhone 4-Port Wireless Ethernet Router
User Manual
30
Version 1.0
Document #: BD-ZU0011-10
Select the virtual server from the drop-down list and complete the server IP
address, then click on the Save / Apply button.
The following screen appears after you save your selection. To add additional
virtual servers, click on the Add button. If you need to remove any of the server
names, select the check box and click on the Remove button.
Zhone 4-Port Wireless Ethernet Router
User Manual
31
Version 1.0
Document #: BD-ZU0011-10
Port Triggering
Click on the Add button to add Port Triggering to your Internet application.
The below screen appears when you click on Add allowing you to select the
application that you want to set the port settings for. After a selection has been
made, click on the Save / Apply button.
Zhone 4-Port Wireless Ethernet Router
User Manual
32
Version 1.0
Document #: BD-ZU0011-10
The below screen appears after you save your selections. You will be able to add
or remove selections made by clicking on the Add and Remove buttons.
Zhone 4-Port Wireless Ethernet Router
User Manual
33
Version 1.0
Document #: BD-ZU0011-10
DMZ Host
You can define the IP address of the DMZ Host on this screen. Enter the IP address
and click on Save / Apply.
ALG
ALG, Application Layer Gateway can be used to allow firewall traversal with SIP.
To enable voice packets to successfully pass through firewalls and NATs, click on
the SIP enabled checkbox.
Zhone 4-Port Wireless Ethernet Router
User Manual
34
Version 1.0
Document #: BD-ZU0011-10
Firewall
IP Filtering—Outgoing
The outgoing filter will block the LAN traffic from entering the WAN side. Click on
the Add button to create filters.
The below screen will appear when you click on Add. Input the filter name, source
information (from the LAN side), and destination information (from the WAN side).
Then click on Save / Apply.
The following screen appears when you Save / Apply the IP filter. The screen lists
the IP filters that were added from the previous screen. To change your settings,
click on the Add or Remove buttons. The Remove button appears only when you
have an existing IP filter already set up.
Zhone 4-Port Wireless Ethernet Router
User Manual
35
Version 1.0
Document #: BD-ZU0011-10
IP Filtering—Incoming
Incoming IP filter filters the WAN traffic to the LAN side. Click on the Add button
to add incoming filter settings.
Enter a filter name, information about the source address (from the WAN side), and
information about the destination address (to the LAN side). Select the protocol
and WAN interface, then click on Save/Apply to add the setting.
You can view and delete the incoming filter settings from this screen.
Zhone 4-Port Wireless Ethernet Router
User Manual
36
Version 1.0
Document #: BD-ZU0011-10
MAC Filtering
MAC filtering can forward or block traffic by MAC address. You can change the
policy or add settings to the MAC filtering table using the MAC Filtering Setup
screen.
If you click on Change Policy, a confirmation dialog allows you to verify your
change.
Zhone 4-Port Wireless Ethernet Router
User Manual
37
Version 1.0
Document #: BD-ZU0011-10
If you want to add a setting to the MAC filtering table, enter the Source and
Destination MAC address, and select protocol type, frame direction, and WAN
interface. Then click on Save / Apply to save it.
After you save the settings, a screen showing the settings will appear. On this
screen you will be able to view and delete MAC filtering rules.
Parental Control
In a home setting, parents can also restrict the day of the week certain computers
can access the router. Click on Add to set up the restrictions.
Zhone 4-Port Wireless Ethernet Router
User Manual
38
Version 1.0
Document #: BD-ZU0011-10
After you click you Add, you will see the below screen. You will be able to enter
the MAC address of the PC that you wish to place on a time of day restriction. Click
on Save / Apply to save the settings and to continue.
Zhone 4-Port Wireless Ethernet Router
User Manual
39
Version 1.0
Document #: BD-ZU0011-10

Navigation menu
