Quality of Service
You can configure the Quality of Service to apply different priorities to traffic on
the router. Click on Add to view the Add Network Traffic Class Rule screen.
This screen allows you to add a network traffic class rule. Procedures for this setup
are as follows—
1. Give a name to this traffic class.
2. Assign a priority level—low, medium, and high—to this traffic class.
3. Select an IP precedence from the 0-7 range.
4. Enter an IP Type of Service from the following selections—
x Normal Service
x Minimize Cost
x Maximize Reliability
x Maximize Throughput
x Minimize Delay
5. Last, enter the traffic conditions for the class such as the protocol
(TCP / UDP, TCP, UDP, or ICMP) to be used. Click Save / Apply to
save the settings.
Zhone 4-Port Wireless Ethernet Router
User Manual
40
Version 1.0
Document #: BD-ZU0011-10
Routing
Default Gateway
You can enable automatic assigned default gateway on the Routing – Default
Gateway screen. As default, the box is checked for automatic assigned default
gateway to be enabled. Click the Save / Apply button to enable or disable this
feature.
Zhone 4-Port Wireless Ethernet Router
User Manual
41
Version 1.0
Document #: BD-ZU0011-10
If you do not want to enable Automatic Assigned Default Gateway, then uncheck
the box as seen below. You will be given the choice to use the default gateway IP
address. If you decide to change the automatic assigned default gateway address,
you must reboot the router to be assigned a new default gateway IP address. Also,
select the WAN interface that you will be using. Click on Save / Apply to save the
settings.
Static Route
The Static Route page can be used to add a routing table (a maximum of 32 entries
can be configured). Click on Next to add.
Zhone 4-Port Wireless Ethernet Router
User Manual
42
Version 1.0
Document #: BD-ZU0011-10
Enter the route information and then save and apply your configurations.
RIP
If RIP (Routing Information Protocol) is enabled, the router operation can be
configured as active or passive.
Zhone 4-Port Wireless Ethernet Router
User Manual
43
Version 1.0
Document #: BD-ZU0011-10
DNS
DNS Server
Use the DNS Server Configuration screen to request automatic assignment of a DNS
or to specify a primary and secondary DNS.
If you uncheck the Enable Automatic Assigned DNS checkbox, then there will be
two additional fields—primary and secondary DNS server—to enter as seen below.
Zhone 4-Port Wireless Ethernet Router
User Manual
44
Version 1.0
Document #: BD-ZU0011-10
Dynamic DNS
Dynamic DNS is a service for allowing an Internet domain name to be assigned to a
varying IP address. This makes it possible for other sites on the Internet to establish
connections to your router without needing to track the IP address themselves.
Click on Add to set up a dynamic DNS configuration.
This screen allows you to add a dynamic DNS address from DynDNS.org or TZO.
Enter the hostname and the interface that you are using. Also enter the username
and password assigned by the DNS service. Click on Save / Apply to save these
configurations.
Zhone 4-Port Wireless Ethernet Router
User Manual
45
Version 1.0
Document #: BD-ZU0011-10
ADSL
The DSL settings page contains three sections—modulation and capability—that
should be specified by your ISP. Consult with your ISP to select the correct settings
for each. Then click on Save / Apply if you are finished or click on Advanced
Settings if you want to configure more advanced settings.
Zhone 4-Port Wireless Ethernet Router
User Manual
46
Version 1.0
Document #: BD-ZU0011-10
DSL Advanced Settings
The test mode can be selected from the DSL Advanced Settings page. Test modes
include—normal, reverb, medley, no retrain, and L3. After you make your
selections of the test mode, click on Apply to save these settings first before you
go to Tone Selection.
Tone Settings
The frequency band of ADSL is split up into 256 separate tones, each spaced 4.3125
kHz apart. With each tone carrying separate data, the technique operates as if 256
separate modems were running in parallel. The tone range is from 0 to 31 for
upstream and from 32 to 255 for downstream. Do not change these settings unless
directed by your ISP.
Zhone 4-Port Wireless Ethernet Router
User Manual
47
Version 1.0
Document #: BD-ZU0011-10
Port Mapping
Port mapping is a feature that allows you to open ports to allow certain Internet
applications on the WAN side to pass through the firewall and enter your LAN. To
use this feature, mapping groups should be created.
Click on the Add button as displayed below. If you need to edit an entry, then click
on the Edit button.
After clicking the Add button, the below configuration screen appears, allowing you
enter the groups and the interfaces they are associated with.
Zhone 4-Port Wireless Ethernet Router
User Manual
48
Version 1.0
Document #: BD-ZU0011-10
IPSec
Internet Protocol Security (IPSec) allows you to set up secure tunnel access
between two IP addresses. Encryption and key exchange make this a secure way to
access remote networks. Contact your ISP for the necessary information to
correctly configure this connection.
Click on Add New Connection to access the IPSec Settings screen to enter your
configurations. Notice the Show Advanced Settings button at the bottom of the
screen for additional encryption settings.
Zhone 4-Port Wireless Ethernet Router
User Manual
49
Version 1.0
Document #: BD-ZU0011-10
The following portion of the IPSec Settings screen can be seen when you click on
the the Show Advanced Settings button.
Certificate
Local
A local certificate identifies yourself over the network. To apply for a certificate,
click on Create Certificate Request and if you have an existing certificate, click on
Import Certificate to retrieve it.
Zhone 4-Port Wireless Ethernet Router
User Manual
50
Version 1.0
Document #: BD-ZU0011-10
The below screen allows you to request a new certificate request. Enter the
required information and click Apply to submit the request.
Additionally, if you have a certificate already, you can simply import the certificate
by pasting the certificate content and private key into the space provided. Click
Apply to submit the request to import the certificate.
Zhone 4-Port Wireless Ethernet Router
User Manual
51
Version 1.0
Document #: BD-ZU0011-10
Zhone 4-Port Wireless Ethernet Router
User Manual
52
Version 1.0
Document #: BD-ZU0011-10
Trusted CA
The trusted certificate authority (CA) allows you to verify the certificates of your
peers. Note that you can store up to 4 certificates. The below screen also allows
you to view the CA’s that you may have already added and can be removed. Click
on Import Certificate to continue to the next screen.
Paste the content of the certificate that you wish to add and click Apply.
Zhone 4-Port Wireless Ethernet Router
User Manual
53
Version 1.0
Document #: BD-ZU0011-10
Wireless
The router’s wireless feature can be configured to your needs. Sections covered
under the wireless section include—basic, security, MAC filter, wireless bridge,
advanced, quality of service and station info.
Basic
The below Wireless – Basic screen allows you to enable or disable wireless
function. You can also hide the access point so others cannot see your ID on the
network. If you enable wireless, be sure to enter an SSID, your wireless network
name and select the country that you are in.
Security

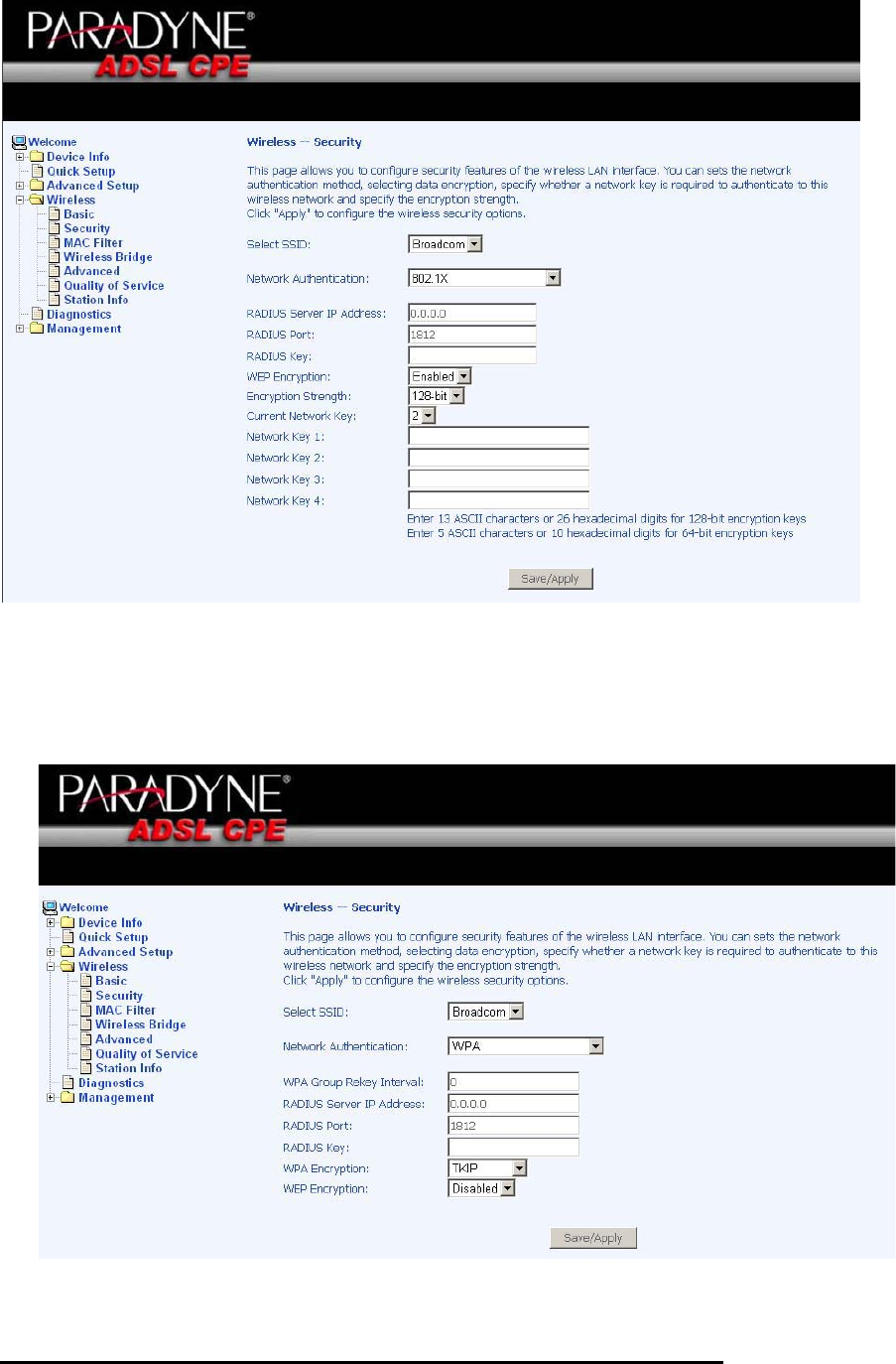

The next screen is the Wireless – Security screen which allows you to select the
network authentication method and to enable or disable WEP encryption. Note
that depending on the network authentication that is selected, the screen will
change accordingly so additional fields can be configured for the specific
authentication method.
Network authentication methods include the following—
x Open—anyone can access the network. The default is a disabled WEP
encryption setting.
Zhone 4-Port Wireless Ethernet Router
User Manual
54
Version 1.0
Document #: BD-ZU0011-10
x Shared—WEP encryption is enabled and encryption key strength of 64-bit or
128-bit needs to be selected. Click on Set Encryption Keys to manually set
the network encryption keys. Up to 4 different keys can be set and you can
come back to select which one to use at anytime.
x 802.1X—requires mutual authentication between a client station and the
router by including a RADIUS-based authentication server. Information
about the RADIUS server such as its IP address, port and key must be
entered. WEP encryption is also enabled and the encryption strength must
also be selected.
Zhone 4-Port Wireless Ethernet Router
User Manual
55
Version 1.0
Document #: BD-ZU0011-10
x WPA—(Wi-Fi Protected Access)— usually used for the larger Enterprise
environment, it uses a RADIUS server and TKIP (Temporal Key Integrity
Protocol) encryption (instead of WEP encryption which is disabled). TKIP
uses128-bit dynamic session keys (per user, per session, and per packet
keys).
x WPA-PSK (Wi-Fi Protected Access – Pre-Shared Key)—WPA for home and
SOHO environments also using the same strong TKIP encryption, per-packet
Zhone 4-Port Wireless Ethernet Router
User Manual
56
Version 1.0
Document #: BD-ZU0011-10
key construction, and key management that WPA provides in the enterprise
environment. The main difference is that the password is entered manually.
A group re-key interval time is also required.
x WPA2 (Wi-Fi Protected Access 2)—second generation of WPA which uses
AES (Advanced Encryption Standard) instead of TKIP as its encryption
method. Network re-auth interval is the time in which another key needs
to be dynamically issued.
Zhone 4-Port Wireless Ethernet Router
User Manual
57
Version 1.0
Document #: BD-ZU0011-10
x WPA2-PSK (Wi-Fi Protected Access 2 – Pre-Shared Key)—suitable for home
and SOHO environments, it also uses AES encryption and requires you to
enter a password and an re-key interval time.
x Mixed WPA2 / WPA—during transitional times for upgrades in the
enterprise environment, this mixed authentication method allows
“upgraded” and users not yet “upgraded” to access the network via the
router. RADIUS server information must be entered for WPA and a as well
as a group re-key interval time. Both TKIP and AES are used.
Zhone 4-Port Wireless Ethernet Router
User Manual
58
Version 1.0
Document #: BD-ZU0011-10
x Mixed WPA2 / WPA-PSK—useful during transitional times for upgrades in
the home or SOHO environment, a pre-shared key must be entered along
with the group re-key interval time. Both TKIP and AES are also used.
MAC Filter
The MAC filter screen allows you to manage MAC address filters. Add the MAC
addresses that you want to manage and then select the mode that you want to use
to manage them. You can disable this feature or you can allow or deny access to
the MAC addresses that you add to the list.
Zhone 4-Port Wireless Ethernet Router
User Manual
59
Version 1.0
Document #: BD-ZU0011-10
The following screen appears when you want to add a MAC address to the filter.
When completed, click on the Save / Apply button.
Wireless Bridge
In this next screen, you can select the mode you want the router to be in, either
access point or wireless bridge.
If you enable the bridge restrict option, then proceed to enter the MAC addresses
of the remote bridges.
Zhone 4-Port Wireless Ethernet Router
User Manual
60
Version 1.0
Document #: BD-ZU0011-10
Advanced
Advanced features of the wireless LAN interface can be configured in this section.
Settings can be configured for the following—
x AP Isolation—if you select enable, then each of your wireless clients will
not be able to communicate with each other.
x Band—a default setting at 2.4GHz – 802.11g
x Channel-- 802.11b and 802.11g use channels to limit interference from
other devices. If you are experiencing interference with another 2.4Ghz
device such as a baby monitor, security alarm, or cordless phone, then
change the channel on your router.
x Multicast Rate—the rate at which a message is sent to a specified group of
recipients.
x Basic Rate—the set of data transfer rates that all the stations will be
capable of using to receive frames from a wireless medium.
x Fragmentation Threshold—used to fragment packets which help improve
performance in the presence of radio frequency (RF) interference.
x RTS Threshold (Request to Send Threshold)—determines the packet size
of a transmission through the use of the router to help control traffic flow.
x DTIM Interval—sets the Wake-up interval for clients in power-saving mode.
x Beacon Interval—a packet of information that is sent from a connected
device to all other devices where it announces its availability and
Zhone 4-Port Wireless Ethernet Router
User Manual
61
Version 1.0
Document #: BD-ZU0011-10
Zhone 4-Port Wireless Ethernet Router
User Manual
62
Version 1.0
Document #: BD-ZU0011-10
readiness. A beacon interval is a period of time (sent with the beacon)
before sending the beacon again. The beacon interval may be adjusted in
milliseconds (ms).
x Xpress Technology—a technology that utilizes standards based on
framebursting to achieve higher throughput. With Xpress Technology
enabled, aggregate throughput (the sum of the individual throughput
speeds of each client on the network) can improve by up to 25% in 802.11g
only networks and up to 75% in mixed networks comprised of 802.11g and
802.11b equipment.
x 54g Mode— 54g is a Broadcom Wi-Fi technology.
x 54g Protection--the 802.11g standards provide a protection method so
802.11g and 802.11b devices can co-exist in the same network without
“speaking” at the same time. Do not disable 54g Protection if there is a
possibility that a 802.11b device may need to use your wireless network. In
Auto Mode, the wireless device will use RTS/CTS (Request to Send / Clear
to Send) to improve 802.11g performance in mixed 802.11g/802.11b
networks. Turn protection off to maximize 802.11g throughput under most
conditions.
x Regulatory Mode—there are two regulatory modes to choose from—802.11h
and 802.11d—or you can disable the function.
x Pre-Network Radar Check—default value is set at 60 and cannot be
changed.
x In-Network Radar Check—default value is set at 60 and cannot be changed.
x TPC Mitigation (db)—default value is set at 0(off) and cannot be changed.
x Transmit Power—select from 20%, 40%, 60%, 80% and 100%. The default
value is 100% but can be changed.
Zhone 4-Port Wireless Ethernet Router
User Manual
63
Version 1.0
Document #: BD-ZU0011-10
Quality of Service
x WMM (Wi-Fi Multimedia)—feature that improves the your experience for
audio, video and voice applications over a Wi-Fi network.
If you enable WMM, then you will need to configure the network traffic classes by
clicking on the Add Qos Entry button.
The below screen allows you to set up your wireless traffic quality of service rule.
To set up your traffic rule, start by giving a name to the traffic class. Then set up
the conditions that must be satisfied for the rule to take effect.
Also, assign a wireless transmit priority from the selection of 0-7. The following are
the different priority levels to choose from.
0 – WMM Best Effort (default)
1 – WMM Background
Zhone 4-Port Wireless Ethernet Router
User Manual
64
Version 1.0
Document #: BD-ZU0011-10
2 – WMM Background
3 – WMM Best Effort
4 – Video Priority
5 - Video Priority
6 – Voice Priority
7 - Voice Priority
To specify the traffic class rules, enter the information for the following fields—
x Protocol—select from the below protocols—
oTCP/UDP
oTCP
oUDP
oICMP
x Source IP Address
x Source Subnet Mask
x UDP / TCP Source Port (port or port:port)
x Destination IP Address
x Destination Subnet Mask
x UDP / TCP Destination Port (port or port:port)
Zhone 4-Port Wireless Ethernet Router
User Manual
65
Version 1.0
Document #: BD-ZU0011-10
Station Info
The Station Info page shows stations that have been authorized access to the
router through its wireless function.
Zhone 4-Port Wireless Ethernet Router
User Manual
66
Version 1.0
Document #: BD-ZU0011-10
Diagnostics
The diagnostics screen allows you to run diagnostic tests to check your DSL
connection. The outcome will show test results of three connections—
x Connection to your local network
x Connection to your DSL service provider
x Connection to your Internet service provider
There are two buttons at the bottom of the page—Test and Test with OAM F4—
which allow you to retest if necessary.
Zhone 4-Port Wireless Ethernet Router
User Manual
67
Version 1.0
Document #: BD-ZU0011-10
Management
The Management section gives you access to certain setups for the purpose of
maintaining the system, including backing up the configurations, viewing system
log, maintaining access control, updating software, etc.
Settings
Backup Settings
To save a copy of the configurations that you have made on your router, click on
the Backup Settings button.
The below pop-up screen will appear with a prompt to open or save the file to your
computer.
Zhone 4-Port Wireless Ethernet Router
User Manual
68
Version 1.0
Document #: BD-ZU0011-10
Restore User Settings
To load a previously saved configuration file onto your router, click Browse to find
the file on your computer and click on Update Settings.
The router will restore settings and reboot to activate the restored settings.
Restore Default
Restore Default will delete all current settings and restore the router to factory
default settings.
Zhone 4-Port Wireless Ethernet Router
User Manual
69
Version 1.0
Document #: BD-ZU0011-10
Click on OK when the pop-up window appears confirming that you want to restore
factory default settings to your router.
The router will restore the default settings and reboot.
System Log
The System Log dialog allows you to view the System Log and configure the System
Log options. To view the System Log click on the View System Log button to check
the log file.
Below is a view of the System Log.
Zhone 4-Port Wireless Ethernet Router
User Manual
70
Version 1.0
Document #: BD-ZU0011-10
Configure System Log
If the log is enabled, the system will log selected events including Emergency,
Alert, Critical, Error, Warning, Notice, Informational, and Debugging. All events
above or equal to the selected log level will be logged and displayed.
If the selected mode is “Remote” or “Both”, events will be sent to the specified IP
address and UDP port of a remote system log server. If the selected mode is “Local”
or “Both”, events will be recorded in the local memory. Select the desired values
and click on the “Save/Apply” button to configure the system log options.

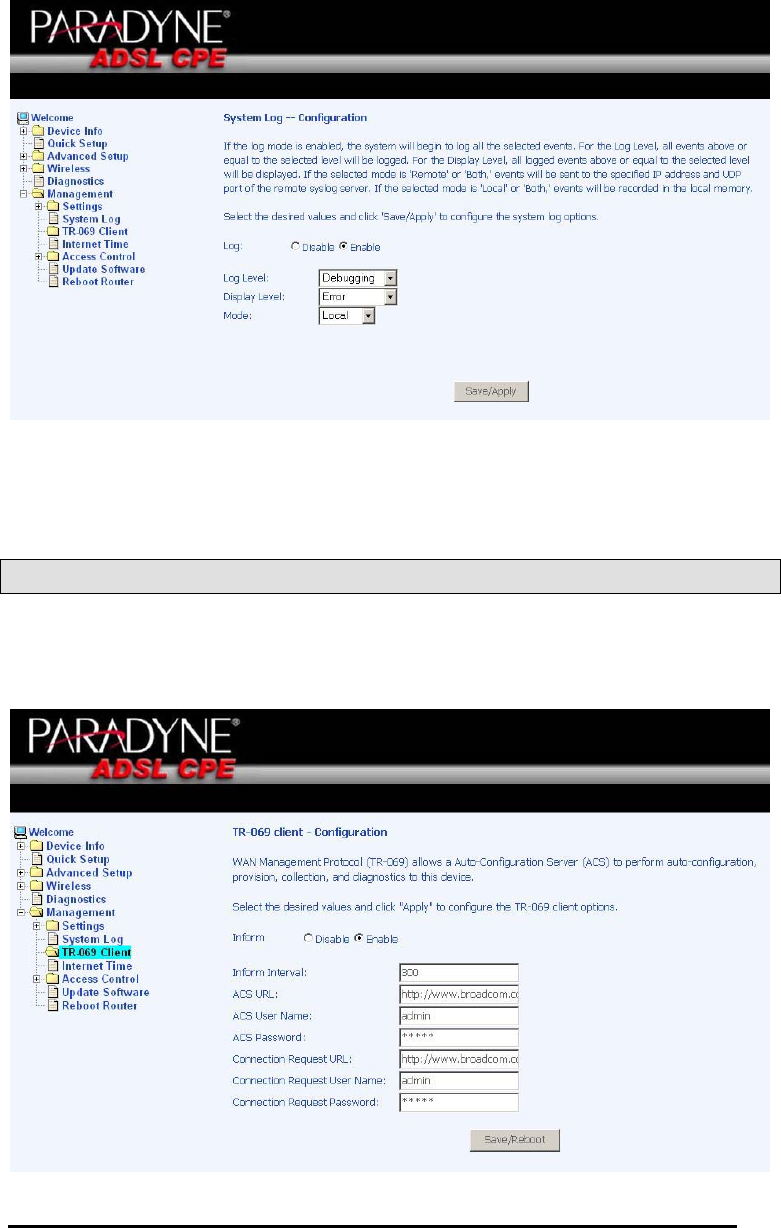

TR-069 Client
The router includes a TR-069 client which is a WAN management protocol. All the
values are already filled in. If you wish to enable this protocol, then select enable.
You must click on the Save/Reboot button for the change to take place.
Zhone 4-Port Wireless Ethernet Router
User Manual
71
Version 1.0
Document #: BD-ZU0011-10
Internet Time
The Time Settings page allows you to automatically synchronize your time with a
timeserver on the Internet.
If you choose to automatically synchronize with Internet time servers, then click on
the box and the below fields appear. Select from the list of NTP (Network Time
Protocol) time servers. Then select the time zone that you are in and click on Save
/ Apply to save and complete your time settings.
Zhone 4-Port Wireless Ethernet Router
User Manual
72
Version 1.0
Document #: BD-ZU0011-10
Access Control
You can enable or disable some services of your router by LAN or WAN. If no WAN
connection is defined, only the LAN side can be configured.
Services
Services that can be enabled / disabled on the LAN / WAN are FTP, HTTP, ICMP,
SNMP, SSH, Telnet, and TFTP.
IP Addresses
Web access to the router can be limited when Access Control Mode is enabled.
Add the IP address to the IP address list by clicking on the Add button, then select
“Enabled” to enable Access Control Mode.
Zhone 4-Port Wireless Ethernet Router
User Manual
73
Version 1.0
Document #: BD-ZU0011-10
To assign the IP address of the management station that is permitted to access the
local management services, enter the IP address in the box and click on the Save /
Apply button.
Passwords
Access the Passwords screen under the Access Control section to change a
password. Select an account and enter the current password and the new password
and then click on the Save / Apply button.
Zhone 4-Port Wireless Ethernet Router
User Manual
74
Version 1.0
Document #: BD-ZU0011-10
Update Software
If your ISP releases new software for this router, follow these steps to perform an
upgrade.
1. Obtain an updated software image file from your ISP.
2. Enter the path to the image file location or click on the Browse button to
locate the image file.
3. Click the Update Software button once to upload the new image file.
Reboot Router
To save all the configurations you have made, click on the Save/Reboot button and
the router will reboot itself using the new configurations.
This is the end of the configurations. You have successfully configured your
router.
Zhone 4-Port Wireless Ethernet Router
User Manual
75
Version 1.0
Document #: BD-ZU0011-10
76
FCC Warning Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
This equipment has been tested and found to comply with the limits for a class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
－Reorient or relocate the receiving antenna.
－Increase the separation between the equipment and receiver.
－Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
－Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Prohibition of Co-location
This device and its antenna(s) must not be co-located or operating in conjunction with any other
antenna or transmitter
Safety Information
To maintain compliance with FCC’s RF exposure guidelines, this equipment should be
installed and operated with minimum distance 20cm between the radiator and your body.
Use on the supplied antenna. Use on the supplied antenna. Unauthorized antenna, modification,
or attachments could damage the transmitter and may violate FCC regulations.
