ASUSTeK Computer DA01 Mobile Dock User Manual User mnaual

ASUSTeK Computer Inc Mobile Dock User mnaual

User mnaual

User Guide
E10329
ASUS Mobile Dock
First Edition / June 2015
Charging your device
Ensure to fully charge your ASUS Mobile Dock before using it in
battery mode for extended periods. Remember that the power
adapter charges your ASUS Mobile Dock as long as it is plugged
into an AC power source. Be aware that it takes much longer to
charge the ASUS Mobile Dock when it is in use.
IMPORTANT! Do not leave the ASUS Mobile Dock connected
to the power supply once it is fully charged. ASUS Mobile Dock
is not designed to be left connected to the power supply for
extended periods of time.
Airplane precautions
Contact your airline provider to learn about related in-ight
services that can be used and restrictions that must be followed
when using your ASUS Mobile Dock in-ight.
IMPORTANT! You can send your ASUS Mobile Dock through
x-ray machines (used on items placed on conveyor belts), but do
not expose them to magnetic detectors and wands.
Safety precautions
This ASUS Mobile Dock should only be used in environments
with ambient temperatures between 0°C to 35°C (32°F to 95°F).
Long time exposure to extremely high or low temperature
may quickly deplete and shorten the battery life. To ensure the
battery’s optimal performance, ensure that it is exposed within
the recommended environment temperature.

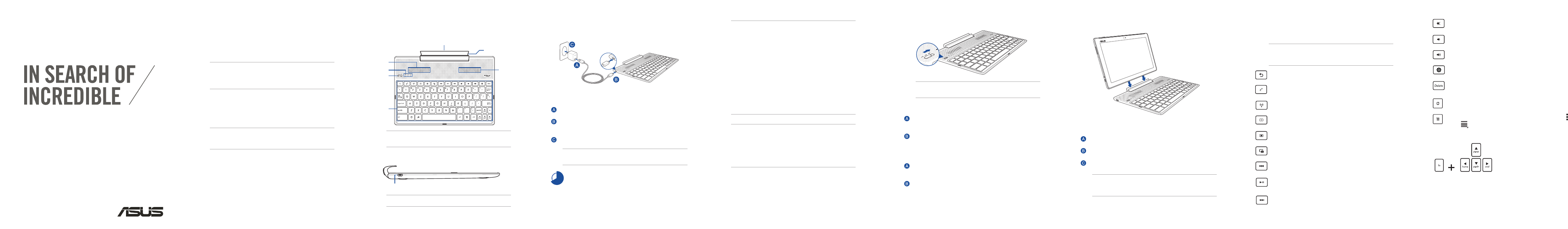

Your ASUS Mobile Dock
Top view
Left view
Keyboard
Hinge
Accessory connector
Micro USB 2.0 port
Status indicator
Audio speakers
Power switch /
Bluetooth switch
Audio speakers
NOTE: This port is for charging only, not for data transfer.
Using your ASUS Mobile Dock
Charging your ASUS Mobile Dock
To charge your ASUS Mobile Dock:
Connect the micro USB cable to the power adapter.
Plug the micro USB connector into your ASUS Mobile
Dock.
Plug the power adapter into a grounded power outlet.
Charge your ASUS Mobile Dock for four (4) hours
before using it in battery mode for the rst time.
IMPORTANT!
• UseonlythepoweradapterandmicroUSBcableofZenPad
10 to charge your ASUS Mobile Dock. Using a dierent power
adapter may damage your ASUS Mobile Dock.
• Peeltheprotectivelmofromthepoweradapterandmicro
USB cable before charging the ASUS Mobile Dock to prevent
risk or injury.
• Ensurethatyouplugthepoweradaptertothecorrectpower
outlet with the correct input rating. The output voltage of this
adapter is DC 5.2V, 1.35A.
• WhenusingyourASUSMobileDockwhileplugged-intoa
power outlet, the grounded power outlet must be near the
unit and easily accessible.
• DonotplaceobjectsontopofyourASUSMobileDock.
NOTES:
• ChargingthroughtheUSBportofacomputermaytake
longer time to complete.
• Ifyourcomputerdoesnotprovideenoughpowerfor
charging your ASUS Mobile Dock, charge your ASUS Mobile
Dock via the grounded power outlet instead.
Pairing your ASUS Tablet
IMPORTANT! Enable the Bluetooth function on your display
device to pair it with your ASUS Mobile Dock.
To pair your ASUS Tablet with the ASUS Mobile Dock:
Slide the switch all the way to the right and hold until
DA01-SPK and DA01-KB appear in your Tablet.
Select both DA01-SPK and DA01-KB to successfully pair
your Tablet with the ASUS Mobil Dock.
To disconnect the Bluetooth speaker/keyboard:
Slide the switch to O to disable the connection of both
speaker and keyboard.
Under Settings in your Tablet, disable the connection of
either speaker or keyboard.
Docking your ASUS Tablet
To dock your ASUS Tablet:
Put your ASUS Mobile Dock on a at and stable surface.
Align your ASUS Tablet with the ASUS Mobile Dock.
Firmly insert your ASUS Tablet into the hinge.
IMPORTANT! Always pick up the entire assembly from the
bottom when your ASUS Tablet is attached to the ASUS Mobile
Dock.
Press <Fn> and the arrow keys to scroll up and down or scroll to
the start and end of a document or web page.
Home PgDp
PgUp
End
Fn
Mutes the speaker.
Home PgDp
PgUp
End
Fn
Decreases the speaker volume.
Home PgDp
PgUp
End
Fn
Increasesthespeakervolume.
Home PgDp
PgUp
End
Fn
Launches the Settings screen.
Home PgDp
PgUp
End
Fn
Deletes texts.
Returns to Home Screen.
Activates the properties menu and is equivalent to
or on the screen.
NOTE: The input voltage of your ASUS Mobile Dock is DC 5.2V,
1.35A,7W.
Special keys
The special keys on your ASUS Mobile Dock have standalone
functions and some must be used with the function key <Fn>.
NOTE: The placement of the special keys on the Mobile Dock
may vary with country or region, but their functions remain the
same.
Home PgDp
PgUp
End
Fn
Returns to the previous page.
Home PgDp
PgUp
End
Fn
Activates sleep mode.
Home PgDp
PgUp
End
Fn
Toggles the internal wireless LAN ON or OFF.
Home PgDp
PgUp
End
Fn
Decreases the display brightness.
Home PgDp
PgUp
End
Fn
Increasesthedisplaybrightness.
Home PgDp
PgUp
End
Fn
Captures the screen image.
Home PgDp
PgUp
End
Fn
Returns to the previous track when playing music.
Home PgDp
PgUp
End
Fn
Starts playing music from your playlist. Resumes or
pauses the current playback.
Fast forwards or skips to the next track during
playback.
NOTE:PairupwithZenPad10toexperiencethebestaudio
quality available from DTS HD Premium Sound.
Appendices
Federal Communications Commission Statement
This device complies with FCC Rules Part 15. Operation is subject to the following two conditions:
• Thisdevicemaynotcauseharmfulinterference.
• Thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycause
undesired operation.
This equipment has been tested and found to comply with the limits for a class B digital device,
pursuant to Part 15 of the Federal Communications Commission (FCC) rules. These limits are designed
to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However,
thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipment
causes harmful interference to radio or television reception, which can be determined by turning the
equipment o and on, the user is encouraged to try to correct the interference by doing one or more
of the following measures:
• Reorientorrelocatethereceivingantenna.
• Increasetheseparationbetweentheequipmentandreceiver.
• Connecttheequipmentintoanoutletonacircuitdierentfromthattowhichthereceiveris
connected.
• Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
Changes or modications not expressly approved by the party responsible for compliance could void
the user‘s authority to operate the equipment.
The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
Canada, Industry Canada (IC) Notices
ThisdevicecomplieswithIndustryCanadalicense-exemptRSSstandard(s).
ThisClassBdigitalapparatuscomplieswithCanadianICES-003andCANICES-3(B)/NMB-3(B).
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2)
this device must accept any interference, including interference that may cause undesired operation
ofthedevice.TheICIDforthisdeviceis3568A-DA01.
Limitation of Liability
Circumstances may arise where because of a default on ASUS’ part or other liability, you are entitled to
recoverdamagesfromASUS.Ineachsuchinstance,regardlessofthebasisonwhichyouareentitled
to claim damages from ASUS, ASUS is liable for no more than damages for bodily injury (including
death) and damage to real property and tangible personal property; or any other actual and direct
damagesresultedfromomissionorfailureofperforminglegaldutiesunderthisWarrantyStatement,
up to the listed contract price of each product.
ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort
orinfringementunderthisWarrantyStatement.
ThislimitalsoappliestoASUS’suppliersanditsreseller.ItisthemaximumforwhichASUS,its
suppliers, and your reseller are collectively responsible.
UNDERNOCIRCUMSTANCESISASUSLIABLEFORANYOFTHEFOLLOWING:(1)THIRD-PARTYCLAIMS
AGAINSTYOUFORDAMAGES;(2)LOSSOF,ORDAMAGETO,YOURRECORDSORDATA;OR(3)SPECIAL,
INCIDENTAL,ORINDIRECTDAMAGESORFORANYECONOMICCONSEQUENTIALDAMAGES(INCLUDING
LOSTPROFITSORSAVINGS),EVENIFASUS,ITSSUPPLIERSORYOURRESELLERISINFORMEDOFTHEIR
POSSIBILITY.
EC Declaration of Conformity
This product is compliant with the regulations of the R&TTE Directive 1999/5/EC. The Declaration of
Conformity can be downloaded from http://support.asus.com.
CE Mark Warning
TheshippedversionofthisdevicecomplieswiththerequirementsoftheEECdirectives2004/108/EC
“Electromagneticcompatibility”and2006/95/EC“Lowvoltagedirective”.
Power Safety Requirement
Productswithelectricalcurrentratingsupto6Aandweighingmorethan3Kgmustuseapproved
powercordsgreaterthanorequalto:H05VV-F,3G,0.75mm2orH05VV-F,2G,0.75mm2.
ForusewithULListedI.T.E.,ASUSTabletsseriesonly.
ASUS Recycling/Takeback Services
ASUS recycling and takeback programs come from our commitment to the highest standards for
protectingourenvironment.Webelieveinprovidingsolutionsforyoutobeabletoresponsibly
recycle our products, batteries, other components as well as the packaging materials. Please go to
http://csr.asus.com/english/Takeback.htm for detailed recycling information in dierent regions.
Coating notice
IMPORTANT! To provide electrical insulation and maintain electrical safety, a coating is
appliedtoinsulatethedeviceexceptontheareaswheretheI/Oportsarelocated.
Green ASUS notice
ASUS is devoted to creating environment-friendly products and packaging to safeguard consumers’
health while minimizing the impact on the environment. The reduction of the number of the manual
pages complies with the reduction of carbon emission.
For the detailed user manual and related information, refer to the user manual included in the ASUS
Tablet or visit the ASUS Support Site at http://support.asus.com/.
Proper disposal Copyright Information
No part of this manual, including the products and software described in it, may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translate into any language in any form or by
any means, except documentation kept by the purchaser for backup purposes, without the express
writtenpermissionofASUSTeKCOMPUTERINC.(“ASUS”).
ASUSandASUSTabletlogoaretrademarksofASUSTekComputerInc.
Informationinthisdocumentissubjecttochangewithoutnotice.
Copyright © 2015 ASUSTeK COMPUTER INC. All Rights Reserved.
Manufacturer ASUSTekCOMPUTERINC.
Address, City 4F,No.150,LI-TERd.,PEITOU,
TAIPEI112,TAIWAN
Country TAIWAN
Authorized
Representative
in Europe
ASUSCOMPUTERGmbH
Address, City HARKORTSTR.21-23,40880RATINGEN
Country GERMANY
Model name: DA01
Undocking your ASUS Tablet
To undock your ASUS Tablet:
Put the entire assembly on a at and stable surface.
Lift your ASUS Tablet from the bottom left corner to
detach it from the ASUS Mobile Dock.
Copyright©2015ASUSTeKCOMPUTERINC.AllRightsReserved.
Risk of explosion if battery is replaced by an incorrect type. Dispose of used
batteries according to the instructions.
La batterie présente un risque d’incendie si celle-ci est remplacée par une
batterie de type incorrect. La batterie doit être recyclée de façon appropriée.
DO NOT throw the battery in municipal waste. The symbol of the crossed out
wheeled bin indicates that the battery should not be placed in municipal waste.
DO NOT throw the ASUS Mobile Dock in municipal waste. This product has
been designed to enable proper reuse of parts and recycling. The symbol of
the crossed out wheeled bin indicates that the product (electrical, electronic
equipment and mercury-containing button cell battery) should not be placed in
municipal waste. Check local regulations for disposal of electronic products.
DO NOT throw the ASUS Mobile Dock in re. DO NOT short circuit the contacts.
DO NOT disassemble the ASUS Mobile Dock.
Canada, avis d’Industrie Canada (IC)
LeprésentappareilestconformeauxCNRd’IndustrieCanadaapplicablesauxappareilsradioexempts
de licence.
CetappareilnumériquedeclasseBestconformeauxnormescanadiennesICES-003etCANICES-3(B)/
NMB-3(B).
Son fonctionnement est soumis aux deux conditions suivantes: (1) cet appareil ne doit pas causer
d’interférence et (2) cet appareil doit accepter toute interférence, notamment les interférences qui
peuventaectersonfonctionnement.L’identiantICdecetappareilest3568A-DA01.
15060-59800000
support.asus.com

Navigation menu
