ASUSTeK Computer EPC9GE703 Eee PC User Manual EeePC900HD XP
ASUSTeK Computer Inc Eee PC EeePC900HD XP
Users Manual
Eee PCUser’s Manual
Windows® XP Edition
Eee PC 900HD Series
July 2008
ii
Table of Contents
Table of Contents
Chapter 1: Introducing the Eee PC
About This User’s Manual............................................................................ 1-2
Notes for This Manual................................................................................... 1-3
Safety Precautions ......................................................................................... 1-4
Transportation Precautions ...................................................................... 1-6
Charging Your Batteries.............................................................................. 1-6
Airplane Precautions................................................................................... 1-6
Preparing your Eee PC.................................................................................. 1-7
Chapter 2: Knowing the Parts
Top Side ............................................................................................................. 2-2
Bottom Side...................................................................................................... 2-5
Right Side.......................................................................................................... 2-7
Left Side............................................................................................................. 2-8
Rear Side............................................................................................................ 2-9
Chapter 3: Getting Started
Power System .................................................................................................. 3-2
Using AC Power............................................................................................. 3-2
Using Battery Power .................................................................................... 3-3
Battery Care .................................................................................................... 3-4

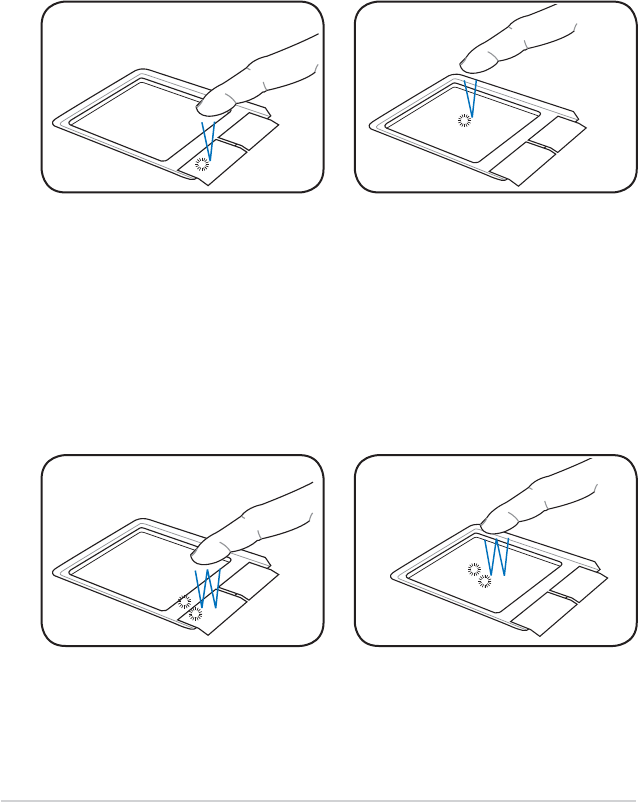

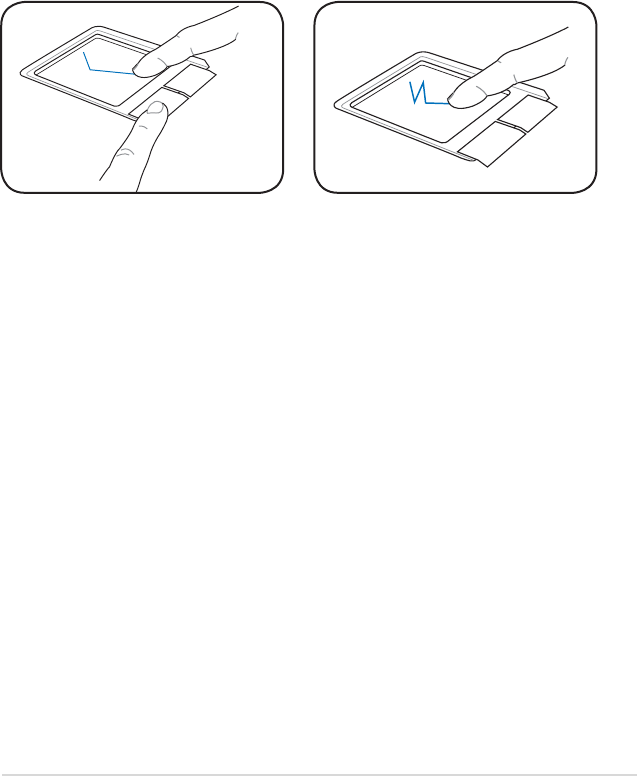

Touchpad Usage............................................................................................. 3-6
Single-finger gesture input....................................................................... 3-6
Multi-finger gesture input......................................................................... 3-8
Keyboard Usage.............................................................................................. 3-9

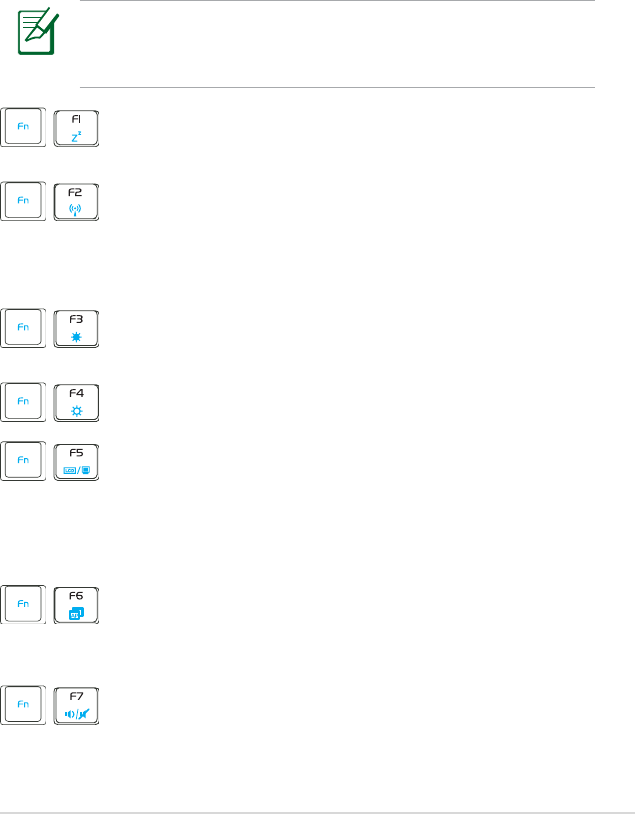

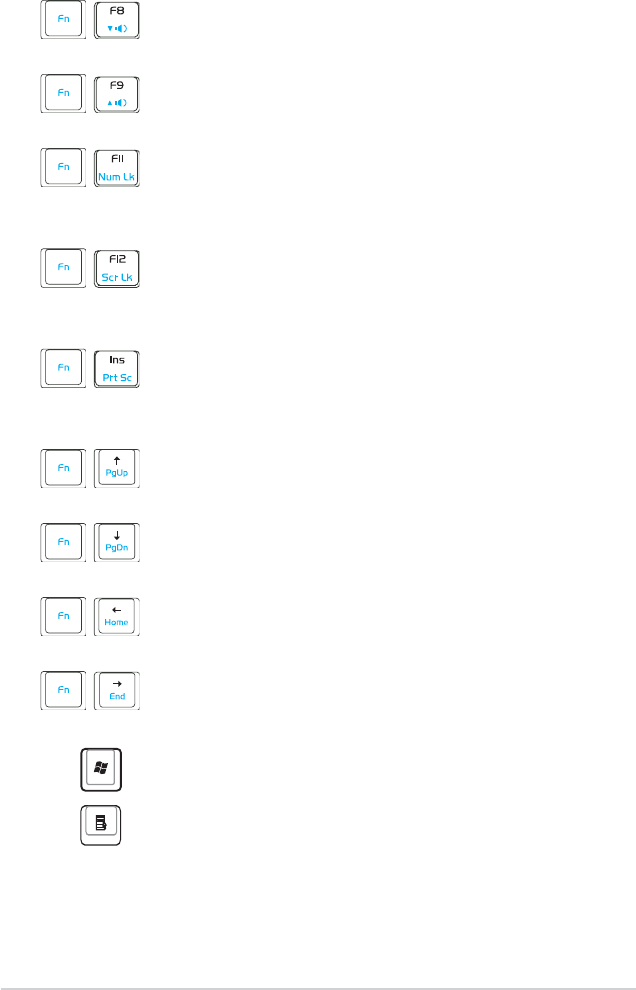

Special Function Keys ................................................................................. 3-9

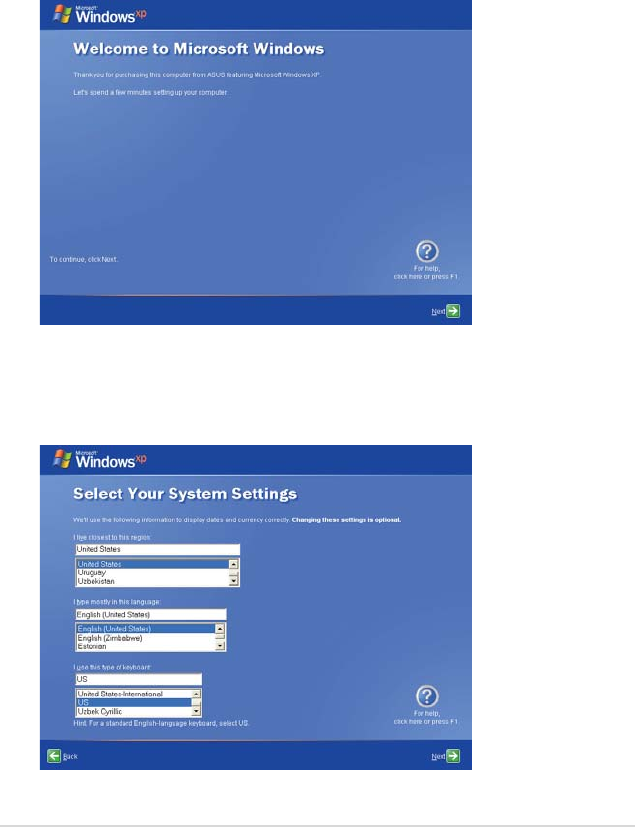

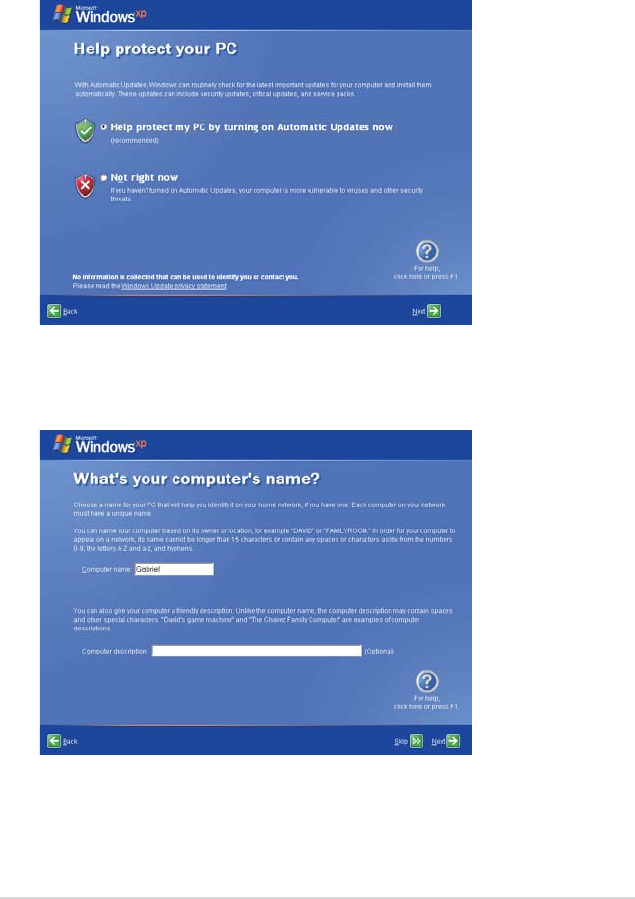

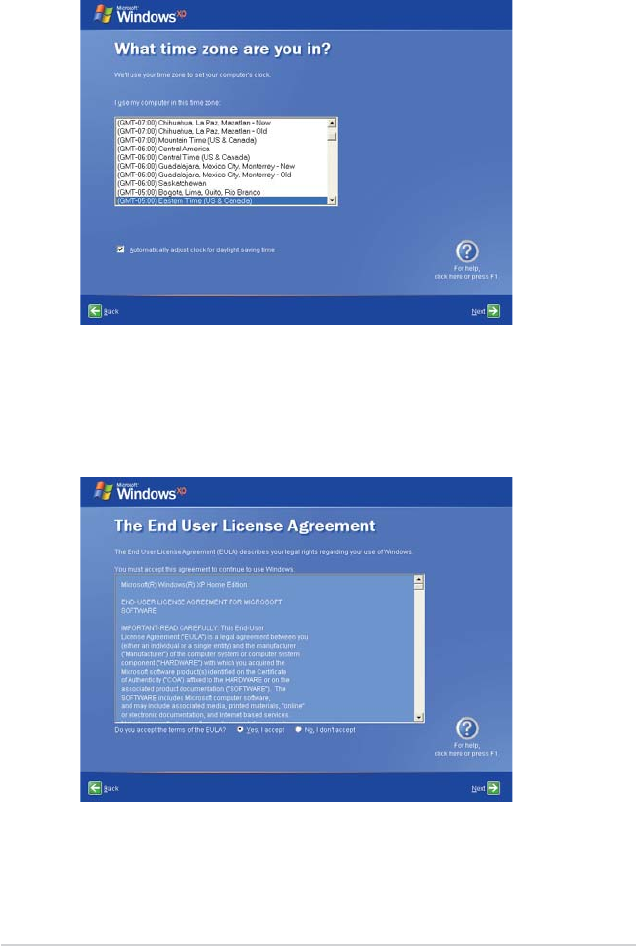

First-time Startup .........................................................................................3-11
Desktop............................................................................................................3-14
ASUS EeePC Tray Utility..............................................................................3-15

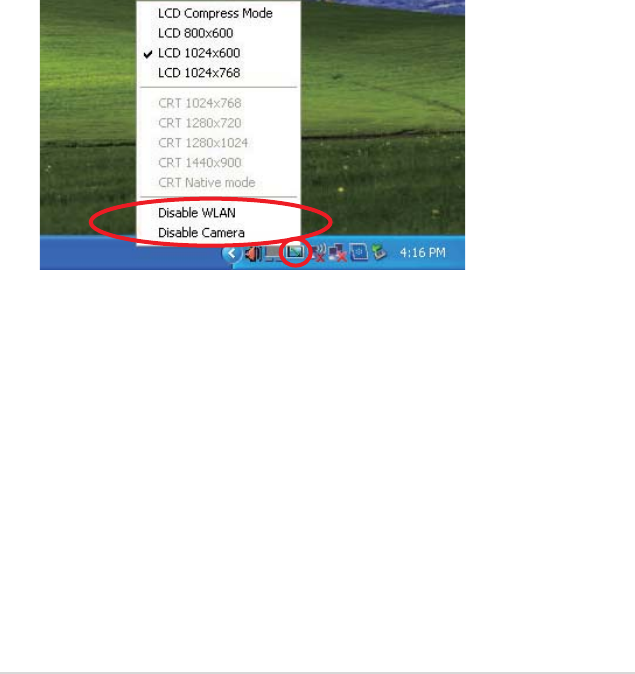

Enabling and Disabling Devices............................................................3-15
Adjusting the display resolution...........................................................3-16

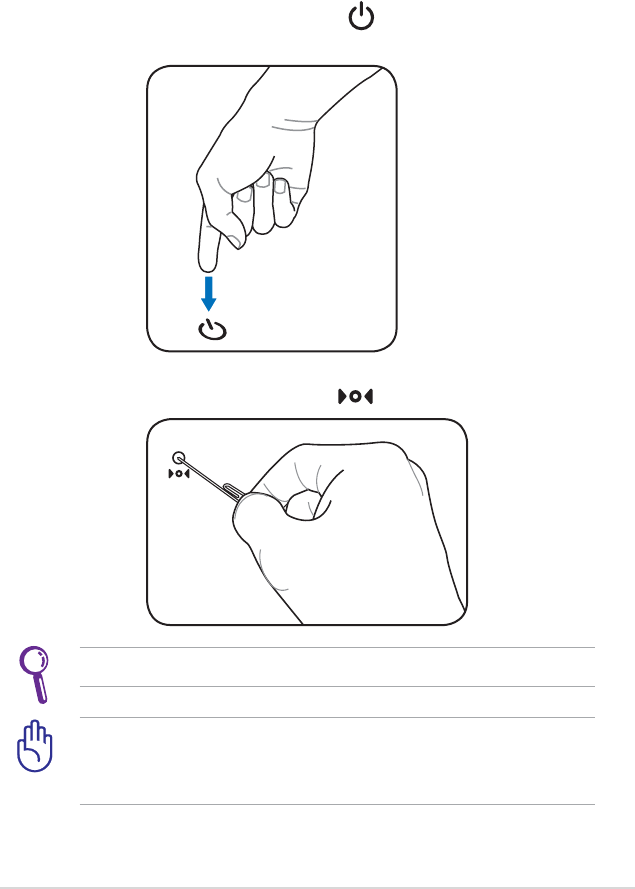

Shutdown........................................................................................................3-17
Chapter 4: Using the Eee PC
Network Connection..................................................................................... 4-2

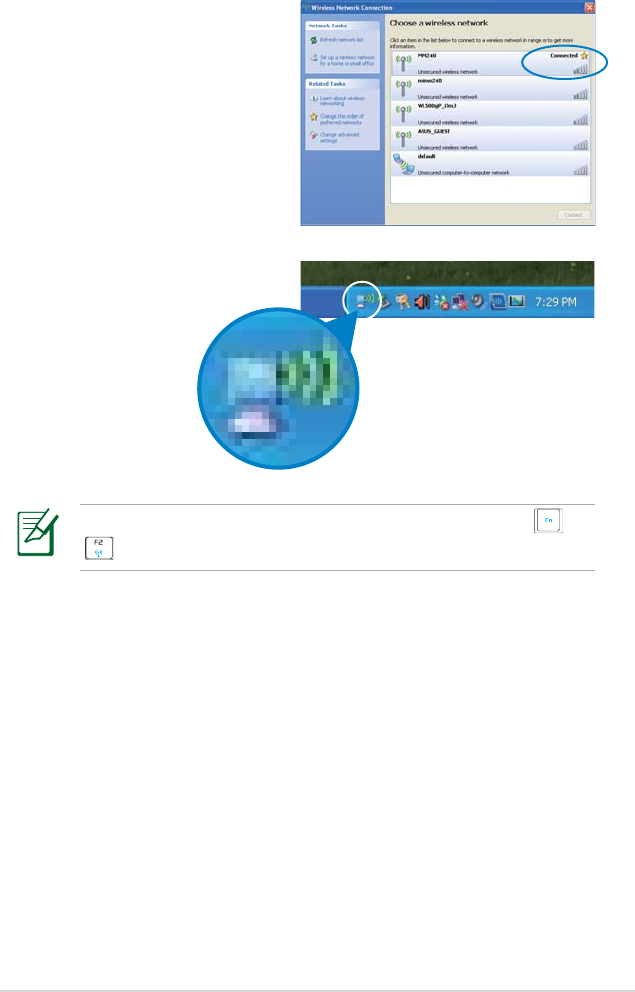

Configuring a wireless network connection....................................... 4-2

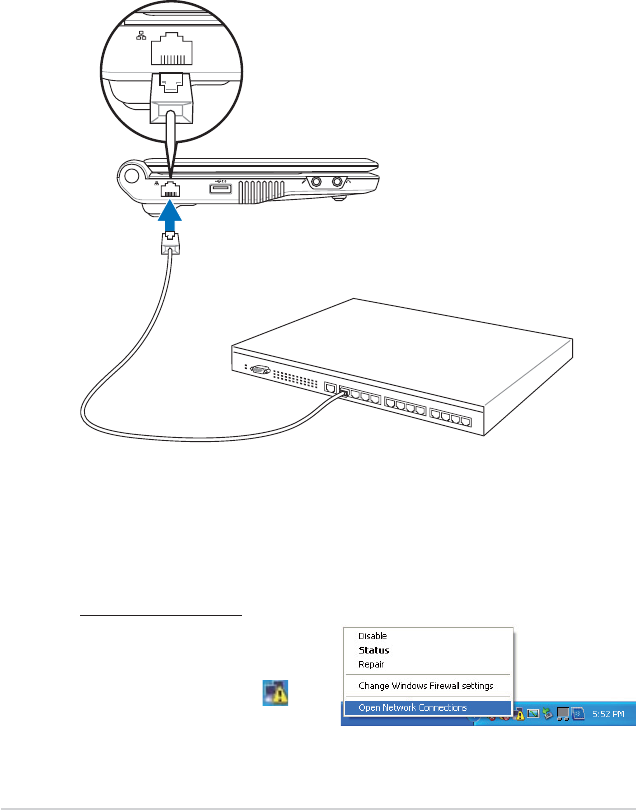

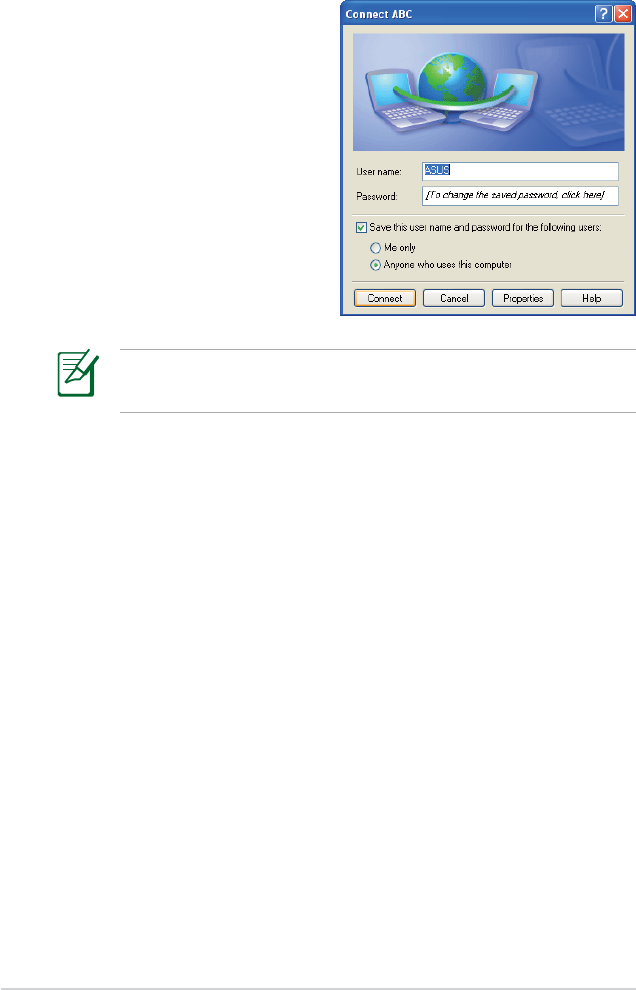

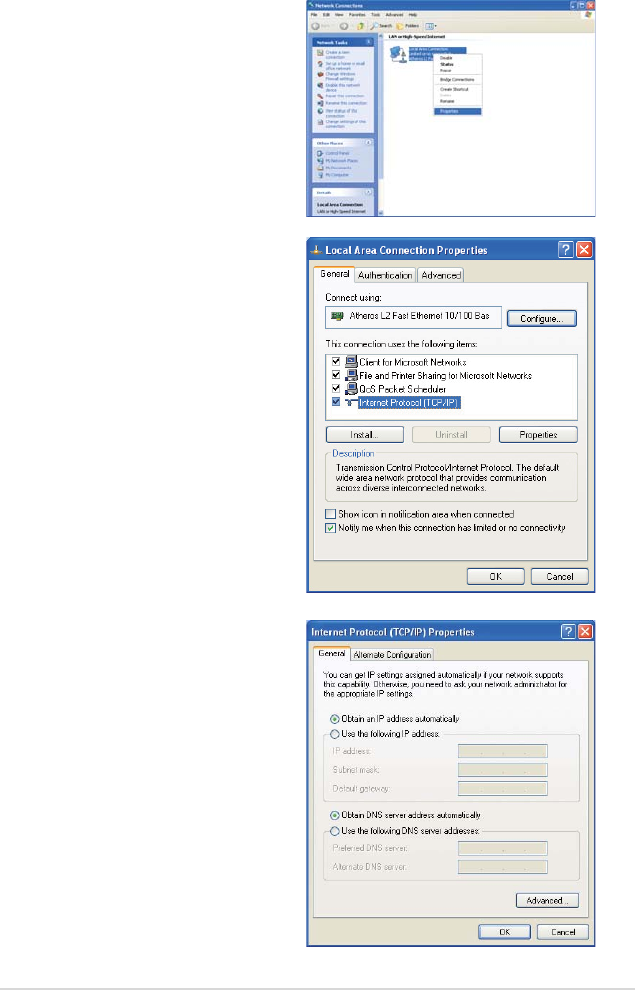

Configuring a network connection........................................................ 4-4
ASUS Eee PC
iii
Table of Contents
Browsing web pages.................................................................................4-10

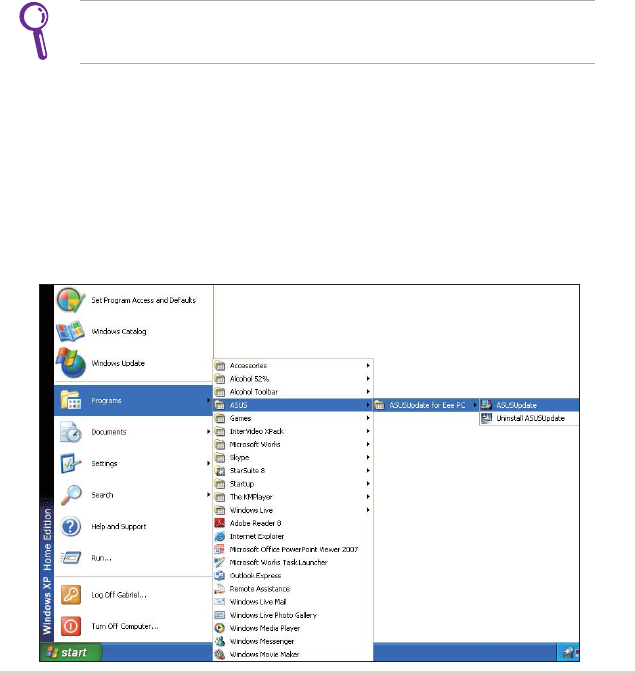

ASUS Update..................................................................................................4-11

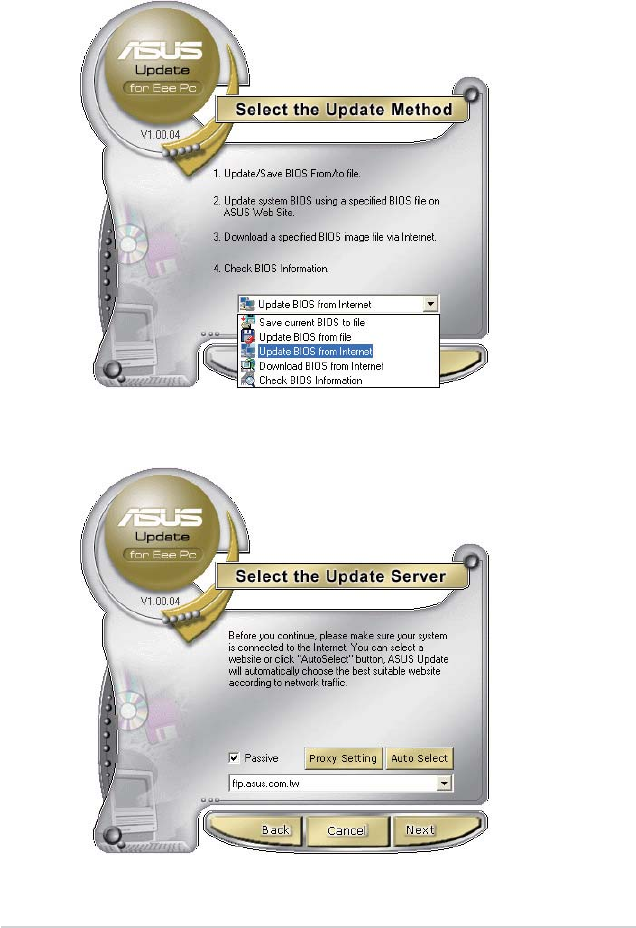

Updating the BIOS through the Internet...........................................4-11
Updating the BIOS through a BIOS file...............................................4-13

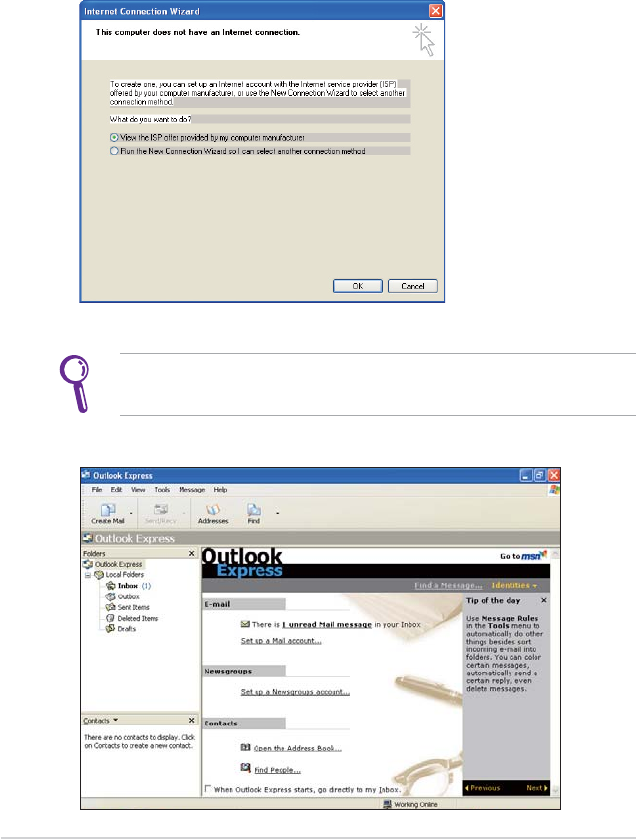

Outlook Express............................................................................................4-14

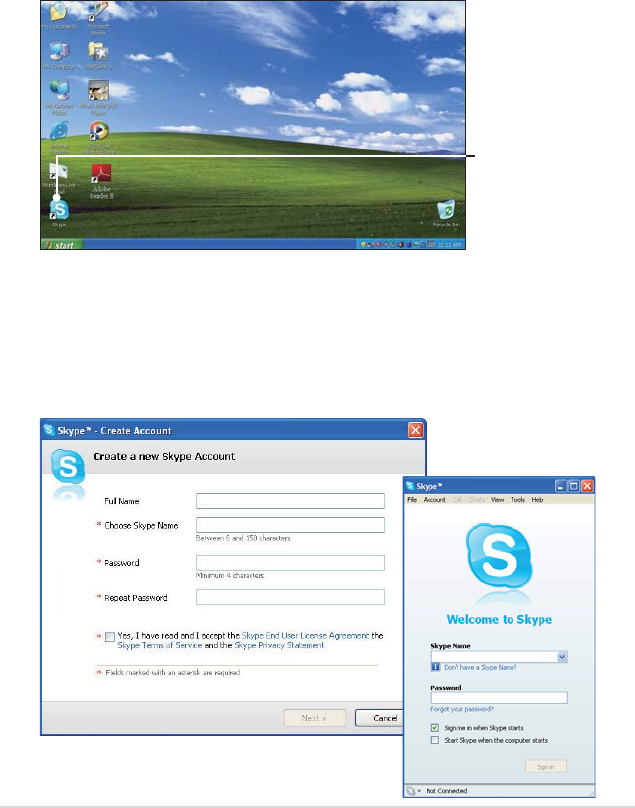

Skype™ ............................................................................................................4-15
Microsoft® Works(in selected territories)..............................................4-16
Initializing Microsoft® Works..................................................................4-16
Using Microsoft® Works ...........................................................................4-17
StarOffice 8 (on selected models) ..........................................................4-20

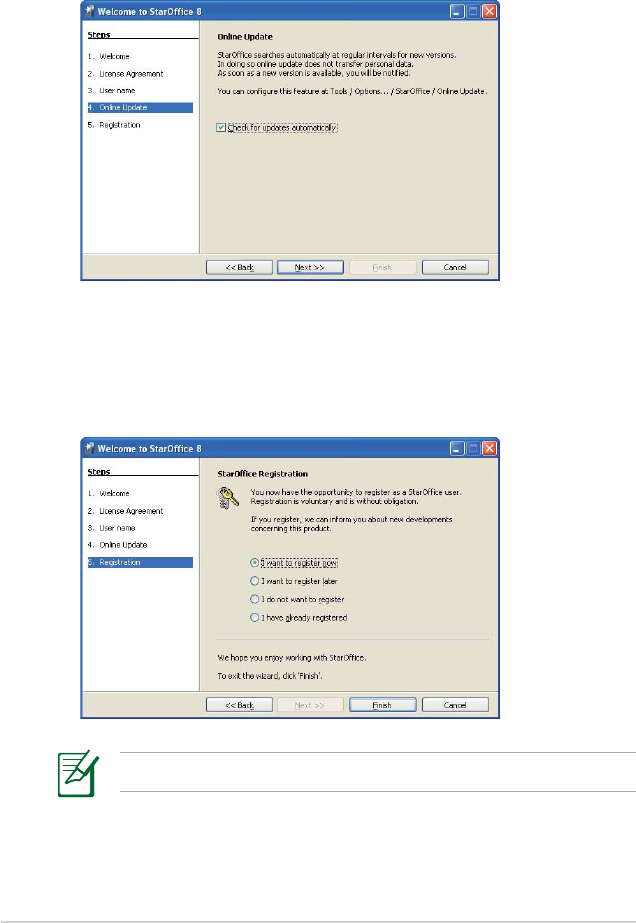

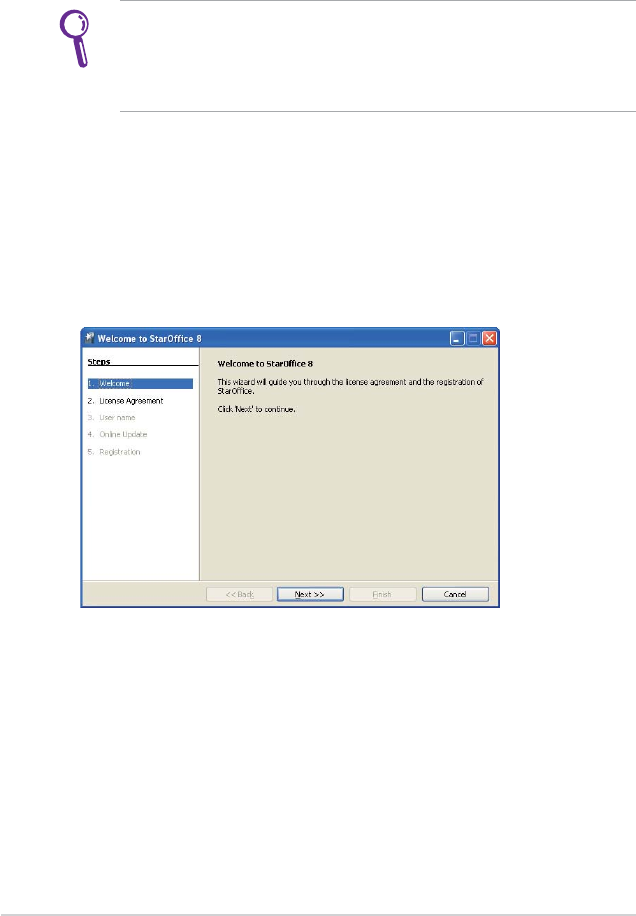

Initializing StarOffice 8..............................................................................4-20

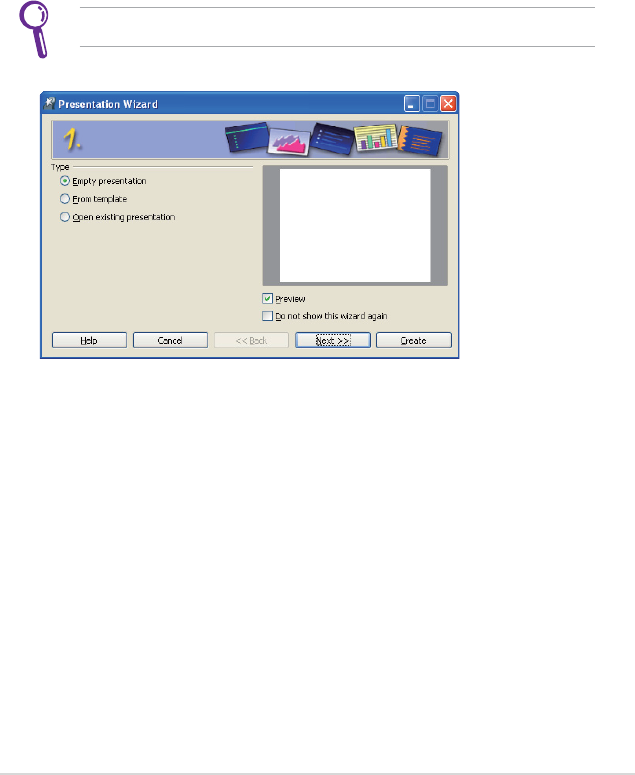

StarOffice Impress ......................................................................................4-23
StarOffice Writer..........................................................................................4-26
StarOffice Calc..............................................................................................4-26

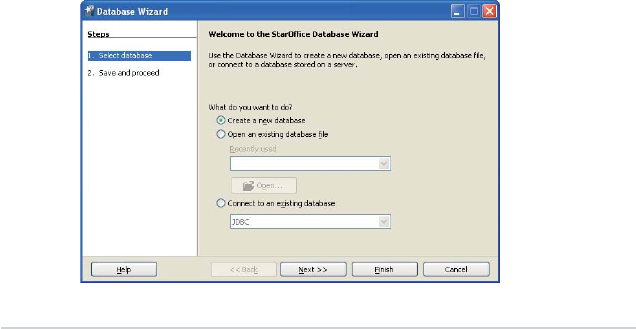

StarOffice Draw ...........................................................................................4-26

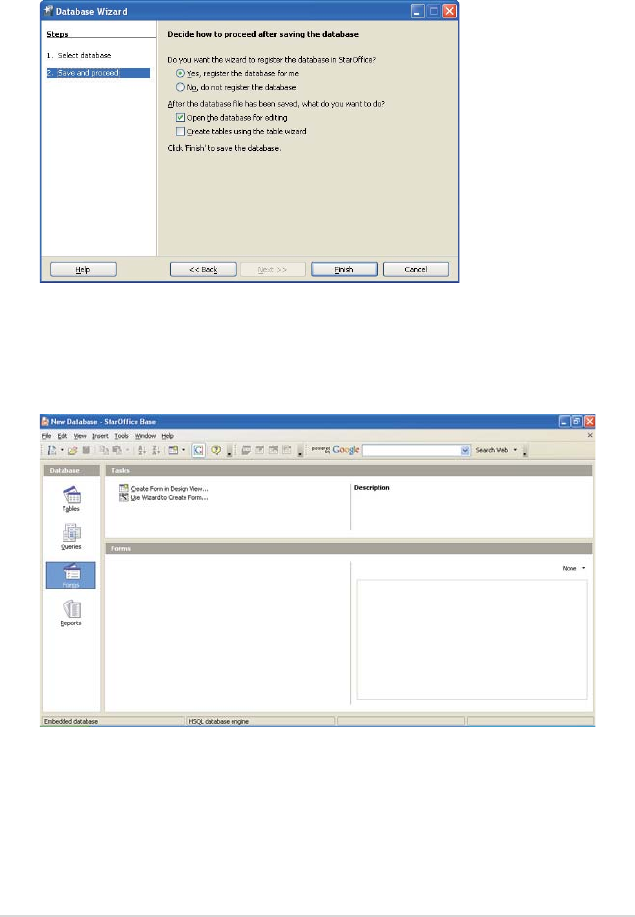

StarOffice Database ...................................................................................4-26
InterVideo DVD XPack(on selected models) ......................................4-28
Launching InterVideo DVD XPack........................................................4-28
Using InterVideo DVD XPack..................................................................4-28
Chapter 5: Support DVD &System Recovery
Support DVD information........................................................................... 5-2
Running the support DVD......................................................................... 5-2

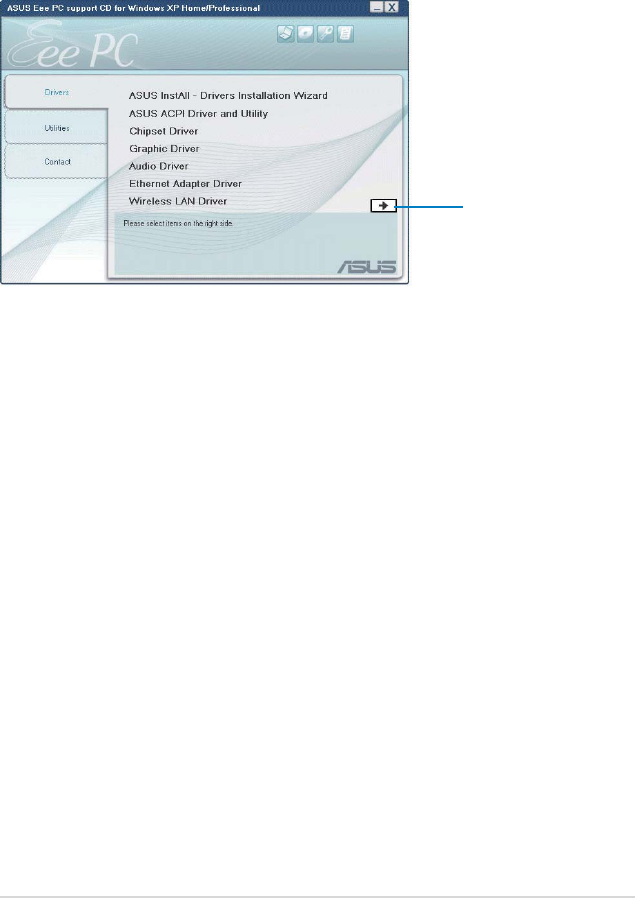

Drivers menu.................................................................................................. 5-3
Utilities menu................................................................................................. 5-4
Contact ........................................................................................................... 5-6
Other information ........................................................................................ 5-6
System Recovery ............................................................................................ 5-7
Using the Support DVD.............................................................................. 5-7
Appendix
Declarations and Safety Statements.......................................................A-2
Copyright Information .............................................................................. A-12
Limitation of Liability................................................................................. A-13
Service and Support................................................................................... A-13
iv
Table of Contents
About This User’s Manual
Notes for This Manual
Safety Precautions
Preparing Your Eee PC
1
Introducing
the Eee PC
1-2
Chapter 1: Introducing the Eee PC
About This User’s Manual
You are reading the Eee PC User’s Manual. This User’s Manual
provides information regarding the various components in the Eee
PC and how to use them. The following are major sections of this
User’s Manual:
1. Introducing the Eee PC
Introduces the Eee PC and this User’s Manual.
2. Knowing the Parts
Provides information on the Eee PC’s components.
3. Getting Started
Provides information on getting started with the Eee PC.
4. Using the Eee PC
Provides information on using the Eee PC’s utilities.
5. Support DVD & System Recovery
Gives you information on the support DVD and system recovery.
6. Appendix
Provides you safety statements.
ASUS Eee PC
1-3
NOTE: Information for special situations.
TIP: Tips for completing tasks.
WARNING! Important information that must be followed for safe
operation.
IMPORTANT! Vital information that must be followed to prevent
damage to data, components, or persons.
Notes for This Manual
A few notes and warnings are used throughout this guide, allowing
you to complete certain tasks safely and effectively. These notes have
different degrees of importance as follows:
1-4
Chapter 1: Introducing the Eee PC
Safety Precautions
The following safety precautions will increase the life of the Eee
PC. Follow all precautions and instructions. Except as described in
this manual, refer all servicing to qualified personnel. Do not use
damaged power cords, accessories, or other peripherals. Do not use
strong solvents such as thinners, benzene, or other chemicals on or
near the surface.
Disconnect the AC power and remove the battery pack(s)
before cleaning. Wipe the Eee PC using a clean cellulose sponge
or chamois cloth dampened with a solution of nonabrasive
detergent and a few drops of warm water and remove any extra
moisture with a dry cloth.
DO NOT expose to or
use near liquids, rain,
or moisture. DO NOT
use the modem during
electrical storms.
DO NOT expose to dirty
or dusty environments.
DO NOT operate during a
gas leak.
Battery safety warning:
DO NOT throw the
battery in fire. DO NOT
short circuit the contacts.
DO NOT disassemble the
battery.
DO NOT expose to
strong magnetic or
electrical fields.
DO NOT place on
uneven or unstable work
surfaces. Seek servicing
if the casing has been
damaged.
DO NOT place or drop
objects on top and do
not shove any foreign
objects into the Eee PC.
DO NOT press or touch
the display panel. DO NOT
place together with small
items that may scratch or
enter the Eee PC.
DO NOT leave the Eee PC
on your lap or any part
of the body to prevent
discomfort or injury from
heat exposure.
ASUS Eee PC
1-5
SAFE TEMP: This Eee PC
should only be used
in environments with
ambient temperatures
between 5°C (41°F) and
35°C (95°F)
DO NOT carry or cover a
Eee PC that is powered
ON with any materials
that will reduce air
circulation such as a
carrying bag.
INPUT RATING: Refer to
the rating label on the
bottom of the Eee PC
and be sure that your
power adapter complies
with the rating.
DO NOT throw the Eee PC in municipal waste. This product
has been designed to enable proper reuse of parts and
recycling. The symbol of the crossed out wheeled bin
indicates that the product (electrical, electronic equipment
and mercury-containing button cell battery) should not
be placed in municipal waste. Check local regulations for
disposal of electronic products.
Incorrect installation
of battery may cause
explosion and damage
the Eee PC.
1-6
Chapter 1: Introducing the Eee PC
Transportation Precautions
To prepare your Eee PC for transport, you should turn it OFF and
disconnect all external peripherals to prevent damage to the
connectors. The hard disk drive’s head retracts when the power is
turned OFF to prevent scratching of the hard disk surface during
transport. Therefore, you should not transport your Eee PC while the
power is still ON. Close the display panel to protect the keyboard and
display panel.
The Eee PC’s surface is easily dulled if not properly cared for. Be
careful not to rub or scrape surfaces when transporting your Eee PC.
You can put your Eee PC in a carrying case for protection from dirt,
water, shock, and scratches.
Charging Your Batteries
If you intend to use battery power, be sure to fully charge your
battery pack and any optional battery packs before going on long
trips. Remember that the power adapter charges the battery pack as
long as it is plugged into the computer and an AC power source. Be
aware that it takes much longer to charge the battery pack when the
Eee PC is in use.
Airplane Precautions
Contact your airline if you want to use the Eee PC on the airplane.
Most airlines have restrictions for using electronic devices. Most
airlines allow electronic use only between and not during takeoffs
and landings.
There are three main types of airport security devices: X-ray
machines (used on items placed on conveyor belts), magnetic
detectors (used on people walking through security checks),
and magnetic wands (hand-held devices used on people or
individual items). You can send your Eee PC and diskettes
through airport X-ray machines. However, it is recommended
that you do not send your Eee PC or diskettes through airport
magnetic detectors or expose them to magnetic wands.
ASUS Eee PC
1-7
Preparing your Eee PC
These are only quick instructions for using your Eee PC. Read the
following chapters for detailed information.
1. Install the battery pack
2. Connect the AC power adapter
1
3
2
Your Eee PC may come with either a two or three-prong plug
depending on territory. If a three-prong plug is provided, you
must use a grounded AC outlet or use a properly grounded
adapter to ensure safe operation of the Eee PC.
1-8
Chapter 1: Introducing the Eee PC

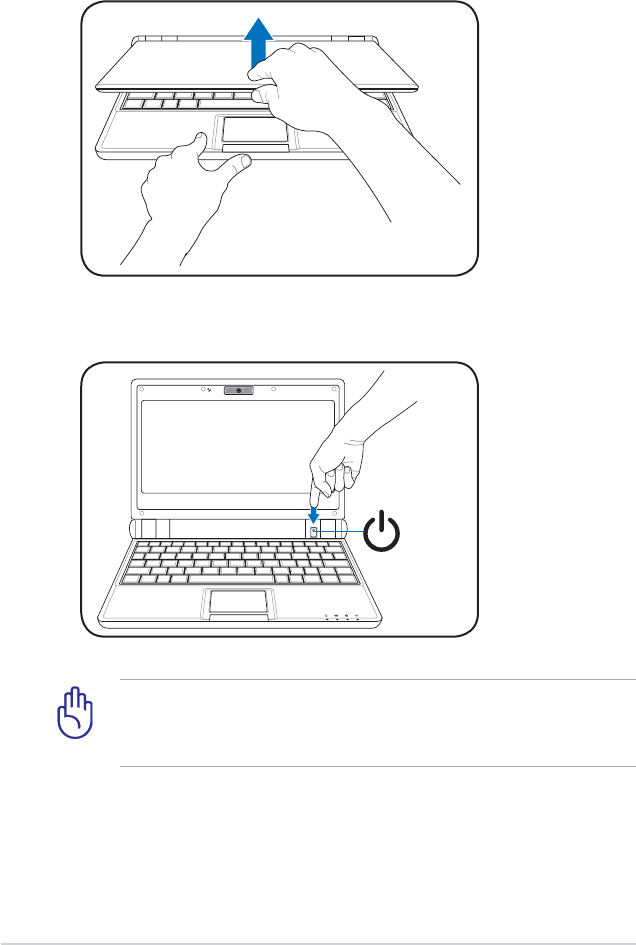

3. Open the display panel
4. Turn ON the Eee PC
When you open the display panel, do not force it down to the
table or else the hinges may break! Never lift the Eee PC by the
display panel!
Top Side
Bottom Side
Right Side
Left Side
Rear Side
2
Knowing the Parts
2-2
Chapter 2: Knowing the Parts
Top Side
Refer to the following illustration to identify the components on this
side of the Eee PC.
The keyboard differs for each territory.
3
4
2
1
6
5
7
ASUS Eee PC
2-3
Microphone (Built-in)
The built-in mono microphone can be used for skype, voice
narrations, or simple audio recordings.
Built-in Camera
The built-in camera allows picture taking or video
recording.
Display Panel
The display panel functions the same as a desktop monitor.
The Eee PC uses an active matrix TFT LCD, which provides
excellent viewing like that of desktop monitors. Unlike
desktop monitors, the LCD panel does not produce any
radiation or flickering, so it is easier on the eyes. Use a soft
cloth without chemical liquids (use plain water if necessary)
to clean the display panel.
Power Switch
The power switch allows powering ON and OFF the Eee PC
and recovering from STR. Press the switch once to turn ON
and hold it to turn OFF the Eee PC. The power switch only
works when the display panel is opened.
Keyboard
The keyboard provides keys with comfortable travel (depth
at which the keys can be depressed) and palm rest for both
hands.
Touchpad and Buttons
The touchpad and its buttons comprises a pointing device
that provides the same functions as a desktop mouse.
Multi-finger gesture input is available to allow easy web
and document navigation.
1
2
3
4
5
6
2-4
Chapter 2: Knowing the Parts
Status Indicators (front)
Power Indicator
The power indicator lights when the Eee PC is turned
ON and blinks slowly when the Eee PC is in the Save-to-
RAM (Suspend) mode. This indicator is OFF when the
Eee PC is turned OFF.
Battery Charge Indicator
The battery charge indicator (LED) shows the status of
the battery’s power as follows:
ON: The Eee PC’s battery is charging when AC power is
connected.
OFF: The Eee PC’s battery is charged or completely
drained.
Blinking: Battery power is less than 10% and AC
power is not connected.
Solid-State disk (SSD) Indicator
The solid-state disk drive indicator blinks when data is
written to or read from the disk drive.
Wireless Indicator
This is only applicable on models with built-in wireless
LAN. When the built-in wireless LAN is enabled, this
indicator lights.
7
ASUS Eee PC
2-5
Bottom Side
Refer to the following illustration to identify the components on this
side of the Eee PC.
The bottom side may vary in appearance depending on model.
The bottom of the Eee PC can get very hot. Be careful when
handling the Eee PC while it is in operation or recently been in
operation. High temperatures are normal during charging or
operation. DO NOT use on soft surfaces such as beds or sofas
,which may block the vents. DO NOT PUT THE Eee PC ON YOUR
LAP OR OTHER PARTS OF THE BODY TO AVOID INJURY FROM THE
HEAT.
21 3
5
4
66
2-6
Chapter 2: Knowing the Parts
2
3
4
5
6
Battery Lock - Spring
The spring battery lock keeps the battery pack secure.
When the battery pack is inserted, it will automatically lock.
When removing the battery pack, this spring lock must be
retained in the unlocked position.
Battery Pack
The battery pack is automatically charged when connected
to an AC power source and maintains power to the Eee PC
when AC power is not connected. This allows use when
moving temporarily between locations. Battery time
varies by usage and by the specifications for this Eee PC.
The battery pack cannot be disassembled and must be
purchased as a single unit.
Battery Lock - Manual
The manual battery lock is used to keep the battery pack
secured. Move the manual lock to the unlocked position to
insert or remove the battery pack. Move the manual lock to
the locked position after inserting the battery pack.
Hard Disk & Memory Compartment
The hard disk drive and memory are secured in a dedicated
compartment.
Reset Button (Emergency)
In case your operating system cannot properly turn OFF or
restart, the reset button can be depressed with a pin or a
straightened paper clip to restart the Eee PC.
Audio Speaker System
The built-in stereo speaker system allows you to hear audio
without additional attachments. The multimedia sound
system features an integrated digital audio controller
that produces rich, vibrant sound (results improved with
external stereo headphones or speakers). Audio features
are software controlled.
1
ASUS Eee PC
2-7
Right Side
Refer to the following illustration to identify the components on this
side of the Eee PC.
1 2 3 4
Memory Card Slot
The built-in memory card reader can read MMC/SD cards
from devices such as digital cameras, MP3 players, mobile
phones, and PDAs.
2.0
USB Port (2.0/1.1)
The USB (Universal Serial Bus) port is compatible with USB
2.0 or USB 1.1 devices such as keyboards, pointing devices,
cameras, and storage devices, connected in a series up to
12Mbits/sec (USB 1.1) and 480Mbits/sec (USB 2.0). USB
allows many devices to run simultaneously on a single
computer, with some peripherals acting as additional
plug-in sites or hubs. Also, the USB supports hot-swapping
function.
Display (Monitor) Output
The 15-pin D-sub monitor port supports a standard VGA-
compatible device such as a monitor or projector to allow
viewing on a larger external display.
Kensington® Lock Port
The Kensington® lock port allows the Eee PC to be secured
using Kensington®compatible security products. These
security products usually include a metal cable and lock
that prevent the Eee PC to be removed from a fixed object.
1
2
3
4
2-8
Chapter 2: Knowing the Parts
12 3 4
Left Side
Refer to the following illustration to identify the components on this
side of the Eee PC.
LAN Port
The eight-pin RJ-45 LAN port (10/100M bit) supports a
standard Ethernet cable for connection to a local network.
The built-in connector allows convenient use without
additional adapters.
2.0
USB Port (2.0/1.1)
The USB (Universal Serial Bus) port is compatible with USB
2.0 or USB 1.1 devices such as keyboards, pointing devices,
cameras, and storage devices, connected in a series up to
12Mbits/sec (USB 1.1) and 480Mbits/sec (USB 2.0). USB
allows many devices to run simultaneously on a single
computer, with some peripherals acting as additional plug-
in sites or hubs. Also, it supports hot-swapping function.
Microphone Jack
The microphone jack is designed to connect the
microphone used for Skype, voice narrations, or simple
audio recordings.
Headphone Output Jack
The 1⁄8” stereo headphone jack (3.55mm) connects the Eee
PC’s audio out signal to amplified speakers or headphones.
Using this jack automatically disables the built-in speakers.
1
2
3
4
ASUS Eee PC
2-9
Rear Side
Refer to the following illustration to identify the components on this
side of the Eee PC.
1 2
Battery Pack
The battery pack is automatically charged when connected
to an AC power source and maintains power to the Eee PC
when AC power is not connected. This allows use when
moving temporarily between locations. Battery time
varies by usage and by the specifications for this Eee PC.
The battery pack cannot be disassembled and must be
purchased as a single unit.
Power (DC) Input
The supplied power adapter converts AC power to DC
power for use with this jack. Power supplied through this
jack supplies power to the Eee PC and charges the internal
battery pack. To prevent damage to the Eee PC and battery
pack, always use the supplied power adapter.
1
2
CAUTION: MAY BECOME WARM TO HOT WHEN IN USE. BE SURE
NOT TO COVER THE ADAPTER AND KEEP IT AWAY FROM YOUR
BODY.
2-10
Chapter 2: Knowing the Parts
Power System
Touchpad Usage
Keyboard Usage
First-time Startup
Operating Mode
Shutdown
3
Getting Started
3-2
Chapter 3: Getting Started
This Eee PC may come with either a two or three-prong plug
depending on territory to fit your wall outlet. If a three-prong
plug is provided, you must use a grounded AC outlet or use a
properly grounded adapter to ensure safe operation of the Eee
PC.
THE POWER ADAPTER MAY BECOME WARM TO HOT WHEN IN
USE. BE SURE NOT TO COVER THE ADAPTER AND KEEP IT AWAY
FROM YOUR BODY.
Power System
Using AC Power
The Eee PC power comprises two parts, the power adapter and
the battery power system. The power adapter converts AC power
from a wall outlet to the DC power required by the Eee PC. Your Eee
PC comes with a universal AC-DC adapter for connection to any
100V-120V as well as 220V-240V outlets without setting switches or
using power converters. Different countries may require an adapter
to connect the provided US-
standard AC power cord to a
different standard. Most hotels
will provide universal outlets to
support different power cords as
well as voltages. It is always best
to ask an experienced traveler
about AC outlet voltages before
travelling.
With the AC power cord connected to the AC-DC converter, connect
the AC power cord to an AC outlet (preferably with surge-protection)
and then connect the DC plug to the Notebook PC. Connecting the
AC-DC adapter to the AC outlet first allows you to test the AC outlet’
s power and the AC-DC converter itself for compatibility problems
before connecting the DC power to the Notebook PC. The power
indicator on the adapter (if available) will light if the power is within
accepted ranges.
ASUS Eee PC
3-3
Damage may occur if you use a different adapter to power the
Eee PC or use the Eee PC’s adapter to power other electrical
devices. If there is smoke, burning scent, or extreme heat coming
from the AC-DC adapter, seek servicing. Seek servicing if you
suspect a faulty AC-DC adapter. You may damage both your
battery pack(s) and the Eee PC with a faulty AC-DC adapter.
Using Battery Power
The Eee PC is designed to work with a removable battery pack. The
battery pack consists of a set of battery cells housed together. A
fully charged pack will provides your Eee PC a few hours of working
power, but the actual figure varies depending on your general work
habits, the CPU, system memory size, and the size of the display
panel. Additional battery packs are optional and can be purchased
separately through an Eee PC retailer.
Remember to fully charge the battery before first use and
whenever it is depleted to prolong battery life. The battery
reaches its maximum capacity after a few full charging and
discharging cycles.
Installing and Removing the Battery Pack
Your Eee PC may not have its battery pack installed. If not, use the
following procedures to install the battery pack.
To install the battery pack: To remove the battery pack:
1
3
21
2
3
3-4
Chapter 3: Getting Started
For safety reasons, DO NOT throw the battery in
fire, DO NOT short circuit the contacts, and DO NOT
disassemble the battery. If there is any abnormal
operation or damage to the battery pack caused
by impact, turn OFF the Eee PC and contact an
authorized service center.
Battery Care
The Eee PC’s battery pack, like all rechargeable batteries, has a limit
on the number times it can be recharged. The battery pack’s useful
life will depend on your environment temperature, humidity, and
how your Eee PC is used. It is ideal that the battery be used in a
temperature range between 5˚C and 35˚C (41˚F and 95˚F). You
must also take into account that the Eee PC’s internal temperature
is higher than the outside temperature. Any temperatures above or
below this range will shorten the life of the battery. But in any case,
the battery pack’s usage time will eventually decrease and a new
battery pack must be purchased from an authorized dealer for this
Eee PC. Because batteries also have a shelf life, it is not recommended
to buy extras for storing.
• Only use battery packs and power adapters supplied with this
Eee PC or specifically approved by the manufacturer or retailer
for use with this model or else damage may occur to the Eee PC.
The output voltage of this adapter is +12Vdc, 3A.
• Never attempt to remove the battery pack while the Eee PC is
turned ON, as this may result in the loss of working data.
ASUS Eee PC
3-5
Emergency Shutdown & Reset
In case your operating system cannot properly turn OFF or restart,
there are additional ways to shutdown and reset your Eee PC:
Shutdown: Hold the power button until the system shuts
down.
DO NOT use emergency shutdown/reset while data is being
written or read; doing so can result in loss or destruction of your
data.
Use a pin or a straightened paper clip to press the reset button.
Reset: Press the reset button .
3-6
Chapter 3: Getting Started
Touchpad Usage
Single-finger gesture input
Clicking/Tapping - With the pointer over an item, press the left
button or use your fingertip to touch the touchpad lightly, keeping
your finger on the touchpad until the item is selected. The selected
item will change color. The following 2 illustrations produce the
same results.
Double-clicking/Double-tapping - This is a common skill for
launching a program directly from the corresponding icon you
select. Move the pointer over the icon you wish to execute, press the
left button or tap the pad twice in rapid succession, and the system
launches the corresponding program. If the interval between the
clicks or taps is too long, the operation will not be executed. The
following 2 illustrations produce the same results.
ASUS Eee PC
3-7
Dragging - Dragging means to pick up an item and place it
anywhere on the screen you wish. You can move the pointer over
the item you select, and while keeping the left button depressed,
moving the pointer to the desired location, then release the button.
Or, you can simply double-tap on the item and hold while dragging
the item with your fingertip. The following illustrations produce the
same results.
3-8
Chapter 3: Getting Started
Two-finger scrolling - Use two
fingertips to slide up or down on
the touchpad to scroll a window
up or down. If your display window
includes several sub-windows,
move the pointer on that pane
before scrolling.
Zoom in Zoom out
Multi-finger gesture input
Two-finger zooming in/out - Moving two fingertips apart or
together on the touchpad to zoom in or zoom out. This is convenient
when viewing photos or reading documents.
Finger gesture Applications
Two-finger zooming in/out OpenOffice Writer/Impress,
Adobe reader, Photomanager
Two-finger scrolling All
ASUS Eee PC
3-9
Keyboard Usage
Special Function Keys
The following defines the colored hot keys on the Eee PC’s keyboard.
The colored commands can only be accessed by first pressing
and holding the function key while pressing a key with a colored
command. Some function icons appear in the Notification area after
activation.
The Hot Key locations on the function keys may vary depending
on model but the functions should remain the same. Follow the
icons whenever your hot key locations do not match the manual.
zzZ Icon (F1): Places the Eee PC in suspend mode
(Save-to-RAM).
Radio Tower (F2): Wireless Models Only: Toggles
the internal wireless LAN ON or OFF with an on-
screen-display. When enabled, the corresponding
wireless indicator will light.
Sun Down Icon (F3): Decreases the display
brightness.
Sun Up Icon (F4): Increases the display brightness.
LCD/Monitor Icons (F5): Toggles between the Eee
PC’s LCD display and an external monitor in this
series: LCD Only -> CRT Only (External Monitor) ->
LCD + CRT Clone.
Task Manager Icon (F6): Initiates the Task Manager
to view the application process or terminates
applications.
Crossed Speaker Icon (F7): Mutes the speaker.
3-10
Chapter 3: Getting Started
Speaker Down Icon (F8): Decreases speaker
volume.
Speaker Up Icon (F9): Increases the speaker
volume.
Num Lk (F11): Toggles the numeric keypad (number
lock) ON and OFF. Allows use of a larger portion
of the keyboard for number entering.
Scr Lk (F12): Toggles the “Scroll Lock” ON and
OFF. Allows you to use a larger portion of the
keyboard for cell navigation.
Prt Sc (Ins): Toggles the “Print Screen” key to
initiate screen capture utility to capture, save, or
print the contents of entire desktop.
Pg Up (B): Press to scroll up in documents or the
web browser.
Pg Dn (
?
): Press to scroll down in documents or the
web browser.
Home (
@
): Press to move the pointer to the
beginning of the line.
End (
A
): Press to move the pointer to the end of
the line.
Windows icon: Displays the start menu.
Menu with pointer icon : Activates the properties
menu and is equivalent to right-clicking the
touchpad/mouse on an object.
ASUS Eee PC
3-11
First-time Startup
For the first time you start your Eee PC, the Windows wizard
will launch automatically and lead you through setting up your
preferences and some basic information.
Follow the wizard instructions to finish the initialization:
1. The Welcome message appears. Click Next to continue.
2. Select you system settings by specifying the region you are in,
the language you use and the keyboard type you use. Click Next
to continue.
3-12
Chapter 3: Getting Started
3 Select the time zone you are in and click Next to continue.
4. Read the end user license agreement and click Yes, I accept.
Click Next to continue.
ASUS Eee PC
3-13
5. Click Help protect my PC by turning on Automatic Updates
now to get the latest important updates and click Next to
continue.
6. Type your computer’s name in the Computer name box and
click Next to continue.
7. Follow the onscreen instructions to register with Microsoft and
finish the initialization.
3-14
Chapter 3: Getting Started
Desktop
The are several shortcuts on the desktop. Double-click them to
launch the corresponding applications and enter the specified
folders. Some applications would form minimized icons in the
Notification area.
Displays the start
menu
Displays the time
Displays the network connection status
Displays USB connection
Adjusts the display resolution
Displays the power status
Adjusts system volume
Adjusts the touchpad settings
ASUS Eee PC
3-15
ASUS EeePC Tray Utility
The preloaded ASUS EeePC Tray utility allows you to turn off some
devices to minimize the power consumption and helps you adjust
the display resolution easily.
Enabling and Disabling Devices
To disable or enable devices
1. Right-click the ASUS EeePC Tray Utility icon in the Notification
area and the utility shows the available options:
Disable WLAN: Turns on and off the wireless LAN connection.
Disable Camera: Enable or disable the built-in camera.
2. Select an option to turn it on or off based on your needs. The
unavailable options are dimmed.
3-16
Chapter 3: Getting Started
Adjusting the display resolution
Click the ASUS EeePC Tray Utility icon in the Notification area to
adjust the display resolution. Select the resolution based on your
needs.
You need not scroll up and down the screen when you select
LCD Compress Mode.
When you select LCD 1024 x 768, move the pointer to scroll up and
down the screen.
Scroll down to see the bottom of the screen.Scroll up to see the top of the screen..
The CRT-related options are unavailable when there is no
connected external monitors.
Some applications, such as Windows Media Player, may not
be compatible with the LCD Compress Mode. When watching
videos in LCD Compress Mode, use XPack Mini DVD Player
instead.
ASUS Eee PC
3-17
Shutdown
Do the following instructions to turn down your Eee PC.
1. Click the start button to display the start menu.
2. Click Turn Off Computer.
1
2
3. Select Turn Off to power off your Eee PC.
3
3-18
Chapter 3: Getting Started
Network Connection
ASUS Update
Outlook Express
Skype™
Microsoft® Works
StarOffice
InterVideo DVD
4
Using the Eee PC
4-2
Chapter 4: Using the Eee PC
Network Connection
Configuring a wireless network connection
1. Double-click the crossed wireless network icon in the
Notification area.
3. When connecting, you may
have to enter a password.
2. Select the wireless access
point you want to connect
to from the list and click
Connect to build the
connection.
If you cannot find the desired access point, click Refresh
network list in the left pane and search in the list again.
If the wireless connection
icon does not show on
the taskbar. Activate the
wireless LAN function by
pressing + (<Fn> +
<F2>) before configuring
a wireless network
connection.
ASUS Eee PC
4-3
4. After a connection has been
established, the connection
is shown on the list.
5. You can see the wireless
network icon in the
Notification area.
The wireless connection icon disappears when you Press +
(<Fn> + <F2>) to disable the WLAN function.
4-4
Chapter 4: Using the Eee PC
Configuring a network connection
If you want to obtain network access, connect the network cable,
with RJ-45 connectors on each end, to the network port on the Eee
PC and the other end to a hub or switch. The illustration below is the
example of your Eee PC connected to a network hub or switch for
use with the built-in Ethernet controller. Connect to network before
enjoying all the network services and functions in Eee PC.
Using a dynamic IP:
1. Right-click the network
icon with a yellow
warning triangle in
the Notification area and
select Open Network
Connections.
Local Area Network
Network hub or switch
Network cable with RJ-45 connectors
ASUS Eee PC
4-5
3. Highlight Internet
Protocol(TCP/IP) and
click Properties.
4. Click Obtain an IP
address automatically
and click OK.
2. Right-click Local Area
Connection and select
Properties.
4-6
Chapter 4: Using the Eee PC
5. Click Create a new
connection to start the
New Connection Wizard.
6. Click Next.
7. Click Connect to the
Internet and click Next.
8. Click Set up my
connection manually.
ASUS Eee PC
4-7
9. Select your connection
type and click Next.
10. Enter your ISP Name and
click Next.
11. Enter your User name and
Password. Click Next.
12. Click Finish to finish the
configuration.
4-8
Chapter 4: Using the Eee PC
13. Enter your user name
and password. Click
Connect to connect to
the Internet.
Contact your Internet Service Provider (ISP) if you have problems
connecting to the network.
ASUS Eee PC
4-9
Using a static IP:
1. Repeat the step 1–3 of Using a dynamic IP to start the static
IP network configuration.
3. Enter the IP address, Subnet mask and Gateway from your
service provider.
4. If needed, enter the preferred DNS Server address and
alternative address.
5. After entering all the related values, click OK to build the
network connection.
2 Click Use the following
IP address.
Contact your Internet Service Provider (ISP) if you have
problems connecting to the network.
4-10
Chapter 4: Using the Eee PC
Browsing web pages
After you finish the network setup, click Internet Explorer on the
desktop and start enjoying net surfing.
Launches
the Internet
Explorer web
browser
Visit our Eee PC homepage (http://eeepc.asus.com) to obtain
the latest information and register at http://vip.asus.com for
full service of your Eee PC.
ASUS Eee PC
4-11
ASUS Update
The ASUS Update is a utility that allows you to manage, save, and
update the Eee PC BIOS in Windows® environment. The ASUS Update
utility allows you to:
• Save the current BIOS file
• Download the latest BIOS file from the Internet
• Update the BIOS from an updated BIOS file
• Update the BIOS directly from the Internet, and
• View the BIOS version information.
This utility is pre-loaded in your Eee PC and is also available in the
support DVD that comes with the Eee PC package.
ASUS Update requires an Internet connection either through a
network or an Internet Service Provider (ISP).
Updating the BIOS through the Internet
To update the BIOS through the Internet:
1. Launch the ASUS Update utility from the Windows® desktop by
clicking Start > Programs > ASUS > ASUSUpdate for Eee PC>
ASUSUpdate. The ASUS Update main window appears.
4-12
Chapter 4: Using the Eee PC
2. Select Update BIOS from Internet from the drop-down menu,
then click Next.
3. Select the ASUS FTP site nearest you to avoid network traffic, or
click Auto Select. Click Next.
ASUS Eee PC
4-13
4. From the FTP site, select the desired BIOS version and click Next.
5. Follow the screen instructions to complete the update process.
The ASUS Update utility is capable of updating itself through the
Internet. Always update the utility to avail all its features.
Updating the BIOS through a BIOS file
To update the BIOS through a BIOS file:
1. Launch the ASUS Update utility from the Windows
®
desktop by
clicking Start > Programs > ASUS > ASUSUpdate for EeePC>
ASUSUpdate. The ASUS Update main window appears.
2. Select Update BIOS from file from the drop-down menu, then
click Next.
3. Locate the BIOS file from the Open window, then click Open.
4. Follow the screen instructions to complete the update process.
4-14
Chapter 4: Using the Eee PC
Outlook Express
The Outlook Express e-mail client allows to import preferences,
account settings, address books, and other data from an existing
account in your original personal computer or notebook.
To launch Outlook Express:
1. Click Start > Programs > Outlook Express.
2. Follow the Wizard to finish a new account setup.
Contact your service provider If you do not know the incoming
and outgoing server address of your e-mail account.
3. The Outlook Express main window appears as follows.
ASUS Eee PC
4-15
Skype™
Skype enables users to make free calls to other Skype users or
cheaper calls to landlines or mobile phones with Internet access. It
also offers instant messaging function, which users can use to chat
online.
To start using Skype application
1. Double-click the Skype icon on the desktop.
Starts Skype
2. Enter your Skype name and other information to create a new
Skype account. If you have already had a Skype account, click
Cancel to sign in directly.
3. Enter your Skype Name and Password in the box and click
Sign in to start using Skype.
4-16
Chapter 4: Using the Eee PC
Microsoft
®
Works
(in selected territories)
The Microsoft® Works includes several office software like Works
Word Processor, Works Spreadsheet, Dictionary, PowerPoint
Viewer, etc.. You need to initialize the software before use.
3. In the Help us make Works
better dialog box, click Yes
or No and click Finish to
complete the initialization.
We commend you select Yes
to help improve the quality,
reliability and performance of
this software.
Either Yes or No can finish the initialization.
Initializing Microsoft® Works
1. Double-click the Microsoft Works icon on the desktop.
2. In the Microsoft Software
License Terms dialog box,
click I Agree and click Next.
ASUS Eee PC
4-17
Using Microsoft® Works
Microsoft® Works combines several office applications together and
helps you easily manage your schedule and do your work.
Programs
The following example describes how to use Works Word Processor,
Microsoft® Works.
The Microsoft® Works provides various office applications for
different jobs. Select other desired task categories from the list
on the left and get your work done more efficiently.
1. Double-click the Microsoft® Works shortcut on the desktop.
2. Click Programs on the top to switch screens.
3. Click Works Word Processor from the list in the left pane
4. Select Blank Word Processor document in the right pane.
Choose other templates you want to use in the right pane if
needed.
2
34
4-18
Chapter 4: Using the Eee PC
6. In the Open dialog box, click Look in and locate your file. You
can also shorten the process by sorting the files by file types.
5. Under the File menu, click Open.
Or press <Ctrl> + <O> directly.
ASUS Eee PC
4-19
Other functions
Click the buttons on the top to switch screens.
Microsoft® Works Home
The screen displays the calendar and your appointments.
Microsoft® Works Templates
The screen provides templates for different tasks. Select a task
category from the list on the left and start using the built-in
templates.
Microsoft® Works Projects
The Microsoft® Works Projects helps you smartly manage your
projects.
Microsoft® Works History
The history screeen helps you track the history you use the
Microsoft® Works software. You can either sort by names, dates,
templates or programs.
4-20
Chapter 4: Using the Eee PC
6WDU2I¿FHRQVHOHFWHGPRGHOV
StarOffice 8 is a complete office suite which allows you to edit a
document, calculate on a spreadsheet, prepare presentation slides,
make charts or sketches, and build your own database.
Windows Works are the default applications to open and edit the
related documents. Right-click the file, point to Open With and
select the desired StarOffice application if you want to open and
edit the file with StarOffice.
Initializing StarOffice 8
1. Double-click to open the StarOffice 8 folder on the desktop.
2. Double-click the desired application and the Welcome to
StarOffice 8 dialog box appears.
ASUS Eee PC
4-21
3. Scroll down to finish reading the license agreement and click
Accept to continue.
The Accept button appears dimmed and unavailable before you
scroll down the license agreement.
4. Enter your name and click Next to continue.
4-22
Chapter 4: Using the Eee PC
5. Click the Check for updates automatically check box to get
the online update and click Next to continue.
6. Click an option and click Finish to finish the initialization.
The registration is voluntary.
ASUS Eee PC
4-23
2. Click Empty presentation to create a new presentation slide,
or From template to create a new presentation slide with a
template. If you want to edit an existing file, click Open existing
presentation. Click Next to continue
You can click Create to skip all the wizard instructions.
StarOffice Impress
To prepare presentation slides
1. Click start > Programs > StarOffice 8 > StarOffice Impress.
4-24
Chapter 4: Using the Eee PC
3. For the first time use, the software takes time to initialize the
templates.
4. Select a slide design and click Next.
Click the Preview check box to preview the slide design.
ASUS Eee PC
4-25
5. Select a slide transition and the presentation type. Click Create
to start StarOffice Impress.
6. The main screen appears. You can start preparing your
presentation slides with StarOffice Impress.
4-26
Chapter 4: Using the Eee PC
StarOffice Writer
StarOffice Writer is a convenient word processing application that
allows you to create and covert documents, or collaborate with
others. Click start > Programs > StarOffice 8 > StarOffice Writer to
start StarOffice Writer.
StarOffice Calc
StarOffice is a spreadsheet program that helps you analyze results,
and share data. Click start > Programs > StarOffice 8 > StarOffice
Calc to start StarOffice Calc.
StarOffice Draw
StarOffice is an illustration tool that you can use to export and share
drawings. Click start > Programs > StarOffice 8 > StarOffice Draw
to start StarOffice Draw.
StarOffice Database
StarOffice Database helps you create your own database.
To start StarOffice Database
1. Click start > Programs > StarOffice 8 > StarOffice Base.
2. In the Database Wizard dialog box, you can select to create a
new database, open an existing database, or connect to a server
database.
ASUS Eee PC
4-27
3. Select an action to proceed after saving the database and click
Finish.
4. Select a location to save the database file.
5. StarOffice Database is ready for use.
4-28
Chapter 4: Using the Eee PC
InterVideo DVD XPack
(on selected models)
Launching InterVideo DVD XPack
Click start > Programs > InterVideo XPack > XPack Mini DVD
Player to start the DVD player.
Using InterVideo DVD XPack
After the InterVideo XPack screen appears, you can play, pause, stop,
forward, rewind the video with the buttons on the floating toolbar
and adjust the volume with the slider.
XPack Mini DVD Player supports video and audio files in the
following format: MPEG 1, MPEG 2, MP3, WAV, WMA, and WMV.
The actual supported codecs vary depending on model.
The Eee PC package does not include an external optical disk
drive. Purchase an optional optical disk drive based on your
needs.
Support DVD
System Recovery
5
Support DVD &
System Recovery
5-2
Chapter 5: Support DVD & System Recovery
Support DVD information
The support DVD that comes with the Eee PC package contains the
drivers, software applications, and utilities that you can install to
avail all the features.
If Autorun is NOT enabled in your computer, browse the
contents of the support DVD to locate the file ASSETUP.EXE from
the BIN folder. Double-click the ASSETUP.EXE file to run the DVD.
Click an item to install
Running the support DVD
Insert the support DVD in the external optical drive. The DVD
automatically displays the Drivers menu if Autorun is enabled in
your computer.
Click an icon to
display support
DVD/ Eee PC
information
The drivers and utilities bundled in the support DVD may vary by
models and are subject to change without notice.
ASUS Eee PC
5-3
Drivers menu
The Drivers menu shows available device drivers when the system
detects installed devices. Install the necessary drivers to activate the
devices.
InstAll - Drivers Installation Wizard
Installs all the drivers.
ASUS ACPI Driver and Utility
Installs ASUS ACPI driver before all the drivers if you are not using
InstAll Wizard.
Chipset Driver
Installs the chipset driver.
Graphics Driver
Installs the Graphics driver.
Audio Driver
Installs the audio driver.
Ethernet Adapter Driver
Installs the Ethernet driver.
Wireless LAN Driver
Installs the wireless LAN driver.
Click to go to the
next page
5-4
Chapter 5: Support DVD & System Recovery
Utilities menu
The Utilities menu shows the applications that the Eee PC supports.
InstAll - Installation Wizard for Utilities
Installs all the utilities.
ASUS Update
The ASUS Update utility allows you to update the Eee PC BIOS in the
Windows® environment. This utility requires an Internet connection
either through a network or an Internet Service Provider (ISP).
TouchPad Driver
Installs the touchpad driver.
Click to go to the
previous page
Click to go to the
next page
ASUS Eee PC
5-5
ASUS OS Cleaner
Installs ASUS OS cleaner application.
Ethernet Utility
Installs the Ethernet utility.
ADOBE Acrobat Reader
Installs the Adobe® Acrobat® Reader that allows you to open, view,
and print documents in Portable Document Format (PDF).
Skype™
Installs Skype™ application.
Office: Sun StarOffice 8
Installs StarOffice 8 office applications.
Click to go to the
previous page
Office: Sun StarOffice 8 Update 9
Updates StarOffice 8.
U1 Utility
Installs U1 skype phone utility.
InterVideo DVD XPack
Installs InterVideo DVD Xpack.
5-6
Chapter 5: Support DVD & System Recovery
Contact
Click the Contact tab to display the ASUS contact information.
Other information
The icons on the top right corner of the screen provide additional
information on the Eee PC and the contents of the support DVD.
Click an icon to display the specified information.
File list
Technical support
DVD content
System information
ASUS Eee PC
5-7
System Recovery
Using the Support DVD
The Support DVD includes an image of the operating system,
installed on your system at the factory. The Support DVD provides a
comprehensive recovery solution that quickly restores your system
to its original working state, provided that your system drive is in
good working order. Before using the Support DVD, copy your data
files to floppy disks or to a network drive and make note of any
customized configuration settings (such as network settings).
1. Connect an external optical drive to your Eee PC and insert
the Support DVD into the optical drive (System needs to be
powered ON).
2. Press <ESC> on bootup and the Please select boot device
screen appears. Select USB:XXXXXX (may be labeled as the ODD
brand name) to boot from the optical drive.
Please select boot device:
Band ?to move selection
ENTER to select boot device
HDD:SM-ASUS_PHISON_OB SSD
HDD:SM-ASUS_PHISON SSD
USB:Slimtype DVD
3. Press any key to boot from the optical drive.
Press any key to boot from CD...
5-8
Chapter 5: Support DVD & System Recovery
You will lose all your data during the system recovery. Ensure to
back up your important data before recovering your system.
4. Click OK in the Recovery System for Eee PC dialog box.
5. Click Yes to start the system recovery.
6. After the system recovery is completed, eject the Support DVD
from the optical drive and click OK to restart the Eee PC.
Declarations and Safety Statements
Copyright Information
Limitation of Liability
Service and Support
A
Appendix
A-2
Appendix
Declarations and Safety Statements
Federal Communications Commission Statement
This device complies with FCC Rules Part 15. Operation is subject to
the following two conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the
limits for a class B digital device, pursuant to Part 15 of the Federal
Communications Commission (FCC) rules. These limits are designed
to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
The use of a shielded-type power cord is required in order to
meet FCC emission limits and to prevent interference to the
nearby radio and television reception. It is essential that only
the supplied power cord be used. Use only shielded cables to
connect I/O devices to this equipment. You are cautioned that
changes or modifications not expressly approved by the party
responsible for compliance could void your authority to operate
the equipment.
ASUS Eee PC
A-3
(Reprinted from the Code of Federal Regulations #47, part 15.193, 1993.
Washington DC: Office of the Federal Register, National Archives and
Records Administration, U.S. Government Printing Office.)
FCC Radio Frequency (RF) Exposure Caution
Statement
Any changes or modifications not expressly approved by the
party responsible for compliance could void the user’s authority
to operate this equipment. “The manufacture declares that
this device is limited to Channels 1 through 11 in the 2.4GHz
frequency by specified firmware controlled in the USA.”
This equipment complies with FCC radiation exposure limits set forth
for an uncontrolled environment. To maintain compliance with FCC
RF exposure compliance requirements, please avoid direct contact
to the transmitting antenna during transmitting. End users must
follow the specific operating instructions for satisfying RF exposure
compliance.
Max. SAR Measurement (1g)
802.11b SAR Value: 0.039 W/kg
802.11g SAR Value: 0.097 W/kg
A-4
Appendix
Declaration of Conformity
(R&TTE directive 1999/5/EC)
The following items were completed and are considered relevant
and sufficient:
• Essential requirements as in [Article 3]
• Protection requirements for health and safety as in [Article 3.1a]
• Testing for electric safety according to [EN 60950]
• Protection requirements for electromagnetic compatibility in
[Article 3.1b]
• Testing for electromagnetic compatibility in [EN 301 489-1] & [EN
301]
• Testing according to [489-17]
• Effective use of the radio spectrum as in [Article 3.2]
• Radio test suites according to [EN 300 328-2]
CE Mark Warning
This is a Class B product, in a domestic environment, this product
may cause radio interference, in which case the user may be required
to take adequate measures.
IC Radiation Exposure Statement for Canada
This equipment complies with IC radiation exposure limits set forth
for an uncontrolled environment. To maintain compliance with IC
RF exposure compliance requirements, please avoid direct contact
to the transmitting antenna during transmitting. End users must
follow the specific operating instructions for satisfying RF exposure
compliance.
Operation is subject to the following two conditions:
• This device may not cause interference and
• This device must accept any interference, including interference
that may cause undesired operation of the device.
Max. SAR Measurement (1g)
802.11b SAR Value: 0.039 W/kg
802.11g SAR Value: 0.097 W/kg
ASUS Eee PC
A-5
Wireless Operation Channel for Different Domains
N. America 2.412-2.462 GHz Ch01 through CH11
Japan 2.412-2.484 GHz Ch01 through Ch14
Europe ETSI 2.412-2.472 GHz Ch01 through Ch13
France Restricted Wireless Frequency Bands
Some areas of France have a restricted frequency band. The worst
case maximum authorized power indoors are:
• 10mW for the entire 2.4 GHz band (2400 MHz–2483.5 MHz)
• 100mW for frequencies between 2446.5 MHz and 2483.5 MHz
Channels 10 through 13 inclusive operate in the band 2446.6 MHz to
2483.5 MHz.
There are few possibilities for outdoor use: On private property or on
the private property of public persons, use is subject to a preliminary
authorization procedure by the Ministry of Defense, with maximum
authorized power of 100mW in the 2446.5–2483.5 MHz band. Use
outdoors on public property is not permitted.
In the departments listed below, for the entire 2.4 GHz band:
• Maximum authorized power indoors is 100mW
• Maximum authorized power outdoors is 10mW
Departments in which the use of the 2400–2483.5 MHz band is
permitted with an EIRP of less than 100mW indoors and less than
10mW outdoors:
01 Ain Orientales 02 Aisne 03 Allier
05 Hautes Alpes 08 Ardennes 09 Ariège
11 Aude 12 Aveyron 16 Charente
24 Dordogne 25 Doubs 26 Drôme
32 Gers 36 Indre 37 Indre et Loire
41 Loir et Cher 45 Loiret 50 Manche
55 Meuse 58 Nièvre 59 Nord
A-6
Appendix
60 Oise 61 Orne 63 Puy du Dôme
64 Pyrénées Atlantique 66 Pyrénées 67 Bas Rhin
68 Haut Rhin 70 Haute Saône
71 Saône et Loire 75 Paris
82 Tarn et Garonne 84 Vaucluse 88 Vosges
89 Yonne 90 Territoire de Belfort
94 Val de Marne
This requirement is likely to change over time, allowing you to use
your wireless LAN card in more areas within France. Please check
with ART for the latest information (www.art-telecom.fr)
Your WLAN Card transmits less than 100mW, but more than
10mW.
ASUS Eee PC
A-7
UL Safety Notices
Required for UL 1459 covering telecommunications (telephone)
equipment intended to be electrically connected to a
telecommunication network that has an operating voltage to
ground that does not exceed 200V peak, 300V peak-to-peak, and
105V rms, and installed or used in accordance with the National
Electrical Code (NFPA 70).
When using the Eee PC modem, basic safety precautions should
always be followed to reduce the risk of fire, electric shock, and injury
to persons, including the following:
• DO NOT use the Eee PC near water, for example, near a bath tub,
wash bowl, kitchen sink or laundry tub, in a wet basement or
near a swimming pool.
• DO NOT use the Eee PC during an electrical storm. There may be
a remote risk of electric shock from lightning.
• DO NOT use the Eee PC in the vicinity of a gas leak.
Required for UL 1642 covering primary (nonrechargeable) and
secondary (rechargeable) lithium batteries for use as power sources
in products. These batteries contain metallic lithium, or a lithium
alloy, or a lithium ion, and may consist of a single electrochemical
cell or two or more cells connected in series, parallel, or both, that
convert chemical energy into electrical energy by an irreversible or
reversible chemical reaction.
• Do not dispose the Eee PC battery pack in a fire, as they may
explode. Check with local codes for possible special disposal
instructions to reduce the risk of injury to persons due to fire or
explosion.
• Do not use power adapters or batteries from other devices to
reduce the risk of injury to persons due to fire or explosion. Use
only UL certified power adapters or batteries supplied by the
manufacturer or authorized retailers.
A-8
Appendix
Power Safety Requirement
Products with electrical current ratings up to 6A and weighing more
than 3Kg must use approved power cords greater than or equal to:
H05VV-F, 3G, 0.75mm
2
or H05VV-F, 2G, 0.75mm
2
.
This symbol of the crossed out wheeled bin indicates that
the product (electrical, electronic equipment, and mercury-
containing button cell battery) should not be placed in
municipal waste. Check local regulations for disposal of
electronic products.
ASUS Eee PC
A-9
Nordic Lithium Cautions (for lithium-ion batteries)
CAUTION! Danger of explosion if battery is incorrectly
replaced. Replace only with the same or equivalent
type recommended by the manufacturer. Dispose
of used batteries according to the manufacturer’s
instructions. (English)
ATTENZIONE! Rischio di esplosione della batteria se
sostituita in modo errato. Sostituire la batteria con
un una di tipo uguale o equivalente consigliata dalla
fabbrica. Non disperdere le batterie nell’ambiente.
(Italian)
VORSICHT! Explosionsgefahr bei unsachgemäßen
Austausch der Batterie. Ersatz nur durch denselben
oder einem vom Hersteller empfohlenem ähnlichen
Typ. Entsorgung gebrauchter Batterien nach Angaben
des Herstellers. (German)
ADVARSELI! Lithiumbatteri - Eksplosionsfare ved
fejlagtig håndtering. Udskiftning må kun ske med
batteri af samme fabrikat og type. Levér det brugte
batteri tilbage til leverandøren. (Danish)
VARNING! Explosionsfara vid felaktigt batteribyte.
Använd samma batterityp eller en ekvivalent typ som
rekommenderas av apparattillverkaren. Kassera använt
batteri enligt fabrikantens instruktion. (Swedish)
VAROITUS! Paristo voi räjähtää, jos se on virheellisesti
asennettu. Vaihda paristo ainoastaan laitevalmistajan
sousittelemaan tyyppiin. Hävitä käytetty paristo
valmistagan ohjeiden mukaisesti. (Finnish)
A-10
Appendix
ATTENTION! Il y a danger d’explosion s’il y a
remplacement incorrect de la batterie. Remplacer
uniquement avec une batterie du mêre type ou d’
un type équivalent recommandé par le constructeur.
Mettre au rebut les batteries usagées conformément
aux instructions du fabricant. (French)
ADVARSEL! Eksplosjonsfare ved feilaktig skifte av
batteri. Benytt samme batteritype eller en tilsvarende
type anbefalt av apparatfabrikanten. Brukte batterier
kasseres i henhold til fabrikantens instruksjoner.
(Norwegian)
(Japanese)
ASUS Eee PC
A-11
Copyright Information
No part of this manual, including the products and software
described in it, may be reproduced, transmitted, transcribed, stored
in a retrieval system, or translated into any language in any form
or by any means, except documentation kept by the purchaser
for backup purposes, without the express written permission of
ASUSTeK COMPUTER INC. (“ASUS”).
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY
KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO
THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS,
ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR
ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES
(INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS,
LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE),
EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL
OR PRODUCT.
Products and corporate names appearing in this manual may or
may not be registered trademarks or copyrights of their respective
companies, and are used only for identification or explanation and to
the owners’ benefit, without intent to infringe.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL
ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT
TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT
BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO
RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES
THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS
AND SOFTWARE DESCRIBED IN IT.
Copyright © 2008 ASUSTeK COMPUTER INC. All Rights Reserved.
A-12
Appendix
Limitation of Liability
Circumstances may arise where because of a default on ASUS’ part
or other liability, you are entitled to recover damages from ASUS.
In each such instance, regardless of the basis on which you are
entitled to claim damages from ASUS, ASUS is liable for no more
than damages for bodily injury (including death) and damage to real
property and tangible personal property; or any other actual and
direct damages resulted from omission or failure of performing legal
duties under this Warranty Statement, up to the listed contract price
of each product.
ASUS will only be responsible for or indemnify you for loss, damages
or claims based in contract, tort or infringement under this Warranty
Statement.
This limit also applies to ASUS’ suppliers and its reseller. It is the
maximum for which ASUS, its suppliers, and your reseller are
collectively responsible.
UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF
THE FOLLOWING: (1) THIRD-PARTY CLAIMS AGAINST YOU FOR
DAMAGES; (2) LOSS OF, OR DAMAGE TO, YOUR RECORDS OR DATA;
OR (3) SPECIAL, INCIDENTAL, OR INDIRECT DAMAGES OR FOR ANY
ECONOMIC CONSEQUENTIAL DAMAGES (INCLUDING LOST PROFITS
OR SAVINGS), EVEN IF ASUS, ITS SUPPLIERS OR YOUR RESELLER IS
INFORMED OF THEIR POSSIBILITY.
Service and Support
Visit our multi-language web site at http://support.asus.com
