PL-X31M,PL-X32M User Manual
1
1 Introduction
The PL-X31M, PL-X32M (also called “the device” hereinafter) is a low power
consumption PLC device developed based on the master chip of INT6400. It can
transmit the network data in the power line. The device is compatible with the latest
requirements of the EUP Directive. When the device enters the lower power
consumption mode, the consumption is less than 1W.
The device can detect 200 Mbps PLC-Ethernet bridge devices in the power line
network, measure data rate performance, ensure the security of the powering
network, and perform system diagnosis.
1.1 System Requirements
Operating System Windows 98SE, Windows 2000, Windows
ME, Windows XP 32/64 bit and Windows
Vista 32/ 64bit
CPU Intel Pentium III or higher and clock rate
faster than 2.0 GHz are recommended.
RAM At least 128 MB
Screen Resolution Any resolution
Free Disk Space At least 20 MB
Network Interface At least one fast Ethernet (100 Mbps)
network interface card (NIC) and one
Ethernet cord
1.2 Packing List
2 x Mini-PLC Devices
1 x CD-ROM
2 x RJ45 Ethernet cables
PL-X31M,PL-X32M User Manual
2
2 Safety Precautions
This device is used for to connect to the AC power line. Before using the device, read
the instructions carefully, in order to use the device correctly and safely. For the
installation instructions, refer to the installation section of this guide.
Follow all the warnings and instructions marked on the product.
Before cleaning the device, unplug it from the wall outlet. Use a dry cloth for
cleaning. Do not use liquid cleaners or aerosol cleaners.
Do not place the device near water.
Do not place the device near or over a radiator or heat register.
Do not use an extension cord between the device and the AC power source.
Only professional technicians should service the device. Opening or removing
covers may result in exposure to dangerous voltage points or other risks.
Unplug the device from the wall outlet and refer to professional service
personnel for the following conditions:
If liquid has been spilled into the product
If the device has been exposed to rain or water
If the device does not operate normally when following the operation
instructions
If the device exhibits a distinct change in performance
PL-X31M,PL-X32M User Manual
3
3 Adapter
3.1 Ethernet Interface
Use one end of a network cable to connect the Ethernet interface. Use the other end
of the cable to connect the Ethernet interface of the computer or another
Ethernet-enabled network device.
3.2 Buttons

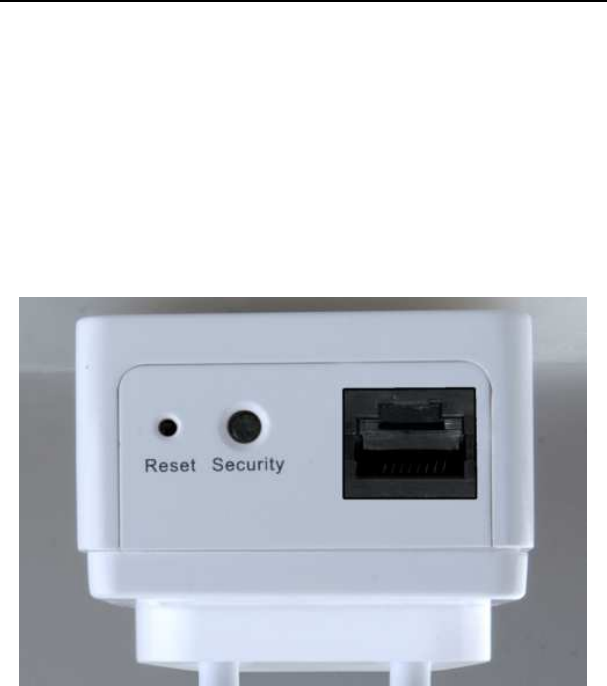

Figure 1 Side panel of the device
Reset: Restore the factory defaults.
Security: Set the membership state.
Pressing and holding the NMK button for more than 10 seconds randomizes
the NMK value.
Pressing and holding the NMK button for more than 3 seconds makes the
PL-X31M,PL-X32M User Manual
4
adapter a member of the existing AVLN.
3.3 LEDs
There are 3 LEDs on the front panel to indicate the status of the adapter.

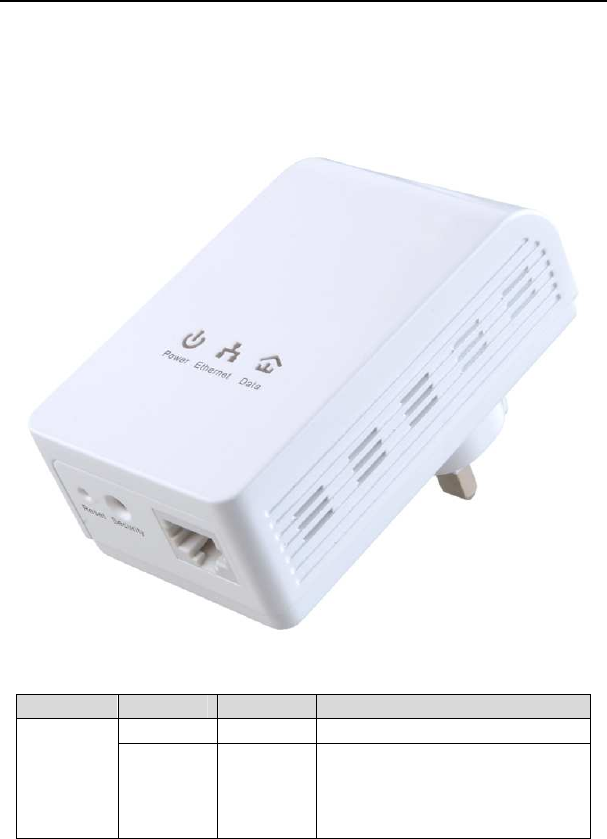

Figure 2 Top view
The following table describes the LEDs on the device.
LED Color Behavior
Description
Green On Power is on Power
Green Blink System enters the power
save mode.
System is resetting.
PL-X31M,PL-X32M User Manual
5
LED Color Behavior
Description
System is in the process of
security setup.
- Off Power is off.
Green On
The device is connecting to other
devices via the Ethernet interface
but not communicating with them.
Green Blink
The device is receiving or
transmitting data via the Ethernet
interface.
Ethernet
- Off
The device is not connecting to
other devices via the Ethernet
interface.
Green/Red
On
The device has connected to the
power line network. The Data LED
color will vary according to the
physical rate.
Green: Link Rate > 40 Mbps
Orange: 20 Mbps< Link Rate
<40 Mbps
Red: Link Rate< 20 Mbps
Red Blink
When the device is scanning other
PLC devices, the Data indicator
blink quickly.
Data
- Off
The adapter has not found any
other compatible power line
devices that use the same
encryption key.
Note:
The Power, Ethernet and Data indicators blink quickly when the device is powered on.
At that moment, the Power and Ethernet indicators are green, and the Data indicator
is orange.
PL-X31M,PL-X32M User Manual
6
4 Utility Installation
Note:
Before installing the PLC utility software, make sure that there is no any other power
line utility installed on your computer. If there is another utility installed, please
uninstall it and restart your computer.
Follow the steps below to install the utility. No password or CD-Key is needed.
Step1 Please insert the utility CD into the computer’s CD-ROM drive. Select the
PLC 200AV Utility Installation folder and then double-click the setup.exe.
A page for installing the utility appears.
Figure 3 Opening the setup wizard
Step2 Click Next > to display the following page.
PL-X31M,PL-X32M User Manual
7

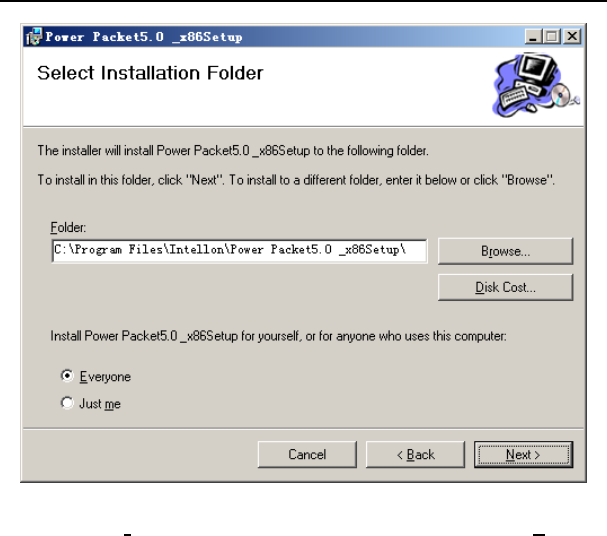

Figure 4 Selecting the installation folder
Step3 Click Browse… to select the installation folder, and then click Next > to
continue.
PL-X31M,PL-X32M User Manual
8
Figure 5 Completing the installation
Step4 Click Close to complete the installation.
PL-X31M,PL-X32M User Manual
9
5 How to Use the Utility
5.1 Main Tab
The Main screen provides a list of all power line devices logically connected to the
computer when the utility is running.
The top panel shows local HomePlug devices connected to the network interface
card (NIC) of the computer. Click Connect. The utility automatically scans the power
line periodically for other HomePlug devices when it is connected to the local device.
If no local HomePlug device is discovered, the status bar displays NO HOMEPLUG
ADAPTERS DETECTED.

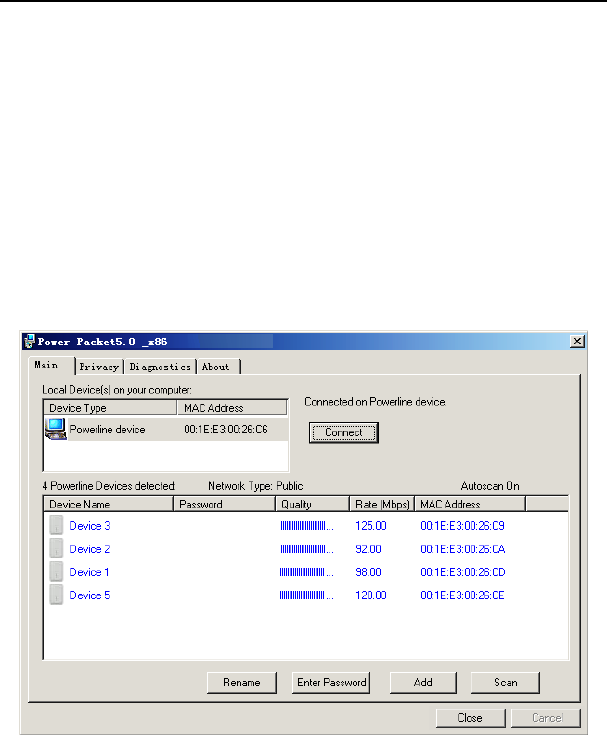

Figure 6 Main tab
The lower panel displays all the HomePlug remote devices, which are discovered in
the current logical network. The total number of remote devices connected in the
same network is displayed above the remote device panel. Network type (Public or
Private) depends on the network status of the local device. Autoscan shows
PL-X31M,PL-X32M User Manual
10
whether the autoscan function is on. The following information is displayed for all
devices that appear in the lower panel.
Device Name
This column shows the default device name, which may be modified. To change the
name, click Rename or click the name and edit it in the list.
MAC Address
This column shows the MAC addresses of the remote devices.
Password
By default, this column is blank. You can click Enter Password to change it. The
procedure for setting the password of the device (required when creating a private
network) is as follows:
Step1 Click the device name to select the device in the lower panel.
Step2 Click Enter Password. A dialog box appears, showing the device name
and password. See Figure 7.
PL-X31M,PL-X32M User Manual
11
Figure 7 Setting a device password
Step3 Click OK to verify the password. The password field accepts the device
password in any case formats, with or without dash.
A confirmation box appears if the password is entered correctly. If a device is not
found, a message appears, providing suggestions to solve the common problems.
This process takes a few seconds.
Add
This button is used to add a remote device to the existing network by entering the

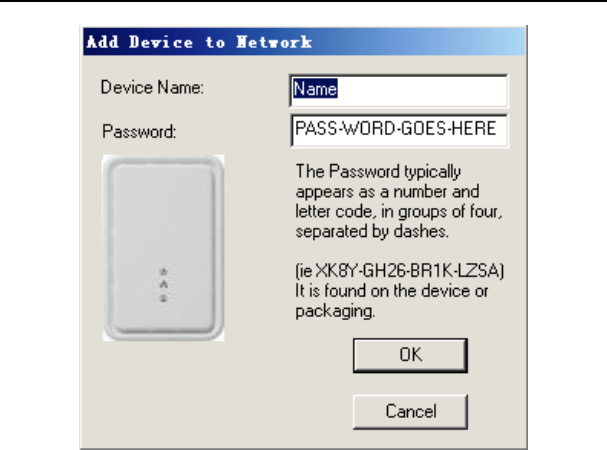

device password of the device. A dialog box appears. See Figure 8. You can enter a
device name and the password.
If the device is found and the password is entered correctly, a confirmation box
appears. If a device is not found, a message appears, providing suggestions to solve
the common problems.
PL-X31M,PL-X32M User Manual
12
Figure 8 Adding a remote device
Note:
The device must be in the power line (plugged in), so that you can confirm the
password and add the device to the network. If the device is not located, a warning
message appears.
Scan
This button is used to perform an immediate search for HomePlug devices connected
to the Power line network. By default, the utility automatically scans every a few
seconds and updates the displayed information.
5.2 Privacy Tab
In the Privacy screen, you can maintain security for the logical network and select
the device included in the network. See Figure 9.
PL-X31M,PL-X32M User Manual
13
All HomePlug devices are loaded using a default logical network (network name),
which is normally HomePlug”. In the Privacy screen, you can modify a private
network by changing network names and passwords of devices.
Click Use Default or enter HomePlug as the network name, to reset to the
HomePlug network (Public).

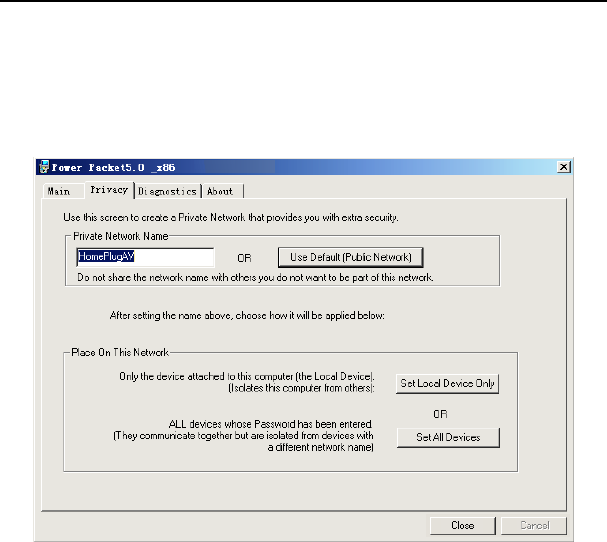

Figure 9 Privacy tab
Note:
If the network name changes to anything other than HomePlug, the network type in
the main screen is displayed as Private.
Set Local Device Only
This button is used to change the network name and password of the local device. If
a new network password is entered, all the devices appeared in the Main panel prior
to this are no longer present in the new network, effectively making the local devices
not to communicate to the devices which are in the old logical network. Click Set
Local Dive Only, the devices previously set up with the same logical network (same
PL-X31M,PL-X32M User Manual
14
network name) appears in the device list.
Set All Devices
This button is used to change the logical network of all devices that appear in the
main panel. If these devices whose passwords have been entered for the same
logical network, a dialog box appears, indicating successful operation. For devices
whose passwords are not entered, a dialog box appears indicating operation failure.
5.3 Diagnostics Tab
The Diagnostics screen shows the system information and history of all remote

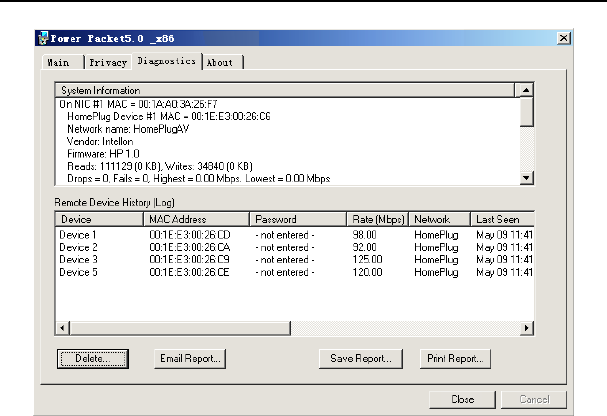

devices appeared over a period of time. See Figure 10.
The Upper panel shows technical data concerning software and hardware on the
host computer that are used to communicate through HomePlug on the power line
network. It includes the following:
Operating system platform/version
Host network name
User name
MAC address of all NICs (Network interface card) connected to the host
Identify versions of all Driver DLLs and Libraries used (NDIS) and optionally
HomePlug chipset manufacturer name (Turbo Only devices)
MAC Firmware Version (Turbo Only devices)
MAC addresses of all devices connected locally to the host
Version of the Configuration Utility
Vendor name
PL-X31M,PL-X32M User Manual
15
Figure 10 Diagnostics tab
The Lower panel displays the history of all remote devices appeared on the
computer over a certain period of time. All the devices and the parameters of the
devices on the power line network are listed. Devices that are active on the current
logical network show a transfer rate in the rate column. Devices on other networks, or
devices that no longer exist are shown with a “?” in the rate column. The following
remote device information is available from the diagnostics screen:
Device alias name
MAC address
Password
Device last known rate
Device last known network name
HomePlug chipset manufacturer name
Date device last seen on the network
MAC firmware version
The diagnostics information displayed can be saved to a text file for later use, or be
PL-X31M,PL-X32M User Manual
16
printed for reference for a technical support call. Click delete to delete the devices
which are no longer part of the network. A dialog window pops up with a confirmation
message if the user wants to delete a device whose password has been entered.
5.4 About Tab
The About screen shows the software version and provides a html link to a website,
such as www.PowerPacket.com. Clicking the web address, it enters into the web site.

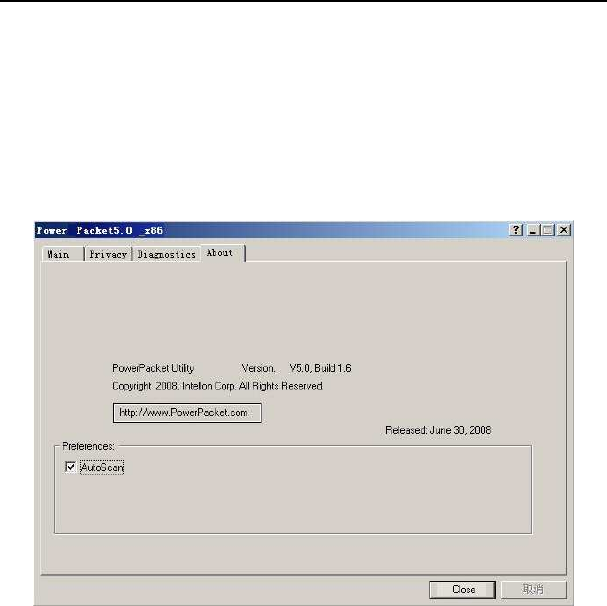

Figure 11 About tab
Preferences
The lower part of the panel displays options for turning the autoscan function on or off.
PL-X31M,PL-X32M User Manual
17
6 How to Use the NMK Pushbutton
This section describes how to add new devices or remove old devices from a
HomePlug AV logical network (AVLN) by using a NMK pushbutton.
Power LED status indicates the operation progress and result.
6.1 Forming a HomePlug AV Logical Network
When two devices with different NMK values are connected to the same power line,
and the user wants them to form a logical network.
Step1 Press the NMK button on device A for less than 3 seconds.
Step2 Press the NMK button on device B for less than 3 seconds. The button on B
must be pressed within 1 minute
Step3 Wait for the connection to complete.
The Power LED on both devices blinks evenly at 1-second intervals until the
operation succeeds or fails. If the connection succeeds, it illuminates steadily. If an
error occurs, the Power LED on the ‘adder’ blinks unevenly until the pushbutton on
the ‘adder’ is pressed again or the ‘joiner’ is reset by holding the pushbuttons down
for more than 10 seconds.
A
PLC B
PLC C
PLC
A and B are not part of AVLN
A and B want to form an AVLN
Press NMK button on A less than 3 sec.
Press NMK button on B less than 3 sec.
A becomes “joiner”
B becomes “joiner”
B determines that A MAC address < B MAC address
B becomes “adder”
A accepts NMK from B
A
PLC
A
PLC B
PLC
B
PLC C
PLC
A and B are not part of AVLN
A and B want to form an AVLN
Press NMK button on A less than 3 sec.
Press NMK button on B less than 3 sec.
A becomes “joiner”
B becomes “joiner”
B determines that A MAC address < B MAC address
B becomes “adder”
A accepts NMK from B

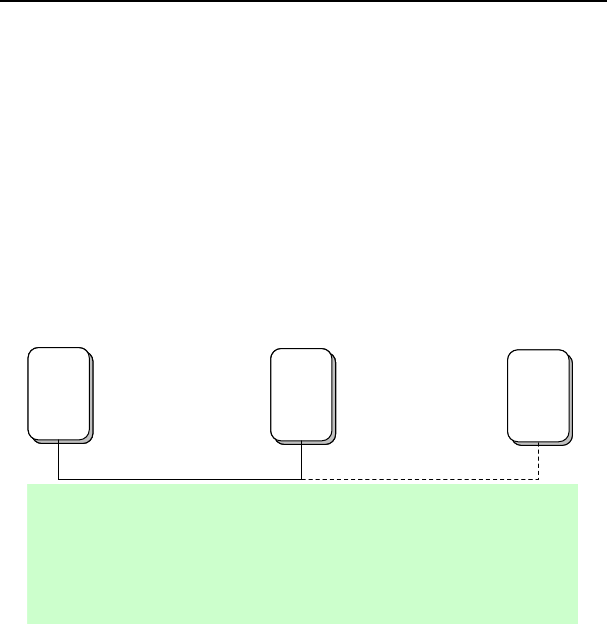

Figure 12 Forming a HomePlug AV logical network
PL-X31M,PL-X32M User Manual
18
6.2 Joining a Network
In this scenario a network exists, a new device, the ‘joiner’, wants to join the network.
Any device on the existing network can become the ‘adder’.
Step1 Press the pushbutton on the ‘joiner’ for at least 3 seconds.
Step2 Press the pushbutton on any network device for less than 3 seconds,
making it the ‘adder’. Please press this pushbutton within 1 minute.
Step3 Wait for the connection to complete.
The Power LED on both devices blinks at 1-second intervals until the process
succeeds or fails. It illuminates steadily on success connection. If an error occurs, the
Power LED on the ‘adder’ blinks unevenly until the pushbutton on the ‘adder’ is
pressed again or the ‘joiner’ is reset by pressing the pushbutton for more than 10
seconds.
A
PLC B
PLC C
PLC
A and B form an AVLN
C wants to join the AVLN
Press NMK button on B less than 3 sec.
Press NMK button on C less than 3 sec.
B becomes “adder”
C becomes “joiner”
C accepts NMK from B
A
PLC
A
PLC B
PLC
B
PLC C
PLC
A and B form an AVLN
C wants to join the AVLN
Press NMK button on B less than 3 sec.
Press NMK button on C less than 3 sec.
B becomes “adder”
C becomes “joiner”
C accepts NMK from B

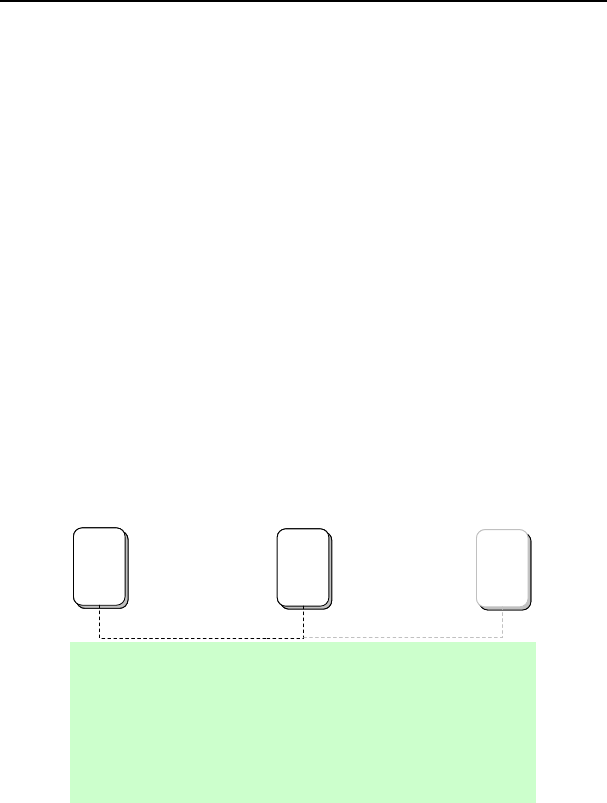

Figure 13 Joining a network
6.3 Leaving a Network
A network exists. The user wants to remove one device, the ‘leaver’, from that
network. The user wants to remove the device from service altogether or have it join
another logical network.
Step1 Press the pushbutton on the ‘leaver’ for at least 10 seconds. The device
resets and restarts with a random NMK.
PL-X31M,PL-X32M User Manual
19
Step2 Wait for the reset to complete.
The Power LED on the ‘leaver’ momentarily extinguishes during reset, blinks during
restart, then illuminates steadily. No error occurs.
The user can disconnect the device from the medium or join it to another logical
network on the same medium when it is completed.
A
PLC B
PLC C
PLC
A, B and C form an AVLN
A wants to leave the AVLN
Press NMK button on A more than 10 sec.
A computes random NMK
C resets and restarts
A
PLC
A
PLC B
PLC
B
PLC C
PLC
A, B and C form an AVLN
A wants to leave the AVLN
Press NMK button on A more than 10 sec.
A computes random NMK
C resets and restarts

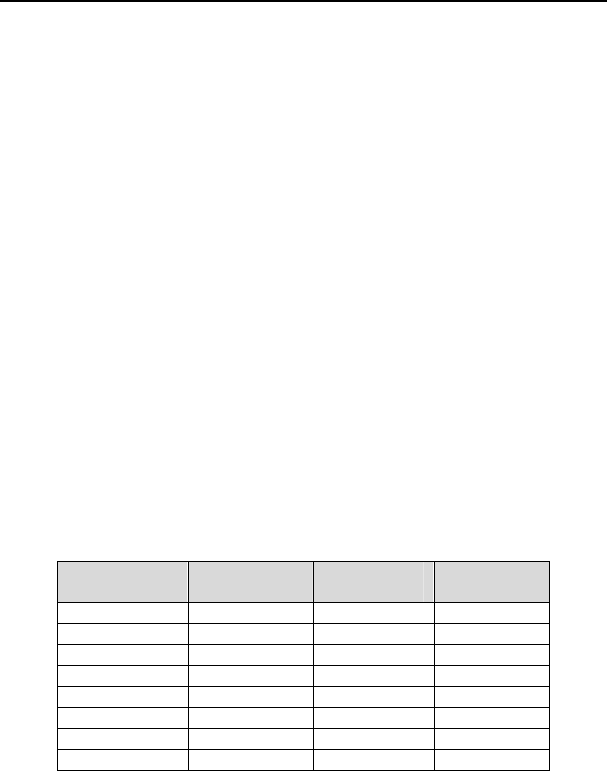

Figure 14 Leaving a network
PL-X31M,PL-X32M User Manual
20
Appendix A Specifications
Chipset Intellon INT6400
Protocol Compliant with HomePlug AV 1.1
Co-existing with existing HomePlug 1.0
System Support Windows 98SE, Windows 2000, Windows ME,
Windows XP 32/64 bit and Windows Vista 32/
64bit
PLC Rate 200 Mbps
Modulation Band 2MHz~30MHz
Modulation Schemes Support QAM 1024/256/64/16/8, QPSK, BPSK
and ROBO
Encryption 128 AES
LED Indicators Power :Power on and off
Ethernet: Ethernet link and activity
Data: PLC link and activity
Buttons Reset: Restore the default factory settings
Security: Set the membership state
Consumption 3.5 W
Operating Temperature
0ºC~40ºC
Storage Temperature -10ºC~70ºC
Operating Humidity 10%~90%, non-condensing
Storage Humidity 5%~95%, non-condensing
Power Supply 100 V~240 V AC, 50Hz~60Hz
PL-X31M,PL-X32M User Manual
21
Certifications CE, UL, FCC Part 15 Class B
Green Standard RoHS
Physical
Characteristics
L×W×H: 90 mm × 55 mm × 34 mm
Weight 108 g
PL-X31M,PL-X32M User Manual
22
Appendix B Acronyms and Abbreviations
AVLN AV In-home Logical Network, the AVLAN is the set
of STAs that possess the same network
Membership key, every AVLN is managed by a
single CCo
CCo Central Coordinator, the CCo is a superset of a
STA which includes terminal equipment identifiers
and global link identifiers
CSMA/CA Carrier Sense Multiple Access / Collision
Avoidance
DAK Device Access Key
DM Device Manager
IGMP Internet Group Management Protocol
NEK Network Encryption Key
NID Network ID (Identification)
NMK Network Membership Key
PLC Power Line Communication
PIB Parameter Information Block
STA Station, a STA in the network with a connection to
the power line and being able to source or sink
traffic
TDMA Time Division Multiple Access
TEI Terminal Equipment Identifier
TOS Type of Service
VLAN Virtual Local Area Network
PL-X31M,PL-X32M User Manual
23
Appendix C About QoS
PLC 200AV allows 4 levels of Channel Access Priority (CAP (0 – 3)). The 8 levels of
VLAN Ethernet tags must be mapped to the 4 levels of CAP priority, where CAP 3 is
the highest priority and CAP 0 is the lowest. CAP 3 priority is used for voice and
network management frames. CAP 2 is used for streaming video and music while
CAP 1 and CAP 0 are used for data.
Default CAP
The Default CAP group allows default priority mapping of packets that do not have a
VLAN tag. Settings are available for unicast (directed to a host).
IGMP - (default CAP 3) - set the channel access priority for IGMP frames -
these are the group management frames, not the stream data.
Unicast - (default CAP 1) - set the default channel access priority for unicast
frames not matching any other classification or mapping.
IGMP managed Multicast Stream (Fixed to CAP 2) - set the default channel
access priority for stream data belonging to a snooped IGMP multicast group.
Multicast/Broadcast - set the default CAP for multicast frames not in a snooped
group and for broadcast frames.
The following are the factory default settings for VLAN Tags and TOS Bits:
VLAN Tag
User priority Default CAP
Priority TOS Bit User
Priority Default CAP
Priority
0 CAP1 0 CAP1
1 CAP0 1 CAP0
2 CAP0 2 CAP0
3 CAP1 3 CAP1
4 CAP2 4 CAP2
5 CAP2 5 CAP2
6 CAP3 6 CAP3
7 CAP3 7 CAP3
PL-X31M,PL-X32M User Manual
24
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.

Navigation menu
