ASUSTeK Computer UX30INTEL512H NOTEBOOK P.C. User Manual UX30 ENGLISH
ASUSTeK Computer Inc NOTEBOOK P.C. UX30 ENGLISH
Users Manual
Notebook PC
Hardware Userʼs Manual
E4737/ May 2009
2
Table of Contents
Contents
1. Introducing the Notebook PC
About This Userʼs Manual ...............................................................................6
Notes For This Manual ........................................................................................... 6
Safety Precautions ..........................................................................................7
Preparing your Notebook PC...........................................................................9
2. Knowing the Parts
Top Side.........................................................................................................12
Bottom Side ...................................................................................................15
Left Side ........................................................................................................17
Right Side ......................................................................................................19
Front Side ......................................................................................................20
3. Getting Started
Power System ...............................................................................................22
Using AC Power ...................................................................................................22
Powering ON the Notebook PC ...........................................................................23
The Power-On Self Test (POST) .......................................................................... 23

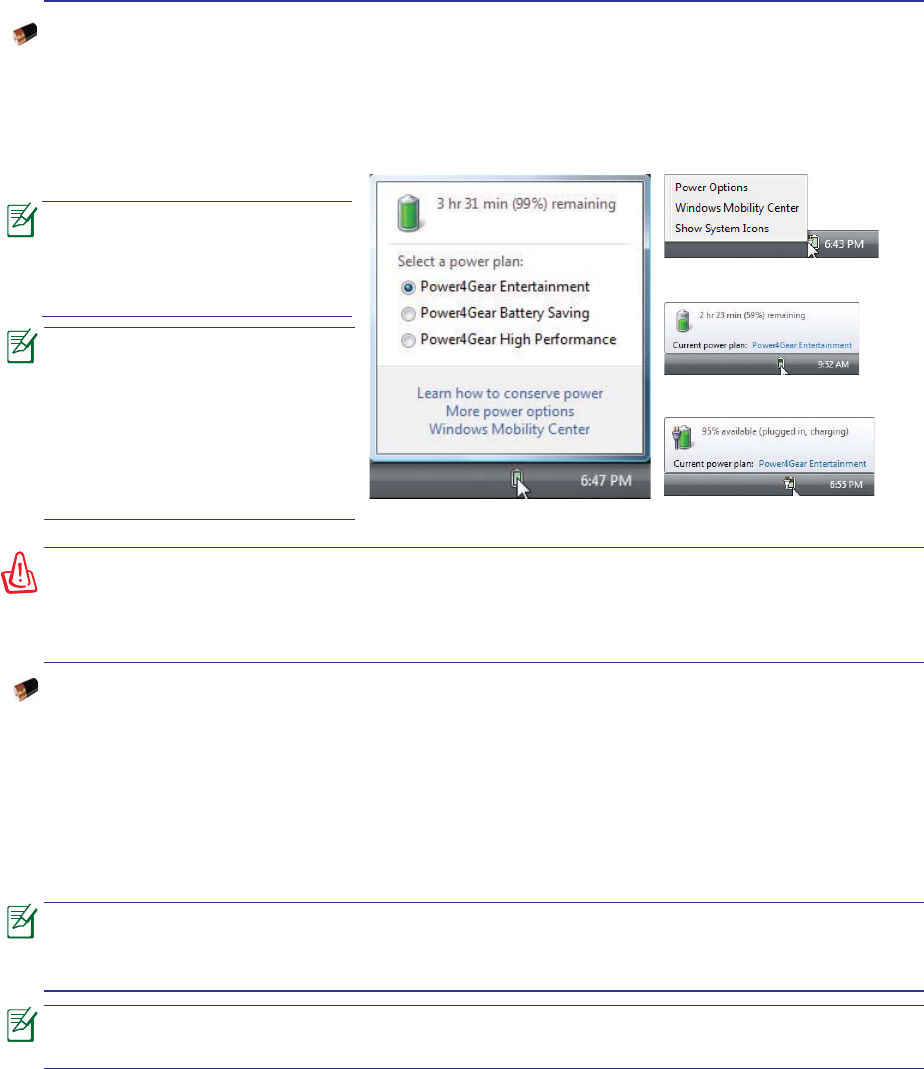

Checking Battery Power ......................................................................................24
Charging the Battery Pack ................................................................................... 24
Power Options .....................................................................................................25
Power Management Modes ................................................................................. 26
Sleep and Hibernate ............................................................................................26
Thermal Power Control ........................................................................................ 26

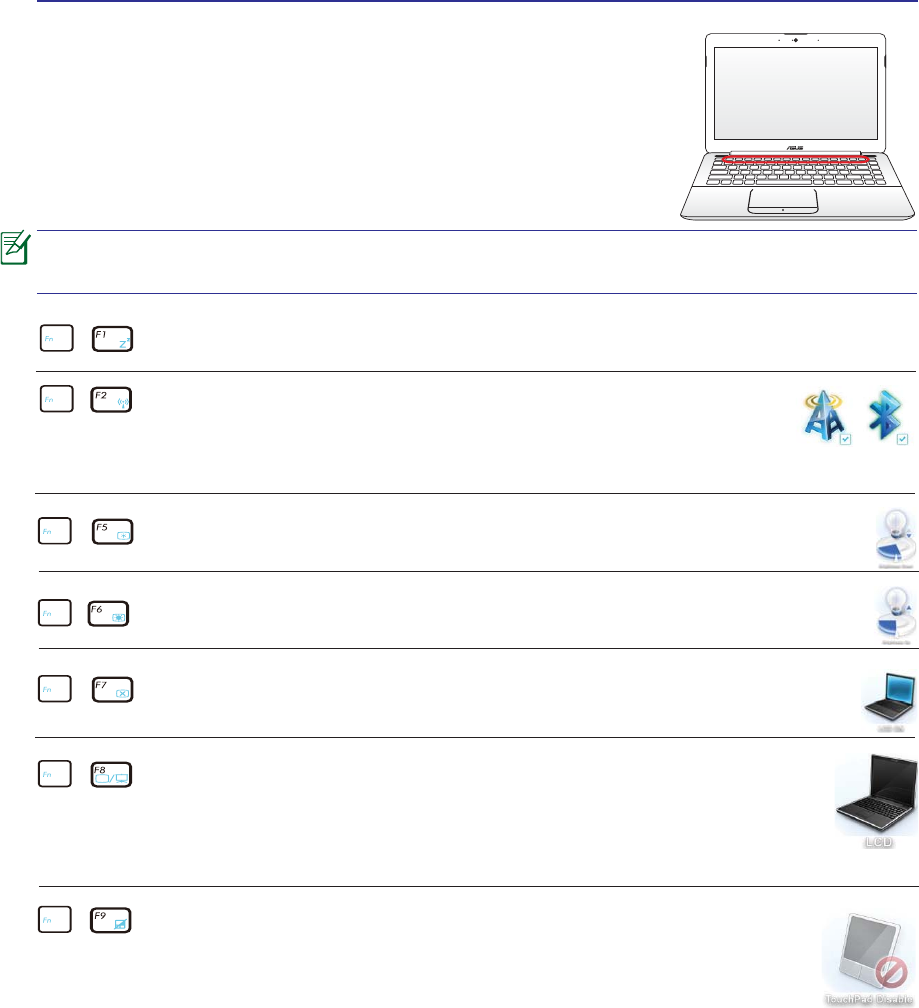

Special Keyboard Functions ..........................................................................27
Colored Hot Keys ................................................................................................. 27
Microsoft Windows Keys ...................................................................................... 29
Multimedia Control Keys (on selected models) ...................................................30
Switches and Status Indicators .....................................................................31
Switches...............................................................................................................31
Status Indicators ..................................................................................................32
4. Using the Notebook PC
Pointing Device..............................................................................................34
Using the Touchpad .............................................................................................34
3
Table of Contents (Cont.)
Contents
Touchpad Usage Illustrations ............................................................................... 35
Caring for the Touchpad .......................................................................................37
Automatic Touchpad Disabling ............................................................................. 37
Storage Devices ............................................................................................38
Hard Disk Drive .................................................................................................... 38
Memory (RAM).....................................................................................................38
Flash Memory Card Reader ................................................................................39
Connections...................................................................................................40
Network Connection ............................................................................................40
Wireless LAN Connection (on selected models) .................................................41
Windows Wireless Network Connection ..............................................................42
Bluetooth Wireless Connection (on selected models) ......................................... 43
Appendix
Optional Accessories ................................................................................... A-2
Optional Connections ........................................................................................ A-3
Bluetooth Mouse Setup (optional) ..................................................................... A-4
Operating System and Software.................................................................. A-6
System BIOS Settings ....................................................................................... A-6
Common Problems and Solutions ..................................................................... A-9
Windows Vista Software Recovery .................................................................. A-16
Glossary .................................................................................................... A-18
Declarations and Safety Statements ......................................................... A-22
Notebook PC Information .......................................................................... A-32
4
Contents
5
1. Introducing the Notebook PC
About This Userʼs Manual
Notes For This Manual
Safety Precautions
Preparing your Notebook PC
Photos and icons in this manual are used for artistic purposes only and do not
show what is actually used in the product itself.
There may be differences between your Notebook PC and the drawings shown in
this manual. Please accept your Notebook PC as being correct.
6
About This Userʼs Manual
You are reading the Notebook PC Userʼs Manual. This Userʼs Manual provides
information on the various components in the Notebook PC and how to use them. The
following are major sections of this Userʼs Manuals:
1. Introducing the Notebook PC
Introduces you to the Notebook PC and this Userʼs Manual.
2. Knowing the Parts
Gives you information on the Notebook PCʼs components.
3. Getting Started
Gives you information on getting started with the Notebook PC.
4. Using the Notebook PC
Gives you information on using the Notebook PCʼs components.
5. Appendix
Introduces you to optional accessories and gives additional information.
Notes For This Manual
A few notes and warnings in bold are used throughout this guide that you should be aware of in order
to complete certain tasks safely and completely. These notes have different degrees of importance as
described below:
NOTE: Tips and information for special situations.
TIP: Tips and useful information for completing tasks.
IMPORTANT! Vital information that must be followed to prevent damage to data,
components, or persons.
WARNING! Important information that must be followed for safe operation.
Text enclosed in < > or [ ] represents a key on the keyboard; do not actually type the
< > or [ ] and the enclosed letters.
< >
[ ]
1 Introducing the Notebook PC
7

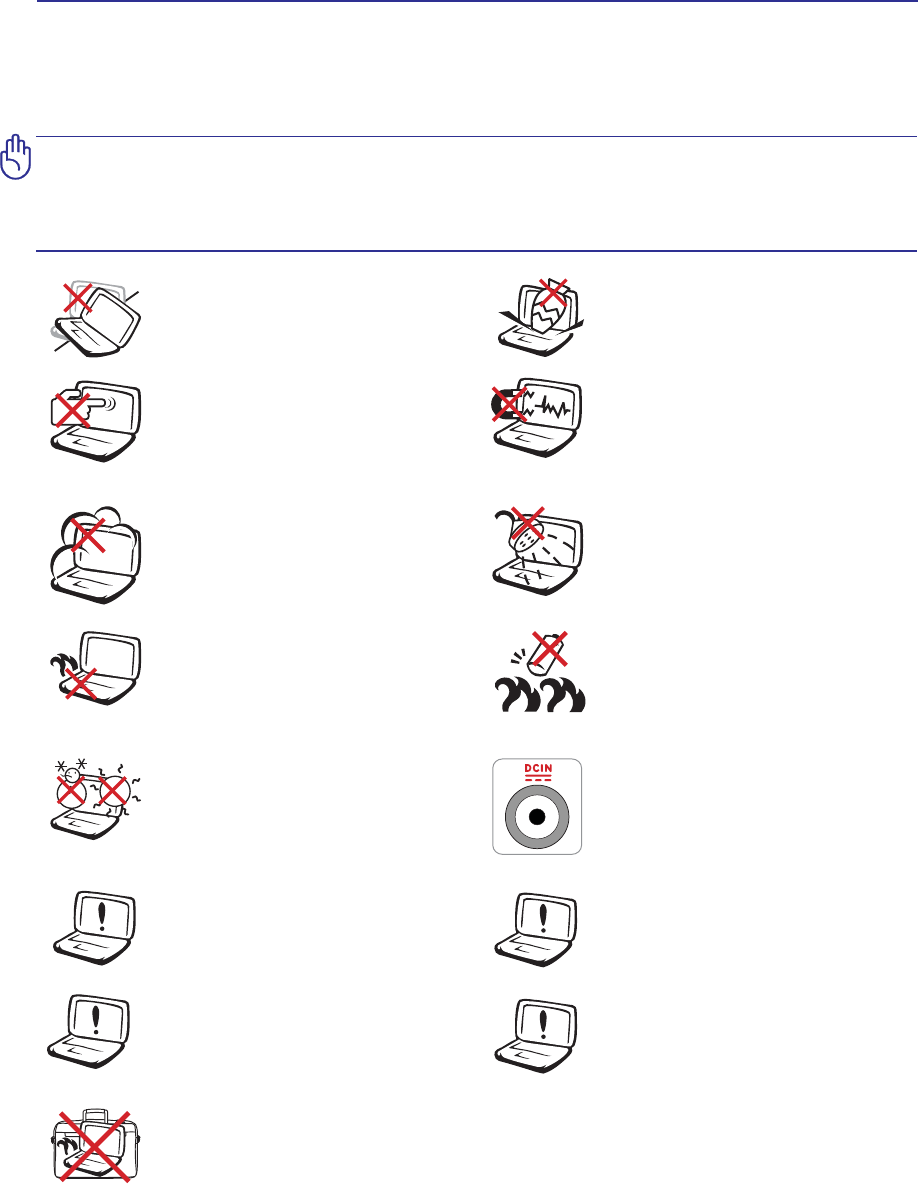

Safety Precautions
The following safety precautions will increase the life of the Notebook PC. Follow all precautions and
instructions. Except as described in this manual, refer all servicing to qualified personnel.
IMPORTANT! Disconnect the AC power and remove the battery pack(s) before
cleaning. Wipe the Notebook PC using a clean cellulose sponge or chamois cloth
dampened with a solution of nonabrasive detergent and a few drops of warm water
and remove any extra moisture with a dry cloth.
Introducing the Notebook PC 1
DO NOT expose to or use near
liquids, rain, or moisture. DO NOT
use the modem during an electrical
storm.
DO NOT expose to dirty or dusty en-
vironments. DO NOT operate during
a gas leak.
SAFE TEMP: This Notebook PC
should only be used in environments
with ambient temperatures between
10°C (50°F) and 35°C (95°F)
Battery safety warning:
DO NOT throw the battery in fire.
DO NOT short circuit the contacts.
DO NOT disassemble the battery.
DO NOT expose to strong magnetic
or electrical fields.
DO NOT place on uneven or unsta-
ble work surfaces. Seek servicing if
the casing has been damaged.
DO NOT place or drop objects on
top and do not shove any foreign
objects into the Notebook PC.
DO NOT press or touch the display
panel. Do not place together with
small items that may scratch or enter
the Notebook PC.
DO NOT leave the Notebook PC on
your lap or any part of the body in
order to prevent discomfort or injury
from heat exposure.
DO NOT carry or cover a Notebook PC that is powered ON with any materials that will
reduce air circulation such as a carrying bag.
INPUT RATING: Refer to the rat-
ing label on the bottom of the Note-
book PC and be sure that your power
adapter complies with the rating.
DO NOT use damaged power cords,
accessories, or other peripherals.
DO NOT use strong solvents such
as thinners, benzene, or other chemi-
cals on or near the surface.
Incorrect installation of battery may
cause explosion and damage the
Notebook PC.
When replacing or upgrading the bat-
tery, hard drive, and memory, always
visit an authorized service center or
retailer for this Notebook PC.
8
CAUTION! There are three main types of airport security devices: X-ray machines
(used on items placed on conveyor belts), magnetic detectors (used on people
walking through security checks), and magnetic wands (hand-held devices used on
people or individual items). You can send your Notebook PC and diskettes through
airport X-ray machines. However, it is recommended that you do not send your
Notebook PC or diskettes through airport magnetic detectors or expose them to
magnetic wands.
Charge Your Batteries
If you intend to use battery power, be sure to fully charge your battery pack before going on long trips.
Remember that the power adapter charges the battery pack as long as it is plugged into the
computer and an AC power source. Be aware that it takes much longer to charge the battery pack
when the Notebook PC is in use.
Airplane Precautions
Contact your airline if you want to use the Notebook PC on the airplane. Most airlines will have
restrictions for using electronic devices. Most airlines will allow electronic use only between and not
during takeoffs and landings.
Transportation Precautions
To prepare the Notebook PC for transport, you should turn it OFF and disconnect all external pe-
ripherals to prevent damage to the connectors. The hard disk driveʼs head retracts when the power
is turned OFF to prevent scratching of the hard disk surface during transport. Therefore, you should
not transport the Notebook PC while the power is still ON. Close the display panel and check that it is
in the closed position to protect the keyboard and display panel.
CAUTION! The Notebook PCʼs surface is easily dulled if not properly cared for. Be
careful not to rub or scrape the Notebook PC surfaces.
Cover Your Notebook PC
Purchase a carrying bag to protect the Notebook PC from dirt, water, shock, and scratches.
1 Introducing the Notebook PC
DO NOT throw the Notebook PC in municipal waste. This product has been designed
to enable proper reuse of parts and recycling. The symbol of the crossed out wheeled
bin indicates that the product (electrical, electronic equipment and mercury-containing
button cell battery) should not be placed in municipal waste. Check local regulations for
disposal of electronic products.
DO NOT throw the battery in municipal waste. The symbol of the crossed out wheeled
bin indicates that the battery should not be placed in municipal waste.
9
Preparing your Notebook PC
These are only quick instructions for using your Notebook PC. Read the later pages for detailed
information on using your Notebook PC.

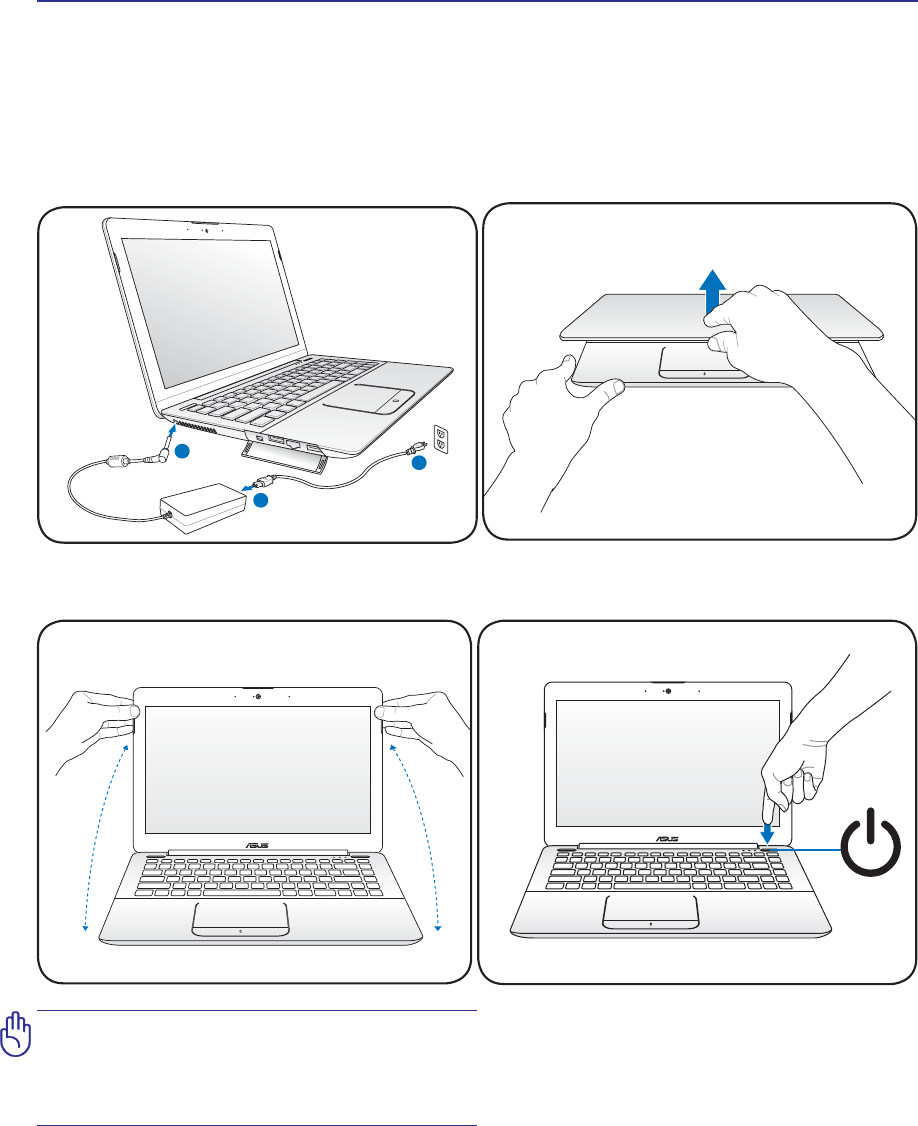

1. Connect the AC Power Adapter
IMPORTANT! When opening, DO NOT
force the display panel down to the table
or else the hinges may break! Never lift
the Notebook PC by the display panel!
3. Adjust the Display Panel 4. Turn ON the Notebook PC

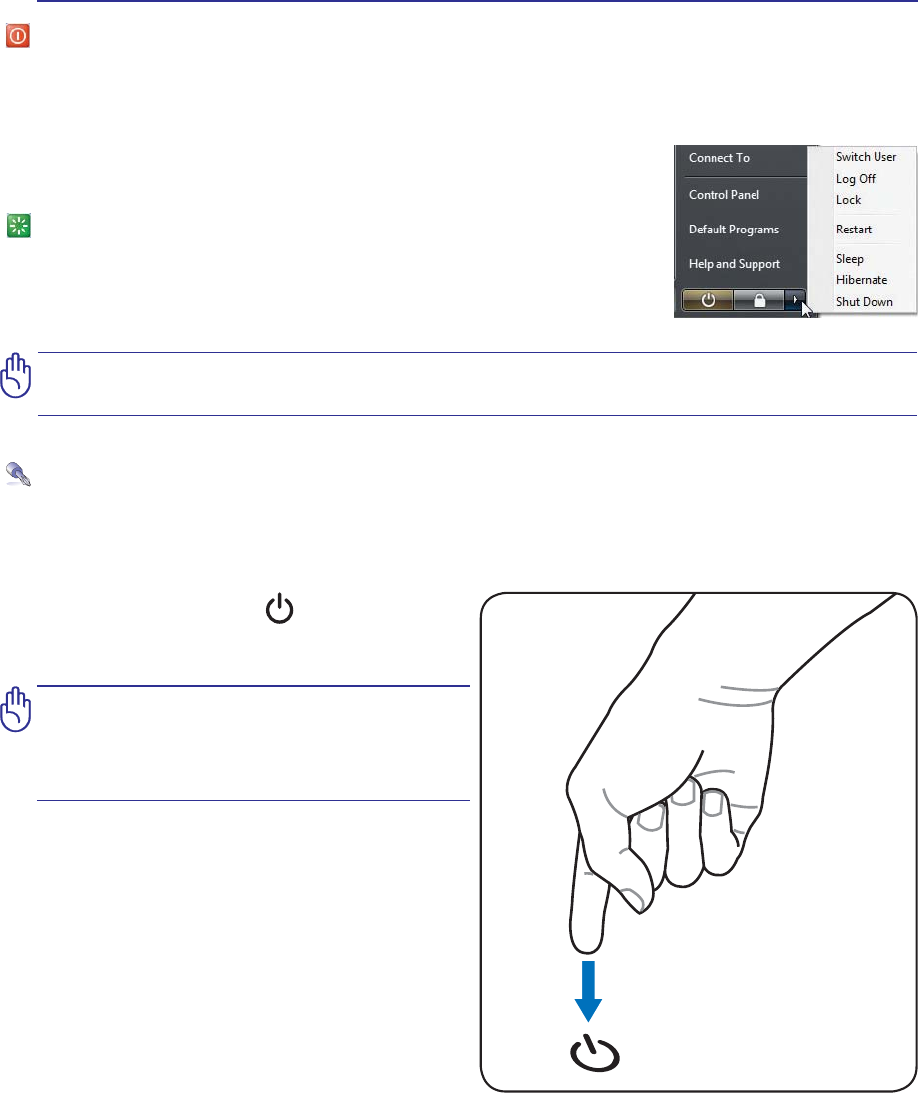

The power switch turns ON and OFF the Note-
book PC or putting the Notebook PC into sleep
or hibernation modes. Actual behavior of the
power switch can be customized in Windows
Control Panel > Power Options > System Set-
tings.
1
23
Introducing the Notebook PC 1
2. Open the Display Panel
10
1 Introducing the Notebook PC
11
2. Knowing the Parts
Basic sides of the Notebook PC
Photos and icons in this manual are used for artistic purposes only and do not
show what is actually used in the product itself.
There may be differences between your Notebook PC and the drawings shown in
this manual. Please accept your Notebook PC as being correct.
12
4
5
6
7
8
9
2
1
3
Top Side

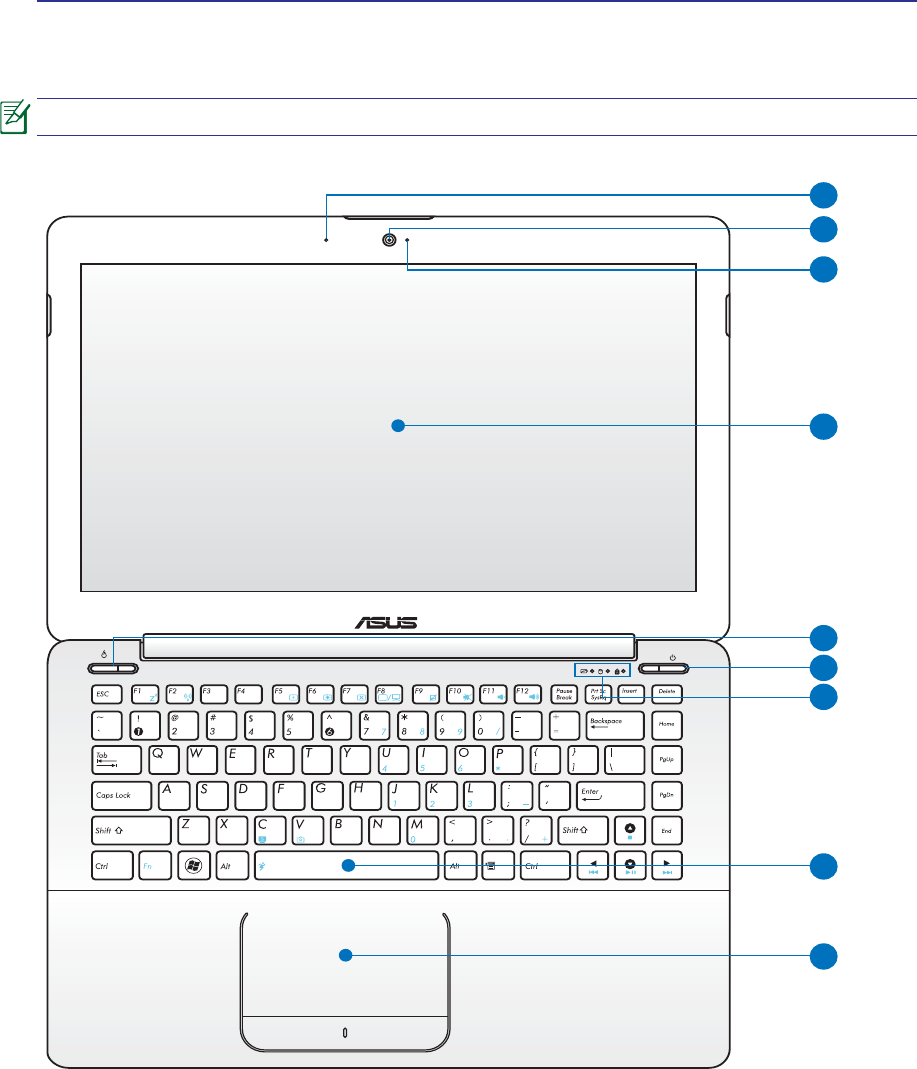

Refer to the diagram below to identify the components on this side of the Notebook PC.
The keyboard differs for each territory.
2 Knowing the Parts
13
Display Panel
The display panel functions the same as a desktop monitor. The Notebook PC uses
an active matrix TFT LCD, which provides excellent viewing like that of desktop
monitors. Unlike desktop monitors, the LCD panel does not produce any radiation or
flickering, so it is easier on the eyes. Use a soft cloth without chemical liquids (use
plain water if necessary) to clean the display panel.
Camera (on selected models)
The built-in camera allows picture taking or video recording. Can be used with video
conferencing and other interactive applications.
1

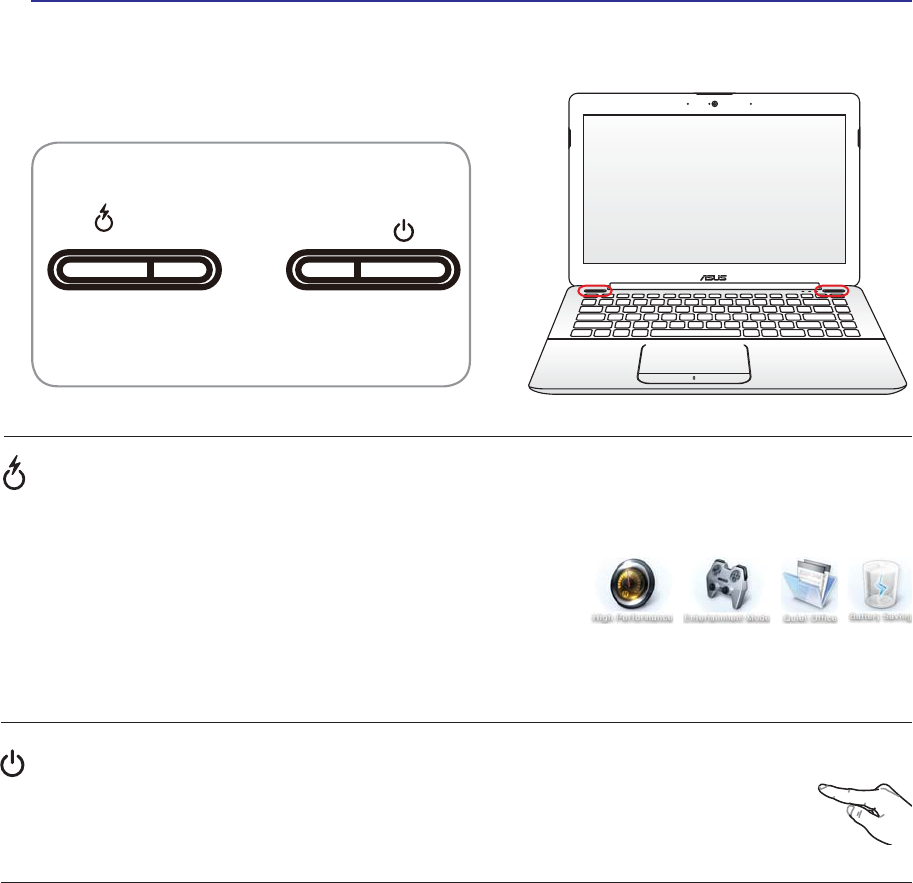

Power Switch
The power switch turns ON and OFF the Notebook PC or putting the Notebook PC into
sleep or hibernation modes. Actual behavior of the power switch can be customized in
Windows Control Panel “Power Options.”
2
3
4
5
6
Knowing the Parts 2
7
Microphone (Built-in)
The built-in mono microphone can be used for video conferencing, voice narrations, or simple
audio recordings.
Camera Indicator
The camera indicator shows when the built-in camera is in use. The camera may be auto-activated
by supported software.
Express Gate Key
Pressing this button will launch Express Gate. Refer to the Express Gate Userʼs Manual for details.
This key functions as the instant key for Power4Gear Hybrid when in Windows environment.

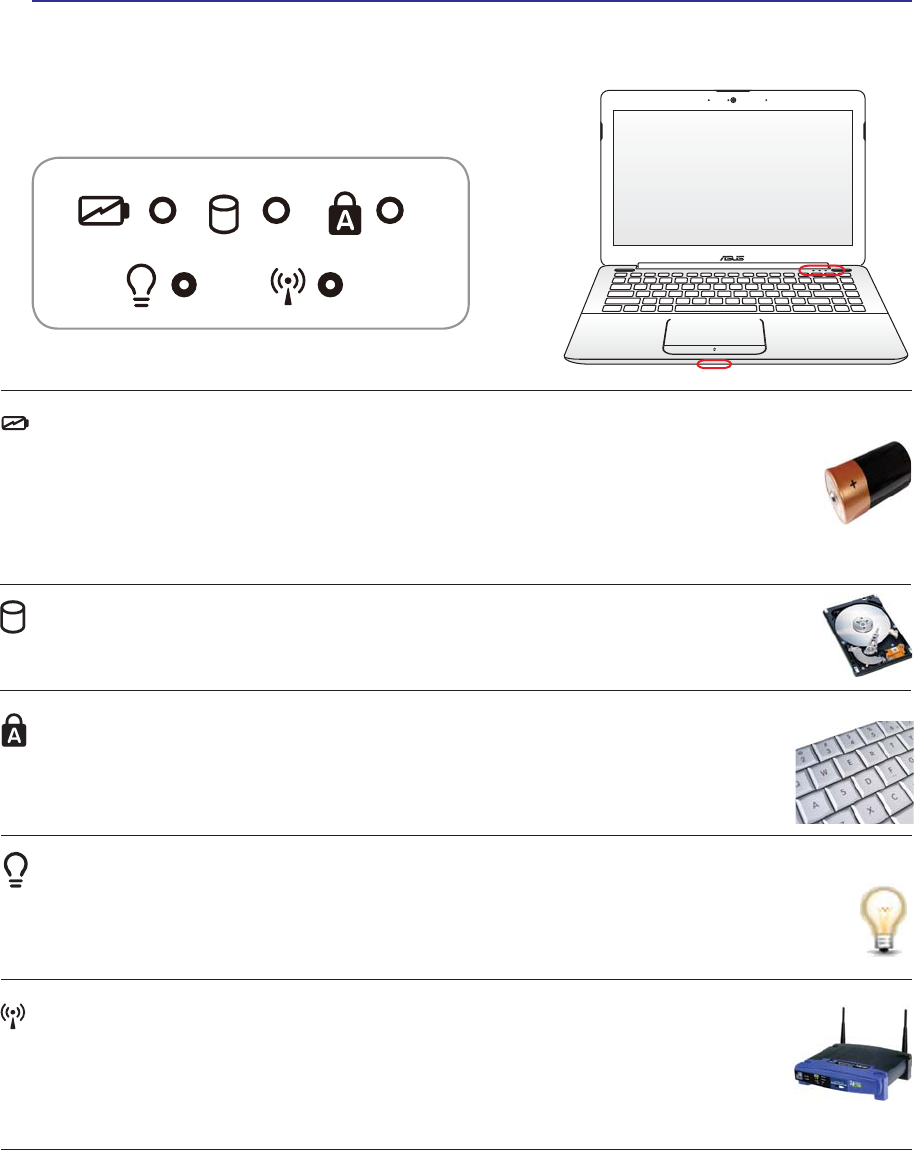

Status Indicators (top)
Status indicators represent various hardware/software conditions. See indicator details in
section 3.
14
8
2 Knowing the Parts
Touchpad and Buttons

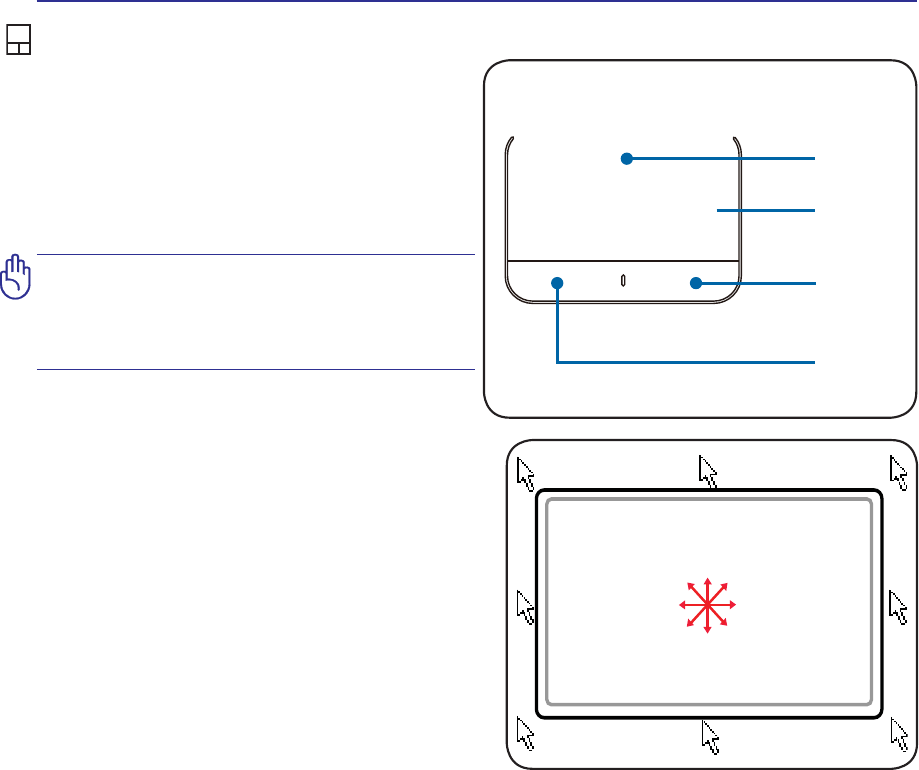

The touchpad with its buttons is a pointing device that provides the same functions as a
desktop mouse. A software-controlled scrolling function is available after setting up the
included touchpad utility to allow easy Windows or web navigation.
Keyboard
The keyboard provides full-sized keys with comfortable travel (depth at which the
keys can be depressed) and palm rest for both hands. Two Windows function keys are
provided to help ease navigation in the Windows operating system.
9
15
Bottom Side

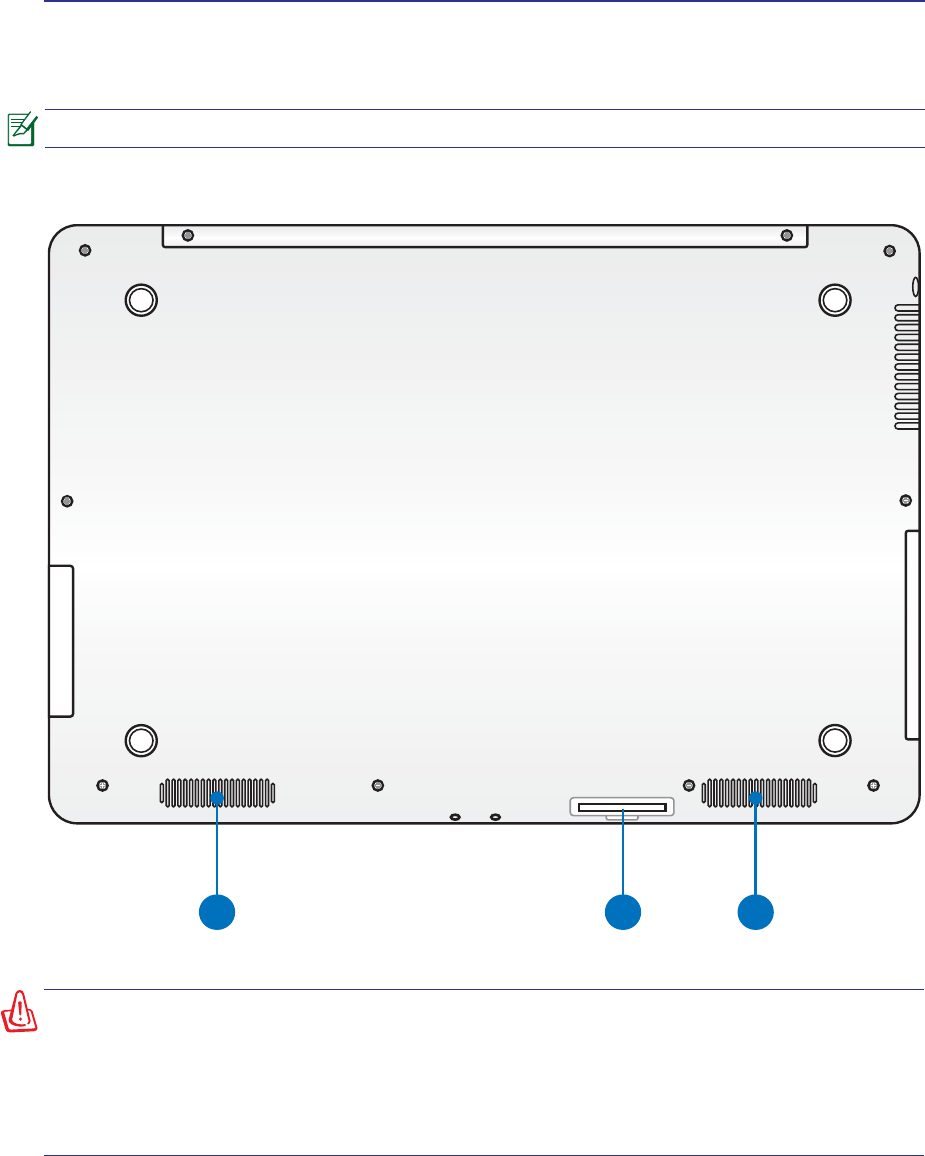

Refer to the diagram below to identify the components on this side of the Notebook PC.
121
WARNING! The bottom of the Notebook PC can get very hot. Be careful when han-
dling the Notebook PC while it is in operation or recently been in operation. High
temperatures are normal during charging or operation. Do not use on soft surfaces
such as beds or sofas which may block the vents. DO NOT PUT THE NOTEBOOK
PC ON YOUR LAP OR OTHER PARTS OF THE BODY TO AVOID INJURY FROM THE
HEAT.
The bottom side may vary in appearance depending on model.
Knowing the Parts 2
16
1
2

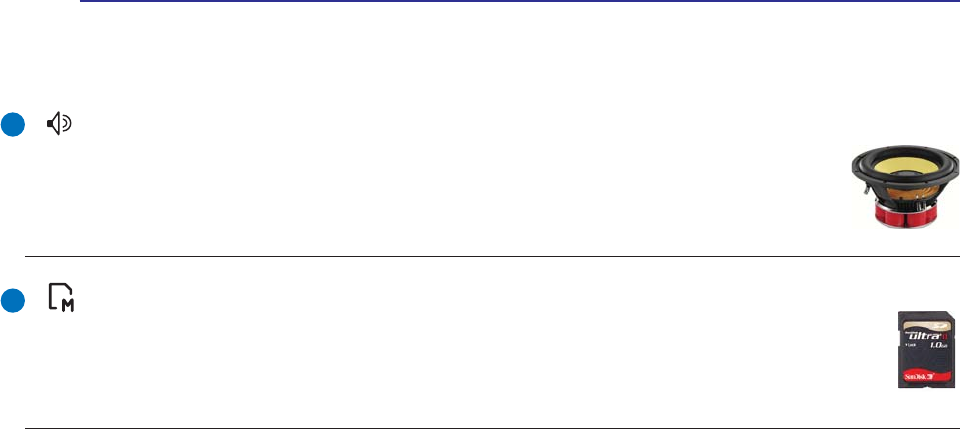

Audio Speaker
The built-in stereo speaker system allows you to hear audio without additional attach-
ments. The multimedia sound system features an integrated digital audio controller
that produces rich, vibrant sound (results improved with external stereo headphones or
speakers). Audio features are software controlled.
Flash Memory Slot
Normally an external memory card reader must be purchased separately in order to use
memory cards from devices such as digital cameras, MP3 players, mobile phones, and PDAs.
This Notebook PC has a built-in high-speed memory card reader that can conveniently read
from and write to many flash memory cards as mentioned later in this manual.
2 Knowing the Parts
17
Left Side

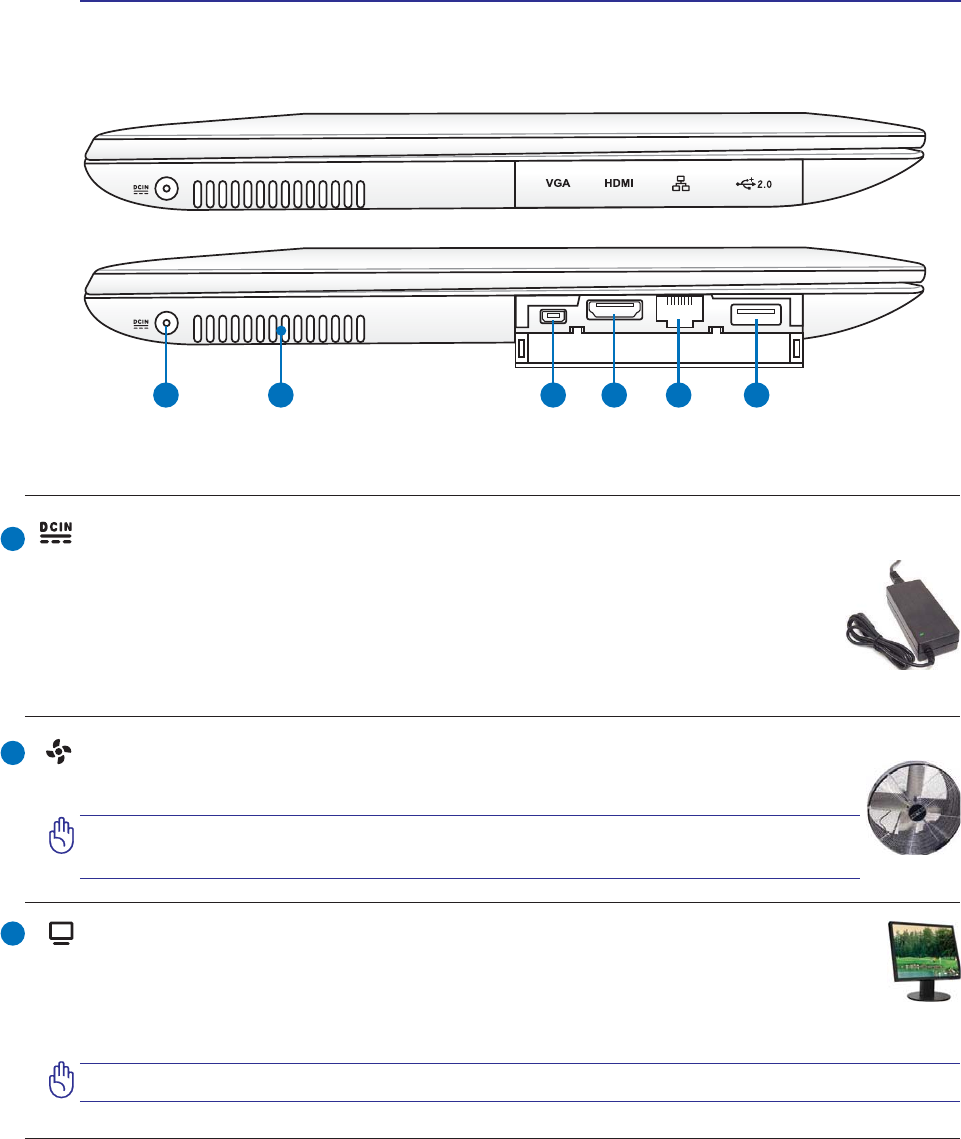

Refer to the diagram below to identify the components on this side of the Notebook PC.
1 2 3 4 5 6
1
2Air Vents
The air vents allow cool air to enter and warm air to exit the Notebook PC.
IMPORTANT! Ensure that paper, books, clothing, cables, or other objects
do not block any of the air vents or else overheating may occur.
Display (Monitor) Output
Use the provided adapter to convert this proprietary display output port to a 15-pin D-sub
monitor port, which supports a standard VGA-compatible device such as a monitor or projec-
tor to allow viewing on a larger external display.
3
Power (DC) Input
The supplied power adapter converts AC power to DC power for use with this jack. Power
supplied through this jack supplies power to the Notebook PC and charges the internal
battery pack. To prevent damage to the Notebook PC and battery pack, always use the
supplied power adapter. CAUTION: MAY BECOME WARM TO HOT WHEN IN
USE. BE SURE NOT TO COVER THE ADAPTER AND KEEP IT AWAY FROM
YOUR BODY.
This is not an IEEE 1394 port. DO NOT connect an IEEE 1394 cable to this port.
Knowing the Parts 2
18
HDMI Port
HDMI (High-Definition Multimedia Interface) is an uncompressed all-digital
audio/video interface between any audio/video source, such as a set-top box, DVD
player, and A/V receiver and an audio and/or video monitor, such as a digital tel-
evision (DTV). Supports standard, enhanced, or high-definition video, plus multi-
channel digital audio on a single cable. It transmits all ATSC HDTV standards and
supports 8-channel digital audio, with bandwidth to spare to accommodate future
enhancements or requirements.
HDMI
5
6USB Port (2.0/1.1)
The USB (Universal Serial Bus) port is compatible with USB 2.0 or USB 1.1 devices such
as keyboards, pointing devices, cameras, hard disk drives, printers, and scanners connected
in a series up to 12Mbits/sec (USB 1.1) and 480Mbits/sec (USB 2.0). USB allows many
devices to run simultaneously on a single computer, with some peripherals acting as additional plug-in
sites or hubs. USB supports hot-swapping of devices so that most peripherals can be connected or
disconnected without restarting the computer.
LAN Port
The RJ-45 LAN port with eight pins is larger than the RJ-11 modem port and supports
a standard Ethernet cable for connection to a local network. The built-in connector al-
lows convenient use without additional adapters.
4
2 Knowing the Parts
19
Right Side

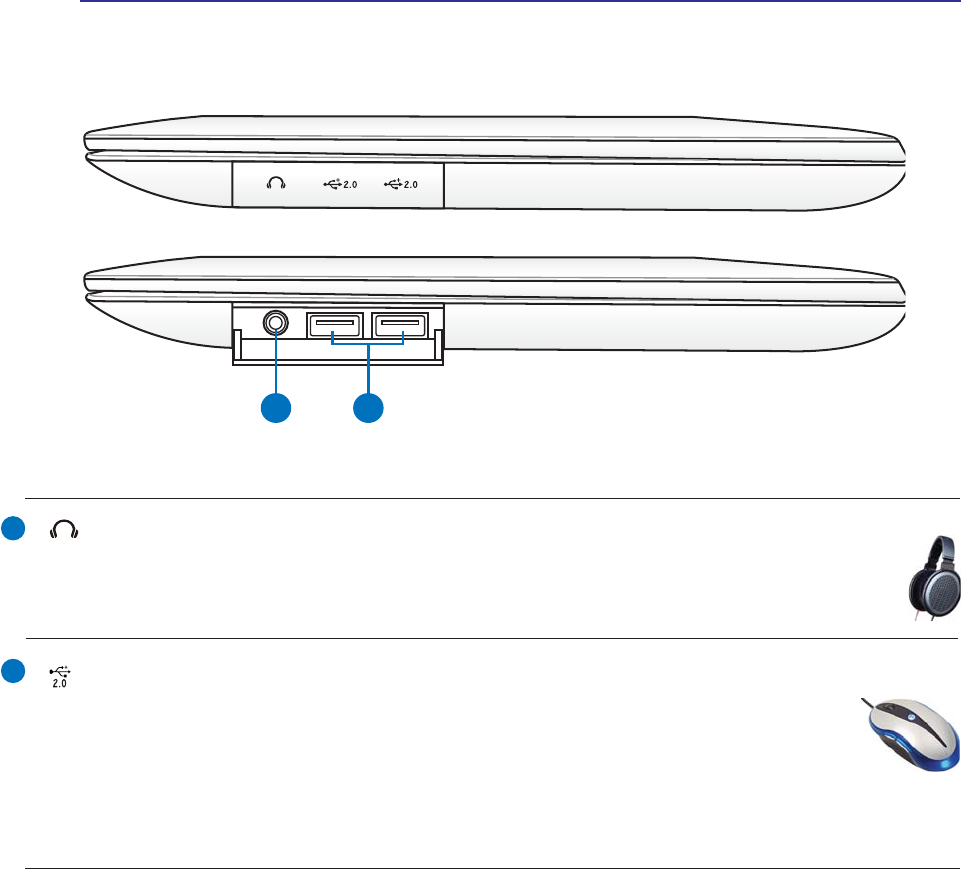

Refer to the diagram below to identify the components on this side of the Notebook PC.
21
3D
1
2USB Port (2.0/1.1)
The USB (Universal Serial Bus) port is compatible with USB 2.0 or USB 1.1 devices such
as keyboards, pointing devices, cameras, hard disk drives, printers, and scanners connected
in a series up to 12Mbits/sec (USB 1.1) and 480Mbits/sec (USB 2.0). USB allows many
devices to run simultaneously on a single computer, with some peripherals acting as additional plug-in
sites or hubs. USB supports hot-swapping of devices so that most peripherals can be connected or
disconnected without restarting the computer.
3D
Headphone Output Jack
The stereo headphone jack (1/8 inch) is used to connect the Notebook PCʼs audio out signal to
amplified speakers or headphones. Using this jack automatically disables the built-in speakers.
Knowing the Parts 2
20
1
Front Side

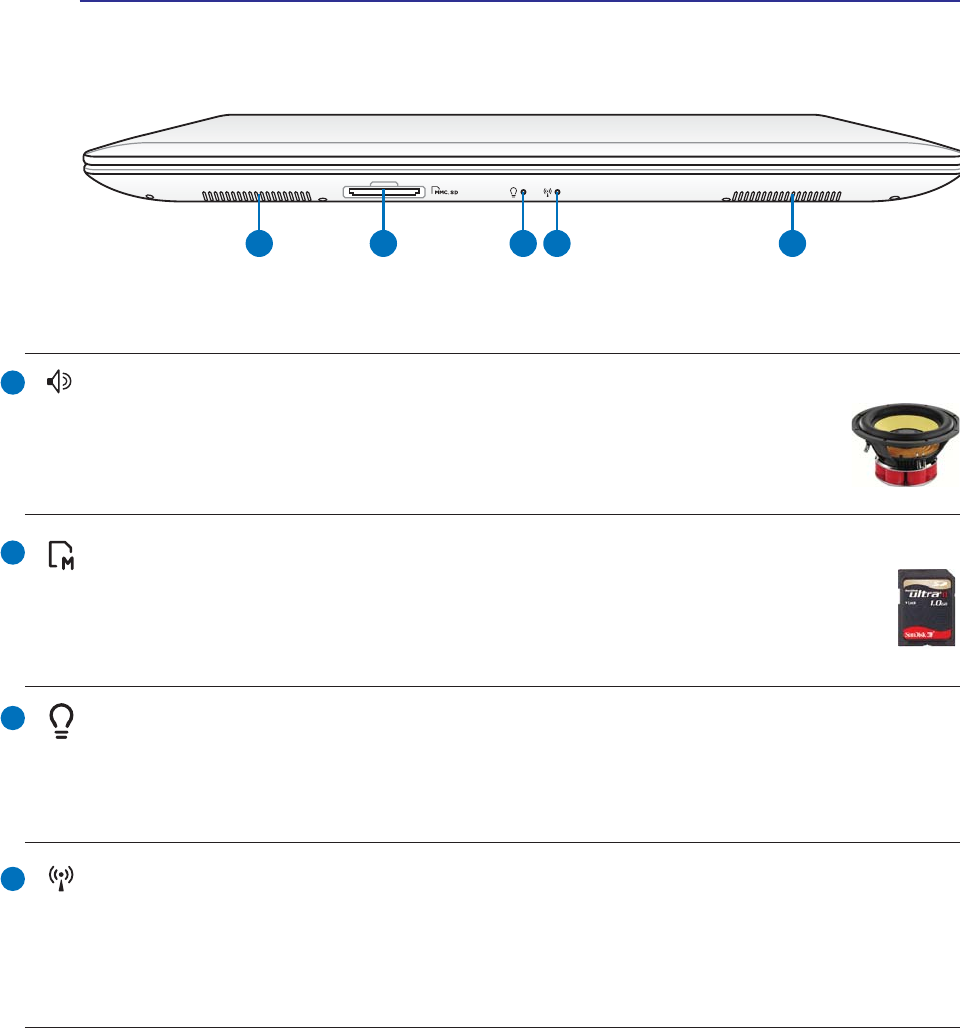

Refer to the diagram below to identify the components on this side of the Notebook PC.
3 421 1
2
3
Audio Speaker
The built-in stereo speaker system allows you to hear audio without additional attach-
ments. The multimedia sound system features an integrated digital audio controller
that produces rich, vibrant sound (results improved with external stereo headphones or
speakers). Audio features are software controlled.
Flash Memory Slot
Normally an external memory card reader must be purchased separately in order to use
memory cards from devices such as digital cameras, MP3 players, mobile phones, and PDAs.
This Notebook PC has a built-in high-speed memory card reader that can conveniently read
from and write to many flash memory cards as mentioned later in this manual.
Power Indicator
The power indicator lights when the Notebook PC is turned ON and blinks slowly when the Notebook
PC is in the Suspend-to-RAM (Sleep) mode. This indicator is OFF when the Notebook PC is turned
OFF or in the Suspend-to-Disk (Hibernation) mode.
Bluetooth/Wireless Indicator
This is only applicable on models with internal Bluetooth (BT) and built-in wireless LAN. This indi-
cator will light to show that the Notebook PCʼs built-in Bluetooth (BT) function is activated. When
the built-in wireless LAN is enabled, this indicator will also light. (Windows software settings are
necessary.)
4
2 Knowing the Parts
21
3. Getting Started
Using AC Power
Using Battery Power
Powering ON the Notebook PC
Checking Battery Power
Powering Options
Power Management Modes
Special Keyboard Functions
Switches and Status Indicators
Photos and icons in this manual are used for artistic purposes only and do not
show what is actually used in the product itself.
There may be differences between your Notebook PC and the drawings shown in
this manual. Please accept your Notebook PC as being correct.
22
IMPORTANT! Damage may occur if you use a different adapter to power the Note-
book PC or use the Notebook PCʼs adapter to power other electrical devices. If
there is smoke, burning scent, or extreme heat coming from the AC-DC adapter,
seek servicing. Seek servicing if you suspect a faulty AC-DC adapter. You may dam-
age both your battery pack(s) and the Notebook PC with a faulty AC-DC adapter.
This Notebook PC may come with either a two or three-prong plug depending on
territory. If a three-prong plug is provided, you must use a grounded AC outlet or
use a properly grounded adapter to ensure safe operation of the Notebook PC.
WARNING! THE POWER ADAPTER MAY BECOME WARM TO HOT WHEN IN USE.
BE SURE NOT TO COVER THE ADAPTER AND KEEP IT AWAY FROM YOUR BODY.
You can buy travel kits for the Notebook PC that includes power and modem adapt-
ers for almost every country.
1
23

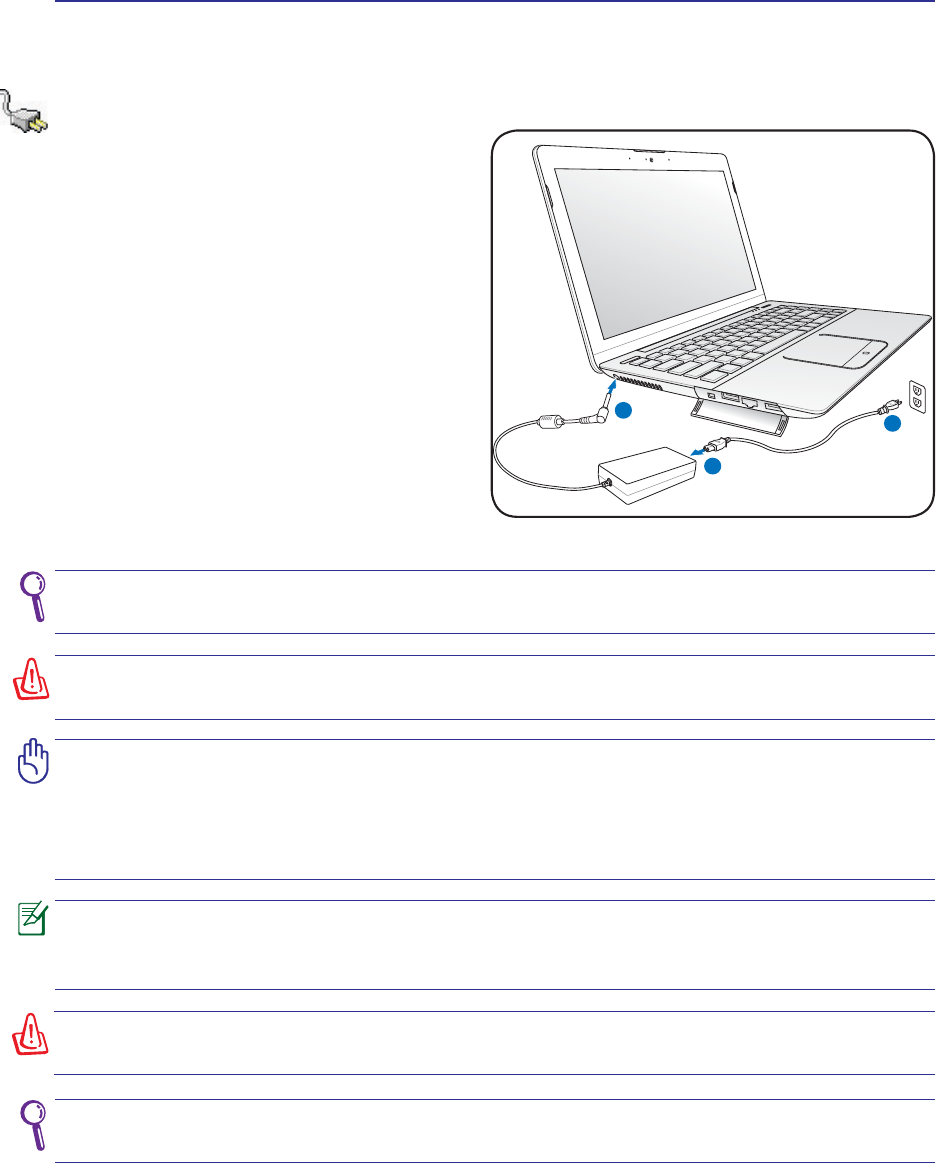

Power System
Using AC Power
The Notebook PC power is comprised of two
parts, the power adapter and the battery power
system. The power adapter converts AC power
from a wall outlet to the DC power required by
the Notebook PC. Your Notebook PC comes with
a universal AC-DC adapter. That means that you
may connect the power cord to any 100V-120V as
well as 220V-240V outlets without setting switch-
es or using power converters. Different countries
may require that an adapter be used to connect the
provided US-standard AC power cord to a differ-
ent standard. Most hotels will provide universal
outlets to support different power cords as well as
voltages. It is always best to ask an experienced
traveler about AC outlet voltages when bringing
power adapters to another country.
Unplug the power adapter or switch off the AC outlet to minimize the power
consumption when the Notebook PC is not in use.
WARNING! DO NOT connect the AC power cord to an AC outlet prior to connecting
the DC plug to the Notebook PC. Doing so may damage the AC-DC adapter.
3 Getting Started
23
IMPORTANT! If warnings are still given during bootup after running a software disk
checking utility, you should take your Notebook PC in for servicing. Continued use
may result in data loss.
IMPORTANT! To protect the hard disk drive, always wait at least 5 seconds after
turning OFF your Notebook PC before turning it back ON.
WARNING! DO NOT carry or cover a Notebook PC that is powered ON with any ma-
terials that will reduce air circulation such as a carrying bag.
Before bootup, the display panel flashes when the power is turned ON. This is part
of the Notebook PCʼs test routine and is not a problem with the display.
Powering ON the Notebook PC
The Notebook PCʼs power-ON message appears on the screen when you turn it ON. If necessary, you
may adjust the brightness by using the hot keys. If you need to run the BIOS Setup to set or modify
the system configuration, press [F2] upon bootup to enter the BIOS Setup. If you press [Tab] during
the splash screen, standard boot information such as the BIOS version can be seen. Press [ESC] and
you will be presented with a boot menu with selections to boot from your available drives.
The Power-On Self Test (POST)
When you turn ON the Notebook PC, it will first run through a series of software-controlled diag-
nostic tests called the Power-On Self Test (POST). The software that controls the POST is installed
as a permanent part of the Notebook PCʼs architecture. The POST includes a record of the Notebook
PCʼs hardware configuration, which is used to make a diagnostic check of the system. This record is
created by using the BIOS Setup program. If the POST discovers a difference between the record and
the existing hardware, it will display a message on the screen prompting you to correct the conflict by
running BIOS Setup. In most cases the record should be correct when you receive the Notebook PC.
When the test is finished, you may get a message reporting “No operating system found” if the hard
disk was not preloaded with an operating system. This indicates that the hard disk is correctly detected
and ready for the installation of a new operating system.
Self Monitoring and Reporting Technology
The S.M.A.R.T. (Self Monitoring and Reporting Technology) checks the hard
disk drive during POST and gives a warning message if the hard disk drive re-
quires servicing. If any critical hard disk drive warning is given during bootup,
backup your data immediately and run Windows disk checking program. To run
Windowʼs disk checking program: click Start > select Computer > right-click
a hard disk drive icon > choose Properties > click the Tools tab > click Check
Now > click Start. You can also select “Scan ... sectors” for more effective scan
and repair but the process will run slower.
Getting Started 3
24
You will be warned when
battery power is low. If you
continue to ignore the low
battery warnings, the Note-
book PC eventually enters
suspend mode (Windows
default uses STR).
WARNING! Suspend-to-RAM (STR) does not last long when the battery power is
depleted. STR is not the same as power OFF. STR requires a small amount of power
and will fail and lose data if no power is available due to complete battery depletion
or no power supply (e.g. removing both the power adapter and battery pack).
Screen captures shown
here are examples only and
may not reflect what you
see in your system.
Checking Battery Power
The battery system implements the Smart Battery standard under the Windows environment, which
allows the battery to accurately report the amount of charge left in the battery. A fully-charged battery
pack provides the Notebook PC a few hours of working power. But the actual figure varies depending
on how you use the power saving features, your general work habits, the CPU, system memory size,
and the size of the display panel.
Left-click the battery icon
Pointer over the battery icon
without power adapter.
Pointer over the battery icon
with power adapter.
Right-click the battery icon
The battery stops charging if the temperature is too high or the battery voltage is
too high.
Charging the Battery Pack
Before you use your Notebook PC on the road, you will have to charge the battery pack. The battery
pack begins to charge as soon as the Notebook PC is connected to external power using the power
adapter. Fully charge the battery pack before using it for the first time. A new battery pack must
completely charge before the Notebook PC is disconnected from external power. It takes a few hours
to fully charge the battery when the Notebook PC is turned OFF and may take twice the time when
the Notebook PC is turned ON. The battery status indicator on the Notebook PC turns OFF when the
battery pack is charged.
The battery starts charging when the charge remaining in the battery drops below
95%. This prevents the battery from charging frequently. Minimizing the recharge
cycles helps prolong battery life.
3 Getting Started
25
IMPORTANT! To protect the hard drive, wait at least 5 seconds after turning OFF
your Notebook PC before turning it back ON.
Power Options
The power switch turns ON and OFF the Notebook PC or putting the Notebook PC into sleep or
hibernation modes. Actual behavior of the power switch can be customized in Windows Control Panel
“Power Options.”
For other options, such as “Switch User, Restart, Sleep, or Shut Down,”
click the arrowhead next to the lock icon.
Restarting or Rebooting
After making changes to your operating system, you may be prompted
to restart the system. Some installation processes will provide a dialog
box to allow restart. To restart the system manually, choose Restart.
Getting Started 3
IMPORTANT! DO NOT use emergency
shutdown while data is being written;
doing so can result in loss or destruc-
tion of your data.
Emergency Shutdown
In case your operating system cannot properly turn OFF or restart, there is an additional way to shut-
down your Notebook PC:
• Hold the power button over 4 seconds.
26
Thermal Power Control
There are three power control methods for controlling the Notebook PCʼs thermal state. These power
control cannot be configured by the user and should be known in case the Notebook PC should enter
these states. The following temperatures represent the chassis temperature (not CPU).
• The fan turns ON for active cooling when the temperature reaches the safe upper limit.
• The CPU decreases speed for passive cooling when the temperature exceeds the safe upper limit.
• The system shut down for critical cooling when temperature exceeds the maximum safe upper
limit.
Sleep and Hibernate
Power management settings can be found in the Windows > Control
Panel > Power Options. In System Settings, you can define “Sleep/
Hibernate” or “Shut Down” for closing the display panel or pressing
the power button. “Sleep” and “Hibernate” saves power when your
Notebook PC is not in use by turning OFF certain components. When
you resume your work, your last status (such as a document scrolled
down half way or email typed half way) will reappear as if you never
left. “Shut Down” will close all applications and ask if you want to save
your work if any are not saved.
Hibernate is the same as Suspend-to-Disk (STD) and stores your current data and status on the hard
disk drive. By doing this, RAM does not have to be periodically refreshed and power consumption is
greatly reduced but not completely eliminated because certain wake-up components like LAN needs
to remain powered. “Hibernate” saves more power compared to “Sleep”. Click the Start button and
the arrowhead next to the lock icon to see this option. Recover by pressing the power button. (NOTE:
The power indicator will be OFF in this mode.)
Sleep is the same as Suspend-to-RAM (STR). This function stores your
current data and status in RAM while many components are turned
OFF. Because RAM is volatile, it requires power to keep (refresh) the
data. Click the Start button and the arrowhead next to the lock icon
to see this option. You can also use the keyboard shortcut [Fn F1] to
activate this mode. Recover by pressing any keyboard key except [Fn].
(NOTE: The power indicator will blink in this mode.)
Power Management Modes
The Notebook PC has a number of automatic or adjustable power saving features that you can use to
maximize battery life and lower Total Cost of Ownership (TCO). You can control some of these fea-
tures through the Power menu in the BIOS Setup. ACPI power management settings are made through
the operating system. The power management features are designed to save as much electricity as pos-
sible by putting components into a low power consumption mode as often as possible but also allow
full operation on demand.
3 Getting Started
27

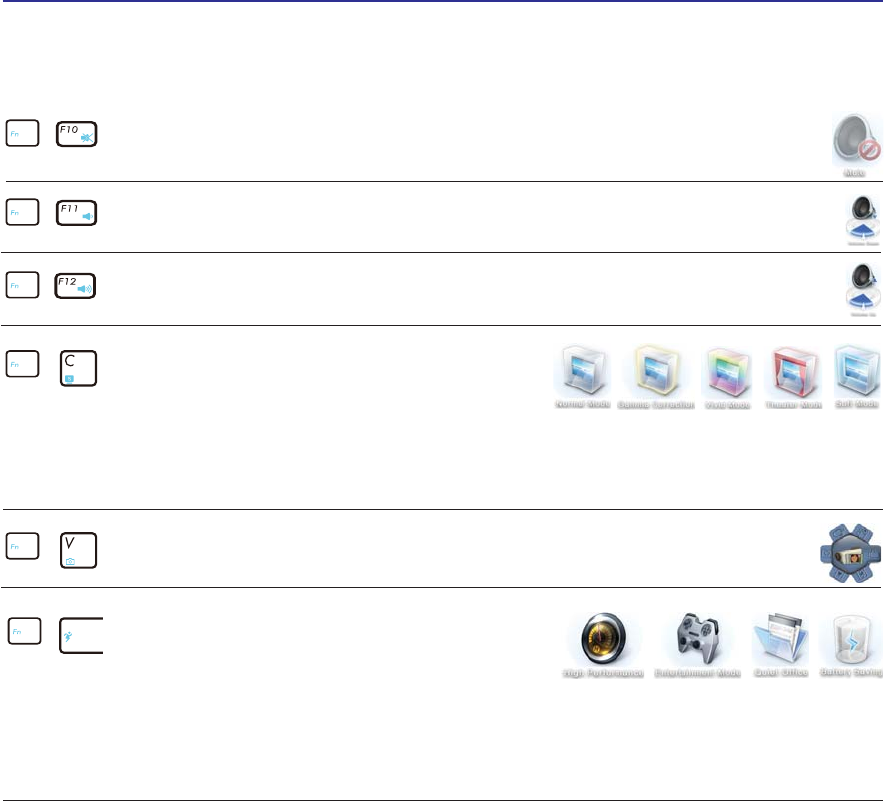

Special Keyboard Functions
Colored Hot Keys
The following defines the colored hot keys on the Notebook PCʼs key-
board. The colored commands can only be accessed by first pressing and
holding the function key while pressing a key with a colored command.
The Hot Key locations on the function keys may vary depending on model but the
functions should remain the same. Follow the icons instead of the function keys.
“Zz” Icon (F1): Places the Notebook PC in suspend mode (either Save-to-RAM or
Save-to-Disk depending on sleep button setting in power management setup).
Sun Down Icon (F5):
Decreases the display brightness
Sun Up Icon (F6):
Increases the display brightness
LCD Icon (F7): Toggles the display panel ON and OFF. (On certain models; stretch-
es the screen area to fill the entire display when using low resolution modes.)
LCD/Monitor Icons (F8): Toggles between the Notebook PCʼs LCD display
and an external monitor in this series: LCD Only -> CRT Only (External
Monitor) -> LCD + CRT Clone -> LCD + CRT Extend. (This function does
not work in 256 Colors, select High Color in Display Property Settings.)
NOTE: Must connect an external monitor “before” booting up.
Radio Tower (F2): Wireless Models Only: Toggles the internal wireless
LAN or Bluetooth (on selected models) ON or OFF with an on-screen-
display. When enabled, the corresponding wireless indicator will light.
Windows software settings are necessary to use the wireless LAN or Bluetooth.
Crossed-out Touchpad (F9): Toggles the built-in touchpad LOCKED
(disabled) and UNLOCKED (enabled). Locking the touchpad will prevent
you from accidentally moving the pointer while typing and is best used with
an external pointing device such as a mouse. NOTE: Selected models have
an indicator between the touchpad buttons will light when the touchpad is
UNLOCKED (enabled) and not light when the touchpad is LOCKED (disabled).
Getting Started 3
28
Colored Hot Keys (cont.)
Fn+C: Toggles “Splendid Video Intelligent
Technology” function ON and OFF. This allows
switching between different display color en-
hancement modes in order to improve contrast, brightness, skin tone, and color satura-
tion for red, green, and blue independently. You can see the current mode through the
on-screen display (OSD).
Power4Gear Hybrid (Fn+Space Bar): This key
toggles power savings between various power
saving modes. The power saving modes control
many aspects of the Notebook PC to maximize performance versus battery time. Ap-
plying or removing the power adapter will automatically switch the system between AC
mode and battery mode. You can see the current mode through the on-screen display
(OSD).
Fn+V: Toggles “Life Frame” software application.
3 Getting Started
Speaker Up Icon (F12):
Increases the speaker volume (only in Windows OS)
Speaker Down Icon (F11):
Decreases the speaker volume (only in Windows OS)
Crossed Speaker Icons (F10):
Toggles the speakers ON and OFF (only in Windows OS)
29
Microsoft Windows Keys
Getting Started 3
The other key, that looks like a Windows menu with a small pointer, activates the properties
menu and is equivalent to pressing the right mouse button on a Windows object.
There are two special Windows keys on the keyboard as described below.
The key with the Windows Logo activates the Start menu located at the bottom left of the
Windows desktop.
The red arrows are illustrated here for your reference. They are not labeled on the
keyboard as shown here.

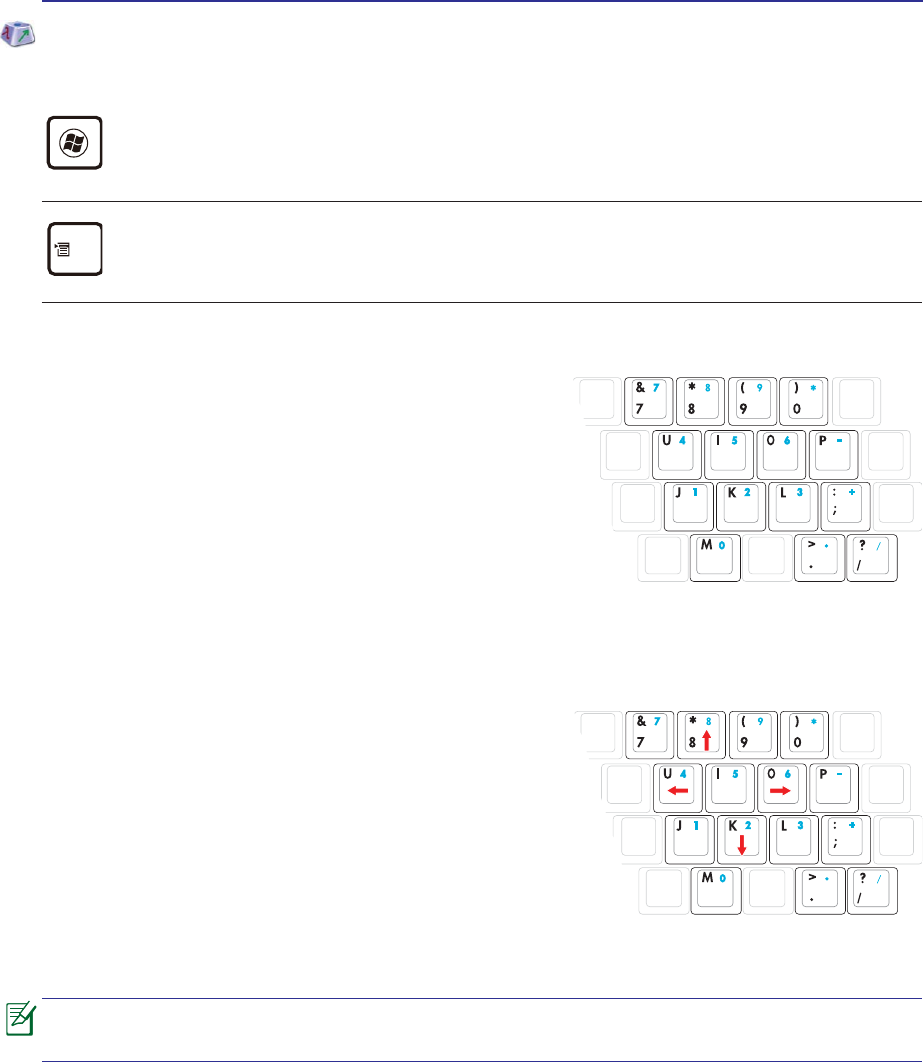

Keyboard as a Numeric Keypad
The numeric keypad is embedded in the keyboard and
consists of 15 keys that make number intensive input more
convenient. These dual-purpose keys are labeled in orange
on the key caps. Numeric assignments are located at the upper
right hand corner of each key as shown in the figure. When the
numeric keypad is engaged by pressing [Fn][Ins/Num LK], the
number lock LED lights up. If an external keyboard is connected,
pressing the [Ins/Num LK] on the external keyboard enables/disa-
bles the NumLock on both keyboards simultaneously. To disable
the numeric keypad while keeping the keypad on an external keyboard activated, press the [Fn][Ins/
Num LK] keys on the Notebook PC.
Keyboard as Pointers
The keyboard can be used as pointers while Number Lock is
ON or OFF in order to increase navigation ease while entering
numeric data in spreadsheets or similar applications.
With Number Lock OFF, press [Fn] and one of the pointer
keys shown below. For example [Fn][8] for up, [Fn][K] for
down, [Fn][U] for left, and [Fn][O] for right.
With Number Lock ON, use [Shift] and one of the pointer keys
shown below. For example [Shift][8] for up, [Shift][K] for down,
[Shift][U] for left, and [Shift][O] for right.
30

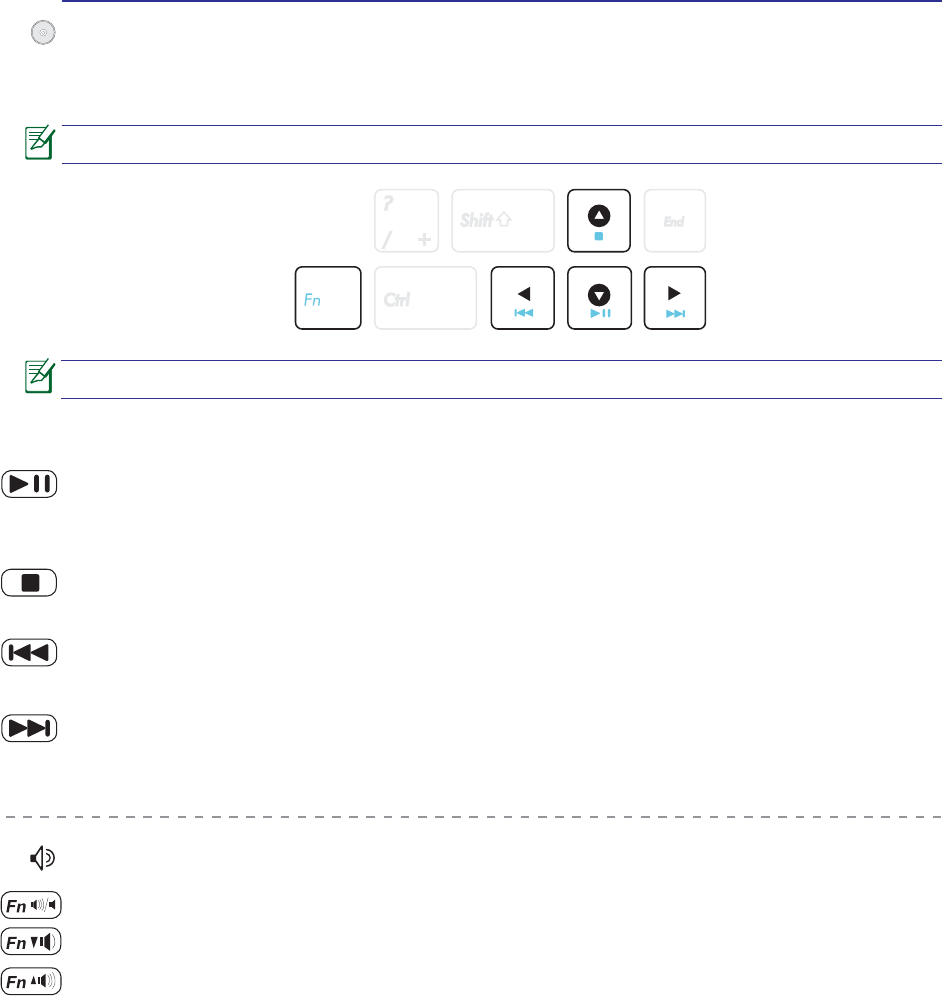

Multimedia Control Keys (on selected models)
The multimedia control keys allows for convenient controlling of the multimedia application. The fol-
lowing defines the meaning of each multimedia control key on the Notebook PC.
Use the [Fn] key in combination with the arrow keys for CD control functions.
Some control key functions may defer depending on Notebook PC model.
3 Getting Started
CD Play/Pause
During CD stop, begins CD play.
During CD play, pauses CD play.
CD Stop
During CD play: Stops CD play.
CD Skip to Next Track (Fast Forward)
During CD play, skips to the next audio track/movie chapter.
Audio Volume Controls
Fn + Speaker Icons (F10): Toggles the audio volume ON and OFF
Fn + Down Speaker Icon (F11): Decreases the audio volume
Fn + Up Speaker Icon (F12): Increases the audio volume
CD Skip to Previous Track (Rewind)
During CD play, skips to the previous audio track/movie chapter.
31
Switches
Switches and Status Indicators
Getting Started 3
Power Switch
The power switch turns ON and OFF the Notebook PC or putting the Notebook PC into
sleep or hibernation modes. Actual behavior of the power switch can be customized in
Windows Control Panel “Power Options.”
Express Gate/ Power4Gear Hybrid Key
Pressing this button will launch Express Gate when the Notebook PC is powered off. Refer to the
Express Gate Userʼs Manual for details.
The Power4Gear Hybrid key toggles power savings between
various power saving modes. The power saving modes control
many aspects of the Notebook PC to maximize performance
versus battery time. Applying or removing the power adapter
will automatically switch the system between AC mode and battery mode. The selected mode is shown
on the display.
32
Status Indicators
Switches and Status Indicators (cont.)
Battery Charge Indicator
The battery charge indicator shows the status of the batteryʼs power as follows:
ON: The Notebook PCʼs battery is charging when AC power is connected.
OFF: The Notebook PCʼs battery is charged or completely drained.
Blinking: Battery power is less than 10% and the AC power is not connected.
Power Indicator
The power indicator lights when the Notebook PC is turned ON and blinks slowly when the
Notebook PC is in the Suspend-to-RAM (Sleep) mode. This indicator is OFF when the Note-
book PC is turned OFF or in the Suspend-to-Disk (Hibernation) mode.
Drive Activity Indicator
Indicates that the Notebook PC is accessing one or more storage device(s) such as the hard
disk. The light flashes proportional to the access time.
Capital Lock Indicator
Indicates that capital lock [Caps Lock] is activated when lighted. Capital lock allows
some of the keyboard letters to type using capitalized letters (e.g. A, B, C). When the
capital lock light is OFF, the typed letters will be in the lower case form (e.g. a,b,c).
Bluetooth / Wireless Indicator
This is only applicable on models with internal Bluetooth (BT) and built-in wireless
LAN. This indicator will light to show that the Notebook PCʼs built-in Bluetooth (BT)
function is activated. When the built-in wireless LAN is enabled, this indicator will
also light. (Windows software settings are necessary.)
3 Getting Started
33
4. Using the Notebook PC
Pointing Device
Storage Devices
Hard disk drive
Flash memory card reader
Memory (RAM)
Connections
Network Connection
Wireless LAN Connection (on selected models)

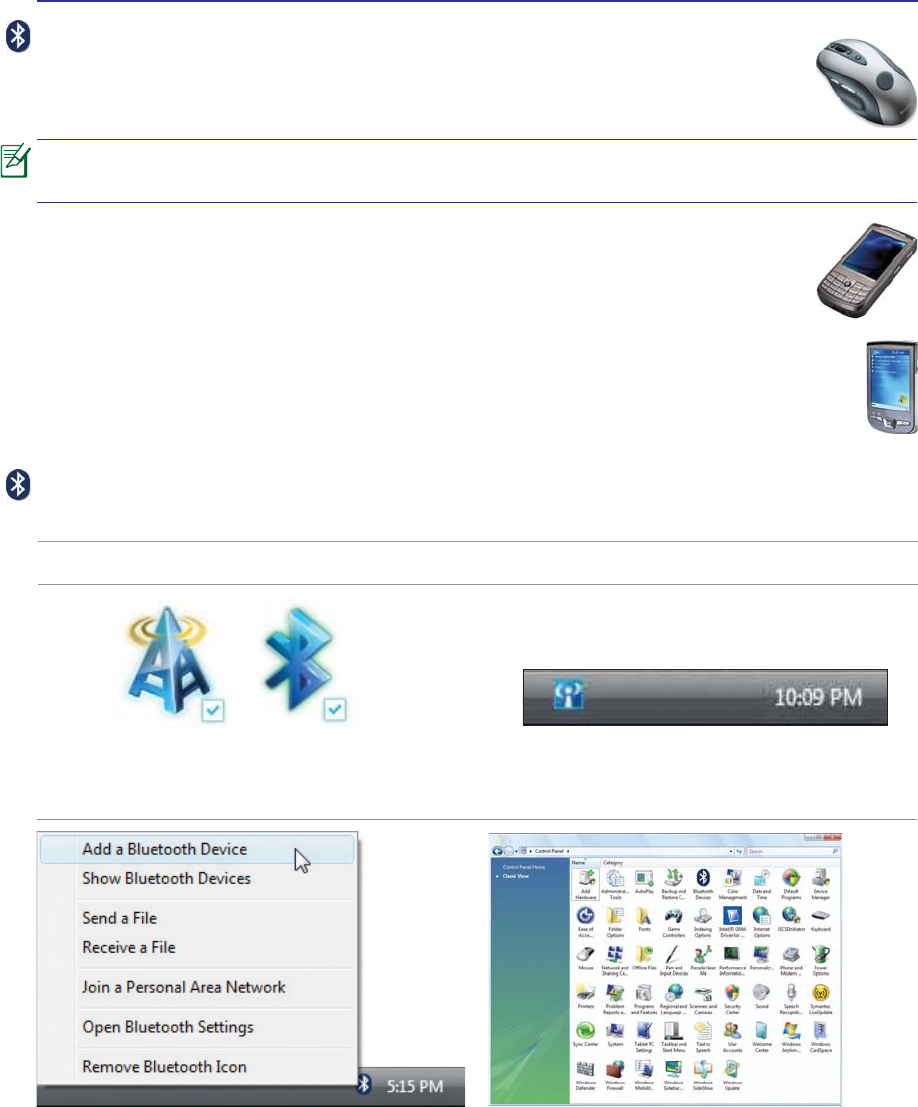

Bluetooth Wireless Connection (on selected models)
Photos and icons in this manual are used for artistic purposes only and do not
show what is actually used in the product itself.
There may be differences between your Notebook PC and the drawings shown in
this manual. Please accept your Notebook PC as being correct.
34
IMPORTANT! DO NOT use any objects
in place of your finger to operate the
touchpad or else damage may occur to
the touchpadʼs surface.
Pointing Device
The Notebook PCʼs integrated touchpad pointing
device is fully compatible with all two/three-but-
ton and scrolling knob PS/2 mice. The touchpad is
pressure sensitive and contains no moving parts;
therefore, mechanical failures can be avoided. A
device driver is still required for working with
some application software.
Pointer
Movement
Right Click
Left Click
Using the Touchpad
Light pressure with the tip of your finger is all that
is required to operate the touchpad. Because the
touchpad is electrostatic sensitive, objects cannot
be used in place of your fingers. The touchpadʼs
primary function is to move the pointer around or
select items displayed on the screen with the use of
your fingertip instead of a standard desktop mouse.
The following illustrations demonstrate proper use
of the touchpad.
Moving The Pointer
Place your finger in the center of the touchpad and
slide in a direction to move the pointer.
Slide finger
forward
Slide finger
left
Slide finger
backward
Slide finger
right
4 Using the Notebook PC
Scroll Area
35
Double-clicking/Double-tapping - This is a common skill for launching a program directly from
the corresponding icon you select. Move the pointer over the icon you wish to execute, press the left
button or tap the pad twice in rapid succession, and the system launches the corresponding program. If
the interval between the clicks or taps is too long, the operation will not be executed. You can set the
double-click speed using the Windows Control Panel “Mouse.” The following 2 examples produce the
same results.
Press the left button twice and
release.
Lightly but rapidly strike the
touchpad twice.
Press the left pointer button and
release.
Lightly but rapidly strike the
touchpad.
Clicking/Tapping - With the pointer over an item, press the left button or use your fingertip to touch
the touchpad lightly, keeping your finger on the touchpad until the item is selected. The selected item
will change color. The following 2 examples produce the same results.
Clicking Tapping
Double-
Clicking
Double-
Tapping
Touchpad Usage Illustrations
Single-finger gesture input
Dragging - Dragging means to pick up an item and place it anywhere on the screen you wish. You can
move the pointer over the item you select, and while keeping the left button depressed, moving the
pointer to the desired location, then release the button. Or, you can simply double-tap on the item and
hold while dragging the item with your fingertip. The following illustrations produce the same results.
Hold left button and slide finger
on touchpad.
Lightly strike the touchpad
twice, sliding finger on touch-
pad during second strike.
Dragging-
Clicking Dragging-
Tapping
Using the Notebook PC 4
36
Zoom in Zoom out
Two-finger zooming in/out - Moving two fingertips apart or together on the touchpad to zoom in or
zoom out. This is convenient when viewing photos or reading documents.
Multi-finger gesture input
Two-finger scrolling - Use two fingertips to slide
up or down on the touchpad to scroll a window up
or down. If your display window includes sev-
eral sub-windows, move the pointer on that pane
before scrolling.
4 Using the Notebook PC
37
The touchpad responds to movement not to force. There is no need to tap the surface
too hard. Tapping too hard does not increase the responsiveness of the touchpad.
The touchpad responds best to light pressure.
Caring for the Touchpad
The touchpad is pressure sensitive. If not properly cared for, it can be easily damaged. Take note of the
following precautions.
• Ensure the touchpad does not come into contact with dirt, liquids or grease.
• Do not touch the touchpad if your fingers are dirty or wet.
• Do not rest heavy objects on the touchpad or the touchpad buttons.
• Do not scratch the touchpad with your finger nails or any hard objects.
Automatic Touchpad Disabling
Windows can automatically disable the Notebook PCʼs touchpad when an external USB mouse is
attached.
This feature is normally OFF, to turn ON this feature:

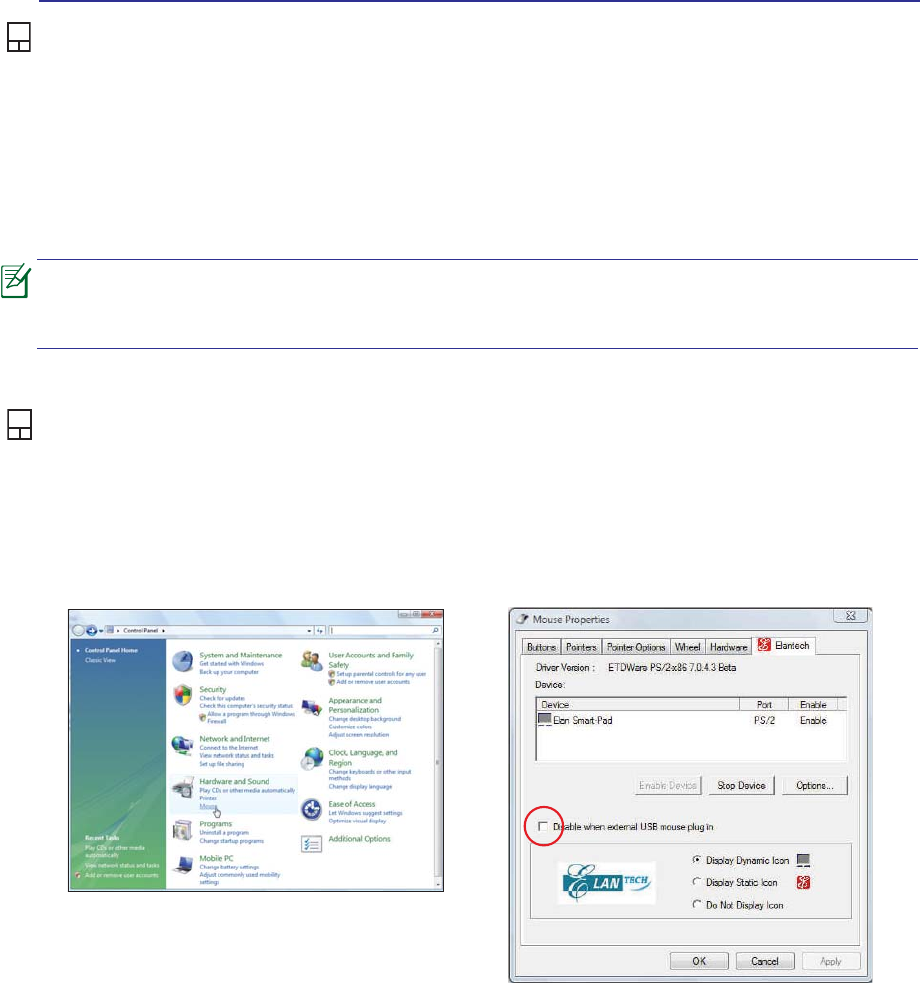

1. Select the option in Windows Control Panel
> Mouse Properties > Elantech.
2. Click the Disable when external USB mouse
plug in check box.
Using the Notebook PC 4
38
Storage Devices
Storage devices allow the Notebook PC to read or write documents, pictures, and other files to various
data storage devices. This Notebook PC has the following storage devices:
• Hard disk drive • Flash memory reader
Hard Disk Drive
Hard disk drives have higher capacities and operate at much faster speeds than
floppy disk drives and optical drives. The Notebook PC comes with a replace-
able hard disk drive. Current hard drives support S.M.A.R.T. (Self Monitoring and
Reporting Technology) to detect hard disk errors or failures before they happen.
When replacing or upgrading the hard drive, always visit an authorized service center
or retailer for this Notebook PC.
IMPORTANT! Poor handling of the Notebook PC may damage the hard disk drive.
Handle the Notebook PC gently and keep it away from static electricity and strong
vibrations or impact. The hard disk drive is the most delicate component and will
likely be the first or only component that is damaged if the Notebook PC is dropped.
IMPORTANT! When replacing or upgrading the hard drive, always visit an
authorized service center or retailer for this Notebook PC.
Memory (RAM)
Additional memory will increase application performance by decreasing hard
disk access. Visit an authorized service center or retailer for information on
memory upgrades for your Notebook PC. Only purchase expansion modules
from authorized retailers of this Notebook PC to ensure maximum compatibility
and reliability.
The BIOS automatically detects the amount of memory in the system and configures CMOS accord-
ingly during the POST (Power-On-Self-Test) process. There is no hardware or software (including
BIOS) setup required after the memory is installed.
This is only
an example.
4 Using the Notebook PC
39
Flash Memory Card Reader
Normally a memory card reader must be purchased separately in order to use memory cards from
devices such as digital cameras, MP3 players, mobile phones, and PDAs. This Notebook PC has a
single built-in memory card reader that can use many flash memory cards as shown in the example
below. The built-in memory card reader is not only convenient, but also faster than most other forms
of memory card readers because it utilizes the internal high-bandwidth PCI bus.
WARNING! To prevent data loss, use “Windows Safely Remove
Hardware” in the Windows notification area before removing the
flash memory card.
IMPORTANT! Flash memory card compatibility varies depending on Notebook PC
model and flash memory card specifications. Flash memory card specifications
constantly change so compatibility may change without warning.
Flash Memory Card Examples
IMPORTANT! Never remove cards while or immediately after reading, copying, for-
matting, or deleting data on the card or else data loss may occur.
SD / MMC
Using the Notebook PC 4
40
The built-in network cannot be installed later as an upgrade. After purchase, net-
work can be installed as an expansion card.
Connections
Example of the Notebook PC connected to a
Network Hub or Switch for use with the built-in
Ethernet controller.
Network Connection

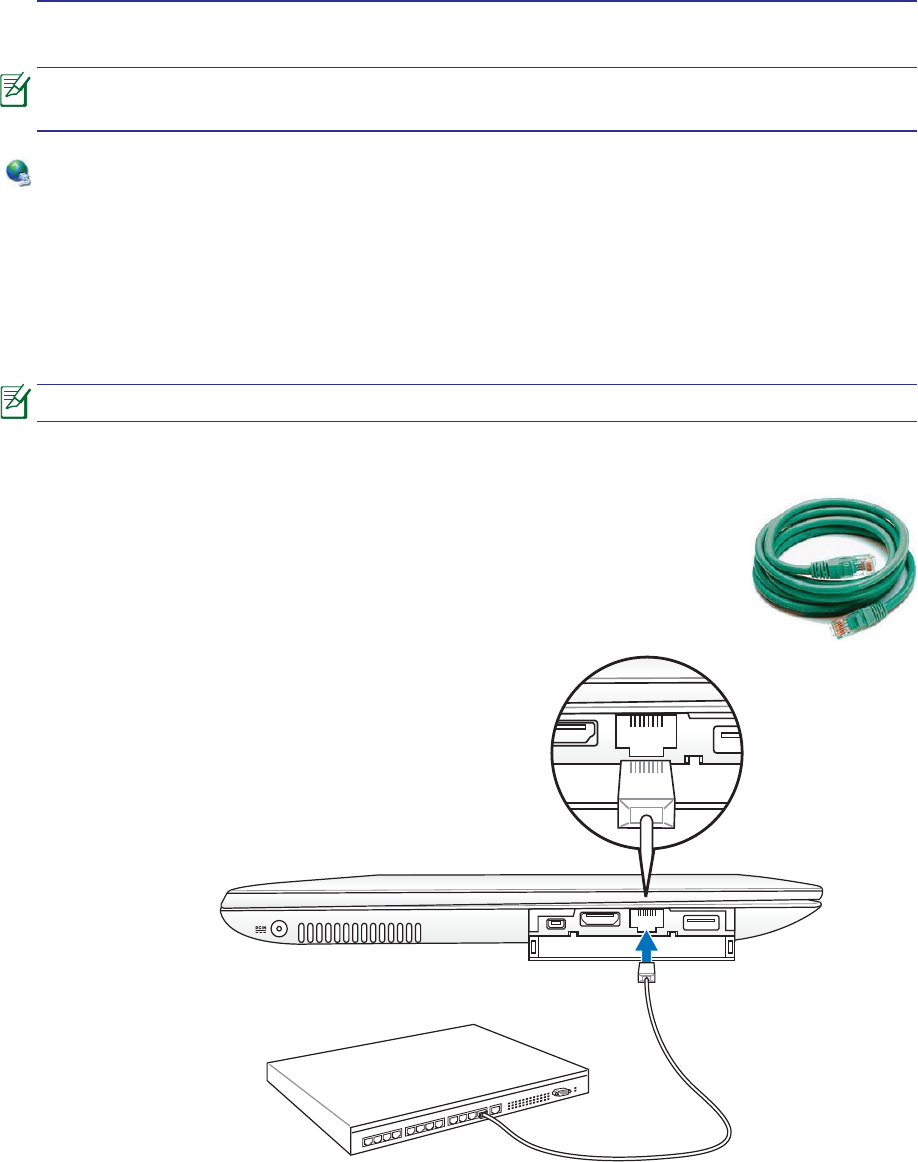

Connect a network cable, with RJ-45 connectors on each end, to the modem/network port on the
Notebook PC and the other end to a hub or switch. For 100 BASE-TX / 1000 BASE-T speeds, your
network cable must be category 5 or better (not category 3) with twisted-pair wiring. If you plan on
running the interface at 100/1000Mbps, it must be connected to a 100 BASE-TX / 1000 BASE-T hub
(not a BASE-T4 hub). For 10Base-T, use category 3, 4, or 5 twisted-pair wiring. 10/100 Mbps Full-
Duplex is supported on this Notebook PC but requires connection to a network switching hub with
“duplex” enabled. The software default is to use the fastest setting so no user-intervention is required.
1000BASE-T (or Gigabit) is only supported on selected models.
Twisted-Pair Cable
The cable used to connect the Ethernet card to a host (generally a Hub or Switch)
is called a straight-through Twisted Pair Ethernet (TPE). The end connectors are
called RJ-45 connectors, which are not compatible with RJ-11 telephone connec-
tors. If connecting two computers together without a hub in between, a crossover
LAN cable is required (Fast-Ethernet model). (Gigabit models support auto-
crossover so a crossover LAN cable is optional.)
Network cable with
RJ-45 connectors
Network Hub or Switch
4 Using the Notebook PC
41
These are examples of the Notebook PC
connected to a Wireless Network.
Desktop PC
PDA
Notebook PC
Access
Point
Desktop PC
PDA
Notebook PC
Wireless LAN Connection (on selected models)
The optional built-in wireless LAN is a compact easy-to-use wireless Ethernet adapter. Implementing
the IEEE 802.11 standard for wireless LAN (WLAN), the optional built-in wireless LAN is capable of
fast data transmission rates using Direct Sequence Spread Spectrum (DSSS) and Orthogonal Frequen-
cy Division Multiplexing (OFDM) technologies on 2.4GHz/5GHz frequencies. The optional built-in
wireless LAN is backward compatible with the earlier IEEE 802.11 standards allowing seamless
interfacing of wireless LAN standards.
The optional built-in wireless LAN is a client adapter that supports Infrastructure and Ad-hoc modes
giving you flexibility on your existing or future wireless network configurations for distances up to 40
meters between the client and the access point.
To provide efficient security to your wireless communication, the optional built-in wireless LAN
comes with a 64-bit/128-bit Wired Equivalent Privacy (WEP) encryption and Wi-Fi Protected Access
(WPA) features.

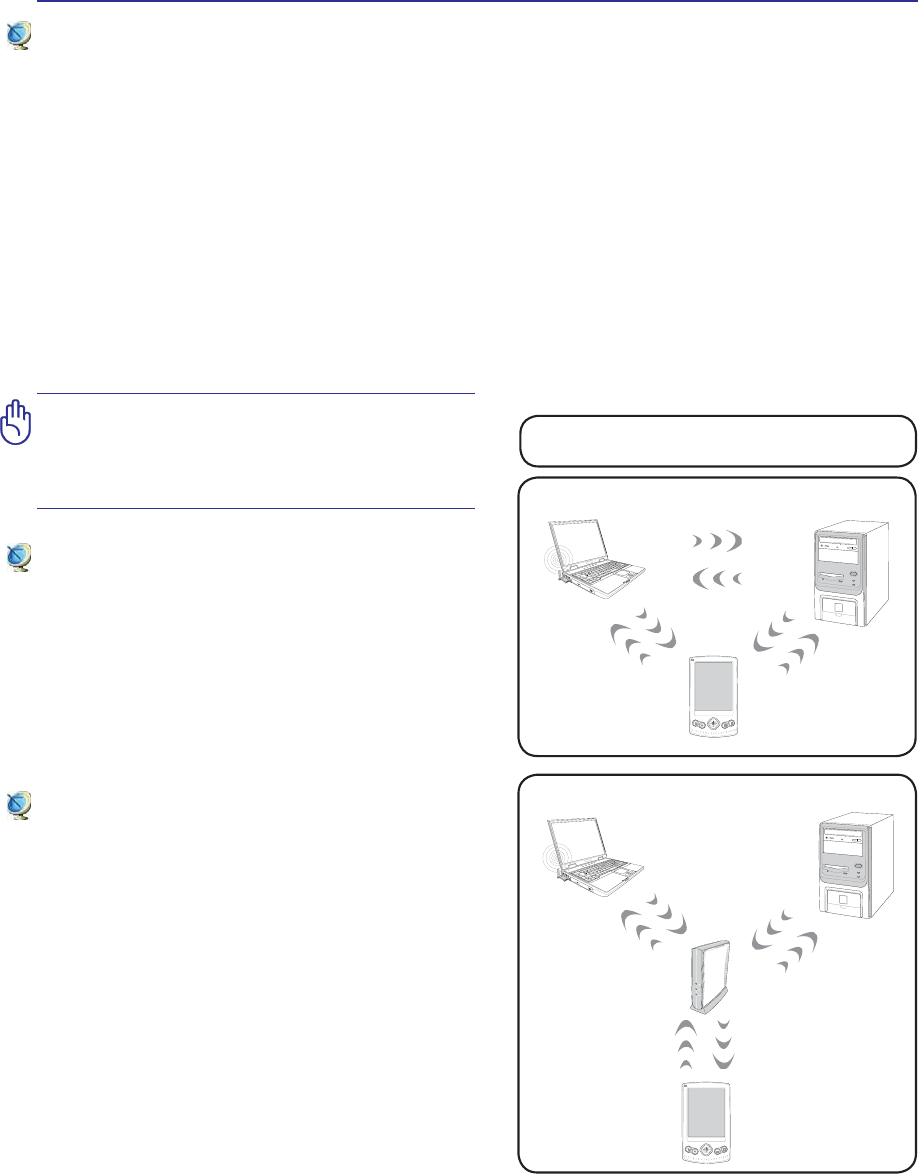

Ad-hoc mode
The Ad-hoc mode allows the Notebook PC to con-
nect to another wireless device. No access point
(AP) is required in this wireless environment.
(All devices must install optional 802.11 wireless
LAN adapters.)
Infrastructure mode
The Infrastructure mode allows the Notebook
PC and other wireless devices to join a wireless
network created by an Access Point (AP) (sold
separately) that provides a central link for wireless
clients to communicate with each other or with a
wired network.
(All devices must install optional 802.11 wireless
LAN adapters.)
For security concerns, DO NOT connect
to the unsecured network; otherwise,
the information transmission without
encryption might be visible to others.
Using the Notebook PC 4
42
2. Press [FN+F2] repeatedly until wireless
LAN icon and bluetooth icon are shown.

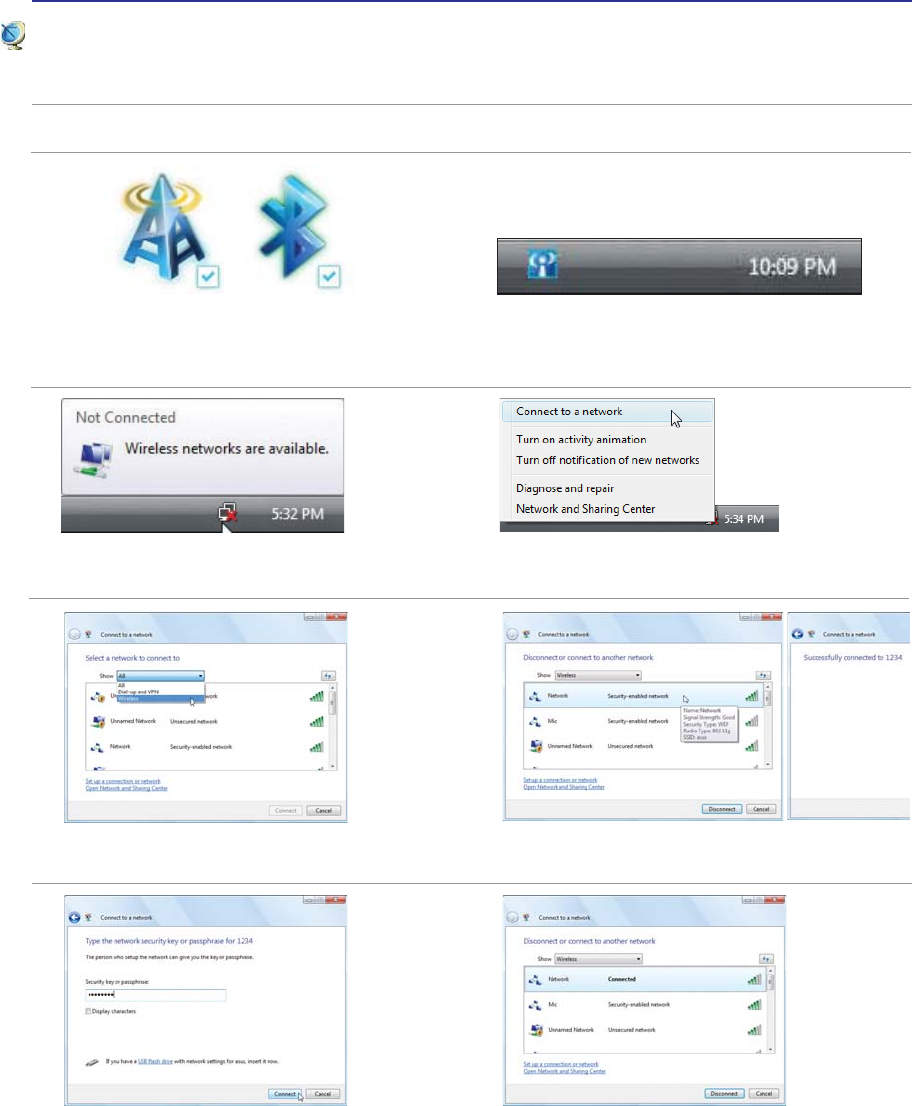

Windows Wireless Network Connection
Connecting to a network
4. Right click on the network icon and
select Connect to a network.
3. You should see the “Not Connected”
network icon.
5. Select “Show Wireless” if you have
many networks in your area.
6. Select the wireless network you want to
connect to.
7. When connecting, you may have to enter
a password.
8. After connection has been established,
“Connected” will be shown.
2b. Or double click the Wireless Console icon
on Windows notification area and select the
wireless LAN icon.
1. Switch ON the Wireless function if necessary for your model (see switches in Section 3).
4 Using the Notebook PC
43
Bluetooth Wireless Connection (on selected models)
Notebook PCs with Bluetooth technology eliminates the need for cables for connecting
Bluetooth-enabled devices. Examples of Bluetooth-enabled devices may be Notebook
PCs, Desktop PCs, mobile phones, and PDAs.
If your Notebook PC did not come with built-in Bluetooth, you need to connect a
USB or ExpressCard Bluetooth module in order to use Bluetooth.
Bluetooth-enabled mobile phones
You can wireless connect to your mobile phone. Depending on your mobile phoneʼs
capabilities, you can transfer phone book data, photos, sound files, etc. or use it as a
modem to connect to the Internet. You may also use it for SMS messaging.
Bluetooth-enabled computers or PDAs
You can wireless connect to another computer or PDA and exchange files, share peripherals, or
share Internet or network connections. You may also make use of Bluetooth-enabled wireless
keyboard or mouse.
2b. Or double click the Wireless Console icon on
the Windows notification area and select the
bluetooth icon.
3. Select Add a Bluetooth Device in the
notification area menu.
3b. Or Launch Bluetooth Devices from the
Windows Control Panel.
Turning ON and Launching Bluetooth Utility
This process can be used to add most Bluetooth devices. See Appendix for complete process.
1. Switch ON the Wireless function if necessary for your model (see switches in Section 3).
2. Press [FN+F2] repeatedly until wireless
LAN icon and bluetooth icon are shown.
Using the Notebook PC 4
44
4 Using the Notebook PC
Appendix
Optional Accessories & Connections
Operating System and Software
System BIOS Settings
Common Problems and Solutions
Windows Software Recovery
Glossary
Declarations and Safety Statements
Notebook PC Information
Photos and icons in this manual are used for artistic purposes only and do not
show what is actually used in the product itself.
There may be differences between your Notebook PC and the drawings shown in
this manual. Please accept your Notebook PC as being correct.
A-2
A Appendix

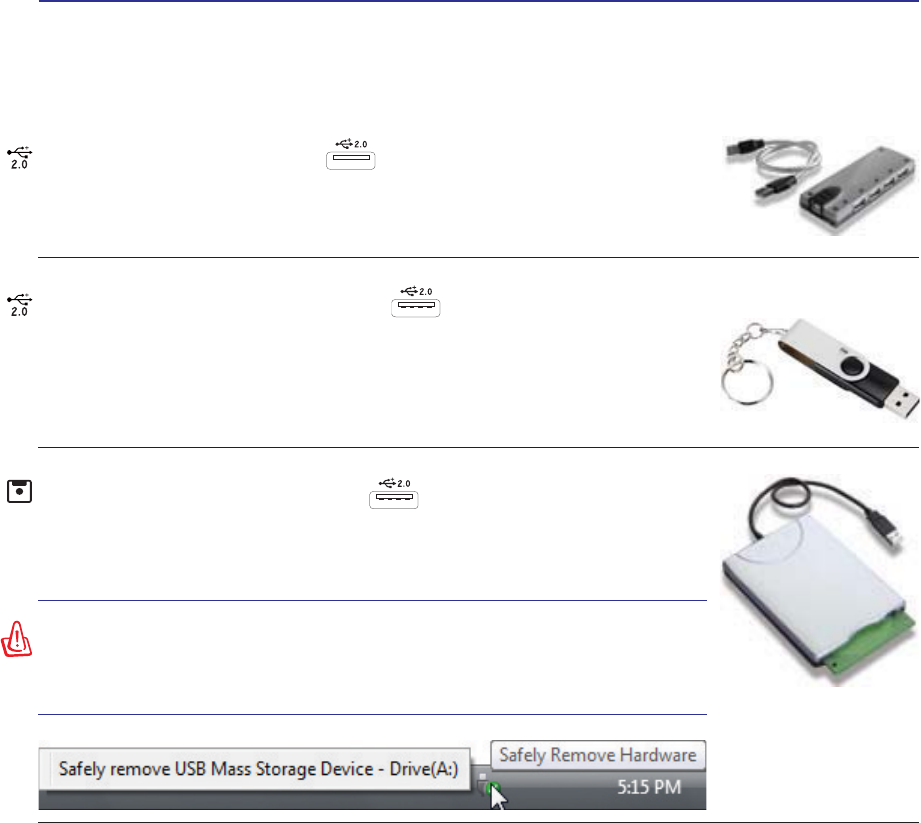

Optional Accessories
These items, if desired, come as optional items to complement your Notebook PC.
USB Flash Memory Disk
A USB flash memory disk is an optional item that can provide storage up to
several hundred megabytes, higher transfer speeds, and greater durability.
When used in current operating systems, no drivers are necessary.
USB Hub (Optional)
Attaching an optional USB hub will increase your USB ports and allow you to quickly connect or
disconnect many USB peripherals through a single cable.
USB Floppy Disk Drive
An optional USB-interface floppy disk drive can accept a standard 1.44MB (or
720KB) 3.5-inch floppy diskette.
WARNING! To prevent system failures, use Windows “Safely
Remove Hardware” on the taskbar before disconnecting the
USB floppy disk drive. Eject the floppy disk before transporting
the Notebook PC to prevent damage from shock.
A-3
Appendix A
Optional Connections
These items, if desired, may be purchased from third-parties.

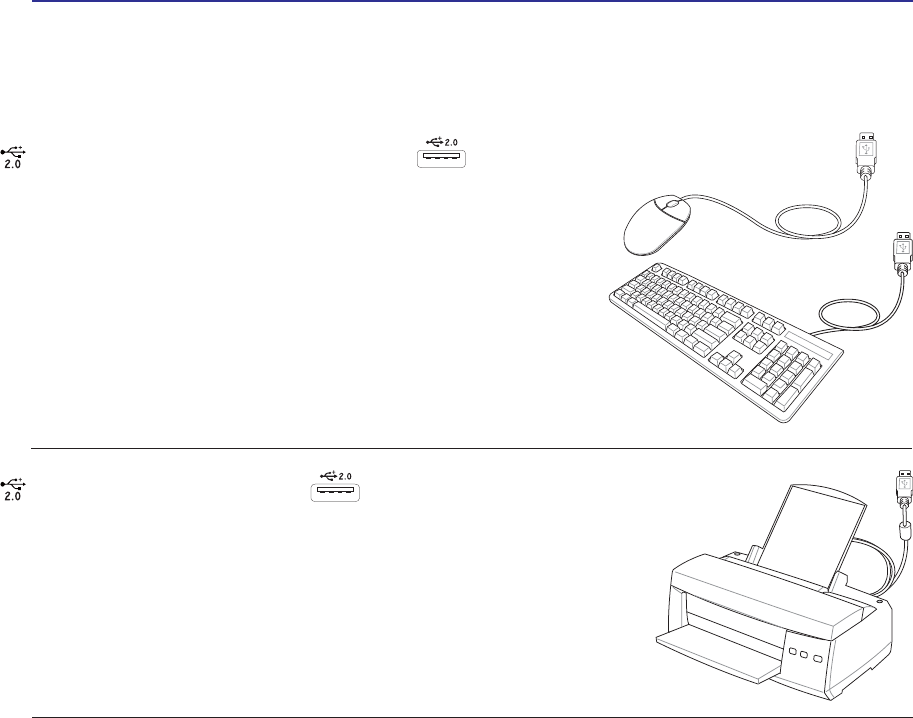

USB Keyboard and Mouse
Attaching an external USB keyboard will allow data entry to be
more comfortable. Attaching an external USB mouse will allow
Windows navigation to be more comfortable. Both the external
USB keyboard and mouse will work simultaneously with the
Notebook PCʼs built-in keyboard and touchpad.
Printer Connection
One or more USB printers can be simultaneously used on any USB port
or USB hub.
A-4
A Appendix
Bluetooth Mouse Setup (optional)
This process can be used to add most Bluetooth devices in Windows operating system.
3. Select Add a Bluetooth Device on the taskbar
menu.
3c. If launched from the Control Panel, click Add
from this screen.
1. Switch ON the Wireless function if necessary for your model (see switches in Section 3).
3b. Or Launch Bluetooth Devices from the Win-
dows Control Panel.
2b. Or double click the Wireless Console icon on
the Windows notification area and select the
bluetooth icon.
2. Press [FN+F2] repeatedly until wireless
LAN icon and bluetooth icon are shown.
A-5
Appendix A

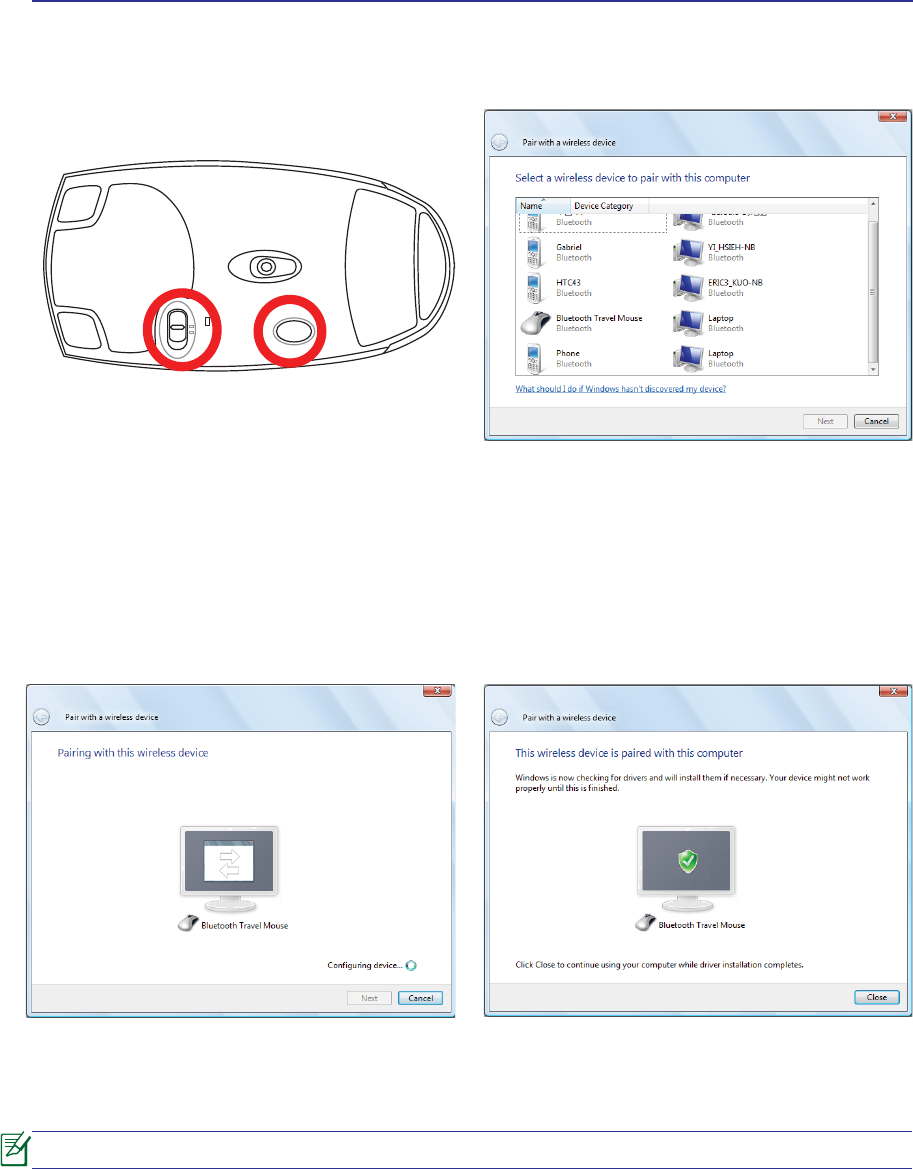

“RESET” may be necessary after changing batteries. Repeat steps if necessary.
5. Select Bluetooth Mouse and click Next to con-
tinue.
6. The pairing starts. 7. The Bluetooth mouse has been successfully
paired with the Notebook PC. Click Close to fin-
ish the setup.
R
E
S
E
T
OFF ON
4. Prepare the Bluetooth mouse.
• Install two “AA” batteries.
• Turn ON the power switch on the bottom of
the mouse. The bottom sensor should glow
red.
• Push the “RESET” button on the bottom of
the Bluetooth mouse.
A-6
A Appendix
Support Software
This Notebook PC comes with a support disc that provides BIOS, drivers and applica-
tions to enable hardware features, extend functionality, help manage your Notebook
PC, or add functionality not provided by the native operating system. If updates or
replacement of the support disc is necessary, contact your dealer for web sites to
download individual software drivers and utilities.
The support disc contains all drivers, utilities and software for all popular operating
systems including those that have been pre-installed. The support disc does not include the
operating system itself. The support disc is necessary even if your Notebook PC came pre-configured
in order to provide additional software not included as part of the factory pre-install.
A recovery disc is optional and includes an image of the original operating system installed on the
hard drive at the factory. The recovery disc provides a comprehensive recovery solution that quickly
restores the Notebook PCʼs operating system to its original working state provided that your hard disk
drive is in good working order. Contact your retailer if you require such a solution.
Some of the Notebook PCʼs components and features may not work until the device
drivers and utilities are installed.
Operating System and Software
This Notebook PC may offer (depending on territory) its customers the choice of a pre-installed
Microsoft Windows operating system. The choices and languages will depend on the territory. The
levels of hardware and software support may vary depending on the installed operating system. The
stability and compatibility of other operating systems cannot be guaranteed.
System BIOS Settings
Boot Device
1. On the Boot screen,
select Boot Device
Priority.
Select Screen
Select Item
Enter Go to Sub Screen
F1 General Help
F10 Save and Exit
ESC Exit
v02.59 (C)Copyright 1985-2005, American Megatrends, Inc.
BIOS SETUP UTILITY
Main Advanced Security Power Boot Exit
Boot Settings
Boot Settings Configuration
Boot Device Priority
Hard Disk Drives
Onboard LAN Boot ROM [Disabled]
Specifies the Boot
Device Boot Priority
sequence.
A virtual floppy disk
drive (Floppy Drive B:
) may appear when you
set the CD-ROM drive
as the first boot
device.
A-7
Appendix A
2. Select each item and
press [Enter] to select a
device.
Security Setting
To set the password:
1. On the Security screen,
select Change
Supervisor or Change
User Password.
2. Type in a password and
press [Enter].
3. Re-type to confirm the
password and press
[Enter].
4. Password is then set.
Select Screen
Select Item
+- Change Option
F1 General Help
F10 Save and Exit
ESC Exit
v02.59 (C)Copyright 1985-2005, American Megatrends, Inc.
BIOS SETUP UTILITY
Boot
Boot Device Priority
1st Boot Device [Hard Drive]
2nd Boot Device [CD/DVD]
3rd Boot Device [Removable Device]
4th Boot Device [Network]
Specifies the boot
sequence from the
availabe devices.
A device enclosed
in parenthesis has
been disabled in the
corresponding type menu.
Select Screen
Select Item
Enter Change
F1 General Help
F10 Save and Exit
ESC Exit
v02.59 (C)Copyright 1985-2005, American Megatrends, Inc.
BIOS SETUP UTILITY
Security
Security Settings
Supervisor Password : Not Installed
User Password : Not Installed
Change Supervisor Password
Change User Password
Hard Disk Security Setting
I/O Interface Security
Install or Change the
password.
System BIOS Settings (cont.)
To clear the password:
1. Leave the password field blank and press [Enter].
2. Password is then cleared.
A-8
System BIOS Settings (cont.)
Password Check
Select whether to ask for
a password during bootup
(Always) or only when
entering the BIOS setup
utility (Setup).
Select the level of access
to allow the “User Pass-
word” to have in the BIOS
setup utility.
User Access Level
Save Changes
If you want to keep your
configuration settings, you
must save changes before
exiting the BIOS setup
utility.
If you want to restore
default settings, choose
Load Setup Defaults. You
must then save changes
to keep the manufacture
default settings.
Select Screen
Select Item
Enter Change
F1 General Help
F10 Save and Exit
ESC Exit
v02.59 (C)Copyright 1985-2005, American Megatrends, Inc.
BIOS SETUP UTILITY
Security
Security Settings
Supervisor Password : Installed
User Password : Installed
Change Supervisor Password
User Access Level [Full Access]
Change User Password
Clear User Password
Password Check [Setup]
Hard Disk Security Setting
I/O Interface Security
Setup: Check password
while invoking setup.
Always: Check password
while invoking setup
as well as on each
boot.
Options
Always
Setup
Select Screen
Select Item
Enter Change
F1 General Help
F10 Save and Exit
ESC Exit
v02.59 (C)Copyright 1985-2005, American Megatrends, Inc.
BIOS SETUP UTILITY
Security
Security Settings
Supervisor Password : Installed
User Password : Installed
Change Supervisor Password
User Access Level [Full Access]
Change User Password
Clear User Password
Password Check [Setup]
Hard Disk Security Setting
I/O Interface Security
Setup: Check password
while invoking setup.
Always: Check password
while invoking setup
as well as on each
boot.
Options
No Access
View Only
Limited
Full Access
Select Screen
Select Item
Enter Go to Sub Screen
Tab Select Field
F1 General Help
F10 Save and Exit
ESC Exit
v02.59 (C)Copyright 1985-2005, American Megatrends, Inc.
BIOS SETUP UTILITY
Main Advanced Security Power Boot Exit
Exit Options
Save Changes and Exit
Discard Changes and Exit
Discard Changes
Load User Defaults
Load Manufacture Defaults
Exit system setup after
saving the changes.
F10 key can be used for
this operation.
A Appendix
A-9
Common Problems and Solutions
Hardware Problem - Optical Disc
The optical disc drive is not able to read or write discs.
1. Update the BIOS to the latest version and try again.
2. If updating the BIOS does not help, try better quality discs and try again.
3. If the problem still exist, contact your local service center and ask an engineer for assistance.
Unknown Reason - System Unstable
Cannot wake up from the hibernation.
1. Remove upgraded parts (RAM, HDD, WLAN, BT) if they were installed after purchase.
2. If not the case, try MS System Restore to an earlier date.
3. If problem still persists, try restoring your system using the recovery partition or DVD.
(NOTE: You must backup all your data to another location before recovering.)
4. If the problem still exist, contact your local service center and ask an engineer for assistance.
Hardware Problem - Keyboard / Hotkey
The Hotkey (FN) is disabled.
A. Reinstall the “ATK0100” driver from the driver CD or download it from the ASUS website.
Hardware Problem - Built-in Camera
The built-in camera does not work correctly.
1. Check “Device Manager” to see if there are any problems.
2. Try reinstalling the webcam driver to solve the problem.
3. If the problem is not solved, update the BIOS to the latest version and try again.
4. If the problem still exist, contact your local service center and ask an engineer for assistance.
Appendix A
A-10
Common Problems and Solutions (Cont.)
Hardware Problem - Battery
Battery maintenance.
1. Register the Notebook PC for a one-year-warranty using the following website:
http://member.asus.com/login.aspx?SLanguage=en-us
2. Do NOT remove the battery pack while using the Notebook PC with the AC adaptor to prevent
damage caused by the accidental power loss. The ASUS battery pack has protection circuitry to
prevent over-charging so it will not damage the battery pack if it is left in the Notebook PC.
3. Store the battery pack in a dry location with temperatures between 10 and 30 if you will not
be using it for a long time. It is strongly recommended that you charge the battery pack every three
months.
Hardware Problem - Power ON/OFF Error
I cannot power ON the Notebook PC.
Diagnostics:
1. Power On by Battery only? (Y = 2, N = 4)
2. Able to see BIOS (ASUS Logo)? (Y = 3, N = A)
3. Able to load the OS? (Y = B, N = A)
4. Adapter power LED ON? (Y = 5, N = C)
5. Power ON by Adapter only? (Y = 6, N = A)
6. Able to see BIOS (ASUS Logo)? (Y = 7, N = A)
7. Able to load the OS? (Y = D, N = A)
Symptom & Solutions:
A. Problem might be in the MB, HDD, or NB; visit a local service center for assistance.
B. Problem caused by the operating system, try restoring your system using the recovery partition or disc.
(IMPORTANT: You must backup all your data to another location before recovering.)
C. Adapter problem; check the power cord connections, otherwise visit a local service center for
replacement.
D. Battery problem; please check the battery contacts, otherwise visit a local service center for repair.
A Appendix
A-11
Hardware Problem - Wireless Card
How to check whether a Notebook PC is equipped with a wireless card?
A. Enter Control Panel -> Device Manager. You will see whether the Notebook PC has a WLAN
card under the “Network Adapter” item.
Mechanical Problem - FAN / Thermal
Why is the cooling fan always ON and the temperature high?
1. Make sure that the FAN works when the CPU temperature is high and check whether there is air
flow from the main air vent.
2. If you have many applications running (see taskbar), close them to decrease system load.
3. The problem may also be caused by some viruses, use anti-virus software to detect them.
4. If none of the above help, try restoring your system using the recovery partition or DVD.
(IMPORTANT: You must backup all your data to another location before recovering.)
(CAUTION: Do not connect to the Internet before you have installed an anti-virus software and
Internet firewall to protect yourself from viruses.)
Software Problem - ASUS bundled software
When I power ON the Notebook PC, there will be an “Open policy file error” message.
A. Reinstall the latest version “Power4 Gear” utility to solve your problem. It is available on the
ASUS website.
Common Problems and Solutions (Cont.)
Appendix A
A-12
Unknown Reason - Blue screen with white text
A blue screen with white text appears after system bootup.
1. Remove additional memory. If additional memory was installed after purchase, power OFF, re-
move the additional memory, and power ON to see if the problem is due to incompatible memory.
2. Un-install software applications. If you have installed software applications recently, they may not
be compatible with your system. Try to un-install them in Windows Safe Mode.
3. Check your system for viruses.
4. Update the BIOS to the latest version with Easy Flash in Windows or AFLASH in DOS mode.
These utilities and BIOS files can be downloaded from the ASUS website. (WARNING: Ensure
your Notebook PC does not lose power during the BIOS flashing process.)
5. If problem still cannot be solved, use the recovery process to reinstall your entire system. (IM-
PORTANT: You must backup all your data to another location before recovering.)
(CAUTION: DO NOT connect to the Internet before you have installed an anti-virus soft-
ware and Internet firewall to protect yourself from viruses.) (NOTE: Ensure that you install
the “Intel INF Update” and “ATKACPI” drivers first so that hardware devices can be recog-
nized.)
6. If the problem still exist, contact your local service center and ask an engineer for assistance.
Common Problems and Solutions (Cont.)
A Appendix
A-13
Software Problem - BIOS
Updating the BIOS.
1. Please verify the Notebook PCʼs exact model and download the latest BIOS file for your model
from the ASUS website and save it in your flash disk drive.
2. Connect your flash disk drive to the Notebook PC and power on the Notebook PC.
3. Use the “Easy Flash” function on the Advanced page of the BIOS Setup Utility. Follow the in-
structions shown.
4. Locate the latest BIOS file and start updating (flashing) the BIOS.
Select Screen
Select Item
+- Change Field
Enter Go to Sub Screen
F1 General Help
F10 Save and Exit
ESC Exit
v02.61 (C)Copyright 1985-2006, American Megatrends, Inc.
BIOS SETUP UTILITY
Main Advanced Security Power Boot Exit
Advanced Settings
WARNING: Setting wrong values in below sections
may cause system to malfunction.
IDE Configuration
Start Easy Flash
ASUS FancyStart [Disabled]
Internal Pointing Device [Enabled]
Internal Numeric Pad Lock [Enabled]
Speaker Volume [4]
Intel Virtualization Tech
Intel VT-d [Disabled]
Over-Clock in POST [0%]
DTS-based Thermal Management [Enabled]
Press ENTER to run
the utility to select
and update BIOS.
Press Hotkey F4 at
POST to invoke the
Utility. This
utility doesn't
support :
1. CDROM
2. USB HDD
3. Secondary HDD
Start Easy Flash Utility?
[OK] [Cancel]
AsusTek BIOS ROM Easy Flash Utility V1.15
Current ROM Update ROM
A:
B:
C:
D:
Note
<Up/Dn> to move ,<Enter> to determine ,<BSpace> to drive select
FLASH TYPE: MXIC MX25L8005
PATH: A:\
PLATFORM: UX30
VER: 002.T22
DATE: 03/24/09
PLATFORM: Unknown
VER: Unknown
DATE: Unknown
5. You must “Load Setup Defaults” on the Exit page after updating (flashing) the BIOS.
Drive File
Appendix A
A-14
Common Problems and Solutions (Cont.)
Symantecʼs Norton Internet Security (NIS) (on selected models)
1. Sometimes NIS will show an alert to stop a Trojan virus from a local IP address.
This problem can be solved by making sure the virus definition file is the latest one and regularly
updating the virus definition file.
2. Reinstalling fails at the “Information Wizard” after uninstalling Norton Antivirus.
Ensure NIS has been uninstalled from your computer, reboot your system, install NIS again, use
“Live Update” and update the virus definition file.
3. Norton accidently blocks desired web pages or reduces download speeds.
Change the security configuration to a lower level. NIS scans virus while downloading data so
network speed will be decreased.
4. Cannot login to MSN or Yahoo messenger services.
Make sure NIS has been updated and also update the Windows system by using “Windows Up-
date”. If the problem still exist, try:
1. Open NIS 200x by clicking on the NIS icon in your system tray.
2. Open “Norton AntiVirus” in “Options” menu.
3. Click on “Instant Messenger” uncheck “MSN/Windows Messenger” from “Which Instant mes-
sengers to protect.”
5. NIS is damaged and need reinstalling.
NIS is located in the provided disc in the “NIS200x” folder (x is the version number).
6. The “Start firewall when system is booted” option is selected but it takes about one minute to
startup the firewall every time I enter Windows. Windows is not responsive during this time.
If NIS firewall reduces your system speed to an intolerable level, deselect that option.
7. Much of my system speed has been reduced by NIS.
NIS will reduce your system speed (both booting and running performance) if you are using NISʼs
full protection functions, NIS scans and tracks all data in the background. You can speed up your
system by stopping NISʼs auto scan functions in system bootup. You can then scan virus manually
when your computer is not in use.
A Appendix
A-15
Common Problems and Solutions (Cont.)
8. Cannot uninstall NIS.
Go to Control Panel | Add or Remove Programs. Look for “Norton Internet Security 200x (Sy-
mantec Corporation)”. Click Change/Remove and choose Remove All to uninstall NIS.
9. Windows Firewall must be stopped before installing “Norton Internet Security” or “Norton Per-
sonal Firewall”. How to stop Windows Firewall:
1. Click Start and then Control Panel.
2. You will have one of two control panels. Click on the Security Center icon.
3. Click on the Windows Firewall icon beneath the status updates.
4. Click Off and then click OK.
10. Why is the “Privacy Control” icon showing ʻxʼ?
Turn off Privacy Control from “Status & Settings”.
11. Insufficient privilege message.
Many settings, including disabling or uninstalling NIS, require you to be logged into Windows
with Administrator privileges. Log Off and switch to a user account with Administrator privileges.
Appendix A
A-16
Windows Vista Software Recovery
Using Hard Disk Partition
The Recovery Partition includes an image of the operating system, drivers, and utilities installed on
your Notebook PC at the factory. The Recovery Partition provides a comprehensive recovery solution
that quickly restores your Notebook PCʼs software to its original working state, provided that your
hard disk drive is in good working order. Before using the Recovery Partition, copy your data files
(such as Outlook PST files) to USB flash disks or to a network drive and make note of any customized
configuration settings (such as network settings).
About the Recovery Partition
The Recovery Partition is a space reserved on your hard disk drive used to restore the operating sys-
tem, drivers, and utilities installed on your Notebook PC at the factory.

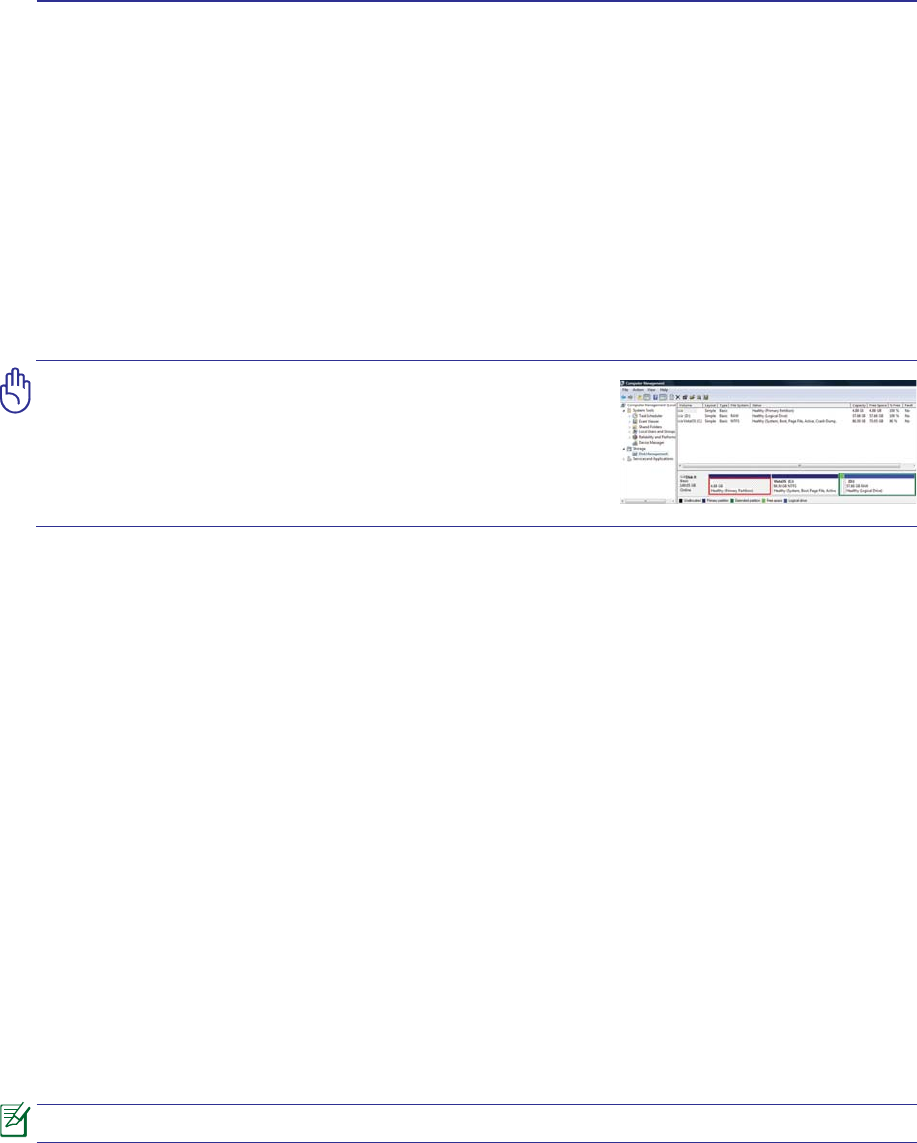

IMPORTANT! DO NOT delete the partition named
“RECOVERY”. The Recovery Partition is created at
the factory and cannot be restored by the user if de-
leted. Take your Notebook PC to an authorized ASUS
service center if you have problems with the recovery
process.
Using the Recovery Partition:
1. Press [F9] during bootup (requires a Recovery Partition)
2. Press [Enter] to select Windows Setup [EMS Enabled]
3. Read the “ASUS Preload Wizard” screen and click Next.
4. Select a partition option and click Next. Partition options:
Recover Windows to first partition only.
This option will delete only the first partition, allowing you to keep other partitions, and create a
new system partition as drive “C”.
Recover Windows to entire HD.
This option will delete all partitions from your hard disk drive and create a new system partition as
drive “C”.
Recover Windows to entire HD with 2 partition.
This option will delete all partitions from your hard drive and create two new partitions “C” (60%)
and “D” (40%).
5. Follow the on-screen instructions to complete the recovery process.
Please visit www.asus.com for updated drivers and utilities.
A Appendix
A-17
Appendix A
Windows Vista Software Recovery (Cont.)
Using DVD (on selected models)
Before using the recovery DVD to recover your Notebook PC, you need the following items.
• A USB 2.0 DVD-ROM
• Three blank writable DVDs
Creating the Recovery DVD:

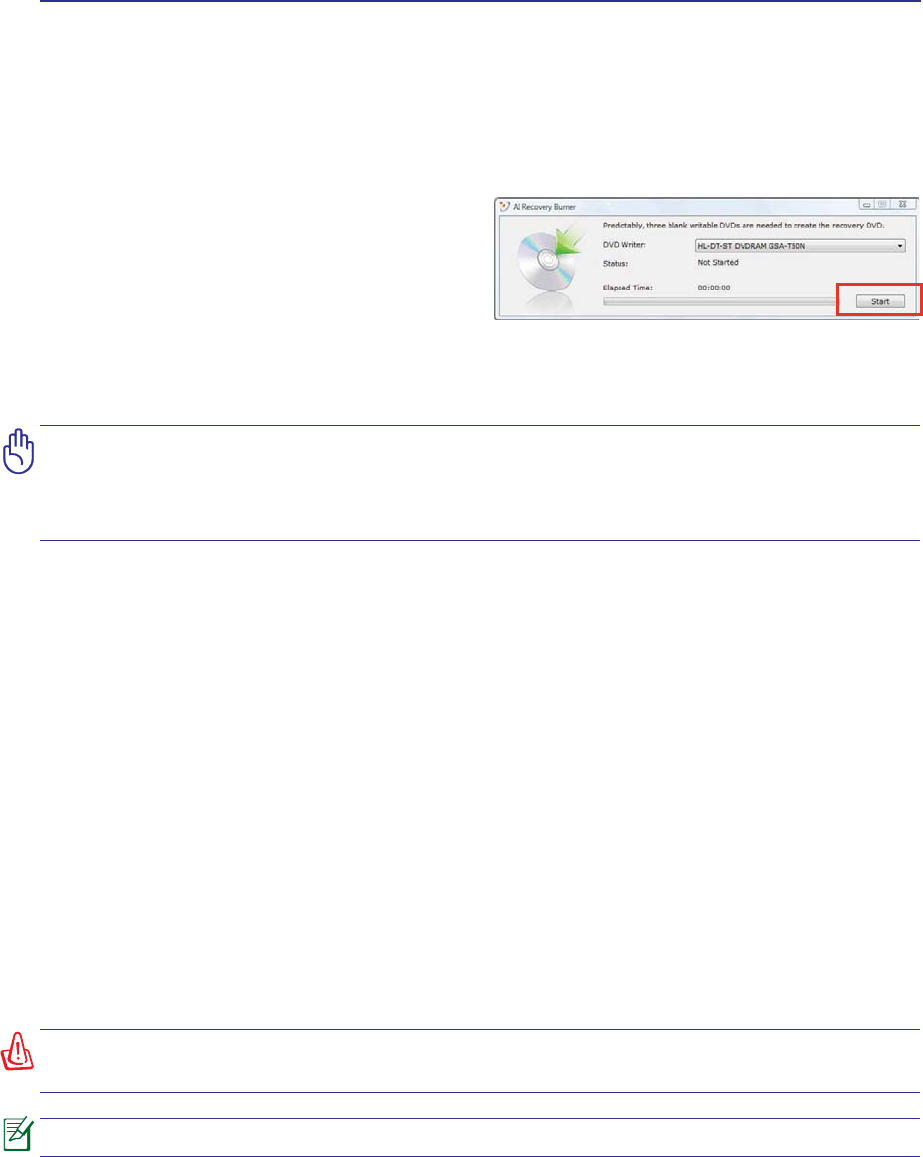

1. Double-click the AI Recovery Burner icon on
the Window desktop.
2. Insert a blank writable DVD into the optical
drive and click Start to start creating the Recovery DVD.
3. Follow the onscreen instructions to complete creating the recovery DVD.
IMPORTANT! Remove the external hard disk drive before performing system recovery
on your notebook PC. According to Microsoft, you may lose important data because
of setting up Windows Vista on the wrong disk drive or formatting the incorrect drive
partition. Link to http://support.microsoft.com/kb/937251/en-us for more details.
Using the Recovery DVD:
1. Insert the Recovery DVD into the optical drive (Notebook PC needs to be powered ON).
2. Restart the Notebook PC and press <Esc> on bootup and select the optical drive (may be labeled
as “CD/DVD”) using the down cursor and press <Enter> to boot from the Recovery DVD.
3. Select a partition option and click Next. Partition options:
Recover Windows to first partition only.
This option will delete only the first partition, allowing you to keep other partitions, and create a
new system partition as drive “C”.
Recover Windows to entire HD.
This option will delete all partitions from your hard disk drive and create a new system partition as
drive “C”.
Recover Windows to entire HD with 2 partition.
This option will delete all partitions from your hard drive and create two new partitions “C” (60%)
and “D” (40%).
4. Follow the onscreen instructions to complete the recovery process.
WARNING: Do not remove the Recovery disc (unless instructed to do so) during the
recovery process or else your partitions will be unusable.
Please visit www.asus.com for updated drivers and utilities.
A-18
Glossary
ACPI (Advanced Configuration and Power Management Interface)
Modern standard for reducing power usage in computers.
APM (Advanced Power Management)
Modern standard for reducing power usage in computers.
AWG (American Wire Gauge)
This table is for general reference only and should not be used as a source of the
American Wire Gauge standard as this table may not be current or complete.
Gauge Diam Area R I@3A/mm2
AWG (mm) (mm2) (ohm/km) (mA)
33 0.18 0.026 676 75
0.19 0.028 605 85
32 0.20 0.031 547 93
30 0.25 0.049 351 147
29 0.30 0.071 243 212
27 0.35 0.096 178 288
26 0.40 0.13 137 378
25 0.45 0.16 108 477
Gauge Diam Area R I@3A/mm2
AWG (mm) (mm2) (ohm/km) (mA)
24 0.50 0.20 87.5 588
0.55 0.24 72.3 715
0.60 0.28 60.7 850
22 0.65 0.33 51.7 1.0 A
0.70 0.39 44.6 1.16 A
0.75 0.44 38.9 1.32 A
20 0.80 0.50 34.1 1.51 A
0.85 0.57 30.2 1.70 A
BIOS (Basic Input/Output System)
BIOS is a set of routines that affect how the computer transfers data between computer components,
such as memory, disks, and the display adapter. The BIOS instructions are built into the computerʼs
read-only memory. BIOS parameters can be configured by the user through the BIOS Setup program.
The BIOS can be updated using the provided utility to copy a new BIOS file into the EEPROM.
Bit (Binary Digit)
Represents the smallest unit of data used by the computer. A bit can have one of two values: 0 or 1.
Boot
Boot means to start the computer operating system by loading it into system memory. When the man-
ual instructs you to “boot” your system (or computer), it means to turn ON your computer. “Reboot”
means to restart your computer. When using Windows 95 or later, selecting “Restart” from “Start |
Shut Down...” will reboot your computer.
Byte (Binary Term)
One byte is a group of eight contiguous bits. A byte is used to represent a single alphanumeric charac-
ter, punctuation mark, or other symbol.
Clock Throttling
Chipset function which allows the processorʼs clock to be stopped and started at a known duty cycle.
Clock throttling is used for power savings, thermal management, and reducing processing speed.
A Appendix
A-19
CPU (Central Processing Unit)
The CPU, sometimes called “Processor,” actually functions as the “brain” of the computer. It inter-
prets and executes program commands and processes data stored in memory.
Device Driver
A device driver is a special set of instructions that allows the computerʼs operating system to commu-
nicate with devices such as VGA, audio, Ethernet, printer, or modem.
DVD
DVD is essentially a bigger, faster CD that can hold video as well as audio and computer data. With
these capacities and access rates, DVD discs can provide you with dramatically-enhanced high-color,
full-motion videos, better graphics, sharper pictures, and digital audio for a theater-like experience.
DVD aims to encompass home entertainment, computers, and business information with a single dig-
ital format, eventually replacing audio CD, videotape, laserdisc, CD-ROM, and video game cartridges.
ExpressCard
ExpressCard slot is 26 pins and support one ExpressCard/34mm or one ExpressCard/54mm expansion
card. This new interface is faster by using a serial bus supporting USB 2.0 and PCI Express instead of
the slower parallel bus used in the PC card slot. (Not compatible with previous PCMCIA cards.)
Hardware
Hardware is a general term referring to the physical components of a computer system, including
peripherals such as printers, modems, and pointing devices.
IDE (Integrated Drive Electronics)
IDE devices integrate the drive control circuitry directly on the drive itself, eliminating the need for a
separate adapter card (in the case for SCSI devices). UltraDMA/66 or 100 IDE devices can achieve up
to 33MB/Sec transfer.
IEEE1394 (1394)
Also known as iLINK (Sony) or FireWire (Apple). 1394 is a high speed serial bus like SCSI but
has simple connections and hot-plugging capabilities like USB. The popular 1394a interface has a
bandwidth of 400Mbits/sec and can handle up to 63 units on the same bus. The newer 1394b interface
can support twice the speed and will appear in future models when peripherals support higher speeds.
1394 is also used in high-end digital equipment and should be marked “DV” for Digital Video port.
Kensington
®
Locks
Kensington® locks (or compatible) allow the Notebook PC to be secured usually using a metal cable
and lock that prevent the Notebook PC to be removed from a fixed object. Some security products
may also include a motion detector to sound an alarm when moved.
Glossary (Cont.)
Appendix A
A-20
Glossary (Cont.)
Laser Classifications
As lasers became more numerous and more widely used, the need to warn users of laser hazards became
apparent. To meet this need, laser classifications were established. Current classification levels vary from
optically safe, requiring no controls (Class 1) to very hazardous, requiring strict controls (Class 4).
CLASS 1: A Class 1 laser or laser system emits levels of optical energy that are eye-safe and consequently
require no controls. An example of this class of laser system is the checkout scanning device found
in most grocery stores or lasers used in optical drives.
CLASS 2 & CLASS 3A: Class 2 and Class 3A lasers emit visible, continuous-wave (CW) optical ra-
diation levels slightly above the maximum permissible exposure (MPE) level. Although these lasers
can cause eye damage, their brightness usually causes observers to look away or blink before eye
damage occurs. These lasers have strict administrative controls requiring placement of signs warning
personnel not to stare directly into the beam. Class 3A lasers must not be viewed with optically-aided
devices.
CLASS 3B: Class 3B lasers, and Class 3A lasers with outputs of 2.5mW, are hazardous to personnel
who are within the beam path and look at the beam source directly or by specular reflection. These
lasers cannot produce hazardous diffuse reflections. Personnel working with these lasers should wear
appropriate protective eye wear during any operation of the laser. Class 3B lasers have both admin-
istrative and physical controls to protect personnel. Physical controls include limited access work
areas. Administrative controls include special warning signs posted outside the entrances to the laser
work spaces and lights outside the entrances that warn personnel when the lasers are in use.
CLASS 4: Class 4 lasers are high-power lasers that will cause damage to unprotected eyes and skin
through intra-beam viewing and specular or diffuse reflections. Consequently, no personnel should
be in a room where a Class 4 laser is operating without proper eye protection.
PCI Bus (Peripheral Component Interconnect Local Bus)
PCI bus is a specification that defines a 32-bit data bus interface. PCI is a standard widely used by
expansion card manufacturers.
POST (Power On Self Test)
When you turn on the computer, it will first run through the POST, a series of software-controlled di-
agnostic tests. The POST checks system memory, the motherboard circuitry, the display, the keyboard,
the diskette drive, and other I/O devices.
RAM (Random Access Memory)
RAM (usually just called memory) is the place in a computer where the operating system, applica-
tion programs, and data in current use are temporarily kept so that they can be quickly reached by the
computerʼs processor instead of having to read from and write to slower storage such as the hard disk
or optical disc.
A Appendix
A-21
Glossary (Cont.)
Suspend Mode
In Save-to-RAM (STR) and Save-to-Disk (STD), the CPU clock is stopped and most of the Notebook
PC devices are put in their lowest active state. The Notebook PC enters Suspend when the system re-
mains idle for a specified amount of time or manually using the function keys. The time-out setting of
both Hard Disk and Video can be set by the BIOS Setup. The Power LED blinks when the Notebook
PC is in STR mode. In STD mode, the Notebook PC will appear to be powered OFF.
System Disk
A system disk contains the core file of an operating system and is used to boot up the operating system.
TPM (Trusted Platform Module) (on selected models)
The TPM is a security hardware device on the system board that will hold computer-generated keys
for encryption. It is a hardware-based solution that can help avoid attacks by hackers looking to
capture passwords and encryption keys to sensitive data. The TPM provides the ability to the PC or
Notebook PC to run applications more secure and to make transactions and communication more
trustworthy.
Twisted-Pair Cable
The cable used to connect the Ethernet card to a host (generally a Hub or Switch) is called a straight-
through Twisted Pair Ethernet (TPE). The end connectors are called RJ-45 connectors, which are not
compatible with RJ-11 telephone connectors. If connecting two computers together without a hub in
between, a crossover twisted-pair is required.
UltraDMA/66 or 100
UltraDMA/66 or 100 are new specifications to improve IDE transfer rates. Unlike traditional PIO
mode, which only uses the rising edge of IDE command signal to transfer data, UltraDMA/66 or 100
uses both rising edge and falling edge.
USB (Universal Serial Bus)
A 4-pin serial peripheral bus that allows plug and play computer peripherals such as keyboard, mouse,
joystick, scanner, printer and modem/ISDN to be automatically configured when they are attached
physically without having to install drivers or reboot. With USB, the traditional complex cables from
back panel of your PC can be eliminated.
Appendix A
A-22
Declarations and Safety Statements
Region Definitions
Region 1
Canada, US, US Territories
Region 2
Czech, Egypt, Finland, France, Germany, Gulf States, Hungary, Iceland, Iran, Iraq, Ireland, Italy,
Japan, Netherlands, Norway, Poland, Portugal, Saudi Arabia, Scotland, South Africa, Spain, Sweden,
Switzerland, Syria, Turkey, UK, Greece, Former Yugoslav Republics, Slovakia
Region 3
Burma, Indonesia, South Korea, Malaysia, Philippines, Singapore, Taiwan, Thailand, Vietnam
Region 4
Australia, Caribbean (Except US Territories), Central America, New Zealand, Pacific Islands, South
America
Region 5
CIS, India, Pakistan, Rest of Africa, Russia, North Korea
Region 6
China
The region setting may be changed up to five times using the viewer software, then
it can only play DVD movies for the last region setting. Changing the region code
after that will require factory resetting which is not covered by warranty. If resetting
is desired, shipping and resetting costs will be at the expense of the user.
DVD-ROM Drive Information
The Notebook PC comes with an optional DVD-ROM drive or a CD-ROM drive. In order to view
DVD titles, you must install your own DVD viewer software. Optional DVD viewer software may be
purchased with this Notebook PC. The DVD-ROM drive allows the use of both CD and DVD discs.
Regional Playback Information
Playback of DVD movie titles involves decoding MPEG2 video, digital AC3 audio and decryption of
CSS protected content. CSS (sometimes called copy guard) is the name given to the content protection
scheme adopted by the motion picture industry to satisfy a need to protect against unlawful content
duplication.
Although the design rules imposed on CSS licensors are many, one rule that is most relevant is playback
restrictions on regionalized content. In order to facilitate geographically staggered movie releases, DVD
video titles are released for specific geographic regions as defined in “Region Definitions” below. Copy-
right laws require that all DVD movies be limited to a particular region (usually coded to the region at
which it is sold). While DVD movie content may be released for multiple regions, CSS design rules require
that any system capable of playing CSS encrypted content must only be capable of playing one region.
A Appendix
A-23
Internal Modem Compliancy
The Notebook PC with internal modem model complies with JATE (Japan), FCC (US, Canada, Korea,
Taiwan), and CTR21. The internal modem has been approved in accordance with Council Decision
98/482/EC for pan-European single terminal connection to the public switched telephone network
(PSTN). However due to differences between the individual PSTNs provided in different countries,
the approval does not, of itself, give an unconditional assurance of successful operation on every
PSTN network termination point. In the event of problems you should contact your equipment sup-
plier in the first instance.
Overview
On 4th August 1998 the European Council Decision regarding the CTR 21 has been published in the
Official Journal of the EC. The CTR 21 applies to all non voice terminal equipment with DTMF-dial-
ling which is intended to be connected to the analogue PSTN (Public Switched Telephone Network).
CTR 21 (Common Technical Regulation) for the attachment requirements for connection to the
analogue public switched telephone networks of terminal equipment (excluding terminal equipment
supporting the voice telephony justified case service) in which network addressing, if provided, is by
means of dual tone multifrequency signalling.
Network Compatibility Declaration
Statement to be made by the manufacturer to the Notified Body and the vendor: “This declaration will
indicate the networks with which the equipment is designed to work and any notified networks with
which the equipment may have inter-working difficulties”
Network Compatibility Declaration
Statement to be made by the manufacturer to the user: “This declaration will indicate the networks
with which the equipment is designed to work and any notified networks with which the equipment
may have inter-working difficulties. The manufacturer shall also associate a statement to make it clear
where network compatibility is dependent on physical and software switch settings. It will also advise
the user to contact the vendor if it is desired to use the equipment on another network.”
Up to now the Notified Body of CETECOM issued several pan-European approvals using CTR 21.
The results are Europeʼs first modems which do not require regulatory approvals in each individual
European country.
Non-Voice Equipment
Answering machines and loud-speaking telephones can be eligible as well as modems, fax machines,
auto-dialers and alarm systems. Equipment in which the end-to-end quality of speech is controlled by
regulations (e.g. handset telephones and in some countries also cordless telephones) is excluded.
Appendix A
A-24
Internal Modem Compliancy (Cont.)
This table shows the countries currently under the CTR21
standard.
Country Applied More Testing
Austria1 Yes No
Belgium Yes No
Czech Republic No Not Applicable
Denmark1 Yes Yes
Finland Yes No
France Yes No
Germany Yes No
Greece Yes No
Hungary No Not Applicable
Iceland Yes No
Ireland Yes No
Italy Still Pending Still Pending
Israel No No
Lichtenstein Yes No
Luxemburg Yes No
The Netherlands1 Yes Yes
Norway Yes No
Poland No Not Applicable
Portugal No Not Applicable
Spain No Not Applicable
Sweden Yes No
Switzerland Yes No
United Kingdom Yes No
This information was copied from CETECOM and is supplied without liability. For updates to this
table, you may visit http://www.cetecom.de/technologies/ctr_21.html
1 National requirements will apply only if the equipment may use pulse dialling (manufacturers may
state in the user guide that the equipment is only intended to support DTMF signalling, which would
make any additional testing superfluous).
In The Netherlands additional testing is required for series connection and caller ID facilities.
A Appendix
A-25
Federal Communications Commission Statement
This device complies with FCC Rules Part 15. Operation is subject to the following two conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits for a class B digital device, pursu-
ant to Part 15 of the Federal Communications Commission (FCC) rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equip-
ment off and on, the user is encouraged to try to correct the interference by one or more of the follow-
ing measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is con-
nected.
• Consult the dealer or an experienced radio/TV technician for help.
WARNING! The use of a shielded-type power cord is required in order to meet FCC
emission limits and to prevent interference to the nearby radio and television recep-
tion. It is essential that only the supplied power cord be used. Use only shielded
cables to connect I/O devices to this equipment. You are cautioned that changes
or modifications not expressly approved by the party responsible for compliance
could void your authority to operate the equipment.
FCC Radio Frequency Interference Requirements
This device is restricted to INDOOR USE due to its operation in the 5.15 to 5.25GHz frequency
range. FCC requires this product to be used indoors for the frequency range 5.15 to 5.25GHz to reduce
the potential for harmful interference to co-channel of the Mobile Satellite Systems.
High power radars are allocated as primary user of the 5.25 to 5.35GHz and 5.65 to 5.85GHz bands.
These radar stations can cause interference with and / or damage this device.
IMPORTANT! This device and its antenna(s) must not be co-located or operating in
conjunction with any other antenna or transmitter.
(Reprinted from the Code of Federal Regulations #47, part 15.193, 1993. Washington DC: Office of
the Federal Register, National Archives and Records Administration, U.S. Government Printing Of-
fice.)
Appendix A
A-26
R&TTE Directive (1999/5/EC)
The following items were completed and are considered relevant and sufficient for the R&TTE (Radio
& Telecommunications Terminal Equipment) directive:
• Essential requirements as in [Article 3]
• Protection requirements for health and safety as in [Article 3.1a]
• Testing for electric safety according to [EN 60950]
• Protection requirements for electromagnetic compatibility in [Article 3.1b]
• Testing for electromagnetic compatibility in [EN 301 489-1] & [EN 301]
• Testing according to [489-17]
• Effective use of the radio spectrum as in [Article 3.2]
• Radio test suites according to [EN 300 328-2]
FCC Radio Frequency (RF) Exposure Caution Statement
This equipment complies with FCC RF exposure limits set forth for an uncontrolled environment.
To maintain compliance with FCC RF exposure compliance requirements, please follow operation
instructions in the userʼs manual. This equipment is for operation within 5.15 GHz and 5.25GHz
frequency ranges and is restricted to indoor environments only.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the userʼs authority to operate this equip-
ment. “The manufacturer declares that this device is limited to Channels 1 through
11 in the 2.4GHz frequency by specified firmware controlled in the USA.”
FCC RF Exposure Guidelines (Wireless Clients)
This device has been tested for compliance with FCC RF Exposure (SAR) limits in typical portable
configurations. In order to comply with SAR limits established in the ANSI C95.1 standards, it is
recommended when using a wireless LAN adapter that the integrated antenna is positioned more than
[20cm] from your body or nearby persons during extended periods of operation. If the antenna is posi-
tioned less than [20cm] from the user, it is recommended that the user limit the exposure time.
The user is cautioned that this device should be used only as specified within this
manual to meet RF exposure requirements. Use of this device in a manner inconsis-
tent with this manual could lead to excessive RF exposure conditions.
CE Mark Warning
This is a Class B product, in a domestic environment, this product may cause radio interference, in
which case the user may be required to take adequate measures.
A Appendix
Max. SAR Measurement (1g)
802.11b: 0.680 W/kg
802.11g: 0.080 W/kg
802.11a(5.2GHz): 0.356 W/kg
802.11a(5.8GHz): 1.360 W/kg
A-27
France Restricted Wireless Frequency Bands
Some areas of France have a restricted frequency band. The worst case maximum authorized power
indoors are:
• 10mW for the entire 2.4 GHz band (2400 MHz–2483.5 MHz)
• 100mW for frequencies between 2446.5 MHz and 2483.5 MHz
Channels 10 through 13 inclusive operate in the band 2446.6 MHz to 2483.5 MHz.
There are few possibilities for outdoor use: On private property or on the private property of public
persons, use is subject to a preliminary authorization procedure by the Ministry of Defense, with
maximum authorized power of 100mW in the 2446.5–2483.5 MHz band. Use outdoors on public
property is not permitted.
In the departments listed below, for the entire 2.4 GHz band:
• Maximum authorized power indoors is 100mW
• Maximum authorized power outdoors is 10mW
Departments in which the use of the 2400–2483.5 MHz band is permitted with an EIRP of less than
100mW indoors and less than 10mW outdoors:
01 Ain Orientales 02 Aisne 03 Allier 05 Hautes Alpes
08 Ardennes 09 Ariège 11 Aude 12 Aveyron
16 Charente 24 Dordogne 25 Doubs 26 Drôme
32 Gers 36 Indre 37
Indre et Loire
41 Loir et Cher
45 Loiret 50 Manche 55 Meuse 58 Nièvre
59 Nord 60 Oise 61 Orne 63 Puy du Dôme
64
Pyrénées Atlantique
66 Pyrénées 67 Bas Rhin 68 Haut Rhin
70 Haute Saône 71
Saône et Loire
75 Paris 82 Tarn et Garonne
84 Vaucluse 88 Vosges 89 Yonne 90
Territoire de Belfort
94 Val de Marne
This requirement is likely to change over time, allowing you to use your wireless LAN card in more
areas within France. Please check with ART for the latest information (www.art-telecom.fr)
Your WLAN Card transmits less than 100mW, but more than 10mW.
Wireless Operation Channel for Different Domains
N. America 2.412-2.462 GHz Ch01 through CH11
Japan 2.412-2.484 GHz Ch01 through Ch14
Europe ETSI 2.412-2.472 GHz Ch01 through Ch13
Appendix A
A-28
UL Safety Notices
Required for UL 1459 covering telecommunications (telephone) equipment intended to be electri-
cally connected to a telecommunication network that has an operating voltage to ground that does not
exceed 200V peak, 300V peak-to-peak, and 105V rms, and installed or used in accordance with the
National Electrical Code (NFPA 70).
When using the Notebook PC modem, basic safety precautions should always be followed to reduce
the risk of fire, electric shock, and injury to persons, including the following:
• Do not use the Notebook PC near water, for example, near a bath tub, wash bowl, kitchen sink or
laundry tub, in a wet basement or near a swimming pool.
• Do not use the Notebook PC during an electrical storm. There may be a remote risk of electric
shock from lightning.
• Do not use the Notebook PC in the vicinity of a gas leak.
Required for UL 1642 covering primary (non-rechargeable) and secondary (rechargeable) lithium
batteries for use as power sources in products. These batteries contain metallic lithium, or a lithium
alloy, or a lithium ion, and may consist of a single electrochemical cell or two or more cells connected
in series, parallel, or both, that convert chemical energy into electrical energy by an irreversible or
reversible chemical reaction.
• Do not dispose the Notebook PC battery pack in a fire, as they may explode. Check with local
codes for possible special disposal instructions to reduce the risk of injury to persons due to fire or
explosion.
• Do not use power adapters or batteries from other devices to reduce the risk of injury to persons
due to fire or explosion. Use only UL certified power adapters or batteries supplied by the manu-
facturer or authorized retailers.
Power Safety Requirement
Products with electrical current ratings up to 6A and weighing more than 3Kg must use approved
power cords greater than or equal to: H05VV-F, 3G, 0.75mm2 or H05VV-F, 2G, 0.75mm2.
A Appendix
REACH
Complying with the REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals)
regulatory framework, we publish the chemical substances in our products at ASUS REACH website
at http://green.asus.com/english/REACH.htm.
A-29
Nordic Lithium Cautions (for lithium-ion batteries)
(Japanese)
CAUTION! Danger of explosion if battery is incorrectly replaced. Replace only
with the same or equivalent type recommended by the manufacturer. Dispose of used
batteries according to the manufacturerʼs instructions. (English)
ATTENZIONE! Rischio di esplosione della batteria se sostituita in modo errato.
Sostituire la batteria con un una di tipo uguale o equivalente consigliata dalla fab-
brica. Non disperdere le batterie nellʼambiente. (Italian)
VORSICHT! Explosionsgefahr bei unsachgemäßen Austausch der Batterie. Er-
satz nur durch denselben oder einem vom Hersteller empfohlenem ähnlichen Typ.
Entsorgung gebrauchter Batterien nach Angaben des Herstellers. (German)
ADVARSELI! Lithiumbatteri - Eksplosionsfare ved fejlagtig håndtering. Udskiftning
må kun ske med batteri af samme fabrikat og type. Levér det brugte batteri tilbage til
leverandøren. (Danish)
VARNING! Explosionsfara vid felaktigt batteribyte. Använd samma batterityp eller en
ekvivalent typ som rekommenderas av apparattillverkaren. Kassera använt batteri enligt
fabrikantens instruktion. (Swedish)
VAROITUS! Paristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo
ainoastaan laitevalmistajan sousittelemaan tyyppiin. Hävitä käytetty paristo valmistagan
ohjeiden mukaisesti. (Finnish)
ATTENTION! Il y a danger dʼexplosion sʼil y a remplacement incorrect de la bat-
terie. Remplacer uniquement avec une batterie du mêre type ou dʼun type équivalent
recommandé par le constructeur. Mettre au rebut les batteries usagées conformément
aux instructions du fabricant. (French)
ADVARSEL! Eksplosjonsfare ved feilaktig skifte av batteri. Benytt samme batterit-
ype eller en tilsvarende type anbefalt av apparatfabrikanten. Brukte batterier kasseres
i henhold til fabrikantens instruksjoner. (Norwegian)
IMPORTANT! Depending on model, components used in the Notebook PC display
panel may contain mercury. Recycle or dispose according to local, state, and federal
laws.
Hg
Appendix A
!
.
. (Russian)
A-30
Service warning label
WARNING: Making adjustments or performing procedures other than those speci-
fied in the userʼs manual may result in hazardous laser exposure. Do not attempt to
disassemble the optical drive. For your safety, have the optical drive serviced only
by an authorized service provider.
CAUTION! INVISIBLE LASER RADIATION WHEN OPEN. DO NOT STARE INTO BEAM
OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS.
WARNING: Use of controls or adjustments or performance of procedures other than
those specified herein or in the laser product installation guide may result in haz-
ardous radiation exposure.
CDRH Regulations
The Center for Devices and Radiological Health (CDRH) of the U.S. Food and Drug Administra-
tion implemented regulations for laser products on August 2, 1976. These regulations apply to laser
products manufactured from August 1, 1976. Compliance is mandatory for products marketed in the
United States.
Macrovision Corporation Product Notice
This product incorporates copyright protection technology that is protected by method claims of
certain U.S.A. patents and other intellectual property rights owned by Macrovision Corporation and
other rights owners. Use of this copyright protection technology must be authorized by Macrovision
Corporation, and is intended for home and other limited viewing uses only
unless otherwise author-
ized by Macrovision Corporation
. Reverse engineering or disassembly is prohibited.
Optical Drive Safety Information
Laser Safety Information
Internal or external optical drives sold with this Notebook PC contains a CLASS 1 LASER PROD-
UCT. Laser classifications can be found in the glossary at the end of this userʼs manual.
A Appendix
A-31
CTR 21 Approval (for Notebook PC with built-in Modem)
Danish
Dutch
English
Finnish
French
German
Greek
Italian
Portuguese
Spanish
Swedish
Appendix A
A-32
Notebook PC Information
Ownerʼs Name: _________________________Ownerʼs Telephone: _____________
Manufacturer: ____________ Model: ___________Serial Number: _____________
Display Size: __________ Resolution: ___________ Memory Size: _____________
Retailer: ________________Location: ___________ Purchase Date: _____________
Hard Drive Manufacturer: _________________________ Capacity: _____________
Optical Drive Manufacturer: __________________________ Type: _____________
BIOS Version: ______________________________________Date: _____________
Accessories: _________________________________________________________
Accessories: _________________________________________________________
Software
Operating System: _________Version: ___________Serial Number: _____________
Software: ________________Version: ___________Serial Number: _____________
Software: ________________Version: ___________Serial Number: _____________
Security
Supervisor Name: _____________________ Supervisor Password: _____________
User Name: _______________________________ User Password: _____________
Network
User Name: ____________ Password: ________________ Domain: _____________
User Name: ____________ Password: ________________ Domain: _____________
This page is provided for recording information concerning your Notebook PC for future reference or
for technical support. Keep this Userʼs Manual in a secured location if passwords are filled out.
A Appendix
This product is protected by one or more of the following U.S. Patents:
7,416,423; 7,415,588; 7,413,402; 7,411,791; 7,408,855; 7,403,378; 7,400,721; 7,399,011; 7,394,533;
7,392,968; 7,388,754; 7,388,752; 7,388,743; 7,382,605; 7,382,314; 7,375,952; 7,374,433; 7,373,493;
7,369,402; 7,369,064; 7,362,568; 7,362,521; 7,362,276; 7,361,034; 7,359,209; 7,359,189; 7,355,372;
7,353,408; 7,352,586; 7,343,645; 7,342,777; 7,342,193; 7,332,990; 7,328,354; 7,327,568; 7,325,241;
7,321,523; 7,319,585; 7,304,257; 7,299,479; 7,294,021; 7,294,011; 7,293,890; 7,293,273; 7,276,660;
7,267,566; 7,261,579; 7,261,573; 7,261,331; 7,259,342; 7,257,761; 7,245,488; 7,241,946; 7,234,971;
7,233,555; 7,229,000; 7,224,657; 7,223,021; 7,218,587; 7,218,096; 7,213,250; 7,203,856; 7,193,580;
7,189,937; 7,187,537; 7,185,297; 7,184,278; 7,164,089; 7,161,541; 7,149,911; 7,148,418; 7,137,837;
7,133,279; 7,130,994; 7,125,282; 7,120,018; 7,111,953; 7,103,765; 7,100,087; 7,091,735; 7,088,592;
7,088,119; 7,086,887; 7,085,130; 7,078,882; 7,068,636; 7,066,751; 7,061,773; 7,047,598; 7,047,541;
7,043,741; 7,039,415; 7,035,946; 7,002,804; 6,980,159; 6,969,266; 6,946,861; 6,938,264; 6,933,927;
6,922,382; 6,873,064; 6,870,513; 6,843,407; 6,842,150; 6,827,589; 6,819,564; 6,817,510; 6,788,944;
6,783,373; 6,782,451; 6,775,208; 6,768,224; 6,760,293; 6,742,693; 6,732,903; 6,728,529; 6,724,352;
6,717,802; 6,717,074; 6,711,016; 6,694,442; 6,693,865; 6,687,248; 6,671,241; 6,657,548; 6,639,806;
6,622,571; 6,618,813; 6,612,850; 6,600,708; 6,561,852; 6,515,663; 6,509,754; 6,500,024; 6,491,359;
6,456,580; 6,456,492; 6,449,224; 6,449,144; 6,430,060; 6,415,389; 6,412,036; 6,407,930; 6,396,419;
6,396,409; 6,377,033; 6,339,340; 6,330,996; 6,310,779; 6,305,596; 6,301,778; 6,253,284; 6,226,741;
6,147,467; 6,095,409; 6,094,367; 6,085,331; 6,041,346; 5,963,017;
U.S. Patent Design D563,594; D557,695; D545,803; D542,256; D538,276; D534,889; D518,041;
D510,325; D510,324; D509,194; Patents Pending.
Copyright Information
No part of this manual, including the products and software described in it, may be reproduced, trans-
mitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any
means, except documentation kept by the purchaser for backup purposes, without the express written
permission of ASUSTeK COMPUTER INC. (“ASUS”).
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER
EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR
CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO
EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE
FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING
DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTER-
RUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POS-
SIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL
OR PRODUCT.
Products and corporate names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies, and are used only for identification or explanation and to the
ownersʼ benefit, without intent to infringe.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR
INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NO-
TICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO
RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR
IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Copyright © 2009 ASUSTeK COMPUTER INC. All Rights Reserved.
Limitation of Liability
Circumstances may arise where because of a default on ASUSʼ part or other liability, you are entitled to
recover damages from ASUS. In each such instance, regardless of the basis on which you are entitled
to claim damages from ASUS, ASUS is liable for no more than damages for bodily injury (including
death) and damage to real property and tangible personal property; or any other actual and direct dam-
ages resulted from omission or failure of performing legal duties under this Warranty Statement, up to
the listed contract price of each product.
ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort
or infringement under this Warranty Statement.
This limit also applies to ASUSʼ suppliers and its reseller. It is the maximum for which ASUS, its sup-
pliers, and your reseller are collectively responsible.
UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE FOLLOWING: (1) THIRD-
PARTY CLAIMS AGAINST YOU FOR DAMAGES; (2) LOSS OF, OR DAMAGE TO, YOUR RE-
CORDS OR DATA; OR (3) SPECIAL, INCIDENTAL, OR INDIRECT DAMAGES OR FOR ANY
ECONOMIC CONSEQUENTIAL DAMAGES (INCLUDING LOST PROFITS OR SAVINGS), EVEN
IF ASUS, ITS SUPPLIERS OR YOUR RESELLER IS INFORMED OF THEIR POSSIBILITY.
Service and Support
Visit our multi-language web site at http://support.asus.com
