WL-500W Wireless Router User Manual
29
5. Input the IP address of WL-500W in
the Printer Name of IP Address eld
and click Next.
6. Select Custom and click Settings.
7. S e t Protocol t o LPR a n d t y p e
LPRServer in Queue Name eld. Click
Next to continue.
8. Press Next to finish standard TCP/IP
port setting.
3. Select Create a new port and set Type
of port to Standard TCP/IP Port, then
click Next.
4. Click Next to setup TCP/IP port for
accessing the network printer.
WL-500W Wireless Router User Manual
30

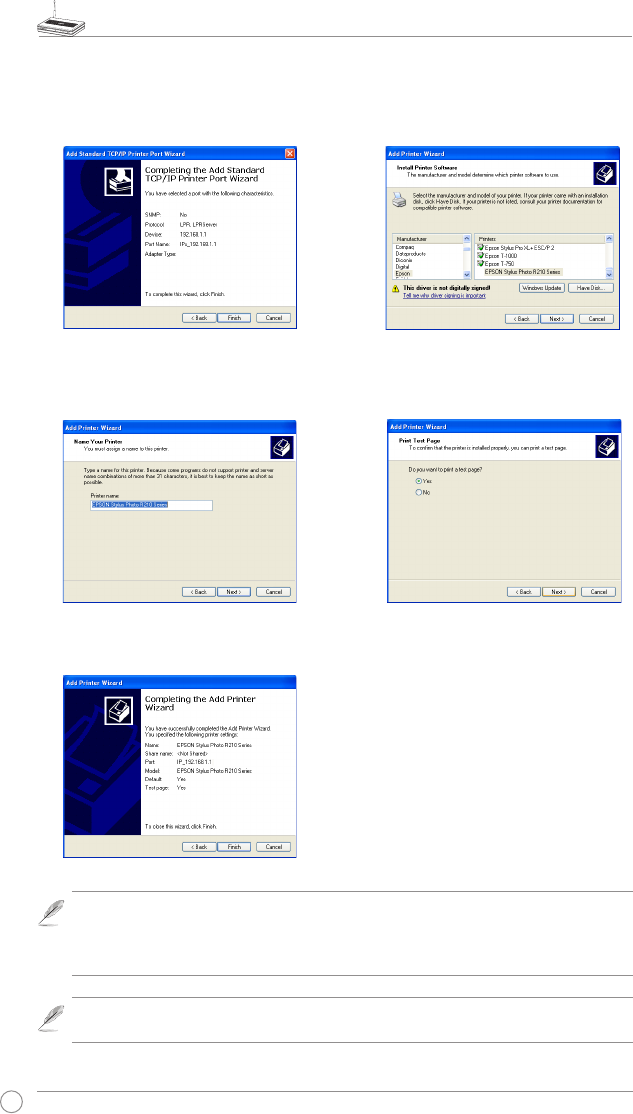

9. Press Finish to complete the settings
and return to Add Printer Wizard.
10. Install printer driver from the vendor-
model list. If your printer is not in the
list, click Have Disk to manually assign
the location of driver.
11. Click Next to accept the default name
for the printer.
12. Select Yes to print a test page. Click
Next to print.
13. The installation is complete. Click
Finish to quit the Add Printer Wizard.
Note: If you use Windows® 98 or ME which does not support Standard TCP/IP port,
you need to use Remote Port which is supported by WL-500W.
Note: If you have already installed the printer locally on your computer, right click the
printer icon and select Property -> Port tab to add a standard TCP/IP port. Click Add
Port then select Standard TCP/IP Port and click New Port button. Refer to step 5-8
for setting procedures.
WL-500W Wireless Router User Manual
31
1) Utility Installation for WL-500W
1. Click Install ASUS Wireless Router
Utilities to run the setup installation
program.
2. Click Next to continue.
3. Click Next to install the utility in the
designated location.
4. Select a program folder and click Next.
5. Press Finish to quit the installation program. 6. Open the EZSetup Wizard.
6. Setting up using ASUS utility
WL-500W Wireless Router User Manual
32
Wireless settings, including network name and network keys, are generated automatically.
You can modify these settings manually. Note if your wireless router is congured before,
select Preserve original wireless router settings to use the current value. Click Next to
continue.
Click the EZSetup button in the utility.
2) EZSetup
Wireless LAN setup will complete in two easy steps. First open the EZSetup utility
form Start menu, then push the EZSetup button on the rear panel for 3 seconds.
1) If the setup button is pushed without running the EZsetup wizard utility, the PWR
indicator will ash and Internet connections will pause for a short period but will then
return to normal operation without change.
2) To use EZSetup, we recommend using an ASUS wireless adapter such as WL-100W,
WL-100gE, and WL-169gE.
Note: Use EZSetup Wizard with one
wireless client at a time. If the wireless
client computer cannot discover the
wireless router while in EZSetup
mode, please shorten the distance
between the client and the router.
1
Push EZSetup over
3 sec. and release.
2
3
WL-500W Wireless Router User Manual
33

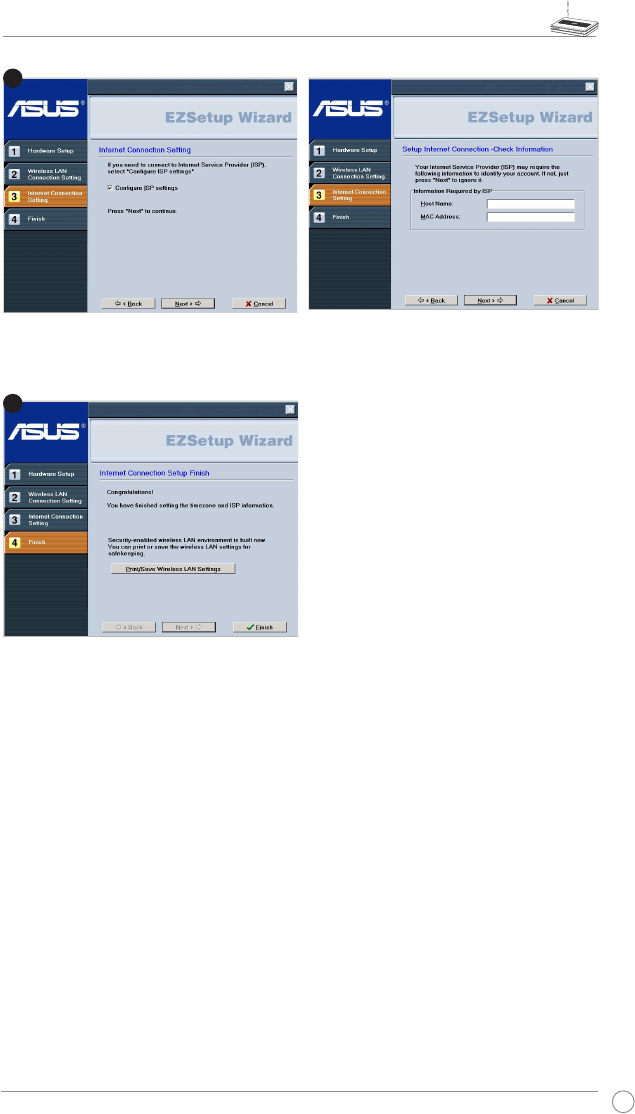

If you need to configure the ISP settings for your wireless router, select Configure ISP
settings, click Next and follow the instructions to complete the settings.
Setup is complete, press Print/Save Wireless
LAN Settings button for future reference.
Click Finish to exit the EZSetup utility.
4
5
