Users Manual
E12014
User Guide
Third Edition/ September 2016
Model:ASUS_X014D (ZB452KG)
Before you start, ensure that you have read all the
safety information and operating instructions in this
User Guide to prevent injury or damage to your
device.
NOTE: For the latest updates and more detailed
information, please visit www.asus.com.
Front features
Touch screen
display
Receiver
LED indicator
Touch keys
Sensor
Front camera
Side features
NOTE: Pry open the rear cover from the groove.
Power Key
Audio jack
Micro USB port
Groove
Microphone
Microphone
Rear features
NOTES:
• Removetherearcovertodisplaythedual
micro SIM and microSD card slots.
• ThemicroSIMcardslotssupport,WCDMA,
and GSM/EDGE network bands.
• ThemicroSDcardslotsupportsmicroSDand
microSDHCcardformats.
Rear camera
Camera ash
Rear cover
Speaker
Volume key
Charging your ASUS Phone
To charge your ASUS Phone:
1. ConnecttheUSBconnectorintothepower
adapter’s USB port.
2. ConnecttheotherendofthemicroUSBcable
to your ASUS Phone.
3. Plug the power adapter into a wall socket.
NOTES:
• Useonlythepoweradapterthatcamewith
your device. Using a different power adapter
may damage your device.
• UsingthebundledpoweradapterandASUS
Phone signal cable to connect your ASUS
Phone to a power outlet is the best way to
charge your ASUS Phone.
• Theinputvoltagerangebetweenthewall
outletandthisadapterisAC100V-240V.
The output voltage of the micro USB cable is
+5.2V 1A,5W.
IMPORTANT!
• WhenusingyourASUSPhonewhileitis
plugged to a power outlet, the grounded
power outlet must be near to the unit and
easily accessible.
• WhenchargingyourASUSPhonethrough
your computer, ensure that you plug the micro
USB cable to your computer’s USB 2.0 / USB
3.0 port.
• AvoidchargingyourASUSPhoneinan
environment with ambient temperature of
above 35oC(95oF).

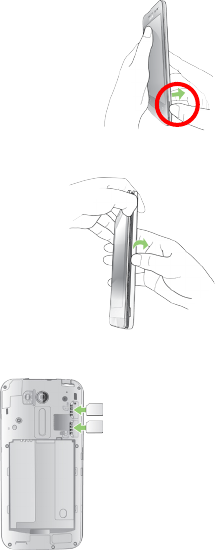

1. Locate the groove on the
bottom-rightcornerof
your ASUS Phone.
Installing a micro SIM card
To install a micro SIM card:
2. Pry the cover loose
and then pull the
rear cover off.
3. Insert the micro SIM card into one of the micro
SIM card slots.
Micro SIM card slot 1
Micro SIM card slot 2
IMPORTANT: Both micro SIM card slots support
3G/2GWCDMAnetworkband.Butonlyone
microSIMcardcanconnectto3GWCDMA
service at a time.
1. Locate the groove on the
bottom-rightcornerof
your ASUS Phone.
Installing a microSD card
To install a microSD card:
CAUTION!
• Donotusesharptoolsorsolventonyour
device to avoid scratches on it.
• UseonlyastandardmicroSIMcardonyour
ASUS Phone. A nano to micro SIM adapter
oratrimmedSIMcardmaynotproperlyt
into and may not be detected by your ASUS
Phone.
• DO NOT install an empty nano to micro
SIM adapter into the micro SIM card slot to
avoid irreversible damage.

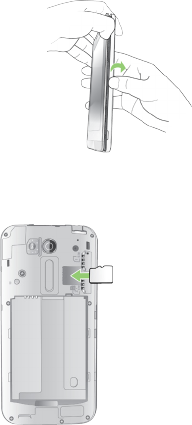

2. Pry the cover loose
and then pull the
rear cover off.
3. Insert the microSD card into the
microSD card slot.
MicroSD card slot
CAUTION!Changesormodicationsnotexpressly
approved by the part responsible for compliance could
void the user’s authority to operate the equipment.
Thisdevicecomplieswithpart15oftheFCCRules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
This equipment has been tested and found to
complywiththelimitsforaClassBdigitaldevice,
pursuanttopart15oftheFCCRules.Theselimits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses
and can radiate radio frequency energy and, if
not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee
that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which
can be determined by turning the equipment off
and on, the user is encouraged to try to correct
the interference by one or more of the following
measures:
• Reorientorrelocatethereceivingantenna.
• Increasetheseparationbetweenthe
equipment and receiver.
• Connecttheequipmentintoanoutletona
circuit different from that to which the receiver
is connected.
• Consultthedealeroranexperiencedradio/TV
technician for help.
Federal Communications
Commission (FCC) Statement
CAUTION!Changesormodicationsnotexpressly
approved by the part responsible for compliance could
void the user’s authority to operate the equipment.
RF Exposure Information (SAR)
This device has been tested and meets applicable
limitsforRadioFrequency(RF)exposure.
SpecicAbsorptionRate(SAR)referstotherateat
whichthebodyabsorbsRFenergy.SARlimitsare
1.6Wattsperkilogram(overavolumecontaining
a mass of 1 gram of tissue) in countries that follow
theUnitedStatesFCClimitand2.0W/kg(averaged
over 10 grams of tissue) in countries that follow the
CounciloftheEuropeanUnionlimit.TestsforSAR
are conducted using standard operating positions
withthedevicetransmittingatitshighestcertied
power level in all tested frequency bands.
ToreduceexposuretoRFenergy,useahands-free
accessory or other similar option to keep this device
awayfromyourheadandbody.Carrythisdevice
at least 15 mm away from your body to ensure
exposurelevelsremainatorbelowtheas-tested
levels.Choosethebeltclips,holsters,orother
similarbody-wornaccessorieswhichdonotcontain
metallic components to support operation in this
manner.CaseswithmetalpartsmaychangetheRF
performance of the device, including its compliance
withRFexposureguidelines,inamannerthat
hasnotbeentestedorcertied,andusesuch
accessories should be avoided.
ThehighestFCCSARvaluesforthedeviceareas
follows:
• 0.476W/Kg(Head)
• 0.989W/Kg(Body)
TheFCChasgrantedanEquipmentAuthorization
forthisdevicewithallreportedSARlevelsevaluated
asincompliancewiththeFCCRFexposure
guidelines.SARinformationonthisdeviceisonle
withtheFCCandcanbefoundundertheDisplay
Grant section of www.fcc.gov/oet/ea/fccid after
searchingonFCCID:MSQX014D
CE RF Exposure Compliance
ThisdevicemeetstheEUrequirements(1999/519/EC)
onthelimitationofexposureofthegeneralpublicto
electromagneticeldsbywayofhealthprotection.
Forbody-wornoperation,thisdevicehasbeentested
andmeetstheICNIRPguidelinesandtheEuropean
StandardEN62209-2,forusewithdedicated
accessories.SARismeasuredwiththisdeviceata
separation of 1.5 cm to the body, while transmitting at
thehighestcertiedoutputpowerlevelinallfrequency
bands of this device. Use of other accessories which
containmetalsmaynotensurecompliancewithICNIRP
exposureguidelines.
CE Mark Warning
56
CE marking for devices with wireless
LAN/ Bluetooth
This equipment complies with the requirements of
Directive1999/5/ECoftheEuropeanParliamentand
Commissionfrom9March,1999governingRadioand
Telecommunications Equipment and mutual recognition
ofconformity.ThehighestCESARvaluesforthedevice
are as follows:
• 0.266W/Kg(Head)
• 0.214W/Kg(Body)
Using GPS (Global Positioning
System) on your ASUS Phone
To use the GPS positioning feature on your ASUS
Phone:
• Ensure that your device is connected to the
InternetbeforeusingGoogleMaporanyGPS-
enabled apps.
• Forrst-timeuseofaGPS-enabledappon
your device, ensure that you are outdoors to
get the best positioning data.
• WhenusingaGPS-enabledappon
your device inside a vehicle, the metallic
component of the car window and other
electronic devices might affect the GPS
performance.
Prevention of Hearing Loss
To prevent possible hearing damage, do not listen at
high volume levels for long periods.
For France, headphones/earphones for this device are
compliant with the sound pressure level requirement
laiddownintheapplicableEN50332-1:2013and/or
EN50332-2:2013standardrequiredbyFrenchArticle
L.5232-1.
Safety information
ASUS Phone care
• Use your ASUS Phone in an environment with
ambienttemperaturesbetween0°C(32°F)and35
°C(95°F).
The battery
Your ASUS Phone is equipped with a high performance
detachableLi-Ionbattery.Observethemaintenance
guidelines for a longer battery life.
• Avoidcharginginextremelyhighorlow
temperature. The battery performs optimally in an
ambienttemperatureof+5°Cto+35°C.
• UseonlyASUSbattery.Usingadifferentbattery
may cause physical harm/injury and may damage
your device.
• Donotremoveandsoakthebatteryinwaterorany
other liquid.
• Nevertrytoopenthebatteryasitcontains
substances that might be harmful if swallowed or
allowed to come into contact with unprotected skin.
• Donotremoveandshort-circuitthebattery,asit
mayoverheatandcauseare.Keepitawayfrom
jewelry or metal objects.
• Donotremoveanddisposeofthebatteryinre.It
couldexplodeandreleaseharmfulsubstancesinto
the environment.
• Donotremoveanddisposeofthebatterywithyour
regularhouseholdwaste.Takeittoahazardous
material collection point.
• Donottouchthebatteryterminals.
• Toavoidreorburns,donotdisassemble,bend,
crush, or puncture the battery.
NOTES:
• Riskofexplosionifbatteryisreplacedbyan
incorrect type.
• Disposeofusedbatteryaccordingtothe
instructions.
The charger
• UseonlythechargersuppliedwithyourASUS
Phone.
• Neverpullthechargercordtodisconnectitfrom
the power socket. Pull the charger itself.
Caution
Your ASUS Phone is a high quality piece of equipment.
Before operating, read all instructions and cautionary
markingsonthe(1)ACAdapter.
• DonotusetheASUSPhoneinanextreme
environment where high temperature or high
humidityexists.TheASUSPhoneperforms
optimallyinanambienttemperaturebetween0°C
(32°F)and35°C(95°F).
• DonotdisassembletheASUSPhoneorits
accessories. If service or repair is required, return
theunittoanauthorizedservicecenter.Iftheunit
isdisassembled,ariskofelectricshockorremay
result.
• Donotshort-circuitthebatteryterminalswithmetal
items.
Operator access with a tool
If a TOOL is necessary to gain access to an
OPERATORACCESSAREA,eitherallother
compartmentswithinthatareacontainingahazardshall
beinaccessibletotheOPERATORbytheuseofthe
same TOOL, or such compartments shall be marked to
discourageOPERATORaccess.
ASUS Recycling/Takeback
Services
ASUS recycling and takeback programs come from our
commitment to the highest standards for protecting our
environment.Webelieveinprovidingsolutionsforyou
to be able to responsibly recycle our products, batteries,
other components as well as the packaging materials.
Please go to http://csr.asus.com/english/Takeback.htm
for detailed recycling information in different regions.
Regional notice for Singapore
This ASUS Phone complies
with IDA Standards.
Proper disposal
Risk of explosion if battery is replaced
by an incorrect type. Dispose of used
batteries according to the instructions.
DONOTthrowthebatteryinmunicipal
waste. The symbol of the crossed out
wheeled bin indicates that the battery
should not be placed in municipal waste.
DONOTthrowthisproductinmunicipal
waste. This product has been designed to
enable proper reuse of parts and recycling.
The symbol of the crossed out wheeled
bin indicates that the product (electrical,
electronicequipmentandmercury-
containing button cell battery) should not
beplacedinmunicipalwaste.Check
local regulations for disposal of electronic
products.
DONOTthrowthisproductinre.DO
NOTshortcircuitthecontacts.DONOT
disassemble this product.
EU Declaration of Conformity
We, the undersigned,
Manufacturer:
ASUSTeK COMPUTER INC.
Address:
4F, No. 150, LI-TE Rd., PEITOU, TAIPEI 112, TAIWAN
Authorized representative in Europe:
ASUS COMPUTER GmbH
Address, City:
HARKORT STR. 21-23, 40880 RATINGEN
Country:
GERMANY
declare the following apparatus:
Product name :
ASUS Phone
Model name :
ASUS_X014D
The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:
EMC – Directive 2004/108/EC (until April 19th, 2016) and Directive 2014/30/EU (from April 20th, 2016)
EN 55022:2010+AC:2011
EN 61000-3-2:2014
EN 55013: 2013
EN 55024:2010
EN 61000-3-3:2013
EN 55020: 2007+A11:2011
R&TTE – Directive 1999/5/EC
EN 300 328 V1.9.1(2015-02)
EN 300 440-1 V1.6.1(2010-08)
EN 300 440-2 V1.4.1(2010-08)
EN 301 511 V9.0.2(2003-03)
EN 301 908-1 V7.1.1
EN 301 908-2 V6.2.1(2014-07)
EN 301 908-13 V6.2.1(2014-07)
EN 301 893 V1.8.1(2015-03)
EN 302 544-2 V1.1.1(2009-01)
EN 302 623 V1.1.1(2009-01)
EN 50360:2001/A1:2012
EN 62479:2010
EN 62209-1:2006
EN 62209-2:2010
EN 301 489-1 V1.9.2(2011-09)
EN 301 489-3 V1.6.1(2013-)
EN 301 489-4 V1.4.1(2009-05)
EN 301 489-7 V1.3.1(2005-11)
EN 301 489-9 V1.4.1(2007-11)
EN 301 489-17 V2.2.1(2012-09)
EN 301 489-24 V1.5.1(2010-09)
EN 302 326-2 V1.2.2(2007-06)
EN 302 326-3 V1.3.1(2007-09)
EN 301 357-2 V1.4.1(2008-11)
EN 302 291-1 V1.1.1(2005-07)
EN 302 291-2 V1.1.1(2005-07)
EN 50566:2013/AC:2014
EN 62311:2008
LVD – Dir ective 2006/95/EC (until April 19th, 2016) and Directive 2014/35/EU (from April 20th, 2016)
EN 60950-1: 2006 / A12: 2011
EN 60950-1: 2006 / A2: 2013
EN 60065:2002 / A12: 2011
Ecodesign – Directive 2009/125/EC
Regulation (EC) No. 1275/2008
Regulation (EC) No. 642/2009
Regulation (EC) No. 278/2009
Regulation (EU) No. 617/2013
RoHS – Directive 2011/65/EU Ver. 160217
CE marking
Equipment Class 1
Signature
Jerry Shen
Printed Name
CEO
Position
Taipei, Taiwan
Place of issue
30/11/2015
Original Declaration Date
7/3/2016
Corrected Declaration Date
2016
Year to begin affixing CE marking
(EU conformity marking)
Declaração CE de Conformidade
Nós, os abaixo-assinados,
Fabricante:
ASUSTeK COMPUTER INC.
Endereço:
4F, No. 150, LI-TE Rd., PEITOU, TAIPEI 112, TAIWAN
Representante autorizado na Europa:
ASUS COMPUTER GmbH
Endereço, cidade:
HARKORT STR. 21-23, 40880 RATINGEN
País:
GERMANY
declaramos o seguinte aparelho:
Nome do produto:
ASUS Phone
Nome do modelo:
ASUS_X014D
O objeto da declaração acima descrito está em conformidade com a legislação de harmonização da União aplicável:
EMC Diretiva 2004/108/CE (até 19 de abril de 2016) e Diretiva 2014/30/UE (a partir de 20 de abril de 2016)
EN 55022:2010+AC:2011
EN 61000-3-2:2014
EN 55013: 2013
EN 55024:2010
EN 61000-3-3:2013
EN 55020: 2007+A11:2011
R&TTE – Diretiva 1999/5/CE
EN 300 328 V1.9.1(2015-02)
EN 300 440-1 V1.6.1(2010-08)
EN 300 440-2 V1.4.1(2010-08)
EN 301 511 V9.0.2(2003-03)
EN 301 908-1 V7.1.1
EN 301 908-2 V6.2.1(2014-07)
EN 301 908-13 V6.2.1(2014-07)
EN 301 893 V1.8.1(2015-03)
EN 302 544-2 V1.1.1(2009-01)
EN 302 623 V1.1.1(2009-01)
EN 50360:2001/A1:2012
EN 62479:2010
EN 62209-1:2006
EN 62209-2:2010
EN 301 489-1 V1.9.2(2011-09)
EN 301 489-3 V1.6.1(2013-)
EN 301 489-4 V1.4.1(2009-05)
EN 301 489-7 V1.3.1(2005-11)
EN 301 489-9 V1.4.1(2007-11)
EN 301 489-17 V2.2.1(2012-09)
EN 301 489-24 V1.5.1(2010-09)
EN 302 326-2 V1.2.2(2007-06)
EN 302 326-3 V1.3.1(2007-09)
EN 301 357-2 V1.4.1(2008-11)
EN 302 291-1 V1.1.1(2005-07)
EN 302 291-2 V1.1.1(2005-07)
EN 50566:2013/AC:2014
EN 62311:2008
LVD Diretiv a 2006/95/CE (até 19 de abril de 2016) and Diretiva 2014/35/UE (a partir de 20 de abril de 2016)
EN 60950-1: 2006 / A12: 2011
EN 60950-1: 2006 / A2: 2013
EN 60065:2002 / A12: 2011
EcoEcodesign – Diretiva 2009/125/CE
Regulation (EC) No. 1275/2008
Regulation (EC) No. 642/2009
Regulation (EC) No. 278/2009
Regulation (EU) No. 617/2013
RoHS – Diretiva 2011/65/UE Ver. 160217
Marcação CE
Classe de equipamento 1
Assinatura
Jerry Shen
Nome impresso
CEO
Posição
Taipei, Taiwan
Local de emissão
30/11/2015
Data de Declaração original
7/3/2016
Data de Declaração corrigida
2016
Ano para começar
a aposição da marcação CE
(Marcação CE de conformidade)
Declaraţie de conformitate UE
Subsemnatul,
Producător :
ASUSTeK COMPUTER INC.
Adresă:
4F, No. 150, LI-TE Rd., PEITOU, TAIPEI 112, TAIWAN
Reprezentant autorizat în Europa:
ASUS COMPUTER GmbH
Adresă, Oraş:
HARKORT STR. 21-23, 40880 RATINGEN
Ţară:
GERMANIA
declară următorul aparat:
Nume produs :
ASUS Phone
Nume Model :
ASUS_X014D
Obiectul declarației descris mai sus este în conformitate cu legislația relevantă de armonizare a Uniunii :
CEM – Directiva 2004/108/CE (până în 19 Aprilie 2016) şi Directiva 2014/30/ UE (până în 20 Aprilie 2016)
EN 55022:2010+AC:2011
EN 61000-3-2:2014
EN 55013: 2013
EN 55024:2010
EN 61000-3-3:2013
EN 55020: 2007+A11:2011
R&TTE – Directiva 1999/5/CE
EN 300 328 V1.9.1(2015-02)
EN 300 440-1 V1.6.1(2010-08)
EN 300 440-2 V1.4.1(2010-08)
EN 301 511 V9.0.2(2003-03)
EN 301 908-1 V7.1.1
EN 301 908-2 V6.2.1(2014-07)
EN 301 908-13 V6.2.1(2014-07)
EN 301 893 V1.8.1(2015-03)
EN 302 544-2 V1.1.1(2009-01)
EN 302 623 V1.1.1(2009-01)
EN 50360:2001/A1:2012
EN 62479:2010
EN 62209-1:2006
EN 62209-2:2010
EN 301 489-1 V1.9.2(2011-09)
EN 301 489-3 V1.6.1(2013-)
EN 301 489-4 V1.4.1(2009-05)
EN 301 489-7 V1.3.1(2005-11)
EN 301 489-9 V1.4.1(2007-11)
EN 301 489-17 V2.2.1(2012-09)
EN 301 489-24 V1.5.1(2010-09)
EN 302 326-2 V1.2.2(2007-06)
EN 302 326-3 V1.3.1(2007-09)
EN 301 357-2 V1.4.1(2008-11)
EN 302 291-1 V1.1.1(2005-07)
EN 302 291-2 V1.1.1(2005-07)
EN 50566:2013/AC:2014
EN 62311:2008
LVD – Directiva 2006/95/CE (până în 19 Aprilie 2016) şi Directiva 2014/35/UE (până în 20 Aprilie 2016)
EN 60950-1: 2006 / A12: 2011
EN 60950-1: 2006 / A2: 2013
EN 60065:2002 / A12: 2011
Ecodesign – Directiva 2009/125/CE
Regulation (EC) No. 1275/2008
Regulation (EC) No. 642/2009
Regulation (EC) No. 278/2009
Regulation (EU) No. 617/2013
RoHS – Directiva 2011/65/UE Ver. 160217
Marcajul CE
Echipament Clasa 1
Semnătură
Jerry Shen
Nume
CEO
Funcţie
Taipei, Taiwan
Locul emiterii
30/11/2015
Data Declaraţiei Originale
7/3/2016
Data Declaraţiei Corectate
2016
Anul începând din care marcajul
CE va fi aplicat
(Marcaj de conformitate UE )
EU Uygunluk Beyanı
Biz, bu imza altındakiler
Üretici:
ASUSTeK COMPUTER INC.
Adres:
4F, No. 150, LI-TE Rd., PEITOU, TAIPEI 112, TAIWAN
Avrupa’daki Yetkili:
ASUS COMPUTER GmbH
Adres, Şehir:
HARKORT STR. 21-23, 40880 RATINGEN
Ülke:
ALMANYA
Aşağıdaki ürünleri beyan ediyoruz :
Ürün adı :
ASUS Phone
Model adı : ASUS_X014D
Yukarıda belirtilen beyanın konusu birlik yasalarına göre uygundur:
EMC – Direktif 2004/108/EC 19 Nisan 2016’ya kadar ve Direktif 2014/30/EU 20 Nisan 20 16
EN 55022:2010+AC:2011
EN 61000-3-2:2014
EN 55013: 2013
EN 55024:2010
EN 61000-3-3:2013
EN 55020: 2007+A11:2011
R&TTE – Direktifi 1999/5/EC
EN 300 328 V1.9.1(2015-02)
EN 300 440-1 V1.6.1(2010-08)
EN 300 440-2 V1.4.1(2010-08)
EN 301 511 V9.0.2(2003-03)
EN 301 908-1 V7.1.1
EN 301 908-2 V6.2.1(2014-07)
EN 301 908-13 V6.2.1(2014-07)
EN 301 893 V1.8.1(2015-03)
EN 302 544-2 V1.1.1(2009-01)
EN 302 623 V1.1.1(2009-01)
EN 50360:2001/A1:2012
EN 62479:2010
EN 62209-1:2006
EN 62209-2:2010
EN 301 489-1 V1.9.2(2011-09)
EN 301 489-3 V1.6.1(2013-)
EN 301 489-4 V1.4.1(2009-05)
EN 301 489-7 V1.3.1(2005-11)
EN 301 489-9 V1.4.1(2007-11)
EN 301 489-17 V2.2.1(2012-09)
EN 301 489-24 V1.5.1(2010-09)
EN 302 326-2 V1.2.2(2007-06)
EN 302 326-3 V1.3.1(2007-09)
EN 301 357-2 V1.4.1(2008-11)
EN 302 291-1 V1.1.1(2005-07)
EN 302 291-2 V1.1.1(2005-07)
EN 50566:2013/AC:2014
EN 62311:2008
LVD – Direktifi 2006/95/19 Nisan 2016’ya kadar ve Direktif 2014/35/EU 20 Nisan 2016
EN 60950-1: 2006 / A12: 2011
EN 60950-1: 2006 / A2: 2013
EN 60065:2002 / A12: 2011
Ecodesign – Direktif 2009/125/EC
Regulation (EC) No. 1275/2008
Regulation (EC) No. 642/2009
Regulation (EC) No. 278/2009
Regulation (EU) No. 617/2013
RoHS – Direktifi 2011/65/EU Ver. 160217
CE işareti
Ekipman Sınıfı 1
İmza
Jerry Shen
Basılı Ad
CEO
Pozisyonu
Taipei, Taiwan
Sürüm yeri
30/11/2015
Orjinal Deklerasyon Tarihi
7/3/2016
Düzeltilmiş Deklerasyon Tarihi
2016
CE İşaretinin Eklendiği Yıl
(EU uygunluk işareti)
UE Declaración de Conformidad
Nosotros, los abajo firmantes,
Fabricante:
ASUSTeK COMPUTER INC.
Dirección:
4F, No. 150, LI-TE Rd., PEITOU, TAIPEI 112, TAIWAN
Representante autorizado en Europa:
ASUS COMPUTER GmbH
Dirección, Ciudad:
HARKORT STR. 21-23, 40880 RATINGEN
País:
GERMANY
Declaramos el siguiente producto:
Nombre del aparato : ASUS Phone
Nombre del modelo :
ASUS_X014D
El objeto de la declaración descrita anteriormente es conforme con la legislación de armonización pertinente de la Unión:
EMC Directiva 2004/108/CE (hasta el 19 de abril, 2016) y Directiva 2014/30/UE (desde el 20 de abril , 2016)
EN 55022:2010+AC:2011
EN 61000-3-2:2014
EN 55013: 2013
EN 55024:2010
EN 61000-3-3:2013
EN 55020: 2007+A11:2011
R&TTE – Directiva 1999/5/CE
EN 300 328 V1.9.1(2015-02)
EN 300 440-1 V1.6.1(2010-08)
EN 300 440-2 V1.4.1(2010-08)
EN 301 511 V9.0.2(2003-03)
EN 301 908-1 V7.1.1
EN 301 908-2 V6.2.1(2014-07)
EN 301 908-13 V6.2.1(2014-07)
EN 301 893 V1.8.1(2015-03)
EN 302 544-2 V1.1.1(2009-01)
EN 302 623 V1.1.1(2009-01)
EN 50360:2001/A1:2012
EN 62479:2010
EN 62209-1:2006
EN 62209-2:2010
EN 301 489-1 V1.9.2(2011-09)
EN 301 489-3 V1.6.1(2013-)
EN 301 489-4 V1.4.1(2009-05)
EN 301 489-7 V1.3.1(2005-11)
EN 301 489-9 V1.4.1(2007-11)
EN 301 489-17 V2.2.1(2012-09)
EN 301 489-24 V1.5.1(2010-09)
EN 302 326-2 V1.2.2(2007-06)
EN 302 326-3 V1.3.1(2007-09)
EN 301 357-2 V1.4.1(2008-11)
EN 302 291-1 V1.1.1(2005-07)
EN 302 291-2 V1.1.1(2005-07)
EN 50566:2013/AC:2014
EN 62311:2008
LVD Dire ctiva 2006/95/CE (hasta el 19 de abril, 2016) y Directiva 2014/35/UE (desde el 20 de abril, 2016)
EN 60950-1: 2006 / A12: 2011
EN 60950-1: 2006 / A2: 2013
EN 60065:2002 / A12: 2011
Diseño Ecológico – Directiva 2009/125/CE
Regulation (EC) No. 1275/2008
Regulation (EC) No. 642/2009
Regulation (EC) No. 278/2009
Regulation (EU) No. 617/2013
RoHS – Directiva 2011/65/UE V er. 160217
Marcado CE
Clase de equipo 1
Firma
Jerry Shen
Nombre impreso
CEO
Posición
Taipei, Taiwan
Lugar de emisión
30/11/2015
Fecha original de Declaración
7/3/2016
Fecha correcta de Declaración
2016
Año del cual se comienza
la colocación del marcado CE
(marcado CE de conformidad)
Copyright©2016ASUSTeKCOMPUTERINC.
AllRightsReserved.
You acknowledge that all rights of this Manual remain with ASUS.
Any and all rights, including without limitation, in the Manual or
website,andshallremaintheexclusivepropertyofASUSand/orits
licensors.NothinginthisManualintendstotransferanysuchrights,
or to vest any such rights to you.
ASUSPROVIDESTHISMANUAL“ASIS”WITHOUTWARRANTY
OFANYKIND.SPECIFICATIONSANDINFORMATION
CONTAINEDINTHISMANUALAREFURNISHEDFOR
INFORMATIONALUSEONLY,ANDARESUBJECTTOCHANGE
ATANYTIMEWITHOUTNOTICE,ANDSHOULDNOTBE
CONSTRUEDASACOMMITMENTBYASUS.
ASUS
Address: 4F, No.150 Li-Te Rd., Peitou, Taipei,
Taiwan
Tel: 886228943447
Fax: 886228907698
Declaration
WedeclarethattheIMEIcodesforthisproduct,ASUS
Phone, are unique to each unit and only assigned to
this model. The IMEI of each unit is factory set and
cannot be altered by the user and that it complies
with the relevant IMEI integrity related requirements
expressedintheGSMstandards.
Should you have any questions or comments regarding
this matter, please contact us.
Sincerely yours,
ASUSTeK COMPUTER INC.
Tel:886228943447
Fax:886228907698
Support:http://vip.asus.com/eservice/techserv.aspx
xxxxx-xxxxxxxx
ZenTalk Fans Forum
(http://www.asus.com/zentalk/global_forward.php)
