ASUSTeK Computer Z01BDC ASUS phone User Manual
ASUSTeK Computer Inc ASUS phone
User Manual
E11896
User Guide
Second Edition/ July 2016
Model:ASUS_Z01BD(ZC551KL)
ASUS_Z01BDA for TW/JP/HK/PH
ASUS_Z01BDB for IN/ID/TH
ASUS_Z01BDC for US/BR
ZC551KL for RU
Before you start, ensure that you have read all the
safety information and operating instructions in this
User Guide to prevent injury or damage to your
device.
NOTE: For the latest updates and more detailed
information, please visit www.asus.com.
Front features
Touch screen
display
Receiver
LED indicator
Touch keys
Front camera
Proximity sensor
and light sensor
Side features
Power key
Audio jack
Micro USB port
Volume key
Speaker
Micro SIM,
Nano SIM/
microSD
combo card
slot
NOTES:
• TheMicroSIM/NanoSIMcardslotssupport
LTE, WCDMA and GSM/EDGE network
bands.
• ThemicroSDcardslotsupportsmicroSDand
microSDHC card formats.
Microphone
Microphone
Rear features
Rear camera
Rear cover
Laser focus
Fingerprint
sensor
RGB sensor / Camera ash
Charging your ASUS Phone
To charge your ASUS Phone:
1. Connect the USB connector into the power
adapter’s USB port.
2. Connect the other end of the micro USB cable
to your ASUS Phone.
3. Plug the power adapter into a wall socket.
NOTES:
• Useonlythepoweradapterthatcamewithyour
device. Using a different power adapter may
damage your device.
• UsingthebundledpoweradapterandASUS
Phone signal cable to connect your ASUS Phone
to a power outlet is the best way to charge your
ASUS Phone.
• UsetheASUS5WpoweradapterandASUSUSB
cable to get the best fast-charge experience when
your ASUS Phone is in sleep mode.
• Theinputvoltagerangebetweenthewalloutlet
and this adapter is AC 100V - 240V. The output
voltage of the micro USB cable is +5.2V 1A, 5W.
IMPORTANT!
• WhenusingyourASUSPhonewhileitisplugged
to a power outlet, the grounded power outlet must
be near to the unit and easily accessible.
• WhenchargingyourASUSPhonethroughyour
computer, ensure that you plug the micro USB
cable to your computer’s USB 2.0 / USB 3.0 port.
• AvoidchargingyourASUSPhoneinan
environment with ambient temperature of above
35 °C (95 °F).
3
1
2

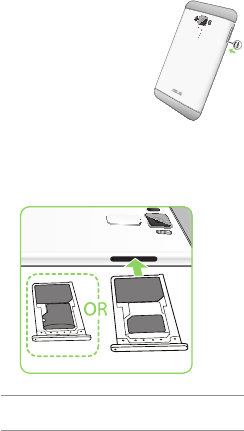

1. Push a pin into the hole
on the Micro SIM / Nano
SIM / MicroSD card tray
to eject it.
2. Insert the Micro SIM / Nano SIM or MicroSD
card(s) into the card slot(s).
Micro-SIM1
Nano-SIM2
Micro-SIM1
Micro SD
IMPORTANT: You can only use the Nano SIM
card or the MicroSD card at a time.
Installing a Micro SIM / Nano SIM /
MicroSD card
To install a Micro SIM / Nano SIM / MicroSD card:
3. Push the tray to close it
IMPORTANT: Both Micro SIM and Nano SIM card
slots support 3G WCDMA and 4G LTE network
bands. But only one SIM card can connect to 3G
WCDMA / 4G LTE service at a time.
CAUTION!
• Donotusesharptoolsorsolventonyour
device to avoid scratches on it.
• UseonlyastandardmicroSIMcardonyour
ASUS Phone. A nano to micro SIM adapter
oratrimmedSIMcardmaynotproperlyt
into and may not be detected by your ASUS
Phone.
• DO NOT install an empty nano to micro
SIM adapter into the micro SIM card slot to
avoid irreversible damage.
Federal Communications
Commission Statement
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
Changesormodicationsnotexpresslyapprovedby
the party responsible for compliance could void the
user‘s authority to operate the equipment.
The antenna(s) used for this transmitter must not be
co-located or operated in conjunction with any other
antenna or transmitter.
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses
and can radiate radio frequency energy and, if
not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee
that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which
can be determined by turning the equipment off
and on, the user is encouraged to try to correct
the interference by one or more of the following
measures:
• Reorientorrelocatethereceivingantenna.
• Increasetheseparationbetweenthe
equipment and receiver.
• Connecttheequipmentintoanoutletona
circuit different from that to which the receiver
is connected.
• Consultthedealeroranexperiencedradio/TV
technician for help.
The country code selection is for non-US models
only and is not available to all US models. Per FCC
regulation, all WiFi products that are marketed in US
mustbexedtoUS-operatedchannelsonly.
The FCC ID: for this device is MSQZ01BDC.
Canada, Industry Canada (IC)
Notices
This device complies with Industry Canada’s
licence-exempt RSS standard(s). Operation is
subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference,
including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR
d’Industrie Canada applicables aux appareils radio
exempts de licence. L’exploitation est autorisée aux
deux conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage, et
(2) l’utilisateur de l’appareil doit accepter tout
brouillage radioélectrique subi, même si le
brouillage est susceptible d’en compromettre le
fonctionnement.
CAN ICES-3(B)/NMB-3(B)
This Class B digital apparatus complies with
Canadian ICES-003.
Cet appareil numérique de la classe B est conforme
à la norme NMB-003 du Canada.
The IC ID for this device is 3568A-Z01BDC.
L’identiantIndustrieCanadadecetappareilest:
3568A-Z01BDC.
This device and its antenna(s) must not be co-
located or operated in conjunction with any other
antenna or transmitter, except tested built-in radios.
Cet appareil et son antenne ne doivent pas être
situés ou fonctionner en conjonction avec une autre
antenne ou un autre émetteur, exception faites des
radios intégrées qui ont été testées.
The County Code Selection feature is disabled for
products that are marketed in the US/ Canada.
La fonction de sélection de l’indicatif du pays est
désactivée pour les produits commercialisés aux
États-Unis et au Canada.
FOR PORTABLE DEVICE (<20cm from body /
SAR needed)
Radiation Exposure Statement:
The product complies with the Canada portable
RF exposure limit set forth for an uncontrolled
environment and is safe for intended operation
as described in this manual. RF exposure can be
reduced further if the product can be kept as far as
possible from the user body or if it is set to a lower
output power, if such function is available.
Additional statement for phones:
This device has been tested for compliance with IC
SAR values at a typical operating near the body.
To ensure that RF exposure levels are below the
levels tested, use accessories with this equipment
to maintain a minimum separation distance of 1
cm between the body of the user and the device.
These accessories should not contain metallic
components. It is possible that the accessories
used close to the body that do not meet these
requirements are not consistent with the SAR limits
and it is advisable to avoid using them.
Déclaration d’exposition aux radiations:
Le produit est conforme aux limites d’exposition
pour les appareils portables RF pour les Etats-Unis
et le Canada établies pour un environnement non
contrôlé. Le produit est sûr pour un fonctionnement
tel que décrit dans ce manuel. La réduction aux
expositions RF peut être augmentée si l’appareil
peut être conservé aussi loin que possible du
corps de l’utilisateur ou que le dispositif est réglé
sur la puissance de sortie la plus faible si une telle
fonction est disponible.
Additional statement for phones:
Ce dispositif a été testé pour la conformité avec les
valeurs SAR à un fonctionnement typique près du
corps . Pour assurer que les niveaux d’exposition
aux radiofréquences en deçà des niveaux testés ,
utiliser des accessoires avec cet équipement pour
maintenir une distance de séparation minimale
de 1 cm entre le corps de l’utilisateur et l’appareil.
Ces accessoires ne doivent pas contenir des
composants métalliques . Il est possible que les
accessoires utilisés près du corps qui ne répondent
pas à ces exigences ne sont pas compatibles avec
les limites SAR et il est conseillé d’éviter de les
utiliser.
RF Exposure Information (SAR)
This device has been tested and meets applicable
limits for Radio Frequency (RF) exposure.
SpecicAbsorptionRate(SAR)referstotherateat
which the body absorbs RF energy. SAR limits are
1.6 Watts per kilogram (over a volume containing
a mass of 1 gram of tissue) in countries that follow
the United States FCC limit and 2.0 W/kg (averaged
over 10 grams of tissue) in countries that follow the
Council of the European Union limit. Tests for SAR
are conducted using standard operating positions
withthedevicetransmittingatitshighestcertied
power level in all tested frequency bands.
To reduce exposure to RF energy, use a hands-
free accessory or other similar option to keep this
device from your head and body. Carry this device
at least 10 mm away from your body to ensure
exposure levels remain at or below the as-tested
levels. Choose the belt clips, holsters, or other
similar body-worn accessories which do not contain
metallic components to support operation in this
manner. Cases with metal parts may change the RF
performance of the device, including its compliance
with RF exposure guidelines, in a manner that
hasnotbeentestedorcertied,andusesuch
accessories should be avoided.
The highest FCC SAR value for the device is
1.19W/kg @ 1g.
The FCC has granted an Equipment Authorization
for this device with all reported SAR levels evaluated
as in compliance with the FCC RF exposure
guidelines.SARinformationonthisdeviceisonle
with the FCC and can be found under the Display
Grant section of www.fcc.gov/oet/ea/fccid after
searching on FCC ID: MSQZ01BDC.
CE RF Exposure Compliance
This device meets the EU requirements (1999/519/
EC) on the limitation of exposure of the general
publictoelectromagneticeldsbywayofhealth
protection.
For body-worn operation, this device has been
tested and meets the ICNIRP guidelines and the
European Standard EN 62209-2, for use with
dedicated accessories. SAR is measured with
this device at a separation of 0.5 cm to the body,
whiletransmittingatthehighestcertiedoutput
power level in all frequency bands of this device.
Use of other accessories which contain metals
may not ensure compliance with ICNIRP exposure
guidelines.
CLASS 1 LASER PRODUCT
CE Mark Warning
CE marking for devices with wireless
LAN/ Bluetooth
This equipment complies with the requirements of
Directive 1999/5/EC of the European Parliament
and Commission from 9 March, 1999 governing
Radio and Telecommunications Equipment and
mutual recognition of conformity.The highest CE
SAR values for the device are as follows:
• 0.430W/kg@10g(Head)
• 0.898W/kg@10g(Body)
Laser safety information
Using GPS (Global Positioning
System) on your ASUS Phone
To use the GPS positioning feature on your ASUS
Phone:
• Ensure that your device is connected to the
Internet before using Google Map or any
GPS-enabled apps.
• Forrst-timeuseofaGPS-enabledappon
your device, ensure that you are outdoors to
get the best positioning data.
• When using a GPS-enabled app on
your device inside a vehicle, the metallic
component of the car window and other
electronic devices might affect the GPS
performance.
Prevention of Hearing Loss
To prevent possible hearing damage, do not listen
at high volume levels for long periods.
For France, headphones/earphones for this
device are compliant with the sound pressure level
requirement laid down in the applicable EN 50332-
1:2013 and/or EN50332-2:2013 standard required
by French Article L.5232-1.
Safety information
ASUS Phone care
• UseyourASUSPhoneinanenvironmentwith
ambient temperatures between 0 °C (32 °F)
and 35 °C (95 °F).
The battery
Your ASUS Phone is equipped with a high
performance non-detachable Li-polymer battery.
Observe the maintenance guidelines for a longer
battery life.
• Donotremovethenon-detachableLi-polymer
battery as this will void the warranty.
• Avoidcharginginextremelyhighorlow
temperature. The battery performs optimally in
an ambient temperature of +5 °C to +35 °C.
• Donotremoveandreplacethebatterywitha
non-approved battery.
• Donotremoveandsoakthebatteryinwateror
any other liquid.
• Nevertrytoopenthebatteryasitcontains
substances that might be harmful if swallowed
or allowed to come into contact with
unprotected skin.
• Donotremoveandshort-circuitthebattery,as
itmayoverheatandcauseare.Keepitaway
from jewelry or metal objects.
• Donotremoveanddisposeofthebattery
inre.Itcouldexplodeandreleaseharmful
substances into the environment.
• Donotremoveanddisposeofthebatterywith
your regular household waste. Take it to a
hazardous material collection point.
• Donottouchthebatteryterminals.
NOTES:
• Riskofexplosionifbatteryisreplacedbyan
incorrect type.
• Disposeofusedbatteryaccordingtothe
instructions.
The charger
• UseonlythechargersuppliedwithyourASUS
Phone.
• Neverpullthechargercordtodisconnectit
from the power socket. Pull the charger itself.
Caution
Your ASUS Phone is a high quality piece of
equipment. Before operating, read all instructions
and cautionary markings on the (1) AC Adapter.
• DonotusetheASUSPhoneinanextreme
environment where high temperature or high
humidity exists. The ASUS Phone performs
optimally in an ambient temperature between 0
°C (32 °F) and 35 °C (95 °F).
• DonotdisassembletheASUSPhoneorits
accessories. If service or repair is required,
return the unit to an authorized service center.
If the unit is disassembled, a risk of electric
shockorremayresult.
• Donotshort-circuitthebatteryterminalswith
metal items.
Operator access with a tool
If a TOOL is necessary to gain access to an
OPERATOR ACCESS AREA, either all other
compartments within that area containing a hazard
shall be inaccessible to the OPERATOR by the use
of the same TOOL, or such compartments shall be
marked to discourage OPERATOR access.
ASUS Recycling/Takeback
Services
ASUS recycling and takeback programs come
from our commitment to the highest standards for
protecting our environment. We believe in providing
solutions for you to be able to responsibly recycle
our products, batteries, other components as well
as the packaging materials. Please go to http://
csr.asus.com/english/Takeback.htm for detailed
recycling information in different regions.
Regional notice for Singapore
This ASUS Phone complies with IDA Standards.
Proper disposal
Risk of explosion if battery is
replaced by an incorrect type.
Dispose of used batteries
according to the instructions.
DO NOT throw the battery in
municipal waste. The symbol of the
crossed out wheeled bin indicates
that the battery should not be placed
in municipal waste.
DO NOT throw this product in
municipal waste. This product has
been designed to enable proper
reuse of parts and recycling. The
symbol of the crossed out wheeled
bin indicates that the product
(electrical, electronic equipment
and mercury-containing button
cell battery) should not be placed
in municipal waste. Check local
regulations for disposal of electronic
products.
DONOTthrowthisproductinre.
DO NOT short circuit the contacts.
DO NOT disassemble this product.
WARNING! This product may contain chemicals
known to the State of California to cause cancer,
birth defects, or other reproductive harm. Wash
hands after handling.
EU Declaration of Conformity
We, the undersigned,
Manufacturer:
ASUSTeK COMPUTER INC.
Address:
4F, No. 150, LI-TE Rd., PEITOU, TAIPEI 112, TAIWAN
Authorized representative in Europe:
ASUS COMPUTER GmbH
Address, City:
HARKORT STR. 21-23, 40880 RATINGEN
Country:
GERMANY
declare the following apparatus:
Product name :
ASUS Phone
Model name :
ASUS_Z01BD, ASUS_Z01BDB, ASUS_Z01BDA
The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:
EMC – Directive 2004/108/EC (until April 19th, 2016) and Directive 2014/30/EU (from April 20th, 2016)
EN 55022:2010+AC:2011
EN 61000-3-2:2006+A2:2009
EN 55013:2001+A1:2003+A2:2006
EN 55024:2010
EN 61000-3-3:2013
EN 55020:2007+A11:2011
R&TTE – Directive 1999/5/EC
EN 300 328 V1.9.1(2015-02)
EN 300 440-1 V1.6.1(2010-08)
EN 300 440-2 V1.4.1(2010-08)
EN 301 511 V9.0.2(2003-03)
EN 301 908-1 V7.1.1
EN 301 908-2 V6.2.1(2013-10)
EN 301 908-13 V6.2.1(2013-10)
EN 300 330-2 V1.5.1(2010-02)
EN 50360:2001/A1:2012
EN 62479:2010
EN 62209-1:2006
EN 62209-2:2010
EN 301 489-1 V1.9.2(2011-09)
EN 301 489-3 V1.6.1(2013-12)
EN 301 489-4 V2.1.1(2013-12)
EN 301 489-7 V1.3.1(2005-11)
EN 301 489-9 V1.4.1(2007-11)
EN 301 489-17 V2.2.1(2012-09)
EN 301 489-24 V1.5.1(2010-10)
EN 301 357-2 V1.4.1(2008-11)
EN 302 291-2 V1.1.1(2005-07)
EN 50385:2002
EN 50566:2013/AC:2014
EN 62311:2008
LVD – Dir ective 2006/95/EC (until April 19th, 2016) and Directive 2014/35/EU (from April 20th, 2016)
EN 60950-1: 2006 / A12: 2011
EN 60950-1: 2006 / A2: 2013
EN 60950-1: 2006 / A11: 2009
EN 60950-1: 2006 / A1: 2010
Ecodesign – Directive 2009/125/EC
Regulation (EC) No. 1275/2008
Regulation (EC) No. 642/2009
Regulation (EC) No. 278/2009
Regulation (EU) No. 617/2013
RoHS – Directive 2011/65/EU Ver. 160217
CE marking
Equipment Class 1
0560
Signature
Jerry Shen
Printed Name
CEO
Position
Taipei, Taiwan
Place of issue
1/8/2016
Date of issue
2016
Year CE marking was first affixed
(EU conformity marking)
Declaração CE de Conformidade
Nós, os abaixo-assinados,
Fabricante:
ASUSTeK COMPUTER INC.
Endereço:
4F, No. 150, LI-TE Rd., PEITOU, TAIPEI 112, TAIWAN
Representante autorizado na Europa:
ASUS COMPUTER GmbH
Endereço, cidade:
HARKORT STR. 21-23, 40880 RATINGEN
País:
GERMANY
declaramos o seguinte aparelho:
Nome do produto:
ASUS Phone
Nome do modelo:
ASUS_Z01BD, ASUS_Z01BDB, ASUS_Z01BDA
O objeto da declaração acima descrito está em conformidade com a legislação de harmonização da União aplicável:
EMC Diretiva 2004/108/CE (até 19 de abril de 2016) e Diretiva 2014/30/UE (a partir de 20 de abril de 2016)
EN 55022:2010+AC:2011
EN 61000-3-2:2006+A2:2009
EN 55013:2001+A1:2003+A2:2006
EN 55024:2010
EN 61000-3-3:2013
EN 55020:2007+A11:2011
R&TTE – Diretiva 1999/5/CE
EN 300 328 V1.9.1(2015-02)
EN 300 440-1 V1.6.1(2010-08)
EN 300 440-2 V1.4.1(2010-08)
EN 301 511 V9.0.2(2003-03)
EN 301 908-1 V7.1.1
EN 301 908-2 V6.2.1(2013-10)
EN 301 908-13 V6.2.1(2013-10)
EN 300 330-2 V1.5.1(2010-02)
EN 50360:2001/A1:2012
EN 62479:2010
EN 62209-1:2006
EN 62209-2:2010
EN 301 489-1 V1.9.2(2011-09)
EN 301 489-3 V1.6.1(2013-12)
EN 301 489-4 V2.1.1(2013-12)
EN 301 489-7 V1.3.1(2005-11)
EN 301 489-9 V1.4.1(2007-11)
EN 301 489-17 V2.2.1(2012-09)
EN 301 489-24 V1.5.1(2010-10)
EN 301 357-2 V1.4.1(2008-11)
EN 302 291-2 V1.1.1(2005-07)
EN 50385:2002
EN 50566:2013/AC:2014
EN 62311:2008
LVD Diretiva 2006/95/CE (até 19 de abril de 2016) and Diretiva 2014/35/UE (a partir de 20 de abril de 2016)
EN 60950-1: 2006 / A12: 2011
EN 60950-1: 2006 / A2: 2013
EN 60950-1: 2006 / A11: 2009
EN 60950-1: 2006 / A1: 2010
EcoEcodesign – Diretiva 2009/125/CE
Regulation (EC) No. 1275/2008
Regulation (EC) No. 642/2009
Regulation (EC) No. 278/2009
Regulation (EU) No. 617/2013
RoHS – Diretiva 2011/65/UE Ver. 160217
Marcação CE
Classe de equipamento 1
0560
Assinatura
Jerry Shen
Nome impresso
CEO
Posição
Taipei, Taiwan
Local de emissão
1/8/2016
Data de emissão
2016
Ano marcação CE foi aposta por primeira vez
(Marcação CE de conformidade)
Declaraţie de conformitate UE
Subsemnatul,
Producător :
ASUSTeK COMPUTER INC.
Adresă:
4F, No. 150, LI-TE Rd., PEITOU, TAIPEI 112, TAIWAN
Reprezentant autorizat în Europa:
ASUS COMPUTER GmbH
Adresă, Oraş:
HARKORT STR. 21-23, 40880 RATINGEN
Ţară:
GERMANIA
declară următorul aparat:
Nume Produs :
ASUS Phone
Nume Model :
ASUS_Z01BD, ASUS_Z01BDB, ASUS_Z01BDA
Obiectul declarației descris mai sus este în conformitate cu legislația relevantă de armonizare a Uniunii :
CEM – Directiva 2004/108/CE (până în 19 Aprilie 2016) şi Directiva 2014/30/UE (până în 20 Aprilie 2016)
EN 55022:2010+AC:2011
EN 61000-3-2:2006+A2:2009
EN 55013:2001+A1:2003+A2:2006
EN 55024:2010
EN 61000-3-3:2013
EN 55020:2007+A11:2011
R&TTE – Directiva 1999/5/CE
EN 300 328 V1.9.1(2015-02)
EN 300 440-1 V1.6.1(2010-08)
EN 300 440-2 V1.4.1(2010-08)
EN 301 511 V9.0.2(2003-03)
EN 301 908-1 V7.1.1
EN 301 908-2 V6.2.1(2013-10)
EN 301 908-13 V6.2.1(2013-10)
EN 300 330-2 V1.5.1(2010-02)
EN 50360:2001/A1:2012
EN 62479:2010
EN 62209-1:2006
EN 62209-2:2010
EN 301 489-1 V1.9.2(2011-09)
EN 301 489-3 V1.6.1(2013-12)
EN 301 489-4 V2.1.1(2013-12)
EN 301 489-7 V1.3.1(2005-11)
EN 301 489-9 V1.4.1(2007-11)
EN 301 489-17 V2.2.1(2012-09)
EN 301 489-24 V1.5.1(2010-10)
EN 301 357-2 V1.4.1(2008-11)
EN 302 291-2 V1.1.1(2005-07)
EN 50385:2002
EN 50566:2013/AC:2014
EN 62311:2008
LVD – Dir ectiva 2006/95/CE (până în 19 Aprilie 2016) şi Directiva 2014/35/UE (până în 20 Aprilie 2016)
EN 60950-1: 2006 / A12: 2011
EN 60950-1: 2006 / A2: 2013
EN 60950-1: 2006 / A11: 2009
EN 60950-1: 2006 / A1: 2010
Ecodesign – Directiva 2009/125/CE
Regulation (EC) No. 1275/2008
Regulation (EC) No. 642/2009
Regulation (EC) No. 278/2009
Regulation (EU) No. 617/2013
RoHS – Directiva 2011/65/UE Ver. 160217
Marcajul CE
Echipament Clasa 1
0560
Semnătură
Jerry Shen
Nume
CEO
Funcţie
Taipei, Taiwan
Locul emiterii
1/8/2016
Data emiterii
2016
Anul în care Marcajul CE a fost aplicat pentru
prima oară
(Marcaj de conformitate UE )
EU Uygunluk Beyanı
Biz, bu imza altındakiler
Üretici:
ASUSTeK COMPUTER INC.
Adres:
4F, No. 150, LI-TE Rd., PEITOU, TAIPEI 112, TAIWAN
Avrupa’daki Yetkili:
ASUS COMPUTER GmbH
Adres, Şehir:
HARKORT STR. 21-23, 40880 RATINGEN
Ülke:
ALMANYA
Aşağıdaki ürünleri beyan ediyoruz :
Ürün adı :
ASUS Phone
Model adı :
ASUS_Z01BD
Yukarıda belirtilen beyanın konusu birlik yasalarına göre uygundur:
EMC – Direktif 2004/108/EC 19 Nisan 2016’ya kadar ve Direktif 2014/30/EU 20 Nisan 20 16
EN 55022:2010+AC:2011
EN 61000-3-2:2006+A2:2009
EN 55013:2001+A1:2003+A2:2006
EN 55024:2010
EN 61000-3-3:2013
EN 55020:2007+A11:2011
R&TTE – Direktifi 1999/5/EC
EN 300 328 V1.9.1(2015-02)
EN 300 440-1 V1.6.1(2010-08)
EN 300 440-2 V1.4.1(2010-08)
EN 301 511 V9.0.2(2003-03)
EN 301 908-1 V7.1.1
EN 301 908-2 V6.2.1(2013-10)
EN 301 908-13 V6.2.1(2013-10)
EN 300 330-2 V1.5.1(2010-02)
EN 50360:2001/A1:2012
EN 62479:2010
EN 62209-1:2006
EN 62209-2:2010
EN 301 489-1 V1.9.2(2011-09)
EN 301 489-3 V1.6.1(2013-12)
EN 301 489-4 V2.1.1(2013-12)
EN 301 489-7 V1.3.1(2005-11)
EN 301 489-9 V1.4.1(2007-11)
EN 301 489-17 V2.2.1(2012-09)
EN 301 489-24 V1.5.1(2010-10)
EN 301 357-2 V1.4.1(2008-11)
EN 302 291-2 V1.1.1(2005-07)
EN 50385:2002
EN 50566:2013/AC:2014
EN 62311:2008
LVD – Direktifi 2006/95/19 Nisan 2016’ya kadar ve Direktif 2014/35/EU 20 Nisan 2016
EN 60950-1: 2006 / A12: 2011
EN 60950-1: 2006 / A2: 2013
EN 60950-1: 2006 / A11: 2009
EN 60950-1: 2006 / A1: 2010
Ecodesign – Direktif 2009/125/EC
Regulation (EC) No. 1275/2008
Regulation (EC) No. 642/2009
Regulation (EC) No. 278/2009
Regulation (EU) No. 617/2013
RoHS – Direktifi 2011/65/EU Ver. 160217
CE işareti
Ekipman Sınıfı 1
0560
İmza
Jerry Shen
Basılı Ad
CEO
Pozisyonu
Taipei, Taiwan
Sürüm yeri
1/8/2016
Sürüm tarihi
2016
CE işaretinin ilk eklendiği yıl
(EU uygunluk işareti)
DECLARATION UE DE CONFORMITE
Nous, soussignés
Fabricant:
ASUSTeK COMPUTER INC.
Adresse:
4F, No. 150, LI-TE Rd., PEITOU, TAIPEI 112, TAIWAN
Représentant autorisé en Europe:
ASUS COMPUTER GmbH
Adresse, ville:
HARKORT STR. 21-23, 40880 RATINGEN
Pays:
GERMANY
Déclarons l’appareil suivant:
Nom du produit :
ASUS Phone
Nom du modèle :
ASUS_Z01BD, ASUS_Z01BDB, ASUS_Z01BDA
L’objet de la déclaration décrit ci-dessus est conforme avec la législation d’harmonisation de l’Union applicable
Directive CEM 2004/108/CE (jusqu’au 19 avril 2016) et la directive 201 4/30/UE (à partir du 20 avril 2016)
EN 55022:2010+AC:2011
EN 61000-3-2:2006+A2:2009
EN 55013:2001+A1:2003+A2:2006
EN 55024:2010
EN 61000-3-3:2013
EN 55020:2007+A11:2011
Directive R&TTE 1999/5/CE
EN 300 328 V1.9.1(2015-02)
EN 300 440-1 V1.6.1(2010-08)
EN 300 440-2 V1.4.1(2010-08)
EN 301 511 V9.0.2(2003-03)
EN 301 908-1 V7.1.1
EN 301 908-2 V6.2.1(2013-10)
EN 301 908-13 V6.2.1(2013-10)
EN 300 330-2 V1.5.1(2010-02)
EN 50360:2001/A1:2012
EN 62479:2010
EN 62209-1:2006
EN 62209-2:2010
EN 301 489-1 V1.9.2(2011-09)
EN 301 489-3 V1.6.1(2013-12)
EN 301 489-4 V2.1.1(2013-12)
EN 301 489-7 V1.3.1(2005-11)
EN 301 489-9 V1.4.1(2007-11)
EN 301 489-17 V2.2.1(2012-09)
EN 301 489-24 V1.5.1(2010-10)
EN 301 357-2 V1.4.1(2008-11)
EN 302 291-2 V1.1.1(2005-07)
EN 50385:2002
EN 50566:2013/AC:2014
EN 62311:2008
Directive LVD 2006//125/CE (jusqu’au 19 avril 2016) et la directive 2014/34/UE (à partir du 20 avril 2016)
EN 60950-1: 2006 / A12: 2011
EN 60950-1: 2006 / A2: 2013
EN 60950-1: 2006 / A11: 2009
EN 60950-1: 2006 / A1: 2010
Directive écoconception 2009/125/CE
Regulation (CE) No. 1275/2008
Regulation (CE) No. 642/2009
Regulation (CE) No. 278/2009
Regulation (UE) No. 617/2013
Directive RoHS 2011/65/UE Ver. 160217
Marquage CE
Equipement de classe 1
0560
Signature
Jerry Shen
Nom en caractères d’imprimerie
CEO
Position
Taipei, Taiwan
Lieu de délivrance
1/8/2016
Date d'Emission
2016
Année où commence l’apposition
du marquage CE
(Marquage UE de conformité)
EU Konformitätserklärung
Hiermit erklären wir,
Hersteller:
ASUSTeK COMPUTER INC.
Anschrift:
4F, No. 150, LI-TE Rd., PEITOU, TAIPEI 112, TAIWAN
Bevollmächtigter:
ASUS COMPUTER GmbH
Anschrift des Bevollmächtigten:
HARKORT STR. 21-23, 40880 RATINGEN
Land:
GERMANY
dass nachstehend bezeichnete Produkte
Produktbezeichnung
ASUS Phone
Modellbezeichnung:
ASUS_Z01BD, ASUS_Z01BDB, ASUS_Z01BDA
mit den nachstehend angegebenen, für das Produkt geltenden Richtlinien/Bestimmungen übereinstimmen:
EMV – Richtlinie 2004/108/EG (bis 19. April 2016) und Richtlinie 2014/30/EU ( ab 20. April 2016)
EN 55022:2010+AC:2011
EN 61000-3-2:2006+A2:2009
EN 55013:2001+A1:2003+A2:2006
EN 55024:2010
EN 61000-3-3:2013
EN 55020:2007+A11:2011
R&TTE – Richtlinie 1999/5/EG
EN 300 328 V1.9.1(2015-02)
EN 300 440-1 V1.6.1(2010-08)
EN 300 440-2 V1.4.1(2010-08)
EN 301 511 V9.0.2(2003-03)
EN 301 908-1 V7.1.1
EN 301 908-2 V6.2.1(2013-10)
EN 301 908-13 V6.2.1(2013-10)
EN 300 330-2 V1.5.1(2010-02)
EN 50360:2001/A1:2012
EN 62479:2010
EN 62209-1:2006
EN 62209-2:2010
EN 301 489-1 V1.9.2(2011-09)
EN 301 489-3 V1.6.1(2013-12)
EN 301 489-4 V2.1.1(2013-12)
EN 301 489-7 V1.3.1(2005-11)
EN 301 489-9 V1.4.1(2007-11)
EN 301 489-17 V2.2.1(2012-09)
EN 301 489-24 V1.5.1(2010-10)
EN 301 357-2 V1.4.1(2008-11)
EN 302 291-2 V1.1.1(2005-07)
EN 50385:2002
EN 50566:2013/AC:2014
EN 62311:2008
LVD – Richtlinie 2006/95/EG (bis 19. April 2016) und Richtlinie 2014/35/EU (ab 20. April 2016)
EN 60950-1: 2006 / A12: 2011
EN 60950-1: 2006 / A2: 2013
EN 60950-1: 2006 / A11: 2009
EN 60950-1: 2006 / A1: 2010
Ökodesign – Richtlinie 2009/125/EG
Verordnung (EG) No. 1275/2008
Verordnung (EG) No. 642/2009
Verordnung (EG) No. 278/2009
Verordnung (EU) No. 617/2013
RoHS – Richtlinie 2011/ 65 /EU Ver. 160217
CE Kennzeichen
Geräteklasse 1
0560
Unterschrift
Jerry Shen
Name
CEO
Position
Taipei, Taiwan
Ort
1/8/2016
Datum
2016
Jahr der Kennzeichenvergabe
(EU Konformitätszeichen)
UE Declaración de Conformidad
Nosotros, los abajo firmantes,
Fabricante:
ASUSTeK COMPUTER INC.
Dirección:
4F, No. 150, LI-TE Rd., PEITOU, TAIPEI 112, TAIWAN
Representante autorizado en Europa:
ASUS COMPUTER GmbH
Dirección, Ciudad:
HARKORT STR. 21-23, 40880 RATINGEN
País:
GERMANY
Declaramos el siguiente producto:
Nombre del aparato :
ASUS Phone
Nombre del modelo :
ASUS_Z01BD, ASUS_Z01BDB, ASUS_Z01BDA
El objeto de la declaración descrita anteriormente es conforme con la legislación de armonización pertinente de la Unión:
EMC Directiva 2004/108/CE (hasta el 19 de abril, 2016) y Directiva 2014/30/UE (desde el 20 de abril, 2016)
EN 55022:2010+AC:2011
EN 61000-3-2:2006+A2:2009
EN 55013:2001+A1:2003+A2:2006
EN 55024:2010
EN 61000-3-3:2013
EN 55020:2007+A11:2011
R&TTE – Directiva 1999/5/CE
EN 300 328 V1.9.1(2015-02)
EN 300 440-1 V1.6.1(2010-08)
EN 300 440-2 V1.4.1(2010-08)
EN 301 511 V9.0.2(2003-03)
EN 301 908-1 V7.1.1
EN 301 908-2 V6.2.1(2013-10)
EN 301 908-13 V6.2.1(2013-10)
EN 300 330-2 V1.5.1(2010-02)
EN 50360:2001/A1:2012
EN 62479:2010
EN 62209-1:2006
EN 62209-2:2010
EN 301 489-1 V1.9.2(2011-09)
EN 301 489-3 V1.6.1(2013-12)
EN 301 489-4 V2.1.1(2013-12)
EN 301 489-7 V1.3.1(2005-11)
EN 301 489-9 V1.4.1(2007-11)
EN 301 489-17 V2.2.1(2012-09)
EN 301 489-24 V1.5.1(2010-10)
EN 301 357-2 V1.4.1(2008-11)
EN 302 291-2 V1.1.1(2005-07)
EN 50385:2002
EN 50566:2013/AC:2014
EN 62311:2008
LVD Directiva 2006/95/CE (hasta el 19 de abril, 2016) y Directiva 2014/35/UE (desde el 20 de abril, 2016)
EN 60950-1: 2006 / A12: 2011
EN 60950-1: 2006 / A2: 2013
EN 60950-1: 2006 / A11: 2009
EN 60950-1: 2006 / A1: 2010
Diseño Ecológico – Directiva 2009/125/CE
Regulation (EC) No. 1275/2008
Regulation (EC) No. 642/2009
Regulation (EC) No. 278/2009
Regulation (EU) No. 617/2013
RoHS – Directiva 2011/65/UE Ver. 160217
Marcado CE
Clase de equipo 1
0560
Firma
Jerry Shen
Nombre impreso
CEO
Posición
Taipei, Taiwan
Lugar de emisión
1/8/2016
Fecha de emisión
2016
Año en que se colocó
el marcado CE por primera vez
(marcado CE de conformidad)
DECLARATION OF CONFORMITY
Per FCC Part 2 Section 2. 1077(a)
Responsible Party Name: Asus Computer International
Address: 800 Corporate Way, Fremont, CA 94539.
Phone/Fax No: (510)739-3777/(510)608-4555
hereby declares that the product
Product Name : ASUS Phone
Model Number : ASUS_Z01BDC
Conforms to the following specifications:
FCC Part 15, Subpart B, Unintentional Radiators
Supplementary Information:
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Representative Person’s Name : Steve Chang / President
Signature :
Date : Aug. 12, 2016
Ver. 140331
Copyright © 2016 ASUSTeK COMPUTER INC.
All Rights Reserved.
You acknowledge that all rights of this Manual remain with ASUS.
Any and all rights, including without limitation, in the Manual or
website, and shall remain the exclusive property of ASUS and/or its
licensors. Nothing in this Manual intends to transfer any such rights,
or to vest any such rights to you.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY
OF ANY KIND. SPECIFICATIONS AND INFORMATION
CONTAINED IN THIS MANUAL ARE FURNISHED FOR
INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE
AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE
CONSTRUED AS A COMMITMENT BY ASUS.
ASUS
Address: 4F, 150 LI-TE RD., PEITOU, TAIPEI,
TAIWAN
Tel: 886228943447
Fax: 886228907698
Declaration
We declare that the IMEI codes for this product, ASUS
Phone, are unique to each unit and only assigned to
this model. The IMEI of each unit is factory set and
cannot be altered by the user and that it complies
with the relevant IMEI integrity related requirements
expressed in the GSM standards.
Should you have any questions or comments regarding
this matter, please contact us.
Sincerely yours,
ASUSTeK COMPUTER INC.
Tel: 886228943447
Fax: 886228907698
Support: http://vip.asus.com/eservice/techserv.aspx
ZenTalk Fans Forum
(http://www.asus.com/zentalk/global_forward.php)
15060-79800200
