USER MANUAL
After opening the box, please check to ensure that the following
accessories are provided with the monitor
U s e r’s Guide Power Cord
D-Sub Signal Cable
(Option) Pivot Software (Option) USB
C a b l e
DC Power Supply Unit
The actual monitor and accessories may appear diff e r e n t l y
from those shown on the above figure.
▼ ▼
▼ ▼
▼ ▼
6
2
1
7
9
12
15
B e fo re Use
H o w do I Use the Monitor ?
I n fo rm ation for Your Conve n i e n c e
F e a t u r e s
Instructions for Safety
How do I Connect the Computer Cables ?
How do I Connect with the IBM computer ?
The Name and Function of Each Individual Part
Front view
Back view
The name and function of each individual part in the screen adjusting block
How to Select and Adjust the OSD (On Screen Display)
To adjust the brightness and contrast of the screen ?
To select / adjust the color of the screen ?

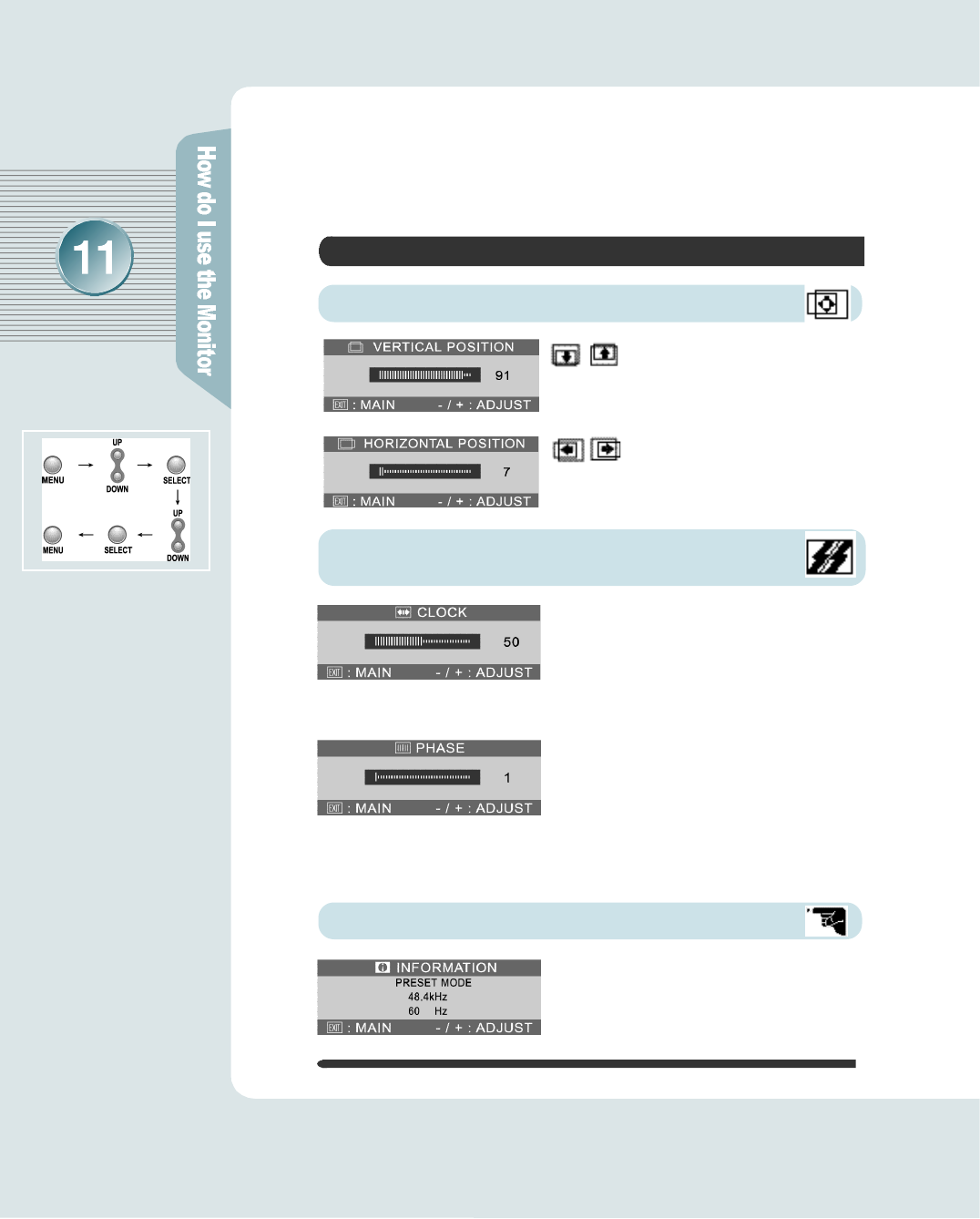

To adjust the up/down/left/right position of the screen ?
To adjust the horizontal size of the screen or focus the phase?
To get information on the current mode ?
T r o u b l e s h o o t i n g
Product Specification
Please keep the user’s guide in a place where product users can refer to it.
1 5 . 1”LCD Panel Adopted
-Adopted the 15.1”LCD (Liquid Crystal Display) Panel which allows you efficient
use in a small space due to the slim design.
A Dynamic Convenient Design
-Uses a specially manufactured hinge (ATEC System patent) to adjust the screen
freely up and down, left to right, and back and forth. This function is provided
with thoughtful consideration to the user’s convenience.
Plug & Play Function
-The Plug & Play function is available, freeing the user from having to reboot
or set up the system during operation.
-The user does not have to adjust the monitor to computer connection, as
optimal screen settings are automatically provided through the DDC (Display
Data Channel) system.
Power Consumption Economy Function
- The VESA DPMS (Display Power Management Signaling) function is
available to reduce power consumption by automatically switching the computer
into the power saving mode if the system doesn’t operate for a fixed period of time.
AUDIO Function
- A speaker is embedded so that the user can hear sound without separate
s p e a k e r s .
E M I / E M S
- This equipment has been registered through compatability tests with
electromagnetic waves, and can therefore be used everywhere including
residential districts.
O P T I O N
- Software pivoting to the vertical size of A4 paper is available, making Word
work easier.
- USB 4Port can be embedded to use the USB without an external Hub.
※The sign on the product
and user’s guide instructs
as following.
※A sign signifies the
need for particular atten-
tion in order to avert
potential danger under
certain conditions.
No one but trained repair
engineers may disassemble the
monitor. Please contact the
appropriate sales agency or cus-
tomer counsel window for
check-ups, adjustment and repair.
A fire or electric
shock accident
may be caused.
Please note not to allow liquids
such as chemicals, water etc to
contact the monitor.
A fire or electric shock
accident may
be caused.
▶Matters that demand special attention are divided into
‘W a r n i n g’and ‘C a u t i o n ’, and are detailed a follows
In case of the possibility that a serious injury or death
may occur during a violation of the instructions.
In case of the possibility that a slight injury or product
damage may occur during a violation of the instructions.
Wa rn i n g
C a u t i o n
D o n’t place or drop metals (such
as coins, hair pins, or ironware)
or flammable items (such as
paper, or matches) onto the
m o n i t o r .
A fire or electric
shock accident may
be caused.
D o n’t place the monitor near to
heat sources (such as a
fireplace), and keep out
of the sun.
A fire or electric shock
accident may
be caused.

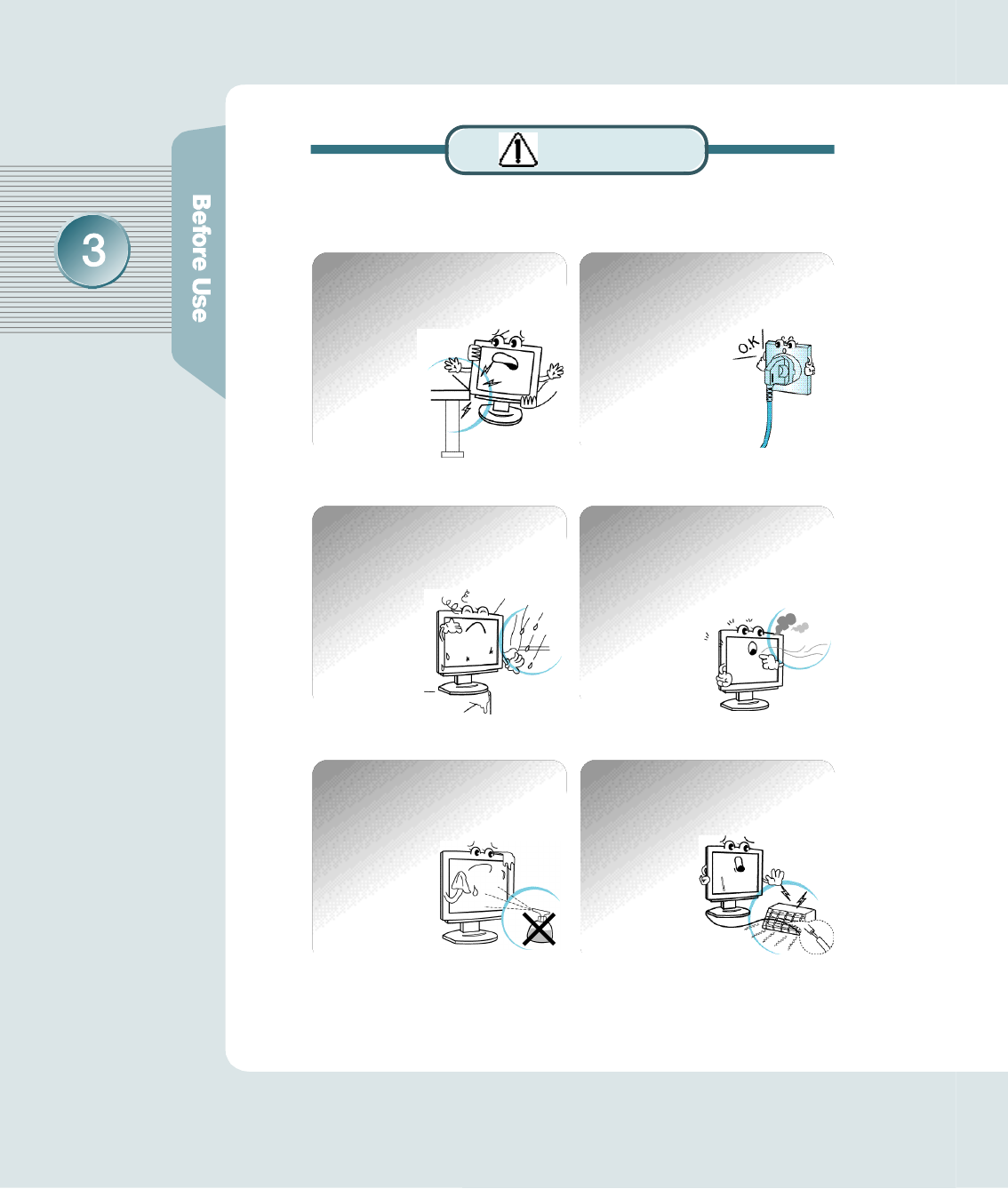

Wa rn i n g
FCC INFORMATION TO THE USER
Changes or modifications not expressly approved by the
manufacturer could void the user's authority to operate the
equipment.
Please insert the two pins of the
plug completely so that the
power supply unit can be
connected tightly.
Unsafe power
connections may
cause a fire.
Please be careful to keep the
panel from being scratched or
damaged when you transport
the monitor.
The panel may be
damaged,
causing a failure.
D o n’t set up the equipment in a
humid environment (such as
bathroom, rainy or windy area,
e t c ) .
Accidents of
electric shock,
fire or failure
may occur.
Please stop using in case of
smoke or abnormal odors.
Immediately switch off the power,
and pull out the power cord from
the wall. Contact the service center.
Continuity of use in
such a state may
cause a fire or
electric shock.
D o n’t sprinkle water directly on
any part of the monitor body.
An electric shock
or fire accident
may occur.
Please keep the power cord from
proximity to a heating instrument.
The covering material
of the cord may
melt, causing
a fire or electric
s h o c k .

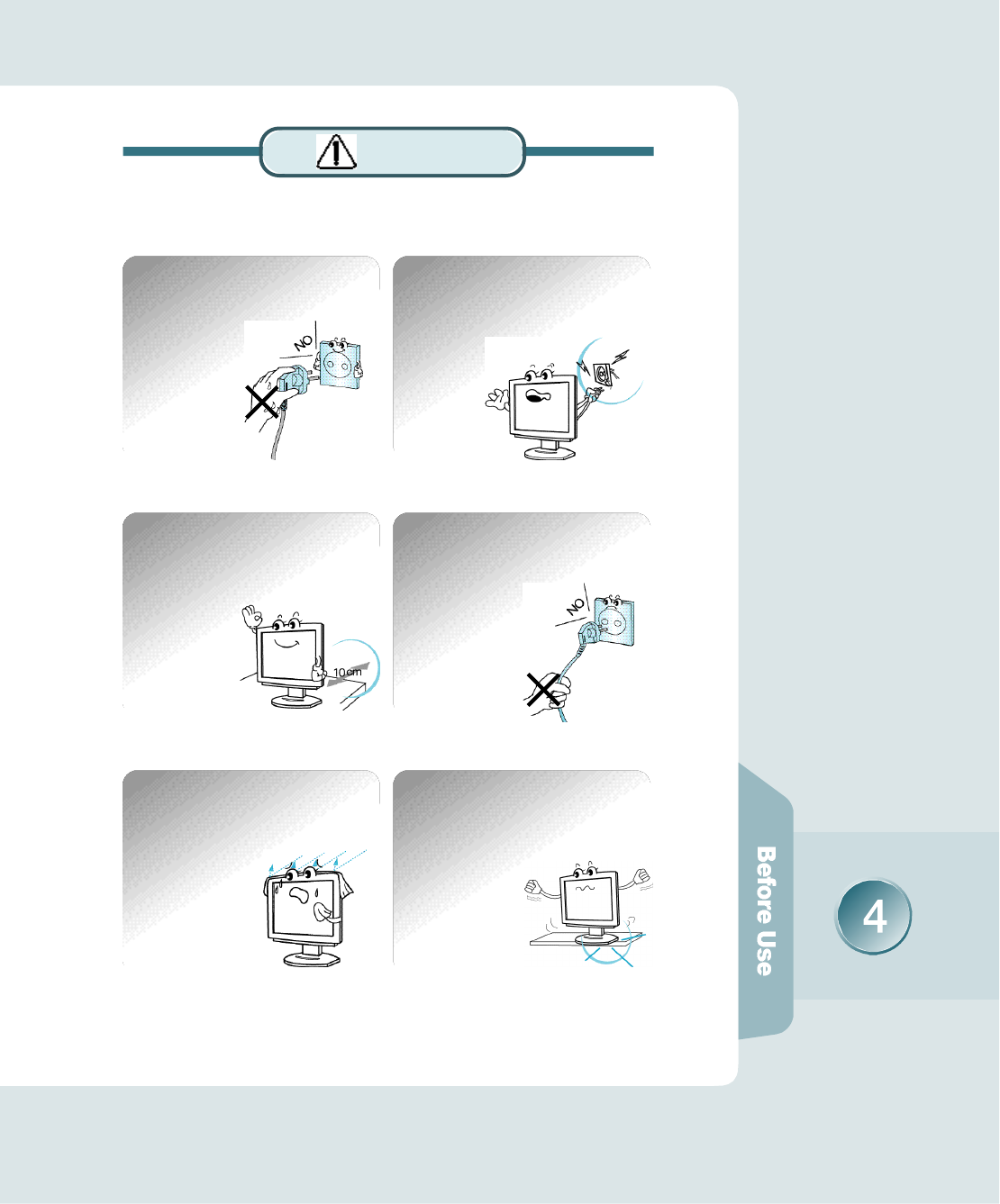

Wa rn i n g
Never touch the power plug with
wet hands.
An electric shock
accident may occur.
D o n’t use a power cord or plug
that is damaged or has a loose
connection.
An electric shock or ignition
may be caused.
Please note that air-flow holes
must not be blocked by a table
cloth or curtain.
A fire may becaused
due to an increase
in internal tempe-
r a t u r e .
D o n’t set up the equipment on an
unsupported shelf or angled
surface. nor on an area subject to
serious vibration.
Fall or displacement
of the equipment
may cause an injury.
Please set up the monitor at a
proper distance (over 10 cm)
away from the wall
for sufficient ventilation.
A fire may be
caused due to
an increase in
internal tempe-
r a t u r e .
Please grasp the power plug at the
base to remove it from the wall,
and pull firmly but gently.
If you yank at the cord
the wire may be broken,
causing ignition or
heat generation.

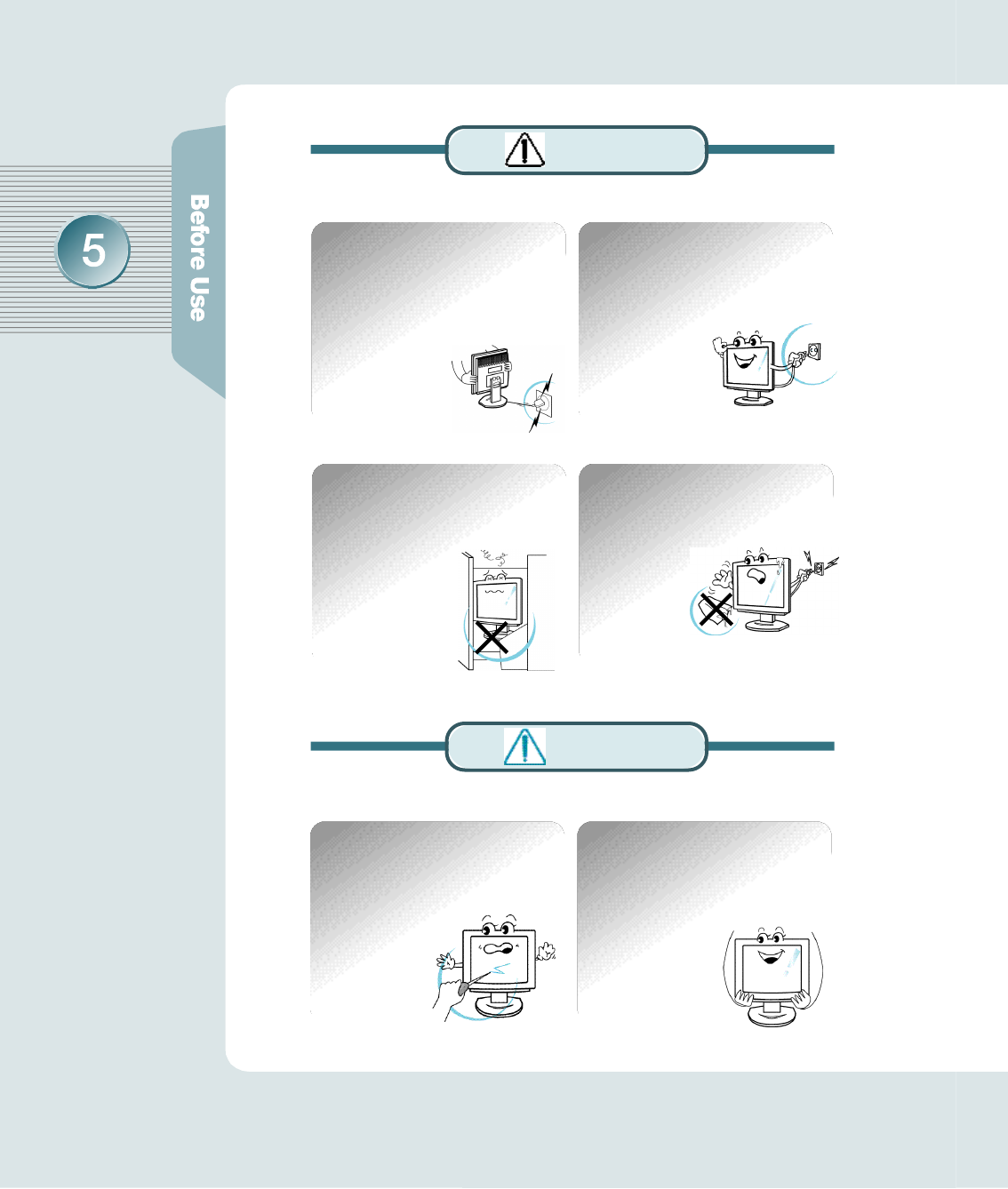

Wa rn i n g
D o n ’t put pressure upon the panel
or score the surface with your
hands or sharp items (nails, pencils,
pens, etc).
Damage or failure
of the panel may
be caused.
When you move the monitor, take
hold of it with both hands setting the
panel forward.
If you drop the monitor,
contact the service
center to check it for
a susceptibility to fire
or electric shock.
You must switch the power off and
pull the power cord out before
moving the monitor. You should
also check as to whether external
connection cords - such as the
connection cords between compo-
nent parts - are all pulled out
before the
m o v e m e n t .
A damaged cord may
cause a fire or electric shock.
Pull the power cord out when the
monitor is not used for a long
time, or while you are away.
A dust covering may
cause an electric shock,
electric leakage,
or fire by heat
generation,
ignition, and
insulation degradation.
D o n’t set the monitor in a narrow
place with poor ventilation such
as a bookcase
A fire may be
caused due to
an increase in
internal temperature.
When you clean the panel
surface, pull the power cord out
first, and wipe the surface with a
clean, dry and soft cloth. Don’t
use a damp cloth.
Such action may
be the main
cause of an
electric shock
accident and failure.
Wa rn i n g
C a u t i o n

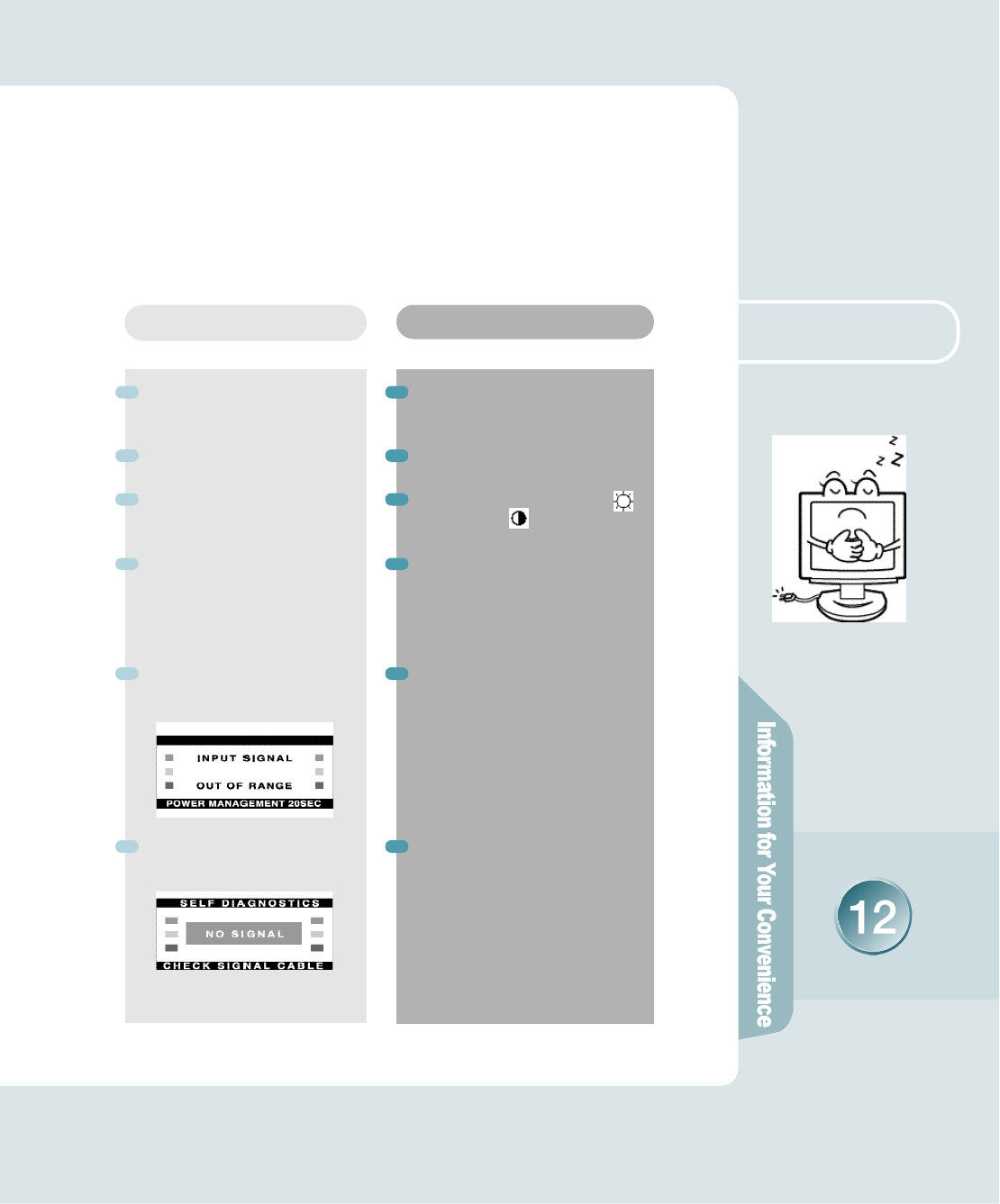

No signal message
If the signal input cable
between the monitor and
computer isn’t correctly
connected, this message will
be displayed on the screen.
For more information, please
refer to ‘T r o u b l e s h o o t i n g’.
Attention for the use of 110V
If a consumer, lives in a district
where the 220V power supply
is unavailable, a 110V adapter
can be used. Purchase a stan-
dard product rated above 15A
and 250V with the mark of
“K S ”or “C h u n ”(in Korean) in
a sales agency specializing in
electric parts. Using a non
-standard product may cause
an electric shock accident.
How do I connect with the IBM computer ?

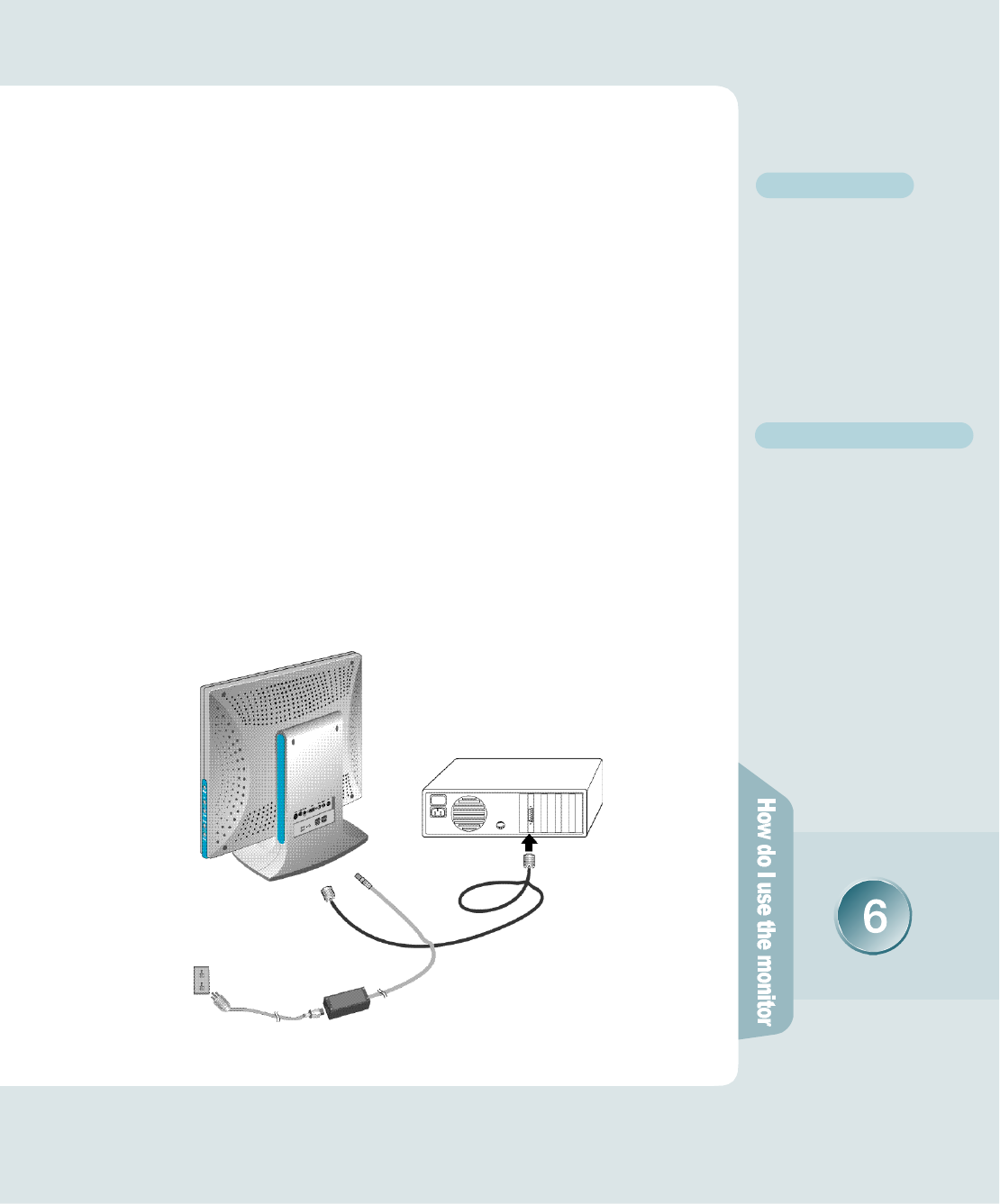

How do I connect the computer cables?
Ensure that the computer, monitor and peripheral equipment
power is turned off.
Connect signal cables with the D-sub signal input connector and
the monitor signal input connector respectively.
Connect one DC power jack of DC power supply unit to the 12V
terminal, and the other to the power cord. Next connect the power
cord to the concent.
Turn the monitor power on after switching the computer power on..
If the message “No Signal”appears, check connections of the
signal input cable or connector.
Switch the monitor and computer power off at the end of use.
Power Cord
D-Sub Signal Cable
DC Power Supply Unit
1 .
2 .
3 .
4 .
5 .
6 .

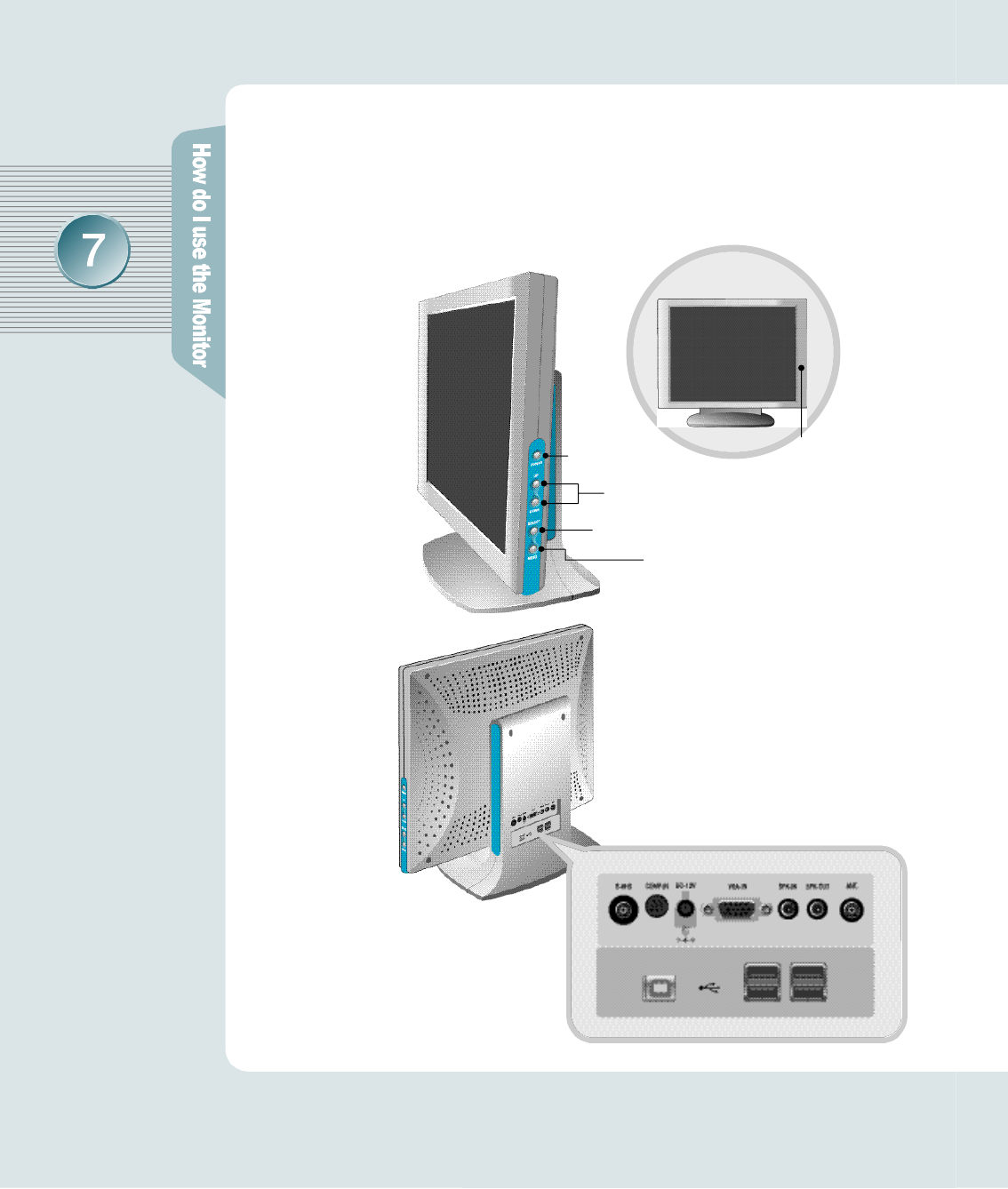

Front View
The Name and Function of Each
Individual Part
Power Button
MENU Button
SELECT Button
UP/DOWN Button
Power Pilot Lamp
Back View
Used to select an icon to be
adjusted or the AUTO func-
tion from the OSD screen.
AUTO Function
If you select the SELECT
button before using the
OSD menu, the screen is
automatically adjusted to
the optimal display state
applicable to the current
mode, while the following
message appears.
If you don’t like the auto
adjustment, you have to
manually adjust the H/V
Position, Clock, and Phase
of the OSD menus. (For
more information, please
refer to pages 9 - 11.)

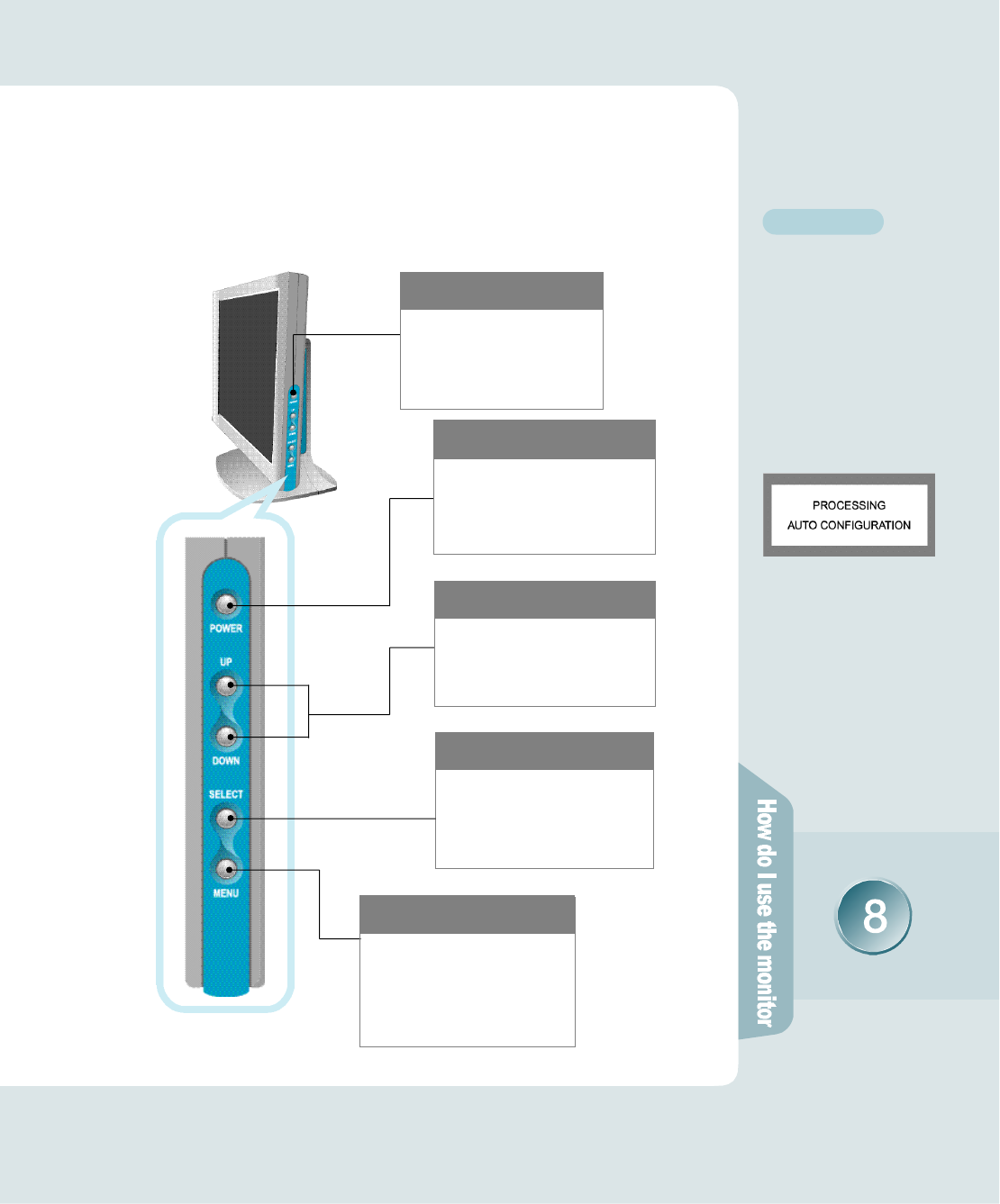

The Name and Function of Each Individual Part in the Screen
Adjusting Block
The Name and Function of Each
Individual Part
Lights up during the opera
tion but goes out if you turn
the power off.
Power Pilot Lamp
Monitor Side View
Depressing the button turns
the power on but pressing it
once more turns it off.
Power Button
By pressing this button, the
OSD (On Screen Display)
menu screen appears
or disappears.
SELECT Button
Used to select an icon from
the OSD menu screen or
adjust the screen.
UP/DOWN Button
MENU Button
How to Select and Adjust the OSD
(On Screen Display) Screen
Use the OSD adjustable buttons on the front of the monitor to set/adjust to
the best screen and operating environment.
Press the MENU buttonwhich displays the OSD menu screen.
Select the icon you desire by pressing the UP/ DOWN button.
Then press the SELECT button.
Adjust the screen with the UP/DOWN buttons.
Save the adjustment by pressing the SELECT button.
The OSD menu screen disappears after pressing the MENU button.
If you have to adjust the screen,
please adhere to the following procedure.
How to Select and Adjust the OSD
(On Screen Display)
B r i g h t n e s s
Adjusts the brightness of the screen.
Pressing the button darkens the
background screen.
Pressing the button brightens the
background screen.
C o n t r a s t
Adjusts the contrast of the screen.
Pressing the button darkens a
screen picture.
Pressing the button brightens a
screen picture.
F a c t o r y - s p e c i
f i e d
Red
G r e e n
B l u e
Select a screen color as desired
by selecting one of the two
temperature options.
- 9300K: Selects the bluish
s c r e e n .
- 6500K: Selects the reddish
screen.
Red, Green, or Blue is optionally
variable to select/adjust the color
concentration of the background
s c r e e n .
To select/adjust the color of the screen?
(9300K, 6500K, user definition etc)
To adjust the brightness and contrast of the screen?
Descriptions of OSD adjustment and functions
How to Select and Adjust the OSD
(On Screen Display)
To adjust the horizontal size of the screen
or focus the phase?
Adjusts the horizontal size of
the screen by increasing / dec-
reasing the number of pixels.
Please adjust the display to the
Full Screen size.
Brings the phase into focus.
This function is used if noise
or overlapped letters trouble nor-
mal screen functions. You are
advised to use the function after
adjusting the Horizontal Size
( C L O C K ) .
To get information on the current mode?
Informs you of the horizo-
ntal / vertical frequencies
in the current mode.
I N F O R M A T I O N
F o c u s
( P H A S E )
H o r i z o n t a l
S i z e
( C L O C K )
Descriptions of OSD Adjustment and Functions
Moves the screen up and down.
Moves the screen left and right.
To adjust the up/down/left/right position of the screen?
Troubleshooting. Please read before
notifying our repair officers of a failure
Please check the below particulars before you contact the service center
to notify an abnormality of the monitor.
This symptom can
be discovered
The screen doesn’t
show anything.
Take these respective actionsCheck these points
Is the monitor power cord insert-
ed ?
Is the power turned off ?
Is the power turned on with the
power pilot lamp lit green?
Is the power turned on with the
power pilot lamp lit orange ?
Is the message “Out Of Range”
shown ?
Is the message “No Signal”
s h o w n ?
Please connect the power cord
correctly to the concent.
Please press the power button.
Please adjust the brightness ( )
and contrast ( )again.
The monitor is in the power saving
mode. Please therefore move the
mouse or press any key on the
keyboard.
The frequency of PC (Video Card)
is out of range (i.e., horizontal:
31-60KHz, vertical: 56-75KHz).
Please therefore see [Product
Specification] in this guide to
reset it in conformity with monitor
s p e c i f i c a t i o n s .
The signal cable isn’t connected
between PC and monitor, or is
missing. Please check and
connect it properly.
Troubleshooting. Please read before
notifying our repair officers of a failure
Take these actionsCheck these points
This symptom can
be discovered
Has a discoloration (into 16
colors) of the screen occurred?
Is the screen color unstable or
does it seem to be a single
c o l o r ?
Do you see a spot on the
s c r e e n ?
Set the number of colors to more
than 256 colors. On the Windows
95/98, perform the following
process
[Control Panel] -> [Display] ->
[Setting] -> [Color Table] -> [256
Colors] -> [OK]
Check the connection of the
signal cable, and correct it if
anyabnormality is found.If you
selected “C o m p o s i t e”for the
monitor input signal during the
PC operation, the screen may
be seem abnormal. In such a
case, you are recommended to
select “S e p a r a t e”which is the
default option.
You may see a few spots (in red,
green, white, and black) on the
screen during the operation.
Occurrence of such a phenome-
non is not a failure but a charac-
teristic of the LCD panel, and
therefore has no relation to the
performance of the monitor.
The color of the screen
is not normal
Troubleshooting. Please read before
notifying our repair officers of a failure
The screen is under a bias
toward one side, or is not
centrally positioned.
A faint letter is shown, or the
phase is out of focus. Noise
is also generated
horizontally.
These symptoms
can be discovered
Is the positional adjustment
made correctly?
Is the phase adjustment made
p r o p e r l y ?
Is the screen set in the best
state?
Selecting the SELECT button
automatically adjusts the screen
in the best state applicable to the
current mode.
If you are not satisfied with the
auto adjustment, you can directly
adjust the H Position (Horizontal
Position), V Position (Vertical
Position), and Clock (Horizontal
Size) of the OSD menus.
Selecting the SELECT button
automatically adjusts the screen
in to the optimal state applicable
to the current mode.
If you are not satisfied with the
auto adjustment, you may manu-
ally adjust the Phase (Focus) of
the OSD menus.
While you are using this product
in the mode of 1024X768 and
60Hz, the best condition of the
screen is available. In the mode
of VGA(640x480) or
SVGA(800x600), the outline of a
letter may be seen dimly or
u n e v e n l y .
Take these actionsCheck these points
LCD Panel
P i c t u r e
S i g n a l
A U D I O
I n p u t
C o n n e c t o r
Dimension
and We i g h t
P o w e r
O p t i o n s
Product Specification
The details of product specification can be changed without notice to
improve the product.
2
panel type
screen size
pixel size
contrast
color
resolution
brightness
horizontal frequency
vertical frequency
view angle
input picture signal
output
input terminal
u s e r’s control
body size(WxDxH)
weight
power managing system
power consumption
input power
USB 4Port, Pivot Software
a-Si active matrix TFT-LCD
1 5 . 1”(38cm) diagonal
0.3mm x 0.3mm
3 0 0 : 1 ( T y p i c a l )
8-bit(16,777,216 Colors)
XGA 1024 x 768
2 5 0 c d / m 2 ( T y p i c a l )
31.5 - 60kHz
56 - 75Hz
U / D : ±6 0”, R/L: ±7 5”
Analog RGB
1W x 2 on the stand cover
15Pin D-Sub
Auto Configuration, Brightness,
Contrast, H-Position, V-Position,
Color RGB, Clock Adjustment,
Phase Adjustment
387 x 215 x 355mm
7.2kg(Unit), 8.3kg(Packed)
VESA DPMS standard
<30 Watt
AC 110-220V, 50-60Hz
Product Specification
Factory-specified Mode Horizontal
F r e q u e n c y ( k H z ) Vertical
F r e q u e n c y ( H z )
1
2
3
4
5
6
7
8
9
1 0
1 1
1 2
1 3
1 4
640 x 350
640 x 480
640 x 480
640 x 480
640 x 480
720 x 400
800 x 600
800 x 600
800 x 600
800 x 600
832 x 624
1024 x 768
1024 x 768
1024 x 768
3 1 . 4 7
3 5 . 0 0
3 1 . 4 7
3 7 . 8 6
3 7 . 5 0
3 1 . 4 7
3 5 . 1 6
3 7 . 8 8
4 8 . 6 8
4 6 . 8 8
4 9 . 7 3
4 8 . 3 6
5 6 . 4 8
6 0 . 0 2
7 0
6 7
6 0
7 2
7 5
7 0
5 6
6 0
7 2
7 5
7 5
6 0
7 0
7 5
V G A
M A C
V E S A
V E S A
V E S A
V G A
V E S A
V E S A
V E S A
V E S A
M A C
V E S A
V E S A
V E S A
Factory-specified Mode
