ATEK AX620 Wireless keyboard User Manual

ATEK (CHINA) ELECTRONICS COMPANY LIMITED Wireless keyboard Users Manual

User Manual

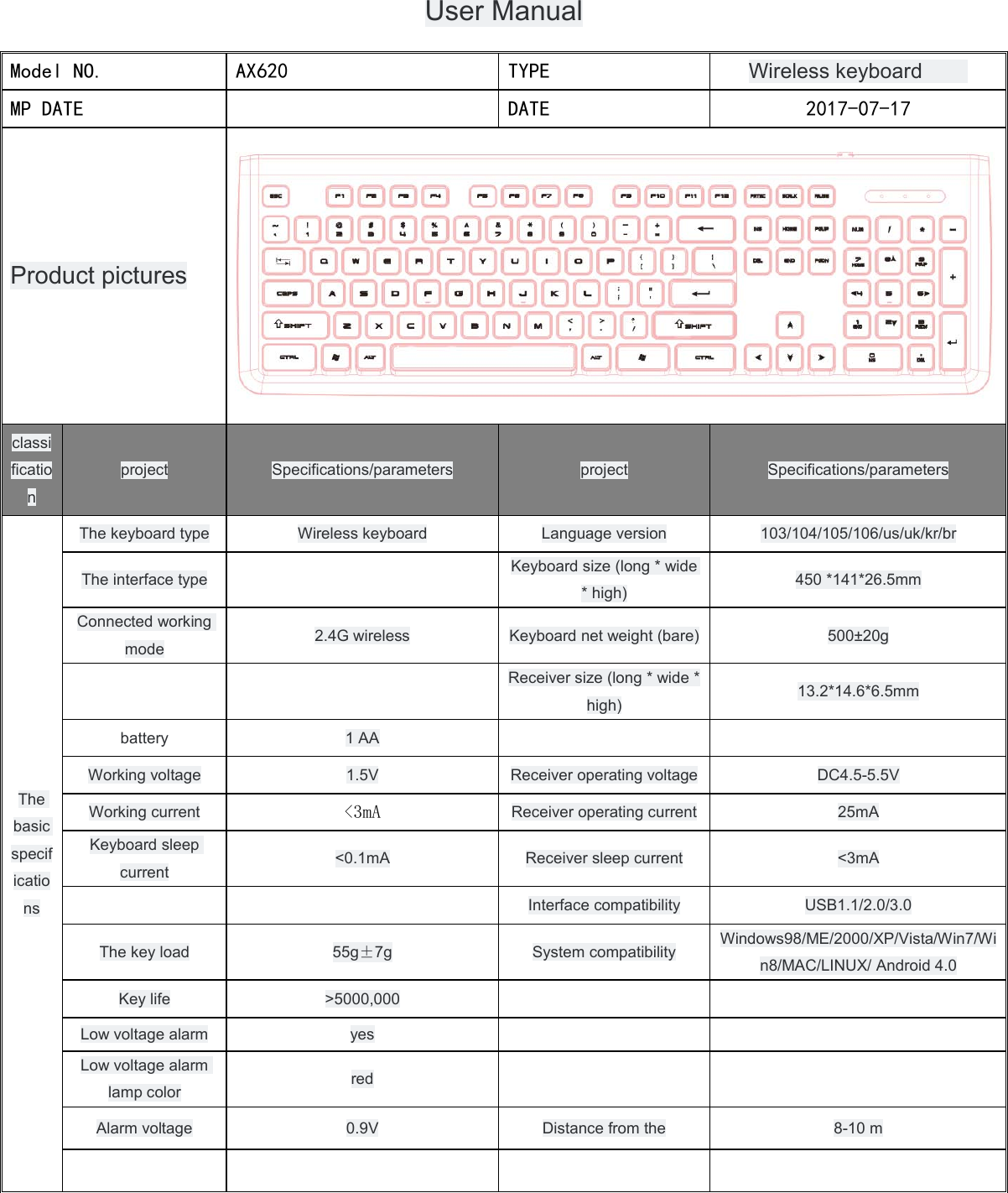

User Manual Model NO. AX620 TYPE Wireless keyboard MP DATE DATE 2017-07-17 Product pictures classification project Specifications/parameters project Specifications/parameters The basic specifications The keyboard type Wireless keyboard Language version 103/104/105/106/us/uk/kr/br The interface type Keyboard size (long * wide * high) 450 *141*26.5mm Connected working mode 2.4G wireless Keyboard net weight (bare) 500±20g Receiver size (long * wide * high) 13.2*14.6*6.5mm battery 1 AA Working voltage 1.5V Receiver operating voltage DC4.5-5.5V Working current <3mA Receiver operating current 25mA Keyboard sleep current <0.1mA Receiver sleep current <3mA Interface compatibility USB1.1/2.0/3.0 The key load 55g±7g System compatibility Windows98/ME/2000/XP/Vista/Win7/Win8/MAC/LINUX/ Android 4.0 Key life >5000,000 Low voltage alarm yes Low voltage alarm lamp color red Alarm voltage 0.9V Distance from the 8-10 m

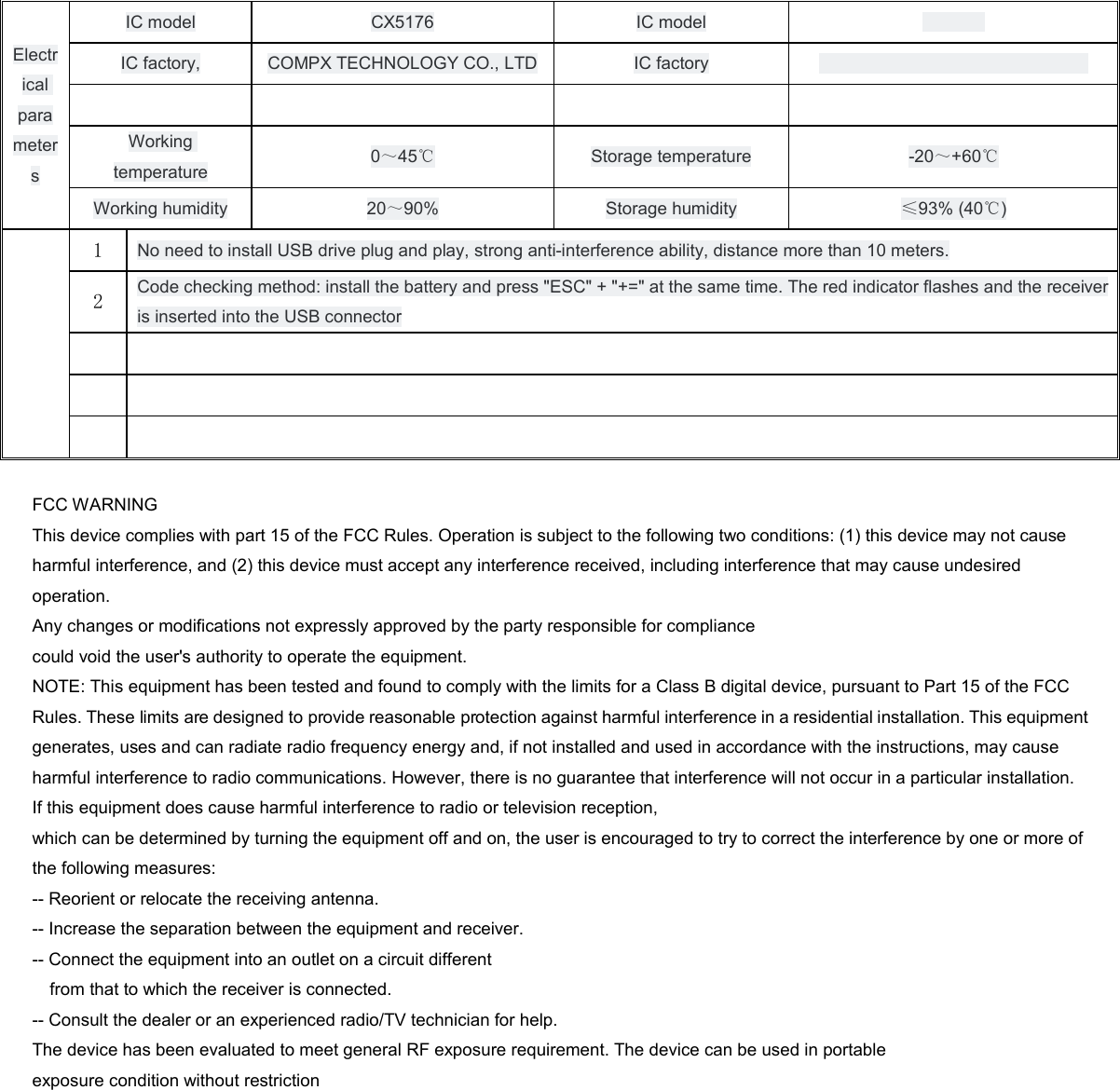

Electrical parameters IC model CX5176 IC model IC factory, COMPX TECHNOLOGY CO., LTD IC factory Working temperature 0～45℃ Storage temperature -20～+60℃ Working humidity 20～90% Storage humidity ≤93% (40℃) 1 No need to install USB drive plug and play, strong anti-interference ability, distance more than 10 meters. 2 Code checking method: install the battery and press "ESC" + "+=" at the same time. The red indicator flashes and the receiver is inserted into the USB connector FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction
