User Manual

User’s Manual

- 1 -

Bluetooth® Headset H032

- 1 -

1. NoticeBeforeUsing

ThankyouforpurchasingtheBluetooth®HeadsetH032.Pleasereadthis

User'sManualcompletelybeforeyouusetheHeadset.TheH032hasbeen

developedusingBluetooth®wirelesstechnologyandiscapableofconnecting

withBluetooth®devicesdesignedwithAudioGateway.PDAs,Desktopsand

NotebookcomputerscanbeconnectedandpairedwiththeHeadsetusinga

USBBluetooth®Dongleorbuilt‐inBluetoothcapability(ifapplicable).Before

usingtheHeadsetpleaseverifyyourBluetooth®device(Phone,PDA)complies

withBluetooth®V1.1/V1.2/V2.0/V2.1/V3.0andsupportstheBluetooth®

HeadsetorHands‐freeprofile.



- 2 -

2. PackageContentsList

Pleaseinspectthispackageandrefertothepackagecontentslistbelowto

verifyallitemswereincludedinthispackage:

A.Headset..........................................................................................................1

B.Earhooks.......................................................................................................2

C.Eargels(3Sizes)............................................................................................3

D.User'sManual...............................................................................................1

E.Warrantycard................................................................................................1



- 3 -

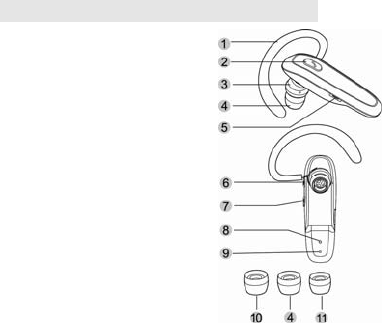

3. H032Bluetooth®HeadsetOverview

1. Earhook

2. Answerbutton

3. Speaker

4. Earcap(M)

5. Chargingport

6. Volume(+)button

7. Volume(‐)button

8. Dual‐colorindicator

9. Microphone

10. Earcap(L) 

11. Earcap(S) 



- 4 -



4. Batteryinformation

Thedeviceisequippedwithanintegratedlithium‐polymerbattery.The

batterycannotbereplaced.Donotattempttoremovethebatteryfromthe

devicesinceitwoulddamagethedevice.Thefullperformanceofanew

batteryisnotachieveduntilaftertwoorthreecompletecharging‐discharging

cycles.Thebatterycanbechargedanddischargedseveralhundredtimes,but

itlosesitscapacityovertime.

DisconnecttheH032fromthepowersupplyassoonasthebatteryisfully

charged,overchargingwouldreducetheservicelifeofthebattery.Acharged

batterywillloseitscapacityifitisnotusedonaregularbasis.

Important:

Ensurethatthebatteryisfullychargedifyoudonotusethedeviceforalong

periodoftime.Toavoidacompletedischargeofthebattery,theH032should

bechargedatleastevery3months.

- 5 -



5. Chargingthebattery

TheH032isoperatedwitharechargeablebattery.Chargethebattery

completelybeforeitsfirstuse.Readthesection"Batteryinformation"before

startingthechargingprocess.

1) ConnectUSBcabletoageneralUSBpowersupplier.



2) Whenthechargerisconnectedtotheheadset,theredindicatorlight

- 6 -

willturnon.Chargingthebatteryfullymaytakeupto1‐2hours. 

3) Whenthebatteryisfullycharged,theredindicatorlightwillturnblue.

Disconnectthechargerfromtheheadsetandtheoutlet.Theheadsetis

readytouse.

NOTE:

‐Forfirsttimeuse,pleasechargetheheadsetfully.

‐Thefullychargedbatteryhaspowerforupto4hoursoftalk‐time,andupto

90hoursofstandbytime.However,thetalkandstandbytimesmayvarywhen

usedwithdifferentmobilephonesorothercompatibleBluetooth®devices,

usagesettings,usagestyles,andenvironments.Whenthebatterypoweris

low,theheadsetwillremindyoubya"Beep"toneevery20seconds,andthe

redindicatorlightstartstoflash.

6. PairtoyourBluetooth®phone

Beforeyouuseyourheadsetthefirsttime,youmustpairtheunitwitha

Bluetooth®enabledmobilephone.Pairingisaone‐timeprocessandrequired

onlyforthefirstconnectionwiththecellphone.TheH032canbeconnected

simultaneouslywithtwocellphones.

1) KeeptheH032withinrangeofaBluetooth®‐readycellphone;the

- 7 -

distanceshouldnotexceedameter.

2) HoldtheAnswerbuttonforapprox.5secondsuntilyouheara

short‐lowsignaltoneandtheindicatorlightintermittentlyflashesred

andblue.Thedeviceisinpairingmode.Pairingmodeshouldengage

automaticallyuponthefirsttimeturningontheheadset.

3) FindtheBluetooth®settingofyourcellphoneandstartthesearchfor

Bluetooth®devices.(Forfurtherdetails,pleasereadtheoperating

instructionsofyourcellphone).

4) Fromthelistofdevicesfound,selectthe"H032".

5) Ifrequired,enterthePINcode"0000"andconfirmtheentry.Ifthe

pairingprocesswassuccessful,youwillhearasignaltoneandthe

indicatorlightsbluefor3seconds.(Note:ThePINcodeis

preprogrammedandcannotbechanged.)

6) Afterpairing,theH032automaticallyconnectswiththecellphone.For

somecellphones,youhavetomanuallyconfirmtheconnection.Once

paired,theheadsetwillchangetostandbymodeandtheindicatorlight

willflashblue2timesevery5seconds.

NOTE:

- 8 -

Ifpairingisnotcompletedwithin2minutes,theheadsetwillturnoff.Ifthis

happens,repeatthepairingprocess.

7. Multi‐connectionfunction

TheMulti‐connectionfunctionallowsforthesimultaneoususeoftheH032

withtwocellphones.Thisisanadvantageforuserswithapersonalanda

businesscellphone.

Establishingaconnectionwithtwocellphones

ThereareseveraloptionsofconnectingtheH032withalreadypairedcell

phones.

1) Automaticconnection

WhenturningontheH032,aconnectionisautomaticallyestablishedwiththe

twomostrecentlyconnectedcellphones.

2) EstablishingaconnectionviatheH032

TomanuallyestablishaconnectionbetweentheH032andthetwomost

recentlyconnectedcellphones,presstheAnswerbutton.TheH032first

connectsitselfwiththemostrecentlyconnectedcellphone.Thenitconnects

itselfwiththenextmostrecentlyconnectedone.

- 9 -

3) Establishingaconnectionviathecellphone

Ifthecellphoneisnotoneofthetwomostrecentlyconnectedcellphones

withtheH032,youhavetoestablishtheconnectionviatheBluetooth®menu

ofthecellphone.Aftersuccessfulconnection,youcanestablishanother

connectionwithasecondcellphone.Thisallowsyoutodeterminethe

sequenceofconnections.IftwocellphonesareconnectedwiththeH032,the

cellphoneconnectedfirstisthefirstdeviceandtheotheronethesecond

device.Anotherconnectioncanbeestablishedonlyafterfirstdisconnecting

oneofthetwocellphones.Thecellphonethatisstillconnectedafterwards

becomesthefirstdeviceinthesequence.

NOTE:

Voicedialingisavailableonlyforthefirstdeviceandtheoperationfor

redialingthelastnumberdiffersforthefirstandtheseconddevice.Theother

functionsareexecutedthesamewayusingtheH032asaconnectionwith

onlyonecellphone.

8. Turningheadseton/off

Turningonyourheadset

- 10 -

PressandholdAnswerbuttonfor3secondsuntilyouhearatonefromlowto

high.Theheadsetisnowon.TheBlueindicatorlightwillflashblue3times.

ConnectingtoaBluetooth®phone

Ifyourheadsethascompletedthepairingprocesssuccessfully,whenthe

headsetisturnedon,itwillconnecttothephoneyoulastconnectedwith

automatically.Pleaseensureyourphone'sBluetooth®functionisactive.

Turningofftheheadset

Atanyworkingstateaftertheheadsetispoweredon,pressandholdAnswer

buttonfor5seconds.Youwillhearatonefromhightolow,andtheRed

indicatorlightwillflashred3times.Theheadsethasnowpoweredoff.

Note:

Toconservepower,iftheheadsetisnotconnectedtoadevicefor

approximately10minutes,theheadsetwillturnoffautomatically.

9. Wearingyourheadset

Accordingtoyourpreference,youcanwearthe

headsetonyourleftorrightear.Theadjustable

earhookdesignallowsforacomfortablefit.

- 11 -



10. UsingtheH032

Makingacall

1) Usingphone'skeypad

Instandbymode,dialthenumberonyourphone'skeypadtomakeacall.

2) UseVoice‐Dialing

Instandbymode,presstheAnswerbuttonshortly,youwillhearashorttone

fromtheheadset,andthephonewillpromptyoutosaythevoicetagwhich

youhavealreadyattachedtoyourcontact.Ifthevoicetagisidentifiedbythe

phone,therelatednumberwillbedialed.Pleaseensurethatyourmobile

phonesupportsthisvoicedialingfunction,andvoicetagshavebeensetupon

yourmobilephonepriortoattemptingthis.Refertoyourmobilephone'suser

guideorcontactyourserviceprovider.

Note:thevoicedialingisavailableonlyforthefirstdeviceiftwocellphones

areconnected.

3) Lastnumberre‐dialing

- 12 -

Instandbymode,doublepresstheAnswerbutton,thelastnumberyoudialed

willbere‐dialed.

Note:IftwocellphonesareconnectedwiththeH032,holdtheVolume(‐)

buttonfor2secondstodialthelastnumberofthecellphoneconnected

previously.

Answeringacall

Whenyoureceiveanincomingcall,presstheAnswerbuttonshortlyto

answertheincomingcall;youcanalsoanswerthecalldirectlyfromyour

phone.

Rejectanincomingcall

Whenyoureceiveanincomingcall,pressandholdAnswerbuttonfor3

secondstorejecttheincomingcall.

Transferringacall

Whileacallisinprogress,pressandholdVolume(+)for3seconds.Thecall

willbetransferredfromyourphonetoyourheadset.Repeatingtheoperation

cantransferthecallfromyourheadsetbacktoyourphone.

Endingacall

- 13 -

Whileonacall,presstheAnswerbuttonshortlytoendthecall;youcanalso

endthecalldirectlyfromyourphone.

Call‐waiting(Three‐WayCalling)

BeforeusingtheCall‐Waitingfunctiononyourheadset,pleaseensurethat

yourphonesupportsthisHands‐freeprofileandyouhaveaccesstothe

servicebyawirelessprovider.

‐Ifthereisanincomingcallwhileacallisinprogress,pressAnswerbutton

shortly.Thiswillacceptthewaitingcallandendcurrentcalling.

‐Ifthereisanincomingcallwhileacallisinprogress,pressandholdAnswer

buttonfor3secondstoaccepttheincomingcallandplacethecurrentcallon

hold.

Volumecontrol

Whileonacall,youcanadjustthevolumebypressingtheVolume(+)and

Volume(‐)buttonoryoucanadjustthevolumedirectlyfromyourphone.

Mute

WhileacallisinprogresspressandholdVolume(‐)button,for2s,youwill

hearatonefromlowtohigh.Theheadset'sMICisnowmuted.Youwillheara

- 14 -

remindfultoneevery10seconds,notifyingyouthatyourMICisstillmuted

andacallisstillinprogress.Repeattheoperationandyouwillhearthetone

fromhightolow.Themutefunctionisnowcanceled.

11. Safetyandgeneralinformation

1) PleasereadthisUser'sManualcarefullyandfollowallinstructions.

2) Toavoidanydamageormalfunctionofthedevicedonotdropthe

devicefromhighplaces.

3) Keepdeviceawayfromhumidity,waterandanyotherliquid.Ifthe

deviceisexposedtowater,moistureandotherliquidsdonotoperateit

toavoidanyelectricalshock,explosionanddamagetothedeviceor

yourself.

4) Donotplaceorkeepthisdevicenearanyheatsources,suchas,direct

sunlight,radiators,stovesorotherapparatusthatproduceheat.This

maycauseanexplosion,degradetheperformanceand/orreduce

batterylife.

5) Donotmodify,repairordisassembledevice(Especiallythebattery).

Doingthiswillvoidthewarranty.

6) Donotplaceheavyobjectsonthedevice.

- 15 -

7) Useonlythesuppliedandapprovedchargers.

8) Pleasecontacttheretailerforreplacementorsupportwiththis

product.

9) Unplugthisdevicewhenunusedforlongperiodsoftimeorduring

lightningstorms.

10) Thebatteryusedinthisdevicemaypresentariskoffireorchemical

burnifmistreated.

12. FCC&ICStatement

Operationissubjecttothefollowingtwoconditions:

(1)Thisdevicemaynotcauseharmfulinterference.

(2)Thisdevicemustacceptanyinterferencereceived,includinginterference

thatmaycauseundesiredoperation.

Note:ThemanufacturerisnotresponsibleforANYinterference,forexample

RADIOorTVinterference,causedbyunauthorizedmodificationstothis

equipment.Suchmodificationscouldvoidtheuser'sauthoritytooperatethe

equipment.

13. ECDeclarationofConformity

- 16 -

Operationissubjecttothefollowingtwoconditions:

(1)Thisdevicemaynotcauseharmfulinterference.

(2)Thisdevicemustacceptanyinterferencereceived,includinginterference

thatmaycauseundesiredoperation.

Note:ThemanufacturerisnotresponsibleforANYinterference,forexample

RADIOorTVinterference,causedbyunauthorizedmodificationstothis

equipment.

Suchmodificationscouldvoidtheuser'sauthoritytooperatetheequipment.

ThisproductisCEcertifiedaccordingtotheprovisionoftheR&TTEDirective

(99/5/EC).Thisdeclaresthatthisproductisincompliancewiththeessential

requirementsandotherrelevantprovisionsofDirective1999/5/EC.Please

notethatthisproductusesradiofrequencybandsnotharmonizedwithinEU.

WithintheEUthisproductisintendedtobeusedinAustria,Belgium,

Denmark,Finland,France,Germany,Greece,Ireland,Italy,Luxembourg,The

Netherlands,Portugal,Spain,Sweden,andUnitedKingdomandwithinEFTAin

Iceland,NorwayandSwitzerland.

14. Warranty

Theconditionofthiswarrantyandsupplier'sresponsibilitiesunderthis

- 17 -

warrantyareasfollows:

Warrantyisnon‐transferableandislimitedtotheoriginalpurchaseronly.

‐Youmustbeabletoprovethedateoforiginalpurchaseoftheunitwitha

datedreceipt.

‐Thewarrantyisnotapplicableiftheproducthasbeensubjecttophysical

abuse,improperinstallation,modificationorrepairbyanunauthorizedthird

party.

‐Supplier'sresponsibilityshallbelimitedtotherepairorreplacementofthe

productatitssolediscretion.

‐Specificallyexemptfromanywarrantyarelimited‐lifeconsumable

componentssubjecttonormalwearandtearsuchasbatteries,decoratesand

otheraccessories.

‐Supplierisnotresponsible,forfailureresultingfromaccident,abuse,misuse,

oranyunauthorizedrepair,ormodification.

‐Modificationandrepairoftheunitshouldbedonebyanauthorizedand

qualifiedservicecenterorreturnedtothemanufacturer.

‐Thiswarrantygivesyouspecificlegalrights,andyoumayalsohaveother

rights,whichvaryunderlocallaws.

- 18 -

‐Toreplaceadefectivedevicepleasecontactcustomerservice.Visitour

websiteformoreinformation

Bluetooth®isatrademarkownedbytheBluetooth®SIG,Inc.



ATI Electronics H032 BLUETOOTH HEADSET User Manual H032

ATI Electronics (Shenzhen) Co. Ltd BLUETOOTH HEADSET H032

User Manual

Navigation menu

Namespaces

Views

Navigation
