ATID ATUHF900S1 UHF RFID MODULE User Manual User s Manual r1
ATID Co., Ltd UHF RFID MODULE User s Manual r1
ATID >
USERS MANUAL
June 2012
This module is limited to OEM Installation only.
AT-UHF900-S1
USER’S MANUAL
V2.06.21
AT-UHF900-S1 User’s Manual
Company Date Version
ATID Co.,Ltd 2012-06-21 V2.06.21
2
Identification with Radio and Optical
Revision history
Version Revision Date Revision Page Revision Description
V1.8.17 2010-08-17 Draft
V1.10.18 2011-10-18 7 Add reset pin of Pin-map
V2.06.21 2012-06-21
AT-UHF900-S1 User’s Manual
Company Date Version
ATID Co.,Ltd 2012-06-21 V2.06.21
3
Identification with Radio and Optical
Contents
1. Introduction & System composition diagram .......................................................... 4
Introduction ................................................................................................................................................. 4
System composition diagram ............................................................................................................ 4
2. Composition parts .......................................................................................................... 5
3. Reader Description ......................................................................................................... 6
4. Reader Specification ....................................................................................................... 8
Interface ......................................................................................................................................................... 8
Physical Dimension .................................................................................................................................. 8
Mechanical Dimension ........................................................................................................................... 8
Appendix I : FCC Certification Requirements ............................................................ 9
AT-UHF900-S1 User’s Manual
Company Date Version
ATID Co.,Ltd 2012-06-21 V2.06.21
4
Identification with Radio and Optical
1. Introduction & System composition diagram
Introduction
- The AT-UHF900-S1 is a compact size RFID reader module developed
for the embedded reader market, which comprises printers, industrial
PDA, and similar devices. It provides customers with compact size,
low cost, high performance functions. It supports protocols of
ISO18000-6C(EPC C1G2), ISO18000-6B, and it interfaces with a host
system via UART.
- Target Application
PDA type RFID Reader
RFID Printers / Tag Encoders
USB Readers
Smart-Shelves

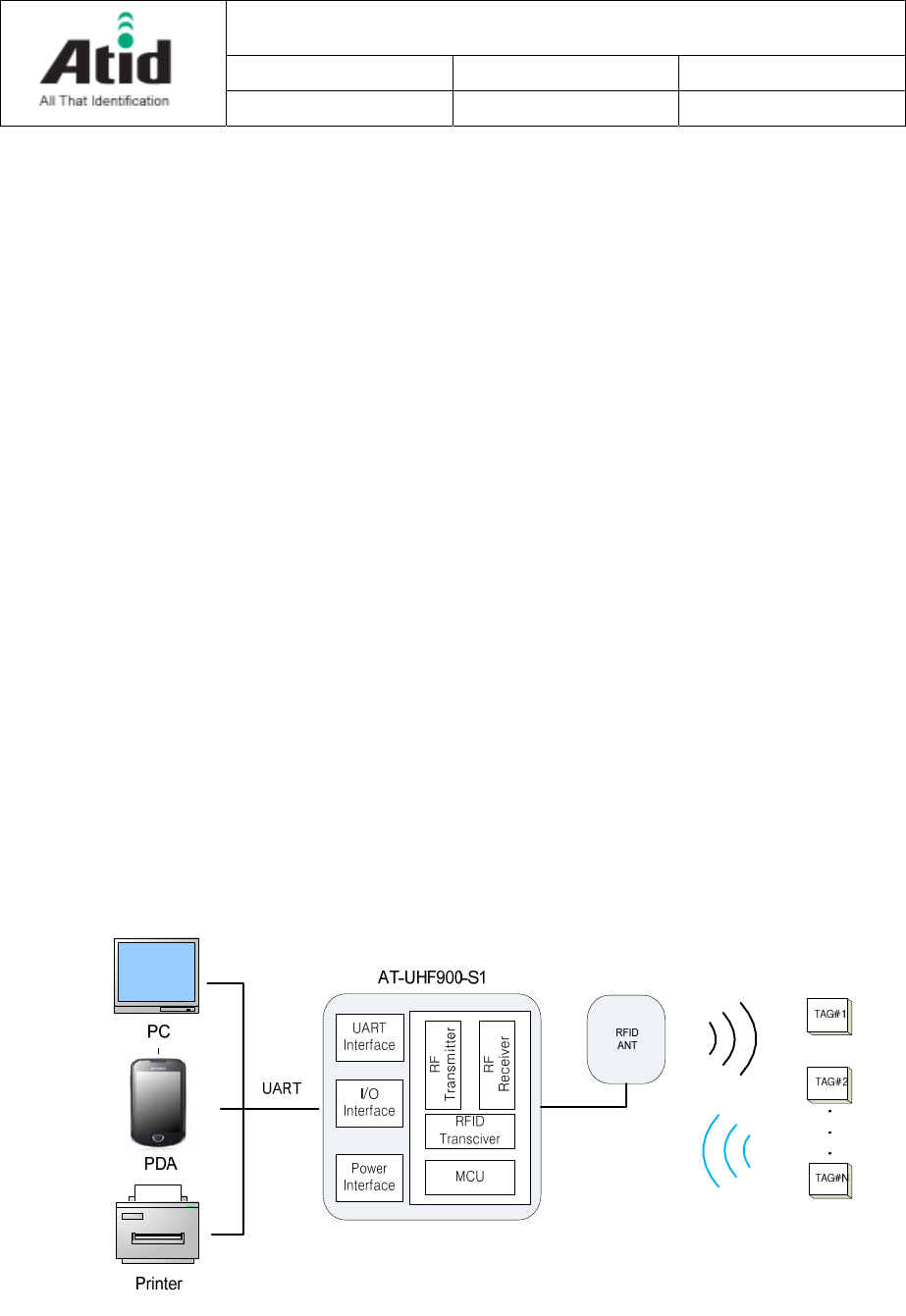

System composition diagram
AT-UHF900-S1 User’s Manual
Company Date Version
ATID Co.,Ltd 2012-06-21 V2.06.21
5
Identification with Radio and Optical

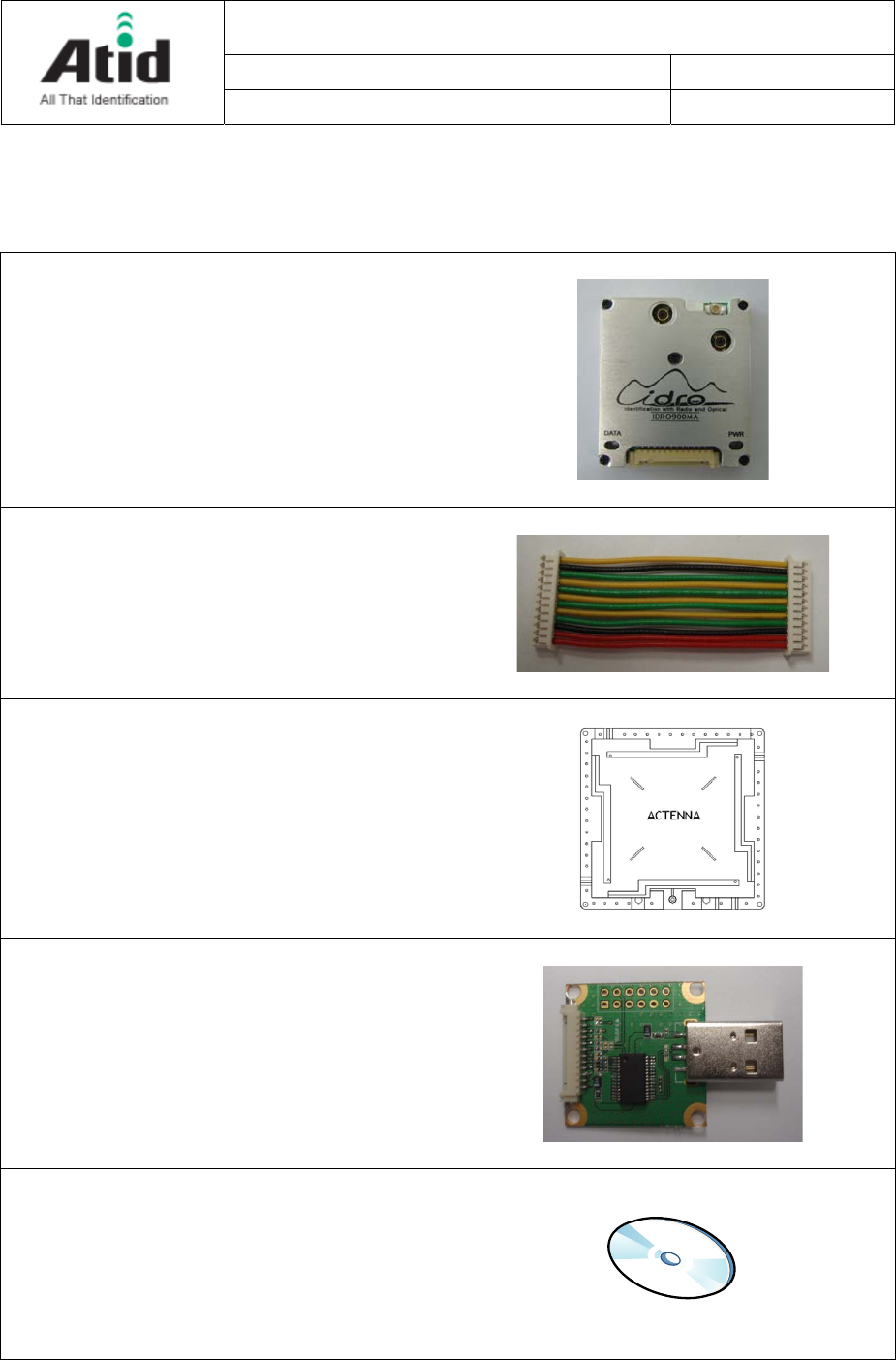

2. Composition parts
RFID Reader module
Interface Cable
ANTENNA
(option)
UART to USB Convertor
(option)
Reader Software &
User Document CD-ROM
AT-UHF900-S1 User’s Manual
Company Date Version
ATID Co.,Ltd 2012-06-21 V2.06.21
6
Identification with Radio and Optical
3. Reader Description
LED Status
ANT Port
DATA LED : The Red LED will twinkle when
the reader is receiving data from a tag.
POWER LED : The Red LED is turned on
when the reader is powered. It can be
removed for prevent batter
y
consume.
ANT Port : Connect RF Cable
to reader module and ANT
Interface connector :
Supply voltage and interface with a host
system(PC, PDA…) via UART.
AT-UHF900-S1 User’s Manual
Company Date Version
ATID Co.,Ltd 2012-06-21 V2.06.21
7
Identification with Radio and Optical

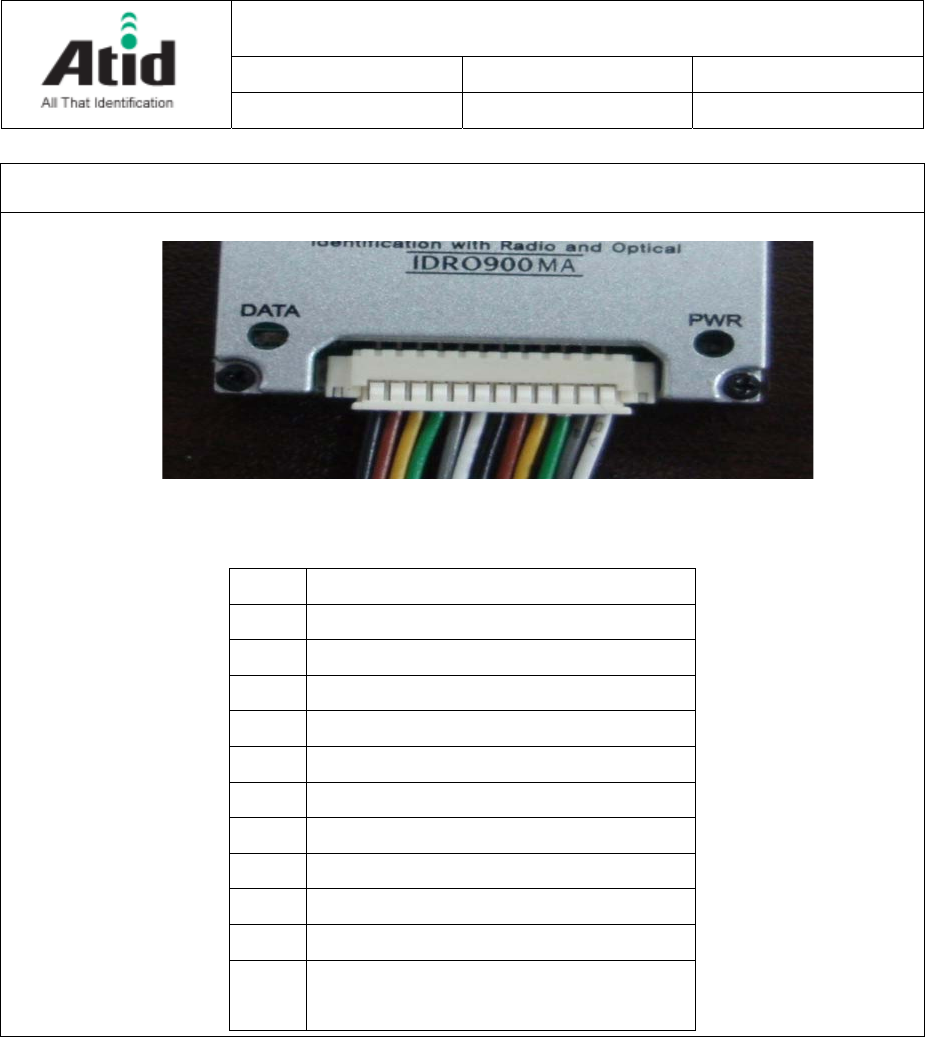

Interface Pin-map
① ⑫
1 VCC (3.8 ~ 4.2V, typ 4V)
2 VCC (3.8 ~ 4.2V, typ 4V)
3 GND
4 TXD (AT-UHF900-S1 HOST)
5 RXD (AT-UHF900-S1 HOST)
6 Not Used
7 Not Used
8 Not Used
9 Not Used
10 Not Used
11 GND
12 RESET
(It is necessary for Firmware update)
4.
Read
e
Interfa
c
Host
ANT
Physica
Mecha
n
A
Ide
e
r Spec
c
e
connecto
Connecto
l Dimen
s
SIZE
Weight
n
ical Di
m
AT
-
Company
A
TID Co.,Ltd
ntificatio
n
ificati
o
r
r
s
ion
m
ension
-
UHF90
0
n
with Rad
o
n
Ma
n
0
-S1 U
s
Date
2012-06-2
i
o and Opt
Part No.
:
n
ufacturer :
Part N
o
Manufact
u
33mm
s
er’s Ma
1
ical
:
12505W
R
-
Yeonho El
e
o
. : CMJ-S0
0
u
rer : Giga
L
×
39mm ×
20g
a
nual
Versio
n
V2.06.
2
-
12
e
ctronics
0
L
ane
7.5mm
n
1
8
AT-UHF900-S1 User’s Manual
Company Date Version
ATID Co.,Ltd 2012-06-21 V2.06.21
9
Identification with Radio and Optical
Appendix I : FCC Certification Requirements
1. Caution
Any changed or modifications not expressly approved by the party responsible for compliance
could void the user`s authority to operate this equipment.
2. OEM installation guide
I. OEM integrators must be instructed to ensure that the end-user has no manual
instructions to remove or install the module.
II. This module is to be installed only in mobile of fixed devices.
▪ Mobile device: The devices is to be generally used in such a way that a separation
distance of at least 20cm is normally maintained between the transmitter`s radiating
structures and the body of the user or nearby persons.
▪ Fixed devices: The device is physically secured at one location and is not able to
be easily moved to another location.
III. To ensure compliance with all non-transmitter functions the host manufacturer is
responsible for ensuring compliance with the module(s) installed and fully operational.
IV. To satisfy FCC exterior labeling requirements, the following text must be placed on
exterior of the end product.
V. An additional permanent label referring to the enclosed module: “Contains Transmitter
Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1” must be used. The
host OEM user manual must also contain clear instructions on how end users can find
and/or access the module and the FCC ID.
3. FCC RF exposure requirements
The antenna used with this module must be installed to provide a separation distance of at
least 20cm from all persons, and must not transmit simultaneously with any other antenna or
transmitter except in accordance with FCC multi-transmitter product procedures.
4. FCC authorization for this module
If this module is installed in portable devices or the different antenna configurations are used,
the FCC authorizations are no longer considered valid and FCCID for module cannot be used
on the final product. And the OEM installer will be responsible for re-evaluating the final
product including this module and obtaining separate FCC authorization.
AT-UHF900-S1 User’s Manual
Company Date Version
ATID Co.,Ltd 2012-06-21 V2.06.21
10
Identification with Radio and Optical
5. Information for importation of radio frequency devices in to the
United States.
To ensure compliance with all non-transmitter functions the host manufacturer is responsible for
ensuring compliance with the module(s) installed and fully operational. For example, if a host
was previously authorized as an unintentional radiator under the Declaration of Conformity
procedure without a transmitter certified module and a module is added, the host manufacturer is
responsible for ensuring that the after the module is installed and operational the host continues
to be compliant with the Part 15B unintentional radiator requirements.
Please see CFR47 Part 2 Subpart J Equipment Authorization Procedures, KDB784748 D01 v07, and
KDB 997198.
6. User Information
This device complies with Part 15 of the FCC`s Rule. Operation is subject to the following
to conditions;
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause
undesirable operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/ TV technician for help.
