ATOP Technologies SW5001-WGN1 Wireless Serial Server User Manual Manual

Atop ABLELink® Wireless Serial

Server SW5001

User Manual

Version 1.0

Updated on 2006/06/06

Tel: 886-3-5508137

Fax: 886-3-5508131

www.atop.com.tw

User manual Version 1.0

ABLELink Serial-Ethernet Server

SW5001

1 / 50

IMPORTANT ANNOUNCEMENT

The information contained in this document is the property of Atop Technologies, Inc. and is supplied for

the sole purpose of the operation and maintenance of products of Atop Technologies, Inc. No part of this

publication is to be used for any other purposes, and it is not to be reproduced, copied, disclosed,

transmitted, stored in a retrieval system, or translated into any human or computer language, in any form,

by any means, in whole or in part, without the prior express written consent of Atop Technologies, Inc.

Published by

Atop Technologies, Inc.

2F, No. 146, Sec. 1, Tung-Hsing Rd.

Jubei City, Hsinchu 302

Taiwan, R.O.C.

Tel: 886-3-5508137

Fax: 886-3-5508131

www.atop.com.tw

All other product names referenced herein are registered trademarks of their respective companies.

User manual Version 1.0

ABLELink Serial-Ethernet Server

SW5001

2 / 50

FCC WARNING

Class B for Wireless Serial Server (Model: SW5001)

This SW5001 has been tested and found to comply with the limits for a Class B digital device, pursuant

to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that interference will not occur in

a particular installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is encouraged to try to

correct the interference by one of the following measures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the equipment and receiver.

 Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

 Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for

compliance could void the user's authority to operate this equipment.

IMPORTANT NOTE:

FCC Radiation Exposure Statement:

This SW5001 complies with FCC radiation exposure limits set forth for an uncontrolled environment. This

SW5001 should be installed and operated with minimum distance 20cm between the radiator & your body.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

IEEE 802.11b/g operation of this product in the U.S.A. is firmware-limited to channels 1 through 11.

User manual Version 1.0

ABLELink Serial-Ethernet Server

SW5001

3 / 50

CONTENTS

1. INTRODUCTION..................................................................................4

1.1 PACKAGING...........................................................................................................................4

1. 2 APPLICATION CONNECTIVITY.................................................................................................5

2. NOMENCLATURE AND SETTINGS...................................................7

2.1 NOMENCLATURE OF SW5001 COMPONENTS .........................................................................7

2.2 MODE SWITCH.....................................................................................................................7

3. HARDWARE INSTALLATION.............................................................8

3.1 CONFIGURATION....................................................................................................................8

3.2 ASSIGNING A NEW IP ADDRESS BY ARP COMMAND .................................................................8

3.3 AUTO IP................................................................................................................................9

3.4 TCP/IP PORT NUMBER .......................................................................................................10

4. SOFTWARE CONFIGURATION .......................................................10

4.1 CONFIGURATION SET BY MONITOR.EXE UTILITY .....................................................................10

4.2 CONFIGURATION SET BY TELNET UTILITY ..............................................................................10

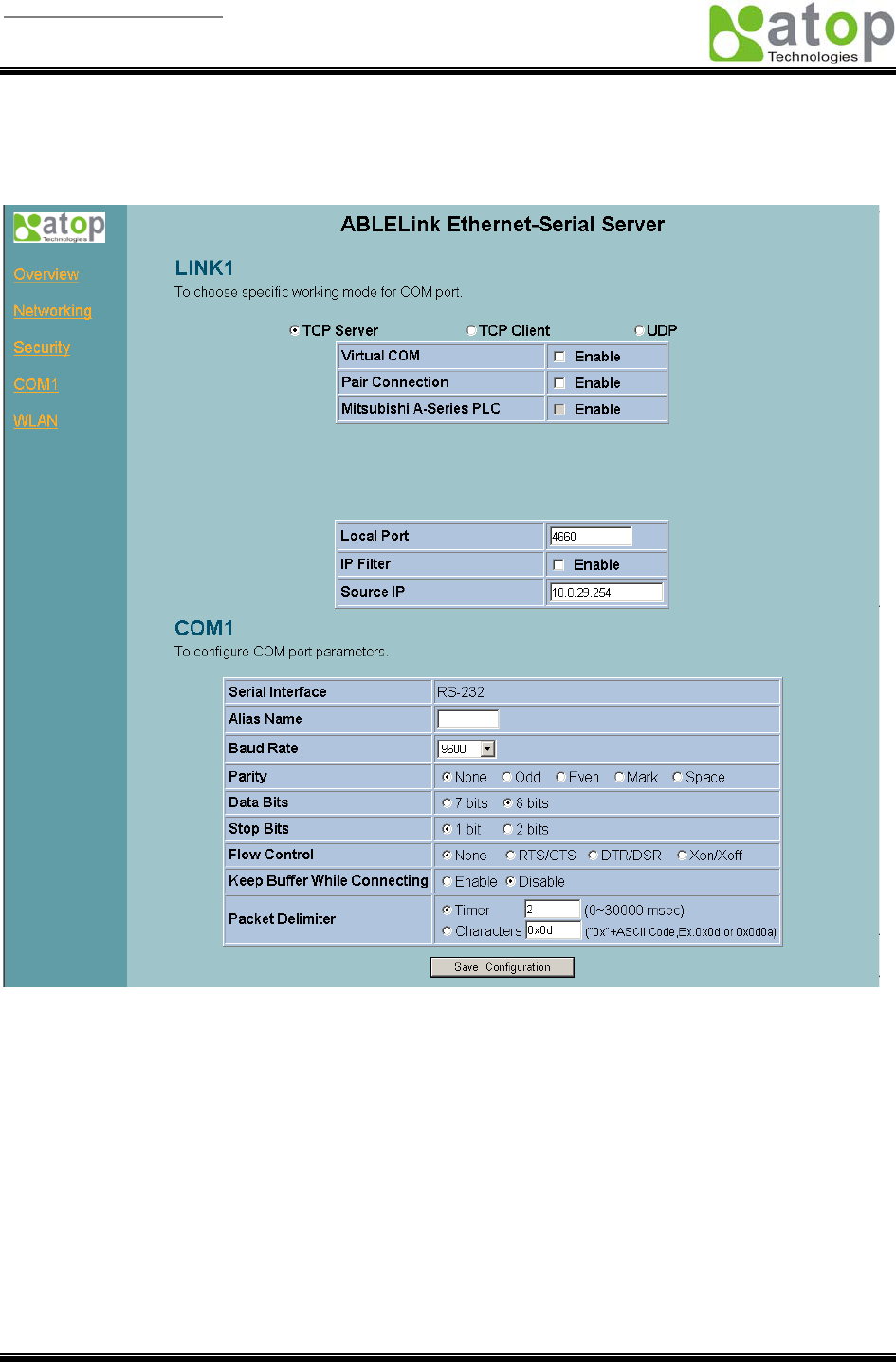

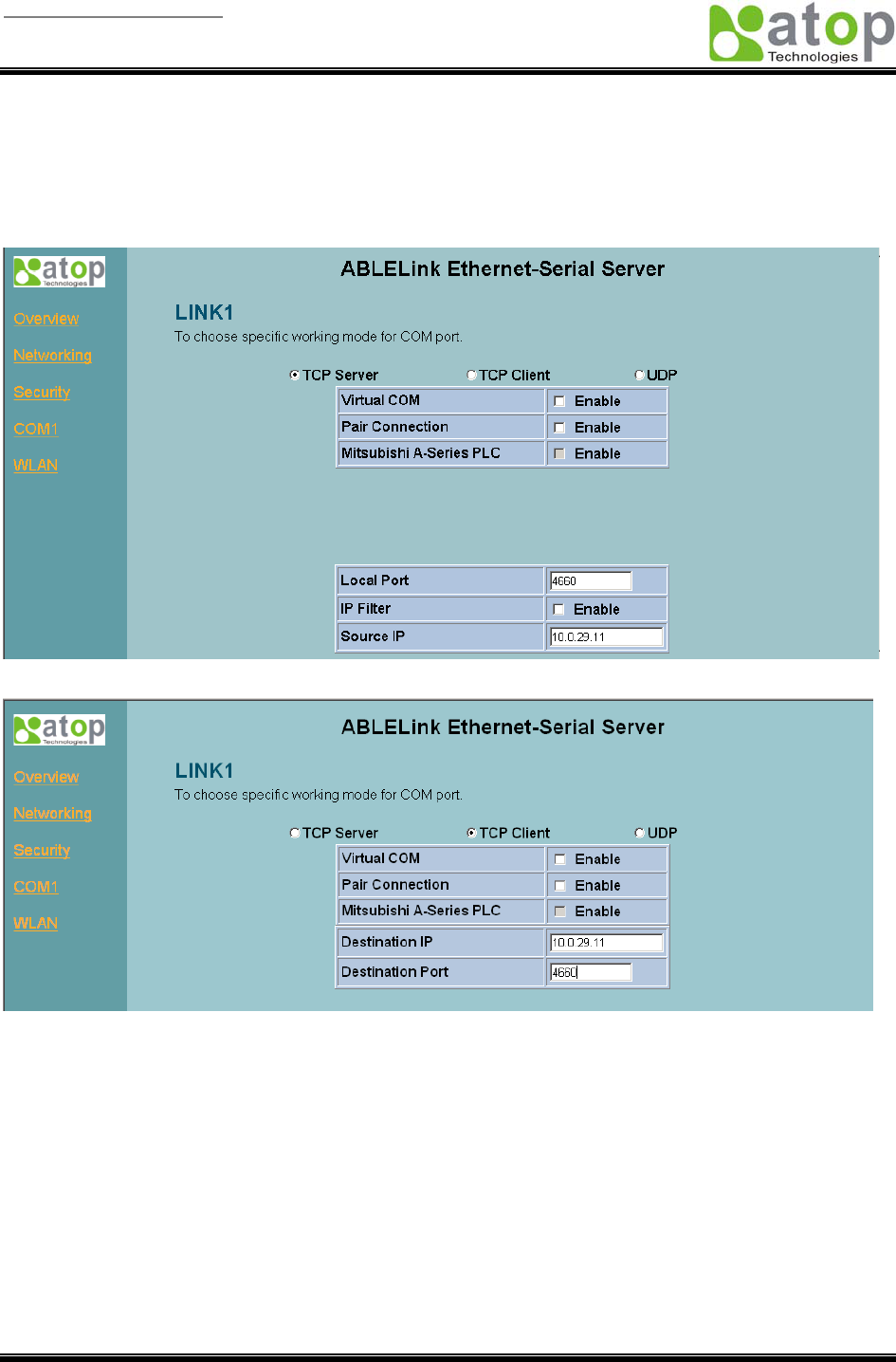

4.4 CONFIGURATION SET BY WEB BROWSER...............................................................................29

4.5 VIRTUAL COM MODE ..........................................................................................................36

4.5.1 Setup of a Virtual COM driver .................................................................................. 36

4.5.2 Virtual COM communication..................................................................................... 37

5. SNMP SETUP....................................................................................40

5.1 SNMP NETWORK MANAGEMENT PLATFORM ........................................................................40

APPENDIX A: SW5001 WIRELESS SERIAL SERVER

SPECIFICATIONS .................................................................................41

A.1. HARDWARE SPECIFICATIONS ..............................................................................................41

A.2. SOFTWARE SPECIFICATIONS ..............................................................................................42

A.3 CONNECTOR PIN ASSIGNMENTS ..........................................................................................42

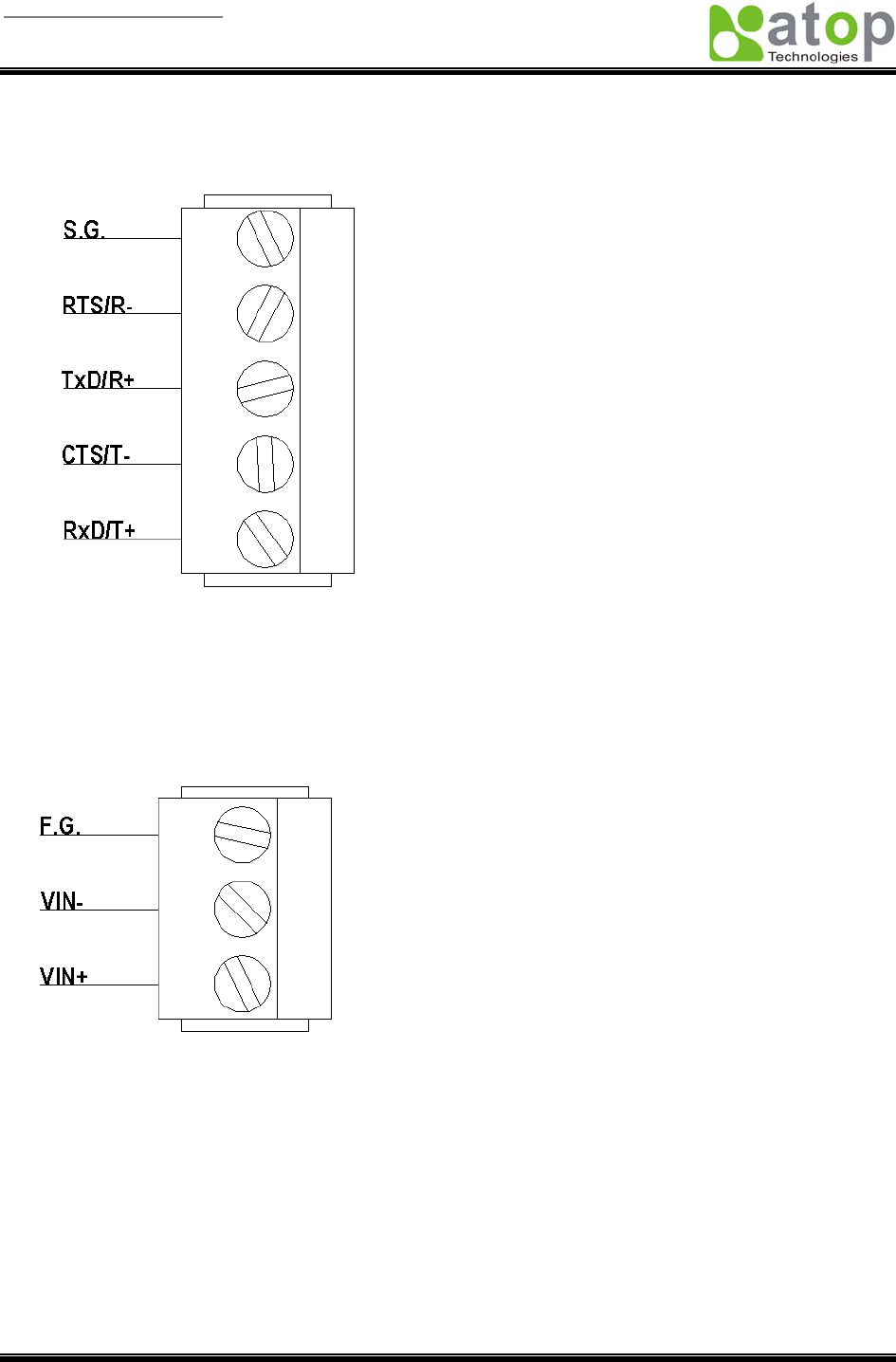

A.3.1 COM Port................................................................................................................. 42

A.3.2 Power terminal block connector............................................................................... 44

A.4 LED INDICATION FOR LINK STATUS ......................................................................................45

A.4.1 Detect SW5001 startup............................................................................................ 45

A.4.2 Detect SW5001 Signal Strength .............................................................................. 45

APPENDIX B CONFIGURATION UTILITY ...........................................47

D.1 RUN THE UTILITY.................................................................................................................47

D.2 DETECT OPERATIONAL DEVICES..........................................................................................47

D.3 CONFIGURE DEVICES..........................................................................................................47

User manual Version 1.0

ABLELink Serial-Ethernet Server

SW5001

4 / 50

1. Introduction

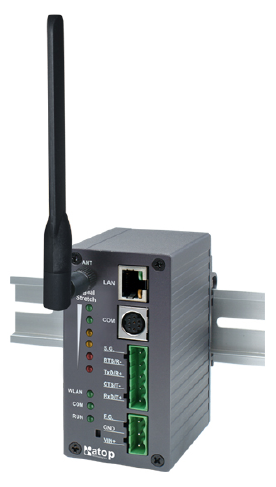

Atop SW5001 Wireless Serial Server is a gateway between Ethernet (TCP/IP) and RS-232/RS-485

communications. It allows almost any serial device to be connected to a new or existing wireless network.

The information transmitted by SW5001 is transparent to both host computers (IP network over wireless

LAN or Ethernet) and devices (RS-232/RS-485). Data coming from the wireless LAN or Ethernet (TCP/IP)

is sent to the designated RS-232/RS-485 port and data being received from RS-232/RS-485 port is sent

to the Wireless or Ethernet (TCP/IP) transparently.

In the computer integration manufacturing or industrial automation area, Atop SW5001 Wireless Serial

Server is used for field devices to direct connect to Ethernet network. Terminal Server (main control

program run in SW5001) transforms whatever data received from RS-232/RS-485 to TCP/UDP port then

connects devices to the IP network via a single application program or multiple application programs.

Many control devices provide the ability to communicate with hosts through RS-232/RS-485 however

RS-232/RS-485 serial communication has its limitations. For one, it is hard to transfer data through a long

distance. With Atop SW5001, it is possible to communicate with a remote device in the Intranet

environment or even in the Internet and thus, increases the communication distance dramatically.

Flexible configuration options enable this unit to be setup remotely over IP network by Telnet, web browser,

or Window utility. Packed in a rugged DIN Rail mountable case and 9~30V DC power input range,

SW5001 is ideal for almost any industrial and manufacturing automation.

1.1 Packaging

Atop SW5001 Wireless Serial Server x 1

Mini DIN to RS-232 DB 9 connector cable x 1

Wall mount x 2

Atop Wireless Serial Server quick start guide x 1

Product CD containing configuration utility and other tools

User manual Version 1.0

ABLELink Serial-Ethernet Server

SW5001

5 / 50

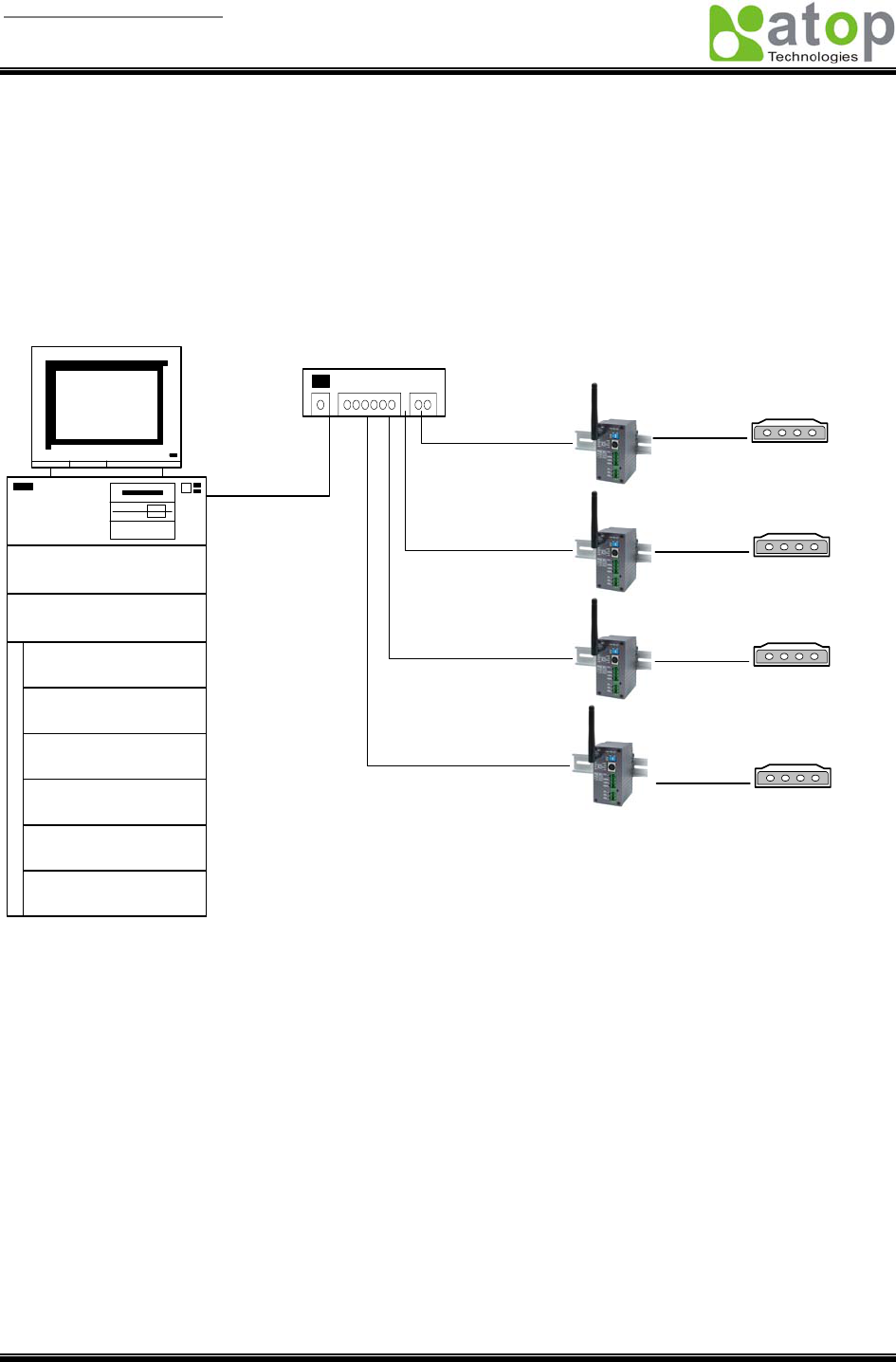

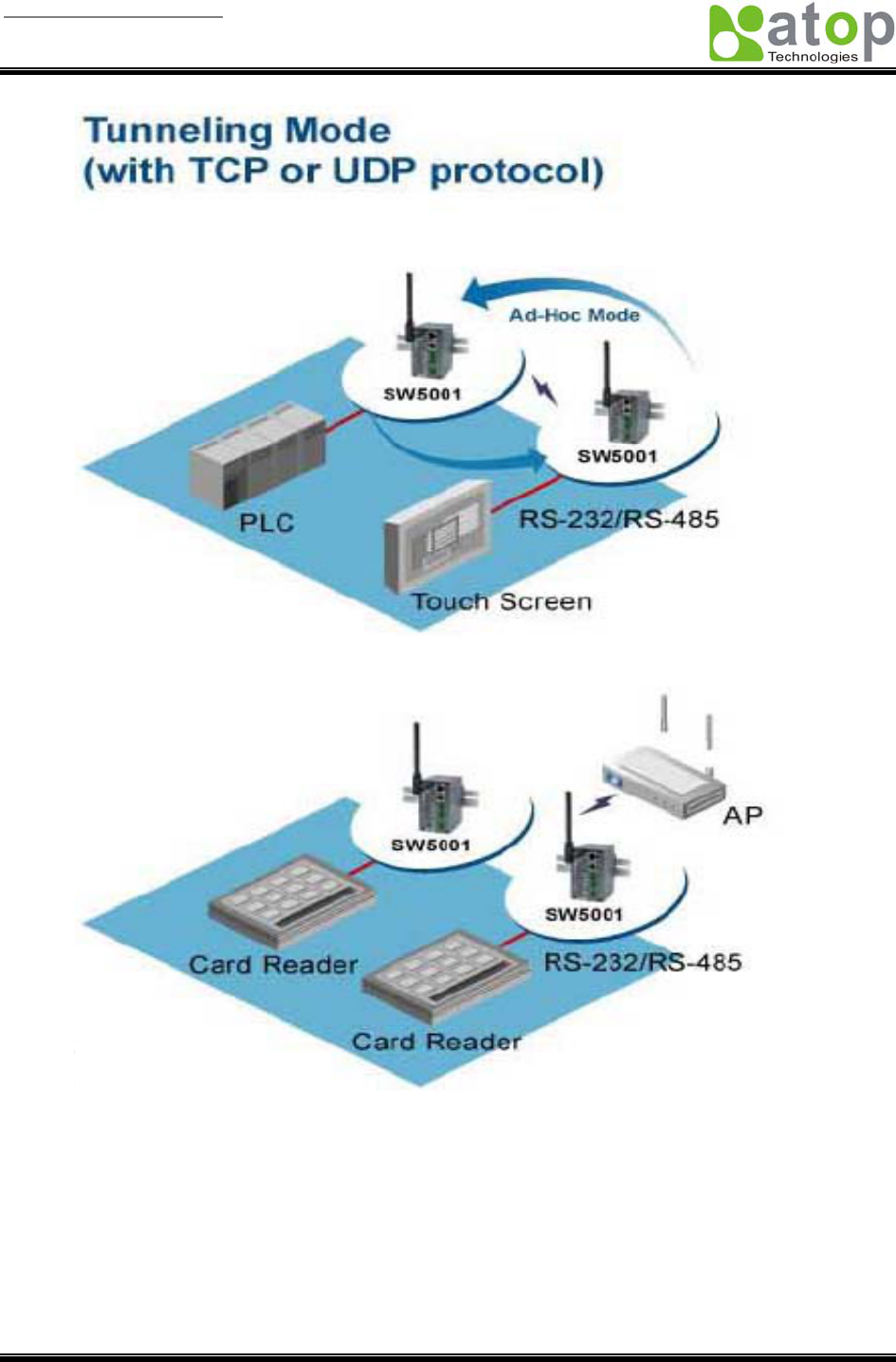

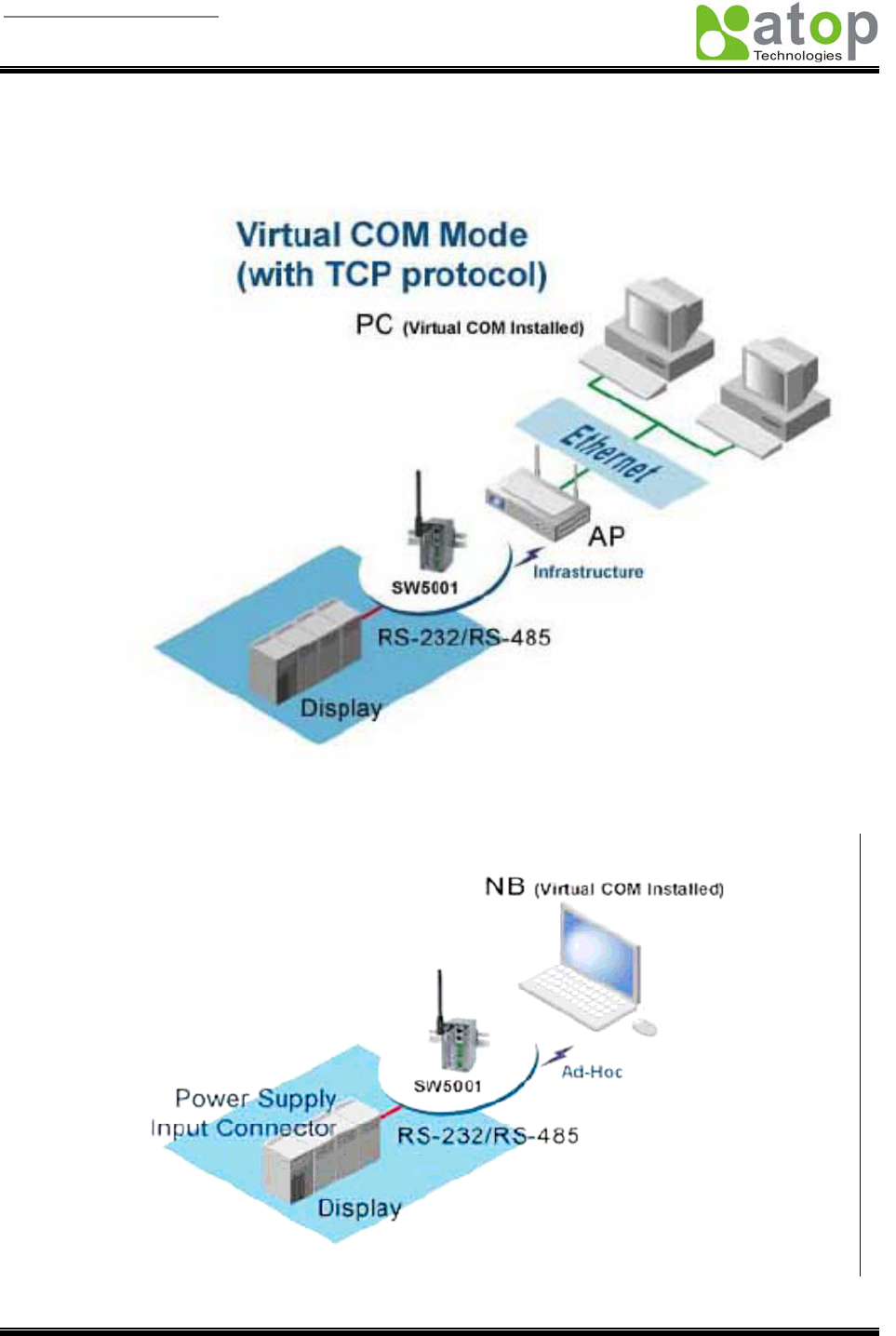

1. 2 Application Connectivity

User manual Version 1.0

ABLELink Serial-Ethernet Server

SW5001

6 / 50

User manual Version 1.0

ABLELink Serial-Ethernet Server

SW5001

7 / 50

2. Nomenclature and Settings

2.1 Nomenclature of SW5001 Components

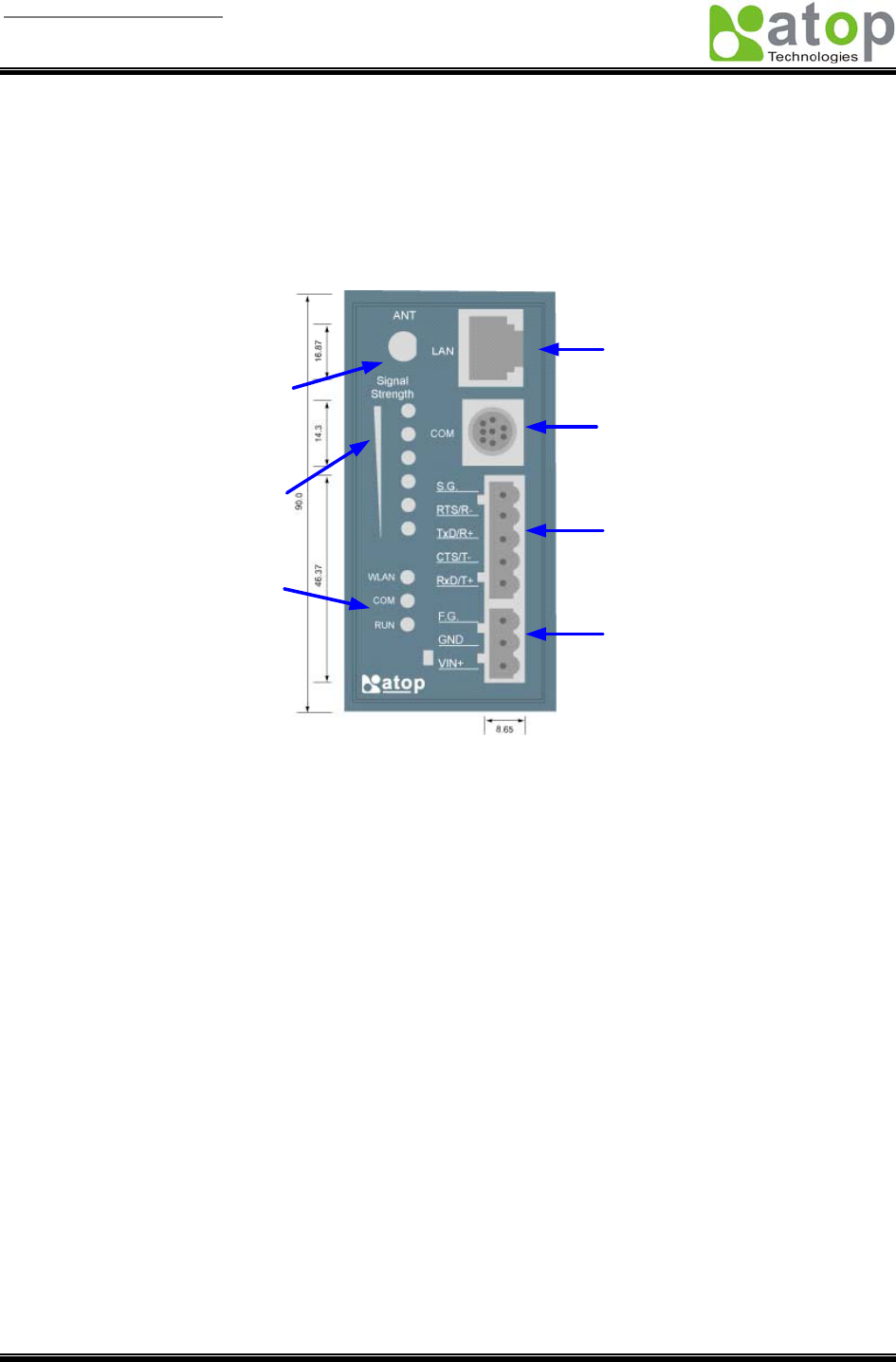

Figure 2.1 shows the names of SW5001 components. In the figure, the indicated switch settings represent

factory settings.

10/100M

Ethernet port for

settings

Mini-DIN Connector

for Serial port

5-pin Terminal

Block for Serial

port

3-pin Terminal

Block for Power

input

SMA rev. Antenna

Connector

LED indication

for Wireless

Status

LED indication

for System

Status

Figure 2.1. Nomenclature of SW5001 Components

2.2 MODE Switch

This sets or initializes the operating mode for the SW5001.

The factory default setting is RS-232 mode. You can use the software configurations to change the

operating mode from the factory default settings to your desired mode by web or telnet tools.

SW5001 can be setup either RS-232, RS-485 or RS-422 mode by remote network tools, ex. Web browser

and telnet.

User manual Version 1.0

ABLELink Serial-Ethernet Server

SW5001

8 / 50

3. Hardware Installation

 Prepare necessary cables, hub, power cord and RS-232/RS-485 connector.

 Place SW5001 to the area that an access point can cover, or connector it via Ethernet cable with RJ45

connecor.

 Connect a serial device to a serial port of SW5001, make sure the right connection of either RS-232 or

RS-485.

 Plug in DC-9-30V, the buzzer will beep and the RUN LED will blink if SW5001 functions normally.

Please refer to Appendix A.5 to see all of LED messages.

 Use monitor.exe configuration utility in the product CD or diskette to diagnose SW5001. If it starts up

successfully, you are able to find the IP and MAC addresses of SW5001. You can change the network

parameters of SW5001 to join your LAN by changing its IP address, gateway IP address and subnet

mask.

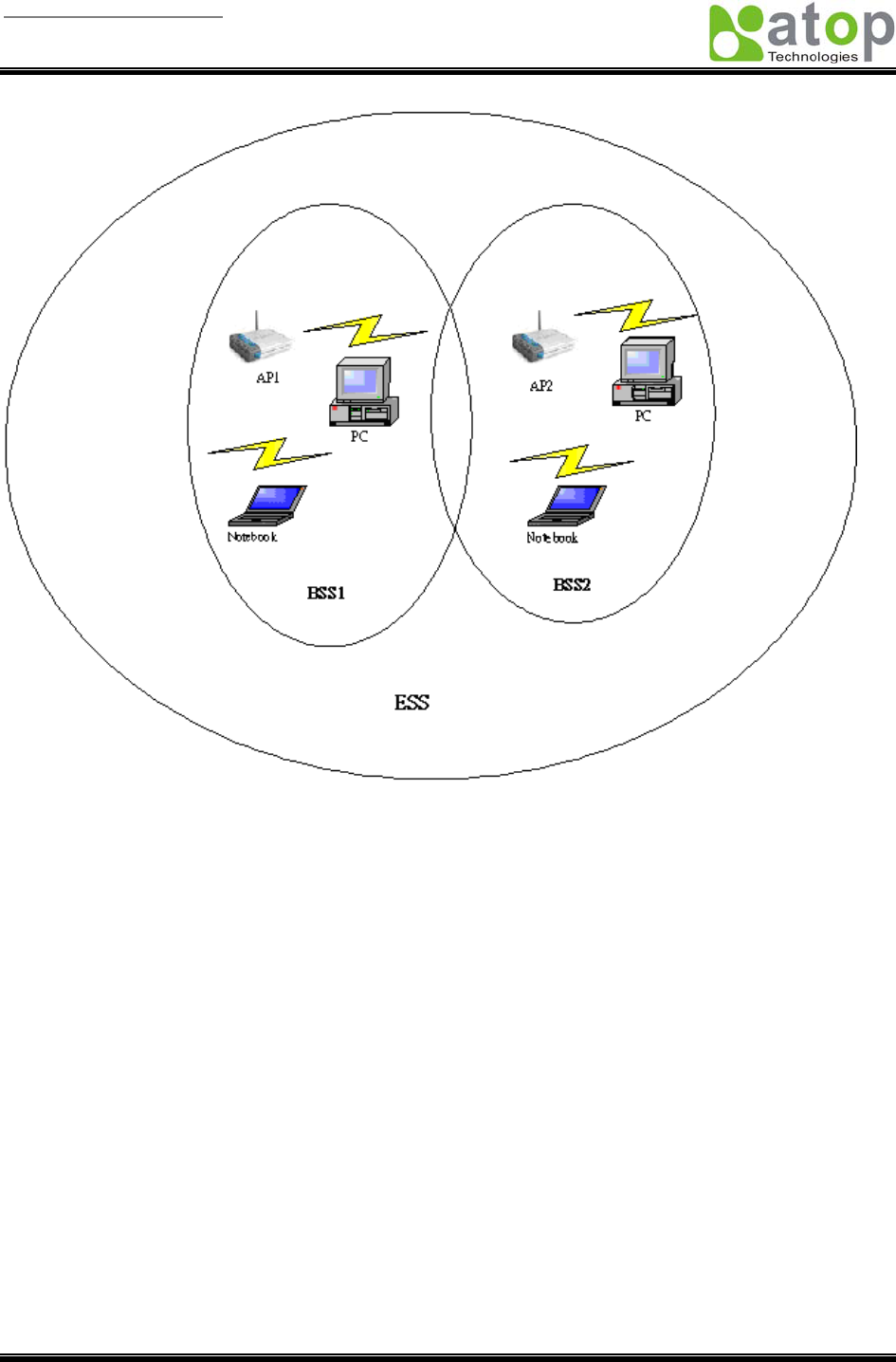

Note: If there are more than one access points, the access point’s ESSID must be the same.

3.1 Configuration

Atop SW5001 Wireless Serial Server is shipped with default settings shown in the following table:

Property Default Value

IP Address 10.0.50.100

Gateway 10.0.0.254

Subnet Mask 255.255.0.0

User Name admin

Password Null

COM 1 9600,None, 8, 1, No flow control, buffer disabled, packet delimiter timer 1ms

Link 1 Type: TCP Server, Listen port 4660, Filter=0.0.0.0, Virtual COM disabled

SysName of SNMP name

SysLocation of SNMP location

SysContact of SNMP contact

NOTE: Atop provides a default button to restore system settings including IP address, gateway IP address

and subnet mask etc. to the defaults. Press and hold the default button for 5 seconds till the server

reboots.

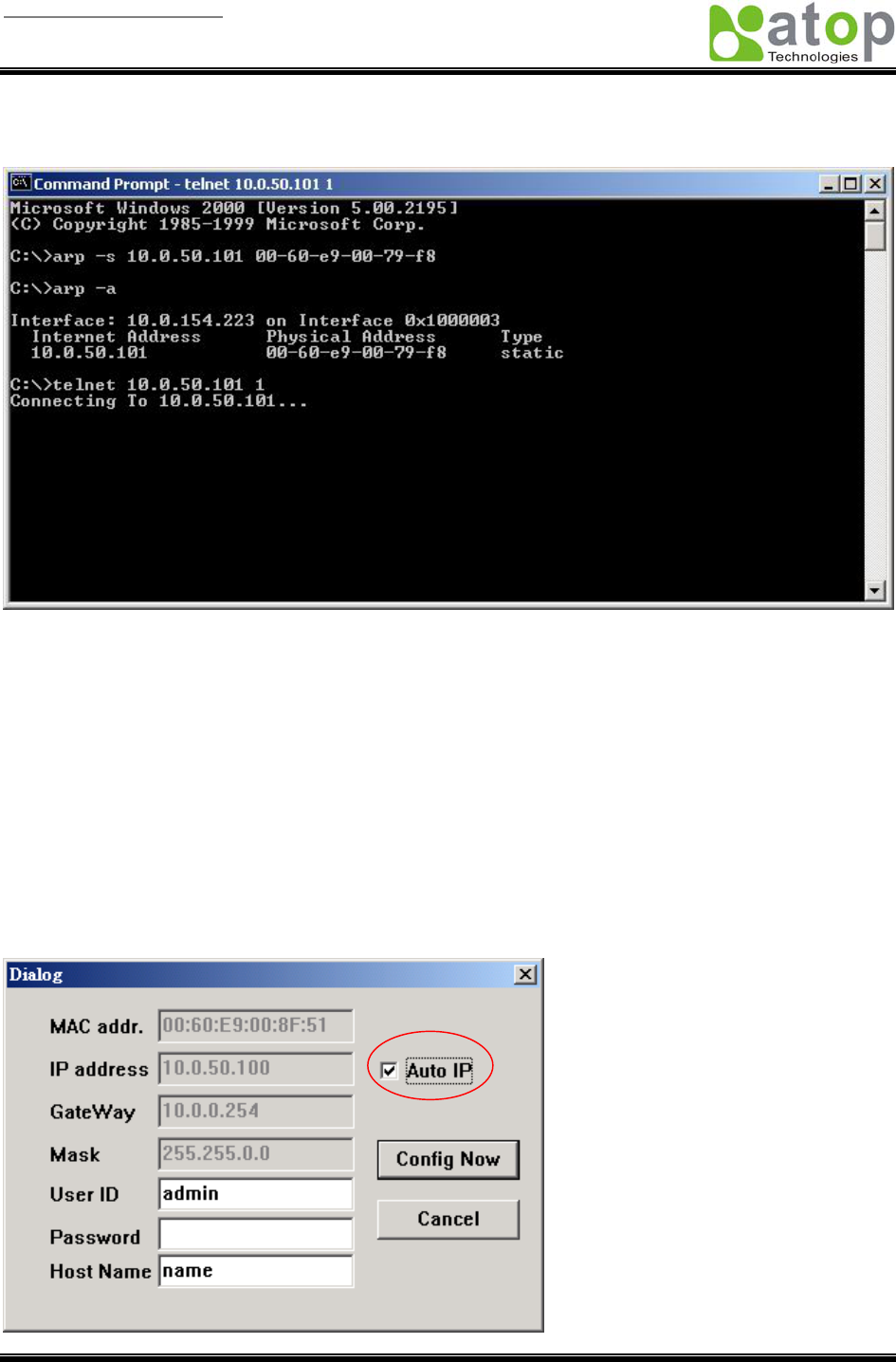

3.2 Assigning a new IP Address by ARP command

arp –s is used to assign a static IP address of SW5001 and add this static entries to the ARP cache of the

computer, when TCP/IP packet with destination port number 1 is sent to SW5001, it causes the device to

check its MAC address with IP address, once SW5001 finds those two unmatched, it will reboot and

change to the new IP address which was set by arp –s command. The following example uses ARP to

assign a static IP address of SW5001 using its MAC address printed on the label of the rear panel, then

User manual Version 1.0

ABLELink Serial-Ethernet Server

SW5001

9 / 50

use Telnet to send the TCP/IP packet with destination port number 1 to SW5001, after SW5001 reboots it

will change its IP address to the new one.

Note:

1. Arp command can only be used to set a static IP address of SW5001 using system reset user name

admin and default password null.

2. Only TCP/IP packet with destination port number 1 will lead SW5001 to reboot and change the IP

address.

3.3 Auto IP

A DHCP server automatically assigns the IP address and network settings. SW5001 supports DHCP.

It will supply for the unit with an IP address gateway address, and subnet mask. You may use

Monitor.exe software to search network information automatically by putting a check on Auto IP on

Dialog window.

User manual Version 1.0

ABLELink Serial-Ethernet Server

SW5001

10 / 50

3.4 TCP/IP Port Number

Port number 4660 is default of SW5001 and is associated with serial port COM1. After your application

program connects to the TCP port 4660 of SW5001, data being sent to this TCP connection from your

application program are transparent to the COM1 of SW5001. Vice versa is also true.

4. Software Configuration

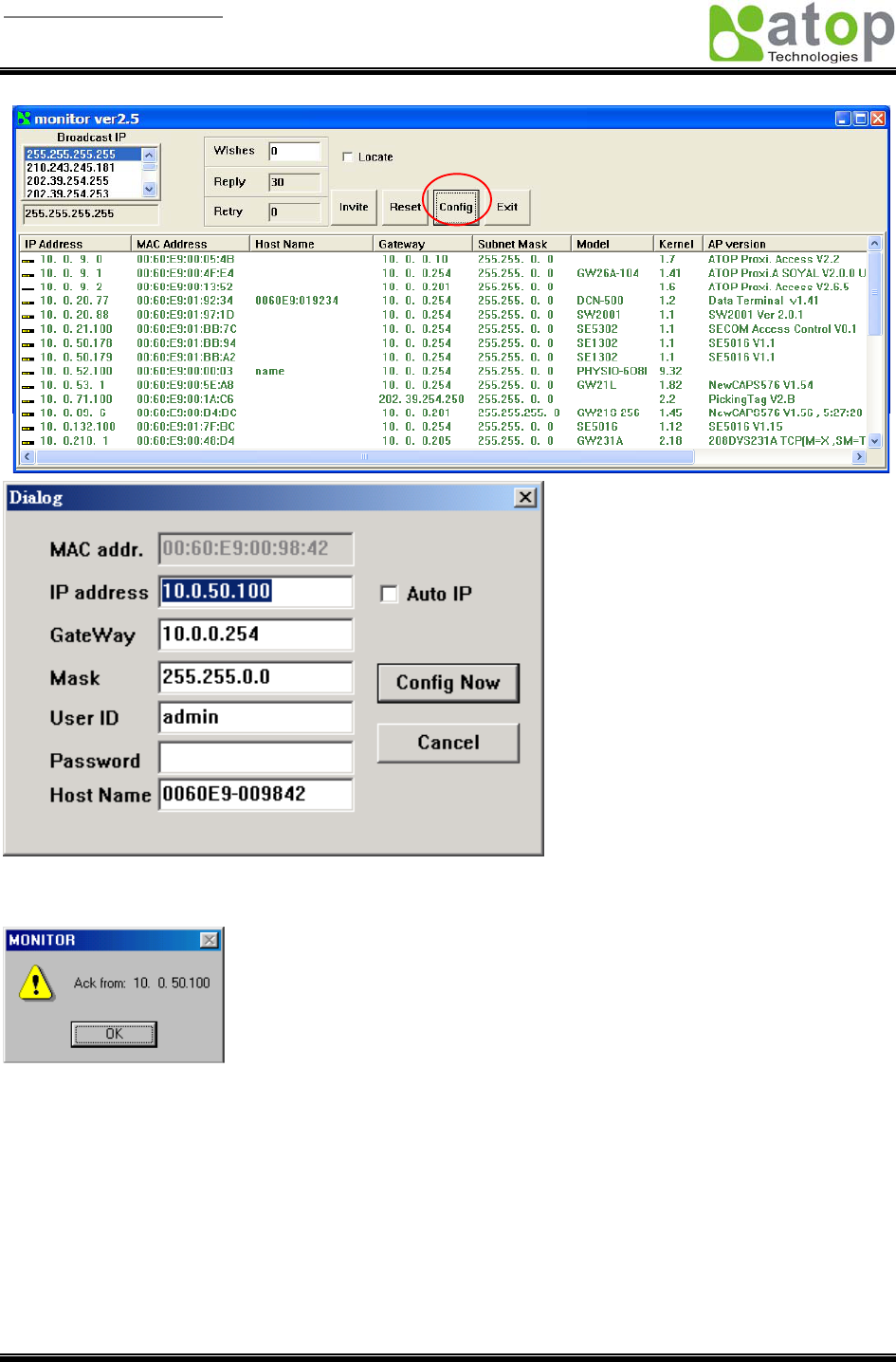

4.1 Configuration set by monitor.exe utility

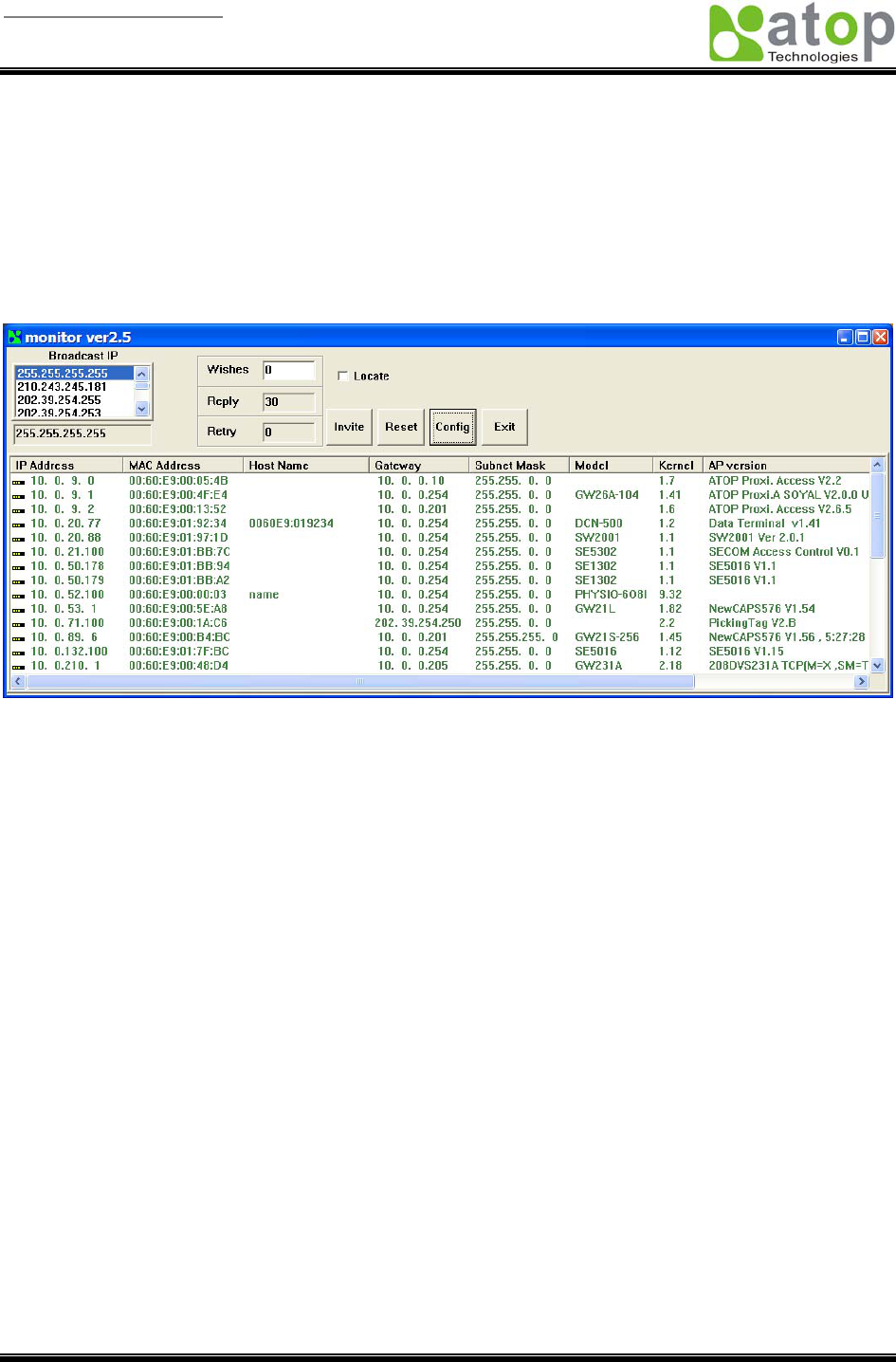

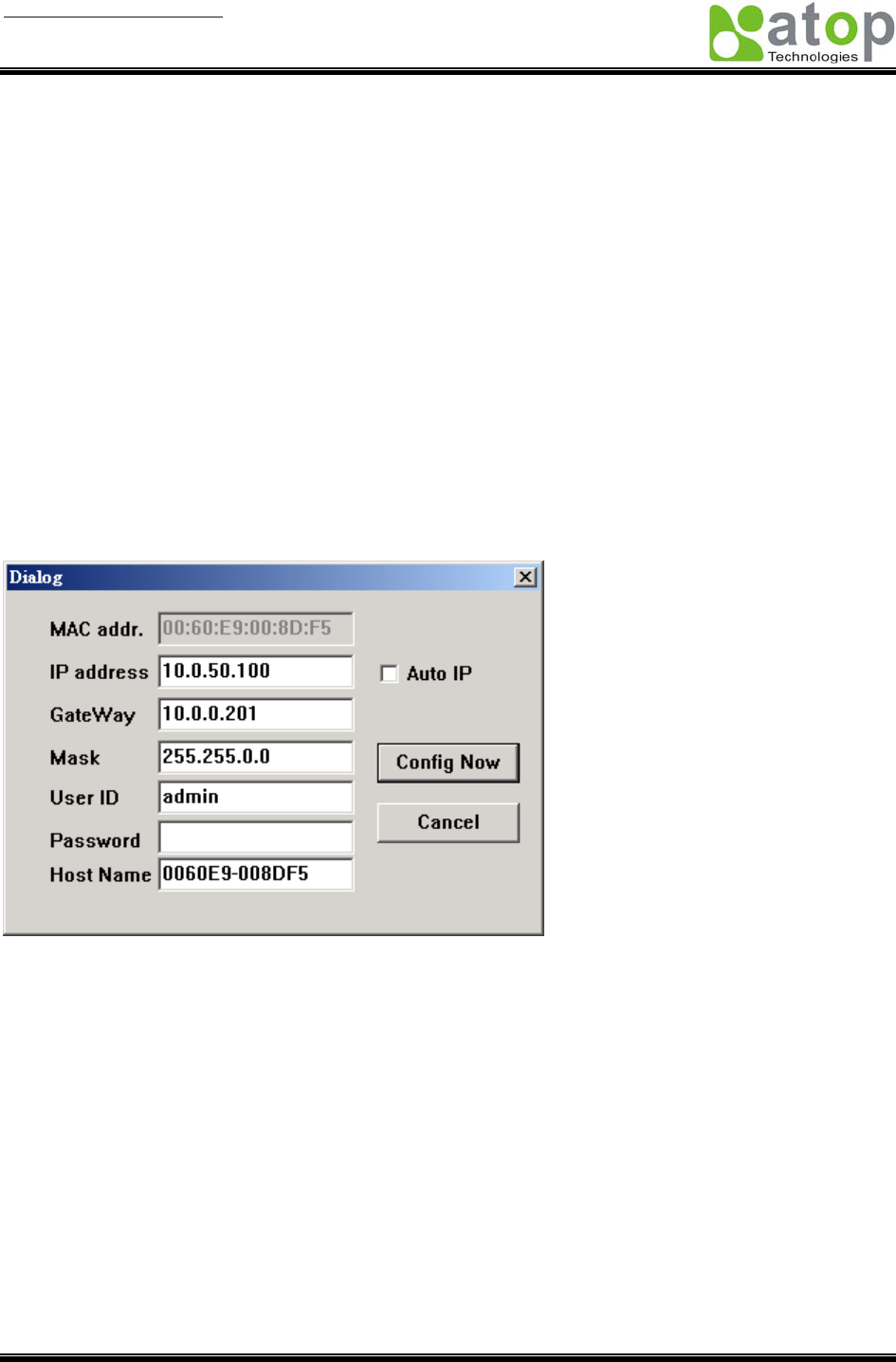

Use monitor.exe that comes with the product CD or diskette to configure the network parameters of

SW5001. As you can see from the following picture, you can change IP address, gateway IP address,

subnet mask, user ID and password of SW5001 from the utility. For more details of the utility please refer

to Appendix-D Configuration Utility.

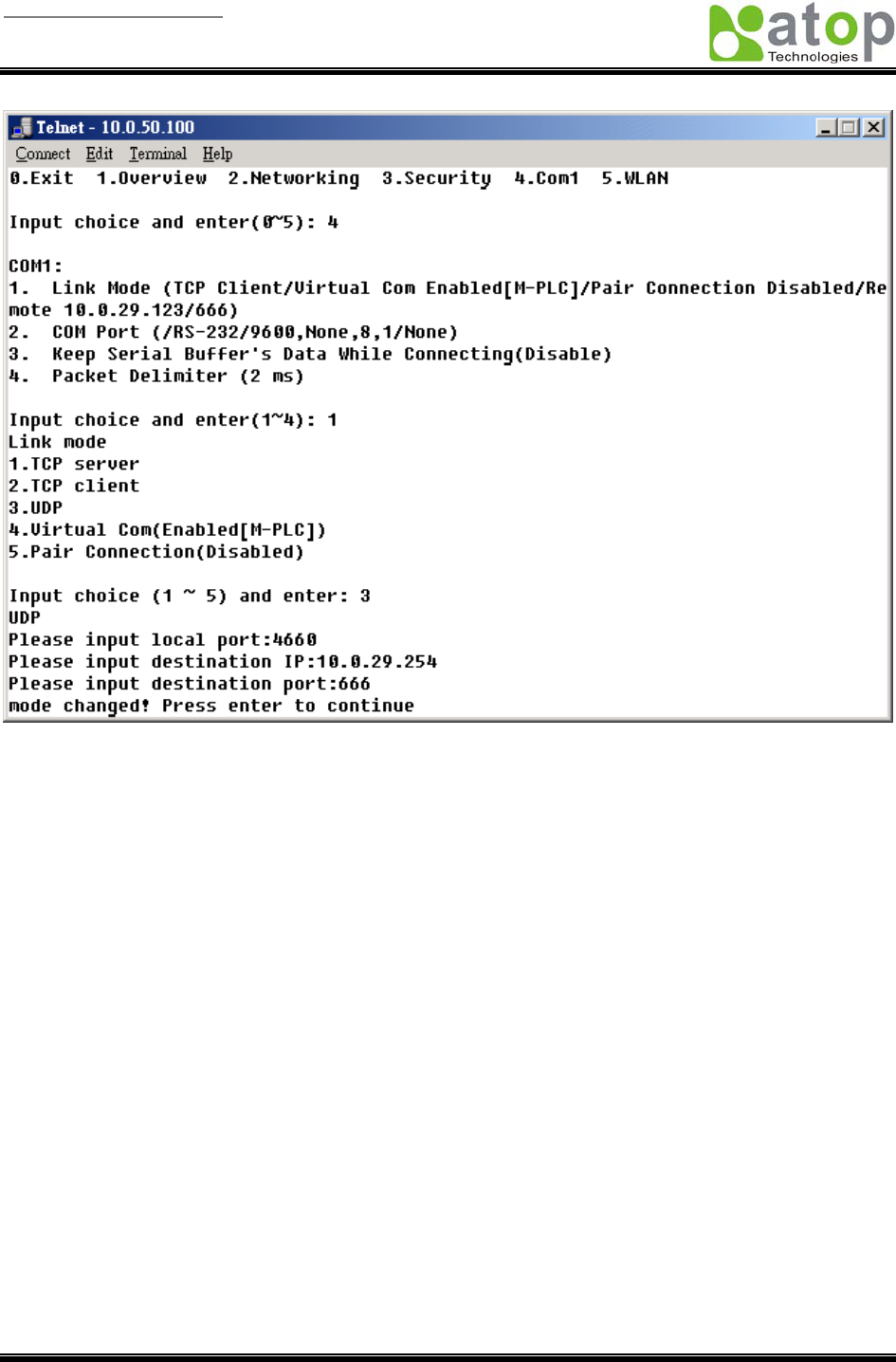

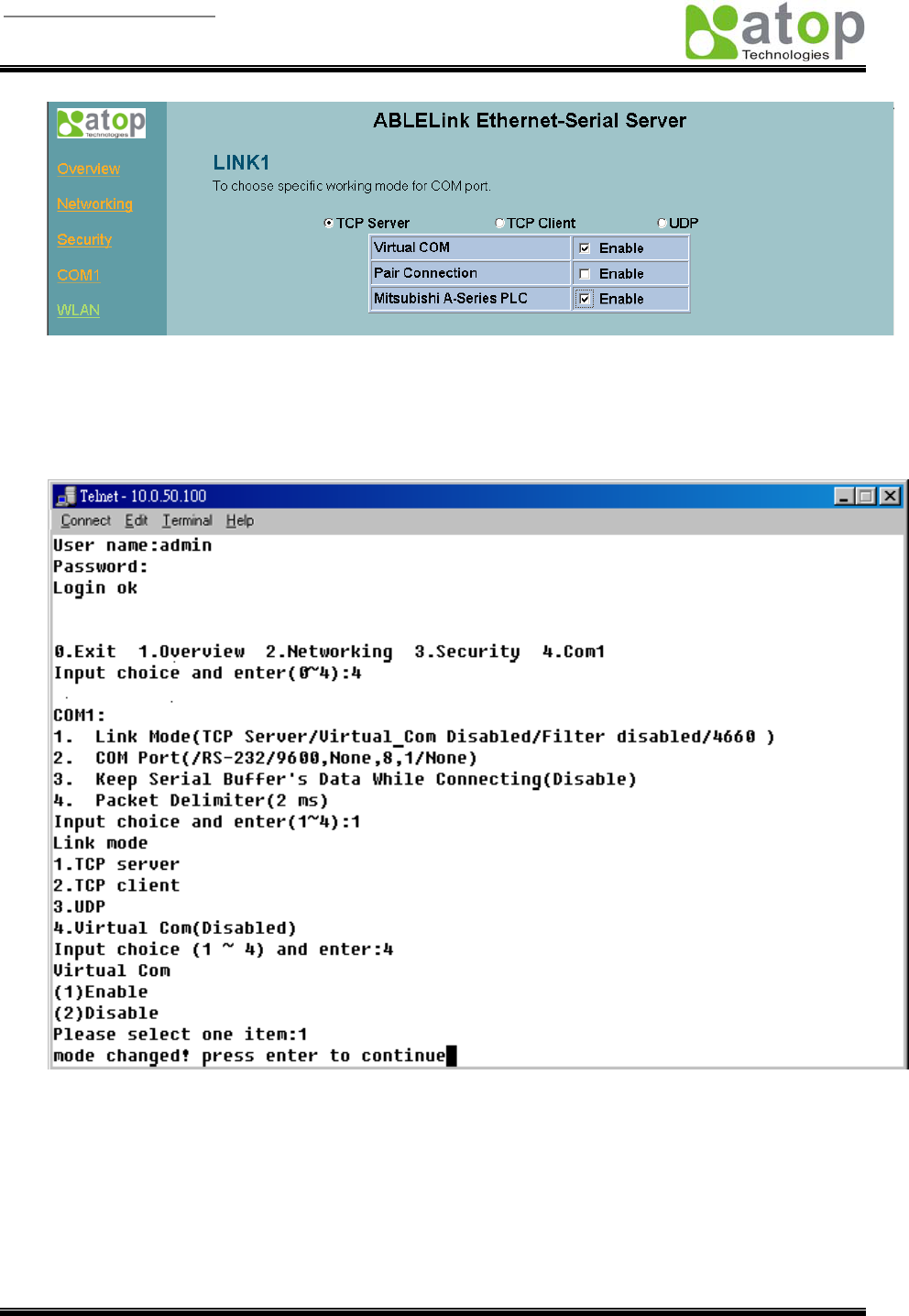

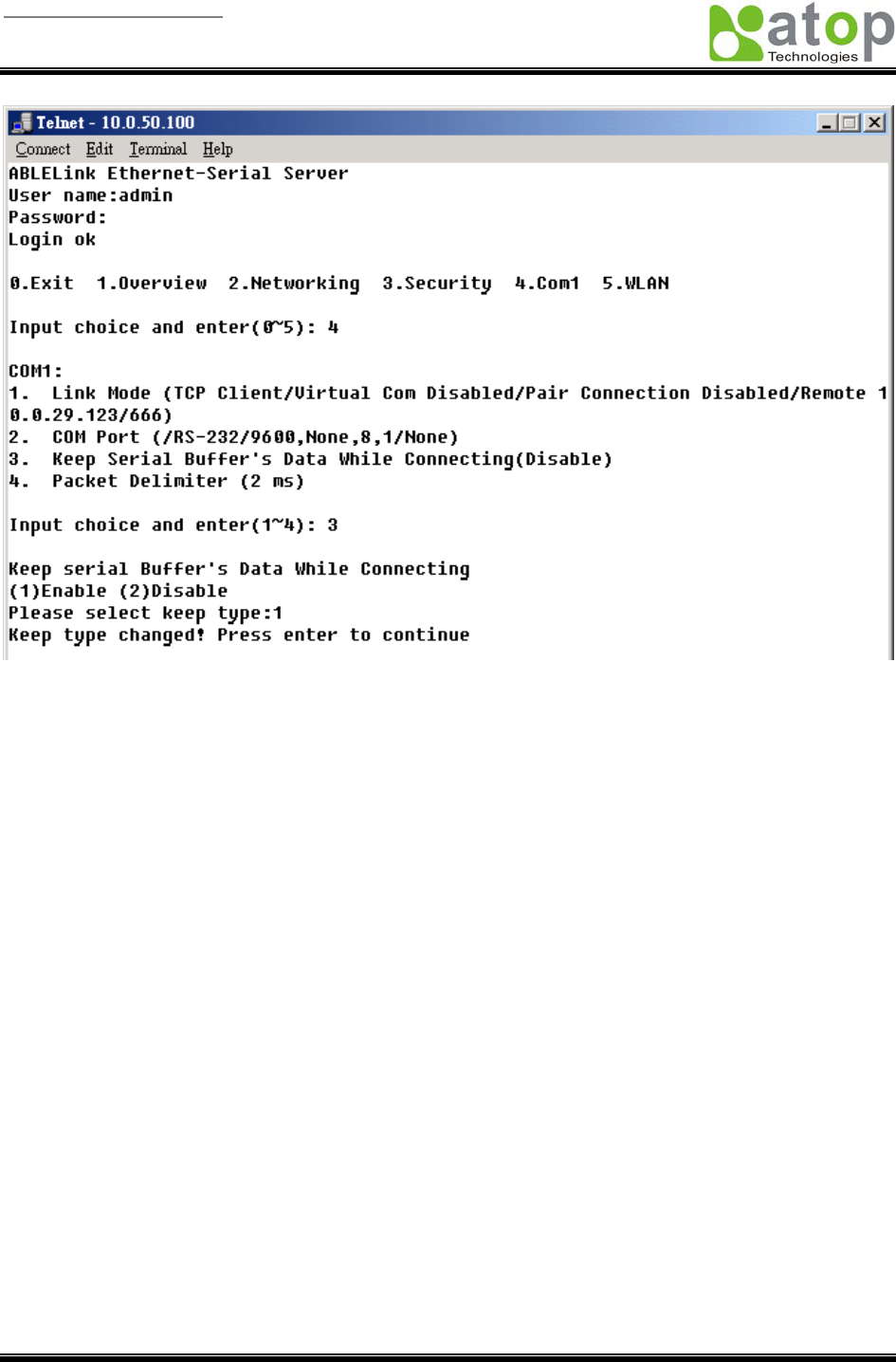

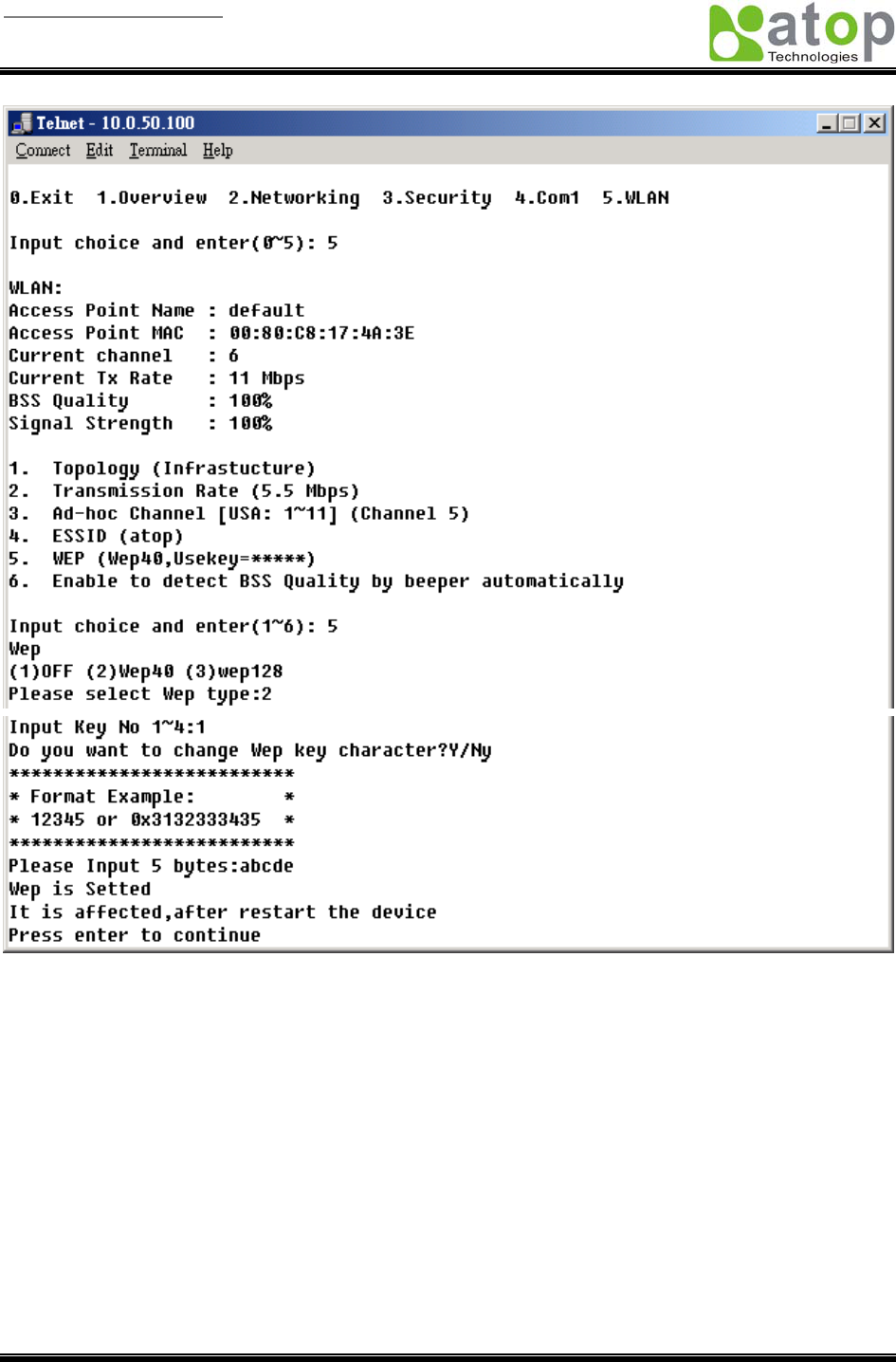

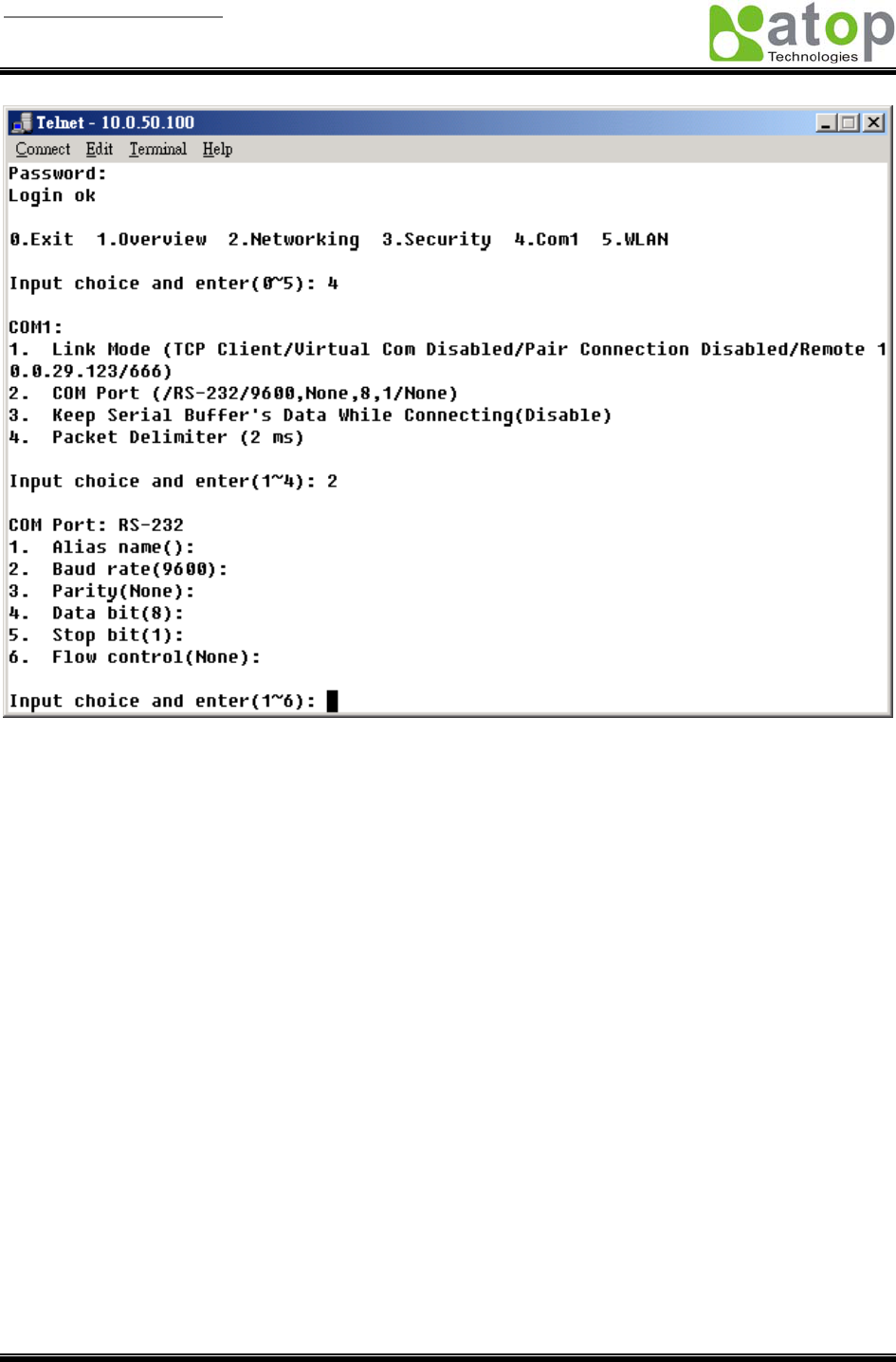

4.2 Configuration set by Telnet utility

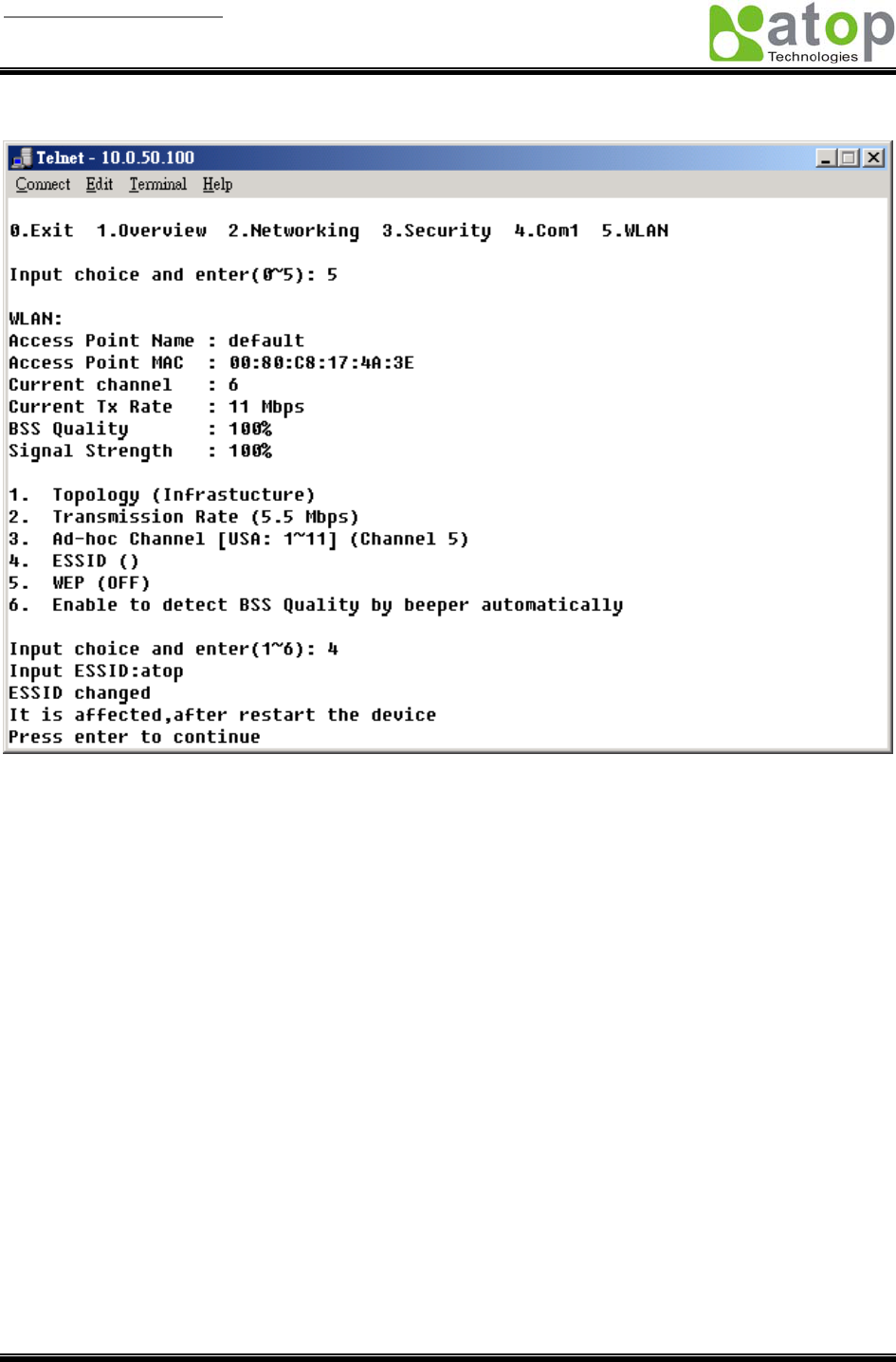

You can use Telnet utility to change configuration settings of SW5001. To do so, please do the following.

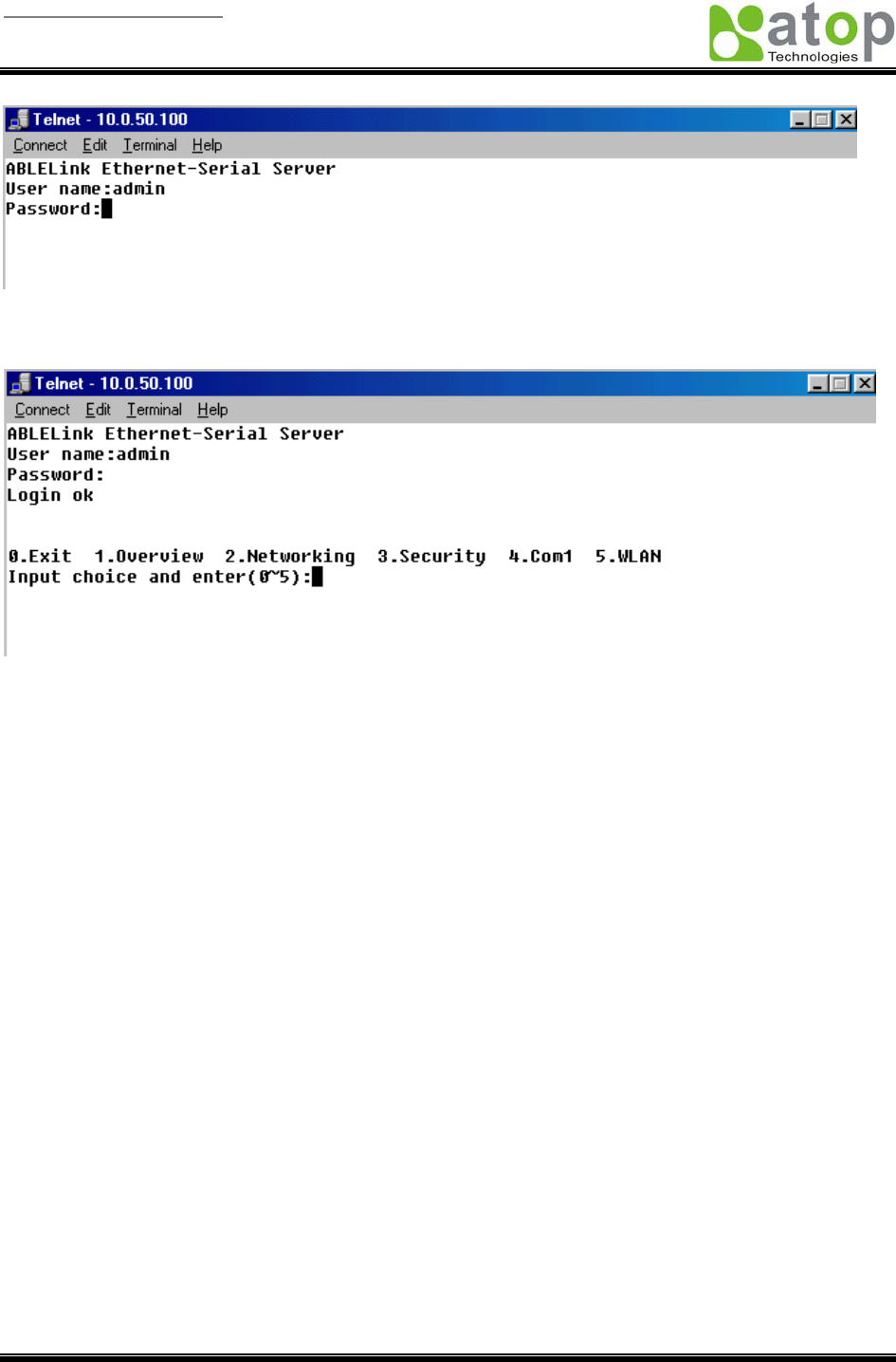

Log in to the system

 Telnet to SW5001 using command “Telnet IP_address”.

For example Telnet 10.0.50.100

1. After Telnet to SW5001, system prompts for a password, the default password is null.

User manual Version 1.0

ABLELink Serial-Ethernet Server

SW5001

11 / 50

Note: You can press the default button of SW5001 to reset the password to the default value.

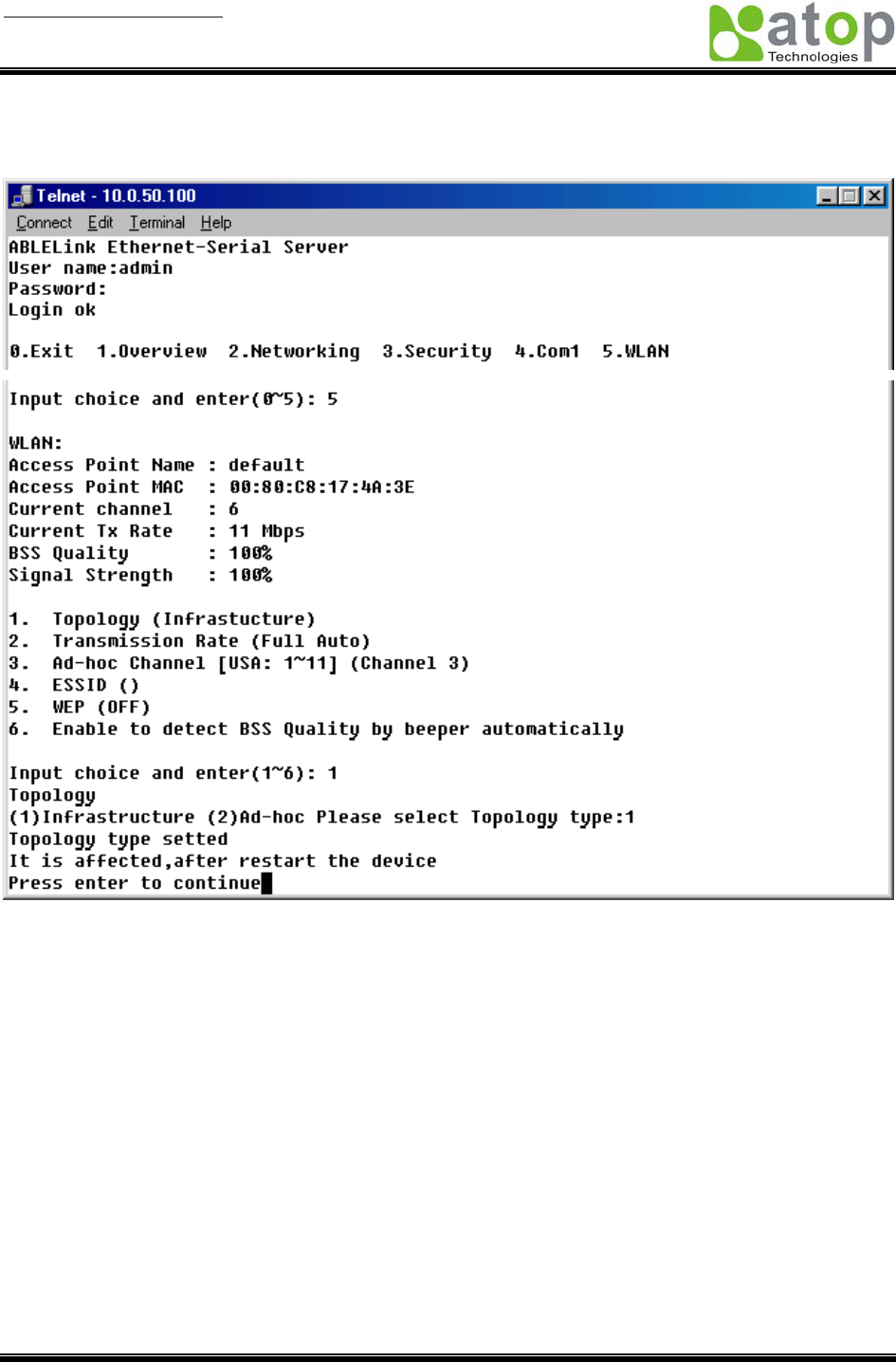

2. After verifying the password, the following terminal screen appears.

Notes:

1. If SW5001 does not receive any command within 1 minute, Telnet will be terminated automatically.

2. The changes of networking parameters will take effect only when you exit and restart SW5001.

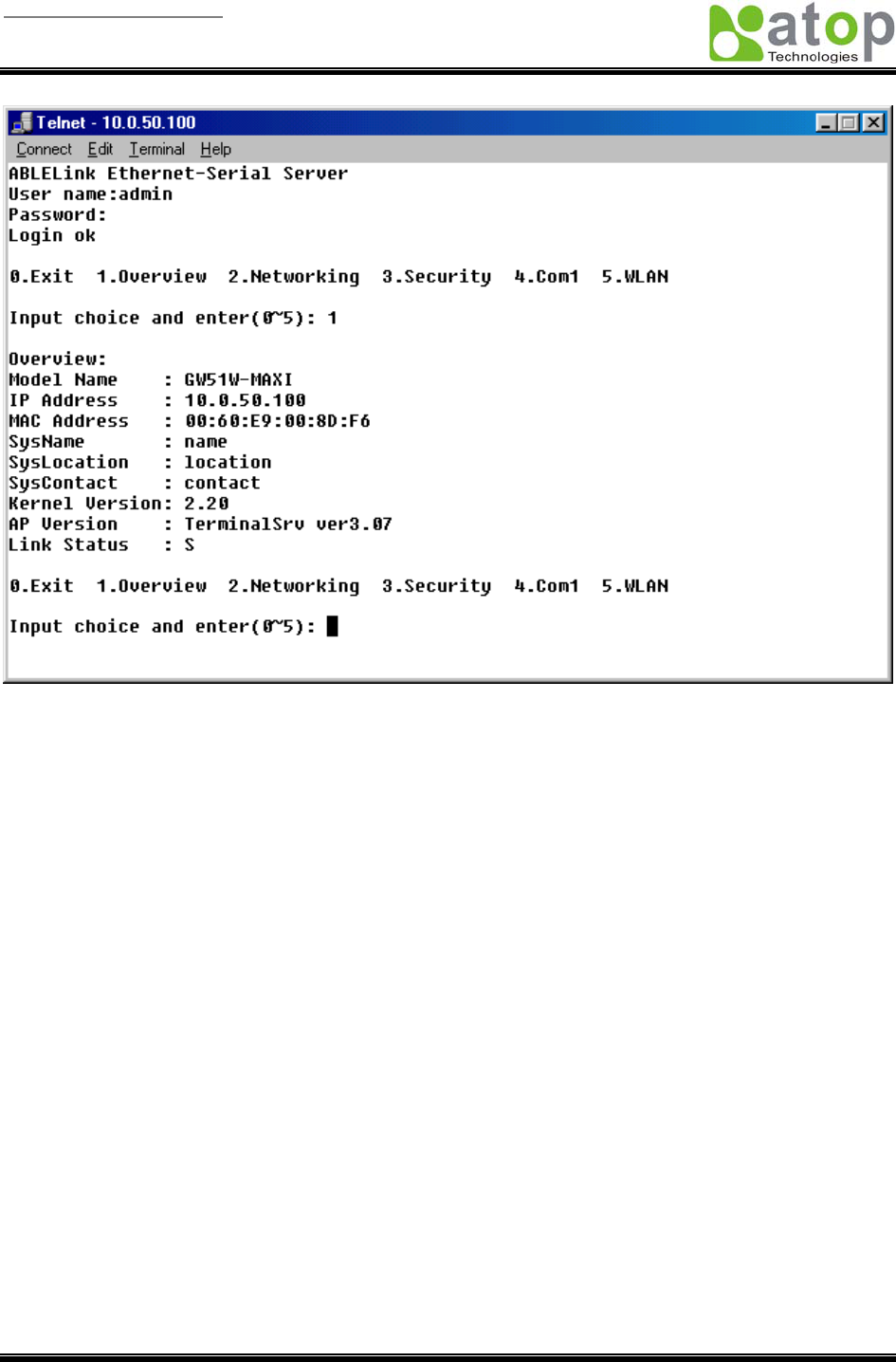

3. Select “1” from “Input choice and enter (0~5):” to enter overview page as following:

User manual Version 1.0

ABLELink Serial-Ethernet Server

SW5001

12 / 50

This page gives you the general information of SW5001 including IP and MAC address, SNMP

information, kernel and AP version, and connection status of the device.

User manual Version 1.0

ABLELink Serial-Ethernet Server

SW5001

13 / 50

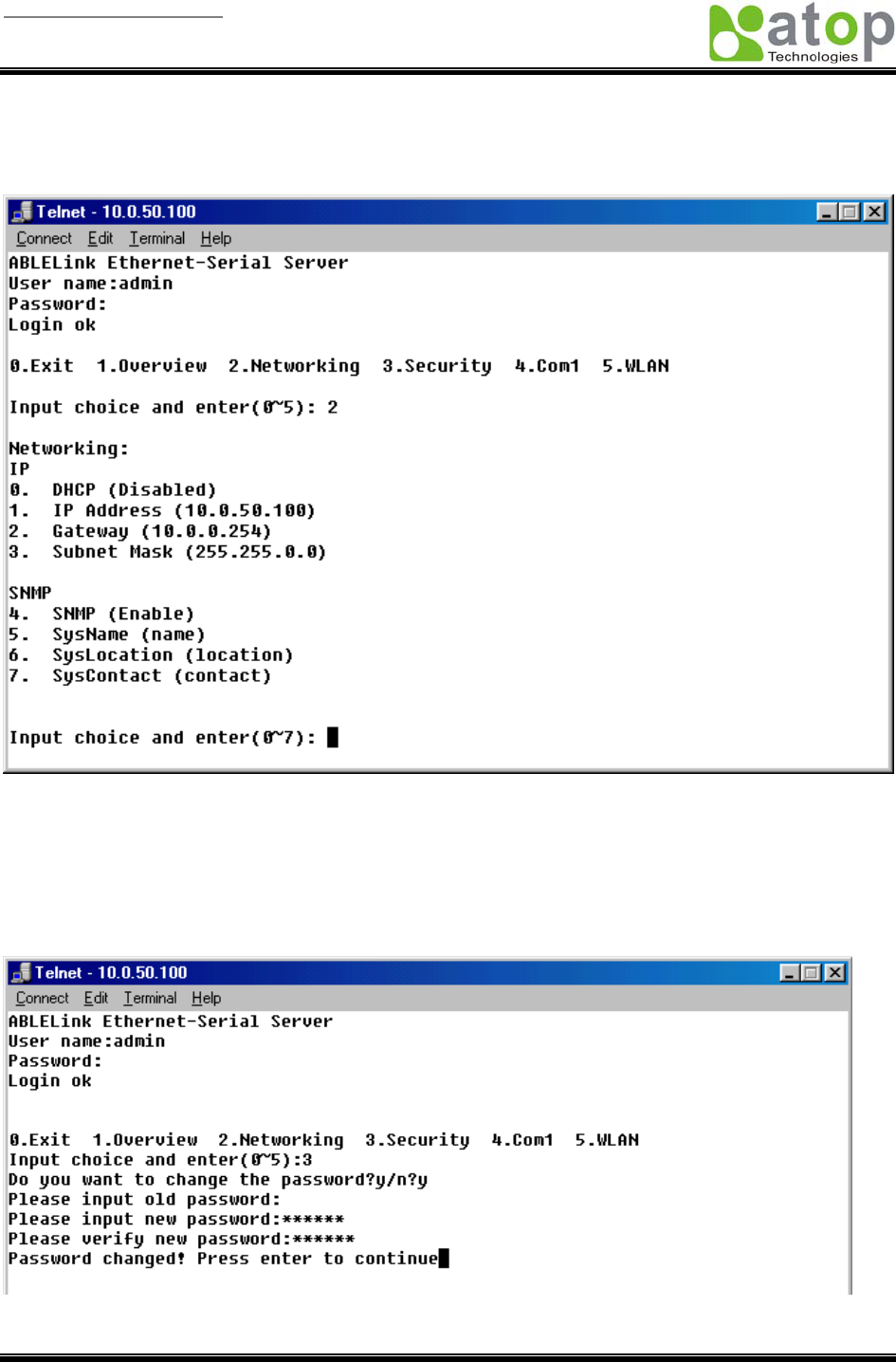

Networking

Select “2” from “Input choice and enter (0~5):” to enter Networking page as following:

This page allows you to change network settings of the device including IP address, subnet mask,

gateway IP address and SNMP information of SW5001. Please notice that any setting change made on

this page won’t take effect until you restart the device.

Change the password

1. Select “3” from “Input choice and enter (0~5):” the following screen appears.

2. If you want to change the password, please type the old password in the “Please input old password”

User manual Version 1.0

ABLELink Serial-Ethernet Server

SW5001

14 / 50

field, type the new password in the “Please input new password” and the “Please verify new

password” fields.

Note: You can press the default key of product to reset password to the default value.

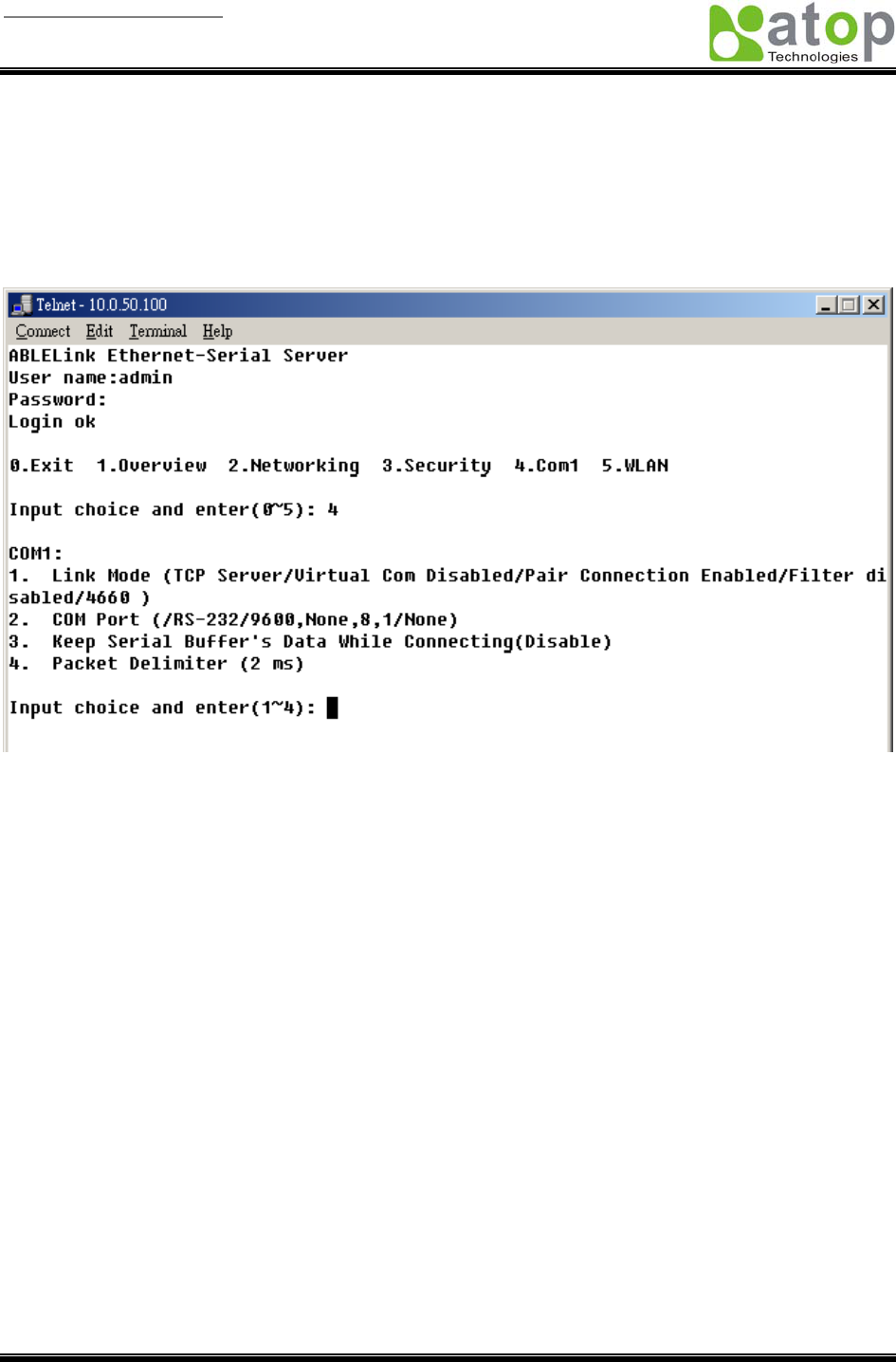

COM1 Setup

Select “4” from “Input choice and enter (0~5):” the following screen appears

The page gives you an opportunity to configure parameters of COM1 setting which includes COM1

working mode, port parameters, enabling or disabling serial buffer’s data and setting packet delimiter.

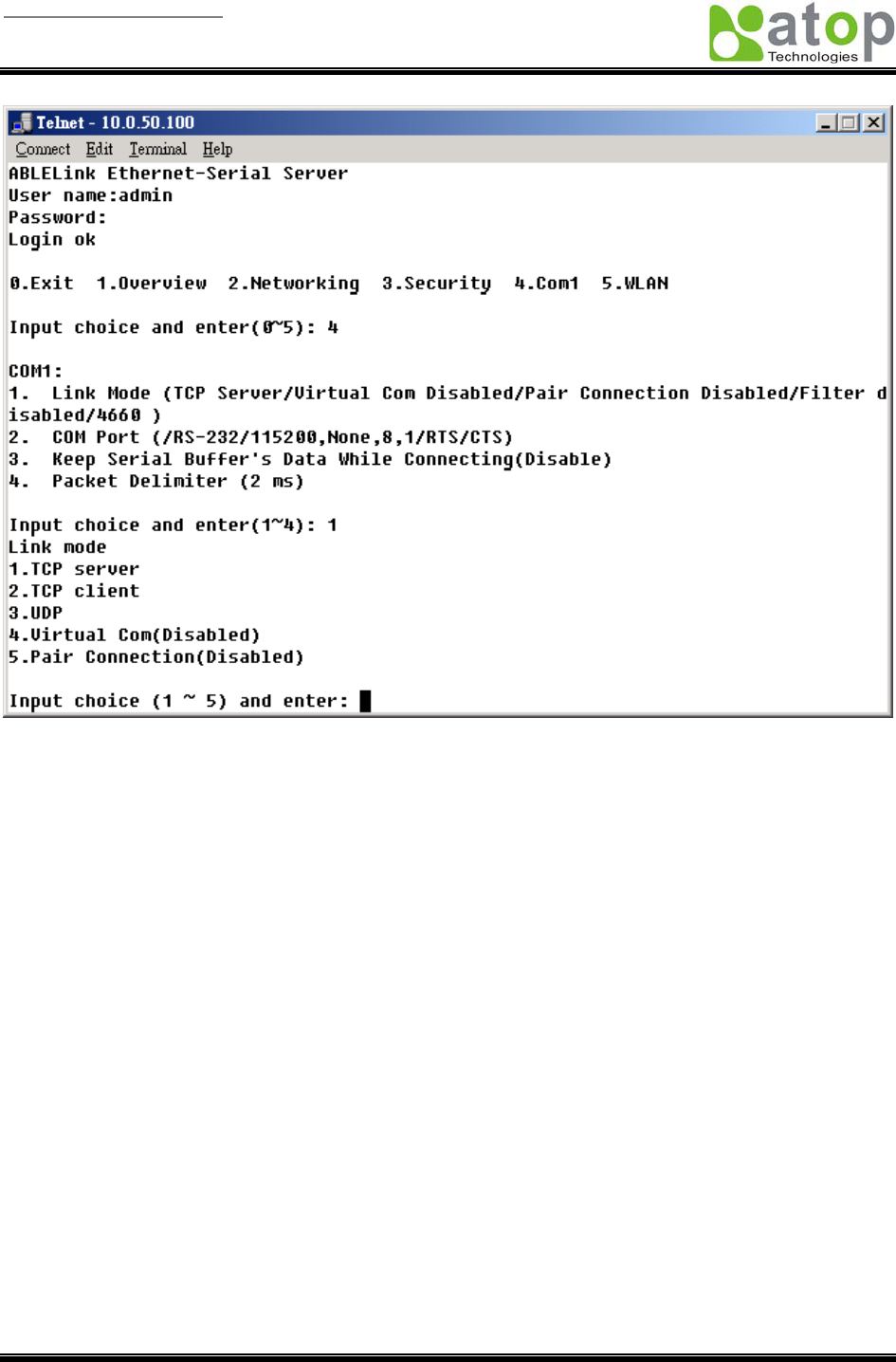

LINK1 Setup

Type 1 from “Input choice and enter (1~4):” of COM1, the following screen appears. Configure SW5001 as

TCP server and the local port is 4660. IP filter is disabled by default, if IP filter is enabled, only source IP

10.0.0.154 can connect to SW5001.

Note: IP filtering function is disabled if setting FILTER_IP to “0.0.0.0”.

User manual Version 1.0

ABLELink Serial-Ethernet Server

SW5001

15 / 50

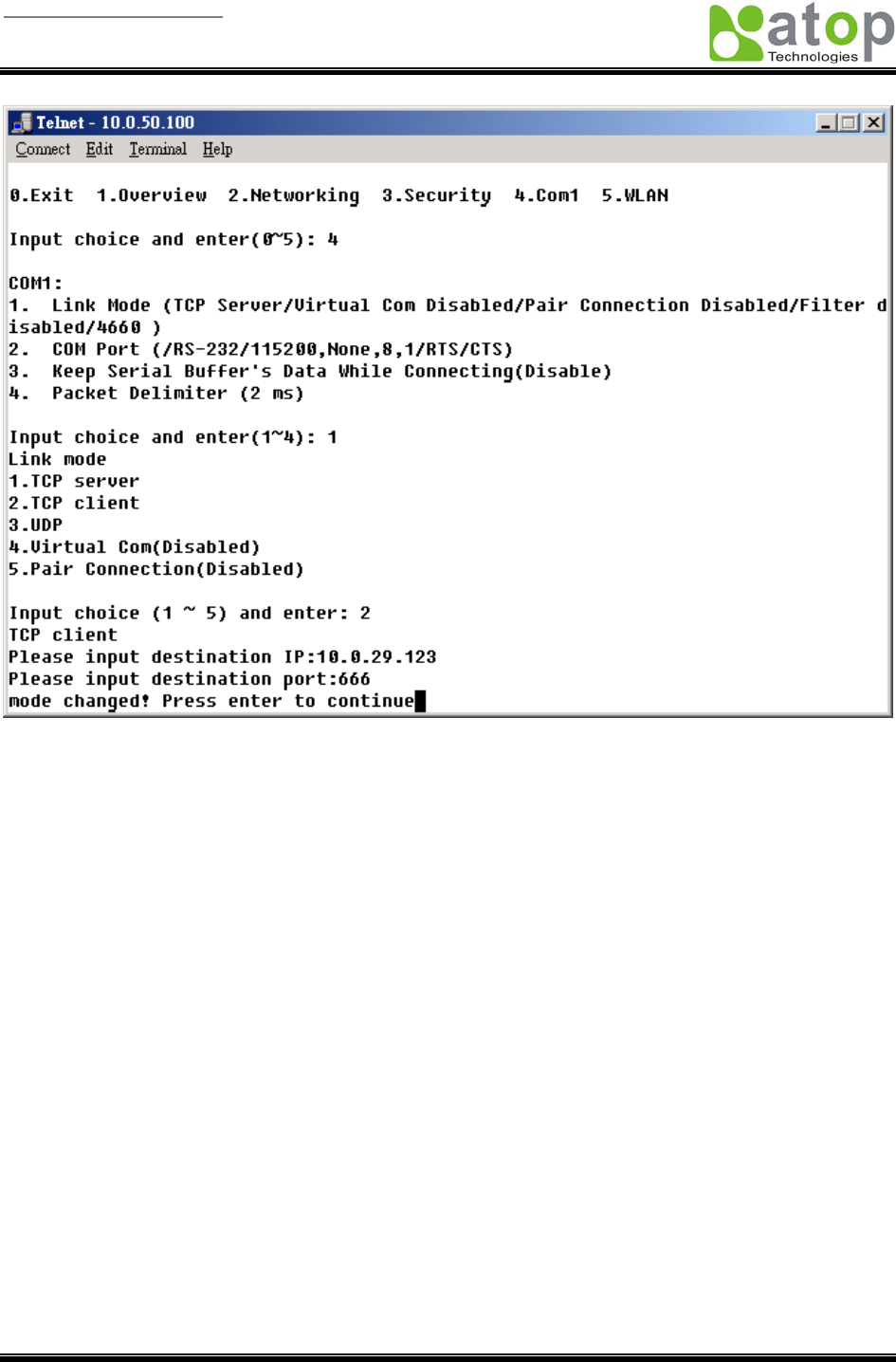

Configure SW5001 as TCP client, the destination IP is 10.0.29.123, destination port is 666.

User manual Version 1.0

ABLELink Serial-Ethernet Server

SW5001

16 / 50

Configure SW5001 as UDP client, the local port is 4660, the destination IP is 10.0.29.254, destination port

is 666.

User manual Version 1.0

ABLELink Serial-Ethernet Server

SW5001

17 / 50

COM port setting

Type 2 from “Input choice and enter (1~4):” of COM1, the following screen appears, you can then give the

COM port alias name, set the baud rate and parity, determine number of data bit and stop bit, and decide

if you want to use flow control and the type of flow control you want to use.

User manual Version 1.0

ABLELink Serial-Ethernet Server

SW5001

18 / 50

Enabling serial data buffer

Type 3 from “Input choice and enter (1~4):” of COM1, by default COM port serial data buffer is enabled

meaning that when TCP/IP Ethernet connection is broken, serial data collected from serial device will be

kept in SW5001, once TCP/IP connection is resumed, the serial data will be sent through Ethernet

connection, you can disable it if you wish.

User manual Version 1.0

ABLELink Serial-Ethernet Server

SW5001

19 / 50

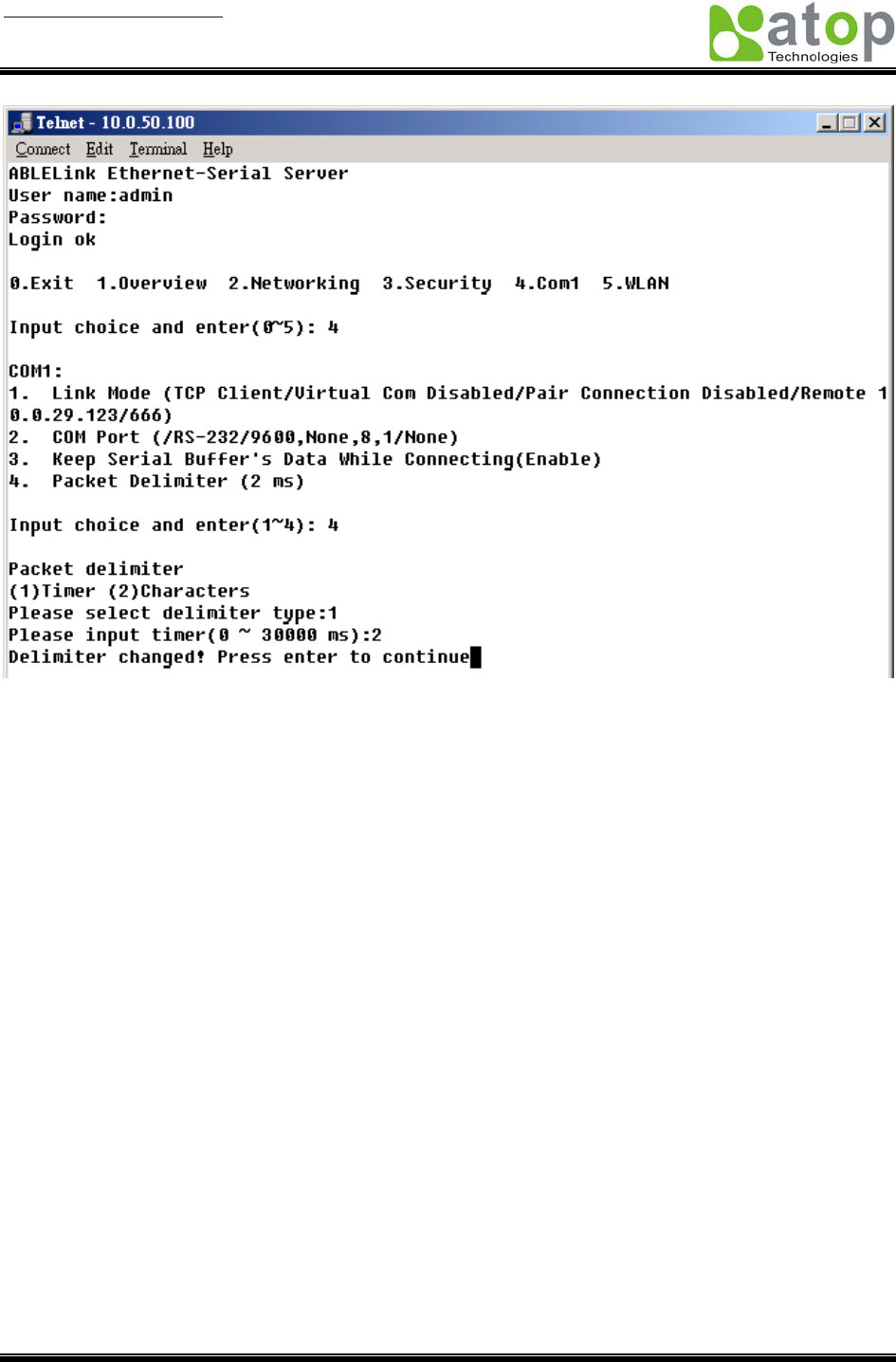

Setting packet delimiter

Packet delimiter is a way of controlling packets within serial communication. It can prevent packets from

being cut thus keep the packets complete. SW5001 provides two ways of parameter setting as inter

character timer and terminator. By default packet delimiter timer is 0 ms, you can change timer shown in

the following figure:

User manual Version 1.0

ABLELink Serial-Ethernet Server

SW5001

20 / 50

User manual Version 1.0

ABLELink Serial-Ethernet Server

SW5001

21 / 50

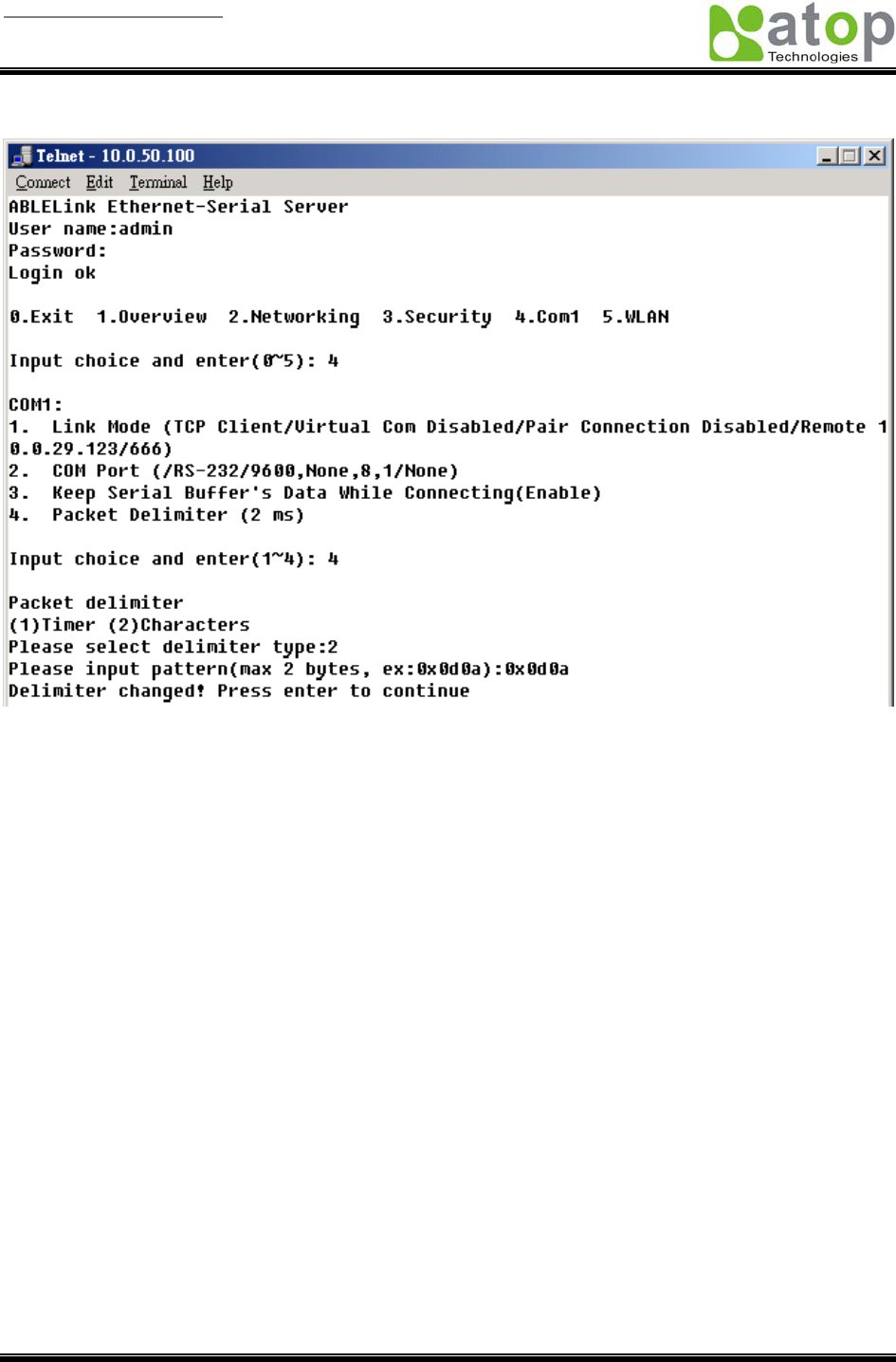

You can also choose character pattern as the packet delimiter indicated in the following figure:

Accessing Wireless LAN setting

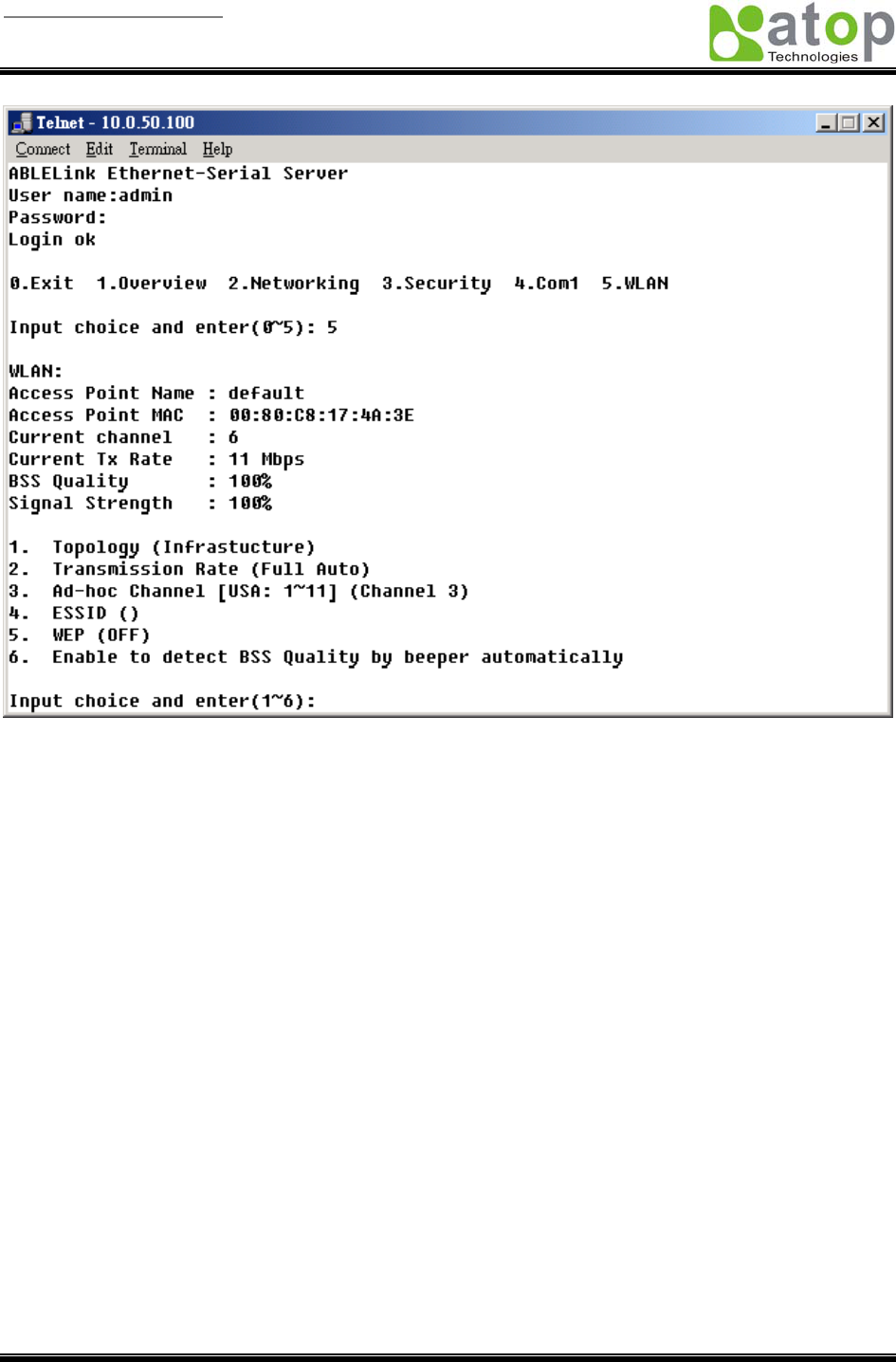

Select “5” from “Input choice and enter (0~5):” the following screen appears.

User manual Version 1.0

ABLELink Serial-Ethernet Server

SW5001

22 / 50

The above page gives you the general information about SW5001 wireless configurations including the

access point it connects to, the current channel and transmitting rate it communicates with the other

wireless devices, topology it uses, and what the ESSID (extended service set identifier) and WEP

(wireless encryption protocol) are if you use them.

User manual Version 1.0

ABLELink Serial-Ethernet Server

SW5001

23 / 50

Wireless LAN topology

You can choose either infrastructure or ad-hoc mode for SW5001 as indicated in the following figure:

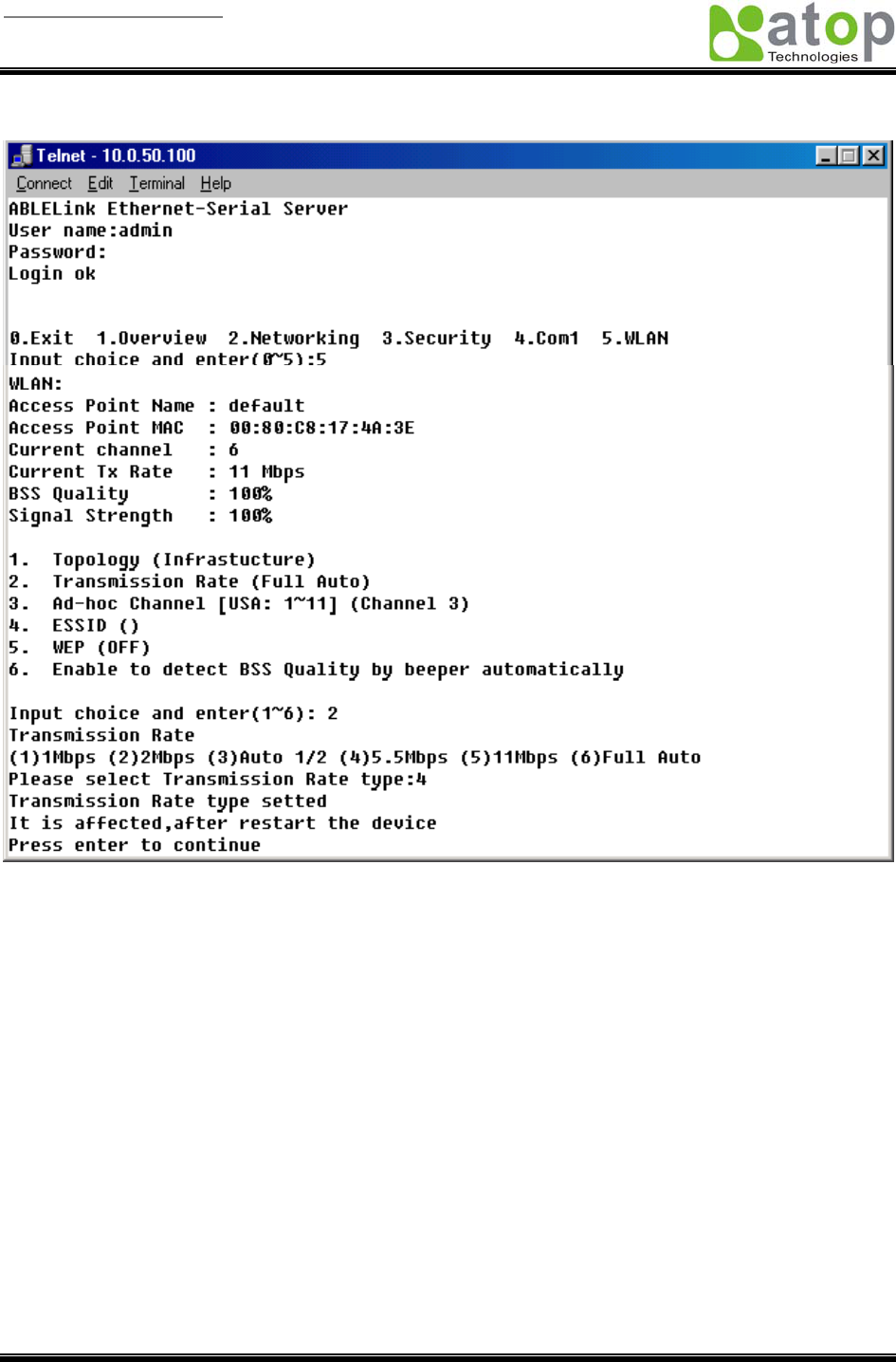

Wireless LAN Transmission Rate

You can set SW5001 transmission rate as 1 Mbps, 2Mbps, 5.5Mbps, 11Mbps, or full auto based on 802.11

standard shown in the following figure:

User manual Version 1.0

ABLELink Serial-Ethernet Server

SW5001

24 / 50

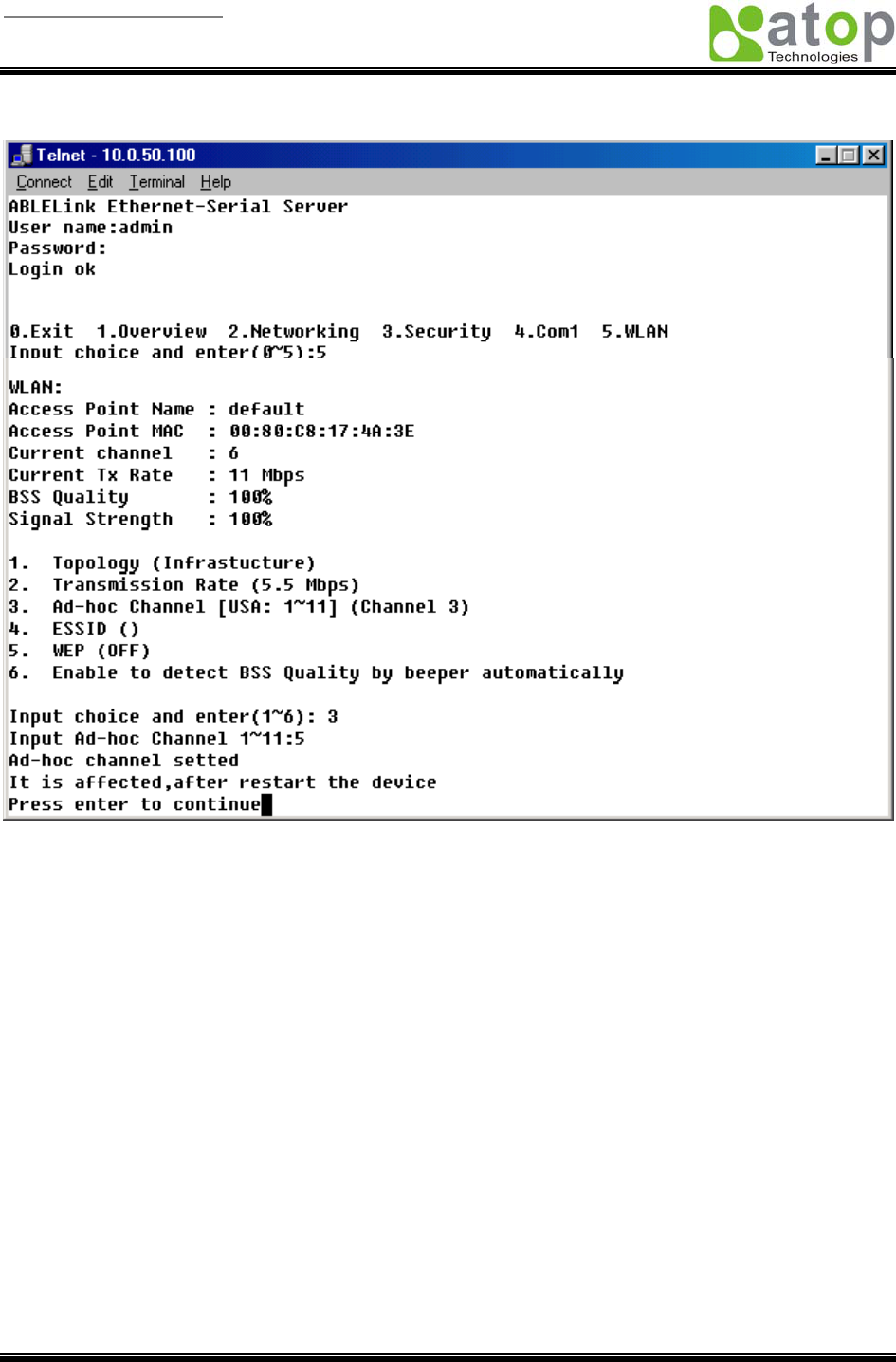

Wireless LAN Ad-hoc channel

You have to select the same channel for two wireless devices to talk to each other as indicated in the

following figure:

User manual Version 1.0

ABLELink Serial-Ethernet Server

SW5001

25 / 50

Wireless LAN ESSID

ESSID (extended service set identification) is used to identify all of the computers in the wireless LAN

system, it is different from BSSID (basic service set identification) which contains a single access point

(AP) and several other nodes. The following diagram illustrates this concept:

User manual Version 1.0

ABLELink Serial-Ethernet Server

SW5001

26 / 50

By default, SW5001’s ESSID is NULL meaning that it can connect to any access point it detects

regardless of SSID of the access point. However if there are two access points within the coverage of

SW5001, it will not connect to either of them, in this case you have to specifically input the ESSID of one

of the access points for connection. From telnet you can input ESSID as indicated in the following figure:

User manual Version 1.0

ABLELink Serial-Ethernet Server

SW5001

27 / 50

Wireless Encryption Protocol or Wired Equivalent Protocol ( WEP ) Setting

For security reason, SW5001 can set up to use WEP key of 40 bits or 128 bits to securely communicate in

the wireless network. Telnet WEP key set up screen is as following:

User manual Version 1.0

ABLELink Serial-Ethernet Server

SW5001

28 / 50

User manual Version 1.0

ABLELink Serial-Ethernet Server

SW5001

29 / 50

4.4 Configuration set by web browser

It is also possible to modify various settings through the web server interface. To do so, please follow the

steps below.

Log in to the system

1. From web browser, type in the IP address of SW5001 in the URL.

Example: http://10.0.50.100

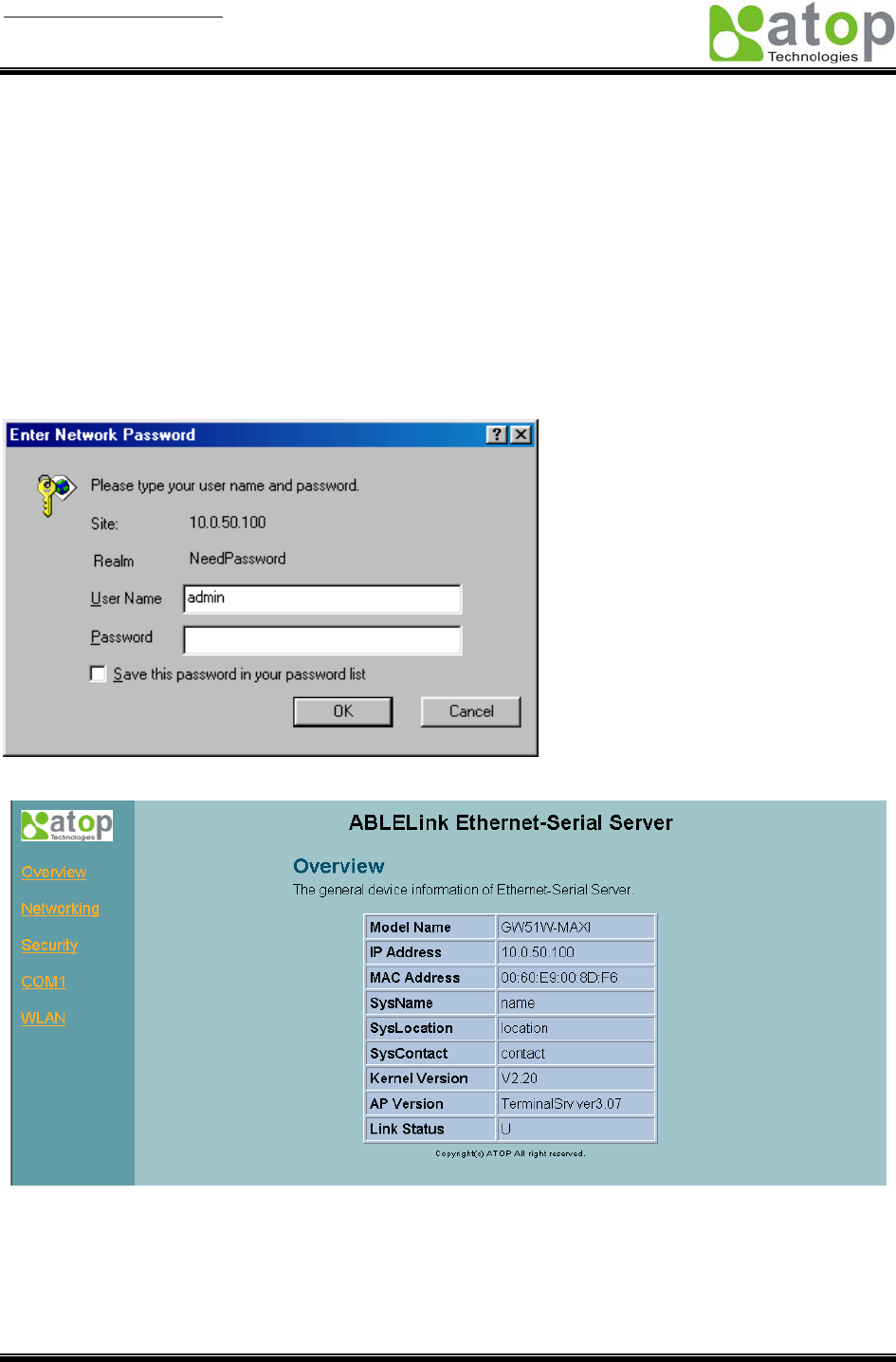

2. The following authentication screen appears. Please type in user name and password then click on

“OK”. The user name is admin and password is null by default.

3. The following overview page appears.

User manual Version 1.0

ABLELink Serial-Ethernet Server

SW5001

30 / 50

Change the password

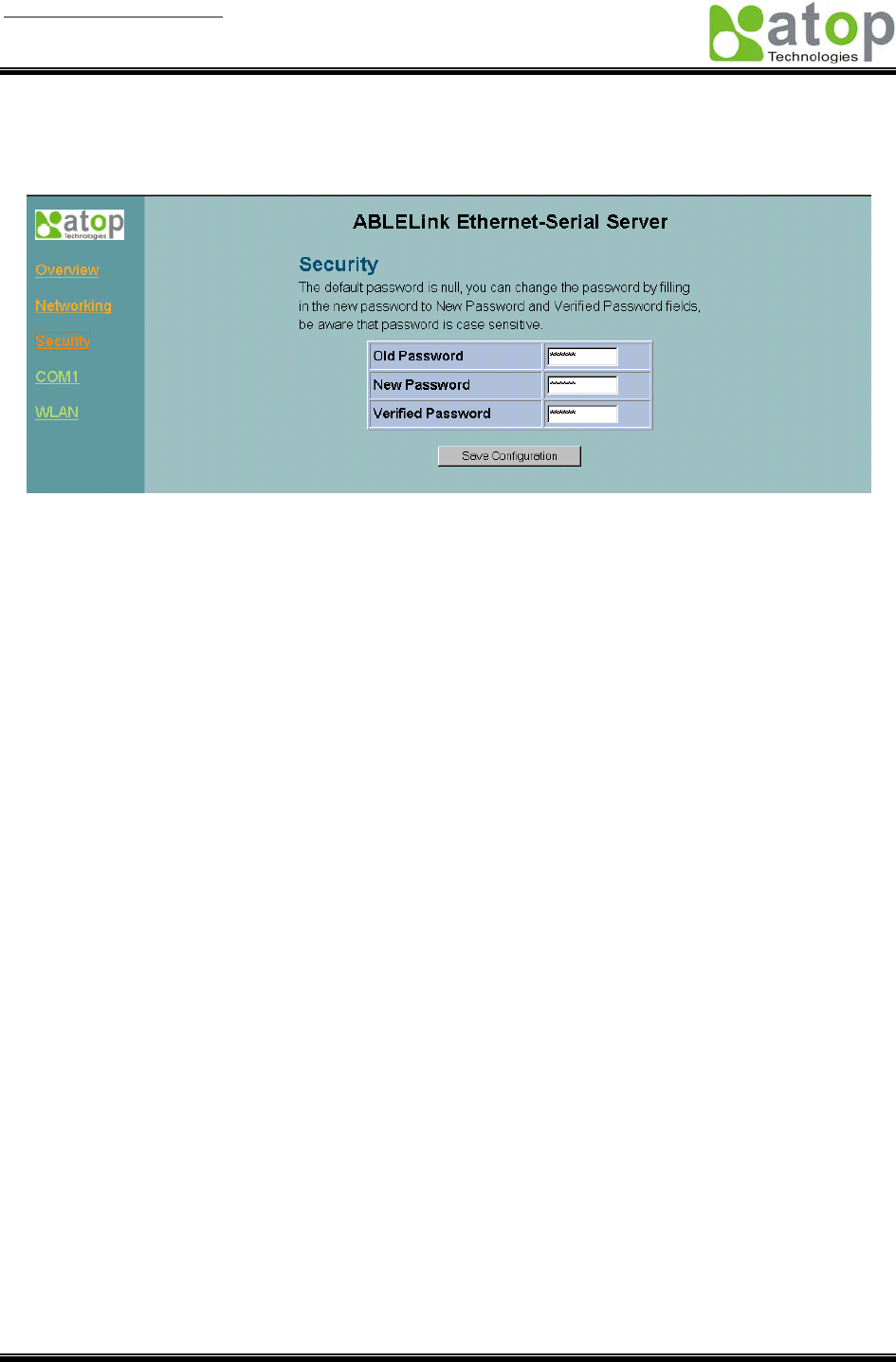

1. Click on the “Security” link and the following screen appears.

2. Please input the old password in the “Old Password” field, input the new password in the “New

Password” and the “Verified Password” fields. Then click on “Save Configuration” to update the

password.

Note: You can press the default key of product to reset password to the default value.

User manual Version 1.0

ABLELink Serial-Ethernet Server

SW5001

31 / 50

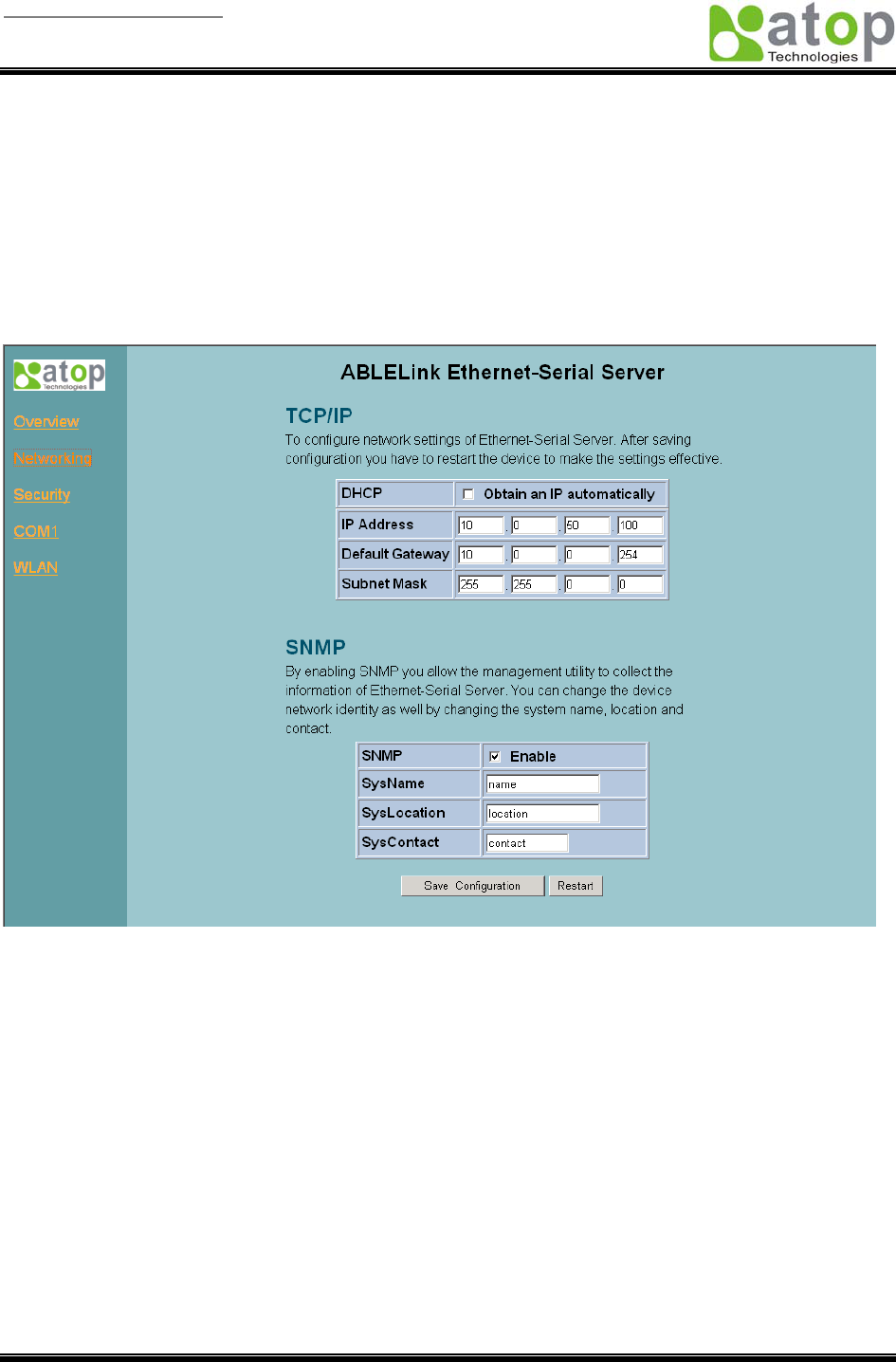

Network setup

Click on the “Networking” link and the following screen appears. Fill in IP information under TCP/IP field.

Alternatively, you can do the configuration by putting a check on DHCP to obtain auto IP address,

gateway and subnet mask information.

Enable SNMP by checking “Enable”, fill in network identification information under SNMP field and click on

the “Save Configuration” button to save the changes, please notice that the setting will not become

effective until you restart SW5001.

User manual Version 1.0

ABLELink Serial-Ethernet Server

SW5001

32 / 50

COM1 Setup

Click on the “COM1” link and the following screen appears. Fill in COM1 parameter information under

COM1 field then click on “Save Configuration” button to save the changes.

User manual Version 1.0

ABLELink Serial-Ethernet Server

SW5001

33 / 50

LINK1 Setup

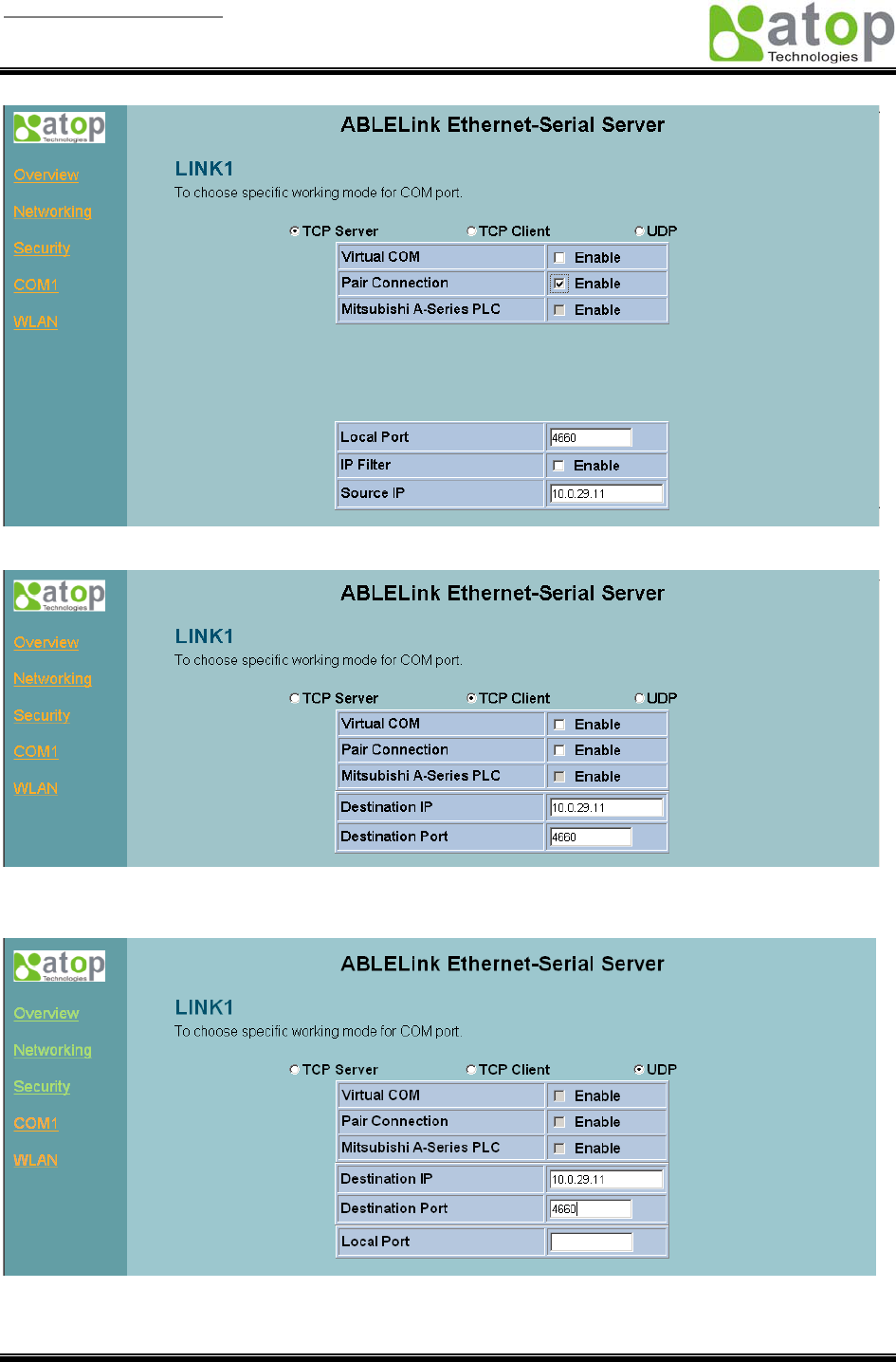

1. Click on the “COM1” link and the following screen appears, you can configure SW5001 as

transparent mode by default. Configure SW5001 as TCP server and the local port is 4660, IP filter is

disabled by default, if IP filter is enabled, only source IP 10.0.29.11 can connect to SW5001.

Configure SW5001 as TCP client, the destination IP is 10.0.29.11, destination port is 4660.

Pair Connection

In the case of the serial connection is established with two or more SW5001 to send data over Ethernet

network, i.e. pair connection mode, you can choose “pair connection” which is indicated in the following

figure to cope with any type of serial device.

User manual Version 1.0

ABLELink Serial-Ethernet Server

SW5001

34 / 50

Configure SW5001 as TCP client, the destination IP is 10.0.29.11, destination port is 4660.

Configure SW5001 as UDP mode. Local port is 666, destination IP is 10.0.50.100 and destination port is

4660.

2. Click on “Save Configuration” to save the changes.

3. If the update is successful, the following screen appears.

User manual Version 1.0

ABLELink Serial-Ethernet Server

SW5001

35 / 50

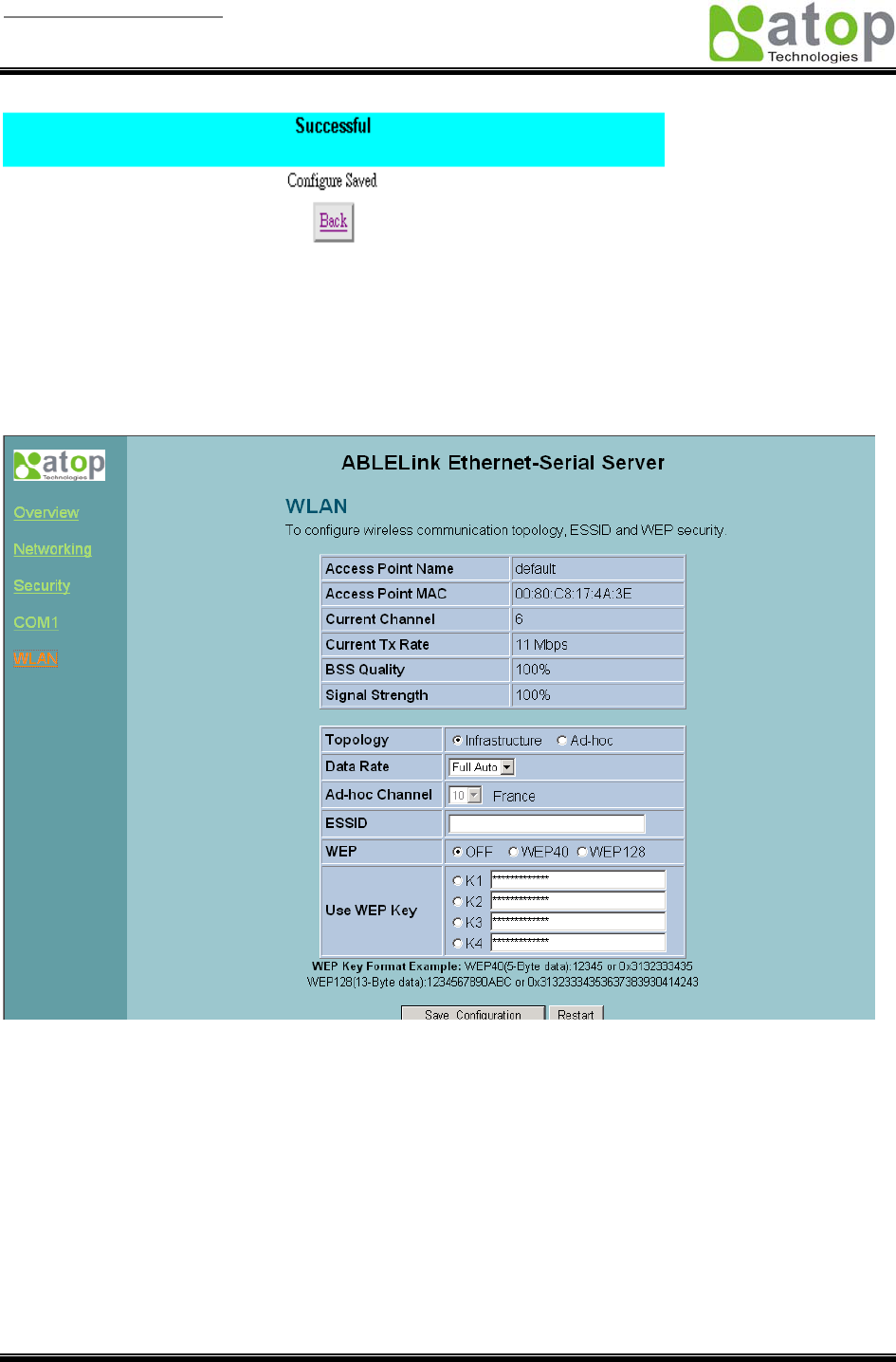

Wireless LAN Setup

You can configure wireless LAN parameters through web pages, the following page gives you the

information of the access point SW5001 is connected to, it also allows you to configure SW5001’s

wireless topology, ESSID and WEP security. In addition, the BSS Quality and Signal Strength will indicate

you the situation of signal.

User manual Version 1.0

ABLELink Serial-Ethernet Server

SW5001

36 / 50

4.5 Virtual COM Mode

Virtual COM driver mode for windows converts COM data to IP data to control the RS-232C port on a

SW5001 via the IP. By creating Virtual COM ports on the PC, Atop Virtual COM redirects the

communications from the Virtual COM ports to an IP address and port number on a SW5001 that

connects the serial line device to the network. The following figure is Atop Virtual COM connection

diagram.

Physical COM1

Physical COM2

COM3

(Virtual COM Port)

COM4

(Virtual COM Port)

COM5

(Virtual COM Port)

COM6

(Virtual COM Port)

OS Driver Level

COM256

(Virtual COM Port)

PC

:

HUB

TCP/IP Network

Serial Line

Serial Device 1

Serial Line

Serial Device 2

Serial Line

Serial Device 3

Serial Line

Serial Device 4

SW5001-WgN1

4.5.1 Setup of a Virtual COM driver

Pre-installation requirements

Please check the operation system on your PC complied with the following requirements:

• Processor: Intel-compatible, Pentium class

• Operation system: Windows Server 2003, Windows XP, Windows 2000, Windows NT 4.0

SP5 or later, Windows Me, Windows 98, Windows 95, Microsoft NT/2000 Terminal Server,

Citrix MetaFrame

• Windows Installer 2.0

• Network: Microsoft TCP/IP networking software

User manual Version 1.0

ABLELink Serial-Ethernet Server

SW5001

37 / 50

Applying to the serial server

Cautions on Use

Atop Virtual COM supports firmware AP v3.4 and above of ABLELink Wirless Serial Servers.

Limitation

Atop Virtual COM driver provides user to select up to 256 COM ports as Virtual COM ports in a

monitoring PC. User can select them from a list of COM ports, which is from COM1 up to COM256.

Installation

Make sure you have turned off all anti-virus software before beginning the installation. Run

AtopVcom.exe program included in the CD to install Atop Virtual COM for your operating system.

In the end of the installation, please select one or two COM ports to become the Virtual COM ports.

Uninstalling

1. From Windows Start menu select Setting, Control Panel, Add/Remove Programs.

2. Select Serial IP for ATOP in the list of installed software.

3. Click the Add/Remove button to remove the program, or From Windows Start menu select

Programs, Serial IP for ATOP, Uninstall Serial IP for ATOP to remove the program.

4.5.2 Virtual COM communication

4.5.2.1 Enable Virtual COM on SW5001

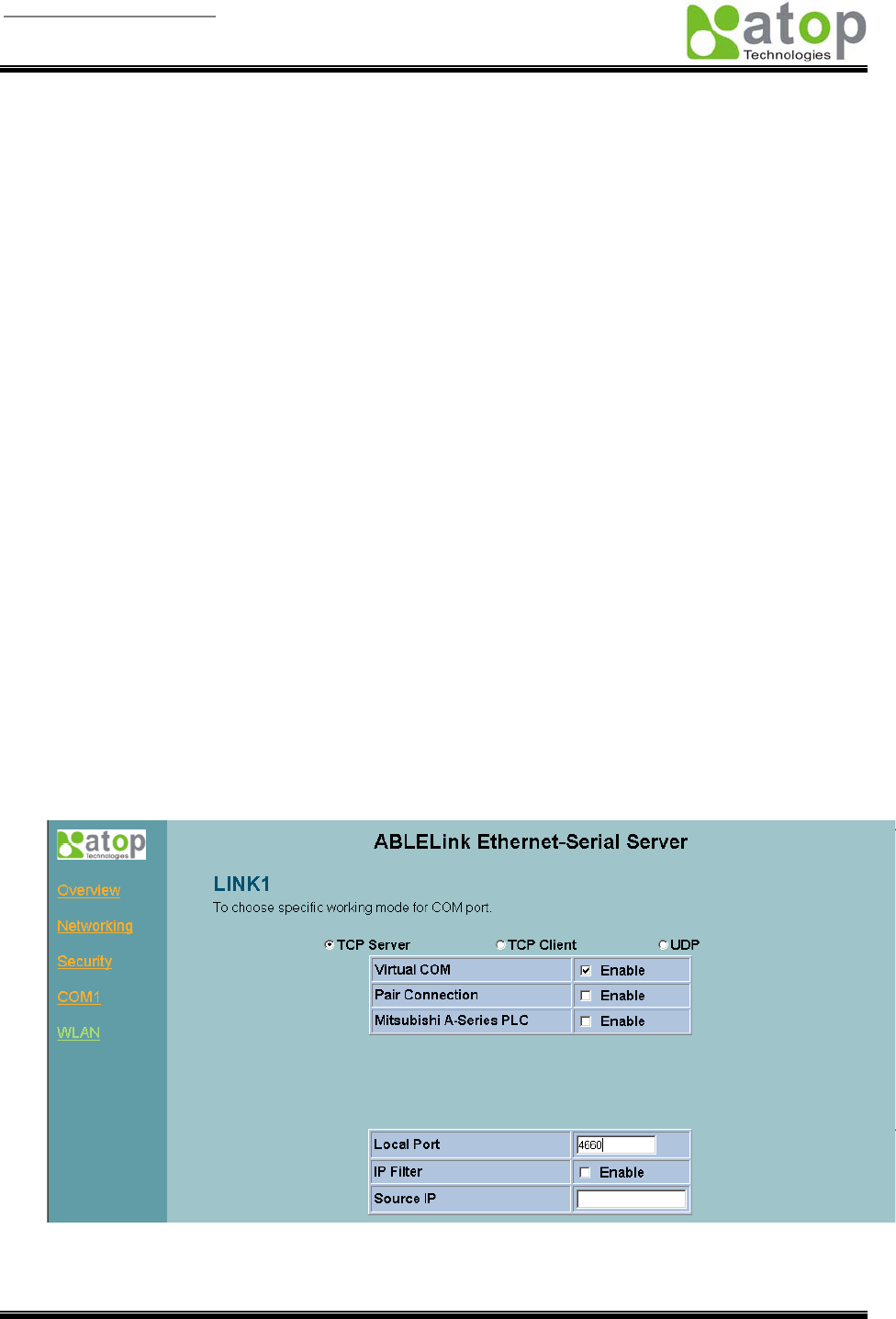

From web browser access to SW5001 by typing its IP address, click on COM1 link to access COM1

page, on the top half of the page click on “TCP Server” and enable Virtual COM by putting a check

in front of the “Enable” button, then type in the local port number in the “Local Port” field as

indicated in the following figure:

For the users of Mitsubishi A-Series PLC, it may be recommended to enable “Mitsubishi A-Series

PLC” in the case of some connection problems occurred.

User manual Version 1.0

ABLELink Serial-Ethernet Server

SW5001

38 / 50

Or you can enable Virtual COM through telnet configuration by setting COM1 as TCP server, and

type in the local port number for COM1, then enable virtual COM as shown in the following figure:

4.5.2.2 Run Serial/IP for ATOP program on monitoring PC

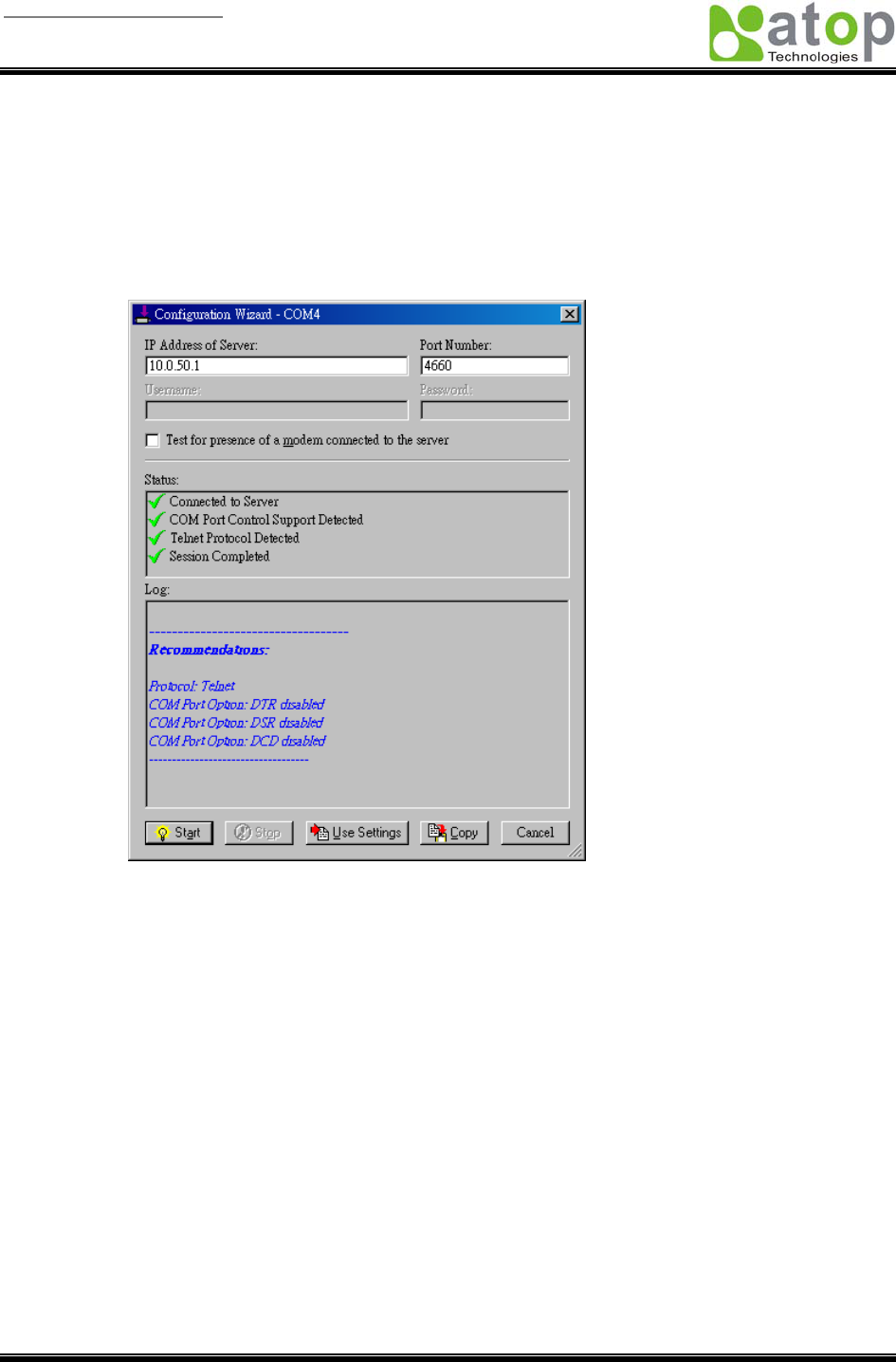

In the Window Start Menu, select the Serial/IP for ATOP program group and select Serial/IP for

ATOP Configuration. The configuration window is shown as following:

User manual Version 1.0

ABLELink Serial-Ethernet Server

SW5001

39 / 50

At right is a sample Virtual COM Control Panel window. At the left is the list of the COM ports that

you have selected (in the Select Ports window) for use by the Virtual COM Redirector. If you wish to

change which ports appear in this list, use the Select Ports button.

Each COM port has its own settings. When you click on a COM port, the Control Panel display

changes to reflect the settings for that COM port.

Note: When you change settings for a COM port, the changes are effective immediately. There is

no separate confirmation dialog to confirm or cancel your changes.

Configuring Virtual COM Ports

You configure each Serial/IP COM port as follows:

1. Select a COM port in the list.

2. For IP Address of Server, enter a numeric IP address for the serial server.

3. For Port Number, enter the TCP port number that the serial server uses to provide its

serial ports to the network.

4. For Server Credentials, the default is No Login Required. If your serial server does

require a login by the Virtual COM Redirector, the Virtual COM Redirector needs to provide

User manual Version 1.0

ABLELink Serial-Ethernet Server

SW5001

40 / 50

a username and/or password every time an application tries to use the serial server.

5. Click the Configuration Wizard button and then click the Start button that appears in the

wizard window. This important step verifies that the Virtual COM Redirector can

communicate with the serial server using the settings you have provided. If the Log display

does not show errors, click the Use Settings button in the wizard, which makes the

recommended settings effective and returns you to the Control Panel to continue with the

following steps.

6. For Connection Protocol, the setting must match the TCP/IP protocol that the serial

server supports. The Configuration Wizard is usually able to determine the correct setting.

7. For COM Port Options, the settings must match the COM port behavior expected by the

PC application that will use this COM port. The Configuration Wizard will recommend a

combination of settings.

5. SNMP Setup

5.1 SNMP Network Management Platform

Atop SW5001 is an SNMP device that allows many popular SNMP network management platforms such

as HP OpenView and SunNet Manager to conduct monitoring on the device.

Depending on the network management tools you are using, device (SW5001) information can be

collected from running the management tools including IP address, DNS name, system descriptions and

NIC information etc.

User manual Version 1.0

ABLELink Serial-Ethernet Server

SW5001

41 / 50

Appendix A: SW5001 Wireless Serial Server Specifications

A.1. Hardware Specifications

Specifications

CPU 150MHz RISC with MMU support

Memory Flash: 8MB /2MB for Bootloader / SDRAM: 16MBytes.

Interface Mini-PCI Slot (for Wireless Module)

Watchdog Hardware Watchdog Reset

Debug Port CPU Build in Com.

Wireless LAN Compliance for IEEE802.11b/g

WEP 64-bit/128-bit data encryption

WPA Compatible (TKIP/AES Encryption)

Mobile for Fast Roaming

Modulation Type: CCK, DQPSK, DBPSK, OFDM (11g)

Tx Power 11b: 14dBm / 11g: 13 dBm

Rx Sensitivity: -66 dBm @ 54 Mbps, -80 dBm @ 11Mbps

Transmission Rate: 54 Mbps (max.) with auto fallback

Transmission distance: Up to 300 meters (@12 Mbps, in open areas)

Antenna Connector: Reverse SMA

Topologies: Infrastructure, Ad-Hoc

Ethernet 10/100M LAN (for Redundancy & Configuration)

Protection: Built-in 1.5 KV magnetic isolation

Configuration with Telnet Protocol

Serial Port Support RS232/485/422 & Software Selection

Baud Rate: 1200~921Kbps

Parity Check: None/Odd/Even/Mark/Space

Data Length: 7/8 Bit

Stop Bit: 1/2

Flow Control: None/ Software/ Hardware: RTS/CTS

Terminal Block or DB9 Connector with 15KV ESD

Power Input: DC 9V-30V

Consumption: 4.5 W (Tx Mode)

Software Protocols: ICMP, IP, TCP, UDP, DHCP Client, Telnet, DNS, SNMP, HTTP,

SMTP, SNTP

Utilities: Windows utility for Windows 98/2000/XP/2003

Virtual COM for Windows 98/2000/XP/2003

User manual Version 1.0

ABLELink Serial-Ethernet Server

SW5001

42 / 50

Configuration Web browser

Telnet Console

Windows utility

Mechanical HxWxD: 90mm x 45mm x 75mm

Metal Housing for IP50 Standard

Environment Operating: 0 to 60°C (32 to 140°F), 5 to 95% RH

Storage: -20 to 85°C (-4 to 185°F), 5 to 95%RH

A.2. Software Specifications

Item Specifications

Protocol ICMP, IP, TCP, UDP, DHCP Client, Telnet, DNS, SNMP, HTTP, SMTP, SNTP

Configuration Configuration information for both TCP/IP and serial ports is kept in the

EEPROM.

Configuration utilities of Windows 95/98/2000/NT/XP/2003 are provided for

configuring settings.

Internal Buffer Size TCP receiving buffer size = 8K bytes

TCP transmitting buffer size = 16K bytes

RS-232/RS-485 receiving buffer size = 4K bytes

RS-232/RS-485 transmitting buffer size = 4K bytes

A.3 Connector Pin Assignments

A.3.1 COM Port

1. 8 pin Mini DIN connector

User manual Version 1.0

ABLELink Serial-Ethernet Server

SW5001

43 / 50

Pin assignments of Mini DIN connector is shown in the following table:

Pin# RS-232

Full Duplex

RS-485

2 wire, Half Duplex

RS-485

4 wire, Full Duplex

1 DCD N/A N/A

2 RXD N/A

RxD/T+

3 TXD

TxD/R+ TxD/R+

4 DTR N/A (reserved) N/A

5 SG (Signal Ground) SG (Signal Ground) SG (Signal Ground)

6 DSR N/A N/A

7 RTS

RTS/R- RTS/R-

8 CTS N/A

CTS/T-

9 N/A N/A(reserved for Atop

devices)

N/A

Atop provides Mini DIN connector to DB9 connector cable, the pin assignments of DB9 connector is

shown in the following table:

Pin# RS-232

Full Duplex

RS-485

2 wire, Half Duplex

RS-485

4 wire, Full Duplex

1 DCD N/A N/A

2 RXD N/A N/A

3 TXD

DATA- RXD-

4 DTR N/A (reserved)

TXD-

5 SG (Signal Ground) SG (Signal Ground) SG (Signal Ground)

6 DSR N/A N/A

7 RTS N/A N/A

8 CTS

DATA+ RXD+

9 RI N/A(reserved for Atop

devices)

TXD+

Note that RS-485 2 or 4 pins assignments of DB9 connector are different from those of Mini DIN connector.

User manual Version 1.0

ABLELink Serial-Ethernet Server

SW5001

44 / 50

2. Terminal Block Connector

RS-485 only uses RTS/R- and TxD/R+ for data communication while RS-232 or RS-422 uses RTS/R-,

TxD/R+, CTS/T- and RxD/T+ for communicating data.

A.3.2 Power terminal block connector

User manual Version 1.0

ABLELink Serial-Ethernet Server

SW5001

45 / 50

A.4 LED Indication for Link Status

A.4.1 Detect SW5001 startup

“ ^ “ : Beep twice

“ = “ : Beep off

Message Description

^==^========^^^

(5sec)

Startup OK and AP firmware is enabled

Table 1. Buzzer indication

A.4.2 Detect SW5001 Signal Strength

The BSS quality can be detected by LED indication in SW5001.

Run-time

When run-time, if the default key is pressed and then released, one of the specified actions will be down

depending on the released time after you heard how many beeps.

BSS quality is indicated by count of LEDs, which is shown as bellowed:

Blink RED There is no signal detected

One RED The quality is between is 0%~20%

2 LEDs The quality is between is 20%~40%

3 LEDs The quality is between is 40%~60%

4 LEDs The quality is between is 60%~80%

5 LEDs The quality is between is 80%~100%

LAN LED

Message Description

LED Off No data is transmitting on Ethernet

LED blinking Data is transmitting on Ethernet

Table 2. LAN LED Message

COM Port LED

User manual Version 1.0

ABLELink Serial-Ethernet Server

SW5001

46 / 50

Message Description

LED off No data is transmitting on COM port

LED on blinking state Data is transmitting on COM port

Table 3. COM Port LED Message

RUN LED

Message Description

LED on Jumper JP7 and JP8 are short to disable AP firmware in the flash memory.

LED blinking (rate: 0.5Sec) AP firmware is running

Table 4. RUN LED Message

User manual Version 1.0

ABLELink Serial-Ethernet Server

SW5001

47 / 50

Appendix B Configuration Utility

The configuration utility monitorXX.exe (XX: Version number) comes with the product CD or diskette is

the main utility program to demonstrate and configure SW5001’s settings.

D.1 Run the utility

Start the program under environment and the following window appears.

D.2 Detect Operational Devices

You may do the following steps to detect devices currently available on the network.

1. Start monitorXX.exe utility program.

2. Select an item from the Broadcast IP list.

3. Specify a number in the Wishes box.

4. Click on the Invite button. This will display all the devices information you have requested.

D.3 Configure Devices

You may use monitorXX.exe configuration utility to configure the settings of devices on the network. To

do so, please follow the steps below.

1. Repeat the steps in the section of D.2 to bring up the devices information.

2. Select the device you want to configure from the IP Address column, click on the Config button, a

configuration window will popup as shown in Figure D2:

User manual Version 1.0

ABLELink Serial-Ethernet Server

SW5001

48 / 50

3. After you click the “Configure Now” button, the target device will return an ACK message indicating

the modification is successful as shown in the following:

Please note monitor25.exe version 2.5 and above requires gw21le.dll library to function properly.

User manual Version 1.0

ABLELink Serial-Ethernet Server

SW5001

49 / 50

The following table lists the functional descriptions for all the fields.

Field Name Field Descriptions

Broadcast IP Except for the default IP 255.255.255.255, other items (IPs) are read from the file

“seg.cfg”. This field specifies a detecting IP range. It may be a designated IP or a

broadcast IP.

Wishes Specifies minimum number of the devices you wish to get reply from after sending an

Invite request. If there is not as many as devices responding to your invitation, the

system repeatedly sends invitation until your request is fulfilled.

Reply Indicates the actual number of devices this utility program detected.

Retry Specify the number of times that an Invite request is re-sent.

Locate Locate the specified device.

Reset Reset the selected device.

Config Configure the selected device.

Exit Exit this utility.

IP Address Indicate the IP address of the device that replied to your request.

 Leading tag “!” stands for IP address collision, possibly caused by duplicated IP

addresses on the network.

 Leading tag “?” stands for Mac address collision, possibly caused by duplicated

Mac addresses on the network.

MAC Address Indicates the MAC address of responding device.

Gateway Indicates the IP address of the gateway.

Subnet Mask Indicates the TCP/IP network mask.

OS Indicates the OS version of the responding device.

AP Version Indicates the AP version of the responding device.

Model Indicates the model number of the responding device. This field is only available for

monitor.exe version 2.0 and above.

ATOP Technologies SW5001-WGN1 Wireless Serial Server User Manual Manual

ATOP Technologies, INC. Wireless Serial Server Manual

Manual

Navigation menu

Namespaces

Views

Navigation
